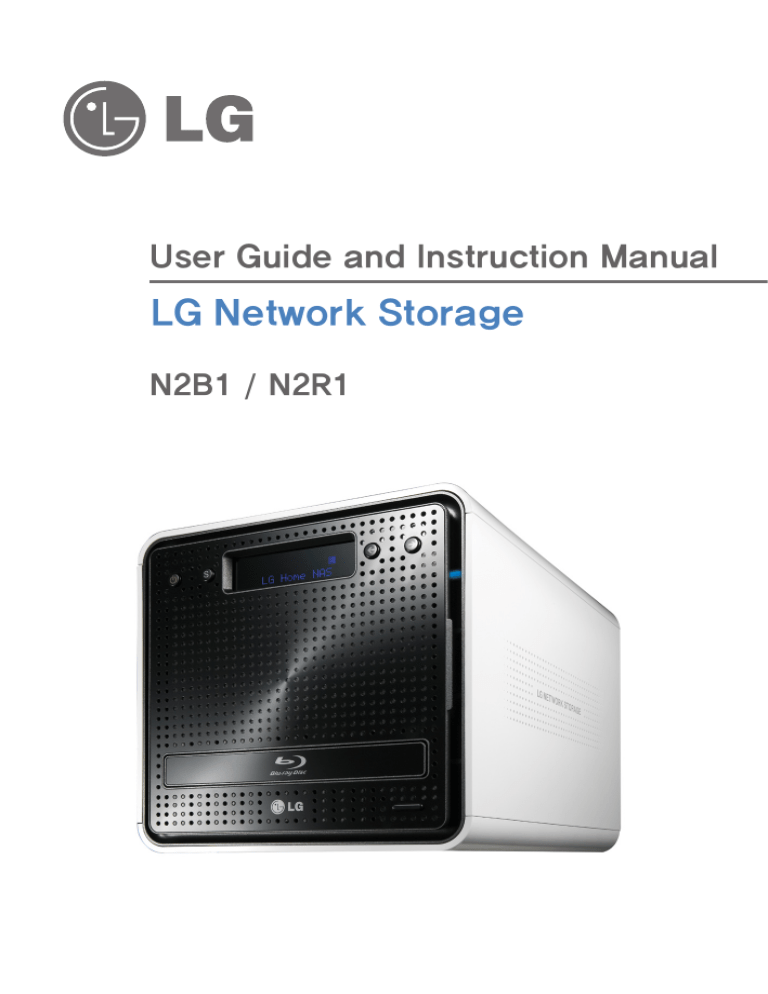

User Guide and Instruction Manual
LG Network Storage
N2B1 / N2R1
Safety warning
Safety warning
Note
1
2
3
4
Do not place any objects within 15cm of the unit.
The unit reaches high temperatures creating the risk of burn injuries.
Only use compatible devices with the system ports, or the system and devices
risk being damaged.
Do not use damaged disks. Product can be damaged.
Do not dismantle or change the structure of the system in any way. This may
cause electric shock.
When dealing with system components, strictly abide by the instruction manual.
5
Physical contact with the soldering on the backside of components may cause
severe injury.
When transporting the system, first turn off the system and disconnect the unit
6
from the power source. Sudden tension in cables can cause severe damage to
the system. Loose cables can cause injury.
Take caution when handling the system so as not to corrupt the hard disk data.
- Take caution not to bump or expose the system to extreme temperatures, as it
may damage the sensitive hard disk.
7
- Take caution when turning on the electricity, as during this time any external
bumps to the system may corrupt the hard disk data.
- The manufacturer disclaims all responsibility for loss of hard disk data.
Safety warning
Related to damage to the HDD and data:
- during installation or disconnection of the system, ensure that the system
does not experience any external physical shocks.
- During the operation of the HDD, short surges and stoppages of power may
cause the system to turn off and on quickly.
- there may be a sudden stoppage of electricity during operation
- avoid moving the system during operation of the HDD, which may cause
8
external physical shock
- during the configuration of new volumes.
i) if during use, existing volumes are deleted and new volumes are created,
data will be lost.
ii) Before configuration of new volumes, each user must back up data, as well
as when creating new volumes, to ensure the possibility of restoration.
– e.g. virus infections.
※ Always back up hard disk data to avoid accidental data loss.
In the event of the administrator forgetting the password, restoration is
impossible. Hence safeguard the password.
9
※ To create a new password, the system must be re-initialized. In this case, all
data will be lost, and data recovery will be impossible, for security reasons.
The manufacturer disclaims all responsibility in the event of this occurrence.
10
In the event of the cover being removed during operation, the user risks
electric shock, injury, and damage to the system.
Safety warning
Warning
1
2
3
4
5
6
7
8
Do not use damaged electrical cords. This may cause electric shock, and is a
fire hazard.
Use a grounded cord and grounded socket to avoid electric shock and damage
to components.
Do not handle the electrical cord with wet hands, as this may cause shock and
injury.
When removing the plug from the socket, ensure that the plug is handled and
not the cord. Otherwise this may cause damage to the plug and even fire.
Always check and use correct voltage to avoid electric shock, severe damage
to the system, and fire.
Always use grounded cords and grounded sockets with correct capacity
(voltage / current) to avoid the danger of damage, electric shock, and injury.
In the event of noise emanating from the electrical cords or sockets, to avoid fire
and injury immediately disconnect, and contact the service centre.
Ensure that electrical cords are correctly plugged into the sockets to avoid fire.
Ensure that electrical cords are not damaged or do not have heavy objects
9
placed on them. Keep electrical cords away from children and pets. Damaged
cords may cause electrical shock or fire.
10
Keep the power cords and sockets clean at all times to avoid fire and electrical
shock.
In the event of moisture entering the system, immediately disconnect the
11
power and contact the service centre, to avoid the danger of system damage,
electrical shock, and fire.
12
13
14
Do not block vents, as this will cause system damage.
Prior to cleaning the system, always disconnect the power, to avoid damage and
electric shock.
In the event of lighting and thunderstorms, immediately physically disconnect
the system from any power source, to avoid damage to the system.
Safety warning
In the event of dropping the system, contact the service centre for advice and
15
possible service. Not doing this creates the risk of damage, fire and electric
shock.
16
17
18
Keep the system away from direct sunlight to avoid overheating, and melting of
the case, which may eventuate in fire and injury.
Do not place flammable objects, candles or cigarettes on the system, as this
may cause fire
In the event of a burning smell or smoke emanating from the system,
immediately disconnect the power, and contact the service centre.
Keep heating devices and other electrical components at a distance from the
19
system to avoid case melting, and hence the danger of damage, fire, and
electric shock.
20
21
Before disassembling the system, always ensure physical disconnection of the
electrical cable from the socket.
Do not disassemble the power supply, to avoid the danger of electric shock.
Keep children away from the system, as consuming any parts will cause serious
22
injury. In the event of swallowing any parts, such as screws, immediately seek
medical treatment.
Ensure that multipoint power sockets are not overloaded, to avoid the danger
of fire and electric shock. Ensure that cords are always neatly arranged and
23
are not trapped under the system or other heavy objects. When connecting and
disconnecting the electrical cord, take care in handling the socket to avoid the
danger of electric shock.
24
25
Ensure that there are no loose or exposed metallic objects inside the case, to
avoid the danger of damage, fire and electric shock.
Ensure that hands are never used, to avoid damaging the system and electric
shock. Always use screw drivers for work inside the system.
Contents
Contents
Safety warning...................................................... 2
1. Introduction.....................................................10
LG Network Storage Introduction.........................................10
Supported OS...................................................................11
Package Contents.............................................................12
Name of Each Part.............................................................13
2. LG Network Storage Installation..........................14
Hard disk installation and setup ..........................................14
‘LG Network Storage Installer’ installation (LG Network Storage
system file installation,volume and RAID configuration)...........18
LG Network Storage Connection..........................................20
‘LG Network Storage PC S/W Installer’ installation (PC
Application program installation and usage)..........................21
PC application program installation............................................. 23
PC Application Program Usage.................................................. 24
3. LCD panel and front button usage.......................32
Power Off / On (POWER button)...........................................32
Icon Description....................................................................... 33
Action set-up (‘←’, ‘→’ buttons)..........................................34
Information Mode..................................................................... 35
IP SETTING MODE.................................................................... 37
USB Back-up Mode.................................................................. 39
ODD Backup Mode................................................................... 41
Backup data on discs using LG Network Storage (ODD Backup)................41
Hibernation Mode...............................................................................44
Tray open / close (DISC OPEN button)..................................45
Contents
4. L
G Network Storage Web Menu Use (for LG Network
Storage administrators).....................................46
System Settings.................................................................46
Network.................................................................................. 46
Host.................................................................................................47
Interface...........................................................................................47
Workgroup/Domain............................................................................50
Remote Access........................................................................ 51
DDNS (Dynamic DNS)..........................................................................51
Date & Time............................................................................. 53
Date and Time Setup...........................................................................53
NTP Set-up.......................................................................................54
Mail Notification....................................................................... 54
Volume Set-up........................................................................ 56
Volume Configuration..........................................................................56
Add disk...........................................................................................58
Remove disk......................................................................................59
Hot Swap..........................................................................................59
Trahsbox...........................................................................................60
Selective Mirror (Selective data protection for folders) . ................ 61
Add Selective Mirror List.....................................................................61
Edit Selective Mirror List......................................................................62
Delete Selective Mirror List..................................................................62
Use Selective Mirror...........................................................................62
Conditions.........................................................................................63
Power..................................................................................... 63
Hibernation Setup...............................................................................64
UPS Power Setting..............................................................................65
Hibernation Mode On/Off.....................................................................66
Language Setting..................................................................... 70
Firmware................................................................................. 71
Upgrade............................................................................................71
Initialization.......................................................................................73
Configuration Back-up........................................................................74
Contents
LG Network Storage Share Management...............................76
User....................................................................................... 76
Group..................................................................................... 78
Folder.................................................................................... 80
Blu-ray / DVD...................................................................82
Burning................................................................................... 82
Service............................................................................86
DLNA(Digital Living Network Alliance) ........................................ 86
Network Server........................................................................ 90
FTP..................................................................................................90
AFP..................................................................................................92
Network Printer........................................................................ 93
iTunes.................................................................................... 97
Time Machine.......................................................................... 99
[Web Set-up].....................................................................................99
[Mac OS].........................................................................................101
iSCSI.....................................................................................103
[iSCSI Initiator Installation].................................................................103
[Server Synchronization]...................................................................104
[iSCSI Connection]...........................................................................104
Torrent..................................................................................113
[Download]......................................................................................113
[Use]..............................................................................................113
[Set-up]..........................................................................................114
USB Sync....................................................................... 115
USB Device & Memory Card.....................................................115
Information..................................................................... 120
Status....................................................................................120
Log.......................................................................................122
Top menu ...................................................................... 124
WebDAV................................................................................124
My Information........................................................................126
Contents
5. L
G Network Storage web menu usage
(Regular users)............................................... 127
Blu-ray / DVD................................................................. 127
Burning..................................................................................127
Top menu ...................................................................... 131
My Information........................................................................131
6. LG Network Storage via network drive............... 132
Accessing the LG Network Storage data in Windows OS........ 132
MAC OS connection......................................................... 136
Linux OS access.............................................................. 139
7. LG Network Storage Maintenance..................... 142
LG Network Storage shut down/restart............................... 142
Administrator password and network set up initialization....... 143
System information checking and saving............................. 144
Self-diagnosis execution.................................................. 144
System failure or malfunction............................................. 145
Power cut or failure.......................................................... 145
System temperature protection.......................................... 145
8. RAID trouble shooting...................................... 146
Appendix A Volume Construction & RAID Configuration........ 148
Appendix B Technical Support.......................................... 152
Appendix C Open source software notice........................... 153
Appendix D Compatible/Recommended Device List............. 159
1. Introduction
1. Introduction
LG Network Storage Introduction
Thank you for purchasing the LG Network Storage.
1) Now the LG Network Storage basic data-save and share functions can be used in
Windows, Mac and Linux operating systems.
2) Similarly, the internal Blu-ray / DVD rewriter can be used to efficiently save data
securely for long periods.
3) Furthermore, the Blu-ray / DVD drive can be used when directly copying data from
discs to LG Network Storage.
10
1. Introduction
4) The LG Network Storage also allows for mobile synchronization, without the use of a
PC, as mobile devices can be directly synchronized to the LG Network Storage.
This user manual contains express installation information as well as detailed options
and functions.
Supported OS
LG Network Storage
∙ Windows XP, Server 2003, Vista
∙ Mac OS 10.x or later
∙ Linux (Redhat, Suse, Ubuntu)
PC S/W
PC S/W
Supported OS
NAS Detector
Windows XP, Server 2003, Vista, Mac OS 10.x or later
NAS Monitor
Windows XP, Server 2003, Vista
Comnso Backup
Windows XP, Server 2003, Vista
Photo DVD Album
Windows XP, Server 2003, Vista
CyberLink
Windows XP SP2 or later, Vista
Acrobat Reader
Windows, Mac
Flash Player
Windows, Mac
11
1. Introduction
Package Contents
∙ LG Network Storage
∙ Product warranty
∙ ‘LG Network Storage PC Software
Installer’
∙ Quick install guide
Quick install guide
LG Network Storage
N2B1 / N2R1
∙ Power cord and adaptor
∙ LAN cable
∙Hard disk fastening screw (x8) –
enclosure only
* Photographs of images from the manual may differ depending on model components.
12
1. Introduction
Name of Each Part
<Front>
②
⑤
⑥
<Back>
⑦
⑧
③
④
①
②
①
⑨
⑪
③
④
⑦
⑤
⑩
⑥
① USB port: USB 2.0 interface
② LAN port: LAN cable connection.
③e-SATA: External SATA II device
support
④ DC jack: Power adaptor connection
⑤ Fan
⑥ Kensington lock: Antitheft lock
⑦Adaptor cable holder: Prevents the
adaptor cable from unplugging.
①Power button: power on, off (to
turn off power, hold button in for 3
seconds without release).
②SET (S) button: selects mode.
Pressing the SET button at waiting
mode allows a quick view of the IP
information. Button is used to change
number setting during IP set-up
③Left arrow button (<-): navigates
menu, moves cursor for IP settings
④Right arrow button (->): navigates
menu, moves cursor for IP settings
Mode button: changes mode
⑤Memory card reader: supports SD,
MMC, MS and XD
⑥Memory card Current state display
LED: - Blue : running correctly
⑦ USB port: USB 2.0 interface
⑧ LCD window: displays current state
⑨HDD/ODD state display LED:
- Blue : running correctly
- Red : abnormal state
⑩Disk Open button: opens/closes
optical disc drive tray
⑪Blu-ray/DVD Drive
13
2. LG Network Storage Installation
2. LG Network Storage Installation
Follow these instructions to install the LG Network Storage. If the LG Network Storage
is internal, go to <Hard disk installation and setup>, otherwise go to <LG Network
Storage connection>
Hard disk installation and setup
The LG Network Storage hard disk rack is shown below. Refer to each part while
installing the HDDs.
Components of Hard Disk Rack
Hard Disk
Rack Lever
Hard Disk Rack
Lock Button
Hard Disk Rack
Label No.
Note) If the disk sizes differ, the RAID configuration will use the smallest
disk as a reference to measure all disk sizes, therefore the remainder can
not be utilized and durability decreases.
14
2. LG Network Storage Installation
① First, ensure that the power is off.
② Open the front cover of the LG Network Storage main system.
③ Unlock the hard disk rack by pushing the lock button upward.
④ Hold down the hard disk rack lever and pull the hard disk rack to separate it from
the main system.
⑤ Insert the hard disk into the hard disk rack, and with a screw driver, screw the four
screws into place.
* If the Hard disk has been in use, all the data on it will be lost.
15
2. LG Network Storage Installation
⑥ Match the hard disk rack label number and the LG Network Storage front panel
number, to insert the hard disk rack into the slot.
⑦ Push the hard disk rack into the LG Network Storage main system until it makes a
click.
16
2. LG Network Storage Installation
⑧ To prevent accidental detachment of the hard disk rack, push down the lock button.
⑨ Similarly repeat the installation procedure for all the hard disks, one by one.
17
2. LG Network Storage Installation
‘LG Network Storage Installer’ installation (LG Network
Storage system file installation,volume and RAID
configuration)
① Connect the enclosed power adaptor to the DC jack. Plug the “power cord” into an
electrical outlet.
Once the power adaptor is connected to the DC jack, connect the power cord to the
outlet.
② While holding down both ‘<-‘ and ‘->’ buttons, press the POWER button once.
Once the “Enclosure_Mode” message pops up, let go of the arrow buttons.
9
③ Once “Enclosure mode” is complete, the LG Network Storage will automatically
reboot itself.
In the case that the power shut down abnormally before the system successfully
reached “Enclosure mode,” please return to step 2 and re-run “Enclosure mode.”
18
2. LG Network Storage Installation
④ System loads system files as it reboots. LG Network Storage shall not be accessed
during the system reboot process.
⑤ After approximately 60 seconds, system reboot is completed with a light alarm
sound. (In the case that network connection has been activated)
⑥ All basic installation required for running the LG Network Storage has been
completed.
In order to configure the volume required for storage of the LG Network Storage user
data, please refer to Chapter 4 and use the web.
*
At RAID configuration, the hard drive number and size will determine the RAID
configuration time.
Total HDD Capacity
System File
Installation
Volume and RAID
[Individual disks]
Volume and RAID
[RAID 1]
500GB (250 GB * 2)
Approx. 10
minutes
Approx. 5
minutes
Approx. 1 hour
1TB (500 GB * 2))
Approx. 10
minutes
Approx. 10
minutes
Approx. 1-2 hour
2TB (1 TB * 2)
Approx. 10
minutes
Approx. 20
minutes
Approx. 4-5 hour
Note: It is recommended not to use the LG Network Storage while RAID
configuration, as this will cause retardation.
*
If the Hard disk has been in use, all the data on it will be lost.
19
2. LG Network Storage Installation
LG Network Storage Connection
In an environment with a DHCP server, selecting automatic IP search after connecting
the LG Network Storage to the IP router/switch/hub will acquire the network information
from the DHCP server. For a particular IP address allocated from the Network IP
administrator, installation using an IP address, subnet mask, default gateway and
allocated DNS information is simple.
① Using the included LAN cables, connect LAN ports on LG Network Storage and
network devices(home router/router/switch/hub) to each other or directly plug
them into the LAN port on the PC.
A.If the network component (home router/router/switch/hub) is used to connect
the LG Network Storage (home router/router/switch/hub) to the PC, use the
following
Internet
LG Network Storage
home router / router
/ switch / hub
Desktop PC
Notebook
B.
If the LG Network Storage is connected directly to the PC without another
network device,
it must be connected directly to the PC using a LAN cable, the LG Network
Storage IP must be set to DHCP, the PC’s IP set to automatic setting and the
network will be automatically set up after approximately 2 minutes
LAN Cable
Desktop PC
LG Network Storage
20
2. LG Network Storage Installation
* If the LG Network Storage is directly connected to the PC through a LAN
cable, the PC’s local internet will not be accessed In this case, PC Internet
may be disconnected.
② After checking that the LG Network Storage power cable has been connected,
press the power button in the front to activate the LG Network Storage.
‘LG Network Storage PC S/W Installer’ installation (PC
Application program installation and usage)
The “LG Network Storage PC Software Intaller” CD enclosed with the LG Network
Storage product purchased includes the following programs:
1. NAS Detector
The “NAS Detector” quickly and easily detects the LG Network Storage on the
user’s network.
2. NAS Monitor
The “NAS Monitor” allows real-time access to the status of LG Network Storage and
scheduled back-up programs
3. Comnso Backup
The “Comnso Backup” program allows real-time or scheduled back-ups of
important data from the client’s PCs to the LG Network Storage. Files backed up
may be recovered any time for use as necessary.
4. CyberLink
CyberLink helps utilizing the ODD of the LG Network Storage.
5. Photo DVD Album
The Photo DVD Album program is a search program of all media files stored within
the user’s PC or the LG Network Storage. It also provides functions to burn media
or play movies
21
2. LG Network Storage Installation
Available programs for installation may vary depending on user’s OS environment
Program
Supported Operating System
Windows
Mac
Linux
Acrobat Reader
O
O
-
Flash Player
O
O
-
NAS Detector
O
O
-
NAS Monitor
O
-
-
Comnso Backup
O
-
-
CyberLink
O
-
-
Photo DVD Album
O
-
-
22
2. LG Network Storage Installation
PC application program installation
①
Insert the “LG Network Storage PC Software Installer” CD in the PC’s optical drive
(CD/DVD/BD drives). After a short while, the following menu will appear.
* Installation on PCs without a fiber optic drive may be processed using the iSCSI
function of LG Network Storage. Please refer to 4 Service – iSCSI.
그림 2-19
②
Flash Player Installation is required to fully utilize the LG Network Storage web
menu. If the user’s PC doesn’t not already have the Flash Player installed, proceed
with installation by clicking on the icon
③
.
Click the “NAS Detector” button and install “NAS Detector” on the user’s PC.
After installation the shortcut icon will appear.
④ To install the “Comnso Backup” program, click on the “Comnso Backup” button.
⑤ To see the LG Network Storage User Manual, click on the “User Manual” button.
2
2. LG Network Storage Installation
PC Application Program Usage
This explains how to use “NAS Detector”
For a detailed explanation for the bundle program, please refer to the built-in manual
after installing the program. (Comnso back-up/Photo DVD Album/CyberLink group)
<”NAS Detector” usage>
①
After checking that the PC network is intact, double click the “NAS Detector” icon
on the desk top to open the program.
②
The ‘NAS Detector’ will automatically search the LG Network Storage connected to
the user’s PC.
When the searching is completed, the LG Network Storage IP Address, MAC
Address, and Host Name information are displayed on the screen.
The factory default settings are shown below.
- MAC Address: serial number for each LG Network Storage product is printed in
the back label.
- Host Name : LG-NAS
2
2. LG Network Storage Installation
* If the desired LG Network Storage is not found, click again on the ‘Search
Network’ button to restart the search. If the search on the ‘NAS Detector’ is
unsuccessful, re-check the Network connection. For manual setup see section
<IP Setup>.
③ If the search result of the LG Network Storage information is chosen, as well as
default network information of the LG Network Storage, including the Subnet mask,
Default Gateway and DNS, ‘Change Network Info’, ‘Open Web Menu’ and ‘Open
Network Folder’ buttons will appear.
* For the ‘NAS Detector’ to properly function, the PC needs to be connected to the
same home router/router / switch / hub as the LG Network Storage.
25
2. LG Network Storage Installation
④ ‘Change Network Info’ can be selected to change the IP address.
The DHCP selection option appears if a router is used or if there is a DHCP server
on the network.
* If no IP address is allocated, use the IP address “NAS Detector” or check the
DHCP option and automatically assign an IP address
⑤ If the ‘Open Web Menu’ button is clicked, the web menu of the selected LG Network
Storage can be accessed.
26
2. LG Network Storage Installation
⑥
If the ‘Open Network Folder’ button is clicked, the LG Network Storage network
folder can be accessed.
⑦
In selecting “Open Web Menu” or “Open Network Folder”, a pop up message
appears with “Yes”, which when selected will produce a shortcut icon on the desk
top, and after which the LG Network Storage web menu and network folder can be
easily accessed.
NAS web menu shortcut
NAS network folder shortcut
2
2. LG Network Storage Installation
< Using the LG Network Storage web menu >
The web menu offers LG Network Storage management features such as Network
Information, Share management, and Service management. It also offers menus to setup
data storing using Blu-ray/DVD drives and synchronized storage of mobile devices.
①
②
Double click on the LG Network Storage web menu shortcut button.
The LG Network Storage web menu can be used, after inputting user ID and
password. The LG Network Storage default ID and password are ‘admin’ and
‘admin’.
* A system idle for 40 minutes after log-in will automatically log off for security
purposes.
③
After logging in, use the LG Network Storage data set-up, share management,
service management, Blu-ray/DVD drive, and mobile sync. features. The detailed
information can be found in <Chapter Using LG Network Storage Web menu>.
2
2. LG Network Storage Installation
<Using LG Network Storage Network Folder>
File share and store can be performed, similar to the internal or external HDDs
connected to the PC.
①
Double click the LG Network Storage network folder shortcut.
②
The LG Network Storage Blu-ray/DVD drive under folder name “cdrom” and
“service” / “volume” will appear.
③
To view the contents of the disc inserted in the LG Network Storage, double-click
on the ‘cdrom’ folder, and to access the LG Network Storage hard disc, doubleclick on either folder ‘volume1’ or ‘volume2’.
* If the contents of the LG Network Storage ‘cdrom’ folder are not displayed
correctly, please push the refresh button.
* The default ID and password for the LG Network Storage are ‘admin’ and ‘admin’.
* Folders ‘volume’ / ‘service’ will only appear after the user has completely
configured the volume through the web menu.
2
2. LG Network Storage Installation
<Using the NAS Monitor>
The NAS Monitor offers various functions for the user to easily utilize the LG Network
Storage. For example, user can access the network folder or web pages by simply
clicking the MAS Monitor menu.
The NAS Monitor basically obtains an IP address through automatic connection with LG
Network Storage. This allows the user to easily access the network folder or the web
even after a change of IP address without changing the settings.
The NAS Monitor icon will show up as Windows’ tray icon when the program running, on
the right bottom side of the desktop. The below screenshot captures the menu shown
when the user hits the right-click of the mouse.
30
2. LG Network Storage Installation
<Web Menu>
Web menu is used to access the web page.
<Network Folder>
Network folder is used to open the network folder. Double-clicking the left button of the
mouse will open the network folder.
<FTP server>
This is used to log on to the FTP server.
<NAS detector>
The NAS Detector program is run to change the IP address of the LG Network Storage.
This menu will properly function only after the NAS Detector has been completely
installed.
<NAS Wakeup>
This function is used to change the LG Network Storage mode from maximum energy
save mode to normal mode. This procedure usually takes approximately 1 minute.
<Choose a NAS>
Using one LG Network Storage will automatically set up an IP address for the NAS
monitor. However, using multiple LG Network Storages may forward too many messages
to the NAS Monitor while not knowing to which LG Network Storage the message is
being sent at the selection of a menu. Therefore, designating one LG Network Storage
may allow information for that specific LG Network Storage to be processed.
<View the Last Message>
This menu shows the last message sent.
<Hide Message>
This menu hides the message sent from LG Network Storage.
31
3. LCD panel and front button usage
3. LCD panel and front button usage
Once the booting is complete, the default LG Network Storage screen will be as follows.
* If the LAN cable is unplugged, the network icon (
) will not appear on the LCD
window. If the network connection is unstable or in the middle of acquiring the IP
address, the network icon (
) may blink.
Power Off / On (POWER button)
Power On
After pushing the POWER button on the front panel, the following message appears,
activating the LG Network Storage.
Power Off
Pressing the POWER button for longer than 3 seconds will shut down the system after
showing the below message.
32
3. LCD panel and front button usage
Icon Description
①
②
③
④
⑤
①Icon shows the status of the network connection. It is deactivated if the LAN cable
is disconnected and blinking if connected. The icon will also blink if the IP address
has been set up to be acquired automatically (DHCP) or in the process of acquiring
IP address.
②Icon is activated when user has logged on to LG Network Storage by opening the
network folder.
③Icon is activated when the memory card/USB/e-SATA devices are connected.
④ Icon is activated when CD/DVD/BD media are inserted to the BD/DVD drive.
⑤Icon is activated when volume is configured to save the user’s data. If this icon
is not yet activated, user may not send any file to LG Network Storage even by
opening the network folder and may not be able to use the USB back-up or the
ODD back-up functions.
33
3. LCD panel and front button usage
Action set-up (‘←’, ‘→’ buttons)
Pressing the ‘←’, ‘→’ buttons in the front will allow access to various functions of LG
Network Storage. Action modes activated by using the arrow keys are as follows:
Action modes comprises 6 modes of [Stand-by Screen] – [Information Mode] – [IP
Setting Mode] – [USB Back-Up Mode] – [ODD Back-Up Mode] – [Hibernation Mode] in
order and user may navigate through the modes by using either ‘←’ or ‘→’ button.
For each action mode press the Set (S) button in the relevant mode.
34
3. LCD panel and front button usage
Information Mode
Information Mode shows the current status and information of LG Network Storage.
Once in the [Information Mode], user may use the arrow keys to move through [IP
Address Information] – [System Firmware Version] – [HDD Usage Capacity] – [Date and
Time] – [Fan RPM Information].
[IP Address Information]
Mode allows user to check the IP address set up.
*P
ressing the Set key from the stand-by screen will allow a quick view of the IP
address
* If IP address is set up for automatic acquisition (DHCP), IP address may
temporarily appear as 000.000.000.000 in the process connecting to the DHCP
server.
[System Firmware Version Information]
This shows the version of the system firmware installed.
[Micom Firmware Version Information]
This shows the version of the Micom firmware installed.
35
3. LCD panel and front button usage
[HDD Usage Capacity]
This shows the hard disk’s used-up capacity in comparison to its total capacity in
percentage (%).
* If the volume is not configured in advance, ‘HDD Config First’ will appear.
[Date and Time Information]
This shows the current date and time set up in the LG Network Storage.
[FAN RPM Information]
This allows to check the current Fan rotation per minute of LG Network Storage.
36
3. LCD panel and front button usage
IP SETTING MODE
The LG Network Storage IP can be set up by using the Set key and entering [IP
SETTING MODE].
The arrow keys may be used to navigate through menus [Manual IP set-up]
– [Automatic IP set-up] – [Return to stand-by screen], and the Set key may be used to
enter any of the menus.
[1] Static IP
G
[2] D HCP IP
G
[3] C ancel Se tup
G
For Manual IP set-up, please follow the following orders:
① Press the Set button once [1] Static IP appears. The below message will pop up.
② Press the Set button again.
③It will show the current IP address and the cursor will be placed on the first digit.
Pressing the Set button will increase the number by 1. Once the intended number
is reached, press the right arrow key to move onto the next digit. To return to the
previous number, press the left arrow key to move the cursor to the left.
37
3. LCD panel and front button usage
④Pressing the right arrow key from the last digit will move the cursor to the next setup value.
⑤ Press the Set key.
⑥ Set up the network mask value following the procedure for the IP address set-up.
⑦ Press the Set key.
⑧ Set up the gateway address following the procedure for the IP address set-up.
*L
G Network Storage recommends that user manually sets up the IP address given
to the IP administrator in order to prevent potential clashes with a router or any
other network devices.
38
3. LCD panel and front button usage
USB Back-up Mode
LG Network Storage provides functions to easily store data from USB, memory card, or
other removable disks to the LG Network Storage with a simple click of a button.
Note: Certain memory cards may require an adaptor. (A list of memory cards
compatible with LG Network Storage may be found on http://www.lge.com. LG Network
Storage may not function properly if a memory card, not listed on the website, is to be
used.
[Simple Back-up – OneTouch Back-up]
Connect the USB or the memory card to LG Network Storage. As soon as the system
reads the device, the following message will pop up.
①To back-up press the Set(S) button, and to cancel press the left button (L) ‘←’.
※ * In the case that several types of external devices are plugged in, back-up will
take place for the device plugged in last.
②Progress of data saved will appear in percentage (%).
③Once back-up is completed, a folder named after the manufacturer company of
the storage device will be created within the service/back-up/USB folder. This will
allow to distinguish this folder from other devices in the future. Subfolders will be
created by back-up date to save all contents of the USB or the memory card in LG
Network Storage.
39
3. LCD panel and front button usage
Folder names will be set up automatically as follows:
Saved in
Folder name
Service/back-up/
Manufacture company name_Serial No./ File back-up
USB
format /Date folder created
※ In the case of simple back-ups, if one storage device is backed up several times,
the data from the final back-up will be saved under the Last Backup folder.
If one device is backed up more than once on one day, a serial number will follow
the date. The folder created for the very first back-up will include all data from
the external storage device, and subsequent back-ups will only save additional
folders or files compared against the previous back-up data.
For more details on the Last Backup folder, refer to Chapter 4 – USB Synchronize
Set-Up.
[USB Back-up Mode]
Using the arrow keys to move to USB Back-up Mode and pressing the Set key will
activate the same way as the simple back-up.
For USB back-up, user may log on to the webpage and set up the relevant sections.
For more details on the Last Backup folder, refer to Chapter 4 – USB Synchronize
Set-Up.
40
3. LCD panel and front button usage
ODD Backup Mode
Backup data on discs using LG Network Storage (ODD Backup)
LG Network Storage provides functions to back up data saved in optic disks such as
CD/DVD/Blu-Ray on to LG Network Storage with a simple click of a button.
① Insert the optic disk to be backed up in the LG Network Storage BD/DVD drive.
②Once the system reads the optic disk, the optic disk type will appear in the front of
the LCD.
③Once the optic disk is recognized, use the arrow keys to mode to [ODD Back-up
Mode] and select using the Set key.
④Once in the [ODD Back-up Mode], use the arrow keys to select the 3 types of
menus as shown below:
[1] Da ta Copy
G
[2] Im age Copy
G
[3] C ancel C opy
G
⑤Select the preferred back-up method and pressing the Set key will initiate
back-up.
⑥ Progress of data saved will appear in percentage (%).
41
3. LCD panel and front button usage
⑦ Pressing ‘←’ button will cancel the job at any time.
⑧ Once back-up is completed, the following message will pop up:
[Data Copy]
This is a function to back up the content of the disk on to LG Network Storage just as it
was originally in the disk.
Selecting the Data Copy function will back up user’s data in subfolders created by
back-up date under service/back-up/disc-data folders. If Data Copy is executed more
than once on one day, a serial number will follow the date.
42
3. LCD panel and front button usage
[Image Copy]
This backs up contents in the disk in iso image file formats.
Once back-up is complete, user’s data is saved in subfolders created by back-up date
under service/back-up/disc-image folders. If back-up takes place more than once on
one day, a serial number will follow the date.
However, Image Copy will not function properly in one of the following cases:
① If the optic disk is copyrighted, ‘unsupported disc’ message will appear on the
LCD and back-up will not be processed.
② Disks recorded in multi-sessions will not support Image Back-ups.
43
3. LCD panel and front button usage
Hibernation Mode
Hibernation Mode shuts down all services of NAS and minimizes the energy used in
the overall system including the HDD to run NAS in maximum energy save mode. In the
maximum energy save mode, all of the above icons will disappear.
To change from the Hibernation Mode to normal mode, press any one of the keys
except the Power button. Logging on to the webpage and entering the administrator’s
password will also change the setting to normal mode.
In the Hibernation Mode, the majority of the services will not be accessed including
SMB (Samba). Maximum energy save mode will not be available while iSCSI function is
activated.
44
3. LCD panel and front button usage
Tray open / close (DISC OPEN button)
Pressing the “DISC OPEN” button in the bottom front will open the tray on which the disc
can be placed. Pressing the “DISC OPEN” button or softly pushing the tray when the
tray is open will close the tray.
45
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
4. L
G Network Storage Web Menu
Use (for LG Network Storage
administrators)
System Settings
Network
In the Network setting menu, an important set-up needs to be made to connect the LG
Network Storage to the network. If the set up is not performed correctly, connection
problems will arise at later stages, hence care must be taken.
46
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Host
① Designate an LG Network Storage host name.
The server name has a limit of 12 characters, this can be a combination of letters,
digits, underscores and hyphens; the first characters though must be a letter or a
number.
Names permitted: LG-NAS, LGNAS-123
Names not permitted: LG_NAS, -LGNAS,123-LG, LG-#, LG/N
② Type in host description.
The host description has a limit of 24 characters; this can be a combination of
letters, digits, underscores, hyphens and spaces. This explanation only affects the
Windows client.
Interface
The Network interface’s IP properties are specified. During system connection, care
must be taken as restrictions may be created.
If an IP address is provided by the network administrator or there is a specific IP
address user would like to use, select ‘Manual IP Set-up’ and enter the IP address,
subnet mask, default gateway and DNS address.
47
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
∙ IP address: Enter desired IP address.
∙Subnet Mask: Enter the subnet mask that suits the current network environment.
∙Default Gateway: Define the outgoing route. If no gateway exists on the
network, enter the IP address.
∙Default DNS server address: The DNS handles conversions between domain
names and IP addresses. If the DNS is not correctly configured, e-mails, DDNSs
or domains will not function normally.
∙ Secondary DNS server address: Enter the secondary DNS server address.
* If accurate values are unknown, please contact the internet service provider (ISP)
or the network administrator.
[To acquire an IP address automatically]
In order to acquire an IP address automatically, select ‘Acquire IP address automatically
(DHCP)’. This option may used if there is a DHCP server (or internet router) within the
network. Once the DHCP option is activated, the connection with the web menu will be
terminated and a new IP address should be confirmed through the LCD screen or the
NAS Detector program. DHCP set-up will regularly renew the user’s IP address from the
DHCP server, causing unintended IP address changes, and require close attention.
In the case that it is set up for automatic IP address without a DHCP server within the
network, a Link Local address such as 169.254.XXX.XXX will automatically be set up
automatically. This can be used when the PC and network cable are directly connected
and the PC’s address is also set up to ‘Acquire IP address automatically’.
48
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Ethernet Frame Size Set-up]
Configure ethernet frame size. If frame size is unknown, set it to 1500.
* Ethernet Frame Size: If the Ethernet frame size is at least 1500 gigabits, specified
files can be sent quickly and with ease. In this case, the LG Network Storage
alone does not change, but so do the PC and home router/router/hub/switch
frame sizes. Otherwise performance will be reduced.
49
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Workgroup/Domain
Set up a workgroup and domains that the Windows network supports. This will allow for
access to the LG Network Storage shared folder in Windows. In addition to this, the LG
Network Storage domain service supports a Windows Active Directory, enabling the
import of existing user information, with ease and speed.
①Select the appropriate ‘Workgroup’ or ‘Domain’ considering the environment where
the LG Network Storage will run.
② When selecting ‘Workgroup’, input workgroup name required. Or when selecting
‘Domain’, input domain name, domain administrator ID and password.
*D
omain: In the active directory user environment, the domain settings should
not be created in the local User/Group folder, but should be created in the
domain User/Group folder. When the domain settings are created, the network
administrator must be available to provide assistance, as the user must have
access to all information concerning the Name server. If wrong information is
inputted, sharing and use of the LG Network Storage will be limited. In the event of
unfamiliarity with the Workgroup/Domain, use of default values is recommended.
50
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Remote Access
DDNS (Dynamic DNS)
Using DDNS and connecting the LG Network Storage externally by domain name is
possible. (Example: http://myname.lgnas.com or ftp://myname.lgnas.com).
To record and connect the server IP address to the in the case of using a fixed IP
is possible, though the DDNS allows for a convenient connection in a dynamic IP
environment, where IP changes in time. Variation of IP address is monitored and
mapped to a domain name in real time. Therefore, there is no need to remember IP
address as there will be a fixed address. (e.g. myname.lgnas.com)
①
②
③
① DDNS: Select ‘Enable’
② Domain name: Input domain name to be used.
③ DDNS password: Input password.
♣P
assword is required in the case that domain name needs to be re-registered
for reasons of system initialization, replacement of LG Network Storage among
others. It is important to remember the password.
④ Click on the ‘Apply’ button.
♣ If ‘Disable’ is selected after a domain name is registered, the previously
registered domain will be removed, thus the domain name cannot be registered
in other LG Network Storages. Caution must be taken at set-up.
51
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[UPnP]
The UPnP port forwarding is used for LG Network Storage to directly receive
requests from the router connected to the LG Network Storage. Access to the LG
Network Storage from the outside using a DDNS usually requires a special set-up
for the router to forward network requests received by the router to the LG Network
Storage, and the UPnP port forwarding function allows the router to forward data
without a separate router set-up. (This option is only available if the router is such
that supports the UPnP port forwarding function.
① Check whether the address of the router currently connected to the Network
Storage is properly displayed.
② If the router address is properly displayed, it should display whether the router’s
③ Select the ‘Apply’ button.
♣ If the router does not support the UPnP port forwarding function or the function is
port forwarding function has been activated.
deactivated, the UPnP port forwarding may not perform properly.
52
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Date & Time
Set up the system time. In order for the files uploaded in the shared folder to
display the accurate time and log times, the system time should be properly set up.
Date and Time Setup
①To manually set the date and time, click on the ‘Edit’ button. Use ‘standard time
zone’ to designate the current local region for LG Network Storage. The standard
time zone set-up may affect the NTP and domain user certification, so exact values
must be entered.
② Local time will be used by clicking the ‘Use Local Time’ button.
53
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
NTP Set-up
The Network Time Protocol (NTP) periodically aligns itself with an external time server to
obtain and synchronize itself with accurate time. This accurate time should continuously
activate the NTP. To use the Default Time Server, refer to pool.ntp.org server time.
Mail Notification
To use Mail Notification, the LG Network Storage usage amount can be periodically
checked. Registration information and results will be sent to users subsequent to their
new registration.
① To configure the mail notification, click on the ‘Edit’ button.
54
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
② To use it check ‘Enable’ if ‘Disable’ is not used. If ‘Enable’ is checked, proceed
with the following steps:
③ SMTP Server Address: Input the Mail Server address. Refer to the information
page in the network administrator Mail Service, and input the accurate SMTP
Server Address value. (e.g. smtp.mail.yahoo.com) In the case that the port
number used for the mail server is not the default value, the port number should
be recorded next to the server address. This would generally be the case when
the SMTP SSL has been designated. (e.g. smtp.gmail.com:446)
④ SMTP Authentication: When sending mail, dependant on the mail server, login
may be required. In the case of own mail server, the SMTP Authentication must
be activated. (e.g. Smtp.Webmail SMTP servers such as yahoo.com perform
certification processes. Refer to the user webmail service help)
⑤ SMTP SSL Support: Some mail servers’ login information is encrypted and sent.
At this time the SMTP SSL Support must be activated. (e.g. Smtp.Webmail smtp
servers such as gmail.com perform certification processes. Refer to the user
webmail service help)
⑥ Subject: The information email subject can be specified or changed.
⑦ Recipient Mail Address: Input the mail receipt administrator’s address.
⑧ Notification Trigger: Set up the information concerning the periodic use of the
HDD. In the case of not wanting to receive message periodically, the option may
be disabled.
⑨ HDD Status sending time: The HDD use information mail out frequency can be
determined (daily/weekly/monthly).
55
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Volume Set-up
In order for data to be saved on to LG Network Storage, volume must be set up. If the
volume is configured the hard disk icon will appear on the far right side of the LCD in
the front, but if the volume is not configured, the disk icon does not appear and the
network drive connection, USB back-up, ODD back-up among other functions will not
be available.
This product provides the following 5 volume configuration methods for the user’s
requirement:
- RAID 0 (striping)
- RAID 1 for important data (mirroring)
- Linear (JBOD) volume
- RAID 1 (mirroring) + JBOD volume
- Single disks (disk 1, disk 2)
♣A
ppendix A includes detailed instructions on volume construction and it is
recommended to refer to the list of recommended hard disks by visiting the URL
provided in Appendix D.
♣W
hen volume is configured, part of the hard disk is allocated to the LG Network
Storage system. Consequently, after volume configuration has been completed,
the size of the volume will appear smaller than the hard disk size.
Volume Configuration
To configure the volume, follow the below procedures. Configuration of the volume will
remove all existing user’s data in the hard disk and will not be recovered.
① Log on to the web and open system → volume.
56
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
② On the top are the current volume array and a detailed description. If the volume
has not yet been configured, there will not be any detailed description.
③ The “new volume configuration” menu under “change volume configuration”
below comprises “RAID 1 (striping)”, “RAID 1 for important data (mirroring)”,
“linear (JBOD) volume”, “RAID 1 (mirroring) + linear (JBOD) volume”, and single
disks (disk 1, disk 2). Select one of the above and press the “apply” button.
④ RAID 1 (mirroring) + linear (JBOD) selection activates the slide bar below for size
selection. Move the slide bar to determine the size and press the “apply” button.
⑤ To use only one disk, user must set up “single disks”.
⑥ In the process of volume configuration, the web menu and the buttons in the front
will not be available. The configuration progress may be viewed through the LCD
in the front.
Format HDD1 20%
57
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑦ If either “RAID 1 (mirroring)” or “RAID 1 (mirroring) + linear (JBOD)” is selected,
the synchronization progress for the RAID 1 portion may be viewed on the web
screen.
Add disk
In the case that “single disks” is being used, new disks may be added by following the
below procedures.
① Press the End button in the web, system → power → end.
② Insert the second disk in the LG Network Storage and turn the power on. To add
new hard disks, refer to Chapter 2 LG Network Storage Installation.
③ In the web, log in and open system → volume
④ Press the “add/remove disk” button above the “change volume configuration”.
⑤ Check the second disk inserted and press the “add” button.
58
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Remove disk
Forced removal of the hard disk without following the remove disk functions provided in
this screen may cause future complications with system performance and loss of user’s
important data. Therefore, it is strongly recommended that user uses the remove disk
button on the web when removing hard disks.
In the case that “single disks” is being used, existing disks may be removed by
following the below procedures.
① In the web, log in and open system → volume
② Press the “add/remove disk” button above the “change volume configuration”.
③ Check the disk to be removed and push the “remove” button.
Hot Swap
This device allows the replacement of hard disks without turning off the system power.
This option is only available when the volume configuration is set to RAID 1 or single
disks. Using this option for other volume configuration types may cause to lose even the
remaining hard disk data in the device.
① Remove the disk following the procedures set out in [Remove disk].
② With the power turned on, insert the new hard disk in the device by referring to
Chapter 2 LG Network Storage Installation.
③ Move to the webpage and select “add/remove HDD”.
④ Select the hard disk currently inactive and press the “add” button.
59
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Trahsbox
Removing a file or folder when the network drive is still connected creates a trashbox
and all deleted files are temporarily moved here. If user were to recover the deleted
data, user may find the file or folder from the trashbox and move them to the intended
location.
However, trashbox is created for each highest level folder and there will be as many
trashboxes as the number of user’s folders. In the case that user runs out of hard disk
capacity and must empty all trashboxes, user may click on the “recycle bin” icon on the
volume web screen and empty all contents of the trashbox. .
60
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Selective Mirror (Selective data protection for folders)
The Selective Mirror function automatically generates copies of certain folders, which
allows data recovery even after the loss of source data.
Add Selective Mirror List
① Choose Selective Mirror activation.
②Pressing the add button will move the screen to add a new list.
③
④
③Under “source path”, select the folder to be backed up and under “destination
path” select the folder that will save the back-up data.
④Once the save button is pushed, a new list will have been added.
61
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Edit Selective Mirror List
①Checkbox the item to be edited and press the ‘edit’ button.
* Only one item can be edited at a time.
② Edit the “source path” and the “destination path” and press “OK” to confirm the
edited set-up.
Delete Selective Mirror List
①Checkbox the item to be deleted.
* More than one item at a time can be deleted.
②Press the “delete” button to confirm the deleted set-up.
Use Selective Mirror
If SMB (Samba) and FTB is used to store data in the LG Network Storage and a change
incurs in the source folder, the same change will apply to the destination folder and the
source folder will be double protected.
*T
o maximize the effects of Selective Mirror, it is recommended to set up different
volumes for the source folder and the destination folder. (for the single disks
setting or the RAID 1+ linear volume setting)
Example)
source folder: volume1/source
destination folder: volume2/destination
62
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Conditions
① The source folder and the destination folder cannot be the same folder.
② One source folder may have up to 4 destination folders.
③A
folder designated as a source folder cannot be designated as a destination folder
in another setting.
④ A subfolder of a source folder cannot be designated a destination folder.
⑤A
folder designated as a destination folder cannot be designated as a source folder
in another setting.
Power
Settings related to power for the LG Network Storage can be adjusted (Hibernation, UPS
and System Shutdown).
63
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Hibernation Setup
This allows all LG Network Storage hard disks to transition into stand-by to minimize
energy consumption after a certain period of no data transfer. Reading or writing LG
Network Storage data during the hibernation mode will gradually reactivate the LG
Network Storage hard disks and fully activate after 3-15 seconds.
* It is recommended to utilize the stand-by function if user expects to leave the system
unattended or NAS is not being used for an extended period of time.
① To set up the hibernation function, click on the ‘Edit’ button.
② Check ‘Enable’ to select hibernation mode, or ‘Disable’ to deactivate.
When selecting ‘Enable’, proceed to the next step.
③ Set stand-by time.
④ If there is no data traffic during the given time, the LG Network Storage will enter
hibernation mode. Time can be set to 10/30/60/120 minutes.
⑤ Click on the ‘Apply’ button to dictate changes to the LG Network Storage. Click on
the ‘Cancel’ button to discard changes.
64
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
UPS Power Setting
An external UPS is effective for sudden power stoppages. When connecting an external
UPS to the LG Network Storage, confirm the actions of the UPS.
① Click on the ‘Edit’ button to configure UPS.
② Check ‘Enable’ to activate UPS, or ‘Disable’ to deactivate. When selecting
‘Enable’, proceed to the next step.
* LG Network Storage supports APC Style USB UPS only.
②
③
④
③Decide whether to shut down LG Network Storage after designated time interval or
when UPS power becomes low in case of unexpected external power cut.
*W
hen setting it to shut down depending on remaining power of LG Network
Storage, The time interval might differ from one UPS type to another.
65
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
④ Decide whether to maintain UPS power when LG Network Storage shuts down due
to unexpected power cut.
* If another device is connected to UPS, Please do not turn off UPS but keep the
power on.
⑤ Click on the ‘Apply’ button to enter changes to the LG Network Storage. Click on
the ‘Cancel’ button to discard changes.
Hibernation Mode On/Off
LG Network Storage can cut off the HDD power for a designated time the user does not
make use of the program, running LG Network Storage with minimum energy. Any time
interval during the day may be set up for the max energy save mode. It should be noted
that once the max energy save mode is set to begin at a certain time, it may terminate
any work being processed.
* When the network is being used to transfer data or the BD/DVD drive is being
used, the max energy save mode will not be initiated.
① For a new configuration, press the “edit” button.
② Select “apply” to activate or “cancel” to deactivate.
③ To select “apply”, select “apply” in the schedule window and enter the beginning
and ending time for LG Network Storage. The set-up time must have at least 5
minutes gap from the current time. For example, if the current time was 12:00, the
max energy save mode beginning time must be set to after 12:05.
④ To save the current setting, press “apply”.
66
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑤ Once it reaches the beginning time set up, the system automatically transitions into
max energy save mode and on the LCD will appear a message, “Now Working. . .”
⑥ Once the system is fully in max energy save mode, the following message will
appear on the LCD. At this stage, it is no longer possible to connect the network
drive and various functions provided by LG Network Storage will be unavailable.
♣ Max energy save mode may also be accessed through the button in the front.
67
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Shutdown
Do not go directly to the LG Network Storage, as LG Network Storage can be turned on
and shut down via the web.
① Restart
- Ends all current operations and restarts the LG Network Storage.
-A warning will appear when clicking the button, and the system can be restarted
by clicking on the ‘OK’ button.
- During restart web access is not available.
② Shutdown
- Ends all current processes and shuts down the LG Network Storage.
-A warning will appear when clicking the button, and the system can be restarted
by clicking on the ‘OK’ button.
- During restart web access is not available
68
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Activating the System Remotely
Once LG Network Storage has entered its max energy save mode, it can be activated
through remote internet access. The screen accessible through the internet is slightly
different from the log –in screen in the normal mode, and only the administrator can use
the password to activate the system. Synchronization may take approximately a minute.
* In maximum energy save mode, log-in will only be accessible through http.
If the correct administrator’s password is entered, the system will be synchronized
automatically.
69
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Language Setting
The web menu indicates a language selection capability.
① Click on the ‘Edit’ button to set language.
② Select a desired language out of Korean, English, French, Spanish, and German
and click on the ‘Apply’ button.
*T
he language of selection will be the default language used when the user first
* If the browser has been set up to use cookies, the last language used for the
* Client language: Select the language that fits user’s client environment. (e.g.:
accesses the web.
computer in its previous log-in will be the default language for the next log-in.
FTP available). For use of multiple lanuages, select unicode.
Unicode can be selected only if user’s program supports it.
70
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Firmware
LG Network Storage firmware settings can be changed (Upgrade, Initialization,
Configuration and Backup/Restore).
Upgrade
LG Network Storage system and Blu-ray/DVD Driver firmware can be downloaded from
the product web site, and can be used for upgrading.
Systems with a fire wall do not allow upgrades to be installed
71
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[System Firmware Upgrade]
①Verify connection to the Internet and download system firmware for the LG
Network Storage from the product site linked below.
☞ http://www.lge.com
②Press the “find” button to select the system firmware downloaded from the
product site.
③Press the “upgrade” button to Install the selected system firmware to LG
Network Storage. The upgrade progress may be viewed on the LCD in the front.
④When upgrade is finished, the system will automatically reboot. The web
connection will be automatically terminated and therefore should be
reconnected.
72
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Blu-ray/DVD Drive Firmware Upgrade]
① Verify connection to the Internet and download the firmware for the Blu-ray/DVD
☞ http://www.lge.com
② Select the Blu-ray/DVD drive firmware downloaded from the product site.
③ Install selected Blu-ray/DVD drive firmware.
④ When upgrade is finished, the version of installed Blu-ray/DVD drive firmware
drive attached to the LG Network Storage from the product site linked below.
will be indicated
* For stability of data, a backup of the LG Network Storage is strongly
recommended before upgrading. Installation takes between 1 to several minutes.
Advance access of other client users to the LG Network Storage while upgrading
firmware is forbidden.
Initialization
LG Network Storage initialization function. Clicking on the ‘Initialization’ will Initialize the
system.
*C
aution must be taken when changing the settings, for post Initialization all-user
information and data will be deleted.
* Initialization will take about 10 minutes.
73
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Configuration Back-up
This allows the back-up/recovery of settings for LG Network Storage at a certain time.
Network settings (host name, IP address, workgroup), time setting (date/time, NTP),
mail notification service setting, share administration (user, group, folder security),
service setting values may be backed up but user data requires separate back-up.
[Backup]
Save the current user configuration.
* 5 backup files can be saved at maximum.
[Restore]
① Select the backup file of the time point to restore.
② Click on the ‘Restore’ button and reconfigure the user configuration.
74
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Save Settings to PC and Restore]
During initialization of NAS, configuration files can be saved to PC for later
restoration.
[Save Configuration Files to PC ]
Choose configuration files to be saved to PC and click on the ‘Save’ button to
save them to PC.
[Restore NAS User Settings Saved on PC]
NAS settings can be restored using configuration files saved on the PC.
1.Choose the ‘Restore LG Network Storage configuration from configuration file
backed up in PC’ menu and select from saved configuration files using ‘Find’.
2. S
elect the configuration file to use for restoration and click on ‘Restore’ to
change NAS settings as selected.
75
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
LG Network Storage Share Management
This function allows you to create users and groups as well as folders, and hence
change settings for their access authorization.
User
Current registered users appear, so new users can be created and registered user
information can be modified or deleted.
[Create User]
① Click on the ‘Create User’ button.
② Enter user ID. User ID cannot be overlapped.
②
③
④
⑤
⑥
⑦
76
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③ Enter user password.
④ Enter user password again for confirmation.
⑤ Enter user’s name.
⑥ User description can be added.
⑦ Enter user e-mail
As long as mail server settings are correct, the registration result will be sent to
he entered e-mail address. For details concerning mail server settings, refer to
<mail Notification>.
[Edit User]
ntering editing mode by clicking on the user name in the registered user list, with
E
the exception of the ID, all user information can be alterd.
77
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Group
Current registered groups are displayed. Groups can be created and deleted, as
well as the addition or removal of users in registered groups.
[Creating a New Group]
① Click on the ‘Create New Group’ button.
② Enter group name.
②
③
④
78
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③ Enter group description.
④Select user to be added to the group by clicking on the corresponding
checkbox. To remove a user from the group, deselect the user by clicking on
the the checkbox again.
⑤ When user selection is done, click on the ‘Save’ button to create the group.
[Editing Groups]
By clicking on the ‘Group Name’ link in the registered group list, group attributes
can be altered.
79
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Folder
Current registered folders are displayed. A folder can be created/changed/deleted
for file sharing and/or authorization settings access changed to the created folder.
[Create New Folder]
① Click on the ‘Add Folder’ button.
② Enter the shared folder name.
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
80
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③ Enter folder description.
④ Set the volume where the folder will be created if there is more than one.
⑤Decide whether to permit folder sharing through SMB, AFP, FTP or Webday
protocol.
- Windows: Activates folder sharing through SMB protocol on Windows/Mac/
- AFP (Mac): Activates folder sharing through AFP on Mac client.
- FTP: Activates folder sharing through FTP.
- Webday: Activates folder sharing through Webday
Unix. Refer to chapter 6 for connection details .
⑥During network search, currently shared folders can be set up not to appear.
* If ‘hidden’, such folders will not be available for sharing through
AFP/FTP/Webday.
⑦Create a trash box within the folder.
When deleting data while the trash box is active, all the deleted files will go to
‘trash box’ folder within the shared folder.
⑧Set folder access restriction. If ‘Disable’ is checked, users can access/use
⑨Assign user/group to use the folder. Unassigned uses do not have access to the
without restriction.
folder.
* When a directory is activated at the ‘Network > Workgroup/Domain’ menu on
the left, additional users and groups will appear.
[Folder Attributes]
By clicking on the folder name in the registered folder list, with the exception of the
folder name, all its information can be altered.
81
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Blu-ray / DVD
The built-in Blu-ray/DVD drive allows direct copy of data from discs to LG Network
Storage. Furthermore, secondary backup of data using the Blu-ray drive makes
data management safer and more efficient.
Burning
Burning the LG Network Storage data to disc is possible using the Blu-ray/DVD
drive.
Burn Disc
Burning LG Network Storage files to disc is possible.
[Button functions]
: Moves to upper folder.
: Refreshes the current folder.
: Files or folders selected on the left window are sent to the right window to
: Deletes selected files or folders from the list organized for recording on the
organize a list for recording.
right window.
82
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
①Move the intended folder or file to the destined location.
②Selecting a folder or file to record and move to the right side produces a
configuration data list.
③ Specify disc name in the ‘‘Disc Name’ window
83
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
④Click on the
button and confirm that disc writing is possible as
indicated in the disc status box.
⑤Pressing the
button begins the burning process. The burning process
is accompanied by a progress bar display. To cancel the process, click on the
‘Cancel’ button, which appears with the progress bar.
84
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑥ At the end of the burning process, the tray ejects and the disc can be removed.
85
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Service
DLNA(Digital Living Network Alliance)
DLNA, which stands for Digital Living Network Alliance, allows sharing multimedia
data such as music, video, or images saved in other devices through connecting
digital devices such PC, hard disks, or digital TVs through the home network. DLNA
comprises DMS (Digital Media Server), which sends images, music and movie data,
and DMP (Digital Media Player), which receives data. In order to fully utilize the
DLNA function, the product must be DLNA certified. This product adheres to the
Digital Media Server (DMS) function of the DLNA standard functions. In order to
fully utilize the DLNA function, the product must be DLNA certified. This product
adheres to the Digital Media Server (DMS) function of the DLNA standard functions.
[Activate/Deactivate DLNA ]
In order to activate or deactivate DLNA, the below procedures should be followed.
Follow the below instructions.
① Open DLNA from the webpage.
②The top section will show the current status of DLNA. To activate the Media
Server (DMS), click “apply”.
86
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③The source path refers to the location the multimedia data is currently saved.
In order to utilize the multimedia data through DLNA, locations of the saved
data must be determined. DLNA service will only be applicable to pre-set DLNA
source folders.
④To activate, please press the “apply” button. To deactivate, please select “Do
not apply” and press the “apply” button.
[Save Multimedia data in source path]
Multimedia data in LG Network Storage may be read, written and shared through the
network.
① Run Internet Explorer.
② Copy the multimedia file in service\DLNA.
♣ Note
①Do not delete the selected source path (default: \service\DLNA). This may
②Use compatible multimedia file formats. Incompatible file formats may not run
③Formats incompatible with the Digital Media Player, such as TV, may not run
terminate the multimedia sharing.
properly.
properly even if they were compatible with LG Network Storage.
[View Multimedia Using DLNA]
Using DLNA of a PC with Microsoft® Windows7®
①Go to Control Panel > Hardware and Sound > Add a device.
② Once LG Network Storage is selected, click Next and recognize device.
③ Run Windows Media Center or Windows Media Player.
④The multimedia data saved in LG Network Storage may be viewed by selecting
LG Media Server under Library.
♣ Note
∙For detailed instructions on Windows Media® Player 11, refer to the Help
∙Some user PC may have installed its own unique DLNA server software. For
function of Windows Media® Player 11.
detailed instructions, refer to the user manual of the user PC.
87
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Playing DLNA server contents on PS3™]
Once PS3™ is turned on, the DLNA server within the network will automatically be
searched and the found server icon will appear on
( images) /
(music) /
( images) /
(music) /
(video).
①Select the DLNA server icon for log-in from
(video) of the home menu. All applicable folders and files supported by PS3™
will be displayed.
② Select the file to play.
♣ Note
∙PS3™ must be connected to the network. For detailed instructions on the
network set-up, refer to (Set-up) > (Network set-up) > [Internet connection
set-up].
∙If IP address allocation method has been altered from AutoIP to DHCP in the
∙The DLNA server icon will only appear if (Set-up) > (Network set-up) > [Media
∙Displayed folder name may vary depending on the DLNA server. LG-NAS is the
∙Certain files may not play or may have limited access during play depending on
∙Copyright protected contents shall not play.
∙Data file names of data saved in server not compatible to DLNA may include “*”.
current network, go to (Media server search) and re-locate DLNA server.
Server Connection] has been activated.
default value.
the user’s device.
These files may not play in PS3™. Some files may play in PS3™ but not play in
other devices.
88
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Manually search DLNA server in PS3™]
DLNA server within the same network may be manually located. This may be useful
when DLNA server does not appear automatically after PS3™ has been turned on.
Select
(Media server search) from
(images) /
(music) /
(video). Results
should appear and returning to home menu will list available DLNA server.
♣ Note
(Media server search) will only appear if
(Set-up)
(Network set-up)
[Media server search] has been activated.
[Using DLNA in Digital Image Frame]
① Activate the DLNA function in LG Network Storage.
②Perform a default set-up and driver set-up following the Digital Image Frame
③ Search the LG Network Storage in the network using the Digital Image Frame’s
④ Set up to connect LG Network Storage in Digital Image Frame.
⑤ View images in Digital Image Frame.
user manual.
Explore function.
♣ Note
∙To see compatible image file format and how to access and view images, refer
∙For information on connection between the Digital Frame and LG Network
to the Digital Image Frame user manual.
Storage, refer to the Digital Image Frame’s DMA user manual.
89
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Using DLNA as AV Device]
Use contents by activating the DLNA function connected to the network. Set-up
procedure may vary depending on connected device. For detailed instructions,
refer to the relevant device user manual.
Network Server
Access to the LG Network Storage through FTP/FTPs or AFP is configured with this
function.
*F
or router use, the router settings need to be changed. Please refer to port
forwarding of DMZ settings in the router’s manual.
FTP
An FTP offers a handy environment when accessing LG Network Storage on the
Internet.
The use of FTP service can be established through “Enable”. The Windows image is
explained here. The method below is applicable to other OSs.
①Use the FTP connection program, or open explorer and input the address ftp://
[address]:[port number]. If the IP address is unknown, refer to <PC Application
Program Usage> or <LG Network Storage Information Confirmation>. Port number
may be changed to a number determined by the user. The default FTP port number
is 21. To use the default value (21), user may log on without inputting the port
number.
90
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
*U
sing the DDNS service offered by LG Network Storage will log on to ftp://
myname.lgnas.com:port number. For more details, please refer to system remote
control <DDNS>.
*T
o use the default port value 21, user may log on without inputting the port
number through ftp://IP address or ftp://myname.lgnas.com.
② Input the user name and password and login
③Look at the sharing folder. Folders and files can be managed via drag and drop,
allowing for name change and delete. Depending on the local network environment,
use of the firewall in the FTP server may be prohibited. For FTP server problems,
consult the router’s manual or contact the network administrator.
91
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
*L
G Network Storage supports FTPS with advanced security on the existing FTP for
better protection of the user’s data traveling through the internet. To use FTPS, an
FTP connection program that supports FTPS must be used. The explorer program
supported by the Windows operating system does not support FTPS. Generally
most commercial FTP connection programs support FTPS and more details may
be found in the relevant program manual. (A typical free FTP connection program
such as File Zila does not allow access to LG Network Storage through FTPS.)
AFP
The AFP offers a similar environment to Windows folder sharing.
*A
FP is available within networks with the installed LG Network Storage, but not
for external access without network setting changes due to firewall and other
restrictions.
* If there are no special reasons Windows Sharing is recommended, as the Mac OS
X basically supports Windows Folder Sharing.
92
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Network Printer
The network printer can be used by connecting the USB printer to the LG Network
Storage.
① Select Service > Network Printer from the administrator’s web menu.
② Check “Enable”, click the “Apply” button.
[Windows users]
①In the web menu go to “Enable” to connect the network printer, after which an
LG Network Storage printer icon appears.
②Doubling clicking on the icon shows the progress of the printer driver
③ If installation is unsuccessful use the network printer service.
installation. For installation issues refer to the printer manual.
93
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Mac users]
① Click on Go/ Utilities in the tool menu.
② Click on the Printer Setup Utility.
94
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③ Click on Add.
④ Hold the alt key down while clicking on More Printers.
95
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑤ In the pop up window:
i. Select Advanced.
ii. Select Windows Printer via SAMBA.
96
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
iii. Input the printer URI. The form name is smb: /LG Network Storage IP/printer.
The printer name can be found in the Device Configuration(device config)/ USB
Printer page.
iv. In Printer Model, select Generic.
v.Click Add.
* B
y pressing the alt key while clicking on More Printers, a range of printers can
be seen. There are no other options.
vi. The printer appears in the printer list. Now the printer is ready for use.
* Linux users must consult the OS manual, or inquire at the printer company.
iTunes
Using the iTunes services and recreating music files stored to the LG Network
Storage through PC/Mac iTunes programs is possible. Music does not affect the
PC/Mac storage space as transfer is done through streaming.
97
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
① For required use, select ‘Enable’ for iTunes Streaming Service.
② Set Music Library Update Frequency.
- Forced update (manual): Activate once the music file service for Streaming
to begin the service. To create a music file, time is needed hence manual
updates are recommended.
- Every 5 minutes (auto): Every 5 minutes, the music file list is updated
* Itemizing a music file list may be time consuming, the Foced update option is
periodically. For updated music lists, the client program must be restarted.
recommended unless music files are updated frequently.
98
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Time Machine
The Time Machine service is the automatic back-up function built in Mac OS X
and allows the Mac data copies to be stored in LG Network Storage in their latest
version.
♣T
his service is available in only Mac OS X version 10.5 Leopard or later versions.
[Web Set-up]
① Enter the host name.
The host name is the local host name after deleting “.local” found under “System
Environment Set-up” → “Shared” → “Edit”.
99
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
② Enter the MAC address.
The Mac address can be found by going to “Application Programs” →
“Utilities” → “Terminal” and running the “ifconfig” command. Enter the
“ether” address under en0.
③ Select “enable” and press “apply”.
100
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Mac OS]
①Go to “Move” → “Connect to Server” and enter “afp://LG Network Storage IP
address” under “Server Address”, then click “Connect”.
* The AFP function must already be activated under network server settings.
②If the log-in window appears, enter the name and password and click
“Connect”. Enter “admin” for name and the administrator’s password for
password.
101
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③When the mount volume window opens, select “Timemachine” and press the
“OK” button.
④Go to “Settings” → “Time Machine”, press “Change disk…”, select LG Network
Storage “Timemachine” and press “Enable as back-up”.
⑤When the log-in window appears again, repeat instruction (2) and the Time
Machine will be “On” and back-up begins in LG Network Storage.
102
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
iSCSI
This allows for the user to use the LG Network Storage Blue-ray/DVD drive as a
CD drive. The LG Network Storage iSCSI service allows multiple users’ log-in and
usage.
[iSCSI Initiator Installation]
In order to use the iSCSI, the Initiator program must be installed in the computer
A. Initiator Installation on a Windows PC
For Windows XP, download the installation program from the below Microsoft
website
☞ Website
http://www.microsoft.com/downloads/details.
aspx?familyid=12cb3c1a-15d6-4585-b385-befd1319f825&displaylang=en
For Windows Vista, the operating system already includes a program and no
additional installation is required.
B. Initiator Installation on a Linux PC
For Linux, the Initiator may be installed automatically from the website.
For ubuntu Linux, enter
$ sudo apt-get install open-iscsi
and for fedora, enter
$ yum install open-iscsi
to automatically install the Initiator.
☞ Website
http://www.open-iscsi.org/
103
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
C. Initiator Installation on a Mac
Install the globalsan iSCSI initiator. This can be downloaded from the “studio
network solutions” homepage.
☞ Website
http://www.studionetworksolutions.com
[Server Synchronization]
On the webpage, click “Enable” and then click “Apply”. Once the iSCSI is
activated, certain functions such as web burning will be limited.
[iSCSI Connection]
A. Connection on a Windows PC
①Activate the iSCSI initiator.
For Windows Vista, go to “Control panel → iSCSI Initiator” and activate the
Initiator. For Windows XP, go to the Start menu and select iSCSI Initiator from
the program list.
If a mandatory certification (CHAP) procedure has been set up in the web
setting, enter the required information under the General tab by pressing the
Secret button.
104
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
②Find the iSCSI target (LG-NAS).
Click on the Discover tap on the top of the iSCSI Initiator program. Then click the
“Add” button on the bottom. Then a new window to Add Target Portal (picture
below) should appear. Enter the target (LG Network Storage) IP address.
If a mandatory certification (CHAP) procedure has been set up in the web
setting, enter the required information by pressing the Advanced button in
the above window.
105
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③Log in.
Go to the Targets tab on the cop of the iSCSI Initiator program. If all of the
above procedures have been followed properly, the iSCSI Initiator will find
and list the information for the target (LG-NAS). Select the relevant target
name and press the “Log On . . .” and click “OK” from the pop-up window.
④Check that the target has been connected as follows.
Target can be checked by going to Device administrator → DVD/CD-ROM
drive.
⑤NAS built-in ODD can be accessed by using tools such as CyberLink
Power2Go.
106
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑥ Log out when done.
Go to the Targets tab on the top of the iSCSI Initiator program. Then click on
the Details button on the bottom.
Select the relevant Target Name and click “Log Off. . . “
※ Due to compatibility issues between iSCSI Initiator and Windows Vista, the
Windows Vista built-in ODD record functions, mastered or live file system,
may not be available.
107
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
B. Connection on a Linux PC
①Activate the iSCSI initiator.
$ /etc/init.d/open-iscsi start
②Find the iSCSI target. If the LG NAS (target)’s IP address is 192.168.10.2, the
target is:
$ iscsiadm -m discovery -t sendtargets -p 192.168.10.2
Once target is found, execute the above command, which will display the
target name. The following is an example:
$ 192.168.10.2:3260,1 iqn.2009-01.com.lge:LG-NAS.123456
③Log in. Log-in command for the above target name is:
$ iscsiadm --mode node --targetname iqn.2009-01.com.lge:
LG-NAS.123456 --portal 192.168.10.2:3260 --login
④Confirm the target connection using the below command.
$ cdrecord -scanbus
⑤ODD tools such as cdrecord can be used to utilize the NAS built-in ODD.
☞ Website
☞ http://cdrecord.berlios.de/private/cdrecord.html
⑥Log out when done. Use the following command:
$ iscsiadm --mode node --targetname iqn.2009-01.com.lge:
LG-NAS.123456 --portal 192.168.10.2:3260 --logout
108
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
[Connection for CHAP certification]
①Open the open-iscsi set-up file “/etc/iscsi/iscsid.conf”and set up the CHAP
certification. Follow the below instructions. (The CHAP certificate password
must match the password set up for the iSCSI service on the LG Network
Storage webpage.)
discovery.sendtargets.auth.authmethod = CHAP
discovery.sendtargets.auth.username = inAdmin
discovery.sendtargets.auth.password = password set up (Target Secret)
node.session.auth.authmethod = CHAP
node.session.auth.username = outAdmin
node.session.auth.password = password set up (Initiator Secret)
② Activate open-iscsi.
$ /etc/init.d/open-iscsi start
If the open-iscsi was already activated, restart.
$ /etc/init.d/open-iscsi restart
③ The rest of the procedures are the same as for [Connection to a Linux PC].
☞ Websites
http://www.cyberciti.
biz/faq/howto-setup-debian-ubuntu-linux-iscsi-initiator/print/
http://manpages.ubuntu.com/manpages/hardy/man8/iscsiadm.8.html
http://wiki.debian.org/iSCSI/open-iscsi
109
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
C. Connection on a Mac
①Activate iSCSI initiator.
Go to System Preferences -> globalSAN iSCSIㄴ
②Find the iSCSI target. If the IP address is 192.168.10.2, see below.
Go to globalSAN iSCSI -> Portals and press “+” and enter 192.168.10.2 and
press “OK”.
If a mandatory certification (CHAP) procedure has been set up in the web
setting, enter the required information by pressing the Advanced button in
the above window.
110
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③Log in.
Go to globalSAN iSCSI -> Targets, select the relevant target name and click
“Log On. . . .” and then “Connect” on the pop-up window.
④Confirm that the target is connected as follows.
Go to Utilities -> System Profiler and check that “iSCSI” appears under “Disc
Burning” interconnect.
Tools such as Disc Utility/Finder can be used to utilize the NAS built-in ODD.
111
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑤Log out when done.
Go to globalSAN iSCSI -> Targets, select the relevant target name and click
“Log Off. . . .” and then “Disconnect” on the pop-up window.
* Notes
Because the LG Network Storage Blue-ray drive network connection allows
any logged-in user to use the program, it is important that other users are not
interrupted. For example, in the case that other users are burning data using the
Blue-ray drive, it is recommended to avoid commands that may interfere with the
work, such as “open tray”.
In addition, if data writing/reading on the LG Network Storage is in progress
through the network drive connection, there may be substantial data transfers
within the network and cause difficulty in data transfers through the iSCSI, resulting
in slower and limited writing/reading speed per disk.
☞ Website
http://www.studionetworksolutions.com
112
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Torrent
A P2P file sharing program that allows simultaneous download of files from multiple
locations, Torrent does not have its own search engine, so user must obtain a file in
format .torrent, register to the torrent program and download the file.
To use the Torrent function, user must “Enable” the Torrent from the service menu.
Click on the Torrent icon on the top and open the Torrent program administration
window.
[Download]
①Click on the Open icon.
②On the pop-up window:
i. Click the Find button and select the .torrent file previously downloaded.
ii. Or enter the path to the .torrent file in “or enter a URL”.
③Once completely downloaded, the file can be found in the network folder [Refer
to How to Use the LG Network Storage Network Folder] under \service\Torrent.
[Use]
① Open: Register the file to download (.torrent).
②Remove: Removes the selected file from the list. This does not delete the file
③ Remove Data: Removes the selected file from the list. This deletes the file.
④ Pause: Temporarily stops the downloading process of the selected file.
⑤Resume: Resumes the downloading process of the selected file temporarily
⑥ Pause all: Temporarily stops the downloading process of all files.
⑦Resume all: Resumes the downloading process of the all files temporarily
itself.
stopped.
stopped.
113
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑧ Filter: Hides or unhides the filter item.
⑨ Inspector: Hides or unhides the information for the selected file.
[Set-up]
① Click on the set-up icon.
② Select Preferences and set up the port to be used, transfer speed limit, etc.
114
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
USB Sync
This function enables data transfer between USB devices, memory cards or
external e-SATA devices and the LG Network Storage.
*Note: Some particular devices may require an adapter. (For a compatible
memory card list, please refer to the homepage, http://www.lge.com. Use of an
incompatible device may cause malfunction of the LG Network Storage.)
USB Device & Memory Card
USB device and memory card data can be backed up with the LG Network Storage.
A separate process can be created for each USB device. One task can be
performed using the USB device ID, target folder and back up method information,
as well as back up period information.
[Current USB List]
USB device and memory card lists on the LG Network Storage are displayed.
<Backup Configuration Procedures>
① Connect a USB or memory device to the LG Network Storage.
*O
n the back panel of the LG Network Storage there are 2 USB ports, on the
front panel of the LG Network Storage there is 1 USB port and 1 memory slot.
② Refresh the list to itemize.
Depending on which ports they are plugged in, USB1, USB2, USB3 and
MemCard will appear.
③ Select the device for backup and click on the ‘Create’ button.
④ Specific options for Backup are listed.
115
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
⑤
⑥
⑦
⑧
⑨
⑩
⑤The task name is saved. (automatically generated)
⑥ The task information description is specified.
⑦The selected device’s unique ID is displayed. ID specific to the manufacturer
⑧ The port with the device is displayed.
⑨Each time the USB is plugged the USB is automatically recognized and back-up
information, product information, etc, are displayed.
begins according to the settings. There is no need to press any button as a One
Touch back-up. In the case that USB automatic synchronization is not selected,
once the USB is recognized in the system, a message asking whether to backup the USB will pop up on the LCD and back-up begin at the press of the Set
button using the settings information from the Web. (One Touch back-up)
⑩ The backup method is specified.
- Incremental: Backs up only additional information to the data previously
- Full: Backs up the entire source files.
backed up
Folders are created by “back-up date”. For more information, refer to [Incremental
Back-up and Full Back-up] on the back.
116
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
<USB Sync Setting>
The current task list is indicated and tasks may be created, edited, deleted or
synched.
① Clicking on the ‘Create’ button allows for a new task to be created.
∙ If the task name is selected, and the ‘Delete’ button is clicked, the task is
deleted.
② If the list task name is clicked, editing is possible.
<Incremental Back-up and Full Back-up>
For back-ups of removable storage devices, LG Network Storage supports
Incremental back-up and Full back-up. Back-up data are saved in a folder
designated by the user and in the Last Backup folder.
- Incremental: The Last Backup folder contains all data from the removable
storage device. The user designated folder only contains additional data in
the removable disk when compared to the Last Backup folder. .
- Full: Backs up the entire source files. Unlike the Incremental back-up, Full
back-up saves all files in the user designated folder. (Last Backup folder is
not used.)
The following is an example of Incremental back-up and Full back-up. For the 1st
back-up (Jan 1, 2009) the USB contained the following files:
a.txt
b.txt
c.txt
117
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
The Incremental back-up will create a folder for the back-up date with the above
files. It also creates a Last Backup folder containing all of the files in the USB. The
system folder structure is as follows:
`-- USB_LG_XTICK
|-- 20090101
| |-- a.txt
| |-- b.txt
| `-- c.txt
`-- lastbackup
|-- a.txt
|-- b.txt
`-- c.txt
For the 2nd back-up (Jan 2, 2009), a.txt and b.txt had been deleted and d.txt and
e.txt had been added.
c.txt
d.txt
e.txt
The 2nd back-up will also create a folder for the back-up date containing only the
added or modified files. In this case, only d.txt and e.txt will be saved and the Last
Backup file will contain all files in the current USB.
`-- USB_LG_XTICK
|-- 20090101
| |-- a.txt
| |-- b.txt
| `-- c.txt
|-- 20090102
| |-- d.txt
| `-- e.txt
`-- lastbackup
|-- c.txt
|-- d.txt
`-- e.txt
118
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
For the 3rd back0up (Jan 3, 2009), e.txt has been opened, modified and saved.
Only e.txt file will be saved in the new folder. In the Last Backup folder, all files in
the current USB, c.txt, d.txt and e.txt, will be saved as is.
`-- USB_LG_XTICK
|-- 20090101
| |-- a.txt
| |-- b.txt
| `-- c.txt
|-- 20090102
| |-- d.txt
| `-- e.txt
|-- 20090103
| `-- e.txt
`-- lastbackup
|-- c.txt
|-- d.txt
`-- e.txt
If Full back-up had been selected for all 3 back-ups above, then the folder
structure after the 3 back-ups will be as follows:
`-- USB_LG_XTICK
|-- 20090101
| |-- a.txt
| |-- b.txt
| `-- c.txt
|-- 20090102
| |-- c.txt
| |-- d.txt
| `-- e.txt
`-- 20090103
|-- c.txt
|-- d.txt
`-- e.txt
119
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Information
This shows network, volume, device status of the LG Network Storage and
information about system log, connection log and self-diagnosis.
Status
Status of the LG Network Storage Network, Volume and external devices can be
viewed. For more specific details or to make changes, clicking on the icons on the
bottom will direct the users to the relevant webpage.
①
②
③
④
⑤
⑥
⑦
①Mac Address, IP, Subnet Mask, Gateway, DNS Server, Ethernet Frame Size, link
Speed, etc information can be viewed.
②Configured volume list and usage/RAID state information etc can be viewed.
120
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③All hard disk information connected to the LG Network Storage can be viewed
by Bay position
④The information pertaining to the Blu-ray drive connected to the LG Network
Storage can be viewed.
⑤The information pertaining to the USB device and memory card connected to the
LG Network Storage can be viewed.
⑥The information pertaining to the e-SATA device connected to the LG Network
Storage canbe viewed.
⑦User state currently connected to the LG Network Storage can be viewed.
(SMB , FTP)
121
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Log
The LG Network Storage service history can be displayed/saved.
①
②
③
④
⑤
① The system use history can be viewed.
② The share folder use history can be viewed.
122
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
③ The FTP use history can be viewed.
④ The diagnosis is und and the result can be viewed
- The service code for proper functions is displayed as [SVC_ CODE: 00_00].
⑤ Selected tab log can be downloaded to the client PC.
123
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
Top menu
WebDAV
LG Network Storage supports the WebDAV function which allows to remotely drag
and drop, open and save functions after logging on to LG Network Storage from the
web. (“MS Office file” only)
*T
he WebDAV function will allow the user logged in through the webpage to access
files in the LG Network Storage as if they were files in the user’s PC.
The PC must have Microsoft’s MS Office installed in order for the WebDAV to be
available.
<Install>
To use WebDAV, user folder must be generated and WebDAV must be selected
from the support protocol.
124
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
<Open>
① Select the WebDAV icon on the top.
②Go through user certification. This is the same as the user certification required
for network folder access.
③Once certified, the following screen will pop up and file drag and drop, open,
edit and save functions will be made possible.
*T
his information is for Windows XP users only. Other OS users should refer to the
information found online.
125
4. LG Network Storage Web Menu Use (for LG Network Storage administrators)
My Information
①Click the “My information” button on the left top corner. This displays the user
information.
② Click on the “Edit” button on the right bottom corner.
③Enter the modified information, enter the existing password in “User password”
and click on “OK”.
*T
o change the password, enter the existing password in “User password” and
enter the new password in “New password” and “Confirm new password”.
126
5. LG Network Storage web menu usage (Regular users)
5. LG Network Storage web menu
usage (Regular users)
Blu-ray / DVD
The built-in Blu-ray/DVD drive allows direct copy of data from discs to LG Network
Storage. Furthermore, secondary backup of data using the Blu-ray drive makes
data management safer and more efficient.
Burning
Burning the LG Network Storage data to disc is possible using the Blu-ray/DVD
drive.
Burn Disc
Burning LG Network Storage files to disc is possible.
[Button functions]
: Moves to upper folder.
: Refreshes the current folder.
: Files or folders selected on the left window are sent to the right window to
: Deletes selected files or folders from the list organized for recording on the
organize a list for recording.
right window.
127
5. LG Network Storage web menu usage (Regular users)
①Move the intended folder or file to the destined location.
②Selecting a folder or file to record and move to the right side produces a
configuration data list.
③ Specify disc name in the ‘‘Disc Name’ window
128
5. LG Network Storage web menu usage (Regular users)
④Click on the
button and confirm that disc writing is possible as
indicated in the disc status box.
⑤Pressing the
button begins the burning process. The burning process
is accompanied by a progress bar display. To cancel the process, click on the
‘Cancel’ button, which appears with the progress bar.
129
5. LG Network Storage web menu usage (Regular users)
⑥ At the end of the burning process, the tray ejects and the disc can be removed.
130
5. LG Network Storage web menu usage (Regular users)
Top menu
My Information
①Click the “My information” button on the left top corner. This displays the user
information.
② Click on the “Edit” button on the right bottom corner.
③Enter the modified information, enter the existing password in “User password”
and click on “OK”.
*T
o change the password, enter the existing password in “User password” and
enter the new password in “New password” and “Confirm new password”.
131
6. LG Network Storage via network drive
6. LG Network Storage via network
drive
The file sharing service is the most important function in LG Network Storage.
This section pertains to Windows, Mac, Linux OS, which are explained in reference to
their use with the LG Network Storage network drive.
Accessing the LG Network Storage data in Windows OS
For Windows users, observe the following procedure to access the LG Network Storage.
PC Application Program Usage
After setting up the ‘LG Network Storage PC Software Installer’ disc NAS Detector
program and desktop icon use, execute and clicking on the “Open Network Folder”
button will allow access to LG Network Storage’s sharing folder. For detailed setting
information refer to <PC Application Usage>.
132
6. LG Network Storage via network drive
Windows OS “Execute” function use
Clicking on “Execute” in the Windows OS can start a new menu with inputting the \\IP
Address to the LG Network Storage can be accessed. If IP address is unknown, refer to
<Use Application Program> or <LG Network Storage Information Confirmation>.
Windows File Sharing Use
Open the web browser and input 『\\IP address』 in the address bar. The server can
be accessed after the log in. If the IP address is unknown, refer to <Use Application
Program> or <LG Network Storage Information Confirmation>.
133
6. LG Network Storage via network drive
Tip) Post server connection, network drive set-up
If there is a connection to the LG Network Storage, all sharing folders are registered. If
settings involve the network drive using the
“Tools > Map Network Drive…”, future connection to the LG Network Storage server
becomes more convenient.
134
6. LG Network Storage via network drive
* Multiple folders can be set up in different network drives in the same way.
135
6. LG Network Storage via network drive
MAC OS connection
MAC users can connect to the LG Network Storage by methods such as explained
below.
[“Server connect” function use]
The LG Network Storage sharing folder can be added to the Mac server list on the desk
top. The connection order is as follows.
① Select “Connect to server” after clicking on “Go” at menu bar.
② At the server address field, input the LG Network Storage IP address 『smb://LG
Network Storage IP Address』, and click the “Connect” button. If the LG Network
Storage IP address is not known, refer to <Use Application Program> or <LG
Network Storage Information Confirmation>.
136
6. LG Network Storage via network drive
③ Input the log in ID and password and click on the ‘OK’ button. The initial settings
are as follows: ID: admin, password: admin. For future security, it is recommended
that password is changed after logging on to the web administrator page.
137
6. LG Network Storage via network drive
④ Select the volume to be used (e.g. cdrom/service/volume1) in the LG Network
Storage folder list and click “OK”.
⑤ The relevant shared folder will open and the contents displayed.
138
6. LG Network Storage via network drive
Linux OS access
LG Network Storage supports Windows, MAC, and Linux OS, through the SMB service.
The Linux system connection is as follows. Ubuntu will be used as a reference.
① Click on the menu bar and then select ‘network’.
② Click on “Windows Network” and select “workgroup” to display the LG Network
Storage connected. Select the name of the LG Network Storage to connect to.
139
6. LG Network Storage via network drive
③ Selecting LG Network Storage will display the folder list of LG Network Storage.
Select the volume to be used (e.g. cdrom/service/volume1).
④ If the ID and passwords are inputted then connection to the LG Network Storage
is allowed. Initial default information is ID: admin, password: admin. For future
security, it is recommended that password is changed after logging on to the web
administrator page.
140
6. LG Network Storage via network drive
⑤ After logging in, the LG Network Storage share folder appears.
141
7. LG Network Storage Maintenance
7. LG Network Storage Maintenance
This section explains about general LG Network Storage maintenance and selfdiagnosis.
LG Network Storage shut down/restart
The following steps pertain to server shut down/restart.
① Inform all connected users to save files in operation and stop use of the LG Network
Storage.
② Open the administrator web page, and go to the ‘System > Power > Shutdown’ tab.
Follow the description and press the ‘Restart’ button to restart or the ‘Shut down’
button to shut down.
For a compulsory shut down of LG Network Storage, press the power button for more
than 3 seconds. A message saying that system will shut down will pop up and LG
Network Storage will shut down.
142
7. LG Network Storage Maintenance
Administrator password and network set up initialization
Open the administration web menu and go to the ‘Initialization’ tab of the ‘System >
Firmware’ menu. Following the explanation, push the ‘Initialization’ button and initialize
the default system values.
Warning: As this time all registered user information and data will be deleted, and
cannot be recovered.
∙ LG Network Storage default value initialized items
① System administrator ID, password: admin, admin
② Network set up /TCP/IP configuration: DHCP mode will be set up as default
③ Network set up/TCP/IP configuration : Jumbo frame inactivity
④ System device/IP filter: All connections are allowed
⑤ RAID components
⑥ Service set-up value
⑦ User/folder/group list
mode
∙ Log in to the LG Network Storage using the default user name and password:
ID: admin, password: admin
143
7. LG Network Storage Maintenance
System information checking and saving
Open the administration web menu and go to the ‘Log’ of the ‘Information’ menu then
check and save settings in ‘System Log’, ‘Samba Log’ and ‘FTP Log’.
Self-diagnosis execution
The LG Network Storage, by virtue of built in self-diagnosis mode, helps users easily
recognize and handle problems arising on the server.
* The volume must first be constructed before running self-diagnosis.
①Open the administrator’s web menu and go to “Information → Log” menu and
select “Self-diagnosis” tab to immediately execute the LG Network Storage
self-diagnosis.
② Even in the middle of usage, the administrator can open up the administrator web
menu and select the ‘Self-diagnosis’ tab in the ‘Information > Log’ menu, so the
LG Network Storage immediately runs self-diagnosis.
144
7. LG Network Storage Maintenance
System failure or malfunction
If the LG Network Storage does not display SVC_CODE[00_00] which verifies normal
status and seems to have encountered a problem after running a ‘Self-diagnosis’ on
the administrator web as stated above in section 7.4, follow the steps below.
①For technician’s reference, write down the error code appearing on the LCD
‘[SVC_CODE xx_yy] and make a record on tasks done before the accident and
messages you witnessed.
②For error messages mentioned in ①, you can get help from LG electronics
Service Site if such errors were caused by negligence. http://www.lge.com.
③When no solution exists, do not disassemble and call the service center for
remote technical support.
Power cut or failure
When power failure occurs, the LG Network Storage will return to its former pre
power-failure state after reboot. In case of system malfunctions under normal
environment, observe the following procedure.
①If the system settings are modified, the user must perform a new set up after
reboot.
②If the system is still acting strangely contact the service centre.
To prevent data loss, frequently back up files.
① Follow the above description for shutdown/restart.
②In the case that a potential shut down is expected, all files must be saved and
backed up. After the power is restored, reboot the system.
System temperature protection
If HDD temperature within the system exceeds 67 degrees Centigrade or 153 degrees
Fahrenheit, the system ends automatically and to protect hardware.
145
. RAID trouble shooting
. RAID trouble shooting
The LG Network Storage RAID configuration is abnormal when error messages appear,
hence resort to another solution:
Note: To avoid data obstacles, first perform a back-up of all important data from the LG
Network Storage.
1. RAID configuration error checkup
∙
Confirm whether there is an error on the RAID configuration:
①
On the Status Information/Volume page, the volume configuration state will
show as ”degraded/destroyed”.
∙
Confirm which HDD is causing the RAID error.
①
LED: The LG Network Storage state LED will appear as red.
②
Hard disk with error will not appear in the hard disk status window.
1
8. RAID trouble shooting
2. Problem solutions
Removing the HDD with the error and connecting a new hard drive (e.g. HDD 2)
will display the new hard disk status to be inactive on the system/volume/add or
remove HDD page. Select the hard disk and click the Add button and RAID will
reconfigure. This will delete all contents of the new hard disk.
RAID reconstruction entails to RAID 1 only.
If there is another failure during reconfiguration, another hard disk should be connected
in place of the hard disk at work and reconfigure RAID.
When connecting or disconnecting the HDD, strictly adhere to the following procedure
and avoids abnormal system operation or data obstruction.
1. In the LG Network Storage, one HDD can be connected or disconnected at a time.
2. 10 seconds will lapse before 2 tones are heard when the LG Network Storage is
connected to or disconnected from a new hard drive. Next, connect or disconnect
the HDD.
147
8. RAID trouble shooting
Appendix A Volume Construction & RAID Configuration
This section describes volume configuration and supported RAID level. When
configuring volume using RAID, the use of Disks of the same manufacturer and capacity
is recommended to maximize stability and efficiency of configuration. In the case that
the Disks differ in capacity and trademark, data may be lost due to low system stability
and efficiency. In the case that the volume of the damaged Disk must be amended,
relevant data must first be backed up.
∙ Single Disk (None) volumes
The volume can be configured to each Disk without configuring the RAID. This
issimilar to methods with general PCs that use Disks.
If the Disk is damaged, the damaged Disk data may be lost.
A
B
148
A
B
1
2
8. RAID trouble shooting
∙ Mirroring volumes
Data can be exactly replicated to the Disk through this technique. If one Disk
becomes damaged in the volume, data can be efficiently transferred, saved and
backed up to another configured Disk. The volume’s storage capacity is equal to
that of the smallest Disk in the RAID1, as the data is reproduced from Disk to Disk.
The data backup is a priority during RAID1.
The saving of important data is recommended.
A B C
149
A
B
C
A
B
C
1
2
8. RAID trouble shooting
∙ RAID0 striping volume
The Disks are configured in parallel so that they are all being used at once to store
data, as if they were one Disk in summation. Because the data is saved to each
Disk in parallel, many files of low capacity are read simultaneously but with superior
efficiency. Many low capacity files are read because multiple blocks of data are
stored to each Disk, though the performance is excellent at this time. In order to
secure data stored, Information is not read when at least one Disk is damaged.
Subsequently, if the Disk is damaged, the saved data in the volume will be lost.
The storage capacity of the volume as a whole is the sum of the capacities of all of
the Disks.
This technique must not be used for the saving of important data, but rather for fast
data access and for maintenance of the security of its volume capacity.
A B C
D E F
150
A
C
E
B
D
F
1
2
8. RAID trouble shooting
∙ JBOD Linear volume
The Disks are configured in series so that they are all being used at once to store
data, as if they were one Disk in summation. The volume’s storage capacity can be
maximized, as the data is stored to the Disks in sequence. Data must not be written
in the event of a damaged Disk to safeguard saving capacity. In this way, if a Disk
is damaged, saved date in the volume will be lost. The storage capacity of the
volume as a whole is the sum of the capacities of all of the Disks. To maximize the
safeguard of capacity of the volume, saving of important data is not recommended.
A B C
D E
151
A
B
D
E
C
1
2
8. RAID trouble shooting
Appendix B Technical Support
LG Network Storage provides dedicated online support and customer service via instant
messenger.
You can contact us by the following means:
-. Online Support : http://www.lgservice.com
LG Electronics U.S.A. Inc, 1000 Sylvan Ave.
Englewood Cliffs NJ 07632 U.S.A or http://www.lgusa.com
LG Electronics Deutschland GMBH Jakob-Kaiser-Strae 12,
D-47877 Willich, Germany
Goldstar France E.U.R.L Paris Nord II 22, Avenue des Nations-B.P.50372
VILLEPINTE 95945 ROISSY CDG CEDEX France
LG Electronics España Complejo Europa Empressaries (Edif. Bruselas)
Ctra, N-VI 28230 Las Rozas Madrid Spain
152
8. RAID trouble shooting
Appendix C Open source software notice
The following GPL executables and LGPL libraries used in this product are subject to
the GPL/LGPL License Agreements:
GPLv2.0 :
∙ apcupsd
∙ apt
∙ base-files
∙ base-passwd
∙ bash
∙ bootchart
∙ busybox
∙ bzip2
∙ ca-certificates
∙ cdrtools
∙ dbus
∙ debian-archive-keyring
∙ debianutils
∙ dpkg
∙ dvd+rw-tools
∙ e2fsprogs
∙ file-rc
∙ gcc
∙ gpm
∙ grep
∙ hostname
∙ ifplugd
∙ ifupdown
∙ inadyn
∙ inotify-tools
∙ jQuery
∙ krb5
∙ libcap
∙ libgdbm
∙ libid3tag
∙ Linux Kernel
153
8. RAID trouble shooting
∙ lockfile-progs
∙ logrotate
∙ lprng
∙ lsb
∙ lzo
∙ module-init-tools
∙ mtd
∙ mt-daapd
∙ netatalk
∙ netbase
∙ net-tools
∙ noflushd
∙ ntfs-3g
∙ pam
∙ perl
∙ proftpd
∙ psmisc
∙ readline
∙ scst-iscsi
∙ sed
∙ sg3-utils
∙ shadow
∙ smbwebclient
∙ ssmtp
∙ sysklogd
∙ time
∙ transmission
∙ u-boot
∙ udev
∙ util-linux
154
8. RAID trouble shooting
GPLv3.0 :
∙ binutils
∙ gnupg
∙ parted
∙ rsync
∙ samba
∙ wget
LGPLv2.1 :
∙ acl
∙ Ajaxplorer
∙ attr
∙ avahi
∙ codepress
∙ confuse
∙ debmapper
∙ dialog
∙ glib2.0
∙ glibc
∙ gmp
∙ gnutls8
∙ keyutils
∙ libdaemon
∙ libexif
∙ libgcrypt
∙ libgpg-error
∙ libiconv
∙ libidn
∙ liblockfile
∙ libscew
∙ libtasn1
∙ libusb
∙ lzma
∙ mpfr
∙ packer
∙ ufo
155
8. RAID trouble shooting
LG Electronics offers to provide source code to you on CD-ROM for a charge covering
the cost of performing such distribution, such as the cost of media, shipping and
handling upon e-mail request to LG Electronics at:
[email protected]
This offer is valid for a period of three (3) years from the date of the distribution of this
product by LG Electronics.
You can obtain a copy of the GPLv2.0, GPLv3.0, LGPLv2.1 licenses from
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html,
http://www.gnu.org/licenses/gpl-3.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html.
Also you can obtain the translation of GPLv2.0, GPLv3.0, LGPLv2.1 licenses from
http://www.gnu.org/licenses/old-licenses/gpl-2.0-translations.html, http://www.gnu.
org/licenses/translations.html,
http://www.gnu.org/licenses/old-licenses/lgpl-2.1-translations.html.
This product includes
∙Berkeley DB under Berkeley DB license (http://www.oracle.com/technology/
software/products/berkeley-db/htdocs/oslicense. html ) Copyright © 1990-2008
Oracle Corporation.
Copyright © 1990, 1993, 1994, 1995 The Regents of the University of California
Copyright © 1995, 1996 The President and Fellows of Harvard University.
∙openLDAP under openLDAP Public License (http://www.OpenLDAP.org/license.
html.)
Copyright © 1998-2007 The OpenLDAP Foundation
WebFX under Apache License 2.0(http://www.apache.org/licenses/)
Apache HTTP Server under Apache License 2.0
Copyright © 2006 The Apache Software Foundation.
This product includes software developed at The Apache Software Foundation (http://
www.apache.org/).
Portions of this software were developed at the National Center for Supercomputing
Applications (NCSA) at the University of Illinois at Urbana-Champaign.
This software contains code derived from the RSA Data Security Inc. MD5 MessageDigest Algorithm, including various modifications by Spyglass Inc., Carnegie Mellon
University, and Bell Communications Research, Inc (Bellcore)
This work includes the Expat xml parsing library Copyright (c) 1998, 1999 James Clark,
distributed under and subject to the Mozilla Public License Version 1.1.
This work includes the regex library Copyright 1992, 1993, 1994 Henry Spencer, all
rights reserved.
156
8. RAID trouble shooting
This product includes other open source software.
∙ bind9 :
Copyright © 2004-2008 Internet Systems Consortium, Inc. (“ISC”)
Copyright © 1996-2003 Internet Software Consortium.
Copyright © 1996-2001 Nominum, Inc.
∙ cyrus-sasl2: Copyright © 1998-2003 Carnegie Mellon University
∙ debconf: Copyright © 1999-2006 Joey Hess <[email protected]>.
∙ dhcp3: Copyright © Internet Systems Consortium (ISC) <[email protected]>
∙ dibi : Copyright © 2005, 2008 David Grudl (http://davidgrudl.com)
∙ file:
Copyright © 1985-1995 Ian F. Darwin
Copyright © 1994-2008 Christos Zoulas [email protected]
Javascript MD5 : Copyright © 1998 - 2009, Paul Johnston & Contributors
∙ Libcurl: Copyright (c) 1996 - 2008, Daniel Stenberg, [email protected]
∙ Libpcap: Copyright © 1993-2008 The Regents of the University of California.
∙ Libssh :
Copyright (c) 2004-2007 Sara Golemon <[email protected]>
Copyright (C) 2006-2007 The Written Word, Inc.
∙ Libxml:
Copyright © 1998-2002 Daniel Veillard.
Copyright © 1998-200 Bjorn Reese and Daniel Stenberg.
Copyright © 2000 Gary Pennington and Daniel Veillard.
∙ Lighttpd: copyright © 2004, Jan Kneschke, incremental
∙ Ncurses: Copyright © 1998 Free Software Foundation, Inc.
∙ ntp: Copyright © David L. Mills 1992-2006
∙ pcre:
Copyright © 1997-2007 University of Cambridge
Copyright © 2007, Google Inc.
∙ PHP5 software, freely available from http://www.php.net/software/.
Copyright © 1999 - 2009 The PHP Group.
∙ popt: Copyright © 1998 Red Hat Software
∙ portmap:
Copyright © 1983,1991 The Regents of the University of California
Copyright © Sun Microsystem.
157
8. RAID trouble shooting
∙ Prototype JavaScript framework: Copyright © 2005-2008 Sam Stephenson
∙Scriptaculous : Copyright © 2005-2008 Thomas Fuchs (http://script.aculo.us,
http://mir.aculo.us)
∙ sudo:
Copyright © 1994-1996,1998-2005,2007 Todd C. Miller <[email protected]>
Copyright © 1987, 1989, 1990, 1991, 1993, 1994 The Regents of the University of
California
∙ tcp-wrappers: Copyright © 1995 by Wietse Venema
∙ Expat: copyright © 2006 expat maintainers.
∙OpenSSL: software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)
∙ cryptographic software written by Eric Young ([email protected]).
∙ software written by Tim Hudson ([email protected]).
∙software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
(http://www.openssl.org)
∙ Zlib: Copyright © 1995-2002 Jean-loup Gailly and Mark Adler.
All rights reserved.
Permission is hereby granted, free of charge, to any person obtaining a copy of this
software and associated documentation files (the “Software”), to deal in the Software
without restriction, including without limitation the rights to use, copy, modify, merge,
publish, distribute, sublicense, and/or sell copies of the Software, and to permit
persons to whom the Software is furnished to do so, subject to the following conditions:
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY
CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
158
8. RAID trouble shooting
Appendix D Compatible/Recommended Device List
For the latest compatible/recommended device list, please visit http://www.lge.com.
Recommendation hard disk list
The following is a list of hard disks possibly compatible with the LG Network Storage.
The following hard disks are recommended. In the case of using hard disks not
recommended by LG Electronics, malfunctions in the LG Network Storage can occur.
For updated hard disk recommendations, go to the link http://www.lge.com.
159
