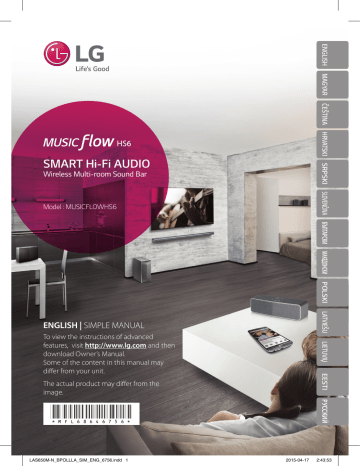

SMART Hi-Fi AUDIO
Wireless Multi-room Sound Bar
SLOVENČINA БЪЛГАРСКИ МАКЕДОНСКИ
Model : MUSICFLOWHS6
POLSKI
LATVIEŠU
ENGLISH | SIMPLE MANUAL
LIETUVIŲ
To view the instructions of advanced
features, visit http://www.lg.com and then
download Owner’s Manual.
Some of the content in this manual may
differ from your unit.
EESTI
The actual product may differ from the
image.
РУССКИЙ
*MFL68646756*
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 1
2015-04-17
2:43:53
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
NOTICE: For safety marking information including
product identification and supply ratings, please
refer to the main label on the bottom or the other
surface of the product.
For models using an adapter
Only use the AC adapter supplied with this device.
Do not use a power supply from another device or
another manufacturer. Using any other power cable
or power supply may cause damage to the device
and void your warranty.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. The
Power Plug is the disconnecting device. In case of
an emergency, the Power Plug must remain readily
accessible.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 2
2015-04-17
2:43:54
Getting Started
This device is equipped with a portable battery or
accumulator.
Disposal of your old appliance
1.All electrical and electronic
products should be disposed of
separately from the municipal
waste stream via designated
collection facilities appointed
by the government or the local
authorities.
2.The correct disposal of
your old appliance will help
prevent potential negative
consequences for the
environment and human
health.
Disposal of waste batteries/accumulators
1
Pb
1. This symbol may be combined with chemical
symbols for mercury(Hg), cadmium(Cd) or
lead(Pb) if the battery Contains more that
0.0005% of mercury,0.002% of cadmium or
0.004% of lead.
Getting Started
Safety way to remove the battery from the
equipment: Remove the old battery or battery
pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to
human and animal health, the old battery or
the battery put it in the appropriate container
at designated collection points. Do not dispose
of batteries or battery together with other
waste. It is recommended that you use local,
free reimbursement systems batteries and
accumulators. The battery should not be exposed
to excessive heat such as sunshine, fire or the like.
3
2. All batteries/accumulators should be
disposed separately from the municipal
waste stream via designated collection
facilities appointed by the government or the
local authorities.
3. The correct disposal of Your old batteries/
accumulators will help to prevent potential
negative consequences for the environment,
animal and human health.
4. For more detailed information about disposal
of Your old batteries/accumulators, please
contact Your city office, waste disposal
service or the shop where You purchased the
product.
3.For more detailed information
about disposal of your old
appliance, please contact
your city office, waste disposal
service or the shop where you
purchased the product.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 3
2015-04-17
2:43:54
4
Getting Started
Declaration of Conformity
1
Getting Started
Hereby, LG Electronics European Shared Service Center
B.V., declares that this Wireless Multi-room Sound Bar is
compliant with the essential requirements and other
relevant provisions of Directive 1999/5/EC. The complete
Declaration of Conformity may be requested through the
following postal address:
LG Electronics European Shared Service Center B.V.
European Standard Team
Krijgsman 1
1186 DM Amstelveen
The Netherlands
or can be requested at our dedicated DoC website:
http://www.lg.com/global/support/cedoc/cedoc#
This device is a 2.4 GHz and 5 GHz wideband transmission
system, intended for use in all EU member states and EFTA
countries, with indoor use restriction for 5 GHz band. (5150
– 5250 MHz)
This device should be installed and operated with
minimum distance 20 cm between the device and your
body. And this phrase is for the general statement for
consideration of user environment.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 4
2015-04-17
2:43:54
Table of Contents
5
Table of Contents
1
1
Getting Started
4
2
Safety Information
17
Using External device
6
Unpacking
6
– Additional Information for some
accessories
17
17
17
– 1. HDMI Input connection
– 2. P
ORTABLE IN connection
– 3. BLUETOOTH® connection
7
Front panel
7
Rear panel
5
Troubleshooting
8
Remote control
18
Troubleshooting
2
Connecting to your TV
6
Appendix
9
Connecting to your TV
9
9
– 1. O
ptical connection
– 2. H
DMI (ARC) connection
22 Mounting the main unit on a wall
3
Using Multi-Room
10
Multi-Room Network Setup
10
11
– Step 1. H
ome Network Requirement
– Step 2. Installing “Music Flow Player”
App and Media Server
– Step 3. Initial Multi-Room Setup
– Step 4. A
dd Speakers (Optional)
– Using the Bridge
12
14
15
16
Enjoying Multiple MUSICflow Product
16
– 1. H
ome Cinema Mode (Surround
Sound Mode)
– 2. G
rouping Mode
– 3. L
/R Stereo Mode
16
16
Using External device
2
3
23 About Status LED’s Condition
4
23 Specification
23 Open source software notice
5
6
Some of the content in this manual may differ from Music Flow Player app depending on the
application’s version.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 5
2015-04-17
2:43:54
6
Getting Started
Unpacking
1
Getting Started
Unit
Remote Control and
Batteries
Cable ties
Simple Manual
Subwoofer
Adapter and power cord
Optical cable
LG Tag On Sticker
Wall brackets and
screws
LAN cable
Wall bracket install
guide
yy When mounting this unit on a wall, refer to page 22.
Additional Information for some accessories
Adapter and
power cord
Subwoofer
1. Connect the supplied AC power
cord to the AC adapter.
2. Connect the AC adapter cable to
DC. IN adapter input.
3. Plug the AC power cord into an AC
outlet.
Wireless subwoofer connection
1. Connect the power cord of the main unit
and the wireless subwoofer to the outlet.
2. Turn them on and the wireless subwoofer
will be automatically connected. When
the connection is completed, you can see
the green LED on the subwoofer.
If you have trouble to connect the wireless
subwoofer, refer to page 18.
yy Depending on the region, the supplied accessories may differ.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 6
2015-04-17
2:43:58
Getting Started
7
Front panel
1
Getting Started
A Display window
B Remote sensor
C LED indicator: Shows connection status.
(Page 23)
yy White (blinking): waiting for network
connection
yy White (staying on): network connection is
completed.
yy White (Dimmed): standby mode with
network connection.
yy Green (staying on): the first group was set.
yy Red (staying on): standby mode without
network connection
D
(Add): Adds additional MUSICflow
products to your network.
(In case one or more MUSICflow products are
connected)
E
(Wi-Fi): Connects initial MUSICflow
product to your network wirelessly.
F F (Function): Selects the function and input
source. (WI-FI / OPTICAL / BLUETOOTH /
HDMI IN / PORTABLE)
G p/o (Volume)
H 1/! (Standby/On)
Rear panel
A DC IN (AC adapter input)
D ETHERNET (LAN) port
B HDMI OUT connector:
Connect to HDMI IN (ARC) on TV.
E PORTABLE IN connector
C HDMI IN connectors:
Connect to HDMI OUT on the external device.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 7
F OPT. IN connector
2015-04-17
2:43:58
8
Getting Started
Remote control
SOUND EFFECT : Selects a sound effect mode.
WOOFER LEVEL : Sets the sound level of woofer.
o/p (VOL) : Adjusts speaker volume.
1
• • • • • • • • • • b • • • • • • • • • •
Getting Started
REPEAT : Listen to your music repeatedly.
C/V (Skip) : Skips Fast backward or Forward.
dM (Play/Pause) : Starts playback or pauses
playback.
(Shuffle) : Shuffles the music on the list.
,,Note
You can use these playback buttons after
play music by “Music Flow Player” App or PC
software.
• • • • • • • • • • c • • • • • • • • • •
DRC : Turns on or off DRC function.
yy DRC (Dynamic Range Control) : Make the sound
clear when the volume is turned down (Dolby
Digital only).
INFO : Displays the input source information.
AV SYNC : Synchronizes the audio and video.
yy When receiving audio signals from TV, sound
and images may not be matched. In the case,
this function can adjust the delay time.
yy Press AV SYNC then Use C/V to control
the time which you can set at between 0 and
300 ms.
Replacement of battery
Remove the battery cover on the rear of the
Remote Control, and insert two R03 (size AAA)
batteries with and matched correctly.
• • • • • • • • • • a • • • • • • • • • •
1 (Power) : Switches the unit ON or OFF (standby
mode).
FUNC (Function) : Selects the function and the
input source. (WI-FI / OPTICAL / BLUETOOTH /
HDMI IN / PORTABLE)
SLEEP : Sets the system to turn off automatically at
a specified time.
AUTO VOL : Turns on or off the AUTO VOLUME
mode.
yy When the output sound is too loud or too low,
press this button on the remote control. So you
can enjoy the sound with appropriate levels.
AUTO POWER : Turns on or off AUTO POWER
function.
yy If your TV or an external device is connected to
Optical Input connector(s) on the unit and when
you turn on your TV or an external device, this
unit recognizes the input signal and selects the
optical function. You can hear the sound from
your device.
(Mute) : Mutes the sound.
OPTICAL : Changes input source to OPTICAL
directly.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 8
2015-04-17
2:43:59
2
Connecting to your TV
Connecting to your TV
9
Connecting to your TV
Make one of the following connections, depending on the capabilities of your TV among Optical, HDMI or
Wireless connection.
1. O
ptical connection
1. Connect the OPT. IN jack on the unit to OPTICAL OUT jack on the TV using an optical cable.
2
3. Set the input source of this unit to OPTICAL using OPTICAL or FUNC button.
2. H
DMI (ARC) connection
Connecting to your TV
2. Set up the sound output of TV to OPTICAL output. (For details, reference your TV user manual.)
Note: If your LG TV is supported LG Sound Sync (LG TV with the
logo), set up the sound
output of TV to LG Sound Sync (Optical). (For details, reference your TV user manual.)
If you connect this unit to a TV that supports HDMI CEC and ARC (Audio Return Channel), you can enjoy the
TV audio through the speakers of this unit without connecting the optical cable.
1. Connect the HDMI OUT jack on the unit to HDMI IN (ARC) jack on the TV using an HDMI cable (Type A,
High speed HDMI™ Cable with Ethernet).
TV : HDMI IN (ARC)
Sound Bar : HDMI OUT
2. Set up the sound output of TV to HDMI (ARC). (For details, reference your TV user manual.)
3. ARC function is automatically selected when ARC signal comes in from TV, no matter what kind of the
function you are using.
About
You can control some functions of this unit by your TV’s remote control with LG Sound Sync. It is compatible
with the LG TV that is supported LG Sound Sync. Make sure of the LG Sound Sync logo on your TV.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 9
2015-04-17
2:44:00
3
10
Using Multi-Room
Using Multi-Room
Multi-Room Network Setup
Step 1. Home Network Requirement
d
c
a
b
a Make sure that a wireless network environment using a router is installed at your home. The home router
should be connected to the internet.
3
b Connect your smart device to your home network.
Using Multi-Room
c Connect the speaker to the power supply.
d If you want to enjoy the music on media server (PC, Mac or Network Storage), connect the media server
to your home network.
. Caution for Home Network Requirement
yy MUSICflow system communicates over both 2.4 GHz and 5 GHz home network supporting 802.11b/g/n
wireless technology.
yy Wireless signal interference may lead to disconnection of network or stopping playback.
yy Depending on the speed of your network, playback of online contents may not work well.
yy Network connection may not be made with some routers (or modem) from certain internet
communication service providers. In such case, purchase a router from general market and use.
yy Because of a firewall on your PC, Music Flow PC Software may not work well. In this case, disable all your
firewalls and try to connect again. Refer to your firewall’s instruction or website.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 10
2015-04-17
2:44:00
Using Multi-Room
11
Step 2. Installing “Music Flow Player” App and Media Server
Installing “Music Flow Player” App
Download “Music Flow Player” on the Apps Store or Google Play Store.
A
B
OR
3
Using Multi-Room
A Type “Music Flow Player” in the search bar and tap “Search”.
B Scan the QR code using the scanning application.
, Note for “Music Flow Player” App
yy Depending on the device, “Music Flow Player” app may not work.
yy Music Flow Player app will be available in version of the software as follow;
Android O/S : Ver 4.0 (ICS) (or later)
iOS O/S : Ver 6.0 (or later)
Installing Media Server software on your PC or Mac
Media server software allows you to access audio files stored in media server (PC, Mac or Network storage)
and enjoy them on your speaker via home networking. On www.lg.com website, type model name in the
search bar and find media server software on support tab.
yy Windows : Music Flow PC Software
yy Mac OS : Nero MediaHome 4 Essentials
, Note for using Media Server
yy On your PC or Mac, you must share the folder contained Audio content to play them on MUSICflow
system.
yy On your NAS device, you also must change the settings of your NAS device to ensure that DLNA server is
enabled.
yy On your Firewall software, you may also need to change the settings of your firewall software to ensure
that Windows file sharing is not blocked.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 11
2015-04-17
2:44:01
12
Using Multi-Room
Step 3. Initial Multi-Room Setup
When installing the MUSICflow product for the first time, you can choose two types of connection as below.
Option 1. Wired connection (MUSICflow Mesh Network Connection)
Connect the one of MUSICflow products (sound bar, speaker or bridge) to the home router using LAN cable.
Then you can connect the additional MUSICflow products (Optional) to your home network wirelessly
(MUSICflow Mesh Network). Refer to “Step 4. Add Speakers (Optional)” on page 14.
If you have a bridge
Bridge (Wired Connection) à Sound bar (Add speaker) à Other speakers (Add speaker)
If you do not have a bridge
Sound bar (Wired Connection) à Other speakers (Add speaker)
3
Using Multi-Room
LAN Cable
Simple Setup Guide (Wired Connection)
1. Ensure that your smart device is connected to your Wi-Fi network.
2. Select the product you want to connect.
3. Launch Music Flow Player App and follow “Wired Connection” instructions on set-up wizard.
4. Connect LAN cable from router to any one of MUSICflow product (sound bar, speaker or bridge).
5. Power on the MUSICflow product and wait until you see a white LED become solid.
6. If you install successfully, update speaker software to the latest:
[Home à Settings à Version Info.]
m Tip
Separated from the router’s Wi-Fi environment, composes wireless network among MUSICflow products.
Using MUSICflow mesh network, Wireless coverage is expanded, which offers stable music streaming service.
In the below case, MUSICflow Mesh Network connection is recommended.
1. When the Wi-Fi coverage cannot reach whole house because home router performace is unstable.
(In case that your home router supports only 802.11 b/g 2.4 GHz.)
2. When you want to enjoy MUSICflow system in stable wireless network environment.
3. When you want to use in below mode.
1) Multi-Room & Group-play Mode
2) Home Cinema Mode
3) Hi-Fi (24 bit/192 kHz) Mode : When you enjoying the high-quality audio source (ex: flac)
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 12
2015-04-17
2:44:01
Using Multi-Room
13
Option 2. Wireless connection (Standard Wireless Connection)
When the wired connection is unavailable between MUSICflow products and home router, MUSICflow
products offer music streaming service within home router’s Wi-Fi coverage.
Connect one of the MUSICflow products (sound bar, speaker) to the home router wirelessly.
(Option)
Then you can connect the additional MUSICflow products to your home Wi-Fi network wirelessly.
Refer to “Step 4. Add Speakers (Optional)” on page 14.
3
Simple Setup Guide (Wireless Connection)
1. Ensure your smart device is connected to your Wi-Fi network.
2. Select the product you want to connect.
3. Launch Music Flow Player App and follow “Wireless Connection” instructions on set-up wizard.
4. Press
(Wi-Fi Setup icon) button at the back or top of the MUSICflow product (sound bar, speaker or
bridge).
5. Check if the
Using Multi-Room
Wireless signal
network indicator LED is blinking in a white and red color.
6. Please input the password of Home Router for connecting MUSICflow product to home router.
If you have iOS device, you must take the three steps below
6-1. Press home button of iOS device and go to [Settings].
If you can select “MusicFlow_Setup” in Wi-Fi settings. The App and MUSICflow product will be
connected.
6-2. Move to Music Flow Player App and input the password of home router for connecting MUSICflow
product to home router.
6-3. Press home button of iOS device and go to [Settings].
Reconnect to your Home Wi-Fi network. And move to Music Flow Player App again.
7. If you install successfully, update speaker software to the latest:
[Home à Settings à Version Info.]
, Note
yy If you failed for “Wireless connection” configuration. It seems that location is too far from the router, it may
not be connected. Place and use it at a location that is close enough to router.
yy Music Flow PC Software installed on desktop is not supports wireless connection procedure. In this case,
use the Music Flow Player on smart device.
yy If the router’s performance is not good enough (ex. 802.11g 2.4GHz), sound may be broken in group play
or surround playback mode. In this case, connect the speaker in MUSICflow Mesh Network.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 13
2015-04-17
2:44:02
14
Using Multi-Room
m Tip
Offers music streaming service in MUSICflow system within home router’s Wi-Fi coverage.
In the below case, Standard wireless connection is recommended.
1. When all speakers are within the home router’s Wi-Fi coverage.
(If case that your home router supports 802.11n 2.4/5 GHz )
2. When the wired connection is unavailable between MUSICflow products and home router.
3. When you want to use in below mode.
1) when you use single speaker MUSICflow system.
2) Group-play in the Wi-Fi coverage of the home router
3) L/R stereo Mode
Step 4. Add Speakers (Optional)
3
If you connect the initial MUSICflow product to your home network, you can connect the additional
MUSICflow products (sound bar, speaker or bridge) to your home network.
Using Multi-Room
Simple Setup Guide (Add Speakers)
1. If you have additional speakers, power on the speaker.
2. Launch smart device or PC application and follow instructions on set-up wizard.
[Home à Add Speaker]
3. Press
(ADD icon) button at the back or at the top of the MUSICflow product (sound bar, speaker or
bridge) which is you want to connect.
4. Check if
network indicator LED is blinking in a red color.
5. If you install successfully, update speaker software to the latest:
[Home à Settings à Version Info.]
, Note
If you failed for “Add Speaker” configuration. It seems that location is too far from between speakers, it may
not be connected. Place and use it at a location that is close enough to router and each speakers.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 14
2015-04-17
2:44:03
Using Multi-Room
15
, Note for Multi-Room Setup
yy You can make all wireless/wired connection according to the location of the router. But we recommend
that you connect the first speaker or bridge to the router using LAN cable and connect additional
speakers for network stability.
yy When the “Firmware update”pop-up appears on Music Flow Player App, touch to start updating.
yy If you connected a speaker with a LAN cable and installed additional speakers: If there is a speaker with
frequent sound breaking it may not be close enough with the LAN cable connected speaker, install an
additional Bridge or another speaker in a middle location between the LAN cable connected speaker and
the speaker with sound breaking and try again.
yy Even if you connected speakers with MUSICflow mesh network, music sound breaks by ambient signal
interference causing Wi-Fi network defect. In this case, you can try to change Mesh network channel of
MUSICflow system at the [Settings à Advanced settings à Mesh Network Channel]
yy When making connection, “Mesh network composition” may appear and it takes about 30 seconds. This
message appears once in first installation but may appear again when you change network environment.
1. Use as a root device (wired to the home router)
When your home router is located too far from any speaker location that is to be connected via wired mode:
a According to “Simple Setup Guide (Wired Connection)”, connect the Bridge to your home router with
LAN cable.
b According to “Simple Setup Guide (Add Speakers)“, add MUSICflow products to your home network.
Using Multi-Room
Using the Bridge
3
b
a
Bridge
2. Use as a wireless extender
When you want to expand MUSICflow mesh network coverage:
Preparation: Initial MUSICflow product is connected to your home router with LAN cable.
a According to “Simple Setup Guide (Add Speakers)“, add the Bridge to your home network.
b According to “Simple Setup Guide (Add Speakers)“, add MUSICflow products to your home network.
b
a
Bridge
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 15
2015-04-17
2:44:03
16
Using Multi-Room
Enjoying Multiple MUSICflow Product
1. Home Cinema Mode (Surround Sound Mode)
Simply add a LG MUSICflow sound bar to your network and synchronize it with your LG MUSICflow speakers
to enjoy a home cinema system experience.
If you have a bridge
Bridge (Wired Connection) à Sound bar (Add speaker) à Other speakers (Add speaker)
If you do not have a bridge
Sound bar (Wired Connection) à Other speakers (Add speaker)
, Note
If you connect the MUSICflow Speakers to your Home Cinema, those speakers must be same model.
3
Requirement
Using Multi-Room
yy MUSICflow Sound Bar x 1
yy MUSICflow Speaker x 2 (Same model)
yy Network Bridge (optional)
2. G
rouping Mode
Speakers placed in separate rooms can play the same music or different music based on your needs.
Synchronize your multi-room speakers together to play the same song in every room.
Requirement
yy More than 2 MUSICflow
yy Network Bridge (optional)
3. L
/R Stereo Mode
Set your speakers to stereo sound with Music Flow Player Apps to enjoy movies and your favourite tracks.
Requirement
yy MUSICflow Speaker x 2
yy Network Bridge (optional)
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 16
2015-04-17
2:44:04
4
Using External device
Using External device
17
Using External device
1. H
DMI Input connection
To the Blu-ray disc player,
DVD player, game console,
etc.
1. Connect HDMI IN jack on the unit to HDMI OUT jack on the audio & video device such as Blu-ray disc
player, DVD player, game console, etc.
2. Select the input source of this unit to HDMI IN using FUNC button.
2. PORTABLE IN connection
4
) to the PORTABLE IN connector of the unit by using
2. Select the input source of this unit to PORTABLE using FUNC button.
3. BLUETOOTH® connection
Using External device
1. Connect any device which has portable out (
a 3.5 mm stereo cable.
Music Flow HS6 (XX:XX)
1. Select the input source of this unit to Bluetooth function using FUNC button.
“BT READY” appears on the display window.
2. Select “Music Flow HS6 (XX:XX)” on your Bluetooth device for pairing.
3. When this unit is successfully connected with your Bluetooth device, “PAIRED” will appear on the display
window and change to Bluetooth device name soon.
If it is unavailble to display device name on the unit, ”_” will be display.
4. Play music on your Bluetooth device.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 17
2015-04-17
2:44:05
5
18
Troubleshooting
Troubleshooting
Troubleshooting
4. Disconnect the power cord of the main unit
and the wireless subwoofer.
No woofer sound
You can set up wireless connection manually, when
your connection is not completed.
1. Adjust volume level of the main unit to
minimum.
-- ”VOL MIN” appears on the display window.
YRO#PLQ
5. Connect them again after the LED of the main
unit and the wireless subwoofer is fully turned
off. The main unit and the wireless subwoofer
will be paired automatically when you turn on
the main unit.
-- When the connection is completed, you can
see the green LED on the subwoofer.
VOL
2. Press and hold (MUTE) on the remote control
YRO#PLQ
for about 3 seconds.
VOL
-- “W RESET” / “WL RESET” appears on the display
Z#UHVHW
window briefly.
Green
ZO#UHVHW
5
Z#UHVHW
Troubleshooting
ZO#UHVHW
In case that sounds are cut off
during playback
or
3. If the LED of the wireless subwoofer already
blinks in green continually, you can skip this
step. Press and hold PAIRING on the back of the
wireless subwoofer for more than 5 seconds.
-- The LED of the wireless subwoofer lights up
alternately in red and green.
Red
Green
yy For best performance of wireless connection
such as Bluetooth or wireless subwoofer, do not
install the unit on Metallic furniture because
wireless connection communicates through a
module positioned on the bottom of the unit.
yy Be careful not to make scratches on the surface
of the Unit /Sub-Woofer when installing or
moving them.
yy It takes a few seconds (and may take longer)
for the main unit and the subwoofer to
communicate with each other and make sounds.
yy The closer the main unit and the subwoofer,
the better sound quality. It is recommended to
install the main unit and the subwoofer as close
as possible and avoid the cases below.
-- There is a obstacle between the main unit and
the subwoofer.
-- There is a device using same frequency with
this wireless connection such as a medical
equipment, a microwave or a wireless LAN
device.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 18
2015-04-17
2:44:06
Troubleshooting
Software Update
When the MUSICflow device is connected to your
home network, check whether the firmware version
is the latest on all speakers and the Music Flow
Player application.
Your MUSICflow device might require a more recent
firmware to be installed for optimal operation.
[Settings à Version Info]: you can check if your
speaker has the latest firmware.
How can I initialize speaker?
If you press down “
(Add)” button until Beep
sounds once, the network related settings are
initialized. (For sound bar, “DISABLED” is displayed in
the display window.)
If you press down “
(Add)” button until Beep
sounds twice, factory initialization is performed.
(For sound bar “RESET” is displayed in the display
window.)
19
There are times that speaker
disappears from the application
1. If the speaker blinking lamp is not blinking, and
stays as white: Even after the speaker power
off and on, if the problem continues, in this
case you have to reset the speaker (To reset,
press and hold the “ADD” button for 8 seconds
until you hear one beep. ) then you need to
register again. Carry out speaker installation or
additional procedures.
2. If the speaker blinking lamp blinks white network signal is unstable. Wait for a while, or
move the speaker to another location closer to
another speaker or router.
3. Press menu key or menu at the top right side of
Home screen to end Music Flow Player app and
run again.
Speaker is not connected.
1. For a speaker that is already connected, make
sure the phone is connected to the same router
as the speaker. If not, connect to the same
router, also check the following.
1-1. Set Power off / on, and check the
connection.
5
Troubleshooting
1-2. If it is not solved by 1-1, close the
application and run again.
1-3. If it is not solved by 1-2, reset the Speaker
and reconnect. To reset, press and hold
the “ADD” button for 8 seconds until you
hear one beep.
1-4. If it is not solved by 1-3, delete the App
and reinstall, then try again.
2. If you change the location of the speaker that is
in use,
2-1. If the changed location is too far from the
home router, it may not be connected.
Place and use it at a location that is close
enough to router.
2-2. Connect the speaker with a LAN cable,
and for additionally installed speakers, if
they are not close enough to the speaker
connected with a LAN cable, additionally
install Bridge or another speaker in the
middle location between the speaker
connected with LAN cable and the
speaker with sound being disconnected.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 19
2015-04-17
2:44:06
20 Troubleshooting
Music sound breaks and unstable
MUSICflow system
1. If speaker with breaking sound is connected
through wireless connection mode,
yy If the distance between the speaker and
home router is not close enough, the
corresponding condition may occur. Move
the speaker closer to the home router and try
again.
yy If the device playing the source sound (Ex.
phone or laptop) is at a place without fluent
home router signal, move the corresponding
device closer to the home router and try
again.
2. If you connected a speaker with a LAN cable
and installed additional speakers:
If the speaker with frequent sound breaking
is not close enough with the LAN cable
connected speaker, install a Bridge or other
another speaker in the middle location between
the LAN cable connected speaker and the
speaker with sound breaking, and try again.
5
Troubleshooting
3. Even if you connected speakers with MUSICflow
mesh network, music sound breaks by ambient
signal interference causing Wi-Fi network
defect. In this case, you can try to change
Mesh network channel of MUSICflow system
at the [Settings à Advanced settings à Mesh
Network Channel]
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 20
How can I compose Music Library?
/ Song is not added even though
library is updated.
Just by adding a song to DLNA server, Music Library
is not automatically updated. When you add a song
to the server, in [Settings à Music Library à Sync],
run Music Library synchronization again. Even after
Music Library synchronization, if song is not added,
check the followings.
1. Check if DLNA server or PC SW shared folder is
designated.
2. Check if DLNA server contents list is renewed.
yy Even if you copy the file into the server,
server contents list may not be immediately
renewed, so check the server setting.
yy If you copy a song into the phone with
a method other than MTP, it may not be
reflected to the server contents list. In such
case, rescan the contents in the phone, or
turn off and start the phone again.
3. The sharing may be blocked, so check DLNA
server program setting or firewall setting.
yy If you are using LG Musicflow PC software,
when you designate shared folder, the
corresponding folder will be automatically
added to Music Library in a minute.
2015-04-17
2:44:06
Troubleshooting
21
No TV sound in HDMI (ARC)
conneection
What is the type of music file that
can be played?
The ARC function enables an HDMI capable TV to
send the audio streaming to HDMI OUT of the unit.
yy You can play the files with extension mp3, wma,
flac, m4a, aac, ogg, and wav.
To use this function :
yy For mp3 and wma, sampling frequency is 32- 48
kHz, and for flac, it supports up to 192 kHz, 24 bit.
yy Your TV must support the HDMI-CEC and ARC
function and the HDMI-CEC and ARC must be
set to On.
yy The setting method of HDMI-CEC and ARC may
differ depending on the TV. For details about
ARC function, refer to your TV manual.
yy You must use the HDMI cable (Type A, High
Speed HDMI™ cable with Ethernet).
yy Even if the above conditions are satisfied, it may
not be played according to the characteristics of
the file or media server.
yy DRM applied file cannot be played.
How can I use Spotify?
LG MUSICflow product is turned off
automatically.
LG MUSICflow product supports Spotify connect
method provided by Spotify. Through this, you
can use the function supported by Spotify by
connecting to the speaker through Spotify
application. If Music Flow speaker is in the network
composed of the same router, Spotify application
Speaker shape Icon is changed, and when you press
this Icon, you can check and select the speakers in
the same network. (When the speaker is selected,
the icon changes to green.)
There are some cases that power off will occur if
not receiving sound signal:
How can I use HomeChat?
yy You must connect the HDMI OUT on the unit
with HDMI IN of the TV that supports ARC
function using an HDMI cable.
yy You can connect only one Sound bar to TV
compatible with ARC.
yy Portable-In : no sound signal during 6 hours.
-- In case of Network connected, it will go to
Network standby mode (White LED).
-- In case of Network disconnected, it will go to
Standby mode (Red LED).
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 21
After HomeChat device registration, you can use
Home Chat.
Each of the family members can register and use
one speaker in HomeChat, and one person can
register several speakers.
For details, refer to http://www.lghomechat.com.
,,Note
5
Troubleshooting
yy Optical, HDMI ARC, Bluetooth, Wi-Fi (DLNA)
mode: if there is no sound signal during 20
minutes.
Depending on the region, some services (ex.
Spotify, Homechat, etc.) are unavailable.
2015-04-17
2:44:06
6
Appendix
22 Appendix
Mounting the main
unit on a wall
2. When you mount it on a wall (concrete), use the
wall plugs. You should drill some holes. A guide
sheet (Wall bracket install guide) is supplied to
drill. Use the sheet to check the point to drill.
Preparation materials
Unit
Wall bracket install
guide
Wall bracket
3. Remove the Wall bracket install guide.
Screws
4. Fix the brackets with screws (A) as shown in the
illustration below.
Screws (A)
Wall plug
Screws (A) and Wall Plugs are not supplied for
mounting the unit. We recommend the Hilti
(HUD-1 6 x 30) for the mounting.
1. Match the TV’s BOTTOM EDGE of Wall bracket
install guide with the bottom of TV and attach
to the position.
TV
5. Put the unit on the brackets to match screw
holes on the bottom of the unit.
6
Appendix
6. Fix the unit with the screws firmly.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 22
2015-04-17
2:44:07
Appendix 23
About Status LED’s Condition
Color
(Off)
Status
The unit is waiting for network connection
(White)
The initial unit is being connected to the network
(White)
button is pressed)
(
(Red)
Network Status
The unit is connected to the network
(White)
The additional unit is being connected to the network
(Off)
button is pressed)
(
(Red)
Network standby mode
(Dimmed White)
Standby Mode Status
Standby mode
(Red)
, Note for Status LED’s Condition
yy When you set the group at first, Network status LED turns green.
yy The additional groups are set, the Network status LED color is changed in group order.
(
(Green) >
(Magenta) >
(Cyan) >
(Blue) >
(Yellow) )
yy If the grouped speakers switch to the network standby mode, the brightness of Network status LED gets
dark.
AC adapter
yy Model : DA-50F25
Manufacturer: ASIAN POWER DEVICES LTD.
Input: 100 - 240 V ~ 50/60 Hz
Output: 25 V 0 2 A
Power consumption: 30 W
yy Networked standby : 5.7 W
(If all network ports are activated.)
Amplifier Total output: 320 W
Bluetooth: Codec SBC
Dimensions (W x H x D): (1020 x 42 x 82) mm
(with Foot)
Net Weight (Approx.): 2.0 kg
yy Design and specifications are subject to change
without notice.
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 23
Open source software
notice
Appendix
Specification
6
To obtain the source code under GPL, LGPL, MPL
and other open source licenses, that is contained
in this product, please visit http://opensource.lge.
com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping and handling) upon email request
to [email protected] This offer is valid for three
(3) years from the date on which you purchased the
product.
2015-04-17
2:44:08
LG Customer Information Center
Country
Telephone
Austria / Österreich
0810-144131
Slovenia / Slovenija
080-543543
Benelux
0900 543 5454 (NL)
015 200 255 (BE)
Schweiz / Suisse / Svizzera /
Switzerland
0848-543543
České republiky nebo Slovenské
republiky / Českej republiky alebo
Slovenskej republiky
CZ: 810 555 810
SK: 0850 111 154
Deutschland
01806 11 54 11
España
963 05 05 00
France
3220
Ελλάδα
801 11 200 900
210 4800 564
Italia
199600099
Polska
801 54 54 54
Portugal
808 785 454
România
031 228 3542
United Kingdom
UK : 0344 847 5454
IE : 01 686 9454
LAS650M-N_BPOLLLA_SIM_ENG_6756.indd 24
2015-04-17
2:44:08
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
