LG LAS655K User guide

LG LAS655K User guide
ENGLISH
DEUTSCH
FRANÇAIS
NEDERLANDS SLOVENŠČINA

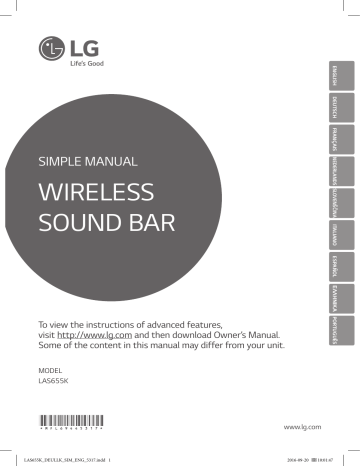

SIMPLE MANUAL
ITALIANO
WIRELESS
SOUND BAR
ESPAÑOL
ΕΛΛΗΝΙΚΑ PORTUGUÊS
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
LAS655K
*MFL69445317*
LAS655K_DEULLK_SIM_ENG_5317.indd 1
www.lg.com
2016-09-20
10:01:47
+
+
- -
Front Panel
Rear Panel
IP
DQWHQQD
RSW1#LQ
1/! · · · · · · · · · IP
· · · · · · · · · · · · · · · · +WY#DUF,
· · · · · · · · Standby/On
DQWHQQD
KGPL#RXW
F · · · · · · · · · · · · · RSW1#LQ
Changes the input source
or function.
ODQ
- / + · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Adjusts volume.
MIC 1/2 · · · · · · · · · · · · · · · · · · · Connects a microphone.
USB Port · · · · · · · · · · · · · · · · · · Connects a USB device.
1
+WY#DUF,
KGPL#RXW
ODQ
FM ANTENNA · · · · · · · · · · · Connect to radio antenna.
OPT. IN · · · · · · · · · · · · · · · · · · · ·Connect to digital device.
(TV ARC) HDMI OUT · · · · · · · · · · · · · · · · Connect to TV.
LAN · · · · · · · · · · · · · · · · · · · · · · · · · · · Connect to Internet.
Subwoofer Connection
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of wireless
subwoofer to the outlet.
b Turn on the sound bar :
The sound bar and wireless subwoofer will be
automatically connected. A yellow-green LED
on the wireless subwoofer will light on.
If no sound is heard from the wireless subwoofer,
please follow as below.
i.
Adjust volume level of sound bar to minimum.
“VOL MIN” appears on display window.
ii.
Press and hold (Mute) button on the remote
control about 3 seconds. “WL RESET” appears
on display window.
iii. Press and hold PAIRING on the back of wireless
subwoofer for more than 5 seconds using point
of a pen.
iv. Disconnect the power cord of the sound bar and
the wireless subwoofer. Connect them again.
LAS655K_DEULLK_SIM_ENG_5317.indd 2
2016-09-20
10:01:48
2
TV Connection
3
Connect with the Sound Bar and TV using
HDMI ARC ( ) or HDMI & Optical ( ).
Home Menu
After initial setup, Home menu appears on the TV
screen. Enjoy various functions on the Sound Bar.
HDMI(ARC) Connection
aConnect the Sound Bar to the TV using HDMI
cable.
b Set the input selector to HDMI on the TV.
c Set up [External Speaker (HDMI ARC)] on
your TV setting menu.
d Follow the instructions on the TV screen
using remote control.
To enjoy online services, the Sound Bar should
be connected to internet through wired or
wireless connection.
HDMI IN
(ARC)
TV
(TV ARC)
HDMI OUT
HDMI & Optical Connection
aConnect the Sound Bar to the TV using HDMI
& Optical cable.
b Set the input selector to HDMI on the TV.
c Set up [External Speaker (Optical)] on your
TV setting menu.
d Follow the instructions on the TV screen
using remote control.
OPTICAL
OUT
TV
OPT. IN
Controller App
HDMI IN
(ARC)
(TV ARC)
HDMI OUT
LG Sound Sync
(Wireless)
Private Sound Mode
TV
Download the LG AV
Remote App to your
device.
LAS655K_DEULLK_SIM_ENG_5317.indd 3
For more information, download the online owner’s manual. http://www.lg.com
2016-09-20
10:01:48
Additional Information
Specification
Power
requirements
Power
consumption
Dimensions
(W x H x D)
Net Weight
Bus Power Supply
(USB)
Amplifier
(Total RMS
output power)
Open Source Software Notice Information
Refer to the main label on the
unit.
Refer to the main label on the
unit.
Networked standby : 1.5 W
(If all network ports are
activated.)
Approx.
1,066 mm x 76 mm x 53 mm
Approx. 3.3 kg
5 V 0 500 mA
320 W
Design and specifications are subject to change without
notice.
How to disconnect the wireless network
connection or the wireless device
To obtain the source code under GPL, LGPL, MPL, and other
open source licenses, that is contained in this product, please
visit http://opensource.lge.com. In addition to the source
code, all referred license terms, warranty disclaimers and
copyright notices are available for download. LG Electronics
will also provide open source code to you on CD-ROM for
a charge covering the cost of performing such distribution
(such as the cost of media, shipping, and handling) upon
email request to [email protected] This offer is valid for
three (3) years from the date on which you purchased the
product.
Customer Support
You can update the Player using the latest software to
enhance the products operation and/or add new features.
To obtain the latest software for this player (if updates
have been made), proceed the software updates or visit
http://www.lg.com or contact LG Electronics customer
care center.
Declaration of Conformity
