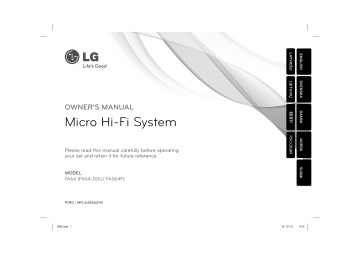

OWNER'S MANUAL
Micro Hi-Fi System
Please read this manual carefully before operating
your set and retain it for future reference.
SUOMI
MODEL
FA64 (FA64-D0U/ FAS64F)
P/NO : MFL63266293
ENG.indd 1
10. 10. 15
9:12
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 2
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case
or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from over heating. The openings shall be
never be blocked by placing the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the manufacturer's
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference. Shall the unit require maintenance, contact an
authorized service center. Use of controls, adjustments or the performance of
procedures other than those specified herein may result in hazardous radiation
exposure. To prevent direct exposure to laser beam, do not try to open the
enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus shall not be exposed to water (dripping or splashing)
and no objects filled with liquids, such as vases, shall be placed on the apparatus.
2
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue use of the appliance, and have the
cord replaced with an exact replacement part by an authorized service center.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or accumulator.
Safe way to remove the battery or the battery from the equipment:
Remove the old battery or battery pack, follow the steps in reverse order than the
assembly. To prevent contamination of the environment and bring on possible
threat to human and animal health, the old battery or the battery put it in the
appropriate container at designated collection points. Do not dispose of batteries or
battery together with other waste. It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop where
you purchased the product.
LG Electronics hereby declares that this/these product(s) is/are in
compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC, 2006/95/EC and 2009/125/EC.
European representative:
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The Netherlands
(Tel : +31-(0)36-547-8888)
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 3
Contents
Setting up
Main unit
Remote control
Listening to CDs
Listening to the radio
Listening to music from your external device
Using an USB device
Setting the Clock
Enjoying a pre-programmed sound field
Recording to USB
Troubleshooting
Specifications
4
4
5
6
6-7
7
7
8
8
9
10
10
*VOLUME Adjustment
Move your finger around
the touch wheel.
Precautions in using the touch buttons
The making of unauthorized copies of copy-protected
material, including computer programs, files, broadcasts and
sound recordings, may be an infringement of copyrights and
constitute a criminal offense. This equipment should not be
used for such purposes.
Be responsible
Respect copyrights
• Use the touch buttons with clean and dry hands. In a humid
environment, wipe out any moisture on the touch buttons before
using.
• Do not press the touch buttons hard to make it work. If you apply
too much strength, it can damage the sensor of the touch buttons.
• Touch the button that you want to work in order to operate the
function correctly.
• Be careful not to have any conductive material such as metallic
object on the touch buttons, and it can cause malfunctions.
Before connecting, operating or adjusting this product, please read this instruction booklet carefully
and completely.
3
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 4
Main unit
Setting up
1 Connection of the front speakers
Connect the speaker cables to the speaker terminals.
Connect the black end of each wire to the terminals marked - (minus) and
the other end to the terminals marked + (plus).
2 Fit the AM loop aerial to its stand (AM optional)
Connect the AM loop aerial to the unit.
3 Connect the FM aerial
The reception will be at its best when the two loose ends of the aerial
are in a straight line and horizontal.
4 Plug the power plug into a wall socket
1
12
2
3
13
4
15
5
6
7
9
2 AM - aerial (optional)
Front
speaker (L)
NOTES:
• If TV screen becomes discolored do not place speakers within 30 cm
from TV.
• Be sure to match the speaker cord to the appropriate terminal on the
components: + to + and – to –. If the cords are reversed, the sound will
be distorted and will lack base.
4
16
OPEN
8
3 FM - aerial
Front
speaker (R)
14
10
11
1. 1 Power on/ off
2. VOLUME
Controls the volume when using
any function.
3. FUNC.
Changes the functions
4. .(SKIP)
TUN. (-) (TUNER)
5. USB REC.
Recording to USB
6. x
Stops playback or recording
7. DISC TRAY
8. EQ master/ DEMO button
9. CLOCK
For setting the clock and checking
the time.
10. TIMER
With the TIMER function you can
turn CD, USB play and TUNER
reception on or off at a desired
time.
17
18
11. SET/ RDS(OPTIONAL)
Confirms the time you have
selected when setting the clock.
12. Display window
13. B /[]
PLAY/PAUSE
MO./ ST. (MONO/ STEREO)
14. XDSS plus
(Extreme Dynamic Sound System)
Reinforce the treble, bass and
surround effect.
MP3 Opt.
Optimizes compressible MP3 files
so that it improves the bass sound.
15. > (SKIP)
TUN. (+) (TUNER)
16. Z (OPEN/ CLOSE)
17. USB connector
18. PHONES
(Headphone jack : 3.5 mm)
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 5
Remote control
1
F
Changes the functions.
(FUNCTION)
Sound quality adjustment
EQ
You can choose sound impressions.
You can select a Natural or Local
LG EQ
Specialization equalizer effect by
using LG EQ.
POWER on/ off
SLEEP
Fall asleep while listening to your unit
Press SLEEP one or more times to select
delay time between 10 and 180 minutes.
INFO
See information about your music.
MP3/ WMA files often come with tags. The
tag gives the Title, Artist, Album or Time
information.
v
v
REPEAT Listen to your tracks repeatedly or
/RANDOM randomly.
./>
TUN
(+)/(-)
B/[]
x
FOLDER
•PRESET
Selects the radio station.
Searchs for a section within a track.
Skips Fast backward or Forward.
+ VOL
-
Starts or pauses playback
(MONO/ STEREO)
Stops playback or recording
RDS
RDS/ PTY RDS (Radio Data System)
(optional) Searchs radio stations by radio type
z REC
PTY
Searchs for a folder of MP3/ WMA files
When a CD containing MP3/ WMA files in
several folders is being played, press
FOLDER•PRESET selects the folder you
want to play.
Choose a ‘preset number’ for a radio
station.
Controls the volume when using any function.
PROGRAM/ For storing radio stations
MEMO. If you have saved radio stations using
PROGRAM/MEMO., you can scroll
through them and select one.
Listens to your tracks in any order
Temporarily stop the sound
Press the button again to return to the
sound.
Recording button
Put the battery into the remote control
Make sure for the + (plus) and – (minus) on the battery to be matched on the remote control.
(size AAA)
5
FA64-D0U.DSWELL_ENG
10/15/10
3:50 PM
Page 6
Listening to CDs
Listening to the radio
Audio CD and MP3/ WMA CD can be played back in this unit.
1. Open the CD door
2. Insert the CD: Label facing up.
3. Close the CD door
4. Select the CD function:
The display will show the total
number of tracks (files).
5. Start the CD playing
6. To stop a CD playing
Make sure both the FM and AM (optional) aerials are connected.
ON UNIT
ON REMOTE
Z
-
Z
FUNC.
FUNCTION
B/[]
x
B/[]
x
Listening to CDs - More you can do
1. Select either FM or AM (optional)
2. Select the radio station
3. To ‘save’ a radio station:
A preset number will show in the
display.
4. Select the preset number
5. To confirm press: Up to 50 radio
stations can be saved.
6. To select a ‘saved’ station
ON UNIT
ON REMOTE
FUNC.
FUNCTION
TUN- / TUN+
PROGRAM/MEMO.
./>
-
FOLDER•PRESET
PROGRAM/MEMO.
-
FOLDER•PRESET
Listening to the radio - More you can do
Searching for a section within a track
Hold ./> on the unit or ./> on the remote control during playback
and release it at the point you want to listen to.
Program list
You can play up to 20 tracks on a CD in order.
1 Insert a CD and wait for it to be read.
2 Press PROGRAM/MEMO. on the remote control in stop status.
3 Press ./> on the unit or ./> on the remote control to select a
track.
4 Press PROGRAM/MEMO. again to save and select a next track.
5 Press B/[] to play the programmed music files.
6 To clear your selection, press x , PROGRAM/MEMO. and then x .
About MP3/ WMA
MP3/WMA Disc compatibility with this unit is limited as follows:
• Sampling Frequency : 32 to 48 kHz (MP3), 32 to 48 kHz (WMA)
• Bit rate : 32 to 320 kbps (MP3), 40 to 320 kbps (WMA)
• CD-R physical format should be “ISO 9660/ JOLIET”
• If you record MP3/WMA files using the software which cannot create a FILE
SYSTEM, for example “Direct-CD” etc., it is impossible to playback MP3 files.
We recommend that you use “Easy-CD Creator”, which creates an ISO 9660 file system.
• Do not use special letters such as “/ : * ? “ < >”etc.
• Even if the total number of files on the disc has more than 1 000, it will only be
shown up to 999
6
Looking for radio stations automatically
1 Press and hold ./> on the unit or TUN- / TUN+ on the remote control
for more than 0.5 second.
2 The tuner will scan automatically and stop when it finds a radio station.
Deleting all the saved stations
1 Press and hold PROGRAM/MEMO. on the remote control for two seconds.
“ERASE ALL” shows.
2 Press PROGRAM/MEMO. on the remote control to erase all the saved
stations.
Improving poor FM reception
Press B/[] (MONO/STEREO) on the remote control. This will change the tuner
from stereo to mono and usually improve the reception.
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 7
See information about your radio stations - OPTIONAL
The FM tuner is supplied with the Radio Data System (RDS) facility. This
shows the letters RDS on the display, plus information about the radio station
being listened to. Press RDS on the remote control several times to
view the information.
1. Connect the USB device to the USB
port of the unit.
2. Select the USB function.
You can search the radio stations by programme type by pressing RDS.
The display will show the last PTY in use. Press PTY one or more times to
select your preferred programme type. Press and hold ./>. The tuner
will search automatically. When a station is found the search will stop.
The unit can be used to play the music from many types of external device.
ON REMOTE
1. Connect the external device to the
AUX IN connector of the unit.
> If your TV has only one output for
audio(MONO). connect it to the
left(white) audio jack on the unit.
VCR, TV, ...
2. Turn the power on.
3. Select the AUX function.
4. Turn on the external device and start it
playing.
3. Select a file you want to play.
4. Start your media playing.
5. To stop, press
6. Before disconnecting the portable
USB device, change to any other
function.
Listening to music from your external device
Main unit
You can enjoy media files saved on an USB device by connecting the
USB device to the USB port of the unit.
If you want to operate other function, see the CD playback section.
ON UNIT
PTY - Programme Type, such as News, Sport, Jazz.
RT - Radio Text, the name of the radio station.
CT - Time Control, the time at the location of the radio station.
PS - Programme Service name, the name of channel.
ON UNIT
Using an USB device
ON REMOTE
-
-
FUNC.
FUNCTION
-
-
B/[]
B/[]
x
x
FUNC.
FUNCTION
Compatible USB Devices
• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB 2.0 or USB 1.1.
• The USB function may not be available depending on devices.
USB device requirement
• Devices which require additional program installation when you have
connected it to a computer, are not supported.
-
-
1
1
FUNC.
FUNCTION
-
-
Look out for the following.
• Do not extract the USB device while in operation.
• For a large capacity USB, it may take longer than a few minute to be
searched.
• To prevent data loss, back up all data.
• If you use a USB extension cable or USB hub, the USB device is not
recognized.
• Using NTFS file system is not supported. (Only FAT(16/ 32) file system is
supported.)
• This unit is not supported when the total number of files is 1 000 or more.
• External HDD, Locked devices or hard type USB devices are not supported.
• USB port of the unit can not be connected to PC. This unit can not be used
as a storage device.
7
FA64-D0U.DSWELL_ENG
10/15/10
3:50 PM
Page 8
Setting the Clock
Enjoying a pre-programmed sound field
ON UNIT
1. Turn the power on
2. Press for at least 2 seconds
3. Choose from either: AM 12:00 (for an am and pm
display) or 0:00 (for a 24 hour display).
4. Confirm your selection
5. Select the hours
6. Press
7. Select the minutes
8. Press
1
CLOCK
./>
SET
./>
SET
./>
SET
Using your player as an alarm clock
1 Turn the power on.
2 Press and hold TIMER. Each function, EX) TUNER, CD.... flashes.
3 Press SET when the function you want to be woken by is showing.
4 Choose one of them by pressing SET.
5 “ON TIME” will be displayed. Then you can set the time you want the alarm to
go on. Press ./> to change the hours and minutes and SET to save.
6 “OFF TIME” will be displayed. Then, you can set the time you want the
function to stop. Press ./> to change the hours and minutes and
press SET to save.
7 You will be shown the volume (VOL) you want to be woken by. Use
./> to change the volume and SET to save.
The clock icon “
”shows that the alarm is set.
8 Press TIMER button 2times. You can check the setting status.
Notes:
- If you set the clock time, you can check the time by pressing CLOCK even
when the player is turned off.
- If you set the clock time and alarm, you can check the alarm icon
pressing CLOCK even when the player is turned off.
by
DIMMER
Press SLEEP once. The LED (Light-emitting diode) of front panel is turned off
and the display window will be darken by half. To cancel it, press SLEEP
repeatly until dim off.
8
This system has a number of pre-set surround sound fields. You can select a
desired sound mode by using EQ/ LG EQ/ EQ master.
The displayed items for the Equalizer may be different depending on sound
sources and effects.
ON DISPLAY
Description
NATURAL
Local
Specialization
equalizer
AUTO EQ
You can enjoy comfortable and natural sound.
Regionally optimized sound effect.(DANGDUT/ ARABIC/
PERSIAN/ INDIA/ REGUETON/ MERENGUE / SALSA/
SAMBA)
Realizes the sound equalizer that is the most similar to the
genre of which is included in the MP3 ID3 tag of song files.
This program lends an enthusiastic atmosphere to the
sound, giving you the feeling you are at an actual rock,
pop, jazz or classic concert.
POP
CLASSIC
JAZZ
ROCK
MP3 Opt.
This function is optimized for compressible MP3 file. It
improves the bass sound.
XDSS (ON)
Reinforce the treble, bass and surround sound effect.
VIRTUAL
You can enjoy more virtual surround sound.
NORMAL(OFF) You can enjoy the sound without equalizer effect.
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 9
Recording to USB
You can record a various sound source to USB.
1. Connect the USB device to the unit.
2. Select a mode in which you want to
record.
Play back a sound source first.
3. Start the recording.
4. To stop recording, press
ON UNIT
FUNC.
ON REMOTE
FUNCTION
USB REC.
z REC
x
x
Recording to USB - More you can do
Recording Music file in disc source to USB
One track recording If the USB recording is started during playback of the CD, the one track/ file
would be recording into the USB.
All tracks recording If the recording button is pressed at the CD stop, all tracks/ files would be
recording.
Program list recording USB records after creating your own program if you want to record the track
you want.
Pausing recording
4 Use . / > or . / > to select a desired recording speed.
X 1 SPEED (96 kbps, 128 kbps, 192 kbps, 256 kbps)
- You can listen to music while recording it. (Audio CD Only)
X 2 SPEED (96 kbps, 128 kbps)
- You can just recording the music file. (Audio CD Only)
5 Press USB REC. or z REC to finish the setting.
When you are recording, look out for the following
• You can check the recording percentage rate for the USB record on the
screen during the recording. (MP3/ WMA CD only)
• During recording MP3/ WMA, there is no sound.
• When you stop recording during playback, the file that has been recorded
at that time will be stored.(Audio CD only)
• Do not remove the USB device during USB recording. It will result in an
incomplete file being made and may not be deleted on a PC.
• If USB recording does not work, messages like “NO USB”, “ERROR”,
“USB FULL” or “NO REC” will be displayed on the display window
• For the discs recorded in the format of DTS disc, USB recording is not
supported.
• Multi card reader device or External HDD can not be used for USB
recording.
• A file is recoreded by 128 Mbyte when you record for a long term.
• When you stop recording during playback, the file will not be stored.
• USB record is not possible from CD-G discs.
• You may not record more than 999 files.
• It’ll be stored as follows.
AUDIO CD
MP3/ WMA
The other sources
During recording, press USB REC. to pause recording. Press z REC to
continue recording. (Only Radio/ AUX)
To select recording bit rate and speed
1 Press USB REC. on the player or z REC on the remote control for longer
than 3 seconds.
2 Use . / > on the player or . / > on the remote control to select
the bit rate.
3 Press USB REC. or z REC again to select the recording speed.
9
FA64-D0U.DSWELL_ENG
10/15/10
9:12 AM
Page 10
Troubleshooting
Symptom
Specifications
Cause
Correction
General
No power.
No sound.
The power cord is not plugged in.
Plug in the power cord.
Check whether electricity failed.
Check the condition by operating other
electronic devices.
Check whether you select right function. Press FUNCTION and check the
selected function.
General
Power supply
Power consumption
Net Weight
External dimensions (WxHxD)
Operating temperature
Operating humidity
Tuner
FM Tuning Range
CD
The unit does not
start playback.
An unplayable disc is inserted.
Insert a playable disc.
The disc is dirty.
Clean the disc.
RADIO
Radio stations
cannot be tuned in.
The antenna is positioned or connected Connect the antenna securely.
poorly.
Remote control
The remote control
does not work
properly.
The remote control is too far from the
unit.
Operate the remote control within about
23 ft (7 m).
There is an obstacle in the path of the
remote control and the unit.
Remove the obstacle.
The battery in the remote control is
exhausted.
Replace the battery with new one.
Designs and specifications are subject to change without notice.
10
AM Tuning Range (optional)
Refer to main label.
Refer to main label.
3.1 kg
(170 x 228 x 250) mm
5 oC to 35 oC
5 % to 85 %
87,5 to 108,0 MHz or
87,50 to 108,00 MHz
522 to 1 620 kHz or 522 to
1 710 kHz or 520 to 1 710 kHz
Amplifier
Output Power
T.H.D
Frequency Response
Signal-to-noise ratio
30 W + 30 W
0.7 %
60 to 20 000 Hz
75 dB
CD
Frequency response
Signal-to-noise ratio
Dynamic range
40 to 20 000 Hz
75 dB
80 dB
Speakers (FAS64F)
Type
Impedance
Rated Input Power
Max. Input Power
Net Dimensions (WxHxD)
Net Weight (1EA)
2 Way 2 Speaker
4Ω
30 W
60 W
(128 x 234 x 240) mm
2.2 kg
USB
Version
BUS Power supply
1.1 or 2.0
5 V 500 mA
ENG.indd 2
10. 10. 15
9:12
LG Customer Information Center
(Asiakaspalvelu / Kundeservice / Kundtjänst)
Denmark / Danmark
8088 57 58
0800 0 LG LG
Finland / Sumoi
(0800 0 54 54)
800 187 40
Norway / Norge
Sweden / Sverige
0770 LG LG LG
(0770 54 54 54)
LG Website
www.lg.com
ENG.indd 3
10. 10. 15
9:12
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
