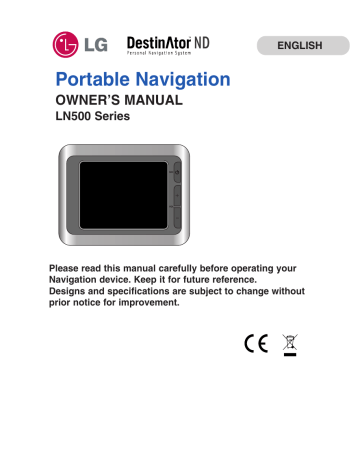

LG LN500 Owner's manual
ENGLISH
Portable Navigation
OWNER’S MANUAL
LN500 Series
SRC
VOL
Please read this manual carefully before operating your
Navigation device. Keep it for future reference.
Designs and specifications are subject to change without
prior notice for improvement.
Table of contents
Safety note
5-11
Supplied parts
12
Part names
13-14
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Rear / Side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Connecting devices
15-22
Installation sequence for the suction-cup mount . . . . .15-16
Detaching the suction-cup mount . . . . . . . . . . . . . . . . . .17
Installing the external GPS antenna (Optional) . . . . . .17-18
Installing Microsoft ActiveSync . . . . . . . . . . . . . . . . . . . .19
Connecting the USB cable . . . . . . . . . . . . . . . . . . . . .19-20
Downloading files : ActiveSync . . . . . . . . . . . . . . . . . . . .20
Data exchange via card reader . . . . . . . . . . . . . . . . . . . .21
Downloading files : Removable disk . . . . . . . . . . . . . . . .21
Disconnecting the USB device . . . . . . . . . . . . . . . . . . . .22
Before operation
23-24
Starting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Source menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Navigation features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Getting started with navigation
25-34
Navigation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Address Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
My Places Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Food, Fuel, Lodging Menu . . . . . . . . . . . . . . . . . . . . . . .26
Map Look & Feel Menu . . . . . . . . . . . . . . . . . . . . . . . . .26
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Menu Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
What’s on the Map? . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Road Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
GPS Not Found . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Map Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31-32
Point on the Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Navigation Screen Buttons . . . . . . . . . . . . . . . . . . . .33-34
Cycling Through Screens . . . . . . . . . . . . . . . . . . . . . . . .34
2
Table of contents
Finding a location with navigation
35-54
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35-36
Address Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Address Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Go to your Destination . . . . . . . . . . . . . . . . . . . . . . . . . .39
Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Recent Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-41
My Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Favorite Groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Favorite Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43-45
Add Favorite Locations . . . . . . . . . . . . . . . . . . . . . . . . . .45
Food, Fuel, Lodging . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
Subcategories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47-49
Turn-by-Turn List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Show Route or Cancel Route . . . . . . . . . . . . . . . . . . . . .51
Avoid Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51-52
Avoid Road Groups . . . . . . . . . . . . . . . . . . . . . . . . . .52-53
Avoid Road Locations . . . . . . . . . . . . . . . . . . . . . . . .53-54
Navigation settings
Route Planning . .
Select Map . . . . .
Prompts . . . . . . .
Map settings . . .
GPS Settings . . .
Units of Measure
Quick Navigation
About . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
55-60
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Installation requirements
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.55
.56
.57
.58
.59
.59
.60
.60
61-65
PC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Installing the Console . . . . . . . . . . . . . . . . . . . . . . . .61-62
Install Navigation Software . . . . . . . . . . . . . . . . . . . .62-63
Transferring a Map onto the SD Memory Card . . . . . . . .63
Console Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Importing a .CSV File . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Importing a Favorite . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
3
Table of contents
Using software
66-70
Map Screen Interface . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Installing a map . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66-67
Map Cutter Screen Interface . . . . . . . . . . . . . . . . . . .67-68
Focus the Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68-69
Focus the Map by Route . . . . . . . . . . . . . . . . . . . . . . . .69
Cut Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Load Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Remove Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Photo view
71-72
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Browse to an Image . . . . . . . . . . . . . . . . . . . . . . . . .71-72
View Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
SET UP settings
73
Select Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Calibrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Troubleshooting
74-76
Specifications
77
Support-Hotline
78-79
Symbol used in this manual
Indicates special notes and operating features.
4
Safety note
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
SPLIT COVER(OR BACK) NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user about the presence of
uninsulated dangerous voltage within the product’s enclosure that
may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a
product, it means the product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will help prevent
potential negative consequences for the environment and human
health.
4. For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal service
or the shop where you purchased the product.
This product has been manufactured to comply with the radio
interference requirements of EEC DIRECTIVE 89/336/EEC,
93/68/EEC and 73/23/EEC.
5
Safety note
Always operate the vehicle in a safe manner. Do not become
distracted by the navigation while driving, and always be fully aware
of all driving conditions.
Minimize the amount of time spent viewing the navigation screen
while driving and use voice prompts when possible.
Do not enter destinations, change settings, or access any functions
requiring prolonged use of the unit’s controls while driving.
Pull over in a safe and legal manner before attempting such
operations.
Do not kink or crease the power cable or place heavy objects on the
power cable.
Fire can result from damaged power cables.
Unplug the AC adapter during electrical storms. This may result in
electrical shock.
Do not handle the power plug nor the adapter with wet hands.
This may result in electrical shock.
Immediately power off the unit and unplug the AC adapter if you
notice smoke or odors coming from the player or adapter.
Fire can result from improper use.
Make sure to insert the power plug tightly.
Fire can result from improper use.
Use only the specified power adapter.
Using a different type of adapter may damage the product.
(DC 10.5 - 16V)
The appliance is not intended for use by children or infirm persons
without supervision.
6
Safety note
Note that malfunctions may occur if you use the product in places
where static electricity occurs frequently.
Do not use the unit near water.
Do not touch the unit with wet hands.
Do not attempt to disassemble or repair the product yourself.
Do not use the product for other purposes than those described in
this guide.
Do not use for many hours at extremely low or high temperatures.
(-10°C~60°C)
Avoid leaving the product in hot or humid places.
Take special attention when touching the product box, owner's
manual and accessories to avoid cuts.
While driving, keep the sound volume at a proper level.
Do not drop it and avoid heavy impacts at anytime.
7
Safety note
If you notice unusual odors, excessive heat coming from the
product, anything else that seems unusual, do not use the product
and contact our Customer Service Center.
Always use soft and dry cotton cloth when cleaning the product.
Do not use strong solvents such as alcohol, benzine, or thinner, as
these might damage the surface of the unit.
When attaching a navigation holder, remove impurities in the area to
attach before attaching, and press the suction lever to avoid falling.
Do not pull out the SD Memory Card while the navigator is
operating. It may cause mechanical problems.
Do not use the navigator for extended periods of time.
This may result in battery discharge.
Please obey all traffic regulations.
To aid safe driving, information on safe driving routes and routes
where accidents occur frequently is included.
Voice guidance and map route may differ from the actual traffic
conditions.
When moving the product, separate the power plug from plug
cigarette lighter socket and separate the main body from holder or
separate the holder from the plug window before moving.
8
Safety note
• If you attach the vacuum disk on the glass for a long period of
time, the pressure in the disk slowly reduces and the vacuum disk
may fall off.
• The Navigator holder may fall off at a sudden stop, thus causing a
dangerous situation. We recommend it should be installed close to
the dashboard so it can be supported properly.
• Applying too much force to adjust while the connecting arm is
tightly fixed, may deform the rubber disk connecting all the
components.
• If the holder falls off, please follow the instructions again to reinstall and use it.
• Please note that if the product is damaged due to user negligence,
it cannot be returned or refunded.
Winter precaution
• The vacuum disk can easily come off the glass due to
differences in temperature between inside and outside the
windscreen.
Summer precautions
• When the vacuum disk can easily come off the glass due to
difference in temperature between inside and outside of the
windscreen.
• Remove the vacuum disk and store it separately when parking for
a long period of time.
• The built-in battery may be damaged when kept under direct
sunlight in the car for a long period of time due to internal
temperature rise.
Separate the unit and store it in a cool place.
A temperature rise can reduce the battery life span or cause an
explosion.
9
Safety note
• Never leave your unit/accessories (including windshield mount, car
charger etc) visible in an unattended vehicle, since it’s an easy
target for thieves.
• Back up your data using our provided software in the CD.
• In order to protect the screen and the unit, always store it in the
carry case.
• Do not use the memory card (SD card) with any other devices
since the memory card could be damaged.
• The unit has to be outdoors to locate the current position from
satellite. It could take few minutes to locate your position when you
start it for the first time.
If it takes longer than 5 minutes, make sure there aren’t any tall
trees or buildings around you.
• When installing the unit, make sure that it does not block the view
on the windscreen.
Make sure that unit does not interfere with the safety operations of
the vehicle when installed. Eg. Deployment of air bags or other
safety equipments.
• The unit could require the external antenna kit if the vehicle has
the heat reflective shield embedded in the windshield which may
prevent the unit from locating the current position.
The external antenna kit is available as an optional accessory.
• The instructions are not 100% correct, so only use it to aid you
finding the destination.
Map data is updated annually, so it can be different to the actual
road if there are changes during that period.
• The unit is designed to provide you with route suggestions, so it
does not reflect road conditions, traffic congestion, weather
conditions or other factors that may affect safety or timing while
driving.
10
Safety note
• LG is not responsible for any injury, property damage or accidents
resulting from reliance on the navigation system.
• LG is not responsible for the accuracy of traffic-related information
and data supplied by other parties.
• LG disclaims all liability for use of the navigation that causes or
contributes to death, injury or property damage or that violates any
law including traffic laws. All the stated instructions should be
followed, because if not, it may lead to death, serious injury or
property damage.
11
Supplied parts
Main Set
SD Memory
Card (Optional)
Cigarette Lighter Carrying Case
Adapter
Suction-Cup
USB Cable
Mount
Installation
CD
Quick Start
Guide
Contents may vary without notice.
AC Adapter
(Optional)
GPS Antenna
(Optional)
SD memory card (Optional)
The supplied SD Memory Card space may be insufficient after upgrade. In
this case, another SD Memory Card that has bigger space has to be
purchased.
12
Part names
Front panel
1
SRC
2
3
VOL
4
RESET
1.
LCD
2.
SRC (Source) button
Move to the main menu screen or
the previous screen.
Power sleep
Entering power sleep mode.
On : Press and hold.
Off : Press and hold again.
Volume Up
Increases the volume level.
3.
5
4.
Volume Down
Decrease the volume level.
5.
RESET hole
If the unit fails to operate
properly, press the reset button
using a ball point pen or a similar
tool.
To activate the menu function through the LCD screen, touch the LCD
screen with a finger.
13
Part names
Rear / Side panel
1
2
3
6
4
5
7
1.
External GPS Antenna Slot
2.
Speaker
Gets a voice guidance service.
3.
Docking connector
4.
USB port
5.
Memory Card Slot
Insert a SD Memory Card.
6.
Power Hold On / Off button
(Optional)
On : Push button up.
Off : Push button down.
7.
Power supply connector
Tiffical DC 5V
Deleting or altering the map data in the built-in memory or the SD
memory card randomly, may cause problems in the navigation
function.
14
Connecting devices
Installation sequence for the
suction-cup mount
1.
2.
Select the most suitable position on the
windscreen.
Clean the surface of the windscreen, to remove
any dust and grease.
3.
Place the suction-cup mount on a suitable
position on the windscreen.
4.
Push back the lever to the left until you hear a
click, fixing the suction-cup mount in position.
5.
Align the docking connector at the suction-cup
mount to mount then push the unit down until
you here a click.
15
Connecting devices
6.
Plug the small plug end of the cigarette lighter
adapter into the power supply connector at the
side of the unit.
7.
Plug the other end into your vehicle’s 12V
(cigarette lighter) socket.
8.
To adjust the angle of the mount, slacken the
adjustable knobs at the suction-cup and then turn
it gently. In addition to tilting the mount up and
down and from side to side, you can also rotate
the mount, from the left, -45-45°.
9.
When you finish, tighten up the knobs again.
• This unit and its cigarette lighter adapter are
designed for use in vehicles that have 10.5-16V,
negative ground electrical systems.
(This is a standard for most vehicles.)
If your vehicle has a different type of electrical
system, the DC power system cannot be used.
• When attaching the mount, remove impurities from
the surface before attaching, and press the lever to
avoid falling.
• Adjust the direction of the mount to prevent it from
disturbing the driving.
• Adjust it to an angle you can see well.
• Be careful of falling the unit from the windscreen
when you drive.
• The arm of the mount may vibrate. Attach the mount
close to the dashboard as much as you can.
16
Connecting devices
Detaching the suction-cup mount
1.
To remove the mount, pull the lever to the right.
2.
If the mount still doesn’t detach from the
windscreen, hold up a handle of suction rubber
to move the suction rubber.
Installing the external GPS antenna
(Optional)
This unit has a built-in GPS antenna to receive the
satellite signals.
The external GPS antenna needs to be purchased
separately and may improve the receiving condition
of satellite signals when the signals are poor.
1.
2.
Select the place to attach the external GPS
antenna.
Plug the jack end of the GPS antenna into the
socket on the backside of the unit.
17
Connecting devices
When Installing the antenna inside the vehicle
(on the dashboard or shelf)
Affix the external GPS antenna on as level a surface
as possible where the external GPS antenna faces
outside the window. (The GPS antenna is fastened
with a double-sided tape.)
• Make sure the surface is free of moisture, dust,
grime, oil, etc., before affixing the sheet.
• The double-sided tape contains a strong adhesive
and may leave a mark on the dashboard if
removed.
• Some vehicles use window glass that does not
allow signals from GPS satellites to pass through.
On such vehicles, install the GPS antenna on the
outside of the vehicle.
When installing the antenna outside the
vehicle (on the body)
Place the external GPS antenna in a position as level
as possible, such as on the roof or boot lid.
(The GPS antenna is fastened with a magent.)
When routing the lead in from the top of the door
Make a U-shaped loop in the lead on the outside to
prevent rainwater from flowing along the lead into the
interior of the vehicle.
(The GPS antenna is fastened with a magent.)
18
Connecting devices
Installing Microsoft ActiveSync
In order to synchronize your data between your PC
and the unit, you need the Microsoft ActiveSync
program.
1.
2.
Click ActiveSync “setup.exe”.
Click “Next” to install Microsoft ActiveSync on
your PC.
3. Read the following license agreement carefully
and select “I accept the terms in the license
agreement”.
4. Click “Next”.
5. Enter your information.
6. Click “Next”.
7. Click “Next” to install to this folder, or click
“Change” to install to a different folder.
8. Setup is ready to begin installing Microsoft
ActiveSync.
9. The installing is progressing.
10. The Setup Wizard has successfully installed,
click “Finish”.
11. When prompted, connect your unit to your PC.
Connecting the USB cable
1.
2.
3.
4.
Connect the unit's power supply connector and
wall outlet using AC adapter.
Switch the unit on.
Connect one end to the USB port on the back (or
front) of your PC and then plug the other end into
your unit's USB port.
The icon is displayed in the system tray if
successfully connected.
19
Connecting devices
5.
6.
The “Add New Hardware Wizard” should
automatically installs the USB drivers.
Follow the onescreen instructions to establish a
partnership and synchronize your unit with your
PC.
Downloading files : ActiveSync
1.
2.
3.
Open Windows Explorer on your PC.
The Mobile Device is displayed in Window
explorer.
Create the folder you want to use.
Select the file you want to save, then drag and
drop it to the removable disk.
• ActiveSync installation is required for USB operation.
Download the latest version of Microsoft ActiveSync
for your unit. ActiveSync is a very convenient
Microsoft program for synchronizing data between
your unit and your PC. It loads itself automatically,
syncs your unit with your PC and then sits there,
patiently waiting to synchronize any piece of data
that you change.
• The tray icon may be hidden in some Windows XP
systems according to your settings.
20
Connecting devices
Data exchange via card reader.
You can transfer data via ActiveSync.
Howerer, if you wish to copy large quantities of data
(Navigation maps and Photo files) to the memory
card these can also be stored directly to the memory
card.
1.
2.
3.
Insert the SD card into your card reader.
Insert the card reader into of your computer's
USB port.
An icon is displayed in the system tray if
successfully connected.
Downloading files : Removable disk
1.
2.
3.
Open Windows Explorer on your PC.
The removable disk is displayed in Window
explorer.
Create the folder you want to use.
Select the file you want to save, then drag and
drop it to the removable disk.
• Don’t remove the USB cable while uploading or
downloading files.
• 10% of the available memory capacity is used for the
working software. Be careuful not to use the 10% of
the memory card space at any time.
21
Not supplied.
Connecting devices
Disconnecting the USB device
Wait until you get a message that you can safely
unplug the device before disconnecting the USB
device.
1.
The safe remove icon is in the system tray.
2.
Click on the icon to eject the unit from the
PC and select the ‘Safely remove’ message.
A message will appear indicating that it is now
safe to disconnect the unit.
You can now go ahead and unplug the memory
card reader from the PC.
3.
4.
22
Before operation
Starting up
The navigation software and the digital map material
are supplied in the built-in memory or the SD
memory card. Installation is fairly automatic.
SD memory card :
The application and maps are stored in the SD
memory card. Insert the SD memory card into the
navigation device.
Built-in memory :
The application and maps are stored in the built-in
memory.
1. Push the Power button up to turn on the device.
The Source menu is displayed.
2. Tap the NAVI button to start the Navigation
System.
Use recommended
memory cards
LG
SanDisk
TOSHIBA
Transcend
Billionton
Panasonic
Apacer
It may take some time until the GPS receiver initially
acquires enough satellites' data during the first use of
the GPS navigation equipment.
Source menu
SOURCE menu is displayed when you start the
device.
From this menu, you can tap:
• The NAVI button opens the Navigation System. For
more information, see "Getting Started with
Navigation" on the page 25.
• The PHOTO VIEWER button opens the Photo
Viewer. For more information, see "Photo View" on
the page 71.
• The SET UP button configures the device settings.
For more information, see "Device SET UP
Settings" on the page 73.
23
MCDiAFO
ZIBEN
Before operation
Navigation features
The Navigation System provides the
following features for easy navigation:
• Quick installation and use of the unit in minutes.
• Full screen 2D/3D day and night maps with precise
voice guidance.
• Able to quickly create a route for any distance.
• View your route by a demo program that moves the
location icon from the current location to your
selected destination before starting navigation.
• Navigate by selecting an address from the Contact
folder.
• Cross border navigation without switching maps.
• Intuitive menus and touch-screen buttons for easy
input.
• Instant address retrieval from recent locations,
favorite destinations or points of interest.
• Provides favorites' alerts.
• A wide selection of maps from all over the world.
• A choice of many major languages.
• Attractive map and screen format.
• Totally portable, and can be used in a vehicle during
your daily commute or on vacation.
24
Getting started with navigation
Navigation Menu
When you start the Navigation System, the Driver
Warning screen is displayed. Please review the
information provided and tap the Agree button.
The Navigation menu appears, as shown on the
right.
When you have the Main Map screen displayed, you
can press the SRC button to display the Navigation
menu.
Address Screens
The Address button lets you navigate to an address,
as shown on the right.
v
For a complete description of how to navigate to an
address, see "Address" on the page 35.
My Places Menu
When you click the My Places button, the following
menu appears.
v
The My Places button lets you:
• Specify an address or a place to which you can
navigate with a single tap on the Home button.
For more information, see Set “Quick Navigation”
on the page 60.
• Navigate to a favorite location by tapping the My
Favorites button, as described in “My Favorites”
on the page 42.
• Navigate to a previously visited destination by
tapping the History button, as described in "Recent
Locations" on the page 40.
25
Getting started with navigation
v
Food, Fuel, Lodging Menu
When you tap the Food, Fuel, Lodging button, the
first screen of popular place categories appears, as
shown on the left.
The “Food, Fuel, Lodging” button lets you navigate to
thousands of interesting places, such as beaches,
parks, hotels, museums, and restaurants. For more
information, see "Food, Fuel, Lodging" on the page
46.
v
Map Look & Feel Menu
You can tap the Map Look & Feel button to
determine the map display and to show the
generated route after you have selected a location.
The “Map Look & Feel” screen lets you:
• Display the map in 2-dimensional or 3-dimensional
views for either day or night driving by tapping the
2D/3D Mode toggle button. For more information,
see "Map Views" on the page 31.
• Display the map view for either day or night driving
by tapping the Day/Night Mode toggle button. For
more information, see "Map Views" on page 31.
• Avoid toll roads or selected streets by tapping the
Avoid Roads, as described in "Avoid Roads" on
the page 51.
• Display complete, step-by-step directions to your
destination by tapping the Turn-by-Turn. For more
information, see "Turn-by-Turn" on the page 50.
This button is disabled when no route is available.
• Display your complete route on the Main Map
screen by tapping the Show Route button.
This button is disabled when no route is available.
For more information, see "Show Route or Cancel
Route" on page 51.
26
Getting started with navigation
Settings Menu
The Settings button, at the bottom of the My Places
and Map Look & Feel menus, lets you configure
your settings options. The first “Settings” menu is
shown on the right.
The “Settings” screens let you:
• Specify the route type, Quickest or Shortest, and
whether to allow for U-turns by tapping the Route
button. For more information, see "Route Planning"
on the page 55.
• Choose one among different maps on your memory
card by tapping the Select Map button. For more
information, see "Select Map" on the page 56.
• Specify voice or visual prompts that you want to use
by tapping the Prompts button. For more
information, see "Prompts" on the page 57.
• Specify map orientation, font, and zoom features by
tapping the Map Settings button. For more
information, see "Map Settings" on the page 58.
• Display the GPS configurations by tapping the
GPS Signal button. For more information, see
"GPS settings" on the page 59.
• Specify the system measurement units by tapping
the Units of Measure button. For more information,
see "Units of Measure" on the page 59.
• Select an address or a place to which you can
navigate with a single tap on the Quick Nav. button,
located in the My Places menu. For more
information, see "Quick Navigation" on the page 60.
• Display copyright and navigation version
information by tapping the About button. For more
information, see "About" on page 60.
27
v
Getting started with navigation
Menu Buttons
The Map button displays the Main Map screen.
The Cancel Route button stops the current
navigation and clears the route.
The SRC button lets you exit from the Navigation
System and displays the unit’s Source menu.
The More button lets you move to the second menu
screen.
The Back button lets you move to the previous menu
screen.
The Settings button, at the bottom of the My Places
and Map Look & Feel menus, lets you configure your
settings options.
The Help button displays technical support
information.
28
Getting started with navigation
What's on the Map?
When you tap the Map button on the Navigation
menu screens, the Main Map screen appears. You
can use the icons displayed on this screen to view
your route.
Directions Bar
When you have calculated a route, the Directions bar
displays information about your next turn. Click this
bar for a complete list of turn-by-turn directions.
Your current location.
Shows your current location while in navigation
mode.
Your last known location when the GPS signal is
unreliable.
Zoom Out button
Reduce the map level.
Zoom In button
Enlarge the map level.
Compass
The Compass displays the travel direction.
Menu Button
GPS-Generated Information
The GPS-Generated Information bar is a toggle
button that displays the remaining travel distance and
travel time, and speed and altitude, and street name
and address number.
Mute
The generated route.
Your selected destination.
29
Getting started with navigation
Road Classification
The navigation classifies different roads on the map
by the following colors.
Primary Roads
Secondary Roads
Local Roads
Pedestrian Roads
GPS Not Found
When you first start your unit, you will hear the
message "Signal too low". This message means that
your unit hasn’t yet located a reliable GPS signal.
Check that your unit is connected and has a clear
view of the sky. If after five minutes, you have not
located a reliable signal, go to the "Support-Hotline"
section on the page 78.
Please check that:
• The unit has a clear view of the sky for
uninterrupted GPS reception. The unit cannot
calculate the route if there is no GPS reception
(for example, in a tunnel).
• The unit is charged or connected to the cigarette
lighter.
30
Getting started with navigation
Map Views
From the Map Look & Feel menu, you can
determine whether you want to see a two
dimensional or three dimensional map in daylight or
night-time conditions.
The 2D Day Mode View is optimized for a day-time
viewing. 2D views let you manually pan or zoom.
For an example, refer to "2D Day Mode Map View"
on the next page.
From the Map Look & Feel menu, tap the 2D Mode
button to view a two-dimensional map. If the map
already appears in two-dimensions, 3D Mode is
displayed on the toggle button.
The 2D Night Mode View is optimized for night
driving or adverse weather conditions. For an
example, refer to "2D Night Mode Map View" on the
next page.
You can tap the Night Mode button to display the
map in night conditions. If the map already appears
in night mode, Day Mode is displayed on the toggle
button.
The 3D Mode Day View or Night View provides you
with a three-dimensional map for day or night driving.
For an example, refer to "3D Day Mode Map View"
and "3D Night Mode Map View" on the next page.
From the Map Look & Feel menu, tap the 3D Mode
button to view a three dimensional map. If the map
already appears in three dimensions, 2D Mode is
displayed on the toggle button.
31
Getting started with navigation
2D Day Mode Map View
2D Night Mode Map View
3D Day Mode Map View
3D Night Mode Map View
32
Getting started with navigation
Point on the Map
You can navigate to any point by tapping its location
directly on the Main Map screen. This feature is
especially handy when you want to navigate to a
specific point on the map, but you don’t have the
street address. When you tap on the map, the
context menu appears.
• Go There – This button lets you calculate a route
from the map point.
• Add to My Favorites – This button lets you save a
point on the map as a favorite destination.
This feature lets you quickly save a location that
you would want to return to later.
• Set as Origin –This button lets you designate the
selected point as the starting point and not the
designation.
Navigation Screen Buttons
The following buttons appear on many of the
navigation screens.
When you tap the Next button for a selected
address, group, or place, the Navigator automatically
opens the next screen in the sequence.
After you have specified your destination, tap the
Next button to display a map screen showing your
selected location.
This map lets you determine a route type and
provides a GO! button, which instructs Navigation to
calculate the route from your current location to your
selected destination.
When you tap the Back button, the Navigator returns
to the previous screen.
33
Getting started with navigation
When you tap the GO! button, the Navigator
calculates the route to your selected destination.
The Actions button provides a list of command
options available for the selected address or place.
The Hide/Display Keyboard toggle button lets you
show or remove the keyboard.
The Save, OK, or Done buttons confirm your value
preferences, returning to the menu or map.
Cycling Through Screens
Every navigation function in the system, such as
Address, Food, Fuel, Lodging, or My Favorites
consists of a sequence of screens. You can cycle
through the screen sequences by either:
• Selecting an item from the list and tapping it.
• Selecting an item from the list and tapping the Next
button.
The sequence ends with the Show on the Map
screen, where the destination is displayed and the
GO!
button is available for you to calculate a route.
You must first select an item from the list to cycle
through the screen sequence, and for the Actions,
Next, and Back buttons to be enabled.
34
Finding a location with navigation
Address
When you tap the Address button, the Address
screen appears as shown on the right.
1. Enter Address
v
2. City
v
3. Street
v
4. Address Number
v
5. Show on Map
35
Finding a location with navigation
You can use the keyboard to enter the first
characters of the address name.
The characters appear in the Address field.
The Navigator automatically searches the Address
list for the first occurrence of the entered characters.
After you have selected a city, the Navigator
displays the next address field, such as street and
address number.
You can also tap the Next button to move through
the sequence of address screens.
The following command keys are available to
enhance your search process:
The Scroll buttons let you move up or down the list
of address items, such as city or street names.
The Hide/Display Keyboard toggle button lets you
extend or shorten the address list by hiding or
displaying the keyboard.
The Numbered/Umlauts toggle button lets you
display numeric or umlauts characters.
The Erase button lets you delete the last character in
an address field.
You can change your address search method by
tapping the Mode button to select from a variety of
address formats, as described in "Address Modes".
For more information, see "Address Modes" on page
37.
If the entered characters are not found at the
beginning of the name in the Address list, the Smart
Search System automatically searches for the
entered characters throughout the entire list, for
example, in the middle or the end of the name.
36
Finding a location with navigation
Address Modes
You can define the information used to locate an
address by tapping the Mode button. The unit
provides a variety of address formats as described
below.
This sequence displays the following address
screens : City, Street, Address Number.
You can also navigate a city or a street only.
When you have selected a city, the first entry of the
Street Name list is City Center. When you have
selected a street, the first entry in the Address
Number list is Street Midpoint.
City-Street is the default format.
This sequence displays the following address
screens : Street, City, Address Number.
Lets you enter a street name without having to first
designate a city. Useful when you're looking for an
address in a metropolitan area where there are many
cities and towns.
This sequence displays the following address
screens : City, Street 1, Cross Street.
It also lets you locate an intersection or junction by
entering the names of two intersecting streets.
This sequence displays the following address
screens : Zip Code, Street, Address Number.
This mode lets you locate a street address by
entering the zip code, without entering a city name.
Useful when you have no city information or if the
city has multiple zip codes.
37
Finding a location with navigation
In other Maps
You can select another map of a country that you can
travel by vehicle.
This feature is available only when you have the
following maps installed:
• Map of the country in which you’re currently
located.
• Map of the country to which you wish to travel.
• The map of the major roads of the continent that
connects one map to another (for example, the
major roads of Europe)
For example, if you are in Paris and you want to
travel to Munich, select the map of Germany and
designate Munich City Center as your destination.
The Navigator automatically displays the map of
France when traveling on local roads of that country,
a map of Major Roads of Europe when traveling on a
European highway, and the map of Germany when
traveling on local roads of that country.
Address Actions
When you have specified an address, tap the
Actions button to select from the following
commands:
This button lets you designate the selected address
as the route origin. Use this command when
calculating a route from a point other than your
current location. The navigation device displays the
selected location as a starting point only for a few
seconds before returning to your current location.
Note: You are still receiving a GPS signal.
This button lets you see the selected address on the
map.
This button lets you add an address to your list of
favorite locations. For more information, see "My
Favorites" on the page 42.
38
Finding a location with navigation
Go to your Destination
After you have specified the address, tap the Next
button. The Navigator shows your destination on the
Map screen before calculating a route. Check that
the destination address is correct at the top of the
screen. If you want to change the destination, tap the
Back button and change your address entries. When
you are ready, tap the GO! button to create a route to
your selected destination.
1. Next Screen
2. Show on Map
3. Calculate Route
Demo
When you click the Demo button, the Navigator
moves the cursor along the path you would take
toward your destination.
You can review the route you would go on before
instructing the Navigator to calculate your route and
specify roads to avoid by tapping the Avoid Roads
button on the Map Look & Feel menu. For more
information, see "Avoid Roads" on the page 51.
You may get inaccurate information in the Demo
mode (particularly in distances over 300 km).
However, information is much more accurate in real
driving conditions.
39
Finding a location with navigation
Recent Locations
The Recent Locations screen lets you select an
existing destination from a list of destinations that
you have previously traveled.
The unit automatically stores the last 64 destinations
in memory. As each new route is added to the top of
the list, the older destinations at the bottom are
erased.
To navigate to a recently-traveled destination, tap the
History button on the My Places menu. From the
Recent Locations screen, select a location and tap
the Next button. A map appears showing the
specified location. Tap the GO! button to calculate
the route.
1. Opens Recent Locations
2. Recent Locations
3. Next Screen
4. Show on Map
40
Finding a location with navigation
From the Recent Locations screen, you can tap the
Actions button to select the following commands.
Lets you designate the selected address as the route
origin. You would use this command when calculating
a route from a point other than your current location
Note: You are still receiving a GPS signal.
Lets you add an address to your list of favorite
locations. For more information, see "My Favorites"
on the page 42.
Lets you delete a recent location.
Lets you clear all locations in the Recent Locations
screen.
Displays the address information for the selected
location.
41
Finding a location with navigation
My Favorites
The My Favorites is a destination that you have stored
for easy retrieval.
To access a favorite destination, open the My Places
menu and tap the My Favorites button.
The My Favorites screen displays your favorite
groups. When you tap a selected group, the unit
automatically displays its stored locations.
Tap the selected location to show your destination on
a map. Tap the GO! button to calculate your route.
1. Opens My Favorites
2. Favorites Groups
3. Favorites Locations
4. Move to Next Screen
5. Show on Map
The My Favorites folder is the default folder where all
favorites are stored if not assigned to a group.
42
Finding a location with navigation
Favorite Groups
You can tap the Actions button from the My
Favorites screen to add, edit, or delete groups, as
described below.
When you tap this button, the Favorites group screen
appears. Enter the group name and select an icon to
identify the group, as shown on the right.
The icon identifies all destinations located in that
group, as displayed on the map.
When you tap this button, the Favorites group screen
appears with the name and selected image of the
highlighted group. You can change the name and
icon.
The My Favorites group cannot be edited.
When you tap this button, the selected group and its
associated entries are removed. The My Favorites
group cannot be deleted.
Favorite Alerts
The Alerts button let you know that you are within a
certain distance of a favorite location.
You can tap the Alerts button to set the distances for
the 1st and 2nd Alerts. When you travel closer than
the designated distance, the alert will sound.
43
v
Finding a location with navigation
Examples:
You have a group called "Shopping" that includes all
of your favorite stores. An alert appears on the
screen when you are closer than the designated
distance to the stores in your group, providing an
opportunity to consider whether you would like to
stop and shop.
You have a group called "Projects" that include
addresses of your bank, grocery store, garage,
hardware store, doctor’s office, post office, and so
on. When the alert is set, navigation reminds you
about these places when you come within close
proximity to them.
You are going on a trip and friends have
recommended certain restaurants that are on your
route. You can create a group called "Restaurants"
and enter the restaurant addresses. As you take your
trip, an alert will go off when you come within range
of these restaurants.
Favorite Alert settings affect all Favorites group.
The 2nd Alert must be set to go off at closer distance
than the 1st Alert.
Alerts can be set for a group but not for individual
locations. Of course, you can always create a group
that has just one location.
44
Finding a location with navigation
You can disable the alerts for all groups by selecting
the 1st Alert setting to Off.
You can disable the alerts for a particular group by
selecting the group and tapping the Show/Hide
Symbol on the Map toggle button. Disabled alerts
are identified by a red diagonal line through the
symbol.
Activate that disabled alert by selecting the group
and tapping the Show Symbol on Map button.
Add Favorite Locations
Tap My Favorites or any selected group that you
have created to display its locations.
You can save a location to your Favorites group from
the Address, Recent Locations, or POI (Point Of
Interest) screens. For more information, see "My
Favorites" on the page 42.
From this screen, you can tap the Actions button to
display the following commands.
Lets you designate the selected location as the route
origin. You would use this command when calculating
a route from a point other than your current location.
Note: You are still receiving a GPS signal.
Lets you see the map with the selected favorite
destination for you to review before creating a route.
Lets you change the name, comment, or group
location for the selected location.
Tap the button to remove the selected location.
45
Finding a location with navigation
Food, Fuel, Lodging
The Food, Fuel, Lodging list is a collection of hundreds of interesting or useful places organized by
easy-to-find categories. For example, you can use
navigation to guide you to a mall, hotel, restaurant, or
gas station.
From the navigation menu, tap the Food, Fuel,
Lodging button. The first Food, Fuel and Lodging
screen appears as shown on the left.
The More button located on the second Food, Fuel,
Lodging screen displays the list of all categories, as
shown on the left.
You can find a category by tapping the Hide/Display
Keyboard
button and entering text in the POI
Category field. The Smart Search System
automatically displays the POI categories that match
the characters entered. An alternative way is to use
the Browse buttons to browse the POI Category list.
When selecting a category, the unit automatically
displays the category entries and the distance each
entry is from your current position. Select your entry
and tap or click the Next button to display your
selected destination on the map and then tap on the
GO! button to calculate your route.
46
Finding a location with navigation
1. POI Categories
2. POI Locations
3. Show on Map
From the Item Entries Actions screen, click the Sort
by ABC button to display the category entries in
alphabetical order. Refer the details to the page 49.
Subcategories
Many categories have subcategories to provide for
an even greater list of choices. For example, "Petrol
Station" may have many subcategories each that
representing a particular brand name.
The same is also true for "Hotels". "Restaurants"
have subcategories that represent different types of
food, such as American, Italian, and French.
47
Finding a location with navigation
Search Near a Location
You can tap the Near button to determine the
location area, where you want to search for a specific
place, such as a gas station, hotel, or restaurant.
The available options are listed below.
Lets you search near your current location.
This is the default value.
Lets you search near a specified destination.
For example, you know your general destination, but
not very much about interesting locations in the area.
You can use the unit to locate the tourist attractions
most appealing to yourself, family, or friends.
Note that this button is enabled only when a
destination is entered.
Lets you search near another address. For example,
you have set a destination, but on the way you want
to stop at another location. You can use this feature
to search near that location for restaurants, lodging,
historical sites, or anything you want.
Enter the location distance to search for a designated
place. For example, if you enter 5 km, unit only
searches within a five kilometer radius.
When you select a large search radius, you risk the
chance of finding too many locations, which makes it
harder to find the place that you are searching for.
It is best to start with a small search radius size, and
then make it larger if necessary.
If you don’t specify a search radius, the navigator
searches the whole map.
48
Finding a location with navigation
Lets you customize your POI list by showing or
hiding the POI category symbols that you don’t want.
When you hide a category a red mark appears.
This mark only means that the category symbol does
not appear on your map. The category locations are
still available to you. You can always show a hidden
category symbol by selecting the category and
tapping the Show Symbol on Map button.
Actions
When you have selected a POI location, tap the
Actions button to display the commands listed
below.
Lets you designate the selected location as the route
origin. You would use this command when calculating
a route from a point other than your current location.
Note: You are still receiving the GPS signal.
Lets you show the map with the displayed destination
for you to review before creating a route.
Lets you add a POI entry to your list of favorite
locations. For more information, see "My Favorites"
on the page 42.
Lets you sort the entries of the selected category
alphabetically or by distance from your current
location.
Displays the address information for the selected
location.
The Navigator initially displays the entries by
distance.
49
Finding a location with navigation
Turn-by-Turn List
After you have entered a destination and calculated a
route, the Directions bar appears at the top of the
Map screen, displaying the following information:
• The next turn direction
• The distance to the next turn
• The street name of the next turn
When you tap the Directions bar or click the
Turn-by-Turn
button on the Map Look &
Feel menu. The Navigator displays a complete set of
turn-by-turn directions from your current point to your
selected destination.
Use the Scroll buttons to move up or down the
directions list.
The following options are available:
The Route button displays your entire route on the
Map screen, plus the travel distance and the
Estimated Travel Time Remaining (ETR).
The Turn button displays the next turn on the Map
screen, including the street name, the distance to it,
and the direction of the turn.
The Avoid button lets you avoid the selected turn in
the directions list. The Navigator recalculates the
route automatically. Note that when you exclude a
turn, the recalculated route may take longer.
50
Finding a location with navigation
Show Route or Cancel Route
From the Map Look & Feel menu, you can tap the
Show Route
button lets you display an
overview of your complete route on the Map screen,
the total driving distance to your destination, the
estimated travel time, and the complete destination
address.
From the Navigation menu, the Cancel Route
button stops the current navigation and
clears the route. This button is activated only after a
destination has been set.
Avoid Roads
You can specify that certain roads be permanently
excluded from your route calculations. Use this
feature when you want to avoid congested
boulevards, toll roads, or unsafe streets.
From the Map Look & Feel menu, tap the Avoid
Roads button. The Avoid Roads screen appears,
displaying the Toll Roads and Avoid Road groups.
1. Avoid Roads
2. Displays Groups
51
Finding a location with navigation
3. Add Group
4. Enter Group Name
Avoid Road Groups
From the Avoid Roads screen, tap Actions.
The Actions screen lets you select from the
following commands:
Create a new group of roads to avoid.
For example, you can create a group called
"San Francisco Roads", where you designate the
roads in that area to be avoided.
When you tap the Add Group button, the Avoid
Roads Group screen appears. Enter the group name
and tap Save.
Select a group and tap this button to change the
group name. When you tap the Edit Group
button, the Avoid Roads Group screen appears
displaying the group name. Change the group name
and tap on Save. The new name is displayed on the
Avoid Roads screen.
Select a group and tap this button to remove the
group from the Avoid Roads screen. The road entries
in this group are also removed.
52
Finding a location with navigation
When selecting a group route, you can tap the
or
button to include or exclude all
roads located in the group.
Avoid Road Locations
When you tap Default or an Avoid Roads group, the
Navigator displays the group screen, which lets you
select roads to avoid. From this screen, you can use
the Allow or Avoid buttons to include or exclude a
selected road when calculating a route.
1. Displays Roads
2. Add Road
3. Enter Road Name
4. Show on Map
53
Finding a location with navigation
You can tap the Actions button from this screen to
select the following commands:
Lets you select a road. An address screen appears
for you to specify a city and street. When you have
completed updating your road information, tap the
Avoid button.
Lets you rename the road and select a different
group. When you have made your changes, tap the
Save button.
Select a road and tap this button to remove the road
from your group. The Navigator no longer recognizes
the removed entry as a road to avoid.
Lets you show the map with the displayed destination
for you to review before creating a route.
Displays the address information for the selected
location.
54
Navigation settings
From the My Places or Map, Look & Feel menus,
you can tap the Settings button to display the
Settings menus, as shown on the right.
Route Planning
You can tap the Route button from the Settings
menu to specify the route type and whether to allow
for U-turns, as shown below.
If the destination is correct, you can instruct the unit
how to calculate your route by tapping either the
Quickest route or Shortest route options, as
described below.
Route Planning : The Quickest route option selects
the route that takes less time. The Quickest route is
the default value.
The Shortest route option selects the route that is the
shorter distance. Remember, the shorter route may
not always be the quickest, as you are able to travel
faster on some roads than on others.
U-Turn Enabled : This check box lets you instruct
the Navigator to include U-turns when calculating a
route.
Route generation does not take into account any
detours, stops, or delays along the route.
55
Navigation settings
Select Map
This feature lets you change the currently selected
map to another map saved on your SD memory card.
If you want to store additional maps on your memory
card, see " Using software" on the page 66.
You can tap the Select Map button from the Options
menu to display the maps saved on your SD memory
card. The Select Map screen displays map details
and version numbers. The currently used map
appears at the top of the list.
The following Select Map commands are:
Lets you designate a selected map as the current
used map.
Lets you permanently remove a selected map.
Note: You cannot delete the current map.
Lets you refresh the screen when a new memory
card is inserted into the device.
56
Navigation settings
Prompts
You can select the types of voice and visual
notifications that you would like to use while
navigating. From the Settings menu, tap the
Prompts button. The Prompts screen appears as
shown on the right.
Voice
Speed Warning : This prompt warns you when your
car exceeds the speed limit. This prompt is not active
unless selected.
Route Recalculation : This prompt is activated
when the Navigator recalculates a new route. This
prompt is not active unless selected.
Unreliable GPS Signal : This prompt warns that the
GPS signal is too low and unreliable for navigation.
This prompt is automatically active.
Drive Carefully: This is a friendly reminder at the
start of each journey. This prompt is automatically
active.
Visual
Symbols : Directional prompts are displayed in
diagram form, such as an arrow.
Text : Directional prompts are displayed in written
form.
None : Directional prompts are not displayed.
57
Navigation settings
Map settings
You can click the Map Settings button from the
Settings menu to customize your map display as
shown on the left.
The following map settings are:
Map Orientation
Forward is up : This option orients the map so that
your forward direction is always at the top.
North is up : This option orients the map so that
North is always at the top.
Use Automatic Zoom : When this option is selected,
the zoom is speed dependent.
The map zooms out at higher speeds, displaying a
larger map area, and zooms in at slower speeds,
displaying a smaller map area.
If you manually change the zoom, the Automatic
Zoom returns to its system level after several
seconds of inactivity.
Use Larger Labels : This option increases the size
of street names to make the map easier to read.
58
Navigation settings
GPS Settings
The Navigator uses the GPS receiver to pinpoint
your location. GPS signals are automatically acquired
, and your vehicle's location and position are
constantly updated. The GPS may take a few
minutes to find its initial location. For best results,
ensure that the GPS has a clear view of the sky.
This screen displays the following GPS information:
• Longitude - The angular distance east or west on
the earth's surface, as measured in degrees from
the meridian of a particular point to the prime
meridian of Greenwich, England.
• Latitude - The angular distance, measured north of
south from the equator, of a point on the earth's
surface.
• Speed - The rate of movement, as expressed by
kilometers or miles per hour.
• Altitude - The height above sea level.
• The green lines that appear on the satellite image
represent the satellites that are sending GPS signals to your receiver.
Units of Measure
From the Settings menu, click the Units of Measure
button to specify the system’s units of measurement.
• Miles/Hour
• Kilometers/Hour
59
Navigation settings
Quick Navigation
You can define the Quick Nav. location by selecting
either To Predefined Address or To Nearest POI
Category in the Quick Nav. Settings screen. When
the location is selected, you can navigate to your
address by tapping
displayed on
the My Places menu.
For example, if you have selected "Petrol Stations"
as the Quick Nav. destination, when you click the
Home button, navigation automatically creates a
route to the closest hospital or clinic.
About
Tap the
to display navigation version and
copyright information as shown on the left.
60
Installation requirements
The Navigator is already installed on your proprietary
device, but to add or change maps, you are required
to install the Navigation Console on to your PC.
PC Requirements
To install and use the Console, your PC must meet
the following requirements.
• Microsoft Windows 2000, or XP
• A minimum of 300 MB free space for temporary files
• An Internet connection for online registration
Installing the Console
To install the Navigation Console:
1. Insert the Navigation Disc into the PC's CD-ROM
drive. The Navigation Console Installation Wizard
prompts you to select the language used for the
installation process. When you have selected a
language, click OK.
2. Please read the Welcome message and click
Next.
3. From the Select Directory screen, either accept
the recommended default directory or browse to
a different directory to install the Navigation
Console. Click Next.
4. The Installation Confirmation screen displays
your installation choices. If you are ready to
install, click Next. The Installation Status box
displays the progress of the installation process.
61
Installation requirements
5.
If you want to change the language selection or
the directory location before installing, click
Back, make your changes, and return to the
Installation Confirmation screen, and click Next.
6.
When the installation is complete, click the
Finish button to close the wizard. You can open
the console by clicking LGE>Destinator Console
from the Windows Programs menu.
Install Navigation Software
To install Navigation:
1. Insert Navigation Disc into the PC’s CD-ROM
drive to launch the Navigation Console.
2. Check that the Navigation proprietary software is
loaded and running. Verify that the device is
connected to the PC.
3.
Click the Install Software
button to install
Navigation and Photo viewer to your device.
4.
The End-User License Agreement (EULA) is
displayed. Please read it carefully and click Yes,
I Agree.
5.
The Navigator prompts you to specify an
installation directory. Click Yes to select your
device’s default application installation directory.
Click No if you want to specify another device
directory.
The Select Directory dialog box appears. Browse
to a directory in your device and click OK.
6.
The Installation Applications status box displays
the progress of the navigation installation.
62
Installation requirements
7.
The Information message box refers you to the
device screen for instructions.
8.
When the Navigator has been successfully
installed, the Successful Installation message
box appears.
Transferring a Map onto the SD Memory
Card
1.
Connect the Card Reader to your PC using a
USB cable.
2.
Insert your SD card into the Card Reader.
3.
Select the required maps (be aware of the size
of your memory card). Click Change (bottom
right) and select Removable Disk.
4.
Click Install/Remove Maps on the toolbar.
5.
Remove the SD card from the Card Reader and
insert the SD card into the navigation device.
Although you can transfer a map directly to the SD
card by connecting the navigation device to the PC
via a USB cord, it is much faster to copy the map to
the SD card by using the Card Reader. Transferring
a map directly to the device should only be considered for extremely small map files.
63
Installation requirements
Console Toolbar
The following options are available from the
Navigation Console Toolbar:
This button lets you install the Navigation System to
your device.
This button lets you install or remove a map.
For more information, see "Installing a Map" on the
page 66.
This button lets you customize an installed map.
For more information, see "Map Cutter Screen
Interface" on the page 67.
This button lets you download a list of your favorite
locations from your PC to the selected My Favorites
group on your device. For more information, see
"Importing a Favorite" on the page 65.
Importing a .CSV File
1.
From the Navigation Console, click on a
Standard Map. This will enable the Installing
Map and Favorites Importer features.
2.
Click the Favorites Importer button.
The Converter dialog is displayed.
3.
Select the .csv file, specify a category name,
and click the Convert button. The Report Area
displays a message stating that the content of
the file has been converted and that the file is
ready for download.
64
Installation requirements
Importing a Favorite
You can download a list of favorite locations from
your PC to the unit. The list must be contained in
.csv files. As part of the download procedure, you
convert the .csv files to .dat format for storage on
your device by using the Navigation Conversion
utility.
The file structure must be in .csv (Comma-Separated
Values) format.
Name
Comment
Favorite
place 1
Navigation 39.21370
Favorites
Converter
Comment 1
Long.
Lat.
Zip Code
City
Street
House
Number
38.78903
8033
Munich
Ariboweg
173
The Longitude and Latitude are numerical values. All
the others are string values. If a string value contains
a comma, the field must have quotation marks.
Column value is separated by a comma from the
next column's value and each row starts a new line.
65
Using software
When you receive your device, the navigation is
installed on your SD memory card (Built-in Memory)
along with a series of maps. This section provides
information about installing additional maps from the
Navigation Console. For information about installing
the Navigation Console, see "Installation
Requirements" on the page 61.
Map Screen Interface
On the Navigation Console, a collection of maps is
displayed.
Standard Maps :
My Maps :
Installed Maps :
Maps available for installation from your CD.
Maps that you have customized from a standard
map. For example, creating a map of London from
the standard map of the United Kingdom and Ireland.
Current maps on your SD memory card (Built-in
Memory) .
Installing a Map
You can install a map by selecting it from the
Standard Maps panel in the Navigation Console and
clicking the Install/Remove Maps button.
The Target Device dialog box appears.
Select the SD memory card (Built-in Memory). The
amount of memory available for the SD memory card
(Built-in Memory) appears on the Target Device
Memory Balance pane. The installed map appears in
the Installed Maps pane.
1.
Select Map
66
Using software
2.
Click Install Map
3.
Loading Map
4.
Target Device and Free space
5.
Installed Maps
Map Cutter Screen Interface
Due to memory limitations of your SD memory card
(Built-in Memory), you may want to customize a standard map by selecting the area you need. For example, if you are visiting a number of European cities on
business, you may not want to install entire maps of
those countries.
You can crop a standard map from the Navigation
Map Cutter screen. Select a standard map and click
the Cut Map
button to open the Map Cutter
screen appears.
The following tools are provided to help you easily
move, view, and designate an area on the map:
67
Using software
You can use the Pan tool to move the map up, down,
left, or right.
You can use the Zoom tool to increase or decrease
the map detail. You can also use the scroll bar to
zoom in or out.
You can use the Crop tool to designate an area on
the map that you want to cut. When you have
selected your focus by using the focus tools, as
described below, click the Crop tool to designate an
area on the standard map.
You can use the Cut tool to create a customized map
from your designated area.
Focus the Map
The following tools are provided to help you center
your map, so you can designate the area that you
want to cut. For example, perhaps you want the
Center of London to be the center of your map. If you
are creating a very local map, perhaps you prefer to
make the office or the hotel the center of your map.
You can click the Address tool to set the origin of the
map to a City, Street Address, or Intersection. The
Address dialog box provides the Show City and Set
City Area buttons to view and set the map focus.
You can click the POI tool to set the origin of the map
to a point of interest. The POI dialog box displays all
categories in the left panel. When you click a
category, the items associated with the category
appear in the right panel. You can click the Show
POI and Set POI buttons to view and set the map
focus.
68
Using software
You can click the Select tool to set the origin of the
map by a predefined sub-region. A list of sub-regions
is displayed in a pane to the right of the map. When
you click a sub-region, that area is highlighted.
Focus the Map by Route
The Navigator supports route cutting, which allows
you to create a map composed of points on a route.
To create the route, you must specify two or more
points. After the route has been created, you can cut
a map from your route specifications.
Click the Route tool. The Route panel appears. Use
the Address and POI tools to set route points. Click
the Create Route button. Your route is highlighted in
blue. Click the Cut Map tool.
The following commands are described below:
Click this button to center the map on the selected
point.
Click this button to delete the selected point.
Click this button to delete all selected points.
Click these buttons to move a selected point up or
down.
You can select the amount of surrounding area that is
included along the route's path, as measured in
kilometers or miles.
: Corridor
You can select either the quickest route as
determined by the speed limit, or the shortest
physical route.
: Route
69
Using software
Cut Map
When you have designated your map area, click the
Cut Map
tool. The Cut Map dialog box appears
as shown on the left.
You must enter a map name and description. If you
have entered a name that already exists, the unit
prompts you to enter a different name.
You can click the Estimate button to display the map
size. This is an important feature when memory
space is limited.
Load Map
On the Navigation Console, you can refresh your
maps by clicking Tools>Refresh New Map Data.
Select the map that you wish to load by clicking on
the map image or select it from the list. A checkmark
represents a selected map.
From the Target Device panel, click the Change
button to specify where to install the map. You can
choose Removable Disk. After you have selected
your target device and have confirmed that there's
sufficient memory, click the Install/Remove Maps
button. Your selected maps are installed and then
appear in the Installed Maps panel.
Remove Map
In the Target Device panel, click the Change button
and select the location from where to remove the
map. You can choose Storage Disk. This updates the
Installed Map panel.
The Installed Map panel displays a list of all the
loaded maps available. Select the check box by the
map you want to remove. Click the Install/Remove
Maps button to remove the selected map.
70
Photo view
The Photo Viewer lets you view pictures from your
unit. This application recognizes JPG, GIF (not
animation), and BMP files. The Photo Viewer’s main
features let you zoom in or zoom out, rotate an
image, and display a series of pictures through a
slide show.
Getting Started
You can open the Photo Viewer by clicking the Photo
Viewer button on the Source menu, as shown on the
right.
Browse to an Image
When you open the Photo Viewer, the Browse Image
screen is displayed, showing the top level folders on
your device, as shown on the right.
Click the folder icon to display its sub-folders and
JPG, GIF, and BMP image files.
You can tap the Page Up and Page Down arrow
buttons to display the sub-folders and image files in
the current folder.
You can tap the Directory Up button to display the
folder immediately above in the folder hierarchy.
71
Photo view
You can tap the Slide Show button to view all JPG,
GIF, and BMP images in the current folder in Slide
Show mode. Photo Viewer can show all pictures in
full-screen mode automatically at a certain rate. You
can tap the screen once to stop the slide show and
tap again to return to the Browse Image screen.
You can tap the Exit button to close the Photo
Viewer and return to the Source menu.
View Image
Tap an image file icon in the Browse Image screen to
view. The image appears in the View Image screen,
as shown below.
The following buttons are provided to let you display
images from the View Image screen:
The Previous Image and Next Image arrow keys
lets you display the previous or next image in the
sequence of image files located in the selected
folder.
The Rotate button lets you move the image
clockwise. Each tap rotates the image 90 degrees.
The Slide Show button lets you view all JPG, GIF,
and BMP images in the current folder in Slide Show
mode. Photo Viewer shows all pictures in full-screen
mode automatically at a certain rate. You can tap the
screen once to stop the slide show and tap again to
return to the Image View screen.
The Zoom In and Zoom Out buttons let you
increase or decrease the image detail.
The Return Arrow button lets you return to the
Browse Image screen.
72
SET UP settings
You can change the system settings by tapping the
Set Up button. The Set Up screen shows all of the
system settings that you can change, as displayed
below.
You can tap the Back button to return to a previous
screen.
Select Language
This screen lets you select the language to be used
for screen displays and voice prompts.
Calibrate
If the touch screen of your device doesn’t seem to
work correctly - not responding accurately to your
stylus taps - you can adjust it with CALIBRATE, the
screen-measuring function.
Brightness
This screen lets you determine the brightness of the
screen. You can save power by selecting how long
the backlight will stay on before it dims when running
the device either on battery or on AC power.
73
Troubleshooting
• If you want to operate this product properly, there should be the same
programs (Contained in LGE folder) and maps (Contained in LGE folder) in
the SD memory card (Built-in Memory) which are provided by LGE.
• Don't erase or modify the contents in LGE folder!
(It contains important data for Navigation and Photo viewer. It is going to be
out of order in case of misuse.)
• Don't delete inner data of the product by using ActiveSync.
(It contains important data for navigation and Photo viewer. It means it will be
out of order in case of misuse.)
Picture format
The Photo Viewer does not display an image when either the image exceeds
1.6 GB or if the image is saved as an invalid format. The "Load Failure" warning message is displayed when the image file is too large. The "Picture format
is not supported" warning message is displayed when the image file is not
saved in JPG, GIF, or BMP format.
• JPG : Image file size should be less than 1600 MP (megapixels).
• BMP : Image file size should be less than 500 MP (megapixels).
• GIF : Image file size should be less than 500 MP (megapixels).
Cannot identify the current location. (GPS not receiving)
GPS cannot be used indoors and must be connected to the power with ACC to
a vehicle in a location where the sky can be seen well.
When initially connecting the GPS, it usually takes about 10 minutes to operate
normally, but the connection speed can differ depending on the weather condition, and surrounding obstacles.
If the GPS connection is unstable for a long period of time, try the following.
• Check if the power is connected to the product.
• Check if the back of the GPS product is in a location where the sky can be
seen well.
• If there are high buildings or if you are under a tree, move to a location where
there aren’t any obstacles.
• Check the GPS receiving condition from the GPS menu.
74
Troubleshooting
Cannot hear the voice guide.
You can hear the voice guide when you select “SET UP.
But during actual driving, the voice guide is provided.
If the volume is too low, adjust the volume on the left unit.
Cannot see the map.
This is when you cannot see the map even when you have executed the
navigation menu.
This happens when the data within the memory is damaged. Delete all the
data within the memory and reinstall the data.
If the problem persists after the installation, contact the Customer Service
Center.
Map data and dangerous area information are not updated.
You must periodically update the map data.
Refer to the homepage for details on how to update the data.
The path guide can be different from the actual path.
(Path guide error)
•
•
•
•
•
•
•
When the road is closely parallel.
When the splitting road angle is very small.
When there is an adjacent road when turning.
When driving on a road that is narrowing fast.
When driving through the mountain or where the road is too curvy.
When the starting, passing and arriving locations are too close within 10 km.
When you have set the starting, passing or arriving location more than 1 km
away from the road.
• When driving through the tunnel.
• When driving through high buildings.
There is a difference between the driving road and the road
on the map in the product.
Even though GPS is usually very accurate, it has an error range.
When GPS receiver is installed, there can be an error of about 5 to 15m. But
for newly constructed roads, the problem could be from the data update to the
map.
75
Troubleshooting
What is GPS?
The Global Positioning System (GPS) is a satellite-based navigation system
made up of a network of 24 satellites placed into orbit by the U.S.
Department of Defense. GPS was originally intended for military applications,
but in the 1980s, the government made the system available for civilian use.
GPS works in any weather conditions, anywhere in the world, 24 hours a day.
There are no subscription fees or setup charges to use GPS.
GPS
GPS
GPS
GPS
Map matching
The GPS used by this Mobile Navigation System is susceptible to certain
errors. Their calculations may on occasion place you in a location on the map
where no road exists. In this situation, the processing system
understands that vehicles travel only on roads, and is able to correct your
position by adjusting it to a near road. This is called map matching.
With map matching.
With no map matching.
76
Specifications
ITEM
SPECIFICATION
OS
CPU
Win CE 5.0
Centrality Atlas-II ARM9
276 Mhz
LN500B : 256 MB
LN500/505 : 512 MB
LN510 : 1 GB
LN515 : 2 GB
MEMORY
DISPLAY
AUDIO
LG Philps LCD
Mono, Internal Speaker
Typical 1.0W (1EA)
SiRF star III,
Internal Antenna
NAVI
Full Map
MAP
Navtaq
TEMPERATURE
Built-in BATTERY
Built-in Memory
Built-in Memory
External SD Card
External SD Card
3.5 inch TFT LCD
Resolution 320 X 240
Backlight
Touch Screen
GPS
POWER
REMARK
LED type
Analog resisitive type
Voice Guidance
DC 5.0 +/- 0.2V
Vehicle Power
Cigar-jack Input (12V)
Operating : -10~60 °C
Storing : -30~80 °C
3.7 V (Li-Ion)
Typical 3-hours
operation
INTERFACE
Mini-USB Port
USB 1.1
External GPS Jack (Optional)
Multimedia
Electronic Picture Frame
77
BMP, JPG, GIF
Files Compatible
Support-Hotline
If you have other questions about the Navigation Device, please contact your
supplier or Technical Support:
www.lge.com/support/software.jsp
For questions on products please visit our
site or contact the Support Team.
Monday-Fridays : 09 : 00 am - 6 : 00 pm
LG Subsidiary
Country
Service Number
LG Electronics ESPANA S.A.
SPAIN
902 500 234
LG Electronics U.K. Ltd
U.K. / IRELAND
0870 873 5454
LG Electronics France
FRANCE
LG Electronics Deutschland GmbH GERMANY
0825-826-822
0825-825-592
01805 4737 84
LG Electronics Italia S.p.A
ITALY
39 199600099
LG Electronics Hellas S.A
GREECE
+30-210-4800-564/8
801 11 200 900
LG Electronics Benelux B.V
BELGIUM
LUXEMBOURG
Netherlands
070-233-557
32-70-233-557
0900-543-5454
LG ELECTRONICS MAGYAR KFT HUNGARY
Bulgaria
36-06-40-545454
+359-070-1-5454
LG Electronics Polska Sp. z.o.o
POLAND
801 54 54 54
LG Electronics Portugal, S,A
PORTUGAL
808-78-5454
LG Electronics Nordic AB
SWEDEN
DENMARK
FINLAND
NORWAY
0771 41 4379
8088 5758
0800 116 587
800 18 740
78
Support-Hotline
LG Subsidiary
Country
Service Number
Austria
AUSTRIA
420 810 555 810
RUMANIA
RUMANIA
40 31 228 3542
CZECH REPUBLIC
CZECH
SLOVAKIA
AUSTRALIA
420 810 555 810
421 850 111 154
1 800 643 156
LG Electonics Australia
