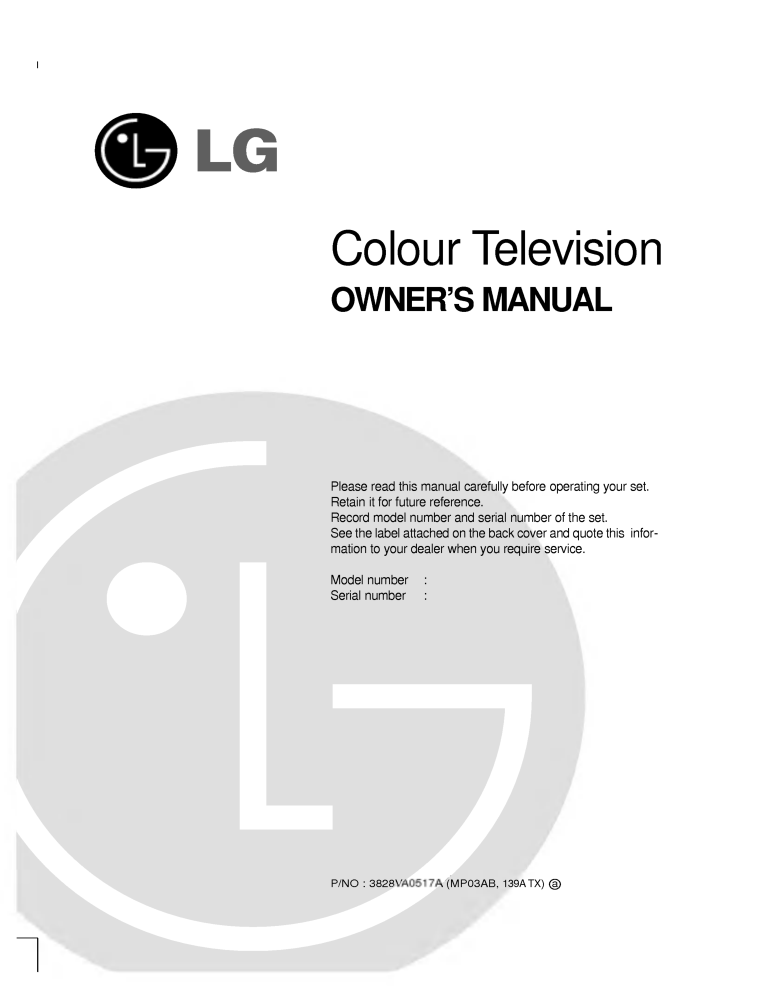

Colour Television
OWNER'S MANUAL
Please read this manual
carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached
on
the back
mation to your dealer when you
Model number
:
Serial number
:
P/NO
:
3828VA0517A
(MP03AB,
cover
require
139A TX)
and
quote this infor-
service.
a
Contents
Installation
3
Location and function of controls
Remote control handset
Battery installation / Front panel
4
Basic operation
On and off / Programme selection
Volume adjustment / Quick view
Mute function / Auto Demonstration
On screen language selection (option)
7
On
8
screen menus
Menu selection
up TV stations
Auto programme tuning
Manual programme tuning
Fine tuning / Programme edit
Favourite programme
Calling the programme table
9
Setting
Picture adjustment
PSM (Picture Status Memory) / XD
VM (Velocity Modulation)
Picture adjustment / Auto convergence (option)
Convergence (option) / Picture format
Turbo picture selection (option) / Eye (option)
14
Sound adjustment
SSM (Sound Status Memory)
Sound adjustment / X-WAVE (Wireless Sound)
Turbo sound selection (option)
Sound output selection / Stereo/Dual reception
NICAM reception (option)
19
Time setting
Clock / On/Off time
Auto sleep
22
Other functions
TV and AV modes / VGA mode
Auto AV switching (option)
Child lock / Sleep timer
23
PIP
operation (option)
On and off / Input mode selection for sub picture (option)
Swapping between main and sub pictures
Programme selection for sub picture
Sub picture size / Sub picture freeze
Sub picture position change / Programme scan
25
FM Radio setting
On and off / Volume adjustment
Auto tuning / Manual tuning
26
Teletext (option)
Switch on/off
SIMPLE text / TOP text (option)
FASTEXT / Special teletext functions
28
Connection of external equipment
Aerial socket / Euro scart sockets (option)
Audio/Video in/out sockets (option)
S-Video/Audio in sockets (S-AV) (option)
Component in sockets
Variable Audio out sockets (AUDIO OUT)
Monitor out sockets
PC Input/Audio in sockets (option)
31
Troubleshooting
2
(option)
check list
35
Installation
Power
This set operates on an AC mains supply, the voltage is as indicated on the label on the back cover. Never apply DC power to the set.
In the event of thunderstorms
ial and mains
or
powercuts, please pull
out the aer-
plugs.
Warning
To prevent fire
moisture.
Do not
cause
or
shock hazard, do not expose the set to rain
or
of the set, this may
place anything containing liquid on top
a fire or could give an electric shock.
Service
Never
remove
the back
high voltage
properly, unplug it
very
of the set
this
expose you to
and other hazards. If the set does not operate
cover
as
can
and call your dealer.
Aerial
Connect the aerial cable to the socket marked +75 Ω
cover.
For the best
reception
an
on
the back
outdoor aerial should be used.
Location
Position your set so that no bright light or sunlight falls directly onto
the screen. Care should be taken not to expose the set to any
unnecessary vibration, moisture, dust or heat. Also ensure that the
set is
the
Do
on
in
position to allow a free flow
ventilation openings on the back cover.
not place the set on a sloping or unstable
placed
a
the bottom of the set may
When
cause
it to
move
of air. Do not
area as
cover
the casters
and to be
displaying still pictures such as videogames, 16:9
ture format, PIP display, and station label for a long time,
may be persisted on the screen.
damaged.
4:3 picthe image
or
Manufactured under license from Dolby Laboratories. "Dolby"
and the double-D symbol are trademarks of Dolby
Laboratories. (option)
3
Location and function of controls
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use it, please select TV, VCR
ing the TV, VCR or DVD buttons.
1.
2.
1
3.
2
4.
1
3
2
FM MENU
selects a CH,
TUNE, P.SET
POWER
switches the set
on
from
NUMBER BUTTONS
switch the set on from
MUTE
switches the sound
or
VOL
standby
standby
on or
or
or
on
press-
FM mode.
off to
or
by
directly
standby.
select
a
number.
off.
3
4
5
6
7
8
90
5.
VOL +/- (Volume Up/Down)
Increases/decreases sound level.
PR +/- (Programme Up/Down)
selects a programme.
6.
MENU
selects
4
5
7.
a menu.
OK
accepts your selection
D/EorF/G
MENU
6
Adjusts
Selects
7
8.
8
9
10
11
12
13
14
i
?
M
menu
menu
or
displays
the current mode.
settings.
item.
PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PIP PR +/selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
PIP INPUT (option)
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
SCAN
switches on or off the programme scan mode through 12 sub
pictures.
9.
SSM (Sound Status Memory)
recalls your preferred sound setting.
10. PSM (Picture Status
recalls your preferred
Memory)
picture setting.
11. MAIN STILL
freezes motion of the
picture.
12. INDEX (option)
switches LED DISPLAY
on or
off.
13. LIST
displays
the programme table.
14. FAVOURITE
selects a favourite programme.
4
DVD function
Location and function of controls
15. LCD
(Liquid Crystal Diode)
DISPLAY
16. TUNE/VOL
adjusts FM radio menu item.
adjusts FM radio volume.
17. FM ON/OFF
switches the FM radio
18.
on or
off.
TV, VCR, DVD BUTTONS
selects a LG TV, VCR or DVD function.
15
19. TURBO PICTURE BUTTON
selects Turbo picture.
TURBO SOUND BUTTON
selects Turbo sound.
20. SLEEP
sets the
sleep
16
17
18
timer.
21. TV/AV
selects TV or AV mode.
switches the set on from
12
19
standby.
22. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the 'Teletext' section.
23. I/II
selects the language during dual language broadcast.
selects the sound output (option).
24. ARC
3
45
6
78
90
20
MENU
21
Ratio
Control)
(Aspect
changes the picture format.
25. Q.VIEW
returns to the
previously
viewed programme.
26. EYE/* (option)
switches the eye function
on or
22
off.
27. EARPHONE SOCKET / EARPHONE
connects the earphone (supplied) to this socket to listen the FM
sound.
If you connect the headphone to it, the FM sound may be unstable.
23
24
25
26
In teletext mode, the PIP PR +/-, SWAP and PIP INPUT buttons are used for teletext function.
Note
:
Battery
installation
The remote control handset is powered by two AA/Alkaline type
batteries. To load the batteries, turn the remote control handset
over and open the battery compartment. Install two batteries as
indicated by the polarity symbols ( + and
) marked inside the com-
i
?
M
-
partment.
27
Note : To avoid damage from possible battery leakage, remove the
batteries if you do not plan to use the remote control handset for an
extended period of time.
5
Location and function of controls
Front
?
panel
RT-44NB11 series
S-VIDEOL/MN
2
10
TV /AV
ME NU
OK
MUTE
VOL
11
AUDIO
PR
R
ON/OFF
1
AV3
(Side panel)
TV/AV
3
1.
3.
4
67
5
on or
PR
VOL
MUTE
MAIN POWER
switches the set
2.
OK
MENU
8
9
F / G
8.
(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
9.
D / E
off.
REMOTE CONTROL SENSOR
TV/AV (option)
selects TV or AV mode.
switches the set on from
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
standby.
10. EYE
4.
5.
MENU
selects
(option)
adjusts picture according
OK
11. AUDIO/VIDEO IN SOCKETS
or
displays
the current
7.
6
on or
off.
POWER/STANDBY INDICATOR
illuminates brightly when the set is in
mode.
dims when the set is switched on.
(AV3)
Connect the audio/video out sockets of external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the SVIDEO VCR to the audio sockets as in AV3.
mode.
MUTE
switches the sound
surrounding
conditions.
a menu.
accepts your selection
6.
to the
standby
*
CASTERS (on the bottom) (option)
turn and move the set easily.
Basic
operation
On and off
1.
2.
Press the main power button to switch the set on.
If the set is in standby mode, press the POWER, PR +/-, TV/AV,
or NUMBER buttons on the remote control handset to switch it
on
3.
4.
fully.
Press the POWER button on the remote control handset.
The set reverts to standby mode.
Press the main power button again to switch the set off.
Note : If, while the set is switched on, the mains plug is disconnected the set will switch to standby or power on when the mains
plug is replaced in the mains power socket.
Programme
You can select
buttons.
Volume
selection
a
programme number with the PR +/-
or
NUMBER
12
3
45
6
78
90
adjustment
Press the VOL +/- button to adjust the volume.
Note : When the TV
(speaker) is On, it's available.
Quick view
Press the Q.VIEW button to view the
were
previous
programme you
watching.
MENU
Mute function
Press the MUTE button. The sound is switched off and the
display
W appears.
You can cancel it by pressing the
TURBO SOUND button.
MUTE, VOL +/-,
SSM, I/II,
Auto Demonstration
To review all the menus programmed in the set, press the OK button of the front panel control for about 10 seconds. To stop auto
demonstration, press any button of the front panel control or
POWER button of the remote control.
On
The
screen
language
selection
be displayed on the
guage. First select your language.
1.
menu
can
(option)
screen
in your desired lan-
Press the MENU button and then D / E button to select the
Special
2.
i
Press
menu.
the
G
button
and
then
D
/
E
button
to
select
Language.
3.
Press the G button and then D / E button to select your desired
language.
4.
All the on screen displays will appear in the selected language.
Press the OK or F button to select the Special menu.
Repeatedly press the MENU button to return to normal TV
viewing.
7
On
screen menus
The
an
between you and your set takes place on screen with
menu. The buttons required for the operating steps are
dialogue
operator
also
displayed.
Menu selection
1.
Press the MENU button and then D / E button to
display
each
menu.
2.
3.
4.
Press the G button and then D / E button to select a menu item.
Press the G button to display the sub menu or the pull-down menu.
Change the setting of an item in the sub or pull-down menu with
F/GorD/E.
You can move to the higher level menu by pressing the F button
and to move to the lower level menu by pressing the G button.
Note :
In the teletext mode, menus are not displayed.
a.
In some models, the Normal/Turbo search will not display,
b.
only the Start will display in the Auto programme menu.
In some models, the Language will not display.
c.
In some models, the Auto convergence will not display, only
d.
the Convergence will display in the Picture menu.
1
2
3
Auto programme
Station
4
7
5
8
6
90
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
()O}{OOKOMENU
{
NormalOsearch
TurboOsearch
{
Manual programme
PSM
XD
VM
Contrast
{
Brightness
{
Sharpness
Convergence
{
Storage
System
Channel
{
{
{
Fine
{
{
{
Search
Name
Booster
{
{
Colour
{
{
{
{
()O}{O OKOMENU
()O}{O OKOMENU
menu
Programme
Sound
SSM
AVL
DBS
TV
Balance
{
X-WAVE
{
edit
OO0OOCO03
OO5OOSO69
{
O1OOCO03OOO6OOSO17
{
O2OOCO12OOO7OOSO22
{
O3OOSO66OOO8OOCO09
{
O4OOSO67OOO9OOCO11
DeleteOOOOCopy
MoveOOOOOOSkip
()}{O OKOMENU
()O}{OOKOMENU
Sound
menu
Time
Clock
{
{
OffOtime
OnOtime
{
{
AutoOsleep
()O}{OOKOMENU
T ime
menu
Special
Language
Input
InputOOO(
{
{
)
ChildOlock
{
{
()O}{O OKOMENU
Special
TV programme
8
{
menu
i
{
OBG
OOI
ODK
OOM
()O}{O OKOMENU
Station
MENU
System
StorageOfrom
menu
2
Setting
TV
stations
up
to 100 TV stations can be stored
Up
by programme numbers (0 to 99).
Once you have preset the stations, you will be able to use the D / E
or NUMBER buttons to scan the stations you have programmed.
Stations can be tuned using automatic or manual modes.
Note
:
In
some
models up to 200 TV stations
can
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
be stored.
()O}{OOKOMENU
Auto programme
tuning
All stations that can be received are stored by this method. It is recommended that you use auto programme during installation of this set.
1.
2.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Auto pro-
gramme.
3.
Press the G button to
display
the Auto programme
menu.
Auto programme
System
StorageOfrom
NormalOsearch
TurboOsearch
{
{
{
OBG
OOI
ODK
OOM
{
()O}{O OKOMENU
Press the G button. Select a TV system with the D / E button
on the System pull-down menu;
BG : (Asia/New Zealand/M.East/Africa/Australia)
I
: (Hong Kong/South Africa)
DK : (East Europe/China/Africa/CIS)
M
: (USA/Korea/Philippines) (option)
5.
Press the OK or F button.
6.
Press the D / E button to select Storage from.
7.
Press the G button. Select the beginning programme number
with the F / G button or NUMBER buttons on the Storage
from pull-down menu. Any number under 10 is entered with a
numeric '0' (or '00') in front of it, i.e. '05' (or '005') for 5.
8.
Press the OK button.
9.
Press the D / E button to select Normal or Turbo search.
Option: In some models, you can only select Start.
Note :
a.
Turbo search is further faster than Normal search and in
some models, these searches will automatically store all receivable stations.
b. If the programmed station has poor quality sound, select the
system again in the Manual programme menu.
10. Press the G button to begin auto programming.
All receivable stations are stored.
4.
Auto programme
12
3
45
6
78
90
MENU
Auto programme
System
StorageOfrom
{
NormalOsearch
TurboOsearch
{
{
OCO01O(BG)
{
System
StorageOfrom
{
NormalOsearch
TurboOsearch
{
77O7O7O736%
MENU
{
{
OCO01O(BG)
77O7O7O736%
i
MENU
(Normal search)
(Turbo search)
To stop auto programming, press the MENU button.
When auto programming is completed, the Programme edit
menu appears on the screen. See the 'Programme edit' section
to edit the stored programme.
11. Repeatedly press the MENU button to return to normal TV
viewing.
9
Setting
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
Manual programme
tuning
Manual programme lets you manually tune and arrange the stations in whatever order you desire. Also you can assign a station
name with five characters to each programme number.
1.
()O}{O OKOMENU
TV
stations
up
2.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Manual
3.
programme.
Press the G button to
the Manual programme
display
menu.
Manual programme
Storage
System
{
{
Channel
{
Fine
{
Search
Name
Booster
{
2
{
{
()O}{O OKOMENU
4.
5.
1
2
3
4
5
6
7
8
90
6.
7.
8.
MENU
9.
10.
11.
12.
13.
14.
15.
Press the D / E button to select Storage.
Press the G button to select the programme number. Select the
desired programme number with the F / G button or NUMBER
buttons on the Storage pull-down menu. Any number under 10
is entered with a numeric '0' (or '00') in front of it, i.e. '05' (or
'005') for 5.
Press the OK button.
Press the D / E button to select System.
Press the G button. Select a TV system with the D / E button
on the System pull-down menu;
BG : (Asia/New Zealand/M.East/Africa/Australia)
I
: (Hong Kong/South Africa)
DK : (East Europe/China/Africa/CIS)
M
: (USA/Korea/Philippines) (option)
Press the OK or F button.
Press the D / E button to select Channel.
Press the G button. Press the D / E button to select V/UHF or
Cable on the Channel pull-down menu.
If possible, select the channel number directly with the number
buttons. Any number under 10 is entered with a numeric '0' (or
'00') in front of it, i.e. '05' (or '005') for 5.
Press the OK or F button.
Press the D / E button to select Search.
Press the G button. Press the F / G button to commence
searching on the Search pull-down menu. If a station is found
the search will stop.
Press the OK button to store it. The display Stored will appear.
Manual programme
i
Storage
System
{
Channel
{
Fine
{
Search
Name
Booster
{
{
{
{{{
{
Stored
16. To store another station, repeat steps 4 to 15.
17. Repeatedly press the MENU button to return to normal TV
viewing.
10
Setting
TV
stations
up
Assigning station name
1. Repeat the 'Manual programme tuning' steps 1 to 3.
2. Press the D / E button to select Name.
3. Press the G button on the Name pull-down menu.
4. Press the D button. You can use a blank, +, -, the numeric 0 to
9 and the alphabet A to Z.
With the E button you can select in the opposite direction.
5. Select the position by pressing the F / G button and then make
your choice of the second character, and so on.
6. Press the OK button.
7. Repeatedly press the MENU button to return to normal TV
a
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
()O}{OOKOMENU
viewing.
Booster (option)
In some models, Booster is an optional function.
Booster can perform this function.
Only
a
set with
If the reception is poor at the fringe area of TV signal, select
Booster to On. When the picture condition is good, do not select
Booster to On.
1.
2.
3.
4.
5.
6.
the 'Manual programme tuning' steps 1 to 3.
Press the D / E button to select Booster.
Press the G button.
Press the D / E button to select On or Off on the Booster pulldown menu.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
Repeat
12
3
45
6
78
90
viewing.
Fine
tuning
Normally
1.
2.
3.
fine
tuning
MENU
is
only necessary
if
reception
is poor.
the 'Manual programme tuning' steps 1 to 3.
Press the D / E button to select Fine.
Press the G button.
Repeat
Manual programme
Storage
System
{
Channel
{
Fine
{
Search
Name
Booster
{
{
{{{
{
{
}{O OKOMENU
4.
5.
6.
Press the F / G button to fine tune for the best picture and
sound on the Fine pull-down menu.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
The finely tuned programme will be
ber during programme selection.
indicated
by
a
yellow
i
num-
11
TV
stations
up
Setting
Station
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
Programme
This function enables you to delete or skip the stored programmes.
Also you can move some stations to other programme numbers or
insert a blank station data into the selected programme number.
1.
()O}{O OKOMENU
edit
2.
3.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select
Programme edit.
Press the G button to display the Programme edit menu.
Programme
edit
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
DeleteOOOOCopy
MoveOOOOOOSkip
()}{O OKOMENU
Deleting
1.
2.
1
2
3
a
programme
Select a programme to be deleted with the D / E or F / G button.
Press the RED button twice.
The selected programme is deleted, all the following programmes are shifted up one position.
Copying
4
5
1.
6
2.
7
8
90
programme
Select a programme to be copied with the D / E
Press the GREEN button.
All the following programmes are shifted down
Moving
1.
2.
MENU
3.
a
or F
one
/ G button.
position.
a
programme
Select a programme to be moved with the D / E or F / G button.
Press the YELLOW button.
Move the programme to the desired programme number with
theD/EorF/Gbutton.
4.
Press the YELLOW button
again
Programme
to release this function.
edit
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
MoveOOff
()}{O MENU
programme number
Select a programme number to be skipped with the D / E or
F / G button.
Press the BLUE button. The skipped programme turns to blue.
Press the BLUE button again to release the skipped programme. When a programme number is skipped it means that
you will be unable to select it using the D / E button during normal TV viewing. If you want to select the skipped programme,
directly enter the programme number with the NUMBER buttons or select it in the programme edit or table menu.
Skipping
1.
2.
3.
i
a
Repeatedly press
12
the MENU button to return to normal TV
viewing.
Setting
TV
stations
up
Favourite programme
Station
This function lets you select your favourite programmes
1.
2.
directly.
Press the MENU button and then D / E button to select the
Station menu.
Press the G button and then D / E button to select Favourite
programme.
3.
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
{
{
()O}{O OKOMENU
Press the G button.
Favourite programme
AutoOprogramme
ManualOprogramme
{
ProgrammeOedit
FavouriteOprogramme
{
56O CO 05
{
{
}{0_9O()OOKOMENU
4.
5.
6.
7.
8.
Press the D / E button to select
-----.
Select a desired programme with the F / G button or NUMBER
buttons. Any number under 10 is entered with a numeric '0' (or
'00') in front of it, i.e. '05' (or '005') for 5.
To store another programme, repeat steps 4 to 5.
You can store up to 8 programmes.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
--
viewing.
Repeatedly press
3
45
6
78
90
the FAVOURITE button to select stored favourite
programmes.
Calling
12
the programme table
You can check the programmes stored in the memory
the programme table.
by displaying
programme table
Press the LIST button to display the Programme table menu.
The programme table appears on the screen. One programme
table contains ten programmes as below.
Displaying
MENU
Station
OO0OOCO03
OO5OOSO69
O1OOCO03OOO6OOSO17
O2OOCO12OOO7OOSO22
O3OOSO66OOO8OOCO09
O4OOSO67OOO9OOCO11
()}{O OKOMENU
Note :
a.
You may find some blue programmes. They have been set up
to be skipped by auto programming or in the programme edit
mode.
b. Some programmes with the channel number shown in the programme table indicate there is no station name assigned.
programme in the programme table
Select a programme with the D / E or F / G button.
Then press the OK button.
The set switches to the chosen programme number.
Selecting
a
i
Paging through a programme table
There are 10 (or 20) programme table pages which contain 100 (or
200) programmes.
Pressing the D / E or F / G button repeatedly turns the pages.
Repeatedly press the MENU button to return to normal TV viewing.
13
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
PSM (Picture Status
Memory)
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select PSM.
Press the G button and then D / E button to select a picture
setting on the PSM pull-down menu.
1.
{
{
adjustment
2.
3.
()O}{OOKOMENU
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
Dynamic
Standard
{
Mild
{
Game
User
()O}OOKOMENU
4.
Press the OK
5.
Repeatedly
viewing.
You
or
F button.
press the MENU button to return to normal TV
also recall a desired picture (Dynamic, Standard,
Mild, Game or User) with PSM button on the remote control. The
picture Dynamic, Standard, Mild and Game are programmed
for optimum picture reproduction at the factory and cannot be
can
changed.
1
2
3
4
5
6
7
8
90
XD
You
enjoy the vivid and hi-definition picture
Digital Reality processor technology.
can
with LG's excellent
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select XD.
Press the G button and then D / E button to select On or Off
on the XD pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
1.
2.
3.
MENU
4.
5.
viewing.
VM
(Velocity Modulation)
This is the function to enhance the
1.
2.
3.
sharpness
of
image edge.
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E button to select VM.
Press the G button and then F / G button to adjust the vm.
i
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
1
{
}{OOKOMENU
4.
5.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
14
You
adjustment
adjust picture contrast, brightness, colour intensity, sharpand tint (NTSC AV only) to the levels you prefer.
Press the MENU button and then D
2.
can
ness
1.
adjustment
/ E
button to select the
menu.
Press the G button and then D / E button to select Contrast,
Brightness,
Colour
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
{
()O}{O OKOMENU
Sharpness.
or
PSM
XD
VM
Contrast
{
Brightness
{
{
{
{
{
Colour
50
{
Sharpness
Convergence
{
()O}{O OKOMENU
3.
Press the G button and then F / G button to make
adjustments
on
the each sub
appropriate
menu.
Contrast
80
}{O()OOKOMENU
4.
Press the OK button to store it for the
5.
Repeatedly
ing.
3
45
6
78
90
user.
press the MENU button to return to normal TV view-
Auto convergence
12
(option)
This function enables you to
adjust the colour convergence of screen
automatically during receiving the signals. When the set is first
installed or it is relocated, the picture may be unstable with three
colour ghosts (red, green, blue). This problem can be solved by
adjusting the colour convergence.
1.
Press the MENU button and then D
Picture menu.
/ E
MENU
button to select the
PSM
XD
VM
Contrast
{
Brightness
{
{
Colour
Sharpness
AutoOconvergence
{
{
{
{
{
()O}{O OKOMENU
2.
Press the G button and then D / E button to select Auto con-
vergence.
3.
Press the G button to
adjust
the colour convergence automati-
cally.
i
Note :
a.
The operating point colour will change in the order of 'blue-greenred'.
b.
Please make sure the surrounding illumination where the TV is
situated remains dark otherwise the screen will become unstable or the message "Ensure lights are dimmed sufficiently" will be displayed on screen after Auto convergence is completed. Auto convergence will then have to be operated again.
15
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
adjustment
Convergence (option)
{
{
{
{
()O}{O OKOMENU
This function enables you to adjust the colour convergence of
screen all area or 9 points during receiving the signals. When the
set is first installed or it is relocated, the picture may be unstable
with three colour ghosts (red, green, blue). This problem can be
solved by adjusting the colour convergence.
1.
2.
Press the MENU button and then D / E button to select the
Picture menu.
Press the G button and then D / E
button to select
Convergence.
3.
Press the G button and then D / E button to select 1
point convergence) or 9
(9 point convergence).
(All
PSM
XD
VM
Contrast
{
Brightness
{
Colour
{
Sharpness
Convergence
{
{
{
{
{1
{
9
{
()O}{OOKOMENU
4.
1
2
3
4
5
6
7
8
Press the G button.
The display DE F G is selected in red.
If the
unstable with three colour
convergence needs to be adjusted.
90
display
+ are
ghosts,
the colour
MENU
()O}{O1-9OTV/AVOOKOMENU
()O}{OTV/AVOOKOMENU
If the
display
+
is white, colour convergence
adjustment
is not
necessary.
5.
6.
7.
Press the TV/AV button to select the display DE F G in blue.
: Press the number (1 to 9) button to select
Only selection 9
the position you want to adjust the convergence.
Press the D / E / F / G button to superimpose the display +
(red or blue) with the green one.
The display + is moved to the left, right, up or down by pressing
theD/E/F/Gbutton.
If the red and blue display + are superimposed with the green
one, the display + will be changed to yellow or cyan.
9. Press the OK button to store it for the convergence.
10. Repeatedly press the MENU button to return to normal TV view-
8.
i
ing.
Note :
a.
Press the MENU button to cancel the adjustment before saving.
b. If the picture needs to be adjusted more after 1
(All point convergence) adjustment, you can adjust the 9
(9 point convergence) for the position you want to adjust.
c.
Adjust the convergence according to a broadcasting system
(50Hz or 60Hz) each.
16
adjustment
Picture format
You can watch TV in various picture formats; 16:9, 14:9, Zoom,
Auto and 4:3.
In some models, you can watch TV in various picture formats; 4:3
and 16:9.
Repeatedly press the ARC button to select your desired picture format.
4:3
This
format is 4 to 3 of
general
16:9
You can
enjoy the cinema (the picture
programme through the 16:9 mode.
14:9 (option)
The screen 14:9 is viewed
TV.
format of
16:9)
or
general
TV
like that but the screen 4:3 is magnified to the upper / lower and left / right so that the screen 14:9 is
full.
You can move the screen up or down with D / E button.
just
Zoom (option)
You can enjoy the cinema in a vast screen through the Zoom mode.
The screen 4:3 is magnified to the upper/lower and left/right sides
so that the screen 16:9 is full. The bottom and top of the picture
may be lost.
You can move the screen up or down with D / E button.
Auto (option)
When your TV receives the wide screen signal, it will be automatically changed to the picture format to be sent.
Note : In the double window,
ARC function isn't available.
scan
mode and
Component 1080i,
17
Turbo
adjustment
selection
(option)
When this function is on, the picture will be more brilliant and distinct than normal. Repeatedly press the TURBO PICTURE button
to switch on or off.
(Turbo Picture off)
(Turbo Picture on)
Note : If you press the PSM button with the Turbo picture function,
the Turbo picture function is automatically switched off.
1
2
3
4
5
6
7
8
90
Eye (option)
is an optional function. Only a set with eye option can perform
this function.
In some models, the set will automatically adjust the picture according to the surrounding conditions. This will enable you to enjoy the
most suitable picture according to the surroundings.
Press the EYE/* button to switch the eye function on or off.
Eye
MENU
Off
When the eye function is on, the most suitable picture is automatically adjusted according to the surrounding conditions.
in green does not appear continuAt this time the display
in yellow appears each time the picture
ously but the display
condition changes.
If you press the PSM or TURBO PICTURE button with the
eye function, the eye function is automatically switched off.
Note
i
18
:
Sound
SSM
You
adjustment
(Sound Status Memory)
Sound
select your preferred sound setting; Dolby Virtual (option),
Flat, Music, Movie or Speech and you can also adjust the sound
frequency of the equalizer.
can
SSM
AVL
DBS
TV
Balance
{
X-WAVE
{
{
{
{
{
()O}{O OKOMENU
1.
2.
3.
Press the MENU button and then D / E button to select the
Sound menu.
Press the G button and then D / E button to select SSM.
Press the G button and then D / E button to select a sound setting on the SSM pull-down menu.
Sound
SSM
AVL
DBS
TV
Balance
{
DolbyOVirtual
{
Flat
{
Music
Movie
X-WAVE
{
{
{
Speech
User
{
()O}OOKOMENU
Dolby Virtual (option)
Dolby Virtual lets you experience panoramic
Sound Frequency Adjustment
a. Press the G button in User to
display
effects of sound.
the User sub
12
3
45
6
78
90
menu.
0.1O0.5O1.5O5.0O10OkHz
()O}{O OKOMENU
MENU
b. Select a sound band by pressing the F / G button.
c. Select appropriate sound level with the D / E button.
d. Press the OK button to store it for the sound User.
Repeatedly press
You
can
the MENU button to return to normal TV
also recall
a
desired sound
(Dolby
Virtual
with SSM button
viewing.
(option), Flat,
the remote
control. The sound Dolby Virtual (option), Flat, Music, Movie
and Speech are programmed for optimum sound reproduction at
the factory and cannot be changed.
Music, Movie, Speech
or
User)
on
If you press the SSM button after making appropriate
adjustment on the User sub menu, the display User automatically
appears even though you have already set a factory preset setting;
Dolby Virtual (option), Flat, Music, Movie or Speech.
Note
:
i
19
Sound
Sound
Sound
SSM
AVL
DBS
TV
Balance
{
X-WAVE
{
{
{
{
{
()O}{OOKOMENU
adjustment
adjustment
You can adjust AVL (Auto Volume Leveler), DBS, TV Speaker or
balance. AVL automatically keeps on the equal volume level even if
you change programmes. If you switch DBS to on, the set creates
a dynamic bass sound. The Turbo sound creates an all around
sound as in a concert hall.
1.
2.
the MENU button to select the Sound menu.
Press the G button and then D / E button to select the desired
sound item ; AVL, DBS, TV
(Speaker) or Balance.
Repeatedly press
Sound
SSM
{
AVL
{
DBS
{
TV
{
Balance
{
X-WAVE
{
0
()O}{OOKOMENU
In the AVL, DBS and TV (Speaker) on the Sound menu, press
the D / E button to select On or Off.
In the Balance on the Sound menu, make desired adjustment
1
2
3
4
5
6
7
8
90
3.
with the F / G button on the Balance pull-down menu.
Repeatedly press the MENU button to return to normal TV
viewing.
X-WAVE
(Wireless Sound)
You can listen to the FM sound
with the earphone.
1.
MENU
2.
through
the remote control handset
Insert the earphone to the earphone socket of the remote control handset.
To listen the FM sound from the earphone, tune in a frequency
on the X-WAVE pull-down menu.
Sound
SSM
{
87.7OMHz
106.7OMHz
AVL
{
87.9OMHz
106.9OMHz
DBS
{
88.1OMHz
107.1OMHz
TV
{
88.3OMHz
107.3OMHz
Balance
{
88.5OMHz
107.5OMHz
X-WAVE
{
88.7OMHz
107.7OMHz
88.9OMHz
Off
or
107.9OMHz
Off
()O}{O OKOMENU
3.
4.
Press the FM ON/OFF button for a while.
Repeatedly press the FM MENU button to select the TUNE
menu of the remote control handset.
i
5.
20
Press the TUNE/VOL button to match the TV's frequency and
the remote control handset's.
To adjust the earphone volume, press the TUNE/VOL button on
the VOL menu of the remote control handset.
Sound
Turbo sound selection
adjustment
(option)
When this function is on, the sound will be more emphasized and
amplified than normal.
Repeatedly press the TURBO SOUND button to switch on or off.
MEGA TURBO
(Turbo
Sound
off)
(Turbo
Sound
on)
Sound output selection
In AV
mode, you
can
select output sound for the left and
right
loud-
speakers.
Repeatedly press the I/II button to select the sound output.
L+R :
Audio signal from audio L input is sent to left loud-speaker
and audio signal from audio R input is sent to right loudspeaker.
L+L :
Audio signal from audio L input is sent to left and right loudspeakers.
R+R :
Audio signal from audio R input is sent to left and right loudspeakers.
21
Sound
adjustment
Stereo/Dual
reception
When a programme is selected, the sound information for the station appears after the programme number and station name disap-
pear.
Broadcast
On Screen
Mono
MONO
Stereo
STEREO
Dual
DUAL I
Display
Mono sound selection
In stereo reception if the stereo signal is weak, you can switch to
mono by pressing the I/II button twice. In mono reception the depth
of sound is improved. To switch back to stereo, press the I/II button
twice again.
selection for dual language broadcast
If a programme is received in two languages (dual language), you
can switch to DUAL I, DUAL II or DUAL I+II by pressing the I/II
button repeatedly.
DUAL I sends the primary broadcast language to the loudspeakers.
DUAL II sends the secondary broadcast language to the loud-
Language
speakers.
DUAL I+II sends
NICAM
a
separate language
to each
loudspeaker.
reception (option)
with the receiver for NICAM reception, the
high quality NICAM (Near Instantaneous Commanding Audio
Multiplex) digital sound can be received.
Sound output can be selected according to the type of received
broadcast as follows by pressing the I/II button repeatedly.
If your set is
1.
2.
3.
When NICAM mono is received, you can select NICAM
MONO or FM MONO.
When NICAM stereo is received, you can select NICAM
STEREO or FM MONO. If the stereo signal is weak, switch to
FM mono.
When NICAM dual is received, you can select NICAM DUAL
I, NICAM DUAL II or NICAM DUAL I+II or MONO. When
FM mono is selected the display MONO appears on the
screen.
22
equipped
Time
setting
Clock
1.
2.
3.
T ime
Press the MENU button and then D / E button to select the
Time menu.
Press the G button and then D / E button to select Clock.
Press the G button and then D / E button to adjust the hour.
Clock
{
{
OffOtime
OnOtime
{
{
AutoOsleep
Time
C lock
{
OffOtime
OnOtime
{
AutoOsleep
{
-i-o:o-i- AM
()O}{OOKOMENU
{
()O}{OOKOMENU
4.
5.
6.
Press the G button and then D / E button to adjust the minute.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
viewing.
On/Off time
this function, the set automatically switches on or off at a
preset time. You must set the time correctly before using on/off time
function.
By using
1.
2.
3.
Press the MENU button and then D / E button to select the
Time menu.
Press the G
button and then D / E button to select Off
time/On time.
Press the G button and then D / E button to adjust the hour.
12
3
45
6
78
90
Time
Clock
{
OffOtime
OnOtime
{
{
-i-o:o-i-
AutoOsleep
{
Pr
AM
1
VOLOOO30
Off
()O}{OOKOMENU
4.
5.
6.
7.
Press the G button and then D / E button to adjust the minute.
Only On time function; Press the G button and then D / E
button to adjust programme number and volume level.
Press the OK button.
Repeatedly press the MENU button to return to normal TV
MENU
viewing.
Note :
a.
On time function works only in standby mode.
b.
To view the remaining on/off time, select the Time menu.
c.
When you switch the main power off, the Clock is reset.
d.
Two hours after the set is switched on by the on time function it
will automatically switch back to standby mode unless a button
has been pressed.
e.
Once the on or off time is set, these functions operate daily at
the preset time.
Auto
sleep
If you select On on the Auto sleep pull-down menu, the set will
automatically switch itself to standby mode approximately ten minutes after a TV station stops broadcasting.
1.
2.
3.
4.
5.
i
Press the MENU button and then D / E button to select the
Time menu.
Press the G button and then D / E button to select Auto sleep.
Press the G button and then D / E button to select On or Off
on the Auto sleep pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
viewing.
23
Other functions
TV and AV modes
Special
{
Language
Input
InputOOO(
{
{
)
ChildOlock
{
be set for TV or AV mode. AV mode is used when a video
cassette recorder (VCR), or other equipment is connected to the set.
Inputs
can
Note : When a VCR is connected via the aerial socket the set is
used in TV mode. See the 'Connection of external equipment' section.
()O}{OOKOMENU
1.
2.
3.
Press the MENU button and then D / E
Special
button to select the
menu.
Press the G button and then D / E button to select Input.
Press the G button and then D / E button to select TV, AV1,
AV2, AV3, AV4 (option), S-VIDEO4 (option), COMPONENT 1,
COMPONENT 2 or VGA (option) on the Input pull-down menu.
Special
Language
Input
InputOOO(
{
{
{
)
ChildOlock
{
TV
AV1
AV2
AV3
AV4
COMPONENT1
COMPONENT2
()O}OOKOMENU
AV1
AV2
AV3
AV4
1
2
3
4
5
6
7
8
90
VCR connected to the AV1 sockets on the set
: VCR connected to the AV2 sockets on the set
: VCR connected to the AV3 sockets on the set
: VCR connected to the Euro scart socket on the set
:
(option)
S-VIDEO4 : S-VIDEO VCR connected to the Euro scart socket
on the set (option)
COMPONENT1/2 : COMPONENT connected to the COMPONENT1/2 sockets on the set
VGA : PC connected to the PC (VGA) sockets on the set
4.
MENU
(option)
Repeatedly
viewing.
press the MENU button to return to normal TV
Alternatively
can
you
TV/AV button.
In AV
mode,
select the TV
to return to TV
or
AV mode
mode, press the PR
+/-
by pressing
or
the
NUMBER but-
tons.
Yon can select AV1, AV2, AV3, AV4 (option), S-VIDEO4
(option), COMPONENT 1, COMPONENT 2 or VGA (option) after
connecting the external equipment.
Note
:
VGA mode
You
1.
2.
3.
can
(option)
adjust picture contrast, brightness,
convergence.
Press the MENU button and then D / E button to select the
Special
menu.
Press the G button and then D / E button to select Input.
Press the G button and then D / E button to select VGA on the
Input pull-down
menu.
OOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOO
O
i
O
O
O
O
Input
{
Contrast
{
Brightness
{
V-Position
H-Position
{
Convergence
{
{
TV
AV1
AV2
AV3
AV4
COMPONENT1
COMPONENT2
VGA
O
()O}{O OKOMENUOTV
4.
5.
24
AV
Press the MENU button.
Press the D / E button to select Contrast, Brightness, VPosition, H-Position or Convergence on the VGA mode menu.
Other functions
Contrast
This function is to
adjust
the
display
Special
to the contrast desired.
Language
Input
InputOOO(
Brightness
This function is to
adjust
the
display
to the
brightness
Horizontal Position / Vertical Position
This function is to adjust picture to left/right and
as
{
{
)
ChildOlock
desired.
up/down
{
you
{
()O}{OOKOMENU
prefer.
Convergence
This function enables you to adjust the colour convergence of
screen during receiving the signals.
Note :The convergence isn't suitable to
use
in
case
of no PC cable
signal.
Auto AV
switching (option)
If your VCR
outputs switching voltage when connected to the Euro
scart socket, the set will switch to AV4 mode automatically. But if
you want to keep on watching TV mode, press the PR +/- or NUMBER buttons.
Press the TV/AV button to return to AV modes.
Child lock
The TV can be set so that the remote control handset is needed to
control it. This feature can be used to prevent unauthorized viewing.
1.
Press the MENU button and then D / E
Special
2.
3.
4.
5.
12
3
45
6
78
90
button to select the
menu.
Press the G button and then D / E button to select Child
lock.
Press the G button and then D / E button to select On or Off
on the Child lock pull-down menu.
Press the OK or F button.
Repeatedly press the MENU button to return to normal TV
MENU
viewing.
With the lock on, the display Child lock on appears on the
screen if any button on the front panel is pressed while viewing the
TV.
Note : The
any button
Child lock on will not appear on the screen if
the front panel is pressed while displaying the
display
on
menus.
Sleep
timer
You don't have to remember to switch the set off before you go to
bed. The sleep timer automatically switches the set to standby
after the preset time elapses.
Press the SLEEP button to select the number of minutes. The diswill appear on the screen, followed by 10, 20, 30, 60,
play
90, 120, 180 and 240. The timer begins to count down from the
number of minutes selected.
---
Note :
a.
To view the
remaining sleep time,
i
press the SLEEP button
once.
b.
To cancel the sleep time, repeatedly press the SLEEP button
until the display
appears.
When you switch the set off, the set releases the preset sleep
time.
---
c.
25
PIP
operation (option)
Option
PIP is
:
an
optional function,
so
that
the set with PIP function
only
can
operate.
PIP
(Picture
in
Picture) displays
a
within
a
picture.
On and off
Press the PIP button to switch on the sub
press this button again to switch it off.
Note
:
Input
In
Component
1080i mode, PIP function isn't available.
mode selection for sub
picture (option)
Press the PIP INPUT button to select the
Each time this button is pressed, each
ture is displayed as shown below.
Programme
picture.
number
AV4
input mode for the sub picture.
input
mode for the sub
pic-
AV2
AV1
AV3
(option)
Note :
a.
You can also adjust it in the Special menu.
b.
Yon can select the input mode for the sub picture, after connecting the external equipment.
Swapping
between main and sub
Press the SWAP button to
Programme
exchange
selection for sub
pictures
the main and sub
pictures.
Press the PIP PR +/- buttons to select a programme for the sub picture. The selected programme number is displayed just below the
programme number of main picture.
Sub
size
Repeatedly press the SIZE button to select the
size. The sub picture appears as below.
1/16 size of the main picture
1/9 size
desired sub
1/2 size
Note : If broadcasting system of the main picture for PIP is differ
from sub picture's for PIP, the sub picture not be natural. (ex: In
case that main picture/sub picture is PAL/NTSC system)
Sub
freeze
Press the STILL button to freeze motion of the sub
Press this button again to restore motion.
Sub
picture.
picture position change
Press the POSITION button repeatedly until desired
achieved. The sub pictures move clockwise.
Programme
position
is
scan
This function enables you to search all the stored stations on 12
sub pictures and see your favorite station by exchanging the main
and sub pictures.
Press the SCAN button to select 12 sub pictures.
The selected sub pictures search all the stored stations.
Press the SCAN button again to switch off sub pictures.
26
FM Radio
You
can
listen to FM radio
by using
setting
the remote control handset.
On and off
Insert the earphone to the earphone socket of the remote control
handset.
To switch the FM radio on, press the FM ON/OFF button for a while.
Press this button
Volume
again
to switch it off.
adjustment
Repeatedly press
the FM MENU button to select VOL
menu.
12
3
45
6
78
90
the FM sound volume with the TUNE/VOL button of the
remote control handset.
Adjust
MENU
Auto
tuning
Repeatedly press
the FM MENU button to select P.SET
(Pre-set)
menu.
If you press the TUNE/VOL button for a while, auto tuning mode
start.
If you press the FM MENU button during auto tuning, this function
will stop.
Manual
tuning
i
the FM MENU button to select P.SET menu.
Use the the TUNE/VOL button to tune the radio channel. When
pressing the TUNE/VOL button one time, it will tune with 100KHz.
Press the FM MENU button to stored it.
Repeatedly press
Note:
a.
When the battery display of the remote control handset is one
bar (
), this function may not be worked.
b. One hour after FM Radio will automatically switch back to TV
mode unless a button has been pressed.
27
Teletext
(option)
Teletext (or TOP text) is an optional function, therefore only
with the teletext system can receive the teletext broadcast.
a
set
free service broadcast by most TV stations which gives
up-to-the-minute information on news, weather, television programmes, share prices and many other topics.
Teletext is
a
The teletext decoder of this TV can support the SIMPLE, TOP and
FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. TOP and FASTEXT are more modern
methods allowing quick and easy selection of teletext information.
Switch on/off
1
2
3
4
5
6
7
8
Press the TEXT button to switch to teletext. The initial page or last
page appears on the screen.
Two page numbers, TV station name, date and time are displayed
on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.
Press the TEXT button to switch off teletext. The previous mode
reappears.
90
SIMPLE text
selection
Enter the desired page number as a three digit number with the
NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then reenter the correct page number.
The D / E button can be used to select the preceding or following page.
Page
MENU
1.
2.
colour button in LIST mode
If the TV is in SIMPLE text, TOP text or FASTEXT mode, press the
MODE/* button to switch to LIST mode.
Programming
a
Four teletext page numbers of your choice can be colour coded
and easily selected by pressing the corresponding coloured button
on
1.
Press
a
2.
Using
the NUMBER buttons, select the page you wish to pro-
3.
gramme.
Press the OK button. Then the selected page is stored as the
selected page number by blinking once. From now on, you can
i
M
the remote control handset.
4.
select this page with the same coloured button.
The three other coloured buttons are programmed in the
way.
28
coloured button.
same
Teletext
TOP text
(option)
(option)
The user guide displays four fields-red, green, yellow and blue at
the bottom of the screen. The yellow field denotes the next group
and the blue field indicates the next block.
Block / group / page selection
1. With the blue button you can progress from block to block.
2. Use the yellow button to proceed to the next group with automatic overflow to the next block.
3. With the green button you can proceed to the next existing
page with automatic overflow to the next group.
Alternatively the D button can be used.
4. The red button permits to return to previous selection.
Alternatively the E button can be used.
Direct page selection
Corresponding to the SIMPLE teletext mode, you can select a page
by entering it as a three digit number using the NUMBER buttons in
TOP mode.
FASTEXT
12
3
45
6
78
90
The teletext pages are colour coded along the bottom of the screen
and are selected by pressing the corresponding coloured button.
selection
i
Press the
button to select the index page.
You can select the pages which are colour coded along the bottom line with the same coloured buttons.
Corresponding to the SIMPLE teletext mode, you can select a
page by entering its three digit page number with the NUMBER
buttons in FASTEXT mode.
The D / E button can be used to select the preceding or following page.
Page
1.
2.
3.
4.
i
29
Teletext
Special
(option)
teletext functions
REVEAL
Press this button to
display concealed information, such as
solutions of riddles or puzzles.
Press this button again to remove the information from the
display.
SIZE
Selects double
Press
Press
height text.
this button to enlarge the top
this button again to enlarge
page.
Press this button
1
2
3
4
5
6
8
to return to the normal
display.
UPDATE
Displays
teletext
7
again
half of the page.
the bottom half of the
90
the TV
picture on
page. The display
of the
corner
screen.
the
screen
while
waiting
for the
new
will appear at the top left hand
When the updated page is available then
will change to the page number.
Press this button to view the updated teletext page.
display
HOLD
MENU
the automatic page
text page consists of 2 or
Stops
change
which will
occur
if
a
tele-
sub pages. The number of
sub pages and the sub page displayed is, usually, shown
on the screen below the time. When this button is pressed
more
the stop symbol is displayed at the top left-hand corner of
the screen and the automatic page change is inhibited.
To continue press this button again.
MIX
Displays
the teletext pages
superimposed
on
the TV
pic-
ture.
To switch the TV
off press this button
again.
TIME
?
TV programme, press this button to display
the time at the top right hand corner of the screen. Press this
When
viewing
button
again
a
to remove the
display.
In the teletext
mode,
press this button to select a sub page number. The sub page
number is displayed at the bottom of the screen. To hold or
the sub page, press the RED / GREEN, D / E
NUMBER buttons.
change
Press this button
30
again
to exit this function.
or
Connection of external
You
can
connect additional
equipment,
such
as
equipment
VCRs, camcorders
etc. to your set.
Here shown may be somewhat different from your set.
DVD/DTV INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
Aerial socket
1.
2.
3.
4.
5.
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
OUTPUT
ANT IN
LL
Connect the RF out socket of the VCR to the aerial socket on
the back of the set.
Connect the aerial cable to the RF aerial in socket of the VCR.
Store the VCR channel on a desired programme number using
the 'Manual programme tuning' section.
Select the programme number where the VCR channel is
stored.
Press the PLAY button on the VCR.
VIDEO
AV2
AV4
AV1
MONO
S-VIDEO
VCR
DVD INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
Euro scart socket
1.
2.
(option)
(R)
(R)
(L)
(L)
AUDIO
VIDEO
ANT IN
PR
PR
PB
PB
(L)-AUDIO-(R)
(L)-AUDIO-(R)
MONITOR
VARABLE
OUTPUT
AUDIOOUTPUT
LL
VIDEO
Connect the Euro scart socket of the VCR to the Euro scart
socket of the set.
Press the PLAY button on the VCR.
If your VCR outputs a switching voltage connect to Euro scart
socket, the set will switch to AV 4 mode automatically. But if you
want to keep on watching TV mode, press the PR +/- or NUMBER buttons.
Otherwise press the TV/AV button
to select AV 4. The VCR playback
Y
VIDEO
AV2
AV4
MONO
Y
AV1
MONO
S-VIDEO
VCR
the remote control handset
picture appears on the screen.
on
DVD/DTV INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
PR
PR
PB
PB
Y
Y
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
You
can
also record programmes received
by
the TV
on
video tape.
ANT IN
OUTPUT
LL
VIDEO
AV2
AV4
AV1
S-VIDEO
MONO
Note
a.
b.
c.
:
i.e. the signals red, green and blue can only
be selected for the Euro scart can be received. These signals
are transmitted, for example, by a pay TV decoder, game
machine or photo CD unit, etc.
If Euro scart 4 socket has been connected to the VCRs simultaneously, only the AV 4 can be received.
If the set has been disconnected to the external equipment,
only can be selected AV 4.
Signal type RGB,
VCR
DVD/DTV INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
PR
PR
PB
PB
Y
Y
OUTPUT
ANT IN
Audio/Video in/out sockets
1.
2.
3.
LL
(option)
also record programmes received
tape via audio/video out sockets.
can
AV2
AV4
AV1
MONO
Connect the audio/video out sockets of the VCR to audio/video
in sockets of the set and in sockets of the VCR to out sockets
of the set.
Press the TV/AV button to select AV 1, AV 2 or AV 3.
Press the PLAY button on the VCR.
The VCR playback picture appears on the screen.
You
VIDEO
by
the TV
on
video
Note :
If you have a mono VCR, connect the audio cable from the VCR
a.
to the AUDIO L/MONO socket of the set.
b.
When the set has been connected to the external equipment,
you can select AV or COMPONENT modes with the remote control handset.
S-VIDEO
VCR
S-VIDEOL/MN
AUDIO
R
AV3
VCR
31
Connection of external
equipment
S-Video / Audio in sockets
When
ity
DVD/DTV INPUT
COMPONENT1
COMPONENT2
connecting
will be further
an
(S-AV) (option)
VCR to the S-VIDEO socket, the
picture qual-
improved.
(480i/480p/576i)
(R)
(R)
(L)
(L)
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
ANT IN
PR
PR
PB
PB
OUTPUT
LL
Y
VIDEO
AV2
1.
AV4
Y
AV1
of the set.
S-V DEO
MONO
Connect the S-video socket of the VCR to the S-VIDEO socket
2.
Connect the audio cable from the VCR to the AUDIO sockets of
the set.
VCR
3.
Select AV1
4.
Press the PLAY button
The VCR
Note
:
R
by pressing
on
the TV/AV button
repeatedly.
the VCR.
playback picture appears
simultaneously, only
Component
AUDIO
AV3
on
the
screen.
If both S-VIDEO and VIDEO sockets have been connected to
the VCR
S-VIDEOL/MN
or
the S-VIDEO
can
be received.
in sockets
AV3
1.
S-VIDEO VCR
2.
Connect the COMPONENT VIDEO output sockets
(Y Cb Cr,
YPbPr,YB-YR-YorYPBPR)oftheDVDplayertotheDVD
INPUT VIDEO sockets (Y PB PR) of the set.
Connect the audio cable from the DVD player to DVD
INPUT AUDIO sockets of the set.
3.
Press the TV/AV button to select COMPONENT1
or
COMPO-
NENT2.
4.
DVD/DTV INPUT
COMPONENT1
COMPONENT2
Press the PLAY button
on
the DVD
(480i/480p/576i)
(R)
(R)
(L)
(L)
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
PR
PB
PB
Y
Y
OUTPUT
PR
ANT IN
The DVD
AUDIO
playback picture appears
player.
on
the
screen.
LL
VIDEO
AV2
AV4
AV1
MONO
S-VIDEO
Note
:
DVD audio
input
can
be output, but DVD video
input
cannot
be output.
DVD
Player
Variable Audio out sockets
The
DVD/DTV INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
ANT IN
PR
PR
PB
PB
Y
Y
OUTPUT
LL
VIDEO
AV2
AV4
AV1
MONO
Amplifier
32
S-VIDEO
Hi-Fi
amplifier system are on the back of
the set; L=left sound channel, R=right sound channel.
If you connect an amplifier system, you can also play the TV sound
through the stereo amplifier system. TV speaker and external
speakers muted when pressing the MUTE button.
phono
sockets for
(AUDIO OUT)
a
Connection of external
equipment
Monitor out sockets
Connect the audio/video in sockets of the other TV
or
monitor to
DVD/DTV INPUT
COMPONENT1
MONITOR OUTPUT sockets of the set.
COMPONENT2
(480i/480p/576i)
(R)
(R)
(L)
(L)
AUDIO
VIDEO
LR
(L)-AUDIO-(R)
VARIABLE
AUDIO OUTPUT
MONITOR
ANT IN
PR
PR
PB
PB
OUTPUT
LL
Y
VIDEO
AV2
AV4
Y
AV1
MONO
PC
Input/Audio
in sockets
S-VIDEO
(option)
Second TV
1.
Connect the PC cable from the monitor output socket of the PC
to the PC INPUT sockets of the set.
2.
Connect the audio cable from the PC to the AUDIO sockets of
the set.
3.
Switch
the PC, and the PC screen appears
be operated as the PC monitor.
on
set can
the set. The
on
DVD INPUT
COMPONENT1
COMPONENT2
(480i/480p/576i)
PC(VGA)
(R)
(R)
(L)
(L)
PR
PR
AUDIO
VIDEO
(L)- AUDIO-(R)
(L)-AUDIO-(R)
MONITOR
Note
ANT IN
VIDEO
LL
:
PB
Y
a.
VARIABLE
AUDIO OUTPUT
OUTPUT
The cables
are
not
supplied,
such
as
the PC cable, audio cable
PB
VIDEO
AV4
AV2
MONO
Y
AV1
MONO
S-VIDEO
etc.
b.
Set the resolution of PC to VGA 640x480
to
use
this set
as
(60 Hz)
video mode
PC monitor.
PERSONAL COMPUTER
Displayable
MODE
Monitor
Specification (only)
Resolution
Horizontal
Frequency(KHz)
VGA
31.5KHz
640x480
(Synchronization input
form
:
Vertical
Frequency(Hz)
60Hz
separate)
33
NOTE
Troubleshooting
check list
Symptoms
No
picture,
no
sound
Sound OK, poor
Picture OK, poor sound
Picture blurred
Lines
or
streaks in
Poor
reception
on some
channels
No colour
Poor colour
Remote control does not work
Check these items and try to
adjust these
The mains plug-(plugged in and
switched on)
Is the TV switched
Try
on
another channel
(weak signal)
Check aerial
(plugged
Check aerial
(broken lead?)
into
TV?)
Check aerial
Check for local interference
Adjust
contrast
Adjust brightness
Adjust
colour
Adjust
volume
Check the batteries in remote control
Check Audio/Video sockets
(VCR only)
35
Download PDF
