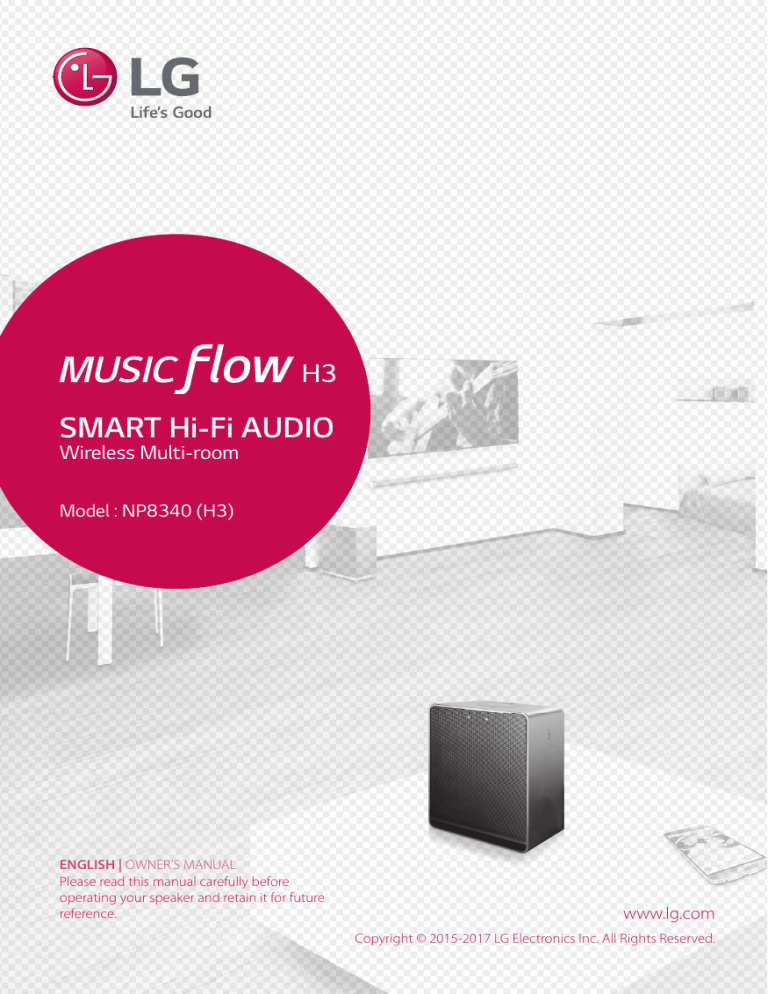

SMART Hi-Fi AUDIO
Wireless Multi-room
Model : NP8340 (H3)
ENGLISH | OWNER’S MANUAL
Please read this manual carefully before
operating your speaker and retain it for future
reference.
www.lg.com
Copyright © 2015-2017 LG Electronics Inc. All Rights Reserved.
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
NOTICE: For safety marking information including
product identification and supply ratings, please
refer to the main label on the bottom or rear of the
apparatus.
CAUTION : Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In
case of an emergency, the Power Plug must remain
readily accessible.
Check the specification page of this owner’s
manual to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or cracked
wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your device, and if
its appearance indicates damage or deterioration,
unplug it, discontinue use of the device, and have
the cord replaced with an exact replacement part
by an authorized service center. Protect the power
cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a door,
or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the
device.
Getting Started
3
CAUTION:
yy The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
yy To avoid fire or electric shock, do not open the
unit. Contact to qualified personnel only.
yy Do not leave the unit in a place near the heating
appliances or subject to direct sunlight, moisture,
or mechanical shock.
yy To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth
lightly moistened with a mild detergent solution.
Do not use strong solvents such as alcohol,
benzine, or thinner, as these might damage the
surface of the unit.
yy Do not use volatile liquids such as insecticide
spray near the unit. Wiping with strong pressure
may damage the surface. Do not leave rubber
or plastic products in contact with the unit for a
long period of time.
yy Do not place the unit over the vehicle’s air bag.
When the air bag deploys, it may result in injury.
Before using in the car, fix the unit.
yy Do not leave the unit on an unstable place such
as high shelves. It may fall down because of the
vibration of the sound.
1
Getting Started
yy No naked flame sources, such as lighted candles,
should be placed on the apparatus.
4
Table of Contents
Table of Contents
1
Getting Started
2
Safety Information
6
Main Features
6Accessories
6Introduction
7
Top Panel
8
Rear Panel
2Connecting
9
10
10
10
11
12
13
13
14
16
19
23
23
25
27
27
29
Connecting to the Power Supply
Initial Multi-Room Setup
– Wired connection (Music Flow Mesh
Network Connection)
– Wireless connection (Standard
Wireless Connection)
Installing “Music Flow Player” App
– Starting with Music Flow Player app
Connecting the speaker to your Home
Network
– Simple Connection (EZ Setup)
– Connecting the speaker to your
network with a LAN cable
– Connecting the speaker to your
Network via the Wi-Fi Setup Method
(Android)
– Connecting the speaker to your
Network via the Wi-Fi Setup Method
(iOS)
Connecting the speakers to your Home
Network (Additional)
– Connecting the additional speaker to
your network with a LAN cable
– Connecting the additional speaker
to your network via the Wi-Fi Setup
Method (Android)
Using the Bridge
– Use as a root device (wired to the
home router)
– Use as a wireless extender
30 Using Media Server for PC
30 – Music Flow PC Software for windows
31 – Nero MediaHome 4 Essentials for
Mac OS
3Operating
33
33
33
34
34
35
36
37
39
40
42
42
43
43
44
44
44
45
47
47
48
48
48
48
48
50
51
51
51
51
51
51
Basic Operations
– Using 1/!/F button
– Using volume button
Enjoying the Music with Music Flow Player
app
– Overview of Home menu
– Overview of the side menu
– Playing a song
– Overview of Playback
– Group Playback
– Seamless playback
Setting the Speaker with Music Flow
Player app
– Overview of setting menu
– [General] Menu
– [Speakers] Menu
– [Alarms/Sleep Timer] Menu
– [Account management] Menu
– [Time Zone] Menu
– [Advanced Settings] Menu
– [Chromecast] Menu
– [Version Info.] Menu
– [Open source licenses] Menu
Using a Bluetooth Wireless Technology
– About Bluetooth
– Bluetooth profiles
– Listening to Music of a Bluetooth
Device
– NFC for Easy Pairing
(Android Only)
Standby mode
– Standby mode
– Network standby mode
Reset the Speaker
– Resetting the speaker
– Resetting the Music Flow R1
Table of Contents
5
4Troubleshooting
52Troubleshooting
52 – General
53 – Network
54 – Application and PC Software
1
5Appendix
55 File requirement
55 Trademarks and Licenses
56 About Status LED’s Condition
57Specifications
58 Handling the Speaker
58 Important Information Relating to
Network Services
59 TERMS OF USE
2
3
4
5
Some of the content in this manual may differ from Music Flow Player app depending on the
application’s version.
6
Getting Started
Main Features
1
Getting Started
Made for iPod/iPhone/iPad or
Android device
Accessories
Please check and identify the supplied accessories.
Enjoys music from iPod/iPhone/iPad or Android
device with simple connection.
Music Flow Player application
Listens to music stored on your smart device.
You can control this speaker with your iPod touch/
iPhone/iPad or Android device via Music Flow
Player app. This speaker and your smart device
must be connected to the same network. Visit
Apple “App Store” or Google “Play Store” or use the
QR code shown below to search for “Music Flow
Player” app. For detailed information, refer to page
11.
Power cord (1)
Introduction
Symbol used in this manual
,,Note
Indicates special notes and operating features.
>>Caution
Indicates cautions for preventing possible damages
from abuse.
(Android OS)
(Apple iOS)
yy Depending on the application’s version and the
settings of smart device, Music Flow Player app
may not be operated normally.
yy Some smart devices may not be compatible with
this speaker.
Getting Started
7
Top Panel
1
Getting Started
a 1/!/F button
- Power On / Changing the mode
- Switching to the standby mode (page 33)
bVolume wheel
Move your finger clockwise to increase volume
or counterclockwise to decrease volume.
c
Bluetooth status LED (page 56)
d
Network status LED (page 56)
e
NFC Tag (page 50)
f Speaker
8
Getting Started
Rear Panel
1
Getting Started
a POWER IN
b
button
c
Connects initial Music Flow product to your
network wirelessly. (page 16)
button
Adds additional Music Flow products to your
network. (In case one or more Music Flow
products are connected) (page 23)
d ETHERNET
Connects the speaker to your network using a
LAN cable.
Connecting
9
Connecting to the
Power Supply
Connect the speaker to the power supply.
1. Connect the supplied AC power cord to POWER
IN rear of speaker.
2. Plug the AC power cord into an AC outlet.
2
Connecting
AC power cord
10
Connecting
Initial Multi-Room
Setup
When installing the Music Flow product for the first
time, you can choose two types of connection as
below.
2
Connecting
Wired connection (Music Flow
Mesh Network Connection)
Connect your speaker to the home router using
LAN cable.
Wireless connection (Standard
Wireless Connection)
When the wired connection is unavailable between
your speaker and home router, this unit offers
music streaming service within home router’s Wi-Fi
coverage.
Connect one of the your speaker to the home
router wirelessly.
Then you can connect the additional Music
Flow products (Optional) to your home network
wirelessly. Refer to “Connecting the speakers to
your Home Network (Additional)” on page 23.
Then you can connect the additional Music
Flow products (Optional) to your home network
wirelessly. Refer to “Connecting the speakers to
your Home Network (Additional)” on page 23.
Wireless signal
LAN Cable
Connecting
Installing “Music Flow
Player” App
11
Through QR code
Install “Music Flow Player” app through QR code.
Scan the QR code using the scanning application.
Through Apple “App Store” or
Google “Play Store”
1. Tap the Apple “App Store” icon or Google “Play
Store” icon.
2
Connecting
2. Type in “Music Flow Player” in the search bar
and tap “Search”.
3. Select “Music Flow Player” in the search result
list to download.
,,Note
yy Music Flow Player app will be available in
version of the software as follow;
Android O/S : Ver 4.0 (or later)
iOS O/S : Ver 6.0 (or later)
yy Depending on the device, “Music Flow
Player” app may not work.
(Android OS)
(Apple iOS)
,,Note
yy Make sure that your smart device is
connected to the internet.
� Make sure that your smart device has a
scanning application. If you don’t have,
download it from Apple “App Store” or
Google “Play Store”.
12
Connecting
Starting with Music Flow
Player app
3. Select [Connect product] to install the speaker
you’ve purchased.
When you launch Music Flow Player app for the
first time, the terms of use and Chromecast Service
appear on the screen.
1. Check the contents of terms of use and select
[Accept].
2
Connecting
Refer to “Connecting the speaker to your Home
Network” on page 13.
,,Note
If you want to return to the terms of use
screen, initialize the Music Flow Player app on
the smart device’s setting menu.
2. Check the contents of Chromecast Service and
select [Accept].
Connecting
Connecting the
speaker to your Home
Network
Please refer to the documentation for your network
device for further instructions.
Preparation
yy Make sure that wireless network environment
using a router is installed at your home.
yy Make sure that the speaker and the smart device
are connected to the same router.
Requirements
yy Wireless router
yy Smart device (Android or iOS)
Simple Connection (EZ Setup)
Preparation
yy For Simple Connection, Wi-Fi network condition
is needed.
yy Make sure that the Bluetooth setting on your
smart device in on.
,,Note
yy Simple Connection is supported by
Bluetooth Ver 4.0 (or higher).
2
yy If Simple Connection screen is not displayed
on the screen, connect the unit by the other
way. Please refer to “Connecting the speaker
to your network with a LAN cable” (page
14) or “Connecting the speaker to your
Network via the Wi-Fi Setup Method” (page
16 or page 19)
Connecting
Using a wired network provides the best
performance, because the attached devices
connect directly to the network without radio
frequency interference.
13
1. Plug in the desired device, and tap [Next].
,,Note
yy Make sure that DHCP’s server is activated on
wireless router.
yy If you cannot connect the speaker with your
router, go to setting of the router and then
make sure that “Allow wireless client to see
each other and access my local network”
box is unchecked.
2. App searches for the speaker and connects it
automatically, Tap [Next].
14
Connecting
3. If the network password is set, security screen is
displayed. Type the password.
Connecting the speaker to
your network with a LAN cable
Connection overview
Broadband
service
2
Connecting
Router
4. After typing password, tap [Next].
LAN
5. Tap [Finish] to finish making the connection.
Rear of the speaker
Connecting
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
15
5. Connect one end of the LAN cable to the
speaker’s ETHERNET port and connect the other
end to your wireless router.
Wait a moment until
Network status LED
stops blinking and stays white.
2
Connecting
3. Select the product you want to connect and
tap [Next] on the screen.
6. Then select [Next] on the screen.
4. Select [Wired connection] on the screen.
16
Connecting
7. Select [Finish] to complete the connection.
Connecting the speaker to
your Network via the Wi-Fi
Setup Method (Android)
Connection overview
Broadband
service
2
Connecting
Router
(If there is an update)
8. This application is checking the Version of
software of your speaker and then shows the
version.
Rear of the speaker
Select [Next] after checking the version
information.
,,Note
yy You cannot use the speaker without a
router. When using the wired router, you
can control the speaker with Music Flow PC
Software. (page 30)
yy The speaker and the smart device should be
connected to the same router.
Connecting
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
17
6. Press the
button on the rear of the speaker.
Then
Network status LED blinks white and
red alternately.
2
3. Select the product you want to connect and
tap [Next] on the screen.
8. If you have a password for your network, the
security screen appears on your smart device.
Enter your password.
4. Select [Wireless connection] on the screen.
5. Then select [Next] on the screen.
Connecting
7.Then select [Next] on the screen.
18
Connecting
9.Then select [Next] on the screen.
(If there is an update)
11.This application is checking the Version of
software of your speaker and then shows the
version.
2
Connecting
Select [Next] after checking the version
information.
,,Note
If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
10.Select [Finish] to complete the connection.
Connecting
Connecting the speaker to
your Network via the Wi-Fi
Setup Method (iOS)
Connection overview
19
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
Broadband
service
2
Connecting
Router
3. Select the product you want to connect and
tap [Next] on the screen.
Rear of the speaker
4. Select [Wireless connection] on the screen.
5. Then select [Next] on the screen.
20 Connecting
6. Press the
button on the rear of the speaker.
Then
Network status LED blinks white and
red alternately.
8. On your iOS device, go to iOS setting -> WiFi setting and select “MusicFlow_Setup” to
connect.
2
Connecting
7. Then select [Next] on the screen.
,,Note
yy If “MusicFlow_Setup” is not on the list, scan
for available Wi-Fi networks again.
yy When your smart device is connected to
“MusicFlow_Setup”, you cannot use the
internet.
Connecting
9. If you have a password for your network, the
security screen appears on your smart device.
Enter your password.
21
11.Then select [Next] on the screen.
2
10.Then select [Next] on the screen.
,,Note
If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
Connecting
12.Select [Finish] to complete the connection.
22 Connecting
Notes on Network Connection
yy Many network connection problems during set
up can often be fixed by re-setting the router.
After connecting the speaker to the home
network, quickly power off and/or disconnect
the power cable of the home network router or
cable modem. Then power on and/or connect
the power cable again.
2
Connecting
yy Our company is not responsible for any
malfunction of the speaker and/or the internet
connection feature due to communication
errors/malfunctions associated with your
broadband internet connection or other
connected equipment.
yy The wireless network operate at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can be
affected by interference from them.
yy Turn off all unused network equipment in
your local home network. Some devices may
generate network traffic.
yy If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
yy Depending on your home network environment
and the performance of wireless router, it may
not work well to connect the speaker to your
wireless router.
yy You cannot connect the speaker to wireless
router which has hidden SSID.
yy The connection you’ve made may be
disconnected if you select other application or
change the setting of the connected speaker via
“Music Flow Player” app. In such a case, please
check the connection status.
yy Even After connection of Music Flow Player app,
music may be output from your smart device. In
this case, select the connected speaker on the
playback screen.
yy Depending on the speed of your network,
playback of online contents may not work well.
yy Wireless signal interference may lead to
disconnection of network or stopping playback.
yy You need to turn the speaker’s power off and on
again if you restart the router.
yy You need to perform a factory set and setup the
network connection for speaker, if you install
new router.
yy If you use other characters than the english
alphabet or digits for the SSID name of your
access point or wireless router, it may be
displayed differently.
Connecting 23
Connecting the
speakers to your Home
Network (Additional)
Connecting the additional
speaker to your network with a
LAN cable
Connection overview
You can enjoy the music with multiple speakers
and single smart device you have.
Broadband service
Requirements
Router
,,Note
Speaker (Add)
Signal interference may lead to stop playback.
LAN cable
Speaker (Main)
2
Connecting
yy Wireless router
yy Smart device (Android or iOS)
yy Another speaker
24 Connecting
1. Connect the speaker (Main) to your network.
Refer to “Connecting the speaker to your Home
network” on page 13.
4. Select the product you want to connect and
tap [Next] on the screen.
2. On your smart device, select the Music Flow
Player app. Tap the
button.
2
Connecting
5. Select [Wired connection] on the screen.
3. Select the [Add Speaker] on the side menu.
,,Note
You can also add another speaker by using
button on the screen of [Connected
Speakers].
6. Connect one end of the LAN cable to the
speaker’s ETHERNET port and connect the other
end to your wireless router.
Wait a moment until the LED indicator stops
blinking and stays white.
Connecting 25
7. Then select [Next] on the screen.
Connecting the additional
speaker to your network via
the Wi-Fi Setup Method
(Android)
Connection overview
2
Router
Connecting
8. Select [Finish] to complete the connection.
Broadband service
LAN cable
Speaker (Main)
Speaker (Add)
26 Connecting
1. Connect the speaker (Main) to your network.
Refer to “Connecting the speaker to your Home
network” on page 13.
4. Select the product you want to connect and
tap [Next] on the screen.
2. On your smart device, select the Music Flow
Player app. Tap the
button.
2
Connecting
5. Select [Wireless connection] on the screen.
3. Select the [Add Speaker] on the side menu.
6. Press the
(Add). Then
,,Note
You can also add another speaker by using
button on the screen of [Connected
Speakers].
button on the rear of the speaker
Network status LED blinks red.
Connecting 27
7. Then select the [Next] on the screen.
Using the Bridge
Bridge (R1) extends a range of use of speakers.
Please purchase it separately if you want to use.
Use as a root device (wired to
the home router)
8. Select [Finish] to complete the connection.
When your home router is located too far from any
speaker location that is to be connected via wired
mode, connect the Bridge (R1) to your home
router with LAN cable.
Bridge (R1)
1. Attach the power cord to the power port on
the rear of the Bridge (R1) and then plug the
power cord into an electrical outlet.
,,Note
Speakers may be not connected if the distance
between the Sound Bar (Main) connected
by LAN cable and the speaker (Add) to be
connected is too far.
2. The power LED on the front of Bridge (R1)
turns on. On your smart device, select the Music
Flow Player app. Tap the
button.
2
Connecting
If there is no speaker with wired
connection to the router
28 Connecting
3. Select the [Add Speaker] on the side menu.
6. Select [Finish] to complete the connection.
4. Select the [Bridge] and tap [Next] on the screen.
7. Connect the speaker to Bridge (R1). Refer
to “Connecting the speakers to your Home
Network (Additional)” on page 23.
2
Connecting
5. Following the instruction on Music Flow Player
app, connect the Bridge (R1) and the router
with LAN cable.
Wait a moment until
Network status LED
stops blinking and stays white.
Bridge (R1)
And then select [Next].
Connecting 29
Use as a wireless extender
3. Select the [Add Speaker] on the side menu.
If there is at least one speaker with
wired connection to the router
When you want to expand Music Flow mesh
network coverage, add the Bridge (R1) to your
home network.
2
4. Select the Bridge and tap [Next] on the screen.
1. Attach the power cord to the power port on
the rear of the Bridge (R1) and then plug the
power cord into an electrical outlet.
2. The power LED on the front of Bridge (R1)
turns on. On your smart device, select the Music
Flow Player app. Tap the
button.
5. Select [Wireless connection] and tap [Next] on
the screen.
Connecting
Bridge (R1)
30 Connecting
6. Follow the instruction on Music Flow Player app
and tap [Next] on the screen.
Using Media Server for
PC
Media server Software allows users to access audio
files stored in media server and enjoy them on this
speaker via home networking.
Before connecting to PC to play a file, Media server
Software should be installed on your PC.
2
Connecting
,,Note
Make sure that wireless network environment
using a router is installed at your home.
7. Select [Finish] to complete the connection.
yy Windows : Music Flow PC Software
yy Mac OS : Nero MediaHome 4 Essentials
Music Flow PC Software for
windows
About Music Flow PC Software
Music Flow PC Software makes you enjoy the
audio files stored on your media server (PC) via the
speaker.
8. Connect the speaker to Bridge (R1). Refer
to “Connecting the speakers to your Home
Network (Additional)” on page 23.
Downloading Music Flow PC
Software
1. Start up your computer, visit http://www.lg.com.
If necessary, select your region.
2. Click support tab.
3. Fill your model name on the cover of owner’s
manual in search bar.
4. Find and download the “Music Flow PC
Software” file.
Installing Music Flow PC Software
1. Unzip and double-click “Setup.exe” to install
Music Flow PC Software. The installation is
prepared and the installation wizard appears.
2. Follow the directions of the installation wizard
displayed on the screen.
3. Click the [Exit] button to complete the
installation.
Connecting
,,Note
yy You might close firewalls and Anti-Virus
programs on your PC while installing Music
Flow PC Software.
yy The Music Flow PC Software is a customized
software edition only for sharing files and
folders to this speaker.
yy If you want a full explanation about Music
Flow PC Software, click the question marked
icon on home menu.
yy CPU : Intel® 2.0 GHz or AMD Sempron™ 2000+
processors
yy Memory : 1 GB of free RAM
yy Graphics card : 64 MB video memory, minimum
resolution of 1024 x 768 pixels, and 16 bit color
settings
yy Free Disk Space : 200 MB
yy Windows® XP (Service Pack 2 or higher), Windows
Vista®, Windows® 7, Windows® 8.0, Windows® 8.1
yy Windows® Media Player® 11.0 or higher
yy Network environment: 100 MB Ethernet, WLAN
Nero MediaHome 4 Essentials
for Mac OS
About Nero MediaHome Essentials
Nero MediaHome 4 Essentials is a software for
sharing video, audio and photo files stored on your
computer to this speaker as a digital media server.
Downloading Nero MediaHome
Essentials
1. Start up your computer, visit http://www.lg.com.
If necessary, select your region.
2. Click support tab.
3. Fill your model name on the cover of owner’s
manual in search bar.
4. Find and download the “Nero MediaHome 4
Essentials” file.
Installing Nero MediaHome
Essentials
1. Before installation, close all running programs
including firewall and Anti-Virus programs.
On your computer, you must share the folder
contained music files to play them on this speaker.
2. Unzip and double-click NeroMediaHome.
dmg file, In the Nero MediaHome window,
drag the Nero MediaHome icon either to the
Applications folder within the window or to any
other desired location.
This parts explains the procedure for selecting the
shared folders on your computer.
3. Follow the directions of the installation wizard
displayed on the screen.
1. Double-click the “Music Flow PC Software” icon.
4. Click the [Exit] button to complete the
installation.
Sharing music files
2. Click [ ] icon in the upper-right-hand corner
of the screen. The setting menu appears.
3. On the setting menu, click [ ] icon on the left
to go to the sharing file menu.
4. On the sharing file menu, Click [ ] icon to
open the [Browse Folder] window.
5. Select the folder containing the files you want
to share. The selected folder is added to the list
of shared folders.
2
Connecting
System requirements (Windows PC)
31
32 Connecting
System requirements (Macintosh)
yy Mac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)
yy Macintosh computer with an Intel x86 processor
yy Hard drive space: 200 MB hard drive space
for a typical installation of Nero MediaHome
standalone
yy Memory: 256 MB RAM
2
Sharing music files
Connecting
On your computer, you must share the folder
contained music files to play them on this speaker.
This parts explains the procedure for selecting the
shared folders on your computer.
1. Double-click the “Nero MediaHome 4 Essentials”
icon.
2. Click [Network] icon on the left and define your
network name in the [Network name] field. The
Network name you enter will be recognized by
your player.
3. Click [Shares] icon on the left.
4. Click [Local Folders] tab on the [Shares] screen.
5. Click [Add] icon to open the [Browse Folder]
window.
6. Select the folder containing the files you want
to share. The selected folder is added to the list
of shared folders.
7. Click [Start Server] icon to start the server.
Operating 33
Basic Operations
Using volume button
Using 1/!/F button
Move your finger clockwise to increase volume or
counterclockwise to decrease volume.
Power On
Touch the 1/!/F button.
Touch and hold the 1/!/F button for 5 seconds.
(page 51)
,,Note
The speaker switches to the standby mode
if there is no music playback or no button
operation for 20 minutes.
Changing the mode
When turning on the speaker, you can change the
mode. Touch 1/!/F button repeatedly, the mode
is changed with status LED.
(Network -> Bluetooth)
3
Operating
Standby mode
34 Operating
Enjoying the Music
with Music Flow Player
app
Overview of Home menu
Launch Music Flow Player app on your smart
device. The [Home] appears.
With Music Flow Player app, you can play music in
your smart device.
,,Note
yy For more detailed instruction about Music
Flow Player app, switch on the [User Guide]
in [Settings] > [General] on the side menu.
3
yy Some of the content in this part may differ
from Music Flow Player app depending on
the application’s version.
Operating
Preparation
1. Check the network connection with the
speaker. (page 13)
2. To use the speaker, you must download and
install the Music Flow Player app. (page 11)
a Menu button -Displays side menu bar.
b My Songs - Displays music list on your phone.
Streaming Services – Displays the online
c services. You can enjoy the online radio and
music.
d Favorites– Displays the favorites songs
e
Most Played – Displays the songs most
played on this speaker.
f My Playlists – Displays the playlists.
g
Timeline – Displays the songs played on this
speaker.
h Search - Searches music on your phone.
,,Note
Depending on your smart device’s OS or
version of “Music Flow Player” app, some of the
content in this manual may differ.
Operating 35
Edit the Online streaming Service
list
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
Overview of the side menu
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
2. Tap the
button.
2. Tap the [EDIT] menu.
3
yy Select the checkbox of the Online service you
want to see on Home.
a Home – Displays the Home menu.
yy Drag upwards or downwards to change the
order of the Online service.
b
My Phone – Displays the songs on this smart
device.
yy Tap the
c
Music Server – Displays the songs on the
connected devices (Media server).
, add the online services.
In case of the Android device, you can add the
online services among the installed apps in the
device. If you select the added app, the app is
run during the Bluetooth pairing operation.
In case of the iOS device, when you connect
the added app, you should set the Bluetooth
connection for yourself.
,,Note
The displayed Online Streaming Services may
vary depending on your region.
Streaming Services – Displays the online
d services. You can enjoy the online radio and
music.
e
Chromecast enabled apps - Displays
available apps on Chromecast.
f
Connected Speakers – Displays the
connected speaker.
g
Add Speaker – Goes to the speaker
installation screen.
h Settings – Displays the settings menu.
Operating
3. Side menu appears.
36 Operating
Playing a song
5. Select the desired song. Then selected song is
displayed and played.
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
2. Tap the
button.
,,Note
3
Operating
3. Side menu appears.
Select the [My Phone] on the side menu.
4. Select the desired album.
If the speaker is not selected, the selecting
speaker pop-up appears. Select a desired
speaker.
Operating 37
Managing a playlist
Overview of Playback
On an album screen, tap the [ ] of the desired
song. The pull down menu appears.
You can confirm and adjust various information on
the playback screen.
3
Displays current playing music.
b
- Repeats the desired contents. Every time
you click it, the state changed in the
(Repeat One) (Repeat All) (Repeat Off ) order.
- Shuffles the music on the list. Music will
be played in random order.
Adjusts playback.
c
a Play next – Selects music to play next.
b Add to queue – Adds to queue list.
c Add to playlist – Adds to a desired playlist.
,,Note
Depending on your wireless environment,
playing a song with the speaker may not work
smoothly.
- Adjusts the volume.
- Pauses playback.
/ - Skips fast backward or forward.
- Adjusts the sound effect.
Tap the
d
e
, various option appears.
- Saves the music to the [Favorites]. You
can find [Favorites] on [Home] tab
- Adds music to [My Playlist].
- Edits the current playlist.
- Selects a speaker to play.
- Displays music menu.
,,Note
By using , you can control volume level
of each grouped speakers and change the
channel of them to [Surround], [Left] or [Right].
(Page 39)
Operating
a Displays the speaker that music plays through.
38 Operating
Selecting Sound effect
Sound Effect Description
This speaker has a number of pre-set surround
sound fields. You can select a desired sound mode
by tapping [ ].
Standard
You can enjoy optimized sound.
Bass
The Bass is Bass Blast. During
playback, reinforce the treble,
bass and surround sound effect.
Flat
Provides balanced sound.
Boost
Boosts the mid-range for sound
reinforcement.
Treble / Bass
Reinforces the treble and bass.
User EQ
You can adjust the sound effect.
The displayed items for the equalizer may be
different depending on sound sources and effects.
1. During playback, tap the [
] as below.
,,Note
When you play the songs with smart device’s
speaker, the sound equalizer is not supported.
3
Operating
2. Tap the A or D.
You can select the various sound effects.
Operating 39
Group Playback
You can group multiple speakers linked to the
Music Flow Player app and play the same music
through all the connected speakers in the same
group.
1. Select [Connected Speakers] on the side menu
of Music Flow Player app.
,,Note
If you want to enjoy the group playback and
Surround playback, it is recommended that at
least one speaker is connected by LAN cable.
To change speaker connection setting when
all the speaker have been already connected
wirelessly, reset all the speaker and connect
again after connecting the one speaker of
them.
2. Connected speakers appear.
Select the [ ] on the speaker desired song
plays through.
3
Operating
In the wireless connection, the smoothness of
playback is subject to the location of installed
speaker. Install the speakers at a short distance
from the router. To enjoy the smooth group
playback or surround playback wirelessly, it is
recommended to use the router supporting
802.11n. In this case, set the router’s security
mode setting to OPEN or AES.
40 Operating
3. Grouping option appears.
Tap the checkbox to select the speaker you
want to play with. Then select [OK].
Seamless playback
You can easily change the playing speaker from
your smart device or the speaker to the another
speaker without pause.
,,Note
yy It is not supported when you go out of the
house with your smart device.
yy Wi-Fi function on smart device must be
turned on.
yy If the source is Bluetooth, seamless play is
not supported. (Media server and online
streaming service are supported).
3
Operating
4. The speakers is ready to group playback.
yy In case of the online streaming service, the
music you are listening to is played from the
beginning.
yy On seamless play, each speaker keeps its
existing volume value. If no sound coming
out from the speaker during playback,
check the switched speaker’s volume is set
to 0.
,,Note
yy If the speakers are not grouped, you can
enjoy different music on each speaker.
yy It is recommended to connect less than 5
devices for the smooth playback.
yy The weak signal because of the long
distance between speakers or wireless
router and signal interference may cause
abnormal playback.
yy Depending on your wireless environment,
the grouping may be broken.
yy For smooth group playback, it is
recommended to select the speaker
connected by LAN cable as a master
speaker. If you set the master speaker
connected wirelessly, placed closer from the
speaker connected wired.
Operating
Changing playing speaker from a
smart device to a speaker
41
Changing the active speaker to a
different speaker without a pause
3
2. Select the speaker on the pop-up list, the music
you are listening to is played through without a
pause.
,,Note
yy Pop-up window disappears automatically in
below cases,
-- When you select the speaker on pop-up
list.
-- 10 seconds later after pop-up window
appears. (Android Only)
yy The latest connection is placed at the top of
the list on the pop-up window.
You can change the playing speaker to the another
speaker which is in the room you are in now using
NFC tagging.
,,Note
yy Music Flow Player app should be displayed
on the smart device’s screen.
yy In case of the grouped speakers, all the
speakers in the group are played when one
of the speakers in the group is NFC tagged.
yy Only Android device is available.
Operating
1. If the smart device playing music is carried from
outside to a room where the connected speaker
is in, the pop-up window on the smart device
will appear to ask you which speaker you want
to play music through.
42 Operating
Setting the Speaker
with Music Flow Player
app
Overview of setting menu
1. Launch Music Flow Player app on your smart
device.
2. Select [Settings] on the side menu.
With Music Flow Player app, you can set the
connected speaker in your smart device.
,,Note
yy For more detailed instruction about Music
Flow Player app, switch on the [User Guide]
in [Settings] > [General] on the side menu.
3
yy Some of the content in this part may differ
from Music Flow Player app depending on
the application’s version.
Operating
Preparation
1. Check the network connection with the
speaker. (page 13)
2. To use the speaker, you must download and
install the Music Flow Player app. (page 11)
a General – Sets for easier use of the speaker.
b Speakers – Sets connected speaker.
c
Alarms/Sleep Timer – Wakes on and off the
speaker at a designated time.
d
Account Management – Manages online
streaming service.
e Time zone - Sets time zone.
f
Advanced settings – Displays the Advance
settings menu. (Page 45)
g Chromecast - Displays the Chromecast menu.
h
Version Info. – Updates the speaker to the
latest version.
i
Open source licenses – Shows LGE Open
Source Software Notice.
Operating 43
[General] Menu
[Speakers] Menu
Sets for easier use of the speaker.
You can adjust speakers connected to your
network.
Lock Screen Setting (Android only)
This function allows you to display the Music Flow
Player on the lock screen. (Lock screen setting is
[ON] by default.)
,,Note
[Lock Screen Setting] may differ from Music
Flow Player app depending on the Android’s
version.
User Guide
3
Operating
This function allows you to display or delete the
guide on the menu.
a
b
c
d
e
f
g
h
a Rename – Renames the speaker.
b
Speaker LED – Turns on or off speaker’s LED
indicator.
c IP Info. – Shows the IP address of the speaker.
Compressed sound transmission – Adjusts
d the compression of audio source according to
network status.
e Initialize – Resets the speaker.
f
System version – Displays the current system
version.
Share usage data – Select whether to send
g Chromecast usage data and crash reports to
Google.
h
Learn about Chromecast built-in Privacy Shows Privacy policy of Chromecast.
44 Operating
[Alarms/Sleep Timer] Menu
[Account management] Menu
Turns on and off the speaker at a designated time.
Manages online streaming service.
Alarms
[Time Zone] Menu
Speaker will let you know when it is time.
Deletes selected alarm.
Adds new alarm.
Sleep Timer
Sets a time to automatically turn off the speaker.
3
1. Select the speaker to set timer on [Sleep Timer]
in the [Alarms/Sleep Timer] menu.
Operating
2. Set the desired timer on selected speaker.
Automatic Time zone
It offers to use network provided time.
Set Time Zone
If you deselect [Automatic Time zone], you can
select your time zone yourself.
Operating 45
[Advanced Settings] Menu
Mesh Network Channel
If normal playback or group playback is not smooth
using multiple speakers including wireless speaker
connection, changed the mesh network channel to
improve network speed.
1. Select the [Settings] -> [Advanced Settings]
option.
,,Note
yy The speaker is disconnected temporarily
during the channel changing.
yy If you changed the channel when the
speaker turned off, turn on and add it again.
yy If the speaker is not connected to network
after changing the channel, add the speaker
again.
Mesh Network direct connection
(Android only)
You can directly connect the smart device to
speaker connected your home network.
2. Select the [Mesh Network Channel] option.
The channel information now being used is
displayed.
3. Select the channel to change.
4. The channel information is updated to the
selected channel.
3
Operating
When your smart device is placed in a position
where it cannot connect to the home network,
select a nearby speaker in the [Mesh Network direct
connection] list and then connect the smart device
to the speaker.
46 Operating
Auto Music Play
Sensitivity Settings
You can easily change the rendering device from
your smart device or a speaker to another speaker
by approaching your smart device to the desired
speaker.
Sets the operating distance of Auto Music Play
between the speaker and your smart device to
adjust sensitivity of Bluetooth.
yy Your smart device should support Bluetooth
Smart.
yy This function is subject to the smart device
capability and the Wi-Fi network status.
yy Auto music play option in the music flow app
should be turned on.
yy This function may cause more battery
consumption.
3
Operating
1. Turn on the [Auto Music Play] optio-n in the
Advanced settings menu on the music flow
app.
2. Tag the smart device to LG Music Flow to play
for about 1 second.
-- Place your smart device close enough to the
tag on the speaker. It is recommend to be
within about 5 cm.
-- Set the slide bar at [Close], the leftmost
position.
-- Move the slide to the right slowly until the
notification appears.
,,Note
yy The smart device should support low power
Bluetooth (BLE).
yy BLE support specifications in case of android
can vary depending on the manufacturer.
yy Supported operation system version
Device
O/S
Android
Android 4.3 (or later)
Apple
iOS 7.1.2 (or later)
Operating 47
[Chromecast] Menu
[Version Info.] Menu
Learn how to cast
Updates the speaker to the latest version.
Shows how to use Chromecast.
Chromecast enabled apps
Shows available apps on Chromecast.
Cast Groups
Select [Learn about Cast Groups] or [How to cast to
a group] to show the selected information.
App version info.
Displays the current application’s version.
Device version info.
Updates the latest speaker’s firmware version.
1. Find the speakers need to update and
tap the [ ].
,,Note
To use Cast Groups, install Google Home
application. Download the application from
Apple “App Store” or Google “Play Store”.
3
Operating
Chromecast built-in open legal
documents
Select [Google Terms of Service], [Google Privacy
Policy] or [Open source licenses] to show the
selected information.
2. Starts the software update.
48 Operating
[Open source licenses] Menu
Shows LGE Open Source Software Notice.
Using a Bluetooth
Wireless Technology
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.
3
Operating
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges. A
mobile phone with Bluetooth® wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth® wireless technology.
Available Devices : Android device, iOS device
Bluetooth profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain profiles.
This speaker is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
Listening to Music of a
Bluetooth Device
Before you start the pairing procedure, make sure
that the Bluetooth feature on your smart device
is turned on. Refer to your Bluetooth device’s user
guide. Once a pairing operation is performed, it
does not need to be performed again.
Operating 49
1. Plug the speaker into an electrical outlet.
Press 1/!/F button on the speaker to select
bluetooth mode. Then
Bluetooth status LED
starts to blink with white.
3. Select the “Music Flow H3 (XX:XX)”.
,,Note
XX:XX means the last four digits of BT address.
For example, if your speaker has a BT address
such as 9C:02:98:4A:F7:08, you will see “Music
Flow H3 (F7:08)” on your Bluetooth device.
4. When this speaker is successfully connected
with your Bluetooth device, the
Bluetooth
status LED stops blinking.
,,Note
yy Depending on the type of the Bluetooth
device, some devices have a different
pairing way.
yy Try pairing procedure if your device name is
not in the device list.
5. Listen to music.
To play music in your Bluetooth device, refer to
your Bluetooth device’s user guide.
According to your Bluetooth device’s volume
level, the volume level of Bluetooth will be
adjusted.
-- There is a obstacle between the unit and
the bluetooth device.
-- There is a device using same frequency
with Bluetooth® technology such as a
medical equipment, a microwave or a
wireless LAN device.
yy This unit supports Bluetooth auto pairing.
However it does not operate in the case
below:
-- When you restart this unit.
-- When you disconnect this unit by yourself.
-- When you disconnect this unit on the
connected Bluetooth device.
yy The sound may be interrupted when the
connection is interfered with by the some
other electronic wave.
yy You cannot control the Bluetooth device
with this unit.
yy Pairing is limited to “One” Bluetooth® device.
Multi-Pairing is not supported.
yy Depending on the type of the device,
you may not be able to use the Bluetooth
function.
yy You can enjoy using Bluetooth® when using
Phone, MP3, Notebook, etc..
yy The more distance between the unit and
the bluetooth device, the lower the sound
quality becomes.
yy The Bluetooth® connection will be
disconnected when the unit is turned off or
the Bluetooth® device gets too far from the
unit.
yy If the Bluetooth® connection is
disconnected, connect the Bluetooth®
device again.
3
Operating
2. Operate the Bluetooth device and perform
the pairing operation. When searching for this
speaker on your Bluetooth device, a list of the
devices found may appear in the Bluetooth
device display depending on the type of
Bluetooth device. Your speaker appears as
“Music Flow H3 (XX:XX)”.
,,Note
yy When using Bluetooth® technology, you
have to make a connection between the
unit and the bluetooth device as close as
possible and keep the distance.
However it may not work well in the case
below :
50 Operating
NFC for Easy Pairing
(Android Only)
You can connect NFC-enabled android devices to
the speaker with Bluetooth function.
1. Activate the NFC feature on your NFC-enabled
android device.
2. Press 1/!/F button to turn on the speaker.
3. Tag the back of your NFC-enabled smart device
over the
mark on the speaker.
,,Note
yy NFC feature is not supported with iOS.
yy The NFC feature is built into Android devices
running Android O/S 4.1.2 or later.
yy You must activate the NFC feature on your
NFC-enabled smart device (Android).
yy Depending on the NFC-enabled android
device’s manufacturers and brands, NFC
feature may not work.
yy If your NFC-enabled device’s screen is
locked, it cannot read the NFC.
yy If your device’s case is plated with chrome,
NFC is unavailable. Depending on your
case’s material or thickness, NFC may not be
read well.
3
Operating
yy When you are enjoying the music with
Music Flow Player app, seamless playback is
activated instead of Bluetooth pairing.
4. Select the desired track from your smart device’s
music list and the track you selected is played.
Operating
51
Standby mode
Reset the Speaker
The speaker switches to the standby mode if there
is no music playback or no button operation.
If the speaker is not turned on or doesn’t respond,
reset the speaker.
Standby mode
Resetting the speaker
Option 1.
If network is disconnected and there is no music
playback and no button operation for 20 minutes,
the speaker switches to the standby mode. Then
Network status LED turns red.
Option 2.
Network standby mode
When network is connected but music is not
played and buttons are not pressed for 20 minutes,
the speaker switches to the network standby mode.
Then white
Network status LED dimmed.
,,Note
On the Network Standby Mode, if you press
1/!/F button, the latest music playlist will be
played.
button until you hear the
yy Press and hold the
beep sound twice. You can reset the speaker to
its original factory settings.
Resetting the Music Flow R1
Press and hold the ADD button for 8 seconds to
delete the stored network information.
,,Note
After resetting the Music Flow R1, you must
unplug and plug in your speaker for a proper
connection with the Music Flow R1.
3
Operating
If you press and hold the 1/!/F button for 5
seconds, the speaker switches to the standby
mode. Then
Network status LED turns red.
button until you hear
yy Press and hold the
the beep sound once. Then all wireless network
ports are deactivated and the stored wireless
network information is deleted.
52 Troubleshooting
Troubleshooting
General
Symptoms
Cause & Solution
The unit does not work
properly.
yy Turn off the power of this unit and the connected external device (TV,
Woofer, DVD-player, Amplifier, etc.) and turn it on again.
yy Disconnect the power cord of this unit and the connected external device
(TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
4
The power does not turn
on.
Is the power cord plugged into the outlet?
A function does not
work when the button is
pressed.
Is there static electricity in the air?
Sound is not produced.
Is the volume set to minimum?
yy Connect the power plug to the outlet.
yy Disconnect the power plug and connect it again.
yy Adjust the volume.
Troubleshooting
The speaker doesn’t work Is the speaker plugged in?
properly.
yy Plug in the speaker.
Does the speaker’s front status LED indicator remain?
yy Check whether the Wi-Fi router you’re using has been certified for Wi-Fi.
yy Unplug the speaker, plug it back in, and then reconnect it to the router.
yy Reset the speaker.
yy When using a Music Flow R1
-- Make sure that the smart device and the Music Flow R1 are connected to
the same Wi-Fi network.
-- Make sure that the Music Flow R1’s indicator LED show that it is working
correctly.
-- If the problem persists, reset the Music Flow R1.
-- Unplug, then plug in the Music Flow R1. Then, unplug and plug in the
speaker.
-- If you experience troubles with connecting the Music Flow R1 and
speaker, try relocating the speaker so that the speaker is closer to the
wireless router or Music Flow R1.
Troubleshooting 53
Network
Symptoms
Cause & Solution
Cannot connect the
speaker to your home
network.
The wireless communication may be interrupted from household devices that
are using radio frequencies. Move the speaker away from them.
Media servers are not
displayed on the device
list.
yy The firewall or anti-virus software on your media server is running. Turn off
the firewall or anti-virus software running on your media server.
I cannot group speakers.
Is the speaker connected to the network via Wi-Fi?
yy Make sure that the speaker is connected to the local area network that your
media server is connected.
yy If you want to enjoy the group playback, at least one speaker should be
connected by LAN cable.
yy If the speakers are connected only wirelessly, disconnect the wireless
connections and reconnect them after connecting wired speaker.
Music Flow Player
(Speaker or Bridge)
doesn’t work properly.
Is the Music Flow Player (Speaker or Bridge) plugged in?
yy Plug in the Music Flow Player (Speaker or Bridge).
yy Connect the LAN cable to the Ethernet port on the back of the Music
FlowPlayer (Speaker or Bridge) and to your wireless router.
yy By using the Music Flow R1 (Bridge) for extending the signal without wired
connection, at least one speaker must be connected with LAN cable.
When the Music Flow Player (Speaker or Bridge) is plugged in, do the Music
Flow Player (Speaker or Bridge)’s LED show it’s operating properly?
yy If you experience troubles with connecting the Music Flow Player (Speaker
or Bridge), try relocating the speakers so that the speakers is closer to the
wireless router or Music Flow Player (Speaker or Bridge).
If you restart the router?
yy You need to turn the speaker’s power off and on again.
If you install new router.
yy You need to perform a factory set and setup the network connection for
speaker.
4
Troubleshooting
Is the LAN cable connected to the wireless router and the Music Flow Player
(Speaker or Bridge) properly?
54 Troubleshooting
Application and PC Software
Symptoms
Cause & Solution
Music Flow Player app
doesn’t work properly.
Does an error occur when accessing the app?
yy Make sure that your smart device is compatible with the app.
yy Make sure that the Music Flow Player app is the latest version.
yy Make sure that the speaker’s front LED turns from red to white.
Music Flow PC Software
doesn’t work properly.
Does the firewall on your PC or Mac set to enable?
yy Disable all your firewalls and try to connect again. Refer to your firewall’s
instruction or website.
Is the LAN cable connected to the wireless router and your PC or Mac
properly?
yy Ensure that the speaker and your PC or Mac are correctly connected to the
local area network and can access the internet.
yy The wireless communication may be interrupted from household devices
that are using radio frequencies. Move the speaker and your PC or Mac
away from them.
4
Troubleshooting
Appendix 55
File requirement
Available File extensions : “.mp3”, “.wma”, “.flac”,
“.m4a”, “.aac”, “.ogg”, “.wav”
Trademarks and
Licenses
Sampling frequency: within 32 to 48 kHz (mp3,
wma), up to 192 kHz/24 bit (flac)
Bit rate: up to 320 kbps (mp3, wma)
yy The file requirements are not always compatible.
There may have some restrictions by file features
and media server’s ability.
yy Some wav files are not supported on this
speaker.
yy Depending on the types of file or ways of
recording, it may not play back.
The Bluetooth® word mark and logos are
registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by LG
Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
yy Some DRM-loaded files are not supported on
this speaker.
5
Appendix
56 Appendix
About Status LED’s Condition
Bluetooth
Condition
Color
Waiting for Bluetooth pairing
Blinks
Bluetooth paired
Network
Condition
Color
Waiting for network connection
Blinks
Connected
(
Connecting
button is pressed)
Blinks
(
Connecting
button is pressed)
Blinks
Standby mode
Network standby mode
5
Appendix
Grouping set (First group was set)
,,Note
yy When you set the group at first,
yy The additional groups are set, the
( >
>
>
> )
Network status LED turns green.
Network status LED color is changed in group order.
yy If the grouped speakers switch to the network standby mode, the brightness of
LED gets dark.
Network status
Appendix 57
Specifications
General
Power requirements
Power consumption
Refer to the main label.
14 W
Networked standby : 5.4 W
Dimensions (W x H x D)
Approx. 125 mm x 175 mm x 115 mm without foot
Net Weight (Approx.)
2.0 kg
Operating temperature
5 °C to 35 °C
Operating humidity
5 % to 90 %
Amplifier
Mono mode
30 W (Woofer) + 10 W (Tweeter)
T.H.D
10 %
Speakers
Type
Built-in
Impedance
4Ω
Rated Input Power
15 W
Max Input Power
30 W
5
ETHERNET (LAN) port
Ethernet jack x 1, 10 BASE-T/100 BASE-TX
Appendix
Wireless LAN (internal antenna)
Integrated IEEE 802.11n (Draft 2.0) wireless networking access,
compatible with 802.11a/b/g/n Wi-Fi networks.
System
yy Design and specifications are subject to change without notice.
58 Appendix
Handling the Speaker
When shipping the speaker
Please save the original shipping carton and
packing materials. If you need to ship the speaker,
for maximum protection, re-pack the speaker as it
was originally packed at the factory.
Keeping the exterior surfaces clean
yy Do not use volatile liquids such as insecticide
spray near the speaker.
yy Wiping with strong pressure may damage the
surface.
yy Do not leave rubber or plastic products in
contact with the speaker for a long period of
time.
Cleaning the speaker
5
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
speaker.
Important Information
Relating to Network
Services
All information, data, documents, communications,
downloads, files, text, images, photographs,
graphics, videos, webcasts, publications, tools,
resources, software, code, programs, applets,
widgets, applications, products and other content
(“Content”) and all services and offerings (“Services”)
provided or made available by or through any
third party (each a “Service Provider”) is the sole
responsibility of the Service Provider from whom it
originated.
The availability of and access to Content and
Services furnished by the Service Provider through
the LGE Device are subject to change at any time,
without prior notice, including, but not limited to
the suspension, removal or cessation of all or any
part of the Content or Services.
Appendix
Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-todate information. LGE is neither responsible nor
liable for customer service related to the Content
and Services. Any question or request for service
relating to the Content or Services should be made
directly to the respective Content and Service
Providers.
Please note that LGE is not responsible for any
Content or Services provided by the Service
Provider or any changes to, removal of, or cessation
of such Content or Services and does not warrant
or guaranty the availability of or access to such
Content or Services.
Appendix 59
TERMS OF USE
or any part of the Services where we consider it
reasonably necessary for technical, operational,
security, legal or regulatory reasons.
These Terms of Use apply to those individuals
and groups who use LG’s Multiroom Speaker (LG
Mutiroom Speaker), any software(s) associated with
LG Multiroom Speaker, this application and any
services associated this application (collectively “LG
Software”). They set out LGE’s responsibilities to you
as well as identifying the “dos” and “don’ts” that you
should be aware of when you use the LG Software.
LG Software is proprietary software owned by LG
Electronics Inc., a corporation registered in Korea
with its registered office at Yeouido-dong 20,
Yeoungdeungpo-gu, Seoul, Korea. LGE, and its
licensors (“LGE”, “us” or “we”).
We do not accept any responsibility if for any reason
the Services or any part of them are unavailable at
any time or for any period.
By accessing or using LG Software, you confirm
that you accept these Terms of Use and that you
agree to comply with them. If you do not agree
to these Terms of Use, you may not access or use
the LG Software. To the extent that any conflict
arises between these Terms of Use and any other
document referred to in these Terms of Use, these
Terms of Use will take precedence, unless clearly
stated otherwise in the relevant document.
You acknowledge that all ownership rights in LG
Software anywhere in the world belong exclusively
to us and that no ownership rights in LG Software
are transferred to you. You are only entitled to the
limited use of LG Software as is granted in these
license terms.
You may not copy, modify, decompile or reverse
engineer our software in any way unless you are
allowed to do so by law. We reserve the right to
suspend, withdraw or discontinue all or part of the
Services without notice if we consider that you are
in breach of these Terms of Use.
You acknowledge that LG Software has not been
developed to meet your individual requirements.
We make no promises or guarantees that LG
Software is free from bugs or errors or that it
will always be available. We use commercially
reasonable efforts to provide LG Software on
a continuous, high quality basis but cannot
guarantee that they will always be available,
uninterrupted or error free. It is possible that
we may have to interrupt or discontinue the LG
Software or suspend or restrict your use of all
So far as we are legally able to do so, we exclude
any liability for any loss or damage incurred by you
or any other person in connection with your use
of LG Software. We are only responsible for loss or
damage suffered that is a foreseeable result of our
breach of these license terms or our negligence
up to the amount specified below, but we are
not responsible for any loss or damage that is not
foreseeable. Loss or damage is foreseeable if it is
an obvious consequence of our breach or if it was
contemplated by you and us when you starting
using LG Software.
For any loss or damage that is not excluded under
these license terms, whether in contract, tort
(including negligence) or otherwise, the total
liability of us and our group of companies to you
is limited to the amount that you paid for your LG
Software service. To the extent permissible under
the applicable laws, some jurisdictions do not allow
the limitation or exclusion of liability for incidental
or consequential damages, or have legislation that
restricts the limitation or exclusion of liability, so the
above limitation may not apply to you.
Nothing is these license terms shall limit or
exclude our liability for death or personal injury
relating from our negligence, fraud or fraudulent
misrepresentation or any other liability that cannot
be excluded or limited by law.
LG Software provides access to “apps” and link
to other services owned and operated by third
parties, such as content providers. Any third party
apps, services and content that you access via the
Services are made available to you by these third
party providers and are outside the scope of these
Terms of Use.
Your dealings with any third party providers are
solely between you and the relevant provider and
5
Appendix
We grant you a non-exclusive license to use the
pre-installed copy of LG Software solely to the
extent necessary for you to use your LG Multiroom
Speaker personally and for no other purpose.
Although you may use LG Software to download
and access content or applications made available
by third parties on your LG Software, we make no
promises or guarantees that you will always be able
to access such content or applications. So far as we
are legally able to do so, we exclude any warranties,
conditions or other terms which may be implied
into these license terms by law.
60 Appendix
may be subject to the provider’s own terms and
conditions and privacy policy. We encourage you
to read these documents, although we are not
responsible for their content. We do not accept any
responsibility for apps, services or content provided
by third party providers.
We may impose limits on the use of or access to
certain third party content, application or services,
in any case without notice or liability. We expressly
disclaims any responsibility or liability for any
change, interruption, disabling, removal of or
suspension of any content, application or service
made available through this LG Software. We are
neither responsible nor liable for customer service
related to the content, application and services.
Any question or request for service relating to third
party’s content, application or services should be
made directly to the respective content and service
providers or application developers, as appropriate.
These terms do not affect your statutory rights as a
consumer.
Suitability of the Services for children and parental
control tools
5
Appendix
Modify this accordingly to suit if appropriate: The
Services are not directed at children under the age
of 13 and are not structured specifically to attract
children under 13. Further, certain content that
you may access through your use of the Services
may contain material that you consider indecent,
objectionable or which may not be suitable for
children.
If you permit a child to use your LG Smart TV to
access the Services, you are solely responsible for
deciding whether or not the relevant Services are
appropriate for access by that child.
[Your Smart TV offers a parental control tool (by
way of a 4 digit PIN). If you have enabled the 4-digit
PIN, your LG Smart TV will not be able to display
restricted content unless you type in the PIN. You
are responsible for setting up and maintaining the
parental control tool and any other controls that
are available, and we will not be responsible for any
harm, loss or damage you suffer or any other user
of your LG Smart TV suffers as a result of your failure
to do so. Depending on the models of your LG
Smart TV, these features may not be available.
Viruses and Security
Modify this accordingly to suit if appropriate: We
use commercially reasonable efforts to ensure that
the Services are secure and virus free, but those
efforts cannot and do not guarantee that the
Services will be free from bugs, viruses, or other
vulnerabilities.
Further, we do not accept responsibility for any loss
or damage caused by a virus, distributed denialof-service attack, or other technologically harmful
material that may infect your LG Smart TV, data or
other material belonging to you, during your use of
the Services.
Modify as you think appropriate: Complaints
If you have any queries, concerns or complaints
about the Services, please contact [include
reference to non-personal LG email address].
Modify as you think appropriate: Miscellaneous
Unless expressly stated otherwise, these Terms of
Use and the documents referred to in them contain
the entire agreement between us and you relating
to your use of the Services and supersede any
previous agreements, arrangements, undertakings
or proposals, written or oral, between us and you
relating to your use of the Services.
We may assign, sub-contract or otherwise transfer
any or all of our rights and obligations under these
Terms of Use to any company, firm or person. We
can only do this if it does not materially affect
your rights under these Terms of Use. You may not
assign, sub-contract or otherwise transfer your
rights or obligations under these Terms to anyone
else (except where you dispose of your LG Smart TV
to a third party) unless you first agree this with us in
writing.
If we decide not to exercise or enforce any right
that we have against you at a particular time, then
this does not prevent us from later deciding to
exercise or enforce that right.
If any part of these Terms of Use is found to be
illegal, invalid or otherwise unenforceable by a
court or regulator, then, where required, that part
shall be deleted and the remaining parts of the
Terms of Use will continue to be enforceable.
These Terms of Use do not create or infer any rights
that are enforceable by any person who is not party
to them.
These Terms of Use are governed by the laws of
the country where your LG Smart TV is sold and
both you and LGE agree to submit to the exclusive
jurisdiction of the courts of the country where your
LG Smart TV is sold in connection with the same
This Agreement shall be governed by the laws of
the Republic of Korea, excluding their conflicts of
laws provisions.
Appendix
61
If you have any questions or comments about
these Terms of Use please contact www.lg.com.
These Terms of Use may be updated by LGE from
time to time. If we make a material change to
our Terms of Use, we will update you via your LG
Software or other means.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.lge.
com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected]. This offer is valid for three
(3) years from the date on which you purchased the
product.
5
Appendix

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Key Features

  • 30 W 1.0 channels
  • Bluetooth Wi-Fi
  • Black, Silver

Related manuals

Download PDF

advertisement
