ENGLISH

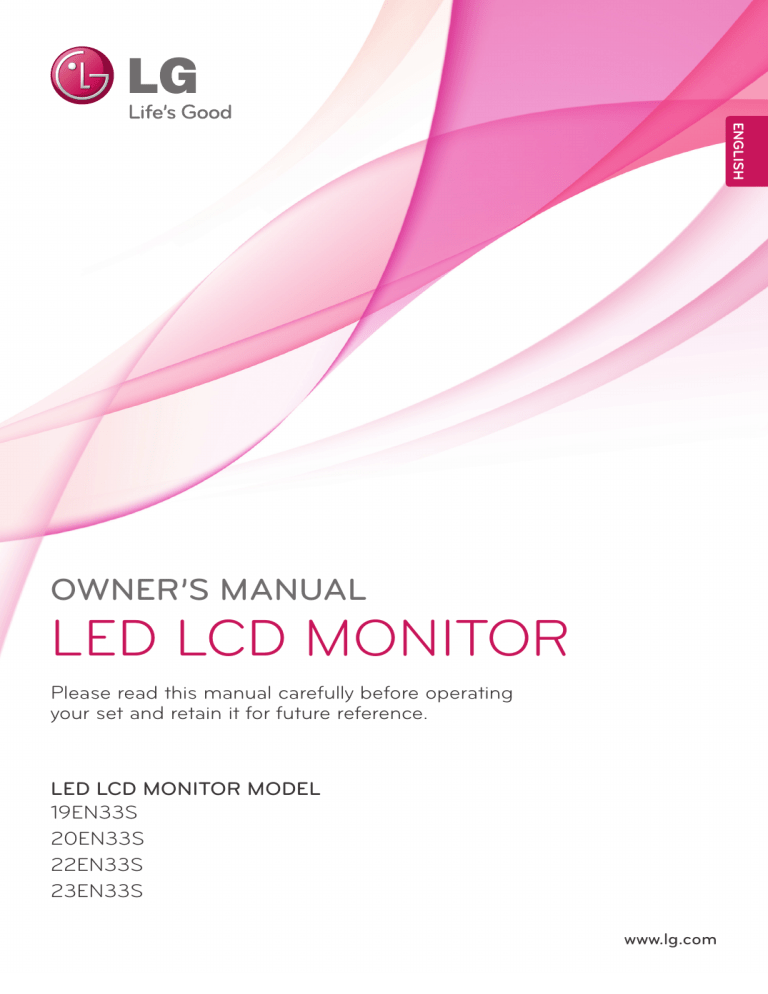

OWNER’S MANUAL
LED LCD MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL
19EN33S
20EN33S
22EN33S
23EN33S
www.lg.com
2
TABLE OF CONTENTS
CONTENTS
ENGLISH
ENG
3
ASSEMBLING AND PREPARING
24 SPECIFICATIONS
3
Unpacking
24
22EN33S
4
Parts and buttons
25
Preset Modes (Resolution)
5
Setting up the Monitor set
25
Indicator
5
- Attaching the Stand Base
5
- Detaching the Stand Base
6
- Mounting on a table
6
- Using the cable holder
8
- Mounting on a wall
9
USING THE MONITOR SET
9
Connecting to a PC
9
- D-SUB connection
11
CUSTOMIZING SETTINGS
12
Customizing Settings
12
- Menu Settings
13
-Picture
14
-Color
15
-Display
16
-Others
17
MY KEY Setting
18
FUNC. Setting
18
-Picture Mode
19
-SUPER ENERGY SAVING
20
-DUAL DISPLAY
20
-DUAL WEB
21
-MY KEY Setting
22 TROUBLESHOOTING
26 PROPER POSTURE
26
Proper posture for using the Monitor set.
ASSEMBLING AND PREPARING
3
ASSEMBLING AND PREPARING
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
CD(Owner's Manual) /
Card
D-SUB Cable
or
Power Cord
AC-DC Adapter
( Depending on the country )
Stand Body
AC-DC Adapter
( Depending on the country )
Stand Base
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
yy
Any damages or injuries by using unapproved accessories are not covered by the warranty.
yy
NOTE
The accessories supplied with your product may vary depending on the model.
yy
Product specifications or contents in this manual may be changed without prior notice due to upgrade
yy
of product functions.
ENG
ENGLISH
Unpacking
4
ASSEMBLING AND PREPARING
Parts and buttons
ENGLISH
ENG
Power Indicator
yyLighting On: Turned on
yyLighting Off: Turned off
(Power Button)
Button (See p.11)
Connection panel (See p.9)
ASSEMBLING AND PREPARING
Detaching the Stand Base
Attaching the Stand Base
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
2
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
2
1 Pull out the Stand Body and Stand Base
from the monitor set.
2 Turn the screw to the left with a coin.
3 Pull out the Stand Base.
1 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tighten the screw to the right with a coin.
Stand Body
Stand Body
Stand Base
Stand Body
Stand Base
Stand Base
ENG
ENGLISH
Setting up the Monitor set
5
6
ASSEMBLING AND PREPARING
Mounting on a table
3 Press (Power) button on the bottom switch
ENGLISH
ENG
panel to turn the power on.
1 Lift and tilt the Monitor set into its upright
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
CAUTION
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
10 cm
10 cm
10 cm
10 cm
Using the cable holder
2 Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Cable holder
or
ASSEMBLING AND PREPARING
WARNING
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit http://www.kensington.com .
Connect the Kensington security system cable
between the Monitor set and a table.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
NOTE
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
Tilt from +20 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
Rear
ENG
ENGLISH
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
Front
7
8
ASSEMBLING AND PREPARING
Mounting on a wall
ENGLISH
ENG
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
Model
19EN33S 20EN33S
22EN33S 23EN33S
VESA (A x B)
Standard screw
Number of screws
75 x 75
M4
4
CAUTION
10 cm
10 cm
10 cm
10 cm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2 If you use screw longer than standard, the
monitor might be damaged internally.
3 If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4 VESA compatible.
5 Please use VESA standard as below.
784.8 mm (30.9 inch) and under
yy
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
yy
* Please use VESA standard wall mount pad
and screws.
Disconnect the power cord first, and then
yy
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
yy
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
yy
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
yy
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that
yy
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
NOTE
Use the screws that are listed on the VESA
yy
standard screw specifications.
The wall mount kit will include an installation
yy
manual and necessary parts.
The wall mount bracket is optional. You can
yy
obtain additional accessories from your local
dealer.
The length of screws may differ depending
yy
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
yy
instructions supplied with the wall mount.
USING THE MONITOR SET
9
USING THE MONITOR SET
Your Monitor set supports Plug & Play*.
yy
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
NOTE
When using a D-Sub signal input cable
yy
connector for Macintosh
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
Mac adapter
yy
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
ENG
ENGLISH
Connecting to a PC
10
USING THE MONITOR SET
CAUTION
ENGLISH
ENG
Connect the signal
yy
input cable and tighten
it by turning the screws
clockwise.
Do not press the screen with your finger for
yy
a long time as this may result in temporary
distortion on the screen.
Avoid displaying a fixed image on the
yy
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
NOTE
When you want to use two PC in our Monitor,
yy
please connect the signal cable(D-SUB/
DVI-D) respectively in Monitor set.
If you turn the Monitor set on while it is cold,
yy
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
yy
on the screen. This is normal.
Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
NOTE
"Self Image Setting" Function.
yy
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’ Function.
yy
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
CUSTOMIZING SETTINGS
11
CUSTOMIZING SETTINGS
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow (
) button.
3 Select Exit to leave the OSD menu.
MENU
MY KEY
FUNC.
AUTO
INPUT
EXIT
Monitor set Buttons
Button
Description
Accesses the main menus.(See p.12)
OSD Locked/OSD
Unlocked
This function allows you to lock the current control settings,
so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message "OSD
UNLOCKED" should appear.
Use this button to enter MY KEY menu.For more information.(See p.17)
Use this button to enter Picture Mode, SUPER ENERGY SAVING, DUAL DISPLAY,
DUAL WEB,MY KEY Setting menus.(See p.18)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode
1920 x 1080
Exit
Exit the OSD(On Screen Display).
(Power Button)
Turns the power on or off.
Power Indicator
The power indicator stays red if the display is running properly
(On Mode). If the display is in Sleep Mode, the power
indicator blinks red.
ENG
ENGLISH
1 Press the desired button on the bottom of the Monitor set.
12
CUSTOMIZING SETTINGS
Customizing Settings
ENGLISH
ENG
Menu Settings
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Set the options by pressing the ◄ or ► or ▼
buttons.
3 Select the "Next Menu" button to enter the more
option settings.
4 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu
Brightness
Contrast
Wide/Original
Description
To adjust the brightness, contrast of the screen
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset
Restore all factory default settings. Press the◄ , ► buttons to reset immediately.
Menu > Next Menu
Color
Sharpness
Gamma
Color Temp
Display
Horizontal
Vertical
Clock
Phase
Others
Language
Power Indicator
Description
To adjust the clearness of the screen .
To customize the color of the screen
To adjust the position of the screen
To improve the clarity and stability of the screen
To customize the screen status for a user's operating environment
CUSTOMIZING SETTINGS
13
ENG
ENGLISH
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► or ▼
buttons.
5 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Picture
Sharpness
Description
To adjust the clearness of the screen.
14
CUSTOMIZING SETTINGS
Color
ENGLISH
ENG
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Color by pressing the ► button.
4 Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Color
Description
Gamma
Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
Color Temp
Custom
• Red:Set your own red color levels.
• Green: Set your own green color levels.
• Blue:Set your own blue color levels.
Select the screen color.
Warm: Set the screen to warm color temperature (more red).
Medium: Set the screen to medium color temperature.
Cool: Set the screen to cool color temperature (more blue).
CUSTOMIZING SETTINGS
15
Display
ENG
ENGLISH
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Display by pressing the ► button.
4 Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Display
Description
Horizontal
To move image left and right.
Vertical
To move image up and down.
Clock
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
16
CUSTOMIZING SETTINGS
Others
ENGLISH
ENG
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Others by pressing the ► button.
4 Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select Exit to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Others
Description
Language
To choose the language in which the control names are displayed.
Power
Indicator
Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
CUSTOMIZING SETTINGS
17
MY KEY Setting
ENG
ENGLISH
1 Press MY KEY button on the bottom of the Monitor
set to display the MY KEY OSD.
2 Set the options by pressing the ◄or►or▼buttons.
3 Select Exit to leave the OSD menu.
Each option is explained below.
MY KEY
Description
MY KEY Setting
MY KEY is short key. You can select one of FUNC. (Picture Mode, SUPER
ENERGY SAVING, DUAL DISPLAY, DUAL WEB) as your favorite feature.
Back
Select Back to return MY KEY menu.
18
CUSTOMIZING SETTINGS
FUNC. Setting
ENGLISH
ENG
Picture Mode
1 Press FUNC. button on the bottom of theMonitor set
to display the FUNC. OSD.
2 Enter to Picture Mode by pressing the ▼ button.
3 Set the options by pressing the ◄ or ► buttons.
4 Select Exit to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow(
)button. Each option is explained below.
Picture Mode
Description
Custom
It is a mode that theuser can adjust each element.It can adjust the color mode of the Main Menu.
Text
It is a mode that thescreen is adjusted to the best for the textworks.
It is a mode that thescreen is adjusted to the best to view pictures.
Cinema
It is a mode that thescreen is adjusted to the best to view the videos.
Game
It is a mode that thescreen is adjusted to the best to play a game.
CUSTOMIZING SETTINGS
19
SUPER ENERGY SAVING
ENG
ENGLISH
1 Press FUNC. button onthe bottom of the Monitor set to
display the FUNC. OSD.
2 Select SUPER ENERGY SAVING by pressing the ►
button.
3 Enter to SUPER ENERGY SAVING by pressing the ▼
button.
4 Set the options by pressing the ◄ or ► or ▼buttons.
5 Select Exit to leave the OSD menu.To return to the
upper menu or set other menu items, usethe up arrow
(
) button.
Each option is explained below.
SUPER ENERGY SAVING
Description
On
Enables SUPER ENERGY SAVING you can save energy with this energy- efficient function
Off
Disables SUPER ENERGY SAVING.
Reset
Resets the values of total energy consumption reduction and CO2 emission reduction
estimates.
NOTE
TOTAL POWER REDUCTION: How much power is saved while using the monitor.
yy
TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
yy
SAVING DATA(W/h)
yy
SUPER SAVING
470 mm
(18.5 inch)
508 mm
(20 inch)
546 mm
(21.5 inch)
584 mm
(23 inch)
3 W/h
4 W/h
5 W/h
6 W/h
Saving Data depends on the Panel. So,those values should be different from each panel and panel
yy
vendor.
LG calculated these values by using “broadcast video signal”
yy
(including broadcast video: IEC 62087)
SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
yy
function.
20
CUSTOMIZING SETTINGS
* Before using below functions, please install DUAL SMART SOLUTION programme.
ENGLISH
ENG
DUAL DISPLAY
1 Press FUNC. button onthe bottom of the Monitor set
to display the FUNC. OSD.
2 Select DUAL DISPLAY by pressing the ► button.
3 Enter to DUAL DISPLAY by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select Exit to leave the OSD menu.To return to the
upper menu or set other menu items, usethe up
arrow (
) button.
Each option is explained below.
DUAL DISPLAY
Description
Clone
By selecting Clone,user can use secondary monitor as done mode of primary monitor.
Extended
By selecting Extended,user can use secondary monitor as extended mode of primary
monitor.
Off
If select Off,DUAL DISPLAY is off.
* Before using below functions, please install DUAL SMART SOLUTION programme.
DUAL WEB
1 Press FUNC. button onthe bottom of the Monitor set
to display the FUNC. OSD.
2 Select DUAL WEB by pressing the ► button.
3 Enter to DUAL WEB by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select Exit to leave the OSD menu.To return to the
upper menu or set other menu items, usethe up
arrow (
) button.
Each option is explained below.
DUAL WEB
Description
On
Help user to browse web efficiently by dividing in half. Help to arrange and move
windowson screen. Help user to control dividedwindows ratio.
Off
If select Off,DUAL WEB is off.
NOTE
When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD
yy
appear and user should press dual button -> User can bring back to normal mode.
CUSTOMIZING SETTINGS
21
MY KEY Setting
ENG
ENGLISH
1 Press FUNC. button onthe bottom of the Monitor
set to display the FUNC. OSD.
2 Select MY KEY Setting by pressing the ► button.
3 Enter to MY KEY Setting by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select Exit to leave the OSD menu.To return to
the upper menu or set other menu items, use
the up arrow (
) button.
Each option is explained below.
MY KEY Setting
Description
Picture Mode
Picture Mode adjust the Monitor set for the best picture appearance.
SUPER ENERGY SAVING
Enables SUPER ENERGY SAVING you can save energy with this energy-effcient
function.
DUAL DISPLAY
User can use Clone or Extended in another monitor.
DUAL WEB
Help user to browse web efficiently by dividing in half and some other convenience in
browsing dual pages.
22
SPECIFICATIONS
ENGLISH
ENG
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
yy Check and see if the power cord is connected properly to the power
outlet.
Is the power indicator light on?
yy Press the Power button.
yy Adjust the brightness and the contrast.
Is the power on and the power
indicator Red?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
yy If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yy Try to turn on the PC.
yy This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yy When the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yy You can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
On the screen background, vertical
bars or stripes are visible.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Check Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
SPECIFICATIONS
23
CAUTION
Display image is incorrect
The screen color is mono or
abnormal.
yy Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yy Make sure the video card is properly inserted in the slot.
yy Set the color setting higher than 24 bits (true color) at Control Panel
► Settings.
The screen blinks.
yy Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yy Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yy Make sure to check if the video card supports Plug&Play function.
ENG
ENGLISH
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were
yy
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
yy
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
yy
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
24
SPECIFICATIONS
ENGLISH
ENG
‌SPECIFICATIONS
19EN33S
Display
Sync Input
Video Input
Resolution
Plug & Play
Power
Consumption
Power Input
AC-DC Adapter
Screen Type
Pixel Pitch
Horizontal Frequency
Vertical Frequency
Input Form
Signal Input
Input Form
Max
Recommend
DDC 2B(Analog)
47.0 cm (18.5 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 47.0 cm
0.3 mm x 0.3 mm (Pixel Pitch)
30 kHz to 61 kHz (Automatic)
56Hz to 75Hz (D-SUB)
Separate Sync.
15 pin D-SUB Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
D-SUB(Analog) : 1366 x 768 @ 60 Hz
VESA 1366 x 768 @ 60 Hz
On Mode : 15 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
1.2 A
19 V
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2,manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D,manufactured by LG Innotek Co.,Ltd
OUTPUT: 19 V
1.3 A
Dimensions
(Width x Height x
Depth)
Weight
With Stand
Without Stand
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
1.9 kg
Storage Temperature
Storage Humidity
Stand Base
Power cord
44.1 cm x 34.9 cm x 16.8 cm
44.1 cm x 27.5 cm x 5.5 cm
-20°C to 60 °C
5 % to 90 % non-Condensing
Attached ( ), Detached (O)
Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
SPECIFICATIONS
25
ENG
ENGLISH
‌SPECIFICATIONS
20EN33S
Display
Sync Input
Video Input
Resolution
Plug & Play
Power
Consumption
Power Input
AC-DC Adapter
Screen Type
Pixel Pitch
Horizontal Frequency
Vertical Frequency
Input Form
Signal Input
Input Form
Max
Recommend
DDC 2B(Analog)
50.8 cm (20 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 50.8 cm
0.276 mm x 0.276 mm (Pixel Pitch)
30 kHz to 83 kHz (Automatic)
56Hz to 75Hz (D-SUB)
Separate Sync.
15 pin D-SUB Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
D-SUB(Analog) : 1600 x 900 @ 60 Hz
VESA 1600 x 900 @ 60 Hz
On Mode : 20 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
19 V
1.2 A
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2,manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D,manufactured by LG Innotek Co.,Ltd
OUTPUT: 19 V
1.3 A
Dimensions
(Width x Height x
Depth)
Weight
With Stand
Without Stand
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
2.3 kg
Storage Temperature
Storage Humidity
Stand Base
Power cord
47.4 cm x 36.6 cm x 16.8 cm
47.4 cm x 29.2 cm x 5.5 cm
-20°C to 60 °C
5 % to 90 % non-Condensing
Attached ( ), Detached (O)
Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
26
SPECIFICATIONS
ENGLISH
ENG
SPECIFICATIONS
22EN33S
Display
Screen Type
54.6 cm (21.5 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 54.6 cm
Video Input
Pixel Pitch
Horizontal Frequency
Vertical Frequency
Input Form
Signal Input
Resolution
Input Form
Max
0.248 mm x 0.248 mm (Pixel Pitch)
30 kHz to 83 kHz (Automatic)
56Hz to 75Hz (D-SUB)
Separate Sync.
15 pin D-SUB Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
Sync Input
Plug & Play
Power
Consumption
Power Input
AC-DC Adapter
Dimensions
(Width x Height x
Depth)
Weight
D-SUB(Analog) : 1920 x 1080 @ 60 Hz
Recommend
VESA 1920 x 1080 @ 60 Hz
DDC 2B(Analog)
On Mode : 23 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
1.2 A
19 V
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2,manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D,manufactured by LG Innotek Co.,Ltd
OUTPUT: 19 V
With Stand
Without Stand
1.3 A
50.9 cm x 38.7 cm x 18.1 cm
50.9 cm x 31.3 cm x 5.5 cm
2.6 kg
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
Storage Temperature
Storage Humidity
Stand Base
Power cord
-20°C to 60 °C
5 % to 90 % non-Condensing
Attached ( ), Detached (O)
Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
SPECIFICATIONS
27
SPECIFICATIONS
Display
Sync Input
Video Input
Resolution
Plug & Play
Power
Consumption
Power Input
AC-DC Adapter
Screen Type
58.4 cm (23 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 58.4 cm
Pixel Pitch
Horizontal Frequency
Vertical Frequency
Input Form
Signal Input
Input Form
0.265 mm x 0.265 mm (Pixel Pitch)
30 kHz to 83 kHz (Automatic)
56Hz to 75Hz (D-SUB)
Separate Sync
15 pin D-SUB Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
Max
D-SUB(Analog) : 1920 x 1080 @ 60 Hz
Recommend
VESA 1920 x 1080 @ 60 Hz
DDC 2B(Analog)
On Mode : 24 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
1.3 A
19 V
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2,manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C,manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D,manufactured by LG Innotek Co.,Ltd
OUTPUT: 19 V
1.3 A
Dimensions
(Width x Height x
Depth)
Weight
With Stand
Without Stand
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
2.9 kg
Storage Temperature
Storage Humidity
Stand Base
Power cord
54.4 cm x 40.6 cm x 18.1 cm
54.4 cm x 33.2 cm x 5.5 cm
-20°C to 60 °C
5 % to 90 % non-Condensing
Attached ( ), Detached (O)
Wall-outlet type
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
ENG
ENGLISH
23EN33S
28
SPECIFICATIONS
Preset Modes (Resolution)
ENGLISH
ENG
19EN33S
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400
31.468
70
-/+
640 x 480
31.469
60
-/-
640 x 480
37.500
75
-/-
800 x 600
37.879
60
+/+
800 x 600
46.875
75
+/+
832 x 624
49.725
75
-/-
1024 x 768
48.363
60
-/-
1366 x 768
47.712
60
+/+
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400
31.468
70
-/+
640 x 480
31.469
60
-/-
640 x 480
37.500
75
-/-
800 x 600
37.879
60
+/+
800 x 600
46.875
75
+/+
1024 x 768
48.363
60
-/-
1024 x 768
60.023
75
+/+
1152 x 864
67.500
75
+/+
1600 x 900
60.000
60
+/+
Recommend Mode
20EN33S
Recommend Mode
SPECIFICATIONS
ENG
ENGLISH
Preset Modes (Resolution)
22EN33S/23EN33S
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400
31.468
70
-/+
640 x 480
31.469
60
-/-
640 x 480
37.500
75
-/-
800 x 600
37.879
60
+/+
800 x 600
46.875
75
+/+
1024 x 768
48.363
60
-/-
1024 x 768
60.023
75
+/+
1152 x 864
67.500
75
+/+
1280 x 1024
63.981
60
+/+
1280 x 1024
79.976
75
+/+
1680 x 1050
65.290
60
-/+
1920 x 1080
67.500
60
+/+
Indicator
Mode
LED Color
On Mode
Red
Sleep Mode
Blinking Red
Off Mode
Off
29
Recommend Mode
30
PROPER POSTURE
PROPER POSTURE
ENGLISH
ENG
Proper posture for using the Monitor set.
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle.
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
horizontally outright.
Adjust the location of the
Monitor set to avoid it
reflecting light.
Declaration of Conformity
Trade Name: LG
Model : 19EN33SA,20EN33SA,
22EN33SA,23EN33SA
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
Download PDF
