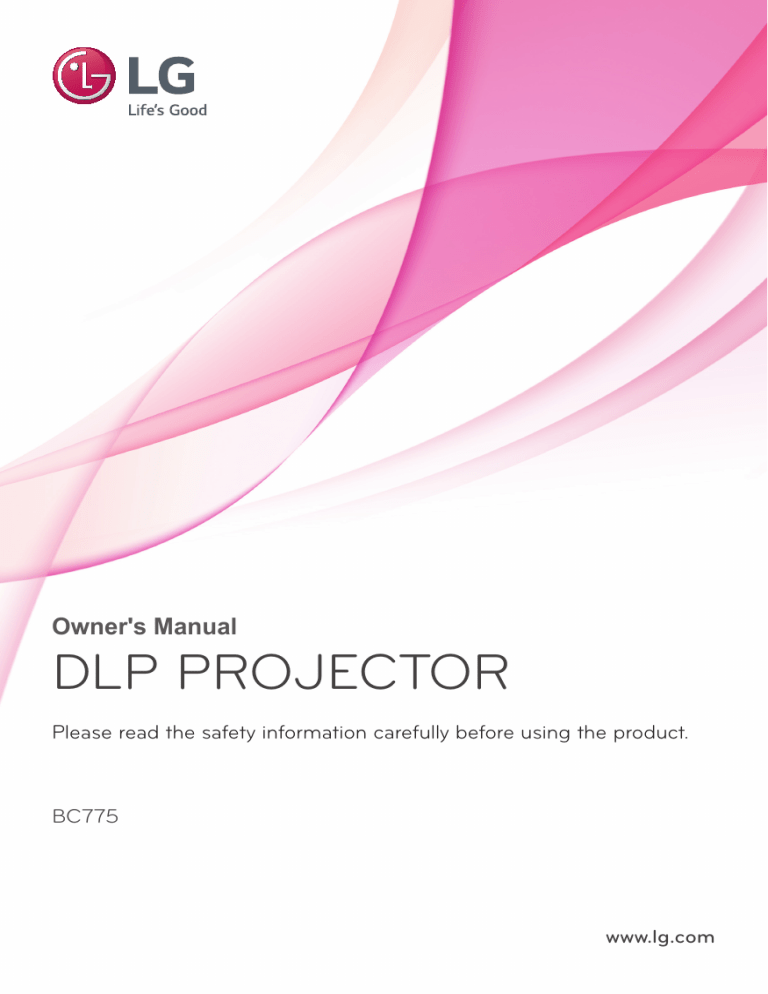

Owner's Manual
DLP PROJECTOR
Please read the safety information carefully before using the product.
BC775
www.lg.com
2
LICENSE
LICENSE
Supported licenses may differ by model. For more information about licenses,
visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX® is a digital video format created
by DivX, LLC, a subsidiary of Rovi Corporation. . This is an
official DivX Certified® device that plays DivX video. Visit divx.
com for more information and software tools to convert your
files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®
device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration
code, locate the DivX VOD section in your device setup menu.
Go to vod.divx.com for more information on how to complete
your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks
of Rovi Corporation or its subsidiaries and are used under
license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
This equipment complies with EMC requirements for home use (Class B). It is
designed to be used mainly in homes but may be used in all places.
NOTE
yyThe product images and on-screen display (OSD) in this manual are examples to
help you understand how to operate the product; they may differ from the actual
product.
SAFETY PRECAUTIONS
SAFETY PRECAUTIONS
Please take note of the safety instructions to prevent any potential accident or misuse
of the product.
NING/CAUTION
OF ELECTRIC SHOCK
DO NOT OPEN
3
yySafety precautions are provided in two forms: WARNING and CAUTION. These are
detailed below.
WARNING: F
ailure to follow the instructions may cause serious injury and even
death.
WARNING (Do not touch the hot surface): Failure to follow the instructions
may cause burns.
CAUTION: F
ailure to follow the instructions may cause minor injury to persons
or damage to the product.
yyRead the owner's manual carefully and keep it for future use.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with
WARNING/CAUTION
arrowhead symbol, within
RISK OF ELECTRIC SHOCK
DO NOT OPEN
an equilateral
triangle, is
intended to alert the user
to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance(servicing)
instructions in the literature
accompanying the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Indoor Installation
WARNING
yyDo not place the projector in direct
sunlight or near heat sources, such
as radiators, fires, and stoves.
- Otherwise, this may result in fire.
yyDo not place flammable materials,
such as aerosols, near the projector.
- Otherwise, this may result in fire.
yyDo not allow children to hang from or
climb on the projector.
- This may cause the projector to fall,
causing injury or death.
yyDo not install the product into a place
with no ventilation (e.g., on a bookshelf or in a closet) or on a carpet or
cushion.
- Doing so may result in a fire due to
increased internal
temperature.
4
SAFETY PRECAUTIONS
yyDo not place the product close to
sources of steam, oil or oil mist, such
as humidifiers and kitchen counters.
- Failure to do so may result in fire,
electric shock, or corrosion.
yyDo not install the product onto a wall
or ceiling that is close to sources of
oil or oil mist.
- The product may be damaged and
fall, resulting in serious injury.
yyDo not place the projector where it
might be exposed to dust.
- Otherwise, this may result in fire.
yyDo not use the projector in a damp
place, such as a bathroom where it is
likely to get wet.
- This may cause fire or electric shock.
yyMake sure the air vent is not blocked
by a tablecloth or curtain.
- This could result in fire due to increased internal temperature.
yyWhen using the projector, make sure
that the air vents (air filters) at the
bottom of the product are not blocked.
yyMake sure there is good ventilation
around the projector. The distance
between the projector and wall should
be more than 30 cm.
- Doing so may result in a fire due to
increased internal temperature.
CAUTION
yyWhen placing the projector on a table
or shelf, be careful not to put it near
the edge.
- The projector could fall, causing
injury and damage to the projector.
Only use a suitable stand.
yyDisconnect the projector from the
power supply and all connected apparatuses before moving or cleaning.
- The power cord may be damaged
and create a fire hazard or result in
electric shock.
yyDo not place the projector on an
unstable or vibrating surface, such as
a wobbly shelf or on a slope.
- It may fall and cause injury.
yyMake sure that the projector does not
fall when connecting it to an external
device.
- It may cause personal injury or damage to the product.
Power
WARNING
yyThe ground cable should be connected.
- Make sure that you connect the
ground cable to prevent possible
electric shock. If it is not possible
to ground the unit, have a qualified
electrician install a separate circuit
breaker. Do not try to ground the projector by connecting it to telephone
wires, lightning rods, or gas pipes.
yyThe power plug should be inserted
fully into the power outlet.
- An unstable connection may cause
fire.
yyDo not place heavy objects on the
power cord.
- This may cause fire or electric shock.
yyNever touch the power plug with wet
hands.
- This may result in electric shock or fire.
yyDo not plug too many devices into
one multipower outlet or power strip.
- This may result in the power outlet
overheating and creating a fire hazard.
yyPrevent dust from collecting on the
power plug pins or outlet.
- This may result in electric shock or
fire.
SAFETY PRECAUTIONS
yyTo turn off the main power,
remove the power plug, which should
be positioned so it is easy to access
for operation.
yyDisconnecting the power cord without allowing the lamp to cool for two
minutes after switching off the power
may damage the lamp.
CAUTION
yyHold the plug firmly when unplugging.
- A damaged wire may create a fire
hazard.
yyEnsure the power cord and plug are
not damaged, modified, severely
bent, twisted, pulled, sandwiched, or
heated. Do not use the product if the
power outlet is loose.
- This may cause fire or electric shock.
yyKeep the power cord away from heating devices.
- The wire coating may melt, which
may cause fire or result in electric
shock.
yyPlace the projector where people
cannot trip over or walk on the power
cord to protect the power cord and
plug from damage.
- This may cause fire or electric shock.
yyDo not turn the projector on or off by
plugging in the power plug or unplugging it from the wall outlet. (Do not
use the power plug as a switch.)
- This may cause an electric shock or
product malfunction.
yyDo not insert a conductor into the
other side of the wall outlet while the
power plug is inserted into the wall
outlet. Also, avoid touching the power
plug immediately after pulling it out of
the wall outlet.
- This may cause electric shock.
5
yyOnly use the authentic power cord
provided by LG Electronics. Do not
use any other products.
- This may cause fire or electric shock.
When in Use
WARNING
yyDo not place anything containing liquid
on top of the projector, such as a flower vase, flower pot, cup, cosmetics,
medicine, ornaments, and candles.
- This may create a fire hazard, result
in electric shock, or cause injury due
to falling.
yyIn the event that there is a large
impact shock or the cabinet is damaged, switch it off, unplug it from the
power outlet, and
contact an authorized service center.
- This may cause fire or electric
shock.
yyDo not insert pieces of metal, such as
coins, hairpins, and metal debris, or
flammable materials, such as paper
or matches, into the projector.
- This may cause fire or electric
shock.
yyIn the event that liquid or a foreign
object enters into the projector, switch
it off, unplug it from the power outlet,
and contact an LG Electronics Service Center.
- This may cause fire or electric shock.
yyMake sure that a child does not swallow the batteries when you replace
the old remote control batteries with
new ones. Keep batteries out of reach
of children.
- If a child swallows a battery, consult
a doctor immediately.
6
SAFETY PRECAUTIONS
yyDo not remove any covers, except
the lens and dust covers. There is a
high risk of electric shock.
yyDo not look directly into the lens when
the projector is in use. The strong
light may injure your eyes.
yyWhen the lamp is on or has just been
turned off, avoid touching the air vent
or lamp because they are very hot.
yyIf there is a gas leak, do not touch the
power outlet and open the windows
for ventilation.
- Sparks may cause fire or burns.
yyNever touch the product or power
cord during thunder or lightning.
- This may cause electric shock.
yyDo not use the projector near electronic devices that generate a strong
magnetic field.
yyDo not cover your head with the
packaging plastic of the projector.
- It may cause suffocation.
yyDo not keep your hand on the projector for a long time when it is running.
yyWhen you play a game by
connecting a game console to a projector, it is recommended that you maintain a distance of more than four times
the diagonal length of the screen.
yyMake sure that the length of connecting cable is long enough.
- Otherwise, the product may fall
causing personal injury or damage to
the product.
yyDo not insert or drop metal and inflammable objects inside the product
through the vents.
-T
his may result in fire or electric shock.
WARNING
yyDo not touch the lens area of the
projector while in use. It is very hot.
- This may cause burns.
CAUTION
yyDo not place heavy objects onto the
product.
- They may fall and cause injury.
yyBe careful to protect the lens from
heavy impact during transport.
yyDo not touch the lens of the
projector. The lens may be
damaged.
yyDo not use sharp tools on the projector, such as a knife or hammer, as
this may damage the casing.
yyIn the event that no image
appears on the screen or no sound
is heard, stop using the projector.
Switch off the projector immediately,
unplug it from the power outlet, and
contact the LG Electronics Service
Center.
- This may cause fire or electric
shock.
yyDo not drop anything onto the projector or allow anything to impact the
projector.
- This may cause mechanical failure
or personal injury.
yyThe distance between the screen and
your eyes should be at least five to
seven times the diagonal size of the
screen.
- After watching too closely for a long
period of time, you may experience
blurred vision.
SAFETY PRECAUTIONS
Cleaning
WARNING
yyDo not spray the projector with water
when cleaning. Make sure water does
not flow into the projector.
- This may cause fire or electric
shock.
yyIn the unlikely event of smoke or a
strange smell coming out from the
projector, switch it off immediately,
unplug it from the power outlet, and
contact the LG Electronics Service
Center.
- Otherwise, it may create a fire hazard or result in electric shock.
yyUse an air spray or soft cloth or cotton
swab moistened with a lens cleaning
chemical or alcohol to remove dust or
stains from the front projection lens.
CAUTION
yyContact the sales representative or
service center for internal cleaning of
the projector about once a year.
- If you do not clean the projector,
dust will accumulate inside and may
create a fire hazard or malfunction.
yyWhen cleaning plastic parts such as
the projector case, unplug the power
cord first and wipe with a soft cloth.
Do not spray with water or wipe with
a wet cloth. Never use glass cleaner,
automobile or industrial shiner, abrasives or wax, benzene, alcohol, etc.;
they can damage the projector.
- This may create a fire hazard or
result in electric shock or product
damage (deformation, corrosion, or
breakage).
7
Other
WARNING
yyOnly a qualified technician can
disassemble or modify the projector.
For diagnosis, adjustment, or repair,
contact your dealer or service center.
- This may cause fire or electric
shock.
yyDo not charge the battery using
devices other than the one provided
with the product.
- This may result in damage to the
battery or fire.
yyDispose of the used battery properly.
-Failure to do so may cause explosion or fire. The correct method of
disposal may vary depending on
your country or region. Dispose of
the battery pack according to the
appropriate instructions.
yyDo not throw or disassemble the battery.
- Otherwise, this may result in fire or
explosion due to damage to the battery.
yyAlways use batteries approved and
certified by LG Electronics.
- Otherwise, this may result in fire or
explosion.
yyThe lamp contains mercury.
Dispose of it in compliance with your
local regulations.
8
SAFETY PRECAUTIONS
yyStore the battery away from metal objects, such as keys and paper clips.
- Excess current may cause rapid
increase in temperature, resulting in
fire or burns.
yyDo not store the battery near heat
sources, such as heaters.
- Otherwise, this may result in fire or
explosion.
yyDo not store the battery at temperatures higher than 60 °C or in high
humidity.
- Otherwise, it may cause explosion
or fire.
yyKeep the battery out of reach of children.
- Otherwise, this may result in personal injury or damage to the product.
yyMake sure that the battery is nstalled
correctly.
- Otherwise, this may result in fire or
explosion.
yyThe battery contains lithium ion, so
please handle with care.
- Otherwise, this may result in fire or
explosion.
yyMake sure you use the same type of
battery for replacement.
yyIncorrect battery replacement may
cause fire.
CAUTION
yyDo not mix new batteries with old
ones.
- Burst or leaking batteries are a
fire hazard or may result in electric
shock.
Be
yy sure to unplug the projector if it
will not be used for a long period.
- Accumulated dust is a fire hazard
and may result in electric shock due
to overheating, ignition, or poor insulation.
yyOnly use the specified type of battery.
- Burst or leaking batteries are a
fire hazard or may result in electric
shock.
Do
yy not stare directly into lens when in
operation, eye damage can occure.
yyNo user serviceable parts inside unit.
High voltage parts can cause shock
and even electrocution.
yyProper ventilation required, do not
block airflow around unit. Doing so
can cause injury and internal overheating.
yyTo prevent damage to lamp, unit must
remain plugged in for approximately 3
minutes after power down to allow for
proper cool down (not applicable on
LED models).
SAFETY PRECAUTIONS
yyDo not touch the lens; doing so can
result in burns or damage to lens.
Lens and unit may be HOT during
and immediately after use. Use caution when handling unit, allowing for
proper cool down.
yyOnly use a grounded electrical outlet.
yyDo not insert anything into or cover
up the exhaust vents.
yyFollow all maintenance guidelines for
optimal use; service only at an authorized service center.
yyLamp contains mercury and as such
must be disposed of according to
local, state and federal laws (not applicable on LED models).
9
10
CONTENTS
CONTENTS
LICENSE2
SAFETY PRECAUTIONS
3
PREPARATION11
Accessories
11
Optional Accessories
12
Part Name
13
-- Main Unit
13
-- Back
14
-- Control Panel
15
Projector Status Indicator
16
Installation
17
-- Installation Precautions
17
-- Projection Distance per Screen Size 18
-- Kensington Security System
19
REMOTE CONTROL
20
USING THE PROJECTOR
22
Using the Projector
-- Turning on the Projector
-- Adjusting Focus and Position
of the Screen Image
-- Using the Projector
Replacing the Lamp
-- Replacing the Lamp
-- Be careful when replacing the lamp
-- Purchasing a replacement lamp
-- Disposing of lamps
Additional Options
-- Adjusting the Aspect Ratio
-- Using the Keystone Function
-- Using the Input List
-- Blank Function
Using Quick Menu
22
22
22
22
23
23
23
23
23
24
24
25
25
26
26
ENTERTAINMENT27
Using SCREEN SHARE
MY MEDIA
-- Connecting a USB Device
-- Removing a USB Device
-- Watching Videos
-- Viewing Photos
-- Listening to Music
-- Viewing Files
27
28
28
28
30
36
38
39
CUSTOMIZING SETTINGS
42
Settings42
PICTURE Settings
43
AUDIO Settings
47
TIME Settings 48
OPTION Settings 49
CONNECTING EXTERNAL
DEVICES51
Connecting an HD Receiver, DVD
Player, or VCR
-- HDMI Connection
-- HDMI to DVI Connection
Connecting a PC
-- RGB Connection
-- RGB to DVI Connection
AV Connection
-- AV Connection
-- Component Connection
Connecting Headphones
Connecting a Laptop
-- RGB Connection
52
52
52
53
53
53
54
54
54
55
55
55
MAINTENANCE56
Cleaning56
-- Cleaning the Lens
56
-- Cleaning the Projector Case
56
-- Cleaning the Vents
56
Replacing the lamp
57
Mounting the Lens Cap
58
SERIAL COMMUNICATION
FUNCTION59
Using Serial Communication
Establishing Serial Communication
Communication Protocol
Key Code
59
59
60
67
SPECIFICATIONS68
PREPARATION
PREPARATION
Accessories
Check the accessories provided with the product.
The picture may be different from the actual product.
내 미디어
외부입력
사운드
취침예약
선택
MARK
SOUND
키스톤
영상모드
TIMER
타이머
절전모드
화면크기
음량
화면가림
페이지
조용히
설정메뉴
화면정지
간편설정
SETTINGS
확 인
이전
자동조정
나가기
Remote control AAA
batteries (See 20 page)
Owner's Manual
eZ-Net program CD
Computer cable
Power cord
Owner's Manual CD
Lens cap, strap
yyWhen connecting a cable to the HDMI or USB port, be
sure to use the jack that fits into the USB/HDMI port.
Always use a standard-sized jack.
yyUse a certified cable with the HDMI logo attached.
yyIf you do not use a certified HDMI cable, the screen
may not display or a connection error may occur.
(Recommended HDMI cable types)
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
11
12
PREPARATION
Optional Accessories
To purchase optional accessories, visit an electronics store or online shopping site or
contact the retail store where you purchased the product.
Without prior notice, optional accessories are subject to change in order to improve the
performance of the product, and new optional accessories may be added.
Projection screen
HDMI cable
Replacement lamp
Video cable
Audio cable
Ethernet cable
RGB-to-component cable
Component cable
RS-232C cable
DVI-to-HDMI cable
PREPARATION
13
Part Name
* The projector is manufactured using high-precision technology. You may, however,
see tiny black dots and/or bright colored dots (red, blue, or green) that continuously
appear on the projector screen. This is a normal result of the manufacturing process
and does not indicate a malfunction.
Main Unit
Control panel
Power button
Vent1
Speaker
Lens2
Focus ring
Zoom ring
Front foot adjustment button
1 Due to the high temperature of the vent area, do not get close to the vent area.
2 Do not touch the lens while using the projector. The lens may be damaged.
14
PREPARATION
Back
1 2
3
4
5
6
789 Remote control sensor
* Do not block this sensor or remote
control will not function properly.
7
VIDEO connectors
8
AUDIO IN (RGB/ DVI) connector
2
RGB OUT connector
Headphone connector
RGB IN 2 connector
9
3
USB port
4
RGB IN 1 connector
RS-232C connector
5
HDMI IN connector
LAN connector
6
AUDIO connector
Power input connector
Kensington security system
connector
1
PREPARATION
Control Panel
MENU button
INPUT button
∧/∨/</> button
AUTO button
OK button
POWER button
Button
POWER
MENU
∧/∨/</>
ꔉ OK
AUTO
INPUT
Description
Turns the projector on or off.
Selects or closes menus.
Moves between menus and changes the settings.
(<, > button: The volume can be adjusted according
to the input mode.)
Shows the current mode and saves changes to the
settings.
Automatically adjusts the picture position and minimizes image
shaking in RGB mode.
Toggles between RGB1 (Component 1),
RGB2 (Component 1), HDMI, and External Input.
15
16
PREPARATION
Projector Status Indicator
Lamp Indicator
Temperature Indicator
LED Indicator
LED
Indicator
Lamp
Indicator
Temperature
Indicator
Red
STANDBY (power standby mode)
Green (flashing)
Lamp cooling until turned on.
Green
Operating (lamp is on)
Orange (flashing)
Lamp cooling after being turned off
(approximately 20 seconds).
Off
Power is off.
Orange
STANDBY.
(Power standby mode: naturally cools for four minutes after lamp
is turned off)
Red (flashing)
There is a problem with the projector color wheel.
Please contact the nearest service center.
Red
The lamp must be replaced because its lifespan has expired.
Red (flashing)
There is a problem with, or related to, the projector lamp.
Turn on the projector again after waiting a while.
If this indicator flashes red again, contact the nearest service center.
Green (flashing)
The lamp cover is not closed.
Orange
High temperature warning. Please turn the projector off and
check the vents.
Red
The projector turned off due to high temperature.
Red (flashing)
The projector turned off because the internal fan is not working.
Please contact the nearest service center.
PREPARATION
Installation
Installation Precautions
yyUse the projector in a well-ventilated
environment.
- To prevent excessive internal heat,
install the projector in a well-ventilated location. Do not place anything
near the projector, as this may block
its air vents. If the air vents are
blocked, the internal temperature
increases.
- Do not place the projector on a
carpet or rug. If the projector's inlet
vent is on the bottom, be careful not
to block the vent and always use the
projector on a solid, level surface.
- Be sure to prevent foreign objects,
such as paper and debris, from
entering the projector.
- Leave adequate distance (at least
30 cm) around the projector.
17
yyDo not place the projector in a hot or
humid environment.
- Do not place the projector in a hot,
cold, or humid environment.
yyDo not place the projector in a place
where it can attract dust.
- Otherwise, this may result in fire.
yyDo not remove any covers, except for
the lens cap. There is a high risk of
electric shock.
yyThe projector is manufactured
using high-precision technology.
You may, however, see tiny black
dots and/or bright colored dots that
continuously appear on the projector
screen. This is a normal result of the
manufacturing process and does not
indicate a malfunction.
yyThe remote control may not work
in an environment where a lamp
equipped with electronic ballasts or
a three-wavelength fluorescent lamp
is installed. In this case, replace the
lamp with a standard international
lamp for the remote control to work
properly.
18
PREPARATION
Projection Distance per Screen Size
1 Place the projector on a sturdy, level surface, together with the computer or audio/
video source.
2 Place the projector at an appropriate distance from the screen. The distance between the projector and the screen determines the actual size of the image.
3 Position the projector so that the lens is perpendicular to the screen. If the lens is not
perpendicular to the screen, the projected image will look distorted. To correct the
distortion, use the Keystone function. (See 25 page)
4 Connect the power cords of the projector and connected devices to the wall outlet.
Ratio of upward projection: 100 %
DISPLAY
Screen Width (Y)
Screen Height (X)
X/2
X/2
Y/2
DISPLAY
Y/2
Projection Distance (D)
Projection Distance (D)
4:3 aspect ratio
Screen Width (Y)
(mm)
Screen Height (X)
(mm)
1016
813
610
1000
1198
1270
1016
762
1250
1497
1524
1219
914
1500
1796
1778
1422
1067
1750
2095
2032
1626
1219
2000
2395
2286
1829
1372
2250
2694
2540
2032
1524
2500
2994
3048
2438
1829
3000
3593
3556
2845
2134
3500
4192
4064
3251
2438
4000
4791
4572
3658
2743
4500
5390
5080
4064
3048
5000
5989
5588
4470
3353
5500
6588
6096
4877
3658
6000
7187
6604
5283
3962
6500
7486
7112
7620
5690
6096
4267
4572
7000
7500
7786
8684
Screen Size (mm)
Shortest Distance (D) Longest Distance (D)
(mm)
(mm)
yyThe Shortest Distance/Longest Distance is adjusted by rotating the zoom ring using
the zoom function.
yyThe projection distance for each screen size is just a reference, and there is about
±5 % deviation.
PREPARATION
Kensington Security System
19
yyThis projector has a Kensington Security Standard connector as an anti-theft mechanism. Connect a Kensington Security System cable as shown below:
yyFor more information on installation and use of the Kensington Security System,
refer to the user’s guide provided with the Kensington Security System.
yyThe Kensington Security System is an optional accessory.
yyAbout Kensington Kensington sells anti-theft locks for computers, laptops, and other
high-value electronic devices. Website: http://www.kensington.com
20
REMOTE CONTROL
REMOTE CONTROL
Open the battery cover on the back of the remote control, and
insert the batteries into the battery compartment as indicated,
with
poles pointing in the correct direction. Always use the
same type of batteries as those provided (1.5 V AAA).
CAUTION
yyDo not mix new batteries with old ones.
MARK
SOUND
TIMER
SETTINGS
Power
Turns the projector on or off.
USB/MY MEDIA
Changes to USB mode.
INPUT
Changes the input source.
Playback control buttons
Adjusts the play of My Media.
Key's
Adjusts the Keystone settings.
SOUND
Changes the Sound mode.
SLEEP
Sets the sleep timer.
Changes the picture mode.
ENERGY SAVING
Changes the Energy Saving mode.
TIMER
Changes the settings of the presentation timer.
VOL +, Adjusts the volume level.
RATIO
Changes the aspect ratio.
BLANK
Displays the blank screen.
MUTE
Mutes all sound.
PAGE ︿, ﹀
Moves to the previous or next screen.
REMOTE CONTROL
MARK
SOUND
TIMER
SETTINGS
21
SETTINGS
Selects or closes menus.
STILL
Freezes the moving image.
(The STILL function works in all modes, except USB mode.)
Q.MENU
Enters the quick menu.
Up/Down/Left/Right buttons
Sets the function or moves the cursor.
OK ꔉ
Shows the current mode and saves changes to the
settings.
ꕣ BACK
Returns to the previous screen.
AUTO
Optimizes the screen automatically in RGB-PC input mode.
EXIT
Closes the settings window.
Color buttons
Sets detailed settings or gestures for each menu.
* MARK button is used when a software update is required.
(MARK button is not available for a user.)
NOTE
yyWhen using the remote control, the optimal operation range is 6 m or
less (left/right) and within a 30 degree arc of the remote control infrared
receiver.
yyIf a cable is connected to the back port, the optimal operating range is
3 m or less (left/right) and within a 30 degree arc of the remote control
infrared receiver.
yyFor seamless operation, do not block the infrared receiver.
30° 30°
내 미디어
외부입력
사운드
취침예약
선택
MARK
SOUND
키스톤
영상모드
TIMER
타이머
절전모드
화면크기
음량
화면가림
페이지
조용히
설정메뉴
화면정지
이전
자동조정
간편설정
SETTINGS
확 인
나가기
22
USING THE PROJECTOR
USING THE PROJECTOR
Using the Projector
Turning on the Projector
1 Connect the power cord.
2 Wait a moment after connecting the
power cord, then open the lens cap
and press the POWER button on the
control panel or remote control. (The
light on the control panel turn on.)
3 In the Language Selection screen,
select a language.
4 Use the INPUT button on the remote
control to select an input signal.
Adjusting Focus and
Position of the Screen
When an image appears on the screen,
check that it is in focus and fits in the
screen properly.
Focus ring
Zoom ring
yyTo adjust the focus of the image,
rotate the focus ring (the outer ring
of the projector lens).
yyTo adjust the size of the image,
rotate the inner zoom ring.
To move the screen image upward/
downward, adjust the height of the
foot at the bottom of the projector.
Front foot
adjustment button
yyWhile pressing the front foot adjustment button, adjust the projector
upward/downward until the screen
image is in the desired position.
yyWhen you release the front foot
adjustment button, the front foot becomes fixed at the current position.
Using the Projector
1 In Standby mode, press the POWER
button to turn the projector on.
2 Press the INPUT button to select the
input signal you want.
3 Control the projector using the following buttons while watching the
screen.
Button
VOL -, +
MUTE
Q.MENU
RATIO
Key's
Description
Adjusts the volume level.
Mutes all sounds.
Accesses the quick menu.
Resizes an image.
Adjusts Keystone.
4 Press the POWER button to turn the
projector off.
USING THE PROJECTOR
23
Replacing the Lamp
Replacing the Lamp
The lifespan of the lamp depends on
the environment in which the projector
is used.
You can check how long the projector
lamp has been used in the OPTION
menu. Make sure to replace the lamp in
the following situations:
yyThe projected image gets darker or
the quality deteriorates.
yyThe lamp warning indicator is red.
yyThe “Replace the lamp” message
appears on the screen when turning
the projector on.
Be careful when replacing
the lamp
yyTurn off the power by pressing the
POWER button on the remote control or control panel.
yyDo not remove the power cord when
the operation indicator is flashing
orange, i.e. the fan is working (about
20 seconds). When the operation
indicator is orange and no longer
flashing, remove the power cord.
yyAllow the lamp to cool for one hour
before replacing it.
yyReplace only with the same type of
lamp from an LG Electronics Service Center. Using another manufacturer's lamp may damage the
projector and lamp.
yyOnly pull the lamp out when replacing it.
yyKeep the lamp unit out of reach of
children. Keep the lamp away from
heat sources, such as radiators
and stoves. There is a fire or burn
hazard.
yyDo not expose the lamp to liquids
or foreign materials. The lamp may
burst.
yyDo not insert flammable or metal
objects into the lamp socket after
removing the lamp. This can result
in electrical shock or damage the
product.
yySecurely tighten the new lamp with
screws. If it is not securely tightened, the projected image may
become darker and there may be a
fire hazard.
yyDo not touch the front glass of the
new lamp or the glass of the lamp
container. Picture quality and lamp
lifespan may suffer.
Purchasing a
replacement lamp
Check the lamp model and then purchase the replacement lamp from an LG
Electronics Service Center.
(Use a lamp designed specifically for the
projector; otherwise, it may damage the
projector.)
Disposing of lamps
Dispose of a used lamp by returning it to
an LG Electronics Service Center.
24
USING THE PROJECTOR
Additional Options
Adjusting the Aspect
Ratio
You can adjust the aspect ratio of the
picture by pressing RATIO while watching.
-
4:3: Resizes the picture to a 4:3
ratio.
NOTE
yyAvailable options may vary depending on the input signal.
yyYou can also use the Q.MENU or
SETTINGS button.
-
-
16:9: Resizes the picture to a 16:9
ratio.
Just Scan: Displays high-definition
images in the original size without
cutting off the edges.
Just Scan
NOTE
yyIn Just Scan, you may see image
noise at the edges of the screen.
-
Set By Program: Displays images in
the same aspect ratio as the original
image.
Set By Program
-
Zoom: Enlarges an image to fit the
screen width. The top and bottom of
the image may be truncated.
yyPress the ︿ or ﹀ button to zoom in
to or out of the image.
yyPress the ︿ or ﹀ button to move
the image.
-
Cinema Zoom 1: Enlarges an image
at a cinemascope ratio of 2.35:1
without distortion. It ranges from 1 to
16.
yyPress the ︿ or ﹀ button to zoom in
to or out of the image.
yyPress the ︿ or ﹀ button to move
the image.
NOTE
yyIf you enlarge or reduce the
picture, it may be distorted.
USING THE PROJECTOR
Using the Keystone
Function
To prevent the screen image from
becoming trapezoidal, Keystone
adjusts the top and bottom width of the
image if the projector is not set up at a
right angle to the screen.
Because the Keystone function may
cause inferior screen image quality, use
this function only when it is not possible
to set up the projector at an optimal
angle.
Keystone
25
Using the Input List
Using the Input List
1 Press the INPUT button to display the
input selection screen.
- The connected input mode
appears first. Note that the component is always enabled.
INPUT List
Component1
ꔂ Move ꔉ OK
Component2
USB
AV
RGB-PC1
RGB-PC2
HDMI
Input Label
Exit
2 Use the INPUT button to select an
input signal to switch the projector to
the desired input mode. Use the
︿, ﹀, ︿ or, ﹀ button to switch
between all input modes.
Selecting an Input Label
1 Adjust the screen using the
Key's button.
yyKeystone value ranges are as follows.
Top left (H: 0 to 100, V: 0 to 100)
Top right (H: -100 to 0, V: 0 to 100)
Bottom left (H: 0 to 100, V: -100 to 0)
Bottom right (H: -100 to 0, V: -100 to 0)
2 Press the OK button after
You can select an input label to display
which devices are connected to which
input ports.

Input Label
AV
◀
▶
Component1
◀
▶
Component2
◀
▶
RGB-PC1
◀
▶
RGB-PC2
◀
▶
adjustment.
Close
1 Press the INPUT button to display the
input selection screen.
2 Press the RED button.
3 Use the ︿ or ﹀ button to scroll to
one of the input sources.
4 Use the ︿ or ﹀ button to select a
device name.
26
USING THE PROJECTOR
Blank Function
Using Blank Image Function
This function is effective when you want
to draw attention to you during a meeting or training session.
1 Press the BLANK button to display
the blank background color on the
screen.
You can change the background
color by referring to "Selecting the
background color of the blank image".
2 Press any button to clear the blank
image function.To cover the screen
temporarily, press the BLANK button
on the remote control. Never block
the lens with an object while the
projector is running. The lens may
become overheated, resulting in
deformation of the lens or fire.
Selecting the background
color of the blank image
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to
select OPTION, then press the OK
button.
3 Press the ︿, ﹀, ︿, or ﹀ button to
select Blank Image, then press the
OK button.
4 Use the ︿ or ﹀ button to move to
the desired item, then press the OK
button.
Using Quick Menu
You can easily customize your frequently
used menus.
1 Press the Q.MENU button to open
Quick Menu.
2 Press the ︿ or ﹀ button to select a
menu, then press OK.
Menu
Aspect
Ratio
Mode
Energy
Saving
Clear
Voice II
Sound
Mode
Sleep
Timer
Description
Changes the aspect ratio.
(See 24 page)
Changes the picture
mode. (See 43 page)
Adjusts brightness.
USB
Device
Disconnects a USB
device.
Makes the voice from the
projector crisp and clear.
Sets the sound mode.
Sets the specific time to
turn off the projector automatically.
PJT Mode Turns the projected image
upside down or flips it
horizontally.
3 Press the ︿, ﹀, ︿, and ﹀ buttons
to scroll through the following menus.
ENTERTAINMENT
27
ENTERTAINMENT
Using SCREEN SHARE
1Enable related SCREEN SHARE function on the device you wish to connect.
2Connect the Projector from the search list on the device you wish to connect.
(When you connect the projector to your laptop, input the PIN code shown on your
display. The request for a PIN will be shown only at the initial connection.)
3If the desired device accepts the request, SCREEN SHARE will be started.
CAUTION
yyWindows 7 / 8 / 8.1 are compatible with SCREEN SHARE. However, other versions
of Windows, and some other operating systems, may not be compatible with
SCREEN SHARE.
yyIce Cream Sandwich, Jellybean, and KitKat versions of LG’s Android devices are
guaranteed to be compatible.
yyWhen connecting via SCREEN SHARE, place the device close to the projector.
yyThe response rate and image quality may vary depending upon the user’s
environment.
yyFor more information on the device you want to connect to, refer to its owner’s
manual.
28
ENTERTAINMENT
MY MEDIA
Connecting a USB Device
When a USB storage device is connected, the USB adjustment screen appears.
You cannot write or delete data to or
from the USB device.
Connect a USB flash drive as shown
below.
Removing a USB Device
1 Press the Q.MENU button.
2 Use the ︿ or ﹀ button to move to USB
Device, then press the OK button.
3 Remove the USB device.
NOTE
yyAfter the USB device is disconnected, it cannot be read. Remove the
USB device, then connect it again.
USB Flash drive

ENTERTAINMENT
Tips for Using a USB Device
yyOnly a USB storage device is
recognizable.
yyUSB hubs are not supported.
yyA USB storage device that uses its
own driver may not be recognized.
yyThe recognition speed of a USB storage device depends on each device.
yyIf a normal USB device does not
work, disconnect and reconnect it.
Please do not turn off the projector
or unplug the USB device while the
connected USB device is being accessed. If such a device is forcefully
unplugged, the USB device or stored
files may be damaged.
yyDo not connect the USB storage
device that has been manipulated on
the PC. The projector may not operate properly or fail to play files. Use
a USB storage device that contains
normal music, photo, video, or document files.
yyOnly use a USB storage device formatted as a FAT16, FAT32, or NTFS
file system provided by Windows. If
a storage device is formatted with a
non-Windows program, it may not be
recognized.
yyConnect the power cord of a USB
storage device that requires an external power supply. If not, the device
may not be recognized.
yyConnect a USB storage device with
a cable provided by the USB manufacturer. When you use a cable that
is not provided by the USB device
manufacturer or an excessively long
cable, the device may not be recognized.
29
yySome USB devices may not be supported or may not work properly.
yyIf the length of a folder or file is too
long, the folder or file may not be
recognized properly.
yyThe files in a USB storage device are
sorted in the same way as in Windows XP. Up to 100 English characters for a file name are allowed.
yyIt is possible for data in a USB device
to become damaged, so it is recommended to back up important files.
Users are responsible for data management. The manufacturer bears no
responsibility.
yyIt is recommended to use a USB
flash drive that is 32 GB or less and
a USB hard disk that is 1 TB or less.
Any USB device with more than the
recommended capacity may not work
properly.
yyIf a USB storage device is not working properly, disconnect it and reconnect it.
yyIf a USB external hard drive with the
power saving function does not work,
turn the hard drive off and on again to
make it work properly.
yyUSB storage devices below USB 2.0
are supported as well. However, they
may not work properly in the movie
list.
30
ENTERTAINMENT
Watching Videos
In the Movie List, you can watch movies stored on the connected USB device.
Tips for Playing Videos
yySome user-created subtitles may not
work.
yySome special characters are not supported in subtitles.
yyHTML tags are not supported in subtitles.
yyTime information in a subtitle file
should be arranged in ascending
order to play the subtitle properly.
yyChanging font and color in subtitles is
not supported.
yyLanguages not specified in the
subtitle languages menu are not
supported. (See 34 page)
yySubtitle files 1 MB or larger are not
supported.
yyThe screen may suffer temporary
interruptions (stopped image, faster
playback, etc.) when the audio language is changed.
yyA damaged video file may not play
properly, or some functions may not
be available.
yyVideo files created by some encoders
may not be played back.
yyAudio or video may only be supported
depending on the video or audio
packet structure of the video file.
yyVideo files with higher resolution than
the maximum supported for each
frame may not play properly.
yyVideo files in formats other than those
specified here may not play back.
yyStreaming files that include GMC
(Global Motion Compensation) or
Qpel (Quarter Pixel Motion Estimation) is not supported.
yyUp to 10,000 sync blocks are supported in the subtitle file.
yySeamless playback is not guaranteed
for files encoded at level 4.1 or higher
in H.264/AVC.
yyVideo files larger than 30 GB (gigabytes) are not supported.
yyA video played via a USB connection
that does not support high speed may
not work properly.
yyA video file and its subtitle file must
be located in the same folder. A video
file name and its subtitle file name
must be identical in order to display
the subtitles properly.
yyWhile watching a video using the
Movie List function, you cannot adjust
the picture mode.
yyTrick Mode does not support functions other than ꕙ if video files do not
have index information.
yyWhen playing a video file over the
network, Trick mode is limited to 2x
speed.
yyVideo file names that contain special
characters may not be playable.
ENTERTAINMENT
31
Supported Files
Extension
Codec
Category
Code Type
VC-1 Advanced Profile
.asf
.wmv
Video
codec
VC-1 Simple
and Main Profiles
Audio
codec
.divx
.avi
Video
codec
Audio
codec
.mp4
.m4v
.mov
Video
codec
Audio
codec
Video
codec
.mkv
Audio
codec
.ts
.trp
.tp
Video
codec
Audio
codec
.vob
.mpg
.mpeg
.mpe
Video
codec
Audio
codec
Video
codec
Audio
codec
Profile/Level Support
Advanced Profile @ Level 3 (e.g., 720p60, 1080i60,
and 1080p30)
Only files compliant with the SMPTE 421M VC-1
standard can be streamed.
Simple Profile @ Medium Level (e.g., CIF and
QVGA)
Main Profile @ High Level (e.g., 1080p30)
Only files compliant with the SMPTE 421M VC-1
standard can be streamed.
WMA Standard
DivX 3.11
DivX 4
DivX 5
DivX 6
Xvid
H.264/AVC
Motion JPEG
MPEG-1 Layer 1, I2
Dolby Digital
MPEG-1 Layer III (MP3)
H.264 /AVC
MPEG-4 Part 2
Xvid
AAC
MPEG-1 Layer 3 (MP3)
H.264 /AVC
MPEG-4 Part 2
Xvid
HE-AAC
Dolby Digital
MPEG-1 Layer 3 (MP3)
H.264 /AVC
MPEG-2
MPEG-1 Layer 1/2
MPEG-1 Layer 3 (MP3)
Dolby Digital
AAC
MPEG-1
MPEG-2
MPEG-1 Layer 1/2
Dolby Digital
DVD-LPCM
Advanced Simple Profile (720p/1080i)
Advanced Simple Profile (720p/1080i)
Main Profile @ Level 4.1
High Profile @ Level 4.1 (e.g., 720p60, 1080i60,
and 1080p30)
Advanced Simple Profile (720p/1080i)
Main Profile @ Level 4.1
High Profile @ Level 4.1 (e.g., 720p60, 1080i60,
and 1080p30)
HE-AAC-LC and HE-AAC
Main Profile @ Level 4.1
High Profile @ Level 4.1 (e.g., 720p60, 1080i60,
and 1080p30)
Main Profile @ High Level (e.g., 720p60 and
1080i60)
Main Profile @ High Level (e.g., 720p60 and
1080i60)
MPEG-1
MPEG-1 Layer 1/2
Only files configured properly for TS, PS, or ES can
be streamed.
32
ENTERTAINMENT
Supported Audio Files
No
Audio
Codec
Bit Rate
Sampling Rate
1
MP3
32 Kbps - 320 Kbps
32 kHz - 48 kHz
2
AC3
32 kbps - 640 kbps
32 kHz, 44.1 kHz, 48 kHz
3
MPEG
32 kbps - 448 kbps
32 kHz - 48 kHz
4
AAC,
HE-AAC
24 kbps - 3844 kbps
8 kHz - 96 kHz
5
CDDA
1.44 kbps
44.1 kHz
6
LPCM
1.41 Mbps - 9.6 Mbps
Multi-channel: 44.1 kHz,
88.2 kHz / 48 kHz, 96 kHz
Stereo: 176.4 kHz, 192 kHz
Remark
33
ENTERTAINMENT
Browsing Movie List
Play a video file stored in the connected
device.
5 Use the following buttons to control
playback:
1 Connect a USB storage device.
2 Press the USB button.
3 Press the ︿, ﹀, ︿, or ﹀ button to
select Movie List, then press the OK
button.
��
4 Use the ︿, ﹀, ︿, or ﹀ button to se-
01:02:30 / 02:30:25
Q.MENU
Option
Hide
Exit
lect a file, then press the OK button.
❶
❷
❸
❹
page 1/1
Movie List
USB STORAGE DEVICE
d
All Media
Movie List
Photo List
Music List
❺
꘧ Page Change
File List
page 1/1
Butterfly_...
01:34:33
ꔅ Go to root folder
❻
ꔅ Go to upper folder
❼
Exit
❽
Description
❶ Thumbnails
Abnormal file
File not supported
❷ File list
❸ Moves to the upper-level folder.
❹ Current page/Total no. of folder
pages
❺ Current page/Total no. of file
pages
❻ Moves to the top-level folder.
❼ Moves to the upper-level folder.
❽ Exit movie list.
Item
◀▶
Description
Shows the current playback
position. You can use the
< or > button to move the
playback position forward or
backward.
ꕗ
Stops playback and returns to
Movie List.
ꕖ
Resumes normal playback.
ꕘ
Pauses the media player.
If no button is pressed on the
remote control for 10 minutes
after pausing, playback
resumes automatically.
Displays in slow
ꕘꕙ
motion.
ꕎ Whenever this button is
pressed, the playback speed
is changed.
: x2, x4, x8, x16, x32
You can use Energy Saving
mode.
A settings pop-up window
Option
appears.
Hide Hides the playback bar. Press
the OK button to make it
appear.
Exit Returns to the Movie List
screen.
34
ENTERTAINMENT
Setting Options
1 Press the Quick Menu button.
2 Use the ︿ or ﹀ button to move to
a desired option, then press the OK
button.
yySubtitle Language
Subtitle
Language
Latin1
3 Use the ︿, ﹀, ︿, or ﹀ button to set
up each item.
Set Video Play.
Item
Size
Description
Selects the aspect ratio of the
image.
yyFull: Files play in fullscreen mode based on the
aspect ratio of the video.
yyOriginal: Displays the
video in the original aspect
ratio.
Audio
Select the language you
Lanwant in a file offering multiple
guage languages. This option is not
available if the file has only
one language.
Subtitle Turn subtitles on or off.
LanyyLanguage: Select one of
guage
the available languages.
yyCode Page: Select a
character set for subtitles. By
default, subtitles are
displayed in the language
configured in OPTION →
Menu Language.
yySync: If subtitles are not
synchronized with the
video, you can adjust the
timing by 0.5-second units.
yyPosition: Moves the
location of the subtitles.
yySize: Changes the subtitle
font size.
Repeat Turns the repeat function on or
off. When it is set to Off, the next
file can be played sequentially if
the file name is similar.
Latin2
Latin4
Greek
Cyrillic
Hebrew
Chinese
Korean
Arabic
Turkish
Thai
Language
English, Spanish, Irish,
Welsh, French,
German, Italian,
Dutch, Swedish,
Finnish, Portuguese,
Danish, Romanian,
Norwegian, Albanian,
Gaelic, Catalan,
Valencian
Bosnian, Polish,
Croatian, Czech,
Slovak, Slovene,
Serbian, Hungarian
Estonian, Latvian, Lithuanian
Greek
Bulgarian, Russian,
Ukrainian, Kazakh,
Macedonian
Hebrew
Chinese
Korean
Arabic
Turkish
Thai
Set Video.
You can change video settings.
(Refer to "PICTURE Settings" on 43
page.)
Set Audio.
You can change audio settings.
(Refer to "Audio Settings" on 47 page.)
ENTERTAINMENT
Checking DivX registration code
Deregistering the DivX Code
Please check your DivX registration
code. For more information on the
registration process, visit www.divx.com/
vod. After registration, you can enjoy
VOD content protected by the DivX®
DRM.
Use the DivX deregistration code to
deactivate the DivX DRM function.
1 Move from the menu to OPTION,
then press DivX(R) VOD.
Registration
Deregistration
1 Move from the menu to OPTION,
then press DivX(R) VOD.
2 Use the ︿ or ﹀ button to go to
Deregistration, then press the OK
button.
3Select Yes.
Your product is already registered.
Are you sure you want to deregister?
Close

2 Press the ︿ or ﹀ button to move to
Registration, then press the OK
button.
i
Close
3 Check the DivX registration code.
NOTE
yyYou cannot use DivX registration
codes assigned to other devices.
Make sure to use the DivX
registration code assigned to your
device.
yyVideo or audio files that are not converted by the standard DivX codec
may be corrupted or not play.
Yes

No
⬇
i
Deregistration code: XXXXXXXX
Deregister at http://vod.divx.com.
Continue with registration?
You must register your device to
play DivX(R) DRM-protected videos.
Registration Code: XXXXXXXXXX
Register at http://vod.divx.com.

35

Yes
No
NOTE
yyAbout Digital Rights Management
(DRM) DRM technologies and services protect the interests and rights
of copyright holders by preventing
illegal use of digital content. Files
can be played after the license is
verified through, for example, an
online method.
36
ENTERTAINMENT
Viewing Photos
❶
You can view photos stored on a connected device.
Browsing Photo List
1 Connect a USB storage device.
2 Press the USB button.
3 Use the ︿, ﹀, ︿, or ﹀ button to
select Photo List, then press the OK
button.
4 Use the ︿, ﹀, ︿, or ﹀ button to select a file, then press the OK button.



❸
❹
page 1/1
Photo List
USB STORAGE DEVICE
Photo File
PHOTO (*.JPEG)
Baseline: 64 (W) x 64 (H) pixels - 15360
(W) x 8640 (H) pixels
Progressive: 64 (W) x 64 (H) pixels 1920 (W) x 1440 (H) pixels
yyOnly JPEG files are supported.
yyUnsupported files are indicated with
an icon.
yyAn error message is displayed for
corrupted files or file formats that cannot be played.
yyCorrupted files may not be displayed
properly.
yyIt may take some time to view highresolution images in full screen.
❷
d
All Media
Movie List
Photo List
Music List
❺
꘧ Page Change
File List
page 1/1
Butterfly_...
06/09/2010
ꔅ Go to root folder
❻
ꔅ Go to upper folder
❼
Exit
❽

Description
❶ Thumbnails
Abnormal file
File not supported
❷ File list
❸ Moves to the upper-level folder.
❹ Current page/Total no. of folder
pages
❺ Current page/Total no. of file
pages
❻ Moves to the top-level folder.
❼ Moves to the upper-level folder.
❽ Shutdown
ENTERTAINMENT
5 Use the following buttons to control
playback:
2008/12/10
1920 x 1080
479 KB
[1/4]
37
Setting Options
1 Press the Q.Menu button.
2 Use the ︿ or ﹀ button to move to
a desired option, then press the OK
button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set
Slideshow
BGM
ꔦ
Q.MENU
Option
Hide
Exit
up each item.
Set Photo View.

Item
Description
Selects the previous or next
photo.
Slide Displays all photos in a slide
show show.
yySet Slide Speed in the
Option → Set Photo
View. menu.
BGM Listen to background music
while viewing full-size photos.
yySet BGM in the Option →
Set Photo View. menu.
�
Rotates photos.
yyRotates a photo 90°, 180°,
270°, 360° clockwise.
ꔦ
yyPhotos cannot be rotated
if the width is greater than
the height of the maximum
supported resolution.
Enlarges or reduces the photo.
Press the blue button to enlarge the image.
You can use Energy Saving
mode.
Option A settings pop-up window
appears.
Hide Hides the menu on the fullsize screen.
yyTo view the menu again,
press the OK button on the
remote control.
Exit Exit from full-screen photo
view.
Item
Slide
Speed
BGM
Repeat
Description
Selects a slide show
transition speed.
Selects a music folder for
background music.
yyYou cannot change the
music folder while background music is playing.
yyFor background music,
you can only select a
folder from the same
device.
Selects repeat.
Random Selects random play.
Set Video.
You can change video settings.
(Refer to "PICTURE Settings" on 43
page.)
Set Audio.
You can change audio settings.
(Refer to "Audio Settings" on 47 page.)
38
ENTERTAINMENT
Listening to Music
Play audio files stored on the connected
device.
❸ Moves to the upper-level folder.
❹ Current page/Total no. of folder
pages
❺ Current page/Total no. of file
pages
❻ Moves to the top-level folder.
❼ Moves to the upper-level folder.
❽ Shutdown
Audio File
*.MP3
Bit rate range 32 Kbps - 320 Kbps
yySampling rate MPEG1 Layer3:
32 kHz, 44.1 kHz, 48 kHz
yySampling rate MPEG2 Layer3:
16 kHz, 22.05 kHz, 24 kHz
Description
❷ File list
5 Use the following buttons to control
Browsing Music List
playback:
1 Connect a USB storage device.
2 Press the USB button.
3 Use the ︿, ﹀, ︿, or ﹀ button to

page 1/1
Music List
USB STORAGE DEVICE
d
All Media
Movie List
Photo List
Music List
File List
꘧ Page Change
page 1/1
Butterfly_...
00:03:25
select Music List, then press the OK
button.
4 Use the ︿, ﹀, ︿, or ﹀ button to select a file, then press the OK button.
❶
❷
❸ ❹
❺
page 1/1
Music List
USB STORAGE DEVICE
d
All Media
Movie List
Photo List
Music List
꘧ Page Change
File List
page 1/1
Butterfly_...
00:03:25
002. - B02.mp3
�
��
Q.MENU
Item
◀▶
ꕗ
ꕖ
ꕘ
02:30 / 03:25
Option
Hide
Exit
Description
Changes the playing position.
Stops playing.
Resumes normal playback.
Pauses the media player.
ꕎ
ꔅ Go to root folder
❻
ꔅ Go to upper folder
❼
Description
❶ Thumbnails
Abnormal file
Exit
❽
Plays the previous/next file.
You can use Energy Saving
mode.
Option Sets Option for the music
list.
Hide
Exit
File not supported
Hides the playback bar.
Press the OK button to show
it again.
Returns to the Music List
screen.
ENTERTAINMENT
Setting Options
1 Press the Q.Menu button.
2 Use the ︿ or ﹀ button to move to
a desired option, then press the OK
button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set
up each item.
Set Audio Play.
Item
Description
Repeat Selects repeat.
Random Selects random play.
Set Audio.
You can change audio settings.
(Refer to "Audio Settings" on 47 page.)
39
Viewing Files
You can view document files stored on a
connected device.
Supported File Formats
XLS, DOC, PPT, TXT, XLSX, PPTX,
DOCX, PDF, HWP Microsoft Office 97/2000/2002/2003/2007
Adobe PDF 1.0/1.1/1.2/1.3/1.4
Hangul 97/2000/2002/2005/2007
yyFile Viewer realigns documents, so
documents may look different from
what is displayed on the PC.
yyFor documents that include
images, the resolution may look lower
during the realignment process.
yyIf the document is large or has many
pages, it may take longer to load the
document.
yyUnsupported fonts may be replaced
by other fonts.
yyThe file viewer may not open for
Office documents that contain many
high resolution images.
In that case, reduce the image file
size, save it on a USB storage
device and run the file viewer again
or connect your PC to the projector
and open the file on your PC.
40
ENTERTAINMENT
5 Use the following buttons to control
File List Screen
1 Connect a USB storage device.
2 Press the USB button.
3 Use the ︿, ﹀, ︿, or ﹀ button to
select File List, then press the OK
button.
4 Use the ︿, ﹀, ︿, or ﹀ button to select a file, then press the OK button.
❶
❷❸
page 1/1
File List
USB STORAGE DEVICE
DOC
d
PPT
HWP
Butterfly_...
06/09/2010
TXT
All Media
Movie List
Photo List
Music List
❹
playback:
yyWhen you press the Go Page button, a window where you can enter
a page number appears. Enter a
page number to go to that page.
yyPress the volume button to Zoom in
or Zoom out.
1. Press the OK button.
2. P
ress the Up/Down/Left/Right
buttons to move to Go to Page or
Zoom.
꘧ Page Change
File List
page 1/1
PDF
XLS
Go Page
ꔅ Go to root folder
❺
ꔅ Go to upper folder
❻
❶ File list
Exit
❼
Description
❷ Moves to the upper-level folder.
❸ Current page/Total no. of folder
pages
❹ Current page/Total no. of file
pages
❺ Moves to the top-level folder.
❻ Moves to the upper-level folder.
❼ Shutdown
ꔦ Zoom
Q.MENU
Option
Hide
Exit

Item
Description
Go Page Moves to the page you
want.
Use the Up/Down/Left/Right
buttons to select a page,
then press the OK button.
Zoom Enlarges or reduces the
image.
Option Sets Options for File Viewer.
Hide
Exit
Hides the menu.
yyPress the OK button to
show it again.
Returns to the File List
screen.
ENTERTAINMENT
Set FileViewer Option
Item
Single
Page
Loading
Description
On Loads and displays
pages one by one.
The initial loading
time is short, but a
content-heavy page
may be displayed
slowly.
Off The entire document
is loaded to memory
before displaying.
Initial loading may
take a long time, but
page navigation is
very fast. If a file is
too large, it may fail
to load all the pages.
You can set the quality of
the image included in the
Quality
document. Three levels:
low, medium, and high.
A higher image quality
may be displayed at a low
speed on a screen.
Document Selects the initial
document arrangement
Align
method.
The File Viewer Option settings are
default, so close the currently opened
document to apply changes to the new
document.
41
42
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Settings
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to select a desired item, then press the OK button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set the desired item, then press the OK button.
4Press the EXIT button when completed.
Menu
Description
Adjusts the image quality for optimal viewing.
AUDIO
Adjusts the sound quality and volume level.
TIME
For time-related settings.
OPTION
Customizes the general settings.
INPUT
Lets you select the desired input.
MY MEDIA
Accesses photo, music, movie, and document files.
43
CUSTOMIZING SETTINGS
PICTURE Settings
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to select
PICTURE, then press the OK ꔉ button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set up the
desired item, then press the OK ꔉ button.
- To return to the previous menu, press the
ꕣ BACK button.
4 Press the EXIT button when completed.
ꔂ Move ꔉ OK
• Energy Saving
• Picture Mode
: Minimum
: Eco
• Contrast
50
• Brightness
50
• Sharpness • Color • Tint
5
70
0
R
G
The available picture settings are as follows:
Item
Energy
Saving
Mode
Description
Reduces power consumption by adjusting screen brightness.
Selects one of the preset images, or customizes options in each mode
for the best screen performance. You can also customize advanced
options for each mode.
Mode
Vivid
Maximizes the visual effect of the video. Displays a
crystal clear picture by enhancing contrast, brightness,
and sharpness.
Standard
Displays the picture at normal contrast, brightness, and
sharpness.
Eco
Reduces power consumption by adjusting the brightness corresponding to image movement on the screen.
Cinema
Optimizes the image for movies.
Game
Optimizes the image for playing games on fast-moving
screens.
Expert1/2
Adjusts the detailed image settings.
Black Mode Provides optimized picture quality on a dark-colored
screen or a chalkboard by removing the input image's
colors and reversing the contrast.
* Black mode is only available when the external input
is set to either of RGB-PC1, RGB-PC2 or HDMI and
the resolution is set to 1024x768.
* If you change the resolution to other value than 1024
x 768 while the picture mode is set to the black mode,
the picture mode is automatically reset to the default
value.
* You cannot control the picture settings when the picture mode is set to the black mode.
44
CUSTOMIZING SETTINGS
Item
Contrast
Brightness
Sharpness
Color
Tint
Option
Advanced
/Expert
Control
Reset
Aspect Ratio
Screen
(RGB-PC)
Description
Increases or decreases the gradient of the video signal.
Adjusts the base level of the video signal to make the image brighter
or darker.
Adjusts the level of sharpness in the edge between the light and dark
areas of the picture. The lower the level is, the softer the image looks.
Horizontal and Vertical Sharpness are available only Expert1/2.
Adjusts the intensity of all colors.
Adjusts the balance between red and green levels.
Sets optional settings.
Customizes the advanced settings.
Restores each mode's options to the factory default.
Changes the aspect ratio.
Adjusts the picture quality for RGB-PC input.
Item
Resolution Available resolutions are 768 (1024 x 768 / 1280 x 768,
60 Hz) and 1050 (1400 x 1050 / 1680 x 1050, 60 Hz).
Auto
Provides optimized picture quality by automatically
Config.
calibrating mismatched horizontal width and a shaky
picture caused by conflicts between the internal settings
of the projector and various PC graphic signals.
yyYou can also use the AUTO button on the remote
control.
Posição
Moves the image up/down/left/right.
Ratio
Changes the aspect ratio.
Phase
Makes the picture look clear by removing horizontal
noise.
Initial
Restores all the settings to the factory default.
Settings
Advanced / Expert Control
Item
Dynamic
Contrast
Dynamic
Color
Description
Adjusts contrast to keep it at the best level for the brightness of the
screen.
Adjusts screen colors so that they look natural.
CUSTOMIZING SETTINGS
Item
Skin Color
Sky Color
Grass Color
Gamma
Color Gamut
Edge
Enhancer
Color Filter
Color
Temperature
Color
Management
45
Description
Detects the skin area in the image and adjusts it to achieve natural
skin color.
Adjusts only the color of the sky.
Adjusts only the natural color area of, for example, fields and mountains.
Adjusts the overall color of the screen to suit your preference.
In Expert and Cinema mode, you can customize the options of each
mode.
Selects the range of colors to display.
Provides much sharper and clearer edges to the picture.
Accurately adjusts color and tint by filtering a specific color
area of RGB space.
Gamma: Select 1.9, 2.2, or 2.4.
a. Method: 2 points
- Pattern: Inner, Outer
- Points: Low, High
- Red/Green/Blue: The adjustment range is -50 - +50.
- Apply to all inputs: The values of the Color Temperature is applied
to all the input modes.
b. Method: 10 points IRE
- Pattern: Inner, Outer
- IRE (Institute of Radio Engineers) is the unit that indicates the size
of the video signal and can be set as either 10, 20, 30 - 90, or 100.
You can fine-tune for each setting as shown below.
- Luminance: If you set up luminance for 100 IRE, a luminance value
satisfying each gamma is automatically calculated for each step
from 10 IRE to 90 IRE.
- Red/Green/Blue: The adjustment range is -50 - +50.
- Apply to all inputs: The values of the Color Temperature is applied
to all the input modes.
Adjusts Red/Green/Blue/Yellow/Cyan/Magenta colors. Allows an
expert to adjust the tint using a test pattern. Six colors (Red/Green/
Blue/Cyan/Magenta/Yellow) can be selectively adjusted without
affecting other colors. You may not see colors change on a normal
picture even after adjustment.
- Chroma Red/Green/Blue/Yellow/Cyan/Magenta,
Tone Red/Green/Blue/Yellow/Cyan/Magenta
: The adjustment range is -30 - +30 each.
* Available options may differ depending on the input signal or video mode, etc.
46
CUSTOMIZING SETTINGS
Picture Option
Item
Description
Noise
Reduction
MPEG Noise
Reduction
Black Level
Removes noise from the picture.
Real
Cinema
Color
Temperature
Provides optimal picture quality for watching a movie.
Reduces the noise produced while creating digital video signals.
Compensates the screen brightness and contrast to balance with the
black level of the video input.
Adjusts the overall color of the screen to suit your preference.
Select Warm, Cool, Medium or Natural.
In Expert mode, you can customize the options for each mode.
CUSTOMIZING SETTINGS
47
AUDIO Settings
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to select AUDIO,
then press the OK ꔉ button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set up the
AUDIO
ꔂ Move ꔉ OK
• Sound Mode : Standard
• Clear Voice II : Off ꕅ 3
• Auto Volume : Off
desired item, then press the OK ꔉ button.
- To return to the previous menu, press the
ꕣ BACK button.
4 Press the EXIT button when completed.
The available sound settings are as follows:
Item
Sound Mode
Clear Voice II
Auto Volume
Description
Adjusts sound.
Mode
Standard
Selects a standard sound.
Music
Select when listening to music.
Movie
Select when watching a movie.
Sport
Select when watching sports events.
Game
Select when playing a game.
User SetAudio-band (100 Hz / 300 Hz/ 1 kHz/ 3 kHz / 10 kHz)
ting
can be adjusted from -10 to 10.
Reset: Restores all the settings to the factory default.
Makes the voice from the projector crisp and clear.
Automatically adjusts the volume level.
48
CUSTOMIZING SETTINGS
TIME Settings
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to select TIME,
then press the OK ꔉ button.
3 Use the ︿, ﹀, ︿, or ﹀ button to set up the
desired item, then press the OK ꔉ button.
- To return to the previous menu, press the
ꕣ BACK button.
TIME
ꔂ Move ꔉ OK
• Sleep Timer
: Off
• Auto Off
: 60 min.
• Automatic Standby
: Off
• Presentation Timer
4 Press the EXIT button when completed.
The available time settings are as follows:
Item
Sleep Timer
Auto Off
Automatic
Standby
Presentation
Timer
Description
Sets the projector to turn off at a specified time.
If there is no signal, the projector automatically turns off after the
preset time has elapsed.
Turns off the projector automatically if there is no input for the given
time.
Time
Displays an alarm at the specified time.
Alarm
* If you set the time to 5 minutes, the time is displayed
on the screen at 1-minute intervals. If you set the time
to 10 minutes or more, the time is displayed at 5-minute
intervals. If the remaining time is less than 5 minutes, it
is displayed at 1-minute intervals.
Time
Keeper
* You can set the time to 5, 10... 60 minutes in 5-minute
increments.
Displays the time remaining until the time specified on
the screen.
* Between 1 and 10 minutes, the time can be set in increments of 1 minute and, between 10 and 60 minutes,
in increments of 5 minutes.
CUSTOMIZING SETTINGS
49
OPTION Settings
1 Press the SETTINGS button.
2 Use the ︿, ﹀, ︿, or ﹀ button to select
OPTION
ꔂ Move ꔉ OK
• Language
OPTION, then press the OK ꔉ button.
• SCREEN SHARE
desired item, then press the OK ꔉ button.
- To return to the previous menu, press the
ꕣ BACK button.
• Caption
3 Use the ︿, ﹀, ︿, or ﹀ button to set up the
: [PJTR][LG]BC775[0000]
• Group
• Channel
• Keystone
• PJT Mode
: Front
• Blank Image
: Blue
4 Press the EXIT button when completed.
The available option settings are described below:
Item
Language
SCREEN
SHARE
Caption
Keystone
PJT Mode
Blank
Description
Selects the desired language.
The SCREEN SHARE displays the screen of the connected device.
yyYou can check the SCREEN SHARE's ID.
Item
Group
This is the Group setting for each device supporting the
SCREEN SHARE feature. When the wireless connection
is weak or unstable, adjust the Group setting to correct the
problem.
Channel You can change the channel used for wireless connections.
yySearch Channels: Select channel searching methods.
- Auto: The projector searches for available channels and
automatically selects the least used channel.
- Manual: You can select a channel manually.
yyChannel: This is shown when Search Channels is set to
Manual. It allows you to specify a channel number to use.
Turns subtitles On/Off when Korean is used for the AV input.
To prevent the screen image from becoming trapezoidal, Keystone
adjusts the top and bottom width of the image if the projector is not set
up at a right angle to the screen.
Turns the projected image upside down or flips it horizontally.
yySelect Rear to project an image onto the back of a transparent
screen (purchased separately).
yySelect Front Ceiling if you installed the projector onto a ceiling.
Select the background for the blank image. (See 26 page)
50
CUSTOMIZING SETTINGS
Item
Auto
Power
Description
Make the projector turn on automatically when the power cord is connected.
Item
On
The projector turns on automatically when the power cord is
connected to the projector.
Off
The projector goes into standby mode when the power cord
is connected to the projector.
Auto Input Automatically searches and displays an input signal type when it is
Search
received.
High
When using the projector at an altitude of 1200 m or higher, set this
Altitude
option to “On.” Using the projector without changing the High Altitude
option may result in overheating or activation of the projector’s protection functions. If this happens, turn the projector off and then on again
after waiting several minutes.
Monitor
Selects one of the two connected RGB input videos as monitor
Out
out.“Auto” mode outputs the “RGB1” or “RGB2” input that is currently
being displayed.
DivX(R)
Sets DivX-related settings.
VOD
Initial
Resets all projector settings to the factory default.
Setting
Set ID
If the projector is connected to a PC through an RS-232C cable, you
can use the PC to control functions of the projector such as power On/
Off and input selection.
eZ-Net
Allows you to control one or more projectors easily through a local area
Manager
network.
Lamp Use Checks lamp usage time.
Time
Self
Troubleshoots functional problems that can arise while using
Diagnosis the product.
CONNECTING EXTERNAL DEVICES
51
CONNECTING EXTERNAL
DEVICES
You can connect various external devices to the projector.
Computer/Laptop
DVD
Video
Digital Device
USB
Game Console
Headphones
HDMI - 52 page
Component 1, Component 2 - 54 page
Input (AV) - 54 page
RGB1, RGB2 - 53 page
Memory - 28 page
Headphones - 55 page
52
CONNECTING EXTERNAL DEVICES
Connecting an HD
Receiver, DVD Player,
or VCR
Connect an HD receiver, DVD Player or
VCR, then select an appropriate input
mode.
HDMI Connection
With an HDMI cable, you can enjoy
high-quality picture and sound. Connect
the HDMI IN connector of a projector to
the HDMI output connector.
Press the INPUT button on the remote
control to select HDMI.
HDMI to DVI Connection
Connect the HDMI IN connector of a
projector to the DVI output connector using a HDMI-to-DVI cable. For the audio
signal, connect using an audio cable.
Press the INPUT button on the remote
control to select HDMI.
Optional
Accessories
Optional
Accessories
Optional
Accessories
DVI OUT

+'0,
AUDIO OUT
CONNECTING EXTERNAL DEVICES
Connecting a PC
The projector supports plug and play.
Your PC automatically detects plug and
play devices and requires no driver
installation.
53
RGB to DVI Connection
Connect the RGB IN 1 or RGB IN 2 connector of a projector to the DVI output
connector.
For the audio output, connect the PC
and the projector using an audio cable.
RGB Connection
Connect the PC output and the PC video
input port of the projector using the RGB
cable. Connect the RGB IN 1 or RGB
IN 2 connector of a projector to the DVI
output connector. For the audio signal,
connect the PC and projector using an
optional audio cable.
Optional
Accessories
Accessories
Optional
Accessories
DVI OUT
5*%2873&
Optional
Accessories
$8',2287
AUDIO OUT
54
CONNECTING EXTERNAL DEVICES
AV Connection
Component Connection
AV Connection
Enjoy vivid images when you connect an
external device with a component port to
the RGB In port of the projector. Press
the INPUT button on the remote control
to select Component.
Connect the output ports of an external
device and the AV INPUT port of the
projector. Press the INPUT button to
select AV.


White
RED
RED
Red
WHITE
Green
Red
WHITE
Blue
RED
RED
BLUE
BLUE
GREEN
GREEN
YELLOW
RED
YELLOW
WHITE
Yellow
RED
White
RED
Red
WHITE
BLUE
RED
GREEN
BLUE
YELLOW
Optional
Accessories
YELLOW
GREEN
BLUE
YELLOW
RED
GREEN
WHITE
BLUE
35
/HIW
5LJKW
$8',2287
BLUE
RED
RED
WHITE
WHITE
RED
YELLOW
GREEN
BLUE
RED
BLUE
WHITE
RED
RED
WHITE
YELLOW
RED
3%
$9287
Red
White
<
Red
Blue
Green
GREEN
RED
WHITE
RED
5LJKW
$8',2287
RED
YELLOW
GREEN
RED
BLUE
Optional
Accessories
RED
RED
RED
WHITE
WHITE
Optional
Accessories
RED
WHITE
RED
BLUE
RED
Red
BLUE
Blue
GREEN
BLUE
Green
GREEN
YELLOW
GREEN
YELLOW
/HIW
YELLOW
Red
$9287
White
Yellow
RED
Optional
Accessories
CONNECTING EXTERNAL DEVICES
Connecting
Headphones
You can listen to the audio through
headphones.
55
Connecting a Laptop
You can connect the projector to a laptop for various functions.
RGB Connection
You can connect your laptop to the RGB
In 1 or RGB In 2 port of the projector.
Optional
Accessories

Accessories
56
MAINTENANCE
MAINTENANCE
Clean your projector to keep it in optimal
condition.
Cleaning
Cleaning the Lens
If there is any dust or staining on the
lens surface, you must clean the lens.
Use an air spray or a cleaning cloth to
clean the lens.
To remove dust or stains, use an air
spray or apply a small amount of cleaning agent to a swab or soft cloth and
gently rub the lens.
Make sure that liquid does not flow into
the lens if the product is sprayed directly
onto the lens.
Cleaning the Projector
Case
To clean the projector case, first unplug
the power cord.
To remove dust or stains, use only a
soft, dry, lint-free cloth.
Do not use alcohol, benzene,
thinners, or other chemicals, as they
may damage the case.
Cleaning the Vents
Dust and foreign material tend to adhere
to the vents.
It is important to use a vacuum cleaner
to periodically remove dust and foreign
material.
Using the projector with excessive dust
around the vents may cause the internal
components to overheat and malfunction.

Outflow vents

Inflow vents
MAINTENANCE
Replacing the lamp
57
4 Pull out the lamp knob from the hitch.
Lamp knob
1 Turn off the projector, unplug the
power cable from the outlet, and then
place the projector onto a table or flat
surface.
- Allow the lamp to cool for 1 hour
before removing the used lamp from
the projector; it is very hot.
2 Use a screwdriver or similar object

to remove the screw from the side.
After removing the screw, tilt the lamp
cover upward in the direction of the
arrow. Do not pull the cover vertically.
If the lamp cover cannot be lifted,
press part “A.”

Press here.
remove the lamp case.
6 Carefully insert the new lamp case into
the correct position. (Check to see that
it is correctly positioned.)
7 Tighten the screws you removed in step
3. (Check to see that the lamp is
securely fixed.)
Part "A"
8 Close the lamp cover and tighten the
Lamp
cover
Mounting
screw
3 After opening the lamp cover, un

5 Hold the lamp and pull it out slowly to
screw the 2 screws that hold the lamp
using a screwdriver or its equivalent.

Screw
screw loosened in step 2 to fix the
cover.
- If you turn on the projector while the
lamp cover is open, the lamp warning indicator flashes green and the
projector does not turn on.
NOTE
yyMake sure to use the same type of
lamp for replacement. If the lamp
cover is not closed correctly, the
projector does not turn on. In this
case, check that the lamp is correctly mounted. If the problem persists,
contact the LG Electronics Service
Center.
58
MAINTENANCE
Mounting the Lens
Cap
1 Prepare the lens cap and strap sup-
plied as accessories. Put the knotless
end of the strap through the hole at
the bottom of the projector lens.
2 Put the knotless end of the strap
inside and pull it to fix it onto the
projector hole.
3 Insert the other end of the strap into
the hole of the lens cap, and then
pass the lens cap through the strap.
4 The lens cap is mounted as
illustrated.
Serial Communication Function
59
Serial Communication Function
Using Serial Communication
If the projector is connected to a PC through an RS-232C cable, you can use the PC to
control projector functions such as power On/Off and input selection.
It cannot be used with the eZ-Net Manager concurrently. For serial communication, set
LAN to Off in the eZ-Net Manager.
This function may not be available for a particular menu or input mode.
Establishing Serial Communication
Connect the RS-232C (serial connector) of the PC to the RS-232C connector at the back
of the projector.
You must purchase a cable to connect the RS-232C connectors, as it is not provided as an
accessory.
(TV)
(PC)
(PC)
(Projector)
* A RS-232C cable is necessary for the remote control of the projector (see Figure 1).
[Figure 1] RS-232 Connection Diagram
RXD
TXD
DTR
GND
DSR
RTS
CTS
RXD
2
3
4
5
6
7
8
2
3
4
5
6
7
8
PC
Projector
TXD
DTR
GND
DSR
RTS
CTS
* There is no connection to Pin 1 and Pin 9.
9
5
6
1
60
Serial Communication Function
2. OK Acknowledgement
Communication Parameter Setup
•
•
•
•
•
•
[Command2] [ ] [Set ID] [ ] [OK] [Data] [x]
Baud Rate: 9600 bps (UART)
Data Length: 8 bits
Parity: None
Stop bit: 1 bit
Flow Control: None
Communication code: ASCII code
* The set transmits ACK (acknowledgement) based
on this format when receiving normal data. At this
time, if the data is data read mode, it indicates
present status data. If the data is data write mode,
it returns the data of the PC computer.
Communication
Protocol
3. Error Acknowledgement
1. Transmission
[Command2] [ ] [Set ID] [ ] [NG] [Data] [x]
* If a set receives an abnormal piece of data, such
as a unsupported function, or there is a
communication error, it returns ACK in the above
format.
Data [01]: illegal code
(This command is not supported.)
[Command1] [Command2] [ ] [Set ID] [ ] [Data]
[Cr]
* [Command1]: The first command to control the projector
(k. j, x, m, n ASCII code, 1 Character)
* [Command2]: T he second command to control the
projector (ASCII code, 1 character)
* [Set ID]: You can adjust the set ID to choose desired
monitor ID number in option menu. Adjustment
range is 1 to 99. When selecting Set ID ‘0’,
every connected set is controlled.
Set ID is indicated as decimal (1 to 99) on menu
and as Hexa decimal (0x0to 0x63) on
transmission/receiving protocol.
* [Data]: To transmit command data (hexadecimal).
Transmit ‘FF’ data to read status of command.
* If the data is ‘FF’, it means data read mode.
* [Cr]: Carriage
Return
It corresponds to ASCII code ‘0x0D’.
* [ ]: ASCII code ‘space (0x20)
Data Structure
10
16
0
00
1
01
2
02
3
03
4
04
5
10
16
10
16
10
16
10
16
10
16
10
16
10
16
10
16
10
11
0B
21
15
31
1F
12
0C
22
16
32
20
13
0D
23
17
33
21
14
0E
24
18
34
22
05
15
0F
25
19
35
6
06
16
10
26
1A
7
07
17
11
27
8
08
18
12
9
09
19
10
0A 20
16
41
29
51
33
61
3D
71
47
81
51
91
5B
42
2A
52
34
62
3E
72
48
82
52
92
5C
43
2B
53
35
63
3F
73
49
83
53
93
5D
44
2C
54
36
64
40
74
4A
84
54
94
5E
23
45
2D
55
37
65
41
75
4B
85
55
95
5F
36
24
46
2E
56
38
66
42
76
4C
86
56
96
60
1B
37
25
47
2F
57
39
67
43
77
4D
87
57
97
61
28
1C
38
26
48
30
58
3A
68
44
78
4E
88
58
98
62
13
29
1D
39
27
49
31
59
3B
69
45
79
4F
89
59
99
63
14
30
1E
40
28
50
32
60
3C
70
46
80
50
90
5A 100 64
Serial Communication Function
61
Command Reference List
Command 1
Command 2
a
Data (Hexadecimal)
01. Power
k
00 - 01
02. Aspect Ratio
k
c
*
03. Blank Image
k
d
00 - 01
04. Contrast
k
g
00 - 64
05. Brightness
k
h
00 - 64
06. Color
k
i
00 - 64
07. Tint
k
j
00 - 64
08. Sharpness
k
k
00 - 32
09. OSD Control
k
l
00 - 01
10. Key Lock
k
m
00 - 01
11. Color Temp
k
u
00 - 04 (excluding 03)
12. Black Level
n
m
00 - 01
13. Energy Saving
n
p
00 - 01
14. Auto Configure
j
u
01
15. Input
x
b
*
16. Key
m
c
Key Code
17. Picture Mode
n
s
00 - 07
18. Mute
k
e
00 - 01
19. Volume
k
f
00 - 64
20. Monitor Out
n
r
00 - 02
yyFor more information on the data (*), refer to next page.
yyWhen playing a video or photo file stored on a storage media (USB memory stick or
HDD, etc.) that is connected through USB, all commands are disabled, other than
Power (ka), Key (mc). If a command cannot be used in a specific menu or input
state, it is processed as NG.
62
Serial Communication Function
01. Power (Command: ka)
02. Aspect Ratio (Command: kc)
⇒ Powers the set on/off.
Transmission
⇒ Adjusts the aspect ratio.
Transmission
[k][a][][Set ID][][Data][Cr]
[k][c][][Set ID][][Data][Cr]
Data
Data
00: Power Off
01: Power On
Ack
[a][][Set ID][][OK][Data][x]
Data
00: Power Off
01: Power On
⇒ Shows the power on status.
Transmission (Only working when the
projector is turned on).
01 : 4:3
02 : 16:9
04: Zoom
06: Set by Program
09 : Original
10 - 1f: Cinema Zoom 1 - 16
Ack
[c][] [Set ID][][OK][Data][x]
Data
Transmission
[k][a][][Set ID][][FF][Cr]
01 : 4:3
02 : 16:9
04: Zoom
06: Set by Program
09 : Original
10 - 1f: Cinema Zoom 1 - 16
Ack
[a][] [Set ID][][OK][Data][x]
Data
01: Power On
* As with other functions, if data is transmitted
as ‘0xFF‘ in the above format, the current status
of each function is returned as a feedback in Ack
data.
03. Blank Image (Command: kd)
⇒ Enables/disables the blank image.
Transmission
[k][d][][Set ID][Data][Cr]
Data
00: Disables blank image (picture on)
01: Enables the blank image (picture off).
Ack
[d][][Set ID][][OK][Data][x]
Data
00: Disables blank image (picture on)
01: Enables the blank image (picture off).
Serial Communication Function
04. Contrast (Command: kg)
63
06. Color (Command: ki)
⇒A
djusts screen contrast.
Disabled when Black Mode is selected.
Transmission
⇒ Adjusts the color.
Disabled when Black Mode is selected.
Transmission
[k][g][][Set ID][][Data][Cr]
[k][i][][Set ID][][Data][Cr]
Data Min: 0H - Max: 64H
(* Transmitted in hexadecimal code)
* See the data structure.
Data Min: 0H - Max: 64H
(* Transmitted in hexadecimal code)
* See the data structure.
Ack
Ack
[g][][Set ID][][OK][Data][x]
[i][][Set ID][][OK][Data][x]
Data Min: 0H - Max: 64H
Data Min: 0H - Max: 64H
05. Brightness (Command: kh)
07. Tint (Command: kj)
⇒ Adjusts screen brightness.
Disabled when Black Mode is selected.
Transmission
⇒ Adjusts the tint.
Disabled when Black Mode is selected.
Transmission
[k][h][][Set ID][][Data][Cr]
[k][j][][Set ID][][Data][Cr]
Data Min: 0H - Max: 64H
(* Transmitted in hexadecimal code)
* See the data structure.
Data Red: 0H - Green: 64H
(* Transmitted in hexadecimal code)
* See the data structure.
Ack
Ack
[h][] [Set ID][][OK][Data][x]
[j][][Set ID][][OK][Data][x]
Data Min: 0H - Max: 64H
Data Red: 0H - Green: 64H
64
Serial Communication Function
08. Sharpness (Command: kk)
⇒ Adjusts the sharpness.
Disabled when Black Mode is selected.
Transmission
[k][k][][Set ID][][Data][Cr]
Data Min: 0H - Max: 32H
(* Transmitted in hexadecimal code)
* See the data structure.
Ack
10. Key Lock (Command: km)
⇒ To Set the function of locking the remote
control and front panel control on the
projector.
Transmission
[k][m][][Set ID][][Data][Cr]
Data
Ack
[k][][Set ID][][OK][Data][x]
Data Min: 0H - Max: 32H
00 : Disables the key lock.
01 : Enables the key lock.
[m][] [Set ID][][OK][Data][x]
Data
00 : Disables the key lock.
01 : Enables the key lock.
* This function is configured when the keys on
theremote control or control panel are not
used. If the unit is fully discharged after its
power plugis pulled out of a wall outlet, the
LOCK function is cleared.
* If the unit is in the key lock standby mode, the
projector will not respond to the power button
on the remote control or control panel..
09. OSD Control (Command: kl)
⇒ Selects OSD On/Off.
Transmission
[k][l][][Set ID][][Data][Cr]
Data
Ack
00: OSD selection mode off
01: OSD selection mode on
[l][][Set ID][][OK][Data][x]
Data
00: OSD selection mode off
01: OSD selection mode on
11. Color Temperature (Command: ku)
⇒ Adjusts the color temperature value.
Disabled when Black Mode is selected.
Transmission
[k][u][][Set ID][][Data][Cr]
Data
00: Medium
01: Cool
02: Warm
04: Natural
(* Transmitted in hexadecimal code)
*Data 03 is not used.
Ack
[u][][Set ID][][OK][Data][x]
Data
00: Medium
02: Warm
01: Cool
04: Natural
Serial Communication Function
12. Black Level (Command: nm)
65
14. Auto Configure (Command: ju)
⇒ Adjusts the black level value. Disabled
when Black Mode is selected.
Transmission
⇒O
ptimizes the screen automatically in
PC input mode.
Transmission
[n][m][][Set ID][][Data][Cr]
[j][u][][Set ID][][Data][Cr]
Data 00: Low
01: High
(* Transmitted in hexadecimal code)
Data 01: To set
(* Transmitted in hexadecimal code)
Ack
Ack
[m][][Set ID][][OK][Data][x]
[u][] [Set ID][][OK][Data][x]
Data 00: Low
Data 01: To set
01: High
13. Energy Saving (Command: np)
15. Input (Command: xb)
⇒ Sets energy saving mode.
Transmission
⇒ Select the input signal of the set.
Transmission
[n][p][][Set ID][][Data][Cr]
[x][b][][Set ID][][Data][Cr]
Data
[p][] [Set ID][][OK][Data][x]
Data 20: External input
40: Component 1
41: Component 2
60: RGB 1
61: RGB 2
90: HDMI
(* Transmitted in hexadecimal code)
Data
Ack
00: Minimum
01: Maximum
(* Transmitted in hexadecimal code)
Ack
00: Minimum
01: Maximum
[b][] [Set ID][][OK][Data][x]
Data 20: External input
40: Component 1
41: Component 2
60: RGB 1
61: RGB 2
90: HDMI
(* Transmitted in hexadecimal code)
66
Serial Communication Function
16. Key (Command: mc)
⇒ Sends a key code of the IR remote
control.
Transmission
[m][c][][Set ID][][Data][Cr]
Data Key Code: see 67 page .
(* Transmitted in hexadecimal code)
18. Mute (Command: ke)
⇒ Enables/disables the mute function.
Transmission
[k][e][][Set ID][][Data][Cr]
Data 00 : Turns on the mute function
(volume off).
01 : Turns off the mute function (volume on).
Ack
Ack
[c][] [Set ID][][OK][Data][x]
[e][] [Set ID][][OK][Data][x]
Data Key Code
Data 00 : Turns on the mute function
(volume off).
01 : Turns off the mute function (volume on).
19. Volume (Command: kf)
17. Picture Mode (Command: ns)
⇒ Sets the picture mode.
Transmission
[n][s][][Set ID][][Data][Cr]
Data 00: Vivid
01: Standard
02: ECO
03: Cinema
04: Game
05: Expert 1
06: Expert 2
07: Black Mode
(* Transmitted in hexadecimal code)
Ack
[s][] [Set ID][][OK][Data][x]
Data 00: Vivid
01: Standard
02: ECO
03: Cinema
04: Game
05: Expert 1
06: Expert 2
07: Black Mode
(* Transmitted in hexadecimal code)
⇒ Adjusts the volume.
Transmission
[k][f][][Set ID][][Data][Cr]
Data Min: 0H - Max: 64H
(* Transmitted in hexadecimal code)
* See the data structure.
Ack
[f][] [Set ID][][OK][Data][x]
Data Min : 0H(Vol 0) - Max : 64H(Vol 100)
20. Monitor Out (Command: nr)
⇒ Select either RGB1 or RGB2 input as an
output of the RGB OUT port.
Transmission
[n][r][][Set ID][][Data][Cr]
Data 00 : RGB 1 01 : RGB 2
02: Auto
Ack
[r][] [Set ID][][OK][Data][x]
Data 00 : RGB 1 01 : RGB 2
02: Auto
Serial Communication Function
Key Code
Key Name
Key Code
Key Name
Key Code
︿
0x40
YELLOW
0x63
﹀
0x41
BLUE
0x61
﹀
0x06
Key's
0xA4
︿
0x07
USB
0x7C
POWER
0xAD
MUTE
0x09
INPUT
0xEF
STILL
0xBC
SETTINGS
0x43
EXIT
0x5B
0x28
0xB1
OK ꔉ
0x44
0xB0
MARK
ENERGY SAVING
0x95
RATIO
0x79
BLANK
0x84
0x4D
AUTO
0x92
SOUND
TIMER
PAGE
︿
Q.MENU
0x45
PAGE ﹀
SLEEP
0x0E
SOUND
0x52
VOL +
0x02
VOL -
0x03
BACK
RED
GREEN
SETTINGS
0x72
0x71
MARK
SOUND
MARK
SOUND
SOUND
TIMER
SETTINGS
SETTINGS
SETTINGS
SETTINGS
MARK
SOUND
TIMER
TIMER
0xBA
0x8F
MARK
TIMER
0x8E
0x26
TIMER
0x00
0x01
67
68
SPECIFICATIONS
SPECIFICATIONS
MODELS
Resolution (pixels)
Aspect ratio
Panel size (mm)
Projection distance
(video size)
Ratio of upward
projection
Remote control range
Audio output
Reception type
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
Headphone,
earphone
USB
Power sources
Operating
environment
BC775 (BC775-JD)
1024 (H) × 768 (V)
4:3 (H:V)
17.78
Wide: 1000 - 7500 mm
Tele: 1198 - 8684 mm
100 %
12 m
7 W MONO
NTSC M, NTSC 4.43, PAL-B/D/G/H/I
PAL M, PAL N, PAL 60, SECAM
148.5 (including stands)
403.3
295.5
6.2
Impedance: 16 Ω / Output power: 10 mW /
Jack thickness: 3.5 mm
5 V, 0.5 A (max.)
AC 100 to 240 V, 50 Hz / 60 Hz
Temperature
Operation
0 °C - 40 °C
Storage
-20 °C - 60 °C
Relative humidity
Operation
0 % - 80 %
Storage
0 % - 85 %
yyThe images used and specifications stated in this owner's manual are subject to
change to improve the performance of the product.
yyThe power consumption of this projector is 0.5 W or lower when in standby mode.
Therefore, unplug the power plug from the outlet to prevent unnecessary power consumption when you do not use the projector for a long time.
SPECIFICATIONS
Supported Monitor Displays
69
Supported HDMI/DVI-DTV Modes
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
640 x 350
31.468
70.09
480p
640 x 480
31.469
59.94
31.47
31.47
31.5
60
59.94
60
720 x 400
31.469
70.08
576p
31.25
50
800 x 600
37.879
60.31
1024 x 768
48.363
60.00
720p
1152 x 864
54.348
60.053
45
44.96
37.5
60
59.94
50
1280 x 800
49.7
59.81
1080i
33.75
33.72
28.125
60
59.94
50
1080p
67.5
67.432
27
26.97
33.75
33.71
56.25
60
59.939
24
23.976
30
29.97
50
1280 x 1024
63.981
60.02
1400 x 1050
65.3
60
1680 x 1050
65.3
59.95
yyIf an invalid signal is input into the
product, it is not displayed
properly on the screen or a
message, such as “No Signal” or
“Invalid Mode,” is displayed.
yyThis product supports the DDC1/2B plugand-play protocol
(auto-recognition of PC monitor).
yyPC synchronization signal types
supported: Separate synchronization type.
yy1024 x 768 is recommended for best
picture quality in PC mode.
70
SPECIFICATIONS
Component Port Connection
Signal
Component
480i/576i
o
480p/576p
o
720p/1080i
o
1080p
o
Open Source Software
Information
To obtain the source code under GPL,
LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open
source code to you on CD-ROM for a
charge covering the cost of perform­
ing such distribution (such as the cost
of media, shipping and handling) upon
email request to opensource@lge.com.
This offer is valid for three (3) years from
the date on which you purchased the
product.
The model and serial number of the projector are located on the back or on the side
of the projector. Record them below should
you ever need service.
MODEL
