LG | FJ5 | User guide | LG FJ5 User guide

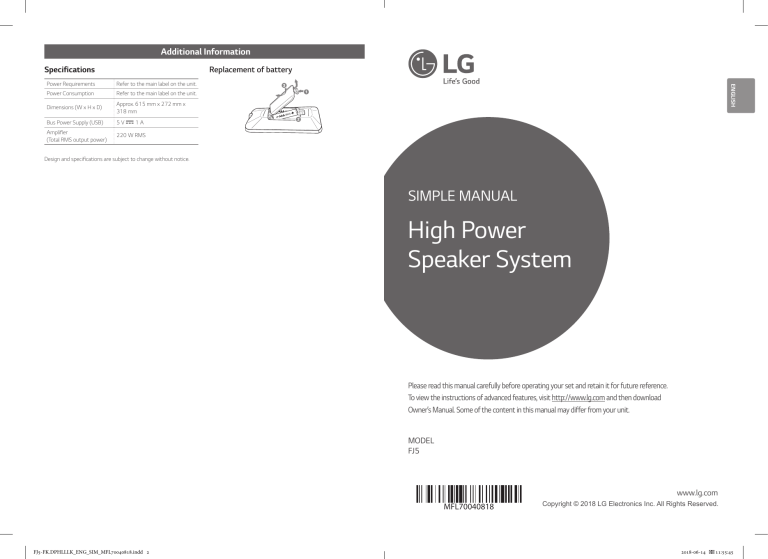

Additional Information
Specifications
Replacement of battery
Refer to the main label on the unit.
Power Consumption
Refer to the main label on the unit.
Dimensions (W x H x D)
Approx. 615 mm x 272 mm x
318 mm
Bus Power Supply (USB)
5V01A
Amplifier
(Total RMS output power)
220 W RMS
ENGLISH
Power Requirements
Design and specifications are subject to change without notice.
SIMPLE MANUAL
High Power
Speaker System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download
Owner’s Manual. Some of the content in this manual may differ from your unit.
MODEL
FJ5
www.lg.com
MFL70040818
FJ5-FK.DPHLLLK_ENG_SIM_MFL70040818.indd 2
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
2018-06-14
11:55:45
Top Panel
a
i
Front panel / Rear panel
gMASTER VOLUME/MULTI JOG
- Adjust speaker volume.
- Adjust microphone volume.
- Selects lighting mode.
- Selects VOCAL EFFECTS mode.
c
a
d
L
FM
ANTENNA
h F (Function)
Selects the function and input source.
h
b
U (Skip/Search)
- Skips forward.
- Searches for a section within a file.
- Selects the radio stations.
T (Play/Pause)
- Starts or pauses playback.
- Selects Stereo/Mono (Horizon mode only).
R
f
AC IN
AUX IN
e
b
Y (Skip/Search)
- Skips backward.
- Searches for a section within a file.
- Selects the radio stations.
c
d
e
f
g
a USB Port
You can play sound files by connecting the USB device.
WIRELESS LINK
- Selects MASTER or SLAVE on WIRELESS PARTY LINK mode.
- Enable or disable WIRELESS PARTY LINK mode.
i Display window
b 1 (Standby)
Turns the power on or off
KEY CHANGER
Changes the key to suit your vocal range.
VOICE CANCELLER
You can reduce the vocal tones during music playback from
various input sources.
ECHO/DEMO
- Selects ECHO mode.
- In power off status, if you press ECHO/DEMO, shows DEMO
mode.
a MIC (Microphone) jack
cHandle
b Remote sensor
d AC IN socket
e ANTENNA (FM)
f AUX IN (L/R)
Connect an auxiliary device.
How to place the unit
Vertical
c LIGHTING
Selects the lighting effects.
d MIC (Microphone) VOL. (Volume)
Select to adjust microphone volume.
(Adjust microphone volume by rotating
MASTER VOLUME/MULTI JOG.)
Left
Horizon
Right
e VOCAL EFFECTS
Selects VOCAL EFFECTS mode.
f BASS BLAST
Press to select BASS effect directly.
Controller App
Download the Music Flow Bluetooth App to your
device. (Android only)
FJ5-FK.DPHLLLK_ENG_SIM_MFL70040818.indd 3-4
LG Sound Sync (Wireless)
On the horizon mode, you can hear the stereo sound and on
the vertical mode, the sound transforms into a mono signal.
For more information, download the online owner’s
manual. http://www.lg.com
