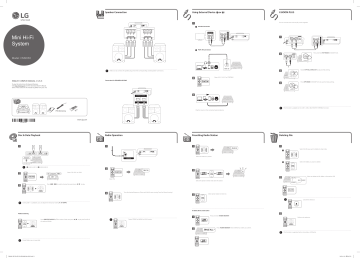

LG CM9950 Owner's manual
Speaker Connection
Using External Device ( or )
X-BOOM PLUS
a
You can connect two units to play music together.
AUX IN Connection
AUDIO OUT
Mini Hi-Fi
System
a
PORT. IN Connection
Press and hold H/P MODE (X-BOOM PLUS).
b
H/P
MODE
Model : CM9950
X-BOOM PLUS
<
,
Rotate H/P VOL./SYNC SET to adjust Delay setting.
c
Make sure to connect the speaker plugs into their corresponding colored speaker connectors.
H/P VOL. / SYNC SET
Select AUX 1, AUX 2 or PORTABLE.
b
Connection for SPEAKER LIGHTING
ENGLISH | SIMPLE MANUAL (1 of 2)
Press H/P MODE (X-BOOM PLUS) to save the Delay setting.
d
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
H/P
MODE
X-BOOM PLUS
c
z
,
Play the music on the connected external device.
FM Antenna
This function is available on CD, USB 1, USB 2, BLUETOOTH, PORTABLE Function.
www.lg.com
Disc & Data Playback
Radio Operation
Presetting Radio Station
a
a
a
Deleting File
a
FM 87.50
Select the file you want to delete in stop mode.
Select the station to preset.
Select the folder you want to delete.
,
: USB A (USB 1) /
: USB B (USB 2)
b
b
CD
USB 2
FM 87.50
Select CD, USB 1 or USB 2.
b
01
USB 1
b
Select FM.
c
Select to delete the file, folder or format the USB.
DEL FILE?
DEL FOLDER?
Select the preset number and store the station.
FORMAT?
Press C / V to select a desired song and press d/M to play.
DELETE
Tune the desired frequency. (Press and hold for auto tuning. Press for Manual tuning.)
c
,
c
Select preset station to listen to.
,
During USB 1 / 2 playback, you can adjust the tempo by rotating A / B TEMPO.
Cancel the selection.
To delete all the saved station
Folder Searching
Press PRESET.FOLDER W/S to select a folder and press d/M to play the first file of
the selected folder.
,
a
c
Perform the selection.
Select STEREO or MONO on FM Function.
b
,
Press and hold TUNER MEMORY.
ERASE ALL ?
Press TUNER MEMORY when ‘ERASE ALL?’ blinks to confirm.
,
This function is supported only in stop status. (USB only).
Empty folders are not searched.
CM9950-FS.DZAFLLK_MFL68823904_SIM1.indd 1
2015-01-30
9:07:22
Using BLUETOOTH®
Using Music Flow Bluetooth App
,
a
yy When this unit is successfully connected with your Bluetooth device, “BLUETOOTH PAIRED” will be appear on the display window.
The display will change to the Bluetooth device’s name soon after.
USER EQ
To use this unit more comfortably, install “Music Flow Bluetooth” on your Bluetooth devices. Select a way of installation (
or
).
Press USER EQ.
a
yy If the device name isn’t available on the unit, “_” will be displayed.
yy Even when this unit is connected to 3 Bluetooth devices in the Bluetooth mode, you can play and control music by using only
one of the connected devices.
b
BLUETOOTH
PAIRED
,
yy The multi pairing connection is only supported on Android or iOS devices. (Multi pairing connection may not be supported
depending on the connected device specifications.)
Music Flow Bluetooth
Search for “Music Flow Bluetooth” on the Google Play Store.
yy A removable/detachable Bluetooth device (Ex : Dongle etc.) doesn’t support multi pairing.
Rotate MASTER EQ (BASS, MIDDLE, TREBLE) to adjust the sound level.
b
BASS
Music Flow Bluetooth
yy Even when this unit is connected with multiple Bluetooth devices, only one device which is playing will keep the Bluetooth
connection, even if you change the function of the other devices.
MIDDLE
TREBLE
MASTER EQ
• If NFC connection does not work well, try again after checking the location of NFC tag in your
phone.
• Android O/S : Ver 4.1.2 (or later)
Save the setting.
c
Scan QR code.
AUTO DJ
,
LG CM9950 (XX)
• Android O/S : Ver 4.0.3 (or later)
• Refer to the guide from the “Music Flow Bluetooth” App on your smart device.
Auto DJ blends the end of one song into the beginning of another for seamless playback.
BLUETOOTH
PAIRED
LG CM9950 (XX)
Set on the Bluetooth and select “LG CM9950 (XX)” on your Bluetooth device.
AUTO DJ RANDOM
AUTO DJ SEQUENTIAL
LIGHTING MODE
,
AUTO DJ OFF
Enter the PIN code (0000) as needed.
Select a desired AUTO DJ mode.
Press LIGHTING MODE. The mode changes each time you press :
OFF → VOLCANO → POLICE → THUNDER → PSYCHE → CAOS → OFF
Play music on your Bluetooth device.
c
LIGHTING
MODE
DJ EFFECT
Press a desired DJ effect (FLANGER, PHASER, CHORUS, DELAY). To
cancel, press it again.
Only AUTO DJ SEQUENTIAL is selected when played JUKE BOX list.
Additional Feature
Mixing
a
,
Press MIX. Select a desired function for the side A and play it.
Side B is fixed as USB2 function.
a
DJ
EFFECT
FLANGER
PHASER
CHORUS
DELAY
MIXER ON
180
MIX
Rotate EFFECT LEVEL to adjust the effect level.
b
,
120
. . . 10
OFF
Move the Mix fader to adjust the sound volume of mixing sound.
b
EFFECT LEVEL
150
You can adjust DJ EFFECT sound gage level between 0 to 15. The initial level is 7.
a
FILE-XXX_001
b
,
DJ PRO
10:20
a
c
b
a
CLUB
AM 12:00
Select a desired DJ PRO mode.
10:20
0:00
FOOTBALL
AUTO
SYNC
Press a DJ Pro.Pad of desired sound.
b
,
d
c
10:20
• When using Mixing, you can synchronize the tempo of audio files being played in USB 1 and USB 2 by pressing
AUTO SYNC.
• The tempo of music being played in USB1 is synchronized to that in USB2.
• If you fully stop (USB 2) or change the function, AUTO SYNC function is cancelled.
d
e
10:20
Initial DJ Pro mode is CLUB sound effect.
CM9950-FS.DZAFLLK_MFL68823904_SIM1.indd 2
,
VOL 3
Alarm function works only after clock is set.
2015-01-30
9:07:26
JUKE BOX Playback
SHARING
You can make a playlist of your favourite tracks/files from a disc or USB device using JUKE BOX Playback.
To enjoy JUKE BOX Playback
This function allows you to share a song stored in an USB device using Music Flow Bluetooth App.
Select JUKE BOX ON in stop mode.
a
Mini Hi-Fi
System
,
DJ SHARING
JUKE BOX
ON
JUKE BOX
This function is supported only on stop status.
Make sure that Music Flow Bluetooth App is connected.
a
Play the JUKE BOX playback list.
b
To make JUKE BOX Playback list
Select CD or USB 1.
a
To stop JUKE BOX Playback
Model : CM9950
Press and hold JUKE BOX.
b
b
Select JUKE BOX OFF.
DJ
SHARING
JUKE BOX
OFF
JUKE BOX
JUKE BOX
Select a song to share.
c
Press C / V to select a track/file and press JUKE BOX. Repeat this step
to store more files.
c
To delete JUKE BOX Playback List
JUKE BOX
ENGLISH | SIMPLE MANUAL (2 of 2)
Press and hold JUKE BOX in stop status.
d
b
Press to select a track/file to delete.
,
c
Delete selected song.
a
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
The file made by DJ Sharing is saved in the ‘Bluetooth’ folder on the smart device.
DJ
SHARING
JUKE BOX
Enjoy the music on the JUKE BOX playback list.
d
,
• To delete all of the JUKE BOX playback list, remove the CD or USB device from the unit.
• A playlist of up to 100 tracks/files can be entered for CD/USB 1.
• Some functions may not work during transmission by the the App.
• Press and hold DJ SHARING to share the most recently recorded mix file. If there is no mix file, the first audio file
in USB 1 Function will be shared.
• You can transfer a file up to 512 Mbyte.
DELETE
www.lg.com
USB Recording
USB Copying
,
a
• A file is recorded by about 512 Mbyte when you record for a long term.
• When you stop recording during playback, the file that has recorded at that time will be stored.(Execpt MP3/WMA
file)
• Recording is not supported in BLUETOOTH or LG TV mode.
• For recording, only USB port(A) is available.
• Volume level will be changed between MIN to 30 during recording. (Only CD function)
• In MIXER ON mode, all functions are available to record. Mixed sound is recorded.
• Press USB REC to pause the recording. (Only Tuner, AUX, PORTABLE)
• It’ll be stored as follows. * The other source : AUX and the like.
Connect an USB device and select the function (CD, AUX, PORTABLE, Tuner) to record.
AUDIO CD
MP3/WMA
MIX
TUNER
a
USB 2
The other source*
Connect USB devices to USB ports and select USB 2.
Press USB REC to start recording. Press and hold USB REC again to stop recording.
b
USB REC
Press USB REC to start recording. Audio files in USB 2 are copied to USB 1.
b
To select bitrate and recording speed
USB REC
You can select bitrate and recording speed before recording.
,
Status (not in MIXER ON mode)
Recording (Only CD function)
Playback
One track/file
JUKE BOX playback
JUKE BOX track(s)/file(s)
Full stop
All track(s)/file(s)
,
a
USB REC
USB REC
Press and hold USB REC. Press C / V to select a bitrate and press USB REC.
Press C / V to select a recording speed and press USB REC. (Only CD
function)
b
USB REC
CM9950-FS.DZAFLLK_MFL68823905_SIM2.indd 1
Press and hold USB REC again to stop recording.
,
Status
Recording
Playback
One track/file
JUKE BOX playback
JUKE BOX track(s)/file(s)
Full stop
All track(s)/file(s)
2015-01-30
9:09:35
Auto Power On
LG Sound Sync
How to affix the Ferrite Core
LG Sound Sync enables you to control some functions of this unit by a remote control of your LG TV. Controllable functions
are volume up/down and mute. Make sure that your TV has LG Sound Sync logo as shown above.
Ferrite core may not be provided depending on each nation’s regulations.
b
a
LG TV
HELLO
TV Speaker
External Speaker
LG Sound Sync (Optical)
LG TV
PAIRED
LG TV
a
Pull the stopper [a] of the ferrite core to open.
b
Wind R SPEAKERS cables, L SPEAKERS cables and SPEAKER LIGHITNG cables around the ferrite core once.
c
Close the ferrite core until it clicks.
LG Sound Sync (Wireless)
Select LG TV function.
Set up the sound output of your TV : TV setting menu [ [Sound] [ [TV Sound output] [ [LG Sound Sync (Wireless)]
This unit automatically turns on by an input source : LG TV or Bluetooth
If you have already paired with this unit, automatically this unit can turn on by an input source when this unit is turned off.
,
Auto Function Change
• For specific information of operating, refer to the instruction manual of your TV.
• If the connection fails, check the conditions of this unit and your TV : power, function.
• The amount of time to turn off this unit is different depending on your TV.
Auto play
If you press d/M on the unit when a CD or USB is inserted, the function is changed and music is played automatically.
This unit recognizes input signals such as Bluetooth and LG TV and then changes suitable function automatically.
Additional Information
Specification
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ENGLISH
Music File Requirement
Sampling frequency
yy MP3 : 32 - 48 kHz
yy WMA : 32 - 48 kHz
yy MP3 : 32 - 320 kbps
yy WMA : 40 - 192 kbps
Bit rate
Maximum files
Data CD : 999 / USB : 2000
Maximum folders
Data CD : 99 / USB : 200
File extensions
yy “.mp3”
yy “.wma”
Power Requirements
Refer to the main label on the unit.
Refer to the main label on the unit.
Power Consumption
Networked standby : 0.4 W
(If all network ports are activated.)
Bus Power Supply (USB)
5 V 0 500 mA
Total Output
4400 W
Design and specifications are subject to change without notice.
How to disconnect the wireless network connection or the wireless device
Turn off the unit by pressing the power button for more than 5 seconds.
This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of uninsulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION: The apparatus shall not be exposed to water (dripping
or splashing) and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
WARNING: Do not install this equipment in a confined space such
as a book case or similar unit.
CD-ROM file format
ISO9660+JOLIET
CAUTION: Do not use high voltage products around this product
(ex. Electrical swatter). This product may malfunction due to
electrical shock.
USB Flash Drive
Devices that support USB2.0 or USB1.1.
CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect it from
over heating. The openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar surface. This product
shall not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
Bluetooth
,
•
•
•
•
Codec
SBC
The USB function of this unit does not support all USB devices.
Using NTFS file system is not supported. (Only FAT(16/ 32) file system is supported.)
External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
The DTS is not supported. In case of DTS audio format, audio is not output.
CM9950-FS.DZAFLLK_MFL68823905_SIM2.indd 2
CAUTION: This product employs a
Laser System.To ensure proper use
of this product, please read this
owner’s manual carefully and retain
it for future reference. Shall the unit
require maintenance, contact an
authorized service center.
Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous radiation
exposure. To prevent direct exposure to laser beam, do not try to
open the enclosure.
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case of an
emergency, the Power Plug must remain readily accessible.
This device is equipped with a portable battery or accumulator.
Safety way to remove the battery or the battery from the
equipment: Remove the old battery or battery pack, follow the
steps in reverse order than the assembly. To prevent contamination
of the environment and bring on possible threat to human
and animal health, the old battery or the battery put it in the
appropriate container at designated collection points. Do not
dispose of batteries or battery together with other waste. It is
recommended that you use local, free reimbursement systems
batteries and accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
Grounding
(Except for devices which are not grounded.) Ensure that you
connect the earth ground wire to prevent possible electric shock
(i.e. a Audio with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified electrician install
a separate circuit breaker. Do not try to ground the unit by
connecting it to telephone wires, lightening rods, or gas pipes.
2015-01-30
9:09:38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
