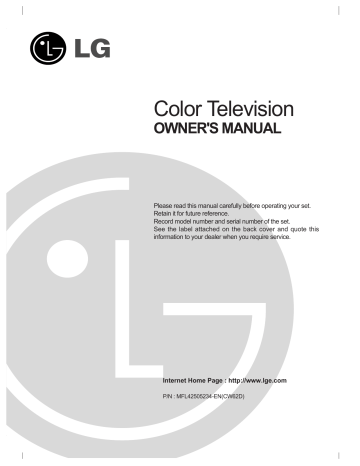

Color Television
OWNER'S MANUAL
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote this
information to your dealer when you require service.
Internet Home Page : http://www.lge.com
P/N : MFL42505234-EN(CW62D)
Safety Precautions
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Slots and openings in the cabinet and the back or
Cleaning
bottom are provided for ventilation, and to insure
Unplug this television receiver from the wall outlet
reliable operation of the television receiver, and to
before cleaning. Do not use liquid cleaners or
protect it from overheating. These openings must
aerosol cleaners. Use a damp cloth for cleaning.
not be blocked or covered. The openings should
Do not use attachments not recommended by the
never be blocked by placing the television receiver
television receiver manufacturer as they may
on a bed, sofa, rug, or other similar surface. This
cause hazards.
television receiver should not be placed in a builtPower Supply
in installation such as a bookcase unless proper
This television receiver should be operated only
ventilation is provided.
from the type of power source indicated on the
It is recommended not to operate this unit near
marking label. If you are not sure of the type of
speakers or big metallic furnitures in order to keep
power supplied to your home, consult your
their magnetism from disturbing colors purity
television dealer or local power company.
(uniformity) on the screen.
Press the POWER button on the front panel or
Wet Location Marking:
side panel to turn off the TV when the TV set is
Apparatus shall not be exposed to dripping or
not being used for a long time.It is recommended
splashing and no objects filled with liquids, such
to remove the plug from the wall outlet (Power point)
as vases, shall be placed on the apparatus.
Disconnecting device from mains
Mains plug is the disconnecting device. The plug
Use
must remain readily operable.
Do not allow anything to rest on the power cord.
Do not locate this television receiver where the
Installation
cord will be abused by persons walking on it.
Do not use this television receiver near water, for
Do not overload wall outlets and extension cords
example, near a bathtub, washbowl, kitchen sink,
as this can result in fire or electric shock.
or laundry tub, in a wet basement, or near a swimNever push objects of any kind into this television
ming pool, etc.
receiver through cabinet slots as they may touch
Do not place this television receiver on an
dangerous voltage points or short out parts that
unstable cart, stand, or table. The television
could result in a fire or electric shock.
receiver may fall, causing serious injury to a child
Never spill liquid of any kind on the television
or an adult, and serious damage to the appliance.
receiver.
Use only with a cart or stand recommended by the
Service
manufacturer, or sold with the television receiver.
Do not attempt to service this television yourself
Wall or shelf mounting should follow the manuas opening or removing covers may expose you
facturer's instructions and should use a mounting
to dangerous voltage or other hazards. Refer all
kit approved by the manufacturer.
servicing to qualified personnel.
Date of Purchase
Writing Model And Serial Numbers
Dealer Purchased from
The serial number and model number are found
Dealer Address
on the back of this unit. The serial number is
Dealer Phone No.
unique to this unit. You should record requested
Model No.
information here and retain this guide as a
Serial No.
permanent record of your purchase. Please retain
your purchase receipt as your proof of purchase.
CONTENTS
Description of controls............................3
On screen menus.....................................4
Basic TV operation ..................................5
Various function ......................................6
Picture control .........................................7
Sound control ..........................................7
USB Mode.................................................8
Closed caption function........................13
PIP function (some models)..................14
Connection of external equipment
(some models)........................................14
Troubleshooting check list....................16
2
Description of controls
• To recall the current TV mode (by remote
control only).
8. MENU BUTTON
To display on-screen or exit from USB mode.
* Other local key is not available in USB mode.
9. TV/VIDEO BUTTON
To select TV, VIDEO or COMPONENT mode.
10. MEMORY/ERASE BUTTON (some models)
To memorize or erase the desired channel.
11. CAPTION BUTTON (some models)
To select the CAPTION mode.
Refer to "Closed caption function".
12. FCR (Favorite Channel Review) BUTTON
To select the favorite channel.
Refer to "Favorite channel memory".
13. USB BUTTON
Enter into or exit from USB mode.
14. : No function.
1
2
3
4
9
10
11
5
6
12
7
8
Description of controls (front panel)
13
STAND BY INDICATOR
Illuminates red when the TV is in standby
mode. Refer to "Turning on/off the TV".
REMOTE CONTROL SENSOR
14
1. POWER BUTTON (or ON/OFF )
Refer to "Turning on/off the TV".
2. SLEEP BUTTON
To set the desired sleep time.
3. A. PRGO (Auto program) BUTTON
To memorize channels by AUTO PROGRAM.
4. MTS BUTTON (some models)
To listen to the MTS sound.
5. NUMBER BUTTONS
To select the desired channel directly.
USB SELECT BUTTONS
To operate USB function.
6. MUTE BUTTON
To mute the sound. Again to restore the muted
sound.
7. CH UP/DOWN (D / E) BUTTONS
• To select the desired channel.
• To select the desired menu item when menu
is displayed on the screen.
VOLUME UP/DOWN (F / G) BUTTONS
• To increase or decrease volume level.
• To enter or adjust the selected menu when
menu is displayed on the screen.
ENTER (A) BUTTON
• To exit from the displayed menu.
• To memorize the adjusted menu.
Fitting Batteries in the Remote Control Unit
The remote control is powered by batteries. This
requires AAA type batteries for operation. To
ensure consistent operation, change the batteries
about once a year.
Caution : Batteries installed incorrectly may leak
and damage the remote control.
1. Remove the battery compartment cover by
sliding it in the arrowhead direction.
2. Insert new batteries as indicated by the polarity
markings (+ and -) inside the compartment.
3. Replace the battery compartment cover.
or
3
On screen menus
select a menu item.
3.Press the G button to display the sub menu or
the pull-down menu.
4.Change the setting of an item in the sub or pulldown menu withF / G or D / E.You can move to
the higher level menu with ENTER (A) or F
button and to move to the lower level menu
press the G button.
The dialogue between you and your set takes place
on screen with an operator menu .The buttons
required for the operating steps are also displayed.
Menu selection
1.Press the MENU button and then D / E button to
display each menu.
2.Press the G button and then D / E button to
Channel
Manual program
+
CH.
Auto+program
{
Manual program
{
Favorite+channel++ {
Auto+demo+
++++{
Channel
Memory
Fine
Ch.+name
Move++Next { Exit}
+
+
{
{
{
{
Move++Next { Back}
+
+
Channel
CH. APC
++{
XD
{
Contrast
{
Brightness
+{
Color ++++++++{
Sharpness
+{
Tint
+{
CH.
Auto+program
{
Manual program {
Favorite++channel
channel++{
{
Favorite
Auto+demo+
+{
++++++
Move++Next { Back}
+
+
Move++Next { Back}
+
Sound
CH.
DASP
Turbo+Sound
AVL
Balance
++{
{
{
{
Move++Next { Back}
+
+
Timer
CH.
Clock
Off_timer
On+_timer
Auto+_off+
{
{
{
{
Move++Next { Back}
+
+
Special
CH. Language
Input
Key+lock
Caption+
Degauss
Game
{
{
{
{
{
{
Move++Next+{+Exit}
TV programme
4
+
CATV++95
_____
_____
_____
_____
_____
_____
_____
Basic TV operation
Before operating your TV, make sure the following
instructions have been completed.
• Your TV has been connected to an antenna or a
cable system.
• Your TV has been plugged in a power outlet.
• In this manual, the OSD (On Screen Display)
may be different from your TV’s because it is just
an example to help you with the TV operation.
Notes :
• If the programmed signal has poor quality,
memorize again in the Auto program.
• AUTO PROGRAM stores all receivable channels
regardless of receiving signal (RF, Cable).
• If channels of general wireless TV and cable TV
are duplicated, press the number buttons (0 ~ 9)
to change as .
Turning on/off the TV
Press the POWER (or ON/OFF) button on
the set. At this time, the set switches to
standby mode and the standby indicator
lights up in red.
To switch the TV on from standby mode,
press the TV/VIDEO, CH D / E button on
the set or POWER, TV/VIDEO, CH D / E or
number button on the remote control.
A channel number will be displayed on the
screen. The on-screen display will disappear
after a few seconds.
Press the POWER button on the remote
control. It reverts to standby mode.
To switch the TV off, press the POWER
button on the set.
Selecting the on screen language
1. Press the MENU button and then D / E button
until the menu is displayed as shown right.
2. Press the G and then D / E button to select
Language.
3. Press the G and then use D / E button to
select the desired language.
From this point on, the on-screen display will be
presented in the language of your choice.
4. Press the MENU button to exit.
Memorizing Channels
This is the function to memorize all the active
channels in your area before you can use the TV.
There are two ways of memorizing channels. You
can use either.
One is called AUTO PROGRAM and the other is
called MANUAL PROGRAM.
In AUTO PROGRAM the TV will memorize the
channels in ascending order. If there are
additional channels you want to add or delete, you
can manually add or delete those channels.
Memorizing the Channels by AUTO
PROGRAM
AUTO PROGRAM searches and memorizes all
the active channels in your area then you can
select the desired channel with the D / E buttons.
Using the A.PROG button
You can conveniently perform AUTO PROGRAM
using the A.PROG button on the remote control.
1. Press the A.PROG button.
2. Press the G or A.PROG button.The AUTO
PROGRAM starts now.
If you want to stop auto programming, press the
ENTER (A) button.
Only the channels searched up to that time are
memorized.
Channels of general
wireless TV
Channels of
Cable TV
Using the MENU button
1. Press the MENU button and then use D / E
button to select the channel menu.
2. Press the G and then D / E button to select
Auto program.
3. Press the G button to enter the Auto program
mode.
4. The AUTO PROGRAM starts now.
Memorizing the Channels by
MANUAL PROGRAM
Using the MEMORY/ERASE button
You can conveniently perform MANUAL
PROGRAM using the MEMORY / ERASE button
on the remote control.
1. Press the D / E or NUMBER buttons to select
the channel number you want to memorize or
erase.
2. Press the MEMORY/ERASE button to select
Memory or Erase.
The on screen display appears as shown right.
Selecting the Channel
Press the D / E button to conveniently select the
upper or lower channel then the channel being
viewed, or NUMBER buttons to directly select the
desired channel.
Adjusting the Volume
Press the G button to increase the volume level or
F button to decrease the volume level.
To mute the sound, Press the MUTE button.
It's convenient when you get the telephone calls.
To restore the muted sound, press the MUTE
button again or VOL F / G button.
5
Various function
the color may not be equal in the corner. You can
enjoy the program in high color quality by
operating the Degauss.
Setting the Clock
Before setting the on/off timer, first you should set
the current time.
Notes:
•Do not operate this function often because the
lifetime of CPT may be shorten.
•If you cannot adjust the screen condition by
degaussing, try it again after about 4 minutes.
Setting the OFF TIMER
This is the function to automatically switch the TV
to standby mode at a preset time.
Note:If the same time is set for the on time and off
time, only the off time operates.
Key Lock
Setting the ON TIMER
The TV can be set so that the remote control is
needed to control it.This feature can be used to
prevent unauthorized viewing.
This is the function to automatically turn the TV on
at a preset time and channel.
Notes:
•If you don’t press any button within 2 hours after
turning on the TV set by ON TIMER function, the
set will be automatically switched back to standby
mode.
•TV must be in standby mode for the On timer to
work.
Notes :
•With the key lock on, the display Key lock
appears on the screen if any button on the front
panel is pressed while viewing the TV.
•This programmed to remember which option it
was last set to even if you switch the TV from
standby mode.
Setting the Sleep Time
Game (some models)
You don't have to remember to switch the TV to
standby mode before you go to sleep. The sleep
timer automatically turns the TV off after the
preset time elapses.
Press the SLEEP button to select the desired
sleep time.
Each time you press this button, the sleep time is
displayed one by one as shown below. The timer
begins to count down from the number of minutes
selected.
---→10 →20→30 →60 →90 →120→180→240
You can enjoy the TV game with this set.
Adjusting the Fine
This function is to adjust the picture if poor signal
received from broadcasters causing horizontal
stripe, twisted picture, no color, and/or noise.
1. Press the MENU button and then D / E button
the until the menu is displayed as shown right.
2. Press the G and then D / E button to select
Manual..
3. Press the G and then D/ E button to select Fine.
4. Press the G button to enter the Fine mode.
5. Press the F / G button to tune the desired
picture condition.
6. Press the ENTER (A) button to memorize.
7. Repeatedly press the MENU button to exit.
Notes:
•After a few seconds, the desired sleep time will
disappear and be operated automatically.
•To view the remaining sleep time, press the
SLEEP button once and the remaining sleep time
will be displayed.
•To cancel the sleep time, select the Sleep --mode by using the SLEEP button.
Notes : • To release the memorized fine tuning,
program again the fine-tuned channel by AUTO
PROGRAM or MANUAL PROGRAM.
•If the finely tuned channel is memorized, the color
of the channel number changes to yellow.
Auto Off
Favorite channel memory
If there is no input signal, the TV is switched to
standby mode automatically in 10 minutes.
Favorite channel memory is a convenient feature
that lets you quickly scan up to five channels of
your choice without having to wait for the TV to
scan through all the in-between channels.
Operating the degauss (some
models)
Auto Demonstration
In this TV set the magnetic field of the earth may
influence on the color purity of picture by neighbor
magnetic substance or installation direction of the
TV set. The stripes may appear on the screen or
Auto demo allows you to review all the menus
available on the TV set.
6
Picture control
You can select picture modes programmed at
factory as you prefer.
Sharpness, Tint) of the screen as you like. If the
picture you set is not satisfactory, you can select a
factory preset picture. In the broadcasting system
PAL-M/N, the picture item Tint is not displayed.
Using the APC button
XD (some models)
1. Press the APC button.
2. Press the APC button to select Clear,
Optimum, Soft or User.
3. Press the ENTER(A) button to exit.
XD is LG Electronic’s unique picture improving
technology to display a real HD source through an
advanced digital signal processing algorithm.
Auto Picture Control
Note : When selecting APC options (Clear,
Optimum and Soft), XD is automatically
change to On.
Adjusting the Picture
This is the function to manually adjust the desired
picture levels (Contrast, Brightness, Color,
Sound control
Enjoying the Stereo/SAP Broadcast
even if you change channels.
This TV set can receive MTS stereo programs and
any SAP (Secondary Audio Program) that
accompanies the stereo program, as the system to
be transmitted one additional sound signal as well
as the original one. MTS function doesn't operate
in the video mode.
X-WAVE (some models)
Note:
1. If the reception is poor or weak, select a
different frequency.
2. For best results, there should be no more that
19ft between the TV and FM Receiver.
3. In certian areas, the FM transmitter ability may
be weak, such as near a broadcast tower.
4. The reception sensitivity may depend on the
kinds of receiver (FM radio).
Using the MTS Button
1. Press the MTS button to select your desired
MTS mode.
Each time you press this button, the MONO,
STEREO or SAP mode appears in turn.
2. Press the ENTER (A) button to exit.
Turbo Sound (some models)
Notes:
• Stereo or SAP can only be received if the TV
station transmits those signals, even though you
have selected STEREO or SAP.
• Mono sound is automatically received if the
broadcast is only in Mono; even though STEREO
or SAP has been selected.
• Select MONO if you want to listen to mono
sound in remote fringe areas during stereo/SAP
broadcasting.
With this function sound will be more
emphasized and amplified than normal sound.
You can enjoy the Turbo sound so much better
than normal sound.
Auto Sound Control
You can enjoy the best sound without any special
adjustment because this TV set automatically
adjusts the sound appropriate to viewing program
character by self-intelligence.
AVL (Auto Volume Leveler)
AVL automatically keeps on an equal volume level
7
USB MODE
Notes :
• Don’t extract the USB device while operating.
Music files (MP3), image files (JPG) AVI files and
Game files(SMF) can be played.
• USB HUB connection is not available.
• Recommended USB device and file system.
- Connecting USB device should comply with
USB 2.0 specifications.
- Compatible with : FAT16, FAT32 (Recommend
FAT32 for USB over 2GB).
- Only use USB memory stick recommended.
• Devices which require additional program
installation may cause identification or data
reading problem.
• In case of a USB HDD, make sure to connect an
auxiliary power to the USB HDD for proper
operation. 1 primary partitions of a drive is
supported. If there is an extension partition, it will
not be supported.
• Digital cameras and mobile phones are not
supported.
• Unsupported or damaged AVI, JPG,MP3 or
SMF files can cause errors. Do not try to change
the file extension of unsupported file types to the
file extension of supported file types.
• This device codec is hardware codec so the
supportable file format and codec can not be
updated by firmware upgrade.
• Entry into USB mode can be activated or deactivated by USB key on the remote controller.
• If you make entry back into USB mode after
switching to RF while playing USB media, music
and movie will be paused. For play, press GII
key to continue to play.
• TIMEOUT function : If there is no IR Input from
remote controller for about 4 hours after entry to
USB mode, all operations being played stop and
will be switched and fixed to USB main menu.
• Customers should note that permission is
required in order to download MP3 or movie files
from internet. Our company has no right to grant
such permission.Permission should always be
sought from the copyright owner.
USB
?
??
??
???
?
??
??
???
??
??
??
??
?@@??
?3@??
?S5??
?.Y???
??
??
• Connecting USB device
1. Connect USB device to USB slot which is on
the slide of the TV set.
2. Press USB key on the remote or select USB in
main menu special mode.
• Removing the USB device from TV
1. Return to main menu and press STOP(A/ESC)
twice.
2. Remove the USB device from TV.
USB
- When you plug a USB or press
the USB button, the below
screens will be displayed.
• Enter into USB mode
1. Press “USB” key on remote control.
2. Select “USB” on the main menu special mode.
• Exit from USB mode
1. Press “USB or MENU” key on remote control in
USB mode.
2. Press local key “MENU” in USB mode.
Special
CH.
Language
Input
Key+lock
Caption+
Degauss
USB
{
{
{
{
{
{
ON
Move++Next+{+Exit}
8
SYSTEM SETUP
Select the OSD Language
Select the S/W Version
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/E button to select the SYSTEM SETUP.
4. Press the G and then use D /E button to select
OSD LANGUAGE..
- Show the S/W Version.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/E button to select the SYSTEM SETUP.
4. Press the G and then use D / E button to select
S/W VERSION.
5. Press the G.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu. Press
the Menu button to return to the TV menu.
- The menus can be shown on the screen in the
selected language. First select your language.
SYSTEM+SETUP
ENGLISH
OSD+LANGUAGE
ESPAÑOL
S/W+VERSION
PORTUGUES
DEFAULT
ENTER
Select the Default
- Use the Default option to initialize the adjusted settings.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/E button to select the SYSTEM SETUP.
4. Press the G and then use D / E button to
select DEFAULT.
5. Press the G.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu. Press
the Menu button to return to the TV menu.
/ESC
5. Press the G and then use D / E button to
select the desired language.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu. Press
the Menu button to return to the TV menu.
PHOTO SETUP
Select the Effect
5. Press the G and then use D / E button to
select the Frequency.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu.
-The picture display effect for the slide show.
-The playing mode of some files format is from
top to button.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2..Press the ENTER button to enter the Setup menu.
3. Press the D/ E button to select the PHOTO SETUP.
4. Press the G and then use D / E button to
select EFFECT.
Select the Music
- You can turn on or off the background music
when playing the photograph mode.
-The background music is from USB memory.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/ E button to select the PHOTO SETUP.
4. Press the G and then use D / E button to
select MUSIC.
5. Press the G and then use D / E button to
select ON or OFF.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu.
PHOTO+SETUP
EFFECT
FREQUENCY
MUSIC
PLAY+MODE
ENTER
RANDOM
WIPE+BOTTOM
WIPE+LEFT
WIPE+RIGHT
LEFT+TOP
/ESC
Select the Play Mode
5. Press the G and then use D / E button to
select the desired Effect.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu.
-You can select your desired playback mode in
the slide shows.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/ E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select
PLAY MODE.
5. Press the G and then use D / E button to
select NORMAL or RANDOM.
6. Press the USB button to exit or press the
A/ESC button to return to the USB menu.
Select the Frequency
-The picture display interval for the slide show.
1. Press the USB button and then use D / E / F / G
button to select the Setup.
2. Press the ENTER button to enter the Setup menu.
3. Press the D/ E button to select the PHOTO SETUP.
4. Press the G and then use D /E button to select
FREQUENCY.
9
MOVIE Media
FORMAT"OSD will be displayed in the file list menu.
-If sound codec is not supportable, Video may display
but "UNSUPPORTED FORMAT" OSD will be
displayed with no sound.
-If sound has no data stream,"NO SOUND"OSD will
be displayed on the screen.
-If the number of the screen frame is over 30 per 1
second, this device may not operate normally.
• Supportable Subtitle format: srt, sri, smi, txt, ssa, ass,
sub, psb
• Supportable movie file extension: “.DAT”, “.AVI”,
“.MP4”, “.MPG”
• Supportable video codecs: MPEG1(VCD 1.0, 1.1,
2.0, SVCD), MPEG4 ASP or Compatible codecs
Select the MOVIE, MUSIC, PHOTO
or GAME(option) Media
- When you plug a USB or press the USB button,
1. Press F / G button to select Movie, Music or Photo.
2. Press the ENTER button to enter the Movie,
Music or Photo media.
3. Press the USB button to exit.
Movie File Playing Operation
1. Press the USB button and then use D / E / F / G
button to select the Movie.
2. Press the ENTER button.
[K_OTHERS]
K_OTHERS
J_SUBT
I_CONT
H_VIDE_1
OTH_01_1.AVI
OTH_02_1.AVI
VOL.-
VOL.+
1
2
4
6
To increase or decrease volume level for the Movie.
Press the
Press the
4
6
button to jump previous Movie.
button to jump next Movie.
/ESC
ENTER
5
Stop movie playing or move to the movie file list menu.
8
Still screen is displayed. (When playing movie)
Play movie in sequence (at movie list)
/ESC
3. Press the D / E / F / G button to select folder and
desired movie file.
4. Press the GII (alternative play)or ENTER
(single play) button. Then the movie starts.
5. Press the USB button to exit or press the A/ESC
button to stop or return to the USB main menu.
9
7
Using the remote control
ENTER
Notes:
• Movie (AVI)file compatibility with this player is limited
as follows :
-Available resolution of AVI file is under 720x480
(576)pixel.
-If video codec is not supportable, "UNSUPPORTED
SELECT
0
Press the
Press the
7
9
button to rewind.
button to fast forward.
Show the Information of movie. (when playing movie)
Play movie selected by cursor. (at movie list)
ON/OFF or Select subtitle
MUSIC Media
MP3 File Playing Operation
Using the remote control
- Purchased MP3/music files may contain
copyright restrictions.
1. Press the USB button and then use D / E / F / G
button to select the Music.
2. Press the ENTER button.
3. Press the D/ E/ F / Gbutton to select folder and
desired music file.
4. Press the GII (alternative play)or ENTER (single
play) button. Then the music starts.
5. Press the USB button to exit or press the A/ESC
button to stop or return to the USB menu.
VOL.-
VOL.+
1
2
To increase or decrease volume level for the Music.
4
6
Press the 4 button to jump previous Movie.
Press the 6 button to jump next Movie.
9
7
[G_AUDIO]
AUD_1A.MP3
AUD_1B.MP3
AUD_1C.MP3
AUD_3A.MP3
AUD_3B.MP3
G_AUDIO
D_FILE
Moved the Folders in menu. (at music list)
Stop playing music. (when playing music)
/ESC
5
8
ENTER
ENTER
/ESC
10
Press the
Press the
7
9
button to jump backforward.
button to jump forward.
To pause playback.(when playing music)
Play music in sequence (at music list)
Play music selected by cursor.
MUSIC Media
certain technical standards (ISO/IEC
111723,ISO/IEC 13818-3.2)in order to achieve
optimal playback quality.
• There are many different types of MP3 encoders
and these require certain pre-existing conditions
above to ensure compatible playback.
• The navigation key can be shifted only up and
down during MP3 file play and cannot switch to
other folder.
• In order to play a file in other folder, stop the file
being played, and move cursor to another folder.
• In case of VBR (Variable Bit Rate) MP3, estimated
playing time may not correct as actual playing.
Using the remote control
Notes :
• MP3 compatibility with this player is limited as follows:
- Sampling frequency :within 8 -48 KHz
- Bit rate :32 -384 Kbps, Support all variable bit rates
- TV can not read an MP3 file that has a file
extension other than “.mp3’
- File name should have a maximum of 8 letters
and must incorporate an .mp3 extension.
- Total number of files on the USB memory device
should be less than 1200.
• This TV mp3 player requires mp3 files to meet
PHOTO Media
JPEG File Viewing Options
Using the remote control
- When you select Photo in entry menu, you will now
see a screen filled with thumbnail photo media.
1. Press the USB button and then use D / E / F / G
button to select the Photo.
2. Press the ENTER button.
3. Press the D / E / F / G button to select photo file.
4. Press the ENTER button for 1 picture display
and press 8 for slide show.
5. Press the USB button to exit or press the A/ESC
button to stop slide show or return to thumbnail
file list, USB main menu.
VOL.-
VOL.+
1
2
4
/ESC
K_REA_1.JPG+81K+720x576
2.+A_NLTM_1[154K]
5.+A_NLTM_1[154K]
ENTER
3.+B_RED[43K]
6.+B_RED[43K]
/ESC
Still picture
CH
VOL
These keys (FF&RW) are not available in photo mode.
To enlarge or reduce the image 2, 3 or 4 times.
at one photo display)
ZOOM
3
1. Press the D/ E/ F / G button to select JPEG file
and then press the 8 button. Slide show starts.
2. You can choose the slide show effect, frequency
and play mode in the USB Setup.
3. Press the GII button to pause the current image.
4. Press the USB button to exit or press the A/ESC
button to stop slide show return to the USB
menu.
4.+K_REA_1[81K]
9
7
To select the previous or next page. (at thumbnail mode)
To jump to the previous or next photo (at one photo display)
Move to main menu from thumbnail mode.
5
Slide Show
1.+K_REA_1[81K]
6
To increase or decrease volume level for the Music.
(When selecting the turn-on of background music
when playing the photograph mode.)
VOL
CH
1. Zoom mode
To scroll left, right, up and down
2. Still picture display mode
VOL+: Rotate 90 (Clockwise)
VOL- : Rotate -90 (Counter - clockwise)
CH+ : Upside down & vice versa
CH- : Mirror image & vice versa
?
?
?
?
?
?
?
?
?
?
@@6Xhg?
?J(MI/X?hf?
?7H??N1?hf?
?@f@?hf?
?3L??J5?hf?
?N)KO.Y?hf?
@@0Yhg?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
@@6Xhg?
?J(MI/X?hf?
?7H??N1?hf?
?@f@?hf?
?3L??J5?hf?
?N)KO.Y?hf?
@@0Yhg?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
Notes :
• JPEG compatibility with this player is limited as follows :
- Depending upon the size and the number of JPEG
files,it could take a long time for TV to read the USB
memory's contents. If you don't see an on screen
display after several minutes,some of the files maybe
too large-reduce the resolution of the JPEG files to less
than 2M pixels as 2760x2048 resolution.
- The total number of files and folders on the USB
memory device should be less than 1200.
- File name without ".jpg" extension will not be able to
read by this TV jpeg decoder. Even though the files are
shown as JPEG image files in Windows Explorer.
- Cause of Photo character, Progressive JPEG is always
scanned “WIPETOP” regardless of Photo Effect.
Press the D / E / F / G button to select JPEG file
then press the ENTER button. Selected still picture
display starts.
11
GAME Media
Using the remote control
VOL.-
VOL.+
1
2
To increase or decrease volume level for
the game.
4
6
Press the 4 button to jump previous Game.
Press the 6 button to jump next Game.
5
Stop game playing or move to the game
file list menu.
8
Play game in sequence (at game list)
/ESC
GAME File Playing Operation
1. Press the USB button and then use D / E / F / G
button to select the Game.
2. Press the ENTER button.
Play game selected by cursor.
To confirm (when playing game)
ENTER
[2005]
CH
VOL
2005
2006
2007
BADBOY.SMF
BALLOON.SMF
CATRUN.SMF
DRAGON.SMF
FOODRAIN.SMF
BELLGIR.SMF
VOL
CH
To select left,right,up,down
(when playing game)
Note:
-You can download the game file from
www.gamefortv.com.The downloaded files are
compressed files ,so please decompress files
and then put them in usb before using them.
-If the files under the folder in USB exceed 5
floors, maybe you can't open game files .
3. Press the D/ E/ F / Gbutton to select folder and
desired game file.
4. Press the GII (alternative play)or ENTER (single
play) button. Then the game starts.
5. Press the USB button to exit or press the A/ESC
button to stop or return to the USB menu.
12
Closed caption function
Closed captioning is a process which converts the
audio portion of a television program into written
words, which then appear on the television screen
in a form similar to subtitles. Closed captions allow
viewers to read the dialogue and narration of
television programs.
and follows two paths. One is the direct path
and the other is reflected off tall buildings, hills
or other objects. Changing the direction or
position of the antenna may improve reception.
Using Closed Captions
Captions are the subtitles of the dialogue and
narration of television programs. For prerecorded
programs, program dialogue can be arranged into
captions in advance. It's possible to caption a live
program by using a process called “real-time
captioning”, which creates captions instantly.
Real-time captioning is normally done by
professional reporters using a machine shorthand
system and computer for translation into English.
Captioning is an effective system for the hearingimpaired, and it can also aid in teaching language
skills.
• The picture at left shows a typical caption.
A
SNOW:
If your receiver is located at the weak, fringe
area of a TV signal, your picture may be marred
by small dots. It may be necessary to install a
special antenna to improve the picture.
2 An old, bad or illegally recorded tape is played.
3 Strong, random signals from a car or airplane
interfere with the TV signal.
4 The signal from the antenna is weak.
5 The program wasn't captioned when it was
produced, transmitted or taped.
Caption Tips
Using the Text Function
FOLLOW ME
Text services give a wide variety of information on
all kind of subjects (ex. captioned program lists,
weather forecasts, stock exchange topics, news
for hearing-impaired---) through the full TV screen.
But not all stations offer text services, even though
they might offer captioning.
• Not all TV broadcasts include closed caption
signals.
• Sometimes TV stations broadcast two different
caption signals on the same channel. By
selecting MODE 1 or MODE 2, you can choose
which signal you view. MODE 1 is usually the
signal with the captions, while MODE 2 might
show demonstration or programming
information.
• Your TV might not receive caption signals
normally in the following situations.
Note: In the event you receive a poor signal, an
empty black box may appear and
disappear, even when the text mode is
selected. This is normal function in such an
event.
Operating the Caption and Text
Using the CAPTION button
1 Poor reception conditions are encountered:
A IGNITION:
Picture may flutter, drift, suffer from black spots
or horizontal streaking. Usually caused by
interference from automobile ignition systems,
neon lamps, electrical drills and other electrical
appliances.
A
1. Press the CAPTION button.
2. Press the CAPTION button to select OFF ,
Mode 1, Mode 2, Text 1 or Text 2.
3. Press the ENTER (A) button to exit.
Using the MENU button
1. Press the MENU button and then use D / E
button to select the Special menu.
2. Press the G and then D / E button to select
Caption.
3. Press the G button and then use D / E button
to select Off, Mode 1, Mode 2, Text 1 or Text
2.
4. Press the MENU button to exit.
Note: This TV is programmed to remember which
mode it was last set to, even if you turn the TV off.
GHOSTS:
Ghosts are caused when the TV signal splits
13
PIP function (Some models)
Watching the PIP (Picture in
Picture)
4. Press the F button to exit.
Channel Search
This is the function to search one by one the
pictures of all the programmed channels through
the PIP screen while the main screen remains as
a current channel.
Press the CH. SEARCH button.
The pictures of all the programmed channels are
searched through one PIP screen.
To release the channel search, press the CH.
SEARCH.
Note: By pressing the SWAP button, you can see
the channel being searched on the PIP screen
through the main screen.
This is the function to call up a little picture (PIP :
picture in picture) within the main picture. Thus at
the same time you can watch two different
programs.
1. Press the PIP/DW button to select PIP mode or
double window mode. Repeatedly press the
PIP/DW button to select the desired sub picture
size.
PIP [M]
PIP [S]
PIP off
PIP [L] : DW
2. Press the CH +/- button of the PIP buttons to
select the desired channel in the sub picture.
Moving the Sub Picture
(in PIP mode)
Notes:
•Press the D / E button to select the upper or
lower channel in main picture and press the CH
+/- button of the PIP buttons to select the upper
or lower channel in sub picture.
• 4:3 and Zoom don’t operate in PIP [L] mode.
Press the POSITION button to select the desired
position of sub picture.
Swapping Screens
Selecting the input signal (in PIP
and Double window mode)
Press the SWAP button.
Each time you press this button, the main picture
and sub picture exchange places.
Using the PIP MENU Button
1. Press the PIP MENU button.
2. Press the D / E button to select Input.
3. Press the G and then use D / E button to
select TV, AV 1, AV 2, AV 3.
4. Press the VOLUME (F) button to exit.
Still Picture
Press the STILL button.The still picture is
displayed.
In PIP mode, the still picture is displayed in the
sub picture.To cancel the still picture, press the
STILL button again.
Press the MAIN STILL button. In PIP mode, the
still picture is displayed in the main picture.
To cancel the still picture, press the MAIN STILL
button again.
Using the MENU Button
1. Press the MENU button and then use D / E
button to select the Special menu.
2. Press the G and then use D / E button to select
the PIP input.
3. Press the G and then use D / E button to select
the TV, AV 1, AV 2, AV 3.
Connection of external equipment (some models)
into 75 ohm antenna jack.
75 Ohm Coaxial Cable
1. Connect the 75 ohm coaxial cable directly to
the 75 ohm antenna jack.
Connecting an Outdoor Antenna
For the best reception, we recommend you use
an outdoor antenna.
Severely weathered antennas and antenna cables
can reduce the signal quality. Before connecting it,
necessarily inspect them. Any service center can
explain the various outdoor antennas available to
you.
Connecting a CATV Cable
If you subscribe to a CATV system, change the
antenna connection as described below.
1. Remove the 300 to 75 ohm adapter or the
cable from the set if attached.
2. Connect the CATV cable (75 ohm coaxial
cable) to the 75 ohm antenna jack.
300 Ohm Flat Wire
1. Connect the 300 ohm flat wire to screws on the
300 ohm to 75 ohm adapter.
2. Push the end of 300 ohm to 75 ohm adapter
14
Connection of additional equipment
Recording a program from connected other equipment
You can connect additional equipment, such as
VCRs, camcorders etc. to your set.Here shown
may be somewhat different from your set.
These are an example drawing of typical jack
layout.
1. IN 1 JACKS : Connect external equipment
outputs (VCR, LASER DISC, CAMCORDER) to
these inputs. Press the TV/VIDEO button to
select AV1 .
2. IN 2 JACKS : Connect external equipment
outputs (VCR, LASER DISC, CAMCORDER) to
these inputs. Press the TV/VIDEO button to
select AV2..
3. IN 3 JACKS : Connect external equipment
outputs (VCR, LASER DISC, CAMCORDER) to
these inputs. Press the TV/VIDEO button to
select AV3.
4. OUT JACKS: Connect external equipment
inputs (VCR, Audio amplifier) to these outputs
for recording or monitering the selected
program.
Note:This TV is programmed to remember which
mode it was last set to, even if you turn the TV off.
(some models)
1. Connect the output jacks of the playback VCR
to the IN 1 or IN 2 (A/V) jacks on the side or
back of TV (or IN 3 jacks on the side of TV ).
2. Connect the input jacks of the recording VCR to
the OUT (A/V) jacks on the back of TV.
3. Press the TV/VIDEO button to select AV-1 or
AV-2.
If you connect it to the IN 3 (A/V) jacks on the
side of TV, you should select AV-3.
4. Press the PLAY button on the playback VCR
and set the recording VCR to record.
• Connect component video inputs to Y, PB, PR(480i)
and audio IN2 to audio(L/R) ports.
• Note: This TV is programmed to remember
which mode it was last set to, even if you turn the
TV off.
1.How to connect
Connecting AUDIO/VIDEO IN Jacks
1. Connect the audio/video output jacks of the VCR to
IN 1 or IN 2(A/V) jacks on the side or back of TV.
If you connect the audio jack only, you can't hear the
sound from the TV.
2. Press the TV/VIDEO button to select AV1 or AV2.
Note: In some stereo models, if you connect the
audio/video output jacks of the VCR to the AV AV IN
3(A/V) jacks on the front or side of TV, select AV3.
3. Press the PLAY button on the VCR.
The video playback is on the TV screen.
Note: In case of MONO VCR, connect the output
jack of VCR to the AUDIO L/MONO IN jack of TV
so that the sound can be heard from both
speakers. If you connect it to the AUDIO R IN jack
of TV the sound is heard only from right speaker.
TV INPUT
Y
DV D OUTPUT
Y
Y
Y
Y
PB
PR
Cb Cr
B -Y R -Y
Pb Pr
PB PR
2.How to use
• Turn the set on and press the TV/VIDEO button
on the remote control or TV/VIDEO button on the
front panel to select COMPONENT.
•Try this after turning on the DVD set.
VCR Recording(some models)
Note: In some mono models, when the input jacks
on the front panel and back panel are connected to
external equipments at the same time, the input jacks
on the front panel have priority over the
input jacks on the back panel of the TV.
1. Connect the audio/video input jacks of the recording
VCR to the OUT (A/V) jacks on the back.
2. Select the program number on the TV.
3. Set the recording VCR to record.
15
Troubleshooting check list
SYMPTOMS
No power
No picture or sound
Poor picture but good sound
Poor reception
Lines in picture
Ghosts (multiple images)
Remote control does not work.
Cannot tune desired channel.
CHECK THESE THINGS
Is power cord plugged in?
Is television turned on?
Check batteries in remote control.
Try another channel (station trouble).
Check antenna connectings.
Check for local interference.
Adjust the antenna.
Adjust the picture control.
Program channel using AUTO
PROGRAM.
Download PDF

advertising
