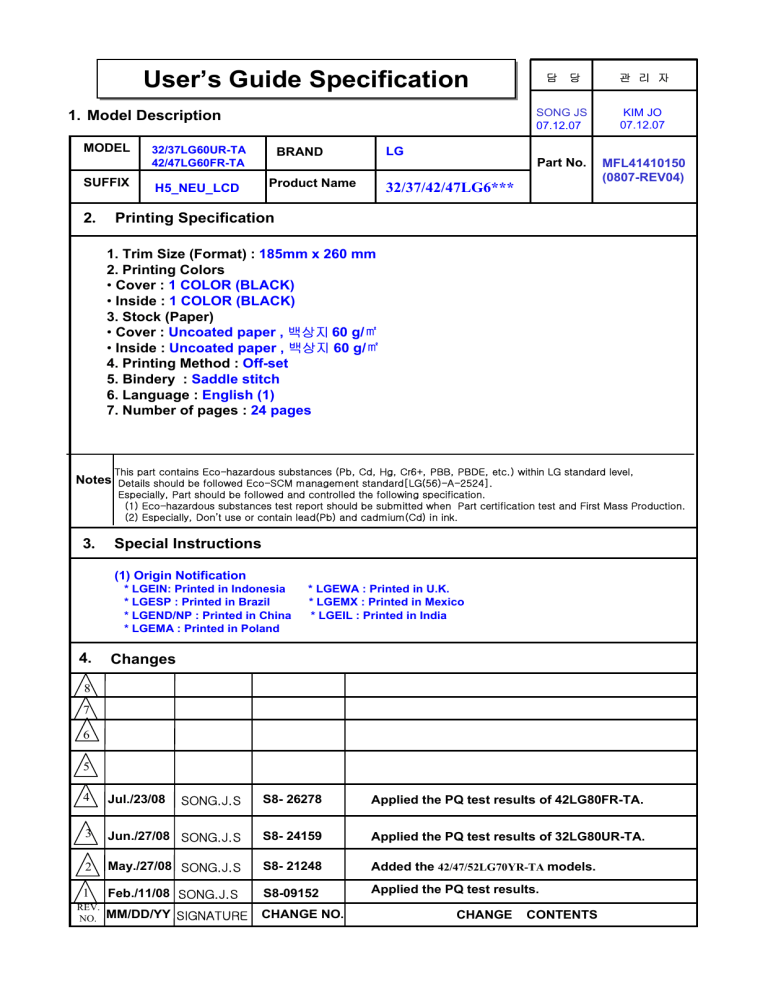

User’s Guide Specification
1. Model Description
MODEL
SUFFIX
2.
32/37LG60UR-TA
42/47LG60FR-TA
관 리 자
SONG JS
07.12.07
KIM JO
07.12.07
Part No.
MFL41410150
(0807-REV04)
LG
BRAND
Product Name
H5_NEU_LCD
담 당
32/37/42/47LG6***
Printing Specification
1. Trim Size (Format) : 185mm x 260 mm
2. Printing Colors
• Cover : 1 COLOR (BLACK)
• Inside : 1 COLOR (BLACK)
3. Stock (Paper)
• Cover : Uncoated paper , 백상지 60 g/㎡
• Inside : Uncoated paper , 백상지 60 g/㎡
4. Printing Method : Off-set
5. Bindery : Saddle stitch
6. Language : English (1)
7. Number of pages : 24 pages
Notes
3.
This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level,
Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.
(2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
Special Instructions
(1) Origin Notification
* LGEIN: Printed in Indonesia
* LGESP : Printed in Brazil
* LGEND/NP : Printed in China
* LGEMA : Printed in Poland
4.
* LGEWA : Printed in U.K.
* LGEMX : Printed in Mexico
* LGEIL : Printed in India
Changes
8
7
6
5
4
Jul./23/08
SONG.J.S
S8- 26278
Applied the PQ test results of 42LG80FR-TA.
3
Jun./27/08 SONG.J.S
S8- 24159
Applied the PQ test results of 32LG80UR-TA.
2
May./27/08 SONG.J.S
S8- 21248
Added the 42/47/52LG70YR-TA models.
1
Feb./11/08 SONG.J.S
S8-09152
Applied the PQ test results.
MM/DD/YY SIGNATURE
CHANGE NO.
REV.
NO.
CHANGE
CONTENTS
P/NO. MFL41410150
Total pages : 24 pages
Pagination sheet
LG(EN)
LG(EN)
Front cover
P/no
Back cover
2
…
20
21
Blank
Blank
LCD TV
OWNER’S MANUAL
LCD TV MODELS
32LG6***
37LG6***
42LG6***
47LG6***
42LG7***
47LG7***
52LG7***
32LG8***
42LG8***
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
Refer to the label on the back cover and quote this
information.
To your dealer when requiring service.
Extended Owner’s Manual that contains advanced
features of these LG TV-sets is located on CD-ROM in
electronic version.
To read it You need to open chosen files by using
Personal Computer (PC) equipped with CD-ROM drive.
P/NO: MFL41410150(0807-REV04)
Printed in Korea
Here shown may be somewhat different from your set.
..................................................
2
3
3
VCR Connection
2
2
2
Method 2
Method 1
3
HDMI/DVI IN
Power Cord
HDMI IN
1
RGB IN(PC)
2
AUDIO
RGB IN
■
3
ENGLISH
Connecting your Unit
IN 1
VIDEO
L/MONO AUDIO
R
AV
OUT
COMPONENT IN
VARIABLE AUDIO OUT
COMPONENT IN
(RGB/DVI)
2 ANTENNA
IN
1
AUDIO
VIDEO
ANTENNA
IN
2
1
VIDEO
AUDIO
1
2
2
DVD/STB
Antenna Connection
Here shown may be somewhat different from your set.
..................................................
2
ENGLISH
■
3
3
USB IN
VCR Connection
2
2
Method 1
HDMI/DVI IN
1
Method 2
COMPONENT
IN
HDMI IN
2
VIDEO
Power Cord
RGB IN
3
2
AUDIO
(RGB/DVI)
RGB(PC)
IN1
L(MONO)
L(
MONO) AUDIO
R
AUDIO
AV
VIDEO
OUT
VARIABLE AUDIO OUT
1
2
ANTENNA
IN
COMPONENT
IN
AUDIO
VIDEO
ANTENNA
IN
1
2
2
DVD/STB
1
Antenna Connection
* To connect an additional equipment, see the E x t e r n a l E q u i p m e n t S e t u p
section in CD Manual.
3
SAFETY INSTRUCTIONS
ENGLISH
• Please read these safety precautions carefully before using the product.
• In this manual, the illustration may be somewhat different from your product because it is just example to help the instruction.
WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged.
Precaution in Installing the Product
WARNING
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
CAUTION
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in
a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the
appliance.
Precautions in Moving the Product
Do not use the product in damp place such as a bathroom or any place where it is likely to get wet.
WARNING
- This may cause a fire or could give an electric shock.
If you can smell smoke or other odors or hear a strange
sound unplug the power cord and contact the service
center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
Make sure to turn off the product.
Make sure to remove all cables before moving the
product.
- You may be electrocuted or the product can be damaged.
CAUTION
Do not shock the product when moving it.
CAUTION
Install the product on a flat and stable place that
has no risk of dropping the product.
- If the product is dropped, you may be injured or the
product may be broken.
Keep the product away from direct sunlight.
- The product can be damaged.
- You may be electrocuted or the product can be damaged.
Make the panel face forward and hold it with both
hands to move.
- If you drop the product, the damaged product can
cause electric shock or fire. Contact with the service
center for repair.
Precautions in Using the Product
WARNING
Do not disassemble, repair or modify the product at
your own discretion.
Do not place the product in a built-in installation
such as bookcase or rack.
- Ventilation required.
Electrical Power Related Precautions
WARNING
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Do not touch the power plug with wet hands.
Additionally, it the cord pin is wet or covered with
dust, dry the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
During a thunder or lightning storm, unplug the
power cable or signal cable.
- You may be electrocuted or a fire can break out.
4
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or
repair.
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
Apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
CAUTION
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Do not keep a still image on the screen for an
extended period (e.g. by pausing a video) as the
fixed image may remain visible on the screen. This
is known as image burn. Image burn is not covered
under the manufacturer's warranty.
PREPARATION
■
■
This is a simplified representation of the front panel. Image shown may differ from your TV.
If your product has a protection film attached, remove the film and then wipe the product with a polishing
cloth.
ENGLISH
FRONT PANEL CONTROLS
32/37/42/47LG6***
P
PROGRAMME
VOLUME
OK
OK
MENU
Intelligent Sensor
Adjusts picture according to the
surrounding conditions
MENU
INPUT
INPUT
POWER
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates White when the TV is switched on.
Note: You can adjust Power Indicator in the
Option menu.
SWIVEL STAND
This feature is not available for all models.
After installing the TV, you can adjust the TV set manually to the left or right direction by 20 degrees to
suit your viewing position.
5
PREPARATION
ENGLISH
42/47/52LG7***
PROGRAMME
P
VOLUME
Intelligent Sensor
Adjusts picture according to the
surrounding conditions.
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates blue when the TV is switched on.
Note: You can adjust Power Indicator in the
OK
Option menu.
MENU
Remote Control Sensor
INPUT
OK
MENU
INPUT
POWER
32/42LG8***
* Give extra space for installing speakers on both sides of the TV to allow for free movement.
(only 42LG8***)
Remote Control Sensor
Power/Standby Indicator
• illuminates red in standby mode.
• illuminates blue when the TV is switched on.
Note: You can adjust Power Indicator in
the Option menu.
INPUT
POWER
6
INPUT
MENU
MENU
P
OK
OK
VOLUME
PROGRAMME
■
ENGLISH
BACK PANEL INFORMATION
This is a simplified representation of the back panel. Image shown may differ from your TV.
42/47LG6***, 42/47/52LG7***
32/37LG6***
3
USB Input
HDMI Input
Connect a HDMI signal
to HDMI IN.
S-Video Input
Connect S-Video out
from an S-VIDEO device.
AV IN 2
Audio/Video
Input
Connect audio/video
output from an external
device to these jacks.
AV IN 2
AV IN 2
7
7
AV IN 2
AV IN 2
AV IN 2
AV IN 2
AV IN 2
42/47/52LG7***
1
2
AV
L/MONO
L/
MONO AUDIO
VIDEO
L/MONO AUDIO
R
R
OUT
VARIABLE AUDIO OUT
1
IN
R
L/MONO AUDIO
VIDEO
L/MONO
L/
MONO AUDIO
VIDEO
R
VIDEO
OUT
VARIABLE
AUDIO OUT
AUDIO
4
VARIABLE AUDIO OUT
2
1
2
2
IN 1
VIDEO
1
5
(RGB/DVI)
1
2 ANTENNA
VIDEO
AUDIO
RGB (PC)
2
2
3
VIDEO
VARIABLE
AUDIO OUT
6
L/MONO AUDIO
ANTENNA
IN
COMPONENT IN
AUDIO
VARIABLE
AUDIO OUT
L/MONO AUDIO
1
ANTENNA
IN
5
USB IN
VIDEO
L(MONO) AUDIO
VARIABLE
AUDIO OUT
6
USB Input
R
7
VARIABLE AUDIO OUT
5
1
COMPONENT
IN
HDMI IN
2
VIDEO
2
RGB IN
HDMI/DVI IN
1
AUDIO
(RGB/DVI)
S-Video Input
Connect S-Video out
from an S-VIDEO device.
6
AV IN 2
RGB(PC)
Audio/Video Input
Connect audio/video
output from an external
device to these jacks.
3
L(MONO)
L(
MONO) AUDIO
AUDIO
IN1
VIDEO
R
OUT
4
VARIABLE AUDIO OUT
1
2
ANTENNA
IN
R
R
32/42LG8***
AV
4
HDMI IN
1
AV
IN 1
VIDEO
(RGB/DVI)
2
COMPONENT IN
1
AUDIO
RGB (PC)
2
3
2
HDMI/DVI IN
HDMI IN
1
RGB IN
HDMI/DVI IN
1
RGB IN
32/37/42/47LG6***
7
AN
PREPARATION
1
ENGLISH
2
3
4
HDMI Input
Connect a HDMI signal to HDMI IN.
Or DVI(VIDEO)signal to HDMI/DVI port with DVI
to HDMI cable.
(HDMI IN 3 is available for 42/47LG6***,
42/47/52LG7***)
RGB/Audio Input
Connect the monitor output from a PC to the
appropriate input port.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
AV Output
Connect second TV or monitor to the AV OUT
socket on the TV.
Not Using the Desk-type Stand
■
Image shown may differ from your TV.
When installing the wall-mounted unit, use the
protection cover for desk-type stand installation.
Insert the P R O T E C T I O N C O V E R into the TV
until clicking sound.
Variable Audio Output
Connect an external amplifier or add a subwoofer
to your surround sound system.
5
Component Input
Connect a component video/audio device to
these jacks.
6
Antenna Input
Connect RF antenna to this jack.
7
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
How to remove the portection cover
■ Image shown may differ from your TV.
Press the A part of protection cover as shown and
pull it backward.
32LG8***
32LG8***
A
ATTACHING THE TV TO A DESK (Only 32/42LG8***)
The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing
injury or damaging the product. Use only an attached screw.
Stand
1-Screw
(provided as parts of the product)
Desk
! WARNING
8
G
To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the machine may cause injury.
■
Image shown may differ from your TV.
When assembling the desk type stand, check whether the bolt is fully tightened.
(If not tightened fully, the product can tilt forward after the product installation.) If you tighten the bolt with
excessive force, the bolt can deviate from abrasion of the tightening part of the bolt.
ENGLISH
STAND INSTALLATION
only 32/37/42LG6***
1
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
2
Assemble the parts of the S t a n d B o d y with
C o v e r B a s e of the TV.
3
Assemble the TV as shown.
4
Fix the 4 bolts securely using the holes in the
back of the TV.
32LG6***
Stand Body
Cover Base
37LG6***
Stand Body
Cover Base
42LG6***
Stand Body
Cover Base
9
PREPARATION
ENGLISH
only 42LG7***, 32/42LG8***
1
Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
3
Assemble the TV as shown.
2
Assemble the parts of the S t a n d B o d y with
the C o v e r B a s e of the TV.
4
Fix the 4 bolts securely using the holes in the
back of the TV.
Stand Body
Cover Base
Not Using the Desk-type Stand
When installing the wall-mounted unit, use the protection cover for desk-type stand installation.
Image shown may differ from your TV.
■
32/37/42/47LG6***
After removing the protection paper from the
protection cover, adhere it to the TV as shown.
10
42/47/52LG7***, 42LG8***
Insert the P R O T E C T I O N C O V E R into the TV
until clicking sound.
■
ENGLISH
BACK COVER FOR WIRE ARRANGEMENT
Image shown may differ from your TV.
32/37/42/47LG6***
1
Align the hole with the tab on the C A B L E
M A N A G E M E N T C L I P.
Turn the C A B L E M A N A G E M E N T C L I P as
shown.
Note: This cable management can be broken
by excessive pressure.
42/47/52LG7***, 32/42LG8***
1
Connect the cables as necessary.
To connect additional equipment, see the
External Equipment Setup section of the manual.
2
Open the C A B L E M A N A G E M E N T C L I P as
shown and manage the cables.
CABLE MANAGEMENT CLIP
2
Connect the cables as necessary.
To connect additional equipment, see the E x t e r n a l
E q u i p m e n t S e t u p section.
3
Fit the C A B L E M A N A G E M E N T C L I P as
shown.
11
PREPARATION
ENGLISH
PLEASE SET IT UP CAREFULLY SO THE PRODUCT DOES NOT
FALL OVER.
You should purchase necessary components to fix the TV to the wall on the market.
Position the TV close to the wall to avoid the possibility of it falling when pushed.
A The instructions shown below are a safer way to set up the TV, which is to fix it to the wall, avoiding the
possibility of it falling forwards if pulled. This will prevent the TV from falling forward and causing injury.
This will also prevent the TV from damage. Ensure that children do not climb or hang from the TV.
A
A
1
1
2
2
1
Use the eye-bolts or TV brackets/bolts to fix the product to the wall as shown in the picture.
(If your TV has bolts in the eyebolts, loosen then bolts.)
* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
2
Secure the wall brackets with bolts to the wall.
Ensure that both brackets are even.
3
3
Use a strong cord to secure the TV.
Secure the cord in such a way that it becomes taught when the TV is in position.
! NOTE
G
G
G
12
When moving the TV undo the cords first.
Use a platform or cabinet string and large enough to support the size and weight of the TV.
To use the TV safely make sure that the height of the bracket on the wall and on the TV is the same.
■
The TV can be installed in various ways such as on a wall, or on a desktop etc.
The TV is designed to be mounted horizontally.
EARTHING
ENGLISH
■
Power Supply
Ensure that you connect the earth wire to prevent possible electric shock. If grounding methods are not possible,
have a qualified electrician install a separate circuit breaker.
Do not try to earth the TV by connecting it to telephone
wires, lightening rods or gas pipes.
Circuit breaker
DESKTOP PEDESTAL INSTALLATION
For adequate ventilation allow a clearance of 4” (10cm) all around the TV .
4 inches
4 inches
4 inches
4 inches
WALL MOUNT: HORIZONTAL INSTALLATION
For adequate ventilation allow a clearance of 4” (10cm) all around the TV. We recommend that you
use a wall mounting bracket of LG brand when mounting the TV to a wall.
4 inches
4 inches
4 inches
4 inches
4 inches
13
PREPARATION
■
To prevent damage do not connect to the mains outlet until all connections are made between the devices.
ENGLISH
ANTENNA CONNECTION
For optimum picture quality, adjust antenna direction.
■ An antenna cable and converter are not supplied.
■
1
Wall
Antenna
Socket
2
Multi-family Dwellings/Apartments
(Connect to wall antennaVIDEO
socket)
L/MONO AUDIO
ANTENNA
IN
R
VARIABLE AUDIO OUT
RF Coaxial Wire (75 ohm)
Outdoor
Antenna
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
1
2
- Take care not to bend the bronze
wire when connecting to an antenna
port.
ANTENNA
IN
VIDEO
L/MONO AUDIO
R
UHF
VARIABLE AUDIO OUT
Antenna
Signal
Amplifier
VHF
■
■
14
In poor signal areas, to achieve better picture quality it may be necessary to install a signal amplifier to the
antenna as shown above.
If signal needs to be split for two TVs, use an antenna signal splitter for connection.
WATCHING TV /PROGRAMME CONTROL
When using the remote control, aim it at the remote control sensor on the TV.
TV
MODE
Selects the remote operating modes.
POWER INPUT
DVD
STB
Q. MENU MENU
Q. MENU
Select the desired quick menu source.
POWER
Switches the TV on from standby or
off to standby.
ENGLISH
REMOTE CONTROL KEY FUNCTIONS
INPUT
External input mode rotate in regular
sequence.
Switches the TV on from standby.
OK
MENU
Selects a menu.
Clears all on-screen displays and
returns to TV viewing from any menu.
RETURN
AV MODE
OK
Accepts your selection or displays the
current mode.
FAV
P
VOLUME UP /DOWN
Adjusts the volume.
THUMBSTICK(Up/Down/Left/Right)
Allows you to navigate the on-screen
menus and adjust the system settings
to your preference.
Programme UP/DOWN
Selects a programme.
MUTE
1
2
3
4
5
6
7
8
9
LIST
0
Q.VIEW
TIME
SIZE
UPDATE REVEAL
INDEX
HOLD
TEXT
Q.VIEW
Returns to the previously viewed
programme.
PIP
Installing Batteries
■
Open the battery compartment cover on the back and install the batteries
matching correct polarity (+with +,-with -).
■
Install two 1.5V AAA batteries. Do not mix old or used batteries with new ones.
■
Close cover.
15
WATCHING TV /PROGRAMME CONTROL
ENGLISH
TURNING ON THE TV
When your TV is turned on, you will be able to use its features.
1
Firstly, connect the power cord correctly.
At this stage, the TV switches to standby mode.
■
In standby mode to turn TV on, press the
, I N P U T, P
button on the TV or press the P O W E R,
/
N
U
M
B
E
R
(
0
9
)
T V, I N P U T, P
,
~9
buttons
on
the
remote
control
and the TV will switch on.
/
Installation Guide
If the OSD (On Screen Display) is displayed on the screen after turning on the TV, you can adjust the
L a n g u a g e, L o c a t i o n, A u t o T u n i n g.
Note:
a. It will automatically disappear after approx. 40 seconds unless a button is pressed.
b. “In Store” mode is only for shop display and not for general customer use.
c. "Home” mode is the optimal setting for home environments, and is the TV's default mode.
d. "In Store" mode is the optimal setting for store environments. If a user modifies image quality data,
“In Store” mode initializes the product to the image quality set by us after a certain period of time.
e. The mode (Home, In Store) can be changed by executing Factory Reset in the Option menu.
ON-SCREEN MENU LANGUAGE SELECTION
The menus can be shown on the screen in the selected language. First select your language.
1
Press the M E N U button and then use
2
Press the
button and then use
/
3
Press the
button and then use
/
4
Press the O K button
5
Press the M E N U button to return to normal TV viewing.
Press the R E T U R N button to move to the previous menu screen.
button to select the O p t i o n menu.
/
button to select L a n g u a g e.
/
/
button to select your desired language.
WHEN CONNECTING THE USB DEVICE
When you connect a USB device, this screen is displayed, automatically.
In USB device, you can not add a new folder or delete the existing folder.
1
Connect the USB device to the U S B I N jacks on
the side of TV.
2
Press the
3
Press the
4
Press the O K button.
3
button.
16
/
USB memory stick
button to select the desired item.
Manufactured under license from Dolby
Laboratories. “Dolby “and the double-D symbol
are trademarks of Dolby Laboratories.
1
MUSIC
MOVIE
2 3
ENGLISH
ON SCREEN MENUS SELECTION AND ADJUSTMENT
Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
1
Press the M E N U button and then
/
2
Press the
button to select a menu item.
3
Change the setting of an item in the sub or pull-down menu with
You can move to a higher level menu by pressing the O K button.
button and then
/
button to display each menu.
/
button.
Setup
Audio
Auto Tuning
Manual Tuning
Programme Edit
Favourite Programme
Picture Mode
Colour Temperature
Sound Mode
Auto Volume
Balance
TV Speaker
Audio Out
Sliding Mode
DE F G
OK RETURN
Setup MENU
Advanced
Aspect Ratio
Picture Reset
Screen
TruMotion Demo
DE F G
* Only 42/47/52LG7***
OK RETURN
* Only 42LG8***
DE F G
Option
Time
Music List
Photo List
Movie List
DivX Reg. Code
Language
SIMPLINK
Key Lock
Power Indicator
Factory Reset
Clock
Off Time
On Time
Sleep Timer
Auto Sleep
OK RETURN
USB MENU
DE F G
OK RETURN
Option MENU
OK RETURN
Audio MENU
Picture MENU
USB
DE F G
0
DE F G
OK RETURN
Time MENU
! NOTE
a. The OSD (On Screen Display) function enables you to adjust the screen status conveniently since it
provides graphical presentation.
b. In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just example
to help the TV operation.
c. In the teletext mode and USB mode, menus are not displayed.
17
WATCHING TV /PROGRAMME CONTROL
ENGLISH
AUTO PROGRAMME TUNING
POWER INPUT
TV
DVD
STB
Q. MENU MENU
Up to 100 TV stations can be stored by programme numbers (0 to 99).
Once you have preset the stations, you will be able to use the P /
or NUMBER buttons to scan the stations you have programmed.
Stations can be tuned using automatic or manual modes.
OK
All stations which can be received are stored by this method. It is
recommended that you use Auto tuning during installation of this TV.
RETURN
AV MODE
FAV
Press the M E N U button and then
S e t u p menu.
/
2
Press the
T u n i n g.
button and then
/
button to select A u t o
3
Press the
button and then
/
button to select S y s t e m.
4
button to select a TV system menu;
Press the /
BG: PAL B/G, SECAM B/G (Europe / East Europe / Asia /
NewZealand / M.East / Africa / Australia)
I : PAL I/II (U.K. / Ireland / Hong Kong / South Africa)
DK: PAL D/K, SECAM D/K (East Europe / China / Africa / CIS)
M : (USA / Korea / Philippines)
1
button to select the
MUTE
Press the
6
Press the /
button or NUMBER buttons to select the initial programme number. If you use NUMBER buttons, any
number under 10 is entered with a numeric ‘0’ in front of it,
0 5’ for 5.
i.e.‘0
7
Press the
8
Press the
button to begin auto tuning.
All receivable stations are stored.
/
Setup
Auto Tuning
Manual Tuning
Programme Edit
Favourite Programme
DE F G
OK RETURN
1
Setup
Auto
AutoTuning
Tuning
Manual Tuning
Programme Edit
Favourite Programme
To Set
G
button to select S t o r a g e F r o m.
5
/
P
button to select S e a r c h.
DE F G
2
Auto Tuning
System
Storage From
Search
DE F G
To stop auto tuning, press the R E T U R N button.
When auto tuning is complete, the Programme edit menu
appears on the screen. See the Programme edit section to edit
the stored programme.
OK RETURN
BG
I
DK
M
G
OK RETURN
3 4 5 6 7
Auto Tuning
C 05
BG
5
9
Press the M E N U button to return to normal TV viewing.
Press the R E T U R N button to move to the previous menu screen.
RETURN
18
35%
Stop
8
APPENDIX
Early malfunctions can be prevented. Careful and regular cleaning can prolong the life of your new TV.
Caution: Be sure to swith the power off and unplug the power cord before you begin any cleaning.
ENGLISH
MAINTENANCE
Cleaning the Screen
1
A good way to keep the dust off your screen for a while is to wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
2
Ensure there is no excess water on the screen. Allow any water or dampness to evaporate before switching on.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Do not to use a wet cloth.
■
Extended Absence
CAUTION
If you expect to leave your TV dormant for prolonged periods (such as a holiday), unplug the power
cord to protect against possible damage from lightning or power surges.
TO VIEW THE USER'S GUIDE ON THE CD-ROM
To view the User's guide on the CD-ROM, Adobe Acrobat Reader must be installed on your PC.
The "ACRORD" folder on the CD-ROM contains the installation program for Acrobat Reader.
If you want to install Acrobat Reader, Open "My Computer" Open the folder "LG"
Open the folder "ACRORD"
double-click your language.
To view the User's guide
The User's guide files are included in the supplied CD-ROM.
Load the supplied CD-ROM into the CD-ROM drive of your PC.
After a while, the web page of the CD-ROM will open automatically.(Windows users only)
If the web page does not appear automatically, open the User's guide file directly.
Open "My computer"
Open the folder "LG"
Double click the "index.htm" file.
19
APPENDIX
ENGLISH
TROUBLESHOOTING
The TV does not operate properly
Check to see if there is any object between the TV and the remote control
causing an obstruction.
■ Are batteries installed with correct polarity (+ to +, - to -)?
■ Correct remote operating mode set: TV, STB etc.?
■ Install new batteries.
■
The remote control
does not work
Power is suddenly
turned off
Is the sleep time set?
■ Check the power control settings. Has the Power supply been interrupted.
■ Is Auto sleep activated on this station.
■
The video function does not work.
Check whether the TV is switched on.
Try another channel. The problem may be with the broadcast.
■ Is the power cord inserted correctly into the mains?
■ Check your antenna direction and/or location.
■ Test the mains outlet by plugging another TV into the same outlet.
■
■
No picture &
No sound
P i c t u r e a p p e a r s s l o wly after switching on
■
This is normal, the image is muted during the TV startup process. Please contact your
service center, if the picture has not appeared after five minutes.
Adjust Colour in menu option.
■ Allow a sufficient distance between the TV and the VCR.
■ Try another channel. The problem may be with the broadcast.
■ Are the video cables installed properly?
■ Activate any function to restore the brightness of the picture.
■
No or poor colour
or poor picture
Horizontal/vertical
bars or picture shaking
■
Check for local interference such as an electrical appliance or power tool.
Station or cable channel experiencing problems, tune to another station.
■ Station signal is weak, reposition the antenna to receive weaker stations.
■ Check for sources of possible interference.
■
Poor reception on
some channels
Lines or streaks in
pictures
No picture
when connecting
HDMI
20
■
■
Check antenna (Change the position of the antenna).
Check HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it can cause flickers or no
screen display. In this case use the latest cables that support HDMI version 1.3.
ENGLISH
The audio function does not work.
+ / - ( o r V o l u m e ) button.
Press the
Sound muted? Press M U T E button.
■ Try another channel. The problem may be with the broadcast.
■ Are the audio cables installed properly?
■
Picture OK &
No sound
■
No output from one
of the speakers
■
Adjust Balance in menu option.
Unusual sound from
inside the TV
■
A change in ambient humidity or temperature may result in an unusual noise when
the TV is switched on or off and does not indicate a fault with the TV.
■
Check HDMI cable over version 1.3.
Check USB cable over version 2.0.
No sound
when connecting
HDMI or USB
■
*This feature is not available for all models.
There is a problem in PC mode. (Only PC mode applied)
The signal is out of
range.
Vertical bar or stripe
on background &
Horizontal Noise &
Incorrect position
Screen colour is
unstable or single
colour
■
Adjust resolution, horizontal frequency, or vertical frequency.
Check the input source.
■
Use Auto configure or adjust clock, phase, or H/V position.
■
Check the signal cable.
Reinstall the PC video card.
■
■
21
Download PDF
