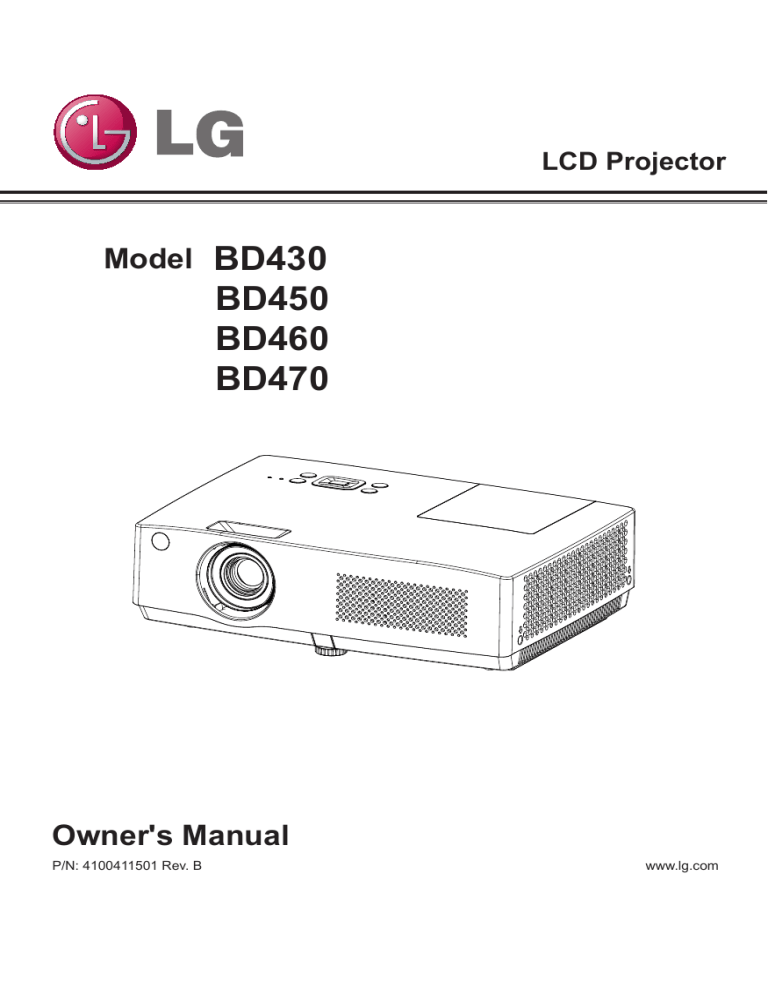

LCD Projector
Model BD430
BD450
BD460
BD470
Owner's Manual
P/N: 4100411501 Rev. B
www.lg.com
Safety Instructions
Please take note of the safety instructions to prevent any potential accident or misuse
of the projector.
WARNING/CAUTION
AVERTISSEMENGT
Warning:The lightning flash
with arrowhead symbol, within
an equilateral triangle,is intended
to alert the user to the presence of
uninsulated “dangerous voltage” within
the product’s enclosure that may be
of sufficient magnitude to constitute a
risk of electric shock to persons.
Caution: The exclamation point
within an equilateral triangle is
intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions
in the literature accompanying the
appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT
EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING: This product contains
chemicals known to the State of California
to cause cancer and birth defects or other
reproductive harm.
Wash hands after handling.
2
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Indoor Installation
WARNING
• Do not place the projector in direct
sunlight or near heat sources such as
radiators, fires, stoves, etc.
- This may cause a fire.
• Do not place flammable materials such
as aerosols near the projector.
- This may cause a fire.
• Do not allow your children to cling to or
climb up to the projector.
- The projector may fall down and cause
personal injury or death.
• Do not place the projector directly on a
carpet, rug or place where ventilation is
restricted such as a book shelf or closet.
- This may cause the projector's internal
temperature to rise and cause a fire.
• Do not place the projector close
to sources of steam or oil such as a
humidifier or kitchen counter.
- This may cause a fire hazard or an
electric shock
• Do not place the projector where it might
be exposed to excessive dust.
- This may cause a fire.
• Do not use the projector in a damp place
such as a bathroom where it is likely to
get wet.
- This may cause a fire or an electric
shock.
Safety Instructions
• Do not allow a tablecloth or curtain to
block the vents.
- This may cause the internal temperature
of the projector to rise and cause a fire.
• The distance between the projector and
the wall should be more than 30 cm for
ventilation purposes.
- Otherwise, this may cause the internal
temperature of the projector to rise and
cause a fire.
CAUTION
• When installing the projector on a table,
be careful not to place it near the edge.
- The projector may fall causing injury to
persons or damage to the projector.
Make sure that you use a stand suitable
for the size of projector.
• Turn off the projector, disconnect the
power supply and remove all
connec tions before moving the
projector.
- A damaged cord may cause a fire or an
electric shock.
• Do not install the projector on an
unstable or vibrating surface such as a
vibrating shelf or tilted surface.
- It may fall and cause injury.
• Be careful not to tip the projector over
when connecting external devices to the
projector.
- This may cause injury to persons or
damage to the projector
POWER
WARNING
• The earth wire should be connected.
- Inappropriate earth grounding may
cause damage to the projector or an
electric shock when there is an electrical
surge.If the projector must be installed
at a place where earth grounding is not
possible, purchase a circuit breaker and
connect the projector to its wall outlet.Do
not ground the projector to the gas pipe,
water pipe, lightning rod, or telephone
line, etc.
• The power plug should be fully inserted
into the wall outlet.
- Unstable connection may cause a fire.
• Do not place heavy objects on the
power cord or place the cord underneath
the projector.- This may cause a fire or
an electric shock.
• Never touch the power plug with a wet
hand.
- This may cause an electric shock.
• Do not connect too many devices to the
same power extension.
- Overheating may cause a fire.
• Remove dust or contaminants around
power plug pins or wall outlets.
- This may cause a fire.
• To turn off the main power, remove the
power plug, which should be positioned
so it is easy to access for operation.
3
Safety Instructions
CAUTION
• Hold the plug firmly when unplugging.
- A broken wire in the cord may cause a
fire.
• Ensure the power cord or plug is not
damaged, modified, severely bent,
twisted, pulled, sandwiched or heated.
Do not use a loose wall outlet.
- This may cause a fire or an electric
shock.
• Keep the power cord away from any
heating devices.
- The cord coating may melt and cause
an electric shock.
• Place the projector where people will
not trip over or tread on the power cord
or plug to protect the power cord and
plug from any damage.
- This may cause a fire hazard or an
electric shock.
• Do not turn the projector on or off by
plugging in the power plug or unplugging
it from the wall outlet.
(Do not use the power plug as a switch.)
- This may cause an electric shock or
damage to the projector.
• Do not insert a conductor into the other
side of the wall outlet while the power
plug is inserted into the wall outlet. In
addition, do not touch the power plug
immediately after it is disconnected from
the wall outlet.
- This may cause an electric shock.
• Use only the official power cord which
is provided by LG Electronics, Inc. Do
not use other power cords.
- This may cause a fire or an electric
shock.
4
USING
WARNING
• Do not place anything containing liquid,
such as a vase, flowerpot, cup,
cosmetics, chemicals, decorations or
candles, etc., on top of the projector.
- Possible fire, electric shock, or falling
may cause physical injury.
• In the event that there is a big impact to
the projector or the cabinet is damaged,
switch it off, unplug it from the wall outlet
and contact an authorized service
center.
- Otherwise, this may cause a fire or an
electric shock.
• Do not insert pieces of metal such
as coins, hairpins or metal debris, nor
flammable materials such as paper or
matches into the projector.
- This may cause a fire or an electric
shock.
• In the event that liquid or a foreign
object falls into the projector, please
switch it off and unplug it from the wall
outlet and contact an LG Electronics
Service Center.
- Otherwise, this may cause a fire or an
electric shock.
• When replacing a battery of the remote
control, make sure a child does not
swallow the battery. Keep the battery out
of reach of children.
- In the case of a battery being swallowed
by a child, please consult a doctor
immediately.
• Do not remove any covers except for
the lens cap. There is a high risk of
electric shock.
• Do not look directly into the lens when
the projector is in use.
Safety Instructions
• When the lamp is on or has just been
turned off, avoid touching the air vent or
lamp because these will be very hot.
• If there is a gas leak, do not touch
the wall outlet. Open the window for
ventilation.
- A spark may cause a fire or burn.
• Always open the lens door and remove
the lens cap when the projector lamp is
on.
• Never touch the projector or power cord
during thunder or lightning.
- This may cause an electric shock.
• Do not use the projector near an
electronic device which generates a
strong magnetic field.
• Store the vinyl envelope used to pack
the projector in a safe place away from
children.
- It could cause suffocation if used
improperly.
• Do not keep your hand on the projector
for a long time when it is running.
• When you play a game by connecting
a game console to a projector, it is
recommended that you maintain a
distance of more than four times the
diagonal length of the screen.
• Make sure that the length of connecting
cable is long enough. Otherwise, the
product may fall causing personal injury
or damage to the product.
CAUTION
• Do not place a heavy object on the
projector.
- It may fall down and cause physical
injury.
• Be careful to prevent the lens from
heavy impact during transportation.
• Do not touch the lens. The lens may be
damaged.
• Do not use any sharp tools on the
projector such as a knife or hammer,
because this may damage the casing.
• In the event that no image appears
on the screen, switch the projector off,
unplug it from the wall outlet and contact
an authorized service center.
- Otherwise, this may cause a fire or an
electric shock.
• Do not drop an object onto the projector
or apply heavy pressure to it.
- This may cause injury to persons or
damage to the projector.
• The distance between your eyes and
the screen must be around 5 - 7 times
the diagonal length of the screen.
- If you watch the screen at a close
distance for a long time, your eye sight
may become worse.
5
Safety Instructions
Cleaning
WARNING
• Do not spray the projector with water
when cleaning. Do not allow water to go
into the projector or do not allow it to
get wet.
- This may cause a fire or an electric
shock.
• When there is smoke or a strange smell
coming out from the projector or a
foreign object falls into the projector,
please switch it off and unplug it from
the power outlet and contact an LG
Electronics Service Center.
- If not, this may cause a fire or an electric
shock.
• Use an air spray or soft cloth or cotton
swab moistened with a lens cleaning
chemical or alcohol to remove dust or
stains on the front projection lens.
CAUTION
• Contact your seller or the Service
Center once a year to clean the internal
parts of the projector.
- If you do not clean the contaminated
interior of the projector for a long time,
there may be a fire or damage to the
projector.
• When cleaning plastic parts such as
the projector case, unplug the power
first and wipe with a soft cloth. Do not
spray with water or wipe with a wet
cloth.
When cleaning the plastic parts,
such as the projector case, do not use
cleanser, automobile or industrial shiner,
abrasive or wax, benzene, alcohol, etc.,
which can damage the product.
- This can cause fire, electric shock or
product damage (deformation, corrosion
and damage).
6
Others
WARNING
• Only a qualified technician can
disassemble or modify the projector.
For inspection, adjustment, or repair,
contact your seller or the Service
Center.
- Otherwise, this may cause a fire or an
electric shock.
• Dispose of the used battery properly.
- Otherwise, this may result in explosion
or fire.
• The correct method of disposal may
vary depending on your country or
region. Dispose of the battery pack
according to the appropriate instructions.
• Do not throw or disassemble the battery.
- Otherwise, this may result in fire or
explosion due to damage to the battery.
• Always use batteries approved and
certified by LG Electronics.
- Otherwise, this may result in fire or
explosion.
• Store the battery away from metallic
objects, such as keys and paper clips.
• Excess current may cause a rapid
increase in temperature, resulting in fire
or burns.
• Do not store the battery near any heat
source, such as a heater.
- This may result in fire or damage the
product.
• Do not store it at temperatures higher
than 60°C or in high humidity.
Safety Instructions
• Keep the battery out of reach of
children.
- This may result in personal injury or
damage to the product.
• Make sure that the battery is installed
correctly.
• Incorrect battery replacement may
cause fire.
CAUTION
• Do not mix new batteries with old
batteries.
- This may cause a fire or an electric
shock caused by overheating and
leakage.
• Unplug the power cord if the projector
is not used for a long period.
- Accumulated dust may cause
overheating, an electric shock from
corroded insulation and a fire from an
electrical surge.
• Only use the specified type of battery.
- Otherwise, this may cause an electric
shock caused by overheating and
leakage.
FCC NOTICE
• Warning - Class B
(b) For a Class B Digital device or
peripheral, the instructions furnished
the user shall include the following or
similar statement, placed in a prominent
location in the text of the manual:
NOTE: This equipment has been tested
and found to comply with the limits for
a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits
are designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and,
if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving
antenna.
- Increase the separation between the
equipment and receiver.
- Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced
radio/TV technician for help.
7
Safety Instructions
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately from
the municipal waste stream through
designated collection facilities
appointed by your government or your
local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you
purchased the product.
8
Disposal of waste
batteries/accumulators
1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of Your product it means
they are covered by European Directive
2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery
Contains more that 0.0005% of mercury,
0.002% of cadmium or 0.004% of lead.
3. All batteries/accumulators should be
disposed separately from the municipal
waste stream via designated collection
facilities appointed by the government
or the local authorities.
4. The correct disposal of Your old
batteries/accumulators will help to
prevent potential negative
consequences for the environment,
animal and human health.
5. For more detailed information about
disposal of Your old batteries/
accumulators, please contact Your city
office, waste disposal service or the
shop where You purchased the product.
Licenses
Supported licenses may differ by model. For more information about licenses, visit
www.lg.com.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
NOTE
• Image shown may differ from your projector.
• Your projector’s OSD (On Screen Display) may differ slightly from that
shown in this manual.
9
Table of Contents
Safety Instructions
2
Licenses9
Table of Contents
10
Statement11
Part names and functions
12
Front12
Back12
Bottom12
Rear terminal
13
Top control and indicators
14
Remote control
15
Remote control battery installation
17
Operation range
17
Adjustable foot
17
Installation18
Positioning the projector
18
Connect to computer (Digital and
analog RGB)
19
Connect to video equipment (Video,
S-Video,Component,HDMI)20
Connecting to Audio equipment
21
Connecting to the AC power cord
22
Basic operation
23
Turning on the projector
23
Turning off the projector
24
How to operate the On Screen Menu
25
Menu bar
26
Zoom and focus adjustment
27
Auto setup function
27
Keystone27
Audio adjustment
28
Remote control operation
29
Computer input
31
Select input source (RBG 1/RGB 2) 31
Computer system select
32
Auto PC adjustment
33
10
Manual adjustment via PC
34
Image select
35
Image adjust
36
Screen size adjust 37
Video Input
38
Select input source (HDMI/Component/S-video/Video) 38
Video system select
39
Image select
40
Image adjust
41
Screen size adjust
42
Option43
Option43
Information51
Maintenance52
POWER/TEMP indicator
52
Cleaning the filter
53
Attaching the Lens Cap
54
Cleaning the lens
54
Cleaning the projector’s cabinet
54
Replacing the lamp
55
Appendix57
Troubleshooting57
Indicator and projector state
59
Compatible Signal
60
Configuration of terminals
61
Technical Specifications
62
Accessories63
Content of hazardous substances and
elements63
Dimensions64
PIN code memorandum
64
RS232 Control Method
65
Statement
Note:
• The on screen menu and pictures in the manual may slightly differ from the real product.
• The manual is subject to change without prior notice.
11
Part names and functions
Front
⑦
①
② ③④
① Air filter cover
② Remote receiver
③ Zoom ring
④ Projector lens
⑤ Lens cap (with string)
⑥ Speaker
⑦ Focus ring
⑤ ⑥
Back
⑫
⑧ ⑨
Bottom
⑧ Power cord connector
⑨ Safety lock
⑩ Terminals and connectors
⑪ Top control and indicators
⑫ Lamp cover
⑪
⑩
⑥
⑭
⑬
12
⑬ Adjustable foot
⑭ Foot adjusting Button
Part names and functions
Rear terminal
①
AUDIO OUT
②
MONO
③
L
Pb/Cb
④
S-VIDEO
⑤
RGB IN 1
RGB IN 2
AUDIO IN
R
Pr/Cr
⑥
⑦
RS-232C
HDMI
VIDEO/Y
RGB OUT
⑧
① AUDIO OUT
- Connect to external audio amplifier.
- Connect the output audio signals from ② , ⑦
and ⑧ to this port.
Note: The resistance of the external audio
amplifier should be over 47kΩ, or an
earphone with lower resistance may cause
audio distortion.
② AUDIO IN(Video Mono L/R)
- Connect the audio output signal from video
equipment connected to ③ or ④ to this port.
- For a mono audio signal (a single audio jack),
connect it to L(MONO) jack.
③ VIDEO/Y, Pb/Cb, Pr/Cr
- Connect the component signals to these jacks.
- Connect the composite signals to the VIDEO/
Y jack.
⑨
⑤ RGB IN 1
Used to connect a computer output.
⑥ RS-232C
When using RS-232C to control the projector,
please connect the serial control line to this
terminal.
⑦ HDMI
Used to connect the HDMI digital output.
⑧ AUDIO IN (PC)
Connect the audio output signal from computer
connected to ⑤ or ⑨ to this jack.
⑨ RGB IN 2/RGB OUT
- Used to connect the computer output.
- Used to output the analog signals from ⑤ (RGB
IN 1) to the other monitor.
④ S-VIDEO
Used to connect the S-video output of video
equipment.
13
Part names and functions
Top control and indicators
Top control
Indicator (Top panel)
③
⑤
/
①
MENU
OK
②
INPUT
AUTO
④
⑥
⑦
⑧
① MENU button
To open or close the on screen menu.
⑥ INPUT button
To select an input source.
② AUTO button
To perform various settings configured
automatically, including the input source
search function, auto keystone function and
auto PC adjust function.
⑦ POWER/TEMP indicator
- Lights red when the projector is in stand-by
mode.
- Lights green during operations.
- Blinks green in the Power management mode.
- Blinks orange while projector is cooling down
after powered off.
- Lights orange when the internal temperature of
projector is too high during operations.
③ OK button
- Enter on screen menu.
- Execute the selected item.
- Expand or compress the image in the Digital
Zoom Mode.
④ ▲▼◄► (VOLUME +/-) buttons
- Select an item or adjust the value in the
on screen menu.
- Adjust the volume level (◄►buttons).
- Move the image in the Digital Zoom +/- mode.
⑤ POWER button
To turn on/off the projector.
14
⑧ LAMP REPLACE indicator
- Turns red when the life of the projection lamp
draws to an end.
- Blinks red when lamp turning-on error.
Part names and functions
Remote control
①
②
① HDMI button
Select HDMI input source.
③
② RGB2 IN button
Select RGB2 as RGB input.
④
⑤
⑥
⑧
⑦
⑨
2930058502
⑪
⑩
⑫
⑭
③ POWER button
Turn the projector on or off .
④ RGB1 button
Select RGB1 input source.
⑤ RGB2 OUT button
Enable RGB2 as monitor out.
⑬
⑮
⑥ VIDEO button
Select VIDEO input source.
⑦ MENU button
Open or close the on screen menu.
⑧ S-VIDEO button
Select S-Video input source.
⑨ COMPONENT button
Select the component input source.
⑩ ▲▼◄► button
- Select an item or adjust the value in the
on screen menu.
- Move the image in Digital zoom + mode.
⑪ OK button
Access the menu or select an item in the
menu.
⑫ KEYSTONE button
Calibrate keystone distortion.
⑬ BLANK button
Hide the on screen menu.
To ensure safe operation, observe the
following precautions:
- Do not bend, drop or expose the remote
control to moisture or heat.
- For cleaning, use a soft dry cloth. Do not
apply benzene, thinner, splay, or any
other chemicals.
⑭ AUTO button
Enter the AUTO setup mode.
⑮ STILL button
Still the projected image.
Please refer to next page for other buttons.
15
Part names and functions
⑯ MUTE button
Mute the sound.
⑰ TIMER button
Enable the timer function.
⑱ DZOOM + button
Select the digital zoom + mode.
⑲ VOLUME + button
Increase the volume.
2930058502
⑳ DZOOM - button
Select the digital zoom - mode.
⑯
⑰
29
⑱
⑲
⑳
24
21
26
21
VOLUME - button
Decrease the volume.
22
LAMP button
Select a lamp mode.
23
SLEEP button
Turn off the projector in a specified time.
22
23
25
24
27
28
25
16
16:9 button
Select 16:9 on screen display.
PICTURE button
Select image mode.
26
4:3 button
Select 4:3 on screen display.
27
PATTERN button
Select a test pattern picture.
28
INFO button
Operate the information function.
29
RATIO button
Select your required screen mode.
Part names and functions
Remote control battery installation
1. Open the battery
compartment lid.
2. Install new batteries into
the compartment.
3. Re-cover the compartment
lid.
For correct polarity
( + and – ) , be sure
battery terminals are in
contact with pins in the
compartment
To ensure safe operation, please observe the following precautions:
● Use two (2) AAA or LR03 type alkaline batteries.
● Always replace batteries in sets.
● Do not use a new battery with a used battery.
● Avoid contacting with water or liquid matter.
● Do not expose the remote control to moisture or heat.
● Do not drop the remote control.
● If the battery has leaked on the remote control, carefully wipe the case clean and
install new batteries.
● Risk of explosion if a battery is replaced by an incorrect type.
● Dispose of used batteries according to the instructions.
Operation range
Point the remote control toward the projector when
pressing any button. The maximum operating
range for the remote control is about 5 meters and
60 degrees.
16.4'
(5 m)
AUTO
MENU
OK
30°
/
INPUT
POWER
30°
Remote control
Adjustable foot
Projection angle can be adjusted up to 10.0
degree with the Adjustable foot.
Lift the fore body of the projector, and press the
Foot adjusting Button on the front foot to release
it.
Rotate the Adjustable foot to adjust the height and
tilt angle.
Keystone distortion of projected image can be
corrected by auto settings or manually remote
control or menu operation.
Adjustable foot
17
Installation
Positioning the projector
For projector positioning, see the figures below. The projector should be set perpendicularly to the plane
of the screen.
√ Note:
● The brightness in the room has a great influence on picture quality. It is recommended to limit the
ambient lighting in order to get the best image.
● All measurements are approximate and may vary from the actual sizes.
For XGA models
10.737m
A:B=9:1
InchDiagonal
Diagonal
Inch
8.943m
5.960m
4.464m
300”
Zoom (min)
200”
2.967m
1.172m
300”
Zoom (max)
150”
A
100”
Screen size
(WxH)mm
4:3 aspect ratio
40"
813x610
100"
150"
200"
300"
2032x1524 3048x2286 4064x3048 6096x4572
Maximum
1.172m
2.967m
4.464m
5.960m
8.943m
Minimum
1.411m
3.567m
5.363m
7.159m
10.737m
40”
Center
Center
B
For WXGA models
11.478m
A:B=49:1
InchDiagonal
Diagonal
Inch
9.556m
6.363m
4.767m
3.171m
1.255m
300”
Zoom (max)
Zoom (min)
200”
150”
100”
300”
A
40”
Center
Center
B
18
Screen size
(WxH)mm
16:10
aspect ratio
40"
100"
150"
200"
300"
862 x 538 2154x1346 3231x2019 4308x2692 6462x4039
Maximum
1.255m
3.171m
4.767m
6.363m
9.556m
Minimum
1.511m
3.811m
5.728m
7.645m
11.478m
Installation
Connect to computer (Digital and analog RGB)
Cables used for connection ( *Cables are not supplied with the projector.)
RGB cable (1)
Serial cable*
HDMI cable*
RGB intput
RGB cable
RGB cable
RGB output
AUDIO OUT
MONO
L
Pb/Cb
RGB output
S-VIDEO
RGB 1 input
RGB IN 1
Serial port
Serial cable
R
Pr/Cr
HDMI cable
HDMI
Control port
RS-232C
RGB IN 2
AUDIO IN
HDMI output
HDMI
VIDEO/Y
RGB OUT
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting the cables.
19
Installation
Connect to video equipment (Video, S-Video,Component,HDMI)
Cables used for connection (*Cables are not supplied with the projector.)
Video cable (RCA*1 )*
S-Video cable *
HDMI cable *
Component cable(RCA*3) *
Component
video output
Video output
RCA
cable
Video
cable
Y-Pb/Cb Pr/Cr
AUDIO OUT
MONO
L
S-video output
S-video
cable
Video
Pb/Cb
HDMI
cable
HDMI
S-video
S-VIDEO
RGB IN 1
RGB IN 2
AUDIO IN
R
Pr/Cr
VIDEO/Y
RGB OUT
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting the cables.
20
HDMI output
RS-232C
HDMI
Installation
Connecting to Audio equipment
Cables used for connection ( *Cables are not supplied with the projector.)
Audio cable*
External Audio Equipment
Audio input
(R) (L)
Audio cable
(Stereo)
Audio cable
Audio output
(Stereo)
(R) (L)
AUDIO OUT
MONO
L
Pb/Cb
Note: The left and right channels are combined
when there is only the L (mono) is inserted.
S-VIDEO
RGB IN 1
RS-232C
RGB IN 2
AUDIO IN
R
Pr/Cr
HDMI
VIDEO/Y
RGB OUT
AUDIO IN
Audio cable
(Stereo)
Audio output
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting the cables.
21
Installation
Connecting to the AC power cord
This projector uses nominal input voltages of 100240 V AC and it automatically selects the correct
input voltage. It is designed to work with a singlephase power system having a grounded neutral
conductor. To reduce the risk of electrical shock,
do not plug into any other type of power system.
If you are not sure of the type of power being
supplied, consult your authorized dealer or service
center.
Connect the projector with all peripheral
equipment before turning it on.
Connect the AC power cord
(supplied) to the projector.
The AC outlet should be near this equipment and must be easily accessible.
√ Note:
Unplug the AC power cord when the projector is not in use. When the projector is connected to an outlet
with AC power cord, it is in stand-by mode and consumes a little electric power.
Note on the power cord
AC power cord must meet the requirements of the country where you use the projector. Confirm the AC
plug type with the chart below and proper AC power cord must be used.
Projector side
AC outlet side
For the U.S.A. and
Canada
For Continental
Europe
Ground
To power cord
connector on your
projector.
To the AC outlet.
(110 V AC)
For the U.K.
Ground
To the AC outlet.
(200 - 240 V AC)
To the AC outlet.
(200 - 240 V AC)
√ Note:
● Using incorrect power cord may influence the product performance, or even cause hazards like an
electric shock or fire. To ensure the product performance and security, please apply the cable of the
same model with the original one.
● Common connecting cables include the AC power cord, various RGB cables, video cable,and serial
control cable.
22
Basic operation
Turning on the projector
1. Complete peripheral connections (with a
computer, VCR,etc.) before turning on the
projector.
2. Connect the projector’s AC power cord into an
AC outlet. The POWER/TEMP indicator turns
red. Open the lens cap.
3. Press the POWER button on the top control
or on the remote control. The POWER/ TEMP
indicator becomes green and the cooling
fans start to work. The preparation display
appears on the screen and the countdown
starts.
4 If the projector is locked with a PIN code, a PIN
code input dialog box appears. Enter the PIN
code as instructed below.
√ Note:
● When the logo option is set to be "Off” ,
the logo will not be displayed on the screen.
● When the display option is set to be "Off,”
the logo and countdown will not be displayed
on the screen.
● During the countdown period, all operations
are invalid except shutdown.
*
Set
----
Adjust
PIN Code
1
Clear
Move
-----
Enter a PIN code
Select a number by pressing the ▲▼ buttons,
and then press the ► button to fix the number
and move the cursor. The number changes to "*".
If you fixed an incorrect number, move the cursor
to the number you want to correct by pressing the
◄ button, and then select the correct number by
pressing the ▲▼ buttons.
Repeat this step to complete entering a three-digit
number.
After entering the three-digit number, move the
cursor to "Set", then you can start to operate the
projector.
If you entered an incorrect PIN code, the "PIN
code" and the number (***) turn red. Enter the
correct PIN code all over again.
What is PIN code?
PIN (Personal Identification Number) code is a
security code that allows the person who knows
it to operate the projector. Setting the PIN code
prevents unauthorized use of the projector.
A PIN code consists of a three-digit number. Refer
to the PIN code lock function in the Option menu
on pages 49 for locking operation of the projector
with your PIN code.
*
Set
----
-----
PIN Code
*
*
Clear
Move
Select
Move the cursor to Set, and press OK.
√ Note:
The projector will automatically power off within
3 minutes while you input an incorrect PIN code
or there is no any operation after turning on the
projector.
Caution on handling the PIN code
If you forget your PIN code, the projector can no
longer be started. Take a special care in setting
a new PIN code, write down the number in a
column on page 64 of this manual and keep it
at hand. Should the PIN code be missing or
forgotten, consult your dealer or service center.
23
Basic operation
Turning off the projector
1 Press the POWER button on the top
control or on the remote control, and “Power off?
Please press Power key again” appears on the
screen.
2 Press the POWER button again to turn
off the projector. The POWER/TEMP indicator
starts to flash orange, and the cooling fans keep
running.
(You can select the fan’s running speed.)
3 When the projector has cooled down enough to
be turned on again, the POWER/TEMP indicator
stops flashing.
Power off?
Please press Power key again
“Power off? Please press Power key again”
disappears after 4 seconds.
To maintain the lamp life, once you turn
the projector on, wait at least 5 minutes
before turning if off.
Do not operate the projector continuously
without reset. Continuous use may result
in shortening the lamp life. Turn off the
projector and let it stand for about one hour
in every 24 hours.
√ Note:
● When the Auto Power function is “On”, this projector is turned on automatically by connecting the AC
power cord to AC outlet.(Page 47)
● The running speed of cooling fans is changed according to the temperature inside the projector.
● Do not put the projector in a case before the projector is cooled enough.
● If the POWER/TEMP indicator flashes or emits a red light, see “POWER/TEMP indicator”.(Page 52)
● While the POWER/TEMP indicator is flashing in orange, the lamp is cooling down and the projector
cannot be turned on. Wait until the POWER/TEMP indicator turns red to turn on the projector again.
● The fan rotation will terminate directly if the AC power cord is unplugged immediately after the
projector is turned off.
● The projector can be turned on after the POWER/TEMP indicator turns red. The waiting time to restart
will be shortened when the normal power-off processing for fan cooling is completed, comparing with
the time the AC power cord is immediately unplugged after the power-off.
24
Basic operation
How to operate the On Screen Menu
The projector can be adjusted or set via the onscreen menu.
Each main menu can be divided into several
levels' submenus, which are further divided into
other submenus. For each adjustment and setting
procedure, refer to the respective sections in this
manual.
Remote control
MENU
button
Indicator
2930058502
OK
button
Top control
/
MENU
button
OK button
MENU
OK
INPUT
AUTO
On screen menu
1 Press the MENU button on the top control or
remote control to display the on screen menu.
2 Press ▲▼ buttons to select an entry in the
main menu and then ► button to access the
submenu.
3 Press the ▲▼ buttons to select your
required entry, and then press OK or the ►
button to set or enter the submenu
4 Press ▲▼◄► button to adjust settings or
switch among the items. Press the OK
button for corresponding operation and then
return to the submenu.
5 Press the ◄ button to return to the previous
menu.Press the MENU button on the remote
control again to quit the on screen menu.
Input menu
RGB2
Input
25
Basic operation
Menu bar
Main menu
Sub menu
①
②
③
RGB2
Input
④
⑤
⑥
⑦
⑧
① PC adjust menu
Used to adjust parameters: Auto PC adj., Phase, Total dots, H Postion, V Postion, Reset, Mode
free, Store to match with RGB input signal format.
② Screen menu
If a computer is selected as a signal source, the following setup options for the image size are
available: Normal, True,4:3, 16:9, Custom and Digital zoom +/-.
If video equipment is selected as a signal source, the following setup options for the image size are
available: Normal, 16:9 and Custom.
③ Image select menu
The available image modes are: Dynamic, Standard, Cinema, Blackboard (green), Colorboard
and User.
④ Image adjust menu
If a computer is selected as a signal source, the following image adjusting options are available:
Contrast, Brightness,Color Temp., Red, Green, Blue, Sharpness and Gamma.
If video equipment is selected as a signal source, the following image adjusting options are available:
Contrast, Brightness,Color, Tint, Red, Green, Blue, Sharpness, Gamma, Noise reduction
and Progressive.
⑤ Input menu
Used to select input source: HDMI, RGB 1, RGB 2, Component, S-video or Video.
⑥ Audio menu
To adjust the volume level or mute the audio.
⑦ Option menu
Used to configure the projector operation settings.
⑧ Information menu
Used to display information.
26
Basic operation
Zoom and focus adjustment
Focus ring (Front)
Rotate the zoom ring to zoon in or out.
Zoom ring (Rear)
Rotate the focus ring to adjust the focus of the
projected image.
Auto setup function
2930058502
This function is available just by pressing the
AUTO button on the top control or on the remote
control. The system then automatically performs
various settings in the setup menu, including
input source search, auto pc adjustment and auto
keystone correction.
Remote control
AUTO button
KEYSTONE button
Top control
/
MENU
OK
INPUT
AUTO
button
AUTO
Keystone
If a projected picture has keystone distortion,
correct the image with the Keystone function.
Press the KEYSTONE button on the remote
control. The keystone dialog box appears. Correct
keystone distortion with ▲▼buttons. Keystone
adjustment can be stored.
Reduce the upper
width with the
▲ button.
Reduce the lower
width with the
▼ button.
Keystone
▲
▼
● The arrows are white when there is no correction.
● The direction of the arrows which are being
corrected turns red.
● The arrows disappear at the maximum correction.
● If you press the KEYSTONE button on the remote
control once more while the keystone dialog box
is being displayed, the keystone adjustment will be
canceled.
● The adjustable range can be limited depending
on the input signal.
27
Basic operation
2930058502
Audio adjustment
Direct operation
Remote control
Volume
Press the VOLUME +/- button on the top control
or on the remote control to adjust the volume.
VOLUME +/button
Top control
/
Mute
Press the MUTE button on the remote control
and select On to turn off the audio temporarily.
To restore the audio to its previous level, press
the MUTE button again and select Off or press
the VOLUME+/– buttons. Mute function is also
effective for AUDIO OUT jack.
MUTE button
MENU
OK
INPUT
AUTO
VOLUME +/- button
Menu operation
1 Press the MENU button to display the on
screen menu.
Press ▲▼ button to move the cursor to the
Audio menu icon. Press OK or the ► button
to enter the submenu entry.
2 Press ▲▼ button to move the cursor to the
desired item, and then press the OK button.
Audio Menu
Volume
Press ▲ to turn up the volume and ▼ to turn
down the volume.(0 to 25)
Mute
Press the OK button to switch the mute function
on/off.
After the audio is turned off, "on" is displayed. To
restore the audio, press the OK button again.
28
Audio menu icon
Basic operation
Remote control operation
Using the remote control for some frequently
used operations is advisable. Just pressing one
of the buttons enables you to make the desired
operation quickly without calling up the on screen
menu.
Remote control
Direct input select buttons
Direct INPUT buttons
Press the RGB 1, RGB2 IN, VIDEO, HDMI,
S-VIDEO or COMPONENT button on remote
control to select an input source.
STILL button
Press the STILL button to still the picture on the
screen. To cancel the sitill function, press the
STILL button again or press any other button.
2930058502
Arrow
buttons
▲▼
STILL
button
BLANK
button
LAMP
button
DZOOM +/-
button
16:9 button
DZOOM +/- button
Press the DZOOM +/- buttons and use the ▲▼
buttons to access the digital zoom mode.
button
PICTURE button
Press the PICTURE button on the remote control
to select your required image mode.
BLANK button
Press the BLANK button to black out the image. To
restore to normal, press the BLANK button again
or press any other button. The screen changes
each time you press the button as follows:
Black out NormalBlack out Normal......
LAMP button
Press the LAMP button to select the lamp mode to
change the brightness of the screen.
4:3 button
Blank Image
“Blank Image” disappears after 4 seconds if there
is no other button operation.
Normal ….....Normal brightness
Eco...........….Lower brightness reduces the
lamp power consumption and
extends the lamp life.
16:9 button
Select the width&height ratio of the screen as
16:9.
4:3 button
Select the width&height ratio of the screen as 4:3.
√ Note:
See the next page for the description of other
buttons.
29
Basic operation
TIMER button
Press the TIMER button. The timer display “00:00”
appears on the screen and the timer starts to
count time (00:00–59:59).
To stop the Timer, press the TIMER button. Press
the TIMER button again, and then the Timer
display disappears.
MENU button
Press the MENU button on the remote control to
display the on screen menu.
PATTERN button
Press the PATTERN button on the remote control
to select a test pattern image.
KEYSTONE button
Press the KEYSTONE button on the remote
control to Calibrate keystone distortion.
AUTO button
Press the AUTO button on the remote control to
use the auto setup function.
INFO button
Press the INFO button on the remote control to
use the information function.
RATIO button
Press the RATIO button on the remote control to
select your required screen mode.
SLEEP button
Press the SLEEP button on the remote control
to set a specified time to turn off the projector
automatically.
30
Timer display
02 :02
Remote control
MENU
button
2930058502
KEYSTONE
button
TIMER
button
PATTERN
button
AUTO
button
RATIO
button
SLEEP
button
INFO.
button
√ Note:
See the previous page for the description of
other buttons.
Computer input
Select input source (RBG 1/RGB 2)
Top control
HDMI
/
Direct operation
- Press the INPUT button on the top control.
MENU
- Press the RGB 1 or RGB 2 IN button on the
remote control to select RGB 1 or RGB 2.
RGB 1
OK
INPUT
AUTO
INPUT
button
RGB 2
Component
S-video
Video
Remote control
RGB 1
RGB 2 IN
button
RGB 2
2930058502
RGB 1 button
Menu operation
1 Press the MENU button to display the on
screen menu. Press▲▼ button to select the
input source icon and press the ► button or OK
button.
2 Press ▲▼ button to select RGB 1 or RGB 2,
and then press the OK button.
Input menu
RGB2
Input
Input icon
√ Note:
If RGB2 can not be selected, Please refer to 47 page (Terminal).
31
Computer input
Computer system select
The projector automatically tunes to various types of computers with its function of Multi-scan system and
Auto PC Adjustment. If a computer is selected as a signal source, the projector automatically detects the
signal format and tunes to project proper images without any additional setting.
Auto When the projector cannot recognize
the connected signal conforming to the
provided PC systems, Auto is displayed
on the System Menu box and the Auto
PC Adjustment function works to display
proper images. If the image is not
projected properly, a manual adjustment
is required.
-----
There is no signal input from computer.
Check the connection between your
computer and projector.
Select computer system manually
The system can also be selected manually.
1 Press the MENU button to display the on
screen menu. Use the ▲▼ buttons to select
the input source icon,, and press the ► or OK
button.
2 Use ▲▼ button to select System (Signal
format), and press the ► or OK button.
3 Press ▲▼ button to select your required
system, and then press the OK button.
32
RGB1 system menu
RGB2
The PC system menu displays
the selected system.
System option
Input
Computer input
Auto PC adjustment
Auto PC Adjustment function is provided to automatically adjust Phase, Total dots, H position and V
position to conform to your computer.
Menu operation
Auto PC adjustment
1 Press the MENU button to display the on
screen menu. Use the ▲▼ buttons to select the
PC adjust icon and press the ► button or OK
button.
2. Press the ▲ ▼ buttons to select AUTO PC
Adjustment, and then press the OK button.
PC adjust menu
PC adjust icon
To store the adjusted parameters
The system parameters adjusted in the Auto PC
Adjustment can be stored in the projector.
√ Note:
● Phase, Total dots, H Position and V Position of some computers cannot be fully adjusted with this
Auto PC adj. function. When the image is not provided properly with this operation, manual
adjustments are required.
● Phase, Total dots, H and V Position are disabled when Pixel Clock is higher than 140MHz.
● The Auto PC adj. cannot be operated when 480i, 576i, 480p, 576p, 720p or 1080i is selected
in the PC System Menu.
33
Computer input
Manual adjustment via PC
As some computer adopt special signal formats, the multi-purpose scanner of the projector may not
detect them. To match the special-format signals, the projector offers function of manual adjustment, with
which users can adjust the parameters. 5 independent memory sections is provided, where the manually
adjusted parameters can be saved. In the case of specific computer, you can make use of the memory
space to set up whenever necessary.
1 Press MENU button to display the on-screen
menu.Press ▲▼ button to select the PC adjust
icon and press ► or OK button.
2 Press ▲▼ button to select the item to be
adjusted and then OK to pop up the
corresponding dialog box. Press ◄►to set the
value.
PC adjust menu
Phase
Press ◄► to adjust the value, eliminating a flicker
from the image displayed (from 0 to 31).
Total dots
Press ◄► to adjust the total dots for a cycle so
that it can match the image on computer.
PC adjust icon
H position
Press ◄► to adjust the horizontal position of the
image.
V position
Press ◄► to adjust the vertical position of the
image.
Reset
To re-set the adjusted data, you should select the
initial state and then press OK. Click Yes when
the dialogue box appears for confirmation and all
adjusted value will return to the initial state.
Mode free
To delete the saved data, you should select the
Standby Mode, and press ► or OK button. The
mode to be deleted will be highlighted,click Select.
Store
To save the adjusted data, you should select
Save, and press ► or OK button. Then move the
cursor to select the saving mode from the items
1-5. Finally click Select.
√ Note:
If you select 480i, 576i, 480p, 576p, 720p or 1080i from the system menu, the functions of horizontal
position and vertical position will be disabled.
34
2930058502
Computer input
Image select
Direct selection
Use the PICTURE button on the remote control to
select the image mode.
Remote control
button
Menu selection
1. Press MENU button on the remote control to
display the on screen menu. Press ▲▼ to
select the image mode icon. Then press ►
or press OK.
2. Press ▲▼ to select the desired item, and
then press OK.
Dynamic
Image select menu
When the image is viewed in a bright room, select
this mode.
Standard
This is the default image mode.
Cinema
This mode limited the brightness, and more detail
can be seen.It is suitable for seeing a film in a
dark environment.
Blackboard(Green)
This mode can be used to project the image on
a green board to enhance the image quality. It
mainly functions on a green board, not black
board.
Colorboard
This mode is suitable for projecting the image onto
the red, blue, yellow or green wallpaper.
Press OK to select Colorboard , and then press ►
to enter the submenu.
Press ▲▼ to select wallpaper from Red, Blue,
Yellow and Green.
User
This is the image mode pre-set by in the image
adjustment menu.
35
Computer input
Image adjust
1. Press Menu on the remote control to display
the on-screen menu. Press ▲▼ to select the
image adjust icon .Then press ► or press
OK.
2. Press ▲▼ to select the item to be adjusted,
and then press Select. At the time, the
adjustment dialogue box will appear. Press ◄►
to set the value.
Image adjust menu
.
Contrast
Press ◄ to decrease the contrast and press ► to
increase it. (from 0 to 63)
Brightness
Press ◄ to decrease the brightness and press
►to increase it.(from 0 to 63)
Image adjust icon
Color Temp.
Press◄► to select the desired color temperature
(option are "Cool ", " Medium", " Warm")
Red(White balance)
Press ◄ to make the red color lighter and press
►to make it stronger.(from 0 to 63)
Green(White balance)
Press ◄ to make the green color lighter and press
► to make it stronger.(from 0 to 63)
Blue(White balance)
Press ◄ to make the blue color lighter and press
► to make it stronger.(from 0 to 63)
Sharpness
Press ◄ to soften the image and press ► to
sharpen it.(from 0 to 15)
Gamma
Press ◄► to adjust the grey level to achieve
better contrast and balance.(from 0 to 15)
√ Note:
● After red( white balance),green( white balance) or blue( white balance) is adjusted, the image mode
will change to “User”.
● When colorboard is selected in the “ Image select ”, the color temperature will change to “colorboard”.
36
2930058502
Computer input
Screen size adjust
The size of the screen can be reset to the value the
user desires.
1 Press MENU button on the remote control to
display the on screen menu. Press ▲▼to select
Screen icon and press ► or OK.
2 Press ▲▼ to select your required item and then
press OK.
Remote control
RATIO buttons
DZOOM +/-button
Screen Menu (BD430, BD450, BD470)
Normal
This function will make the width-height proportion of
the projected image consistent with the input signals.
True
This item provides the image with the original size. If
the original image is larger than the screen
(1024X768(BD430, BD450, BD470)/
1280X800(BD460)) , the projector will automatically
enter the window moving mode for image display. The
user can press ▲▼ ◄► to move the display image
to adjust.
16:9
This item provides images with a width-height ratio of
16:9.
4:3
This item provides normal images with a width-height
proportion 4:3.
Full
Screen icon
Screen Menu (BD460)
Normal
True
16:9
4:3
Full
Custom
Digital zoom +
Digital zoom -
Full screen will be displayed.
Custom
This item can help users manually adjust the
proportion and position of the screen.
Adjustable range depends on the input signal formats.
Some have a limitation to adjust.
When this item is selected, press ►. The indication
of self-definition will appear on the screen. You can
press ▲▼ to select the items to be adjusted.
Scale H/V: To adjust the horizontal/vertical proportion of the
screen.
H&V: When this item is enabled, the width-height proportion
will be locked. The vertical proportion is displayed in gray,
meaning “disabled”. You can adjust the horizontal proportion,
and then modify the proportion of the screen on the basis
of the width-height proportion.If you reset the H&V settings,
then H&V data will be initialized.
Position H/V: To adjust the horizontal/vertical position of the
screen.
Apply to all inputs: Use this item to save input adjusted
proportion.When you press Select at this item, a dialog box
will pop up for confirmation. To save the proportion, press
Select at Yes. If you select self-definition, the system will use
the saved proportion.
Reset: This item allows you to reset the all adjusted values.
In the initial state, press Select, and a dialog box will pop up
for confirmation. To reset the parameters, press Select at
Yes.
√ Note:
Screen icon
Digital zoom +
After you select the Digital zoom +, the on screen
menu will disappear, while the information on Digital
zoom + appears. You can press OK to zoom in the
image size, and press ▲▼◄►to move the image
horizontally and vertically.
The moving is effective only when the image is larger
than the size of the screen.
You can also press DZOOM + or select on the remote
control to zoom in the projected image.
Digital zoom After you select the Digital zoom -, the on screen
menu will disappear, while the information on Digital
zoom - appears. You can press OK to zoom out the
image size. You can also press DZOOM - or select on
the remote control to zoom out the projected image.
To exit the “Digital zoom +/-“mode, press any button
except the DZOOM +/- and the OK button. To return
to Normal size, select “ Screen” in the menu to
adjust screen size, or enter a new input source in the
menu “Input”. and press ▲▼◄►to move the image
horizontally and vertically.
● To get the the best picture quality (BD430, BD450, BD470), you should adjust the resolution to XGA(1024x768).
● To get the the best picture quality (BD460), you should adjust the resolution to WXGA(1280x800).
● When True or 4:3 is selected, Digital zoom +/- will be disabled.
●True, Custom and Digital zoom +/- menus might be disabled when Pixel Clock is higher than 140MHz.
●True can not be selected when 480i, 576i, 480p, 576p, 720P50, 720P60, 1080i is selected in PC system menu.
37
Video Input
Select input source
(HDMI/Component/S-video/Video)
Top control
HDMI
/
Direct selection
- Press HDMI, COMPONENT, S-VIDEO or VIDEO
MENU
button on the remote control.
- Press the INPUT button on the top control.
if the INPUT button is pressed again, then
the
AUTO
next input source will be displayed. The input
source will be changed like as the flow chart.
RGB 1
OK
INPUT button
INPUT
RGB 2
Component
S-video
Video
Remote control
HDMI
button
Menu operation
HDMI
COMPONENT
button
VIDEO
button
2930058502
Video
S-VIDEO
button
1. Press MEMU button on the remote control to
display the on screen Menu.
2. Press ▲▼ to select the icon for input source.
Then press ► or press OK.
3. Press ▲▼ to select the input source and press
OK.
Component
S-video
HDMI
When input signal is connected to the HDMI jack,
select HDMI.
Input menu
Component
RGB2
When input signal is connected to the Component
jack, select Component .
S-Video
When input signal is connected to the S-Video
jack, select S-Video.
Video
When input signal is connected to the Videojack,
select Video.
38
Input icon
Input
Video Input
1. Press MENU on the remote control to display
the on-screen menu. Press ▲▼ to select the
icon for input source. Then press ► or press
OK.
2. Press ▲▼ to select “Component ”, “Video” , or
“S-video ” , and then press OK.
3 Press ▲▼ to select the system, and then press
► or press Select. Press ▲▼ to select the
signal format, then press OK.
Top control
/
Video system select
MENU
button
MENU
OK
AUTO
INPUT
Remote control
2930058502
MENU
button
Video or S-video
Auto
The projector can automatically detect the input
video system.
Video System Menu (Video or S-video)
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
The projector if can’t reproduce the image, you
should select a specific signal format from PAL,
SECAM, NTSC, NTSC 4.43, PAL-M and PAL-N.
Component
Auto
Video System Menu (Component)
The projector can automatically detect the input
video system and optimize its own state.
Component video signal format
If the projector can’t reproduce the image, you
should select a specific component video signal
format from 480i, 576i, 480p, 576p, 720p and
1080i.
√ Note:
● If HDMI is selected, Video system menu will be disabled.
39
Video Input
Image select
Direct selection
Press the PICTURE button on the remote control
to select the image mode.
Remote control
2930058502
MENU button
2930058502
Menu selection
1. Press MENU button on the remote control to
display the on screen menu. Press ▲▼ to
select the "image select" icon. Then press ►
or press OK.
2. Press ▲▼ to select the desired item, and
then press OK.
button
Dynamic
When the image is viewed in a bright room, select
this mode.
Standard
Image mode select menu
This is the default image mode.
Cinema
This mode limited the brightness, and more detail
can be seen.It is suitable for seeing a film in a
dark environment.
Blackboard(Green)
This mode can be used to project the image on
a green board to enhance the image quality. It
mainly functions on a green board, not black
board.
Colorboard
This mode is suitable for projecting the image onto
the red, blue, yellow or green wallpaper.
Press OK to select Colorboard , and then press ►
to enter the submenu.
Press ▲▼ to select wallpaper from Red, Blue,
Yellow and Green.
User
This is the image mode pre-set by in the image
adjustment menu.
40
Image select icon
Video Input
Image adjust
1. Press MENU button on the remote control
to display the on-screen menu. Press ▲▼ to
select the image adjust icon. Then press ►
or press OK.
2. Press ▲▼ to select the item to be adjusted,
and then press Select. At the time, the
adjustment dialogue box will appear. Press
◄►to set the value.
Image adjust menu
Contrast
Press ◄ to decrease the contrast and press ► to
increase it. (from 0 to 63)
Brightness
Press ◄ to decrease the Brightness and press ►
to increase it. (from 0 to 63)
Image adjust icon
Color
Press ◄ to decrease the color gamut and press
► to increase it.((from 0 to 63).
Tint
Press ◄► to select the appropriate tone for the
image.(from 0 to 63)
Red(White balance)
Press ◄ to make the red color lighter and press
►to make it stronger.(from 0 to 63)
Green(White balance)
Press ◄ to make the green color lighter and press
► to make it stronger.(from 0 to 63)
Blue(White balance)
Press ◄ to make the blue color lighter and press
► to make it stronger.(from 0 to 63)
Sharpness
Press ◄ to soften the image and press ► to
sharpen it.(from 0 to 15)
Gamma
Press ◄► to adjust the grey level to achieve
better contrast and balance.(from 0 to 15)
Noise reduction
Enable this item to reduce the snow
interference and achieve more smooth and clear
image.
Progressive
The interlaced video signal can be converted into
images in a progressive manner. You can select
one from the options below:
OFF: Disabled;
L1: Projecting dynamic image;
L2: Projecting still image;
Film: This item is used for watching films. When
it is selected, This projector will restore the images
with high quality to reduce image distortion.
√Note:
- Noise reduction and Progressive can not
be selected when 480p, 576p, 720p and 1080i
signals are coming.
- NTSC and NTSC-4.43 Color standard system
support this tint menu.
41
Video Input
Screen size adjust
The size of the screen can be reset to the value
the user desires.
1. Press MENU button on the remote control to
display the on screen menu.Press ▲▼ to
select the screen. Then press ► or press OK.
2. Press ▲▼ to select the desired item, and then
press OK.
Normal
This function will make the width-height proportion of
the projected image consistent with the input signals.
2930058502
Remote control
RATIO buttons
Screen menu(BD430,BD450,BD470)
4:3
This item provides normal images with a width-height
proportion 4:3.
Full
Full screen will be displayed.
16:9
This item provides images with a width-height ratio of
16:9.
Natural wide
Center area image will be displayed more naturally on
the 16:9 screen size.
Custom
This item can help users manually adjust the
proportion and position of the screen.
Adjustable range depends on the input signal
formats. Some have a limitation to adjust.
When this item is selected, press ►. The
indication of self-definition will appear on the
screen. You can press ▲▼ to select the items to
be adjusted.
Scale H/V: To adjust the horizontal/vertical
proportion of the screen.
H&V: When this item is enabled, the width-height
proportion will be locked. The vertical proportion
is displayed in gray, meaning “disabled”. You can
adjust the horizontal proportion, and then modify the
proportion of the screen on the basis of the widthheight proportion.If you reset the H&V settings, then
H&V data will be initialized.
Position H/V: To adjust the horizontal/vertical
position of the screen.
Apply to all inputs: Use this item to save input
adjusted proportion.When you press Select at this
item, a dialog box will pop up for confirmation. To
save the proportion, press Select at Yes. If you
select self-definition, the system will use the saved
proportion.
Reset: This item allows you to re-set the adjusted
values.In the initial state, press Select, and a dialog
box will pop up for confirmation. To re-set the
parameters, press Select at Yes.
42
Screen icon
Screen menu(BD460)
Normal
4:3
Full
16:9
Natural wide
Custom
Screen icon
√Note:
● If no signal is detected, the items of the custom
can not be selected, the related dialog box
disappears.
● The horizontal/vertical proportion and the
horizontal/vertical position should be adjusted
according to the input signal.
● 16:9 doesn't work when 720p or 1080i is select
in Component or HDMI input.
● Custom sub-menus are disabled when Pixel Clock
higher than 140MHz.
Option
Option
following functions.
1. Press MENU button on the remote control to
display the on screen menu. Press ▲ ▼ to
select Option.Then press ► or press OK to
enter the submenu.
2. Press ▲ ▼ to select the desired item to be
adjusted, and then press ► or press OK to
reach the selected item.
3. Press ▲▼ to select the desired item and then
press OK.
Option menu
1/3
Language
Option
2/3
Selects a desired Menu Language.
Automatic Standby
Sleep time
Off
Off
Menu position
You can use this function to change the position of
on screen menu. To do that, select menu position
and press OK. Each time you press OK, menu’s
position on the screen in the order below:
Upper left→Upper right→Center→ Lower left→
Lower right→Upper left→…
Option
3/3
Initial Setting
Automatic Standby
Sleep time
Off
Off
43
Option
Auto setup
This function enables Input search, auto keystone
and Auto PC adjustment by pressing the AUTO
button on the top control or the on the remote
control. Settings for those can be altered as
follows:
Input search
This function detects the input signal
automatically. When a signal is found, the
search will stop. Use the Point ▲▼ buttons to
select one of the following options.
Off ........... Input search will not work.
On............. Active Input Sourcing function. It
detects the input signal and search
stops when the signal is found.
Auto PC Adjustment
On............. Press Auto Set button on the Top
Control or remote control to enable
Auto PC Adjustment function.
Off ........... Disables Auto PC Adjustment.
Auto keystone
Auto .........Always works and corrects
keystone distortion according to the
projector's tilt.
Manual ......Activate this function by pressing
Auto Set on the Top Control or the
Remote Control.
Off ........... Disables Auto Keystone.
Keystone
This function is used to store or reset the keystone
correction when the AC power cord is unplugged.
Use the Point ▲▼ buttons to switch between
each option.
Store ...... .. Keep the keystone correction even
when the AC power cord is unplugged.
Reset ...... Release the keystone correction when
the AC power cord is unplugged.
To correct keystone distortion, press the OK
button.Keystone appears on the screen. Use the
Point ▲▼ buttons to correct keystone distortion.
Blue Back
You can use this item to set the background of
The time when no signal is detected.
You can press ▲▼ to switch over between the
items below:
On...... To enable the blue background for
projection;
Off...... To disable the blue background.
44
√ Note:
● Only the last selected input source can be
detected.
● If the INPUT button on the top control or
the RGB 1/2 buttons, HDMI,VIDEO , S-VIDEO
or COMPONENT buttons on the remote control
is pressed during Input search is in progress,
Input search will stop and go back to the
previous input signal.
● Phase, Total dots, Horizontal and Vertical
position of some computers cannot be fully
adjusted with the Auto PC Adjustment
function. When the image is not provided
properly with this operation, manual
adjustments are required.
Option
Display
You can use this item to set whether the startup animation is displayed.
On .....................Show startup screen.
Off .....................Show the input image instead of the on-start screen.
Logo (Logo and Logo PIN code lock settings)
This function allows you to customize the screen logo with Logo select, Capture, Logo PIN code lock
and Logo PIN code change functions.
√ Note:
When On is selected in the Logo PIN code lock function, Logo select and Screen Capture
functions cannot be selected.
Logo select
This function decides on the starting-up display from among following options.
User ........ Show the image you captured.
Default .... Show the factory-set logo.
Off ........... Show the countdown display only.
Screen Capture
This function enables you to capture an image being projected to use it for a starting-up display or
interval of presentations.
Select Screen Capture and press the OK button. A confirmation box appears and select Yes to
capture the projected image.
After capturing the projected image, go to the Logo select function and set it to User. Then the
captured image will be displayed the next time you turn on the projector.
√ Note:
- Screen Capture can be operated on the resolutions from VGA(640x480) to XGA ( 1024x768) only.
(BD430, BD450, BD470)
- Screen Capture can be operated on the resolutions from VGA(640x480) to WXGA ( 1280x800)
only. (BD460)
Logo PIN code lock
This function prevents an unauthorized person from changing the screen logo.
Off ...... .....The screen logo can be changed freely from the Logo Menu.
On ...... .....The screen logo cannot be changed without a Logo PIN code.
If you want to change the Logo PIN code lock setting, press the OK button and the Logo PIN code
dialog box appears. Enter a Logo PIN code by following the steps below.
45
Option
Enter a Logo PIN code
Use the Point ▲▼ buttons to enter a number. Press the Point ► button to fix the number and move the
red frame pointer to the next box. The number changes to “*”. If you fixed an incorrect number, use the
Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a three-digit number.
After entering the three-digit number, move the pointer to Set. Press the OK button so that you can start
to operate the projector.
If you entered an incorrect Logo PIN code, Logo PIN code and the number (***) will turn red for a
moment. Enter the correct Logo PIN code all over again.
Logo PIN code change
Logo PIN code can be changed to your desired three- digit number. Press the OK button to select Logo
PIN code change. Logo Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct
code. The New Logo PIN code input dialog box appears. Set a new Logo PIN code, confirmation box
appears, choose yes to set the new Logo Pin code.
Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer
change the Logo PIN code setting.
CAUTION:
WHEN YOU HAVE CHANGED THE LOGO
PIN CODE, WRITE DOWN THE NEW PIN
CODE IN COLUMN OF THE LOGO PIN CODE
NO. MEMO ON PAGE 64, AND KEEP IT
SECURELY. SHOULD THE LOGO PIN CODE
BE LOST OR FORGOTTEN, THE LOGO
PIN CODE SETTING CAN NO LONGER BE
CHANGED.
Ceiling
This function is used to project the image from a ceiling mounted projector.
Off ......Disable this function.
Auto ...The picture will be top/bottom reversed automatically.
On.......The picture will be top/bottom reversed.
Rear
This function is used to project the image from rear of the screen.
Off ......Disable this function.
On.......The picture will be left/right reversed.
46
Option
Terminal
The RGB IN 2/RGB OUT terminal on the back of the projector is switchable for computer input or monitor
output(See page 13). Select RGB2 or RGB Out with ▲▼ buttons.
RGB2 ..........RGB2 Input.
RGB Out ......RGB output.
RGB Out is the same signal as RGB IN 1.
Power management
For reducing power consumption as well as maintaining the lamp life, the Power management function
turns off the projection lamp when the projector is not operated for a certain period.
Select one of the following options:
Ready ..................When the lamp has been fully cooled down, the POWER/TEMP indicator changes
to green blinking.In this condition, the projection lamp will be turned on if the input
signal is reconnected or any button on the top control or remote control is pressed.
Shut down .......... When the lamp has been fully cooled down, the power will be shut down.
Off ....................... Power management function is off.
Timer ................... If the input signal is interrupted and no button is pressed for more than 30 seconds,
the timer display with No signal appears. It starts the countdown until the lamp is
turned off. Press ▲▼ buttons to set the Timer(1~30min.)
√ Note:
Factory default is Ready: 5 Min.
Power management
No signal
01 : 20
Time left before Lamp is off.
Auto Power
This function enables projector auto power on with detection connection with AC power cord.
On ....................... Auto Power function is On.
Off ....................... Auto Power function is Off.
Standby mode
There are two standby modes in the projector.
Normal ...... in this mode, RS-232C and RGB Out functions can be used.
Eco ............ Low power standby mode, in this mode, RS-232C and RGB Out functions can not be
used.
47
Option
Closed Caption
Closed Caption is a text version of the program sound or other information displayed on the screen.If the
input signal contains closed captions, you can turn on the feature and switch the channels. Press the
Point ▲▼ buttons to select Off, CC1, CC2, CC3 or CC4.
√ Note:
The Closed Caption is available only under the situation below.
• Only the NTSC 3.58 Color system of the Video and S-Video supports the closed caption.
• The icon of Closed Caption is displayed in gray while it is not available.
• The Closed caption is unavailable when on screen menu and Timer are displayed.
Lamp Mode
This function allows you to change brightness of the screen.
Normal ....... Normal brightness
Eco ............. Lower brightness reduces the lamp power consumption and extends the lamp life.
Test Pattern
This function enables you to test & set interior signals.There are 12 types of test pattern: gray scale,raster
gray, color bar, red, green, blue, black, gray, white, cross hatch.
Security (Key lock and PIN code lock)
This function allows you to use the Key lock and PIN code lock function to set the security for the
projector operation.
Key lock
This function locks the top control and remote control buttons to prevent operation by unauthorized
persons. Select Key lock and then press the OK button, and select the desired item by pressing the Point
▲▼ buttons.
Off ......................... Unlocked.
Projector ................ Lock the operation of the top control except the power button. To
unlock, use the remote control.
Remote Control ..... Lock the operation of the remote control except the power button. To
unlock, use the top control.
If the top control accidentally becomes locked and you do not have the remote control nearby or there is
something wrong with your remote control, contact the dealer where you purchased the projector or the
service center.
48
Option
PIN code lock
This function prevents the projector from being operated by unauthorized persons and provides the
following setting options for security.
Off ............Unlocked.
On ........... Enter the PIN code every time turning on the projector.
Whenever you change the PIN code lock setting or the PIN code (the three-digit number), you are
required to enter the PIN code. The “111” is set as the initial PIN code at the factory.
If you want to change the PIN code lock setting, Press OK button and the PIN code dialog box appears.
√ Note:
The POWER button is enable even the "Projector" or "Remote control" of Key lock and PIN code lock
are set.
Enter a PIN code
Use the Point ▲▼ buttons to enter a number. Press the Point ► button to fix the number and move the
red frame pointer to the next box. The number changes to “*”. If you fixed an incorrect number, use the
Point ◄ button to move the pointer to the number you want to correct, and then enter the correct number.
Repeat this step to complete entering a three-digit number.
After entering the three-digit number, move the pointer to “Set.” Press OK button so that you can start to
operate the projector.
If you entered an incorrect PIN code, PIN code and the number (***) will turn red for a moment. Enter the
correct PIN code all over again.
PIN code change
The PIN code can be changed to your desired three-digit number. Press ▲▼ button to select PIN code
change. Pin code dialog box appears, use the Point ▲▼ buttons to enter the correct code. The New PIN
code input dialog box appears. Set a new PIN code.
CAUTION:
WHEN YOU HAVE CHANGED THE PIN CODE,
WRITE DOWN THE NEW PIN CODE IN COLUMN
OF THE PIN CODE NO. MEMO ON PAGE 64, AND
KEEP IT SECURELY. IF YOU FORGET YOUR PIN
CODE, THE PROJECTOR CAN NO LONGER BE
STARTED.
49
Option
Cooling fast
There are the following options in the cooling fans operation when the projector is turned off.
On ... Faster and louder-sound than the normal operation, but it takes less time to cool the projector
down.
Off ... Normal operation.
High Altitude
This projector provides Fan control function in the "Option" menu. Choose the running speed of cooling
fans from the following options according to the ground elevation where you use the projector.
Off..............Normal speed.Set this function to "Off" when using the projector in non-high altitude
environment.
On..............The fan runs faster than normal speed. When operated in high altitude area, the cooling fan
will produce weaker effects. So you should select this item.
√ Note:
Change the High Altitude mode to On at above 2000 m.
Filter counter
This function is used to set a frequency for the filter cleaning.
Filter warning icon
When the projector reached a specified time between cleanings,
Please clean the filter
a Filter warning icon appears on the screen, notifying the cleaning
is necessary. After cleaning the filter, be sure to select RESET and
set the timer. The Filter warning icon will not turn off until the filter
counter is reset.
Filter counter..............Display the time that the filter is used. Ready only.
Timer..........................Display the time to cleaning the filter.(Off/100h/200h/300h)
Filter counter reset.....Reset the filter counter after filter is cleaned.
Automatic Standby
This function is used to set a time to turn off the projector automatically if there is no any operation.
Off..........Disable the function.
4 Hr........Turning off the projector automatically in 4 hours if there is no any operation.
6 Hr........Turning off the projector automatically in 6 hours if there is no any operation.
8 Hr........Turning off the projector automatically in 8 hours if there is no any operation.
Sleep time
This function is used to set a specified time to turn off the projector even if there is operation or signal
input.
Press ► button to enter the sub menu and press ▲▼ buttons to select among Off, 10 min, 20 min, 30
min, 60 min, 90 min, 120 min and 240 min.
Initial Setting
This function returns all setting values except for the User logo, PIN code lock, Logo PIN code lock,
Lamp counter and Filter counter to the factory default settings.
50
Information
Displaying input source
The information menu is used to detect signal of projected image and running state of the projector.
Direct operation
Press INFO button on the remote control and the information menu will appear on the screen. Shown as
the right picture.
Menu operation
Press MENU button to display the screen menu. Press ▲▼ to select information icon, the information
menu will appear and the information is displayed.Shown as the right picture
See below for displayed information.
Input
The selected input source is displayed.
Information menu
H-sync freq .
The horizontal frequency of the input signal is
displayed in KHz, or - - - -KHz when no signal.
V-sync freq .
The vertical frequency of the input signal is
displayed in Hz, or - - - - Hz when no signal.
Numbers of Hz doubles when during Interlace.
Screen
The selected screen size is displayed.
-----
-----
Information menu
Language
33.7
60
The selected OSD language is displayed.
Lamp Mode
The selected lamp mode is displayed.
Sleep Timer
Off
Lamp Time
The used time of the lamp is displayed.
Power management
Turns off the projection lamp when the projector is
not operated for a certain period.
Sleep Timer
This function is used to set a specified time to turn
off the projector even if there is operation or signal
input.
Key lock
The Key lock state is displayed. (Off, Remote
Control or The projector)
51
Maintenance
POWER/TEMP indicator
Projector is in standby state, and POWER/
OK
TEMP indicator lights red.
When its internal temperature exceeds the normal
AUTO
value, it will be automatically powered off to protect
the parts. When in a cooled state, the power
indicator will blink. When it is cooled enough
(restore the normal operating temperature), you
can press the power key to start up the system.
Check the items below:
- Whether the site where installed is well ventilated,
and whether the vent is blocked.
- Whether installed near the vent of air conditioner.
it can not be installed at that place.
- Whether the filter is clean. You should clean it
regularly.
Projector is in OFF state, and POWER/TEMP
indicator flashes red. When any abnormity is
detected, The projector will be automatically
powered off to protect its internal parts. At the
time, the POWER/TEMP indicator will flash red. In
this case, you should unplug the power cord and
plug it again, then power on the projector again
for check. If the projector is still in OFF state and
POWER/TEMP indicator flashes red, you should
unplug the power cord and contact the repair
center for maintenance.
CAUTION:
When abnormity occurs, the user should
cut off the AC power. Otherwise, it may
lead to fire or electric shock.
52
Indicator
/
The POWER/TEMP indicator tells in what
protection state engaged. The user should check
the POWER/TEMP indicator and power indicator
to make sure they MENU
work.
POWER/TEMP indicator lights red.
INPUT
Maintenance
Cleaning the filter
The filter prevents dust from accumulating on the surface of lens assembly. Should the filter become
clogged with dust particles, it will reduce the cooling fan’s effectiveness and may result in internal heat
buildup and adversely affect the life of the projector. If a Filter warning icon appears on the screen, you
should clean the filter immediately. To do that, follow the steps below:
1 Turn off the projector, and unplug the AC power
cord from the AC outlet.
2 Release the two hooks and remove the air filter.
3 Gently clean the filter with a brush.
4 Reinstall the filter into the projector properly.
Ensure that a clicking sound is heard to confirm
the filter is completely installed.
Note:
Do not operate the projector when the
filter is removed. Otherwise, dust will be
accumulated on lens and thus affect the
image quality.
Never attempt to place any objects to the
air intake vents. Otherwise, the projector
may malfunction.
Resetting the filter counter
1. Press Menu on the remote control to display
the on screen menu. Press ▲▼ to select the
icon for the option menu. Then press ► or
press OK.
2. Press ▲▼ to select "Filter counter reset" , and
then press ► or press Select. Press ▲▼ to
select "Filter counter reset", then press OK.
At the time, you will see the prompt information
“Reset the filter counter ?” displayed on the
screen. Select Yes.
3. When another dialog box pops up, you should
select Yes and reset the filter.
Air filter
Hooks
Note:
Keep from dust and smog.Otherwise, the image
quality may deteriorate. When operated in an
environment with dust and smog, the dust and dirt
will accumulate on its lens, liquid crystal board or
the lens assembly inside the projector. If that
happens, you should contact the local distributor or
repair center for correct cleaning.
53
Maintenance
Attaching the Lens Cap
When moving the projector or not using it for a
long period, cover the lens cap properly.
Attach the lens cap according to the following
procedures.
1. Thread the string through the hole on the lens
cap and then tie a knot in the string to secure
it in place.
2. Loosen the ceiling screw on the bottom and
tied the string on it, then tighten the screw.
ceiling screw
Cleaning the lens
Unplug the AC power cord before cleaning.
Apply some non-abrasive cleaning agent
exclusively designed for cameras onto a piece of
clean cloth, and then use it to wipe the lens gently.
Or you can use cleaning paper or commercial
blower to clean the lens.
Avoid excessive use of cleaning agent. Abrasive
cleaning agent, solvent or other coarse chemicals
may scratch the lens.
Cleaning the projector’s cabinet
Unplug the AC power cord before cleaning.
Use a piece of clean cloth to gently wipe the
surface of projector. If the projector is quite polluted,
you can apply some neutral cleaning agent onto
a piece of clean cloth, and use it to wipe the shell.
Avoid excessive use of cleaning agent. Abrasive
cleaning agent, solvent or other coarse chemicals
may scratch the lens.
When not used, you should put it into a box to
avoid dust and scratch.
54
Maintenance
Replacing the lamp
Top Control
/
When the service life of the projection lamp is
over, the icon suggests that the lamp needed to
be replaced will appear on the screen, and the
LAMP indicator on the top control will lights red. In
this case, you should immediately replace it with
a new one of the same model. The lighting time of
the LAMP indicator is subject to the lamp mode.
LAMP REPLACE
indicator lights
red.
Lamp replacement icon
OK
Replace the lamp
CAUTION
INPUT
As temperature inside the projector is high,
you should cool the projector for at least 45
minutes before you open the lamp cover.
CAUTION
CAUTION
For the sake of safety, only use the lamp of
the same model. Never drop the lamp onto the
ground nor touch the glass bulb! The glass can
shatter and hurt.
When the lamp isn’t illuminated, it may indicate that the lamp has been damaged.
When you replace the lamp in a projector installed on the ceiling, you should stand beside
the lamp cover but not under it; for the broken glass may fall down to hurt you. To do that,
remove the lamp cover gently to avoid being hurt by the dropped glass. If glass drops into
your eyes or mouth, you should see the doctor immediately.
To replace the lamp, follow the steps below:
1. Power off the projector and unplug the power
cord. Then let the project cool for at least 45
minutes.
2. Loosen the screws on the lamp cover and open
the cover.
3. Loosen the two screws that secure the lamp. Lift
the lamp out of the projector by using the handle.
4. Replace the lamp with a new one and secure
the two screws.
Make sure that the lamp is set properly. Close
the lamp cover and secure the screw.
5. Plug the AC power cord and power on the
projector.
Handle
Screw
Screw
Lamp
Lamp cover
Screw
55
Maintenance
ORDER REPLACEMENT LAMP
Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the
following information to the dealer.
Replacement Lamp Type No.:1300022500
LAMP HANDLING PRECAUTIONS
This projector uses a high-pressure lamp which must be handled carefully and properly.
Improper handling may result in accidents, injury, or create a fire hazard.
● Lamp life may differ from lamp to lamp and according to the environment of use. There is
no guarantee of the same life for each lamp. Some lamps may fail or terminate their life
in a shorter period of time than other similar lamps.
● If the projector indicates that the lamp should be replaced, i.e., if the LAMP REPLACE
indicator lights up, replace the lamp with a new one IMMEDIATELY after the projector
has cooled down. (Follow carefully the instructions in the Lamp Replacement section of
this manual.) Continuous use of the lamp with the LAMP REPLACE indicator lighted may
increase the risk of lamp explosion.
● A Lamp may explode as a result of vibration, shock or degradation as a result of hours of
use as its lifetime draws to an end. Risk of explosion may differ according to the
environment or conditions in which the projector and lamp are being used.
IF A LAMP EXPLODES, THE FOLLOWING SAFETY PRECAUTIONS SHOULD
BE TAKEN .
If a lamp explodes, disconnect the projector’s AC plug from the AC outlet immediately.
Contact an authorized service station for a checkup of the unit and replacement of the
lamp. Additionally, check carefully to ensure that there are no broken shards or pieces of
glass around the projector or coming out from the cooling air circulation holes. Any broken
shards found should be cleaned up carefully. No one should check the inside of the projector
except those who are authorized trained technicians and who are familiar with projector
service. Inappropriate attempts to service the unit by anyone, especially those who are not
appropriately trained to do so, may result in an accident or injury caused by pieces of broken
glass.
56
Appendix
Troubleshooting
Before calling your dealer or service center for assistance, check the items below once again.
- Make sure you have properly connected the projector to peripheral equipment as described on pages
(see page19-21).
- Make sure all equipment is connected to AC outlet and the power is turned on.
- When the projector does not project an image from the connected computer, restart the computer.
Failure
Solutions
The projector can't be powered on.
- Plug the power cord of the projector into the AC power outlet.
- Check whether the power indicator turns red.
- The projector can be turned on after the power indicator turns
red.
- Check the POWER/TEMP indicator. If it lights red, projector
cannot be turned on.
- Check the projection lamp
The initial display is not shown.
- Make sure both "Display" and "Logo select" functions
are enabled.
Input signals are automatically
switched.
-Adjust the search function of input source properly.
Input signal switches automatically.
- Make sure Input search function is adjusted properly.
When the projector is on,
the filter warning icon appears.
- Clean the filter immediately.
When the projector is on, the lamp - Replace the lamp immediately.
replacement icon appears.
Image is out of focus.
- Adjust focus of the projector.
- Provide proper distance between the projector and the
projection screen.
- Check the projection lens to see if it needs cleaning.
Image turns over leftward/rightward
Image turns over upward/downward
- Check the function of "Rear" and adjust the image.
- Check the function of "ceiling" and adjust the image.
Image not bright enough
- Check whether the "Contrast" or "Brightness" is adjusted
correctly.
- Check whether the "Image mode" is properly selected.
- Check the function of the "Lamp Mode".
- Check the lamp and replace it.
There is no image.
- Check the connection between your computer or video
equipment and the projector.
- Make sure the temperature is not out of the specified Operating
Temperature (41˚F–95˚F [5˚C–35˚C]).
- When BLANK is operating, the image cannot be displayed.
57
Appendix
Failure
Solutions
There is no sound.
- Check the audio cable connection from audio input source.
- Press the Volume + button.
- Press the Mute button.
- When the AUDIO OUT is plugged-in, the projector's built-in
speaker is not available.
The color of image is abnormal.
- Check whether the "Red" or "Green" or "Blue" is adjusted
correctly.
- Make sure the Blackboard(Green) is selected in the item
"image select".
Auto PC adjust doesn't work.
- Check the signal of input source.
Automatic adjustment through PC won't be effective when
480p, 576p, 720p,480i, 576i or 1080i is selected.
Power management doesn't work.
- Power management function can not work while BLANK
function is running.
The PIN code dialog box popes up in - A PIN code is set for locking.
the startup process
Remote control doesn't work.
- Check the battery of the remote control.
- Make sure there is no obstacle between the projector and the
remote control.
- To use the remote control, keep it within 5 meters away from
the projector.
- The remote control is not available if the remote control is
locked at Key lock under Security of Option section.
The indicator is illuminated or flashes
- Check the state of the projector according to the indicator.
The Top control panel doesn’t work
- The Top control is not available if the top control is locked at
Key lock under Security of Option section.
PIN code lock for startup animation,
key lock and PIN code lock can’t be
unlocked.
- Contact the local distributor or the repair center.
Warning:
Is operated with high voltage. Do not open its casing!
If the problem still exists after you take the aforesaid measures, you should contact the local distributor or
the repair center and tell the machine model. The projector will tell you how to handle the issue.
58
Appendix
Indicator and projector state
Check the indicator to know about the state of projector.
Indicator
POWER/TEMP
(Green/Red/Orange)
State of projector
LAMP
(Red)
In power-off state (AC power cord not inserted).
In normal working state.
[In standby state]
Standby state. Press POWER button to turn on the projector.
[In power on state]
Environmental temperature is higher than the set operating range
(43°C~47°C). The projector will power off soon.
?
The projector is in suspension state until the lamp is lit.
The projector is preparing for stand-by or the projection lamp is being
cooled down.The projector cannot be turned on until cooling is completed
and the POWER/TEMP indicator is off.
Can’t be powered on because error is detected. You should unplug
the power cord. Then insert it again and power on the projector. If the
projector is powered off again, you should cut off the power and contact
the local distributor or repair center. In this case, stop the projector.
Otherwise, electric shock or fire may occur.
or
The service life of the lamp is over. You should replace it with a new one
in time.
Turning on the lamp error.LAMP indicator blinks red.
• • • green
• • • red
• • • blinks green
• • • blinks red
?
?
• • • orange
• • • off
• • • blinks orange
*When the projector lamp reaches its endurance, the indicator light will be yellow and you need to
replace the lamp.
59
Appendix
Compatible Signal
Basically this projector can accept the signal with the V-,H-Frequency mentioned below:
No.
Specification
Resolution
H-freq(KHz)
V-freq(Hz)
Pixel
clock(MHz)
Proposed
No.
Specification
Resolution
H-freq(KHz)
V-freq(Hz)
Pixel
clock(MHz)
Proposed
SDTV 576I
Component Video input (Y,Pb,Pr)
HDMI-DTV
1
720*576
31.250
50
27
576P
1
720*576
15.625
50
13.5
2
720*480
31.47
59.94
27
480P
2
720*480
15.735
59.94
13.5
3
1280*720
37.50
50
74.25
720P
3
720*576
31.250
50
27
EDTV 576P
4
1280*720
45.00
60.00
74.25
720P
4
720*480
31.47
59.94
27
EDTV 480P
5
1280*720
44.96
59.94
74.175
720P
5
1280*720
37.50
50
74.25
HDTV 720P/50Hz
6
1920*1080
28.125
50
74.25
1080I
6
1280*720
45.00
60.00
74.25
HDTV 720P/60Hz
7
1920*1080
33.75
60.00
74.25
1080I
7
1920*1080
28.125
50
74.25
HDTV 1080I/50Hz
8
1920*1080
33.72
59.94
74.176
1080I
8
1920*1080
33.75
60.00
74.25
HDTV 1080I/60Hz
HDMI-PC/RGB-PC
1
640*350
31.47
70.09
25.18
PC98
2
720*400
31.47
70.09
28.32
PC98
3
640*400
37.86
85.08
31.5
VGA
4
640*480
31.469
59.94
25.17
VGA
5
640*480
37.861
72.8
31.5
VGA
6
640*480
37.5
75
31.5
7
640*480
43.27
85.01
36
VGA
8
800*600
35.156
56.25
36
SVGA
VGA
9
800*600
37.879
60.32
40
SVGA
10
800*600
48.077
72.18
50
SVGA
11
800*600
46.875
75
49.5
SVGA
12
800*600
53.67
85.06
56.25
SVGA
13
1024*768
48.363
60
65
XGA
14
1024*768
56.476
70.07
75
XGA
15
1024*768
60.02
75.03
78.75
XGA
16
1024*768
68.68
85
94.5
XGA
17
1152*864
67.5
75
108
XGA+
18
1280*1024
63.981
60.02
108
SXGA
19
1280*1024
79.98
75.02
135
SXGA
20
1280*768
47.776
59.87
79.5
WXGA
21
1280*768
60.29
74.89
102.25
WXGA
22
1280*768
68.63
84.84
117.5
WXGA
23
1360*768
47.71
60.02
85.5
WXGA
24
1366*768
47.13
59.66
72.01
WXGA
25
1280*800
49.7
59.81
83.5
WXGA
26
1280*800
62.79
74.93
106.5
WXGA
27
1280*800
71.55
84.88
122.5
WXGA
28
1280*960
60
60
108
SXGASXGA+
29
1400*1050
65.32
59.98
121.75
30*
1600*1200
75
60
162
UXGA
31*
1680*1050
65.29
59.95
146.25
WSXGA+
* RGB signal only.
√ Note:
The specification is subject to change without any prior notice.
60
SDTV 480I
Appendix
Configuration of terminals
RGB 1/RGB 2/RGB OUT (analog)
Terminal: Analog RGB (D-sub 15-pin)
4
5
10
15
3
2
9
1
8
14
7
12
13
6
11
1
2
3
4
Red (Input/output)
Green (Input/output)
Blue (Input/output)
-----
9
10
11
12
5
Grounding (line synchronizing)
13
6
7
8
Grounding (red)
Grounding (green)
Grounding (blue)
14
15
----Grounding (field synchronizing)
Grounding
DDC data
Horizontal synchronizing
(compound sync.) input/output
Vertical synchronizing input/output
DDC Clock
11
12
13
14
15
16
17
18
19
TMDS Clock Shield
TMDS Clock–
CEC
Reserved (N.C. on device)
SCL
SDA
DDC/CEC Ground
+5V Power
Hot Plug Detect
RS232C terminal (D-SUB-9-Pin)
1
2
3
4
----RXD
TXD
-----
5
GND
6
7
8
9
-----------------
HDMI PORT terminal (HDMI Type A 19-Pin)
19 17 15 13 11
18 16 14 12 10
9
7
8
5
6
3
4
1
2
1
2
3
4
5
6
7
8
9
10
TMDS Data2+
TMDS Data2 Shield
TMDS Data2–
TMDS Data1+
TMDS Data1 Shield
TMDS Data1–
TMDS Data0+
TMDS Data0 Shield
TMDS Data0–
TMDS Clock+
61
Appendix
Technical Specifications
Mechanical properties
Dimensions (W×H×D )
Net Weight
Adjustable foot
Monitor’s resolution
LCD system
Monitor’s resolution
Compatible signals
Color standard
HDTV signal
Scanning frequency
Optical elements
Image size (diagonal lines)
Projection distance
Lens
Lamp power
Terminal
Component input terminal
S-video input terminal
RGB IN 1 terminal
RGB IN 2 / RGB OUT terminal
VIDEO input terminal
AUDIO IN L(MONO)/R terminal
HDMI terminal
AUDIO IN terminal
AUDIO OUT terminal
RS-232C terminal
Audio
Internal audio amplifier
Built-in speaker
Power supply
Voltage and power consumption
Operating environment
Operating temperature
Operating Humidity
Storage temperature
Storage Humidity
Remote control
Battery
Effective area
Dimensions
Net weight
327.4 mm x 241mm x 90.9mm (not including the adjustable feet)
2.9kg
10°
0.63" TFT , active matrix, 3-panel (for BD430, BD450 and BD470)
0.59" TFT , active matrix, 3-panel (for BD460)
1024 x 768 dots(for BD430, BD450 and BD470)
1280 x 800 dots(for BD460)
PAL, SECAM, NTSC, NTSC4.43, PAL-M and PAL-N
480i, 480p, 576i ,576p,720p and1080i
Horizontal frequency: 31kHz-80kHz, Vertical frequency: 56Hz-85Hz
30"-300", adjustable
WIDE:0.875m~8.943m TELE:1.054m~10.737m(BD430,BD450,BD470)
WIDE:0.936m~9.556m TELE:1.128m~11.478m(BD460)
F=2.1 ~2.3,1.2x optics, f=18.82~22.60mm with manual zoom and focus.(BD430)
F=1.58 ~1.75,1.2x optics, f=18.85~22.63mm with manual zoom and focus.
( BD450, BD460 and BD470)
230w
RCA x 3
DIN 4-pin x 1
D-sub 15-pin x 1
D-sub 15-pin x 1
RCA x 1
RCA x 2
HDMI A interface 19-pin x 1
Mini plug(stereo) x 1
Mini plug(stereo) x 1
D-sub 9-pin x 1
2W x 2 stereo
2W RMS 4Ω x 2
AC 100–240 V(Max. 3.8A),50/60 Hz
41°F~95°F (5°C~35°C)
0 ~ 80 %
-4°F~140°F (-20°C~60°C)
0 ~ 85 %
AAA or LR03 1.5V alkali battery x 2
16.4' (5 m)/±30
52mm (W) x 18mm (H) x 110mm (D)
67g (including battery)
● The aforesaid specification is subject to change without prior notice.
● Liquid crystal panel is made on the basis of high standard, where 99.99% of the pixels are effective.
Due to the nature of the liquid crystal panel, a fraction of the pixels (0.01% or less) may be ineffective.
62
Appendix
Accessories
User’s Manual (CD ROM)
BD430
BD450
BD460
5
AC power cord
Remote control and battery
RGB cable
Lens Cover
Lens cover string
Ceiling screw
Content of hazardous substances and elements
Hazardous substances and elements
Pb
Hg
Cd
Cr6+
PBB
PBDE
Plastic parts
○
○
○
○
○
○
Metal parts
○
○
○
○
○
○
Body
Optical parts
×
×
○
○
○
○
PCB assembly
○
○
○
○
○
○
Other parts
×
○
○
○
○
○
Remote control
×
○
○
○
○
○
Accessorie
Cable
×
○
○
○
○
○
○: It means that contents of hazardous substances in all homogeneous materials in this part don’t
exceed “Required Limitations” specified in SJ/T11363-2006.
×: It means that contents of hazardous substances in at least one homogeneous material in this part
exceed “Required Limitations” specified in SJ/T11363-2006.
Name of parts
63
Appendix
Dimensions
Unit: mm
Screw hole used when
installed on the ceiling
Screw:M6
Depth:10.0
101.2
327.4
167.5
90.9
92
241
15
107
75.5
41.5
68.5
4-M4x10
PIN code memorandum
Write down the PIN code in the blank below and keep it, please contact the repair center.
Factory default PIN code 111*
PIN code lock
Factory default PIN code 111*
Logo PIN code lock
*If this 3-digit number is changed,
the factory default number will be ineffective.
64
Appendix
RS232 Control Method
NOTE: Connect the PC & projector with serial port cable (female-to-female pins) for projector computer
control.
1. Connection
1.1 Port Setting
Item
Method
Value
Asynchronous communication
Bits per seconds
Data bits
Parity
Stop bits
Flow control
19200
8
none
1
none
1.1 Wiring
RS232 cross cable is used.
PC
COM
(D-Sub 9 Pin)
Projector
Control Port
(D-Sub 9 Pin)
65
Appendix
2. Commands
Case sensitive, each command end by[CR](Carriage). The time out for each command is one
second. If you want to cancel the time out setting temporarily. Please send "#!"[CR].( It should be
sent within one second).
Command
A00
A01
Item
POWER ON
POWER OFF
(Power OFF
immediately)
A02
POWER OFF
A05
RGB1
A06
RGB2
A07
Component
A33
Video
A34
S-Video
A36
HDMI
AW TERMINAL COMPUTER RGB 2:Input
AW TERMINAL MONITOR RGB 2:Output
A8E
Keystone ↑
A8F
Keystone ↓
A1C
Menu on
A1D
Menu off
AR1
Input mode read
AW AUTOSETUP START
Auto setup
A43
Still on
A44
Still off
A0D
Blank on
A0E
Blank off
A8A
Timer
A0B
Mute on
Command
Item
A0C
Mute off
AW LAMPMODE NORMAL Lamp mode normal
AW LAMPMODE ECO
A30
A31
A09
A0A
AW SCREEN WIDE
AW SCREEN FULL
AW SCREEN NORMAL
AW SCREEN CUSTOM
A19
A11
A12
A39
A3A
A3B
A3C
A3D
A3F
AW SCREEN 1610FULL*
AW SCREEN NATURAL WIDE*
* For BD460 only.
Lamp mode eco
Digital zoom +
Digital zoom Volume +
Volume 16:9
4:3
Normal
Custom
Dynamic
Standard(Image select)
Cinema
Colorboard
Navigation right
Navigation left
Navigation up
Navigation down
Select
Full
Natural wide
2.1 POWER ON
Command
Details
Return
“A00”[CR] (Hex:0x41 0x30 0x30 0x0d)
Power ON when projector standby
OK
"-" [CR]
NG
“?” [CR]
2.2 POWER OFF(Power OFF immediately)
Command
Details
Return
“A01”[CR] (Hex:0x41 0x30 0x31 0x0d)
Power OFF immediately
OK
"-" [CR]
NG
“?” [CR]
2.3 POWER OFF
Command
Details
Return
66
“A02”[CR] (Hex:0x41 0x30 0x32 0x0d)
"Power off?" displays while send the command, just like press the
"POWER"key.
OK
"-" [CR]
NG
“?” [CR]
Appendix
2.4 RGB 1
Command
Details
Return
“A05”[CR] (Hex:0x41 0x30 0x35 0x0d)
Change the input to "RGB1".
OK
"-" [CR]
NG
“?” [CR]
2.5 RGB 2
Command
Details
Return
“A06”[CR] (Hex:0x41 0x30 0x36 0x0d)
Change the input to "RGB2".
OK
"-" [CR]
NG
“?” [CR]
2.6 Component
Command
Details
Return
“A07”[CR] (Hex:0x41 0x30 0x37 0x0d)
Change the input to "Component".
OK
"-" [CR]
NG
“?” [CR]
2.7 Video
Command
Details
Return
“A33”[CR] (Hex:0x41 0x33 0x33 0x0d)
Change the input to "Video".
OK
"-" [CR]
NG
“?” [CR]
2.8 S-Video
Command
Details
Return
“A34”[CR] (Hex:0x41 0x33 0x34 0x0d)
Change the input to "S-Video".
OK
"-" [CR]
NG
“?” [CR]
2.9 HDMI
Command
Details
Return
“A36”[CR] (Hex:0x41 0x33 0x36 0x0d)
Change the input to "HDMI"
OK
"-" [CR]
NG
“?” [CR]
2.10 RGB 2:Input
Command
Details
Return
“AW TERMINAL COMPUTER”[CR]
(Hex: 0x41 0x57 0x20 0x54 0x45 0x52 0x4D 0x49 0x4E 0x41 0x4C
0x20 0x43 0x4F 0x4D 0x50 0x55 0x54 0x45 0x52 0x0d)
Change to "RGB 2: Input".
OK
"000" [CR]
NG
“?” [CR]
2.11 RGB 2:Output
Command
Details
Return
“AW TERMINAL MONITOR”[CR]
(Hex: 0x41 0x57 0x20 0x54 0x45 0x52 0x4D 0x49 0x4E 0x41 0x4C
0x20 0x4D 0x4F 0x4E 0x49 0x54 0x4F 0x52 0x0d)
Change to "RGB 2: Output".
OK
"000" [CR]
NG
“?” [CR]
67
Appendix
2.12 Keystone ↑
Command
Details
Return
“A8E”[CR] (Hex:0x41 0x38 0x45 0x0d)
Keystone ↑
OK
"-" [CR]
NG
“?” [CR]
2.13 Keystone ↓
Command
Details
Return
“A8F”[CR] (Hex:0x41 0x38 0x46 0x0d)
Keystone ↓
OK
"-" [CR]
NG
“?” [CR]
2.14 Menu on
Command
Details
Return
“A1C”[CR] (Hex:0x41 0x31 0x43 0x0d)
Open the on screen menu
OK
"-" [CR]
NG
“?” [CR]
2.15 Menu off
Command
Details
Return
“A1D”[CR] (Hex:0x41 0x31 0x44 0x0d)
Close the on screen menu
OK
"-" [CR]
NG
“?” [CR]
2.16 Input mode read
Command
Details
Return
“AR1”[CR] (Hex:0x41 0x52 0x31 0x0d)
Get the current input mode.
1-HDMI 2-RBG 1 3-RBG 2 4-Component 5-S-Video 6-Video
OK
1 [CR]:HDMI
2 [CR]:RGB 1
3 [CR]:RGB 2
4 [CR]:Component
5 [CR]:S-Video
6:[CR]:Video
NG
“?” [CR]
2.17 Auto setup
Command
Details
Return
“AW AUTOSETUP START”[CR]
(Hex: 0x41 0x57 0x20 0x41 0x55 0x54 0x4F 0x53 0x45 0x54 0x55
0x50 0x20 0x53 0x54 0x41 0x52 0x54 0x0d)
Start the auto setup function.
OK
"000" [CR]
NG
“?” [CR]
2.18 Still on
Command
Details
Return
68
“A43”[CR] (Hex:0x41 0x34 0x33 0x0d)
Stil on.
OK
"-" [CR]
NG
“?” [CR]
Appendix
2.19 Still off
Command
Details
Return
“A44”[CR] (Hex:0x41 0x34 0x34 0x0d)
Still off.
OK
"-" [CR]
NG
“?” [CR]
2.20 Blank on
Command
Details
Return
“A0D”[CR] (Hex:0x41 0x30 0x44 0x0d)
Video mute.
OK
"-" [CR]
NG
“?” [CR]
2.21 Blank off
Command
Details
Return
“A0E”[CR] (Hex:0x41 0x30 0x45 0x0d)
Cancel the video mute.
OK
"-" [CR]
NG
“?” [CR]
2.22 Timer
Command
Details
Return
“A8A”[CR] (Hex:0x41 0x38 0x41 0x0d)
Start → Stop→ Off→ Start ...
OK
"-" [CR]
NG
“?” [CR]
2.23 Mute on
Command
Details
Return
“A0B”[CR] (Hex:0x41 0x30 0x42 0x0d)
Mute on.
OK
"-" [CR]
NG
“?” [CR]
2.24 Mute off
Command
Details
Return
“A0C”[CR] (Hex: 0x41 0x30 0x43 0x0d)
Mute off.
OK
"-" [CR]
NG
“?” [CR]
2.25 Lamp mode normal
Command
Details
Return
“AW LAMPMODE NORMAL”[CR]
(Hex: 0x41 0x57 0x20 0x4C 0x41 0x4D 0x50 0x4D 0x4F 0x44 0x45
0x20 0x4E 0x4F 0x52 0x4D 0x41 0x4C 0x0d)
Change the lamp mode to "Normal".
OK
"000" [CR]
NG
“?” [CR]
69
Appendix
2.26 Lamp mode eco
Command
Details
Return
“AW LAMPMODE ECO”[CR]
(Hex: 0x41 0x57 0x20 0x4C 0x41 0x4D 0x50 0x4D 0x4F 0x44 0x45
0x20 0x45 0x43 0x4F 0x0d)
Change the input to "Eco".
OK
"000" [CR]
NG
“?” [CR]
2.27 Digital Zoom +
Command
Details
Return
“A30”[CR] (Hex:0x41 0x33 0x30 0x0d)
Digital zoom +
OK
"-" CR]
NG
“?” [CR]
2.28 Digital Zoom Command
Details
Return
“A31”[CR] (Hex:0x41 0x33 0x31 0x0d)
Digital zoom OK
"-" [CR]
NG
“?” [CR]
2.29 Volume +
Command
Details
Return
“A09”[CR] (Hex:0x41 0x30 0x39 0x0d)
Increased the volume.
OK
"-" [CR]
NG
“?” [CR]
2.30 Volume Command
Details
Return
“A0A”[CR] (Hex:0x41 0x30 0x41 0x0d)
Decreased the volume.
OK
"-" [CR]
NG
“?” [CR]
2.31 16:9
Command
Details
Return
“AW SCREEN WIDE”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x57
0x49 0x44 0x45 0x0d)
Screen "16:9" size
OK
"000" [CR]
NG
“?” [CR]
2.32 4:3
Command
Details
Return
70
“AW SCREEN FULL”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x46
0x55 0x4C 0x4C 0x0d)
Screen "4:3" size.
OK
"000" [CR]
NG
“?” [CR]
Appendix
2.33 Normal
Command
“AW SCREEN NORMAL”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x4E
0x4F 0x52 0x4D 0x4C 0x0d)
Details
Return
Screen "Normal" size.
OK
"000" [CR]
NG
“?” [CR]
2.34 Custom
Command
Details
Return
“AW SCREEN CUSTOM”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x43
0x55 0x53 0x54 0x4F 0x4D 0x0d)
Screen "Custom" size.
OK
"000" [CR]
NG
“?” [CR]
2.35 Dynamic
Command
Details
Return
“A19”[CR] (Hex:0x41 0x31 0x39 0x0d)
Image select "Dynamic" mode.
OK
"-" [CR]
NG
“?” [CR]
2.36 Standard(Image select)
Command
Details
Return
“A11”[CR] (Hex:0x41 0x31 0x31 0x0d)
Image select "Standard" mode.
OK
"-" [CR]
NG
“?” [CR]
2.37 Cinema
Command
Details
Return
“A12”[CR] (Hex:0x41 0x31 0x32 0x0d)
Image select "Cinema" mode.
OK
"-" [CR]
NG
“?” [CR]
2.38 Colorboard
Command
Details
Return
“A39”[CR] (Hex:0x41 0x33 0x39 0x0d)
Image select "Colorboard" mode
OK
"-" [CR]
NG
“?” [CR]
2.39 Navigation ►
Command
Details
Return
“A3A”[CR] (Hex:0x41 0x33 0x41 0x0d)
►
OK
"-" [CR]
NG
“?” [CR]
71
Appendix
2.41 Navigation ▲
Command
Details
Return
“A3C”[CR] (Hex:0x41 0x33 0x43 0x0d)
▲
OK
"-" [CR]
NG
“?” [CR]
2.42 Navigation ▼
Command
Details
Return
“A3D”[CR] (Hex:0x41 0x33 0x44 0x0d)
▼
OK
"-" [CR]
NG
“?” [CR]
2.43 Select
Command
Details
Return
“A3F”[CR] (Hex:0x41 0x33 0x46 0x0d)
Select
OK
"-" [CR]
NG
“?” [CR]
2.44 Full
Command
“AW SCREEN 1610FULL”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x01
0x06 0x01 0x00 0x46 0x55 0x4C 0x4C 0x0d)
Details
Return
Screen "Full" size.
OK
"000" [CR]
NG
“?” [CR]
2. 45 Natural wide
72
Command
“AW SCREEN NATURAL WIDE”[CR]
(Hex: 0x41 0x57 0x20 0x53 0x43 0x52 0x45 0x45 0x4E 0x20 0x4E
0x41 0x54 0x55 0x52 0x41 0x4C 0x20 0x57 0x49 0x44 0x45 0x0d )
Details
Return
Screen "Natural wide" size.
OK
"000" [CR]
NG
“?” [CR]
Declaration of Conformity
Trade Name:LG
Mode:BD430,BD450,BD460,BD470
Responsible Party:LG Electronics Inc.
Address:1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
The model and serial number of the projector is
located on the back or bottom side of the
projector.
Record it below should you ever need service.
MODEL
SERIAL
www.lg.com
Download PDF

advertising
