ENGLISH

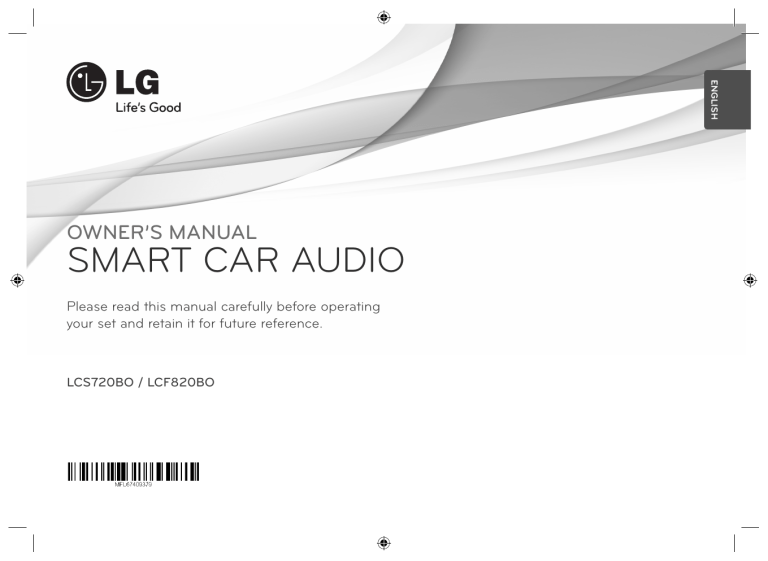

OWNER’S MANUAL
SMART CAR AUDIO
Please read this manual carefully before operating
your set and retain it for future reference.
LCS720BO / LCF820BO
2
Getting Started
Safety Information
CAUTION
1
RISK OF ELECTRIC SHOCK
DO NOT OPEN
or any functions. Pull over in a safe and
legal manner before attempting such
operations.
Do not use for many hours
at extremely low or high
temperature. (-10 °C to 60 °C)
Getting Started
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK) NO USER-SERVICEABLE PARTS
INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
To reduce the risk of electric
shock, do not remove the cover
or back of this product. There
are no user-serviceable parts inside. Refer
servicing to qualified service personnel.
This lightning flash with
arrowhead symbol within
an equilateral triangle is
intended to alert the user to
the presence of uninsulated
dangerous voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
To reduce the risk of fire or
electric shock, do not expose this
product to dripping or splashing
water, rain, or moisture.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment
in a confined space such as a book case or
similar unit.
Always operate the vehicle in
a safe manner. Do not become
distracted by the vehicle while
driving, and always be fully aware of all
driving condition. Do not change settings,
The temperature of unit’s outside
can be extremely high, please use
the unit after proper installation
in your vehicle.
This unit cannot play 8 cm disc
(use 12 cm disc only).
While driving, keep the sound
volume at a proper level.
Do not drop it and avoid heavy
impacts at anytime.
This unit is for vehicles with a
12-volt battery and negative
grounding. Before installing it in
a recreational vehicle, lorry or bus, check
the battery voltage. To avoid shorts in the
electrical system, be sure to disconnect
the E battery cable before beginning the
installation.
Disposal of waste batteries/
accumulators
CAUTION: This product employs a Laser
System.To ensure proper use of this
product, please read this owner’s manual
carefully and retain it for future reference.
Shall the unit require maintenance,
contact an authorized service centre.
Use of controls, adjustments or the
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam,
do not try to open the enclosure.
This device is equipped with a portable
battery or accumulator.
Safe way to remove the battery or the
battery from the equipment:
Remove the old battery or battery pack,
follow the steps in reverse order than the
assembly. To prevent contamination of
the environment and bring on possible
threat to human and animal health, the
old battery or the battery put it in the
appropriate container at designated
collection points. Do not dispose of
batteries or battery together with other
waste. It is recommended that you
use local, free reimbursement systems
batteries and accumulators.
The battery shall not be exposed to
excessive heat such as sunshine, fire or
the like.
1. When this crossed-out
wheeled bin symbol is attached
to batteries/accumulators of Your
product it means they are covered by
European Directive 2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery
Contains more that 0.0005% of
mercury,0.002% of cadmium or 0.004% of
lead.
3. All batteries/accumulators should be
disposed separately from the municipal
waste stream via designated collection
facilities appointed by the government or
the local authorities.
4. The correct disposal of Your old
batteries/accumulators will help to
prevent potential negative consequences
for the environment, animal and human
health.
5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your city
office, waste disposal service or the shop
where You purchased the product.
Disposal of your old appliance
1.When this crossed-out wheeled
bin symbol is attached to a
product it means the product is
covered by the European
Directive 2002/96/EC.
Table of Contents
2. All electrical and electronic products
shall be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you purchased
the product.
LG Electronics hereby
declares that this/these
product(s) is/are in
compliance with the essential
requirements and other relevant
provisions of Directive 2004/108/EC,
2006/95/EC and 2009/125/EC.
European Standards Centre:
Krijgsman 1, 1186 DM Amstelveen The
Netherlands
 Please note that this is NOT a Customer
Service contact point. For Customer
Service Information, see Warranty
Card or contact the dealer that you
purchased this product.
Indoor Use Only
RF Radiation Exposure Statement
This equipment should be installed and
operated with minimum distance 20 cm
between the radiator and your body.
Table of Contents
9
9
11
11
1
Getting Started
2
4
5
5
Safety Information
Front panel
Remote control
– Battery Installation
11
2
Connecting
11
6
6
6
12
8
8
Installation
– Basic Installation
– Removing the existing
receiver unit
– ISO-DIN Installation
About detachable control
panel
Connection
– Connecting to a car
3
Operating
9
9
9
Operation
– Basic operations
– Turning off the sound
temporarily
– Using EQ (Equalizer)
– Using 3D SOUND/ MP3
OPTM
– Checking the clock
– Turning off the display light
6
7
9
9
9
9
11
11
12
12
12
13
13
14
14
14
14
14
14
15
– Resetting the unit
– Adjusting the general
settings
Listening to a CD
– Pausing or restarting CD
playback
– Searching for a section
within a track / file
– Skipping to another track/
file
– Checking information
about your music
– Playing back tracks / files
in a way you want
Listening to music from an
external device
– Preventing radical changes
in volume as switching
sources
Listening to the radio
– Storing desired
frequencies manually
– Listening to a preset
station
– Adjusting TUNER settings
Using an USB device/ SD card
– Moving to another drive
– Quick search of a desired
file
– Deleting the desired file
– Playable USB device/ SD
card Requirement
– Recording to USB device /
SD card
Listening to music by
connecting iPod/iPhone
3
15
– Pausing or restarting
playback
15 – Searching for a section
within a file
15 – Skipping to another file
15 – Checking information
about your music
15 – Playing back files in a way
you want
16 – Playing back files by music
menus
16 – iPod / iPhone CONTROL
MODE
16 – Compatible iPod / iPhone
models
16 Connecting a Bluetooth
wireless technology
17 – Using the buttons for
Bluetooth wireless
technology
17 – Using a Bluetooth wireless
technology
18 – Adjusting the setting
19 – Using "LG CAR Remote"
application
20 – Phone compatibility list
4
Troubleshooting
22
Troubleshooting
5
Appendix
23
Specifications
1
2
3
4
5
4
Getting Started
f BAND
- Selects a band in Tuner mode.
- Moves to a next USB drive.
iPOD
Activates iPod/ iPhone CONTROL
MODE.
• TA (Optional)
Searches stations that have TA / TP
information, when it is pressed and
held.
Front panel
[LCS720BO]
1
Getting Started
g DISP
- Press it, you can check the clock
time.
- Press and hold it, you can turn on/
off the display window and the
light of LED buttons.
[LCF820BO]
h Display window
i USB port
j
Returns to the previous step.
k BT
- Activates BT function.
- Answers a call.
a SRC
When pressed, selects function
sources.
• OFF
When pressed and held, powers
unit off.
d LIST / ENTER / PRESET
(Volume knob)
- Adjusts volume level.
- Confirms the settings.
- Checks tracks, files or preset
stations.
b R (LCS720BO only)
Ejects a disc.
e EQ / • 3D
Improves sound quality.
- When pressed, selects the EQ
function.
- When pressed and held, selects the
3D SOUND/ MP3 OPTM function.
c T
Plays and pauses playback.
MUTE
Temporarily stops the sound.
l Y/U
Skip / Search / Seek / Tune
m FUNC
In each mode, sets playback items.
• MENU
Activates setting menu.
n REC
Recording to USB.
DEL
Deleting the desired file.
o Remote Sensor
p INT (LCS720BO only)
Intro scan.
q RPT (LCS720BO only)
Repeats playback.
r SHF (LCS720BO only)
Shuffles playback.
s W/S (LCS720BO only)
- Moves 10 MP3 / WMA files
backward or forward if there is no
folder or one folder on a CD/ USB.
- Moves to the previous or next
folder if there are more than 2
folders on a CD/ USB.
t Numeric buttons (1 to 6)
(LCS720BO only)
Selects a numbered preset station in
TUNER.
u 6
Opens the front panel.
v AUX
If connected to other portable player,
you can enjoy music from it on the
unit.
Getting Started
Remote control
h c/v
Skip / Search / Seek / Tune
, Note
Battery Installation
 Use only one CR2025 (3 V) lithium
battery.
Type 1
b FUNC
When pressed, sets playback items in
each mode.
• MENU
When pressed and held, activates
setting menu.
c BAND
Selects a band in Tuner mode.
DRV
Moves to a next USB drive.
d d/M Plays or pauses playback.
e SHF Shuffles playback.
f MUTE Temporarily stops the sound.
g VOLUME W / S
Adjusts volume level.
i DISP
- Press it, you can check the clock
time.
- Press and hold it, you can turn on/
off the display window and the light
of LED buttons.
j RPT Repeats playback.
k INT Intro scan.
l Numeric buttons (1 to 6)
Selects a numbered preset station in
TUNER.
 Remove the battery if the remote
control is not used for a long
period of time.
 Do not leave the product in a hot
or humid place.
 Do not handle the battery with
metallic tools.
 Do not store the battery with
metallic materials.
Type 2
1
2
1
Getting Started
a SRC
When pressed, selects function
sources.
• OFF
When pressed and held, powers unit
off.
Returns to the previous step.
w/s
- List up / down
- Adjusts settings.
- Moves 10 MP3 / WMA tracks
backward or forward if there is no
folder or one folder on a CD/ USB.
- Moves to the previous or next
folder if there are more than 2
folders on a CD/ USB.
ENTER / LIST
- Confirms the settings.
- Checks tracks, files or preset stations.
5
6
Connecting
Installation
Removing the existing
receiver unit
Basic Installation
If there is already an installation sleeve for
the receiver unit in the dashboard, it must
be removed.
Before installing, make sure that the
ignition-switch is set to OFF and remove
the terminal of the car battery to avoid
short-circuiting.
2
Bend the claws
according to
the thickness of
the dashboard.
Control panel
Connecting
Control panel
1.
2.
3.
4.
ISO-DIN Installation
Remove the existing receiver unit.
Make the necessary connections.
Install the installation sleeve.
Install the unit into the installation
sleeve.
1. Remove the rear support from the unit.
2. Remove the control panel and trim
ring from the unit.
3. Insert the lever into the hole on one
side of the unit. Perform the same
operation on the other side and pull
the unit out from the mounting sleeve.
1. Slide the unit into the ISO-DIN frame.
2. Fit screws removed from the old unit.
3. Slide the unit and frame into the dash
opening.
4. Install the dash panel or adapter plate.
(According to models, this step may
not be needed.)
5. Install the trim ring to the unit.
6. Install the control panel to the unit.
Connecting
About detachable
control panel
4. Pull the control panel out of the unit.
5. Put the detached control panel into
the protective case.
Detaching the control panel
1. Press the 6 to open the control
panel.
[LCS720BO]
Attaching the control panel
2. Push the control panel to left.
A of the control panel to
1. Attach part C
3. Pull the control panel out of the unit.
4. Put the detached control panel into
the protective case.
1. Press the 6 to open the control
panel.
i
h
2. Attach part C of the control panel to
2. Lift the control panel slightly.
3. Push the control panel to right.
5
6
part D of the unit while pushing the
control panel to left.
3. Close the control panel.
k
j
Control panel
Protective Case
, Note
Periodically wipe the contacts on
the back of the control panel with a
cotton swap moistened with alcohol.
For safety, turn off the ignition before
cleaning, and remove the key from the
ignition switch.
2
Connecting
Attaching the control panel
part C
B of the unit.
 Do not drop the control panel
or otherwise subject it to strong
impact.
 Do not allow such volatile agents
as benzine, thinner, or insecticides
to come into contact with the
surface of the control panel.
[LCF820BO]
Detaching the control panel
> Caution
 The control buttons may not work
properly if the control panel is not
attached properly. If this occurs,
gently press the display.
 Do not leave the control panel
in any area exposed to high
temperatures or direct sunlight.
Control panel
Protective Case
1. Align the left side of the panel with the
stopper.
2. Push the right side of panel into the
unit until it clicks.
7
8
Connecting
Connection
Connecting to a car
Before installing, make sure that the ignition-switch is set to OFF and remove the terminal of the car battery to avoid short-circuiting.
Wired mic
Wired remote input (Black): Hard-wired control adapter can be connected. (Optional)
To Audio out
2
Connecting
Sub-woofer Left
Front Left
Rear Left
ab c d ab c d
e f g h e f g h
To Audio in
Sub-woofer Right
Front Right
Rear Right
Power
Antenna
When being connected in a wrong way, the unit displays as follows.
- Antenna / Remote port short: "ANTENNA/ REMOTE ON PORT SHORT CIRCUIT
CHECK"
B g Not connected
After connecting it again, restart the unit.
Ignition Switch
A
a
b
c
A
d
A
e
A
f
A
g
A
h
A
B d To Battery (+) (Yellow)
A
B h Ground (-) (Black)
B e Remote On
(Blue / White)
B b Not connected
B a Not connected
Amplifier
> Caution
Control Relay
B f Power Antenna (Blue)
B c To Ignition (Red)
Sub-woofer
A a Gray : Front Right +
A b Gray / Black Stripe: Front Right A c Violet : Rear Right +
A d Violet / Black Stripe: Rear Right A e White : Front Left +
A f White / Black Stripe: Front Left A g Green : Rear Left +
Amplifier
A h Green / Black Stripe: Rear Left -
Operating
Operation
Basic operations
1. Turn the unit on by pressing any key
on the unit.
2. Select a source by pressing SRC.
3. Rotate the volume knob to adjust the
volume on the unit.
Or press VOLUME W / S on the
remote control.
Turning off the sound
temporarily
1. Press MUTE to mute your unit. (When
MP3/ WMA file is played, it will be
paused.)
Or press MUTE on the remote control.
2. Press it again to cancel
EQ is to increase or decrease the signal
strength of audio frequencies. The
function helps you to enjoy sound more
plentifully.
Press EQ on the unit. And rotate the
volume knob to select the item and press
it. The indicator lights up in the following
order.
FLAT /B-BOOST (BASS BOOSTER) / POP
/ CLASSIC / ROCK / JAZZ / VOCAL
/ SALSA / SAMBA / REGGAE /
RUSSY / USER EQ1 / USER EQ2
3D SOUND: This mode delivers
outstanding surround sound.
MP3 OPTM (MP3 OPTIMIZER): This mode
enhances the quality of compressed
music file.
Press and hold EQ/ • 3D. And rotate the
volume knob to select the item and press
it. The indicator lights up in the following
order.
Resetting the unit
You can reset the unit when it does not
operate properly.
1. Detach the control panel.
Refer to page 7 for detaching the
control panel.
2. Press the RESET hole with a sharp
object.
[LCS720BO]
OFF /3D SOUND / MP3 OPTM
, Note
 3D SOUND/ MP3 OPTM is only
available when you use the CD/
USB/ SD card. (Except iPod/iPhone)
 When you are recording, 3D
SOUND/ MP3 OPTM will be turned
off automatically.
Checking the clock
1. Press DISP.
2. Press it again to cancel.
Turning off the display light
1. Press and hold DISP.
2. Press and hold it again to turn it on.
, Note
Under the light-off condition, press
any key, the light is turned on and
then off automatically if you don't
press it within a few seconds.
[LCF820BO]
Adjusting the general
settings
You can adjust [SOUND], [LIGHT] and
[OTHER] settings.
On the unit
1. Press and hold • MENU.
2. Rotate the volume knob to select
[SOUND], [LIGHT], or [OTHER] and press
it.
3. Rotate the volume knob to select the
item and press it.
4. Rotate the volume knob clockwise or
counterclockwise to adjust the level.
5. Press the volume knob to confirm the
setting.
If you want to return to the previous
.
step, press
On the Remote Control
1. Press and hold FUNC / • MENU.
2. Press w / s to select [SOUND], [LIGHT],
or [OTHER] and press ENTER.
3. Press w / s to select the mode and
press ENTER.
4. Press w / s to adjust the level.
5. Press ENTER to confirm the setting.
If you want to return to the previous
step, press
.
3
Operating
Using EQ (Equalizer)
Using 3D SOUND/ MP3
OPTM
9
10
Operating
For [SOUND] setting
For [LIGHT] setting
You can adjust sound quality by
adjusting the level BALANCE (left/right
speaker), FADER (front/rear speaker), SW
(Subwoofer), SW-F (Subwoofer frequency),
A-EQ (Auto EQ).
[LCS720BO]
- When you set the EQ to USER EQ1/2
mode. : You can adjust the level of BAS
(bass), MID (middle), TRB(treble).
 SW (Subwoofer)
You can adjust the volume of
subwoofer.
 SW-F (Subwoofer frequency)
OFF/ SW 55 Hz/ SW 85 Hz/ SW 120 Hz
You can enable the subwoofer.
3
Operating
 A-EQ (Auto EQ) OFF/ ON
AUTO EQ operates only in the music
file supported with genre in the device.
When you set AUTO EQ to ON, POP,
CLASSIC, ROCK, or JAZZ is automatically
selected according to the music genre.
You can adjust the light effects by
adjusting LED, DIM, or DIM LV.
 DIM (Dimmer) OFF / ON : You can
change the brightness of the display
window during the power-on status.
Settings
Description
 LED COL1 / COL2 / AUTO : You can
change the LED window color.
DIM ON
The display window
becomes dark.
 DIM (Dimmer) OFF / ON : You can
change the brightness of the display
window during the power-on status.
DIM OFF
The display window
becomes bright.
Settings
Description
DIM ON
The display window
becomes dark.
DIM OFF
The display window
becomes bright.
 DIM LV (Dimmer Level) : When you set
DIM to ON, you can adjust the dimmer
level. (-2, -1, 0, +1, +2)
[LCF820BO]
You can adjust the light effects by
adjusting LED MODE, USER LED, DIM, or
DIM LV.
 LED MODE : You can change the LED
window color.
LED AUTO/ LED USER / LED 01 to 27
 USER LED
Making the desired LED color by
adjusting the each level of RED, GREEN,
and BLUE. (USER LED is only available
when you set LED MODE to LED USER.)
 DIM LV (Dimmer Level) : When you set
DIM to ON, you can adjust the dimmer
level. (-2, -1, 0, +1, +2)
For [OTHER] setting
 AUX (Auxiliary) ON / OFF
It is possible to use auxiliary equipment
with this unit. Activate the auxiliary
setting when using auxiliary equipment
connected to this unit.
 DEMO OFF / ON
You can change the initial indication
on the display to information name
(function name, EQ name, etc...) while
listening to a source.
 BEEP 2ND / ALL
BEEP 2ND : The beep is generated
when a key is pressed for longer than 2
seconds.
BEEP ALL : The beep is generated when
any key is pressed.
 CLK (Clock)
For the model RDS is not supported unit
or even for a RDS supported unit.
- When RDS CT information is not
received and then you set CT to OFF,
you can adjust the time by yourelf. Set
the clock as follows ;
1. Select a source to TUNER.
2. Press the FUNC to select the CT and
then set CT to OFF. (Refer to the
"Adjusting TUNER settings" on the
page 13 for setting the CT (Clock
Time) ON / OFF.)
3. Press and hold • MENU on the unit to
select [OTHER] and then select CLK
by rotating the volume knob.
4. Set the hour by rotating the volume
knob.
5. Press the volume knob to confirm
the hour.
6. Set the minute by rotating the
volume knob.
7. Press the volume knob to confirm
the minute.
- When RDS CT information is received;
The clock is displayed according to
the RDS CT information.
- When RDS is not supported, set the
clock according to 3 to 7 steps.
Operating
Listening to a CD
[LCS720BO]
1. Insert a CD.
2. Rotate the volume knob on the unit to
adjust the volume.
Or press VOLUME W / S on the
remote control.
[LCF820BO]
1. Press the 6 to open the control
panel.
2. Insert a CD.
3. Close the control panel.
Searching for a section
within a track / file
1. [LCS720BO]
Press and hold Y/U on the unit
for about 1 second during playback.
[LCF820BO]
Push and hold Y/U clockwise or
counterclockwise on the unit for about
1 second during playback.
Or press and hold c / v on
remote control.
2. Press T on the unit at the point you
want.
Or press d/M on the remote control.
Skipping to another track/
file
Pausing or restarting CD
playback
1. Press T on the unit to pause
playback.
Or press d/M on the remote control.
2. Press it to resume playback.
Or press c / v on the remote
control.
Or
1. Press the volume knob on the unit.
Or press ENTER on the remote control.
2. Rotate the volume knob on the unit
to select a desired ROOT or folder and
press it.
Or press w / s and press ENTER on the
remote control.
3. Rotate the volume knob on the unit to
select a desired track / file and press it.
Or press w / s and press ENTER on the
remote control.
 To skip to previous track, push
Y counterclockwise within
3 seconds of playing time
(LCF820BO).
Playing back tracks / files in
a way you want
For using applicable buttons
1. Press INT / RPT / SHF.
2. Press it again to cancel.
Or
Using the FUNC button
On the unit
Checking information about
your music
MP3 / WMA files often come with tags.
The tag gives the Title, Artist or Album.
Press DISP repeatedly during MP3 / WMA
/ CD TEXT file playback. If there is no
information, "NO TEXT" will be shown in
the display window.
1. Press FUNC.
2. Rotate the volume knob to select an
item and press it.
3. Rotate the volume knob to select the
option.
4. Press the volume knob to set the
option.
If you want to return to the previous
step, press
.
On the Remote Control
1. Press FUNC / • MENU.
2. Press w / s to select an item and press
it.
3. Press w / s to select the option.
4. Press ENTER to set the option.
If you want to return to the previous
step, press
.
3
Operating
, Note
Make sure to press B after pressing
6 to eject a disc. Refer to the
picture above.
[LCS720BO]
Press Y/U on the unit.
[LCF820BO]
Push Y/U clockwise or
counterclockwise on the unit.
, Note
 To skip to previous track, press
briefly Y within 3 seconds of
playing time (LCS720BO).
11
12
Operating
 RPT (Repeat)
The current selected tracks / files (1 RPT)
RPT) on the disc is played
or folder (
repeatedly.
 SHF (Shuffle)
Each files in the current selected folder
SHF) or all of the tracks / files (SHF)
(
on the disc is played randomly. During
random playback, even if you press
Y, you won't go back to the previous
track/ file.
 INT (Intro Scan)
The first 10 seconds of all tracks / files
(INT) or each files in the current selected
INT) on the disc are played.
folder (
3
 DEV (Device) USB / SD
You can change the recording device.
USB <-> SD
Operating
 MODE
MODE REC / MODE COPY
MODE REC : The recording speed is
normal. And during the recording, you
can listen to the music being recorded.
MODE COPY : The recording speed is
twice as fast. And during the recording,
you can listen to the TUNER. But you
cannot listen to the music being
recorded.
(DEV and MODE are only available when
the disc is activating.)
, Note
MP3 / WMA Disc compatibility with
this unit is limited as follows:
1. Sampling Frequency / 8 kHz to
48 kHz (MP3) 22.05 kHz to 48 kHz
(WMA).
2. Bit rate / within 8 kbps to 320
kbps (include VBR) (MP3) 32 kbps
to 320 kbps (WMA).
3. CD-R / CD-RW file system should
be "ISO 9660".
4. If you record MP3 / WMA files
using software which cannot
create a FILE SYSTEM, for example
"Direct-CD" etc., it will not be
possible to playback MP3 / WMA
files. We recommend that you use
"Easy-CD Creator" which creates
an ISO 9660 file system.
You have to set the disc format
option to [Mastered] in order to
make the discs compatible with
the LG players when formatting
rewritable discs. When setting the
option to Live File System, you
cannot use it on LG players.
(Mastered / Live File System : Disc
format system for Windows Vista)
Customers should also note that
permission is required in order
to download MP3 / WMA files
and music from the Internet. Our
company has no right to grant
such permission. Permission
should always be sought from the
copyright owner.
Listening to music from
an external device
1. Connect an external device to the AUX
jack with line input cable.
2. Select a source to AUX.
3. Play the connected Auxiliary
Equipment.
Preventing radical changes in
volume as switching sources
Only when you set AUX to ON as
switching sources, you can adjust the
volume level of each source to prevent
radical changes in volume by selecting
GAIN 0/ +3/ +6.
1. Press FUNC on the unit.
Or press FUNC / • MENU on the remote
control.
2. Rotate the volume knob on the unit.
Or press w / s on the remote control
to set the option. (GAIN 0/ +3/ +6)
3. Press the volume knob on the unit.
Or press ENTER on the remote control
to confirm the setting.
4. If you want to return to the previous
.
step, press
Or press
on the remote control.
Listening to the radio
1. Press SRC repeatedly to select a source
to TUNER.
2. Press BAND repeatedly to select a
desired band.
3. [LCS720BO]
For manual search, press and hold
Y/U on the unit until “MANUAL“
is displayed. Then press it repeatedly to
select a desired frequency.
Or press and hold c / v on the
remote control.
For auto search, press Y/U on
the unit. Then “SEARCH” is displayed.
(Except MW)
Or press c / v on the remote
control.
[LCF820BO]
For manual search, Push and
hold Y/U clockwise or
counterclockwise on the unit until
“MANUAL“ is displayed. Then push
it repeatedly to select a desired
frequency.
Or press and hold c / v on the
remote control.
For auto search, Push Y/U
clockwise or counterclockwise on
the unit. Then “SEARCH” is displayed.
(Except MW)
Or press c / v on the remote
control.
Storing desired frequencies
manually
1. Press BAND to select a desired band
you want to store.
2. Select the desired frequency by using
Y/U on the unit.
Or use c / v on the remote
control.
Operating
3. Press the volume knob and rotate the
volume knob to select a preset station
among 1 to 6 and then press and hold
the volume knob until the beep sound
is heard.
Or press and hold one of preset
buttons among 1 to 6 on the remote
control until the beep sound is heard.
4. Repeat steps 1 to 3 to preset other
stations.
, Note
When a station is stored on the
preset numbers on which another
station of the same band has already
been preset, the previously preset
station is automatically erased.
1. Press BAND repeatedly to select a
desired band.
2. Press the volume knob on the unit.
Or press ENTER on the remote control.
3. Rotate the volume knob to select a
preset station.
Or press w / s on the remote control.
4. Press the volume knob.
Or press ENTER on the remote control.
Or
Press BAND and then press the desired
preset button among 1 to 6 on the
remote control.
On the unit
1. Press FUNC.
2. Rotate the volume knob to select an
item and press it.
3. Rotate the volume knob to set the
option and press it.
4. If you want to return to the previous
step, press
.
On the Remote Control
1. Press FUNC / • MENU.
2. Press w / s to select an item and press
ENTER.
3. Press w / s to set the option and press
ENTER.
4. If you want to return to the previous
step, press
.
 PTY (Program type, RDS (OPTIONAL))
It searches the radio stations by
program type of FM tuner.
The program types are displayed as
follows.
NEWS
FINANCE
EASY M
AFFAIRS
CHILDREN
LIGHT M
INFO
SOCIAL
CLASSICS
SPORT
RELIGION
OTHER M
EDUCATE
PHONE IN
JAZZ
DRAMA
TRAVEL
COUNTRY
CULTURE
LEISURE
NATION M
SCIENCE
DOCUMENT
OLDIES
VARIED
POP M
FOLK M
WEATHER
ROCK M
 A / S (Auto Store)
The six strongest broadcasting
frequencies will be stored under preset
button 1 to 6 in the order of their signal
strength. To cancel, press the volume
knob.
 P / S (Preset scan)
Each preset station appears. To cancel,
press the volume knob.
 SENS (Tuner sensitivity) MID / HI / LOW
In an area in which signal reception is
weak, it helps the tuner to search more
stations. The weaker the reception is,
the lower option you should set to.
RDS (OPTIONAL)
 AF (Alternative Frequency) ON / OFF
When the reception quality drops, the
tuner automatically changes to another
station in the network, broadcasting a
better reception quality, using the PI
and AF codes.
 REG (Region) ON / OFF
REG ON : The unit switches to another
station, within the same network,
broadcasting the same program when
the receiving signals from the current
station become weak.
REG OFF : The unit switches to another
station, within the same network when
the receiving signals from the current
station become weak. (In this mode,
the program may differ from the one
currently received.)
 TA (Traffic Announcement) ALARM /
SEEK
TA ALARM : When the tuned station
has no TP information for 5 seconds, a
double beep sound is output.
TA SEEK : When the tuned station does
not receive TP information for 5 seconds,
the receiver retunes to the next station
that has the TP information.
 PI (Programme Identification) SOUND /
MUTE
PI SOUND : When the frequency
of a tuned station switches to an
AF (Alternative frequency) with an
unidentified PI, it keeps the sound.
PI MUTE : When the frequency of a
tuned station switches to an AF with an
unidentified PI, it mutes the sound until
the PI is identified.
 CT (Clock Time) ON / OFF
You can use the RDS CT information
to update the time. When RDS CT
information is not received and then
you set CT to OFF, you can adjust the
time by yourself. Refer to the page 10
for setting the clock.
3
Operating
Listening to a preset station
Adjusting TUNER settings
13
14
Operating
Using an USB device/
SD card
[USB]
1. Open the USB cover.
2. Connect the USB device.
3. Press SRC repeatedly to select a source
to USB.
[SD]
1. Detach the control panel. (Refer to
"About detachable control panel" on
page 7.)
2. Insert the SD card.
3. Attach the control panel.
4. Press SRC repeatedly to select a source
to SD.
3
Operating
[LCS720BO]
[LCF820BO]
Moving to another drive
When connecting this unit to multi reader,
press BAND on the unit (or DRV on remote
control) to go the next drive. Each time
you press the button, the driver modes
change.
Quick search of a desired file
1. Press the volume knob on the unit.
Or press ENTER on the remote control.
2. Rotate the volume knob on the unit
to select a desired ROOT or folder and
press it.
Or press w / s and press ENTER on the
remote control.
3. Rotate the volume knob on the unit to
select a desired file and press it.
Or press w / s and press ENTER on the
remote control.
Deleting the desired file
You can select and delete a playable file
you want.
1. Select the desired file in the same way
as "Quick Search of a desired file"
2. Press DEL and then "DELETE?"
displayed. Press it again to delete.
When the delete operation is started,
playing is stopped. When the delete
operation is ended, the list of files is
displayed. If you do not select a file within
few seconds, or press the
, the first file
is played.
, Note
Other functions are same with
"Listening to a CD". Refer to page 11.
Playable USB device/ SD
card Requirement
Recording to USB device /
SD card
 Do not extract the USB device/ SD card
during operation (play, etc.).
[USB]
1. Open the USB cover and connect it to
the unit.
2. Select one of the following lists. (CD,
FM tuner, Bluetooth Handsfree)
3. Press REC to start recording.
For one track/ file recording, press it
once.
For all tracks or files in the current
selected folder recording, press and
hold it until the beep sound is heard.
4. Press it again to stop.
[SD]
1. Detach the control panel and connect
it to the unit. Then attach the control
panel.
(Refer to "About detachable control
panel" on page 7.)
2. Select CD only.
3. Press REC to start recording.
For one track/ file recording, press it
once.
For all tracks or files in the current
selected folder recording, press and
hold it until the beep sound is heard.
4. Press it again to stop.
 An USB device/ SD card which requires
additional programme installation when
you have connected it to a computer, is
not supported.
 Regular back up is recommended to
prevent data loss.
 If you use a USB extension cable, USB
HUB, USB Multi-reader, or external HDD,
the USB device may not be recognized.
 When you connect a partitioned USB
device into the unit, only the first
partition is recognized on it.
 Some USB device/ SD card may not
work with this unit.
 Digital camera and mobile phone are
not supported.
 USB Port of the unit cannot be
connected to PC. The unit cannot be
used as a storage device.
 Using FAT (16 / 32) file system is
supported.
Max usage : 32 GB (FAT32 standard)
Using NTFS file system is supported to
read only.
 Using SD/ SDHC supported.
Using SDXC is not supported.
 MTP (Media Transfer Protocol) device is
not supported.
Operating
, Note
 [USB] Only in CD, FM tuner, and
Bluetooth Handsfree, recording is
available.
[SD] Only in CD, recording is
available.
 Do not remove the USB device /
SD card during recording, or an
incomplete file may be made and
not deleted on PC.
 When USB device/ SD card
memory is full, "MEMORY FULL"
displays and stops recording.
 While FM tuner recording, the
broadcastings are recorded as a file
every 20 minutes.
 When you record all tracks on the
audio CD, "REC" appears.
When you record all MP3/ WMA
files in the folder, "REC
"appears.
The making of unauthorized copies
of copy-protected material, including
computer programs, files, broadcasts
and sound recordings, may be an
1)2. infringement of copyrights and
constitute a criminal offense. This
equipment should not be used for
such purposes.
Be responsible
Respect copyrights
You can enjoy iPod / iPhone-stored music
on the unit by connecting it to the USB
connector using the appropriate cable.
Skipping to another file
[LCS720BO]
Press Y/U on the unit.
[LCF820BO]
Push Y/U clockwise or
counterclockwise on the unit.
1. Open the USB cover.
2. Connect the iPod / iPhone.
3. Press SRC to select a source to USB.
Or press c / v on the remote
control.
Pausing or restarting
playback
1. Press the volume knob on the unit.
Or press ENTER on the remote control.
2. Rotate the volume knob on the unit to
select a desired category and press it.
Or press w / s and press ENTER on the
remote control.
3. Rotate the volume knob on the unit to
select a desired file and press it.
Or press w / s and press ENTER on the
remote control.
1. Press T on the unit to pause
playback.
Or press d/M on the remote control.
2. Press it to resume playback.
Searching for a section
within a file
[LCS720BO]
During playback, press and hold Y/
U and then release at a point you want.
[LCF820BO]
During playback, push and hold Y/
U clockwise or counterclockwise on
the unit and then release at a point you
want.
Or
Checking information about
your music
MP3 / WMA files often come with tags.
The tag gives the Title, Artist or Album.
Press DISP repeatedly during MP3 / WMA
file playback. If there is no information,
"NO TEXT" will be shown in the display
window.
Playing back files in a way
you want
On the Unit
1. Press FUNC.
2. Rotate the volume knob to select an
item and press it.
3. Rotate the volume knob to select the
option.
4. Press the volume knob to set the
option.
If you want to return to the previous
step, press
.
On the Remote Control
1. Press RPT / SHF.
2. Press it again to cancel.
Or
1. Press FUNC / • MENU.
2. Press w / s to select an item and press
ENTER.
3. Press w / s to select the option.
4. Press ENTER to set the option.
If you want to return to the previous
step, press
.
3
Operating
 You can adjust the recording
speed. (Refer to the page 12.)
Listening to music by
connecting iPod/iPhone
15
16
Operating
 RPT (Repeat)
The current selected file (1 RPT) or
files on the iPod / iPhone is played
repeatedly.
 SHF (Shuffle)
All of the files (SHF) on the iPod / iPhone
are played randomly.
 SPD (BOOK SPEED)
You can adjust the audiobook speed of
iPod / iPhone to NOR (Normal), SLOW or
FAST.
3
iPod / iPhone CONTROL
MODE
You can control on the unit and iPod /
iPhone.
 Press iPOD on the unit. Then playback
is paused. And you can control on the
unit and iPod / iPhone.
 While using the iPod/iPhone CONTROL
MODE, any functions are not available
on the unit.
Operating
Playing back files by music
menus
 Press iPOD again to cancel the iPod /
iPhone CONTROL MODE.
You can check files by music menus and
play it back.
Compatible iPod / iPhone
models
The music menus are as follows.
 iPod classic
PLAYLISTS / ARTISTS / ALBUMS /
GENRES / SONGS / COMPOSER /
AUDIO BOOK / PODCAST / ...
 iPod nano 6th generation
1. Press the volume knob on the unit.
Or press ENTER on the remote control.
2. Rotate the volume knob on the unit to
select a music menu and press it.
Or press w / s on the remote control.
3. Rotate the volume knob on the unit to
select a file.
Or press w / s on the remote control.
4. Press the volume knob on the unit to
confirm the setting.
Or press ENTER on the remote control.
5. If you want to return to the previous
step, press
.
Or press
on the remote control.
 iPod touch 4th generation
 iPhone 3G / 3GS / 4
We recommend that you use the
OS Version 4.2.1 or more.
Connecting a Bluetooth
wireless technology
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically
to iPod or iPhone respectively, and has
been certified by the developer to meet
Apple performance standards. Apple is
not responsible for the operation of this
device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory
with iPod, iPhone may affect wireless
performance.
Before you start the pairing procedure,
make sure the Bluetooth wireless
technology is turned on in to your phone.
Refer to your phone’s user guide. Pairing
links your unit and phone with Bluetooth
wireless technology, and is required only
once for the initial setup. If the connection
is successful, the phone is registered
(Device 1 to 10). The process of pairing
may be different depend on the phones.
The PIN CODE is 1234.
ON PLAYER
1. Enter the menu.
BT
2. Find the
"CONNECT" menu.
Rotate the
volume knob
3. Enter the
"CONNECT" menu.
Press the
volume knob
4. Select the
"SEARCH" menu.
Rotate the
volume knob
5. Search the phones
supported Bluetooth
wireless technology.
Press the
volume knob
6. Select a phone you
want to connect.
Rotate the
volume knob
7. Connect the
phone.
Press the
volume knob
Operating
Microphone
The microphone needs to be close to
and pointed toward the person speaking.
Install the microphone as shown below.
Microphone unit
Using the buttons for
Bluetooth wireless
technology
[LCS720BO]
a
a LIST / ENTER / PRESET
(Volume knob)
- Press the volume knob : Go to the
next contents of the setting.
- Rotate the volume knob : Move the
contents vertically on the setting or
choose a spell when you write the
words on the unit.
Using a Bluetooth wireless
technology
b
To answer a call, press BT.
- Returns to the previous step.
- Ends a call.
, Note
If you power off the unit while talking
on the phone through the unit by
using the BT function, the function is
deactivated and you can talk on the
phone directly.
b
c
d
[LCF820BO]
a
c
d
Disconnecting a phone
Press BT -> CONNECT -> LIST ->
Connected device name -> DISCONN
Answering and Ending a call
To end a call, press
.
c BT
- Press it to enter BT function.
- Answers a call.
Rejecting a call
d Y/U
Adjusts the mic volume while talking
on the phone by BT function.
Y
Deletes a spell or go back previous
contents while writing some words
on the unit.
U
Moves next space on display while
writing some words on the unit.
Making a call saved as a preset
number
To reject a call, press
.
Press BT and a preset number (1 to 6).
Checking missed calls
When the “ ? ” appears, go to the menu
(Press BT-> CALL -> LASTCALL). You can
check the list of missed call.
Audio transfer
It is possible to switch the audio
connection between your phone
equipped with Bluetooth wireless
technology and this unit.
1. Press BT to answer the call.
2. Press BT again. The “PRIVATE” is
displayed.
If the private mode is selected on the unit,
press BT to return to the call to handsfree
mode.
3
Operating
b
17
18
Operating
, Note
 The lists of LASTCALL are sorted
from newest to oldest entries.
 [LCS720BO]
When you want to make an
international call, press U to add
“+” and to delete it press again.
[LCF820BO]
When you want to make an
international call, push U
clockwise to add “+” and to delete
it push again.
 “+” can only be added when the
detail list of LASTCALL is selected.
3
 You can record the Bluetooth
Handsfree to USB. (Refer to the
page 14.)
Operating
 The call waiting function is not
supported. We do not guarantee
any errors due to use of the call
waiting function.
Listening to music of the
Bluetooth device
When your unit and the Bluetooth device
are pairing, Press SRC repeatedly to
select "BT". And play the music stored on
your Bluetooth device. Refer to the your
Bluetooth device’s user guide.
Bluetooth wireless technology
profiles information
In order to use Bluetooth wireless
technology, devices must be able to
interpret certain profiles. This unit is
compatible with following profiles.
GAP (Generic Access Profile)
HFP (Hands Free Profile)
GAVDP (Generic Audio / Video Distribution
Profile)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio / Video Distribution Remote
Control Profile)
PBA / PBAP (Phone Book Access Profile)
Adjusting the setting
1. Press BT.
2. Rotate the volume knob to select an
item and press it.
3. Rotate the volume knob to set the
option and press it.
4. If you want to return to the previous
step, press
.
CALL
 LASTCALL
Phone number list (Received, Dialed,
Missed). CALL -> LASTCALL -> Select
the phone number -> Press the volume
knob -> Display the information -> Press
the volume knob -> DIAL, SAVE, DELETE
menu will be displayed.
- To call the phone number, DIAL ->
Press the volume knob.
- To save the phone number, SAVE ->
Press the volume knob -> select the
preset number (1 to 6) -> Press the
volume knob.
- To delete the selected phone number,
DELETE -> Press the volume knob ->
NAME -> Press the volume knob.
- To delete all phone number, DELETE ->
Press the volume knob -> ALL -> Press
the volume knob.
 DIAL
Enters the number directly on the unit.
To select the 0 to 9 rotate the volume.
Press U to make the phone number.
To call it, Press the volume knob.
 PRESET
Checks and deletes/dials the phone
number saved preset number.
CALL -> PRESET -> Select the preset
number and press the volume knob
-> Display the information -> Press the
volume knob -> DIAL, DELETE menu
will be displayed.
- To call the phone number, select DIAL
and Press the volume knob.
- To delete the selected phone number,
DELETE -> NAME -> Press the volume
knob.
- To delete all phone number, DELETE ->
ALL -> Press the volume knob.
Operating
P-BOOK
SETUP
 LIST
Checks the list of the phone numbers
saved by phonebook.
 VISIBLE
Makes it is impossible to search this unit.
(SHOWN <-> HIDDEN)
 SEARCH
Searches the phone number in the list.
 GET
Getting the phonebook from the phone
automatically. This menu is only available
on phones with PBA / PBAP (Phone Book
Access Profile).
CONNECT
 LIST
Checks the list of the Connected Device
Name.
Using "LG CAR Remote"
application
You can control the unit by using the "LG
CAR Remote" application.
1. Search the “LG CAR Remote” application
and install it.
 AUTO ANS
Adjusts answering automatically or not.
(MANUAL <-> AUTO)
 MIC VOL
Adjusts microphone volume on the
phone from 1 to 5. While you are on
the phone with Bluetooth wireless
technology, use Y/U to adjust the
MIC volume.
 REDIAL
Adjusts the counts of redial. (1 TIME <->
2 TIMES)
INFO
 NAME
Changes the name of this unit.
 ADDRESS
Checks the address.
 PIN-CODE
Changes the PIN code. Default is 1234.
[Initial screen]
[Tuner screen]
You can select a source by pressing
"SOURCE".
3
[Displays installed "LG CAR Remote"
application]
2. Pairing links your unit and iPhone with
Bluetooth wireless technology. (Refer
to the page 16.)
3. When you run the “LG CAR Remote”
application, activating source is
displayed after initial screen. Then you
can control the unit on iPhone.
Operating
 SEARCH
When unit is not connected with
Bluetooth wireless technology, you can
search the phones available to connect.
When unit is connected with Bluetooth
wireless technology, you can disconnect
the phone.
 AUTO CON
Adjusts connection with automatically
or not. (ON <-> OFF)
19
[Source Mode screen]
20 Operating
Phone compatibility list
Bluetooth list and manufacturing company applicable.
H : Handsfree
A : Audio Streming
P : Phonebook Sync
Company
List
H
A
P
Company
List
H
A
LG
KM380
0
0
0
SAMSUNG
S8003 JET (8GB)
0
0
KM900 (Arena)
0
0
0
S8300 Ultra Touch
0
0
KP500 (Cookie)
0
0
0
B5722
0
KS500
0
0
B7330 (Omnia Pro)
0
0
KT520
0
0
C3303K (Champ)
0
0
KT610
0
M5650U (Lindy)
0
0
KU990
0
0
M8910 (Pixon12)
0
0
0
3
GD900
0
0
S7350
0
0
0
Operating
BL40
(New Chocolate)
0
S8500 (Wave)
0
0
i5503 (Galaxy 5)
0
0
KM335
0
0
0
0
0
0
0
0
i5700
(Galaxy Spica)
0
GD510 (POP)
GD880
0
0
0
i7500 (Galaxy)
0
0
i9000
(Galaxy S(16G))
0
0
0
T959
0
Galaxy Tab
0
0
0
0
GM730
0
0
0
GS500 (Cookie Plus)
0
0
0
GT505
0
0
0
GT540
0
0
GW305
0
0
GX500
0
0
0
0
P
Company
List
H
A
P
SONY
W595
0
0
0
ERICSSON
W705
0
0
0
W980i
0
0
0
0
Xperia-X1
0
0
0
0
0
Vivaz
0
0
0
0
0
0
Xperia-X2
0
0
0
0
0
Xperia-X10
0
0
N97-1
0
0
0
0
N900
0
0
0
6710 (Navigator)
0
0
0
0
Company
List
H
A
Nokia
E71
0
0
P
E75
0
0
0
N86
0
0
0
N97
0
0
C6
0
E5
E52
0
0
Operating
21
Bluetooth list and manufacturing company applicable.
H : Handsfree
A : Audio Streming
P : Phonebook Sync
Company
List
H
A
P
Company
List
H
A
APPLE
iPhone 3GS
(16GB)
0
0
0
Motorola
XT701
0
0
0
0
iPhone 4
(16GB)
0
XT720
(MOTOROI)
Milestone
Droid
0
0
i-Pad
0
0
0
P
“The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by LG Electronics is under license. Other trademarks and trade names are those
of their respective owners.”
Bluetooth® wireless technology is a system which allows radio contact between electronic
devices within a max range of 10 meters.
0
Connecting individual devices under Bluetooth® wireless technology does not incur any
charges. A mobile phone with Bluetooth® wireless technology can be operated via the
Cascade if the connection was made via Bluetooth® wireless technology.
ASUS
P750
0
0
HTC
Hero G3
0
0
Touch2
0
0
0
 Close windscreen.
Legend
0
0
0
 Turn off the air conditioner / heater.
Desire
0
0
0
 Stop the vehicle or drive at low speed.
3
 Make the call in a quiet location.
- There may be differences in call quality depending on phone type, road conditions
weather, etc.
- Using the phone while driving may cause unexpected accidents.
- The Bluetooth wireless technology function may not operate properly with certain
types of phones equipped with Bluetooth wireless technology.
Operating
Rim
Storm2 9550
0
0
Operating condition for using a Bluetooth wireless
technology function
0
, Note
 When the phone features <Bluetooth Power Save> function, you should make the
function turned on to maintain connection.
 When you switch the call mode from handsfree to phone, the connection may be
disconnected.
 Some phones don’t support Reject function.
 Low battery in phone may cause the problems.
22 Troubleshooting
Troubleshooting
Symptoms
Cause
Solution
Power doesn't turned on.
Leads and connectors are not properly.
Confirm once more that all connections are correct.
The fuse is blown.
Rectify the problem that caused the fuse to blow, and then replace it. Be very sure
to install the correct fuse with the same rate.
Noise and other factors are causing the built in
microprocessor to operate incorrectly.
Turn the unit off and then on again.
Cables are not connected correctly.
Connect the cables correctly.
There's audio skipping.
This unit is not firmly secured.
Secure this unit firmly.
The playback is not possible.
The disc is dirty.
Clean the disc.
The disc of unplayable type is loaded.
Check what type the disc.
The signal strength of the stations is too weak. (When tuning
in with automatic tuning.)
Tuned in the stations manually.
No station has been preset or preset stations have been
cleared. (When tuning by scanning preset stations.)
Preset the stations.
iPod/ iPhone does not work.
Check whether iPod / iPhone is connected to the unit
correctly.
Connect it to the unit correctly.
The unit does not operate correctly
even when the appropriate remote
control buttons are pressed.
Battery power is low.
Load a new battery.
The unit doesn't operate.
No sound is heard.
Radio stations cannot be tuned in.
4
Troubleshooting
Appendix 23
Specifications
AUX
Frequency Response : 20 Hz to 20 kHz
General
S / N Ratio : 80 dB
Output Power : 53 W x 4 CH (Max.)
Distortion : 0.1 %
Power Source : DC 12 V
Channel Separation (1 kHz) : 45 dB
Speaker impedance : 4 Ω
Max Input Level (1 kHz) : 1.1 V
Ground System : Negative
Dimensions (W x H x D) : (178 x 50 x168)
mm (without Control Panel)
USB
Version : USB 1.1 or USB 2.0 Full Speed
Net Weight : 1.32 kg
Bus Power Supply (USB) :
DC 5 V
1.5 A
TUNER
Max capacity : 32 GB (FAT32 standard)
FM Tuning Range :
87.5 MHz to 108.0 MHz
S / N Ratio : 55 dB
Distortion : 0.7 %
Usable Sensitivity : 12 dBμV
AM (MW) Tuning Range :
(520 to 1720) kHz or (522 to 1620) kHz
S / N Ratio : 50 dB
Distortion : 1.0 %
Usable Sensitivity : 28 dBμV
CD
SD
Distortion : 0.1 %
Max capacity : 32 GB (SDHC standard)
Bluetooth
TX POWER 4 dBm
Version Bluetooth Specification 2.1 + EDR
Line OUT
Frequency Response : 20 Hz to 20 kHz
Output Voltage : 2 V (Max.)
Frequency Response : 20 Hz to 20 kHz
Subwoofer
Distortion : 0.12 %
Frequency Response : 20 Hz to 120 Hz
Channel Separation (1 kHz) : 55 dB
Output Voltage : 2 V (Max.)
 Design and specifications are subject to
change without notice.
5
Appendix
S / N Ratio : 80 dB
Download PDF

advertising
