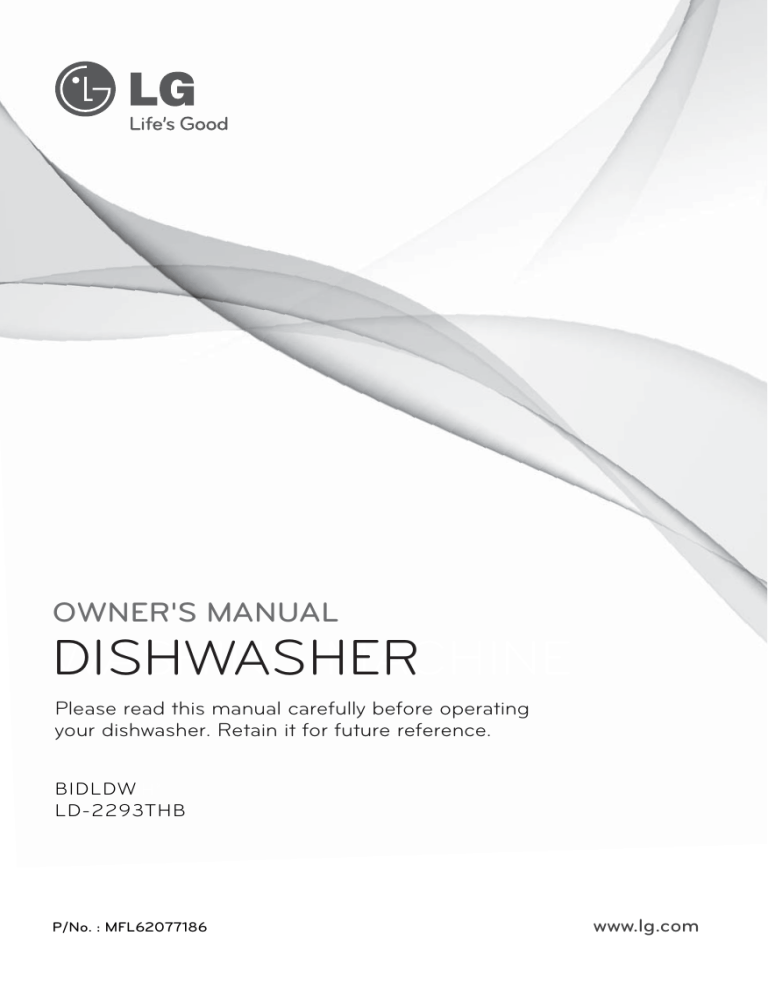

OWNER'S MANUAL
OWNER’S
WASHING
MACHINE
DISHWASHER
Please read this manual carefully before operating
your dishwasher.
Retain
for future
reference.
set and retain
it for itfuture
reference.
BIDLDW
WM0642H*
LD-2293THB
P/No.
P/NO :: MFL62077186
MFL31245123
www.lg.com
C
ONTENTS
SAFETY AND CAUTION
3
INSTALLATION INSTRUCTIONS
5
PARTS NAME
9
FUNCTION OF CONTROL BUTTON
10
BEFORE USING FOR THE FIRST TIME
12
INFORMATION FOR ENERGY TEST
14
HOW TO USE AND OPERATE
15
OPERATING SEQUENCE
21
PROGRAM
22
USER MAINTENANCE INSTRUCTIONS
23
TROUBLE SHOOTING GUIDE
24
SPECIFICATION
27
S
AFETY AND CAUTION
IMPORTANT SAFETY INSTRUCTIONS
WARNING - When using your dishwasher, follow basic precautions,
including the following:
• Please read this manual carefully before using
the dishwasher for the first time.
• This manual contains very important notes
regarding the installation, use and maintenance
of your dishwasher.
• The manufacturer can not be responsible for
problems caused by ignoring these safety and
caution instructions.
• This dishwasher is designed for normal
household use.
• Do not use the dishwasher for industrial and
commercial use, or other purpose.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Check packaging and dishwasher immediately
for signs of transport damage. If the appliance
is damaged, do not put it into use but contact
your supplier without delay.
• This appliance is intended to be used in
household and similar applications such as;
- Staff kitchen areas in shops, offices and other
working environment;
- Farm houses;
- By clients in hotels, motels and other
residential type environments;
- Bed and breakfast type environments.
• If this product is used for commercial purpose,
it is not warranted.(Example: Public places
such as restaurant, lodging house, training
center, dormitory)If the product is installed
outside the normal service area, any cost of
transportation involved in the repair of the
product, or the replacement of a defective part,
shall be borne by the owner.
agent or a similar qualified person in order to
avoid a hazard.
• This appliance must be positioned so that the
plug is accessible.
• The appliance is to be connected to the water
mains using new hose-sets and that old hosesets should not be reused.
During use
• Only suitable household utensils should be
placed in the dishwasher.
(Please avoid utensils; that are nonheatresistant, metal decorated, etc.)
• Do not use any kinds of solvent in your
dishwasher. They may cause an explosion or
fire.
• Do not spray water on the appliance.
It may cause the failure of electric parts or
electric shock.
• Do not push down or sit on the inner door
when the door opened. It may cause the
deformation or failure of your dishwasher.
• Do not use the detergent for hand washing.
The detergent for dishwasher should be used
for normal operation.
• This appliance is fitted with a safety function
that automatically stops the operation of the
dishwasher when it is exposed to heavy
disturbance on its mains.
• Dishwasher detergents are strongly alkaline.
They can be extremely dangerous if
swallowed. Avoid contact with skin and eyes
and keep children away from the dishwasher
when the door is open.
Check that the detergent receptacle is empty
after completion of the wash cycle.
During installation
• Electrical connection must be in accordance
with the rating label.
• Electrical safety is only guaranteed when the
earth system of your house is in accordance
with the related local regulations.(Do not use
an extension cable or cord.)
• If the hot water exceeds 65ºC, adjust the water
heater setting. If the hot water temperature can
not be maintained below 65ºC, the dishwasher
must be connected to cold water.
• If power supply cord is damaged, it must only
be replaced by the manufacturer or its service
Child Safety
• Controls may be locked using “Child Lock”
mode to prevent from all the setting from
being changed by a child.
• Keep children away from detergents and rinseaids.
• Do not allow children to operate the
dishwasher.
• Young children should be supervised to ensure
that they do not play with the appliance.
3
S
AFETY AND CAUTION
CAUTION
Concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit
which powers only that appliance and has no additional outlets or branch circuits. Check the
specification page of this owner’s manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire. Periodically examine the cord of your appliance,
and if its appearance indicates damage or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the
point where the cord exits the appliance.
CAUTION
The instructions shall state the substance of the following :
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is installed and grounded in
accordance with all local codes and ordinances.
WARNING - Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or service representative if you are in doubt
whether the appliance is properly grounded. Do not modify the plug provided with the appliance;
if it will not fit the outlet have a proper outlet installed by a qualified electrician.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product
it means the product is covered by the European Directive
2002/96/EC.
2. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will help prevent
potential negative consequences for the environment and human
health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
4
I
NSTALLATION INSTRUCTIONS
WARNING
A qualified electrician/plumber or competent person should carry out any electrical/plumbing
work required to install this appliance.
Step 1 :
PREPARE CUPBOARD OPENING
Step 2 :
PREPARATION FOR ELECTICAL WIRING
CAUTION
1 This dishwasher is designed to fit the size
shown as below.
For personal safety, remove house
fuse or open circuit breaker before
installation. Do not use an extension
cord or adapter plug with this
appliance. Electrical and earthing
connections must comply with the
national electrical code/provincial and
municipal code and/or other local
codes.
2 Select a location as close to sink as
possible for ease of connection to the
water and drain pipes.
3 To ensure good drainage, the dishwasher
should not be installed more than 3 meters
away from the sink.
4 If dishwasher is installed in a corner, a
minimum of 5cm of space is required
between the washer and an adjacent
cabinet or wall.
1 This appliance must be supplied with
correct rating voltage and hertz as shown
on instruction manual, and connected to
an individual, properly earthed branch
circuit, protected by a minimum 15 amp
circuit breaker or time delay fuse.
Wiring must be 2 wire with Earth.
2 The power plug must be in a accessible
location adjacent to and not behind the
dishwasher and within 1.2 meters of the
dishwasher side.(See page 7 Fig.A)
3 The power plug must be correctly
earthed, if in doubt, have it checked by a
qualified Electrician. No other appliance
should be connected to the same plug
outlet by a double adapter or similar
plug.
Dangerous voltage
Unit:mm
To indicate hazards arising
from dangerous voltages.
Note – In case of application
in a warning sign the rules
according to ISO 3864 shall
be adhered to.
Any bare wood surrounding the
dishwasher should be sealed with a
waterproof paint or sealant to prevent
swelling.
5
I
NSTALLATION INSTRUCTIONS
Step 3 :
PREPARING THE DISHWASHER
FOR INSTALLATION
Step 4 :
INSTALLING THE
DISHWASHER IN CUPBOARD
1 Lay the dishwasher on its back.
1 Before sliding the dishwasher into the
cupboard opening, all necessary height
and balancing adjustments should be
made using a spanner.
2 Adjust the legs to the required height
as shown in below figure.
2 Slide the dishwasher into the cabinet
opening carefully. Make sure that the
drain hose inside the cabinet is not
kinked or stretched.
3 Snap the left(right) rail onto the
left(right) feet of the base. The
adjustment screw should be facing
toward the front.
Leveling kit is consist of two rails.
The rail A is left rail and the rail B is
right rail. Turn the front adjustment
screw to level the dishwasher.(step8)
CAUTION
Adjusting the fully seated rear feet in
the wrong direction, especially with a
power screwdriver, can damage the
adjusting mechanism.
NOTE
LEFT RAIL - A
Do not use the leveling kit if the counter
height dimensions are too low. In this
case, the rear feet must be adjusted
before installing the dishwasher into the
cabinet.
RIGHT RAIL - B
4 Set the dishwasher upright.
6
I
NSTALLATION INSTRUCTIONS
Step 5 :
DRAIN LINE CONNECTION
When the drain hose is connected to a
separate standpipe, it is essential that an
airtight connection be made.
Refer to Fig.B
1 If the end of drain hose does not fit to
the drain line, use a rubber
connector(not supplied) that is
resistant to heat and detergent.
2 This should be available from a
plumbing shop or DIY merchants.
3 There are two typical connections as
shown in Figure A, B.
The “S” trap spigot must be drilled out
cleanly and free of obstruction to its
maximum internal diameter, if used for
drainage.
Fig. B : Drainage connection - stand pipe.
To prevent siphoning, one of the following
methods must be used:
Drain hose Extension
When the drain hose is connected to a
sink “s” trap or waste disposal unit, the
hose must be looped up to the underside
of the bench top and secured.
Extend drain hose as shown below.
CAUTION
Fig. A
When you connect or extend drain
hose, make sure that drain hose is not
kinked.
(Bends should have a 40 mm radius.)
7
I
NSTALLATION INSTRUCTIONS
Step 6 :
CONNECTION OF WATER INLET HOSE
Step 8 :
HOW TO LEVEL THE DISHWASHER
Connect the water supply hose to the water tap.
(Fig. A)
After installing the dishwasher, you may
notice a slight sticking of the door to the
dishwasher, when you open or close the door.
If this does happen you need to adjust the level
of the dishwasher.
Some models consist of an inlet valve and hose.
(Fig. B)
After connecting the inlet hose to the tap, turn on
the tap to flush out foreign substances (dirt, sand
or sawdust) in the water lines. Let water drain
into a bucket, and check the water temperature.
Connect the supply hose to the water inlet valve.
Case 1. In case the door is slanted to the right
Water tap
Fig. C
• If the door slants to the right, see Fig.C and
follow these instructions:
1) Turn the right adjustment screw to the
counter clockwise to raise right rear corner of
dishwasher.
2) Check the opening of door and repeat if
necessary until the door opens and closes
properly.
• When the product is correctly leveled, There
should be no slant. When opening or closing the
door, there should be no friction sound.
Water supply
hose
Fig. A
Fig. B
• This dishwasher may be fed with either hot or
cold water. If the water can not be maintained
below 65ºC, the dishwasher must be connected
to cold water.
• When connecting, you may use sealant tape or
sealing compound to avoid water leaks.
• Make sure that the line is not kinked or sharply
bent.
• It is recommended that the new inlet hose be
used and not the existing or old hose.
Case 2. In case the door is slanted to the left
Step 7 :
FINAL CHECK AND ASSEMBLING
1 Securely hand tighten supply hose to the
water supply.
Plug the power supply cord into an earthed
electrical point and switch on.
2 After installing and prior to using the
dishwasher with crockery, we recommend
that you use the dishwasher on ‘Quick’
mode to rinse through. At this stage it is
useful to ensure that there are no operating
problems or water leaks.
When the dishwasher is used for the first,
there may be a loud noise, if this happens,
turn off the power and restart the
dishwasher.
Fig. D
• If the door slants to the left, see Fig.D and
follow these instructions:
1) Turn the left adjustment screw to the
clockwise to raise left rear corner of
dishwasher.
2) Check the opening of door and repeat if
necessary until the door opens and closes
properly.
• When the product is correctly leveled, There
should be noslant. When opening or closing the
door, there should be no friction sound.
8
P
ARTS NAME
1. Control Panel
9. Cutlery Rack
2. Front Cover
10. Detergent And Rinse Aid Dispenser
3. Power Button
11. Vapor Vent Cover
4. Drain Hose
12. Upper Spray Arm
5. Inlet Hose
13. Lower Spray Arm
6. Power Cord
14. Filter ASM
7. Adjustable Leg
15. Lower Rack
8. Upper Rack
16. Salt Container Cap
Funnel
The appearance and specifications may vary without notice.
9
F
UNCTION OF CONTROL BUTTON
Program
Beep On/Off
Program
• To select a program, press one of these buttons.
Spray
• With each press, the water jet intensity is changed to Strong, Medium or Soft.
Indicator
• Child Lock.
• Refill with rinse aid.
• Refill with special salt.
Time Left
• Before starting, the display window shows the running time of the selected program.
• After starting, the display window shows the remaining time. These times may vary due to extraneous
conditions.
• If the dishwasher has trouble, the trouble type is displayed. “OE”, “FE”, “IE”, “EI”, “HE”, “CE”, “LE”, “tE”
• If these error letters are displayed, please refer to the trouble shooting guide page 25 and follow the guide.
Delay Start
• If you want to delay the start of selected program, press this button.
• Pressing this button will increase the delayed start time by 1 hourly increments.
• The delay start time can be adjusted from 1 hour to 19 hours.
Power
• For operating, press this button first for power on.
• After operating, this button automatically switches off for safety and energy saving.
• In case of irregular mains power disturbance to the machine, the power may be automatically turned off for
safety.
10
Spray
Sanitization
Indicator
Time Left
Child Lock
Delay Start
Power
Half Load
Half Load
• In case of small load, use upper or lower rack only to save energy.
• With each press, Upper or Lower rack can be selected.
• In case you don’t select this button, the machine always works on Vario washing, which operates upper and
lower spray arm alternately.
Child Lock
• Used to lock or unlock the control buttons to prevent all the setting from being changed during the cycle.
• To activate or release the Child Lock function, press the Spray and Sani. buttons simultaneously for a few
seconds while the dishwasher is in operation.
• All controls will be disabled except the Child Lock and Power buttons.
• Turning off the dishwasher will not reset the Child Lock function. You must release the Child Lock before
you can operate the dishwasher.
Sanitization
• Repeated pressing of the Sani. button will select Extra Hot, Rinse+, Extra Hot & Rinse+.
• If you select the Extra Hot function, the operating temperature will be up to 80 .
• When you select Rinse+ an additional rinse cycle is added.
Beep On/Off
• The dishwasher must be switched on.
• The beep on/off function can be set by pressing the Dual Wash and Auto buttons simultaneously for a few
seconds. Then, an “On” will appear in the display.
• The beep on/off function is automatically canceled when a mains power failure occurs.
11
B
EFORE USING FOR THE FIRST TIME
Hardness setting
You have to check your water hardness and set the softening system level before
operating your dishwasher.
< Water hardness level >
Step 1. Check and find water hardness level
Method 1
1) Check the water hardness of your area.
(Your water utility company can help you with this.)
2) Set the softening system level of your dishwasher
according to the water hardness level.
Refer to the Step 2.
(*L : Softening system level)
Method 2
1) Check your water hardness by using test strip. (
)
2) Test Procedure
Immerse all reaction zones of the test strip for approx.1sec (not in running water!).
Shake off excess liquid from the strip and wait for 1min.
Then, the green color of the reaction zone will change to the red-violet.
Count the number of red-violet from the strip.
< Water hardness level >
Number of
the areas
(red-violet)
Hardness range
°d
°e
°f
mmol/l mg/l
(Ca+Mg) Ca
Water
quality
<7
<9
<12,5
<1,3
<50
soft
7 - 14 9 - 17,5 12,5 - 25 1,3 - 2,5 50 - 100 moderately hard
14 - 21 17,5 - 26 25 - 37 2,5 - 3,8 100 - 150
hard
>21
>26
>37
>3,8
>150
very hard
Softening
system
level
H0, H1
H2, H3
H4, H5
H6, H7
1 °e = 14.25 mg/l CaCO3
1 °f = 10 mg/l CaCO3
1 °d = 10 mg/l CaO (=1,78 °f) (=1,25 °e)
3) Set the softening system level of your dishwasher according to the water hardness level.
Refer to the Step 2.
Step 2. Setting up the softening system level of your dishwasher
Adjust the water softener to the setting to the corresponding hardness of the water in your area.
The water softener has 8 adjustment levels.
The dishwasher is programmed at the factory for a water hardness level of “ ”.
This can be checked and altered by using the buttons on the control panel.
1. First, ensure the dishwasher is switched off.
2. Press Half load and Power button simultaneously and keep them pressed.
3. To change the setting:
Simply press the Half load button, then the figure will change one by one.
The display will change between “ ” and “ ”.
4. Once the hardness setting is correctly adjusted, press the Delay Start button.
The hardness setting is then saved.
12
B
EFORE USING FOR THE FIRST TIME
Step 3. Salt Filling
This model has a water softener to soften hard water.
Please read these notes carefully for correct operation.
In order to provide satisfactory rinsing results, the dishwasher requires soft water, i.e., containing
little or no lime, otherwise water stains will be left behind on the dishes and interior containers.
If the tap water exceeds a certain level of hardness, it must be softened, I.e.,decalcified.
This id achieved by adding a special salt to the water softener inside the dishwasher.
The required amount of salt is set up according to how hard your tap water is.
Filling with Salt
Fill the regenerating salt container before starting the washing program.
Once you have filled with salt you must run the “Pre wash” or “Quick” course immediately to
remove salt and salt water around the tub in order to prevent corrosion.
• Remove lower rack and unscrew the cap of salt container.
• Before using your dishwasher for the first time, it is necessary
to Pour 1.5kg of salt and 1 liter of water in to the container.
Use a funnel for ease and clean filling, ensuring that coarse salt
or regenerating salt intended for dishwashers is used.
• After filling, wipe off any spilled salt to seal the cap properly.
• Screw the cap tightly to prevent any suds from penetrating into
container.
Step 4. Adding Rinse Aid
For filling
To fill the Rinse Aid chamber, rotate the round cap counter clockwise and remove. Fill the container
to the maximum level with a good quality Rinse Aid, then replace and lock the cap.
The Rinse Aid is automatically dispensed during the final rinse cycle.
The dosage is factory set to suit most installations. If, after washing, you notice cloudy spots, streaks
or water marks on your glassware, it may be necessary to increase the setting. To do this, remove the
cap and rotate the indicator arrow to a higher setting then replace the cap . If the glasses are smeared
or foam is present on the bottom of the glass or the bottom of the machine, select a lower setting.
13
I
NFORMATION FOR ENERGY TEST (EN50242)
Appliance loaded in accordance with
standard specifications.
• Capacity : 12 place settings
• Comparability course : Eco
• Rinse Aid setting : 4
• Reference cleaner : 6g of detergent onto the
inside surface of the door and fill 24g into
the detergent dispenser.
• Height-adjustable Rack-U must be inserted
into the uppermost position.
2. Upper Rack
Bowl(L)
Bowl(M)
Cups
1. Cutlery Basket
Knives
Glasses
Bowl(S)
Saucers
3. Lower Rack
Dinner plates
3
4
3
1
3
4
4
4
4
4
3
3
1 2 3 4 5 6 7
1
1
1
1
1
2
2
2
2
2
2
3
4
5
7
3
1
1
3
1
1
1
1
2
2
2
2
2
2
3
3
6
4
4
4
4
4
3
Oval platter Soup plates
3
5
14
Soup plates
Dessert plates
H
OW TO USE AND OPERATE
1. Cutlery Basket
For better washing performance, always load
the dishwasher according to the instructions.
Place forks and spoon in the cutlery basket
with their handles downwards.
Before loading items into the dishwasher.
• Clean off large particles of food, in
particular insoluble items such as bones,
pips etc.
• Items with burnt on food should be soaked
prior to loading in the dishwasher.
While you load items into the dishwasher.
• Load all items with the opening down.
(Make sure that water does not collect in a
deep base.)
• Deep based items should be placed at an
angle to help water run off and dry
properly.
• Make sure that all items do not touch each
other.
For lager utensils, such as whisks, the cover is
opened by being hinged.
Take care not to obstruct the rotation of the
spray arm.
Take care not to obstruct the rotation of
spray arms.
Plastic items do not dry as well as steel or
porcelain items.
Non Dishwasher Safe Items
The basket can be split along its length,
increasing the lower rack’s loading versatility.
The combination of high water temperatures and
dishwasher detergent may damage particular items,
therefore we do not recommend using the
dishwasher to wash the following:
Copper or anodized aluminum.
Hand painted silver or gold leaf crockery.
Wood or bone handled utensils .
Iron or non rust proof utensils.
Plastic items that which are not dishwasher safe.
Slide two baskets in opposite directions, then
pull them apart..
WARNING
To prevent injuries, place knives and
other utensils with sharp points on the
knife shelf or cutlery rack.
If you want to load them in the cutlery
basket, place them with the pointed
edges facing downwards.
15
H
OW TO USE AND OPERATE
2. Lower Rack
3. Upper Rack
The lower rack is best loaded with dinner
plates, soup bowls, dishes, pots, pans, lids and
even the grill tray.
It is best to load this with more delicate items
such as, small plates, long cutlery, cups,
glasses and dishwasher safe plastic items.
Plates should be positioned upright and facing
the centre of the rack and pots, pans and large
dishes must be turned upside down.
Take care not to obstruct the rotation of the
spray arms and ensure that large items do not
prevent the detergent dispenser lid from
opening.
Plates should be positioned upwards with the
plate bottom facing the front of the rack.
Cups, glasses and bowls must be positioned
upside down.
Take care not to obstruct the rotation of the
spray arm under the upper rack.
To make it easier to load larger dishes, the
front row of tines can be folded down.
The knife rack (on some models) provides
support for long steam glasses.
How to fold down
The cup racks can be folded up out of the way
for tall crockery items.
Fold up state
Ex) Loading large pot
Fold down state
16
H
OW TO USE AND OPERATE
4. Adding Detergent
Your upper rack can be raised or lowered to
cater for different sized crockery. Before
adjusting, ensure that the rack is empty.
You can change the position of the upper rack
by lifting the rack upward, into the upper
position, or by pulling on the two levers on
either side of the rack to move it down to its
lower position.
We recommend that where possible the upper
rack remains level.
And when you pull the rack upward, hold the
middle location of the upper rack
(
marked position)
After adjusting the rack levels, check
that the spray arm is free to rotate.
• Detergent must be put into the detergent
chamber before starting every program
except the Pre Wash.
• Please follow the manufacturer’s instructions
within the manual, when determining the
correct amount of detergent to use.
• If your dishes are moderately dirty,
you may use slightly less detergent than
recommended.
• Chambers hold 15g and 25g.
• The amountof detergent required depends on
the program. Please refer to the guide table.
PROGRAM
AMOUNT OF DETERGENT
Dual Wash
25g
Auto
20g
Eco
15g
Gentle
15g
Quick
10g
Pre Wash
No detergent
• The detergent is dispensed automatically
during the operation.
• The chamber lid remains open after
operation.
Detergent Information
Use only the detergent intended for
household dishwashers. (Ordinary handwashing detergent should not be used,
because the foam will interfere with proper
operation.) When using some dishwasher
tablets, the dispenser may not to open due to
their excessive size. If this happens, place
the tablet onto the floor of the tub.
WARNING
Before adjusting, ensure the rack is
empty of all crockery.
Otherwise crockery may be damaged
or you may be injured.
17
H
OW TO USE AND OPERATE
WARNING
The detergent used is a special
Dishwasher detergent and like all
household chemicals it should be
treated as harmful and kept out of reach
of children. After completion of the wash
program, the detergent compartment
should be checked and any remaining
detergent removed.
Push latch to open
Place proper
detergent into this
compartment
ATTENTION
Using combined detergent products
(ex.3 in 1)
Some products integrated rinse aid
work best specific programs only.
You will obtain optimum rinsing and
drying results by using conventional
rinse aids.
The use of Dishwasher Tablet products
may also cause the soap dispenser to
remain shut, therefore failing to
dispense the soap tablet.
These combined detergent products
can alternatively be placed on the filter
prior to starting the wash cycle.
Please contact the detergent
manufacturer if the drying performance
is very poor or you find the white film,
when you use the combined detergent
products.
The rinse aid dial should be set to
minimum when using wash tablets with
built in rinse aid.
Excessive rinse aid can cause foaming
at the end of the wash.
We do not warrant the complaints that
are directly related to the use of these
products. Do not use liquid rinse aid if
using tablets containing a rinse aid
agent.
When using tablets, place them onto the
inside surface of the door. The use of some
combined detergent/rinse aid tablets can
cause the dispenser to remain shut during
the wash.
18
H
OW TO USE AND OPERATE
5. Refilling
For refilling Rinse Aid
For refilling Salt
Depending on the dosage setting and the
number of washes, the chamber may need to
be topped up, approximately once a month.
The rinse aid level can be checked by two
methods.
• By the indicator window on the dispenser
when the dishwasher door is fully open.
Black indicates sufficient Rinse Aid
Clear indicates Rinse Aid required
When the salt container is empty, the salt refill
lamp will automatically turn on during
operation. The salt should be refilled after the
cycle has finished. We recommended the salt
refill should always be carried out, as
mentioned previous page, prior to starting the
next operation. This will immediately thin and
drain away any excess salt solution.
When the lamp is lit, this means that the
salt aid is almost empty. Refill the Salt
Aid chamber as soon as possible.
• By the light on the control panel, being lit,
when the dishwasher is working on.
When the lamp is lit, it means the rinse
aid is almost empty. Refill the Rinse Aid
chamber as soon as possible.
NOTE
• After filling with salt, it may take a
little while before the indicator light
turns off.
• When the control is set to “ ”, it is
not necessary to fill up with salt as
no salt is consumed while the
dishwasher is operating.
If the control is set between “ ”
and “ ”, then salt must be added
to the salt container.
Rinse Aid Information
WARNING
Rinse Aid is necessary to remove spots and
streaks from dishes as well as improved
drying. Using the correct amount will improve
wash performance. However, using too much
can produce excess foam leading to possible
water leaks.
Do not pour detergent into the salt
container. This will destroy the water
salt container.
19
H
OW TO USE AND OPERATE
6. Drying
7. Dual Wash
■ To assist drying, we recommend that the door
be partially opened after the cycle.
The display will indicate "Cd"(cool dry) for a
further 30 minutes after the end of the cycle
time. It can be interrupted or terminated by
simply opening the door.
■ The spray intensity of the upper and lower
racks can be adjusted separately depending
on soil level or type of dishes loaded on each
rack. For example by selecting Soft Spray for
the upper rack and Strong Spray for the
lower rack, you can wash delicate items like
wine glasses on the upper rack while washing
pots and pans on the lower rack.
■ The use of rinse aid is recommended for
optimum drying results.
■ How to use Dual Wash
1. Select Dual Wash course.
2. Press Half Load key to choose Upper or
Lower. Indicator Upper is default.
3. Press Spray key to set the intensity for
upper or lower rack.
(Strong/Medium/Soft)
Medium setting is the default.
4. Select other options if required.
5. Dishwasher starts after 10 seconds.
■ Select the “Extra Hot” option to get the better
drying results.
20
O PERATING SEQUENCE
Press the “Power” button
Before starting, the display window shows
the running time of the selected program.
After starting, the display window shows
the remaining time.
The time in the display window will start
to decrease minute by minute.
If the door is opened during the program
a safety device ensures that the machine
stops.
Once the door is re-closed the program
will start from where it was interrupted.
Check there is rinse aid
and salt
The corresponding indicator lights will
illuminate if refilling is required.
Open the door and check
the filters
Ensure they are clean and properly
positioned. (See “User Maintenance
Instructions”)
At the end of the
washing program
“End”is displayed on the digital display
and a buzzer sounds.
And the dishwasher automatically
switches off for safety and energy saving
later.
Load the dishes
Remove any excess food.
Pull the lower rack out and arrange the
dishes and cutlery.
Pull the upper rack out and arrange the
cups, glasses, etc.
CAUTION
CAUTION
Empty the lower rack first and then the
upper one; this will avoid water dripping
from the upper rack onto the dishes
below.
Do not load the items in upper rack with
the lower rack is pulled out and loaded.
Ensure the spray arms can
freely rotate
WARNING
In general it is not advisable to open the
door while the machine is working.
If the door is opened, a safety device
ensures that the machine stops.
Care must be taken if the door is
opened during the hot phase or
immediately after a program has
finished, as steam may escape.
Measure out detergent
Add the required amount of detergent into
the dispenser and close the lid.
Setting and starting the
program
Press the program button to select the
desired program.
After 10 seconds, the machine will start.
If necessary, select the option function
corresponding to the desired program.
The indicator lights of the program and all
the phases of the program will come on.
CAUTION
That the door should not be left in the
open position since this could present a
tripping hazard.
21
P
ROGRAM
Running time may vary according to the water temperature, water pressure and voltage.
Running time doesn’t include “Cool Dry - 30min”.
Dual Wash
Eco
This program is ideal for very dirty crockery, in
particular pots, pans and casserole dishes.
This program will be able to control the water jet
level of each spray arm differently.
This program offers the most efficient energy
and water consumption for a good washing
performance. It is recommended that it will be
used every time.
For more information, refer to page 20.
Gentle
This program is for washing delicate items like
glasses.
Auto
During the Auto program, the degree of soiling
in the dishes is determined by the amount of
clouding of the water.
According the degree of soiling, the program
automatically adjust the washing time,
temperature. As a result, the energy and water
consumption is kept as low as possible. The “F”
on display means that the sensor is sensing the
status of the dishwasher.
Quick
Can use for lightly soiled recently used dishes
and cutlery.
When you select “Quick” program, After
finishing, “Cool Dry” function is automatically
performed for the better drying result.
Pre Wash
Can use this program for only removing soil
before washing dishes by hand.
Auto Restart
If the dishwasher turns off due to a power failure, when restarted, the cycle will continue from
the point were it stopped.
22
U
SER MAINTENANCE INSTRUCTIONS
To prevent trouble and poor operating, it is important to check filters and spray
arms at regular intervals.
Upper Spray Arm
Filters
• Remove the lower rack first.
• Turn the mesh filter counterclockwise.
• Take out the mesh filter, upper STS filter and
outer filter.
• Clean them if necessary.
• Replace them in the reverse order.
• Pull the upper rack forwards.
• Check that the water jet holes are not blocked.
• If cleaning is required, remove the arm by
unscrewing the nut.
• Clean the spray arm and replace it in the
reverse order.
mesh filter
upper STS filter
outer filter
Water Inlet
After each cycle, clean the filter for
the better washing result.
• A filter is incorporated in the connection of
the valve on the water inlet hose.
If insufficient water flows into the dishwasher,
check that the filter is not blocked.
• Cleaning the filter
- Disconnect the dishwasher
from the mains supply.
Switch off at the mains
socket and remove the plug.
- Turn off the tap.
- Unscrew the inlet hose.
- Remove the filter from
connection.
- Clean the filter in the supply
hose under running water.
- Refit the filter, making sure
it is sitting correctly.
- Reconnect the inlet hose to the tap.
- Turn on the tap.
• If there is a leak, the inlet hose might not be
on securely, or it may have been screwed on
at an angle. Unscrew and reconnect the water
inlet valve correctly.
• Reconnect power supply.
Before starting, check that the filter is
assembled well. If the filter is not
assembled correctly, you might have
a poor cleaning result.
Lower Spray Arm
• Check that the water jet holes are not blocked.
• If cleaning is required, remove the arm by
pulling up.
• Clean the spray arm and replace it pulling down.
23
T
ROUBLE SHOOTING GUIDE
If a problem occurs check below to see whether this can be solved.
In the unlikely event that the problem cannot be rectified, please contact a
service engineer.
Problem
Possible Causes
Solution
• Plug is not properly inserted into
the socket.
• Fuses blown or circuit breaker
tripped.
• The electricity of the house was
cut off.
• Check the plug.
The machine does not
start.
• Door is not fully closed.
• The start button is not pressed.
• Close the door.
• Press the start button.
The spray arms do not
rotate smoothly.
• The mounting of the spray arms is
blocked by food particles.
• Clean the holes of the
spray arm.
White deposits are left
on the dishwasher after
washing.
• The amount of detergent or rinseaid set incorrectly.
• The salt container is empty.
• The salt container cap is not
securely screwed on.
• Check the detergent
or rinse-aid.
• Check the salt
container or cap.
Streaks are left on
glassware.
• Too little Rinse-Aid dispensed.
Dry results are not
satisfactory.
• Too little Rinse-Aid dispensed.
Washing results are not
satisfactory.
• Incorrect amount of detergent.
• Utensils incorrectly arranged or
overloaded.
• Filters are clogged.
• Water jet holes of spray arms
blocked.
• Spray arm's rotation obstructed by
utensils.
• Unsuitable program selected.
No lights come on when
the power is turned on.
24
• Check the electricity.
• Call for service.
• Fill the rinse-aid.
• Adjust the level of
rinse-aid container.
T
ROUBLE SHOOTING GUIDE
Problem
The display shows "OE"
code. (Water is not
pumped away.)
Possible Causes
• The drain hose is kinked.
• The filter is clogged.
• Motor trouble.
(Washing motor or Drain motor)
The display shows "IE"
code.
• Water is not supplied.
• Water tap is not opened.
• Water sensor has a trouble.
The display shows "EI"
code.
(Automatically Drain
pump operated.)
• Water is leaking from the hose
connections.
• Damage to the unit has been
caused by a water leak.
The display shows "FE"
code. (Automatically
Drain pump operated.)
• Excessive water is supplied than
the normal water level.
• There is a problem with the inlet
valve.
The display shows "HE"
code.
• The water heater circuit is damaged.
The display shows "tE"
code.
• Thermistor trouble or very high inlet
water temperature.
The display shows "LE"
code.
• Motor trouble.
The display shows "CE"
code.
• Motor trouble.
25
Solution
• Straighten hose(s).
• Clean the filter.
• If you can not solve
the problem, call for
service.
• Check the water tap.
• If you can not solve
the problem, call for
service.
• Close the water tap
and unplug the power
plug.
• Call for service.
T
ROUBLE SHOOTING GUIDE
■ These are not error codes indicating a malfunction.
Code
Description
The display shows
“Cd” code
"Cd" means Cool-Dry. This is an additional drying cycle to assist
drying performance in the 'Quick' course. This cycle runs for a
further 30 minutes after the course has finished. It can be
interrupted at any time by opening the door.
The display shows
“CL” code
“CL” means Child-Lock. This function is used to lock or unlock
the control buttons to prevent all the setting from being changed
by a child. It can only be activated during the wash cycle.
The display shows
“F” code
When the unit is displaying "F", the sensor is measuring the
water clarity. After 5 minutes of sensing (except draining and
filling), the unit's display will then show the processing time.
The display shows
numbers between 1 ~ 19
This is not an error code, but indicates the setting of the delay
start. To cancel the function, turn the power off. To change the
course and option, open the door and select another course and
option. Countdown will then continue after door is closed again.
26
S
PECIFICATION
598mm
551mm
820mm
Capacity
12 Place settings
Weight
See rating label
Power Supply
See rating label
Power Consumption
See rating label
Water Feed Pressure
50 ~ 800 kPa
27
Download PDF

advertising
