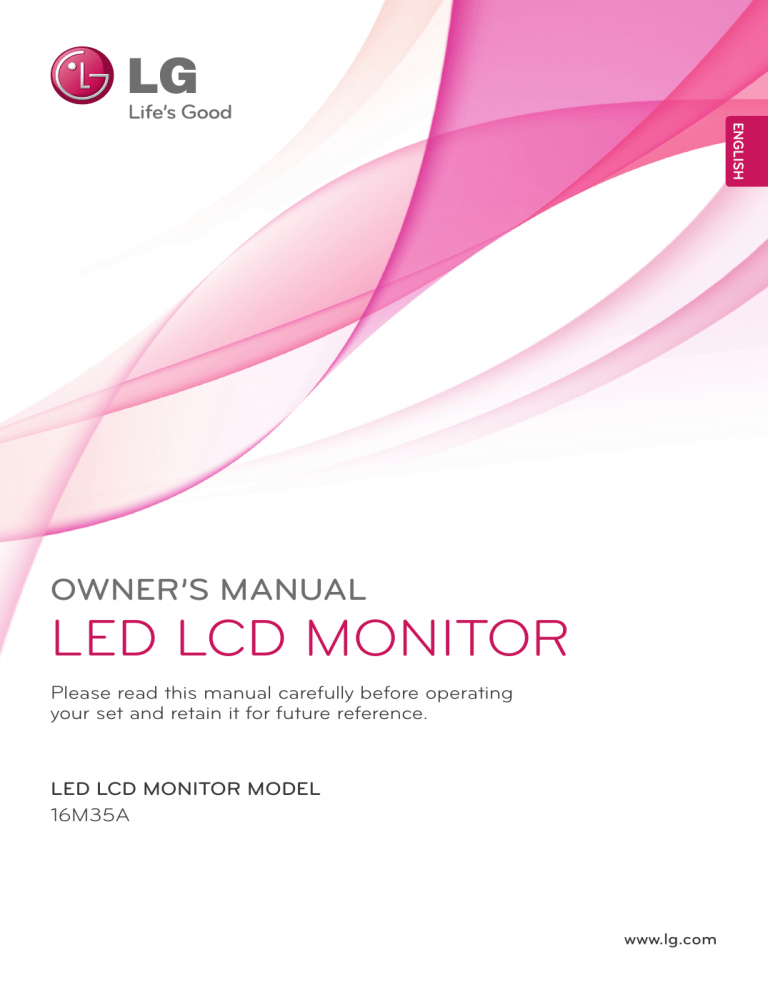

LG | 16M35A-B | LG 16M35A-B Owner’s Manual

ENGLISH
OWNER’S MANUAL
LED LCD MONITOR
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL
16M35A
www.lg.com
2
TABLE OF CONTENTS
CONTENTS
ENGLISH
ENG
3
ASSEMBLING AND PREPARING
23 SPECIFICATIONS
3
Unpacking
23
16M35A
4
Parts and buttons
24
Preset Modes (Resolution)
5
Moving and Lifting the Monitor
24
Indicator
6
Setting up the Monitor set
6
- Attaching the Stand Base
6
- Detaching the Stand Base
7
- Mounting on a table
7
- Using the cable holder
9
USING THE MONITOR SET
9
Connecting to a PC
9
- D-SUB connection
11
CUSTOMIZING SETTINGS
12
Customizing Settings
12
- Menu Settings
13
-Picture
14
-Color
15
-Display
16
-Others
17
READER Setting
18
FUNC. Setting
18
-SUPER ENERGY SAVING
19
-Picture Mode
20
-DUAL DISPLAY
20
-DUAL WEB
21 TROUBLESHOOTING
25 PROPER POSTURE
25
Proper posture for using the Monitor set.
ASSEMBLING AND PREPARING
3
ASSEMBLING AND PREPARING
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
CD(Owner's Manual) /
Card
D-SUB Cable
or
Power Cord
AC-DC Adapter
( Depending on the country )
Stand Body
AC-DC Adapter
( Depending on the country )
Stand Base
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
yy
Any damages or injuries by using unapproved accessories are not covered by the warranty.
yy
NOTE
The accessories supplied with your product may vary depending on the model.
yy
Product specifications or contents in this manual may be changed without prior notice due to upgrade
yy
of product functions.
ENG
ENGLISH
Unpacking
4
ASSEMBLING AND PREPARING
Parts and buttons
ENGLISH
ENG
Power Indicator
yyLighting On: Turned on
yyLighting Off: Turned off
(Power Button)
Button (See p.11)
Connection panel (See p.9)
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
It is advisable to place the monitor in the
yy
original box or packing material before attempting to move it.
Before moving or lifting the monitor, disconyy
nect the power cord and all cables.
Hold the top and bottom of the monitor frame
yy
firmly. Do not hold the panel itself.
When moving the monitor, avoid any strong
yy
shock or vibrations to the product.
When moving the monitor, keep it upright,
yy
never turn the monitor on its side or tilt it
sideways.
CAUTION
As far as possible, avoid touching the moniyy
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
ENG
ENGLISH
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transportation regardless of its shape or size.
When holding the monitor, the screen should
yy
face away from you to prevent it being
scratched.
5
6
ASSEMBLING AND PREPARING
ENGLISH
ENG
Setting up the Monitor set
Detaching the Stand Base
Attaching the Stand Base
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
1 Place the Monitor set with the screen side
down on a flat and cushioned surface.
2
CAUTION
Lay a foam mat or soft protective cloth
on the surface to protect the screen from
damage.
2
1 Pull out the Stand Body and Stand Base
from the monitor set.
2 Turn the screw to the left with a coin.
3 Pull out the Stand Base.
1 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tighten the screw to the right with a coin.
Stand Body
Stand Body
Stand Base
Stand Body
Stand Base
Stand Base
ASSEMBLING AND PREPARING
Mounting on a table
3 Press (Power) button on the bottom switch
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
CAUTION
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
10 cm
10 cm
10 cm
10 cm
Using the cable holder
2 Connect the AC-DC Adapter and Power Cord
to a wall outlet.
Cable holder
ENG
ENGLISH
panel to turn the power on.
1 Lift and tilt the Monitor set into its upright
or
7
8
ASSEMBLING AND PREPARING
WARNING
Using the Kensington security system
ENGLISH
ENG
When you adjust the angle, do not hold the
bottom of the Monitor set frame as shown on
the following illustration, as may injure your
fingers.
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit http://www.kensington.com .
Connect the Kensington security system cable
between the Monitor set and a table.
Do not touch or press the screen when
adjusting the angle of the monitor.
Do not hold this set like below picture.Monitor
screen can detach from stand base and injure
your body.
NOTE
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
Tilt from +20 to -5 degrees up or down to adjust
the angle of the Monitor set to suit your view.
Front
Rear
USING THE MONITOR SET
9
USING THE MONITOR SET
Your Monitor set supports Plug & Play*.
yy
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.
NOTE
When using a D-Sub signal input cable
yy
connector for Macintosh
D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
Mac adapter
yy
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
ENG
ENGLISH
Connecting to a PC
10
USING THE MONITOR SET
CAUTION
ENGLISH
ENG
Connect the signal input cable
yy
and tighten it by turning the
screws clockwise.
Do not press the screen with your
yy
finger for a long time as this may
result in temporary distortion on the screen.
Avoid displaying a fixed image on the
yy
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "Self Image Setting" Function is executed
automatically. (Only supported in Analog Mode)
NOTE
If you turn the Monitor set on while it is cold,
yy
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
yy
on the screen. This is normal.
NOTE
"Self Image Setting" Function.
yy
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’ Function.
yy
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
CUSTOMIZING SETTINGS
11
CUSTOMIZING SETTINGS
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow (
) button.
3 Select EXIT to leave the OSD menu.
Monitor set Buttons
Button
Description
Accesses the main menus.(See p.12)
OSD Locked/OSD
Unlocked
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.
Use this button to enter Reader Mode menu. Its function works to display screen as
paper-like picture for Eye comfort.If you want to more information(See p.17)
Use this button to enter SUPER ENERGY SAVING, Picture Mode, DUAL DISPLAY,
DUAL WEB menus.(See p.18)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode
1366 x 768
EXIT
EXIT the OSD(On Screen Display).
(Power Button)
Turns the power on or off.
Power Indicator
The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks white.
ENG
ENGLISH
1 Press the desired button on the bottom of the Monitor set.
12
CUSTOMIZING SETTINGS
Customizing Settings
ENGLISH
ENG
Menu Settings
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Set the options by pressing the ◄ or ► or ▼
buttons.
3 Select the "Next Menu" button to enter the more
option settings.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu
Brightness
Contrast
Wide/Original
Description
To adjust the brightness, contrast of the screen
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset
Restore all factory default settings. Press the◄ , ► buttons to reset immediately.
Menu > Next Menu
Color
Sharpness
Gamma
Color Temp
Display
Horizontal
Vertical
Clock
Phase
Others
Language
Power Indicator
Description
To adjust the clearness of the screen .
To customize the color of the screen
To adjust the position of the screen
To improve the clarity and stability of the screen
To customize the screen status for a user's operating environment
CUSTOMIZING SETTINGS
13
ENG
ENGLISH
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► or ▼
buttons.
5 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Picture
Sharpness
Description
To adjust the clearness of the screen.
14
CUSTOMIZING SETTINGS
Color
ENGLISH
ENG
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Color by pressing the ► button.
4 Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Color
Description
Gamma
Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
Color Temp
Custom
• Red:Set your own red color levels.
• Green: Set your own green color levels.
• Blue:Set your own blue color levels.
Select the screen color.
Warm: Set the screen to warm color temperature (more red).
Medium: Set the screen to medium color temperature.
Cool: Set the screen to cool color temperature (more blue).
CUSTOMIZING SETTINGS
15
Display
ENG
ENGLISH
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Display by pressing the ► button.
4 Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Display
Description
Horizontal
To move image left and right.
Vertical
To move image up and down.
Clock
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
16
CUSTOMIZING SETTINGS
Others
ENGLISH
ENG
1 Press MENU button on the bottom of the Monitor set
to display the Menu OSD.
2 Select the "Next Menu" button to enter the more
option settings.
3 Select Others by pressing the ► button.
4 Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu > Next Menu > Others
Description
Language
To choose the language in which the control names are displayed.
Power
Indicator
Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
CUSTOMIZING SETTINGS
17
READER Setting
ENG
ENGLISH
1 Press READER button on the bottom of the Monitor
set to display the Reader Mode OSD.
2 Set the options by pressing the ◄ buttons.
Each option is explained below.
Reader Mode
Description
Reader 1
It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2
It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off
It is a mode that reader mode is off.
NOTE
If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and
Super Energy Saving will automatically be Off.
18
CUSTOMIZING SETTINGS
FUNC. Setting
ENGLISH
ENG
SUPER ENERGY SAVING
1 Press FUNC. button onthe bottom of the Monitor set to
display the FUNC. OSD.
2 Enter to SUPER ENERGY SAVING by pressing the ▼
button.
3 Set the options by pressing the ◄ or ► or ▼buttons.
4 Select EXIT to leave the OSD menu.To return to the
upper menu or set other menu items, usethe up arrow
(
) button.
Each option is explained below.
SUPER ENERGY SAVING
Description
High
Enables SUPER ENERGY SAVING you can save energy with this energy- high efficient function.
Low
Enables SUPER ENERGY SAVING you can save energy with this energy- low efficient function.
Off
Disables SUPER ENERGY SAVING.
NOTE
TOTAL POWER REDUCTION: How much power is saved while using the monitor.
yy
TOTAL CO2 REDUCTION: Change the TOTAL POWER REDUCTION to CO2.
yy
SAVING DATA(W/h)
yy
396 mm
(15.6 inch)
SUPER SAVING(High)
1.0 W/h
SUPER SAVING(Low)
0.6 W/h
Saving Data depends on the Panel. So,those values should be different from each panel and panel
yy
vendor.If option of Super Energy Saving is High or Low, monitor luminance become higher or lower
depend on source.
LG calculated these values by using “broadcast video signal”
yy
(including broadcast video: IEC 62087)
SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
yy
function.
If option of Super Energy Saving is High or Low, Picture Mode will automatically be Custom and
yy
Reader Mode will automatically be Reader Off.
CUSTOMIZING SETTINGS
19
Picture Mode
ENG
ENGLISH
1 Press FUNC. button on the bottom of theMonitor set
to display the FUNC. OSD.
2 Select Picture Mode by pressing the ► button. 3 Enter to Picture Mode by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select EXIT to leave the OSD menu.To return to the
upper menu or set other menu items, use the up
arrow(
)button. Each option is explained below.
Picture Mode
Description
Custom
It is a mode that theuser can adjust each element.It can adjust the color mode of the Main Menu.
Text
It is a mode that thescreen is adjusted to the best for the textworks.
It is a mode that thescreen is adjusted to the best to view pictures.
Cinema
It is a mode that thescreen is adjusted to the best to view the videos.
Game
It is a mode that thescreen is adjusted to the best to play a game.
NOTE
If option of Picture Mode is non-Custom , Reader Mode will automatically be Reader Off and Super
Energy Saving will automatically be Off.
20
CUSTOMIZING SETTINGS
* Before using below functions, please install DUAL SMART SOLUTION programme.
ENGLISH
ENG
DUAL DISPLAY
1 Press FUNC. button onthe bottom of the Monitor set
to display the FUNC. OSD.
2 Select DUAL DISPLAY by pressing the ► button.
3 Enter to DUAL DISPLAY by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select EXIT toleave the OSD menu.To return to the
upper menu or set other menu items, usethe up
arrow (
) button.
Each option is explained below.
DUAL DISPLAY
Description
Clone
By selecting Clone,user can use secondary monitor as done mode of primary monitor.
Extended
By selecting Extended,user can use secondary monitor as extended mode of primary
monitor.
Off
If select Off,DUAL DISPLAY is off.
* Before using below functions, please install DUAL SMART SOLUTION programme.
DUAL WEB
1 Press FUNC. button onthe bottom of the Monitor set
to display the FUNC. OSD.
2 Select DUAL WEB by pressing the ► button.
3 Enter to DUAL WEB by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select EXIT toleave the OSD menu.To return to the
upper menu or set other menu items, usethe up
arrow (
) button.
Each option is explained below.
DUAL WEB
Description
On
Help user to browse web efficiently by dividing in half. Help to arrange and move
windowson screen. Help user to control dividedwindows ratio.
Off
If select Off,DUAL WEB is off.
NOTE
When monitor goes to power saving mode with pc saving option-> Pressing any button -> OSD
yy
appear and user should press dual button -> User can bring back to normal mode.
TROUBLESHOOTING
21
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Is the power on and the power
indicator Red?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
yy Check and see if the power cord is connected properly to the power
outlet.
yy Press the Power button.
yy Adjust the brightness and the contrast.
yy If the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yy Try to turn on the PC.
yy This message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yy When the monitor is on "No-Signal" in 5 minutes, the monitor goes to
DPM mode.
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yy You can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
Display image is incorrect
Display Position is incorrect.
On the screen background, vertical
bars or stripes are visible.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
y
y Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Press the AUTO button to automatically adjust your display image to
the ideal setting.
yy Check Control Panel ► Display ► Settings and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
ENG
ENGLISH
TROUBLESHOOTING
22
TROUBLESHOOTING
CAUTION
ENGLISH
ENG
Check Control Panel ► Display ► Settings and see if the frequency or the resolution were
yy
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
yy
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
yy
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
Display image is incorrect
The screen color is mono or
abnormal.
yy Check if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yy Make sure the video card is properly inserted in the slot.
yy Set the color setting higher than 24 bits (true color) at Control Panel
► Settings.
The screen blinks.
yy Check if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yy Be sure to install the display driver from the display driver CD (or
diskette) that comes with your display. Or, you can also download the
driver from our web site: http://www.lg.com.
yy Make sure to check if the video card supports Plug&Play function.
Dual Smart Solution don't work in set.
"Dual Smart Solution" sometimes
displays "Cannot be used
installation dual smart solution will
enable this menu" in set.
yy Please check the Dual Smart Solution is normally installed or not.
yy If you use the input port which is auxiliary port in VGA, use the
main port in VGA because the auxiliary port sometimes can't make
communication with PC.
SPECIFICATIONS
23
ENG
ENGLISH
SPECIFICATIONS
16M35A
Display
Sync Input
Video Input
Resolution
Screen Type
Pixel Pitch
39.6 cm (15.6 inch) Flat Panel Active matrix-TFT LCDAntiGlare coating
Visible diagonal size: 39.6 cm
0.3 mm x 0.3 mm (Pixel Pitch)
Horizontal Frequency
30 kHz to 53 kHz (Automatic)
Vertical Frequency
56 Hz to 63 Hz (D-SUB)
Input Form
Separate Sync.
Signal Input
15 pin D-SUB Connector
Input Form
RGB Analog (0.7 Vp-p/ 75 ohm)
Max
D-SUB(Analog) : 1366 x 768 @ 60 Hz
Recommend
VESA 1366 x 768 @ 60 Hz
Plug & Play
DDC 2B(Analog)
Power
Consumption
On Mode : 7 W(Typ.)
Sleep Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
19 V
1.2 A
Power Input
AC-DC Adapter
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D, manufactured by LG Innotek Co.,Ltd
OUTPUT: 19 V
1.3 A
Dimensions
(Width x Height x
Depth)
With Stand
37.5 cm x 31.0 cm x 16.8 cm
Without Stand
37.5 cm x 23.9 cm x 6 cm
Weight
1.2 kg
Tilt Range
-5° to 20°
Environmental
conditions
Operating Temperature 10°C to 35 °C
Operating Humidity
10 % to 80 %
Storage Temperature
Storage Humidity
Stand Base
Attached (
Power cord
Wall-outlet type
-20°C to 60 °C
5 % to 90 % non-Condensing
), Detached (O)
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
24
SPECIFICATIONS
Preset Modes (Resolution)
ENGLISH
ENG
16M35A
Display Modes (Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
640 x 480
31.5
60
-/-
800 x 600
35.2
56
+/+
800 x 600
37.9
60
+/+
1024 x 768
48.363
60
+/+
1280 x 720
45
60
+/+
1366 x 768
48
60
+/+
Indicator
Mode
LED Color
On Mode
Red
Sleep Mode
Blinking Red
Off Mode
Off
Recommend Mode
PROPER POSTURE
25
ENG
ENGLISH
PROPER POSTURE
Proper posture for using the Monitor set.
Adjust the
Monitor set and
your posture to
allow you to view
images at the
optimal viewing
angle.
Place your hands
gently on the
keyboard, keeping
your arms bent at
the elbows and
horizontally outright.
Adjust the location of the
Monitor set to avoid it
reflecting light.
Declaration of Conformity
Trade Name: LG
Model : 16M35AA
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Download PDF
