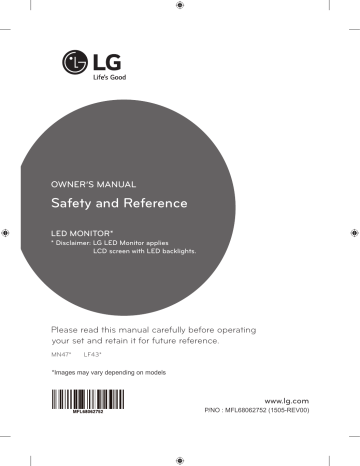

OWNER’S MANUAL
Safety and Reference
LED MONITOR*
* Disclaimer: LG LED Monitor applies
LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
MN47*
LF43*
*Images may vary depending on models
www.lg.com
P/NO : MFL68062752 (1505-REV00)
ENG
ENGLISH
2
Service
Unplug the monitor from the wall outlet and refer servicing to qualified service personnel when :
• The power cord or plug is damaged or frayed. • Liquid has been spilled into the monitor. • The monitor has been exposed to rain or water.
• The monitor does not operate normally following the operating instructions. Adjust only those controls that are covered in the operating instructions.
An improper adjustment of other controls may result in damage and often requires extensive work by a qualified technician to restore the monitor to
normal operation.
• The monitor has been dropped or the cabinet has been damaged. • The monitor exhibits a distinct change in performance.
• Snapping or popping from the monitor is continuous or frequent while the monitor is operating. It is normal for some monitors to
make occasional sounds when being turned on or off, or when changing video modes.
Do not attempt to service the monitor yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing
to qualified service personnel.
Safety precautions
Please read these safety precautions carefully before using the product.
If you ignore the warning message, you may be seriously injured or
there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or the
product may be damaged.
Precautions in installing the Product
WARNING
•• Keep away from heat sources like electrical heaters.
►
shock, fire, malfunction or deformation may occur.
►Electrical
•• Keep the packing anti-moisture material or vinyl packing out of the
reach of children.
►
material is harmful if swallowed. If swallowed by
►Anti-moisture
mistake, force the patient to vomit and visit the nearest hospital.
Additionally, vinyl packing can cause suffocation. Keep it out of the
reach of children.
•• Do not put heavy objects on the product or sit upon it.
►If► the product collapses or is dropped, you may be injured. Children
must pay particular attention.
•• Do not leave the power or signal cable unattended on the pathway.
► passerby can falter, which can cause electrical shock, fire, product
►The
breakdown or injury.
•• Install the product in a neat and dry place.
► or moisture can cause electrical shock, fire or product damage.
►Dust
•• If you can smell smoke or other odors or hear a strange sound unplug
the power cord and contact the service center.
►If► you continue to use without taking proper measures, electrical
shock or fire can occur.
•• If you dropped the product or the case is broken, turn off the product
and unplug the power cord.
►►If you continue to use without taking proper measures, electrical
shock or fire can occur. Contact the service center.
•• Do not drop an object on or apply impact to the product. Do not throw
any toys or objects on the product screen.
►It► can cause injury to human, problem to product and damage the
display.
•• Do not let the product fall or drop when connecting it with an external
device.
► may cause injury and/or damage to the product.
►This
•• When connecting it with a game device, keep a distance of four times as
long as the diagonal measurement of the screen from the device.
►If► the product falls because of the short cable, this may cause injury
and/or damage to the product.
•• Leaving a fixed image on the screen for a long time may cause damage
to the screen and cause image burn-in. To use the product for a long
period of time, use a screen saver on the PC or utilize the residual image
prevention function on the product, and when the product is not used,
turn off the power. Burn-in and related problems are not covered by the
warranty on this product.
CAUTION
•• Make sure the product ventilation hole is not blocked. Install the
product in a suitably wide place (more than 10 cm from the wall)
►If► you install the product too close to the wall, it may be deformed
or fire can break out due to internal heat.
•• Do not block the ventilation hole of the product by a tablecloth or
curtain.
► product can be deformed or fire can break out due to
►The
overheating inside the product.
•• Install the product on a flat and stable place that has no risk of
dropping the product.
►If► the product is dropped, you may be injured or the product may
be broken.
•• Install the product where no EMI occurs.
•• Keep the product away from direct sunlight.
► product can be damaged.
►The
•• If you install the product in a place that does not meet the
recommended conditions, this may cause serious damage to the
product’s picture quality, life cycle and appearance. Please check
with LG or a qualified installer before installing. This caution applies
to a place where there is an abundance of fine dust or oil mist,
chemical substances are used, the temperature is very high or low,
the humidity is very high, or the product is likely to remain turned on
for a long period of time (airport and train station), failure to do so
will invalidate the warranty.
•• Do not install the product in an area with poor ventilation (e.g.on a
bookshelf, in a closet) or outside and avoid placing on cushions or
carpets.
•• In addition, do not install it where there are heating objects such as
lighting equipment.
ENGLISH
ENG
WARNING
•• Do NOT install this product on a wall where there is high risk of
exposure to oil fumes or mist.
► may damage product and cause is to fail.
►This
Precautions to the AC Adapter and
Electrical Power
WARNING
•• If water or any foreign substance goes inside the product (TV,
monitor, power cord, or AC adapter), disconnect the power cord
immediately and contact the service center.
►
this may cause a fire or electric shock due to damage
►Otherwise,
to the product.
•• Do not touch the power plug or AC adapter with wet hands. If the
pins of the plug are wet or dusty, wipe and dry them before use.
►
this may cause a fire or electric shock.
►Otherwise,
•• Make sure to completely insert the power cord into the AC adapter.
►If► loosely connected, the poor connection may cause a fire or
electric shock.
•• Be sure to use power cords and AC adapters provided or approved by
LG Electronics, Inc.
► use of non-approved products may cause a fire or electric
►The
shock.
3
•• When unplugging the power cord, always pull it by the plug. Do not
bend the power cord with excessive force.
► power line can be damaged, which may cause electric shock
►The
or fire.
ENG
ENGLISH
•• Be careful not to step or place heavy objects (electronic appliances,
clothing, etc.) on the power cord or AC adapter. Be careful not to
damage the power cord or AC adapter with sharp objects.
►
power cords may cause a fire or electric shock.
►Damaged
•• Never disassemble, repair or modify the power cord or AC adapter.
► may cause a fire or electric shock.
►This
•• Make sure to connect the power cable to the grounded current.
► may be electrocuted or injured.
►You
•• Use the rated voltage only.
► product can be damaged, or you may be electrocuted.
►The
•• In the presence of thunder and lightning, never touch the power cord
and signal cable because it can be very dangerous.
►It► can cause electric shock.
•• Do not connect several extension cords, electrical appliances
or electrical heaters to a single outlet. Use a power bar with a
grounding terminal designed for exclusive use with the computer.
►A► fire can break out due to overheating.
•• Do not touch the power plug with wet hands. Additionally, if the
cord pin is wet or covered with dust, dry the power plug completely
or wipe dust off.
► may be electrocuted due to excess moisture.
►You
•• If you don’t intend to use the product for a long time, unplug the
power cable from the product.
►
dust can cause a fire, or insulation deterioration can
►Covering
cause electric leakage, electric shock or fire.
•• Fix the power cable completely.
►If► the power cable is not fixed completely, a fire can break out.
•• Do not insert a conductor (like a metal chopstick) into one end of the
power cable while the other end is connected to the input terminal
on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
► may be electrocuted.
►You
•• The appliance coupler is used as the disconnect device.
•• Please make sure the device is installed near the wall outlet to which
it is connected and that the outlet is easily accessible.
•• As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is turned off.
CAUTION
•• Be sure to keep the outlet, AC adapter, and pins of the power plug
clean from dust and etc.
► may cause a fire.
►This
•• Do not unplug the power cord while the product is in use.
►
shock can damage the product.
►Electrical
•• Use only the power cord supplied with the unit. If you use another
power cord, make sure that it is certified by the applicable national
standards when not provided by the supplier. If the power cable is
faulty in any way, please contact the manufacturer or the nearest
authorized repair service provider for a replacement.
4
Precautions in moving the product
WARNING
•• Make sure to turn off the product.
► may be electrocuted or the product can be damaged.
►You
•• Make sure to remove all cables before moving the product.
► may be electrocuted or the product can be damaged.
►You
•• Make sure the panel faces forward and hold it with both hands to
move. If you drop the product, the damaged product can cause
electric shock or fire. Contact an authorized the service center for
repair.
•• Make sure the product is turned off, unplugged and all cables
have been removed. It may take 2 or more people to carry larger
apparatus. Do not press against or put stress on the front panel of
the apparatus.
CAUTION
•• Do not shock the product when moving it.
► may be electrocuted or the product can be damaged.
►You
•• Do not dispose the product-packing box. Use it when you move.
Precautions in using the product
WARNING
•• Do not disassemble, repair or modify the product at your own
discretion.
► or electric shock accident can occur.
►Fire
►
the service center for check, calibration or repair.
►Contact
•• When the display is to be left unattended for an extended period of
time, unplug it from the wall outlet.
•• Keep the product away from water.
► or electric shock accident can occur.
►Fire
•• Do not shock or scratch the front and sides of the screen with metallic
objects.
►
it may cause damage to the screen.
►Otherwise,
•• Avoid high temperatures and humidity.
CAUTION
•• Do not put or store inflammable substances near the product.
►
is a danger of explosion or fire due to careless handling of
►There
the inflammable substances.
•• When cleaning the product, unplug the power cord and wipe gently
with a soft cloth to prevent scratching. Do not clean with a wet cloth
or spray water or other liquids directly onto the product. An electric
shock may occur. (Do not use chemicals such as benzene, paint
thinners or alcohol)
•• Take a rest from time to time to protect your vision.
•• Keep the product clean at all times.
•• Take a comfortable and natural position when working with a
product to relax the muscles.
•• Take a regular break when working with a product for a long time.
•• Do not press strongly upon the panel with a hand or sharp object
such as nail, pencil or pen, or make a scratch on it.
•• Keep the proper distance from the product.
► vision may be impaired if you look at the product too closely.
►Your
•• Set the appropriate resolution and clock by referring to the User’s
Guide.
► vision can be impaired.
►Your
*Feature may vary depending on models.
Open source software notice
information
To obtain the source code under GPL, LGPL, MPL, and other open
source licenses, that is contained in this product, please visit http://
opensource.lge.com.
In addition to the source code, all referred license terms, warranty
disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM
for a charge covering the cost of performing such distribution (such
as the cost of media, shipping, and handling) upon email request to
opensource@lge.com. This offer is valid for three (3) years from the
date on which you purchased the product.
ENGLISH
ENG
•• Use authorized detergent only when cleaning the product. (Do not
use benzene, thinner or alcohol.)
►
can be deformed.
►Product
•• Do not expose to dripping or splashing and do not place objects
filled with liquids, such as vases, cups, etc. on or over the
apparatus(e.g. on shelves above the unit).
•• Batteries should not be exposed to excessive heat. For example,
keep away from direct sunlight, open fireplace and electric
heaters.
•• Do NOT place non-rechargeable batteries in charging device.
•• Using headsets (earphones) for a long time or listening loudly can
cause damage to your hearing.
•• Spray water onto a soft cloth 2 to 4 times, and use it to clean the
front frame; wipe in one direction only. Too much moisture may
cause staining.
Preparing
NOTE
•• Do not use products using high voltage around the Monitor. (ex.
Electrical Swatter)
►
may have malfunction as its electrical shock.
►Monitor
Mounting on a wall
•• Do not install this product by yourself. Contact the service
technician qualified by the Manufacturer. It may cause injuries.
Licenses
Supported licenses may differ by model. For more information about
licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
•• Image shown may differ from your monitor.
•• Your monitor’s OSD (On Screen Display) may differ slightly from
that shown in this manual.
•• The available menus and options may differ from the input source
or product model that you are using.
•• New features may be added to this monitor in the future.
•• The monitor can be placed in standby mode in order to reduce
the power consumption. And the monitor should be turned off if
it will not be watched for some time, as this will reduce energy
consumption.
•• The energy consumed during use can be significantly reduced
if the level of brightness of the picture is reduced, and this will
reduce the overall running cost.
•• The items supplied with your product may vary depending on the
model.
•• Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
•• For an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm thick and 18 mm width.
•• Use an extension cable that supports USB 2.0 if the USB cable or
USB memory stick does not fit into your monitor’s USB port.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
B
A
B
A
*A 10 mm
*B 18 mm
This DivX Certified® device has passed rigorous testing to ensure it
plays DivX® video.
To play purchased DivX movies, first register your device at vod.divx.
com. Find your registration code in the DivX VOD section of your
device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including
premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX,
LLC and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673;
7,460,668; 7,515,710; 7,519,274.
•• Use a certified cable with the HDMI logo attached. If you do
not use a certified HDMI cable, the screen may not display or a
connection error may occur.
•• Recommended HDMI cable types
-- High-Speed HDMI®/™ cable
-- High-Speed HDMI®/™ cable with Ethernet
CAUTION
•• Do not use any unapproved items to ensure the safety and product
lifespan of the product.
•• Any damages or injuries by using unapproved items are not
covered by the manufacturer’s warranty.
•• Some models have a thin film attached on to the screen and this
must not be removed.
5
ENG
ENGLISH
Lifting and moving the monitor
Using the joystick button
Please note the following advice to prevent the monitor from being
scratched or damaged and for safe transportation regardless of its
type and size.
•• It is recommended to move the monitor in the box or packing
material that the monitor originally came in.
•• Before moving or lifting the monitor, disconnect the power cord
and all cables.
You can simply operate the monitor functions, pressing or moving the
joystick button forward, backward, left or right.
•• Image shown may differ from your monitor.
Joystick Button
•• When holding the monitor, the screen should
face away from you to avoid damage.
•• Hold the top and bottom of the monitor frame firmly. Make sure
not to hold the transparent part, speaker, or speaker grille area.
Basic functions
Power On
Power Off
•• When transporting the monitor, do not expose the monitor to jolts
or excessive vibration.
•• When transporting the monitor, keep the monitor upright; never
turn the monitor on its side or tilt towards the left or right.
•• Do not apply excessive pressure to cause flexing /bending of frame
chassis as it may damage screen.
Volume
Control
If you place your finger over the
Programmes joystick button and move it forward
Control
or backward, you can scroll through
the saved programmes you want.
CAUTION
•• Avoid touching the screen at all times, as this may result in
damage to the screen.
•• When handling the monitor, be careful not to damage the
protruding joystick button.
Setting up the monitor
CAUTION
•• Do not carry the monitor upside-down by holding the stand body
(or stand base) as this may cause it to fall off, resulting in damage
or injury.
•• When attaching the stand to the monitor set, place the screen
facing down on a cushioned table or flat surface to protect the
screen from scratches.
•• When detaching the stand to the monitor set, place the screen
facing down on a cushioned table or flat surface to protect the
screen from scratches.
•• If you don`t fasten the screw tightly, monitor will fall down and
get damaged.
•• Tighten the screws firmly to prevent the monitor from tilting
forward. Do not over tighten.
•• Lift up the latch at the bottom of the stand base and detach the
stand base from the monitor.
6
When the monitor is turned off,
place your finger on the joystick
button and press it once and
release it.
When the monitor is turned on,
place your finger on the joystick
button, press it once for a few
seconds and release it. (However, if
the menu button is on the screen,
pressing and holding the joystick
button will let you exit the menu.)
If you place your finger over the
joystick button and move it left or
right, you can adjust the volume
level you want.
NOTE
•• If you press the joystick button first, you may not adjust the
volume level and saved programmes.
CAUTION
•• When your finger over the joystick button and push it to the forward,
backward, left or right, be careful not to press the joystick button.
Adjusting the menu
When the monitor is turned on, press the joystick button one time.
You can adjust the menu items moving the joystick button forward,
backward, left or right.
Turns the power off.
Accesses the main menu.
Clears on-screen displays and returns to monitor viewing
Changes the input source.
Mounting on a wall
•• Image shown may differ from your monitor.
For proper ventilation, allow a clearance of 10 cm on each side and
from the wall. Detailed installation instructions are available from
your dealer, see the optional Tilt Wall Mounting Bracket Installation
and Setup Guide.
1 Lift and tilt the monitor into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall for proper
ventilation.
10 cm
10 cm
10 cm
ENGLISH
ENG
Mounting on a table
10 cm
10 cm
10 cm
10 cm
10 cm
If you intend to mount the monitor to a wall, attach Wall mounting
interface (optional parts) to the back of the monitor. When you install
the monitor using the wall mounting interface (optional parts),
attach it carefully so it will not drop.
1 If you use screw longer than standard, the monitor might be
damaged internally.
2 Connect the AC-DC Adapter and Power Cord to a wall outlet.
2 If you use improper screw, the product might be damaged and
drop from mounted position. In this case, LG Electronics is not
responsible for it.
20MN47A
21MN47A / 21LF430A
22MN47A / 22LF430A
24MN47A / 24LF430A
CAUTION
•• Do not place the monitor near or on sources of heat, as this may
result in fire or other damage.
•• Please be sure to connect the monitor to the AC-DC power adapter
before connecting the monitor’s power plug to a wall power
outlet.
Using the kensington security system
(*This feature may vary depending on models.)
•• Image shown may differ from your monitor.
The Kensington security system connector is located at the rear of the
monitor. For more information of installation and using, refer to the
manual provided with the Kensington security system or visit http://
www.kensington.com. Connect the Kensington security system cable
between the monitor and a table.
Model
Wall Mount
(A x B)
Standard screw
Number of screws
A
B
75 x 75
M4 x L10
4
CAUTION
•• Disconnect the power cord first, and then move or install the
monitor. Otherwise electric shock may occur.
•• If you install the monitor on a ceiling or slanted wall, it may fall
and result in severe injury. Use an authorized LG wall mount and
contact the local dealer or qualified personnel.
•• Do not over tighten the screws as this may cause damage to the
monitor and void your warranty.
•• Use the screws and wall mounts that meet the VESA standard. Any
damages or injuries by misuse or using an improper accessory are
not covered by the manufacturer’s warranty.
•• Screw length from outer surface of back cover should be under
8mm.
NOTE
•• The Kensington security system is optional. You can obtain
additional accessories from most electronics stores.
7
Connections (Notifications)
Wall mount Pad
Back Cover
ENG
ENGLISH
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Max.8mm
NOTE
•• Use the screws that are listed on the VESA standard screw
specifications.
•• The wall mount kit includes an installation manual and necessary
parts.
•• The wall mount bracket is not provided. You can obtain additional
accessories from your local dealer.
•• The length of screws may differ depending on the wall mount.
Make sure to use the proper length.
•• For more information, refer to the manual supplied with the wall
mount.
Connect various external devices to the monitor and switch input
modes to select an external device. For more information about an
external device’s connection, refer to the manual supplied with each
device. Available external devices are: HD receivers, DVD players,
VCRs, audio systems, USB storage devices, PC, gaming devices, and
other external devices.
NOTE
•• The external device connection may differ from the model.
•• Connect external devices to the monitor regardless of the order of
the monitor port.
•• If you record a monitor programme on a DVD recorder or VCR,
make sure to connect the monitor signal input cable to the
monitor through a DVD recorder or VCR. For more information of
recording, refer to the manual provided with the connected device.
•• Refer to the external equipment’s manual for operating
instructions.
•• If you connect a gaming device to the monitor, use the cable
supplied with the gaming device.
•• In PC mode, there may be noise associated with the resolution,
vertical pattern, contrast or brightness. If noise is present, change
the PC output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the PICTURE
menu until the picture is clear.
•• In PC mode, some resolution settings may not work properly
depending on the graphics card.
Other connections
Connect your monitor to external devices. For the best picture and
audio quality, connect the external device and the monitor with the
HDMI cable. Some separate cable is not provided.
•• USB port supports 0.5 A electric current. If you need more electric
current in case of HDD, use the separate power adaptor.
8
FAV
P
Remote control
1
C
ENGLISH
ENG
The descriptions in this manual are based on the buttons on the
remote control. Please read this manual carefully and use the
monitor correctly. To replace batteries, open the battery cover, replace
batteries (1.5 V AAA) matching the
and ends to the label
inside the compartment, and close the battery cover. To remove the
batteries, perform the installation actions in reverse.
CAUTION
•• Do not mix old and new batteries, as this may damage the remote
control.
•• In Analogue monitor and some countries, some remote control
buttons may not work.
•• The Remote control will not be included depending on sales market.
TEXT
D
A
C
1 TELETEXT BUTTONS These buttons are used for teletext.
B
FAV
P
A
(Power) Turns the monitor on or off.
Not functional.
Accesses the quick menus.
Changes the image mode.
TEXT
Changes
the sound mode.
Changes the input source.
Accesses the main menus.
Navigation buttons (up/down/left/right) Scrolls through menus
or options.
Selects menus or options and confirms your input.
Returns to the previous level.
Clears all on-screen displays and returns to monitor viewing.
D
Control buttons (
) Controls the ENTERTAINMENT
menus.
Coloured buttons These access special functions in some menus.
(
: Red,
: Green,
: Yellow,
: Blue)
B
Number buttons Enters numbers.
Not functional.
Adjusts the volume level.
Enters the mark mode.
Selects the sound output.
Mutes all sounds.
Moves to the previous or next page. (during USB
Playback)
Moves to the previous or next page.
9
Using additional options
Adjusting aspect ratio
ENG
ENGLISH
Resize an image to view at its optimal size by pressing Q.MENU or
accessing Aspect Ratio in the PICTURE menu.
• 16:9 : Resizes images to fit the screen width.
• Just Scan : Displays video images in the original size without
removing parts of the edge of the image. (This function works in
HDMI Mode (720P/1080i/1080p).
• Original : When your TV receives a wide screen signal it will
automatically change to the picture format.
• 4:3 : Resizes images to the previous standard 4:3.
• 14:9 : You can view a picture format of 14:9 or a general TV
programme in the 14:9 mode. The 14:9 screen is viewed in the
same way as in 4:3.
• Zoom : Formats an image to fit the screen width. The top and
bottom of the image may not appear.
• Cinema Zoom 1 : Formats an image to the cinemascope ratio,
2.35:1. To change the ratio of the cinema zoom, press < or > and
its range is from 1 to 16.
NOTE
• The available ratio varies depending on the input source.
• If you select Just Scan, you may see image noises at the edge of
the original signal.
• If you enlarge or reduce an image, the image may be distorted.
Changing AV modes
Each AV MODE has optimized image and sound settings.
Press AV MODE repeatedly to select an appropriate mode.
• Off : Changes to the previously customized settings.
• Cinema : Uses the optimized image and sound settings for a
cinematic look.
• Game : Uses the optimized image and sound settings for fast
gaming. When playing a video game using PlayStation or Xbox.
It is recommended to use the Game mode. When in Game mode,
functions related to picture quality will be optimized for playing
games.
Using the input list
Selecting an input source
1 Press INPUT to access the input sources. The connected device
displays on each input source.
2 Press the Navigation buttons or input button to scroll to one of
the Input sources and press OK .
• AV :Watch video from a VCR or other external devices.
• RGB-PC : View a PC display on the screen. (Depending on model)
• HDMI : Watch video from a HTS or other high definition devices.
10
Entertainment
(Depending on model)
• Image shown may differ from your monitor.
Connect USB storage devices (USB memory) to the monitor and use
multimedia features. Connect a USB flash memory or USB memory
card reader to the monitor. To disconnect a USB storage device,
make sure to end the connection properly to prevent damages to the
monitor or files.
1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to Eject and press OK .
3 Disconnect the USB storage device only when the message says
that it is safe to remove.
CAUTION
• Do not turn the monitor off or remove a USB storage device while
the USB storage device is connected to the monitor, as this could
result in loss of files or damage to the USB storage device.
• Back up your files saved on a USB storage device frequently, as you
may lose or damage the files and this may be not covered by the
manufacturer’s warranty.
Browsing files
(Images may vary depending on models)
Access the photo, music, or movie lists and browse files.
1 Connect a USB storage device.
2 Press SETTINGS to access the main menus.
3 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
4 Press Navigation buttons to scroll to PHOTO LIST, MUSIC LIST or
MOVIE LIST and press OK .
Tips for using USB storage devices
• Only a USB storage device is recognizable.
• If the USB storage device is connected through a USB hub, the
device is not recognizable.
• A USB storage device using an automatic recognition programme
may not be recognized.
• A USB storage device which uses its own driver may not be
recognized.
• The recognition speed of a USB storage device may depend on
each device.
• Please do not turn off the monitor or unplug the USB device when
the connected USB storage device is working. When such device
is suddenly separated or unplugged, the stored files or the USB
storage device may be damaged.
• Please do not connect the USB storage device which was
artificially manoeuvred on the PC. The device may cause the
product to malfunction or fail to be played. Never forget to use
only a USB storage device which has normal music files, image
files or movie files.
• Please use only a USB storage device which was formatted as a
FAT16, FAT32, NTFS file system.
• Please connect a USB storage device with the cable offered by the
device maker.
• Some USB storage devices may not be supported or operated
smoothly.
• Be sure to back up important files since data stored in a USB
memory device may be damaged. We will not be responsible for
any data loss.
• If a USB memory device is connected to a USB multi-card reader,
its volume data may not be detected.
• If the USB memory device does not work properly, disconnect and
reconnect it.
• How fast a USB memory device is detected differs from device to
device.
• The recommended capacity is 1 TB or less for a USB external hard
disk and 32 GB or less for USB memory.
ENGLISH
ENG
Connecting USB storage devices
• Any device with more than the recommended capacity may not
work properly.
• USB storage devices below USB 2.0 are supported as well. But they
may not work properly in the movie list.
• Maximum of 999 folders or files can be recognized under one
folder.
• If there are a lot of folders or files all within one folder, the device
may not be able to access these properly.
• For external USB HDDs, it is recommended that you use devices
with a rated voltage of less than 5 V and a rated current of less
than 0.5 A.
PHOTO LIST
MUSIC LIST
3
PHOTO LIST
Page1/1
No Marked
Up Folder
Drive A
2
3872x2592, 2604KB
1
Up Folder
KY103
09/15/2014
KY101
04/03/2014
KY104
10/12/2014
KY102
09/03/2014
KY105
11/27/2014
GUU
11/27/2014
JMJ005
11/27/2014
JMJ002
11/27/2014
JMJ006
11/27/2014
JMJ003
11/27/2014
JMJ007
11/27/2014
JMJ004
11/27/2014
JMJ008
11/27/2014
ꔉ PopUp Menu
ꔂ Move
ꘂ Mark
MUSIC LIST
MOVIE LIST
4
ꔵ
Move Page
Exit
3
4
Page 1/1
No Marked
Title
DriveA
6
Duration
5
2
1
5
Up Folder
ꔂ Move
ꔉ PopUp Menu
꘩ Option
ꘂ Mark
3
MOVIE LIST
Top Folder
DriveA
2
Page1/1
ꔵ Move Page
Exit
6
4
No Marked
DriveA
5
4 folders(s), 2 file(s)
1
Up Folder
ꔂ Move
ꘂ Mark
ꔉ PopUp Menu
ꔵ
Move Page
Exit
6
No.
Description
1 Moves to the upper level folder.
Displays the thumbnail/folder name of the file in
2 Preview:
the selected folder.
3 Current page/Total pages.
4 Total number of marked files.
5 Contents under the folder focused on 1.
6 Available buttons on the remote control.
11
Supported file format
ENG
ENGLISH
Type
Music
Movie
JPEG
Baseline : 64 pixel (W)X64 pixel(H) to
15360 pixel(W)X8640 pixel(H)
Progressive : 64 x 64 to 1024 x 768
• You can play JPEG files only.
• Non-supported files are displayed in the form of
predefined icon.
MP3
Bit rate : 32kbps to 320kbps
• Sampling rate MPEG1 Layer3 : 32 kHz, 44.1 kHz,
48 kHz
• Sampling rate MPEG2 Layer3 : 16 kHz, 22.05 kHz,
24 kHz
• Sampling rate MPEG2.5 Layer3 : 8 kHz, 11.025 kHz,
12 kHz
DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,TRP,TP,ASF,
WMV,FLV,RM,RMVB
Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*.
mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.flv/*.
avi(motion-jpeg)/*.mp4(motion-jpeg)/*.mkv(motionjpeg)/*.rm/*.rmvb) supporting file
Video format : DivX 3.11, DivX4, DivX5, DivX6,
Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,
JPEG, Sorenson H.263
Audio format : Dolby Digital, AAC, Mpeg, MP3, LPCM,
ADPCM, WMA
Bit rate : within 32 kbps to 320 kbps(MP3)
External Subtitle format : *.smi/*.srt/*.sub(MicroD
VD,Subviewer1.0/2.0)/*.ass/*.ssa/*.txt(TMPlayer)/*.
psb(PowerDivX)
Internal Subtitle format : only, XSUB (It is the
subtitle format used in DivX6 files)
Viewing photos
View image files saved in a USB storage device. The displays on the
screen may differ from the model.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
3 Press Navigation buttons to scroll to PHOTO LIST and press
OK .
4 Press the Navigation buttons to scroll to a folder/file you want
and press OK .
5 View photos by using the following menus/buttons.
PHOTO LIST
Drive A
Page1/1
No Marked
Up Folder
KY103
09/15/2014
KY101
04/03/2014
KY104
10/12/2014
KY102
09/03/2014
KY105
11/27/2014
GUU
3872x2592, 2604KB
Up Folder
ꔂ Move
ꘂ Mark
12
Button
Description
Navigation Scrolls through the files.
button
Views the highlighted file or enters the mark mode.
OK
Supported file format
11/27/2014
JMJ005
11/27/2014
JMJ002
11/27/2014
JMJ006
11/27/2014
JMJ003
11/27/2014
JMJ007
11/27/2014
JMJ004
11/27/2014
JMJ008
11/27/2014
ꔉ PopUp Menu
ꔵ
Move Page
Exit
P
FAV
Menu
View
Mark All
Close
Moves to the previous or next page.
Enters the mark mode.
Description
Views the selected photo.
Selects all files.
Exits the Mark Mode.
NOTE
• Non-supported files are displayed the preview image by icon only
• Abnormal files are displayed in the form of bitmap
.
6
.
The following options are available while viewing photos.
ꔊ
Slide show
�
BGM
ꔋ
2/13
ꔡ
�
꘩ Option
�
Hide
• Slideshow : Starts or stops a slideshow with selected photos.
If there are no selected photos, all photos saved in the current
folder display during a slideshow. To set a slideshow speed, select
Option.
• BGM : Turns the background music on or off. To set the background
music folder, select Option.
• (Rotate) : Rotates photos clockwise (90°, 180°, 270°, 360°).
- The supported photo size is limited. You cannot rotate a photo if
the resolution of the rotated width is larger than the supported
resolution size.
• Hide : Hides the option window. To display the options, press
OK .
Q.MENU options for photo list
1 Press Q.MENU. A pop-up window will appears.
2 Press the Navigation buttons to scroll to Set photo view. and
press OK .
3 Press the Navigation buttons to scroll to one of the following
options and press OK .
Set photo view.
• Slide Speed : Selects a slideshow speed (Fast, Normal, Slow).
• Music Folder : Selects a music folder for the background music.
Set video.
Allows you to change Video presets. (See pg.16)
Set audio.
Allows you to change Audio presets. (See pg.17)
Q.MENU options for music list
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
3 Press the Navigation buttons to scroll to MUSIC LIST and press
OK .
4 Press the Navigation buttons to scroll to a folder/file you want
and press OK .
5 Play music by using the following menus/buttons.
1 Press Q.MENU. A pop-up window will appears.
2 Press the Navigation buttons to scroll to music list option and
press OK .
3 Press the Navigation buttons to scroll to one of the following
options and press OK .
MUSIC LIST
Page 1/1
ꕗ
Title
Duration
00:00 / 01:34
Up Folder
ꔂ Move
ꘂ Mark
Button
Navigation
button
Menu
Play
Play with
Mark All
Close
Allows you to change Audio presets. (See pg.17)
NOTE
No Marked
DriveA
Set audio.
ꔵ Move Page
ꔉ PopUp Menu
꘩ Option
Exit
Description
Scrolls through the files.
Views the highlighted file or enters the mark
mode.
Moves to the previous or next page.
Enters the mark mode.
Description
Plays the selected music file.
Displays photos during playback.
• The monitor will not play copy protected files.
• If the monitor is not in use for some time during playback, the
information box as a screensaver will appear to prevent image
burn. To return to the Music list screen, press OK or BACK.
Viewing movies
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
3 Press the Navigation buttons to scroll to MOVIE LIST and press
OK .
4 Press the Navigation buttons to scroll to a folder/file you want
and press OK .
5 Play movie by using the following menus/buttons.
MOVIE LIST
No Marked
DriveA
4 folders(s), 2 file(s)
Button
Description
Stops playback
Up Folder
ꔂ Move
Button
Navigation
button
Pauses or resumes playback
Skips to the next file
Skips to the previous file
When playing,
When you press the
button, the previous
music file will be played.
When you press the
button, the next music
file will be played.
When you press the EXIT button, only the
music will be stopped and the player will go to
monitor viewing.
When using the or button during
playback a cursor indicating the position can
be played.
ꔉ PopUp Menu
ꔵ
ꘂ Mark
Plays a music file
or
Page1/1
Top Folder
DriveA
Selects all files.
Exits the Mark Mode.
6 Control playback by using the following buttons.
or
ENGLISH
ENG
Listening to music
Menu
Play
Move Page
Exit
Description
Scrolls through the files.
Views the highlighted file or enters the mark
mode.
Moves to the previous or next page.
Enters the mark mode.
Description
Play the selected movie file. Once a movie file
finishes playing, the next selected one will be
played automatically.
Mark All
Mark all movie files on the screen.
Close
Exit the Mark Mode.
6 Control playback by using the following buttons.
Button
Description
Stops the playback
Plays a video
Pauses or resumes the playback
13
Button
ENG
ENGLISH
◀▶
Description
Scans backward in a file
Video options
Scans forward in a file
2 Press the Navigation buttons to scroll to Set video play.,
Set video. or Set audio. and press OK .
Show the Option menu.
Hide the menu on the full-sized screen.
Return to normal monitor viewing.
Skips to specific points in a file during playback. The
time of a specific point will appear on the status bar.
In some files, this function may not work properly.
Tips for using playing video files
14
• Some user-created subtitles may not work properly.
• Some special characters are not supported in subtitles.
• HTML tags are not supported in subtitles.
• Subtitles in languages other than the supported languages are
not available.
• Changing font and colour in subtitles is not supported.
• Subtitles in languages other than one specified are not supported.
• Video files with subtitle files of 1 MB or larger may not be played
properly.
• The screen may suffer temporary interruptions (image stoppage,
faster playback, etc.) when the audio language is changed.
• A damaged movie file may not be played correctly, or some player
functions may not be usable.
• Movie files produced with some encoders may not be played
correctly.
• If the video and audio structure of recorded file is not interleaved,
either video or audio is outputted.
• HD videos with a maximum of 1920 x 1080 @ 25/30P or 1280 x
720 @ 50/60P are supported, depending on the frame.
• Videos with resolutions higher than 1920 X 1080 @ 25/30P or
1280 x 720 @ 50/60P may not work properly depending on the
frame.
• Movie files other than the specified types and formats may not
work properly.
• Max bit rate of playable movie file is 20 Mbps. (only, Motion JPEG
: 10 Mbps)
• We do not guarantee smooth playback of profiles encoded level
4.1 or higher in H.264/AVC.
• DTS Audio codec is not supported.
• A movie file more than 30 GB in file size is not supported for
playback. The file size limit is dependent on the encoding
environment.
• A DivX movie file and its subtitle file must be located in the same
folder.
• A video file name and its subtitle file name must be identical for it
to be displayed.
• Playing a video via a USB connection that doesn’t support high
speed may not work properly.
• Files encoded with GMC(Global Motion Compensation) and Qpel
(Quarterpel Motion Estimation) may not be played.
• Trick Mode does not support other functions than if video files do
not have index information.
• Video file names that contain special characters may not be
playable.
1 Press Q.MENU to access the pop-up menus.
When you select the Set video play.
1 Press the Navigation buttons to scroll to show the Picture Size,
Audio Language, Subtitle.
2 Press the Navigation buttons to scroll to make appropriate
adjustments.
Menu
Picture Size
Audio Language
Subtitle
Language
Code Page
Sync
Code Page
Latin1
Cyrillic
Thai
Hebrew
Arabic
Vietnam
Description
Selects your desired picture format during
movie play.
Changes the Language Group of the audio
during movie play. Files with a single audio
track cannot be selected.
Turn on/off the subtitle.
Activated for SMI subtitle and can select the
language within the subtitle.
Can select the font for subtitle. When set
to default, same font as general menu will
be used.
Adjusts the time synchronisation of the
subtitle from -10 secs to +10 secs by steps of
0.5 secs during movie play.
Support Language
English, French, Spanish, Portuguese,
Malaysia, Indonesia
Russian
Thai
Hebrew
Arab, Parsi, Krudish
Vietnamese language
NOTE
• Only 10,000 of sync blocks can be supported within the subtitle
file.
• When playing a video, you can adjust the Picture Size by pressing
Q.MENU or accessing Aspect Ratio in the PICTURE menu.
When you select the Set video.
1 Press the Navigation buttons to scroll to make appropriate
adjustments. (See pg.16)
When you select the Set audio.
1 Press the Navigation buttons to scroll to show the Sound Mode,
Auto Volume, Balance.
2 Press the Navigation buttons to scroll to make appropriate
adjustments. (See pg.17)
DivX® VOD Guide
DivX® VOD Registration
NOTE
• Once the deregistration is executed, you must register your device
again to see DivX® VOD contents.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
3 Press the Navigation buttons to scroll to DivX(R) VOD and press
OK .
4 Press the Navigation buttons to scroll to Registration and press
OK .
5 View the registration code of your monitor.
Customizing monitor setting
ENGLISH
ENG
In order to play purchased or rented DivX® VOD contents, you should
register your device with 10 digit DivX registration code from your
device at www.divx.com/vod.
Accessing main menus
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following
menus and press OK .
3 Press the Navigation buttons to scroll to the setting or option you
want and press OK .
4 When you are finished, press EXIT
Not functional.
6 When you are finished, press EXIT. When you return to the
previous menu, press BACK.
NOTE
• Movie files are supported as follows
• Resolution : under 1920 x 1080 (WxH) pixels
• Frame rate : under 30 frames/sec
• Video Codec : MPEG 1, MPEG 2, MPEG 4, H.264/AVC, DivX 3.11,
DivX4, DivX5, DivX6, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03,
Xvid 1.10-beta1, Xvid 1.10-beta2, JPEG, VC1, Sorenson
H.263/H.264.
DivX® VOD Deregistration
You should deregister your device with 8 digit DivX deregistration
code from your device at www.divx.com/vod.
1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to ENTERTAINMENT and
press OK .
3 Press the Navigation buttons to scroll to DivX(R) VOD and press
OK .
4 Press the Navigation buttons to scroll to Deregistration and
press OK .
5 Press the Navigation buttons to select Yes to confirm.
Adjusts the image size,
quality, or effect.
Adjusts the sound quality,
effect, or volume level.
Sets the time, date,
or timer feature.
Customizes the general
settings.
Locks or unlocks
programmes.
Views the input sources
with their labels.
Displays photo and play
music, movie content
stored on your USB.
(Depending on models)
6 When you are finished, press EXIT. When you return to the
previous menu, press BACK.
15
ENG
ENGLISH
Customizing Settings
Basic image options
PICTURE Settings
• Backlight : Adjusts the brightness of the screen by controlling
the LCD backlight. If you decrease the brightness level, the screen
becomes darker and the power consumption will be reduced
without any video signal loss.
• Contrast : Increases or decreases the gradient of the video signal.
You may use Contrast when the bright part of the picture is
saturated.
• Brightness : Adjusts the base level of the signal in the picture.
• Sharpness : Adjusts the level of crispness in the edges between
the light and dark areas of the picture. The lower the level, the
softer the image.
• Colour : Adjusts intensity of all colours.
• Tint : Adjusts the balance between red and green levels.
• Colour Temperature : Choose one of three automatic colour
adjustments. Set to warm to enhance hotter colours such as red,
or set to cool to see less intense colours with more blue. You can
control red, green, blue to adjust colour details.
• Advanced Control : Customizes the advanced options.
• Reset : Restores the options of each mode to the factory default.
NOTE
• Depending on input signal or other picture settings, the range of
detailed items for adjustment may differ.
SETTINGS ➾ PICTURE ➾ Aspect Ratio
Changes the image size to view images at its optimal size.
SETTINGS ➾ PICTURE ➾ Energy Saving
Reduces the power consumption by adjusting the screen brightness.
• Off : The Energy Saving is off.
• Minimum/Medium/Maximum : Selects the brightness level.
• Screen off : The screen turns off in 3 seconds.
NOTE
• When you select Screen Off, the screen will be turned off in 3
seconds and Screen Off will start.
• If you adjust “Energy Saving Maximum”, Backlight feature will
not work.
SETTINGS ➾ PICTURE ➾ Picture Mode
Selects one of the preset image or customizes options in each
mode for the best monitor screen performance. You are also able to
customize advanced options of each mode.
• Vivid : Adjusts the video image for the retail environment by
enhancing the contrast, brightness, colour, and sharpness.
• Standard : Adjusts the image for the normal environment.
• Cinema : Optimizes the video images for a cinematic look to enjoy
movies as if you are in a movie theatre.
• Soccer / Cricket (Depending on model) : Optimizes the video
image for high and dynamic actions by emphasizing primary
colours such as white, grass, or sky blue.
• Game : Optimizes the video image for a fast gaming screen such
as PCs or games.
SETTINGS ➾ PICTURE ➾ Screen (RGB-PC)
Customizes the PC display options in RGB mode.
• Resolution : Sets the desired resolution. Options may only be
selected when the PC resolution is set to 1024 x 768 @ 60/ 1280 x
768 @ 60/1360 x 768 @ 60/ 1366 x 768 @ 60 (default).
• Auto config. : Sets to adjust the screen position, clock, and phase
automatically. The displayed image may be unstable for a few
seconds while the configuration is in progress.
• Position/Size/Phase :Adjusts the options when the picture is
not clear, especially when characters are shaky, after the auto
configuration.
• Reset : Restores the options to the default setting.
16
Advanced image options
(Depending on model)
• Dynamic Contrast : Adjusts the contrast to keep it at the best
level according to the brightness of the screen. The picture is
improved by making bright parts brighter and dark parts darker.
• Dynamic Colour : Adjusts screen colours so that they look livelier,
richer and clearer. This feature enhances hue, saturation and
luminance so that red, blue and green white look more vivid.
• Noise Reduction : Reduces screen noise without compromising
video quality.
• Gamma : You can adjust brightness of dark area and middle gray
level area of the picture.
- Low: Make the dark and middle gray level areas brighter.
- Medium: Express the original picture level.
- High: Make the dark and middle gray level area darker.
• Black Level : Sets black level of the screen to proper level. This
function is available in the following modes: RF, AV or HDMI.
- Low: The reflection of the screen gets darker.
- High: The reflection of the screen gets brighter.
• Motion Eye Care : Adjusts screen brightness to prevent eye glare.
• Film Mode : Makes video clips recorded in film look more natural.
This feature operates only in 480i / 576i / 1080i / 1080p(24 Hz)
Resolution.
• Colour Gamut : Advanced Control Maximizes the utilization of
colour to increase colour quality.
- Standard: Displays standard set of colours.
- Wide: Increase number of colours used.
• Edge Enhancer : Shows clearer and distinctive yet natural edges
of the video.
AUDIO Settings
SETTINGS ➾ AUDIO ➾ Speaker
Turns off the internal speaker of the monitor when using an external
Hi-Fi system.
Speaker Sound Output Selection
In AV, RGB-PC, HDMI mode, you can select output sound for the left
and right loudspeakers. Select the sound output.
L+R: Audio signal from audio L input is sent to the left
loudspeaker and audio signal from audio R input is sent to
the right loudspeaker.
L+L: Audio signal from audio L input is sent to left and right
loudspeakers.
R+R: Audio signal from audio R input is sent to left and right
loudspeakers.
TIME Settings
SETTINGS ➾ TIME ➾ Clock
Sets the time.
SETTINGS ➾ TIME ➾ Off Time/On Time
Sets the time to turn on or off the monitor automatically. To use this
function, you should set the current time and date in advance.
NOTE
• If you do not press any button within 2 hours after the monitor
turns on by the On Time feature, the monitor enters the Standby
mode automatically.
• If you set both Off time and On time features to the same time, the
Off time feature overrides the On time feature.
SETTINGS ➾ TIME ➾ Sleep Timer
Sets the length of time until the monitor to turns off. When you turn
the monitor off and turn it on again, the Sleep timer feature will be
set to off.
ENGLISH
ENG
SETTINGS ➾ AUDIO ➾ Auto Volume
Activates the Auto Volume feature to keep the volume level
consistent.
SETTINGS ➾ AUDIO ➾ Balance
Adjust balance between the left and right speakers according to your
room environment.
SETTINGS ➾ AUDIO ➾ Sound Mode
Selects one of the preset sound modes or customizes options in each
mode.
• Standard : Select when you want standard-quality sound.
• Music/Bollywood (depending on model) : Select when you listen
to music. (Bollywood is INDIA special music mode)
• Cinema : Select when you watch movies.
• Soccer / Cricket (Depending on model) : Select when you watch
sports events.
• Game : Select when you play games.
- Treble: Controls the dominant sounds in the output. When
you turn up the treble, it will increase the output to the higher
frequency range.
- Bass: Controls the softer sounds in the output. When you turn up
the bass, it will increase the output to the lower frequency range.
- Reset: Resets the sound mode to the default setting.
SETTINGS ➾ TIME ➾ Automatic Standby (Depending on model)
If you do not press any button on the monitor or remote control for
a certain period, the monitor will automatically switch to standby
mode.
OPTION Settings
SETTINGS ➾ OPTION ➾ Menu Language
Selects a desired language.
SETTINGS ➾ OPTION ➾ Input Label
Indicates which device is connected to which input port.
SETTINGS ➾ OPTION ➾ Factory Reset
Customizes the monitor settings to suit your preference. The initial
setup screen will appear when you turn on the monitor for the first
time.
• Home Use : Selects it for the Home environment.
• Store Demo : Selects it for the retail environment.
LOCK Settings
SETTINGS ➾ LOCK ➾ Lock System
Activates or deactivates the lock system.
SETTINGS ➾ LOCK ➾ Set Password
Changes the 4-digit password. The default PIN is “0 0 0 0”.
SETTINGS ➾ LOCK ➾ Block Programme
Not functional.
SETTINGS ➾ LOCK ➾ Input Block
Blocks the input sources.
ENTERTAINMENT Settings
SETTINGS ➾ ENTERTAINMENT ➾ Photo List
View image files(photos) on monitor which are stored on USB device.
SETTINGS ➾ ENTERTAINMENT ➾ Music List
Play back music files on monitor which are stored on USB device.
SETTINGS ➾ ENTERTAINMENT ➾ Movie List
Play movie files on monitor which are stored on usb device.
SETTINGS ➾ ENTERTAINMENT ➾ DivX(R) VOD
View the registration code of your monitor.
SETTINGS ➾ ENTERTAINMENT ➾ Game (Depending on model)
Play game contents on your monitor.
17
Maintenance
Cleaning your monitor
ENG
ENGLISH
Clean your monitor regularly to keep the best performance and to
extend the product lifespan.
• Make sure to turn the power off and disconnect the power cord
and all other cables first.
• When the monitor is left unattended and unused for a long time,
disconnect the power cord from the wall outlet to prevent possible
damage from lightning or power surges.
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and
soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened
in clean water or a diluted mild detergent. Then wipe immediately
with a dry cloth.
• Avoid touching the screen at all times, as this may result in
damage to the screen.
• Do not push, rub, or hit the surface with your fingernail or a sharp
object, as this may result in scratches on the screen and image
distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the monitor, it
may result in fire, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
Preventing “Image burn” or “Burn-in” on
your monitor screen
• If a fixed image displays on the monitor screen for a long period of
time, it will be imprinted and become a permanent disfigurement
on the screen. This is “image burn” or “burn-in” and not covered by
the warranty.
• If the aspect ratio of the monitor is set to 4:3 for a long period of
time, image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the monitor screen for a long
period of time (2 or more hours for LCD) to prevent image burn.
18
Troubleshooting
(Depending on models)
Cannot control the monitor with the remote control.
• Check the remote control sensor on the product and try again.
• Check if there is any obstacle between the product and the remote
control.
• Check if the batteries are still working and properly installed
( to , to ).
No image display and no sound is produced.
• Check if the product is turned on.
• Check if the power cord is connected to a wall outlet.
• Check if there is a problem in the wall outlet by connecting other
products.
The monitor turns off suddenly.
• Check the power control settings. The power supply may be
interrupted.
• Check if the Automatic Standby (Depending on model) /
Sleep Timer / Off Time feature is activated in the TIME settings.
• If there is no signal while the monitor is on, the monitor will turn
off automatically after 15 minutes of inactivity.
• If On Time is enabled, the monitor will be turned on at the
specified time. If you do not operate the monitor for two hours,
the monitor will be turned off automatically. To disable this
function, use your remote control to go to SETTINGS ➾ TIME ➾
Auto Off(On Time) ➾ Off.
ENGLISH
ENG
19
Specifications
ENG
ENGLISH
Product specifications shown above may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
Dimensions (W x H x D) (mm)
Models
Weight (kg)
Power requirement
With stand
Without stand
With stand
Without stand
20MN47A
467.0 x 329.4 x 140.6
467.0 x 278.0 x 52.7
2.5
2.3
19 V
1.6 A
21MN47A
507.6 x 359.3 x 140.6
507.6 x 316.5 x 53.7
2.7
2.5
19 V
1.6 A
22MN47A
507.6 x 359.3 x 140.6
507.6 x 316.5 x 53.1
3.1
2.9
19 V
1.6 A
24MN47A
556 x 384.3 x 140.6
556 x 343.1 x 53.1
3.5
3.3
19 V
1.6 A
21LF430A
507.6 x 359.3 x 140.6
507.6 x 316.5 x 53.7
2.7
2.5
19 V
1.6 A
22LF430A
507.6 x 359.3 x 140.6
507.6 x 316.5 x 53.1
3.1
2.9
19 V
1.6 A
24LF430A
556 x 384.3 x 140.6
556 x 343.1 x 53.1
3.5
3.3
19 V
1.6 A
AC/DC Adapter
Manufacturer : Lien Chang
Model : LCAP16A-E, LCAP16A-A, LCAP21A
Manufacturer : Honor
Model : ADS-40FSG-19 19032GPG, ADS-40FSG-19 19032GPCU, ADS-45EI-19 19032GPI, ADS-40LSI-19-2 19032G, ADS-40SG-19-3 19032G
Manufacturer : APD
Model : WA-32C19FI, DA-32F19
In : AC 100 - 240 V ~ 50/60 Hz
Out : DC 19 V
1.7 A
Environment condition
-Operating Temperature : 0 °C to 40 °C
-Operating Humidity : Less than 80 %
-Storage Temperature : -20 °C to 60 °C
-Storage Humidity : Less than 85 %
20
HDMI (DTV) supported mode
20MN47A
Resolution
720 x 400
640 x 480
800 x 600
1024 x 768
1152 x 864
1600 x 900
Horizontal
Frequency (kHz)
31.468
31.469
37.500
37.879
46.875
48.363
60.023
67.500
60.000
Vertical
Frequency (Hz)
70.080
59.940
75.000
60.317
75.000
60.004
60.05
75.000
60.000
• The optimal display resolution is 1600 x 900 @ 60 Hz.
The optimal timing in each mode is vertical frequency 60 Hz.
Resolution
720 x 480
720 x 576
1280 x 720
1920 x 1080
21/22MN47A
Resolution
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 900
1680 x 1050
1920 x 1080
Horizontal
Frequency (kHz)
31.469
37.879
48.363
54.34
63.981
55.54
64.674
65.290
67.5
Vertical
Frequency (Hz)
59.94
60.317
60.0
60.05
60.02
60
59.883
59.954
60
• The optimal display resolution is 1920 X 1080 @ 60 Hz. The
optimal timing in each mode is vertical frequency 60 Hz
640 x 480
800 x 600
1024 x 768
1280 x 720
1152 x 864
1366 x 768
Horizontal
Frequency (kHz)
31.469
37.879
48.363
47.77
54.34
47.71
Vertical
Frequency (Hz)
59.94
60.317
60.0
59.85
60.05
59.79
• The optimal display resolution is 1366 X 768 @ 60 Hz. The optimal
timing in each mode is vertical frequency 60 Hz
Vertical
Frequency (Hz)
59.94
60.00
50.00
59.94
60.00
50.00
50.00
59.94
60.00
50.00
59.94
60.00
24.00
30.00
23.97
29.976
Component supported mode
21/22/24LF430A
Resolution
720 x 480
720 x 576
24MN47A
Resolution
Horizontal
Frequency (kHz)
31.469
31.5
31.25
44.96
45
37.5
28.125
33.72
33.75
56.25
67.432
67.5
27
33.75
26.97
33.716
ENGLISH
ENG
ge.com/in
RGB (PC) supported mode
1280 x 720
1920 x 1080
Horizontal
Frequency (kHz)
15.730
15.750
31.470
31.500
15.625
31.250
44.960
45.000
37.500
33.720
33.750
28.125
56.250
67.432
67.500
Vertical
Frequency (Hz)
59.940
60.000
59.940
60.000
50.000
50.000
59.940
60.000
50.000
59.940
60.000
50.000
50.000
59.940
60.000
Component port connecting information
21/22/24LF430A
Component ports on the TV
Video output ports
on DVD player
Y
PB
PR
Y
PB
B-Y
PR
R-Y
Y
Y
Cb
Cr
Y
Pb
Pr
2 1
Environmental information
INDIA only
ENG
ENGLISH
Information for environmental preservation
LGE. announced the ‘LG Declaration for a Cleaner Environment’ in
1994, and this ideal has served as a guiding managerial principle
ever since. The Declaration is a foundation that has allowed us to
undertake environmentally friendly activities in careful consideration
of economic, environmental, and social aspects. We promote
activities for environmental preservation, and we specifically develop
our products to embrace the concept of environment-friendly. We
minimize the hazardous materials contained in our products. For
example, there is no cadmium to be found in our product.
Information for recycling
This product may contain parts which could be hazardous to the
environment. It is important that this product be recycled after use.
LGE. handles all waste product through an environmentally
acceptable recycling method. There are several take-back and
recycling systems currently in operation worldwide. Many parts will
be reused and recycled, while harmful substances and heavy metals
are treated by an environmentally friendly method. If you want
to find out more information about our recycling program, please
contact your local LG vendor or a corporate representative of LG.
We set our vision and policies on a cleaner world by selecting the
issue of the global environment as a task for corporate improvement.
Please visit our website for more information about our ‘green’
policies.
http://www.lg.com/global/sustainability/environment/take-backrecycling.jsp
Disposal of your old appliance
1. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
2. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
3. To locate a nearest collection centre or call for pick-up (limited area only)
for disposal of this appliance, please contact Toll Free No. 1800-180-9999
for details. All collection centre and pick up facilities are done by third
parties with LG Electronics India Pvt. Ltd. Merely as a facilitator. For more
detailed information , please visit : http://www.lge.com/in.
i;kZoj.kh; tkudkjh
http://www.lge.com/in
22
