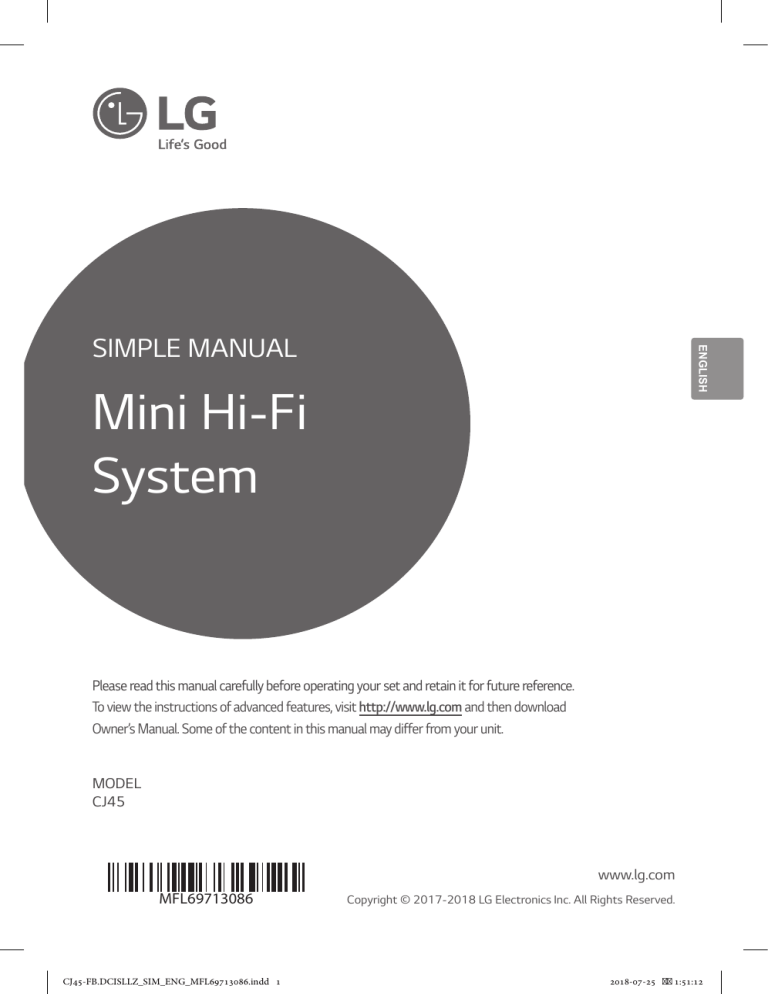

ENGLISH
SIMPLE MANUAL
Mini Hi-Fi
System
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download
Owner’s Manual. Some of the content in this manual may differ from your unit.
MODEL
CJ45
www.lg.com
MFL69713086
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 1
Copyright © 2017-2018 LG Electronics Inc. All Rights Reserved.
2018-07-25
1:51:12
Front Panel
b
a
c d
e
f
o
g
n m
l
a USB 1 Port
You can play sound files by connecting the USB device.
b 1 (Standby)
Turns the power on or off.
k j i
j Disc tray
k DEMO
In power off status, if you press DEMO, show DEMO mode.
I (Stop)
Stops playback or cancels DELETE function.
c Display window
d
e
(Remote sensor)
Y (Skip/Search)
-- Skips backward.
-- Searches for a section within a track/file.
-- Selects the radio stations.
WIRELESS LINK
-- Selects MASTER or SLAVE on WIRELESS PARTY LINK
mode.
-- Enable or disable WIRELESS PARTY LINK mode.
R (Open/Close)
Opens and closes the disc tray.
f USB 2 Port
You can play sound files by connecting the USB device.
g
VOLUME
Adjust speaker volume.
h MIC (Microphone) +/Adjust microphone volume.
AUTO DJ
Selects the AUTO DJ mode.
l SOUND EFFECT
Chooses sound impressions.
REGION EQ / BASS BLAST
-- Chooses region equalizer.
-- Press and hold to select BASS effect directly.
VOICE CANCELLER
You can enjoy the function while playing the music, by
reducing singer vocal of music in the various source.
SEARCH
Moves to folder or file in selection mode.
ECHO
Selects ECHO mode.
i F (Function)
Selects the function and input source.
T (Play/Pause)
-- Starts or pauses playback.
-- Selects stereo/mono.
U (Skip/Search)
-- Skips forward.
-- Searches for a section within a track/file.
-- Selects the radio stations.
h
OK
Selects a folder when searching a file.
m MIC (Microphone) jack
n PORT. (Portable) IN jack
o
SEARCH
-- Searches a folder or a file.
-- Turns clockwise or counterclockwise to control the SOUND
EFFECT, REGION EQ mode.
KEY CHANGER ( / )
Changes the key to suit your vocal range.
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 2
2018-07-25
1:51:13
Rear Panel
a Power cord
b SPEAKERS connector/terminals
a
c ANTENNA (FM)
d AUX IN (L/R)
Connect an auxiliary device.
b
c d
Speaker Connection
Red
Black
Controller App
Download the Music Flow Bluetooth App to your
device. (Android only)
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 3
LG Sound Sync (Wireless)
For more information, download the online owner’s
manual. http://www.lg.com
2018-07-25
1:51:14
Additional Information
Replacement of battery
Specifications
Dimensions (W x H x D)
Bus Power Supply (USB)
Amplifier
(Total RMS output power)
3)
Power Consumption
Refer to the main label on
the unit.
Refer to the main label on
the unit.
Networked standby : 0.5 W
(If all network ports are
activated.)
(R0
Power Requirements
(R03)
Approx. 350 mm x
163 mm x 251 mm
5 V 0 500 mA
720 W RMS
Design and specifications are subject to change without
notice.
How to disconnect the wireless network
connection or the wireless device
Turn off the unit by pressing the power button for more
than 5 seconds.
Declaration of Conformity
Hereby, LG Electronics declares that the radio equipment
type Mini Hi-Fi System is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For consideration of the user, this device should be
installed and operated with a minimum distance of 20 cm
between the device and the body.
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 4
Frequency range
Output power (Max.)
2402 to 2480 MHz
10 dBm
2018-07-25
1:51:14
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 5
2018-07-25
1:51:14
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 6
2018-07-25
1:51:14
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 7
2018-07-25
1:51:14
Российская Федерация
Импортер ООО “ЛГ Электроникс Рус”
Адрес импортера: 143160 Российская Федерация, Московская область, Рузский район, сельское поселение
Дороховское, 86 км. Минского шоссе, д.9
Адрес производителя : ЛГ Электроникс (Хужоу) Инк., завод Хатаи
516006, Китай, пров. ГуанДонг, г. Хужоу, Промышленная зона
Жонгкай, Индустриальный парк Хутаи, ХуФенг Донг Уи Роуд, 13.
Сделано в Китае
Україна
Вироблено в:
ЛГ Електронікс (Хужоу) Інк., завод Хатай
516006, Китай, пров. ГуанДонг, м. Хужоу, Промислова зона Жонгкай,
Індустріальний парк Хутай, ХуФенг Донг Уі Роуд, 13.
Қазақстан Республикасы
Импорттаушы АҚ “ЭЛ Джи Электроникс Алматы Қазақстан”, 050061, Алматы қ., Көкорай көшесі, 2А/9
Өндірушінің мекенжайы: LG Electronics(Huizhou) Inc. Huitai Factory
516006, Қытай, ГуанДонг ауданы, Хужоу қаласы, Жонгкай өнеркәсіптік аймағы,
Хутай Индустриялық саябағы, ХуФенг Донг Уи Роуд, 13.
Қазақстан Республикасы территориясында тұтынушылардан келіп түскен талаптар мен ұсыныстарды
қарайтын және тауарды жөндеу мен техникалық қызмет көрсететін ұжым:
АҚ «Эл Джи Электроникс Алматы Казақстан», 050061, Қазақстан Республикасы, Алматы қ., Көкорай көшесі,
2А/9. Басқа сервис орталықтары жайында мағлұматты “Тұтынушыға қызмет көрсету орталығына” телефон
шалу арқылы білуге болады.
Қытайда жасалған
CJ45-FB.DCISLLZ_SIM_ENG_MFL69713086.indd 8
2018-07-25
1:51:14
