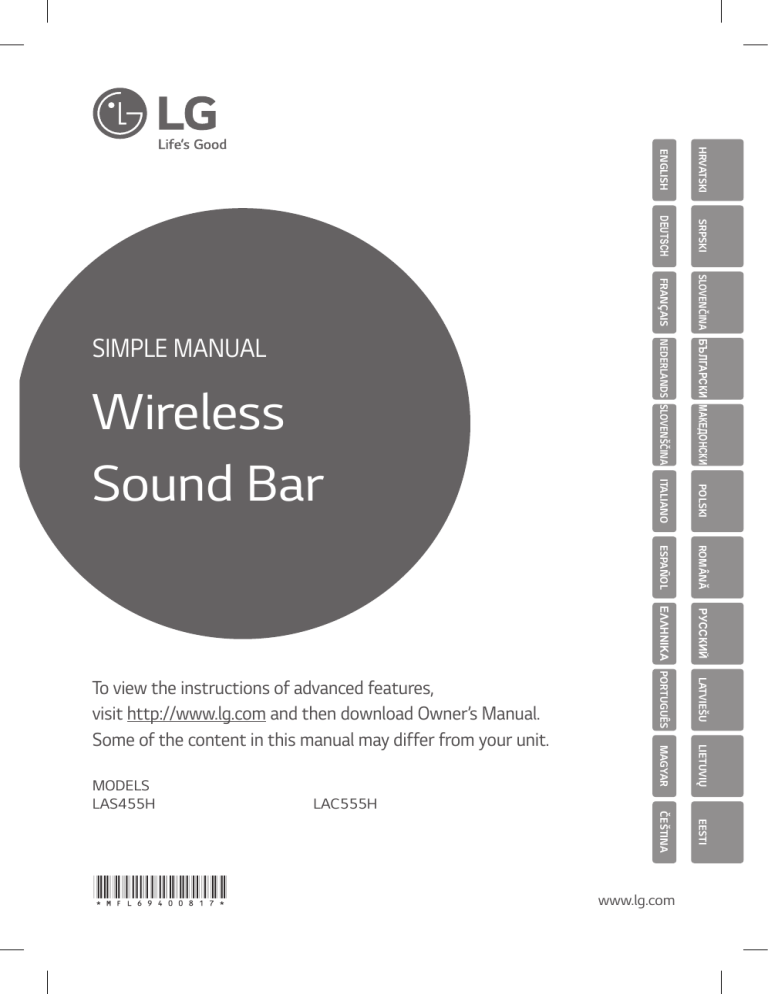

LG LAS455H, LG LAS455H, LAC555H Quick start guide

LG LAS455H, LG LAS455H, LAC555H Quick start guide
HRVATSKI
SRPSKI
SLOVENČINA БЪЛГАРСКИ МАКЕДОНСКИ
POLSKI
ESPAÑOL
ROMÂNĂ
ΕΛΛΗΝΙΚΑ PORTUGUÊS
РУССКИЙ
MAGYAR
LIETUVIŲ
ČEŠTINA
EESTI
www.lg.com
LATVIEŠU
ITALIANO
*MFL69400817*
LAC555H
NEDERLANDS SLOVENŠČINA
MODELS
LAS455H
FRANÇAIS
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
DEUTSCH
Wireless
Sound Bar
ENGLISH
SIMPLE MANUAL
Front Panel
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Power On /Off
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Selects Function
· · · · · · · · · · · · · · · · · · · · · · · · · · · Adjusts Volume
Rear Panel
HDMI IN · · · · · · · · · · · · · · · · · · · · · · Connect to a device
HDMI OUT (TV ARC) · · · · · · · · · · · · · · Connect to a TV
USB port · · · · · · · · · · · · · · · · · Connect to a USB device
PORTABLE IN · · · · · · · · · Connect to a Portable device
OPTICAL IN · · · · · · · · · · · Connect to an Optical device
1
Subwoofer Connection
Place the wireless subwoofer near the sound bar and
follow steps below.
a Connect the power cord of wireless
subwoofer to the outlet.
b Turn on the sound bar :
The sound bar and wireless subwoofer will be
automatically connected. A yellow-green LED
on the wireless subwoofer will light on.
2
TV Connection
Connect with the Sound Bar and TV using
Optical ( ) or HDMI ARC ( ).
Optical Connection
a Connect the sound bar to the TV using
Optical cable.
b Set up [External Speaker (Optical)] on
your TV setting menu.
TV
If no sound is heard from the wireless subwoofer,
please follow as below.
i.Adjust volume level of sound bar to minimum.
"VOL MIN" appears on display window.
ii. Press and hold (Mute) button on the remote
control about 3 seconds. "WL RESET" appears
on display window and red LED on the sound bar
blinks.
iii. Press and hold PAIRING on the back of wireless
subwoofer for more than 5 seconds using point
of a pen.
iv. Disconnect the power cord of the sound bar and
the wireless subwoofer. Connect them again.
HDMI(ARC) Connection
a Connect the sound bar to the TV using
HDMI cable.
b Set up [External Speaker (HDMI ARC)] on
your TV setting menu.
͹͵;ͺ͑ͺͿ
͙Ͳ΃ʹ͚
TV
͹͵;ͺ͑΀Ά΅
͙΅·͑Ͳ΃ʹ͚
Controller App
LG Sound Sync (Wireless)
TV
Download the Music Flow Bluetooth App to your
device.
For more information, download the online owner’s
manual. http://www.lg.com
Additional Information
Specification
Power
requirements
Refer to the main label.
Refer to the main label.
Power
consumption
Networked standby : 2.3 W
(If all network ports are
activated.)
Dimensions
(W x H x D)
Net Weight
Bus Power Supply
(USB)
Amplifier (Total
RMS Output
power)
Approx.
890 mm x 55 mm x 89 mm
Approx. 2.72 kg
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and turn
off the unit.
Replacement of battery
5 V 0 500 mA
300 W
Declaration of Conformity
Design and specifications are subject to change without
notice.
Remote control
Hereby, LG Electronics European Shared Service Center B.V., declares
that this Wireless Sound Bar is compliant with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
The complete Declaration of Conformity may be requested through
the following postal address:
LG Electronics European Shared Service Center B.V.
European Standard Team
Krijgsman 1
1186 DM Amstelveen
The Netherlands
or can be requested at our dedicated DoC website:
http://www.lg.com/global/support/cedoc/cedoc#
:
:
:
:
Turns down the volume at night.
Adjusts the volume level appropriately.
Synchronizes the audio and video.
Automatically turns on by an input source.
This device is a 2.4 GHz wideband transmission system, intended for
use in all EU member states and EFTA
