LG SK5 Quick start guide

LG SK5 Quick start guide
ENGLISH

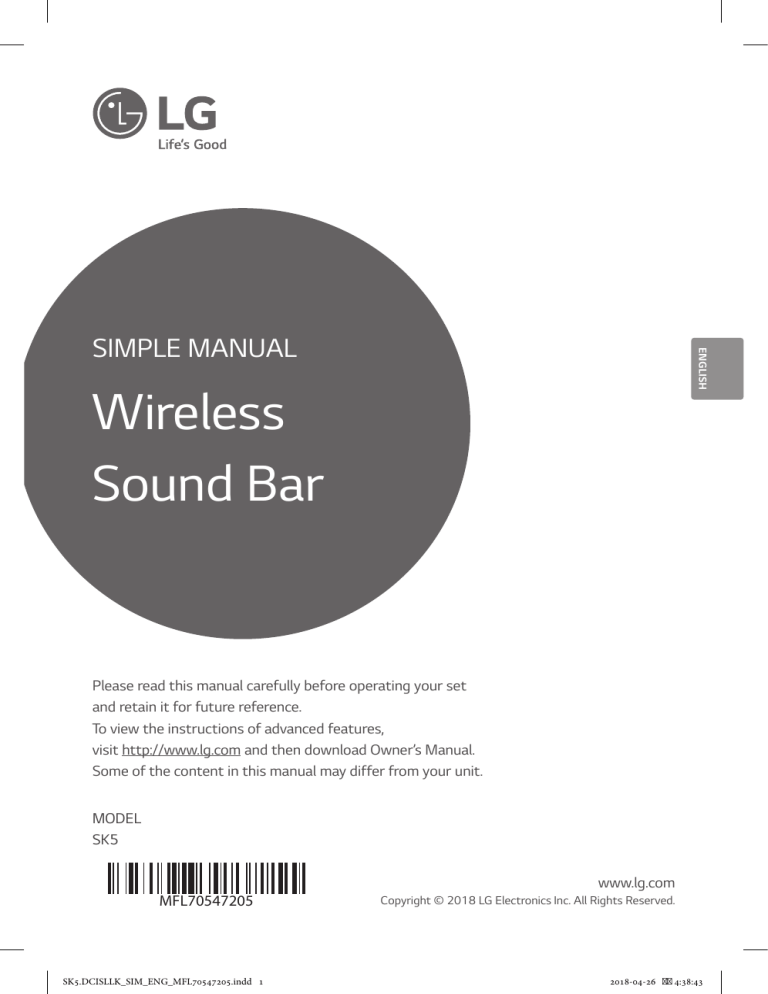

SIMPLE MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating your set
and retain it for future reference.
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
SK5
MFL70547205
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 1
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
2018-04-26
4:38:43
Front Panel
The buttons are located on the side.
1
Subwoofer Connection
Place the wireless subwoofer near the speaker and
follow steps below.
a Connect the power cord of wireless subwoofer
and sound bar to the outlet.
1 (Standby) · · · · · · · · · · Switches the unit ON or OFF
F (Function) · · · · · · · · · · · · · · · · · · · · · · · Selects Function
o/p (Volume) · · · · · · · · · · · · · · · · · · · Adjusts Volume
Rear Panel
b Turn on the main unit:
The sound bar and wireless subwoofer will be
automatically connected. The subwoofer's
green LED turns on.
Subwoofer Connection Manually
If the subwoofer does not make sound, try to
connect manually.
a Press Pairing button on the rear of the wireless
subwoofer.
yy The green LED on the rear of wireless
subwoofer blinks quickly. (If the green LED
does not blink, press and hold the Pairing
button.)
b Turn on the main unit.
c Pairing is completed.
DC IN · · · · · · · · · · · · · · · · · Connect to the AC adapter
OPTICAL IN · · · · · · · · · · · Connect to an Optical device
PORTABLE IN · · · · · · · · · Connect to a Portable device
USB
· · · · · · · · · · · · · · · · · · Connect to a USB device
HDMI OUT (TV ARC) · · · · · · · · · · · · · · Connect to a TV
HDMI IN · · · · · · · · · · Connect to HDMI out on a device
yy The green LED on the rear of wireless
subwoofer turns on.
Keep the sound bar and the subwoofer away
from the device (ex. wireless router, microwave
oven, etc.) over 1m to prevent wireless
interference.
!1 m
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 2
2018-04-26
4:38:44
2
TV Connection
Remote control
Connect with the Sound Bar and TV using
Optical ( ) or HDMI ARC ( ).
Optical Connection
a Connect the sound bar to the TV using
Optical cable.
b Set up [External Speaker (Optical)] on
your TV setting menu.
TV
ASC/DTS V:X/BASS BLAST: Selects the sound effect.
NIGHT ON/OFF: Turns down the volume at night.
WOOFER +/-: Adjusts the volume level of subwoofer.
AUTO POWER ON/OFF: Automatically turns on by an
HDMI(ARC) Connection
input source.
a Connect the sound bar to the TV using
HDMI cable.
b Set up [External Speaker (HDMI ARC)] on
your TV setting menu.
Replacement of battery
TV
yy HDMI connection is unavailable if your TV
does not support HDMI ARC.
yy If this unit is connected by OPTICAL and
ARC at the same time, the ARC signal is a
high priority.
Additional Device Connection
a Connect to the external device as follows.
(Set-top Box,
Player etc.)
TV
OR
OR
b Set the input source by pressing F on the remote
control or unit repeatedly.
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 3
2018-04-26
4:38:45
Additional Information
Specification
Declaration of Conformity
Refer to the main label.
Power
consumption
AC adapter
Dimensions
(W x H x D)
Bus Power Supply
(USB)
Amplifier (Total
RMS Output
power)
Networked standby : 1.2 W
(If all network ports are
activated.)
yy Model : DA-38A25
yy Manufacturer : Asian Power
Devices Inc.
yy Input :
100 - 240 V ~ 50 - 60 Hz
yy Output : 25 V 0 1.52 A
Approx.
891.0 mm X 57.5 mm X 87.8 mm
With foot
Hereby, LG Electronics declares that the radio equipment
type Wireless Sound Bar is in compliance with Directive
2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
http://www.lg.com/global/support/cedoc/cedoc#
For consideration of the user, this device should be
installed and operated with a minimum distance of 20
cm between the device and the body.
5 V 0 500 mA
360 W RMS
Design and specifications are subject to change without
notice.
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and
turn off the unit.
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code under GPL, LGPL, MPL, and
other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms,
warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you
on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping,
and handling) upon email request to [email protected]
com.
This offer is valid for a period of three years after our last
shipment of this product. This offer is valid to anyone in
receipt of this information.
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 4
2018-04-26
4:38:46
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 5
2018-04-26
4:38:46
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 6
2018-04-26
4:38:46
SK5.DCISLLK_SIM_ENG_MFL70547205.indd 7
2018-04-26
4:38:46
