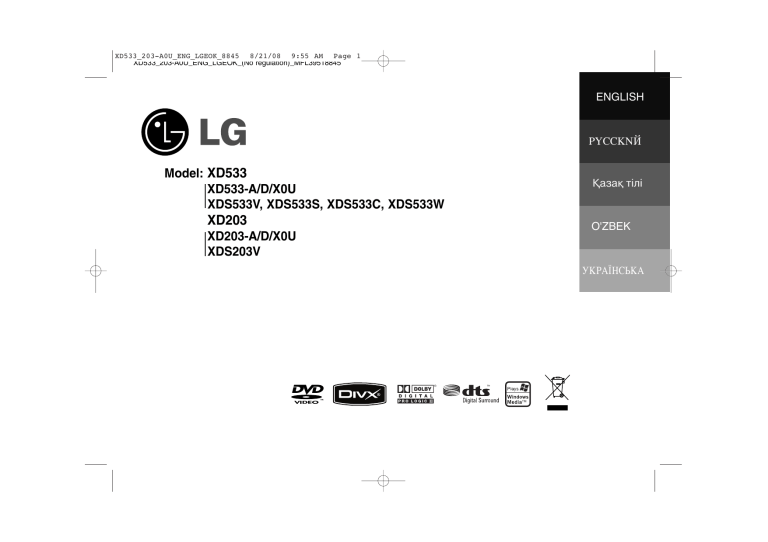

XD533_203-A0U_ENG_LGEOK_8845 8/21/08 9:55 AM Page 1
XD533_203-A0U_ENG_LGEOK_(No regulation)_MFL39518845
ENGLISH
êYCCKNâ
Model: XD533
XD533-A/D/X0U
XDS533V, XDS533S, XDS533C, XDS533W
XD203
аза тілі
O'ZBEK
XD203-A/D/X0U
XDS203V
ìäêÄ∫çëúäÄ
R
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 2
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case or
similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from over heating. The openings should be
never be blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instruction has been
adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference. Should the unit require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.
2
DVD Micro Hi-Fi System ] USER GUIDE
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and
no objects filled with liquids, such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; That is, a
single outlet circuit which powers only that appliance and has no additional outlets or
branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with
an exact replacement part by an authorized service center.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product
it means the product is covered by the European Directive
2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection
facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human
health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the
shop where you purchased the product.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 3
Types of Playable Discs
Type
About the
Logo
DVD-VIDEO: Discs such as movies that can
be purchased or rented.
Symbol Display
“
” may appear on your TV display during operation and indicates that the
function explained in this owner’s manual is not available on that specific DVD
video disc.
DVD-R: Video mode and finalized only
Regional code
DVD-RW: Video mode and finalized only
This unit has a regional code printed on the rear of the unit. This unit can play
only DVD discs labeled same as the rear of the unit or “ALL”.
DVD+R: Video mode only
Supports the double layer disc also
DVD+RW: Video mode only
Audio CD:
In addition, this unit can play a DVD±R/RW and CD-R or CD-RW that
contains audio titles, MP3, WMA, JPEG files.
Depending on the conditions of the recording equipment or the CD-R/RW
(or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs may
not be played on the unit due to the recording quality or physical condition
of the disc, or the characteristics of the recording device and authoring
software. The disc will not play if it has not been correctly finalized. Player
does not support these kinds of discs.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license from Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674;
5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. ©
1996-2007 DTS, Inc. All Rights Reserved.(ONLY XD533)
• Most DVD discs have a globe with one or more numbers in it clearly visible
on the cover. This number must match your unit’s regional code or the disc
cannot play.
• If you try to play a DVD with a different regional code from your player, the
message “Check Regional Code” appears on the TV screen.
Copyrights
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in
public, or rent copyrighted material without permission. This product features
the copy protection function developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and playing the pictures of these
discs picture noise will appear. This product incorporates copyright protection
technology that is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV
SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.
DVD Micro Hi-Fi System ] USER GUIDE
3
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 4
Welcome to your new DVD Micro Hi-Fi System
Contents
Safety Precaution . . . . . . . . . . . . . . . . . . .2
Types of Playable Discs . . . . . . . . . . . . . .3
Setting up . . . . . . . . . . . . . . . . . . . . . . . . .5
Main Unit . . . . . . . . . . . . . . . . . . . . . . . . .6
Hooking up the unit -I . . . . . . . . . . . . . . . .7
Hooking up the unit -II (Optional) . . . . . . . .8
Remote control . . . . . . . . . . . . . . . . . . . . .9
OSD Initial language setting (Optional) . .10
Initial Setting the Area Code (Optional) . .10
Adjust the settings . . . . . . . . . . . . . . .10-11
Displaying Disc Information . . . . . . . . . . .12
Setting the clock . . . . . . . . . . . . . . . . . . .12
Use your player as an alarm clock . . .12-13
Setting the sound mode . . . . . . . . . . . . . .13
Playing a Disc . . . . . . . . . . . . . . . . . . . . .14
Playing a DivX Movie file . . . . . . . . . . . . .15
Listening to Audio CD,MP3 or WMA files . .15-16
Viewing photo files . . . . . . . . . . . . .16-17
Listening to the radio . . . . . . . . . . . . . . . .17
Listening to the cassette tapes . . . . . . . .18
Tape recording . . . . . . . . . . . . . . . . . . . .18
CD Synchronized Recording . . . . . . . . . .19
Listening to music from your portable
player . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4
DVD Micro Hi-Fi System ] USER GUIDE
Connecting your portable USB player
USB DIRECT RECORDING . . . . . . .
Language Codes . . . . . . . . . . . . . . .
Area Codes . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.19
.20
.21
.21
.22
.23
Precautions in using the touch Volume
• Use the touch volume with clean and dry hands.
- In a humid environment, wipe out any moisture on the touch volume
before using.
• Do not press the touch volume hard to make it work.
- If you apply too much strength, it can damage the sensor of the touch
volume.
• Be careful not to have any conductive material such as metallic object
on the touch volume. It can cause malfunctions.
Power Save Mode
You can set up the unit into an economic power save mode.
In power-on status, press and hold 1/] (POWER) button for about 3 seconds.
- Nothing is displayed in the display window when the unit is turned off.
To cancel, press 1/] (POWER) , CLOCK, TIMER or STOP/DEMO.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 5
Setting up
XD203 MODEL
Attaching the speakers to the unit
COLOUR
SPEAKER
POSITION
Connect the wires to the unit.
Red
Front
White
Front
In front of you, to the right of
the screen
In front of you, to the left of
the screen
Match each wire’s coloured band to the same coloured connection terminal on
the reverse of the unit.
To connect the cable to the unit, press each plastic finger pad to open
the connection terminal. Insert the wire and release the finger pad
Connect the red end of each wire to the terminals marked +(plus) and the black end to the
terminals marked - (minus).
The connector will open ready to receive a cable.
XD533 MODEL
COLOUR
SPEAKER
POSITION
Grey
Rear
Behind you and to your right
Blue
Rear
Behind you and to your left
Green
Centre
Above screen, directly in front of you.
Orange
Sub Woofer
Red
Front
White
Front
In front of you, to the right of
the screen
In front of you, to the left of
the screen
Be careful of the following
• Be careful to make sure children not to put their hands or any objects into the
speaker duct.
• Speaker duct : A hall for plentiful bass sound on speaker cabinet (enclosure).
Remote control Operation
Point the Remote Control at the remote sensor and press the buttons.
Connect the red end of each wire to the terminals marked +(plus) and the
black end to the terminals marked - (minus).
To connect the cable to the center speakers, press each plastic finger pad to
open the connection terminals on the back of center speaker. Insert the wire
and release the finger pad. (Only XD533)
Remote control Battery Installation
Detach the battery cover on the rear of the remote control, and insert two
R03 (size AAA) batteries with 3 and # aligned correctly.
Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.).
DVD Micro Hi-Fi System ] USER GUIDE
5
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 6
Main unit
5 disc Changeable tray
POWER 1/]
VSM (VIRTUAL SOUND MATRIX )
FUNCTION (DVD/CD→USB→AUX→TV-
Disc select buttons
(DISC1,DISC2,DISC3,DISC4,DISC5)
OPEN
AUDIO(Optional)→PORTABLE→TAPE→FM
→AM)
• TUNNING (-/+) - AUTO TUNING/ REWIND or
FAST FORWARD ( . or >) -TAPE/ SKIP
(. or >) buttons -CD
• PRESET (-/+) - PRESET station - TUNER/
b) -TAPE(OPTIONAL)
REVERSE PLAY (b
B) -TAPE
FORWARD PLAY (B
B) or X1.5 play- CD(Page 14)
PLAY (B
• USB Rec./REC/PAUSE -USB Record (Page20)/
TAPE Record (Page18)
• EQ (EQUALIZER Effect)
STOP/DEMO.
STOP Playback or to clear a program or to
exit. Press STOP/DEMO. in power off state
to demonstrate the function on display window. To cancel it, press 1 /]] or
STOP/DEMO. again.
PUSH EJECT- TAPE
TIMER
CLOCK
VOLUME Adjustment
SET/RDS-OPTIONAL/ CD PAUSE
Moves your finger to inside
of touch wheel.
SET confirms the time you have selected
when setting the clock.
RDS shows information about radio stations(see listening to the radio)
CD PAUSE
XDSS -PLUS (MP3 Optimizer)
OPEN
CD SYNC./ REVERSE MODE
DISPLAY MODE
CD SYNC. CD to Tape Synchronized
Recording
REVERSE MODE scroll through a selection
of cassette playing options
Accesses On - Screen display
MIC1/MIC2 (Optional)
MIC VOL. (Optional)
WOOFER VOL. (XD533 only)
Headphone jack
Connect a headphone plug ( 3.5 mm) into the
jack to listen to the sound through headphones (not supplied).
6
DVD Micro Hi-Fi System ] USER GUIDE
Reinforce the treble, bass and surround
effect,XDSS ON will show in the display,press
again for NORMAL (Page 13)
PORTABLE IN For connecting a portable
USB connector
device and playing it through the system’s
speaker
Connect a remote USB compatible player
here.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 7
Hooking up the unit - I
MONITOR OUT / Component (OUTPUT) / INPUT(L-AUX-R) connections
MONITOR jack connection
Connect the MONITOR jack on
the unit to the corresponding input
jacks on your TV using a Video
cable.
MONITOR
MONITOR
INPUT
INPUT
L -AUX-R
L -AUX-R
EURO AV
TO TV
COMPONENT VIDEO(PROGRESSIVE SCAN)
COMPONENT VIDEO(PROGRESSIVE SCAN)
OUTPUT
OUTPUT
INPUT (L-AUX-R) jacks
connection
OUT PUT (COMPONENT
VIDEO) jacks connection
Connect one end of the component(Y PB PR )cable to the
COMPONENT VIDEO jack on
the unit and other end to the
COMPONENT INPUT jack on
your TV.
MONITOR
Connect a VCR or Auxiliary
device, etc. to the INPUT jack of
this unit.
INPUT
L -AUX-R
Press the INPUT button on the
remote control until the “AUX”
indicator is displayed in the display window.
COMPONENT VIDEO(PROGRESSIVE SCAN)
OUTPUT
XD533
XD203
DVD Micro Hi-Fi System ] USER GUIDE
7
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 8
Hooking up the unit -II (Optional)
SCART connection- OPTIONAL
a Connect one end of the scart
cable into the TO TV SCART jack
on the unit and other end to the
corresponding in jack on your TV.
You can get Audio and Video
signals together with this connection.
b Plug the power cord into the
power source.
XD533
XD203
Antenna connection
Fit the AM loop aerial to its stand
Connect the AM loop aerial to the player.
Connect the FM aerial
The reception will be at its best when the two
loose ends of the aerial are in a straight line
and horizontal.
8
DVD Micro Hi-Fi System ] USER GUIDE
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 9
Remote control
a
a
c
- Tape reverse playback press (N) once again.
FUNCTION : (DVD/CD →TAPE→ FM→ AM)
- 1.5 speed playback
INPUT : Changes the input source ( AUX → TV-- AUDIO
(Optional) →PORTABLE → USB)
The 1.5 speed allows you to watch the pictures and listen
to the sound quicker than playing at a normal speed on the
disc.- (page 14)
- MONO/STEREO FM mode state,selects MONO or
STEREO by pressing PLAY (N) button
EQ (EQUALIZER Effect) : You can choose 8 fixed sound
impressions.(page 13)
VSM : Press VSM to set the VIRTUAL sound.(page 13)
0-9 numerical buttons: Selects numbered options in a
menu.
b
ECHO VOL.(V /v ) :Adjusts echo volume (optional)
d
D.SEL : Switches you want the disctrays
MUTE : Press MUTE to mute your unit. For example, to
answer the telephone.
c
PLAY (N): Starts playback.
SLEEP : You can set the unit to turn off automatically at a
specified time.
- DIMMER Dims the LED (Light-emitting diode) of front
panel by half in power-on status.
b
POWER: Switches the unit ON or OFF.
STOP (x): Stops playback or recording.
PAUSE/STEP (X): Pause playback.
REC (z/[]) : USB /TAPE RECORD
You can record one desired file or all of the music files in
AUDIO CD to USB (page 20).or Records from a CD or
radio to cassette. (page18)
SCAN(-/+) (bb/BB) : Search backward or forward.
. / >) : Go to next or previous chapter/
SKIP(-/+) (.
track/Title
PROG./MEMO. : Accesses or removes Program menu.
MIC VOL.(V /v ): Adjusts microphone volume (optional)
VOLUME (+/-) : Adjusts speaker volume.
SETUP : Accesses or removes setup menu
MENU : Accesses the menu on a DVD disc.
DISPLAY: Accesses On-Screen Display.
TITLE : If the current DVD title has a menu, the title menu
appears on the screen. Otherwise, the disc menu may
appear.
b / B / v / V (left/right/up/down):Used to navigate onscreen displays.
SELECT/ENTER : Acknowledges menu selection.
PRESET (-/+) (v/V) : Selects programme of Radio.
TUN.(-/+) (b/B): Tunes in the desired radio station.
d CLEAR: Removes a track number on the Program List.
S-TITLE: During playback,S - TITLE repeatedly to select a
desired subtitle language .
REPEAT : Repeats a Chapter/ Track/ Title all.
VOCAL FADER (optional) : You can enjoy the function as
karaoke, by reducing singer vocal of music in the various
source. MP3/WMA/CD/ DTS(XD533)/DD(Dolby Digital) etc.
except for Karaoke mode. (Page13)
RDS (optional): Radio display mode
PTY (optional): Views the various displays of the RDS
RETURN (O): Press to move back wards in the menu.
DVD Micro Hi-Fi System ] USER GUIDE
9
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 10
OSD Initial language setting (Optional)
After factory setting ,this beginning menu language will only be displayed at
DVD or USB mode if you turn on the power at the first time .
1. Turn the power on:
ON PLAYER
ON REMOTE
1/I
1 POWER
Appear the language list display window
vVbB
2. Select the language:
3. Press:
SELECT/ENTER
4.To confirm press:
SELECT/ENTER
Initial Setting the Area Code (Optional)
After factory setting ,To set the Area code you have to as below.
ON REMOTE
SETUP
1. Display setup menu:
2. Select LOCK menu on the first
level:
vV
3. Move to second level: Appears the
activated Area code on the second
level.
ON REMOTE
1. Display setup menu:
SETUP
2. Select a desired option on the first level:
vV
3. Move to second level:
B
4. Select a desired option on the second level:
vV
5. Move to third level:
B
6. Change the setting:
v V, SELECT/ENTER
Adjust the settings - more you can do
Adjust the language settings
OSD– Select a language for the Setup menu and on-screen display.
Disc Audio/Subtitle/Disc Menu – Select a language for the
Menu/Audio/Subtitle.
[Original]: Refers to the original language in which the disc was recorded.
[Others]: To select another language, press number buttons then
SELECT/ENTER to enter the corresponding
4-digit number according to the language code list in the reference chapter .
If you make a mistake while entering number, press CLEAR to delete numbers then correct it.
[OFF] (for Disc Subtitle): Turn off Subtitle.
Adjust the display settings
B
4. Move to third level:
B
5. Enter the new pass word and
then, press:
Numerical button of
0~ 9 then, SELECT/ENTER
6. Recheck entered new pass word
and then, press:
Numerical button of
0~ 9 then, SELECT/ENTER
7. Select a code for a geographic
area (page 21) : After select,Rating
and Password will be activated.
vVbB
10
Adjust the settings
DVD Micro Hi-Fi System ] USER GUIDE
TV Aspect – Select which screen aspect to use based on the shape of your TV
screen.
[4:3]: Select when a standard 4:3 TV is connected.
[16:9]: Select when a 16:9 wide TV is connected.
Display Mode – If you selected 4:3, you’ll need to define how you would like
widescreen programs and films to be displayed on your TV screen.
[Letterbox]: This displays a widescreen picture with black bands at the top
and bottom of the screen.
[Panscan]: This fills the entire 4:3 screen, cropping the picture as necessary.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 11
TV Output Select (Optional) – Select an option according to the TV connection
type. [YPbPr]: When your TV is connected with the COMPONENT/PROGRESSIVE SCAN jacks on the unit.
[RGB]: When your TV is connected with the SCART jack.
- When connected by RGB, COMPONENT OUT not operate.
Adjust the lock settings
To access the lock options, you must enter the 4-digit password. If you have not
yet entered a password you are prompted to do so. Enter a 4-digit password.
Enter it again to verify. If you make a mistake while entering number, press
CLEAR to delete numbers then correct it.
Progressive ScanProgressive Scan Video provides the high quality pictures with less flickering. If
you are using the Component Video jacks for connection to a TV or monitor that
is compatible with a progressive scan signal, set [Progressive Scan] to [On].
Press SELECT/ENTER to comfirm your selection
- If you not press ENTER within 10 seconds it will be [OFF].
If you forget your password you can reset it. Press SETUP and Input ‘210499’.
The password has now been cleared.
Adjust the audio settings
Area code – Select a code for a geographic area as the playback rating level.
This determines which area’s standards are used to rate DVDs controlled by the
parental lock. See the Area Codes on page 21.
5.1 Speaker SetupPress SELECT/ENTER, and the 5.1 Speaker Setup menu appears. Use b / B
to select the desired speaker. Adjust options using v / V / b / B buttons. Press
SELECT/ENTER to confirm your selection. Returns to the previous menu.
[Speaker]: Select a speaker that you want to adjust.
[Size]: Since the speaker settings are fixed, you cannot change the settings.
[Volume]: Press b / B to adjust the output level of the selected speaker.
(-5dB ~ 5dB)
[Distance]: If you connected speakers to your DVD/CD Receiver, setting the
Distance lets the speakers know how far the sound has to travel to reach
your set listening point. This allows the sound from each speaker to reach
the listener at the same time.
Press b / B to adjust the Distance of the selected speaker. (You can’t adjust
front / Woofer speakers)
[Test]: Press b / B to test the signals of each speaker. Adjust the volume to
match the volume of test signals memorized in the system.
DRC (Dynamic Range Control) – Make the sound clear when the volume is
turned down (Dolby Digital only). Set to [On] for this effect.
Vocal – Select [On] to mix karaoke channels into normal stereo. This function is
effective for multi-channel karaoke DVDs only.
Rating – Select a rating level. The lower the level, the stricter the rating. Select
[UNLOCK] to deactivate the rating.
Password – Sets or changes the password for lock settings.
[New]: Enter a new 4-digits password using the numerical buttons then press
SELECT/ENTER. Enter the password again to confirm.
[Change]: Enter the new password twice after entering the current password.
Adjust the others settings
PBC (Playback Control) – Playback control provides special navigation features that are available on some disc. Select [On] to use this feature.
DivX (R) Registration - We provide you with the DivX® VOD (Video On
Demand) registration code that allows you to rent and purchase videos using
the DivX® VOD service.
For more information, visit www.divx.com/vod.
Press SELECT/ENTER when [Select] icon is highlighted and you can view the
registration code of the unit.
Semi Karaoke (optional) - When a chapter/ title / track is fully finished, this
function shows the score in the screen with a fanfare sound.
• Semi Karaoke on : Turn the “Semi Karaoke” function on.
When you finished singing a score will appear on the screen.
• Semi Karaoke off : Turn the “Semi Karaoke” function off.
Fanfare and score do not appears on the screen
Available discs for the Semi Karaoke function:
- DVD, DVD Karaoke discs with more than 2 tracks
- This function operate on the DVD/CD mode.
- The Semi Karaoke function is available only when a microphone is connected.
- When you watching movies, “off ” the Semi Karaoke at the SETUP menu and
enjoy it without connecting the MIC if the fanfare or score appears during
changing a chapter.
Bit Rate - Select Bit Rate signal speed 96kbps or 128kbps (Rec. Bit rate)
DVD Micro Hi-Fi System ] USER GUIDE
11
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 12
Setting the Clock
Displaying Disc Information
ON REMOTE
1. Press:
DISPLAY
2. Select a item:
vV
3. Adjust the Display menu settings:
bB
4. To return the exit
DISPLAY
Displaying Disc Information - more you can do
You can select an item by pressing vV and change or select the setting by
pressing b B.
Current title (or track)
number/total number of titles (or tracks)
Current chapter number/total number of chapters
Elapsed playing time
Selected audio language or channel
Selected subtitle
Selected angle/total number of angles
Selected Sound mode
Symbol Used in this Manual
All discs and file listed below
ALL
MP3 files
MP3
DVD and finalized DVD±R/RW
DVD
WMA files
WMA
DivX files
DivX
Audio CDs
ACD
12
DVD Micro Hi-Fi System ] USER GUIDE
1. Turn the power on:
2. Press for at least 2 seconds:
3. Choose from either:
AM 12:00 (for an am and pm
display) or 0:00 (for a 24 hour
display)
4. Confirm your selection:
5. Select the hours:
6. Press:
7. Select the minutes:
8. Press:
ON PLAYER
ON REMOTE
1/I
1 POWER
CLOCK
.or >
SET
.or >
SET
.or >
SET
Use your player as an alarm clock
Press and hold TIMER for two seconds. Each function, DVD/CD,USB
TAPE,TUNER flashes for two seconds. Press SET when the function you
want to be woken by is showing.
If you choose TUNER, “PLAY” and “REC” flashes in the display window
alternately. Choose one of them by pressing SET and then, select the
preset using .or > and press SET.
If you choose DVD/CD,USB or TAPE you will be shown below.
You will be shown the “ON TIME” display. This is where you set the time
you want the alarm to go off. Use .or > to change the hours and
minutes and SET to save. You will then be shown the “OFF TIME” display. This is where you set the time you want the function to stop. Use
.or > to change the hours and minutes and press SET to save.
Next you will be shown the volume (VOL) you want to be woken by.
Use .or > to change the volume and SET to save. Switch the system off. The clock icon shows that the alarm is set.
When the system is turned off you can check the time the alarm is set for
by pressing TIMER. You can also turn the alarm on and off by pressing
TIMER. To set the alarm to go off at a different time, switch the system on
and reprogramme following the same steps as initially.
NOTE : If the DISC 1 tray is emptied in the CD alarm setting,it will not be
operate.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 13
Fall asleep while listening to your player
EQ (EQUALIZER Effect) :
You can set the unit to turn off automatically at a specified time.
Each time you press SLEEP the setting changes in the following order.
(DIMMER ON)→SLEEP 180 →150 →120→90 →80 → 70 → 60→ 50 → 40 → 30 → 20 →10
→(DIMMER OFF)
You can choose 8 fixed sound impressions.
Each time you press the button the setting changes in the display window as
shown below. (AUTO EQ operates only in the MP3/ WMA files which include
the Tag information. )
- “XTS ON” supports for 5.1 channel or more.
NORMAL → NATURAL→ (AUTO EQ )→ POP → CLASSIC →
ROCK → JAZZ →(XTS ON) → NORMAL...
DIMMER
Press SLEEP once. The LED (Light-emitting diode) of front panel is turned off
and the display window will be darken by half. To cancel it, press SLEEP
repeatly until dim off.
Setting the sound mode
XDSS - PLUS (Extreme Dynamic Sound System)
Press XDSS- PLUS to reinforce treble, bass and the surround effect. The
“XDSS ON” or “NORMAL” indicator lights.
This function optimizes for compressed MP3 files
DVD
DivX
ACD : XDSS ON ↔ NORMAL
WMA
MP3 : XDSS ON → MP3 -- OPT ON
→ NORMAL → XDSS ON .
VSM (VIRTUAL SOUND MATRIX ) :
Press VSM to set the virtual sound or to change sound mode repeatedly.
• 2.1Ch source : 3D STEREO
Real time 3D positioned sound rendering technology with stereo sources,
optimized for stereo speakers. Listeners may experience amazing virtual
surround effects with their own multimedia players.
BYPASS → VIRTUAL→ ON STAGE →PLII MOVIE→PLII MUSIC →
PLII MTRX → BYPASS (XD533 model)
BYPASS → VIRTUAL→ ON STAGE → BYPASS (XD203 model)
Note
When you connect a headphone with 'VSM' chosen, the mode changes into
'BYPASS'. It returns to VSM when you disconnect the headphone.
• 5.1 Ch Source : Multichannel sound
The Multichannel sound changes the sound in 5.1 ch into a virtual one in
the 10.1 ch so that it provides such a feeling that you listen to the sound
simultaneously from the right and left speakers and center speaker.
BYPASS →VIRTUAL → BYPASS
Note
• When you connect a headphone to set with one of the EQ modes chosen,
the EQ button does not work.
• When you connect a headphone with 'regional EQ' chosen, the mode
changes into 'NORMAL'. It returns to regional EQ when you disconnect the
headphone.
VOCAL FADER (Optional)
You can enjoy the function as karaoke, by reduing singer vocal of music in the
various source. MP3/WMA/CD/ DTS(XD533)/DD(Dolby Digital) etc. except for
Karaoke mode.
- This function available to use only when a microphone is connected.
Press VOCAL FADER button then you can see “FADE ON”or “FADE OFF” on
the front display.
- This function supports for 2 channel or more.
Using Microphone (Optional)
You can sing to a music source by connecting a microphone to the unit.
Connect your microphone to the MIC1/ MIC 2 Jacks.
“
” will be shown in the display window.
Play the music you want.
Sing along with the accompaniment.
Adjust the microphone volume by pressing MIC volume button. (MIN,1 - 14, MAX steps)
Note
• When not using the microphone, set the MIC VOL. volume button to minimum or turn off the MICs and remove the microphone from the MIC Jacks.
• If the microphone is set too near the speaker, a howling sound may be produced. In this case, move the microphone away from the speaker or
decrease the sound level by using the MIC VOL. volume button.
• If sound through the microphone is extremely loud, it may be distorted. In
this case, press the MIC VOL. volume button toward minimum.
To Adjust WOOFER Volume. (XD533 only)
You can adjust sound of the subwoofer to enhance the bass
Press WOOFER VOL. button on the front panel to increase the woofer volume
or decrease it. (MIN,-11 - +11, MAX steps)
DVD Micro Hi-Fi System ] USER GUIDE
13
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 14
Playing a Disc
ON REMOTE
ON PLAYER
1. Open the disc tray:
OPEN
2. Insert a Disc:
4. Select one disc of five:
DVD
During playback, press S-TITLE (
guage.
) repeatedly to select a desired subtitle lan-
DivX
Fast forward or fast reverse
-
3. Close the disc tray:
Selecting a subtitle language
DVD
OPEN
DISC1 ~ DISC5
D.SEL and Tray No.
5. To Start playback:
B
B
6. To stop playback:
STOP/DEMO.
x STOP
DivX
ACD
WMA
MP3
Press SCAN (m or M) to play fast forward or fast reverse during playback.
You can change the various playback speed by pressing SCAN (m or M)
repeatedly. Press PLAY ( N) to continue play at normal speed.
Watch and listen 1.5 times faster
DVD
ACD
WMA
MP3
Playing a Disc - more you can do
Press PLAY when a disc is already playing to watch and listen to a DVD 1.5
times faster than normal playback speed. B x1.5 will appear on the screen.
Press PLAY again to return to normal playback speed.
Playing a DVD that has a menu
Slow down the playing speed
DVD
Most DVD now have menus which load first before the film begins to play. You
can navigate these menus using vV b B to highlight an option.
Press SELECT/ENTER to select.
Skip to the next/previous chapter/track
ALL
Press SKIP (>) to move to the next chapter/track.
Press SKIP (.) to return to the beginning of the current chapter/track.
Press SKIP (.) twice briefly to step back to the previous chapter/track.
Pause a playback
Press PAUSE/STEP (X) to pause playback. Press PLAY ( N) to continue
playback.
Frame-by-Frame playback
DVD
DivX
Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback.
Playing repeatedly
ALL
Press REPEAT repeatedly to select an item to be repeated. The current title,
chapter or track will be played back repeatedly. To return to normal playback,
press REPEAT repeatedly to select [Off].
DivX : Track → All→ Off
ACD
WMA
MP3 :TRACK → ALL→ [OFF No display ]
DVD :Chapter → Title → Off
14
Viewing the title menu
DVD Micro Hi-Fi System ] USER GUIDE
DVD
Press TITLE to display the disc's title menu, if available.
Viewing the DVD menu
ALL
DVD
While playback is paused, press SCAN (M) to slow down forward playback.
You can change the various playback speed by pressing SCAN (M) repeatedly. Press PLAY ( N) to continue play at normal speed.
DVD disc can operate Slow down Forward/ Reverse playback only.
DVD
Press MENU to display the disc menu, if available.
Starting play from selected time
DVD
DivX
Searches for the starting point of entered time code. Press DISPLAY then
select clock icon. Enter a time then press SELECT/ENTER. For example, to
find a scene at 1 hours, 10 minutes, and 20 seconds, enter "11020" and press
SELECT/ENTER. If you enter the wrong number, press CLEAR to enter again.
XD533_203-A0U_ENG_LGEOK_8845
Last Scene Memory
8/21/08
9:55 AM
Page 15
Playing a DivX movie file - more you can do
DVD
This unit memorizes last scene from the last disc that is viewed. The last scene
remains in memory even if you remove the disc from the player or switch off
the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.
Screen Saver
The screen saver appears when you leave the unit in Stop mode for about five
minutes.
System Select
You must select the appropriate system mode for your TV system. Remove any
disc that might be in the unit, press and hold PAUSE/STEP (X) for more than
five seconds to be able to select a system (PAL, NTSC, AUTO).
Mixed disc or USB Flash Drive – DivX, MP3/WMA and JPEG
When playing a disc or USB Flash Drive contained with DivX, MP3/WMA and
JPEG files together, you can select which menu of files you would like to play
by pressing TITLE.
Playing a DivX movie file
ON PLAYER
1. Open the disc tray:
2. Insert a Disc:
ON REMOTE
Changing the character set to display DivX® subtitle correctly
If the subtitle does not display properly,press and hold S-TITLE button about
3seconds to display the language code menu and then,press S-TITLE button
repeatly to change the language code until the subtitle is displayed properly.
DivX disc compatibility with this player is limited as follows:
• Available resolution size of the DivX file is under 800x600 (W x H) pixel.
• The file name of the DivX subtitle is available by 45 characters.
• If there is impossible code to express in the DivX file, it may be displayed as
" _ " mark on the display.
• If the number of the screen frame is over 30 per 1 second, this unit may
not operate normally.
• If the video and audio structure of recorded files are not interleaved,
either video or audio is outputted.
Playable DivX file : ".avi ", ".mpg ", ".mpeg ", ".divx"
Playable Subtitle format : SubRip(*.srt/*.txt) ,SAMI(*.smi), SubStation
Alpha(*.ssa/*.txt) MicroDVD(*.sub/*.txt) SubViewer 2.0(*.sub/*.txt)
VobSub(*.sub)
Playable Codec format : "DIVX3.xx ", "DIVX4.xx ", "DIVX5.xx ", "MP43 ",
"3IVX ".
Playable Audio format : "AC3 ", "DTS (XD533) ", "PCM ", "MP3 ", "WMA ".
• Sampling frequency: within 32 - 48 kHz (MP3),within 32 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)
Listening to Audio CD, MP3 or WMA files
OPEN
ON PLAYER
-
3. Close the disc tray:
OPEN
4. Select a movie file from the
menu:
.>
1. Open the disc tray:
2. Insert a Disc:
vV
5. To Start playback:
B
SELECT/ENTER
6. To stop playback:
STOP/DEMO.
x STOP
ON REMOTE
OPEN
-
3. Close the disc tray:
OPEN
4. Select a music file from the
menu:
.>
vV
5. To Start playback:
B
B PLAY
6. To stop playback:
STOP/DEMO.
x STOP
DVD Micro Hi-Fi System ] USER GUIDE
15
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 16
Listening to Audio CD, MP3 or WMA files more you can do
Viewing photo files
ON REMOTE
ON PLAYER
Creating your own program
1. Open the disc tray:
You can play the contents of a disc in the order you want by arranging the order
of the musics on the disc. The program is cleared when the disc is removed.
Select a desired music then press PROG./MEMO. or select “
“ and then
press SELECT/ENTER to add the music to the program list. To add all music in
the disc, select “
” and then press SELECT/ENTER. Select a music from the
program list then press SELECT/ENTER to start programmed playback.To clear
a music from the program list, select the music you want to clear then press
CLEAR or select “
” icon and then press SELECT/ENTER. To clear all music
from the program list, select "
" then press SELECT/ENTER.
2. Insert a Disc:
Displaying file information (ID3 TAG )
Viewing photo files - more you can do
While playing a MP3 file containing file information, you can display the information by pressing DISPLAY repeatedly.
MP3 / WMA disc compatibility with this player is limited as follows:
• Sampling frequency: within 32 - 48 kHz (MP3), within 24 - 48kHz (WMA)
• Bit rate: within 32 - 320kbps (MP3), 40 - 192kbps (WMA)
• The unit cannot read an MP3/WMA file that has a file extension other than
“.mp3” / “.wma”.
• CD-R physical format should be ISO 9660
• If you record MP3 / WMA files using software that cannot create a file system
(eg. Direct-CD) it is impossible to playback MP3 / WMA files.We recommend
that you use Easy-CD Creator, which creates an ISO 9660 file system.
• File names should have a maximum of 8 letters and must incorporate an
.mp3 or .wma extension.
• They should not contain special letters such as / ? * : “ < > l etc.
• The total number of files on the disc should be less than 999.
This unit requires discs and recordings to meet certain technical standards in
order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain
pre-existing conditions (see above) to ensure compatible playback.
Customers should note that permission is required in order to download
MP3 / WMA files and music from the Internet. Our company has no right
to grant such permission. Permission should always be sought from the
copyright owner.
16
DVD Micro Hi-Fi System ] USER GUIDE
OPEN
-
3. Close the disc tray:
OPEN
4. Select a photo file on
the menu:
.>
5. Display the selected
file in full screen:
6. To stop playback:
vV
B
SELECT/ENTER
STOP/DEMO.
x STOP
Viewing photo files as a slide show
Use vV b B to highlight (
show.
) icon then press SELECT/ENTER to start slide
You can change slide show speed using b B when (
) icon is highlighted.
Skip to the next/previous photo
Press SKIP (. or >) to view the previous/next photo.
Rotate a photo
Use vV b B to rotate the photo in full screen.
Pause a slide show
Press PAUSE/STEP (X) to pause a slide show. Press PLAY to continue the
slide show.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 17
JPEG disc compatibility with this player is limited as follows:
Listening to the radio - more you can do
• Depending upon the size and the number of JPEG files, it could take a long
time for the this unit. to read the disc’s contents. If you don’t see an onscreen display after several minutes, some of the files may be too large —
reduce the resolution of the JPEG files to less than 2M pixels as 2760 x
2048 pixels and burn another disc.
• The total number of files and folders on the disc should be less than 999.
• Some discs may not operate due to a different recording format or the condition of disc.
• Ensure that all the selected files have the “.jpg” extensions when copying
into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” file.
• File names without “.jpg” extension will not be able to be read by this unit.
Even though the files are shown as JPEG image files in Windows Explorer.
Look for radio stations automatically
Press TUNING - /TUNING + on the front panel (or press TUN.- /TUN.+ on
the remote control) for more than 0.5 second. The tuner will scan automatically and stop when it finds a radio station.
Delete all the saved stations
Press and hold PROG./MEMO. for two seconds. “ERASE ALL” shows.
Press PROG./MEMO. to erase all the saved stations.
Choose a ‘preset number’ for a radio station
Select a station you want by pressing TUNING- /TUNING + on the front
panel or TUN.- /TUN.+ on the remote control. Press PROG./MEMO., the
station flashes. Press PRESET (+/-)on the remote control to select the
preset number you want. Press PROG./MEMO. to save it.
Improve poor FM reception
Press PLAY B on the remote control This will change the tuner from
stereo to mono and usually improve the reception.
See information about your radio stations - OPTIONAL
Listening to the radio
1. Select FM/ AM:
2. Select the radio station:
3. To ‘save’ a radio station:
A preset number will show in
the display
4. To select a ‘saved’ station:
5. To confirm press:
Up to 50 radio stations can be
saved
ON PLAYER
ON REMOTE
FUNCTION
TUNING - / +
FUNCTION
TUN.- / TUN.+
The FM tuner is supplied with the Radio Data System (RDS) facility. This
shows the letters RDS on the display, plus information about the radio station being listened to. Press RDS on the remote control several times to
view the information.
PTY - Programme Type, such as News, Sport, Jazz .
RT - Radio Text, the name of the radio station.
CT - Time Control, the time at the location of the radio station.
PS - Programme Service name, the name of channel.
You can search the radio stations by programme type by pressing RDS.
The display will show the last PTY in use. Press PTY one or more times to
select your preferred programme type. Press and hold .>. The tuner
will search automatically. When a station is found the search will stop
PROG./MEMO.
PRESET(+/-)
PRESET(+/-)
PROG./MEMO.
DVD Micro Hi-Fi System ] USER GUIDE
17
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 18
Tape Recording
Listening to the cassette tapes
ON PLAYER
1. Open the tape door:
2. Insert the tape:
3. Close the tape door:
4. Select the TAPE function:
5. Start the tape playing:
6. To stop a tape playing:
ON REMOTE
Recording from Audio CD to cassette
Z PUSH EJECT
ON PLAYER
ON REMOTE
1. Open the tape door:
2. Insert a blank tape:
3. Close the tape door:
4. Selects the (DVD/CD) mode
Z PUSH EJECT
FUNCTION
FUNCTION
USB Rec.
z/[]
Listen to cassette tapes - more you can do
5 Press:
Appears “USB REC”or “TAPE
REC” on the display window
Play Fast backward or Forward
6. Selects “TAPE REC”
USBRec.
z/[]
7. To stop a Recording:
STOP/DEMO.
x STOP
FUNCTION
FUNCTION
B or b
STOP/DEMO.
B or B one more
x STOP
After pressing .or > (bbor BB on the remote control) during playback, or stop,press B or b ( B or b again on the remote) at a point you
want.
Recording from other source to cassette
ON PLAYER
Auto Stop Deck :
After playing one side of the tape, the unit stop automatically.
Auto Reverse Deck :
You can select direction of the cassette you want by pressing the
REVERSE MODE button repeatedly.
Press FUNCTION to select Tape .You can set the tape to play one
side
, both sides
, or both sides six times
, by pressing
REVERSE MODE one or more times.
18
DVD Micro Hi-Fi System ] USER GUIDE
1. Open the tape door:
2. Insert a blank tape:
3. Selects the (TUNER/AUX/
TV-AUDIO (Optional) /USB)
function:
4. Press: “REC” will blink on the
display window.
ON REMOTE
Z PUSH EJECT
FUNCTION
FUNCTION
USB Rec.
z/[]
5. To Start the Recording:
USB Rec.
z/[]
6. To pause a Recording:
USB Rec.
z/[]
To stop a Recording:
STOP/DEMO.
x STOP
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 19
CD Synchronized Recording
ON PLAYER
1. Open the tape door:
2. Insert a blank tape:
3. Select the DVD/CD function:
4. Start the Recording in the
stop mode :
The synchronized recording is
started automatically after
about 7 seconds.
5. To stop a Recording:
ON REMOTE
Z PUSH EJECT
FUNCTION
CD SYNC
STOP/DEMO.
FUNCTION
x STOP
Listening to music from your
portable player
Connecting your portable
USB player
The advantage of connecting your portable USB player through the
system’s USB port is that the portable device can be controlled from the
system. Connect the portable player to the system using a USB cable
(not supplied).
1. Select the USB function:
2. The display will show
“SEARCHING”, followed by the
number of files displayed:
3. Select a Title MENU
4. start selected file
5. Before disconnecting the
portable USB player, change to
any other function by pressing:
6. Remove the USB player
ON PLAYER
ON REMOTE
FUNCTION
INPUT
B
FUNCTION
TITLE
SELECT/ENTER
FUNCTION
or
INPUT
Compatible USB Devices
The player can be used to play
the music from many types of
portable player.
• Devices which require additional program installation when you have connected it to a computer, are not supported.
• MP3 Player : Flash type MP3 player.
The MP3 player requiring installation of a driver is not supported.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
USB device requirement
1. Connect the portable player by
plugging the unit into PORTABLE
IN on the side of the player:
2. Turn the power on:
3. Select the PORTABLE function:
4. Turn the portable player on and
start it playing:
ON PLAYER
ON REMOTE
1 /]]
FUNCTION
1 POWER
INPUT
• Do not extract the USB device in operating.
• A back up demands to prevent a data damage.
• If you use a USB extension cable or USB hub, the USB device might not be
recognized.
• A device using NTFS file system is not supported. (Only FAT (16/32) file system is supported.)
• The USB function of this unit does not support all USB devices.
• Digital camera and mobile phone are not supported.
• This unit is not supported when the total number of files is 1000 or more.
• If the drive of USB device is two or more, a drive folder is displayed on the
screen. If you want to move to the previous menu after you select a folder,
press RETURN.
DVD Micro Hi-Fi System ] USER GUIDE
19
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 20
USB DIRECT RECORDING
Record AUDIO CD source to USB
This function enable you to record music to a connected USB storage
device from Audio CD
ON PLAYER
ON REMOTE
FUNCTION
FUNCTION
or
INPUT
2. Select the track (file) :
./>
./>
3. Press Appears “USB REC”or
“TAPE REC” on the display window.
USB Rec.
z/[]
1. Select the DVD/CD mode:
4. Selects “USB REC”
5. To stop a Recording:
USB Rec.
z/[]
STOP/DEMO.
x STOP
USB Direct Recording - more you can do
Record AUDIO CD source to USB
One track recording : If the usb recording is played during playback of
the cd, the only track would be recording into the USB
All track recording: If the USB Rec. button is pressed at the CD stop, all
track would be recording.
Program list recording: USB Records after selecting the tracks pressing
the PROG./MEMO. button if you want to record the tracks you want.
20
DVD Micro Hi-Fi System ] USER GUIDE
NOTES :
- When you start the USB direct recording ,you can check the Recording
percentage rate for the USB record on the display window during the
recording.
- During the recording is no sound and not operate for volume .
- When you stop recording during playback ,the file that has been recorded
at that time will be stored
- If you disconnect the USB without STOP button while recording ,the file
can not delete in the PC.
- It is impossible to record from “ MIC IN”
- Playable USB REC. Bit rate : 96/128kbps (Refer to the SET UP page)
- During USB record can not operate Pause key for Audio CD only.
- Multicard reader device can not be use for USB record.
- USB port of the unit can not be connected to PC. The unit can not be
used as a storage device.
- If the USB can not record appears “NO USB”.“ERROR”,“USB FULL” ,
“NO REC” on the display window.
- File will be stored to CD_REC folder in a format “TRK_001.mp3”.
- In the state CD-G ,DTS disc USB Record is not operated.
- If you record more 999 files on CD_REC folder appears “ERROR” on the
display.
- New files are numbered in numeric sequence. if the total number of the
files are more than 999, delete some or store some in PC.
- External HDD,Card reader, Locked device and MP3 player is not supported.
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offence.
This equipment should not be used for such purposes.
Be responsible
Respect copyrights
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 21
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Language
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali, Bangla
Bhutani
Bihari
Breton
Bulgarian
Burmese
Byelorussian
Chinese
Code
6565
6570
8381
6577
6582
7289
6583
6588
6590
6665
6985
6678
6890
6672
6682
6671
7789
6669
9072
Language
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Code
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
Language
Hausa
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
Irish
Italian
Javanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Code
7265
7387
7273
7285
7383
7378
7365
7165
7384
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Language
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Oriya
Panjabi
Pashto, Pushto
Persian
Polish
Portuguese
Code
7678
7684
7775
7771
7783
7776
7773
7782
7779
7778
7865
7869
7879
7982
8065
8083
7065
8076
8084
Language
Quechua
Rhaeto-Romance
Rumanian
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Shona
Sindhi
Singhalese
Slovak
Slovenian
Spanish
Sudanese
Swahili
Swedish
Tagalog
Code
8185
8277
8279
8285
8377
8365
7168
8382
8372
8378
8368
8373
8375
8376
6983
8385
8387
8386
8476
Language
Tajik
Tamil
Telugu
Thai
Tonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Code
8471
8465
8469
8472
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Area Codes
Choose a area code from this list.
Area
Afghanistan
Argentina
Australia
Austria
Belgium
Bhutan
Bolivia
Brazil
Cambodia
Canada
Chile
China
Colombia
Congo
Code
AF
AR
AU
AT
BE
BT
BO
BR
KH
CA
CL
CN
CO
CG
Area
Costa Rica
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
Ethiopia
Fiji
Finland
France
Germany
Great Britain
Greece
Code
CR
HR
CZ
DK
EC
EG
SV
ET
FJ
FI
FR
DE
GB
GR
Area
Greenland
Hong Kong
Hungary
India
Indonesia
Israel
Italy
Jamaica
Japan
Kenya
Kuwait
Libya
Luxembourg
Malaysia
Code
GL
HK
HU
IN
ID
IL
IT
JM
JP
KE
KW
LY
LU
MY
Area
Maldives
Mexico
Monaco
Mongolia
Morocco
Nepal
Netherlands
Netherlands Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Code
MV
MX
MC
MN
MA
NP
NL
AN
NZ
NG
NO
OM
PK
PA
Area
Paraguay
Philippines
Poland
Portugal
Romania
Russian Federation
Saudi Arabia
Senegal
Singapore
Slovak Republic
Slovenia
South Africa
South Korea
Spain
Code
PY
PH
PL
PT
RO
RU
SA
SN
SG
SK
SI
ZA
KR
ES
Area
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
Turkey
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
DVD Micro Hi-Fi System ] USER GUIDE
Code
LK
SE
CH
TW
TH
TR
UG
UA
US
UY
UZ
VN
ZW
21
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 22
Troubleshooting
Symptom
POWER
No power
Cause
The power cord is not plugged in.
Correction
Plug in the power cord.
RADIO
No sound
Some noise occurs.
The function switch is not set to the Radio mode.
There are electronic devices near the player.
Set the switch to the Radio mode.
The antenna is positioned or connected poorly
Check the anntena connection and adjust its position
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the guide.
Insert a playable disc.
Place the disc with the playback side down.
Place the disc on the disc tray correctly inside the guide.
Clean the disc.
Select the apporate video input model on the TV so the
picture from the unit appears on the TV
Set the player far from the devices.
DVD/CD
The unit does not start playback
No picture
The TV is not set to receive the video signal
REMOTE CONTROL
The remote control does
not work properly.
The remote control is not pointed at the remote sensor of
the unit directly.
Point the remote control to front panel directly of the
unit.
The batteries in the remote control are exhausted.
Replace the batteries with new ones.
TAPE
Unable to record
22
Record protect tabs are removed.
DVD Micro Hi-Fi System ] USER GUIDE
Cover holes on back edge of tape with tap.
XD533_203-A0U_ENG_LGEOK_8845
8/21/08
9:55 AM
Page 23
Specifications
General
Power supply
Power consumption
Net Weight
External dimensions (W x H x D)
Operating conditions
Operating humidity
Refer to main label.
Refer to main label.
5.7 kg
190 x 291 x 352 mm
Temperature: 5°C to 35°C, Operation status: Horizontal
5% to 85%
Tuner
FM Tuning Range
Intermediate Frequency
AM Tuning Range
Intermediate Frequency
87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
10.7 MHz
522 - 1,620 kHz or 520 - 1,720 kHz
450 kHz
Amplifier
OUTPUT POWER
Front*: 100 W + 100 W (4Ω, THD 10 %)
Center: 60 W(8Ω,THD 10 %)
Rear *: 60 W + 60 W(8Ω, THD 10 %)
Subwoofer*: 150 W (3Ω at 30 Hz, THD 10 %)
DVD/CD player
Frequency response (audio)
Signal-to-noise ratio (audio)
Signal-to-noise ratio (video)
Dynamic range (audio)
Video output
Component Video output
Cassette tape player
40 - 20000 Hz
More than 75 dB (1 kHz)
More than 55 dB (1 kHz)
More than 80 dB
1.0 V (p-p), 75 Ω
(Y) 1.0 V (p-p), 75 Ω
(Pb)/(Pr) 0.7 V (p-p), 75 Ω
F.F/REW Time
Frequency Response
Signal to Noise Ratio
Channel Separation
Erase Ratio
120 sec (C-60)
250 - 8000 Hz
43 dB
45 dB (P/B)/45 dB (R/P)
50dB (MTT-5511)
Speakers
Type
Impedance
Rated Input Power
Max. Input Power
Net Dimensions (W x H x D)
Net Weight
XDS203V
XDS533V
Front Speaker
2 Way 3 Speaker
4Ω
100 W
200W
190 x 356 x 280 mm
4.6 kg
XDS533S
Rear Speaker
1 Way 1 Speaker
8Ω
60 W
120 W
108x 179 x 117 mm
1.15 kg
XDS533C
Center Speaker
1Way1Speaker
8Ω
60 W
120 W
286 x 86 x 80 mm
0.78 kg
XDS533W
Passive Subwoofer
3Ω
150 W
300 W
197 x 356 x 260 mm
5.35kg
Designs and specifications are subject to change without
pior notice.
DVD Micro Hi-Fi System ] USER GUIDE
23
XD533_203-A0U_ENG_LGEOK_8845
P/NO : MFL39518845
8/21/08
9:55 AM
Page 24
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
