LG | L330-DP | LG L330-DP Owner’s Manual

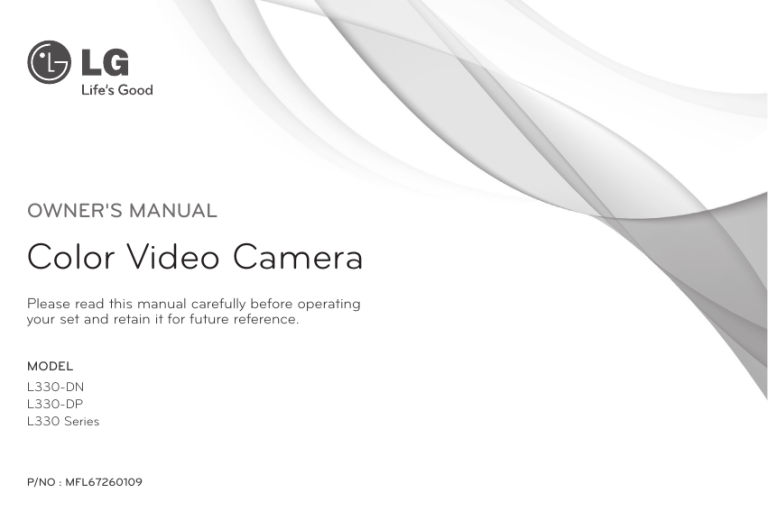

OWNER'S MANUAL
Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
L330-DN
L330-DP
L330 Series
P/NO : MFL67260109
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
2
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
•
A suitable conduit entries, knock-outs or glands shall
be provided in the cable entries of this product in the
end user.
•
•
Caution: Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall be
provided with brushings.
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
Caution: This installation should be made by a qualified
service person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To disconnect power from mains, pull out the mains
cord plug. When installing the product, ensure that the
plug is easily accessible.
Warning: Do not install this equipment in a confined space
such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the
National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
3
LG Electronics hereby declares
that this/these product(s) is/are
in compliance with the essential
requirements and other relevant
provisions of Directive 2004/108/EC
and 2011/65/EU.
European Standards Centre:
Krijgsman 1, 1186 DM Amstelveen The
Netherlands
Disposal of your old appliance
1.
2.
3.
4
This crossed-out wheeled bin symbol
indicates that waste electrical and
electronic products (WEEE) should
be disposed of separately from the
municipal waste stream.
Old electrical products can contain hazardous
substances so correct disposal of your old appliance
will help prevent potential negative consequences
for the environment and human health. Your old
appliance may contain reusable parts that could be
used to repair other products, and other valuable
materials that can be recycled to conserve limited
resources.
You can take your appliance either to the shop
where you purchased the product, or contact your
local government waste office for details of your
nearest authorised WEEE collection point. For the
most up to date information for your country please
see www.lg.com/global/recycling
•
Please note that this is NOT a Customer Service
contact point. For Customer Service Information, see
Warranty Card or contact the dealer that you purchased this product.
Important Safety Instructions
1.
Read these instructions.
and the point where they exit from the apparatus.
2.
Keep these instructions.
3.
Heed all warnings.
11. Only use attachments/accessories specified by the
manufacturer.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
5
Cautions for Safe Operation
Power Supply
Operating and storage location
This camera must always be operated a DC 12 V
Certified/Listed, class 2 power supply only.
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing the
unit in the following locations.
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be
cautions not to get combustible or metallic material inside
the body. If used with foreign matter inside, the camera is
liable to fail or to get cause of fire or electric shock.
•
Remove dust or dirt on the surface of the lens with a
blower.
Use a dry soft cloth to clean the body. If it is very dirty,
use a cloth dampened with a small quantity of neutral
detergent then wipe dry.
Avoid the use of volatile solvents such as thinners,
alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the
operation of the camera.
•
•
6
•
•
•
•
•
Extremely hot or cold places (operating temperature
-10 °C to 50 °C, however, we recommend that the unit
be used within a temperature range of 0 °C to 45 °C)
Damp or dust place
Places exposed to rain
Places subject to strong vibration
Close to generators of powerful electromagnetic
radiation such as radio or TV transmitters.
Contents
Features.................................................................. 8
Part Names and Functions.................................... 9
OSD Menu Overview....................................................17
Specification........................................................ 33
Connections......................................................... 10
Precautions......................................................................10
Connection Overview..................................................10
Connecting Display device........................................11
Connecting Power Source..........................................11
Mounting the Lens........................................................12
Flange-back Adjustment .........................................14
Mounting the camera..................................................15
Menu Operation.................................................. 16
OSD Menu control buttons........................................16
7
Features
This Camera is designed for installation in an video
surveillance system.
This manual contains instructions on how to install and
manage the Color Video Camera in your video surveillance
system. Should you require any technical assistance, please
contact authorized service center.
•
•
•
•
High resolution and high sensitivity with a 6 mm CCD.
650 TV lines of horizontal resolution.
BLC covers various light conditions
Excellent signal-to-noise ratio of 50 dB
8
Part Names and Functions
b Flange-back adjustment ring
a b cde
c Camera installation bracket
The bracket can be fixed at the top or bottom of the
camera.
d Lens iris output connector (LENS)
This 4- pin connector is used to send the Iris control
signal and power supply to an auto-iris type lens.
e Setup menu control buttons
Use these buttons to set the menu options.
f Power input terminal
g
h
f
Supplies DC 12 V only from an external power source.
g Video output connector (BNC type)
Supplies analog video signal (composite) to the
connected device such as a DVR or monitor.
h Power indicator
Lights when the camera is powered.
a Lens mount cap
The lens mount of the camera is covered using a cap
to protect it. Remove the lens cap covering the lens.
9
Connections
Precautions
•
•
•
Be sure to switch off the unit before installation and connection.
A qualified service person, complying with all applicable codes, should perform all required hardware installation.
Do not expose the power and connection cable to moisture, which may cause damage to the unit.
Connection Overview
10
Connections
Connecting Display device
Connecting Power Source
The video signal connection between the camera and the
monitor.
Connect power, using the method listed below:
1. Remove the insulation on the power cable as
illustrated. (a)
2. Attach the terminal tips. (b)
3. Connect to the DC 12 V UL Listed,
Class 2 Power Supply only on the unit.
11
Connections
Mounting the Lens
era opening and turn the lens slowly to install it.
1. Remove the lens mount cap from the camera.
2-2
2-1
2. Install the auto-iris lens.
2-1. CS mount type lens
2-2
Carefully align the lens mount with the camera
opening, then turn the lens slowly to install it.
2-2. C mount type lens
2-1
12
To allow for flange- back adjustment, install the
C-mount adaptor (option) on the lens mount,
then carefully align the lens mount with the cam-
3.
Connect the lens plug to the lens iris output
connector (LENS) on the side of the camera.
When using lenses from other makers, the plug shape
may not correspond to the terminal on the camera.
In such a case, remove the original plug and using a
soldering iron, connect a lens iris plug according to
the diagram. (Refer to next page.)
Connections
lens iris output connector
Rewire the lens iris plug
Pin layout for the lens iris output connector.
1. Cut off the plug of the lens cable, cut off
approximately 8 mm of the insulation, and then
strip approximately 2 mm of the ends of the cable
sheaths.
No.
DC type lenses
A
Damping -
B
Damping +
C
Drive +
D
Drive -
2. Solder the ends of the cable wires to the ends of
the pins, and then attach the cover of the lens iris
plug.
13
Connections
Flange-back Adjustment
The adjustment is required only when a lens without
focus-adjusting mechanism is mounted, or when a lens
with adjusting mechanism is mounted and focus that is
more accurate is needed.
1. Loosen the flange-back fixing screws.
3. Tighten the flange-back fixing screws.
Note:
The object may be out of focus when using a source of
near-infrared light than using the visible light.
2. Use the flange-back adjusting ring to obtain a focused
point while watching the monitor screen.
14
Connections
Mounting the camera
The mounting bracket can be secured on either the top or
bottom of the camera. Use the same set of screws to attach
the mounting bracket on the camera.
Note:
If using a camera mounting bracket, select a location that
is strong enough to bear the full weight of the camera
and the mounting bracket for long periods, and install the
camera and mounting bracket securely.
15
Menu Operation
OSD Menu control buttons
BUTTON
Description
UP button
Used to move upper direction on the
menu screen. Use this button to select
an item or adjust the parameters.
DOWN button
Used to move lower direction on the
menu screen. Use this button to select
an item or adjust the parameters.
This camera utilizes an on-screen user MENU. To set items
on the menu, use the following buttons.
RIGHT button
LEFT button
Moves the cursor to the right. Used to
increment the value selected in the
menu. The parameter changes each
time this button is pressed.
Moves the cursor to the left. Used to
decrement the value selected in the
menu. The parameter changes each
time this button is pressed.
Executes selections and displays a
submenu for an item with the mark.
SET button
16
Menu Operation
OSD Menu Overview
The following table shows the list of menu items and
options. You can adapt the camera to your requirements by setting up the respective items in these menus.
MAIN MENU
SUB MENU
AUTO
LENS
CONTENTS
TYPE
DC
MODE
AUTO/OPEN/CLOSE
SPEED
MANUAL
HIGH LUMINANCE
AUTO
LOW LUMINANCE
MODE
MANUAL
SHUT+AUTO IRIS/AUTO IRIS
BRIGHTNESS
0 to 255
MODE
AGC/OFF
BRIGHTNESS
x0.25,x0.5,x.0.75,x1.0
MODE
SHUTTER/AGC
0 to 255
-
SHUTTER
AGC
SHUT+AGC
NTSC: 1/60, 1/100, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10 000
PAL: 1/50, 1/120, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10 000
6.00,12.00,18.00,24.00,30.00,36.00,42.00,44.80
17
Menu Operation
SPEED
ATW
0 to 255
DELAY CNT
0 to 255
ATW FRAME
x0.5,x1.0,x1.5,x2.0
ENVIRONMENT
PUSH
WHITE BAL
USER1
USER2
BACKLIGHT
18
INDOOR,OUTDOOR
-
B-GAIN
0 to 255
R-GAIN
0 to 255
B-GAIN
0 to 255
R-GAIN
0 to 255
ANTI CR
-
MANUAL
LEVEL 29 to 79
PUSH LOCK
-
OFF
-
BLC
-
HLC
-
Menu Operation
AUTO
DAY/NIGHT
BURST
ON/OFF
DELAY CNT
0 to 255
DAY/NIGHT
0 to 255
NIGHT/DAY
0 to 255
COLOR
B/W
ATR
NR
BURST
ON/OFF
OFF
-
LUMINANCE
LOW/MIDDLE/HIGH
CONTRAST
LOW/MIDDLELOW/MIDDLE/MIDDLEHIGH/HIGH
NR MODE
Y/C,OFF,Y,C
Y LEVEL
0 to 15
C LEVEL
0 to 15
19
Menu Operation
OFF
MOTION
DETECTION
-
DETECT SENSE
0 to 127
BLOCK DISP
OFF/ON/ENABLE
MONITOR AREA
ON
AREA SEL (1 to 4)
ON/OFF
TOP
0 to 244(NTSC), 0 to 288(PAL)
BOTTOM
0 to 244(NTSC), 0 to 288(PAL)
LEFT
0 to 474(NTSC), 0 to 468(PAL)
RIGHT
0 to 474(NTSC), 0 to 468(PAL)
TOP
0 to 244(NTSC), 0 to 288(PAL)
BOTTOM
0 to 244(NTSC), 0 to 288(PAL)
LEFT
0 to 474(NTSC), 0 to 468(PAL)
OFF
-
AREA SEL (1 to 4)
PRIVACY
20
ON
RIGHT
0 to 474(NTSC), 0 to 468(PAL)
COLOR
1 to 8
TRANSPALENT
0.00, 0.50, 0.75, 1.00
MOSAIC
ON/OFF
Menu Operation
PICT ADJUST
MIRROR
OFF/ON
BRIGHTNESS
0 to 255
CONTRAST
0 to 255
SHARPNESS
0 to 255
HUE
0 to 255
GAIN
CAMERA ID
0 to 255
OFF
-
ON
-
SYNC
INT
-
LANGUAGE
-
English (The option depends on the model.)
CAMERA
RESET
-
-
SAVE ALL
-
-
EXIT
-
-
21
Menu Operation
General Operation
LENS Setting
1. Press [SET] button. The setup menu screen appears.
Select the desired lens iris value for camera exposure.
Select AUTO or MANUAL mode from [LENS] menu, and
select a value.
2. Use [UP] or [DOWN] button to select an option then
press [SET] button. Submenu appears on the monitor.
3. Use [LEFT] or [RIGHT] button to select a value.
4. Click [NEXT] button to select next option. Use [BACK]
button to return the previous setup menu.
5. Select [EXIT] option then press [SET] to exit the setup
menu. In the submenu, use [UP] or [DOWN] button
to select the [RETURN] then press [SET] to return to
the previous setup menu. If you want to save settings,
selects [SAVE ALL] option.
•
22
RETURN: Return to the previous.
•
•
AUTO: The lens iris is set automatically.
MANUAL: You can set the electronic shutter value and
AGC value by adjust manual exposure.
Note:
Speed of the LENS can adjust the speed in AUTO
menu.You recommend changing this option with
special DC IRIS adjustment tool and using initial Speed
setting value.
Menu Operation
SHUTTER/AGC Setting
Select the desired shutter speed for camera exposure. And
if the images are too dark, change the maximum AGC value
to make the images brighter. You can change the shutter
speed to higher speed to capture fast-moving subjects,
though the image becomes darker.
1. Select [SHUTTER/AGC] option.
2. Use [LEFT] or [RIGHT] button to select a mode.
•
AUTO: Use for masking brightness of the specific
area to view the subject more clearly. You can
select both high luminance and low luminance
scene.
High Luminance
Low Luminance
>> MODE: You
can select the
mode between
SHUT+AUTO IRIS
and AUTO IRIS. We
recommend to
use SHUT+AUTO
IRIS mode
in Outdoor
environment, and
use AUTO IRIS
indoors.
>> BRIGHTNESS:
You can increase
the brightness
of the darkened
Video by increase
brightness value.
>> MODE: You can
select the mode
between AGC and
OFF.
>> BRIGHTNESS:
You can increase
the brightness
of the darkened
Video by increase
brightness value.
23
Menu Operation
•
MANUAL: You can set the Shutter and AGC
options manually.
>> SHUTTER: Select the desired shutter speed
for camera exposure. You can change the
shutter speed to higher speed to capture
fast-moving subjects, though the image
becomes darker.
>> AGC: If the images are too dark, change the
maximum [AGC] value to make the images
bright.
White Balance Setting
Select the method by which the camera shifts its output
colors to compensate for the color of a light source.
•
24
ATW (Auto-Tracing White Balance): The color
tem¬perature range for the proper white balance
is approximately 1 800 K to 10 500 K. Proper
white balance may not be obtained under the
following conditions:
>> The color temperature is out of the 1 800 K
to 10 500 K range.
>> the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
Menu Operation
>>
>>
•
When the scene is dim.
SPEED: Use [LEFT] or [RIGHT] to set the ATW
pull-in speed. If you select high value, ATW
pull-in speed becomes higher.
>> DELAY CNT: You can adjust the time-based
hysteresis of ATW.
>> ATW FRAME: can set the AFW frame value.
If you set frame value high, the tracking will
be faster.
>> ENVIRONMENT: Use [LEFT] or [RIGHT] button
to select a function. (OUTDOOR is set on
the assumption that outdoor light sources
(mainly sunlight) will be used for shooting;
INDOOR is set on the assumption that indoor
light sources (mainly sodium vapor lamps
and indoor lights) will be used for shooting.)
PUSH: In PUSH mode, the white balance is
adjusted automatically. There are no restrictions
on the pull-in frame and other aspects, and pullin is implemented at a higher control speed than
ATW.
•
•
•
•
USER: You can set the white balance options.
>> B-GAIN: Obtains the optimum amount of
blue gain.
>> R-GAIN: Obtains the optimum amount of
red gain.
MANUAL: You can set the white balance options
manually. The actual variable range is limited
to the range from the low color temperature
(approximately 1 800K) to the high color
temperature (approximately 10 500K) stored
when the pre-white balance was adjusted.
ANTI CR: This function minimizes the color
changes (color rolling) over long periods caused
by very small differences between the flicker
frequency of non-inverter fluorescent lights and
the drive frequency of the image sensor devices.
PUSH LOCK: If you select the PUSH LOCK
mode, you prevent to set up the White Balance
automatically by using [SET] button.
25
Menu Operation
Backlight Setting
Day/Night Setting
Use BACKLIGHT option to view the object clearly in
backlight conditions.
1. Select [DAY/NIGHT] option.
1. Select [BACKLIGHT] option.
2. Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
•
•
26
BLC: Camera's backlight compensation feature
helps alleviate issues of visibility in high contrast
areas.
HLC: Use for masking brightness of the specific
area to view the subject more clearly. The HLC
mode is automatically activated only in low
luminance scene.
2. Use [LEFT] or [RIGHT] button to select mode for Day/
Night function.
•
AUTO: You will be able to change the Day/Night
mode automatically.
>> BURST: Select [ON] or [OFF] to set the color
burst in Night status.
>> DELAY CNT: You can set the judgment time
for the transition between the Day and
Night.
>> Night/Day: Transition point set to Night
to Day.
Menu Operation
>>
•
•
Day/Night: Transition point set to Day to
Night.
Color: Color mode enabled.
B/W: Black-and-white mode enabled.
ATR (Adaptive Tone Reproduction) Setting
Adaptive Tone Reproduction is the mapping of scene
luminance and color to print reflectance or display
luminance. It is order to reproducing brightness properly
and brightness differences.
1. Select [ATR] option and use [LEFT] or [RIGHT] button
to select ON or OFF.
2. Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
•
•
LUMINANCE: You can select the Luminance limit.
CONTRAST: You can select the Contrast limit.
27
Menu Operation
NR Setting
Motion Detection Setting
If you select high value, you can reduce the more noise.
When you use this function, the afterimage may occur.
The motion detection detects the moving objects in the
scene by monitoring changes in brightness level.
1. Select [NR] option. If pictures are not clear due to
brightness, this option reduce the noise of picture.
1. Select [MOTION DET] option.
2. Use [LEFT] or [RIGHT] button to select the option.
•
28
NR Mode: You can select the filter mode of
2D-DNR.
>> Y LEVEL: If you select the Y Level, you can set
the Y basic filter for 2D-NR.
>> C LEVEL: If you select the C Level, you can set
the C basic filter for 2D-NR.
2. Use [LEFT] or [RIGHT] button to select [ON] and press
[SET]. The MOTION DETECTION menu appears.
3. Use [LEFT] or [RIGHT] button to select a Detect Sense
from 0 to 127.
4. Use [LEFT] or [RIGHT] button to set up the ON or OFF
on the Block Display.
5. Use [LEFT] or [RIGHT] button to set up the ON or OFF
on the Monitor Area.
Menu Operation
6. Use [UP] or [DOWN] to select an Area Select option
from 1 to 4 then use [LEFT] or [RIGHT] button to adjust
the option.
•
•
•
•
Note:
TOP: Moves top position on the screen.
BOTTOM: Moves bottom position on the screen.
LEFT: Moves left position on the screen.
RIGHT: Moves right position on the screen.
When the TOP and BOTTOM value is the same, the block
wouldn’t be shown. And increase the top value, the
bottom value would increase too, you could set it after
fixing the top value. While decrease the bottom value, the
top value would decrease too. LEFT and RIGHT relation is
similar too.
Privacy Setting
This function is aiming at the protection of personal
privacy, selecting a screen part black or other color not to
be displayed in the screen. 4 areas can be registered.
1. Select [PRIVACY] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press
[SET]. The PRIVACY SETUP menu appears.
3. Use [LEFT] or [RIGHT] button to select the Area
Selection (1 to 4) on the [AREA SEL].
•
•
•
TOP: Moves top position on the screen.
BOTTOM: Moves bottom position on the screen.
LEFT: Moves left position on the screen.
29
Menu Operation
•
RIGHT: Moves right position on the screen.
4. Use [LEFT] or [RIGHT] button to set up 1 to 8 from
COLOR option.
Picture Adjust Settings
5. Use [LEFT] or [RIGHT] button to set up TRANSP option.
6. Use [LEFT] or [RIGHT] button to set up MOSAIC option.
•
•
•
•
•
30
MIRROR: Turn on the mirror effect.
BRIGHTNESS: You can increase the brightness of
the darkened video. If you set the brightness to
lower value, the image is darkened. If you set the
brightness to higher value, the image gets bright.
CONTRAST: Edit the contrast value from 0 to
255. Selecting 255 provides the image with the
highest contrast.
SHARPNESS: You can select the sharpness effect.
HUE: Edit the video Hue of the camera from 0
to 255.
Menu Operation
•
GAIN: Edit the video color gain of the camera
from 0 to 255.
Camera ID Setting
You can use the camera identification to assign a number
and character to the camera. The CAMERA ID is displayed
on the upper left of the screen. To disappear from the
CAMERA ID, select [OFF].
•
•
•
press [SET].
POS: Use [UP], [DOWN], [LEFT] or [RIGHT] button
to move position of CAMERA ID on the screen.
A (Blank): Inserts a space at the cursor position.
/ : Moves cursor to left or right.
SYNC Setting
The line lock function is available only with AC power
source. When you use the DC 12 V power, the [SYNC]
option is fixed to [INT] mode only.
1. Select [CAMERA ID] menu.
2. Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET]. The CAMERA ID menu appears.
•
CLR: If you enter the wrong code, select CLR then
31
Menu Operation
Language Setting
Camera Reset Setting
Select the viewer language for the camera setup menu.
1. Select [LANGUAGE] menu.
2. Press [LEFT] or [RIGHT] button to select a language.
32
•
CAMERA RESET: To reset the camera setting to
initial setup, select [CAMERA RESET] option.
Specification
ITEM
L330-DP
L330-DN
Signal System
PAL
NTSC
Total Pixels No./ Effective Pixels No.
610 000 Pixels / 570 000 Pixels
520 000 Pixels / 480 000 Pixels
Image Device
6 mm CCD
Signal Process
Sony Effio-E
Lens
CS Mount (C Mount using adaptor ring)
IRIS Control
ALC / ELC
Sync. System
Scanning Frequency (H/V)
Internal
15.625 kHz / 50 Hz
15.734 kHz / 59.94 Hz
Horizontal Resolution
650 TV Lines
S/N Ratio
50 dB
33
Specification
ITEM
L330-DP
L330-DN
Minimum Illumination
0.1 lx (F1.2, 30 IRE)
Video Output Signal
1 Vp-p Composite (75 Ω)
Day & Night
Digital (Auto / Day / Night)
Backlight
OFF / BLC / HLC
DNR
Electronic Shutter Speed
34
2D-DNR
1/50 to 1/10 000
1/60 to 1/10 000
White Balance
ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Power Source
DC 12 V
Power Consumption
140 mA
Operation Temp.
-10 ºC to 50 ºC
Storage Temp.
-20 ºC to 60 ºC
Specification
ITEM
L330-DP
L330-DN
Operation Humidity
0 % RH to 80 % RH
Storage Humidity
0 % RH to 85 % RH
Weight
305 g
Dimension (H x V x D)
61.5 mm x 67.54 mm x 134 mm
35
Download PDF
