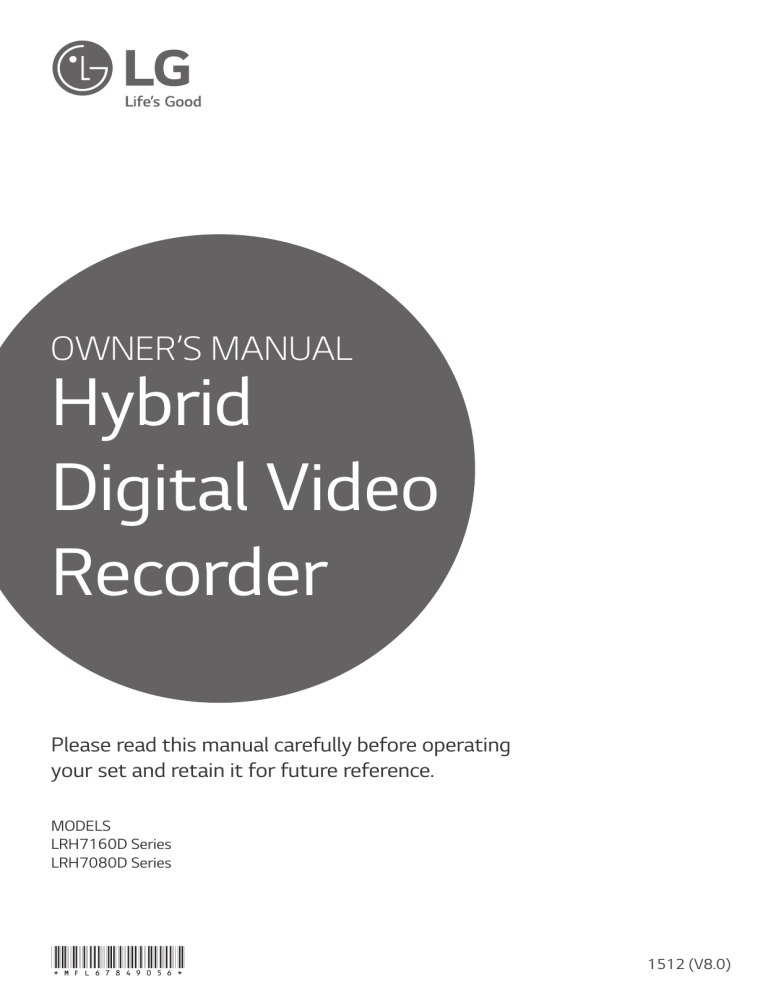

OWNER’S MANUAL
Hybrid
Digital Video
Recorder
Please read this manual carefully before operating
your set and retain it for future reference.
MODELS
LRH7160D Series
LRH7080D Series
*MFL67849056*
1512 (V8.0)
Safety Information
1
Safety Information
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
1
Caution:
This product employs a Laser System. To ensure proper use of this
product, please read this owner’s manual carefully and retain it
for future reference. Should the unit require maintenance, contact
an authorized service center. Use of controls, adjustments, or the
performance of procedures other than those specified herein may
result in hazardous radiation exposure. To prevent direct exposure
to laser beam, do not try to open the enclosure.
The Power Plug is the disconnecting device. In case of an
emergency, the Power Plug must remain readily accessible.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/EC,
2006/95/EC, and 2011/65/EU.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
Contact office for compliance of this
product :
LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
•
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
Warning: Do not install this equipment in a confined space such as
a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National
Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not expose
this product to rain or moisture.
Caution: This installation should be made by a qualified service
person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Caution: The apparatus should not be exposed to water (dripping
or splashing) and no objects filled with liquids, such as vases, should
be placed on the apparatus.
Safety Information
CAUTION
3
Please note that this is NOT a Customer Service contact point.
For Customer Service Information, see Warranty Card or contact
the dealer that you purchased this product.
4
Safety Information
Safety warnings and Cautions
1
Safety Information
The following are warnings and cautions for the safety of the users and for the prevention of any property damage. Please read the following
carefully.
WARNING
•
Turn off the system before installation. Do not plug in several electric devices to the same outlet.
--
•
-•
This may cause an explosion.
If the system’s HDD exceeds its life span, you may not be able to recover any data stored inside the HDD. If the video on the system screen
appears ‘damaged’ while playing a recording stored inside the system’s HDD, it must be replaced with a new one. Ask for an engineer’s
assistance for HDD replacement from your dealer.
--
•
This may cause fire, over heating or electric shock.
When the system’s battery is depleted, replace it with the same or equivalent type of battery specified by the manufacturer. Depleted
batteries should be discarded according to the manufacturer’s instructions.
--
•
This may cause system breakdown or serious injury.
The power outlet must be placed on the ground, and the voltage range must be within 10 % of the voltage rate. Do not use the same
outlet with a hair dryer, iron, refrigerator, or any heating appliances.
--
•
This may cause fire.
Install the system on a plain surface with sufficient air ventilation. Do not place the system on an elevated surface.
--
•
This may cause fire, electric shock, or injury.
Install the system in a cool place without direct sunlight and always maintain room temperature. Avoid candlelight and heat generating
devices such as heaters. Keep the system away from places where many people pass.
--
•
This may cause fire or electric shock.
Keep a distance of at least 15 cm between the back of the system and the wall for the cables connected to the system otherwise, they may
be bent, damaged, or cut.
--
•
This may cause fire, electric shock, or serious injury.
Check for any danger signs such as a moist floor, a loosened or damaged power cable, or an unstable surface. If you encounter any
problems, ask your dealer for assistance.
--
•
This may cause fire or electric shock.
Do not attempt to disassemble, repair, or modify the system on your own. It is extremely dangerous due to the high voltage running
through the system.
--
•
This can cause fire or electric shock.
When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid using the plug if the holes in
the outlet are too loose.
--
•
This may damage the surface of the system and can cause a system breakdown or electric shock.
Avoid any place with moisture, dust, or soot.
--
•
This may cause fire.
Clean the dust around the system on a regular basis. When cleaning the system, always use a dry cloth. Do not use a wet cloth or other
organic solvents.
--
•
If liquid is poured onto the system, it can cause a system breakdown or fire.
Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.
--
•
This may cause heating, fire, or electric shock.
Do not place any liquid container on the system, such as water, coffee, or other beverage.
LG Electronics is not responsible for deleted data caused by user mishandling.
PLEASE DO NOT MOUNT OR UN-MOUNT HDDs WHILE SYSTEM IS POWERED ON.
--
This may cause system breakdown.
Safety Information
5
CAUTION
Please beware of the following precautions before installing the DVR.
Avoid positioning the product in any place where the unit may come into contact with moisture, dust, or soot.
•
Avoid placing in direct sunlight or near heating appliances.
•
Keep the product away from electric sparks or magnetic substances.
•
Do not place any conductive material through the ventilation grills.
•
Keep the system turned off before installation.
•
Ensure enough space is left for cable connections.
•
Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.
•
Placing the system near electronic devices such as a radio or a TV may cause the product to breakdown.
•
Do not disassemble the product without seeking assistance from LG Electronics.
•
Do not place any heavy object on the system.
•
Prevent any substances from being inserted into the system.
--
•
Install the system in a place with sufficient air ventilation.
--
•
This may cause system breakdown.
Install the system on a stable, level surface.
--
•
Do not install the system in a place with magnetic objects, electric frequencies, or vibration.
Do not place any heavy object on the system.
--
•
Keep at least 15 cm distance between the back of the system and the wall, and at least 5 cm distance between the side of the system
and the wall.
Do not install the system in a place with high magnetic, electric wave, or wireless devices such as a radio or a TV.
--
•
This may cause system breakdown.
The system may not operate properly.
Install the system in a place with appropriate moisture and temperature levels.
--
Avoid installing the system in a place with high (over 40 °C) or low (under 0 °C) temperature.
•
The system can be damaged from a strong impact or vibration. Avoid throwing objects within the vicinity of the system.
•
Avoid direct sunlight or any heating appliances.
--
•
Recommended operating temperature is over 0 °C (32 °F).
Ventilate the air inside the system operation room, and tighten the system cover firmly.
--
System breakdown may be caused by an inappropriate environment. It is recommended to use AVR (Automatic Voltage Regulator)
for a stable power supply. It is recommended to coil the core-ferrite around the connector of the system to avoid electromagnetic
interference.
•
The outlet must be placed on the ground.
•
If there is strange sound or smell, unplug the power cable immediately and contact the service center.
--
•
•
This may cause fire or electric shock.
In order to maintain stable system performance, have your system checked regularly by the service center.
--
LG Electronics is not held responsible for system breakdown caused by user mishandling.
--
There is a risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Do not overturn the product during use.
1
Safety Information
•
6
Contents
Contents
1
Safety Information
2
Preparation
20
Main Monitor Screen
21
Moving the Channel's Position
21
Selecting the Main Monitor screen mode
22
Selecting the Spot Monitor screen mode
22
Grouping channel
22
PTZ Camera Control
24
Using the Digital Zoom function
24
Export the recorded data
25
Viewing the System Log List
26
Viewing System Information
26
Configuration menu
27
System settings
27Properties
28
TCP/IP v4
28
TCP/IP v6
8Introduction
28Network
8Features
29
8Accessories
29Date/Time
9
Front Panel
29NTP
11
Rear Panel
30Controller
12
Remote Control
30Update
30Backup
32
3
Network Streaming
Device settings
32Camera
Installation
13Connections
13Precautions
32PTZ
33
IP Device
34ATM/POS
35Storage
Basic Connection Overview
35
14
Connecting Camera
35OSD
14
Connecting the video distributor
35Sequence
14
Connecting Display device
36
15
Connecting Audio device
36
15
Connecting USB device
36
Normal Schedule Recording
15
Connecting E-SATA device
36
To Set a Recording Schedule for a Typical Day
16
Connecting ATM/POS
16
Connecting Network
37
To Set a Recording Schedule for a Special Day
17
Connecting RS-485 device
17
Connecting Alarm Input and Alarm Output
13
19
HDD INSTALLATION
Display settings
Video Adjustment
Record settings
of the Week (Normal Schedule)
(Special Schedule)
38
Copying the Recording Schedule
38Normal
19
Note for Hard Disk Drive
38Sensor
19
Installing the Hard Disk Drive
39Motion
19
Replacing the Hard Disk Drive
39Text
19
Recommended HDD
39Instant/Panic
20
System Operation
20
System Shutdown
20
General Explanation of the Live
Screen on the Main Monitor
40
Event settings
40Sensor
40Motion
41
ATM/POS Data Format
41
Event Popup
Contents
41Notification
57
42Mail
58
Time zones
59
Factory Default Configuration Settings
66
Recording Time Table (250GB HDD)
43Buzzer
69
IP Live/Playback Specifications
44
69Specifications
42Emergency
42SNMP
43Output
44
User settings
Group Authority
7
Supported IP Camera Audio/Video Codec
1
2
44User
45
Setup Wizard settings
45
Step 1
45
Step 2
46
Step 3
46
Step 4
46
Step 5
3
4
4
Operation
47
Instant Recording
47
Panic Recording
48
Instant Playback
48
Search and Playback
48
Date and Time Search
48
Event Search
49
Bookmark/Protect Search
49
ATM/POS Search
50
Export Search
50
Smart Search
51
Functions Available During Playback
52
Using the playback control menu
52
Using the Protect function
5
Troubleshooting
6
Appendix
56
Recommended Devices
56
Recommended USB Memory list
56
Recommended External Device list
56
Recommended CD/DVD Media list
57
Supported function list for device
57
Supported PTZ Camera list
5
6
8
Preparation
2
Preparation
2
Preparation
Introduction
Model LRH7160D (16 Channel) is used for the description, operation
and details provided in this operating guide.
•
Setup configuration export/import with USB memory stick.
•
Easy system S/W update with USB memory stick or network.
•
Clients S/W can manage max 300 DVR servers.
•
Max five clients can access one DVR server simultaneously.
•
Network bandwidth throttle.
--
Automatically adjust a bandwidth according to network
speed status of unit.
Features
•
Remote alarm notification via client software or E-mail.
•
Stable embedded Linux operating system.
•
Time and date sync from NTP server.
•
Journal filing system for HDD file recovery following power
recovery.
•
Daylight saving mode.
•
Covert camera protection.
•
Small file sizes with H.264 compression.
•
Support Gigabit Ethernet.
•
Internal storage expandable to 12 TB. (Expandable if new high
capacity HDD is launched)
•
E-SATA storage interface.
•
NTSC and PAL selectable video format.
•
Two-way audio.
•
Full real-time recording.
•
Text Input for ATM and POS device.
•
User management (User level control).
•
PTZ Control.
•
NTSC
Up to 480 IPS @ 704x480, LRH7160D Series
Up to 240 IPS @ 704x480, LRH7080D Series
PAL
Up to 400 IPS @ 704x576, LRH7160D Series
Up to 200 IPS @ 704x576, LRH7080D Series
Various recording resolutions and quality levels.
NTSC
D1(704x480), Half D1(704x240), CIF(352x240)
PAL
D1(704x576), Half D1(704x288), CIF(352x288)
-•
Accessories
CD (Software
and Owner's
Manual)
Screws
Mouse
Rack Mount
Bracket
Remote
Control
Power Plug
AAA type
batteries
Simple
Manual
5 step quality level (Highest, High, Standard, Low, Lowest).
Optical mouse, Full function IR remote controller
Powerful multiplex function.
--
•
Dome camera telemetry control (Dome OSD control).
Easy operation using various user interface & user friendly GUI.
--
•
--
Simultaneous live display, recording, playback, network
transmission, back-up.
Various search function.
--
Date/time search (calendar search), Event search, Bookmark/
Protect search, ATM/POS search, Export search, Smart
search.
•
Pre-alarm recording (Up to 1 minute).
•
Motion event recording and preview test function of motion
sensitivity.
•
Recording image rate & quality adjustment per individual
camera.
•
Powerful record scheduling.
•
Instant playback in live mode.
•
Perfect audio/video synchronization.
•
Automatic backup by schedule.
•
Image authentication (Watermark).
•
Three USB 2.0 ports for backup interface.
Preparation
9
Front Panel
Front of the LRH7160D series
NET
a
b
c
PTZ
FOCUS+
d
1
2
3
4
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
ALARM
LOG
TEXT OFF
9
10/0
11
12
BACK UP
NET
COPY
OSD
MARK
PTZ
MOVE
FOCUS+
TOUR
IRIS+
HDD
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
ALARM
LOG
TEXT OFF
SET
CLEAR
9
10/0
11
12
COPY
MARK
MOVE
TOUR
13
14
15
16
HDD
BACK UP
13
1
e
14
2
IRIS+
7
8
SET
CLEAR
15
3
f g
h
ci
SHIFT
2
16
4
SEARCH
SHIFT
SEARCH
j
k
l
REC
SETUP
LOG-IN
VIEW
CAM
BACK
VIEW
CAM
BACK
REC
SETUP
LOG-IN
h
m n o pq r s
Front of the LRH7080D series
a
b
c
d
e
NET
OSD
1
2
3
4
HDD
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
LOG
TEXT OFF
SET
CLEAR
9
0
BACK UP
NET
COPY
OSD
MARK
PTZ
MOVE
FOCUS+
TOUR
IRIS+
1
2
3
4
HDD
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
LOG
TEXT OFF
SET
CLEAR
9
0
COPY
MARK
ALARM
ALARM
BACK UP
PTZ
f g
FOCUS+
h
SHIFT
SEARCH
SHIFT
MOVE
j
k
1 (Power): Turns DVR on or off. Press and hold for more than 2 seconds to turn on or off.
b
Playback Control Buttons
l
•
M: Pauses playback.
•
c, C/aM: Searches the recorded images in reverse or skips the recorded images.
•
ad: Playback or reverse playback of recorded images.
•
v, V/Md: Forward searches the recorded images or skips the recorded images.
•
Z: Stops playback.
NET: Blinks when the network is connected.
•
HDD: Lights when the HDD is accessed.
•
ALARM: Lights when the alarm out is in progress.
•
BACK UP: Lights when the data back up is in progress.
CAM
BACK
VIEW
CAM
BACK
REC
SETUP
m n o pq r s
Front panel release button : Press these buttons to separate the front panel for HDD installation.
•
VIEW
TOUR
a
dIndicator
REC
SETUP
LOG-IN
SEARCH
c
h
IRIS+
LOG-IN
ci
Preparation
OSD
10
Preparation
e
Channel Buttons: You can input a number with channel buttons. You can also use the channel buttons for sub-function with SHIFT
button (11 to 16 buttons of 8 channel DVR are used for sub-function without SHIFT button.).
You should press the OK button after input the channel number when you select the applicable channel.
•
•
2
Preparation
f
The LED in the button indicates the status as follows:
--
Off: The current status is for live mode.
--
Red: Recording mode.
--
Blinks when an event occurs.
Sub-functions
Button number
Function
Description
1
OSD
Accesses or minimizes the System Control Bar (OSD).
2
PTZ
Switches this unit to PTZ mode to control the connected PTZ camera.
3/7
FOCUS / FOCUS +
4/8
IRIS - / IRIS +
5
INFO
6
ALM.OFF
9
LOG
10
TEXT OFF
11
SET
12
CLEAR
Deletes a memorized preset position.
13
COPY
Displays the export menu.
14
MARK
Sets the mark point for recording search.
15
MOVE
Moves the camera to the preset position.
16
TOUR
Tours all registered preset positions in the camera.
Adjusts focus position.
Adjust iris position.
Displays the system information.
Cancels alarm activation and returns the system to the condition before the alarm was
activated.
Displays the System Log List.
Displays or disappears the text information if the recording data includes text data.
Registers the PTZ camera’s preset position.
Remote Sensor: Point the remote control here.
g
SHIFT button: If you use the Sub-function of the channel button, the button is activated.
h
ZOOM + / -: Zooms in/out on playback window.
i
Arrow and OK Buttons
•
wsad: Select or move between the menu options.
•
OK: Confirms menu selections.
j
Disc Tray: Insert a disc here.
k
OPEN: Opens or closes the disc tray.
l
LOG-IN: Displays the User Log-In dialog box or logs out.
m
SEARCH: Displays the search menu.
n
SETUP: Displays the setup menu.
o
VIEW: Displays the split mode menu for MAIN Monitor and SPOT Monitor.
p
CAM: Displays the Monitor menu to set the first camera channel.
q
USB Port: Connects an external USB device for backup or playback.
r
BACK: Exits the menu or returns to the previous screen.
s
REC: Starts or stops instant recording.
Preparation
11
Rear Panel
Rear of the LRH7160D series
a
bc
d
2
Preparation
e
f
Rear of the LRH7080D series
e
a
g
hi
a
f
g
j
f
k
l m
b
hi
j
n
o
cd
k
l m
n
o
VIDEO INPUT: Connect the camera’s video output to these BNC connectors.
b
LOOP OUT: The signal from VIDEO INPUT connector is looped out to this connector.
c
RELAY-OUT Terminals: Output terminals for alarm (relay) signal.
d
Power Cord Inlet (AC IN): Connect the power plug.
e
AUDIO OUT 1 / 2: Connect to an active speaker with a built-in amplifier.
f
AUDIO IN: Connect the audio output of an external device.
g
ALARM-IN Terminals: Input terminals for alarm (relay) signal.
h
ATM/POS: Used to connect to a ATM/POS device.
i
VGA: Connect a VGA monitor.
j
SPOT-OUT (BNC Type Connector): Connect to spot monitor or display device.
k
HDMI: Connect to monitor or display device with HDMI inputs. (Interface for digital audio and video)
l
LAN Ports: Connect the ethernet 10/100/1000 Mbps network cable for controlling this unit via a PC network.
m
E-SATA: Connect the external SATA device.
n
USB Port: Connect an optional extension USB device.
o
RS-485 Terminals: Connect RS-485 compatible cameras.
12
Preparation
Remote Control
Button
POWER (1)
LOGIN
Description
Turns DVR on or off.
Displays the User Log-In dialog box or logs out.
2
ID
Preparation
VIEW
Displays the split mode menu for MAIN Monitor and SPOT Monitor.
CAM
Displays the Monitor menu to set the first camera channel.
ALM.OFF
OSD
SETUP
wsad
OK
COPY
SEARCH
MARK
Set the appropriate DVR system ID to operate via the IR Remote Controller when
using the multiple DVR. Press the ID button then press the number button within
2 seconds to select the system ID of the DVR. If you set the system ID to “0”, you
can control multiple DVR at the same time.
Cancels alarm activation and returns the system to the condition before the alarm
was activated.
Accesses or minimizes the system control bar.
Displays the setup menu.
Selects or moves between the menu options.
Confirms menu selections.
Copies the recording data to an external device.
Displays the search menu.
Sets the mark point for recording search. You can set the mark point during the
single or multi channel playback of recorded data.
PAUSE (M)
Pauses playback.
STOP (Z)
Stops playback.
REC (X)
Starts or stops recording.
c, C/aM
ad
Searches the recorded images in reverse or skips the recorded images.
Playback or reverse playback of recorded images.
v, V/Md
Forward searches the recorded images or skips the recorded images.
Number Buttons
Selects the PTZ preset number, ID or channel.
INFO
Displays the system information window.
LOG
Displays the System Log List window.
PTZ
Switches this unit to PTZ mode to control the connected PTZ camera.
TOUR
Tours all registered preset positions in the camera.
ZOOM + / -
Zooms in/out on the playback window.
If you press ZOOM(+) button during viewing a live channel in full screen mode or
playing back a channel in full screen mode, the digital zoom function is activated.
FOCUS + / -
Adjusts the focus of a camera.
IRIS + / SET
Adjusts the iris of a camera.
Registers the PTZ camera’s preset positions.
CLEAR
Deletes a memorized preset position.
MOVE
Moves the camera to the preset position.
BACK
Exits the menu or returns to the previous screen.
Installation
13
3
Installation
Connections
Precautions
3
Depending on the camera and other equipment there are various ways to connect the unit. Please refer to the camera manual or manuals
for other devices as necessary for additional connection information.
•
Be sure to switch off the camera before installation and connection.
Basic Connection Overview
Connect the coaxial-type cameras
Connect the Monitor, DVR, VCR, or others.
Connect ATM/
POS unit.
Connect the
alarm (relay).
Connect power
cord.
Connect PTZ cameras,
DVRs or keypads (optional).
Connect audio
(line input).
Connect the external SATA device.
Connect an external USB device for
backup or playback.
Connect a mouse device.
Connect audio
amplifier.
Connect network cable for client control or IP camera input.
Connect
alarm
sensors.
Connect HDMI type monitor (MAIN or SPOT).
Connect BNC type monitor (SPOT).
Connect VGA monitor.
Installation
•
14
Installation
Connecting Camera
Connecting Display device
Connect the video output of your camera to the unit, using a
standard 75 Ω video coaxial cable with BNC connector.
LOOF OUT connector passes the video signal from VIDEO INPUT
connector to connect to other device.
This unit can be output simultaneously from the HDMI, VGA and
SPOT OUT jack. The video signal connection between the DVR and
the monitor.
VGA Monitor connection
Camera connection
Connect the VGA jacks on the rear of the unit to the corresponding
input jacks on the TV or monitor using the VGA cable.
VGA Monitor connection
3
Installation
NOTE
If the distance between the camera and DVR is too long, the noise
may be generated. In this case, we recommend you to ground
DVR’s power and not to ground camera’s power.
SPOT Monitor connection
Connecting the video distributor
Connect the video signal of the camera to the input connector of
the video distributor using a 75 Ω video coaxial cable with BNC
connector. Connect the video output of the video distributer to the
VIDEO INPUT connector of DVR using a using a 75 Ω video coaxial
cable with BNC connector. Connect your monitor to the video
output connector of the video distributor.
Connecting the video distributor
Video distributor
Monitor
DVR
Monitor
NOTE
•
If the cable’s length is too long, DVR’s parts may be damaged
due to an external static electricity. Before connecting the
video cable, touch the end of the cable to DVR’s case to avoid
the risk of static buildup.
•
Please check the images via a monitor after installation of the
video distributor.
Connect the unit to the SPOT monitor using 75 Ω video coaxial
cables with BNC connector.
SPOT Monitor connection
Installation
15
HDMI Monitor connection
Connect the unit to the HDMI monitor using a HDMI cable (Type A,
High Speed HDMITM Cable).
HDMI Monitor connection
3
SPOT
USB Memory device
Insert the memory device into the USB port. The system
automatically recognizes the device. The system software can be
easily upgraded using a USB memory device.
Connecting Audio device
Connect the AUDIO OUT jacks on the unit to the mono audio in
jacks on your audio device.
USB External device
Connect the external device to the USB port.
(Example: External HDD or other external storage.)
Microphone and Speaker connection
Mouse
Connect the USB mouse to operate the functions of the DVR.
Connecting E-SATA device
You can use E-SATA storage for data back-up or recording.
E-SATA device connection
Connecting USB device
USB device connection
Installation
MAIN
16
Installation
Connecting ATM/POS
Connecting Network
Connect the ATM/POS unit to the ATM/POS port.
You can control and monitor the system via network. With
the remote control (monitoring), you can change the system
configuration or monitor the image via network. After the
installation, check the network settings for the remote control and
monitoring work.
ATM/POS device connection
Network connection
3
Installation
Router
Router
Broadband
Broadband
Service
Service
LAN connection
Connect the LAN port to an available 10/100/1000 base-T port with
a straight ethernet cable (not supplied). The NET indicator on the
front panel will be lit.
IP Camera connection
Connect the IP camera. After the installation, check the IP camera
settings on the setup menu.
NOTE
•
The following device has been tested and compatibility is
ensured. When you use the multiple ATM/POS device, use the
recommended device.
--
•
AVE Products
››
VSI-PRO: Video serial interface
››
Regcom: RS-485 networker
››
Hydra: RS-485 to RS-232 converter
The installation and connection work should be done by
qualified service personnel or system installers and should be
conformed to all local codes.
Automatic network configuration
The DVR can automatically obtain and configure the network
interface via DHCP.
Manually configure network
The DVR may be manually configured by assigning an IP address,
subnet mask, gateway and DNS.
NOTE
This unit can be supported IPv4 and IPv6 network.
Installation
Connecting RS-485 device
Connecting LKD1000 controller
This DVR has two data terminals. Use this port to connect PTZ
cameras, DVRs or keypads (optional).
Connect the LKD1000 controller to control the DVR. (Refer to the
manuals of the LKD1000 controller for more details.) The LKD1000
controller has to be connected to the 2 (DATA 2) port as shown
illustration. If you connect the LKD1000 controller to the 1 (DATA 1)
port, the LKD1000 controller will not be activated.
RS-485 Terminal
Description
D - (DATA -)
Data Transmission/Reception
D + (DATA +)
Data Transmission/Reception
GND
17
LKD1000 controller connection
Shield
Connecting the PTZ device
Connecting the PTZ serial communication lines to the
RS-485 terminal.
3
Installation
PTZ device connection
TX-
TX+
LKD1000 Controller
NOTE
Do not connect a PTZ camera and LKD1000 controller to the D1 or
D2 port at the same time. It may cause a malfunction.
PTZ units
(RS-485 type)
PTZ units
(RS-485 type)
NOTE
•
When connecting lines, connect the “D -” of the DVR to “RX -”
of the PTZ unit and “D +” of the DVR to “RX +” of the PTZ unit
correctly.
•
Recommended initial data are 9600 Baud Rate, 8 Data bits,
1 Stop bit and No parity.
•
When connecting PTZ cameras to DVRs it is necessary to set
the setup menu for this unit according to the RS-485 settings
of the camera and DVRs.
Connecting Alarm Input and Alarm
Output
Alarm terminals are used to connect the alarm devices such as
sensors, door switches, etc.
Alarm Input
You can connect up to 16 alarm sensors (LRH7080D: 8 alarm
sensors). Each alarm sensor should be connected with G (GND).
The signal state is adjustable to N/O (Normal Open) or N/C (Normal
Close) through the setup menu.
18
Installation
Alarm Output
Sensor input connection
Connect the alarm device to the alarm output. Alarm signal outputs
when an event occur.
Alarm output connection
3
Installation
Alarm device
Alarm sensor
Alarm sensor
Terminal No.
Alarm device
Description
G
Ground
1
Alarm Output 1
Description
2
Alarm Output 2
1
Sensor Input 1
3
Alarm Output 3
2
Sensor Input 2
4
Alarm Output 4
3
Sensor Input 3
4
Sensor Input 4
G
Ground
5
Sensor Input 5
6
Sensor Input 6
7
Sensor Input 7
8
Sensor Input 8
G
Ground
9
Sensor Input 9
10
Sensor Input 10
11
Sensor Input 11
12
Sensor Input 12
G
Ground
13
Sensor Input 13
14
Sensor Input 14
15
Sensor Input 15
16
Sensor Input 16
G
Ground
Terminal No.
NOTE
The internal switching relays are rated for 0.3 A at 125 V AC or 1 A
at 30 V DC. If the electric current is higher than that the unit can
be damaged.
Installation
HDD INSTALLATION
Note for Hard Disk Drive
The internal hard disk drive (HDD) is a fragile piece of equipment.
Please follow the guidelines below when using the DVR to protect
against possible HDD failure. We recommend that you back up your
important recordings onto an external backup device in order to
prevent accidental loss.
Make sure that the power is turned OFF when attaching or
removing the HDD.
Do not move the DVR while the power is on.
•
Do not use the DVR in excessively hot or humid places, or in
places that may be subject to sudden changes in temperature.
Sudden changes in temperature can cause condensation to
form inside the DVR. This can be a cause of HDD failure.
•
While the DVR is switched on, do not unplug from the wall
socket or switch the electricity off from the breaker switch.
•
If there’s a power failure while the DVR is on, some data on the
HDD may be lost.
•
Do not drop the HDD. Also do not put the metallic object such
as coins or screwdrivers into the HDD tray.
•
When a power failure occurs during recording, avoid adding,
replacing or transporting the HDD as the recorded data may be
erased. In this case, turn the power back on to boot up the unit
normally with the HDD that was being used at the time of the
power failure attached. Then add, replace, or transport the HDD.
•
The HDD is very delicate. Handle the HDD with care and follow
the precautions below because even a tiny shock may damage
the internal components of the HDD.
--
•
Do not place the HDD on the desk or table directly. Put a
thick cushion under the HDD because even a small shock
may damage the internal components of the HDD.
--
Do not use an electric screwdriver. Vibrations and shocks
caused by an electric screwdriver may damage the internal
components of the HDD.
--
When replacing the HDD, do not knock the HDD with other
components such as another HDD and the HDD tray.
--
Do not knock the HDD with tools such as a driver when
replacing the HDD.
Protect the hard disk drives from static electricity.
Installing the Hard Disk Drive
You can install up to 6 HDDs.
Improper installation or setup may disturb HDD recognition or
normal product operation. So you should consult with an expert
from the store where the product was purchased.
1. Disassemble the front panel by pressing the release button on
the front panel.
2. Loosen the screws and detach the hard disk mounting brackets
from the units.
3. Attach the HDD onto the hard disk mounting brackets with four
screws.
4. Attach the hard disk mounting brackets with the screws.
5. Close the front panel by hanging the bottom hook after push
the Front panel release button.
6. When you turn the power of the unit on, the new HDD is
detected and formatted automatically.
CAUTION
You should install the hard disk drive from 1 to 6 in order.
Replacing the Hard Disk Drive
Turn the power of the unit off and detach the power plug from the
outlet.
1. Disassemble the front panel by pressing the release button on
the front panel.
2. Loosen the screws and detach the hard disk mounting brackets
from the units.
3. Replace the new HDD.
4. Close the front panel by hanging the bottom hook after push
the Front panel release button.
5. After replacing the hard disk drive, insert the power plug into
the outlet and turn the power of the unit on. The new HDD is
detected and formatted.
NOTE
auoty.m
lcaliat
Do not use an electric screwdriver to fix them.
Recommended HDD
For the latest recommended HDD list, please visit
http://www.lgecommercial.com
NOTE
If you do not use the recommended HDD, the system may not be
operated normally.
3
Installation
•
19
20
Installation
System Operation
1. Turn on the unit. System booting will commence. The LG logo
image will be displayed on the main monitor during the system
booting.
General Explanation of the Live
Screen on the Main Monitor
Main Monitor Screen
2. When the booting is completed the live window will be
displayed. Click the
icon on the system control bar or press
a bcde f g
h
the LOGIN button on the remote control to display the log-in
window.
3
Installation
3. Select a user name by using the mouse or arrow and the OK
button on the remote control or front panel. For the first time,
you can select the ADMINISTRATOR user name only. You can
register a new user with various access rights using the user
setup menu.
4. Enter the password by using the virtual keyboard. (Note that the
default administrator password is “000000”.)
5. Click the [OK] icon.
You can see the live screen and operate the system.
NOTE
•
•
This DVR is based on a VGA monitor using OSD. We
recommend you to using the VGA monitor with this unit. If
you use a composite monitor, the OSD quality may be low to
read it.
If the DVR is turned off accidently and then turned on again,
the DVR may take a long time to be rebooted.
a Channel Number
Displays the channel number.
b Channel Name
Displays the edited channel name.
c Selected Channel
Displays the selected channel with red box.
d Channel FPS
Displays the channel FPS value.
System Shutdown
1. First, you must stop playback and exit the setup menu. In
playback, press STOP.
2. Press and hold 1 (POWER) button until the beep sounds and
the logout window will be displayed.
3. Enter the password by using the virtual keyboard.
4. Click the [OK] icon. The system will shutdown.
e Camera Status Icon
Displays the PTZ camera status.
Displays the input audio status.
Displays the IP camera status.
Gold “C” indicates continuous recording.
Gold “I” indicates Instant recording.
Red “S” indicates sensor triggered recording.
Green “M” indicates motion detection recording.
Gray “N” indicates the channel is not being recorded.
Violet “T” indicates text event recording.
f Quick Buttons
The Quick Buttons will appear when the mouse is moved to
the camera's live screen. You can use the following functions by
clicking it for the selected channel.
You can use the playback function.
You can use the digital zoom function.
Installation
You can control the PTZ Camera. (optional)
You can use the video adjustment (Brightness,
Contrast, Color) function. (Analog Channel Only)
g Live Screen
Displays the current surveillance live screen.
h System Control Bar
21
Moving the Channel's Position
You can change the camera channel's position in a split screen of
the Main Monitor.
1. Select a desired channel by clicking the left button of the
mouse.
2. Drag and drop it to a desired location and the channel's position
will be changed.
Displays the CPU usage and Data traffic
level of IP cameras.
Displays date and time.
(
)
Login (Logout) : Display the User Log-In
dialog box or logs out.
3
Alarm Off: Turns the alarm off.
Camera: Displays the Monitor menu to
set the first camera channel.
Split mode: Displays the menu for
selecting the screen division.
Video Export: Displays the export menu.
Selecting the Main Monitor screen mode
You can select the live screen mode to display a full, 4-split, 6-split,
8-split, 9-split, 16-split, 17-split or 25-split screens on the main
monitor.
1. Press VIEW or click
icon in the system control bar.
2. Select [Main Monitor].
3. Select a screen mode.
System Log: Displays the system log list
window.
System Information: Displays the system
information window.
Setup: Displays the setup menu.
Minimizes the System Control Bar.
NOTE
•
To display / minimize the system control bar
To display or minimize System Control Bar, press OSD after
pressing the SHIFT button on the front panel or click
or
in the System Control Bar.
•
You can also use the system control's options by clicking the
right button of the mouse on the Main Monitor screen.
•
When data signal color of IP camera is changed yellow or red,
reduce bit rate, frame rate, resolution and connections of IP
camera.
•
While the main monitor is performing the sequence mode,
the
mark is displayed on the system control bar.
Screen split mode
Sequence mode
•
Full Screen Mode: You can view the live window in full
screen mode.
•
4, 9, 16, 25, 1+5, 1+7 and 1+16 Split Mode: Displays selected
split screens on the main monitor.
•
Sequence: You can view all the channels in sequence. You
cannot use sequence mode with the 25 split (LRH7080D
series: 16 split).
4. Select [OK] and press OK to confirm your selection.
NOTE
To display the screen you want to watch in full screen mode,
double click the desired channel.
Installation
Search: Displays the search menu.
22
Installation
Selecting the Spot Monitor screen mode
Grouping channel
You can select the live screen mode to full, 4-split, 9-split, 16-split or
25-split screens on the spot monitor.
You can group channels you want.
1. Press VIEW or click the
icon in the system control bar.
2. Select [Spot Monitor].
1. Press CAM or click the
icon in the system control bar.
2. Select [Main Monitor] or [Spot Monitor] on the menu.
3. Select a camera number for including group.
3. Select a screen mode.
--
[ Restore to Default] : Reset channels to ascending sort and
change the [Split Mode] to 25 split. (LRH7080D series: 16
split)
3
Installation
Screen split mode
Sequence mode
•
Full Screen Mode: You can view the live window in full
screen mode.
•
4, 9, 16 and 25 Split Mode: Displays selected split screens on
the spot monitor.
•
Sequence: You can view all the channels in sequence. You
cannot use sequence mode with the 25 split (LRH7080D
series: 16 split).
4. Select [OK] and press OK to confirm your selection.
NOTE
The image of IP Camera’s on Spot Channel may not be operated
smoothly during playback.
4. Select group number on the drop-down list.
5. Click [Load] or [Save] button to configure your group.
6. Select [OK] and press OK to confirm your selection.
NOTE
The [Split Mode] changes according to a number of selected
cameras.
PTZ Camera Control
You can control the cameras connected via the data port of RS-485
terminal or Network. You must set the configuration between the
PTZ camera and the DVR.
1. Select the PTZ camera channel on the main monitor you want
to control.
2. Press PTZ or click the
icon that appears when the mouse is
moved to PTZ camera's screen.
Virtual PTZ remote control is displayed on the main monitor.
3. Use each item to control the PTZ camera.
Button
Function
Displays the PTZ control guide.
Displays the setup menu of the PTZ
camera.
Minimizes PTZ virtual remote control.
Removes the PTZ virtual remote
control.
Use to pan/tilt the camera.
You can select the Pan/Tilt/Zoom
speed.
You can adjust the camera zoom.
Installation
You can adjust the focus of a camera
manually.
You can adjust the iris of a camera
manually.
Displays or disappear the preset
control options in the virtual PTZ
remote control
23
Preset Settings
Preset position is the function to register camera monitoring
positions (preset positions) associated with position numbers.
By entering the position numbers, you can move cameras to the
preset positions.
NOTE
•
To activate this function, you need to register the preset
positions of the PTZ cameras.
•
ONVIF preset may not be operated properly with this unit.
Displays the Selected Preset number.
To input the preset number.
To delete a memorized preset
position.
To move the camera to the preset
position.
To start a preset tour.
Confirm the preset position.
3
1. Move the camera to a point you wish by using the
,
,
,
2. Press SET or click the
buttons.
Installation
y
r
t
u
To Register Preset Positions
To register preset positions.
y icon.
3. Select the preset number you wish to register.
4. Press OK or click the
icon.
The position and its number are memorized.
5. Repeat steps 1 to 4 to add additional positions.
NOTE
You can use some options by clicking the right button of the
mouse in PTZ camera control .
•
PTZ Control Guide: Shows the guide for using the mouse.
•
Exit: Exits from the PTZ camera control mode.
The IP camera which is connected by Onvif driver is not supported
Focus and Iris function on the PTZ operation.
NOTE
Preset numbers from 0 to 255 are available on this unit but the
actual preset range differs depending on PTZ cameras.
Changing to a Picture in a Preset Position
The following function is available only with cameras provided with
the preset function. The preset function makes the combination
camera move to the programmed preset position. It is necessary to
program preset positions for the combination camera beforehand.
1. Press the MOVE button or click the
t icon.
2. Use number buttons to enter the memorized preset position’s
index number then press OK or click the
icon.
The camera moves to the preset position and the picture of the
camera in that position appears on the monitor.
To Clear the Preset Position
You can clear a memorized preset position.
1. Press the CLEAR button or Click the
r icon.
2. Use number buttons to enter the memorized preset index
number then press OK or Click the
icon to
clear the preset positions.
NOTE
This function may not be available depending on PTZ cameras.
24
Installation
Export the recorded data
To Tour The Preset Positions
You can tour all preset positions.
1. Press the TOUR button or Click the
u
icon.
All registered preset positions in the camera will be selected
and the camera position image will be switched on the active
monitor.
This unit can manually copy recorded images and audio from builtin HDD to the external recording devices.
1. Press COPY or click the
icon in the system control bar.
The [Video Export] menu appears.
2. You can stop the tour by pressing the TOUR
button or clicking the
u icon.
Setup for PTZ Cameras
3
You can adapt the camera to your requirements by setting up the
respective items in menus.
Installation
1. Click the
icon.
The setup menu appears in the selected window of the main
monitor.
2. Use
,
,
,
,
,
,
, and
buttons to set the options.
NOTE
•
Refer to the manuals of the PTZ camera for more details.
•
Some PTZ cameras may not be operated properly with this
unit.
•
You cannot control the other functions when the PTZ virtual
remote control is displayed.
Using the Digital Zoom function
You can enlarge the current screen 2 times using the digital zoom
function on one live channel with full screen mode or one channel
playback with full screen mode.
1. Press ZOOM(+) button during viewing a live channel in full
screen mode or playing back a channel in full screen mode.
2. You can use the zoom screen as following.
•
You can move the position of the zoom screen by using the
w/s/a/d buttons.
•
You can move the zoom screen by using the mouse. Drag &
drop a point to the specific point to move the zoom screen.
3. Press BACK button to exit.
NOTE
The zoom function is deactivated when below case.
•
When double click the left mouse button.
•
Press the specific channel or function button which front
panel of the unit.
•
Press the STOP button during the playback.
You can use some options by clicking the right button of the
mouse in the digital zoom mode.
•
Digital Zoom Control Guide: Shows the guide for using the
mouse.
•
Exit: Exits from the digital zoom mode.
2. Set the [Start Date/Time] and [End Date/Time] to search.
•
a/d/w/s: Moves to the options.
•
w/s: Sets the selected option.
•
OK: Selects option or confirms the setting.
3. Select the channel number and press OK. Repeat this step to
select multi channels.
4. Select the one of file format on the drop-down list of the [File
Format].
•
Native: The Native file is saved with the extention of “*.exp”.
The saved native file can playback using the Export Viewer
program.
•
AVI LG: To playing AVI LG file, you have to install the LG DVR
Codec. If you install the LG Network Client, do not need to
install the LG DVR Codec.
•
AVI: If you select AVI file format, it can play on any media
player.
5. Select [Export to] then press OK.
6. Use w/s to select a target device to export.
7. Press OK to confirm it.
8. You can set the password in case of the native file. To register
the password, click the checkbox of [Password]. The password
window is displayed. And then, enter the password by using
alphabetic letter and numeric digit 4-12 characters.
9. Click the [Export] icon to start exporting. The exported data
will be authorized by the unit before saving and it can only be
played back with the exclusive player.
Installation
NOTE
•
Check the export device before you proceed.
•
You can also use the COPY button on the front panel for
export function.
•
You can export the recorded data only in the live mode.
•
If you use the external device, the external device has to be
formatted on this unit.
25
Viewing the System Log List
To view the system log list:
1. Press the LOG button or click the
icon in the system control
bar. The system log list window is displayed on the main
monitor.
1. Connect the external device to the USB port on the front
or the rear of the DVR.
2. Select the [Format] icon then press OK.
Confirm window is displayed after format is completed.
3. Select [OK] and press OK to close the window.
•
3
2. Set the [Start Date/Time] and [End Date/Time] to search.
•
Export can not be executed while the backup is in progress.
•
a/d/w/s: Moves to the options.
•
You can search the exported data with the supplied viewer
software.
•
w/s: Sets the selected option.
•
When you export the recorded data, the video data, audio
data, the system log and event log data will also be exported.
•
OK: Selects option or confirms the setting.
•
When you export the recorded data the export viewer
program will also be exported in the [ExportViewer] folder of
the device. The exported data file name is made automatically
as the [Channel name_export date_export time.exp] type.
•
Do not remove the USB device while the export is in progress,
it may cause a malfunction.
•
The warning message appears for the conditions listed below.
3. Use a/d to see the previous or next log list.
4. Press the BACK button or click the [Close] button to exit the
window.
NOTE
Refer to the following system log list.
No.
Log Message
1
Power On
2
Power Off
--
When the start date/time and end date/time are the same
value.
--
When the start date/time is later than the end date/time.
3
Login (Remote)
--
The export media does not have enough space.
4
Logout (Remote)
--
When you set the time for data that does not exist.
5
Login (Local)
•
An external media has to be formatted on this unit to prevent
a malfunction.
6
Logout (Local)
7
Configuration Changed
•
DVD+RW and DVD-RW discs have to be initialized before
using.
8
Configuration Imported
9
Factory Default Set
10
Power Recovery
11
Backup Started
12
Backup Finished
13
Backup Failed
14
Export Started
15
Export Finished
16
Export Failed
17
S/W Updated
18
HDD Damaged
19
HDD Added
20
HDD Deleted
21
HDD Formatted
22
HDD Changed
Installation
Check the size of the selected data and free space of the
external device. If the device does not have enough space,
create space on the device or erase the previously stored data.
26
Installation
Viewing System Information
To view system information:
1. Press the INFO button or click the
icon in the system control
bar. The system information window is displayed on the main
monitor.
Configuration menu
The features and options of the DVR are configured through the
menu. The operations of this unit can be set via a menu displayed
on the main monitor. You can select and set the operational
conditions by using the buttons on the front panel and the remote
control or using a Mouse connected to the unit.
First level
Second level
Third level
3
Installation
•
Ethernet 0 / 1: Displays the detail information of the
Network.
•
Camera Information: Displays the detail information of the
camera framerate.
•
HDD Information: Displays the detail information of the
HDD.
Informations
Using a mouse to set a menu
Use the left or right mouse buttons to set the menu.
Button
•
Refresh: Updates the system information.
Left button
Function
•
Use to select a required item or
decrease the options value.
•
If you double click the button,
you can see the selected
channel on the full screen.
2. Press the BACK button or click the [Close] button to exit the
window.
Right button
Use to increase the options value.
1. Click the
icon on the System control bar with the left mouse
button to display a setup menu.
2. Click the desired option with the left mouse button to display
the second or third level menu options.
3. Click the desired option with the left mouse button.
4. Set the selected options value.
5. Click the
icon or click
icon repeatedly
to exit setup menu.
If the save message appears, click [OK] with the left mouse
button to save the settings.
Installation
Setting the Menu Using the Front Panel Buttons or
Remote Control Buttons
Remote
Control
Front Panel
Description
27
System settings
Properties
Use these buttons to select the
menu options or adjust the
options value.
SEARCH
VIEW
SEARCH
LOG-IN
REC
SETUP
LOG-IN
SEARCH
BACK
VIEW
VIEW
Select the option or confirm the
setting.
REC
SETUP
SETUP
LOG-IN
CAM
CAM
CAM
REC
BACK
Return to the previous menu or
level.
BACK
3
Installation
1. Press SETUP to display the setup menu.
2. Use w/s to select the desired menu item, then press OK to
display the submenu.
SEARCH
3. Use w/s to select the desired submenu item, then press OK
to display the setting options.
•
4. Use w/s to select the desired option then press OK to set the
value.
System Name: Enter the System name by using alphabetic letter,
numeric digit and symbols up to 21 characters.
•
5. Use a/d to select the desired setting then press OK to confirm
your selection.
Language: Select a language for the setup menu and
information display.
•
6. Press BACK repeatedly to exit the Setup menu.
If the save message appears, select [OK] and press OK to save
the settings.
Button Beep: Marks up to activate the button beep. The button
beep is activated when using the buttons.
•
Video Format: Selects the video format to NTSC or PAL according
to your video system format. If you change the video format, the
HDD is formatted with selected video format. After the HDD has
been formatted, the confirmation message is displayed. Select
[OK] and press OK. The system will reboot.
SETUP
LOG-IN
SEARCH
LOG-IN
CAM
REC
BACK
•
When you operate the function menu by using the remote
control and front panel buttons, both buttons are operated in
the same way to control the function menu.
•
To use other functions of number buttons on the front panel,
follow the below steps.
1. Press SHIFT. The button indicator turns red.
2. Select the function button you want.
•
Resolution: Sets the output resolution of the HDMI video signal.
•
All the operation explanations are based on using the remote
control.
REC
SETUP
Configuration Import: Import the DVRs configuration data from
the USB memory stick.
•
Configuration Export: Export the configuration data from this
DVR to the USB memory stick.
•
Factory Default: You can reset the DVR to its original factory
settings. Some options cannot be reset. (date, time, daylight
saving, time zone and user password settings)
•
Convert (LRH7160, LRN8240): Press the button to switch
between model LRH7160 and LRN8240.
SETUP
•
SEARCH
LOG-IN
NOTE
VIEW
NOTE
All cameras must be disconnected before you change the
video format to prevent malfunction.
REC
VIEW
CAM
VIEW
BACK
CAM
BACK
28
Installation
TCP/IP v4
Network
•
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
•
DHCP: Select this option when a DHCP server is installed on the
network to allow IP address assignment. With this setting, the IP
address is assigned automatically.
•
IP Address: Enter the IP address.
TCP/IP Port No.: Enter the TCP/IP Port number. You can watch
the live surveillance image over the network with the PC Client
program. The factory default port for transmission of video and
audio data is 9001. However in some cases it is better to change
this port number for added flexibility or security. You can edit
this port between 1025 and 65535.
•
Subnet Mask: Enter the subnet mask address.
•
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
Web Server Port No.: Enter the Web Sever Port number. You can
watch the live surveillance image over the network with a web
browser. Typically the TCP port used by HTTP is 80. However in
some cases it is better to change this port number for added
flexibility or security. You can edit this port to 80 or between
1025 and 65535.
•
Audio Port No.: Enter the Audio Port number. You can edit this
port between 1025 and 65535.
•
Bandwidth Throttle: Select [All] or [Per User] to set the
bandwidth value.
3
Installation
TCP/IP v6
--
All: Set same bandwidth to all of users.
--
Per User: You can set the bandwidth value per each user.
Select [User ID] from the left drop-down list. And then, set
the bandwidth from right drop-down list
•
RTSP Port : Enter the RTSP Port number. You can edit this port
between 1 and 65535. Default Port number is 554.
•
DDNS Service: Marks up to activate the DDNS function.
This free service is very useful when combined with the LG
DDNS Server. It allows the user to connect the IP device using
the URL, rather than an IP Address. This also solves the problem
of having a dynamic IP address.
•
Host Name: Enter the host name you want to use.
You can not use the “www”, “mail”, “http”, “ftp”, “com”, “lg”, “lge”,
“lgddns”, “lgeddns”, “ddns” for host name.
•
Registered Host: The registered host name appears.
•
Update: Register the host name you typed in [Host Name] to LG
DDNS server.
•
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
Auto: Select this option to assign the IP address automatically.
•
IP Address: Enter the IP address.
•
Subnet Prefix Length: Enter the Subnet Prefix length.
An IPv6 prefix indicates the portion of the address used for
routing or identifying an address range.
How to register DDNS host name
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
When you use the DDNS function for the first time after you
purchased LG DVR
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
With the DDNS function, you can easily use LG DVR.
1. Displays the DVR setup menu.
2. Select [System] > [Network] option.
3. Marks up for the [DDNS Service] option.
4. Enter the host name in the [Host Name] option.
5. Press the [Update] button. If host registration is properly
completed, the host name will be displayed in the [Registered
Host] option. If the host name is not registered after updating,
Installation
please check network connection.
When you want to change DDNS host name
If you want to change the registered host name to new one, follow
as shown below.
29
Date/Time
1. Enter a new host name in the [Host Name] option.
2. Press the [Update] button. The confirmation window will be
displayed to change your host name.
3. Click the [OK] button. When host name is properly changed, the
changed host name will be displayed in the [Registered Host]
option. If host name is not changed after updating, please check
network connection.
Network Streaming
3
Resolution : Selects the recording resolution.
•
Quality: Selects the recording picture quality.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of transportable frames per second. According to resolution, the
frame rate is set automatically. If you wish to set manually, refer
to the below.
PAL
•
•
Time: Select the current time.
•
Date Format: Select the date display format.
•
Time Format: Select the time display format.
•
Time Zone: Select the time zone in the area where the DVR is
installed.
•
Daylight Saving: Mark up if you want to use the daylight saving
function.
•
Daylight Saving Start: Select the Daylight Saving start time.
•
Daylight Saving End: Select the Daylight Saving end time.
Frame Rate
352*240
1, 3, 5, 7.5, 10, 15, 30
704*240
1, 3, 5, 7.5, 10, 15
704*480
1, 3, 5, 7.5
352*288
1, 3, 5, 6, 7.5, 12.5, 25
704*288
1, 3, 5, 6, 7.5, 12.5
704*576
1, 3, 5, 6
Profile: Selects the profile of stream. The [Profile] option is
activated in case of IP Camera only.
•
NTP: Marks up, if you want to synchronize the DVR’s date and
time with those of the time server called NTP. (Network Time
Protocol) Specify the NTP server’s name.
•
Time Server: For most cases select public. The DVR will obtain
the average time among 5 public servers (time.nist.gov, time-a.
nist.gov, time-b.nist.gov, ntp.nasa.gov, clock.isc.org).
•
Private Time Server: Enter the private time server’s IP address or
host name using the virtual keyboard.
•
Sync. Interval: You can set synchronized intervals with the NTP
time server to 1 day, 1 week, 1 month and 1 hour.
•
NTP Test: Select [NTP Test] to test the NTP server.
NOTE
If you need to adjust the image size to send to the client, set
the stream option of the [IP Device-Profile1 or Profile2]. And
then select the proper Profile from the [Network StreamingProfile]. You can control the bandwidth value forward to client.
NOTE
If the NTP option is not set to this system, there can be a
gap between the system time and actual time. Using NTP is
recommended.
Installation
CH: Displays the channel number.
•
NTSC
Date: Select the current year, month and day.
NTP
•
Resolution
•
30
Installation
Controller
8. To confirm the latest version, click the [Check now for update]
button to visit http://www.lgecommercial.com
NOTE
•
Do not turn the power off during the update process to
prevent the malfunction.
•
Do not remove the external device or CD/DVD disc for update
while the update is in progress. It may cause a malfunction.
Backup
3
Installation
•
IR Remote ID: Select the IR Remote ID for this unit. If you use
multi systems set the IR Remote ID for each DVR unit.
•
Remote Controller ID: Select the Remote Controller ID for this
unit. If you use multi systems, set the Remote Controller ID for
each DVR unit. You can control the DVR by using the LKD1000
controller. (For more details refer to the LKD1000 owner’s
manual.)
Update
The update feature allows you to upgrade DVR software and add/
upgrade PTZ protocols. In this case, the current DVR settings are not
deleted or replaced during the update process.
1. Selects the update method.
2. Selects the device included update file or enter the FTP server
name.
NOTE
If you select the update method to [LOCAL], the [FTP Server]
option will be disabled and the [Device] option is activated.
And if you select update method to [NETWORK], the [Device]
option will be disabled and [FTP Server] option is activated.
•
Schedule: You can set the backup schedule.
--
OFF: All options are disabled.
--
WEEKLY or DAILY: The backup data will be automatically
saved according to the setting.
--
INSTANT: The backup data is saved manually.
•
Device: Select a backup device.
•
Schedule Start: Set the schedule start date (A day of the week
and time).
•
Time Range Date: Enter the backup time range. Enter the date
you want to backup.
•
Time Range Start: Enter the start day of the week or time.
•
Time Range End: Enter the end day of the week or time.
•
Overwrite: Sets whether you use Overwriting function for
schedule backup.
•
Estimate Size: Displays the size of backup data and the free
space of external devices.
•
Start Backup: To start backup.
•
Erase Media: To erase the media.
Instant Backup
1. Connect the backup USB device or insert a recordable disk to
the disc driver for backup.
2. Select the partition you want to backup.
3. Select the [Search] button and press OK. The update file is
displayed in the list.
3. Select INSTANT from the schedule options.
4. Choose the update file from the list.
5. Select the Time Range Date, Time Range Start time, and Time
Range End time for backup.
5. Select the [Update] button and press OK. The confirmation
window is displayed.
6. Select [OK] to begin the update process or click [Cancel] to stop
and exit. After the update process is completed, the [Restart the
system] message appears.
7. Click [OK] to restart the DVR.
4. Select the backup device.
6. Select the [Estimate Size] icon and press OK.
7. Check the size of the selected data and free space. If the device
does not have enough space, create space on the device or
erase the previously stored data.
Installation
8. Select the [Start Backup] icon and press OK to start backup.
9. Exit the setup menu. You can check the backup status on the
system control bar in backup progress.
Daily/Weekly backup
NOTE
•
You cannot stop the backup when the backup is in progress.
•
The warning message will appear for the conditions listed
below.
1. Connect the USB device for backup. You cannot use the CD or
DVD writer for daily or weekly backup.
2. Select WEEKLY or DAILY on the schedule options.
3. Select the backup device.
4. Enter the date and/or time to start backup on the schedule start
option.
5. Enter the day of week and/or time on the Time Range Start
option.
--
When the start time and end time are the same value.
--
When the start time is later than the end time.
--
When you set the time for data that does not exist.
--
When the start time and end time setting are wrong.
--
A media does not have enough space.
--
When the selected USB device is disconnected.
The disc burning is carried out by a multi session mode.
6. Enter the day of week and/or time on the Time Range End
option.
•
If you use the CD/DVD writer device for backup, it makes ISO
image before writing the backup data on the CD/DVD.
7. Select On or Off in the [Overwrite] option.
•
You can see the backup progress status on the system control
bar.
•
The estimated size of backup data is only the approximate size.
So you must prepare sufficient space on the media to prevent
lack of space.
•
At the scheduled recording time, you can check the backup
status on the system control bar.
•
While export is in progress or searching the backup data
from the external USB device, the scheduled backup will
not be started. After the export or backup search is finished,
scheduled backup will be restarted.
•
When you set the schedule backup, the backup data size is
estimated from the recording settings of the Setup menu. If
the real recorded data size is over the estimated recording
data size, the schedule backup may not be activated.
•
If you use the overwrite function in the [Backup] option, the
oldest backup data is deleted.
•
Although all of backup data is deleted, backup is not
implemented if the device does not have enough space.
9. Check the size of selected data and free space of USB device. If
the USB device does not have enough space, change the USB
device to a USB which has enough space or erase data of the
connected USB device.
NOTE
•
The backup function is not supported on the external USB
CD-ROM driver.
•
Available external device for backup.
Device
Capacity
USB HDD
Up to 2 TB.
E-SATA HDD
Up to 2 TB.
•
Use the recommended external USB devices for preventing
malfunction (See the page 56).
•
For the latest recommended HDD list, please visit
http://www.lgecommercial.com
•
The CD-R, DVD-R or DVD+R discs cannot be formatted.
•
DVD+RW and DVD-RW discs have to be initialized before
using.
•
An external media has to be formatted on this unit to prevent
malfunction.
•
You cannot use the [Estimate size], [Start Backup] and [Erase
Media] options in backup progressing.
•
Do not remove the external device while the backup is in
progress, it may cause a malfunction.
•
If you format the external media by using a PC with FAT32, the
media may not be used on this unit.
•
Check the size of the selected data and free space of the
external device. If the device does not have enough space,
create space on the device or erase the previously stored data.
1. Select the [Estimate Size] icon and press OK.
The size of the selected data and free space is displayed.
2. Select [OK] and press OK to close the window.
3
Installation
•
8. Select the [Estimation Size] icon and press OK.
31
32
Installation
Device settings
PTZ
Settings for the PTZ cameras connected via the data port of the
RS-485 terminal.
Camera
3
Installation
•
Ch: Displays the channel number.
•
Name : Set the channel name by using alphabetic letter,
numeric digit and symbols up to 21 characters.
•
Channel: Selects the desired channel to set the connected PTZ
camera.
•
Port: Selects the connected data port of the RS-485 terminal
on the rear panel. The DATA 2 port is used to control the PTZ
camera connected to DVR or to control by using the LKD1000
controller. If you want to use the PTZ camera via DATA 2 port,
you should set the [Remote Controller ID] to [NONE]. If you use
the LKD1000 controller to control the DVR via DATA 2 port, you
should set the [Remote Controller ID] number between 1 and
16. When you select [COAXIAL COMMUNICATION], [Protocol]
option is set to [PELCO_C] automatically and [Control ID], [Baud
Rate] options are deactivated.
NOTE
If the [IP Enable] is set to [ON], you cannot set the [DevicePTZ], [Record-Normal], [Record-Sensor], [Record-Motion],
[Record-Text], [Record-Instant/Panic] and [Event-Motion]
options because they are deactivated.
•
Audio: Select the input audio channel. You can hear from the
selected input audio channel. If you set to ON for the IP channel,
you can hear the input audio of the IP camera.
•
Control ID: Selects the PTZ camera ID. Make the same settings
as the PTZ camera.
•
IP Enable :
On : Uses the camera as a IP camera.
Off : Uses the camera as a Analog camera.
•
Protocol: Selects the protocol supported by PTZ camera.
•
Baud Rate: Selects the communication speed.
•
PTZ Test: After the PTZ setting, you can test the pan/tilt function
for the selected PTZ camera. You can see the test screen from
the preview windows on the right side of the PTZ test option.
--
a/d: Tests the pan direction.
--
w/s: Tests the tilt direction.
NOTE
The supported PTZ camera list is on page 57 for reference.
Installation
IP Device
Audio/Sensor setting
You can configure this option when you select to [LGE] on the
[Driver] option. Select [Audio/Sensor] tab of the [Setup] window.
Audio In: Click the check box if you want to send the audio
from the microphone input connector.
--
Audio Type: Select the codec when you send the audio from
the microphone input connector.
--
Audio Out: Click the check box to output the audio from the
speaker.
--
Sensor:Select the sensor number on the drop-down list.
--
In Use: Marks up when you want to activate the sensor.
--
Sensor Type: Select the sensor type.
--
Relay Output: Select the relay output number
on the drop-down list.
--
Relay Type: Select the relay type.
CH: Displays the channel number which you selected to [On] on
the [Camera-IP Enable].
--
Control Duration: Enter the relay time.
•
Name: Enter the channel name.
•
Model Name: Displays the model name of IP device.
You can configure this option when you select to [LGE] on the
[Driver] option. Select [Motion] tab of the [Setup] window.
•
MAC: Displays the Mac address of IP device.
•
IP: Displays the IP address of IP device.
•
HTTP Port: Enter the HTTP port number. HTTPS is not supported.
•
/ : You can see other options (Driver, Profile1, Profile2,
RTSP Port, RTP Mode, Audio Recording) to click button. To
return previous options, click button.
•
Driver: Selects the IP camera driver from the drop-down list.
•
Profile1: Select the camera stream on the drop-down box for
recording.
•
Profile2: Select the camera stream on the drop-down box for
streaming. For smooth live playback, the resolution of [Profile2]
set lower than resolution of [Profile1].
NOTE
•
When you select full screen mode on the [split mode],
[Profile1] operate for streaming automatically.
•
When CPU usage occupies more than 90% and then 1 minute
goes by, connection of [Profile2] is limited for the stability of
system.
•
RTSP Port: Enter the RTSP port number.
•
RTP Mode: Select the RTP mode from drop-down list.
•
Audio Recording: Check the audio recording option.
•
Setup: Click the check box of the desired channel and then
press the [Setup] button. The setup window will be displayed.
NOTE
•
•
•
•
In case of same driver and same model, even if you select
several channels, the [Setup] button is activated.
The setting of the smallest channel number among the
selected channels is displayed. And, you can configure the
same settings.
In case of the Axis or Onvif driver, batch setup may not work
according to the camera model and the firmware.
In case of the LGE models, [Profile1] and [Profile2] are displayed
as [Master] and [Slave].
Motion Setting
1. Click the [Add] button. The motion detect window is
displayed. You can add the five windows maximum for
motion detection area.
2. Set the [Sensitivity] option.
3. Click the edge or corner of the window box to adjust the
window size for motion detection.
4. Click the [Save] button to save the settings.
Stream Setting
If you select to [LGE] on the [Driver] option, select the [Stream]
tab. When you select [ONVIF] on the [Driver] option, you can
configure the stream setting only. In case of [AXIS], the [Bitrate]
and the [Compression] options are activated only.
--
Stream (LGE only): Select the video stream.
--
In Use (LGE only): Click to activate the stream function.
--
ideo Codec: Select the video mode (Codec) from the
V
dropdown list.
--
Resolution: Select the output image size of the camera.
--
Frame Rate: Set the frame rate of the image.
--
GOP: It means “Group of Pictures”. The higher the GOP, the
better is the video quality of the camera. Edit the value of
GOP from 1 to 30. This setting is valid for H.264 video format
only.
NOTE
It recommended that you set the [GOP] value same as
[Frame Rate].
--
GOV (ONVIF only): It means “Group of VOPs”. The VOP is an
image frame in the MPEG-4 video stream. Edit the value of
GOV from 1 to 30.
--
Quality: Select the Quality.
--
Stream Quality (LGE only): If the [Quality] option set to VBR,
this option is displayed. Select the stream quality from the
drop down box, the camera supports five types. (Highest,
High, Medium, Low and Lowest)
--
Bitrate: If the [Quality] option set to CBR, this option is
displayed. Edit the bit rate value from 256 kbps to 10 240
kbps.
3
Installation
--
•
33
34
Installation
--
•
Compession (AXIS only): Enter the compression ratio of
video. The lower value you set up, the higher definition
picture you get.
Delete: Click the check box of the desired channel and then
press the [Delete] button. Registered channel of IP Camera will
be deleted.
6. Click the check box of confirmed cameras. Selected cameras are
registered channel in order.
7. Click the [CLOSE] button to exit the window.
NOTE
•
The Supported IP camera specifications.
Specification
To register the IP device automatically
3
Installation
1. Click the [AUTO] button.
2. The search window will be displayed and start to search the IP
device automatically. By stopping or restarting the search, click
[Stop] or [Refresh] button.
3. Click the check box of desired device.
4. Enter the [User Name] and the [Password] and then click the
[Add] button. When you select several channels, channels are
assigned same ID and password.
5. Confirm the result of authentication on the [Verify] option.
•
O: The verification is valid.
•
X: The verification is invalid. Check the ID and password
again.
•
XX: Connection failed.
•
Description
Driver
LGE, AXIS, ONVIF
Recording mode
Continuous, Instant, Motion,
Sensor
Video Codec
H.264, MPEG4, MJPEG
Audio recording and
playback
Support
Resolution
CIF, Half D1(2CIF), D1(4CIF), UXGA,
720p, 1080p (Up to 2048 x 1536)
Stream
LGE (Master-0, Slave-0)
ONVIF (The stream that is
supported from camera)
AXIS (H.264, MPEG4, MJPEG)
PTZ
Support
Sensor/Motion input
Support
It takes time to search IP devices and the necessary time
depends on the network environment.
ATM/POS
6. Click the check box of confirmed cameras. Selected cameras are
registered channel in order.
7. Click the [CLOSE] button to exit the window.
To register the IP device manually
•
5. Confirm the result of authentication on the [Verify] option.
NONE: Selects when the ATM/POS device is connected with
the DVR directly.
--
AVE Hydra: Selects when the ATM/POS device is connected
via the AVE Hydra device to the DVR. If you set to AVE Hydra,
the [Camera], [Baud Rate], [Data Bits], [Stop Bits] and [Parity]
options are dimmed and these options cannot be set.
Camera: Select the camera number for mapping with ATM/POS
device.
•
Baud Rate: Select the desired parameter to set the
communication speed between DVR and ATM/POS device.
•
Data Bits: Select the number of the data bits for RS-485
communication.
•
Stop Bits: Select the desired parameter. The stop bit is added to
the last of data, in asynchronous communication.
3. Click the check box of desired device.
4. Enter the [User Name] and the [Password] and then click the
[Add] button. When you select several channels, channels are
assigned same ID and password.
--
•
1. Click the [MANUAL] button.
2. Enter the IP address.
Interface Device: Select the interface device from the dropdown list.
Installation
•
Parity: Select the desired parameter. The parity bit is added to
the data, to perform parity check.
Storage
35
Display settings
OSD
3
Overwrite: Sets whether you use Overwrighting function.
•
Full Warning: When the HDD has overflowed a warning message
is displayed.
•
Auto Delete: Sets the auto delete date. If you set the auto delete
date, the recorded data will be deleted except the data within
the selected date period of time. The Auto Delete function is
activated every 35 minutes.
•
Storage Saving : Saves the storage space by reducing the quality
of the recorded data.
•
Format: Initializes the HDD (Hard Disk Drive). All data on the
HDD will be erased.
•
E-SATA : Selects the E-SATA device.
•
Insert: Uses the selected E-SATA storage for recording data.
•
Eject: Uses the selected E-SATA storage for data back-up.
Installation
•
•
Channel Name: Mark up to display or remove the channel name
in the channel window.
•
Channel Status: Mark up to display or remove the channel status
in the channel window.
•
Channel FPS: Mark up to displays or removes the channel FPS
(Frame Per Seconds) in the channel window.
•
Font Size: Selects the font size of characters such as the channel
name and playback time which displayed on the channel
window.
•
Position: Selects the position of characters such as the channel
name and playback time which displayed on the channel
window.
•
Channel Name (Spot): Mark up to display or remove the channel
name on the spot monitor.
Sequence
You can view all the channels in sequence in the selected screen
division mode. You cannot use sequence mode with the 16 split
(LRH7080D series: 8 split). While the sequence mode condition, if
you change the screen division mode, the sequence function will
be canceled.
•
Main Dwell Time: Selects the channel sequence time for main
monitor.
•
Spot Dwell Time: Selects the channel sequence time for spot
monitor.
36
Installation
Video Adjustment
Adjust the brightness, contrast and color settings of each camera
channel. You can see the settings screen from the preview windows.
Record settings
Normal Schedule Recording
A Normal schedule recoding can be activated at preset times, in
a repeating pattern on selected weekdays. The DVR can record
according to a schedule set by the user. It can also record manually
regardless of date and time. The recording can be made either
continuously or triggered by events (Sensor and motion detection).
The recording schedule screen displays one day of the week
showing the schedule of all channels over a 24-hour period. For
each 1-hour cell block the recording method can be specified. The
recording method for each block is shown in color for easy viewing.
3
Installation
Channel numbers
•
Channel: Selects the desired channel to adjust.
•
Brightness: Adjust the brightness value from 0 to 100 for the
selected channel.
Contrast: Adjust the contrast value from 0 to 100 for the selected
channel.
Color: Adjust the color value from 0 to 100 for the selected
channel.
Restore to Default: Sets to default setting value.
•
•
•
Time Line
Day of the Week
Recording mode
To Set a Recording Schedule for a Typical
Day of the Week (Normal Schedule)
1. Select a day of the week.
Installation
2. Select a recording mode.
37
NOTE
In case you set the motion recording setting on the channel of IP
camera, the recording starts when Video content analysis event as
well as Motion event is occurred.
3. Drag and drop with left button of the mouse to set the channel
and time you want to record. The color of the time block is
changed depending on the selected mode.
Gray (No recording): No schedule recording.
•
Gold (Continuous recording): Recording starts automatically
from the preset time.
•
Red (Sensor event recording): Recording starts automatically
when the sensor occurs within a designated time.
•
Green (Motion event recording): Recording starts
automatically when motion is detected within a designated
time.
•
Violet (Text event recording): Recording starts automatically
when text input is detected within a designated time.
•
Yellow (Sensor+Motion recording): Recording starts
automatically when the sensor signal has input or motion
has been detected.
•
Gold+Red (Continuous+Sensor event recording): Recording
starts automatically from the preset time. When the sensor
occurs within a designated time, changes the continuous
recording mode to sensor event recording mode and
recording starts automatically.
•
Gold+Green (Continuous+Motion event recording):
Recording starts automatically from the preset time. When
the motion is detected within a designated time, changes
the continuous recording mode to motion event recording
mode and recording starts automatically.
•
Gold+Violet (Continuous+Text event recording): Recording
starts automatically from the preset time. When the text
input occurs within a designated time, changes the
continuous recording mode to text event recording mode
and recording starts automatically.
3
Installation
•
4. Press BACK to move to the previous menu.
If the save message appears, select [OK] and press OK to save
the settings.
5. Press BACK repeatedly to exit the Setup menu.
Gold+Yellow (Continuous+Sensor+Motion event
recording): Recording starts automatically from the preset
time. When the sensor signal has been input or motion has
been detected, changes the continuous recording mode
to motion event recording mode and recording starts
automatically.
To Set a Recording Schedule for a Special
Day (Special Schedule)
•
Yellow+Violet (Sensor+Motion+Text event recording):
When the sensor signal has been input, motion has been
detected or the text input occurs and then recording starts
automatically.
1. Select an Item number.
•
Sky blue (Continuous+Sensor+Motion+Text event
recording): Recording starts automatically from the preset
time. When the sensor signal has been input, motion has
been detected or the text input occurs within a designated
time, changes the continuous recording mode to occurred
event recording mode and recording starts automatically.
•
In addition to the weekly schedule, up to 15 specific date/time
periods can be defined. To configure the specific recording schedule
select Specific Dates.
38
Installation
Normal
Settings concerning normal recording.
3
Installation
2. Enter the name of the special day. Use w/s/a/d to select
the [Name] column and press OK. The virtual keyboard menu
appears.
3. Use w/s/a/d to enter the necessary information for year,
month and date. You can use the calendar icon to select the
date.
•
CH: Displays the channel number.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality.
4. Select the time cell block on the desired channel.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
NOTE
If the special day recording schedule is duplicated with the other
recordings, only the special day recording is possible.
Sensor
Settings concerning sensor recording.
Copying the Recording Schedule
Copying from the Scheduled Data of the Channel
You can copy the schedule data of the channel to the other
channel(s) within the selected day of the week. You cannot copy the
schedule data of the IP channel.
1. Select the day of the week and press OK on the [Normal
Schedule] or [Special Schedule] menu.
2. Select [Channel Copy] then press OK then the channel selection
menu appears.
3. Use w/s/a/d to select a channel then press OK to select
the target channel(s).
You can cancel the selected channel by pressing OK.
4. Select [OK] then press OK to confirm your selection.
Copying from the Scheduled Data of the Day
You can copy the scheduled day of the week to another day of the
week, weekday and weekend.
•
CH: Displays the channel number.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
•
Prealarm: Specify the pre-event recording time. When the Event
signal is detected, the DVR recordes the data before the event
during the setting time.
•
Postalarm: Specify the post-event recording time. When the
Event signal is detected, the DVR recordes the data after the
event during the setting time.
1. Select the day of week that you want to copy.
2. Select [Day Copy] then press OK then the channel selection
menu appears.
3. Use w/s/a/d to day of the week then press OK to select
the target date(s). You can cancel the selected channel by
pressing OK.
4. Select [OK] then press OK to confirm your selection.
Installation
Motion
Instant/Panic
Settings concerning motion recording.
Settings concerning instant/panic recording.
39
3
CH: Displays the channel number.
•
CH: Displays the channel number.
•
Resolution: Selects the recording resolution.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality.
•
Quality: Selects the recording picture quality
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
•
Prealarm: Specify the pre-event recording time. When the Event
signal is detected, the DVR recordes the data before the event
during the setting time.
•
Postalarm: Specify the post-event recording time. When the
Event signal is detected, the DVR recordes the data after the
event during the setting time.
Text
Settings concerning text recording.
•
CH: Displays the channel number.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
•
Prealarm: Specify the pre-event recording time. When the Event
signal is detected, the DVR recordes the data before the event
during the setting time.
•
Postalarm: Specify the post-event recording time. When the
Event signal is detected, the DVR recordes the data after the
event during the setting time.
NOTE
Instant is single-channel setting and Panic is multi-channel setting.
Installation
•
40
Installation
Event settings
Motion
Sensor
3
Installation
•
Channel: Select the channel to set motion detection.
•
Sensitivity: Set the level of sensitivity for the created motion
detection area. Sensitivity can be set from level 1 to 10 or OFF.
•
Relay Output: Select the number of the RELAY-OUT terminal for
the output alarm (relay) signal when motion is detected.
•
Area: Select the desired motion detection area on the preview
window screen.
•
In: Displays the number of the ALARM-IN terminal.
•
Sensor Type: The sensor state can be set to either N.O. (Normally
Open) or N.C. (Normally Closed).
•
Camera: Select the camera channel connected to the ALARM-IN
terminal.
--
w/s/a/d: Moves the yellow cell box to another cell
zone.
•
Relay Output: Select the alarm (relay) output number for the
RELAY-OUT terminal for the output alarm (relay) signal.
--
OK: Selects or cancels the motion detection area at the
current cell position.
•
Preset: Select the preset number. When the input is activated,
the camera moves to the selected preset position and the
picture of the camera in that position appears on the monitor.
--
Press BACK to exit the settings.
NOTE
•
•
You can select the motion detection area by using the mouse.
--
To select the area: Drag & drop a cell to the right to select
the motion detection area.
--
To cancel area: Drag & drop a cell point of a selected cell
area to the left to cancel the motion detection area.
In the condition that illumination is low and the outline of
object is not clear enough to see, regardless of sensitivity,
Motion Event may not happen. You must check Motion Event
before setting.
Installation
ATM/POS Data Format
41
Event Popup
The DVR can be set to react to text input from devices such as
ATMs (Automated Teller Machines) and POS (Point of Sale; i.e., cash
registers). This screen allows you to configure the DVR for your input
device.
3
•
Input Channel: Select the mapping camera channel.
•
Transaction Start: Enter a Transaction Start string. Refer to the
device manufacturer’s documentation for the text string that
the device first sends when a transaction starts.
•
Transaction End: Enter a Transaction End string. Refer to the
device manufacturer’s documentation for the text string that
the device sends when a transaction ends.
•
Delimiter: Enter the character(s) that the device uses to
indicate the end of a line. Refer to the device manufacturer’s
documentation for Line Delimiter character(s).
•
Ignore String: Enter the any strings of text that you want the DVR
to ignore. Refer to the device manufacturer’s documentation
for text strings that the device sends during transactions, so you
will know which ones you do not want recorded.
•
Time Out: Select the Recording end time.
•
Relay Output:
--
--
01 to 04: Outputs the alarm (relay) signal via the RELAY-OUT
terminal. When the DVR detects text input, it triggers output
signals on all the associated RELAY-OUT connectors.
NONE: Not used.
NOTE
ATM/POS Recording Information.
Option setting
ATM/POS Recording Action
Recording is started automatically
When the Transaction
when the Transaction start data is
Start and Transaction End detected. When the Transaction
options are set.
end data is detected, the recording
is stopped after post-alarm time.
Recording is started automatically
when the transaction data is
When the Transaction
detected. When the transaction
Start and Transaction End data is not detected, the recording
is stopped after post-alarm time
option is not set.
and the time you set in the Time
Out option.
Spot Channel: Select the event type for the spot monitor display
when the event is activated.
Notification
Marks up when you want to activate the selected option. If the
selected notification option is activated, the device will notify the
user about the information of selected option by E-mail.
•
Sensor On: Sends an e-mail when a sensor has occurred.
•
Motion Detection: Sends an e-mail when a motion detection
has occurred.
•
Text In: Sends an e-mail when a text input is detected.
•
Admin Password Changed: Sends an e-mail when the
administrator password has been changed.
•
Video Loss: Sends an e-mail when a video signal from the
camera has stopped because of a cable disconnection or
malfunction of a camera.
•
Power On/Off: Sends an e-mail when power is on or off.
•
Disk Full: Sends an e-mail when the HDD has fully recorded.
Installation
•
42
Installation
Mail
Emergency
•
Notification: Mark up to be notified the unit's operating
information according to notification settings by e-mail.
•
•
SMTP Server: Enter the SMTP Server address.
If notification option is not mark up and the SMTP server option
is empty, the SMTP Port, User Name, Password and TLS options
cannot be set.
Notification: Mark up to be notified the emergency agent about
the unit's operating information according to your notification
settings.
•
Host Name/Port: Enter the Host Name and port number of the
emergency agent program. The factory default port for this
function is 9002. However in some cases it is better to change
this port number for added flexibility or security. You can edit
this port between 1025 and 65535.
You can set up to 9 Host Name and port numbers.
3
Installation
•
SMTP Port: Enter the SMTP Port Number. Typically the port used
for SMTP is 25. However in some cases it is better to change this
port number for added flexibility or security. You can edit this
port between 1 and 65535.
•
User Name: Enter the user name.
•
Password: Enter the password.
•
TLS: Mark up if you use the TLS (Transport Layer Security)
function.
•
Mail Address (1 to 3): Enter the mail address.
You can input up to 3 e-mail addresses.
•
Sender: Enter the sender.
•
JPEG Attachment: Click the check box to send a mail which
want to attach a JPEG file.
•
E-mail Test: Select [E-mail Test] to test sending an e-mail.
SNMP
The Simple Network Management Protocol (SNMP) is an application
protocol to exchange the management information of network
devices.
NOTE
•
•
•
The SMTP server, SMTP port no., user name or password
settings are optional. The DVR can send e-mail directly without
the use of an SMTP server or MTA (message transfer agent).
In certain cases all e-mail should be forwarded to a specific
SMTP server. Specify the server host name or IP address in
such a case. For more detail on SMTP setup, ask your network
administrator and/or mail service provider.
[JPEG Attachment] option is operated when event of [Sensor
On], [Motion Detection] and [Text In] is occurred.
In case of an IP Camera, ONVIF JPEG Snapshot feature must be
supported to attach a JPEG file.
•
SNMP Version: Selects a SNMP version if SNMP is allowed to
access to this device.
•
Port: Enter the number for SNMP port.
•
Community String (V2 only): Specifies the SNMP management
community in which you want to enable this system (e.g.
lgecommunity or public).
•
User (V3 only): Enter the security name for the SNMP.
•
Authentication (V3 only): Select a mode for the SNMP
Authentication. (MD5 or SHA)
•
Password (V3 only): Enter the password for the SNMP
Authentication.
•
Privacy (V3 only): Select a privacy mode for the SNMP
Authentication. (DES or AES)
•
Password (V3 only): Enter the password for the privacy mode.
•
Trap IP Address: Specifies the IP address of the computer you
intend to use as your network management station and to
which SNMP traps will be sent.
Installation
•
Trap Community String: Specifies the SNMP trap community in
which you want to enable this system (e.g. lgecommunity or
public).
43
Buzzer
Marks up when you want to activate the selected option.
Output
3
Relay Off
--
ALARM ACKNOWLEDGE: Use the ALM.OFF button to stop
alarm.
--
POST-ALARM TIME: The alarm is stopped after post-alarm
time.
•
System Alarm Out: Outputs the alarm (relay) signal via the
selected alarm out terminal number when the system has some
problem. If you do not use this function, select [NONE] option.
•
HDD Fail Alarm Out: Outputs the alarm (relay) signal via the
selected alarm out terminal number when the HDD is failed. If
you do not use this function, select [NONE] option.
•
Video Loss Alarm Out: Outputs the alarm (relay) signal via the
selected alarm out terminal number when a video signal from
the camera has stopped because of a cable disconnection or
malfunction of a camera. If you do not use this function, select
[NONE] option.
Sensor: Makes a sound when a sensor occurs.
•
Motion : Makes a sound when a motion is detected.
•
Text: Makes a sound when the DVR detects text input.
•
System: Makes a sound when a cooling fan is not activated or
the HDD has bad sector.
NOTE
•
Data cannot be saved in HDD which is occurred bad sector.
But if HDD is installed more than 2 on this unit, data is saved in
other normal HDD.
•
When HDD has bad hold, can not operate normally. Replace
the HDD immediately .
Installation
•
•
44
Installation
User settings
User
You can set the user name for the selected User ID.
Group Authority
You can register a new user group with various access rights.
3
Installation
1. Select [User ID] from the drop-down list.
2. Enter the user name of the selected user ID.
3. Select the user group from the drop-down list.
•
Group ID: Select the group ID to assign authority.
--
--
--
GUEST: The GUEST group has the limited authority of the
system. Users in this group are available to see the live
image and to set the covert function of the Main or Spot
channel.
ADMINISTRATOR: The ADMINISTRATOR group has the
unlimited authority of the system. Users in this group are
available to use all of the functions.
[Group 01] to [Group 08]: Users in this group are available to
set the authority of the function manually.
NOTE
The GUEST and ADMINISTRATOR group are set initially for the
authority. You cannot change the initial settings and group name
(GUEST and ADMINISTRATOR).
•
Group Name: If you select one of the group numbers from the
Group ID option, you can register the group name. Enter the
group name.
--
•
Setup, Search/Play, Export, PTZ, Power Off, Instant Record:
Set the authority for the selected group. Mark up the option
to activate it.
Main Channel/Spot Channel: Selects the channel to allow the
operation for the group user. The LG logo is displayed on the
covert channel(s).
4. Enter the Password.
5. Select the auto user logout time from the drop-down list.
6. Press BACK button to display the confirmation window.
7. Select [OK] to save the setting or [Cancel] to cancel the
NOTE
•
It is strongly recommended that you change the password of
the administrator for the protection of the security of personal
information. Do not leave 000000 as the default password.
Make sure that you keep your password and write it down in a
.g
ni ttessafe place so that you do not forget it.
•
If you set the user ID to [ADMINISTRATOR], you cannot change
the [User Name] and [Group] option but you can change the
password.
•
The user name and password are case-sensitive.
•
The password must be entered more than 4 characters.
Installation
Setup Wizard settings
45
Step 2
Set date and time.
The Setup Wizard appears on the screen when you turn on the unit
for the first time or select [Setup Wizard] on the Setup menu. You
can set the System name, display language, date, time, network
settings, recording schedule and recording mode on the initial
setup wizard.
NOTE
If you run the Setup Wizard when DVR Setup has already been
completed, the data previously configured could be deleted.
3
Set system name and display language.
•
System Name: Enter the System name by using alphabetic letter,
numeric digit and symbols up to 21 characters.
•
Language: Select a language for the setup menu and
information display.
Date: Select the current year, month and day.
•
Time: Select the current time.
•
Date Format: Select the date display format.
•
Time Format: Select the time display format.
•
Time Zone: Select the time zone in the area where the DVR is
installed.
•
Daylight Saving: Mark up when you use the daylight saving
function.
•
Daylight Saving Start: Select the Daylight Saving start time.
•
Daylight Saving End: Select the Daylight Saving end time.
Installation
Step 1
•
46
Installation
Step 3
Step 5
Set network address for LAN ports.
Set recording mode for the Continuous and Event recording.
•
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality.
•
DHCP: Select this option when a DHCP server is installed on the
network to allow IP address assignment. With this setting, the IP
address is assigned automatically.
•
Frame Rate: Selects the frame rate. The frame rate is the number
of recorded frames per second. According to resolution, the
frame rate is set automatically.
•
IP Address: Enter the IP address.
•
Subnet Mask: Enter the subnet mask address.
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
3
Installation
Step 4
Set recording schedule.
•
Weekday: Sets the recording mode to weekday (Mon-Fri).
•
Weekend: Sets the recording mode to weekend (Sat-Sun).
Operation
47
4
Operation
Instant Recording
NOTE
Images from a camera will be recorded on the built-in hard disk.
Ensure all the cameras are connected and that time and date have
been set correctly.
Before you start recording, first check the repeat recording settings
in the recording menu of the system setup, and then make the
recording settings.
•
External recording devices can be used as copy areas for
images recorded on the hard disk. It is impossible to record
images on the external recording devices directly.
•
You can record instantly with the left mouse button.
1. Move the cursor to the desired channel screen on the
main monitor.
FOCUS+
IRIS+
3
4
FOCUS -
IRIS -
7
8
SET
CLEAR
11
12
MOVE
TOUR
15
16
•
You can use the instant recording also for the channels
scheduled such as sensor, motion or continuous.
•
Once you stop instant recording, the recording type indicator
will be changed to the scheduled recording mode.
•
You can not record the Instant and Continuous recording in
following conditions.
SHIFT
SEARCH
REC
SETUP
LOG-IN
VIEW
CAM
BACK
-----•
2. Press the REC button and then press the channel button you
want to stop recording. If you stop instant recording, the
recording mode will be changed into the scheduled recording
mode (Continuous/ Sensor / Motion records). If the schedule is
not set, the button indicator turns off and the recording type
indicator turns gray on the selected channel screen of the main
monitor.
Panic Recording
You can record the all channels at the same time.
This function is activated for a live channel only.
1. Press and hold the REC button until the Recording Type
indicator turns gold on the all live channel screens.
The DVR will start recording.
2. Press and hold the REC button until the Recording Type
indicator turns gray on the all live channel screens. The DVR will
stop recording.
A HDD is not attached.
A HDD is not formatted.
The channel has no video input for display.
Overwrite is set to “OFF”.
The schedule (Sensor/Motion) record is not set.
Priority of record.
Instant record > Sensor record > Motion record > Continuous
record.
•
The Warning message is displayed when the HDD problem
occurs during the recording.
4
Operation
2. Click the recording type indicator with the left mouse
button and recording starts. Click it once again and the
instant record stops and the recording type indicator
will be changed into the scheduled recording mode
(Continuous / Sensor / Motion record). If the schedule is
not set, the recording type indicator turns gray.
1. Press the REC button and then press the channel button you
want to record. The recording type indicator turns gold on the
selected channel screen of the main monitor.
48
Operation
Instant Playback
7. Press ad (Play) button or click
button to start playback.
The picture(s) is (are) displayed on the main monitor.
8. Press STOP (Z) to stop playback and return to the search menu.
It is possible to play a recorded image without stopping recording.
1. Select a channel you want to playback.
2. Press ad (Play) button to play a recorded image of the
previous 1 or 2 minutes of recording. The playback image will
be displayed on the full screen window.
3. Press Z (STOP) button to stop the playback.
9. Press BACK repeatedly to exit the [Date/Time] menu.
Using the calendar icon to select a date
1. Select the
icon then press OK.
2. Press BACK to move to the [w] or [s] option selecting a year
and a month.
3. Press OK repeatedly to select a desired year and month.
4. Use w/s/a/d to select a date then press OK.
Search and Playback
5. Select [OK] button and press OK to confirm the settings.
NOTE
4
The various search functions of this unit can be used to go to the
beginning of the desired picture.
Press SEARCH to display the search menu.
Operation
Date and Time Search
•
While the backup is in progress, you can not search the data
on the backup device.
•
Do not remove the external USB device from the USB device
whilst the backup search is in progress. It may cause a
malfunction.
•
Recorded data shown on the time graph will be displayed in
different colors depending on the recording type.
Use to search recorded pictures by specifying date, hour and
minute.
--
Gold: Continuous recording.
--
Red: Sensor recording.
--
Green: Motion-detection recording.
--
Gray: No recording.
--
Violet: ATM/POS recording.
•
button to view the detailed time by 6 hour
Use
intervals.
•
If you do not select the channels in the Date/Time search,
playback is implemented as current main monitor screen
mode.
Event Search
1. Press SEARCH or click the
and [Search] menu appears.
icon on the System Control Bar
Search a recorded picture by date and type of event.
2. Use w/s button to select the [Date/Time] icon then press OK.
3. Select the desired source device.
•
INTERNAL HDD: Plays back or searches recorded contents of
the internal HDD device.
•
Source Device: Plays back or searches backup contents of
the source device.
4. Set the year, month, date and time.
•
a/d: Moves to the previous or next column.
•
w/s: Changes the value at the current position.
•
OK: Selects the column or confirms the setting.
5. Select the [Search] icon then press OK.
The search result is displayed.
6. Use w/s button to select the channel and press OK. Repeat
this step to select the other channels.
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
2. Use w/s button to select the [Event] icon then press OK.
3. Select the desired source device.
4. Set the year, month, date and time.
•
a/d: Moves to the previous or next column.
•
w/s: Changes the value at the current position.
Operation
•
OK: Selects the column or confirms the setting.
5. Use w/s/a/d button to select the channel and press OK
button to confirm the selection. If you want to select the all
channels, marks up the [Select All] option.
49
ATM/POS Search
Search the recorded text information by ATM/POS device.
This function is available with backup data of the internal or external
HDD only.
6. Select the [Event Type] from the drop-down list.
7. Select the [Search] button then press OK.
The event list menu appears.
You can see the images through preview screen if you select a
data in Event list.
8. Select a recording data on the event list then press ad (Play)
button or click
button to play back the selected data.
The picture is displayed on the main monitor.
9. Press STOP (Z) to stop playback and return to the event list
menu.
10. Press BACK repeatedly to exit the event search menu.
Bookmark/Protect Search
Searches the recorded data included a bookmark or the protected
section.
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
3. Select the desired source device.
4. Set the year, month, date and time.
•
a/d: Moves to the previous or next column.
•
w/s: Changes the value at the current position.
•
OK: Selects the column or confirms the setting.
5. Use w/s/a/d button to select the channel and press OK
button to confirm the selection. If you want to select the all
channels, mark up the [Select All] option.
6. Set the detail search options.
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
2. Select the [Bookmark] or [Protect] from drop-down list.
3. Select the [Search] icon then press OK. The Bookmark (or
Protect) list appears.
4. Use w/s button to select a bookmark (or protect) then press
OK.
5. Press ad (Play) or click
data.
button to play back the selected
NOTE
•
Backup data cannot be played back by a Bookmark/Protect
Search.
•
You can register a bookmark only in the single channel
playback.
•
If you want to delete the bookmark/protect on the list, select
button and press OK.
the recording data and select
•
Number: Displays the preset number.
•
Option Item: Enter the text to search what you want.
•
AND /OR : Select the Boolean operator when you use the
Text search and Number search function simultaneously.
•
Value: Enter the number to search what you want.
•
>, <, <=, =, >= (compare symbols): Select the compare
symbol for number search.
>
To find the lower value than the input value.
<
To find the higher value than the input value.
<=
To find the higher or even value than the input
value.
=
To find the even value than the input value.
>=
To find the lower or even value than the input
value.
7. Select the [Search] icon then press OK.
8. Select a text data on the list then press ad (Play) button or
click
button to play back the selected data.
The picture is displayed on the main monitor.
9. Press STOP (Z) to stop playback and return to the ATM/POS
search list menu.
Operation
2. Use w/s button to select the [ATM/POS] icon then press OK.
4
50
Operation
Export Search
Smart Search
Searches an exported data in the external device or internal
DVD-ROM device.
If you want to use this function, you have to connect the external
device or insert the CD/DVD disc with exported data otherwise the
warning message will be displayed.
Check the export device before you proceed.
You can be searched the recorded data by specifying the motion
detection conditions.
1. Press SEARCH or click
[Search] menu appears.
4
Operation
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
2. Use w/s button to select the [Export] icon then press OK.
3. Select the desired source device.
4. Select the [Search] icon then press OK.
The exported file list menu appears.
5. Select the exported file on the exported file list then press ad
(Play) button or click
to start playback.
The picture is displayed on the main monitor.
6. Press STOP (Z) to stop playback and return to the exported file
list menu.
NOTE
The exported data with password cannot preview the image.
When you play the exported data with password, logon screen
appears. To unlock the data, enter the password.
icon on the System Control Bar and
2. Use w/s to select the [Smart] icon then press OK.
The smart search menu is displayed.
3. Select the desired source device.
4. Specify the Start Date/Time, End Date/Time, Channel and
Sensitivity options.
•
wsad: Moves to the options.
•
w/s: Changes the value at the current position.
•
OK: Selects option or confirms the setting.
5. Set the motion mask setting.
The area switches between active and inactive each time you
press OK. Click the one point and drag & drop the end point
to select the motion using the mouse. The active areas are
indicated in red.
6. Select a motion direction button.
7. Press BACK repeatedly to exit the mask setting.
8. Select [Search] then press OK.
The search result is displayed on the list.
9. Select the recording data on the list then press ad (Play)
button or click
button to play back the selected data. The
picture is displayed on the main monitor.
10. Press STOP(Z) to stop playback and return to the smart list
menu.
11. Press BACK repeatedly to exit the Smart Search menu.
51
Operation
Functions Available During Playback
Button
NET
Playback
Control Menu
Remote Control
PTZ
Function
FOCUS+
2
3
4
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
LOG
OSD
Front panel
1
HDD
Stops playback.
ALARM
BACK UP
IRIS+
7
8
TEXT OFF
NET
SET
OSD
CLEAR
1
9
10/0
11
COPY
MARK
HDD
MOVE
12
INFO
TOUR
5
13
14
15
16
Pauses playback.
ALARMOSD
NET
2
SHIFT
ALM.OFF
6
LOG PTZ
9
1
BACK UP
INFO
HDD
PTZ
TEXT FOCUS+
OFF
10/0 3
2
COPY
ALM.OFF
MARK
FOCUS -
13 6
5 the same
Jumps to the beginning
of the current
data recorded
on
date.
NET
OSD
PTZ
FOCUS+
ALARM
LOG
TEXT OFF
(press the button for more than 21seconds.)
2
3
9
HDD
INFO
ALM.OFF
FOCUS BACK UP
COPY
MARK
INFO
HDD
COPY
, aaaa,
aaaALARM
9
10/0
11
10/0
INFO
MOVE
5
MARK
FOCUS+
PTZ
15
14
LOG
23
MARK
COPY
PTZ
OSD
14
13
ALARM
12
13
1
INFO
HDD
NET
OSD
PTZ
FOCUS+
1
2
3
INFO
ALM.OFF
FOCUS -
5
6
7
OSD
IRIS+
HDD 4
IRIS ALARM8
LOG
TEXT OFF
SET
9
10/0
11
CLEAR
COPY
MARK
MOVE
TOUR
13
14
15
16
12
BACK UP
PTZ
FOCUS+
1
2
3
INFO
ALM.OFF
FOCUS -
5
6
LOG
TEXT OFF
9
13
+
MARK
14
HDD
5
LOG
ALARM
9
COPY
BACK
UP
13
ALARM
Press7to play reverse8 or normal
playback.
SET
10/0
SHIFT
COPY
4
BACK UP
IRIS -
NET
11
12
TEXT
LOGOFF
1
10/0
9
INFO
MARK
COPY
5
14
13
LOG
10/0
FOCUS IRIS -ALM.OFF
FOCUS
COPY
MARK
67
78
IRIS
13 FOCUS+
14
SET
CLEAR
TEXT OFF
SET
PTZ
2
ALM.OFF
6
TEXT OFF
11
10/0
MOVE
MARK
3
NOTE
SEARCH
SET
11
COPY
MARK
MOVE
13
14
15
SEARCH
REC
LOG-IN
SETUP
•
If you use the reverse frame skip function, a frame may be skipped.
•
Multi channel play works only in the date/time search function.
•
If you double-click the channel during the multiple channel playback, the selected channel
will be played
on the full
screen. And8if you
5
6
7
NET
OSD
double-click the channel during playing in full screen mode, it will return to the previous playback condition.
NET
PTZ
FOCUS+
IRIS+
1
2
3
4
HDD
INFO
ALM.OFF
FOCUS -
IRIS -
ALARM
LOG
TEXT OFF
SET
CLEAR
1
9
0
COPY
MARK
HDD
MOVE
INFO
TOUR
5
NET
ALARMOSD
HDD
BACK UP
INFO
9
1
HDD
INFO
5
NET
ALARM
ALARM
LOG
2
9
2
SHIFT
6
6
1
2
0 1
INFO
HDD
COPY
ALM.OFF
INFO
MARK
LOG
ALARM
TEXT
LOG OFF
5
6
5
NET
0
3
MARK
FOCUS -
6
7
FOCUS+
IRIS+
TEXT OFF
3
0
7
PTZ
OSD
TEXT OFF
TEXT FOCUS+
OFF
2
ALM.OFF
FOCUS BACK UP
COPY
MARK
OSD
NET
LOG
9
HDD
BACK UP
ALARM
PTZ
PTZ
COPY
ALM.OFF
5
OSD
16
ALM.OFF
LOG PTZ
1
NET
TOU
BACK
OSD
BACK UP
12
VIE
LOG-IN
You can play the backup or export data in normal speed only.
CAM
CLE
SETUP
•
VIEW
8
16
15
10/0
MOVE
TOUR point to be marked during playback. Up to 15
Press
MARK at a desired
15 can be marked.
16
points
IRIS
TOUR
MOVE
7
15
14
4
12
11
FOCUS -
9
CLEAR
SHIFT
BACK UP
56
OSD
TOUR
6
MOVE
IRIS+
FOCUS+
16
15
TEXT
34OFF
9
ALM.OFF
INFO
Press repeatedly to play frame-by-frame in pause
mode.
BACK UP
ALARM
IRIS+
78
16 PTZ
CLEAR
2
SET
12
11
ALM.OFF
1OFF
TEXTSET
9
HDD
COPY
BACK
UP
OSD
NET
HDD
IRIS FOCUS
TOUR
67
15
, OSD
TEXT
LOG OFF
15
4
12 3
d, ddd dddd,
LOG
ALARM
aa
aa
a)
BACK UP
NET
8
IRIS+
FOCUS+
CLEAR
FOCUS ALM.OFF
MOVE
6
5 (d
13
14 NET
Press repeatedly to select the required
scan speed.
dddddor aa,
5
11
4MOVE
IRIS -
11 2
ALM.OFF
INFO
MARK
SET
Operation
10/0 1
9
7
4
10/0
5
6
7
Jump to the last 1 minute
of the current
data recorded
13on the same14
NET
OSD
PTZ
FOCUS+
NET
OSD
PTZ
ALARM
LOG
TEXT
OFF
SET
date. (press the button for more than 12 seconds.) 2
3
HDD
BACK UP
14
IRIS+
SET
4
IRIS -
MOVE
8
FOCUS+
PTZ
SET
IRIS+
FOCUS+
CLEAR
FOCUS ALM.OFF
MOVE
IRIS FOCUS
TOUR
23
7
6
OSD
1OFF
TEXTSET
34
8
7
PTZ
CLEAR
2
SET
52
Operation
Using the playback control menu
Using the Protect function
You can use various playback function using playback control menu.
This function allows you to protect the recorded data against being
automatically overwritten.
1. Play a data recorded.
Playback control menu appears at the bottom of the screen.
How to select Protect section.
1. Click
icon on the Playback control menu.
The [Protect] menu appears.
2. If you want to change the time period, select starting and
ending point of a part that you want to protect.
4
Operation
Selects the camera you want to play.
3. Click the [OK] icon and the part is protected.
The protected data is shown shaded in the timeline area.
Enlarge the current screen using the
digital zoom function
NOTE
Displays or disappears the text
information if the recording data
includes text data.
•
Protect function dose not work when two or more protected
parts overlap or when no data does not exist in the selected
part.
Displays the date of the data recorded.
You can choose the date you want to
see.
•
The protected section can be released when the time is set in
the past or by Auto delete function.
Displays the time of the data recorded.
You can choose the time you want to
see.
Displays the record mode.
Increases or decreases the time interval
of the Time Line.
Registers a bookmark.
Displays the [Export] menu.
Displays the [Protect] menu.
Minimizes the Playback control menu.
Displays the current position, recording
mode and recording section.
Playback control buttons
NOTE
The exported data with password cannot preview the image.
When you play the exported data with password, logon screen
appears. To unlock the data, enter the password.
How to release the Protect section.
1. Select any position in the protected section on the Playback
control menu.
2. Click the
icon.
The confirm message appears.
3. Click the [OK] icon.
The protected data is released.
Troubleshooting
53
5
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Symptoms
Cause & Solution
Check the power cable is connected correctly.
The system power does not
turn on.
Check the input voltage is correct.
If the system power does not turn on even if the power cable is connected correctly, please contact the
service center.
Check the monitor power cable is connected properly.
Make sure the monitor is turned on.
5
Check the video output cable of the LG DVR is properly connected to the monitor.
Troubleshooting
The system power is turned on
but no video data is displayed
on the monitor.
Unplug the power cable and plug it in again.
Check the camera video output is connected to the DVR system correctly.
The camera numbers are
displayed on the screen but the
camera images are not
displayed.
Check the power cable on the camera is connected correctly.
Check there is no problem with the video cable connection between the camera and the LG DVR
system.
Turn off the DVR system and turn it on again.
Check the recording mode in the record setting menu.
The camera video is shown on
the screen but the system does
not record the video.
Check the HDD detection status in the System Information window.
If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.
Check the recordable disk space in the HDD.
Check the overwrite option in the setup menu for overwrite recording.
Check if there is recorded video data at the time that you are trying to search on the table.
If there is no recorded video data, check the recording mode in the record setting menu.
It is impossible to search
through the recorded video.
Check the HDD detection status in the system information window.
If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.
Check the user type. The search function is not available for an unauthorized user.
54
Troubleshooting
Symptoms
Cause & Solution
Check the audio recording option is correctly set for the camera you wish to record audio.
Audio data recorded with
video data is not playing.
Check the speaker and audio (line input) on the rear of system are connected correctly.
Check the connected speaker is working properly.
If the camera connected to the system has a problem, make sure whether the camera is damaged by
trying to connect another camera to the video input jack.
The colors of some camera
videos are strange or videos
are displayed abnormally.
Check the video format setting of the unit is the same as the connected camera’s video format.
Depending on your region, the camera’s video format can support either PAL or NTSC. Depending on the
camera’s video format, the video process can differ greatly, therefore it can be difficult to recognize the
video data if the video format setting is different from the camera’s video format.
Check if the video signal output from the camera has a problem. Ensure the camera is not damaged by
trying another camera with a working video output.
Check if the video cable connection between the camera and the DVR is cut, crosswired or shorted.
Check if there is a high voltage wire around the video cable connection between camera and DVR
system. It can cause interference and affect video quality.
5
There is a lot of (screen) noise
accompanying the image.
Check the video cable connection between the camera and the DVR system is the correct video cable.
When a normal power-supplying cable is used instead of the video cable, screen noise can be generated.
Troubleshooting
When the video is connected to various system and the video is being output from video distributor, the
noise can be generated beause the video signal may be weak. In this case, connect the video signal of
that camera to DVR directly to confirm and solve this problem.
If the distance between the camera and DVR is long, the noise may be generated on some camera
channel. In this case, connect that video signal to the other video input connector of DVR to confirm this
problem. If the noise is generated equally, please check the camera's ground connection and cable.
Check the type of sensor in the camera setting is the same as with the connected sensor.
The connected sensor is not
operating.
Check the system is set to use the sensor in the recording schedule window in the recording setting
menu.
Check the sensor is properly connected to the ALARM-IN.
Check the system is set to use the PTZ camera in the camera setting menu.
Check the power cable of the PTZ camera is properly connected.
The connected PTZ camera is
not operating.
Check the signal cable of the PTZ camera is properly connected.
Check the selected channel to control the PTZ camera.
Check the user type. The PTZ camera control is not available for a normal user.
Troubleshooting
Symptoms
55
Cause & Solution
E-mail reception failed without SMTP server setting.
•
Make sure the network is correctly set.
•
Make sure the mail address is input correctly.
•
Check the spam mail setting of the input mail address.
(If you set the spam mail, some mails are deleted automatically or classified in the spam mail box)
•
Some of SMTP mail services do not support an E-mails from private SMTP servers. In this case use the
public SMTP server.
E-mail reception failed even if the SMTP server was set.
An E-mail sent from this
product was not received.
•
•
•
--
Check the SMTP server address.
--
Check the SMTP port number. (Default setting is 25)
--
Check the network settings.
When the [Please check the authentication information] message is displayed.
--
Check the user name.
--
Check the password.
The mail reception failed without error message.
--
Check the receiver’s mail address.
--
Check your E-mail is not classified as a spam mail on the receiver's mail setting.
Check the batteries in the remote control.
5
Check the ID setting for the remote control (See the page 30).
Troubleshooting
The remote control does not
work properly.
When the [Please check the SMTP information or internet cable] message is displayed.
NOTE
If you observe any of the following symptoms:
•
Some of the front panel LEDs do not light.
•
The DVR does not operate normally.
You can reboot the DVR as follows:
1. Turn off the DVR and turn it on again after a few seconds.
2. When the recorder does not work normally after rebooting, contact the service center.
56
Appendix
6
Appendix
Recommended Devices
Recommended USB Memory list
No.
Maker
Model Name
Capacity
1
LG Electronics
XTICK SPIN
2G
2
LG Electronics
XTICK UF1
32 G
3
Lexar
Jump Drive
1G
4
Memorive
SLC
2G
5
TRANSCEND
JF
16 G
6
SKYDRV
x2
2G
7
SANDISK
Cruzer
16 G
8
Samsung Electronics
SUM-LSB8
8G
9
Samsung Electronics
SUM-PSB
32 G
NOTE
6
Appendix
•
Some USB memory devices other than the ones on the above table may not work properly, even if this DVR reads them.
•
For the latest recommended USB list, please visit http://www.lgecommercial.com
Recommended External Device list
Device
Capacity
Backup search function for the
client program
File system
USB HDD
Up to 2 TB.
FAT 32 (This file system is compatible with Windows and Linux
system.)
Yes
E-SATA HDD
Up to 2 TB.
XFS (Linux file system)
This file system is not compatible with Windows system.
No
NOTE
The E-SATA device with the FireLynx Series of Malgn Technology is supported only for data storage. Other device or manufacture may cause a
malfunction.
Recommended CD/DVD Media list
Maker
CD-R
CD-RW
DVD-R
DVD-RW
DVD+R
DVD+RW
Imation
O
O
O
O
O
O
Memorex
O
O
O
O
O
O
MITSUBISHI
O
O
O
O
O
O
PHILIPS
O
O
O
O
O
O
SONY
O
O
O
O
O
O
Verbatim
O
O
O
O
O
O
NOTE
8 cm (1.4 GB) Mini CD/DVD and the Dual Layer type media (DVD) are not supported.
Appendix
57
Supported function list for device
Device
Instant backup
Schedule backup
Export
Configuration Import/Export
CD/DVD
O
X
O
X
USB memory
O
O
O
O
USB HDD
O
O
O
O
E-SATA HDD
O
O
O
O
NOTE
If you use a USB memory stick or USB HDD for configuration import/export you must disconnect the other external USB devices.
Supported PTZ Camera list
Maker
LG_MULTIX
LG
LG_MULTIX EXTENTION
LG
LG_SD168
LG
LG_LS903
LG
LG_ZOOM
LG
LPT_A100L
LG
PELCO_C
PELCO
PELCO_D
PELCO
PELCO_P
PELCO
GANZ_DSCP
CBC
GANZ_P360V1
CBC
GE KALATEL_CYBERDOM
KALATEL
PANASONIC_CS850
PANASONIC
BOSCH_AUTODOME
BOSCH
SAMSUNG_SCC
SAMSUNG
SAMSUNG_E
SAMSUNG
Pan/Tilt
Zoom
Speed control
YES
YES
YES
NO
NO
YES
NO
NO
YES
YES
YES
NO
NO
NO
NO
NO
NO
YES
NO
NO
YES
NO
NO
NO
YES
YES
YES
NO
YES
YES
YES
NO
YES
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
NO
YES
YES
YES
NO
YES
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
NO
YES
YES
YES
NO
Focus
Iris
Preset
Tour
Setup
YES
YES
YES
YES
YES
YES
YES
NO
NO
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
YES
YES
YES
NO
NO
YES
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
YES
YES
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
Supported IP Camera Audio/Video Codec
Item
Codec
Video
H.264 Base Profile
Audio
G.711, G.726, AAC, PCMU 8 Khz, PCMA 8 Khz
6
Appendix
Protocol Name
58
Appendix
Time zones
Timezone
Abbreviation
Timezone
Eniwetok, Kwajalein
EK
-12:00
Midway Island, Samoa
MIS
-11:00
Hawaii
HAW
-10:00
Alaska
ALA
-09:00
-08:00
Pacific Time (US and Canada); Tajuana
PST
-08:00
-07:00
Mountain Time (US and Canada), Chihuahua, La Paz,
Mazatlan, Arizona
MST
-07:00
-06:00
Central Time (US and Canada), Saskatchewan, Guadalajara, Mexico City, Monterrey,
Central America
CST
-06:00
-05:00
Eastern Time (US and Canada), Indiana (East), Bogota, Lima, Quito
EST
-05:00
-04:00
Atlantic Time (Canada), Caracas, La Paz, Santiago
AST
-04:00
Newfoundland
NWF
-03:30
Brasilia, Buenos Aires, Georgetown, Greenland
BBA
-03:00
Mid-Atlantic
MAT
-02:00
Azores, Cape Verde Islands
AZO
-01:00
Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London, Casablanca, Monrovia
GMT
0
+01:00
Amsterdam, Belgrade, Bratislava, Budapest, Ljubljana, Prague, Sarajevo, Skopje, Warsaw,
Zagreb, Brussels, Copenhagen, Madrid, Paris, Berlin, Bern, Rome, Stockholm, Vienna, West
Central Africa
AMS
+01:00
+02:00
6
Athens, Istanbul, Minsk
AIM
+02:00
+03:00
Appendix
Bucharest, Cairo, Pretoria, Jerusalem, Harare, Pretoria
BCP
+02:00
+03:00
Helsinki, Riga, Israel, Kyiv, Sofia, Tallinn, Vilnius
HRI
+02:00
+03:00
Baghdad, Kuwait, Riyadh, Nairobi
BKR
+03:00
+04:00
Moscow, St.Petersburg, Volgograd
MSV
+03:00
+04:00
Tehran
THE
+03:30
+04:30
Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan
ABT
+04:00
Kabul
KAB
+04:30
Ekaterinburg, Islamabad, Karachi, Tashkent
EIK
+05:00
Bombay, Calcutta, Madras, New Delhi, Chennai, Kolkata
BCD
+05:30
Almaty, Dhaka, Colombo, Astana, Sri Jayawardenepura, Novosibirsk
ADC
+06:00
Yangon
MMT
+06:30
Bangkok, Hanoi, Jakarta, Krasnoyarsk
BHJ
+07:00
Beijing, Changqing, Hong Kong, Uramqi
BHU
+08:00
Perth, Singapore, Taipei, Beijing, Chongqing, Hong Kong SAR, Urumqi, Kuala Lumpur,
Irkutsk, Ulaan Bataar
SST
+08:00
Osaka, Sapporo, Tokyo
OST
+09:00
Seoul, Yakutks
SYA
+09:00
Adlaide, Darwin
ADA
+09:30
Brisbane, Guam, Port Moresby
BGP
+10:00
Canberra, Melbourne, Sydney
CMS
+10:00
Hobart, Vladivostok
HVL
+10:00
Magadan, Solomon Islands, New Caledonia
MSN
+11:00
Auckland, Wellington
AWE
+12:00
Fiji Islands, Kamchatka, Marshall Islands
FKM
+12:00
Timezone name
DST
-02:30
+12:00
Appendix
59
Factory Default Configuration Settings
1st level
2nd level
Properties
TCP/IP4
TCP/IP6
Network
Default Value
Factory Default
setting
System Name
NULL
YES
Language
The option depends on the model.
YES
Button Beep
OFF
YES
Video Format
NTSC or PAL
NO
Resolution
1024*768
NO
Configuration Import
-
-
Configuration Export
-
-
Factory Default
-
-
Convert (LRH7160, LRN8240)
-
-
Interface
Ethernet0
-
DHCP
ON
YES
IP Address
NULL
YES
Subnet Mask
NULL
YES
Gateway
NULL
YES
Primary DNS
NULL
YES
Secondary DNS
NULL
YES
Interface
Ethernet0
-
Auto
ON
YES
IP Address
NULL
YES
Subnet Prefix Length
64
YES
Gateway
NULL
YES
Primary DNS
NULL
YES
Secondary DNS
NULL
YES
TCP/IP Port No.
9001
YES
Web Server Port No.
80
YES
Audio Port No.
9003
YES
Bandwidth Throttle
ALL / 100 Mbps
YES
RTSP Port
554
YES
DDNS Service
OFF
YES
Host Name
NULL
YES
Registerd Host
NULL
YES
Update
-
-
6
Appendix
System
3rd level
60
Appendix
Network Streaming
Date/Time
NTP
6
Appendix
System
Controller
Update
Backup
CH
-
-
Resolution
352x240 (NTSC) / 352x288 (PAL)
YES
Quality
STANDARD
YES
Frame Rate
7.5 (NTSC) / 6 (PAL)
YES
Profile
Profile1
YES
Date
Current Date
NO
Time
Current Time
NO
Date Format
YYYY/MM/DD
YES
Time Format
12 HR
YES
Time Zone
The option depends on the model.
NO
Daylight Saving
OFF
NO
Daylight Saving Start
JAN, 1st, SUN, 00
NO
Daylight Saving End
JAN, 1st, SUN, 00
NO
NTP
OFF
YES
Time Server
PUBLIC SERVER
YES
Private Time Server
NULL
YES
Sync. Interval
1 DAY
YES
NTP Test
-
-
IR Remote ID
1
YES
Remote Controller ID
NONE
YES
Method
LOCAL
YES
Device
-
YES
FTP Server
-
YES
Search
-
-
No.
-
-
File Name
NULL
-
Update
-
-
Check now for update
-
-
Schedule
OFF
YES
Device
-
YES
Schedule Start
SUN, 12:00:00 AM
YES
Time Range Date
Current Date
YES
Time Range Start
SUN, 00:00
YES
Time Range End
SUN, 00:00
YES
Overwrite
ON
YES
Estimate Size
-
-
Appendix
Backup
Camera
PTZ
Device
IP Device
ATM/POS
Start Backup
-
-
Erase Media
-
-
Ch
-
Name
CH 01 to CH 24
YES
Audio
01 to 16, OFF
YES
IP Enable
ON, OFF
YES
Channel
CH 01
-
Port
NONE
YES
Control ID
0
YES
Protocol
LG_MULTIX
YES
Baud Rate
9600
YES
PTZ Test
-
-
CH
9 to 24
-
Name
CH 09 to CH 24
YES
Model Name
NULL
YES
MAC
NULL
YES
IP
NULL
YES
HTTP Port
80
YES
6
Driver
LGE
YES
Profile 1
NULL
YES
Appendix
System
61
Profile 2
NULL
YES
RTSP Port
554
YES
RTP Mode
UDP
YES
Audio Recording
OFF
YES
Setup
-
-
Delete
-
-
MANUAL
-
-
AUTO
-
-
Interface Device
NONE
YES
Camera
CH 01
YES
Baud Rate
9600
YES
Data Bits
8
YES
Stop Bits
1
YES
Parity
NONE
YES
62
Appendix
Device
Storage
OSD
Display
Sequence
6
Appendix
Video Adjustment
Normal Schedule
Record
Special Schedule
Normal
Overwrite
ON
YES
Full Warning
OFF
YES
Auto Delete
OFF
YES
Storage Saving
OFF
NO
Format
-
-
E-SATA
-
-
Insert
-
-
Eject
-
-
Channel Name
ON
YES
Channel Status
ON
YES
Channel FPS
ON
YES
Channel Name (Spot)
ON
YES
Font Size
12
YES
Position
TOP
YES
Main Dwell Time
2 SEC
YES
Spot Dwell Time
2 SEC
YES
Channel
CH 01
-
Brightness
50
YES
Contrast
50
YES
Color
50
YES
Restore to Default
-
-
Day
Current day of the week
NO
Mode
Analog (S+M), IP (C)
NO
Channel Copy
-
-
Day Copy
-
-
List
Item 1
YES
Name
NULL
YES
Date
Current Date
YES
Mode
S+M
NO
Delete
-
-
Channel Copy
-
-
CH
-
-
Resolution
704x480 (NTSC) / 704x576 (PAL)
YES
Quality
STANDARD
YES
Frame Rate
7.5 (NTSC) / 6 (PAL)
YES
Appendix
Motion
Record
Text
Instant/Panic
Sensor
Event
Motion
CH
-
-
Resolution
704x480 (NTSC) / 704x576 (PAL)
YES
Quality
STANDARD
YES
Frame Rate
15 (NTSC) / 12.5 (PAL)
YES
Prealarm
10 SEC
YES
Postalarm
10 SEC
YES
CH
-
-
Resolution
704x480 (NTSC) / 704x576 (PAL)
YES
Quality
STANDARD
YES
Frame Rate
15 (NTSC) / 12.5 (PAL)
YES
Prealarm
10 SEC
YES
Postalarm
10 SEC
YES
CH
-
-
Resolution
704x480 (NTSC) / 704x576 (PAL)
YES
Quality
STANDARD
YES
Frame Rate
15 (NTSC) / 12.5 (PAL)
YES
Prealarm
10 SEC
YES
Postalarm
10 SEC
YES
6
CH
-
-
Resolution
704x480 (NTSC) / 704x576 (PAL)
YES
Appendix
Sensor
63
Quality
HIGHEST
YES
Frame Rate
30 (NTSC) / 25 (PAL)
YES
In
-
YES
Sensor Type
N.O
YES
Camera
01 to 16
YES
Relay Output
NONE
YES
Preset
NONE
YES
Channel
CH 01
-
Sensitivity
5
YES
Relay Output
NONE
YES
Area
All selected
-
64
Appendix
Input Channel
01
-
Transaction Start
NULL
YES
Transaction End
NULL
YES
Delimiter
CARRIAGE RETURN
YES
Ignore String
NULL
YES
Time Out
10 MIN
YES
Relay Output
NONE
YES
Spot Channel
OFF
YES
Sensor On
OFF
YES
Motion Detection
OFF
YES
Text In
OFF
YES
Admin Password Changed
OFF
YES
Video Loss
OFF
YES
Power On/Off
OFF
YES
Disk Full
OFF
YES
Notification
OFF
YES
SMTP Server
NULL
YES
6
SMTP Port
25
YES
Appendix
User Name
NULL
YES
Password
NULL
YES
TLS
OFF
YES
Mail Address 1
NULL
YES
Mail Address 2
NULL
YES
Mail Address 3
NULL
YES
Sender
NULL
YES
JPEG Attachment
OFF
YES
E-mail Test
-
-
Notification
OFF
YES
Host Name
NULL
YES
Port
9002
YES
ATM/POS Data Format
Event Popup
Notification
Event
Mail
Emergency
Appendix
SNMP
Event
Output
Buzzer
User
User
NONE
YES
Port
161
YES
Community String
public
YES
User
NULL
YES
Authentication
NONE
YES
Password
NULL
YES
Privacy
NONE
YES
Password
NULL
YES
Trap IP Address
NULL
YES
Trap Community String
NULL
YES
Relay Off
ALARM ACKNOWLEDGE
YES
System Alarm Out
NONE
YES
HDD Fail Alarm Out
NONE
YES
Video Loss Alarm Out
NONE
YES
Sensor
OFF
YES
Motion
OFF
YES
Text
OFF
YES
System
OFF
YES
Group ID
GUEST
YES
Group Name
GUEST
YES
Setup
OFF
YES
Search/Play
OFF
YES
Export
OFF
YES
PTZ
OFF
YES
Power Off
OFF
YES
Instant Record
OFF
YES
Main Channel
All Enable
YES
Spot Channel
All Enable
YES
User ID
ADMINISTRATOR
YES
User Name
ADMINISTRATOR
YES
Group
ADMINISTRATOR
YES
Password
"000000"
YES
Auto User Logout
OFF
YES
6
Appendix
Group Authority
SNMP Version
65
66
Appendix
Recording Time Table (250GB HDD)
Recording Time (Hr)
FPS
Resolution
(NTSC/PAL)
Lowest
Low
6
Appendix
352x240
/352x288
Video (NTSC/PAL)
Quality
Normal
High
Highest
Video + Audio (NTSC/PAL)
(8 CH, Video)
(16 CH,Video)
(8 CH, Video+Audio)
(16 CH, Video+Audio)
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC
PAL
30.0
25.0
699.75
711.50
349.88
355.75
538.15
545.07
269.07
272.53
15.0
12.5
1119.60
1166.25
559.80
583.13
756.24
777.24
378.12
388.62
10.0
8.0
1393.23
1390.32
696.61
695.16
871.91
870.77
435.95
435.38
7.5
6.0
1643.86
1414.80
821.93
707.40
963.88
880.31
481.94
440.15
5.0
5.0
1856.71
1464.36
928.35
732.18
1033.33
899.25
516.67
449.62
3.0
3.0
2150.10
1506.01
1075.05
753.00
1118.26
914.78
559.13
457.39
1.0
1.0
2412.81
1613.97
1206.40
806.98
1185.38
953.52
592.69
476.76
30.0
25.0
371.19
362.32
185.60
181.16
320.19
313.56
160.09
156.78
15.0
12.5
566.43
583.56
283.22
291.78
455.67
466.69
227.83
233.34
10.0
8.0
708.80
722.31
354.40
361.15
543.48
551.39
271.74
275.69
7.5
6.0
833.24
827.62
416.62
413.81
613.77
610.71
306.88
305.36
5.0
5.0
945.30
888.53
472.65
444.26
672.49
643.25
336.24
321.62
3.0
3.0
1103.30
1041.18
551.65
520.59
748.77
719.63
374.38
359.82
1.0
1.0
2298.56
1613.41
1149.28
806.71
1157.13
953.33
578.56
476.66
30.0
25.0
186.94
185.67
93.47
92.84
173.05
171.97
86.53
85.98
15.0
12.5
283.99
292.00
142.00
146.00
253.14
259.48
126.57
129.74
10.0
8.0
355.07
362.73
177.54
181.36
308.12
313.87
154.06
156.93
7.5
6.0
418.32
413.04
209.16
206.52
354.65
350.85
177.33
175.42
5.0
5.0
474.46
443.84
237.23
221.92
394.19
372.83
197.10
186.41
3.0
3.0
547.66
518.94
273.83
259.47
443.44
424.42
221.72
212.21
1.0
1.0
1362.27
1314.44
681.14
657.22
859.68
840.38
429.84
420.19
30.0
25.0
88.92
88.92
44.46
44.46
85.65
85.65
42.83
42.82
15.0
12.5
142.09
145.70
71.05
72.85
133.93
137.13
66.96
68.56
10.0
8.0
177.94
181.45
88.97
90.72
165.32
168.34
82.66
84.17
7.5
6.0
209.23
206.71
104.61
103.36
191.99
189.87
95.99
94.93
5.0
5.0
236.99
222.32
118.49
111.16
215.11
202.95
107.55
101.48
3.0
3.0
274.73
259.08
137.36
129.54
245.75
233.16
122.88
116.58
1.0
1.0
708.20
738.68
354.10
369.34
543.13
560.88
271.57
280.44
30.0
25.0
59.24
59.34
29.62
29.67
57.77
57.87
28.88
28.93
15.0
12.5
94.87
97.11
47.43
48.56
91.16
93.23
45.58
46.61
10.0
8.0
118.54
121.10
59.27
60.55
112.80
115.12
56.40
57.56
7.5
6.0
139.46
137.97
69.73
68.99
131.58
130.26
65.79
65.13
5.0
5.0
158.12
148.19
79.06
74.10
148.08
139.33
74.04
69.67
3.0
3.0
183.98
174.52
91.99
87.26
170.52
162.36
85.26
81.18
1.0
1.0
474.29
493.68
237.14
246.84
394.08
407.37
197.04
203.69
Appendix
Resolution
(NTSC/PAL)
Video (NTSC/PAL)
Quality
Low
Normal
High
Highest
Video + Audio (NTSC/PAL)
(8 CH, Video)
(16 CH,Video)
(8 CH, Video+Audio)
(16 CH, Video+Audio)
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC
PAL
30.0
25.0
357.94
356.09
178.97
178.05
310.28
308.89
155.14
154.44
15.0
12.5
564.38
583.56
282.19
291.78
454.33
466.69
227.17
233.34
10.0
8.0
705.04
725.91
352.52
362.95
541.27
553.48
270.64
276.74
7.5
6.0
834.81
826.30
417.41
413.15
614.62
609.99
307.31
305.00
5.0
5.0
945.30
888.95
472.65
444.48
672.49
643.47
336.24
321.74
3.0
3.0
1089.37
1034.94
544.69
517.47
742.33
716.64
371.16
358.32
1.0
1.0
1544.69
1127.59
772.35
563.80
928.91
759.88
464.45
379.94
30.0
25.0
186.60
185.39
93.30
92.70
172.77
171.73
86.38
85.87
15.0
12.5
285.04
291.23
142.52
145.62
253.97
258.88
126.98
129.44
10.0
8.0
355.34
362.05
177.67
181.03
308.33
313.36
154.16
156.68
7.5
6.0
418.19
412.16
209.10
206.08
354.56
350.22
177.28
175.11
5.0
5.0
474.33
443.10
237.17
221.55
394.11
372.31
197.05
186.15
3.0
3.0
542.03
522.78
271.01
261.39
439.74
426.99
219.87
213.49
1.0
1.0
1259.21
1097.45
629.61
548.73
817.46
746.07
408.73
373.04
30.0
25.0
88.97
89.13
44.49
44.56
85.70
85.85
42.85
42.92
15.0
12.5
142.19
146.06
71.10
73.03
134.01
137.44
67.01
68.72
10.0
8.0
177.81
181.45
88.90
90.72
165.20
168.34
82.60
84.17
7.5
6.0
209.26
206.74
104.63
103.37
192.02
189.89
96.01
94.95
5.0
5.0
237.05
222.26
118.52
111.13
215.16
202.91
107.58
101.46
3.0
3.0
274.51
261.13
137.25
130.56
245.58
234.81
122.79
117.41
1.0
1.0
714.45
719.80
357.22
359.90
546.80
549.92
273.40
274.96
30.0
25.0
59.25
59.24
29.62
29.62
57.78
57.78
28.89
28.89
15.0
12.5
94.78
97.13
47.39
48.56
91.08
93.24
45.54
46.62
10.0
8.0
118.40
120.95
59.20
60.47
112.68
114.98
56.34
57.49
7.5
6.0
139.50
137.68
69.75
68.84
131.62
130.00
65.81
65.00
5.0
5.0
158.23
148.02
79.12
74.01
148.17
139.18
74.09
69.59
3.0
3.0
182.60
175.31
91.30
87.66
169.33
163.05
84.66
81.52
1.0
1.0
488.71
499.10
244.35
249.55
403.98
411.06
201.99
205.53
30.0
25.0
44.47
44.48
22.24
22.24
43.64
43.65
21.82
21.83
15.0
12.5
71.17
72.90
35.58
36.45
69.06
70.69
34.53
35.35
10.0
8.0
89.00
90.65
44.50
45.33
85.72
87.26
42.86
43.63
7.5
6.0
104.64
103.47
52.32
51.73
100.14
99.07
50.07
49.53
5.0
5.0
118.61
111.19
59.31
55.59
112.87
106.12
56.43
53.06
3.0
3.0
136.27
131.59
68.13
65.80
128.74
124.56
64.37
62.28
1.0
1.0
377.19
379.99
188.59
189.99
324.64
326.71
162.32
163.35
6
Appendix
704x240
/704x288
Recording Time (Hr)
FPS
Lowest
67
68
Appendix
Recording Time (Hr)
FPS
Resolution
(NTSC/PAL)
Lowest
Low
6
Appendix
704x480
/704x576
Video (NTSC/PAL)
Quality
Normal
High
Highest
Video + Audio (NTSC/PAL)
(8 CH, Video)
(16 CH,Video)
(8 CH, Video+Audio)
(16 CH, Video+Audio)
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC/PAL
NTSC
PAL
30.0
25.0
240.47
237.62
120.24
118.81
217.98
215.63
108.99
107.82
15.0
12.5
379.82
388.56
189.91
194.28
326.58
333.02
163.29
166.51
10.0
8.0
474.58
483.24
237.29
241.62
394.28
400.24
197.14
200.12
7.5
6.0
557.12
550.67
278.56
275.34
449.62
445.41
224.81
222.71
5.0
5.0
632.77
592.35
316.38
296.18
497.63
472.29
248.82
236.15
3.0
3.0
731.21
674.24
365.60
337.12
556.56
522.93
278.28
261.46
1.0
1.0
1029.45
746.13
514.73
373.07
714.01
565.16
357.00
282.58
30.0
25.0
103.43
104.35
51.71
52.17
99.03
99.87
49.51
49.94
15.0
12.5
162.75
166.54
81.37
83.27
152.12
155.43
76.06
77.71
10.0
8.0
203.20
207.09
101.60
103.54
186.90
190.19
93.45
95.09
7.5
6.0
239.18
236.34
119.59
118.17
216.92
214.57
108.46
107.29
5.0
5.0
272.02
254.18
136.01
127.09
243.58
229.18
121.79
114.59
3.0
3.0
311.62
298.45
155.81
149.23
274.87
264.57
137.43
132.28
1.0
1.0
784.77
691.91
392.38
345.95
587.06
533.49
293.53
266.75
30.0
25.0
59.27
59.94
29.63
29.97
57.80
58.44
28.90
29.22
15.0
12.5
94.78
98.58
47.39
49.29
91.08
94.58
45.54
47.29
10.0
8.0
118.54
121.58
59.27
60.79
112.80
115.55
56.40
57.77
7.5
6.0
139.56
137.75
69.78
68.88
131.67
130.06
65.84
65.03
5.0
5.0
158.42
148.04
79.21
74.02
148.34
139.20
74.17
69.60
3.0
3.0
183.02
174.31
91.51
87.15
169.69
162.18
84.84
81.09
1.0
1.0
493.00
491.99
246.50
245.99
406.91
406.22
203.45
203.11
30.0
25.0
44.44
44.43
22.22
22.22
43.61
43.60
21.80
21.80
15.0
12.5
71.03
72.84
35.52
36.42
68.93
70.63
34.46
35.32
10.0
8.0
88.87
90.68
44.43
45.34
85.61
87.29
42.80
43.64
7.5
6.0
104.61
103.34
52.30
51.67
100.11
98.95
50.06
49.47
5.0
5.0
118.54
111.27
59.27
55.63
112.80
106.19
56.40
53.10
3.0
3.0
136.54
130.73
68.27
65.37
128.98
123.79
64.49
61.89
1.0
1.0
377.62
379.92
188.81
189.96
324.95
326.66
162.48
163.33
30.0
25.0
35.54
35.55
17.77
17.78
35.01
35.02
17.50
17.51
15.0
12.5
56.89
58.26
28.45
29.13
55.54
56.84
27.77
28.42
10.0
8.0
71.11
72.66
35.55
36.33
69.00
70.47
34.50
35.23
7.5
6.0
83.76
82.69
41.88
41.34
80.85
79.85
40.43
39.93
5.0
5.0
94.81
88.88
47.41
44.44
91.11
85.62
45.55
42.81
3.0
3.0
109.26
104.60
54.63
52.30
104.36
100.11
52.18
50.05
1.0
1.0
302.82
304.11
151.41
152.06
267.99
269.00
133.99
134.50
NOTE
This recording time table is for reference only.
The recording time can be different depending on your surveillance environment.
Appendix
69
IP Live/Playback Specifications
Calculation formula: Total Available FPS for new resolution = (704 * 480) * (30 * IP Channels) / (Width * Height)
IP Camera Live/Playback Display. (Codec: H.264)
Model
LRH7000 (Analogue 16CH)
IP Live/Playback
LRH7000 (Analogue 8CH)
IP Cameras
Total FPS
IP Cameras
Total FPS
FPS (up to)
(up to)
FPS(up to)
(up to)
D1
30fps x 8ch
240
30fps x 16ch
480
720P(1M Pixel)
30fps x 2ch
60
30fps x 5ch
150
720P(1M Pixel)
20fps x 4ch
80
20fps x 8ch
160
1.3M Pixel
15fps x 4ch
60
30fps x 4ch
120
1080P(2M Pixel)
30fps x 1ch
30
30fps x 2ch
60
3M Pixel
20fps x 1ch
20
30fps x 1ch
30
20fps x 2ch
40
1
16(I-Frame Only)
3M Pixel
Over channel & resolution
1
8(I-Frame Only)
Specifications
LRH7160D Series
LRH7080D Series
6
Analog
16
8
IP
Analog-IP Switch condition
- Basic : Analog 16ch + IP 8ch/4CIF
or Analog 8ch + IP 16ch/4CIF
* Max. Resolution: Up-to 3Mega-pixel
Analog-IP Switch condition
- Basic : Analog 8ch + IP 8ch/4CIF or
Analog 4ch + IP 12ch/4 CIF
* Max. Resolution: Up-to 3Mega-pixel
Appendix
Model
Loop Through
16
8
(Main) VGA
1
1
(Main) HDMI
1
1
(Spot) Composite
1
1
(Spot) HDMI
1
1
Input
16
8
Output
2
2
Input
16
8
Output
4
2
Buzzer
Support
Support
e-mail
Support
Support
Remote S/W
(Client S/W, VMS)
Support
Support
Emergency S/W
Support
Support
Input
Video
Output
Audio
Alarm
Notification
70
Appendix
Recording
(Analog)
Up to 480 IPS @ 352x240
Up to 480 IPS @ 704x240
Up to 480 IPS @ 704x480
Up to 240 IPS @ 352x240
Up to 240 IPS @ 704x240
Up to 240 IPS @ 704x480
PAL
Up to 400 IPS @ 352x288
Up to 400 IPS @ 704x288
Up to 400 IPS @ 704x576
Up to 200 IPS @ 352x288
Up to 200 IPS @ 704x288
Up to 200 IPS @ 704x576
Frame Rate
(/Second)
Playback Speed
Search
NTSC
FF/ Reverse
4 Steps (1x - 16x)
Frame Advance
Forward / Backward
Screen Division
Full, 4, 9, 16, 25
Search Mode
480 IPS (Real time per channel)
240 IPS (Real time per channel)
PAL
400 IPS (Real time per channel)
200 IPS (Real time per channel)
IP Display
16 Analog + 8 IP
8 Analog + 8 IP
Division Mode
Full, 4, 9, 16, 1+5, 1+7, 1+16, 25
Full, 4, 9, 16, 1+5, 1+7
Display
6
Date/Time, Event, Export, Protect, Bookmark, ATM/POS, Smart
NTSC
Frame Rate
(/Second)
Storage
Full, 4, 9, 16
Internal HDD
Max Capacity
12 TB (Up to 6 HDDs)
External HDD
Interface Type
E-SATA
Backup
Backup Interface
USB 2.0 (x3), Network, Internal ODD (SATA), e-SATA
Serial I/F
PTZ Control Interface
RS-485 (x2)
Network Connection
Ethernet 10/100/1000 Mbps (x2)
Network Transmission
Up to 240 IPS
Bandwidth Control
Yes
Network
Appendix
Power
AC Free 100~240V, 50/60 Hz
Power Consumption
Maximum 80 W (with 6 HDD)
Dimension (W x D x H)
440 mm x 452 mm x 115 mm
Net Weight (without HDD)
9.68 kg
9.59 kg
Net Weight (with 6 HDD)
13.38 kg
13.29 kg
Operating Temp. / Humidity
0 ºC to 40 ºC / 0 % RH to 80 % RH
NOTE
Design and specifications are subject to change without notice.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Download PDF
