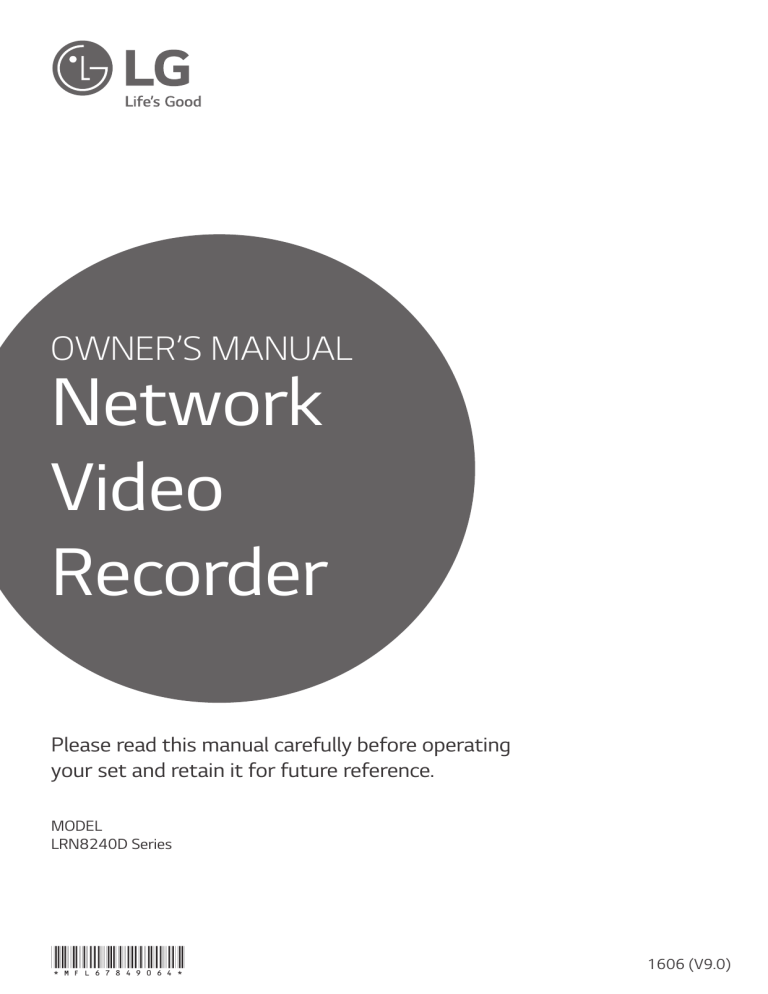

OWNER’S MANUAL
Network
Video
Recorder
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LRN8240D Series
*MFL67849064*
1606 (V9.0)
Safety Information
1
Safety Information
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
1
Caution:
This product employs a Laser System. To ensure proper use of this
product, please read this owner’s manual carefully and retain it
for future reference. Should the unit require maintenance, contact
an authorized service center. Use of controls, adjustments, or the
performance of procedures other than those specified herein may
result in hazardous radiation exposure. To prevent direct exposure
to laser beam, do not try to open the enclosure.
The Power Plug is the disconnecting device. In case of an
emergency, the Power Plug must remain readily accessible.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/EC,
2006/95/EC, and 2011/65/EU.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
Contact office for compliance of this
product :
LG Electronics Inc.
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
•
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme
NMB-003 du Canada.
Warning: Do not install this equipment in a confined space such as
a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National
Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not expose
this product to rain or moisture.
Caution: This installation should be made by a qualified service
person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Caution: The apparatus should not be exposed to water (dripping
or splashing) and no objects filled with liquids, such as vases, should
be placed on the apparatus.
Safety Information
CAUTION
3
Please note that this is NOT a Customer Service contact point.
For Customer Service Information, see Warranty Card or contact
the dealer that you purchased this product.
4
Safety Information
Safety warnings and Cautions
1
Safety Information
The following are warnings and cautions for the safety of the users and for the prevention of any property damage. Please read the following
carefully.
WARNING
•
Turn off the system before installation. Do not plug in several electric devices to the same outlet.
--
•
-•
This may cause an explosion.
If the system’s HDD exceeds its life span, you may not be able to recover any data stored inside the HDD. If the video on the system screen
appears ‘damaged’ while playing a recording stored inside the system’s HDD, it must be replaced with a new one. Ask for an engineer’s
assistance for HDD replacement from your dealer.
--
•
This may cause fire, over heating or electric shock.
When the system’s battery is depleted, replace it with the same or equivalent type of battery specified by the manufacturer. Depleted
batteries should be discarded according to the manufacturer’s instructions.
--
•
This may cause system breakdown or serious injury.
The power outlet must be placed on the ground, and the voltage range must be within 10 % of the voltage rate. Do not use the same
outlet with a hair dryer, iron, refrigerator, or any heating appliances.
--
•
This may cause fire.
Install the system on a plain surface with sufficient air ventilation. Do not place the system on an elevated surface.
--
•
This may cause fire, electric shock, or injury.
Install the system in a cool place without direct sunlight and always maintain room temperature. Avoid candlelight and heat generating
devices such as heaters. Keep the system away from places where many people pass.
--
•
This may cause fire or electric shock.
Keep a distance of at least 15 cm between the back of the system and the wall for the cables connected to the system otherwise, they may
be bent, damaged, or cut.
--
•
This may cause fire, electric shock, or serious injury.
Check for any danger signs such as a moist floor, a loosened or damaged power cable, or an unstable surface. If you encounter any
problems, ask your dealer for assistance.
--
•
This may cause fire or electric shock.
Do not attempt to disassemble, repair, or modify the system on your own. It is extremely dangerous due to the high voltage running
through the system.
--
•
This can cause fire or electric shock.
When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid using the plug if the holes in
the outlet are too loose.
--
•
This may damage the surface of the system and can cause a system breakdown or electric shock.
Avoid any place with moisture, dust, or soot.
--
•
This may cause fire.
Clean the dust around the system on a regular basis. When cleaning the system, always use a dry cloth. Do not use a wet cloth or other
organic solvents.
--
•
If liquid is poured onto the system, it can cause a system breakdown or fire.
Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.
--
•
This may cause heating, fire, or electric shock.
Do not place any liquid container on the system, such as water, coffee, or other beverage.
LG Electronics is not responsible for deleted data caused by user mishandling.
PLEASE DO NOT MOUNT OR UN-MOUNT HDDs WHILE SYSTEM IS POWERED ON.
--
This may cause system breakdown.
Safety Information
5
CAUTION
Please beware of the following precautions before installing the system.
Avoid positioning the product in any place where the unit may come into contact with moisture, dust, or soot.
•
Avoid placing in direct sunlight or near heating appliances.
•
Keep the product away from electric sparks or magnetic substances.
•
Do not place any conductive material through the ventilation grills.
•
Keep the system turned off before installation.
•
Ensure enough space is left for cable connections.
•
Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.
•
Placing the system near electronic devices such as a radio or a TV may cause the product to breakdown.
•
Do not disassemble the product without seeking assistance from LG Electronics.
•
Do not place any heavy object on the system.
•
Prevent any substances from being inserted into the system.
--
•
Install the system in a place with sufficient air ventilation.
--
•
This may cause system breakdown.
Install the system on a stable, level surface.
--
•
Do not install the system in a place with magnetic objects, electric frequencies, or vibration.
Do not place any heavy object on the system.
--
•
Keep at least 15 cm distance between the back of the system and the wall, and at least 5 cm distance between the side of the system
and the wall.
Do not install the system in a place with high magnetic, electric wave, or wireless devices such as a radio or a TV.
--
•
This may cause system breakdown.
The system may not operate properly.
Install the system in a place with appropriate moisture and temperature levels.
--
Avoid installing the system in a place with high (over 40 °C) or low (under 0 °C) temperature.
•
The system can be damaged from a strong impact or vibration. Avoid throwing objects within the vicinity of the system.
•
Avoid direct sunlight or any heating appliances.
--
•
Recommended operating temperature is over 0 °C (32 °F).
Ventilate the air inside the system operation room, and tighten the system cover firmly.
--
System breakdown may be caused by an inappropriate environment. It is recommended to use AVR (Automatic Voltage Regulator)
for a stable power supply. It is recommended to coil the core-ferrite around the connector of the system to avoid electromagnetic
interference.
•
The outlet must be placed on the ground.
•
If there is strange sound or smell, unplug the power cable immediately and contact the service center.
--
•
•
This may cause fire or electric shock.
In order to maintain stable system performance, have your system checked regularly by the service center.
--
LG Electronics is not held responsible for system breakdown caused by user mishandling.
--
There is a risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
Do not overturn the product during use.
1
Safety Information
•
6
Contents
Contents
1
Safety Information
2
19
Main Monitor Screen
20
Moving the Channel's Position
20
Selecting the Split mode
21
Grouping channel
21
PTZ Camera Control
22
Using the Digital Zoom function
23
Export the recorded data
24
Viewing the System Log List
24
Viewing System Information
25
Configuration menu
26
System settings
Preparation
26Properties
26
TCP/IP v4
8Introduction
26
TCP/IP v6
8Features
8Accessories
27Network
27
Network Streaming
9
Front Panel
27Date/Time
11
Rear Panel
28NTP
12
Remote Control
28Controller
28Update
3
29Backup
Installation
30
Device settings
30
IP Device
13Connections
32Storage
13Precautions
13
Basic Connection Overview
14
Connecting Display device
14
Connecting Audio device
15
Connecting USB device
15
Connecting E-SATA device
15
Connecting Network
16
Connecting LKD1000 Controller
17
Connecting Alarm Input and Alarm Output
18
HDD INSTALLATION
33
Display settings
33OSD
33Sequence
33
Record settings
33
Normal Schedule Recording
33
To Set a Recording Schedule for a Typical Day
of the Week (Normal Schedule)
35
To Set a Recording Schedule for a Special Day
(Special Schedule)
35
Copying the Recording Schedule
18
Note for Hard Disk Drive
35Sensor
18
Installing the Hard Disk Drive
35Motion
18
Replacing the Hard Disk Drive
36
Recommended HDD
36Sensor
18
Event settings
19
System Operation
36Motion
19
System Shutdown
36Notification
19
General Explanation of the Live
Screen on the Main Monitor
36Mail
37Emergency
Contents
37SNMP
51
Factory Default Configuration Settings
38Output
57
IP Live/Playback Specifications
38Buzzer
57Specifications
38
38
User settings
7
1
Group Authority
39User
39
Setup Wizard settings
39
Step 1
40
Step 2
40
Step 3
40
Step 4
4
Operation
41
Instant Recording
41
Panic Recording
42
Instant Playback
42
Search and Playback
42
Date and Time Search
42
Event Search
43
Bookmark/Protect Search
43
Export Search
44
Functions Available During Playback
45
Using the playback control menu
45
Using the Protect function
5
Troubleshooting
6
Appendix
48
Recommended Devices
48
Recommended USB Memory list
48
Recommended External Device list
48
Recommended CD/DVD Media list
49
Supported function list for device
49
Supported IP Camera Audio/Video Codec
50
Time zones
2
3
4
5
6
8
Preparation
2
Preparation
2
Preparation
Introduction
Model LRN8240D (24 Channel) is used for the description, operation
and details provided in this operating guide.
Features
•
Stable embedded Linux operating system.
•
Journal filing system for HDD file recovery following power
recovery.
•
Internal storage expandable to 12 TB. (Expandable if new high
capacity HDD is launched)
•
Easy operation using various user interface & user friendly GUI.
--
•
-•
Optical mouse, Full function IR remote controller
Powerful multiplex function.
Simultaneous live display, recording, playback, network
transmission, back-up.
Various search function.
--
Date/time search (calendar search), Event search,
Bookmark/Protect search, Export search.
•
Pre-alarm recording (Up to 1 minute).
•
Powerful record scheduling.
•
Instant playback in live mode.
•
Perfect audio/video synchronization.
•
Automatic backup by schedule.
•
Image authentication (Watermark).
•
Three USB 2.0 ports for backup interface.
•
Setup configuration export/import with USB memory stick.
•
Easy system S/W update with USB memory stick or network.
•
Clients S/W can manage max 300 servers.
•
Max five clients can access one server simultaneously.
•
Network bandwidth throttle.
--
Automatically adjust a bandwidth according to network
speed status of unit.
•
Remote alarm notification via client software or E-mail.
•
Time and date sync from NTP server.
•
Daylight saving mode.
•
Covert camera protection.
•
Support Gigabit Ethernet.
•
E-SATA storage interface.
•
Two-way audio.
•
User management (User level control).
•
PTZ Control.
--
IP camera telemetry control (OSD control).
Accessories
CD (Software
and Owner's
Manual)
Screws
Mouse
Rack Mount
Bracket
Remote
Control
Power Plug
AAA type
batteries
Simple
Manual
Preparation
9
Front Panel
a
b
c
d
NET
HDD
e
f g
PTZ
FOCUS+
1
2
3
4
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
SET
CLEAR
MOVE
TOUR
ALARM
LOG
9
0
BACK UP
COPY
MARK
2
SHIFT
SEARCH
j
k
a
1 (Power): Turns on or off. Press and hold for more than 2 seconds to turn on or off.
b
Playback Control Buttons
c
•
M: Pauses playback.
h
IRIS+
LOG-IN
ci
l
•
c, C/aM: Searches the recorded images in reverse or skips the recorded images.
•
ad: Playback or reverse playback of recorded images.
•
v, V/Md: Forward searches the recorded images or skips the recorded images.
•
Z: Stops playback.
REC
SETUP
VIEW
CAM
BACK
m n o pq r s
Front panel release button : Press these buttons to separate the front panel for HDD installation.
dIndicator
e
•
NET: Blinks when the network is connected.
•
HDD: Lights when the HDD is accessed.
•
ALARM: Lights when the alarm out is in progress.
•
BACK UP: Lights when the data back up is in progress.
Channel Buttons: You can input a number with channel buttons. You can also use the channel buttons for sub-function with SHIFT
button. (When you select the channel number over the 10, press tens digit and units place in order and then click OK button.)
You should press the OK button after input the channel number when you select the applicable channel.
Preparation
OSD
h
10
Preparation
•
2
Sub-functions
Preparation
Button number
Function
Description
1
OSD
Accesses or minimizes the System Control Bar (OSD).
2
PTZ
Switches this unit to PTZ mode to control the connected PTZ camera.
3/7
FOCUS / FOCUS +
4/8
IRIS - / IRIS +
5
INFO
6
ALM.OFF
9
LOG
Displays the System Log List.
11
SET
Registers the PTZ camera’s preset position.
12
CLEAR
Deletes a memorized preset position.
13
COPY
Displays the export menu.
14
MARK
Sets the mark point for recording search.
15
MOVE
Moves the camera to the preset position.
16
TOUR
Tours all registered preset positions in the camera.
Adjusts focus position.
Adjust iris position.
Displays the system information.
Cancels alarm activation and returns the system to the condition before the alarm was
activated.
f
Remote Sensor: Point the remote control here.
g
SHIFT button: If you use the Sub-function of the channel button, the button is activated.
h
ZOOM + / -: Zooms in/out on playback window.
i
Arrow and OK Buttons
•
wsad: Select or move between the menu options.
•
OK: Confirms menu selections.
j
Disc Tray: Insert a disc here.
k
OPEN: Opens or closes the disc tray.
l
LOG-IN: Displays the User Log-In dialog box or logs out.
m
SEARCH: Displays the search menu.
n
SETUP: Displays the setup menu.
o
VIEW: Displays the split mode menu.
p
CAM: Displays the Monitor menu to set the first camera channel.
q
USB Port: Connects an external USB device for backup or playback.
r
BACK: Exits the menu or returns to the previous screen.
s
REC: Starts or stops instant recording.
Preparation
11
Rear Panel
a
2
Preparation
2
RS - 232C
b
c
de
D- D+ G
f
a
Power Cord Inlet (AC IN): Connect the power plug.
b
RELAY-OUT Terminals: Output terminals for alarm (relay) signal.
g
h i
j
k
c
ALARM-IN Terminals: Input terminals for alarm (relay) signal.
d
RS-232: Used to connect to a host device equipped with RS-232C connector.
e
VGA: Connect a VGA monitor.
f
AUDIO OUT 1 / 2: Connect to an active speaker with a built-in amplifier.
g
HDMI: Connect to monitor or display device with HDMI inputs. (Interface for digital audio and video)
h
LAN Ports: Connect the ethernet 10/100/1000 Mbps network cable for controlling this unit via a PC network.
i
E-SATA: Connect the external SATA device.
j
USB Port: Connect an optional extension USB device.
k
RS-485 Terminals: Connect LKD1000. (Port 2 only)
12
Preparation
Remote Control
Button
POWER (1)
LOGIN
Description
Turns system on or off.
Displays the User Log-In dialog box or logs out.
2
ID
Preparation
VIEW
Displays the split mode menu.
CAM
Displays the Monitor menu to set the first camera channel.
ALM.OFF
OSD
SETUP
wsad
OK
COPY
SEARCH
MARK
Set the appropriate system ID to operate via the IR Remote Controller when using
the multiple system. Press the ID button then press the number button within 2
seconds to select the system ID of the system. If you set the system ID to “0”, you
can control multiple system at the same time.
Cancels alarm activation and returns the system to the condition before the alarm
was activated.
Accesses or minimizes the system control bar.
Displays the setup menu.
Selects or moves between the menu options.
Confirms menu selections.
Copies the recording data to an external device.
Displays the search menu.
Sets the mark point for recording search. You can set the mark point during the
single or multi channel playback of recorded data.
PAUSE (M)
Pauses playback.
STOP (Z)
Stops playback.
REC (X)
Starts or stops recording.
c, C/aM
ad
Searches the recorded images in reverse or skips the recorded images.
Playback or reverse playback of recorded images.
v, V/Md
Forward searches the recorded images or skips the recorded images.
Number Buttons
Selects the PTZ preset number, ID or channel.
INFO
Displays the system information window.
LOG
Displays the System Log List window.
PTZ
Switches this unit to PTZ mode to control the connected PTZ camera.
TOUR
Tours all registered preset positions in the camera.
ZOOM + / -
Zooms in/out on the playback window.
If you press ZOOM(+) button during viewing a live channel in full screen mode or
playing back a channel in full screen mode, the digital zoom function is activated.
FOCUS + / -
Adjusts the focus of a camera.
IRIS + / SET
Adjusts the iris of a camera.
Registers the PTZ camera’s preset positions.
CLEAR
Deletes a memorized preset position.
MOVE
Moves the camera to the preset position.
BACK
Exits the menu or returns to the previous screen.
Installation
13
3
Installation
Connections
Precautions
3
Depending on the camera and other equipment there are various ways to connect the unit. Please refer to the camera manual or manuals
for other devices as necessary for additional connection information.
•
Be sure to switch off the camera before installation and connection.
Basic Connection Overview
Connect the
alarm (relay).
Connect audio
amplifier.
Connect power
cord.
2
RS - 232C
D- D+ G
Connect keypads (optional).
Connect the external SATA device.
Connect an external USB device for
backup or playback.
Connect a mouse device.
Connect network cable for client control or IP camera input.
Connect
alarm
sensors.
Connect HDMI type monitor.
Connect VGA monitor.
Installation
•
14
Installation
Connecting Display device
Connecting Audio device
This unit can be output simultaneously from the HDMI and VGA
jack. The video signal connects between the system and the
monitor.
Connect the AUDIO OUT jacks on the unit to the mono audio in
jacks on your audio device.
Microphone and Speaker connection
VGA Monitor connection
Connect the VGA jacks on the rear of the unit to the corresponding
input jacks on the TV or monitor using the VGA cable.
VGA Monitor connection
3
2
Installation
RS - 232C
D- D+ G
2
RS - 232C
D- D+ G
2
RS - 232C
HDMI Monitor connection
Connect the unit to the HDMI monitor using a HDMI cable (Type A,
High Speed HDMITM Cable).
HDMI Monitor connection
2
RS - 232C
D- D+ G
2
RS - 232C
D- D+ G
D- D+ G
Installation
Connecting USB device
15
Connecting E-SATA device
You can use E-SATA storage for data back-up or recording.
USB device connection
E-SATA device connection
2
RS - 232C
D- D+ G
3
Installation
2
RS - 232C
D- D+ G
Connecting Network
You can control and monitor the system via network. With
the remote control (monitoring), you can change the system
configuration or monitor the image via network. After the
installation, check the network settings for the remote control and
monitoring work.
2
RS - 232C
D- D+ G
Network connection
2
USB Memory device
RS - 232C
D- D+ G
Insert the memory device into the USB port. The system
automatically recognizes the device. The system software can be
easily upgraded using a USB memory device.
USB External device
Connect the external device to the USB port.
(Example: External HDD or other external storage.)
Mouse
Connect the USB mouse to operate the system.
Router
Router
Broadband
Broadband
Service
Service
16
Installation
LAN connection
Connecting LKD1000 Controller
Connect the LAN port to an available 10/100/1000 base-T port with
a straight ethernet cable (not supplied). The NET indicator on the
front panel will be lit.
This system has a data terminal. Use this port2 to connect keypads
(optional).
Description
IP Camera connection
D - (DATA -)
Data Transmission/Reception
Connect the IP camera. After the installation, check the IP camera
settings on the setup menu.
D + (DATA +)
Data Transmission/Reception
GND
Automatic network configuration
Installation
Manually configure network
The system may be manually configured by assigning an IP address,
subnet mask, gateway and DNS.
NOTE
Shield
Connect the LKD1000 controller to control the system. (Refer to the
manuals of the LKD1000 controller for more details.) The LKD1000
controller has to be connected to the 2 (DATA 2) port as shown
illustration. If you connect the LKD1000 controller to the 1 (DATA 1)
port, the LKD1000 controller will not be activated.
The system can automatically obtain and configure the network
interface via DHCP.
3
RS-485 Terminal
LKD1000 controller connection
2
RS - 232C
D- D+ G
This unit can be supported IPv4 and IPv6 network.
2
D- D+ G
TX-
TX+
Contrôleur LKD1000
Installation
Connecting Alarm Input and Alarm
Output
12
Sensor Input 12
G
Ground
Alarm terminals are used to connect the alarm devices such as
sensors, door switches, etc.
13
Sensor Input 13
14
Sensor Input 14
Alarm Input
15
Sensor Input 15
16
Sensor Input 16
G
Ground
You can connect up to 16 alarm sensors. Each alarm sensor should
be connected with G (GND). The signal state is adjustable to N/O
(Normal Open) or N/C (Normal Close) through the setup menu.
17
Alarm Output
Sensor input connection
Connect the alarm device to the alarm output. Alarm signal outputs
when an event occur.
2
RS - 232C
D- D+ G
RS - 232C
Alarm device
Alarm sensor
Alarm sensor
Terminal No.
Description
1
Sensor Input 1
2
Sensor Input 2
3
Sensor Input 3
4
Sensor Input 4
G
Ground
5
Sensor Input 5
6
Sensor Input 6
7
Sensor Input 7
8
Sensor Input 8
G
Ground
9
Sensor Input 9
10
Sensor Input 10
11
Sensor Input 11
3
Installation
Alarm output connection
Alarm device
Terminal No.
Description
G
Ground
1
Alarm Output 1
2
Alarm Output 2
3
Alarm Output 3
4
Alarm Output 4
NOTE
The internal switching relays are rated for 0.3 A at 125 V AC or 1 A
at 30 V DC. If the electric current is higher than that the unit can
be damaged.
18
Installation
HDD INSTALLATION
Note for Hard Disk Drive
The internal hard disk drive (HDD) is a fragile piece of equipment.
Please follow the guidelines below when using the system to
protect against possible HDD failure. We recommend that you back
up your important recordings onto an external backup device in
order to prevent accidental loss.
Make sure that the power is turned OFF when attaching or
removing the HDD.
3
6. When you turn the power of the unit on, the new HDD is
detected and formatted automatically.
CAUTION
You should install the hard disk drive from 1 to 6 in order.
Replacing the Hard Disk Drive
Turn the power of the unit off and detach the power plug from the
outlet.
1. Disassemble the front panel by pressing the release button on
the front panel.
Installation
•
Do not move the system while the power is on.
•
Do not use the system in excessively hot or humid places, or in
places that may be subject to sudden changes in temperature.
Sudden changes in temperature can cause condensation to
form inside the system. This can be a cause of HDD failure.
•
While the system is switched on, do not unplug from the wall
socket or switch the electricity off from the breaker switch.
•
If there’s a power failure while the system is on, some data on
the HDD may be lost.
•
Do not drop the HDD. Also do not put the metallic object such
as coins or screwdrivers into the HDD tray.
•
When a power failure occurs during recording, avoid adding,
replacing or transporting the HDD as the recorded data may be
erased. In this case, turn the power back on to boot up the unit
normally with the HDD that was being used at the time of the
power failure attached. Then add, replace, or transport the HDD.
auoty.m
lcaliat
Do not use an electric screwdriver to fix them.
The HDD is very delicate. Handle the HDD with care and follow
the precautions below because even a tiny shock may damage
the internal components of the HDD.
Recommended HDD
•
•
--
Do not place the HDD on the desk or table directly. Put a
thick cushion under the HDD because even a small shock
may damage the internal components of the HDD.
--
Do not use an electric screwdriver. Vibrations and shocks
caused by an electric screwdriver may damage the internal
components of the HDD.
--
When replacing the HDD, do not knock the HDD with other
components such as another HDD and the HDD tray.
--
Do not knock the HDD with tools such as a driver when
replacing the HDD.
Protect the hard disk drives from static electricity.
Installing the Hard Disk Drive
You can install up to 6 HDDs.
Improper installation or setup may disturb HDD recognition or
normal product operation. So you should consult with an expert
from the store where the product was purchased.
1. Disassemble the front panel by pressing the release button on
the front panel.
2. Loosen the screws and detach the hard disk mounting brackets
from the units.
3. Attach the HDD onto the hard disk mounting brackets with four
screws.
4. Attach the hard disk mounting brackets with the screws.
5. Close the front panel by hanging the bottom hook after push
the Front panel release button.
2. Loosen the screws and detach the hard disk mounting brackets
from the units.
3. Replace the new HDD.
4. Close the front panel by hanging the bottom hook after push
the Front panel release button.
5. After replacing the hard disk drive, insert the power plug into
the outlet and turn the power of the unit on. The new HDD is
detected and formatted.
NOTE
For the latest recommended HDD list, please visit
http://www.lgecommercial.com
NOTE
If you do not use the recommended HDD, the system may not be
operated normally.
Installation
System Operation
General Explanation of the Live
Screen on the Main Monitor
1. Turn on the unit. System booting will commence. The LG logo
image will be displayed on the main monitor during the system
booting.
Main Monitor Screen
2. When the booting is completed the live window will be
displayed. Click the
19
ab cde f g
h
icon on the system control bar or press
the LOGIN button on the remote control to display the log-in
window.
3. Select a user name by using the mouse or arrow and the OK
button on the remote control or front panel. For the first time,
you can select the ADMINISTRATOR user name only. You can
register a new user with various access rights using the user
setup menu.
3
Installation
4. Enter the password by using the virtual keyboard. (Note that the
default administrator password is “000000”.)
5. Click the [OK] icon.
You can see the live screen and operate the system.
NOTE
If the system is turned off accidently and then turned on again,
the system may take a long time to be rebooted.
a Channel Number
Displays the channel number.
b Channel Name
Displays the edited channel name.
c Selected Channel
Displays the selected channel with red box.
System Shutdown
1. First, you must stop playback and exit the setup menu. In
playback, press STOP.
2. Press and hold 1 (POWER) button until the beep sounds and
the logout window will be displayed.
d Camera Status Icon
Displays the PTZ camera status.
Displays the input audio status.
Displays the IP camera status.
Gold “C” indicates continuous recording.
3. Enter the password by using the virtual keyboard.
4. Click the [OK] icon. The system will shutdown.
Gold “I” indicates Instant recording.
Red “S” indicates sensor triggered recording.
Green “M” indicates motion detection recording.
Gray “N” indicates the channel is not being recorded.
e Channel FPS
Displays the channel FPS value.
f Quick Buttons
The Quick Buttons will appear when the mouse is moved to
the camera's live screen. You can use the following functions by
clicking it for the selected channel.
You can use the playback function.
You can use the digital zoom function.
20
Installation
You can control the PTZ Camera. (optional)
Moving the Channel's Position
You can change the camera channel's position in a split screen of
the Main Monitor.
g Live Screen
Displays the current surveillance live screen.
h System Control Bar
Displays the CPU usage and Data traffic
level of IP cameras.
1. Select a desired channel by clicking the left button of the
mouse.
2. Drag and drop it to a desired location and the channel's position
will be changed.
Displays date and time.
(
)
Login (Logout) : Display the User Log-In
dialog box or logs out.
Search: Displays the search menu.
3
Installation
Alarm Off: Turns the alarm off.
Camera: Displays the Monitor menu to
set the first camera channel.
Split mode: Displays the menu for
selecting the screen division.
Video Export: Displays the export menu.
System Log: Displays the system log list
window.
Selecting the Split mode
You can select the live screen mode to display a full, 4-split, 6-split,
8-split, 9-split, 16-split, 17-split or 25-split screens on the main
monitor.
1. Press VIEW or click
icon in the system control bar.
2. Select a screen mode.
System Information: Displays the system
information window.
Setup: Displays the setup menu.
Minimizes the System Control Bar.
NOTE
•
To display / minimize the system control bar
To display or minimize System Control Bar, press OSD after
pressing the SHIFT button on the front panel or click
or
in the System Control Bar.
•
You can also use the system control's options by clicking the
right button of the mouse on the Main Monitor screen.
•
When data signal color of IP camera is changed yellow or red,
reduce bit rate, frame rate, resolution and connections of IP
camera.
•
While the main monitor is performing the sequence mode,
the
mark is displayed on the system control bar.
Screen split mode
Sequence mode
•
Full Screen Mode: You can view the live window in full
screen mode.
•
4, 9, 16, 25, 1+5, 1+7 and 1+16 Split Mode: Displays selected
split screens on the main monitor.
•
Sequence: You can view all the channels in sequence. You
cannot use sequence mode with the 25 split.
3. Select [OK] and press OK to confirm your selection.
NOTE
To display the screen you want to watch in full screen mode,
double click the desired channel.
Installation
Grouping channel
Displays or disappear the preset
control options in the virtual PTZ
remote control
You can group channels you want.
1. Press CAM or click the
icon in the system control bar.
Displays the Selected Preset number.
2. Select a camera number for including group.
--
[ Restore to Default] : Reset channels to ascending sort and
change the [Split Mode] to 25 split.
To input the preset number.
To register preset positions.
To delete a memorized preset
position.
To move the camera to the preset
position.
To start a preset tour.
Confirm the preset position.
NOTE
4. Click [Load] or [Save] button to configure your group.
You can use some options by clicking the right button of the
mouse in PTZ camera control mode.
5. Select [OK] and press OK to confirm your selection.
•
PTZ Control Guide: Shows the guide for using the mouse.
•
Exit: Exits from the PTZ camera control mode.
NOTE
The [Split Mode] changes according to a number of selected
cameras.
PTZ Camera Control
You can control the cameras connected via Network.
1. Select the PTZ camera channel on the main monitor you want
to control.
icon that appears when the mouse is
2. Press PTZ or click the
moved to PTZ camera's screen.
Virtual PTZ remote control is displayed on the main monitor.
3. Use each item to control the PTZ camera.
Button
Function
Displays the PTZ control guide.
Displays the setup menu of the PTZ
camera.
Minimizes PTZ virtual remote control.
Removes the PTZ virtual remote
control.
Use to pan/tilt the camera.
You can select the Pan/Tilt/Zoom
speed.
You can adjust the camera zoom.
You can adjust the focus of a camera
manually.
You can adjust the iris of a camera
manually.
The IP camera which is connected by Onvif driver is not supported
Focus and Iris function on the PTZ operation.
3
Installation
y
r
t
u
3. Select group number on the drop-down list.
21
22
Installation
Preset Settings
Preset position is the function to register camera monitoring
positions (preset positions) associated with position numbers.
By entering the position numbers, you can move cameras to the
preset positions.
To Tour The Preset Positions
You can tour all preset positions.
1. Press the TOUR button or Click the
u icon.
All registered preset positions in the camera will be selected
and the camera position image will be switched on the active
monitor.
NOTE
2. You can stop the tour by pressing the TOUR
•
To activate this function, you need to register the preset
positions of the PTZ cameras.
•
ONVIF preset may not be operated properly with this unit.
button or clicking the
u icon.
Setup for PTZ Cameras
3
You can adapt the camera to your requirements by setting up the
respective items in menus.
To Register Preset Positions
1. Move the camera to a point you wish by using the
Installation
,
,
,
2. Press SET or click the
y
The setup menu appears in the selected window of the main
monitor.
icon.
2.Use
3. Select the preset number you wish to register.
The position and its number are memorized.
NOTE
Preset numbers from 0 to 255 are available on this unit but the
actual preset range differs depending on PTZ cameras.
Changing to a Picture in a Preset Position
The following function is available only with cameras provided with
the preset function. The preset function makes the combination
camera move to the programmed preset position. It is necessary to
program preset positions for the combination camera beforehand.
t icon.
2. Use number buttons to enter the memorized preset position’s
,
,
,
,
, and
•
Refer to the manuals of the PTZ camera for more details.
•
Some PTZ cameras may not operated properly with this unit.
•
You cannot control the other functions when the PTZ virtual
remote control is displayed.
Using the Digital Zoom function
You can enlarge the current screen 2-4 times using the digital zoom
function on one live channel with full screen mode or one channel
playback with full screen mode.
1. Press ZOOM(+) button during viewing a live channel in full
screen mode or playing back a channel in full screen mode.
2. You can use the zoom screen as following.
icon.
index number then press OK or click the
The camera moves to the preset position and the picture of the
camera in that position appears on the monitor.
•
You can move the position of the zoom screen by using the
w/s/a/d buttons.
•
You can move the zoom screen by using the mouse. Drag &
drop a point to the specific point to move the zoom screen.
3. Press BACK button to exit.
To Clear the Preset Position
You can clear a memorized preset position.
NOTE
r icon.
The zoom function is deactivated when below case.
2. Use number buttons to enter the memorized preset index
number then press OK or Click the
,
NOTE
5. Repeat steps 1 to 4 to add additional positions.
1. Press the CLEAR button or Click the
,
buttons to set the options.
icon.
4. Press OK or click the
1. Press the MOVE button or click the
icon.
1. Click the
buttons.
icon to
clear the preset positions.
NOTE
This function may not be available depending on PTZ cameras.
•
When double click the left mouse button.
•
Press the specific channel or function button which front
panel of the unit.
•
Press the STOP button during the playback.
You can use some options by clicking the right button of the
mouse in the digital zoom mode.
•
Digital Zoom Control Guide: Shows the guide for using the
mouse.
•
Exit: Exits from the digital zoom mode.
Installation
Export the recorded data
This unit can manually copy recorded images and audio from builtin HDD to the external recording devices.
1. Press COPY or click the
icon in the system control bar.
The [Video Export] menu appears.
23
NOTE
•
Check the export device before you proceed.
•
You can also use the COPY button on the front panel for
export function.
•
If you use the external device, the external device has to be
formatted on this unit.
1. Connect the external device to the USB port on the front
or the rear of the system.
2. Select the [Format] icon then press OK.
Confirm window is displayed after format is completed.
3. Select [OK] and press OK to close the window.
•
a/d/w/s: Moves to the options.
•
w/s: Sets the selected option.
•
OK: Selects option or confirms the setting.
3. Select the channel number and press OK. Repeat this step to
select multi channels.
Check the size of the selected data and free space of the
external device. If the device does not have enough space,
create space on the device or erase the previously stored data.
•
Export can not be executed while the backup is in progress.
•
You can search the exported data with the supplied viewer
software.
•
When you export the recorded data, the video data, audio
data, the system log and event log data will also be exported.
•
When you export the recorded data the export viewer
program will also be exported in the [ExportViewer] folder of
the device. The exported data file name is made automatically
as the [Channel name_export date_export time.exp] type.
•
Do not remove the USB device while the export is in progress,
it may cause a malfunction.
•
The warning message appears for the conditions listed below.
4. Select the one of file format on the drop-down list of the [File
Format].
•
Native: The Native file is saved with the extention of “*.exp”.
The saved native file can playback using the Export Viewer
program.
•
AVI LG: To playing AVI LG file, you have to install the LG DVR
Codec. If you install the LG Network Client, do not need to
install the LG DVR Codec.
•
AVI: If you select AVI file format, it can play on any media
player.
5. Select [Export to] then press OK.
6.Use w/s to select a target device to export.
7. Press OK to confirm it.
8. You can set the password in case of the native file. To register
the password, click the checkbox of [Password]. The password
window is displayed. And then, enter the password by using
alphabetic letter and numeric digit 4-12 characters.
9. Click the [Export] icon to start exporting. The exported data
will be authorized by the unit before saving and it can only be
played back with the exclusive player.
--
When the start date/time and end date/time are the same
value.
--
When the start date/time is later than the end date/time.
--
The export media does not have enough space.
--
When you set the time for data that does not exist.
•
An external media has to be formatted on this unit to prevent
a malfunction.
•
DVD+RW and DVD-RW discs have to be initialized before
using.
3
Installation
2. Set the [Start Date/Time] and [End Date/Time] to search.
•
24
Installation
Viewing the System Log List
Viewing System Information
To view the system log list:
To view system information:
1. Press the LOG button or click the
bar.
icon in the system control
1. Press the INFO button or click the
bar.
icon in the system control
3
Installation
2. Set the [Start Date/Time] and [End Date/Time] to search.
•
a/d/w/s: Moves to the options.
•
w/s: Sets the selected option.
•
OK: Selects option or confirms the setting.
3.Use a/d to see the previous or next log list.
•
Ethernet 0 / 1: Displays the detail information of the
Network.
•
Camera Information: Displays the detail information of the
camera framerate.
•
HDD Information: Displays the detail information of the
HDD.
•
Refresh: Updates the system information.
4. Press the BACK button or click the [Close] button to exit the
window.
NOTE
Refer to the following system log list.
No.
Log Message
1
Power On
2
Power Off
3
Login (Remote)
4
Logout (Remote)
5
Login (Local)
6
Logout (Local)
7
Configuration Changed
8
Configuration Imported
9
Factory Default Set
10
Power Recovery
11
Backup Started
12
Backup Finished
13
Backup Failed
14
Export Started
15
Export Finished
16
Export Failed
17
S/W Updated
18
HDD Damaged
19
HDD Added
20
HDD Deleted
21
HDD Formatted
22
HDD Changed
2. Press the BACK button or click the [Close] button to exit the
window.
Installation
Configuration menu
Setting the Menu Using the Front Panel Buttons or
Remote Control Buttons
Front Panel
OSD
1
INFO
5
The features and options of the system are configured through the
menu. The operations of this unit can be set via a menu displayed
PTZ
IRIS+
on the
mainFOCUS+
monitor.
You
can select and set the operational
2
3
4
conditions
by
using
the
ALM.OFF
FOCUS
IRIS -buttons on the front panel and the remote
6
7
8
control
or using
a Mouse
connected to the unit.
COPY
OSD
1
2
3
4
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
SET
CLEAR
BACK UP
LOG
9
NET
HDD
ALARM
SET
0
MARK
LOG
9
0
FOCUS+
MARK
MOVE
TOUR
OSD
PTZ
FOCUS+
IRIS+
2
3
4
HDD
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
7
8
SET
CLEAR
TOUR
ALARM
LOG
Second level
BACK UP
9
0
COPY
MARK
Description
Use these buttons to select the
menu options or adjust the
options value.
SHIFT
COPY
SHIFT
Remote
Control
IRIS+
CLEAR
NET
1
FirstMOVE
level
PTZ
SEARCH
REC
SETUP
LOG-IN
VIEW
CAM
BACK
SHIFT
MOVE
TOUR
ThirdSEARCH
level
REC
SETUP
LOG-IN
VIEW
CAM
SEARCH
BACK
REC
SETUP
LOG-IN
VIEW
CAM
BACK
Select the option or confirm the
setting.
Return to the previous menu or
level.
2.Use w/s to select the desired menu item, then press OK to
display the submenu.
3.Use w/s to select the desired submenu item, then press OK
to display the setting options.
4.Use w/s to select the desired option then press OK to set the
value.
5.Use a/d to select the desired setting then press OK to confirm
your selection.
6. Press BACK repeatedly to exit the Setup menu.
If the save message appears, select [OK] and press OK to save
the settings.
NOTE
Informations
Using a mouse to set a menu
Use the left mouse buttons to set the menu.
Left button
•
When you operate the function menu by using the remote
control and front panel buttons, both buttons are operated in
the same way to control the function menu.
•
To use other functions of number buttons on the front panel,
follow the below steps.
1. Press SHIFT. The button indicator turns red.
2. Select the function button you want.
•
All the operation explanations are based on using the remote
control.
Function
Use to select a required item.
icon on the System control bar with the left mouse
1. Click the
button to display a setup menu.
2. Click the desired option with the left mouse button to display
the second or third level menu options.
3. Click the desired option with the left mouse button.
4. Set the selected options value.
icon or click
icon repeatedly
5. Click the
to exit setup menu.
If the save message appears, click [OK] with the left mouse
button to save the settings.
3
Installation
1. Press SETUP to display the setup menu.
Button
25
26
Installation
System settings
TCP/IP v4
Properties
3
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
System Name: Enter the system name by using alphabetic letter,
numeric digit and symbols up to 21 characters. The number of
maximum characters is depends on the language.
DHCP: Select this option when a DHCP server is installed on the
network to allow IP address assignment. With this setting, the IP
address is assigned automatically.
•
IP Address: Enter the IP address.
Language: Select a language for the setup menu and
information display.
•
Subnet Mask: Enter the subnet mask address.
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
Installation
•
•
•
•
Button Beep: Marks up to activate the button beep. The button
beep is activated when using the buttons.
•
Resolution: Sets the output resolution of the video signal.
•
Configuration Import: Import the system configuration data
from the USB memory stick.
•
Configuration Export: Export the configuration data from this
system to the USB memory stick.
•
Factory Default: You can reset the system to its original factory
settings. Some options cannot be reset (date, time, daylight
saving, time zone and user password settings).
TCP/IP v6
•
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
Auto: Select this option to assign the IP address automatically.
•
IP Address: Enter the IP address.
•
Subnet Prefix Length: Enter the Subnet Prefix length.
An IPv6 prefix indicates the portion of the address used for
routing or identifying an address range.
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
Installation
Network
27
When you want to change DDNS host name
If you want to change the registered host name to new one, follow
as shown below.
1. Enter a new host name in the [Host Name] option.
2. Press the [Update] button. The confirmation window will be
displayed to change your host name.
3. Click the [OK] button. When host name is properly changed, the
changed host name will be displayed in the [Registered Host]
option. If host name is not changed after updating, please check
network connection.
Network Streaming
3
TCP/IP Port No.: Enter the TCP/IP Port number. You can watch
the live surveillance image over the network with the PC Client
program. The factory default TCP/IP port for transmission of
video data is 9001 and audio data is 9003. However in some
cases it is better to change this port number for added flexibility
or security. You can edit this port between 1025 and 65535.
•
Web Server Port No.: Enter the Web Sever Port number. You can
watch the live surveillance image over the network with a web
browser. Typically the TCP port used by HTTP is 80. However in
some cases it is better to change this port number for added
flexibility or security. You can edit this port to 80 or between
1025 and 65535.
•
Audio Port No.: Enter the Audio Port number. You can edit this
port between 1025 and 65535.
•
Bandwidth Throttle: Select [All] or [Per User] to set the
bandwidth value.
--
All: Set same bandwidth to all of users.
--
Per User: You can set the bandwidth value per each user.
Select [User ID] from the left drop-down list. And then, set
the bandwidth from right drop-down list
•
RTSP Port : Enter the RTSP Port number. You can edit this port
between 1 and 65535. Default Port number is 554.
•
DDNS Service: Marks up to activate the DDNS function.
This free service is very useful when combined with the LG
DDNS Server. It allows the user to connect the IP device using
the URL, rather than an IP Address. This also solves the problem
of having a dynamic IP address.
•
Host Name: Enter the host name you want to use.
You can not use the “www”, “mail”, “http”, “ftp”, “com”, “lg”, “lge”,
“lgddns”, “lgeddns”, “ddns” for host name.
•
Registered Host: The registered host name appears.
•
Update: Register the host name you typed in [Host Name] to LG
DDNS server.
Installation
•
•
CH: Displays the channel number.
•
Profile: Selects the profile of stream. The [Profile] option is
activated in case of IP Camera only.
NOTE
If you need to adjust the image size to send to the client, set
the stream option of the [IP Device-Profile1 or Profile2]. And
then select the proper Profile from the [Network StreamingProfile]. You can control the bandwidth value forward to client.
Date/Time
How to register DDNS host name
When you use the DDNS function for the first time after you
purchased LG DVR/NVR
1. Displays the DVR/NVR setup menu.
2. Select [System] > [Network] option.
•
Date: Select the current year, month and day.
3. Marks up for the [DDNS Service] option.
•
Time: Select the current time.
4. Enter the host name in the [Host Name] option.
•
Date Format: Select the date display format.
5. Press the [Update] button. If host registration is properly
completed, the host name will be displayed in the [Registered
Host] option. If the host name is not registered after updating,
please check network connection.
•
Time Format: Select the time display format.
•
Time Zone: Select the time zone in the area where the system is
installed.
•
Daylight Saving: Mark up if you want to use the daylight saving
28
Installation
function.
•
Daylight Saving Start: Select the Daylight Saving start time.
•
Daylight Saving End: Select the Daylight Saving end time.
Update
This function is aimed at upgrade the system software. In this case,
the current system settings are not deleted or replaced during the
update process.
NTP
3
Installation
1. Selects the update method.
•
NTP: Marks up, if you want to synchronize the system's date and
time with those of the time server called NTP. (Network Time
Protocol) Specify the NTP server’s name.
•
Time Server: For most cases select public. The system will obtain
the average time among 5 public servers (time.nist.gov, time-a.
nist.gov, time-b.nist.gov, ntp.nasa.gov, clock.isc.org).
•
Private Time Server: Enter the private time server’s IP address or
host name using the virtual keyboard.
•
Sync. Interval: You can set synchronized intervals with the NTP
time server to 1 day, 1 week, 1 month and 1 hour.
•
NTP Test: Select [NTP Test] to test the NTP server.
2. Selects the device included update file or enter the FTP server
name.
NOTE
If you select the update method to [LOCAL], the [FTP Server]
option will be disabled and the [Device] option is activated.
And if you select update method to [NETWORK], the [Device]
option will be disabled and [FTP Server] option is activated.
3. Select the [Search] button and press OK. The update file is
displayed in the list.
4. Choose the update file from the list.
NOTE
If the NTP option is not set to this system, there can be a
gap between the system time and actual time. Using NTP is
recommended.
Controller
5. Select the [Update] button and press OK. The confirmation
window is displayed.
6. Select [OK] to begin the update process or click [Cancel] to stop
and exit. After the update process is completed, the [Restart the
system] message appears.
7. Click [OK] to restart the system.
8. To confirm the latest version, click the [Check now for update]
button to visit http://www.lgecommercial.com
NOTE
•
IR Remote ID: Select the IR Remote ID for this unit. If you use
multi systems set the IR Remote ID for each unit.
•
Remote Controller ID: Select the Remote Controller ID for this
unit. If you use multi systems, set the Remote Controller ID for
each unit. You can control the system by using the LKD1000
controller. (For more details refer to the LKD1000 owner’s
manual.)
•
Do not turn the power off during the update process to
prevent the malfunction.
•
Do not remove the external device or CD/DVD disc for update
whilst the update is in progress. It may cause a malfunction.
Installation
Backup
29
Daily/Weekly backup
1. Connect the USB device for backup. You cannot use the CD or
DVD writer for daily or weekly backup.
2. Select WEEKLY or DAILY on the schedule options.
3. Select the backup device.
4. Enter the date and/or time to start backup on the schedule start
option.
5. Enter the day of week and/or time on the Time Range Start
option.
6. Enter the day of week and/or time on the Time Range End
option.
7. Select On or Off in the [Overwrite] option.
Schedule: You can set the backup schedule.
--
OFF: All options are disabled.
--
WEEKLY or DAILY: The backup data will be automatically
saved according to the setting.
--
INSTANT: The backup data is saved manually.
9. Check the size of selected data and free space of USB device. If
the USB device does not have enough space, change the USB
device to a USB which has enough space or erase data of the
connected USB device.
NOTE
•
Device: Select a backup device.
•
Schedule Start: Set the schedule start date (A day of the week
and time).
•
•
Time Range Date: Enter the backup time range. Enter the date
you want to backup.
The backup function is not supported on the external USB
CD-ROM driver.
•
Available external device for backup.
•
Time Range Start: Enter the start day of the week or time.
•
Time Range End: Enter the end day of the week or time.
•
Overwrite: Sets whether you use Overwriting function for
schedule backup.
•
•
Estimate Size: Displays the size of backup data and the free
space of external devices.
Use the recommended external USB devices for preventing
malfunction (See the page 48.).
•
•
Start Backup: To start backup.
For the latest recommended HDD list, please visit
http://www.lgecommercial.com
•
Erase Media: To erase the media.
•
The CD-R, DVD-R or DVD+R discs cannot be formatted.
•
DVD+RW and DVD-RW discs have to be initialized before
using.
•
An external media has to be formatted on this unit to prevent
malfunction.
•
You cannot use the [Estimate size], [Start Backup] and [Erase
Media] options in backup progressing.
•
Do not remove the external device while the backup is in
progress, it may cause a malfunction.
•
If you format the external media by using a PC with FAT32, the
media may not be used on this unit.
•
Check the size of the selected data and free space of the
external device. If the device does not have enough space,
create space on the device or erase the previously stored data.
Instant Backup
1. Connect the backup USB device or insert a recordable disk to
the disc driver for backup.
Device
2. Select the partition you want to backup.
3. Select INSTANT from the schedule options.
4. Select the backup device.
5. Select the Time Range Date, Time Range Start time, and Time
Range End time for backup.
6. Select the [Estimate Size] icon and press OK.
7. Check the size of the selected data and free space. If the device
does not have enough space, create space on the device or
erase the previously stored data.
8. Select the [Start Backup] icon and press OK to start backup.
9. Exit the setup menu. You can check the backup status on the
system control bar in backup progress.
Capacity
USB HDD
Up to 2 TB.
E-SATA HDD
Up to 2 TB.
1. Select the [Estimate Size] icon and press OK.
The size of the selected data and free space is displayed.
2. Select [OK] and press OK to close the window.
3
Installation
•
8. Select the [Estimation Size] icon and press OK.
30
Installation
NOTE
3
•
You cannot stop the backup when the backup is in progress.
•
The warning message will appear for the conditions listed
below.
--
When the start time and end time are the same value.
--
When the start time is later than the end time.
--
When you set the time for data that does not exist.
--
When the start time and end time setting are wrong.
--
A media does not have enough space.
--
When the selected USB device is disconnected.
Device settings
IP Device
Installation
•
The disc burning is carried out by a multi session mode.
•
If you use the CD/DVD writer device for backup, it makes ISO
image before writing the backup data on the CD/DVD.
•
You can see the backup progress status on the system control
bar.
•
The estimated size of backup data is only the approximate size.
So you must prepare sufficient space on the media to prevent
lack of space.
•
CH: Displays the channel number.
At the scheduled recording time, you can check the backup
status on the system control bar.
•
Name: Enter the channel name.
•
Model Name: Displays the model name of IP device.
•
MAC: Displays the Mac address of IP device.
•
IP: Displays the IP address of IP device.
•
HTTP Port: Enter the HTTP port number. HTTPS is not supported.
•
/ : You can see other options (Driver, Profile1, Profile2,
RTSP Port, RTP Mode, Audio Recording) to click button. To
return previous options, click button.
•
Driver: Selects the IP camera driver from the drop-down list.
•
Profile1: Select the camera stream on the drop-down box for
recording.
•
Profile2: Select the camera stream on the drop-down box for
streaming. For smooth live playback, the resolution of [Profile2]
set lower than resolution of [Profile1].
•
•
•
While export is in progress or searching the backup data
from the external USB device, the scheduled backup will
not be started. After the export or backup search is finished,
scheduled backup will be restarted.
When you set the schedule backup, the backup data size is
estimated from the recording settings of the Setup menu. If
the real recorded data size is over the estimated recording
data size, the schedule backup may not be activated.
•
If you use the overwrite function in the [Backup] option, the
oldest backup data is deleted.
•
Although all of backup data is deleted, backup is not
implemented if the device does not have enough space.
NOTE
•
When you select full screen mode on the [split mode],
[Profile1] operate for streaming automatically.
•
When CPU usage occupies more than 90% and then 1 minute
goes by, connection of [Profile2] is limited for the stability of
system.
•
RTSP Port: Enter the RTSP port number.
•
RTP Mode: Select the RTP mode from drop-down list.
•
Audio Recording: Check the audio recording option.
•
Setup: Click the check box of the desired channel and then
press the [Setup] button. The setup window will be displayed.
NOTE
•
In case of same driver and same model, even if you select
several channels, the [Setup] button is activated.
•
The setting of the smallest channel number among the
selected channels is displayed. And, you can configure the
same settings.
•
In case of the Axis or Onvif driver, batch setup may not work
according to the camera model and the firmware.
In case of the LGE models, [Profile1] and [Profile2] are displayed
as [Master] and [Slave].
•
Installation
•
Audio/Sensor setting
You can configure this option when you select to [LGE] on the
[Driver] option. Select [Audio/Sensor] tab of the [Setup] window.
--
Audio In: Click the check box if you want to send the audio
from the microphone input connector.
--
Audio Type: Select the codec when you send the audio from
the microphone input connector.
--
Audio Out: Click the check box to output the audio from the
speaker.
--
Sensor:Select the sensor number on the drop-down list.
In Use: Marks up when you want to activate the sensor.
Sensor Type: Select the sensor type.
--
Relay Output: Select the relay output number
on the drop-down list.
--
Relay Type: Select the relay type.
--
Control Duration: Enter the relay time.
video. The lower value you set up, the higher definition
picture you get.
•
Delete: Click the check box of the desired channel and then
press the [Delete] button. Registered channel of IP Camera will
be deleted.
To register the IP device automatically
3
Installation
---
Motion Setting
You can configure this option when you select to [LGE] on the
[Driver] option. Select [Motion] tab of the [Setup] window.
1. Click the [Add] button. The motion detect window is
displayed. You can add the five windows maximum for
motion detection area.
2. Set the [Sensitivity] option.
3. Click the edge or corner of the window box to adjust the
window size for motion detection.
4. Click the [Save] button to save the settings.
Stream Setting
If you select to [LGE] on the [Driver] option, select the [Stream]
tab. When you select [ONVIF] on the [Driver] option, you can
configure the stream setting only. In case of [AXIS], the [Bitrate]
and the [Compression] options are activated only.
--
Stream (LGE only): Select the video stream.
--
In Use (LGE only): Click to activate the stream function.
--
ideo Codec: Select the video mode (Codec) from the
V
dropdown list.
--
Resolution: Select the output image size of the camera.
--
Frame Rate: Set the frame rate of the image.
--
GOP: It means “Group of Pictures”. The higher the GOP, the
better is the video quality of the camera. Edit the value of
GOP from 1 to 30. This setting is valid for H.264 video format
only.
NOTE
It recommended that you set the [GOP] value same as
[Frame Rate].
--
GOV (ONVIF only): It means “Group of VOPs”. The VOP is an
image frame in the MPEG-4 video stream. Edit the value of
GOV from 1 to 30.
--
Quality: Select the Quality.
--
Stream Quality (LGE only): If the [Quality] option set to VBR,
this option is displayed. Select the stream quality from the
drop down box, the camera supports five types. (Highest,
High, Medium, Low and Lowest)
--
Bitrate: If the [Quality] option set to CBR, this option is
displayed. Edit the bit rate value from 256 kbps to 10 240
kbps.
--
Compession (AXIS only): Enter the compression ratio of
31
1. Click the [AUTO] button.
2. The search window will be displayed and start to search the IP
device automatically. By stopping or restarting the search, click
[Stop] or [Refresh] button.
3. Click the check box of desired device.
4. Enter the [User Name] and the [Password] and then click the
[Add] button. When you select several channels, channels are
assigned same ID and password.
5. Confirm the result of authentication on the [Verify] option.
•
O: The verification is valid.
•
X: The verification is invalid. Check the ID and password
again.
•
XX: Connection failed.
6. Click the check box of confirmed cameras. Selected cameras are
registered channel in order.
7. Click the [CLOSE] button to exit the window.
32
Installation
To register the IP device manually
Storage
3
1. Click the [MANUAL] button.
Installation
2. Enter the IP address.
•
Overwrite: Sets whether you use Overwrighting function.
3. Click the check box of desired device.
•
4. Enter the [User Name] and the [Password] and then click the
[Add] button. When you select several channels, channels are
assigned same ID and password.
Full Warning: When the HDD has overflowed a warning message
is displayed.
•
Auto Delete: Sets the auto delete date. If you set the auto delete
date, the recorded data will be deleted except the data within
the selected date period of time. The Auto Delete function is
activated every 35 minutes.
•
Storage Saving : Saves the storage space by reducing the quality
of the recorded data.
•
Format: Initializes the HDD (Hard Disk Drive). All data on the
HDD will be erased.
•
E-SATA : Selects the E-SATA device.
•
Insert: Uses the selected E-SATA storage for recording data.
•
Eject: Uses the selected E-SATA storage for data back-up.
5. Confirm the result of authentication on the [Verify] option.
6. Click the check box of confirmed cameras. Selected cameras are
registered channel in order.
7. Click the [CLOSE] button to exit the window.
NOTE
•
The Supported IP camera specifications.
Specification
•
Description
Driver
LGE, AXIS, ONVIF
Recording mode
Continuous, Instant, Motion,
Sensor
Video Codec
H.264, MPEG4, MJPEG
Audio recording and
playback
Support
Resolution
CIF, Half D1(2CIF), D1(4CIF), UXGA,
720p, 1080p (Up to 2048 x 1536)
Stream
LGE (Master-0, Slave-0)
ONVIF (The stream that is
supported from camera)
AXIS (H.264, MPEG4, MJPEG)
PTZ
Support
Sensor/Motion input
Support
It takes time to search IP devices and the necessary time
depends on the network environment.
Installation
Display settings
Record settings
OSD
Normal Schedule Recording
33
A Normal schedule recoding can be activated at preset times, in
a repeating pattern on selected weekdays. The system can record
according to a schedule set by the user. It can also record manually
regardless of date and time. The recording can be made either
continuously or triggered by events (Sensor and motion detection).
The recording schedule screen displays one day of the week
showing the schedule of all channels over a 24-hour period. For
each 1-hour cell block the recording method can be specified. The
recording method for each block is shown in color for easy viewing.
Installation
Channel numbers
Time Line
•
Channel Name: Mark up to display or remove the channel name
in the channel window.
•
Channel Status: Mark up to display or remove the channel status
in the channel window.
•
Channel FPS: Mark up to displays or removes the channel FPS
(Frame Per Seconds) in the channel window.
•
Font Size: Selects the font size of characters such as the channel
name and playback time which displayed on the channel
window.
•
Position: Selects the position of characters such as the channel
name and playback time which displayed on the channel
window.
Day of the Week
Recording mode
Sequence
To Set a Recording Schedule for a Typical
Day of the Week (Normal Schedule)
1. Select a day of the week.
You can view all the channels in sequence in the selected screen
division mode. You cannot use sequence mode with the 25 split.
•
Main Dwell Time: Selects the channel sequence time for main
monitor.
3
34
Installation
2. Select a recording mode.
3
Installation
•
Gray (No recording): No schedule recording.
•
Gold (Continuous recording): Recording starts automatically
from the preset time.
•
Red (Sensor event recording): Recording starts automatically
when the sensor occurs within a designated time.
•
Green (Motion event recording): Recording starts
automatically when motion is detected within a designated
time.
•
Yellow (Sensor+Motion recording): Recording starts
automatically when the sensor signal has input or motion
has been detected.
•
Gold+Red (Continuous+Sensor event recording): Recording
starts automatically from the preset time. When the sensor
occurs within a designated time, changes the continuous
recording mode to sensor event recording mode and
recording starts automatically.
•
Gold+Green (Continuous+Motion event recording):
Recording starts automatically from the preset time. When
the motion is detected within a designated time, changes
the continuous recording mode to motion event recording
mode and recording starts automatically.
•
Gold+Yellow (Continuous+Sensor+Motion event
recording): Recording starts automatically from the preset
time. When the sensor signal has been input or motion has
been detected, changes the continuous recording mode
to motion event recording mode and recording starts
automatically.
NOTE
In case you set the motion recording setting on the channel of IP
camera, the recording starts when Video content analysis event as
well as Motion event is occurred.
3. Drag and drop with left button of the mouse to set the channel
and time you want to record. The color of the time block is
changed depending on the selected mode.
4. Press BACK to move to the previous menu.
If the save message appears, select [OK] and press OK to save
the settings.
5. Press BACK repeatedly to exit the Setup menu.
Installation
To Set a Recording Schedule for a Special
Day (Special Schedule)
In addition to the weekly schedule, up to 15 specific date/time
periods can be defined. To configure the specific recording schedule
select Specific Dates.
35
Sensor
Settings concerning sensor recording.
1. Select an Item number.
3
CH: Displays the channel number.
•
Prealarm: Specify the pre-event recording time. When the Event
signal is detected, the system recordes the data before the
event during the setting time.
•
Postalarm: Specify the post-event recording time. When the
Event signal is detected, the system recordes the data after the
event during the setting time.
3. Use w/s/a/d to enter the necessary information for year,
month and date. You can use the calendar icon to select the
date.
Motion
4. Select the time cell block on the desired channel.
Settings concerning motion recording.
NOTE
If the special day recording schedule is duplicated with the other
recordings, only the special day recording is possible.
Copying the Recording Schedule
Copying from the Scheduled Data of the Channel
You can copy the schedule data of the channel to the other
channel(s) within the selected day of the week. You cannot copy the
schedule data of the IP channel.
1. Select the day of the week and press OK on the [Normal
Schedule] or [Special Schedule] menu.
2. Select [Channel Copy] then press OK then the channel selection
menu appears.
3. Use w/s/a/d to select a channel then press OK to select
the target channel(s).
You can cancel the selected channel by pressing OK.
4. Select [OK] then press OK to confirm your selection.
Copying from the Scheduled Data of the Day
You can copy the scheduled day of the week to another day of the
week, weekday and weekend.
1. Select the day of week that you want to copy.
2. Select [Day Copy] then press OK then the channel selection
menu appears.
3. Use w/s/a/d to day of the week then press OK to select
the target date(s). You can cancel the selected channel by
pressing OK.
4. Select [OK] then press OK to confirm your selection.
•
CH: Displays the channel number.
•
Prealarm: Specify the pre-event recording time. When the Event
signal is detected, the system recordes the data before the
event during the setting time.
•
Postalarm: Specify the post-event recording time. When the
Event signal is detected, the system recordes the data after the
event during the setting time.
Installation
2. Enter the name of the special day. Use w/s/a/d to select
the [Name] column and press OK. The virtual keyboard menu
appears.
•
36
Installation
Event settings
Sensor
Notification
Marks up when you want to activate the selected option. If the
selected notification option is activated, the device will notify the
user about the information of selected option by E-mail.
3
Installation
•
Sensor On: Sends an e-mail when a sensor has occurred.
Motion Detection: Sends an e-mail when a motion detection
has occurred.
•
In: Displays the number of the ALARM-IN terminal.
•
•
Sensor Type: The sensor state can be set to either N.O. (Normally
Open) or N.C. (Normally Closed).
•
•
Camera: Select the camera channel connected to the ALARM-IN
terminal.
Admin Password Changed: Sends an e-mail when the
administrator password has been changed.
•
Power On/Off: Sends an e-mail when power is on or off.
Disk Full: Sends an e-mail when the HDD has fully recorded.
•
Relay Output: Select the alarm (relay) output number for the
RELAY-OUT terminal for the output alarm (relay) signal.
•
•
Preset: Select the preset number. When the input is activated,
the camera moves to the selected preset position and the
picture of the camera in that position appears on the monitor.
Mail
Motion
•
Channel: Select the channel to set motion detection.
•
Relay Output: Select the number of the RELAY-OUT terminal for
the output alarm (relay) signal when motion is detected.
•
Notification: Mark up to be notified the unit's operating
information according to notification settings by e-mail.
•
SMTP Server: Enter the SMTP Server address.
If notification option is not mark up and the SMTP server option
is empty, the SMTP Port, User Name, Password and TLS options
cannot be set.
•
SMTP Port: Enter the SMTP Port Number. Typically the port used
for SMTP is 25. However in some cases it is better to change this
port number for added flexibility or security. You can edit this
port between 1 and 65535.
•
User Name: Enter the user name.
•
Password: Enter the password.
•
TLS: Mark up if you use the TLS (Transport Layer Security)
function.
•
Mail Address (1 to 3): Enter the mail address.
You can input up to 3 e-mail addresses.
•
Sender: Enter the sender.
Installation
•
JPEG Attachment: Click the check box to send a mail which
want to attach a JPEG file.
•
E-mail Test: Select [E-mail Test] to test sending an e-mail.
37
SNMP
The Simple Network Management Protocol (SNMP) is an application
protocol to exchange the management information of network
devices.
NOTE
The SMTP server, SMTP port no., user name or password
settings are optional. The DVR can send e-mail directly without
the use of an SMTP server or MTA (message transfer agent).
In certain cases all e-mail should be forwarded to a specific
SMTP server. Specify the server host name or IP address in
such a case. For more detail on SMTP setup, ask your network
administrator and/or mail service provider.
•
[JPEG Attachment] option is operated when event of [Sensor
In], [Motion Detection] and [Text In] is occurred.
•
In case of an IP Camera, ONVIF JPEG Snapshot feature must be
supported to attach a JPEG file.
Emergency
•
•
Notification: Mark up to be notified the emergency agent about
the unit's operating information according to your notification
settings.
Host Name/Port: Enter the Host Name and port number of the
emergency agent program. The factory default port for this
function is 9002. However in some cases it is better to change
this port number for added flexibility or security. You can edit
this port between 1025 and 65535.
You can set up to 9 Host Name and port numbers.
3
•
SNMP Version: Selects a SNMP version if SNMP is allowed to
access to this device.
•
Port: Enter the number for SNMP port.
•
Community String (V2 only): Specifies the SNMP management
community in which you want to enable this system (e.g.
lgecommunity or public).
•
User (V3 only): Enter the security name for the SNMP.
•
Authentication (V3 only): Select a mode for the SNMP
Authentication. (MD5 or SHA)
•
Password (V3 only): Enter the password for the SNMP
Authentication.
•
Privacy (V3 only): Select a privacy mode for the SNMP
Authentication. (DES or AES)
•
Password (V3 only): Enter the password for the privacy mode.
•
Trap IP Address: Specifies the IP address of the computer you
intend to use as your network management station and to
which SNMP traps will be sent.
•
Trap Community String: Specifies the SNMP trap community in
which you want to enable this system (e.g. lgecommunity or
public).
Installation
•
38
Installation
Output
User settings
Group Authority
You can register a new user group with various access rights.
3
Installation
•
Relay Off
--
ALARM ACKNOWLEDGE: Use the ALM.OFF button to stop
alarm.
--
POST-ALARM TIME: The alarm is stopped after post-alarm
time.
•
System Alarm Out: Outputs the alarm (relay) signal via the
selected alarm out terminal number when the system has some
problem. If you do not use this function, select [NONE] option.
•
HDD Fail Alarm Out: Outputs the alarm (relay) signal via the
selected alarm out terminal number when the HDD is failed. If
you do not use this function, select [NONE] option.
•
Buzzer
Group ID: Select the group ID to assign authority.
--
GUEST: The GUEST group has the limited authority of the
system. Users in this group are available to see the live
image and to set the covert function of the channel.
--
ADMINISTRATOR: The ADMINISTRATOR group has the
unlimited authority of the system. Users in this group are
available to use all of the functions.
--
[Group 01] to [Group 08]: Users in this group are available to
set the authority of the function manually.
Marks up when you want to activate the selected option.
NOTE
The GUEST and ADMINISTRATOR group are set initially for the
authority. You cannot change the initial settings and group name
(GUEST and ADMINISTRATOR).
•
Group Name: If you select one of the group numbers from the
Group ID option, you can register the group name. Enter the
group name.
--
•
•
Sensor: Makes a sound when a sensor occurs.
•
Motion : Makes a sound when a motion is detected.
•
System: Makes a sound when a cooling fan is not activated or
the HDD has bad sector.
NOTE
•
Data cannot be saved in HDD which is occurred bad sector.
But if HDD is installed more than 2 on this unit, data is saved in
other normal HDD.
•
When HDD has bad hold, can not operate normally. Replace
the HDD immediately .
Setup, Search/Play, Export, PTZ, Power Off, Instant Record:
Set the authority for the selected group. Mark up the option
to activate it.
Main Channel: Selects the channel to allow the operation for the
group user. The LG logo is displayed on the covert channel(s).
Installation
User
You can set the user name for the selected User ID.
39
Setup Wizard settings
The Setup Wizard appears on the screen when you turn on the unit
for the first time or select [Setup Wizard] on the Setup menu. You
can set the system name, display language, date, time, network
settings, recording schedule and recording mode on the initial
setup wizard.
NOTE
If you run the Setup Wizard when system setup has already been
completed, the data previously configured could be deleted.
3
Installation
1. Select [User ID] from the drop-down list.
2. Enter the user name of the selected user ID.
3. Select the user group from the drop-down list.
4. Enter the Password.
5. Select the auto user logout time from the drop-down list.
6. Press BACK button to display the confirmation window.
7. Select [OK] to save the setting or [Cancel] to cancel the setting.
NOTE
•
It is strongly recommended that you change the password of
the administrator for the protection of the security of personal
information. Do not leave 000000 as the default password.
Make sure that you keep your password and write it down in a
safe place so that you do not forget it.
•
If you set the user ID to [ADMINISTRATOR], you cannot change
the [User Name] and [Group] option but you can change the
password.
•
The user name and password are case-sensitive.
•
The password must be entered more than 4 characters.
Step 1
Set system name and display language.
•
System Name: Enter the system name by using alphabetic letter,
numeric digit and symbols up to 21 characters. The number of
maximum characters is depends on the language.
•
Language: Select a language for the setup menu and
information display.
40
Installation
Step 2
Step 4
Set date and time.
Set recording schedule.
•
Date: Select the current year, month and day.
•
Weekday: Sets the recording mode to weekday (Mon-Fri).
•
Time: Select the current time.
•
Weekend: Sets the recording mode to weekend (Sat-Sun).
•
Date Format: Select the date display format.
•
Time Format: Select the time display format.
•
Time Zone: Select the time zone in the area where the system is
installed.
•
Daylight Saving: Mark up when you use the daylight saving
function.
•
Daylight Saving Start: Select the Daylight Saving start time.
•
Daylight Saving End: Select the Daylight Saving end time.
3
Installation
Step 3
Set network address for LAN ports.
•
Interface: Select a LAN port you want to use (Ethernet 0 or
Ethernet 1).
•
DHCP: Select this option when a DHCP server is installed on the
network to allow IP address assignment. With this setting, the IP
address is assigned automatically.
•
IP Address: Enter the IP address.
•
Subnet Mask: Enter the subnet mask address.
•
Gateway: Enter the gateway address.
•
Primary DNS: Enter the Primary domain name server that
translates the hostnames into IP address.
•
Secondary DNS : Enter the Secondary DNS server address that
backups the Primary DNS.
Operation
41
4
Operation
Instant Recording
NOTE
Images from a camera will be recorded on the built-in hard disk.
Ensure all the cameras are connected and that time and date have
been set correctly.
Before you start recording, first check the repeat recording settings
in the recording menu of the system setup, and then make the
recording settings.
•
External recording devices can be used as copy areas for
images recorded on the hard disk. It is able to record images
on the external recording devices directly.
•
You can record instantly with the left mouse button.
1. Move the cursor to the desired channel screen on the
main monitor.
FOCUS+
IRIS+
3
4
FOCUS -
IRIS -
7
8
SET
CLEAR
11
12
MOVE
TOUR
15
16
•
You can use the instant recording also for the channels
scheduled such as sensor, motion or continuous.
•
Once you stop instant recording, the recording type indicator
will be changed to the scheduled recording mode.
•
You can not record the Instant and Continuous recording in
following conditions.
SHIFT
SEARCH
LOG-IN
REC
SETUP
VIEW
CAM
BACK
-----•
2. Press the REC button and then press the channel button you
want to stop recording. If you stop instant recording, the
recording mode will be changed into the scheduled recording
mode (Continuous/ Sensor / Motion records). If the schedule is
not set, the recording type indicator turns gray on the selected
channel screen of the main monitor.
Panic Recording
You can record the all channels at the same time.
This function is activated for a live channel only.
1. Press and hold the REC button until the Recording Type
indicator turns gold on the all live channel screens.
The system will start recording.
2. Press and hold the REC button until the Recording Type
indicator turns gray on the all live channel screens. The system
will stop recording.
A HDD is not attached.
A HDD is not formatted.
The channel has no video input for display.
Overwrite is set to “OFF”.
The schedule (Sensor/Motion) record is not set.
Priority of record.
Instant record > Sensor record > Motion record > Continuous
record.
•
The Warning message is displayed when the HDD problem
occurs during the recording.
4
Operation
2. Click the recording type indicator with the left mouse
button and recording starts. Click it once again and the
instant record stops and the recording type indicator
will be changed into the scheduled recording mode
(Continuous / Sensor / Motion record). If the schedule is
not set, the recording type indicator turns gray.
1. Press the REC button and then press the channel button you
want to record. The recording type indicator turns gold on the
selected channel screen of the monitor.
42
Operation
Instant Playback
button to start playback.
7. Press ad (Play) button or click
The picture(s) is (are) displayed on the main monitor.
8. Press STOP (Z) to stop playback and return to the search menu.
It is possible to play a recorded image without stopping recording.
1. Select a channel you want to playback.
2. Press ad (Play) button to play a recorded image of the
previous 1 or 2 minutes of recording. The playback image will
be displayed on the full screen window.
3. Press Z (STOP) button to stop the playback.
9. Press BACK repeatedly to exit the [Date/Time] menu.
Using the calendar icon to select a date
1. Select the
icon then press OK.
2. Press BACK to move to the [w] or [s] option selecting a year
and a month.
3. Press OK repeatedly to select a desired year and month.
4.Use w/s/a/d to select a date then press OK.
Search and Playback
5. Select [OK] button and press OK to confirm the settings.
NOTE
4
The various search functions of this unit can be used to go to the
beginning of the desired picture.
Press SEARCH to display the search menu.
Operation
Date and Time Search
•
While the backup is in progress, you can not search the data
on the backup device.
•
Do not remove the external USB device from the USB device
whilst the backup search is in progress. It may cause a
malfunction.
•
Recorded data shown on the time graph will be displayed in
different colors depending on the recording type.
Use to search recorded pictures by specifying date, hour and
minute.
--
Gold: Continuous recording.
--
Red: Sensor recording.
--
Green: Motion-detection recording.
•
button to view the detailed time by 6 hour
Use
intervals.
•
If you do not select the channels in the Date/Time search,
playback is implemented as current main monitor screen
mode.
Event Search
Search a recorded picture by date and type of event.
1. Press SEARCH or click the
and [Search] menu appears.
icon on the System Control Bar
2. Use w/s button to select the [Date/Time] icon then press OK.
3. Select the desired source device.
•
INTERNAL HDD: Plays back or searches recorded contents of
the internal HDD device.
•
Source Device: Plays back or searches backup contents of
the source device.
4. Set the year, month, date and time.
•
a/d: Moves to the previous or next column.
•
w/s: Changes the value at the current position.
•
OK: Selects the column or confirms the setting.
5. Select the [Search] icon then press OK.
The search result is displayed.
6. Use w/s button to select the channel and press OK. Repeat
this step to select the other channels.
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
2. Use w/s button to select the [Event] icon then press OK.
3. Select the desired source device.
4. Set the year, month, date and time.
•
a/d: Moves to the previous or next column.
•
w/s: Changes the value at the current position.
•
OK: Selects the column or confirms the setting.
Operation
5. Use w/s/a/d button to select the channel and press OK
button to confirm the selection. If you want to select the all
channels, marks up the [Select All] option.
6. Select the [Event Type] from the drop-down list.
7. Select the [Search] button then press OK.
The event list menu appears.
You can see the images through preview screen if you select a
data in Event list.
43
Export Search
Searches an exported data in the external device or internal
DVD-ROM device.
If you want to use this function, you have to connect the external
device or insert the CD/DVD disc with exported data otherwise the
warning message will be displayed.
Check the export device before you proceed.
8. Select a recording data on the event list then press ad (Play)
button or click
button to play back the selected data.
The picture is displayed on the main monitor.
9. Press STOP (Z) to stop playback and return to the event list
menu.
10. Press BACK repeatedly to exit the event search menu.
Bookmark/Protect Search
Searches the recorded data included a bookmark or the protected
section.
4
icon on the System Control Bar and
2. Use w/s button to select the [Export] icon then press OK.
3. Select the desired source device.
4. Select the [Search] icon then press OK.
The exported file list menu appears.
5. Select the exported file on the exported file list then press ad
(Play) button or click
to start playback.
The picture is displayed on the main monitor.
6. Press STOP (Z) to stop playback and return to the exported file
list menu.
1. Press SEARCH or click
[Search] menu appears.
icon on the System Control Bar and
NOTE
2. Select the [Bookmark] or [Protect] from drop-down list.
The exported data with password cannot preview the image.
3. Select the [Search] icon then press OK. The Bookmark (or
Protect) list appears.
When you play the exported data with password, logon screen
appears. To unlock the data, enter the password.
4.Use w/s button to select a bookmark (or protect) then press
OK.
5.Press ad (Play) or click
data.
button to play back the selected
NOTE
•
Backup data cannot be played back by a Bookmark/Protect
Search.
•
If you want to delete the bookmark/protect on the list, select
button and press OK.
the recording data and select
Operation
1. Press SEARCH or click
[Search] menu appears.
44
Operation
Functions Available During Playback
Button
NET
Playback
Control Menu
Remote Control
PTZ
Function
OSD
Front panel
1
HDD
FOCUS+
3
4
INFO
ALM.OFF
FOCUS -
IRIS -
5
6
Stops playback.
ALARM
7
8
NET
SET
LOG
BACK UP
IRIS+
2
9
0
COPY
MARK
OSD
CLEAR
1
HDD
MOVE
Pauses playback.
ALM.OFF
6
LOG PTZ
9
1
BACK UP
INFO
HDD
2
SHIFT
INFO
TOUR
5
ALARMOSD
NET
PTZ
FOCUS+
0
2
COPY
ALM.OFF
MARK
FOCUS -
5 the same date.
6
Jumps to the beginning
of the current
data recorded
on
NET
OSD
PTZ
FOCUS+
ALARM
LOG
(press the button for more than 21seconds.)
2
3
9
4
HDD
INFO
5
BACK UP
ALM.OFF
FOCUS -
Operation
1
2
INFO
HDD
COPY
ALM.OFF
INFO
MARK
FOCUS ALM.OFF
MOVE
LOG
aaALARM
aa
a)
LOG
9
0
6
5 (d
Press repeatedly to select the required scan speed.NET
dddddor aa,
5
aaa,ALARM
aaaa,
BACK UP
NET
IRIS -
9
0
9
HDD
1
Press repeatedly
NET
OSD
PTZ
FOCUS+
1
2
3
INFO
ALM.OFF
FOCUS -
5
6
7
LOG
SET
9
0
COPY
MARK
OSD
IRIS+
HDD 4
IRIS ALARM 8
CLEAR
BACK UP
MOVE
TOUR
PTZ
FOCUS+
1
2
3
INFO
ALM.OFF
FOCUS -
5
6
4
BACK UP
IRIS -
SET
COPY
+
MARK
COPY
BACK
UP
CLEAR
SHIFT
BACK UP
0
SHIFT
HDD
IRIS -FOCUS
TOUR
8
7
PTZ
INFO
5
90
MARK
COPY
1SET
CLEAR
2
SET
0
INFO
ALM.OFF
TOUR
6
MOVE
IRIS+
FOCUS+
34
0
9
ALM.OFF
INFO
to play frame-by-frame in pauseBACK
mode.
5
56UP
NET
OSD
PTZ
ALARM
LOG
ALARM
LOG
1
2
IRIS+
9
34
MOVE
5
MARK
FOCUS+
PTZ
LOG
23
INFO
HDD
ALARM
Press7to play reverse8 or normal
playback.
LOG
9
HDD
IRIS+
FOCUS+
CLEAR
67
OSD
MARK
COPY
PTZ
OSD
ALARM
12
FOCUS ALM.OFF
COPY
67
SET
ALM.OFF
6
0
MOVE
MARK
FOCUS+
IRIS -FOCUS
MARK
78
3
FOCUS -
7
LOG
SET
9
0
COPY
MARK
MOVE
8
d, ddd, dddd,
COPY
BACK
UP
OSD
NET
SET
4
MARK
7
Jump to the last 1 minute
of the current
data recorded
on the same
NET
OSD
PTZ
FOCUS+
NET
OSD
PTZ
ALARM for more LOG
SET
date. (press the button
than 12 seconds.) 2
3
HDD
BACK UP
7
IRIS+
0
COPY
6
3
MOVE
CLEAR
SET
TOUR
MOVE
IRIS
4
IRIS
8
CLE
TOU
MOVE
TOUR
Press
MARK at a desired
point to be marked during playback. Up to 15
points can be marked.
NOTE
SEARCH
SEARCH
REC
LOG-IN
SETUP
•
LOG-IN
You can play the backup or export data in normal speed only.
•
If you use the reverse frame skip function, a frame may be skipped.
•
Multi channel play works only in the date/time search function.
•
If you double-click the channel during the multiple channel playback, the selected channel will be played on the full screen. And if you
double-click the channel during playing in full screen mode, it will return to the previous playback condition.
VIEW
CAM
BACK
SETUP
VIE
Operation
Using the playback control menu
Using the Protect function
You can use various playback function using playback control menu.
This function allows you to protect the recorded data against being
automatically overwritten.
45
1. Play a data recorded.
Playback control menu appears at the bottom of the screen.
How to select Protect section.
1.Click
icon on the Playback control menu.
The [Protect] menu appears.
2. If you want to change the time period, select starting and
ending point of a part that you want to protect.
Enlarge the current screen using the
digital zoom function.
Displays the date of the data recorded.
You can choose the date you want to
see.
Displays the time of the data recorded.
You can choose the time you want to
see.
Displays the record mode.
Increases or decreases the time interval
of the Time Line.
Registers a bookmark.
Displays the [Export] menu.
Displays the [Protect] menu.
Minimizes the Playback control menu.
Displays the current position, recording
mode and recording section.
Playback control buttons
NOTE
The exported data with password cannot preview the image.
When you play the exported data with password, logon screen
appears. To unlock the data, enter the password.
NOTE
•
Protect function dose not work when two or more protected
parts overlap or when no data does not exist in the selected
part.
•
The protected section can be released when the time is set in
the past or by Auto delete function.
How to release the Protect section.
1. Select any position in the protected section on the Playback
control menu.
2. Click the
icon.
The confirm message appears.
3. Click the [OK] icon.
The protected data is released.
4
Operation
Selects the camera you want to play.
3. Click the [OK] icon and the part is protected.
The protected data is shown shaded in the timeline area.
46
Troubleshooting
5
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Symptoms
Cause & Solution
Check the power cable is connected correctly.
The system power does not
turn on.
Check the input voltage is correct.
If the system power does not turn on even if the power cable is connected correctly, please contact the
service center.
Check the monitor power cable is connected properly.
5
Troubleshooting
The system power is turned on
but no video data is displayed
on the monitor.
Make sure the monitor is turned on.
Unplug the power cable and plug it in again.
Check the power cable on the camera is connected correctly.
The camera numbers are
displayed on the screen but the
camera images are not
displayed.
Check the LAN cable is connected correctly.
Check the IP Camera cable is connected correctly.
Turn off the NVR system and turn it on again.
Check the recording mode in the record setting menu.
The camera video is shown on
the screen but the system does
not record the video.
Check the HDD detection status in the System Information window.
If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.
Check the recordable disk space in the HDD.
Check the overwrite option in the setup menu for overwrite recording.
Check the IP Camera's motion detection feature. To use IP Camera Motion recording, IP Camera's motion
detection feature must be activated.
Check if there is recorded video data at the time that you are trying to search on the table.
If there is no recorded video data, check the recording mode in the record setting menu.
It is impossible to search
through the recorded video.
Check the HDD detection status in the system information window.
If the HDD detection status is abnormal, check the HDD formatting and the connection of the HDD.
Check the user type. The search function is not available for an unauthorized user.
Troubleshooting
Symptoms
47
Cause & Solution
Check the audio recording option is correctly set for the camera you wish to record audio.
Audio data recorded with
video data is not playing.
Check the speaker on the rear of system are connected correctly.
Check the connected speaker is working properly.
Check the type of sensor in the camera setting is the same as with the connected sensor.
The connected sensor is not
operating.
Check the system is set to use the sensor in the recording schedule window in the recording setting
menu.
Check the sensor is properly connected to the ALARM-IN.
The connected PTZ camera is
not operating.
Check the user type. The PTZ camera control is not available for a normal user.
E-mail reception failed without SMTP server setting.
•
Make sure the network is correctly set.
•
Make sure the mail address is input correctly.
•
Check the spam mail setting of the input mail address.
(If you set the spam mail, some mails are deleted automatically or classified in the spam mail box)
•
Some of SMTP mail services do not support an E-mails from private SMTP servers. In this case use the
public SMTP server.
An E-mail sent from this
product was not received.
•
•
•
The remote control does not
work properly.
When the [Please check the SMTP information or internet cable] message is displayed.
--
Check the SMTP server address.
--
Check the SMTP port number. (Default setting is 25)
--
Check the network settings.
When the [Please check the authentication information] message is displayed.
--
Check the user name.
--
Check the password.
The mail reception failed without error message.
--
Check the receiver’s mail address.
--
Check your E-mail is not classified as a spam mail on the receiver's mail setting.
Check the batteries in the remote control.
Check the ID setting for the remote control. (See the page 28.)
NOTE
If you observe any of the following symptoms:
•
Some of the front panel LEDs do not light.
•
The system does not operate normally.
You can reboot the system as follows:
1. Turn off the system and turn it on again after a few seconds.
2. When the recorder does not work normally after rebooting, contact the service center.
Troubleshooting
E-mail reception failed even if the SMTP server was set.
5
48
Appendix
6
Appendix
Recommended Devices
Recommended USB Memory list
No.
Maker
Model Name
Capacity
1
LG Electronics
XTICK SPIN
2G
2
LG Electronics
XTICK UF1
32 G
3
Lexar
Jump Drive
1G
4
Memorive
SLC
2G
5
TRANSCEND
JF
16 G
6
SKYDRV
x2
2G
7
SANDISK
Cruzer
16 G
8
Samsung Electronics
SUM-LSB8
8G
9
Samsung Electronics
SUM-PSB
32 G
NOTE
6
Appendix
•
Some USB memory devices other than the ones on the above table may not work properly, even if this system reads them.
•
For the latest recommended USB list, please visit http://www.lgecommercial.com
Recommended External Device list
Device
Capacity
Backup search function for the
client program
File system
USB HDD
Up to 2 TB.
FAT 32 (This file system is compatible with Windows and Linux
system.)
Yes
E-SATA HDD
Up to 2 TB.
XFS (Linux file system)
This file system is not compatible with Windows system.
No
NOTE
The E-SATA device with the FireLynx Series of Malgn Technology is supported only for data storage. Other device or manufacture may cause a
malfunction.
Recommended CD/DVD Media list
Maker
CD-R
CD-RW
DVD-R
DVD-RW
DVD+R
DVD+RW
Imation
O
O
O
O
O
O
Memorex
O
O
O
O
O
O
MITSUBISHI
O
O
O
O
O
O
PHILIPS
O
O
O
O
O
O
SONY
O
O
O
O
O
O
Verbatim
O
O
O
O
O
O
NOTE
8 cm (1.4 GB) Mini CD/DVD and the Dual Layer type media (DVD) are not supported.
Appendix
49
Supported function list for device
Device
Instant backup
Schedule backup
Export
Configuration Import/Export
CD/DVD
O
X
O
X
USB memory
O
O
O
O
USB HDD
O
O
O
O
E-SATA HDD
O
O
O
O
NOTE
If you use a USB memory stick or USB HDD for configuration import/export you must disconnect the other external USB devices.
Supported IP Camera Audio/Video Codec
Item
Codec
Video
H.264 Base/Main Profile, JPEG, MPEG4
Audio
G.711, G.726, AAC, PCMU 8 Khz, PCMA 8 Khz
6
Appendix
50
Appendix
Time zones
Timezone
Abbreviation
Timezone
Eniwetok, Kwajalein
EK
-12:00
Midway Island, Samoa
MIS
-11:00
Timezone name
DST
Hawaii
HAW
-10:00
Alaska
ALA
-09:00
-08:00
Pacific Time (US and Canada); Tajuana
PST
-08:00
-07:00
Mountain Time (US and Canada), Chihuahua, La Paz,
Mazatlan, Arizona
MST
-07:00
-06:00
Central Time (US and Canada), Saskatchewan, Guadalajara, Mexico City, Monterrey,
Central America
CST
-06:00
-05:00
Eastern Time (US and Canada), Indiana (East), Bogota, Lima, Quito
EST
-05:00
-04:00
Atlantic Time (Canada), Caracas, La Paz, Santiago
AST
-04:00
Newfoundland
NWF
-03:30
Brasilia, Buenos Aires, Georgetown, Greenland
BBA
-03:00
Mid-Atlantic
MAT
-02:00
Azores, Cape Verde Islands
AZO
-01:00
Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London, Casablanca, Monrovia
GMT
0
+01:00
Amsterdam, Belgrade, Bratislava, Budapest, Ljubljana, Prague, Sarajevo, Skopje, Warsaw,
Zagreb, Brussels, Copenhagen, Madrid, Paris, Berlin, Bern, Rome, Stockholm, Vienna, West
Central Africa
AMS
+01:00
+02:00
6
Athens, Istanbul, Minsk
AIM
+02:00
+03:00
Appendix
Bucharest, Cairo, Pretoria, Jerusalem, Harare, Pretoria
BCP
+02:00
+03:00
Helsinki, Riga, Israel, Kyiv, Sofia, Tallinn, Vilnius
HRI
+02:00
+03:00
Baghdad, Kuwait, Riyadh, Nairobi
BKR
+03:00
+04:00
Moscow, St.Petersburg, Volgograd
MSV
+03:00
+04:00
Tehran
THE
+03:30
+04:30
Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan
ABT
+04:00
Kabul
KAB
+04:30
Ekaterinburg, Islamabad, Karachi, Tashkent
EIK
+05:00
Bombay, Calcutta, Madras, New Delhi, Chennai, Kolkata
BCD
+05:30
Almaty, Dhaka, Colombo, Astana, Sri Jayawardenepura, Novosibirsk
ADC
+06:00
Yangon
MMT
+06:30
Bangkok, Hanoi, Jakarta, Krasnoyarsk
BHJ
+07:00
Beijing, Changqing, Hong Kong, Uramqi
BHU
+08:00
Perth, Singapore, Taipei, Beijing, Chongqing, Hong Kong SAR, Urumqi, Kuala Lumpur,
Irkutsk, Ulaan Bataar
SST
+08:00
Osaka, Sapporo, Tokyo
OST
+09:00
Seoul, Yakutks
SYA
+09:00
Adlaide, Darwin
ADA
+09:30
Brisbane, Guam, Port Moresby
BGP
+10:00
Canberra, Melbourne, Sydney
CMS
+10:00
Hobart, Vladivostok
HVL
+10:00
Magadan, Solomon Islands, New Caledonia
MSN
+11:00
Auckland, Wellington
AWE
+12:00
Fiji Islands, Kamchatka, Marshall Islands
FKM
+12:00
-02:30
+12:00
Appendix
51
Factory Default Configuration Settings
1st level
2nd level
Properties
TCP/IP4
TCP/IP6
Network
Network Streaming
Default Value
Factory Default
setting
System Name
NULL
YES
Language
The option depends on the model.
YES
Button Beep
OFF
YES
Resolution
1024*768
NO
Configuration Import
-
-
Configuration Export
-
-
Factory Default
-
-
Interface
Ethernet0
-
DHCP
ON
YES
IP Address
NULL
YES
Subnet Mask
NULL
YES
Gateway
NULL
YES
Primary DNS
NULL
YES
Secondary DNS
NULL
YES
Interface
Ethernet0
-
Auto
ON
YES
IP Address
NULL
YES
Subnet Prefix Length
64
YES
Gateway
NULL
YES
Primary DNS
NULL
YES
Secondary DNS
NULL
YES
TCP/IP Port No.
9001
YES
Web Server Port No.
80
YES
Audio Port No.
9003
YES
Bandwidth Throttle
ALL / 100 Mbps
YES
RTSP Port
554
YES
DDNS Service
OFF
YES
Host Name
NULL
YES
Registerd Host
NULL
YES
Update
-
-
CH
-
-
Profile
Profile1
YES
6
Appendix
System
3rd level
52
Appendix
Date/Time
NTP
Controller
System
6
Appendix
Update
Backup
Date
Current Date
NO
Time
Current Time
NO
Date Format
YYYY/MM/DD
YES
Time Format
12 HR
YES
Time Zone
The option depends on the model.
NO
Daylight Saving
OFF
NO
Daylight Saving Start
JAN, 1st, SUN, 00
NO
Daylight Saving End
JAN, 1st, SUN, 00
NO
NTP
OFF
YES
Time Server
PUBLIC SERVER
YES
Private Time Server
NULL
YES
Sync. Interval
1 DAY
YES
NTP Test
-
-
IR Remote ID
1
YES
Remote Controller ID
NONE
YES
Method
LOCAL
YES
Device
-
YES
FTP Server
-
YES
Search
-
-
No.
-
-
File Name
NULL
-
Update
-
-
Check now for update
-
-
Schedule
OFF
YES
Device
-
YES
Schedule Start
SUN, 12:00:00 AM
YES
Time Range Date
Current Date
YES
Time Range Start
SUN, 00:00
YES
Time Range End
SUN, 00:00
YES
Overwrite
ON
YES
Estimate Size
-
-
Start Backup
-
-
Erase Media
-
-
Appendix
Device
Storage
Display
OSD
Sequence
CH
CH 01
-
Name
CH 01 to CH 24
YES
Model Name
NONE
YES
MAC
NULL
YES
IP
NULL
YES
HTTP Port
80
YES
Driver
NULL
Profile1
NULL
Profile2
NULL
RTSP Port
554
YES
RTP Mode
UDP
YES
Stream
NULL
YES
Audio Recording
OFF
YES
Setup
-
-
Delete
-
-
Auto
-
-
Manual
-
-
Overwrite
ON
YES
6
Full Warning
OFF
YES
Auto Delete
OFF
YES
Appendix
IP Device
53
Storage Saving
OFF
NO
Format
-
-
E-SATA
-
-
Insert
-
-
Eject
-
-
Channel Name
ON
YES
Channel Status
ON
YES
Channel FPS
OFF
YES
Font Size
12
YES
Position
TOP
YES
Main Dwell Time
5 SEC
YES
54
Appendix
Normal Schedule
Special Schedule
Record
Sensor
Motion
6
Appendix
Sensor
Event
Motion
Notification
Day
Current day of the week
NO
Mode
C+S+M
NO
Channel Copy
-
-
Day Copy
-
-
List
Item 1
YES
Name
NULL
YES
Date
--/--
YES
Mode
C+S+M
NO
Delete
-
-
Channel Copy
-
-
CH
-
-
Prealarm
10 SEC
YES
Postalarm
10 SEC
YES
CH
-
-
Prealarm
10 SEC
YES
Postalarm
10 SEC
YES
In
-
YES
Sensor Type
N.O
YES
Camera
01 to 16
YES
Relay Output
NONE
YES
Preset
NONE
YES
Channel
CH 01
-
Relay Output
NONE
YES
Sensor On
OFF
YES
Motion Detection
OFF
YES
Admin Password Changed
OFF
YES
Power On/Off
OFF
YES
Disk Full
OFF
YES
Appendix
Emergency
Event
SNMP
Output
Buzzer
Notification
OFF
YES
SMTP Server
NULL
YES
SMTP Port
25
YES
User Name
NULL
YES
Password
NULL
YES
TLS
OFF
YES
Mail Address 1
NULL
YES
Mail Address 2
NULL
YES
Mail Address 3
NULL
YES
Sender
NULL
YES
JPEG Attachment
OFF
YES
E-mail Test
-
-
Notification
OFF
YES
Host Name
NULL
YES
Port
9002
YES
SNMP Version
NONE
YES
Port
161
YES
Community String
public
YES
6
User
NULL
YES
Authentication
NONE
YES
Appendix
Mail
55
Password
NULL
YES
Privacy
NONE
YES
Password
NULL
YES
Trap IP Address
NULL
YES
Trap Community String
NULL
YES
Relay Off
ALARM ACKNOWLEDGE
YES
System Alarm Out
NONE
YES
HDD Fail Alarm Out
NONE
YES
Sensor
OFF
YES
Motion
OFF
YES
System
OFF
YES
56
Appendix
Group Authority
User
User
6
Group ID
GUEST
YES
Group Name
GUEST
YES
Setup
OFF
YES
Search/Play
OFF
YES
Export
OFF
YES
PTZ
OFF
YES
Power Off
OFF
YES
Instant Record
OFF
YES
Main Channel
All Enable
YES
User ID
ADMINISTRATOR
YES
User Name
ADMINISTRATOR
YES
Group
ADMINISTRATOR
YES
Password
"000000"
YES
Auto User Logout
OFF
YES
Appendix
Appendix
57
IP Live/Playback Specifications
Calculation formula: Total Available FPS for new resolution = (704*480)*(30*24) / (Width*Height)
IP Camera Live/Playback Display. (Codec: H.264)
Model
LRN8240
IP Live/Playback
IP Cameras
Total FPS
FPS(up to)
(up to)
D1
30fps x 24ch
720
720P(1M Pixel)
30fps x 8ch
240
720P(1M Pixel)
15fps x 16ch
240
1.3M Pixel
30fps x 7ch
210
1080P(2M Pixel)
30fps x 4ch
120
3M Pixel
20fps x 4ch
80
Over channel & resolution
1
24(I-Frame Only)
Specifications
Model
LRN8240D Series
Input
Audio
Output
Backup
HDMI
1
Output
2 (Local, Two way)
Input
16
Output
4
Playback Speed
Storage
1
Maximum 24
Notification
Display
VGA
IP Camera Audio Input
Buzzer
Support
e-mail
Support
Remote S/W
(Client S/W, VMS)
Support
Emergency S/W
Support
FF/ Reverse
4 Steps (1x - 16x)
Frame Advance
Forward / Backward
Alarm
Search
24ch @ 4 CIF (320 x 240 ~3 Mega-pixel)
Screen Division
Full, 4, 9, 16, 25
Search Mode
Date/Time, Event, Export, Protect, Bookmark
Display Speed
Up to 720 IPS @ 4 CIF
Division Mode
Full, 4, 9, 16, 1+5, 1+7, 1+16, 25
Internal HDD
Max Capacity
12 TB (Up to 6 HDDs)
External HDD
Interface Type
E-SATA
Backup Interface
USB 2.0 (x3), Network, Internal ODD, e-SATA,
6
Appendix
Video
IP
58
Appendix
Network
Network Connection
Ethernet 10/100/1000 Mbps (x2)
Bandwidth Control
Yes
Power
AC Free 100~240V, 50/60 Hz
Power Consumption
Maximum 80 W (with 6 HDD)
Dimension (W x D x H)
440 mm x 452 mm x 115 mm
Net Weight (without HDD)
9.45 kg
Net Weight (with 6 HDD)
13.15 kg
Operating Temperature / Humidity
0 ºC to 40 ºC / 0 % RH to 80 % RH
NOTE
Design and specifications are subject to change without notice.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
6
