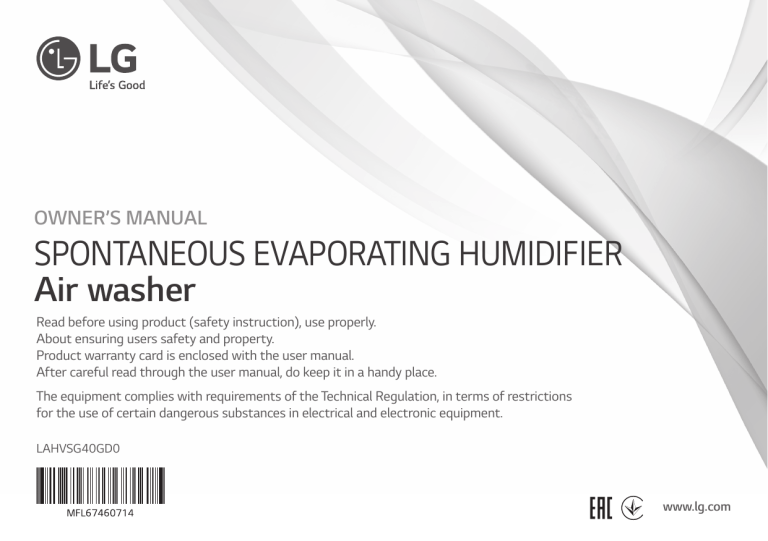

OWNER’S MANUAL
SPONTANEOUS EVAPORATING HUMIDIFIER
Air washer
Read before using product (safety instruction), use properly.
About ensuring users safety and property.
Product warranty card is enclosed with the user manual.
After careful read through the user manual, do keep it in a handy place.
The equipment complies with requirements of the Technical Regulation, in terms of restrictions
for the use of certain dangerous substances in electrical and electronic equipment.
LAHVSG40GD0
www.lg.com
The advantages of the products are as described below:
We appreciate you for purchase the LG Air Washer (the spontaneous evaporating humidifier).
Using the air washer after careful reading and understanding of the owner' manual will ensure safer and
more convenient of use of the products for a prolonged time of period.
Air washing
- Spontaneous evaporating humidifying mode and use of water remove large dusts and harmful gaseous substances
such ammonia and formaldehyde.
- Evaporated water particulates keep humidity in the space pleasant.
Ionizer
- Nano-level plasma ion removes airborne bacillus.
Auto drying function
- Operating the auto drying function dries the moisture disk and inside surfaces of the product clean to prevent foul
odor resulted from damp conditions for pleasant use of the product.
Handle structure
- A handle is attached to the product for mitigating burden on the waist when removing and installing the top section.
2
Air washer
Table of Contents
Before Use
❏ Operation ..................................................................... 21~23
- Selecting Humidifying Level
- Sleep Mode
- Alarm of Low Water Level
Owner’s Manual
After Use
❏ Additional Functions..................................................... 24~26
- Auto Drying Function
- Shutoff Reservation Function
- Ionizer Operating Function
- Locking/unlocking Function
- Humidity Display Function
❏ Cleaning Water Tank and Humidity Disk...................... 27~29
❏ Storage .............................................................................. 30
❏ Items to Check before Notifying Failure............................. 31
❏ Specifications of Product ................................................... 32
During Use
During Use
After Use
Before Use
❏ The advantages of the products are as described below .... 2
❏ Precaution for Safety ..................................................... 4~13
❏ How to Install .............................................................. 14~18
❏ Names of Components ................................................ 19~20
- Body
- Operation Panel and Control Panel
3
Precaution for Safety
The precautions for safety listed below are for ensuring safe and correct use of the product for the purpose of
preventing unexpected risks or damages resulted in advance.
Warning / Caution
The symbols are to remind users of conditions and operation that may cause dangerous
situations.
Warning
Carefully read and understand the symbols, and use the product compliant with the
instructions.
Failure in compliance with the instruction may cause death or serious injury of users.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
When the power cord is to be replaced, replacement work shall be performed by
authorized personnel only using only genuine replacement parts.
Caution
4
Failure in compliance with the instruction may cause injury of users, or damage to
properties.
Air washer
Precaution for Safety
Warning
Do not connect
multiple equipments
to a single multi-plugs
receptacle.
Fire or shock may be
caused.
Excessive consumption on
a single receptacle may
cause fire or shock.
Install the product in
place free from direct
light ray, heating
apparatus, and
moisture.
Shock, fire or product
damage may be caused.
Owner’s Manual
Do not apply impact
on the front panel.
Injury, product damage or
shock may be caused.
Never use damaged
or loose receptacle.
Fire or shock may be
caused.
When gas is leaked,
open windows to
ventilate space before
operating the
humidifier.
Otherwise, explosion, fire
or burn may be caused.
Do not turn the
product off by
removing the power
plug from the
receptacle.
Do not use the humidifier
in humid space or space
with large quantity of oily
substances such as
restroom, bathroom and
laundry room.
Fire or shock may be caused.
Do not use the power
plug in the vicinity of
heating apparatus.
Protect the product
from access or tough
by small child.
Fire or shock may be
caused.
Shock or injury may be
caused.
Before Use
Never change or
extend the power
cable without
approval.
Shock or damage to the
product may be caused.
5
Precaution for Safety
Warning
Securely insert the
power plug into the
receptacle to protect
the plug from
loosening.
Do not touch the
power plug with wet
hands.
No not remove the
power plug by pulling
the cable.
No not cover the
power plug with any
article such as cover.
Do not touch the
product or the filter
with wet hands.
Electric shock or injury
may be caused.
Fire or shock may be
caused.
When place heavy article on
the plug, the cord may be
damaged to cause shock.
Shock or product failure may
be caused.
Never allow child to
step on or carelessly
handle the products.
Do not install the
product in place with
rich industrial oil fume
or metallic particles.
If the product is
immersed in water, call
the local service
center.
Do not operate the
product with power
other than 220-240 VAC.
Fire or product failure may
be caused.
Shock or fire may be
caused.
Loose connection may
cause fire.
Disconnect the power
plug and wait till the
fan stops rotation and
is kept standstill before
cleaning or handling of
the product.
Otherwise, shock or injury
may be caused.
6
Injury or product failure
may be caused.
Fire or shock may be caused.
220-240 V
Air washer
Precaution for Safety
Warning
Fire or product failure may
be caused.
Do not supply water
into the outlet.
The product fails, and fire,
shock or injury may be
caused.
Owner’s Manual
Do not move the
product while the
product is under
operation.
Fire or shock may be
caused, or the product
may partially be damaged.
Keep the product
secure to protect the
product from falling
aside.
Fire or shock may be
caused.
Do not allow water into Do not put coffee cup,
the product.
flower vase or other
drinks on the top of
Fire or shock may be
caused.
the product.
Fire or shock may be
caused.
Do not move the
product during use or
immediately after use.
Water may overflow and
cause shock.
Never insert metallic
articles such as pin or
needle, or foreign
substances into the
outlet or the filter section.
Shock or damage from
abnormal operation of the
product may be caused.
When you detect abnormal
noise, smell or smoke from the
product, immediately
disconnect the power plug, and
call the local service center.
If you remove and attempt repair of
the product without adequate
instruction, shock or fire may be
caused.
Before Use
No not spray
insecticide solution or
combustible solution
on the product.
When you do not use the
product for a prolonged period
of time, disconnect the power
plug from the receptacle, and
fully drain water from the body
(the water tank).
Otherwise, electric shock or
fire may be caused. Mold or
bacteria may propagate.
7
Precaution for Safety
Warning
Connect the power code to
the product before
connecting the power plug
to the receptacle.
Otherwise, electric shock fire or
product failure may be caused.
8
Never sit or step on the
product.
Product failure or accident may
be caused.
Do not remove the power
cable from the product
during operation of the
product.
Shock fire or product failure may
be caused.
Never forget to disconnect
the power cable from the
receptacle when filling the
water tank.
Exposure of the power cable
terminal to water may cause
shock or accident.
Air washer
Precaution for Safety
Caution
Lifecycle of the product is
reduced.
Do not put obstacles
adjacent to the outlet
of the product.
Otherwise, the product
may fail.
Do not use the
product for removing
toxic gases such as
carbon dioxide.
The product may fail.
The moisture sensor may
not normally operate.
Do not use the product
in spaces for special
applications such as
preservation of animal/
plant, precision
system, or art works.
Do not use offensive
detergent such as
solvent for cleaning
the product. Use lintfree soft cloth for
cleaning.
Damage to properties may
be caused.
Owner’s Manual
Do not use the
product in the vicinity
of drapes.
Fire or product deformation
may be caused.
No not use the product in the
vicinity of home appliances
such as microwave oven or
television set emitting large
quantity of electrostatic fields.
Do not use the product
while using insecticides
of indoor fumigation type
(smoking type).
Malfunction of the sensor
may be caused.
Components of insecticide are
built upon inside the product,
and may be emitted from the
outlet to give adverse effects to
health.
Do not keep or use
combustible gas or
inflammable
substances in the
vanity of the product.
Disconnect the power
plug from the receptacle
when you do not operate
the product for a
prolonged period of time.
Fire or product failure may
be caused.
Before Use
Do not use the
product as ventilation
fan or cooking oven
hood in the kitchen.
Product failure or fire may be
caused.
9
Precaution for Safety
Caution
Securely fit every
filter, and clean the
filters upon regular
basis.
Otherwise, the product
may fail.
Never put inflammable
substances into the
product.
Fire or product failure may be
caused.
10
Never allow damage to the
power plug, modify, forcibly
bend, twist, pull or insert
the plug in tight space, or
heat the plug.
If the power plug is
damaged, call the local
service center for repair
of the plug by authorized
service engineer.
The power plug may be damaged, Otherwise, shock, fire or
and fire or shock may be caused. product failure may be caused.
Assemble the components
on the correct positions
after cleaning the product.
Do not operate the product with
the water tank kept removed.
The product may fail.
Do not use the
product as a
ventilation fan.
Clean the product upon
regular basis.
The lifecycle of the
product may be reduced.
Drain water from the water
tank while the product is
not used for preventing
water from freezing.
Using the product with the water
tank filled with frozen water may
cause failure of the product.
Clean the filters pursuant to the
description in Section ‘Filter Cleaning.’.
(See Pages 27 to 29.)
If the filters are seriously contaminated,
mold propagation, foul odor, or
reduction of humidifying capacity may
be caused.
Use the both hands when
moving or filling the tank.
Otherwise, water leakage or
injury may be caused.
Air washer
Precaution for Safety
Caution
Spots, molds or
deformation of them may
be caused.
Move the product
body with two hands
while keeping the
product horizontal.
Otherwise, the water tank
may fall down and be
damaged.
Owner’s Manual
Do not use detergent
solution of chlorine or
acid when cleaning
the water tank and the
product body.
Empty and fill the
water tank upon daily
basis.
When draining water from
the water tank, disconnect
the power plug, and
remove the water tank
from the body first.
Do not keep the water
tank filled with water
for a prolonged period
of time when you do
not use the product.
The product may be
damaged or discolored.
Otherwise, water may flows into
the body to cause failure of the
product.
This ensures prevention of
foul odor from or scale in
the water tank.
Mold or bacteria may
propagate.
Do not use the
product on slope.
Water may overflow, or
malfunction of the product
may be caused.
When draining water
from the water tank, do
not lift the body, but
remove and empty the
water tank.
Otherwise, water may flows
into the body to cause
failure of the product.
Do not put the product
on unstable place such
as table or fabric matting
vulnerable to heat.
The product may fall sideway or
water may overflows to cause
discoloration or deformation of
table4 or matting.
Before Use
Do not use the
product adjacent to
wall, furniture or
ceiling.
When moving the
product, drain water
from the body (the
water tank).
When moving the product
with water remained in the
body, water may overflow.
11
Precaution for Safety
Caution
Use clean tap water of
temperature of 40℃ or
lower.
Do not use the moisture
disk or any other purpose.
When using water of temperature
exceeding 40℃ may cause
deformation of the product.
Do not move the
product only with the
handle on the top.
The product may fall, and
cause injury.
Capabilities of the moisture disk
may be reduced.
Never drink water
remained in the
product body (the
water tank), or feed
the water to animal or
plant.
The water may be harmful
to health.
12
Do no fill the water tank with
hot water exceeding 40℃,
soap water, cosmetics,
chemicals, aromatics or
sterilizing cleaning solution.
Do not apply strong impact
to the water tank.
The tank may be damaged and
cause water leak.
The substances may harmful to
health, and cause failure of the
product.
Do not put magnetic
or metal object on the
body.
Malfunction of the product
may be caused.
Do not use the product
adjacent to place
affected by winds from
air-cooler or heater, or
by the window.
The humidity sensor may
not correctly operate.
Do not use the product
with the water tank or
the moisture disk kept
removed.
The product may fail in
performing its capabilities
or may be failed.
Air washer
Precaution for Safety
Caution
Install the product at a
place 1 meter at least
from TV set or audio
system.
Drop of and impact to the product
may cause failure of the product.
TV set or audio system may
malfunction.
Use the product installed
on flat floor.
Fall or drop of the product may
cause failure of the product when
using the product at height.
Install the product 1.5 meter
from lighting fixture, and
1 meter from wall.
The product may be discolored,
or capability of the product may
be reduced.
more than
1.5 m
about
1m
Use lint-free soft cloth for
cleaning the water tank.
Damaged metal part of the level
sensing plate may cause mall
function of the product.
Owner’s Manual
Use clean tap water of
40℃ or lower for cleaning
the moisture disk.
Using hot water for cleaning
may cause deformation of the
disk.
Do not use the product in
the vicinity of your head.
Cool humidification during sleep
may cause cold to you.
Before Use
Do not install the product
on transportation vehicles
(e.g., automobile, vessel
and airplane).
Do not move the entire
product when the water
tank is kept filled with
water.
Move the body and the water
tank separately.
13
How to Install
Selecting Place of Installation
Body
• Place for easy connection of power source (place adjacent to receptacle)
• Place of flat floor and well air ventilation
Warning
more
tha
1m n
more than
1m
than
morem
1
Do not install the air purifying humidifier on transportation
vehicles (e.g., automobile, vessel and airplane), since the
product may suffer from troubles on the vehicles.
Power cable connecting
1. Connect the power cable to the product.
2. Connect the power cable to the receptacle.
Warning
14
Connecting the power cable inserted in the receptacle
to the product may cause fire, shock or product
failure.
Never forget that the power cable shall first be
connected to the product, and then connected to
receptacle.
Air washer
How to Install
Remove the packed product from the package box, and then remove the packing materials.
Caution
Ꮿ Remove the product from
the package box.
Owner’s Manual
Ᏸ Remove the top packing.
Before Use
• Mount the moisture disk in correct direction. (See Page 16.)
• Once the packing materials are removed, attempt trial run of the product.
• Connect the power cable to the product before connecting the power plug to the receptacle.
Ᏹ Remove the packing
materials from the product.
15
How to Install
How to remove packing materials from the product, and to install the moisture disk.
Ꮿ Remove the
corrugated cardboard
from the filter on the
top of the body.
Ᏸ Separate the moisture
disk.
Ᏹ Remove corrugated
cardboard from the
water tank.
Ᏺ Remove the packing
from the housing.
Ᏻ Install the housing and
the water thank in such a
way that they are aligned
with the grooves on the
bottom of the product.
Caution
Incorrect installation of the moisture disk may
cause malfunction or failure of the product.
Ᏼ Rotate the moisture
disk in correct
direction.
16
Ᏽ Insert the moisture
᏶ Securely seat the
disk in such a way that
moisture disk as
the front markings of
shown on the figure
the handle of the disk
above.
and the water tank are
shown as illustrated on
the figure.
Air washer
How to Install
How to Supply Water
Use the handle on the top when separating the top section.
Before Use
1 Separate the top section of the body from the product.
2 Separate the water tank from the housing.
3 Keep the moisture disk in the housing.
Move the moisture disk together with the water tank when cleaning
the disk.
Care shall be exercised for preventing water flowing to the bottom.
Owner’s Manual
17
How to Install
4 Use lint-free soft cloth for cleaning the water tank before filling the tank
with water.
Do not cleaning device of coarse material such as scrubbing brush or scrubbing towel.
Caution
Thoroughly clean the water tank to remove foreign substances from the
metal part of the tank, and exercise care for preventing scratch on the tank.
(Scratching or foreign substances may malfunction of the level sensor.)
5 After cleaning the water tank, fill the tank with tap water.
Caution
• Tap water is more sanitary. Tap water is treated with chlorine for
suppressing propagation of bacteria; while water other than tap water
(e.g., well water, water from water purified, mineral water and potable
water) is vulnerable to propagation of mold or bacteria.
• Do not put hot water exceeding 40℃, aroma oil, chemicals, contaminants
or aromatics into the water tank.
• Fill the water tank up to the level (the water line) marked on the tank.
Be cautious; water may overflow when moving the product.
6 Mount the moisture disk after filling the water tank with water, and
assemble the product in the reverse sequences of disassembling.
Caution
18
• Never forget to disconnect the power cable from the receptacle when filling the
water tank.
• Water may remain in the water tank even if the product indicates no water in the
tank. Never forget to drain remaining water when supplying new water.
• This product is an air washer (spontaneous evaporating humidifier) humidifying space,
and purifies indoor air and collects contaminants on the bottom of the water tank.
Clean the water tank with mild detergent solution when fill the tank with new water.
Air washer
Names of Components
Body
Moisture disk
Before Use
Large dust filter
Operation buttons
and display
Handle
Humidity
sensor
Water tank
Power cable plug
Power cable
Housing
Cleaning Cycle
Replacement cycle
Ꮿ Large dust filter
Filter
The filter removes large particulate dusts.
Cleaning once a week
Permanent lifecycle
Ᏸ Moisture disk
The disk immerged in the water rotates to
evaporate water.
Cleaning once a week
Overhauling once a month
Permanent lifecycle
Owner’s Manual
Function
19
Names of Components
Operating panel and control panel
Locking indicator
Ionizer indicator
Ion is emitted for removing bacteria
in indoor air.
Pressing Ionizer button and Shutoff Reservation
button simultaneously for 3 seconds or longer
sets or release the locking function.
Sleep mode indicator
Shutoff Reservation indicator
Pressing Sleep Mode button lights the
button, and other indicators extinguish
3 seconds later.
Pressing Shutoff Reservation button allows
you to select operating hours of the product.
Auto Drying indicator
Low water level indicator
Pressing Power button and Humidifying Volume
button simultaneously for 3 seconds or longer during
humidifying sets or release the auto drying function.
Once the function is set, auto drying is performed for
5 minutes whenever the product is turned off.
(Activated when operating humidifying operation for
2 minutes or longer.)
The indicator lights when there is no
water remained in the water tank, and
extinguishes after filling the tank.
The indicator also lights when
removing the top cover of the tank.
Current humidity indicator
Indicates the current humidity.
Humidifying Volume indicator
Start/Stop button
Pressing Humidifying Volume button
changes humidifying volume (airflow).
The button is used for turning on or
off power.
Shutoff Reservation button
Sleep Humidifying button
This function is used for setting
shutdown time.
The button is used for selecting
the sleep mode.
Ionizer button
Humidifying Volume button
This function is used for adjusting
humidifying volume.
20
The button is used for turning on or off
the ionizer.
Air washer
Operation
Selecting Humidifying Level
1 Press Start/Stop button.
2 Press Humidifying Volume button to
adjust humidifying volume.
• Pressing Humidifying Volume button sets the
volume in sequences of: Auto ␠ Weak ␠ Medium
␠ Strong ␠ Auto ␠ Weak
1
2
※ Automatic operation
Owner’s Manual
During Use
• Step of humidifying volume varies dependent upon temperature and humidity.
• Level of pleasantness may vary dependent upon ambient temperature and among users.
The value is set based on statistical data from the Korea Meteorological Administration.
21
Operation
Sleep Mode
1 Press Start/Stop button.
2 Press Sleep Mode button.
• Operation of the product is switched to low noise
operation mode adequate for sleeping.
• When the product operates in the sleep mode,
Sleep Mode indicator is only kept lit.
• Brightness of the lighting of the product is faded for sound
sleeping.
1
2
3 Selecting humidifying volume steps in the sleep mode
• Pressing Humidifying Volume button in the sleep mode operation sets the volume in
sequences of: Auto ␠ Weak ␠ Medium ␠ Strong.
4 How to release the mode: Press Sleep Mode button again.
※ Pressing Sleep Mode button again during operation in the sleep mode, the sleep mode is
released, and operation is switched to operation of humidifying volume.
※ It is allowed to additionally set the lighting and the ionizer functions during operation in
sleep mode.
※ When humidifying volume steps are not selected in the sleep mode, operation of the
product is switched to automatic operation mode of low noise.
22
Air washer
Operation
Alarm of Low Water Level
1 When water runs short in the water tank,
Low Water Level indicator lights, alarm
sounds, and operation is stopped.
2 When Low Water Level indicator lights,
1
press Start/Stop button to turn the
power off.
water.
※ Separating the top body also lights Low Water Level indicator.
※ Low Water alarm sounds once after detecting low level, and once one minute after the
water tank becomes empty.
※ Low Level alarm does not sound during the sleep mode.
Caution
Owner’s Manual
During Use
3 When the fan stops rotation, separated the top body for makeup of
• Never forget to disconnect the power cable from the receptacle when filling
the water tank.
• Water may remain in the water tank even if the product indicates no water
in the tank. Never forget to drain remaining water when supplying new
water.
23
Additional Functions
Auto Drying Function
1 Press Humidifying Volume button and
Start/Stop button simultaneously for
3 seconds or longer during humidifying
operation.
2 When Auto Drying function is activated,
the fan rotates for five minutes after
termination of the humidifying operation
for drying the moisture disk.
• If Auto Drying function is set, Auto Drying indicator lights.
(Operating the auto drying function dries the moisture disk and inside surfaces of the product
clean to prevent foul odor resulted from damp conditions for pleasant use of the product.)
3 How to release the mode: Press Start/Stop button and Humidifying
Volume button simultaneously for 3 seconds after setting Auto Drying
function.
• Auto Drying function is deactivated when delivering the product from the factory.
• When Auto Drying function is set, Auto Drying indicator is kept lit.
24
Air washer
Additional Functions
Shutoff Reservation Function
1 Press Start/Stop button.
2 Press Shutdown Reservation button.
• Each pressing of the button increases one hour.
• You can select the time up to 9 hours.
• Shutdown Reservation function is available for
Sleep mode and Ionizer mode also.
1
2
1 Press Start/Stop button.
2 Press Ionizer button.
• Pressing the button switches in sequences of
Ionizer ␠ Function Released ␠ Ionizer.
1. Ion clusters are
2. Sterilizing ions
created by polar
encircle harmful
binding of water
substances.
molecules in the air.
2
1
3. Hydroxide (OH) base 4. Reaction between
is generated that
hydroxide base
are vulnerable to
(OH) and harmful
chemical reactions.
substances
During Use
Ionizer Operating Function
5. Clean air free from
harmful substances
• Pressing Ionizer button during power is turned off, the humidifying function does not operate,
the fan rotates at low speed, and the ionizer function only operates.
• During the ionizer function operation, the locking/unlocking, and the shutoff reservation are
also available.
Owner’s Manual
25
Additional Functions
Locking/Unlocking Function (Child Lock)
1 Press Start/Stop button.
2 Press Shutoff Reservation button and
Lighting button simultaneously for
3 seconds or longer.
1
2
2
• The product gets ready for cleaning, or is protected
from accidental operation by child.
• When releasing the function, press Ionizer button
and Shutoff Reservation button simultaneously again for 3 seconds or longer.
• When the operating buttons of the product are not operable, check the operating panel if the
locking function is activated. If so, release the locking function.
• Disconnecting the power plug from the receptacle releases the locking function.
※ Pressing Ionizer button and Shutoff Reservation button simultaneously for 3 seconds
or longer during the product operation is kept stopped also allows operation of Locking/
Unlocking function.
Humidity Display Function
Current humidity is displayed in one of the three steps during
humidifying volume operation.
• Relative humidity to temperature is displayed.
• Auto operation and sleep mode operation are automatically adjusted for keeping humidity
optimal.
26
Air washer
Cleaning Water Tank and Humidity Disk
Turn the power off, and disconnect the power cable from the receptacle before cleaning the product.
Water tank and moisture disk
1 Separate the top section of the body from the product.
Make use of the handle on the top of the product to separate the water tank and the
housing from the body as shown on the figure.
During Use
2 Separate the water tank from the housing.
3 Separate the moisture disk from the water tank.
Use the handle mounted on the moisture disk.
Caution
Owner’s Manual
• Inadequate disassembling/assembling of the moisture disk may
generate abnormal noise.
• Small quantity of water is remained in the water tank even if Low
Water Level indicator lights. Never forget to drain remaining water
when cleaning the product.
• If the moisture disk and the water tank are not cleaned, contaminants
built on the surface of the moisture surface and the bottom of the
water tank are melted to cause foul odor.
27
Cleaning Water Tank and Humidity Disk
Turn the power off, and disconnect the power cable from the receptacle before cleaning the product.
4 Fully separate the moisture disk from the water tank.
Separate the handle of the moisture disk, and rotate the moisture disk cap counterclockwise to separate the cap.
5 Clean the water tank and the moisture disk.
- If the moisture disk is seriously contaminated, clean the disk with lint-free
soft cloth dampened with mild detergent or citric acid solution.
- Overhauling of the moisture disk shall be performed once a month.
※ Simple cleaning of the moisture disk assembly
ᵎ Hold the hand with a hand, and rinse the assembly with
flowing water (from shower or water tap).
Rotate the moisture disk with the other hand evenly for
thorough cleaning of the surface.
28
Air washer
Cleaning Water Tank and Humidity Disk
6 Assemble the moisture disk.
Assemble the moisture disk into the water tank in such way that the handle is
placed on the front side the product.
Caution
Incorrect installation of the
moisture disk may cause
malfunction or failure of the
product.
7 Seat the water tank on the bottom of the housing in correct direction, and cover the tank with the
top body.
Owner’s Manual
• Inadequate disassembling/assembling of the moisture disk may generate abnormal noise.
• Do not use the product with the moisture disk removed.
• Clean the water tank daily when filling the tank with water.
Contaminants built on the bottom of the water tank not removed for a prolong period of time
may cause foul odor, or discoloration of the water tank. Fastened contaminant may become
scale and may not easily be removed during cleaning.
After Use
Caution
29
Storage
1 Start operation of the spontaneous evaporating humidifier, and then
press Start/Stop button to stop operation.
1
2 Remove the power plug from the receptacle.
Power plug
3 Thoroughly remove moisture from the water tank and the moisture
disk.
Wipe the water tank with dry cloth, and leave it in a shade until the tank is fully
dried.
4 Clean the body of the spontaneous evaporating humidifier body, and
keep it well.
Carefully wrap the filter and the body with plastic sheets to prevent
introduction of foreign substances into the product during storage
for a prolonged period of time.
- Wipe the filter and the body with smooth close.
- Otherwise, the surface of the components may be scratched.
- Put the power cable in the water tank when storing the product. Otherwise, the cable may be lost.
30
Air washer
Items to Check before Notifying Failure
If you suspect defects on the product, check the following items before calling the service center for repair.
Symptom
Checking
Water in the water tank is • Is the moisture disk correctly installed?
evaporated at slow rate or
not evaporated.
Humidity does not rise.
• Clean the water tank, and remove scale or
foreign materials from the metal section.
• Mount the top body at correct position.
• Clean the water tank and the moisture disk, and
then fill the tank with water again.
• Is the moisture disk contaminated?
• Clean the moisture disk.
• Set Auto Drying function.
• Is the odor smelled at initial operation of the product? • Then, the odor is not harmful to health. (The odor
is same as in case when you purchase a new car.)
• Do you use the product on a flat surface?
• Using the product on a slope may cause abnormal noise.
• Is the any object interrupting operation of the
• Change place of the product, or remove object
product in the vicinity of or on the product?
interrupting flow of air.
• Is the moisture disk correctly mounted?
• Inadequate disassembling/assembling of the
moisture disk may generate abnormal noise.
• Is there foreign metal object or foreign substance • Foreign materials in the outlet may cause
in the outlet?
abnormal noise.
After Use
Owner’s Manual
• Assemble the moisture disk in such a way
that the gears of the disk are aligned with the
assembling section of the body.
• Clean the moisture disk.
• Is the moisture disk seriously contaminated by
foreign substances?
• Is the water tank filled with water?
• Fill the water tank with water.
• Does it rain or is the indoor temperature kept low? • Humidity volume is kept low, and water in the
water tank is reduced at slow rate.
• Indication of humidity may vary dependent upon
position of the product even in a same space.
Indication of the current
humidity on the product is
different from indication on
other hygrometer.
The water tank is filled with • Is the metal section of the water tank clogged
with foreign substances?
water; but Low Water Level
• Is the top body correctly seated?
indicator lights.
• Is water in the water tank contaminated?
Abnormal odor is
generated from the outlet.
Significant noise is
generated.
Action
31
Specifications of Product
The apparent shape, the design and the specifications of the products are subject to change without notice
to customers in advance for improving the quality of the product.
Model
Humidifier LAHVSG40GD0
Power
220-240 V~ 50 Hz
Humidifying volume
Product weight
External Measurements(mm)
Power consumption
32
400 mL / h
9.8 kg
350 (Width) × 395 (Height) × 350 (Depth)
12 W
Air washer
Страна производства – Республика Корея
Изготовитель – ЛГ Электроникс Инк
Адрес завода изготовителя – Республика Корея, Генгнам 641-713, Чангвон, Сеонгсан-донг 76
Импортер – ООО ЛГ Электронкс РУС
Адрес: 143160 Российская Федерация, Московская область, Рузский район, Сельское
поселение Дороховское, 86 км Минское шоссе, д9
Printed in Korea
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
