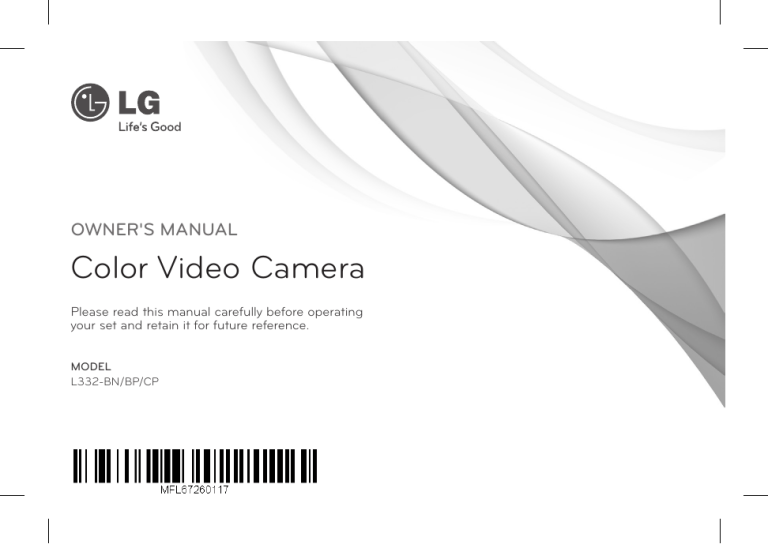

OWNER'S MANUAL
Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
L332-BN/BP/CP
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
2
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference
to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
•
A suitable conduit entries, knock-outs or glands shall
be provided in the cable entries of this product in the
end user.
•
•
Caution: Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall be
provided with brushings.
Warning: Do not install this equipment in a confined space
such as a bookcase or similar unit.
Caution: This installation should be made by a qualified
service person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To disconnect power from mains, pull out the mains
cord plug. When installing the product, ensure that the
plug is easily accessible.
Warning: Wiring methods shall be in accordance with the
National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
3
Disposal of your old appliance
1.
When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2.
All electrical and electronic products
should be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3.
The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and
human health.
4.
For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you purchased the product.
EEE Compliance with Directive. (for Turkey only)
4
LG Electronics hereby declares that this/
these product(s) is/are in compliance with
the essential requirements and other relevant provisions of Directive 2004/108/EC,
2006/95/EC, and 2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere,
The Netherlands (Tel : +31-(0)36-547-8888)
Important Safety Instructions
1.
Read these instructions.
and the point where they exit from the apparatus.
2.
Keep these instructions.
3.
Heed all warnings.
11. Only use attachments/accessories specified by the
manufacturer.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
5
Cautions for Safe Operation
Power Supply
L332-BN / L332-BP:
use a cloth dampened with a small quantity of neutral
detergent then wipe dry.
•
This camera must always be operated by AC 24 V or DC 12
V Certified/Listed, class 2 power supply only.
L332-CP:
Avoid the use of volatile solvents such as thinners,
alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the
operation of the camera.
This camera must always be operated by AC 230 V.
Note:
Be careful of AC frequency when the camera is operated
with Line lock mode.
Operating and storage location
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing the
unit in the following locations.
Handling of the unit
•
Be careful not to spill water or other liquids on the unit. Be
cautious not to get combustible or metallic material inside
the body. If used with foreign matter inside, the camera is
liable to fail or to get cause of fire or electric shock.
Extremely hot or cold places (operating temperature
-10 °C to 50 °C, however, we recommend that the unit
be used within a temperature range of 0 °C to 45 °C)
•
Damp or dust place
•
Places exposed to rain
•
Places subject to strong vibration
•
Close to generators of powerful electromagnetic
radiation such as radio or TV transmitters.
•
Remove dust or dirt on the surface of the lens with a
blower.
•
Use a dry soft cloth to clean the body. If it is very dirty,
6
Contents
Features.................................................................. 8
OSD Menu Overview....................................................22
General Operation.........................................................25
Part Names and Functions.................................... 9
Connections......................................................... 12
Camera Identification Settings.................................25
Exposure Settings..........................................................26
White Balance settings................................................29
Precautions......................................................................12
Day/Night Setting..........................................................30
Connection Overview..................................................12
Motion Detection Setting...........................................31
Connecting Display device........................................13
3D-DNR Setting..............................................................32
Connecting Power Source..........................................13
Privacy Setting................................................................33
Connecting RS-485 Device.........................................14
Special Menu Settings.................................................35
Connecting Alarm Device...........................................15
Connecting Day&Night Switch.................................16
Reference............................................................. 41
Mounting the Lens........................................................17
RS-485 Protocol (Optional).........................................41
Flange-back Adjustment .........................................19
Specification....................................................................42
Mounting the camera..................................................20
Menu Operation.................................................. 21
OSD Menu control buttons........................................21
7
Features
This Color Video Camera is designed for installation in an
video surveillance system.
This manual contains instructions on how to install and
manage the Color Video Camera in your video surveillance
system. Should you require any technical assistance, please
contact authorized service center.
•
High resolution and high sensitivity with a 6 mm CCD.
•
650 TV lines of horizontal resolution.
•
Line Lock when using AC 24 V.
•
Line Lock when using AC 230 V.
(L332-CP).
•
Automatically switch between DC 12 V and AC 24 V.
•
User selectable color mode.
•
Smart motion detector.
8
Part Names and Functions
a
bc d e
c Flange-back adjustment lever
d Lens iris output connector (LENS)
This 4- pin connector is used to send the Iris control
signal and power supply to an auto-iris type lens.
e Setup menu control buttons
Use these buttons to set the menu options.
a Lens mount cap
The lens mount of the camera is covered using a cap
to protect it. Remove the lens cap covering the lens.
b Camera installation bracket
The bracket can be fixed at the top or bottom of the
camera.
9
Part Names and Functions
f Power input terminal
g
h
i
g External Device Connectors
TRX -
TRX +
•
D&N
Connect the external switch to set the D&N
function manually.
•
TRX -
f
Supplies AC 24 V or DC 12 V from an external power
source.
TRX +
L332-BN/ L332-BP
ALARM (Alarm Output Terminal)
Connect to the alarm input of an external device.
•
COM (COMMUNICATION)
Connect to an external controller of RS-485(optional)
format.
h Power indicator
Lights when the camera is powered.
i Video output connector (BNC type)
Supplies analog video signal (composite) to the
connected device such as a DVR or monitor.
10
Part Names and Functions
f Power cable
L332-CP
g
h
i
•
•
TRX -
D&N
Connect the external switch to set the D&N
function manually.
TRX +
f
g External Device Connectors
ALARM (Alarm Output Terminal)
Connect to the alarm input of an external device.
•
COM (COMMUNICATION)
Connect to an external controller of RS-485
format.
h Power indicator
Lights when the camera is powered.
i Video output connector (BNC type)
Supplies analog video signal (composite) to the
connected device such as a DVR or monitor.
11
Connections
Precautions
•
Be sure to switch off the unit before installation and connection.
•
A qualified service person, complying with all applicable codes, should perform all required hardware installation.
•
Do not expose the power and connection cable to moisture, which may cause damage to the unit.
Connection Overview
12
TRX -
External D&N
Switch
TRX +
RS-485 Unit
Connections
Connecting Display device
TRX -
TRX +
The video signal connection between the camera and the
monitor.
Connecting Power Source
L332-BN/ L332-BP
Connect power, using the method listed below:
1. Remove the insulation on the power cable as
illustrated. (a)
2. Attach the terminal tips. (b)
TRX TRX -
13
TRX +
TRX -
TRX +
TRX +
3. Connect to the DC 12 V / AC 24 V UL Listed, Class
2 Power Supply only on the unit.
Connections
Connecting RS-485 Device
TRX -
TRX -
Use these ports to connect an external device of RS-485
format.
TRX +
Insert the plug of the power cord into a wall outlet. The
POWER indicator will light.
Tx(+)
RS-485 Unit
Rx(-)
14
TRX +
L332-CP
Contact Ratings
Alarm terminals are used to connect the alarm (relay)
devices such as sensors, door switches, etc.
•
Maximum load current is
±130 mA.
Connect the alarm (relay) device to the alarm (relay) output
terminal. Alarm signal outputs at an event occurrence.
•
Do not connect any
system or device that has
over 40 Vp-p bias voltage
on the contact terminal.
TRX -
Connecting Alarm Device
TRX +
TRX -
TRX +
Connections
ALARM
COM
Equivalent
Diagram
Note:
Use a relay unit if the voltage or current of the
connected device exceeds the ratings.
Alarm (Relay)
Device
15
Connections
Connecting Day&Night Switch
TRX -
TRX +
Connect the external D&N switch to the D&N terminal.
Night function
When you close the external switch, the D&N function
is set to night mode.
Day function
When you open the external switch, the D&N function
is set to Day mod.
Note:
If you use the external D&N function, you should set
the DAY/NIGHT option to EXT on the setup menu.
16
Connections
Mounting the Lens
era opening and turn the lens slowly to install it.
2-2
1. Remove the lens mount cap from the camera.
2-1
3.
2. Install the auto-iris lens.
2-1. CS mount type lens
Carefully align the lens mount with the camera
opening, then turn the lens slowly to install it.
2-2. C mount type lens
To allow for flange- back adjustment, install the
C-mount adaptor (option) on the lens mount,
then carefully align the lens mount with the cam-
Connect the lens plug to the lens iris output
connector (LENS) on the side of the camera.
When using lenses from other makers, the plug shape
may not correspond to the terminal on the camera.
In such a case, remove the original plug and using a
soldering iron, connect a lens iris plug according to
the diagram. (Refer to next page.)
17
Connections
lens iris output connector
Rewire the lens iris plug
Pin layout for the lens iris output connector.
1. Cut off the plug of the lens cable, cut off
approximately 8 mm of the insulation, and then
strip approximately 2 mm of the ends of the cable
sheaths.
8mm
No.
18
2mm
DC type lenses
1
Damping -
2
Damping +
3
Drive +
4
Drive -
2. Solder the ends of the cable wires to the ends of
the pins, and then attach the cover of the lens iris
plug.
Connections
Flange-back Adjustment
The adjustment is required only when a lens without
focus-adjusting mechanism is mounted, or when a lens
with adjusting mechanism is mounted and focus that is
more accurate is needed.
Note:
The object may be out of focus when using a source of
near-infrared light than using the visible light.
1. Loosen the flange-back fixing lever.
2. Up and down the flange-back adjusting lever to
obtain a focused point while watching the monitor
screen.
3. Tighten the flange-back fixing lever.
19
Connections
Mounting the camera
The mounting bracket can be secured on either the top or
bottom of the camera. Use the same set of screws to attach
the mounting bracket on the camera.
Note:
If using a camera mounting bracket, select a location that
is strong enough to bear the full weight of the camera
and the mounting bracket for long periods, and install the
camera and mounting bracket securely.
20
Menu Operation
OSD Menu control buttons
BUTTON
Description
UP button
Used to move upper direction on the
menu screen. Use this button to select
an item or adjust the parameters.
DOWN button
Used to move lower direction on the
menu screen. Use this button to select
an item or adjust the parameters.
This camera utilizes an on-screen user MENU. To set items
on the menu, use the following buttons.
RIGHT button
LEFT button
Moves the cursor to the right. Used to
increment the value selected in the
menu. The parameter changes each
time this button is pressed.
Moves the cursor to the left. Used to
decrement the value selected in the
menu. The parameter changes each
time this button is pressed.
Executes selections and displays a
submenu for an item with the mark.
SET button
21
Menu Operation
OSD Menu Overview
Main Menu
The following table shows the list of menu items and
options. You can adapt the camera to your requirements by
setting up the respective items in these menus.
Sub Menu
Contents
CAMERA ID
-
OFF, 1 to 255
EXPOSURE
ALC2/ALC/ ELC
AUTO
Contents
NATURAL/COOL/
WARM/VIVID
NATURAL/COOL/
USER MODE
WARM/VIVID
USER MODE
AWC / PUSH
MANUAL
OFF/WDR/BLC/HSBLC
COLOR TEMP
INDOOR,
OUTDOOR
RED
-100 to 100
BLUE
-100 to 100
RET/TOP/END
LOW/ MIDDLE/
HIGH
BRIGHTNESS
0 to 100
EXIT
AGC
OFF/LOW/MIDDLE/
HIGH
LEVEL
SHUTTER
x512,…,x2,AUTO,OFF,A.
FLK,1/160,…,1/120 000
(for ALC/ELC mode)
1/160,…,1/120 000
(for ALC2 mode)
OFF
22
ATW
WHITE BAL
Main Menu
WDR/BLC
Sub Menu
SENS-UP
AUTO
(X2 , ... , X128)
EXIT
RET/TOP/END
AUTO
DAY/NIGHT
EXT
DAY
NIGHT
DWELL TIME
5, 10, 15 SEC.
EXIT
RET/TOP/END
Menu Operation
Main
Menu
Sub
Menu
Contents
SMART MD
REGIONAL
MD
MOTION
DET
Main
Menu
ON/OFF
ON
ON
Sub
Menu
Contents
OFF
ZONE
AREA1 to
NUMBER
AREA4
ZONE STATE
ON/OFF
HEIGHT
2 to 6
WIDTH
2 to 8
MOVE Y
1 to 5
MOVE X
1 to 7
EXIT
RET/TOP/END
COLOR
RED, GREEN,
BLUE
0 to 255
TRANSPARENCY
0 to 16
-
RECTANGLE
OFF
TAMPERING
ON/OFF
MD
PRIVACY
SENSITIVITY 0 to 100
EXIT
RET/
TOP/
END
ON
CIRCLE
OFF
3D-DNR
OFF
-
LOW
-
MIDDLE
-
HIGH
-
POLYGON
MASK NUMBER AREA1 to AREA8
RECT. DISPLAY
ON/OFF
HEIGHT
4 to 100
WIDTH
4 to 100
MOVE Y
2 to 98
MOVE X
2 to 98
MASK NUMBER AREA1 to AREA2
CIR. DISPLAY
ON/OFF
HEIGHT
1 to 15
WIDTH
1 to 15
MOVE Y
0 to 100
MOVE X
0 to 100
RADIUS SIZE
0 to 100
MASK NUMBER AREA1 to AREA2
POLY. DISPLAY
ON/OFF
POLYGON DRAW
POLYGON MOVE
-
23
Menu Operation
Main Menu
Sub Menu
Contents
Main Menu
OFF
D-ZOOM
D-EFFECT
SPECIAL
24
ZOOM
PAN
TILT
EXIT
ON
OFF/ MIRROR/ ROTATE/ V-FLIP
SHARPNESS
0 to 68
COLOR
OFF/ ON
STABILIZER
OFF/ ON
SYNC
INT / LL
USER TITLE
OFF/ ON
LANGUAGE
ENG
EXIT
RET/TOP/END
RESET
EXIT
Sub Menu
Contents
CAMERA REBOOT
-
FACTORY RESET
-
EXIT
RET/TOP/END
-
Menu Operation
General Operation
1.
•
•
Press [SET] button.
The setup menu screen appears on the monitor.
•
RET: Return to the previous.
TOP: Return to the CAMERA SETTING menu
screen.
END: Exit the setup menu.
Camera Identification Settings
You can use the camera identification (CAMERA ID) to
assign a number to the camera.
2.
Use [UP] or [DOWN] button to select an option then
press [SET] button.
Submenu appears on the monitor.
3.
Use [UP] or [DOWN] button to select a submenu
option.
4.
Use [LEFT] or [RIGHT] button to select a value.
5.
Select [EXIT] option then press [SET] to exit the setup
menu. In the submenu, use [UP] or [DOWN] button to
select the [EXIT] then use [LEFT] or [RIGHT] button to
select a mode and press [SET] to exit the setup menu.
1.
Select [CAMERA ID] option on the [CAMERA SETTING]
menu.
2.
Use [LEFT] or [RIGHT] to select a CAMERA ID (OFF,
1 to 255).
25
Menu Operation
Exposure Settings
You can set the exposure options using the EXPOSURE
menu.
1.
Select [EXPOSURE] option on the [CAMERA SETTING]
menu.
2.
Use [LEFT] or [RIGHT] button to select a mode
(ALC2y ALCy ELC).
3.
Press [SET] button and the EXPOSURE menu appears.
WDR/BLC setting
Use WDR/BLC option to view the object clearly in backlight
conditions.
1.
Select [WDR/BLC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
•
26
WDR: WDR (Wide dynamic range) feature can
be very helpful to cope with very challenging
lighting conditions. It is capable of capturing
both of the dark part and bright part and
combining the differences into a scene to
generate a highly realistic image as original
scene. Set the WDR limit.
Menu Operation
WDR LIMIT: LOW y MIDDLE y HIGH
ACE (Adaptive Contrast Enhancement) : This
function is used when you want to display
dark areas of WDR brightly.
BLC: Camera's backlight compensation feature
helps alleviate issues of visibility in high contrast
areas. Set the BLC limit.
•
•
>> BLC LIMIT: LOW y MIDDLE y HIGH
HSBLC: Use for masking brightness of the specific
area to view the subject more clearly. The HSBLC
mode is automatically activated only in low
luminance scene.
>>
>>
>>
AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN]
button to select ON or OFF. Press [SET] to
exit the Area setting menu.
GRAY SCALE: Use [LEFT] or [RIGHT] button
to select a gray scale.
(GRAYyD.GRAYyBLACK).
USER SCALE: Use [LEFT] or [RIGHT] button
to select a bright level.(5 level)
MASK: Use [LEFT] or [RIGHT] button to
select [ON] or [OFF].
If you set the MASK to ON, the mask function
is activate only when the HSBLC is automatically activated in low luminance scene.
OFF: Not used.
>>
>>
>>
•
Brightness setting
You can increase the brightness of the darkened video. If
you set the brightness to lower value, the image is
darkened. If you set the brightness to higher value, the
image gets bright.
1.
Select [BRIGHTNESS] option.
2.
Use [LEFT] or [RIGHT] button to set the bright level.
27
Menu Operation
AGC (Automatic Gain Control) setting
SHUTTER (Shutter Speed) setting
If the images are too dark, change the maximum [AGC]
value to make the images brighter.
Select the desired shutter speed for camera exposure. You
can change the shutter speed to higher speed to capture
fast-moving subjects, though the image becomes darker.
1.
Select [AGC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode.
(OFF y LOW y MIDDLE y HIGH)
1.
Select [SHUTTER] option.
2.
Use [LEFT] or [RIGHT] button to set shutter speed.
(ALC/ELC mode: x512,…,x2yAUTOyOFFyA.
FLKy1/160,…,1/120 000
ALC2 mode: 1/160, ... , 1/120 000)
Note:
If you set the shutter speed value in ALC2 mode, it is
maximum value. When the camera is activated with ALC2
mode, the shutter speed is arrived maximum value and then
28
Menu Operation
the camera is change to iris control mode automatically for
the camera exposure. Anti-flicker mode is not supported in
the ALC2 mode. If you want to use it, select ALC mode .
SENS-UP setting
If pictures are not clear due to darkness, this SENS-UP
operation would increase the sensitivity of picture.
button to set the SENS-UP limit.
EXIT: Select a mode and press [SET] to exit
the menu.
OFF: Not used.
>>
•
Note:
If you set to one of the SHUTTER options except AUTO on
the [SHUTTER] menu the [SENS-UP] setting is not available
and [---] mark is displayed.
White Balance settings
Select the method by which the camera shifts its output
colors to compensate for the color of a light source.
1.
2.
Use [UP] or [DOWN] button to select [SENS-UP]
option.
Use [LEFT] or [RIGHT] button to select mode.
•
AUTO: Adjust the sensitivity of the picture
automatically.
>>
SENS-UP LIMIT: Use [LEFT] or [RIGHT]
1.
Select [WHITE BAL] option.
29
Menu Operation
2.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
•
ATW (Auto-Tracing White Balance): The color
temperature range for the proper white balance
is approximately 1 700 K to 11 000 K. Proper
white balance may not be obtained under the
following conditions:
>> The color temperature is out of the 1 700 K
to 11 000 K range.
>> When the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
>> When the scene is dim.
•
AUTO: You can set the white balance options
automatically.
>> USER MODE: NATURAL / COOL / WARM / VIVID
•
•
30
AWCbPUSH: If you select the AWCbPUSH mode,
you will be able to set up the White Balance
automatically using [SET] button.
MANUAL: You can set the white balance options
manually.
>> COLOR TEMP: Use [LEFT] or [RIGHT] button
>>
>>
to select a function.
-INDOOR: The color temperature range
for the proper white balance is approximately 3 200 K.
-OUTDOOR: The color temperature range
for the proper white balance is approximately 5 100 K.
RED: Obtains the optimum amount of red gain.
BLUE: Obtains the optimum amount of blue
gain.
Day/Night Setting
1.
Select [DAY/NIGHT] option.
Menu Operation
2.
Use [LEFT] or [RIGHT] button to select mode for day/
night function.
Motion Detection Setting
•
The motion detection detects the moving objects in the
scene by monitoring changes in brightness level. You can
select the level of sensitivity for motion detection to 4 zone.
AUTO: You will be able to change the Day/Night
mode automatically.
Note:
If you set the AGC to [OFF] on the [EXPOSURE]
menu, the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.
LEVEL: Use [LEFT] or [RIGHT] button to
select a level.
(LOWyMIDDLEyHIGH)
>> DWELL TIME: Use [LEFT] or [RIGHT] button
to select a dwell time. (5, 10, 15 SEC.)
EXT : Switches between color picture and blackand-white picture when an external day/night
switching signal is received.
>>
•
•
DAY: Color mode enabled.
•
NIGHT: Black-and-white mode enabled.
1.
Select [MOTION DET] option.
2.
Use [LEFT] or [RIGHT] button to select [ON] and press
[SET].
The MOTION DETECTION menu appears.
•
SMART MD : You can detect the movement of
objects easily by displaying motion mask.
•
REGIONAL MD : Use [LEFT] or [RIGHT] button to
select [ON] then press [SET] button.
31
Menu Operation
Use [LEFT] or [RIGHT] button to select
a zone number (AREA1 to AREA4) on the
[ZONE NUMBER].
>> Use [LEFT] or [RIGHT] button to set up the
ON or OFF on the ZONE STATE.
>> Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
-HEIGHT: Enlarge or decrease the vertical
size of the mask.
-WIDTH: Enlarge or decrease the horizontal size of the mask.
-MOVE Y: Moves vertical position of the
mask.
-MOVE X: Moves horizontal position of
the mask.
TAMPERING MD : You can detect that the camera
is polluted or damaged by spray or dust.
>>
•
3.
32
Use [SENSITIVITY] option to obtain the optimum
detection level. (0 to 100)
3D-DNR Setting
1.
Select [3D-DNR] option.
If pictures are not clear due to brightness, this option
would reduce the noise of picture.
2.
Use [LEFT] or [RIGHT] button to select a option.
(OFF y LOW y MIDDLE y HIGH)
Notes:
•
If you set the AGC to [OFF] on the [EXPOSURE] menu,
the [3D-DNR] function is not available and [---] mark
is displayed.
•
When you use this function, the afterimage may occur.
Menu Operation
Privacy Setting
This function is aiming at the protection of personal
privacy, selecting a screen part black not to be displayed
in the screen. You can register the RECTANCLE(AREA1 to
AREA8) , CIRCLE(AREA1 to AREA2) , POLYGON(AREA1 to
AREA2).
1.
Select [PRIVACY] option.
2.
Use [LEFT] or [RIGHT] button to select a [ON] and
press [SET]. The PRIVACY SETUP menu appears.
•
COLOR : You can make any color by adjusting
R.G.B LEVEL (0 to 255)
•
TRANSPARENCY : You can adjust the transparency
of MASK (0 to 16)
•
RECTANGLE :
Use [LEFT] or [RIGHT] button to select
a mask (AREA1 to AREA8) on the [MASK
NUMBER].
>> Use [LEFT] or [RIGHT] button to set up the
ON or OFF on the RECT. DISPLAY option.
>> Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
-HEIGHT: Enlarge or decrease the vertical
size of the mask.
-WIDTH: Enlarge or decrease the horizontal size of the mask.
-MOVE Y: Moves vertical position of the
mask.
-MOVE X: Moves horizontal position of
the mask.
CIRCLE :
>>
•
>>
Use [LEFT] or [RIGHT] button to select
a mask (AREA1 to AREA2) on the [MASK
33
Menu Operation
NUMBER].
Use [LEFT] or [RIGHT] button to set up the
ON or OFF on the CIR. DISPLAY option.
>> Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
-HEIGHT: Enlarge or decrease the vertical
size of the mask.
-WIDTH: Enlarge or decrease the horizontal size of the mask.
-MOVE Y: Moves vertical position of the
mask.
-MOVE X: Moves horizontal position of
the mask.
-RADIUS SIZE : You can adjust the
RADIUS SIZE (0 to 100)
POLYGON :
>>
>>
•
>>
>>
34
Use [LEFT] or [RIGHT] button to select
a mask (AREA1 to AREA2) on the [MASK
NUMBER].
Use [LEFT] or [RIGHT] button to set up the
ON or OFF on the POLY. DISPLAY option.
>>
Use the [LEFT],[RIGHT],[UP],[DOWN],[S
ET] button to draw the polygon on the
[POLYGON DRAW].
Use the [LEFT],[RIGHT],[UP],[DOWN],[SET]
button to move the polygon on the [POLYGON
MOVE].
Menu Operation
Special Menu Settings
This menu lets you adjust and set up D-ZOOM, D-EFFECT,
SHARPNESS, COLOR, STABILIZER, SYNC, USER TITLE,
LANGUAGE function by yourself in the SPECIAL menu.
1.
Select [SPECIAL] option.
2.
Press [SET] button and the SPECIAL menu appears.
Setting the D-ZOOM (Digital Zoom ) level
You can select the digital zoom level.
1.
Select [D-ZOOM] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET] the DIGITAL ZOOM menu appears. When
you set to ON, the displayed image can be shaking.
3.
Use [UP] or [DOWN] to select a option then use
[LEFT] or [RIGHT] button to select a level.
•
ZOOM: Use [LEFT] or [RIGHT] button to enlarge
the screen.
•
PAN: Use [LEFT] or [RIGHT] button to move the
screen. (left or right)
•
TILT: Use [LEFT] or [RIGHT] button to move the
screen. (up or down)
35
Menu Operation
Setting the D-EFFECT (Digital effect)
Setting the SHARPNESS effect
You can select the digital effect.
The degree to which the boundary of the two portions is
clearly distinguished.
1.
2.
36
Select [D-EFFECT] option on the [SPECIAL] menu.
Use [LEFT] or [RIGHT] button to select a digital effect.
•
V-FLIP: Flip the picture vertically.
•
ROTATE: Rotate the picture. (180°)
•
MIRROR: Turn on the mirror effect.
•
OFF: Turn off the digital effect.
1.
Select [SHARPNESS] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to change a adjust
the option. If you set the sharpness value to higher,
the image outline becomes sharp. If you set to lower
value, the image outline becomes dim.
Menu Operation
Setting the COLOR effect
STABILIZER setting
You can switch the displayed picture to gray scale or color.
The image stabilizer function minimizes the appearance of
shaky images caused by low-frequency vibration.
This function is useful for outdoor surveillance.
Select [STABILIZER] option and set to ON or OFF.
1.
2.
Select [COLOR] option on the [SPECIAL] menu.
Use [LEFT] or [RIGHT] button to change a color effect.
•
ON: To display the picture with color.
•
OFF: To display the picture with grayscale.
Note:
If you set the [STABILIZER] to ON, the Digital zoom is set to
[x1.2] automatically.
37
Menu Operation
Setting the SYNC (Synchronization)
The SYNC function is available only with AC power source.
1.
Select [SYNC] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select [INT] or [LL]
(Line Lock).
•
INT: Selects for using the internal synchronization.
2-1. Select [LL] mode and press [SET].
2-2. Select a desired phase using the [LEFT] or
[RIGHT] button.
Note:
When you use the DC 12 V power, the [SYNC]
option is fixed to [INT] mode only.
•
38
LL (Line Lock): Selects for the operation of multi
cameras because it synchronizes the camera
phase by using the external signal (AC power
signal).
Menu Operation
Setting the USER TITLE
•
You can use the camera identification to assign a number
and character to the camera (0 to 9, A to Z, a to z).
The USER TITLE is displayed on the upper left of the screen.
To disappear the user title, select [OFF].
•
1.
Select [USER TITLE] option on the [SPECIAL] screen.
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET]. The USER TITLE menu appears.
A (Blank): Inserts a space at the cursor position.
/
: Moves cursor to left or right.
Language Setting
Select the viewer language for the camera setup menu and
OSD information display.
A
3.
Use [UP], [DOWN], [LEFT] or [RIGHT] button to select
a character or number then press [SET] button.
•
CLR: Clear all entered characters and numbers.
•
POS: Move the USER TITLE position on the screen
using the arrow buttons.
•
END: Confirm your selection or exit the setting.
1.
Select [LANGUAGE] option on the [SPECIAL] screen.
2.
Press [LEFT] or [RIGHT] button to select a language.
39
Menu Operation
Reset Settings
4.
1.
Select [RESET] option.
2.
Press [SET] button and the RESET menu appears.
3.
Use [UP] or [DOWN] to select option.
40
•
CAMERA REBOOT: To reboot the camera system.
•
FACTORY RESET: To reset the camera setting to
factory setting, select [FACTORY RESET] option.
Press [SET] button to confirm your selection.
Reference
RS-485 Protocol (Optional)
ex) In case of transmission, 0xC5, 0x5F, 0x02, 0x00,
0x0A”
Data Communication Format
C.S. = 0xC5 +0x5F +0x02 +0x00 +0x0A = 0x0130
•
Data Length: 1 Byte (8 Bit)
•
Start/Stop Bit: 1 Bit
•
Parity Bit: None
•
Baud rate: 9 600 bps
therefore, C.S. = 0x30
Commands
Function
Format
BYTE1
BYTE2
0xE5
0x86
BYTE3
BYTE4
BYTE5
BYTE6
Camera CODE1
ID
CODE2
*C.S.
*C.S. = Check Sum
•
The data of total 6 bytes is transmitted from the external RS-485 device to the camera.
•
BYTE 6 : The value of Check Sum from ‘BYTE 1 ’ to
‘BYTE 5 ’.
Command
OSD Menu ON/OFF
E5, 86, ID, 41, 02, C.S.
LEFT Button
E5, 86, ID, 12, 80, C.S.
Right Button
E5, 86, ID, 12, 90, C.S.
Up Button
E5, 86, ID, 11, 80, C.S.
Down Button
E5, 86, ID, 11, 90, C.S.
Menu Button
E5, 86, ID, 41, 01, C.S.
41
Reference
Specification
ITEM
L332-BN
L332-BP
L332-CP
Signal System
Total Pixels No./ Effective Pixels No.
Image Device
DSP
Lens
IRIS Control
Digital Zoom
Sync. System
Scanning Frequency (H/V)
Horizontal Resolution
S/N Ratio
Minimum Illumination
(Color, F1.2, 30 IRE)
Control Method
Video Output Signal
Day & Night
BACKLIGHT
NTSC
1028 x 508 / 976 x 494
PAL
PAL
42
1028 x 596 / 976 x 582
6 mm CCD
XDI-II
CS Mount (C Mount using adaptor ring)
DC / ELC
X10
Internal / Line Lock
15.734 kHz / 59.94 Hz
15.625 kHz / 50 Hz
650 TV Lines
50 dB
Color : 0.0003 lx (Sens Auto, F1.2)
B/W : 0.000 03 lx (Sens up Auto, F1.2)
Key button / RS-485
1 Vp-p Composite (75 Ω)
DAY / NIGHT / AUTO / EXT
OFF / WDR / BLC / HSBLC
Reference
ITEM
L332-BN
L332-BP
L332-CP
Motion detection
SMART MD/REGIONAL MD/TAMPERING MD
3D-DNR
OFF / LOW / MIDDLE / HIGH
Auto Gain Control
Electronic Shutter Speed
OFF / LOW / MIDDLE / HIGH
1/60 to 1/120 000
1/50 to 1/120 000
Sens-Up
OFF / AUTO
White Balance
ATW / AUTO / AWC b PUSH / MANUAL
Privacy Zone
Masking
RECTANGLE
CIRCLE
POLYGON
8 AREAS
2 AREAS
2 AREAS
Stabilizer( EIS)
Power Source
On / Off
DC 12 V / AC 24 V
Power Consumption
AC 230 V
2.8 W
Operation / Storage Temp.
-10 ˚C to 50 ˚C / -20 ˚C to 60 ˚C
Operation Humidity / Storag
0 % RH to 80 % RH / 0 % RH to 85 % RH
Weight
Dimension (W x V x D)
363.5 g
442.5 g
67.4 mm X 61.5 mm X 134 mm
43
Download PDF
