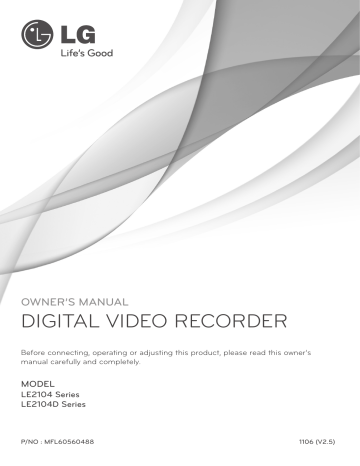

OWNER’S MANUAL
DIGITAL VIDEO RECORDER
Before connecting, operating or adjusting this product, please read this owner’s
manual carefully and completely.
MODEL
LE2104 Series
LE2104D Series
P/NO : MFL60560488
1106 (V2.5)
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warning: Wiring methods shall be in accordance with the
National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic
environment this product may cause radio interference
in which case the user may be required to take adequate
measures.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product.
Caution: To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
A suitable conduit entries, knock-outs or glands shall be
provided in the cable entries of this product in the end
user.
•
Caution: Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.
•
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall be
provided with brushings.
2
Warning: Do not install this equipment in a confined space
such as a bookcase or similar unit.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s enclosure
that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
FCC WARNING: This equipment may generate or use
radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the
modifications are expressly approved in the instruction
manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is
made.
•
This Class A digital apparatus complies with Canadian ICES003.
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Caution: This installation should be made by a qualified
service person and should conform to all local codes.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Caution:
This product employs a Laser System. To ensure proper
use of this product, please read this owner’s manual
carefully and retain it for future reference. Should the
unit require maintenance, contact an authorized service
center. Performing controls, adjustments, or carrying out
procedures other than those specified herein may result in
hazardous radiation exposure. To prevent direct exposure
to laser beam, do not try to open the enclosure. Visible laser
radiation when open. DO NOT STARE INTO BEAM.
To disconnect power from mains, pull out the mains cord
plug. When installing the product, ensure that the plug is
easily accessible.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/
EC, 2006/95/EC, and 2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327
AE Almere. The Netherlands
(Tel : +31-(0)36-547-8888)
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products
should be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old appliance
will help prevent potential negative
consequences for the environment and
human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you purchased
the product.
EEE Compliance with Directive. (for Turkey only)
Safety way to remove the battery or the battery from the
equipment:
Remove the old battery or battery pack, follow the steps in
reverse order than the assembly. To prevent contamination
of the environment and bring on possible threat to human
and animal health, the old battery or the battery put it
in the appropriate container at designated collection
points. Do not dispose of batteries or battery together
with other waste. It is recommended that you use local,
free reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat such as
sunshine, fire or the lile.
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled bin symbol
is attached to batteries/accumulators of
Your product it means they are covered by
European Directive 2006/66/EC.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the battery
Contains more that 0.0005% of mercury,
0.002% of cadmium or 0.004% of lead.
3. All batteries/accumulators should be
disposed separately from the municipal
waste stream via designated collection
facilities appointed by the government or
the local authorities.
4. The correct disposal of Your old batteries/
accumulators will help to prevent
potential negative consequences for the
environment, animal and human health.
5. For more detailed information
about disposal of Your old batteries/
accumulators, please contact Your city
office, waste disposal service or the shop
where You purchased the product.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
3
Safety warnings and Cautions
The following are warnings and cautions for the safety of the users and for the prevention of any property
damage. Please read the following carefully.
WARNING
•
Turn off the system before installation. Do not plug in several electric devices to the same outlet.
--
•
This may cause heating, fire, or electric shock.
Do not place any liquid container on the system, such as water, coffee, or other beverage.
--
•
If liquid is poured onto the system, it can cause a system breakdown or fire.
Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object.
--
•
This may cause fire.
Clean the dust around the system on a regular basis. When cleaning the system, always use a dry cloth. Do not use a
wet cloth or other organic
solvents.
--
•
This may damage the surface of the system and can cause a system breakdown or electric shock.
Avoid any place with moisture, dust, or soot.
--
•
This can cause fire or electric shock.
When pulling the power cable from the plug, do so gently. Do not touch the plug with wet hands and avoid using the
plug if the holes in the outlet are too loose.
--
•
This may cause fire or electric shock.
Do not attempt to disassemble, repair, or modify the system on your own. It is extremely dangerous due to the high
voltage running through the system.
--
•
This may cause fire, electric shock, or serious injury.
Check for any danger signs such as a moist floor, a loosened or damaged power cable, or an unstable surface. If you
encounter any problems, ask your dealer for assistance.
--
•
This may cause fire or electric shock.
Keep a distance of at least 15 cm between the back of the system and the wall for the cables connected to the system
otherwise, they may be bent, damaged, or cut.
--
•
This may cause fire, electric shock, or injury.
Install the system in a cool place without direct sunlight and always maintain room temperature. Avoid candlelight and
heat generating devices such as heaters. Keep the system away from places where many people pass.
--
•
This may cause fire.
Install the system on a plain surface with sufficient air ventilation. Do not place the system on an elevated surface.
--
•
This may cause system breakdown or serious injury.
The power outlet must be placed on the ground, and the voltage range must be within 10 % of the voltage rate. Do
not use the same outlet with a hair dryer, iron, refrigerator, or any heating appliances.
--
•
This may cause fire, over heating or electric shock.
When the system’s battery is depleted, replace it with the same or equivalent type of battery specified by the
manufacturer. Depleted batteries should be discarded according to the manufacturer’s instructions.
--
•
This may cause an explosion.
If the system’s HDD exceeds its life span, you may not be able to recover any data stored inside the HDD. If the video
on the system screen appears ‘damaged’ while playing a recording stored inside the system’s HDD, it must be replaced
with a new one. Ask for an engineer’s assistance for HDD replacement from your dealer.
--
4
LG Electronics is not responsible for deleted data caused by user mishandling.
CAUTION
Please beware of the following precautions before installing the DVR.
•
Avoid positioning the product in any place where the unit may come into contact with moisture, dust, or soot.
•
Avoid placing in direct sunlight or near heating appliances.
•
Keep the product away from electric sparks or magnetic substances.
•
Avoid temperature extremes (recommended operating temperature is between 0 °C - 40 °C).
•
Do not place any conductive material through the ventilation grills.
•
Keep the system turned off before installation.
•
Ensure enough space is left for cable connections.
•
Place the system on a solid surface with sufficient air ventilation. Avoid any surface that vibrates.
•
Placing the system near electronic devices such as a radio or a TV may cause the product to breakdown.
•
Do not disassemble the product without seeking assistance from LG Electronics.
•
Do not place any heavy object on the system.
•
Prevent any substances from being inserted into the system.
--
•
-•
This may cause system breakdown.
Install the system on a stable, level surface.
--
•
Do not install the system in a place with magnetic objects, electric frequencies, or vibration.
Do not place any heavy object on the system.
--
•
Keep at least 15 cm distance between the back of the system and the wall, and at least 5cm distance between the
side of the system and the wall.
Do not install the system in a place with high magnetic, electric wave, or wireless devices such as a radio or a TV.
--
•
This may cause system breakdown.
Install the system in a place with sufficient air ventilation.
The system may not operate properly.
Install the system in a place with appropriate moisture and temperature levels.
--
Avoid installing the system in a place with high (over 40 °C) or low (under 0 °C) temperature.
•
The system can be damaged from a strong impact or vibration. Avoid throwing objects within the vicinity of the
system.
•
Avoid direct sunlight or any heating appliances.
--
•
Recommended operating temperature is over 0 °C (32 °F).
Ventilate the air inside the system operation room, and tighten the system cover firmly.
--
System breakdown may be caused by an inappropriate environment.
It is recommended to use AVR (Automatic Voltage Regulator) for a stable power supply.
It is recommended to coil the core-ferrite around the connector of the system to avoid electromagnetic
interference.
•
The outlet must be placed on the ground.
•
If there is strange sound or smell, unplug the power cable immediately and contact the service center.
--
•
•
This may cause fire or electric shock.
In order to maintain stable system performance, have your system checked regularly by the service center.
--
LG Electronics is not held responsible for system breakdown caused by user mishandling.
--
There is a risk of explosion if a battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Do not overturn the product during use.
5
Contents
Network Settings........................................................................31
System Settings...........................................................................35
Introduction....................................................................... 7
Recording......................................................................... 40
Features............................................................................................ 7
Instant recording........................................................................40
Accessories...................................................................................... 7
Search and Playback....................................................... 41
Front Panel...................................................................................... 8
Playback.........................................................................................41
Rear Panel........................................................................................ 9
Search.............................................................................................41
Remote Control...........................................................................10
LG Network Client Program............................................ 44
Connections and settings............................................... 11
Introduction..................................................................................44
Precautions...................................................................................11
Getting Started............................................................................44
Basic Connection Overview....................................................11
Operation and settings.............................................................47
Connecting Camera...................................................................12
Using the Export function.......................................................57
Connecting Display device.....................................................12
Connecting Audio device........................................................12
Additional Programs....................................................... 58
Connecting USB device............................................................12
Emergency Agent Program.....................................................58
Connecting CONSOLE (RS-232C) Port.................................13
Export Viewer Program.............................................................59
Mouse.............................................................................................13
Web Viewer Program.................................................................60
Connecting Network.................................................................13
Reference......................................................................... 61
Connecting RS-485 Device......................................................13
Connecting Alarm Input and Alarm Output.....................14
HDD INSTALLATION...................................................................15
Installing or Replacing the Hard Disk Drive .....................15
System Operation.......................................................................17
General Explanation of the Live
Screen on the Main Monitor...........................................18
Troubleshooting..........................................................................61
Recommended Devices...........................................................63
Time zones....................................................................................65
Factory Default Configuration Settings..............................66
Recording Time Table (250GB HDD)....................................69
Specifications...............................................................................72
Configuration menu..................................................................22
Camera settings..........................................................................23
Schedule settings.......................................................................26
Display settings...........................................................................29
Event Settings..............................................................................30
6
Contents
Introduction
•
Max five clients can access one DVR server
simultaneously.
•
Network bandwidth throttle.
--
Features
Automatically adjust a bandwidth according to
network speed status of unit.
•
Stable embedded Linux operating system.
•
Remote alarm notification via client software or E-mail.
•
Journal filing system for HDD file recovery
following power recovery.
•
Time and date sync from NTP server.
•
Daylight saving mode.
•
Small file sizes with H.264 compression.
•
Covert camera protection.
•
Internal storage expandable to 1 TB. (Expandable if new
high capacity HDD is launched)
•
Back-up CD auto run.
•
NTSC and PAL selectable video format.
•
User management (User level control).
•
Full real-time recording.
•
PTZ Control.
Up to 120 IPS @ 352 x 240,
NTSC
--
For more details see page 64.
--
Dome camera telemetry control
(Dome OSD control).
Up to 60 IPS @ 704 x 240,
Up to 30 IPS @ 704 x 480
Up to 100 IPS @ 352 x288,
PAL
Up to 50 IPS @ 704 x 288,
Accessories
Up to 25 IPS @ 704 x 576
•
•
--
D1(704 x 480), Half D1(704 x 240), CIF(352 x 240) :
NTSC
--
D1(704 x 576), Half D1(704 x 288), CIF(352 x 288) :
PAL.
--
5 step quality level (Highest, High, Standard, Low,
Lowest).
AA
A
AA
AA
A
A
Remote Control
Optical mouse, Full function IR remote controller
Powerful multiplex function.
--
•
Mouse (PS2 type)
Easy operation using various user interface & user
friendly GUI.
--
•
Software Install CD
Various recording resolutions and quality levels.
Simultaneous live display, recording, playback,
network transmission, back-up.
AA
AAA type batteries
A
Various search function.
--
AA
A
Date/time search (calendar search), event search,
bookmark search.
•
Event data protection by event partition recording.
•
Pre-alarm recording (Up to 1 minute).
•
Motion event recording.
•
Recording image rate & quality adjustment per
individual camera.
•
Powerful record scheduling.
•
Instant playback in surveillance mode.
•
Perfect audio/video synchronization.
•
Automatic backup by schedule.
•
Image authentication (Watermark).
•
Three USB 2.0 ports for backup interface.
•
Setup configuration export/import with USB memory
stick.
•
Easy system S/W update with USB memory stick or
network.
•
Clients S/W can manage maximum 100 DVR servers.
Introduction
AA
A
AA
A
Power Plug
AA
A
DC adaptor
AA
A
AA
A
SATA cable(s)
AA
A
AA
A
AA
A
SATA power cable
AA
A
AA
A
HDD fixing screws
AA
A
AA
7
A
AA
A
Front Panel
LE2104D model
a
i
j
b
c
k
d
e
l
f g h
m
n
LE2104 model
a
i
j
k
a POWER Indicator: Lights when the DVR is powered.
HDD Indicator: Blinks when the HDD is accessed.
NET Indicator: Lights when a network cable is connected.
b Disc Tray (LE2104D model only): Insert a disc here.
c OPEN (LE2104D model only): Opens or closes the disc
tray.
d SETUP/ESC: Displays the setup menu or cancels
operation on the setup menus.
e Playback Control Buttons
-- M: Pauses playback.
-- c: Search the recorded images in reverse.
d
e
l
f g h
m
n
f PTZ: Switches this unit to PTZ mode to control the PTZ
camera connected.
g COPY: Copies the recording data to an external device.
h LOCK: Displays the lock menu to change the user type
or disable the system operation.
i SPLIT: Press to see different multi screen modes.
j CHANNEL: Selects the respective camera.
k SEQ: View all channels in sequence.
l SEARCH: Displays the search menu.
m REC: Starts or stops instant recording.
n USB Port: Connect an external USB device for backup or
playback. (The USB type mouse is not supported.)
-- ad: Playback or reverse playback of recorded
images.
-- v: Forward search the recorded images.
-- Z: Stops playback.
8
Introduction
Rear Panel
Rear panel with the TV or VGA output select switch.
a b
c
j
k l
d
ef
m
n op
g h i
Rear panel without the TV or VGA output select switch.
a b
c
j
k l
d
ef
m
n op
a VIDEO INPUT
Connect the camera’s video output to these BNC
connectors.
g h i
h ALARM IN/OUT Terminals
--
IN: Input terminals for alarm(relay) signal.
--
OUT: Output terminals for alarm(relay) signal.
b LOOP OUT
The signal from VIDEO INPUT connector is looped out
to this connector.
i Power Cord Inlet (DC 12 V)
Connect the power plug.
c SPOT-OUT (BNC Type Connector)
Connect to spot monitor or display device.
j MAIN-OUT (BNC Type Connector)
Connect to main monitor or display device.
d CONSOLE (RS-232C Connector)
Used to connect to a host device equipped with
RS-232C connector (such as a personal computer).
This unit can be controlled from other devices via this
connector.
k AUDIO INPUT
Connect the audio output of an external device.
e LAN Port
Connect the ethernet 10/100 Mbps network cable for
controlling this unit via a PC network.
m VGA
Connect a VGA monitor.
f TV or VGA output select switch. (This switch is optional
by models.)
g RS-485 Terminals
Connect RS-485 compatible cameras.
Connect the LKD1000 controller to D2 terminal.
Introduction
l AUDIO OUT
Connect the audio input signal of an external device.
n USB Ports
Connect an optional extension USB device.
o CONSOLE or ATM output select switch.
(ATM is a reserved function.)
p MOUSE
Connect an mouse device (PS2 Type).
9
Remote Control
•
SPLIT: Press to see different multiscreen modes.
•
SEQ: Views the all channels in sequence on the full
screen display mode. You cannot use sequence mode
with the 4 split.
•
ALM.OFF: Cancels alarm activation and returns the
system to the condition before the alarm was activated.
•
OSD: Displays the submenu.
•
SETUP/ESC: Displays the setup menu or cancels
operation of the setup menu.
•
Arrow Buttons (a d w s): Selects or moves
between the menu options.
•
ENTER: Confirms menu selections.
•
COPY: Copies the recording data to an external device.
•
SEARCH: Displays the search menu.
•
MARK: Sets the mark point for recording search. You
can set the mark point during the single or multi
channel playback of recorded data.
•
PAUSE (M): Pauses playback.
•
STOP(Z): Stops playback.
•
REC (X): Starts or stops recording.
• c/aM : Searches the recorded images in reverse or
skips the recorded images.
• a/d: Playback or reverse playback of recorded images.
• v/Md : Forward searches the recorded images or
skips the recorded images.
•
LOCK: Displays the lock menu to change user type or
disable system operation.
•
OPEN: Opens or closes the disc tray. This button is only
used for LE2104D models.
•
ID: Set the appropriate DVR system ID to operate via
the IR Remote Controller when using the multiple DVR.
Press the ID button then press the number button
within 2 seconds to select the system ID of the DVR. If
you set the system ID to “0”, you can control multiple
DVR at the same time.
10
•
Number Buttons (0,1-9): To select the PTZ preset
number, ID, or channel.
•
INFO: Displays the system information window.
•
LOG: Displays the System Log List window.
•
PTZ: Switches this unit to PTZ mode to control the
connected PTZ camera.
•
TOUR: Tours all registered preset positions in the
camera.
•
ZOOM + / -: Zooms in/out on the playback window.
•
FOCUS + / -: Adjusts the focus of a camera.
•
IRIS + / -: Adjusts the iris of a camera.
•
F1: This button is not available.
•
PRESET
--
SET: Registers the PTZ camera's preset positions.
--
CLEAR: Deletes a memorized preset position.
--
MOVE: Moves the camera to the preset position.
Introduction
Connections and settings
Precautions
•
Depending on the camera and other equipment there are various ways to connect the unit. Please refer to the camera
manual or manuals for other devices as necessary for additional connection information.
•
Be sure to switch off the camera before installation and connection.
Basic Connection Overview
Connect the coaxial-type cameras
Connect BNC type spot monitor.
For audio amplifier
Connect power code
Connect network
cable for client
control.
Connect the alarm (relay)
Connect alarm sensors.
Connect PTZ cameras, DVRs
or keypads (optional).
Connect an mouse device (PS2 Type).
Connect an external USB device
for backup or playback.
Connect VGA monitor.
Connect audio (line input)
Connect BNC type monitor.
Connect the Monitor, DVR, VCR, or others.
Connections and settings
11
Connecting Camera
VGA Monitor connection
Connect cameras to the unit using 75 Ω video coaxial
cables with BNC connectors. There are two BNC connectors
for each camera. Either connector can receive a camera’s
signal. This signal is looped-through (directly connected)
to the other connector, so that you can send the camera’s
signal to other equipment.
When using the VGA monitor, set the Video Output
mode select switch to VGA position.
Connecting Display device
Make one of the following connections, depending on the
capabilities of your existing equipment.
The LE2104/LE2104D models without TV/VGA output select
switch can be outputted simultaneously from the VGA and
MAIN OUT jack. On other LE2104/LE2104D models with TV/
VGA output select switch, main monitor type should be
selected to display the main screen.
Connect the VGA jacks on the rear of the unit to the
corresponding input jacks on the TV or monitor using
the VGA cable.
Connecting Audio device
Connect the AUDIO OUT jacks on the unit to the mono
audio in jacks on your audio device.
Connecting USB device
CCTV(Composite Video Type) Monitor
connection
When using the analog TV monitor, set the Video
Output mode select switch to TV position.
Connect the unit to the monitors via 75 Ω video coaxial
cables with BNC connectors.
12
Connections and settings
USB memory device
LAN connection
Insert the memory device into the USB port. The system
automatically recognizes the device.
Connect the LAN port to an available 10/100 base-T port
with a straight ethernet cable (not supplied). The NET
indicator on the front panel will be lit.
Using a USB memory device the system software can be
easily upgraded.
USB backup device
Connect the USB cable of the USB backup device to the
USB port.
(Example: HDD or other external storage.)
Automatic network configuration
The DVR can automatically obtain and configure the
network interface via DHCP.
Manually configure network
The DVR may be manually configured by assigning an IP
address, subnet mask, gateway and DNS.
Note:
Do not connect USB type mouse.
Connecting CONSOLE (RS-232C)
Port
The serial RS232 console port connector is used to connect
a PC to the unit for service purposes. Use a null-modem
cable to connect the serial port of the PC to the unit.
This terminal is compliant with the RS-232C standard.
Mouse
Connect the mouse for function control of the unit.
Connecting Network
You can control and monitor the system via network.
With the remote control (monitoring), you can change the
system configuration or monitors the image via network
(LAN). After the installation, the network on the system
setup menu should be set to make the remote control and
monitoring work.
Connecting RS-485 Device
This DVR has two data terminals.
Use this port to connect PTZ cameras, DVRs or keypads
(optional).
RS-485 Terminal
Description
D - (DATA -)
Data Transmission/Reception
D + (DATA +)
Data Transmission/Reception
GND
Shield
Connecting the PTZ camera
Connecting the PTZ serial communication lines to the
RS-485 terminal.
Rear of the DVR
5~7 mm
PTZ units
(RS-485 type)
PTZ units
(RS-485 type)
Notes:
•
When connecting lines, connect the D - of the DVR to
RX - of the PTZ unit and D + of the DVR to RX + of the
PTZ unit correctly.
•
Recommended initial data are 9600 Baud Rate, 8 Data
bits, 1 Stop bit and No parity.
•
When connecting PTZ cameras to DVRs it is necessary
to set the setup menu for this unit according to the
RS-485 settings of the camera and DVRs.
Router
Connections and settings
13
Connecting LKD1000 controller
Rear of the DVR
Connecting the LKD1000 controller to control the DVR.
(Refer to the manuals of the LKD1000 controller for more
details.).
Rear of the DVR
TX-
TX+
LKD1000
Controller
Notes:
•
Do not connect a PTZ camera with LKD1000 controller
to the D1 or D2 port. It may cause a malfunction.
•
The MAIN and SPOT buttons of the LKD1000 controller
are not activated for LE2104/LE2104D models.
Alarm sensor
Terminal No.
1
2
3
4
G
Alarm sensor
Description
Alarm Input 1
Alarm Input 2
Alarm Input 3
Alarm Input 4
Ground
Alarm Output
Connect the alarm device to the alarm output. Alarm signal
output at an event occurrence.
Connecting Alarm Input and Alarm
Output
Rear of the DVR
Alarm terminals are used to connect the alarm devices such
as sensors, door switches, etc.
Alarm Input
You can connect up to 4 alarm sensors.
Each alarm sensor should be connected with G (GND). The
signal state is adjustable to N/O (Normal Open) or N/C
(Normal Close) through the setup menu.
Terminal No.
1
G
Note:
Description
Alarm Output 1
Ground
The internal switching relays are rated for 0.3 A at 125 V AC
or 1 A at 30 V DC. If the electric current is higher than that
the unit can be damaged.
14
Connections and settings
HDD INSTALLATION
Note for Hard Disk Drive
The internal hard disk drive (HDD) is a fragile piece of
equipment. Please follow the guidelines below when using
the DVR to protect against possible HDD failure.
We recommend that you back up your important
recordings onto an external backup device in order to
prevent accidental loss.
Make sure that the power is turned OFF when attaching or
removing the HDD.
•
Do not move the DVR while the power is on.
•
Do not use the DVR in excessively hot or humid places,
or in places that may be subject to sudden changes in
temperature. Sudden changes in temperature can cause
condensation to form inside the DVR. This can be a
cause of HDD failure.
Installing or Replacing the Hard
Disk Drive
Installing the Hard Disk Drive
You can install up to 2 HDDs. (LE2104 model only)
However, since the product contains many parts which
may incur electric shocks, accidents or product breakdown,
and because improper installation or setup may disturb
HDD recognition or normal product operation, you should
consult with an expert from the store where the product
was purchased.
Turn the power of the unit off and detach the power
plug from the outlet.
1. Remove the fixing screws on the left/right side and rear
panel.
•
While the DVR is switched on, do not unplug from the
wall socket or switch the electricity off from the breaker
switch.
•
If there’s a power failure while the DVR is on there is a
chance that some data on the HDD will be lost.
•
Do not drop the HDD. Also do not put the metallic
object such as coins or screwdrivers into the HDD tray.
2. Detach the top case by sliding it after removing the
screws.
•
When a power failure occurs during recording, avoid
adding, replacing or transporting the HDD as the
recorded data may be erased. In this case, turn the
power back on to boot up the unit normally with the
HDD that was being used at the time of the power
failure attached. Then add, replace, or transport the
HDD.
3. Detach the front panel.
•
•
4. Remove the screws and detach the hard disk mounting
brackets from the unit.
•
In case of LE2104 model
•
In case of LE2104D model
The HDD is very delicate. Handle the HDD with care
and follow the precautions below because even a small
shock may damage the internal components of the
HDD.
--
Do not place the HDD on a desk or a table directly.
Put a thick cushion under the HDD because even a
small shock may damage the internal components
of the HDD.
--
Do not use an electric screwdriver. Vibrations and
shocks caused by an electric screwdriver may
damage the internal components of the HDD.
--
When replacing the HDD, do not knock the HDD
with other components such as another HDD and
the HDD tray.
--
Do not knock the HDD with tools such as a driver
when replacing the HDD.
Protect the hard disk drives from static electricity.
Connections and settings
15
5. Attach the HDD onto the hard disk mounting brackets
with four screws.
Note:
When you add the new HDD, do not change the position
of the HDD. It may delete the current data and cause a
malfunction.
Replacing the Hard Disk Drive
Turn the power of the unit off and detach the power plug
from the outlet.
1. Follow steps 1-4 described in “Installing the Hard Disk
Drive”.
2. Remove the connector from the HDD.
6. Attach the hard disk mounting brackets with the
screws.
7. Connect the HDD power cable. You must use the
supplied SATA power cable. The SATA power cable that
used for normal PC is not compatible with this unit.
3. Remove the screws from the hard disk drive on the
bottom of the hard disk mounting bracket.
8. Connect the Serial SATA cable.
4. Remove the HDD from the hard disk mounting bracket.
5. Install the new HDD in the reverse order to when
replacing the hard disk drive.
6. After replacing the hard disk drive, insert the power
plug into the outlet and turn the power of the unit on.
9. Connect the SATA cable to the SATA connector on the
main board.
•
•
Make sure that each of the SATA cables is connected to
the connector housing through its holes.
•
Do not stack them nor keep them upright.
•
Do not use an electric screwdriver to fix them.
When installing 1 HDD.
Connect the SATA cable of the HDD to the SATA
connector of the main board.
•
Notes:
When installing 2 HDDs.
9-1.Connect the SATA cable of the first HDD to the
first SATA connector of the main board.
9-2.Connect the SATA cable of the second HDD to
the second SATA connector of the main board.
10. Assemble the front panel and top case.
11. Fix the screws.
The HDD should be formatted after installation
When installing or adding the HDD, it should be
formatted before use. You can set the event or normal
partition space of the HDD. (See page 37). The HDD
which has been used in another device should be
formatted to make sure normal storage.
12. After installing the HDD, you must format the HDD
using the setup menu (See page 37).
16
Connections and settings
Recommended HDD
The following HDD has been tested and compatibility
is ensured. When you attach multiple HDDs use the
recommended HDDs.
Note:
If you do not use the recommended HDD, the system may
not be operated normally.
Maker
Seagate
Hitachi
RPM
Capacity Interface
•
This DVR is based on a VGA monitor using OSD. We
recommend to using the VGA monitor with this unit.
If you use a composite monitor, the OSD quality may
lower to read it.
•
User access rights
User Level
View
Model No.
7,200
250 GB
SATA
ST3250311SV
7,200
500 GB
SATA
ST3500410SV
5,400
1 TB
SATA
ST31000424CS
5,700
1 TB
SATA
HCS5C1010CLA382
System Operation
Live Video
Alarm Off
PTZ
Instant Record
Export
Search/Play
Setup
•
Administrator
Power
User
Normal
User
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
NO
If the DVR is turned off accidently and then turned on
again, the DVR may take a long time to be rebooted.
1. Turn on the unit. System booting will commence. The
LG logo image will be displayed on the main monitor
during the system booting.
2. When the booting is complete, the login window will
be displayed. Select a user name by using the mouse or
arrow, then the ENTER button on the remote control or
front panel.
--
ADMINISTRATOR: Unlimited operation of the unit.
--
Power User: Use of the limited functions of the
system. (The setup configuration is not allowed to
change.)
--
Normal User: Use of the limited functions of the
system. (Multiscreen monitor and live image view
are available.)
3. Enter the password by using the virtual keyboard.
(Initial password is “000000”.)
4. Select [OK] button and press ENTER.
You can see the live screen and operate the system.
Notes:
•
The LE2104/LE2104D series models with TV/VGA output
select switch can not be outputted simultaneously from
the VGA and MAIN OUT jack. Consequently, the user
is obliged to choose either the composite monitor or
the VGA monitor. When set to composite monitor there
is no VGA output. When set to VGA monitor there is
no composite output. SPOT-OUT is unaffected by the
monitor setting.
Connections and settings
17
General Explanation of the Live
Screen on the Main Monitor
Displays the PTZ remote control
window.
Main Monitor Screen
ab
cd
Displays the search menu.
e
f
Displays in the full screen display
mode to return to the 4 division
screen windows.
Views the all channels in
sequence on the full screen
display mode. You cannot use
sequence mode with the 4 split.
Note:
The covert channel(s) or video
loss channel(s) is(are) not
displayed with power and normal
user.
Displays the lock menu to change
the user type or disable system
operation.
Turns the alarm off.
Channel Number
a
Displays the channel number.
Channel Name
b
Displays the edited channel name.
c Camera Status Icon
•
PTZ camera icon
Displays the PTZ camera status.
•
Input audio icon
Displays the input audio status.
•
Recording status icon
Displays the recording status.
--
Green “C” indicates continuous recording.
--
Green “I” indicates Instant recording.
--
Red “S” indicates sensor triggered recording.
--
Blue “M” indicates motion detection recording.
--
White “N” indicates the channel is not being
recorded.
Displays the system log list
window.
Displays the system information
window.
Click at a desired point to be
marked during playback. Up to 15
points can be marked.
Display copy (export) menu.
Select the required scanning
speed.
Starts instant playback in selected
recording channel. If the recorded
data is empty, a warning message
is displayed.
Pause playback.
d Selected Channel
Displays the selected channel with white box.
Stop playback.
e Live Screen
Displays the current surveillance live screen.
To display / remove the system control bar
f System Control Bar
18
Displays the current date and
time.
1. Press OSD or click the right mouse button in live screen
mode and select [Control bar On/Off ] option.
Displays the setup menu.
2. Press ENTER or click the [Control bar On/Off ] option
and then the system control bar will be displayed or
removed.
Connections and settings
PTZ Camera Control
You can control the cameras connected via the data port of
RS-485 terminal. You must set the configuration between
the PTZ camera and the DVR.
e
To manually adjust the
iris of a camera.
f
Displays the Selected
Preset Number
g
Number Buttons
To input the preset
number.
h
To register preset
positions.
i
To move the camera to
the preset position.
j
To delete a memorized
preset position.
k
To start a preset tour.
l
To displays the setup
menu of the PTZ
camera.
1. Select the PTZ camera channel on the main monitor
you want to control.
2. Press PTZ or Click the
icon in the system control
bar.
Virtual PTZ remote control is displayed on the main
monitor.
3. Use each item to control the PTZ camera.
a
b
c
Preset Settings
d
e
Preset position is the function to register camera
monitoring positions (preset positions) associated with
position numbers.
f
By entering the position numbers, you can move cameras
to the preset positions.
Note:
g
h
j
i
k
l
To activate this function, you need to register the preset
positions of the PTZ cameras.
To Register Preset Positions
1. Move the camera to a point you wish by using the
/ / / .
2. Press SET or click the
icon.
3. Select the preset number you wish to register.
Button
a
Function
Remove the PTZ virtual
remote control.
4. Press ENTER or click the
icon.
The position and its number are memorized.
5. Repeat steps 1-4 to add additional positions.
Note:
b
Use to pan/tilt the
camera.
Preset numbers from 0 to 255 are available on this unit but
the actual preset range differs depending on PTZ cameras.
Confirm the preset
position.
Changing to a Picture in a Preset Position
c
To adjust the camera
zoom.
d
To manually adjust the
focus of a camera.
The following function is available only with cameras
provided with the preset function. The preset function
makes the combination camera move to the programmed
preset position. It is necessary to program preset positions
for the combination camera beforehand.
1. Press the MOVE button or click the
Connections and settings
icon.
19
2. Use number buttons to enter the memorized preset
position’s index number then press ENTER or click the
icon. The camera moves to the preset position and
the picture of the camera in that position appears on
the monitor.
To Clear the Preset Position
You can clear a memorized preset position.
1. Press the CLEAR button or Click the
icon.
2. Use number buttons to enter the memorized preset
index number then press ENTER or Click the
clear the preset positions.
icon to
Note:
This function may not be available depending on PTZ
cameras.
2. Select [OK] and press ENTER or click the [OK] button to
exit the window.
Viewing the System Log List
To Tour The Preset Positions
To view the system log list:
You can tour all preset positions.
1. Press LOG or click the
icon in the system control
bar.
The system log list window is displayed on the main
monitor.
1. Press the TOUR button or Click the
icon.
All registered preset positions in the camera will
be selected and the camera position image will be
switched on the active monitor.
2. You can stop the tour by pressing the TOUR
button or clicking the
icon.
Setup for PTZ Cameras
You can adapt the camera to your requirements by setting
up the respective items in menus.
1. Click the
icon.
The setup menu appears in the selected window of the
main monitor.
2. Use / / /
the options.
,
and
buttons to set
Notes:
•
Refer to the manuals of the PTZ camera for more details.
•
Some PTZ cameras may not operated correctly with this
unit.
•
You cannot control the other functions when the PTZ
virtual remote control is displayed.
Viewing System Information
To view system information:
1. Press INFO or click the
icon in the system control
bar.
The system information window is displayed on the
main monitor.
20
2. Use a/d to see the previous or next log list.
3. Select [OK] and press ENTER or click the [OK] button to
exit the window.
Note:
The system log list.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
Log Message
Power On
Power Off
Power Recovery
Admin Login (Remote)
Admin Logout (Remote)
Power User Login (Remote)
Power User Logout (Remote)
Normal User Login (Remote)
Normal User Logout (Remote)
Admin Login (Local)
Admin Logout (Local)
Power User Login (Local)
Power User Logout (Local)
Connections and settings
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Normal User Login (Local)
Normal User Logout (Local)
Configuration Changed
Configuration Imported
Factory Default Set
Backup Started
Backup Finished
Backup Failed
Export Started
Export Finished
Export Failed
S/W Updated
HDD Added (HDD1)
HDD Added (HDD2)
HDD Removed (HDD1)
HDD Removed (HDD2)
HDD Formatted (HDD1)
HDD Formatted (HDD2)
HDD Changed (HDD1)
HDD Changed (HDD2)
HDD Damaged (HDD1)
HDD Damaged (HDD2)
Notes:
•
You can also use the COPY button on the front panel for
export function.
•
Check the export device before you proceed.
•
You can export the recorded data only in the live mode.
•
If you use the external USB memory device, the external
USB memory device has to be formatted on this unit.
1. Connect the USB memory device to the USB port on
the front or the rear of the DVR.
2. Select the [Erase] icon then press ENTER.
Confirm window is displayed after format is completed.
3. Select [OK] and press ENTER to close the window.
•
Check the size of the selected data and free space of
the external device. If the device has not enough space,
create space on the device or erase the previously
stored data.
1. Select the [Estimate] icon and press ENTER.
The size of the selected data and free space is displayed.
2. Select [OK] and press ENTER to close the window.
•
Export can not be executed while the backup is in
progress.
Export the recorded data
•
This unit can manually copy recorded images and audio
from built-in HDD to the external recording devices.
You can search the exported data with the supplied
viewer software.
•
When you export the recorded data, the audio data will
also be exported.
•
When you export the recorded data the export viewer
program will also be exported in the [ExportViewer]
folder of the device. The exported data file name is
made automatically as the [Channel name_export
date_export time.exp] type.
•
Do not remove the USB device while the export is in
progress, it may cause a malfunction. If you reuse the
removed device, you must format the media by using
erase options.
•
The warning message appears for the conditions listed
below.
1. Press COPY or click the
icon in the system control
bar.
The export menu window appears.
2. Select [Target Device] then press ENTER.
3. Use a/d to select a target device to export.
4. Press ENTER to confirm it.
5. Select the channel number and press ENTER. Repeat
this step to select multi channels.
6. Set the [Start Date/Time] and [End Date/Time] to copy.
•
a/d/w/s: Moves to the options.
•
a/d: Sets the selected option.
•
ENTER: Selects option or confirms the setting.
7. Select [Export] and press ENTER or click [Export] icon to
start exporting. The exported data will be authorized by
the unit before saving and it can only be played back
with the exclusive player.
Connections and settings
--
When the start date/time and end date/time are the
same value.
--
When the start date/time is later than the end date/
time.
--
The export media does not have enough space.
--
When you set the time for data that does not exist.
•
An external media has to be formatted on this unit to
prevent a malfunction.
•
DVD+RW and DVD-RW discs have to be initialized
before using.
•
You can format the external media with the [Erase]
option.
21
Configuration menu
Using a mouse to set a menu
The features and options of the DVR are configured
through the menu. The operations of this unit can be set
via a menu displayed on the main monitor. You can select
and set the operational conditions by using the buttons on
the front panel and the remote control or using a Mouse
connected to the unit.
Use the left or right mouse buttons to set the menu.
Only administrator-level users have permission to access
the Setup menu and configure the DVR.
Button
Left button
Function
•
Use to select a required
item or decrease the
options value.
•
If you double click the
button, you can see the
selected channel on the
full screen.
•
Use to increase the
options value.
•
Displays the sub-setup
menu in the live screen
mode.
a
b
Right button
c
d
e
1. Click the
icon on the bottom of the on-screen
display with the left mouse button to display a setup
menu.
2. Click the desired option with the left mouse button to
move to the second or third menu level.
3. Click the desired option with the left mouse button.
b
4. Set the selected options value.
5. Click the
icon repeatedly to exit setup menu.
If the save message appears, click
button with
the left mouse button to save the settings.
f
Setting the Menu Using the Front Panel Buttons or Remote Control Buttons
d
Use these buttons to select
the menu options or adjust
the options value.
b
g
Select the option or
confirm the setting.
Return to the previous
menu or level.
1. Press SETUP/ESC to display the setup menu.
d
a Displays the main menu title.
b Returns to the previous menu or exits the setup menu.
c Displays the main menu.
d Displays the help menu.
e Displays the selected submenu title.
f Displays the submenu options.
g Displays the detail options for selected submenu.
22
2. Use w/s to select the desired menu item, then press
ENTER to display the submenu.
3. Use w/s to select the desired submenu item, then
press ENTER to display the setting options.
4. Use w/s to select the desired option then press ENTER
to set the value.
5. Use a/d to select the desired setting then press
ENTER to confirm your selection.
6. Press SETUP/ESC repeatedly to exit the Setup menu.
If the save message appears, select [OK] and press
ENTER to save the settings.
Connections and settings
Notes:
Camera
•
When you operate the function menu by using the
remote control and front panel buttons, both buttons
are operated in the same way to control the function
menu.
The channel name, covert and input audio channel settings
are configured.
•
All the operation explanations are based on using
the remote control.
Camera settings
•
Channel: Selects the desired channel to set the options.
•
Name: Enter the channel name using up to 12
characters.
-- a/d/w/s: Use to move the columns, [OK] or
[Cancel] button. Select a character.
Connections and settings
--
ENTER: Confirms your selection.
--
Select [OK] and press ENTER to save the channel
name.
--
Select [Cancel] and press ENTER to exit the virtual
keyboard menu.
•
Covert: You can set the camera conditions to prevent
operation by other users. If the covert option is set
to ON, “LG logo” is displayed on the live window with
POWER or NORMAL user.
•
Audio: You can connect the audio input with a specified
camera input.
23
PTZ
Recording
Settings for the PTZ cameras connected via the data port of
the RS-485 terminal.
Settings concerning normal recording.
•
Channel: Selects the desired channel to set the
connected PTZ camera.
•
Port: Selects the connected data port of the RS-485
terminal on the rear panel. The D2 (DATA 2) port is
used to control the PTZ camera connected to DVR or to
control by using the LKD1000 controller. If you want to
use the PTZ camera via D2 (DATA 2) port, you should
set the DVR ID to “NONE” on the system setup menu. If
you use the LKD1000 controller to control the DVR via
D2 (DATA 2) port, you should set the DVR ID number
(01 to 16) on the system setup menu.
•
•
•
•
Channel: Selects the desired channel to set the options.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality
(LOWEST, LOW, STANDARD, HIGH or HIGHEST).
•
Frame Rate: Selects the frame rate. The frame rate is
the number of recorded frames per second. According
to resolution, the frame rate is set automatically. If you
wish to set manually, refer to the below.
Resolution
NTSC
Control ID: Selects the PTZ camera ID from 0 to 255.
Make the same settings as the PTZ camera.
Protocol: Selects the protocol supported by PTZ camera.
The supported PTZ camera list is on page 64 for
reference.
Baud Rate: Selects the communication speed. (1 200,
2 400, 4 800, 9 600 or 19 200)
PAL
Frame Rate
352 x 240
1, 3, 5, 7.5, 15, 20, 30
704 x 240
1, 3, 5, 7.5, 15
704 x 480
1, 3, 5, 7.5
352 x 288
1, 3, 5, 6, 12.5, 20, 25
704 x 288
1, 3, 5, 6, 12.5
704 x 576
1, 3, 5, 6
•
Prealarm: Specify the pre-event recording time that
records the situation until the sensor alarm signal has
input or motion has been detected. (OFF, 5, 10, 20, 30,
40, 50 or 60 SEC)
•
Postalarm: Specify the post-event recording time that
records the situation from when the sensor alarm signal
has input or motion has been detected. (10, 20, 30, 40,
50 SEC or 1, 2, 3, 5, 10 MIN)
Note:
The setting values of Prealarm and Postalarm options
are also used as the same ones for Sensor Recording and
Motion Recording function.
24
Connections and settings
Sensor Recording
Motion Recording
Settings concerning sensor recording.
Settings concerning motion recording.
•
Channel: Selects the desired channel to set the options.
•
Channel: Selects the desired channel to set the options.
•
Resolution: Selects the recording resolution.
•
Resolution: Selects the recording resolution.
•
Quality: Selects the recording picture quality
(LOWEST, LOW, STANDARD, HIGH or HIGHEST).
•
Quality: Selects the recording picture quality
(LOWEST, LOW, STANDARD, HIGH or HIGHEST).
•
Frame Rate: Selects the frame rate. The frame rate is
the number of recorded frames per second. According
to resolution, the frame rate is set automatically. If you
wish to set manually, refer to the below.
•
Frame Rate: Selects the frame rate. The frame rate is
the number of recorded frames per second. According
to resolution, the frame rate is set automatically. If you
wish to set manually, refer to the below.
Resolution
NTSC
PAL
Frame Rate
352 x 240
1, 3, 5, 7.5, 15, 20, 30
704 x 240
1, 3, 5, 7.5, 15
704 x 480
1, 3, 5, 7.5
352 x 288
1, 3, 5, 6, 12.5, 20, 25
704 x 288
1, 3, 5, 6, 12.5
704 x 576
1, 3, 5, 6
Connections and settings
Resolution
NTSC
PAL
Frame Rate
352 x 240
1, 3, 5, 7.5, 15, 20, 30
704 x 240
1, 3, 5, 7.5, 15
704 x 480
1, 3, 5, 7.5
352 x 288
1, 3, 5, 6, 12.5, 20, 25
704 x 288
1, 3, 5, 6, 12.5
704 x 576
1, 3, 5, 6
25
Video Format
Selects the video format to NTSC or PAL according to your
video system format.
6. Select [OK] icon and press ENTER to confirm your
settings.
7. Select [Exit] and press ENTER to exit the sub-setup
menu.
Note:
This function is not activated for spot out channel.
Schedule settings
The DVR can record according to a schedule set by the user.
It can also record manually regardless of date and time. The
recording can be made either continuously or triggered by
events (alarm and motion detection).
The recording schedule screen displays the selected day
showing the schedule of all channels over a 24-hour period.
1. Select the video format.
The confirmation message is displayed.
For each 1-hour cell block the recording method can be
specified. The recording method for each block is shown in
color for easy viewing.
2. Select [OK] and press ENTER.
After the HDD has been formatted, the system will
reboot.
Note:
All cameras must be disconnected before you change the
video format to prevent malfunction.
Video Adjustment
Adjust the brightness, contrast and color settings of each
camera channel.
1. Select the desired channel in live screen mode to adjust
the options.
2. Press OSD or click the right mouse button to display the
sub-setup menu.
3. Select [Video Adjustment] option and press ENTER.
Video Adjustment menu is displayed.
4. Selects the desired option and press ENTER.
5. Use a/d to adjust the value.
•
Brightness: Adjust the brightness value from 01 to
100 for the selected channel.
•
Contrast: Adjust the contrast value from 01 to 100
for the selected channel.
•
Color: Adjust the color value from 01 to 100 for the
selected channel.
26
Connections and settings
To Set the Recording Schedule for a Typical
Day of the Week
--
Green+Red (Continuous+Sensor event recording):
Recording starts automatically from the preset time.
When the sensor alarm occurs within a designated
time, change the continuous recording mode to
sensor event recording mode and recording starts
automatically.
--
Green+Blue (Continuous+Motion event recording):
Recording starts automatically from the preset time.
When the motion is detected within a designated
time, change the continuous recording mode to
motion event recording mode and recording starts
automatically.
--
Green+Yellow (Continuous+Sensor+Motion event
recording): Recording starts automatically from
the preset time. When the sensor alarm signal
has input or motion has been detected, change
the continuous recording mode to motion event
recording mode and recording starts automatically.
1. Select a day of the week.
The recording schedule screen is displayed.
5. Select the next time cell block of schedule time cell
blocks to confirm the schedule time and press ENTER.
2. Select the desired channel to schedule recording.
3. Select the time cell block for the start time and press
ENTER.
4. Use a/d or click the left mouse button to select a
recording mode. The color of the cell blocks will change
automatically.
--
Gray: No scheduled recording.
--
Green (Continuous recording): Recording starts
automatically from the preset time.
--
Red (Sensor event recording): Recording starts
automatically when the sensor alarm is occurs
within a designated time.
--
Blue (Motion event recording): Recording starts
automatically when motion is detected within a
designated time.
--
Yellow (Sensor+Motion recording): Recording starts
automatically when the sensor alarm signal has
input or motion has been detected.
Connections and settings
6. Use a/d or click the left mouse button repeatedly to
select gray to set the time for the end of the schedule.
The settings cell block is highlighted.
7. Press SETUP/ESC to move to the previous menu.
If the save message appears, select [OK] and press
ENTER to save the settings.
8. Press SETUP/ESC repeatedly to exit the Setup menu.
To Set a Recording Schedule for a Special Day
In addition to the weekly schedule, up to 10 specific date/
time periods can be defined. To configure the specific
recording schedule select Specific Dates.
1. Select the [Special Day] option.
2. Select the [Add] icon.
The specific date selection menu appears.
27
3. Select a special day title on the list and press ENTER.
The title color turns red.
4. Select the [Edit] icon then press ENTER to edit the
special day or select the [Delete] icon to delete the
special day schedule.
5. Press SETUP/ESC to exit the special day schedule list.
Note:
If the special day recording schedule is duplicated with the
other recordings, only the special day recording is possible.
Copying the Recording Schedule
Copying from the Scheduled Data of the Channel
3. Enter the necessary information for year, month and
date.
You can copy the schedule data of the channel to the other
channel(s) within the selected day of the week.
1. Select the day of the week and press ENTER.
•
a/d/w/s: Press to move the columns.
2. Select channel that you want to copy and press ENTER.
•
a/d (or left/right mouse button): Changes the
value at the current position.
3. Select the [Ch copy] icon then press ENTER.
The channel selection menu appears.
•
ENTER: Confirms your selection.
4. Use a/d/w/s to select [OK] button and press
ENTER.
The virtual keyboard menu appears.
5. Enter the name of the special day. Use a/d/w/s
to select a character then press ENTER to confirm your
selection.
6. Use w/s to select the [OK] button then press ENTER to
fix the date of the special day and return to the special
day recording schedule screen.
4. Use a/d to move to the left or right column then
press ENTER to select the target channel(s).
You can cancel the selected channel by pressing ENTER.
7. Select the schedule time and set the recording method
for each channel.
5. Use w/s to select [OK] then press ENTER to confirm
your selection.
8. Press SETUP/ESC to move to the previous menu.
If the save message appears, select [OK] and press
ENTER to save the settings.
Copying from the Scheduled Data of the Day
9. Press SETUP/ESC repeatedly to exit the Setup menu.
You can copy the scheduled day of the week to another day
of the week, weekday and weekend.
Checking the Special Day Schedule List
1. Select the day of week that you want to copy and press
ENTER.
1. Select the [Special Day] option.
2. Select the [List] icon.
The special day scheduled list appears.
2. Select the [Day copy] icon then press ENTER.
The select date(s) menu appears.
3. Use a/d to select the target date(s).
4. Use w/s to select [OK] then press ENTER to confirm
your selection.
28
Connections and settings
Display settings
Main Monitor
•
Dwell Time: You can set the channel sequence time to
2 SEC, 5 SEC, 10 SEC, 20 SEC, 30 SEC, 40 SEC, 50 SEC, 60
SEC, 70 SEC, 80 SEC or 90 SEC.
Spot Monitor
OSD
•
Language: Select a language for the setup menu and
information display.
•
Channel Name
•
--
ON: Displays the title of the channel.
--
OFF: Displays the live picture without the title of the
channel.
•
Dwell Time: You can set the channel sequence time to
2 SEC, 5 SEC, 10 SEC, 20 SEC, 30 SEC, 40 SEC, 50 SEC, 60
SEC, 70 SEC, 80 SEC or 90 SEC.
•
Event Popup: Displays an event popup on the spot
monitor if motion, sensor or all (motion or sensor)
occur.
•
Spot Channel: Selects the desired spot channel.
-
01 to 04: Views the selected channel’s surveillance
image on the spot monitor.
-
SEQUENCE 1: Views the all channels in sequence.
The covert channel(s) or video loss channel(s) is(are)
not displayed with power and normal user.
-
SEQUENCE 2: Views the all channels in sequence
except the covert channel(s) and video loss
channel(s).
Channel Status
--
ON: The current channel recording status is
displayed.
--
OFF: Remove the current channel recording status.
Connections and settings
29
Event Settings
Motion
•
Channel: Select the channel to set motion detection.
•
Sensitivity: Set the level of sensitivity for the created
motion detection area. Sensitivity can be set from level
01 to 10 or NONE.
•
Relay Output:
--
ON: Outputs the alarm (relay) signal via the ALARMOUT terminal.
--
OFF: Not used.
Notes:
Sensor
•
In the condition that illumination is low and the
outline of object is not clear enough to see, regardless
of sensitivity, Motion Event could be possible not to
happen. You must check Motion Event before setting.
•
Motion area setting
1. Select the desired channel in live screen mode.
2. Press OSD or click the right mouse button to display
the sub-setup menu.
3. Select [Motion] option and press ENTER.
4. Select the desired motion detection area on the
selected channel window screen.
•
Input Channel: Select the number of the ALARM-IN
terminal.
•
Sensor Type: The sensor state can be set to either N.O.
(Normally Open) or N.C. (Normally Closed).
•
Camera: Select the connected camera channel to the
ALARM-IN terminal.
•
Relay Output:
--
ON: Outputs the alarm (relay) signal via the ALARMOUT terminal.
--
OFF: Not used.
30
•
Using the Remote control
-- a/d/w/s: Move the cell box to another
cell zone.
--
•
ENTER: Selects or cancels the motion detection area at the current cell position.
Using the Mouse
--
To select the area: Drag & drop a cell to the
right to select the motion detection area.
--
To cancel area: Drag & drop a cell point of
a selected cell area to the left to cancel the
motion detection area.
Connections and settings
5. Click the right mouse button to exit the settings.
6. Select [Exit] and press ENTER to exit the sub-setup
menu.
Network Settings
Output
•
•
Relay Off
--
ALARM ACK.: Use the ALM.OFF button to stop
alarm.
--
POST-ALARM TIME: The alarm is stopped after postalarm time.
System Alarm Out:
--
ON: Outputs the alarm (relay) signal via the
ALARM-OUT terminal below cases.
>> When the HDD has bad sector.
>> When a video signal from the camera has
stopped because of a cable disconnection or
malfunction of a camera.
--
TCP/IP
OFF: Not used.
•
Connections and settings
DHCP: DHCP stands for Dynamic Host Configuration
Protocol.
--
ON: Network settings of this unit are configured
automatically by the DHCP server. You can use the
DDNS function instead of the dynamic IP address.
(For more details refer to the DDNS settings.)
If you set to ON, the [IP Address], [Subnet Mask],
[Gateway], [Primary DNS] and [Secondary DNS]
options are not set.
--
OFF: Enter the network settings manually.
31
•
IP Address: Enter an IP address using the virtual
keyboard.
•
Subnet Mask: Enter a subnet mask address using the
virtual keyboard.
•
Gateway: Enter the gateway address using the virtual
keyboard.
•
Primary DNS: Enter the Main DNS server address using
the virtual keyboard.
•
Secondary DNS: Enter the Sub DNS server address using
the virtual keyboard.
•
TCP/IP Port: Enter the TCP/IP Port number using the
virtual keyboard. You can watch the live surveillance
image over the network with the PC Client program.
The factory default port for transmission of video and
audio data is 9001. However in some cases it is better
to change this port number for added flexibility or
security. If desired change the port number (1025 to
65 535).
•
•
whenever you connect, which makes it difficult to
connect to you.
--
OFF: The DDNS function is not used.
•
Host Name: Using the virtual keyboard, enter the host
name you want to use.
•
Registered Host: The registered host name appears.
•
Update: Register the host name you typed in [Host
Name] to LG DDNS server.
Note:
Check the network settings before using this function. You
might have to properly configure your network settings to
use this function.
How to register DDNS host name
With the DDNS function, you can easily use LG DVR.
Web Server Port: Enter the Web server Port number
using the virtual keyboard. You can watch the live
surveillance image over the network with a web
browser. Typically the TCP port used by HTTP is 80.
However in some cases it is better to change this port
number for added flexibility or security. If desired
change the port number (80 or 1025 to 65 535).
When you use the DDNS function for the first time after
you purchased LG DVR
Bandwidth Throttle: Select the Bandwidth to adjust the
data traffic.
5. Select the [Update] icon and press ENTER.
If host registration is properly completed, the host
name will be displayed in [Registered Host] option.
Note:
1. Displays the DVR setup menu.
2. Select [Network] > [DDNS] option.
3. Set the [DDNS Service] to [ON].
4. Enter the host name in [Host Name] option.
When you change the TCP/IP port or web sever port
number, all connections with the PC Client programs or
web browser will be disconnected.
DDNS (Dynamic Domain Name System)
Note:
If the host name is not registered after updating, please
check network connection.
•
DDNS Service:
--
32
ON: Select to enable DDNS function.
This free service is very useful when combined
with the LG DDNS Server. It allows Internet users to
connect the LG DDNS Server using a Host Name,
rather than an IP Address. This also solves the
problem of having a dynamic IP address. With a
dynamic IP address, your IP address may change
Connections and settings
When you want to change DDNS host name
Notification
If you want to change the registered host name to new one,
follow as shown below.
1. Enter a new host name in [Host Name] option.
2. Select the [Update] icon and press ENTER.
The confirmation window will be displayed to change
your host name.
•
•
3. Select the [OK] and press ENTER.
When host name is properly changed, the changed host
name will be displayed in [Registered Host].
•
Sensor On:
--
ON: Sends an e-mail when a sensor has occurred.
--
OFF: Not used.
Motion Detection:
--
ON: Sends an e-mail when a motion detection has
occurred.
--
OFF: Not used.
Disk Full:
Note:
--
If host name is not changed after updating, please check
network connection.
ON: Sends an e-mail when the HDD has fully
recorded.
--
OFF: Not used.
•
•
•
Connections and settings
Admin PWD. Changed:
--
ON: Sends an e-mail when the administrator
password has changed.
--
OFF: Not used.
Video Loss:
--
ON: Sends an e-mail when a video signal from
the camera has stopped because of a cable
disconnection or malfunction of a camera.
--
OFF: Not used.
Power On/Off:
--
ON: Sends an e-mail when power is on.
--
OFF: Not used.
33
Mail
•
•
•
Emergency
Notification
--
ON: Notifies the user of unit operating information
by e-mail according to notification settings.
--
OFF: The notification function is not used.
The mail options are not set.
SMTP Server: Enter the SMTP Server address using the
virtual keyboard.
If notification is set to ON and the SMTP server option
is empty, the SMTP Port, User Name, Password and TLS
options are not set.
SMTP Port: Enter the SMTP Port Number using the
virtual keyboard. Typically the port used for SMTP is
25. However in some cases it is better to change this
port number for added flexibility or security. If desired
change the port number (1 to 65 535).
•
User Name: Enter the user name using the virtual
keyboard.
•
Password: Enter the password using the virtual
keyboard.
•
TLS: Set to ON when using the TLS (Transport Layer
Security) function. By default, TLS is OFF.
•
Mail Address (1 to 3): Enter the mail address using the
virtual keyboard.
You can input up to 3 e-mail addresses.
•
E-mail Test: Select [E-mail Test] to test send an e-mail.
•
Notification
--
ON: Notifies the emergency agent about unit
operating information according to your notification
settings.
--
OFF: Notification function is not used.
If you set to OFF, the Emergency ID, IP Address and
Port options are not set.
•
Emergency ID: Select the emergency ID of the
emergency agent program.
•
IP Address: Enter the IP address of the emergency agent
program using the virtual keyboard.
•
Port: Enter the port number of the emergency agent
program using the virtual keyboard. The factory default
port for this function is 9002. However in some cases
it is better to change this port number for added
flexibility or security. If desired change the port number
(1025 to 65 535). You can set up to 9 IP/port numbers.
SNMP
Note:
The SMTP server, SMTP port no., user name or password
settings are optional. The DVR can send e-mail directly
without the use of an SMTP server or MTA (message transfer
agent). In certain cases all e-mail should be forwarded to
a specific SMTP server. Specify the server host name or IP
address in such a case. For more detail on SMTP setup, ask
your network administrator and/or mail service provider.
34
•
Port: Enter the SNMP Port Number. Typically the port
used for SNMP is 161. However in some cases it is better
to change this port number for added flexibility or
security. If desired change the port number from 1 to
65 535.
•
Community String: Enter the Community name.
Connections and settings
System Settings
•
Daylight Saving End: Select the Daylight Saving end
time.
Caution:
If you change the time setup, warning message will be
displayed. For example, if you delay the time by 10 minutes,
the overlapped 10minutes data can be deleted.
NTP
•
NTP: Set to ON when using the NTP (Network Time
Protocol) server for time adjustment. If the NTP is set to
OFF, the time settings should be entered manually and
the [Server], [Private Time Server], [Sync. Interval] and
[NTP Test] options are not set.
•
Server: Select your time server. For most cases select
public. The DVR will obtain the average time among 5
public servers (time.nist.gov, time-a.nist.gov, time-b.nist.
gov, ntp.nasa.gov, clock.isc.org).
•
Private Time Server: Enter the private time server's IP
address or host name using the virtual keyboard.
•
Sync. Interval: You can set synchronized intervals with
the NTP time server to 1 day, 1 hour, 1 month and 1
week.
•
NTP Test: Select [NTP Test] to test the NTP server.
Date/Time
Note:
If the NTP option is not set to this system, there can be a
gap between the system time and actual time. Using NTP is
recommended.
•
Date: Enter the current date.
•
Time: Enter the current time. (24 HR or 12 HR)
•
Date Format: Select the date display format.
•
Time Format: Select the time display format.
•
Time Zone: Select your Time Zone.
(For more details refer to Time Zone table on page 65)
•
Daylight Saving: Set to ON to you use the daylight
saving function.
•
Daylight Saving Start: Select the Daylight Saving start
time.
Connections and settings
35
Buzzer
User
You can register a new user with various access rights to the
DVR or client program.
•
•
•
•
Button
--
ON: Makes a sound when using the buttons.
--
OFF: Turns off the button beep.
Sensor
--
ON: Makes a sound when a sensor occurs.
--
OFF: Turns off the sensor buzzer.
Motion
--
ON: Makes a sound when a motion is detected.
--
OFF: Turns off the motion buzzer.
•
Number: Select the number to add new user ID or
change the user ID, user level or password.
•
ID: Enter the new user ID using the virtual keyboard.
•
Level: Select the level of the new user.
•
Password: Enter or change the password for the user
using the virtual keyboard. You can use the password
with number, special character or characters. (Minimum
4 length, Maximum 8 length)
System
Note:
--
ON: Makes a sound when the HDD has a bad sector.
--
OFF: Turns off the system buzzer.
Remember the password. If you forget the password please
contact an authorized service center or the store where you
purchased the system.
Note:
The sensor and motion buzzer have low sound on this unit.
If you want to make a loud sound, connect an external
alarming device to the ALARM-OUT terminals (ex. Siren).
36
Connections and settings
Update
Hard Disk
The update feature allows you to upgrade DVR software
and add/upgrade PTZ protocols. In this case, the current
DVR settings are not deleted or replaced during the update
process.
•
Format: Initializes the HDD (Hard Disk Drive). All data on
the selected HDD will be erased.
How to format the HDD
1. Select the [Event Partition] option and set the event
partition rate of the HDD. If you set the event partition to 60 %, the remaining space of 40 % is set to
normal partition automatically.
1. Select one of the following:
•
Select SYSTEM S/W to upgrade DVR system
software.
•
Select PTZ PROTOCOL to update the DVR protocols.
2. Choose the media from which to perform the update:
--
Event Partition: To save space of the HDD for
motion and sensor recording data.
--
Normal Partition: To save space of the HDD for
instant or normal recording data.
•
USB: Select USB, and then insert the USB drive into
the DVR. All USB devices must be disconnected
before you can use the USB drive.
2. Select the [Format] icon and press ENTER.
•
NETWORK: Select NETWORK, and then do following:
3. Select [OK] and press ENTER to start format.
1) Select the update server settings box. The
virtual keyboard is displayed.
•
2) Enter the update server IP address. The DVR
network settings must be configured and you
must know the update server’s IP address.
3. Select [Update] and press ENTER to start the update
process.
4. Select [OK] and press ENTER to begin the update
process or select [Cancel] to stop and exit. After the
update process is completed, the system displays the
dialogue box for system restarting.
5. Select [OK] and press ENTER to restart the DVR.
Note:
You should install one of the formatted HDD for update.
If you do not install the HDD, the update will not work
properly.
Overwrite:
--
ALL: Overwrite recording is possible when the
normal partition and event partition of HDD have
fully recorded.
--
NORMAL PARTITION: Overwrite recording is possible
for normal partition of HDD when the normal
partition of HDD has fully recorded.
--
EVENT PARTITION: Overwrite recording is possible
for event partition of HDD when the event partition
of HDD has fully recorded.
--
OFF: Do not use overwriting.
•
Full Warning: When the HDD has overflowed a warning
message is displayed.
•
Event Partition: Set the space of event partition for
event recording.
Note
The motion and sensor recording data are saved in the
event partition area of the HDD. You should set the
space of event partition before event recording.
•
Connections and settings
Auto Delete: Set the auto delete date (OFF, 1 DAY, 2
DAYS, 5 DAYS, 10 DAYS, 20 DAYS, 30 DAYS, 40 DAYS, 50
DAYS or 60 DAYS). If you set the auto delete date, the
recorded data will be deleted except the data within
the selected date period of time. The Auto Delete
function is activated every 35 minutes.
37
Note:
If you change the value of event partition, the current
recorded data of HDD is deleted and the partition is
reset. The partitions will be formatted automatically and
the system will be restarted.
Backup
•
You cannot use the [Estimate], [Start] and [Erase]
options in backup progressing.
•
Do not remove the USB device while the backup is in
progress, it may cause a malfunction. If you reuse the
removed device, you must format the media by using
erase media options.
•
If you format the external media by using a PC, the
media may not be used on this unit.
•
You can playback the backup data using this DVR only.
The backup data does not play back on the PC.
Instant Backup
1. Connect the backup USB device or insert a recordable
disk to the disc driver for backup.
2. Select the partition you want to backup.
3. Select [INSTANT] from the schedule options.
4. Select the backup device.
5. Set the [Time Range Date], [Time Range Start] , and
[Time Range End] option for backup.
6. Select the [Estimate] icon and press ENTER.
•
Partition Selection: Select a backup partition.
7. Check the size of the selected data and free space. If
the device has not enough space, create space on the
device or erase the previously stored data.
•
Schedule: You can set the backup schedule.
8. Select the [Start] icon and press ENTER to start backup.
--
OFF: If the schedule is set to OFF, the Schedule Start,
Time Range Date, Time Range Start and Time Range
End options are disabled.
9. Exit the setup menu.
You can check the backup status on the system
information window.
--
INSTANT: The backup data is saved manually.
--
WEEKLY or DAILY: The backup data will be
automatically saved according to the setting.
•
Device: Select a backup device.
•
Schedule Start: Set the schedule start date (A day of the
week and time).
•
Time Range Date: Enter the date you want to backup.
•
Time Range Start: Enter the start day of the week or
time.
•
Time Range End: Enter the end day of the week or time.
•
Start: To start backup.
•
Erase: To erase the media.
•
Estimate: Displays the size of backup data and the free
space of external USB devices.
Notes:
•
The LE2104D model does not support the backup
function using the external USB CD-ROM driver.
Notes:
•
The external USB HDD is supported with maximum
250 GB.
•
You cannot stop the backup in backup progress.
•
•
Use the recommended external USB devices for
preventing malfunction (See page 63-64).
The warning message will appear for the conditions
listed below.
•
The CD-R, DVD-R or DVD+R discs cannot be formatted.
•
An external media has to be formatted on this unit to
prevent malfunction.
•
DVD+RW and DVD-RW discs have to be initialized
before using.
38
•
--
When the start time and end time are the same
value.
--
When the start time is later than the end time.
--
A media has not enough space.
--
When you set the time for data that does not exist.
The disc burning is carried out by a single session
closed format.
Connections and settings
•
If you use the CD/DVD writer device for backup, the
backup status will be displayed as shown below.
System
- 1st. Status of making ISO image
- 2nd. Status of writing
Daily/Weekly backup
1. Connect the USB device for backup.
You cannot use the CD or DVD writer for daily or weekly
backup.
2. Select [WEEKLY] or [DAILY] on the schedule options.
3. Select the backup device.
4. Enter the date and/or time to start backup on the
schedule start option.
5. Enter the day of week and/or time on the Time Range
Start option.
•
IR Remote ID: Select the IR Remote ID for this unit (01
to 09). If you use multi systems set the IR Remote ID for
each DVR unit.
•
DVR ID: Select the DVR ID for this unit (NONE, 01 to 16).
If you use multi systems set the DVR ID for each DVR
unit. You can control the DVR by using the LKD1000
controller. (For more details refer to the LKD1000
owner's manual.)
•
Auto User Logout: Logout is automatically at fixed
intervals. You can set auto logout time to 5 MIN, 10 MIN,
30 MIN, 60 MIN or OFF.
•
Default: You can reset the DVR to its original factory
settings. Some options cannot be reset (date, time,
daylight saving, time zone and user password settings).
6. Enter the day of week and/or time on the Time Range
End option.
7. Select [Estimate] icon and press ENTER.
8. Check the size of selected data and free space of USB
device. If the USB device has not enough space, change
the USB device of enough space or erase the connected
USB device.
Notes:
•
You cannot stop the backup in backup progress.
•
The warning message will appear for the conditions
listed below.
•
Export: Export the configuration data from this DVR to
the USB memory stick.
--
When the start time and end time setting are
wrong.
•
Import: Import the DVRs configuration data from the
USB memory stick.
--
A media does not have enough space.
Notes:
--
When you set the time for data that does not exist.
•
--
When the selected USB device is disconnected.
Configuration data import is available when the
configuration data of a DVR is the same kind as this
unit’s data.
•
If you use a USB memory stick for configuration export,
you must disconnect the other external USB devices.
•
The estimated size of backup data is only the
approximate size. So you must prepare sufficient space
on the media to prevent lack of space.
•
When the backup process starts, you can check the
backup status on the system information window.
•
While export is in progress or searching the backup
data from the external USB device, the scheduled
backup will not be started.
After the export or backup search is finished, scheduled
backup will be restarted.
•
When you set the schedule backup, the backup data
size is estimated from the recording settings of the
Setup menu. If the real recorded data size are over the
estimated recording data size, the schedule backup may
not be activated.
Connections and settings
39
Recording
Images from a camera will be recorded on the built-in hard
disk.
Note:
External recording devices can be used as copy areas for
images recorded on the hard disk. It is impossible to record
images on the external recording devices directly.
Instant recording
Ensure all the cameras are connected and that time and
date have been set correctly. Before you start recording,
first check the repeat recording settings in the recording
menu of the system setup, and then make the recording
settings.
1. Press the REC button and then press the channel button
you want to record. The recording type indicator turns
green “I” on the selected channel screen of the main
monitor.
Notes:
•
You can instant record that the channels scheduled
such as alarm, motion or continuous.
•
Once you stop instant recording, the recording type
indicator will be changed to the scheduled recording
mode.
•
You can not record the Instant and Continuous
recording in following conditions.
•
•
2. Press the REC button and then press the channel
button you want to stop recording. If you stop instant
recording, the recording mode will be changed into the
scheduled recording mode (Continuous/ Alarm/ Motion
records). If the schedule is not set, the button indicator
turns off and the recording type indicator turns white
“N” on the selected channel screen of the main monitor.
40
--
A HDD is not attached.
--
A HDD is not formatted.
--
The channel has no video input for display.
--
Overwrite sets to "OFF" or "EVENT PARTITION", and
normal partition is full.
--
On the HDD setting, the event partition is set to
100 %.
You can not record the Sensor and Motion recording in
following conditions.
--
A HDD is not attached.
--
A HDD is not formatted.
--
The channel has no video input for display.
--
Overwrite sets to "OFF" or "NORMAL PARTITION",
and event partition is full.
--
On the HDD setting, the event partition is set to
0 %.
--
The schedule (Sensor/Motion) record is not set.
HDD partition according to a recording type.
--
Normal Partition: It is the space in the HDD that
stores the continuous and instant recorded data.
Once the normal partition is set to 0 % (the
event partition is 100 %), you can not record the
continuous or instant recordings.
--
Event Partition: It is the space in the HDD that stores
the alarm and motion recorded data. Once the
event partition is set to 0 %, you can not record the
alarm and motion recording.
•
Priority of record.
Instant record > Sensor record > Motion record >
Continuous record.
•
You can not do instant recording with the mouse.
Recording
Search and Playback
Playback
It is possible to play a recorded image without stopping
recording.
1. Select a channel you want to playback.
2. Press ad to play a recorded image of the previous 1 or
2 minutes of recording.
The playback image will be displayed on the full screen
window.
3. Press Z (STOP) to stop the playback.
Search
The various search functions of this unit can be used to
go to the beginning of the desired picture. This unit is
equipped with 3 search functions.
When the SEARCH button is pressed the search menu is
displayed.
2. Select [Target Device] then press ENTER.
3. Use a/d to select the desired source device.
•
INTERNAL HDD: Plays back or searches recorded
contents of the internal HDD device.
•
Source Device: Plays back or searches backup
contents of the source device.
4. Press ENTER to confirm it.
5. Select year or month option then press ENTER.
6. Use a/d to input the year or month.
7. Press ENTER to confirm it.
8. Use a/d/w/s to select the day then press ENTER.
Date/Time Search
9. Select the [Search] icon then press ENTER.
The search result is displayed.
Use to search recorded pictures by specifying date and
time.
1. Use w/s to select the [Date/Time Search] option then
press ENTER.
Search and Playback
41
10. Use w/s to select the channel you want to playback
and press ENTER. Repeat this step to select the other
channels.
11. Select the [Time] option and select the start time of the
recorded image to playback.
Event Search
Search a recorded picture by date and type of event.
1. Use w/s to select the [Event Search] option then press
ENTER. The event search menu is displayed.
12. Press ad (PLAY) or click the [Play] icon to start
playback.
The picture(s) is (are) displayed in the main monitor.
13. Press STOP (Z) to stop playback and return to the
previous menu.
14. Press SETUP/ESC repeatedly to exit the search menu.
Notes:
•
•
Recorded data shown on the time graph will be
displayed in different colors depending on the
recording type.
--
Green: Continuous recording.
--
Red: Sensor recording.
--
Blue: Motion-detection recording.
--
No color: No recording.
Select [Zoom In] option and press ENTER to view the
detailed time by 6 hour intervals. Select the [Zoom Out]
option to return to the normal time.
2. Select [Target Device] then press ENTER.
3. Use a/d to select the desired source device.
4. Press ENTER to confirm it.
5. Select [Date] option then press ENTER.
6. Set the year, month or day.
6-1. Use a/d to select a column and press ENTER.
6-2. Use a/d to select the year, month or day.
6-3. Press ENTER to confirm it.
6-4. Select [OK] and press ENTER to confirm the
settings and exit the date setup menu.
7. Select [Time] option then press ENTER.
8. Set the time.
8-1. Use a/d to select a column and press ENTER.
8-2. Use a/d to select the hours or minutes.
8-3. Press ENTER to confirm it.
8-4. Select [OK] and press ENTER to confirm the
settings and exit the time setup menu.
9. Select the channel for event search using ENTER. If you
select [A], all channels are selected.
10. Use w/s to select the [Event Type] then press ENTER.
11. Use a/d to select the event type then press ENTER.
12. Select the [Search] icon then press ENTER.
The event list menu appears.
13. Select the recording data on the event list then press
ad (PLAY) or select the [Play] icon then press ENTER to
start playback.
The picture is displayed in the main monitor.
14. Press STOP (Z) to stop playback and return to the event
list menu.
15. Press SETUP/ESC repeatedly to exit the search menu.
42
Search and Playback
Bookmark Search
Functions available during playback
Search the desired picture with a bookmark registered by
the bookmark function.
System
Control
Bar
1. Use w/s to select [Bookmark Search] then press
ENTER.
The bookmark list menu is displayed.
Button
Remote
Control
Front
panel
Function
Stop playback.
Pause playback.
Press repeatedly to select
the required scan speed.
(v, vd, vv,
vvd or c, ca,
cc, cca)
Press repeatedly to play
frame-by-frame in pause
mode.
Press to play reverse or
normal playback.
2. Select the recording data on the list then press ad
(PLAY) or select the [Play] icon then press ENTER to start
playback. The picture is displayed in the main monitor.
Note:
-
If you delete the bookmark on the list, select the
[Delete] icon then press ENTER.
3. Press STOP (Z) to stop playback and return to the
bookmark list menu.
4. Press SETUP/ESC repeatedly to exit the search menu.
Notes:
Press MARK at a desired
point to be marked during
playback. Up to 15 points
can be marked.
Notes:
•
You can playback the backup or export data in normal
speed only.
•
Backup data can not be played back by a bookmark
search.
•
•
You can register a bookmark in the multi channel
playback.
If you use the reverse frame skip function, a frame may
be skipped.
•
•
If the storage spaces for bookmark is in full, you can not
register a bookmark. You can register a bookmark after
deleting the previously stored bookmark on the list.
Multi channel play works only in the date/time search
function.
•
During the multiple channel palyback, just one specific
channel cannot be played on a full screen.
Search and Playback
43
LG Network Client
Program
Introduction
The LG Network Client program is an IP-Surveillance
software that works with the LG DVR to provide video
monitoring, recording setting and event management
functions. The software has multiple search functions for
recorded events. Remote viewing and playback are also
possible with the use of the LG Network Client.
This manual contains instructions on how to use and
manage the LG Network Client in your networking
environment. Some knowledge of networking
environments would be beneficial to the reader.
Should you require any technical assistance, please contact
authorized service center.
Recommended PC Requirements
The LG Network Client program must be installed below
operating systems for best performance and stability.
Items
Operating System
CPU
Web Browser
Memory
Graphics Card
Resolution
Network
Requirements
Windows XP Professional Service
Pack 2 or above
Intel Pentium IV or above
Microsoft Internet Explorer 6.0 or
above
1 GB or above RAM
128 MB or above Video RAM (Use
latest graphics card driver.)
1024 x 768 (with 32 bit color) or
above
Getting Started
Install the LG Network Client on your PC
You can install the LG Network Client software following
steps.
1. Insert the Client Program CD which will be started
automatically. If the disc does not run automatically on
your PC, open the Client Program CD and install the
program manually.
2. Run the install file and install the programs to your
computer following the on-screen instructions. The [LG
Emergency Agent] and [LG Export viewer] programs
will be installed with the LG Network Client program
installation.
3. After finishing installation, you will find the programs in
the Start menu or on the desktop.
Starting the LG Network Client
1. Run the LG Network Client program. To launch LG
Network Client, select LG Network Client from your
Start > Programs > LG Electronics > LG Network Client
> LG Network Client or click the LG Network Client
icon on your desktop.
The client password input window is displayed.
2. Enter the password. (Note that the default client
password are “000000”.)
3. Click the [OK] button and then the LG Network Client
window is displayed.
Note:
If you mark up the [Auto Connection] option, the LG
Network Client program is connected automatically at the
next time.
LG Network Client Overview
Selected Menu Tab
Menu Bar
Live window
Tool Bar
100 Megabit Network (Gigabit
Network recommended for larger
systems)
Before install the program
•
The description pictures may differ from your OS
(Operating System) or Web Browser type.
•
The pictures used in this manual are based on Windows
XP Professional.
•
Do not use other applications with this program. This
can cause memory shortage and program malfunction.
•
Check that the LG DVR is(are) connected to the network
and that power is supplied.
Playback control Window
Information Display Window
44
Client program
Menu Bar
Menu
File
View
OSD
•
Channel Number: Displays
or removes the channel
number in the channel
window.
•
Site Name: Displays or
removes the site name in
the channel window.
•
Camera Name: Displays or
removes the camera name
in the channel window.
•
Playback Time: Displays
or removes the date/time
of playback data in the
channel window.
•
PTZ: Displays PTZ camera
icon in the channel
window.
•
Audio: Displays audio icon
in the channel window.
•
Select All: Displays all OSD
options in the channel
window.
Description
Sub-Menu
Client Password You can change the password
of the Network Client
program.
1. Select this option. The
Client Password Setup
window is displayed.
2. Enter the password.
3. Click [OK] to confirm your
settings.
Save to JPEG
You can capture and save the
current image in JPEG file
format.
1. Play the recorded data.
2. Pause the playback at
a desired point during
playback.
3. Select this option. The
JPEG Export window is
displayed.
Sequence
(Dwell Time)
4. Set the options.
Backup Search
End Backup
Search
Software
Update
5. Click the [Save] button.
This menu is not used.
Sequence
Mode
This menu is not used.
Select the sequence to 5
seconds, 10 seconds, 15
seconds or 20 seconds.
•
Channel Sequence: Each
channel of the selected
site in the sequence
mode will be displayed in
sequence.
•
Site Sequence: Each
channel of the logged site
in the sequence mode will
be displayed in sequence.
Use to upgrade DVR software
or add/upgrade PTZ protocols.
1. Log-in the Network
Client Program as the
Administrator authority.
2. Click this option. The
Update setting window is
displayed.
Language
Select the language for LG
Network Client program.
3. Select the update device
from the list.
Resolution
Select the resolution of the LG
Network Client program.
Connection
Information
Displays the Connection List
windows. Add, Edit or Delete
the site name or group name
in LG Network Client.
•
Select All: If you click
this button, the all
devices in the list are
selected.
•
Clear All: If you click
this button, the all
selected devices in the
list are deselected.
Tools
Help
E-Map
This menu is not used.
Client
Information
Displays Network Client
Version Information.
4. Find and open the update
file.
5. Click the [Update] button
to begin the update
process. The DVR will be
restarted after updating.
Exit
Client program
6. Click the [Exit] button.
Exit the program.
45
Information Display Window
Tool Bar
Icon
Description
Displays the live view workspace.
Live
Search
•
Camera View: You can see the
surveillance camera’s images
in the window(s) and the
camera information.
•
Pan/Tilt/Zoom: You can
control the PTZ camera.
•
Log View: You can see the
system log list.
•
Favorites: You can save the
current configuration of
the camera view. And, it
is possible to return to a
previous configuration of the
camera view.
Displays current date and time, user ID and the remaining
HDD status.
Note:
The DVR Time option is not activated for LE2104 Series
models.
Playback control Window
You can playback the recorded data of the selected
channel.
Displays the search workspace.
You can search and play the
recorded data using the search
functions.
You can set the configuration of
the selected site via the network.
Setup
Displays the Export pop-up
windows.
Export
Print
Full Screen
When you click the PAUSE button
to pause the playing the recorded
data of the selected channel, the
Print Icon is activated. You can
print the paused picture of the
recorded data of the selected
channel.
You can view the live window
in full screen mode. To return to
the normal screen, click the right
mouse button.
When the icon is clicked, the
screen will be changed to split
mode and if the icon is clicked
again, the screen will be changed
by sequence (except 36 split
mode). Choose the screen
division mode.
Division
Sequence
46
View all the channels in
sequence. You cannot use
sequence mode with the 36 split.
Client program
Operation and settings
Using the Dynamic
IP Address
Register the Site Name or Group Name
The first time LG Network Client is started, you should
register a site name to control it by the LG Network
Client program. The computer running LG Network Client
program must be on the same network with DVR.
1. Select [Tools] > [Connection Information] option on the
menu bar. The Connection List window is displayed.
2. After completing the settings, click the [OK] button
to confirm the settings and exit the window. The
registered site or group name is(are) displayed on the
[Camera View] tab window.
1. Press INFO to display the
System Information window.
2. Check the “Network IP” options
value.
Using the DDNS
function
Check the registered Host Name of
the DDNS setup menu.
The DVR is
connected to the
network through
the Broadband
Router
You must set the port forwarding
according to the settings of the
broadband router. Refer to the
manual of Broadband router for
more detailed settings. If you use
the multi DVR with Broadband
router, you must set the TCP/IP
port number for each DVR.
Create a new group name
1. Click the [Add Group] button. The Add Group window is
displayed.
2. Enter the group name.
3. Click the [OK] button to confirm it.
The registered group name is displayed on the
Connection List.
Edit a group name
1. Select the required group name on the Connection List.
2. Click the [Edit] button. The Edit Group window is
displayed.
3. Overwrite the existing group name with a new name
that you want.
4. Click the [OK] button to confirm it.
Delete a group folder
1. Select the required group name on the Connection List.
2. Click the [Delete] button. The selected group name is
deleted.
Deleting a group name will delete all site names within
the group name as well.
Add the Site Name
1. Click the [Add] button. The Connection Setup window is
displayed.
2. Select the group name from the drop-down list.
3. Enter the description of the site name.
4. Enter the IP Address or the Host Name that you entered
in the DDNS setup menu of the DVR.
In case of entering the server name instead of the IP
Address. You should set up the DDNS configuration
properly in the server. Please refer to the server manual
to set up the DDNS function.
Case
Using the Static IP
Address
How to find the IP Address
Check the IP Address in the TCP/IP
option of the DVR setup menu.
You have to activate the DHCP
function.
5. Enter the TCP/IP port number of the DVR. If it isn’t
entered, the port number is set by default.
6. Enter the User ID and Password. If you set the User
ID and Password, you can use the Auto connection
function.
7. Click the [OK] button. The registered site name is
displayed on the Connection List.
Edit the Site Name
1. Select the required site name on the Connection List.
2. Click the [Edit] button. The Connection Setup window is
displayed.
3. Specify the Group Name, IP Address, Port, User ID,
Password and click the [OK] button to confirm the
settings. You cannot edit the site name option.
Delete the Site Name
1. Select the required site name on the Connection List.
2. Click the [Delete] button. The selected site name is
deleted.
Connect to the DVR
1. Select the registered site name to connect it.
2. Click the right mouse button on the site name. Select
the [Connect] option. The site name is connected
automatically and the site name is activated. If the
site name has no information of the User ID and/or
Password, the remote login window is displayed. In that
case, enter the User ID and the password.
About the pop-up menu
•
User Log-In: Select to connect the DVR manually.
•
User Log-Out: Select to disconnect the site name.
•
Connect: Select to connect to the DVR
automatically. You should set the User ID and
Password option of the connection information
setting menu for using this function.
•
Disconnect: Select to disconnect to the site name.
3. Repeat step 1 to 2 to connect the other site name.
Client program
47
Notes:
window position. If you select [Cameras] and drag and
drop to a live window then all channels are displayed.
•
If someone logged in the DVR using the Admin ID, you
can not log-in using the Admin ID.
•
If you want to log-out, right click the mouse on the site
name and select [User Log-Out].
7. Repeat steps 3 to 5 to set the other live windows.
•
Up to 5 users can connect to the DVR system using the
client program as shown below.
•
Configuration of camera view is set the first time only.
This configuration setup is memorized for the next time
and displayed as it is.
•
About the camera view menu tree.
User
Case 1
Case 2
Case 3
Case 4
Case 5
User 1
Admin
Power
Normal
Admin
Power
User2
Power
Power
Normal
Normal
Normal
User3
Normal
Normal
Normal
Normal
Normal
User4
Normal
Normal
Normal
Normal
Normal
User5
Normal
Normal
Normal
Normal
Normal
Connect the group device
1. Select the registered group name to connect it.
2. Click the right mouse button on the group name. Select
the [Connect] option. Each site name is connected
automatically and the site name is activated in the
group name.
6. Live image is displayed in the selected window.
Note:
Displays the registered site name or
group name.
Displays the camera information.
Displays the
camera channel
name.
Displays the
Resolution.
3. Repeat step 1 to 2 to connect the other group name.
Displays the
Recording Frame
Rate.
Disconnect the site name or group name
Displays the
Quality.
1. Select the required site name or group name.
2. Click the right mouse button on the site name or group
name. Select the [Disconnect] option. The site name is
disconnected and deactivated.
3. Repeat step 1 to 2 for disconnection.
Using the Live function
Camera View Tab
Displays the
Recording mode.
Displays the relay
output condition.
Displays the Audio
information.
Displays the Sensor In information.
Displays the ON/
OFF condition of
the connected
sensor.
Displays the relay
output condition
for the selected
sensor input.
Displays the
camera condition
for the selected
sensor input.
Displays the Relay output
information.
1. Select the [Camera View] tab in the live mode.
2. Select the activated site name and double click the left
mouse button or click the plus mark of the registered
site name.
3. Select [Cameras] and double click the left mouse button
or click the plus mark.
4. Select the channel number you want to view.
5. Click the channel number and drag and drop to live
48
Client program
Instant playback
Confirm the preset position.
It is possible to play a recorded image without stopping
recording.
1. Select the [Camera View] tab in the live mode.
2. Select a channel you want to playback.
3. Select the date.
The day is displayed in a blue text when recorded data
exists.
4. Select playback start time.
When using timeline to search a start time, use the
zoom in/out icons for more detailed searches (4 step).
5. Select playback speed. Use the slider to select the
playback speed.
To adjust the camera zoom.
To manually adjust the focus
of a camera.
To manually adjust the iris of
a camera.
Displays the Selected Preset
number.
To input the preset number.
6. Start playback using these control buttons.
To register preset positions.
Click this button to jump to the beginning of
the data.
Click this button repeatedly to play frame-byframe playback in reverse.
Click this button to play reverse or normal
playback.
To move the camera to the
preset position.
To delete a memorized preset
position.
To start a preset tour.
Click this button to pause playback.
Click this button to stop playback.
Click this button repeatedly to play frame-byframe playback.
Click this button to jump to the last 1 minute
of the data.
This button is not used.
Preset Settings
Preset position is the function to register camera
monitoring positions (preset positions) associated with
position numbers.
By entering the position numbers, you can move cameras
to the preset positions.
Note:
This button is not used.
Note:
You can not use the playback function when you log in
with the Normal User ID.
Pan/Tilt/Zoom Tab
To activate this function, you need to register the preset
positions of the PTZ cameras.
To Register Preset Positions
1. Move the camera to a point you wish.
2. Click the [SET] icon.
3. Select the preset number you wish to register.
You can control the PTZ cameras via the network.
1. Select the PTZ camera channel window in the camera
view mode.
2. Select the Pan/Tilt/Zoom tab.
3. Use virtual remote control buttons to control the PTZ
camera.
Note:
• If someone is controlling a PTZ camera using the DVR,
you cannot use the PTZ function and vice versa.
• This function is permitted for Administrator group and
other group users who have the PTZ authority.
Button
To display the setup menu of
the PTZ camera.
Function
4. Click the
icon.
The position and its number are memorized.
5. Repeat steps 1 to 4 to add additional positions.
Note:
Preset numbers from 0 to 255 are available on this unit but
the actual preset range differs depending on PTZ cameras.
Changing to a Picture in a Preset Position
The following function is available only with cameras
provided with the preset function. The preset function
makes the combination camera move to the programmed
preset position. It is necessary to program preset positions
for the combination camera beforehand.
1. Click the [MOVE] icon.
Use to pan/tilt the camera.
Client program
2. Use number buttons to enter the memorized preset
position’s index number then click the
icon. The
camera moves to the preset position and the picture of
the camera in that position appears on the monitor.
49
To Clear the Preset Position
Favorites Tab
You can clear a memorized preset position.
You can save the current configuration of camera view.
1. Click the [CLEAR] icon.
2. Use number buttons to enter the memorized preset
index number then click the
icon to clear the preset
positions.
This favorite setup is useful for the next time to display it.
Note:
This function may not be available depending on PTZ
cameras.
To Tour The Preset Positions
You can tour all preset positions.
1. Click the [TOUR] icon.
All registered preset positions in the camera will
be selected and the camera position image will be
switched on the active monitor.
2. You can stop the tour by clicking the [TOUR] icon.
Setup for PTZ Cameras
You can adapt the camera to your requirements by setting
up the respective items in menus.
1. Click the [SETUP] icon.
The setup menu appears in the selected window.
2. Use arrow and
buttons to set the options.
Note:
•
Refer to the manuals of the PTZ camera for more details.
•
Some PTZ cameras may not be operated correctly with
this program.
Log View Tab
You can see the system log list of selected site name.
1. Select the [Log View] tab.
2. Click the
icon and select the day.
(The selectable days are displayed in blue color.)
3. Click the
icon.
The system log is displayed in the list.
Add the favorite
1. Select the [Favorites] tab.
2. Select the [Favorites] option and click the right mouse
button.
3. Select the [Add favorite] option. The Add Favorite
window is displayed.
4. Enter the favorite name and click the [OK] button.
The entered favorite name is displayed under the
Favorites option.
Edit the favorite
1. Select the registered favorite name and click the right
mouse button.
2. Select the [Edit Favorite] option. The Edit Favorite
window is displayed.
3. Overwrite the existing name with a new name.
4. Click the [OK] button to confirm it.
Delete the favorite
1. Select the registered favorite name and click the right
mouse button.
2. Select the [Delete Favorite] option. The selected favorite
name is deleted.
50
Client program
Using the Search function
Event Search Tab
Search a recorded picture by date and event type.
Date/Time Search Tab
Use to search a recorded picture by specifying date, hour
and minute.
1. Select the [Event Search] tab.
2. Click the
icon and select the day.
(The selectable days are displayed in blue color.)
Time input column
Time line
Playback control buttons
Displays selected channel number.
Mark up when you want to view from all
camera channel windows.
3. Select the camera channel for event search.
4. Select the start time.
5. Select the event type.
6. Click the
icon.
The event list is displayed.
7. Select the event from the event list.
8. You can play the searched data using the playback
control buttons.
Bookmark Search
1. Select the [Date/Time Search] tab.
Search the desired picture with a registered bookmark
using the bookmark function.
2. Click the
icon and select the day.
(The selectable days are displayed in blue color.)
3. Select the channel window you want to view.
4. Select the time using the Time line and Time input
column to search recorded data.
5. Play the searched data using the playback control
buttons.
1. Select the [Bookmark Search] tab.
2. Click the
list.
icon. All bookmark data is displayed in the
3. Select the data in the list.
4. Play the searched data using the playback control
buttons.
Client program
51
Using the Remote Setup function
You can set the DVR configuration of a selected site name
using this function.
•
Relay Output: Select the number of the ALARM-OUT
terminal for the output alarm signal when motion is
detected.
•
Area: The factory default of the Motion detection
area is set as the whole area. You can change the
area by using mouse on the preview window
screen.
Camera / Display Setup
--
Select area: Click one point with the left mouse
button and drag & drop to the end point.
--
Clear area : Click the start point with the right
mouse button and drag & drop to the end point.
Notes:
•
If you want to display the grid, mark up the [Show Grid]
option.
•
If you want to select the entire area, click the [Set All]
button or click the [Clear All] button to cancel the
selected area.
Recording Settings
1. Click the [Recording] button.
The recording setting window appears.
Camera Setting
1. Select a channel for settings.
If you want to block a channel from other users, mark
up the convert option. The marked up channels are
displayed “LG logo” on the live windows for POWER or
NORMAL user.
2. Enter the new channel name.
2. Set each option using the mouse (See page 24).
3. Click the [OK] button to confirm the settings.
Sensor Recording Settings
1. Click the [Sensor Recording] button.
The sensor recording setting window appears.
3. Select input audio channel.
4. Set the PTZ control options.
•
Port: Select the connected data port of the RS-485
terminal on the rear panel.
•
Control ID: Select the PTZ camera ID from 0 to 255.
Make the same settings as the PTZ camera.
•
Protocol: Select the protocol supported by PTZ
camera.
•
Baud Rate: Select the communication speed. (1 200,
2 400, 4 800, 9 600 or 19 200)
5. Set the motion options.
•
52
Sensitivity: Set the sensitivity level for the created
motion detection area. Sensitivity can be set from
0 to 10.
Client program
2. Set each option using the mouse (see page 25).
Schedule setup
3. Click the [OK] button to confirm the settings.
Motion Recording Settings
1. Click the [Motion Recording] button.
The motion recording setting window appears.
1. Select a day of the week.
2. Mark up the desired recording option.
2. Set each option using the mouse (see page 25).
3. Click the [OK] button to confirm the settings.
Display Settings
•
No recording: Do not schedule recording.
•
Continuous: Recording starts automatically at the
preset time.
•
Sensor: Recording starts automatically when sensor
occurs within a designated time.
•
Motion: Recording starts automatically when
motion is detected within a designated time.
•
Motion+Sensor: Recording starts automatically
when sensor and motion detection occur within a
designated time.
•
Continuous+Sensor: Recording starts automatically
from the preset time. When the sensor alarm occurs
within a designated time, change the continuous
recording mode to sensor event recording mode
and recording starts automatically.
•
Continuous+Motion: Recording starts automatically
from the preset time. When the motion is detected
within a designated time, change the continuous
recording mode to motion event recording mode
and recording starts automatically.
•
Continuous+Motion +Sensor: Recording starts
automatically from the preset time. When the
sensor alarm signal has input or motion has been
detected, change the continuous recording mode
to motion event recording mode and recording
starts automatically.
1. Set the OSD options.
2. Set the main monitor option.
3. Set the spot monitor options.
3. Select the channel to set the schedule.
4. Click the start time cell block and drag & drop to select
a time period cell block.
or
Click the start time cell block of a channel and drag &
drop across the channels to select the time period block
for multi-channel setting at the same time.
The color of the cell blocks will change.
Client program
53
Schedule Copy Settings
Event setup
1. Select the source day to copy.
2. Select the destination day from the day of
the week, weekday or weekend options.
3. Click the copy button to copy the schedule data.
Special day Settings
1. Set the event options.
•
Sensor: Displays the number of the ALARM-IN
terminal.
•
Sensor Type: The alarm state can be set to either
N.O. (Normally Open) or N.C. (Normally Closed).
•
Linked Camera: Select the connected camera
channel with the ALARM-IN terminal.
•
Relay Output: Select the alarm output number
of the ALARM-OUT terminal for the output alarm
signal.
2. Setting [Etc] options.
•
Relay Off: Set the “Alarm Acknowledged” or “Post
Alarm Time” option to off.
•
System Alarm Out:
--
ON: Outputs the alarm (relay) signal via the
ALARM-OUT terminal below cases.
1. Mark up the special day option.
>> When the HDD has bad sector.
2. Select the date to set the special day schedule.
>> When a video signal from the camera has
stopped because of a cable disconnection or
malfunction of a camera.
3. Mark up the desired recording option.
4. Select the channel to set the schedule.
5. Click the start time cell block and drag & drop to select
a time period cell block.
or
Click the start time cell block of a channel and drag &
drop across the channels to select the time period block
for multi channel setting at the same time.
The color of the cell block will change.
--
OFF: Not used.
6. Enter the name of the special day.
7. Click the add button to add the special day settings.
The special day is added to the list.
If you want to cancel the registered special day, select
the special day in the list and click the delete button.
54
Client program
Network setup
Notification
Set the notification options.
•
Sensor On: Sends an E-mail when a sensor has been
detected.
•
Video Loss: Sends an E-mail when a video signal
from the camera has stopped because of a cable
disconnection or malfunction of a camera.
•
Motion Detection: Sends an E-mail when motion
detection has occurred.
•
Power On/Off: Sends an E-mail when power is on or off.
•
Disk Full: Sends an E-mail when the HDD has fully
recorded.
•
Admin PW Changed: Sends an E-mail when the
administrator password has changed.
DDNS
TCP/IP Settings
The [DHCP], [IP Address], [Subnet Mask], [Gateway],
[Primary DNS], [Secondary DNS], [TCP/IP Port] and [Web
Server Port] option settings are not available in the client
program. You can set these options in the system menu of
the DVR.
•
Bandwidth Throttle: Selects the bandwidth to adjust the
data traffic.
•
Emergency
•
Notification: Notify the emergency agent about unit
operating information according to your
notification settings.
•
IP Address, Port: Enter the IP Address and port number
of the emergency agent program installed in the
PC. The factory default port for this function is 9002.
However in some cases it is better to change this port
number for added flexibility or security. If desired
change the port number (1025 to 65 535).
You can set up to 9 IP address and port numbers.
Mail Settings
Set the mail options.
•
Notification: When you mark up the notification option,
notify the user about unit operating information by
E-mail according to your notification settings.
•
TLS: Mark up when using the TLS (Transport Layer
Security) function.
•
SMTP Server: Enter the SMTP Server address.
•
SMTP Port: Enter the SMTP Port Number. Typically the
TCP port used for SMTP is 25. However in some cases
it is better to change this port number for added
flexibility or security. If desired change the port number
(1 to 65 535).
•
User Name: Enter the user name.
•
Password: Enter the password.
•
Mail Address (1 to 3): Enter the mail address.
You can input up to 3 E-mail addresses.
Host Name: The registered host name is displayed.
SNMP
•
Port: Enter the SNMP Port Number. Typically the port
used for SNMP is 161. However in some cases it is better
to change this port number for added flexibility or
security. If desired change the port number from 1 to
65 535.
•
Community String: Enter the Community name.
Note:
The [SMTP Server], [SMTP Port], [User Name] or [Password]
settings are optional. The DVR can send
e-mail directly without the use of an SMTP server or an MTA
(message transfer agent). In certain cases all e-mail should
be forwarded to a specific SMTP server. Specify the server
host name or IP address in such cases. For more detail on
SMTP setup, ask your network administrator and/or mail
service provider.
Client program
55
System setup
Buzzer settings
Select the buzzer options.
•
Button Beep: Makes a sound when using the buttons.
•
Sensor: Makes a sound when an sensor occurs.
•
Motion: Makes a sound when motion is detected.
•
System: Makes a sound when a HDD has bed sector.
Update settings
Set the update options.
•
•
Date/Time settings
Set the date/time options.
•
NTP: Mark up when using the NTP (Network Time
Protocol) server for time adjustment.
•
Date Format: Select the date display format.
•
Time Zone: This option setting is not available in the
client program.
•
Time Server: Select your time server.
The DVR will obtain the average time among 5 public
servers (time.nist.gov, time-a.nist.gov, time-b.nist.gov,
ntp.nasa.gov, clock.isc.org).
•
Item: Select the items for updating.
--
PTZ Protocol: Set to PTZ Protocol update.
--
System S/W: Set to System S/W update.
Method: Select the update method.
--
USB: Update from USB memory stick.
--
Network: Update from the update server.
Update Server: Enter the IP address of the update
server.
Note:
If you can not update from the update server, check the
TCP/IP options and the IP address of the update server.
User settings
Add the User
You can add the user.
1. Click the “Add” button. User Setting window is
displayed.
•
Private Time Server: Enter the private time server’s IP
address or host name.
•
Sync. Interval: You can set synchronized interval with
the NTP time server to 1 day, 1 hour, 1 week and 1
month.
3. Enter the password again to verify.
Daylight Saving: Mark up when you use the daylight
saving function.
Edit the registered User
•
--
Start Time: Select the Daylight Saving start time.
--
End Time: Select the Daylight Saving end time.
Hard disk
•
Overwrite: Select the overwrite recording type (Off,
Normal Partition, Event Partition or All). This function
is possible when the selected HDD type has fully
recorded.
•
Full Warning: When the HDD has overflowed the
warning message is displayed.
•
Event Partition: Sets the space of event partitions for
event recording.
2. Enter the User ID and Password.
4. Select the user level and then click “OK” to confirm your
selection.
You can change the User ID, password or user level.
1. Choose the user ID and then click the “Edit” button.
2. Change the ID, Password or User level then click “OK” to
confirm your selection.
Delete the registered User
1. Choose the user ID you want to delete
2. Click the “Delete” button.
Log Out
•
Auto User Logout: Setting the logout time. You can set
the auto logout time to Off, 5 minutes, 10 minutes, 30
minutes or 60 minutes.
56
Additional programs
Using the Export function
•
You can copy the recorded images and audio data from
the DVR unit to the PC. This function is permitted for
Administrator and Power user.
How to export the data
Exit: Click to exit the window.
1. Set the Exprot Channel options. You should select more
than one channel.
2. Set the Date/Time options.
3. Select the folder on the computer to save the exported
data.
4. Set the export saving capacity.
5. Select the data type.
6. Click [Add] button. Listing the configured server, start
time, end time and Status.
7. Select the registered export setting schedule in the list.
8. Click the Export button to begin the export.
The export status will be displayed on the Status
column.
Note:
Export setting
•
Server: Displays the selected server name.
•
Channel
•
--
Channel: Select a channel(s) to export the data. You
should select more than one channel.
--
Audio: Set to On or Off to export the audio data.
•
The exported data file name is made automatically as
the [Server name_Channel number_export start time.
exp(or “avi”)] type.
•
If you do not assign the export directory, the export
directory will be set to default directory and sub
directory will be created with start date.
•
If you log-out from the network client, the export
sequence will be terminated.
•
If you set the time for data that does not exist, the
export function is not activated.
•
The warning message appears for the conditions listed
below.
--
When the start date/time and end date/time are the
same.
--
When the start date/time is later than the end date/
time.
Date / Time
--
Start: Set the start date/time to copy.
--
End: Set the end date/time to copy.
•
Save Path: Displays the current exported data save
folder. You can select (or make) the folder on the
computer to save the exported data. The initial save
folder is “C:\LE Exported Files”. If you want to change the
exported data save folder, click the
icon and select
the new folder.
•
Data Type: You can select the saving file format
between “Native [*.exp]” and “AVI”. The Native file is
saved with the extension of “*.exp” and the AVI file is
saved with the extension of “*.avi”. The saved “*.exp”
file can playback using the Export Viewer program and
“*.avi” file can playback using the Windows Media Player
or the other “.avi” file player.
•
Add: Add the export setting schedule to the list.
•
Edit: Edit the selected export setting on the list.
•
Delete: Delete the selected export setting schedule
from the list.
•
Export: Click to start export the data of the selected
export setting.
•
Cancel: Click it to cancel data exporting.
Additional programs
57
Additional Programs
To activate the Emergency Agent program
Emergency Agent Program
2. Whenever a notification function occurs, a message box
is displayed on the bottom right of the screen.
The message box is displayed for 5 seconds.
The system sends a message according to the Notification
and Emergency settings in the event setup menu.
Emergency Agent Overview
Display the received message list.
Detailed view of the received message.
1. Run the [LG Emergency Agent] program. The
Emergency icon is displayed in the system tray.
3. Check the message.
4. Click the message box within 5 seconds to display the
[Received Messages] window.
or
Right click the mouse on the program icon in the
system tray and select the [Check Message Box] option
to display the [Received Messages] window.
5. You can check all the subjects of received messages.
6. Click the [CLOSE] button to close the [Received
Messages] window.
Port Setting
1. Click the [Setup] button. The option window is
displayed.
2. Enter the port number of the emergency agent
listening port. The factory default port is 9002. However
in some cases it is better to change this port number for
added flexibility or security.
3. Click the [OK] button to exit.
Message Search
1. Click the [SEARCH] button. The message search window
is displayed.
2. Select the search method.
Deletes the selected
message from the list.
Closes the [Received Messages]
window.
Refreshes the received
message on the list.
Displays the search window.
•
Event Search: Search by selected type of event for
the message.
•
Date Search: Search by selected date.
3. Click the [Search] button.
The search message is displayed on the [Received
Messages] window.
Delete the Message from the List
1. Select the message(s) you want to delete.
2. Click the [DELETE] button. The confirmation window is
displayed.
3. Click the [Yes] button to delete the message(s).
Displays the port change window.
58
Additional programs
Export Viewer Program
View
You can playback from the export data on the PC using this
program. The export viewer program is saved automatically
when you install the client program or export the data.
Help
Export Viewer Overview
Menu Bar
Language
Select the language for Export
Viewer program.
Video Size
Select the video size of the
data file.
About Export
Viewer
Displays Export Viewer
information.
Playback control buttons
Jumps to the beginning of the file.
Pauses playback.
Starts playback.
Stops playback.
Jumps to the end of the file.
Watermark Setting window
The warning window will appear with watermark option,
if the file which is in playback differs from the file that is
originally recorded.
Video Information window
Video Information window.
Playback control buttons.
Watermark setting window.
Progressive bar
Menu Bar
Menu
File
•
File Name: Displays the file name.
•
Video Format: Displays the video type of the data.
•
Date/Time: Displays the recorded date and time of data.
•
Recording Mode: Displays the save mode of the data.
•
Camera Number: Displays the camera channel number
of recorded data.
To play the exported data
Sub-Menu
Description
Open
Open the data file.
Print
Prints the current playback
image.
Save to JPEG
You can capture and save the
current image in JPEG file
format.
1. Play the recorded data.
2. Pause the playback at
a desired point during
playback.
3. Select this option. The
JPEG Export window is
displayed.
4. Set the options.
5. Click the [Save] button.
Exit
Additional programs
Exit the program.
1. Run the LG Export Viewer program on the PC or in the
Export Viewer folder of the external USB device.
If you insert the exported data CD or DVD disc, the
export viewer program run automatically.
2. Select [File] > [Open]. The open window is displayed.
3. Select the root directory of the USB device and
search&select the desired file.
An example of playable file format is “Channel name_
date_time.exp”.
4. Click the [Open] button. The selected data is played
back automatically.
5. Click the [STOP] button to stop playback.
Progressive bar
You can search the image directly using the progressive bar.
Click and hold the Slider bar and move to the other point
you want and then release it. Or, Click the point on the
progressive bar you want to playback.
59
Web Viewer Program
View all the channels in sequence. You
can use sequence mode with the one
split only.
Logging in the Web Viewer
You can capture and save the current
image in JPEG file format. The initial
save folder is “C:\LG Exported Files”.
If you want to change the storage
folder, set the [Save Path] option on
the WebViewer Control Properties
Window.
1. Start the web browser. The recommended browser is
Internet Explorer with Windows.
2. In the Address Box, enter “HTTP://” and the IP Address of
the DVR. You can use the Host Name that you entered
in the DDNS setup menu of the DVR.
3. Press the ENTER button on the keyboard and then
the Web viewer and the Remote Login menu will be
displayed.
1. Select the channel window.
2. Mark up the selected channel
name.
4. Enter the User Name and Password.
5. Click the [OK] button.
Notes:
• If the Web Viewer is not displayed, check the TCP/IP
settings of the DVR.
• If you connect the DVR for the first time, the Security
Warning window is displayed. You must click [Install] on
the Security Warning window to install the program for
use the Web Viewer. If you click [Don’t Install], the Web
Viewer program is not available.
Web Viewer Overview
You can control the live image using the Web Viewer.
Icon
Description
Displays the live view workspace.
•
Live
Search
•
Camera View: You can see the
surveillance camera’s images in
the window(s) and the camera
information.
Pan/Tilt/Zoom: You can control the
PTZ camera.
Displays the search workspace. You
can search and play the recorded data
using the search functions.
Click to display the WebViewer Control
Properties pop-up windows.
Setup
Click to display the Remote Export
pop-up windows.
You can view the live window in full
screen mode. To return to the normal
screen, click the right mouse button.
Screen Mode selection icons.
3. Search the recorded data and then
play the recorded data.
4. Click this button when you want to
capture the current image.
Live screen control
•
Left mouse button: Select the channel. If you want to
set the 1 split mode, double click the selected channel.
To return to the normal screen double click again.
•
Right mouse button: If you want to exit the full screen
mode, right click the mouse to return to the normal
screen.
Using the WebViewer Control Properties window
1. Click the [Setup] button.
WebViewer Control Properties window is displayed.
2. Set the below options.
•
OSD: Mark up to display or remove the selected
option in the channel window.
•
Sequence: Selects the channel sequence time.
•
Video Display: Marks up when using the DirectX
function.
•
Snapshot Save Path: Displays the storage folder for
the captured image file. If you want to change the
storage folder, click the [...] button and select the
new folder.
3. Click the [OK] button to exit.
Playback of Recorded Data
1. Select the camera’s display window.
2. Select the date.
The day is displayed in a blue text when recorded data
exists.
3. Select playback start time.
When using timeline to search a start time, use the
zoom in/out icons for more detailed searches (4 step).
4. Select the channel you want to playback. If you check
“Select All” option, you can playback the all channels
simultaneously from all camera channel windows.
5. Select playback speed.
6. Start playback using these control buttons.
60
Additional programs
Reference
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Symptoms
Resolutions
Check the power cable is connected correctly.
The system power does not
turn on.
Check the input voltage is correct.
If the system power does not turn on even if the power cable is connected correctly,
please contact the service center.
Check the monitor power cable is connected properly.
The system power is turned
on but no video data is
displayed on the monitor.
Make sure the monitor is turned on.
Check the video output cable of the LG DVR is properly connected to the monitor.
Check the selected monitor type (see page 12).
Unplug the power cable and plug in again.
Check the camera video output is connected to the DVR system correctly.
The camera numbers are
displayed on the screen but
the camera images are not
displayed.
Check the power cable on the camera is connected correctly.
Check there is no problem with the video cable connection from the camera to the LG
DVR system.
Turn off the DVR system and turn it on again.
Check the recording mode in the record setting menu.
The camera video is shown
on the screen but the system
does not record the video.
Check the HDD detection status in the System Information window.
If the HDD detection status is abnormal, check the HDD formatting and the
connection of the HDD.
Check the recordable disk space in the HDD.
Check the overwrite option in the setup menu for overwrite recording.
Check if there is recorded video data at the time that you are trying to search on the
table.
It is impossible to search
through the recorded video.
If there is no recorded video data, check the recording mode in the record setting
menu.
Check the HDD detection status in the system information window.
If the HDD detection status is abnormal, check the HDD formatting and the
connection of the HDD.
Check the user type. The search function is not available for a normal user.
Reference
61
Symptoms
Audio data recorded with
video data is not playing.
Resolutions
Check the audio recording option is correctly set for the camera you wish to record
audio.
Check the speaker and audio (line input) on the rear of system are connected correctly.
Check the connected speaker is working properly.
If the camera connected to the system has a problem, make sure that the camera is not
damaged by trying another camera into a working video output.
The colors of some camera
videos are strange or videos
are displayed abnormally.
Check the video format setting of the unit is the same as the connected
camera’s video format. Depending on your region, the camera’s video format can
support either PAL or NTSC. Depending on the camera’s video format, the video
process can differ greatly, therefore it can be difficult to recognize the video data if the
video format setting is different from the camera’s video format.
Check if the video signal output from the camera has a problem. Ensure the camera is
not damaged by trying another camera with a working video output.
There is a lot of (screen) noise
accompanying the image.
Check if the video cable connection between the camera and the DVR is cut,
crosswired or shorted.
Check if there is a high voltage wire around the video cable connection between
camera and DVR system. It can cause interference and affect video quality.
Check the video cable connection between the camera and the DVR system is the
correct video cable. When a normal power-supplying cable is used instead of the video
cable, screen noise can be generated.
Check the type of sensor in the camera setting is the same as with the connected
sensor.
The connected sensor is not
operating.
Check the system is set to use the sensor in the recording schedule window in the
recording setting menu.
Check the sensor is properly connected to the ALARM-IN.
Check the system is set to use the PTZ camera in the camera setting menu.
Check the power cable of the PTZ camera is properly connected.
The connected PTZ camera is
not operating.
Check the signal cable of the PTZ camera is properly connected.
Check the selected channel to control the PTZ camera.
Check the user type. The PTZ camera control is not available for a normal user.
62
Reference
Symptoms
Resolutions
E-mail reception failed without SMTP server setting.
•
Make sure the network is correctly set.
•
Make sure the mail address is input correctly.
•
Check the spam mail setting of the inputted mail address.
(If you set the spam mail, some mails are deleted automatically or classified in the
spam mail box)
•
Some of SMTP mail services do not support E-mails from private SMTP servers. In
this case use the public SMTP server.
E-mail reception failed even if the SMTP server was set.
•
An E-mail sent from this
product was not received.
•
•
The remote control does not
work properly.
When the [Please check the SMTP information or internet cable] message is
displayed.
--
Check the SMTP server address.
--
Check the SMTP port number. (Default setting is 25)
--
Check the network settings.
When the [Please check the authentication information] message is displayed.
--
Check the user name.
--
Check the password.
The mail reception failed without error message.
--
Check the receiver’s mail address.
--
Check your E-mail is not classified as a spam mail on the receiver's mail setting.
Check the batteries in the remote control.
Check the ID setting for the remote control (See page 39).
Recommended Devices
Supported USB Memory list
No.
Maker
Model Name
Capacity
1
LG Electronics
XTICK Mini Slide / Slide
1G/2G/4G
2
IOCELL
CellDisk Swing
1G/2G/4G/8G
3
Sony
MicroVault
1G/2G/4G
4
HP
S100 / M100 / V210W
1G/2G/4G
5
SANDISK
Cruzer Micro
512 M / 1 G
6
TRANSCEND
JF
1G/2G
7
IMATION
Flash Drive Nano / Icon
1G/2G
8
Samsung Electronics
Classic&Simple
1G/2G/4G/8G
Notes:
• Some USB memory devices other than the ones on the above table may not work properly, even if this DVR reads
them.
• This DVR supports external USB HDD driver with capacity of 250 GB or less. External USB SATA type HDD driver is not
supported.
Reference
63
Supported CD/DVD Media list
Maker
CD-R
CD-RW
DVD-R
DVD-RW
DVD+R
DVD+RW
Imation
O
O
O
O
O
O
Memorex
O
O
O
O
O
O
MITSUBISHI
O
O
O
O
O
O
PHILIPS
O
O
O
O
O
O
SONY
O
O
O
O
O
O
Verbatim
O
O
O
O
O
O
Note:
8 cm (1.4 GB) Mini CD/DVD and the Dual Layer type media (DVD) are not supported.
Supported function list for device
Device
Instant backup
Schedule backup
Export
Configuration Import/Export
CD/DVD
O
X
O
X
USB memory
O
O
O
O
USB HDD
O
O
O
O
Note:
If you use a USB memory stick or USB HDD for configuration import/export you must disconnect the other external USB
devices.
Supported PTZ Camera list
Protocol Name
Maker
Pan/Tilt
Zoom
Focus
Iris
Preset
Tour
Setup
LG_MULTIX
LG
YES
YES
YES
YES
YES
YES
YES
LG_SD168
LG
YES
YES
YES
YES
YES
YES
YES
LG_ZOOM
LG
No
YES
YES
YES
No
No
YES
LPT_A100L
LG
YES
No
No
No
No
No
No
PELCO D
PELCO
YES
YES
YES
YES
YES
YES
YES
PELCO P
PELCO
YES
YES
YES
YES
YES
YES
YES
GANZ_DSCP
CBC
YES
YES
YES
YES
YES
YES
YES
GANZ_P360V1
CBC
YES
YES
YES
YES
YES
YES
NO
KALATEL_CYBERDOM
KALATEL
YES
YES
YES
YES
YES
YES
NO
PANASONIC_CS850
PANASONIC
YES
YES
YES
YES
YES
YES
YES
SAMSUNG_SCC
SAMSUNG
YES
YES
YES
YES
YES
YES
YES
BOSCH_AUTODOME
BOSCH
YES
YES
YES
YES
YES
YES
YES
ELMO
ELMO
YES
YES
YES
YES
YES
YES
YES
MULTIX EXTENTION
LG
NO
YES
YES
YES
NO
NO
YES
LTC 903
LG
NO
NO
NO
NO
NO
NO
YES
64
Reference
Time zones
Timezone name
Eniwetok, Kwajalein
Timezone
Abbreviation
EK
Timezone
DST
-12:00
Midway Island, Samoa
MIS
-11:00
Hawaii
HAW
-10:00
Alaska
ALA
-09:00
-08:00
Pacific Time (US and Canada); Tajuana
PST
-08:00
-07:00
Mountain Time (US and Canada), Chihuahua, La Paz,
Mazatlan, Arizona
MST
-07:00
-06:00
Central Time (US and Canada), Saskatchewan, Guadalajara, Mexico
City, Monterrey, Central America
CST
-06:00
-05:00
Eastern Time (US and Canada), Indiana (East), Bogota, Lima, Quito
EST
-05:00
-04:00
Atlantic Time (Canada), Caracas, La Paz, Santiago
AST
-04:00
Newfoundland
NWF
-03:30
Brasilia, Buenos Aires, Georgetown, Greenland
BBA
-03:00
Mid-Atlantic
MAT
-02:00
Azores, Cape Verde Islands
AZO
-01:00
Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London,
Casablanca, Monrovia
GMT
0
+01:00
Amsterdam, Belgrade, Bratislava, Budapest, Ljubljana, Prague,
Sarajevo, Skopje, Warsaw, Zagreb, Brussels,
Copenhagen, Madrid, Paris, Berlin, Bern, Rome, Stockholm, Vienna,
West Central Africa
AMS
+01:00
+02:00
Athens, Istanbul, Minsk
AIM
+02:00
+03:00
Bucharest, Cairo, Pretoria, Jerusalem, Harare, Pretoria
BCP
+02:00
+03:00
Helsinki, Riga, Israel, Kyiv, Sofia, Tallinn, Vilnius
HRI
+02:00
+03:00
Baghdad, Kuwait, Riyadh, Nairobi
BKR
+03:00
+04:00
Moscow, St.Petersburg, Volgograd
MSV
+03:00
+04:00
Tehran
THE
+03:30
+04:30
Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan
ABT
+04:00
Kabul
KAB
+04:30
Ekaterinburg, Islamabad, Karachi, Tashkent
EIK
+05:00
Bombay, Calcutta, Madras, New Delhi, Chennai, Kolkata
BCD
+05:30
Almaty, Dhaka, Colombo, Astana, Sri Jayawardenepura, Novosibirsk
ADC
+06:00
Bangkok, Hanoi, Jakarta, Krasnoyarsk
BHJ
+07:00
Beijing, Changqing, Hong Kong, Uramqi
BHU
+08:00
Perth, Singapore, Taipei, Beijing, Chongqing, Hong Kong SAR,
Urumqi, Kuala Lumpur, Irkutsk, Ulaan Bataar
SST
+08:00
Osaka, Sapporo, Tokyo
OST
+09:00
Seoul, Yakutks
SYA
+09:00
Adlaide, Darwin
ADA
+09:30
Brisbane, Guam, Port Moresby
BGP
+10:00
Canberra, Melbourne, Sydney
CMS
+10:00
Hobart, Vladivostok
HVL
+10:00
Magadan, Solomon Islands, New Caledonia
MSN
+11:00
Auckland, Wellington
AWE
+12:00
Fiji Islands, Kamchatka, Marshall Islands
FKM
+12:00
Reference
-02:30
+12:00
65
Factory Default Configuration Settings
Classification
1st level
Camera
Schedule
Display
66
Detailed Items
2nd level
3rd level
Channel
Name
Camera
Covert
Audio
Channel
Port
PTZ
Control ID
Protocol
Baud Rate
Channel
Resolution
Quality
Recording
Frame rate
Prealarm
Postalarm
Channel
Resolution
Sensor Recording
Quality
Frame rate
Channel
Resolution
Motion Recording
Quality
Frame rate
Video Format
Video Format
Sunday
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Special Day
Language
OSD
Channel Name
Channel Status
Main Monitor
Dwell Time
Dwell Time
Spot Monitor
Event Popup
Spot Channel
Default Setting
01 to 04
CH 01 to CH 04
OFF
NONE, 01 to 04
CH 01 to CH 04
NONE
0
LG_MULTIX
9600
CH 01 to CH 04
352 X 240 (NTSC) / 352 X 288 (PAL)
STANDARD
30 (NTSC) / 25 (PAL)
OFF
10 SEC
CH 01 to CH 04
352 X 240 (NTSC) / 352 X 288 (PAL)
STANDARD
30 (NTSC) / 25 (PAL)
CH 01 to CH 04
352 X 240 (NTSC) / 352 X 288 (PAL)
STANDARD
30 (NTSC) / 25 (PAL)
NTSC or PAL
Sensor + Motion
Sensor + Motion
Sensor + Motion
Sensor + Motion
Sensor + Motion
Sensor + Motion
Sensor + Motion
Sensor + Motion
ENGLISH
ON
ON
2 SEC
2 SEC
OFF
01
Reference
Classification
1st level
Detailed Items
2nd level
Sensor
Event
Motion
Output
TCP/IP
DDNS
Notification
Network
Mail
Emergency
SNMP
Reference
3rd level
Default Setting
Input Channel
Sensor Type
Camera
Relay Output
Channel
Sensitivity
Relay Output
Relay Off
System Alarm Out
01 to 04
N.O.
01 to 04
OFF
01 to 04
05
OFF
ALARM ACK.
OFF
DHCP
ON
IP Address
NULL
Subnet Mask
NULL
Gateway
NULL
Primary DNS
NULL
Secondary DNS
NULL
TCP/IP Port
9001
Web Server Port
80
Bandwidth Throttle
100 Mbps
DDNS Service
OFF
Host Name
NULL
Registered Host
NULL
Update
-
Sensor On
OFF
Motion Detection
OFF
Disk Full
OFF
Admin PWD.Changed
OFF
Video Loss
OFF
Power On/Off
OFF
Notification
OFF
SMTP Server
NULL
SMTP Port
25
User Name
NULL
Password
NULL
TLS
OFF
Mail Address 1
NULL
Mail Address 2
NULL
Mail Address 3
NULL
E-mail Test
-
Notification
OFF
Emergency ID
01
IP Address
NULL
Port
9002
Port
161
Community String
public
67
Classification
1st level
System
68
Detailed Items
3rd level
Date
Time
Date Format
Time Format
Date/Time
Time Zone
Daylight Saving
Daylight Saving Start
Daylight Saving End
NTP
Server
NTP
Private Time Server
Sync. Interval
NTP Test
Button
Sensor
Buzzer
Motion
System
Number
ID
User
Level
Password
Item
Method
Update
Update Server
Update
Format
Overwrite
Full Warning
Hard Disk
Event Partition
Auto Delete
Format
Partition Selection
Schedule
Device
Schedule Start
Time Range Date
Backup
Time Range Start
Time Range End
Start
Erase
Estimate
IR Remote ID
DVR ID
Auto User Logout
System
Default
Export
Import
2nd level
Default Setting
(2009.01.01)
Current Time
(YYYY/MM/DD)
24 HR (12 HR)
(GMT)
OFF
Current Time
Current Time
OFF
PUBLIC SERVER
NULL
1 DAY
OFF
OFF
OFF
OFF
01
ADMINISTRATOR
Administrator
000000
SYSTEM S/W
USB
NULL
ALL
ALL
70 %
50 %
OFF
ALL
OFF
Current Time
Current Time
Current Time
Current Time
1
NONE
OFF
-
Reference
Recording Time Table (250GB HDD)
Resolution
(NTSC/PAL)
NTSC
Quality
LOWEST
LOW
352x240
/
STANDARD
352x288
HIGH
HIGHEST
Reference
FPS
PAL
Recording Time (Hr)
Video
Video+Audio
30
1589
1090
20
1895
15
1992
7.5
FPS
Recording Time (Hr)
Video
Video+Audio
25
1123
849
1226
20
1187
884
1266
12.5
1386
991
2703
1520
6
2014
1275
5
2784
1545
5
2226
1356
3
3036
1620
3
2297
1383
1
3202
1666
1
2665
1508
30
1280
935
25
964
754
20
1489
1042
20
966
756
15
1493
1044
12.5
1123
848
7.5
1975
1259
6
1577
1084
5
1960
1253
5
1846
1205
3
2064
1295
3
1938
1244
1
2196
1345
1
2011
1274
30
1038
799
25
703
585
20
1182
882
20
686
573
15
1131
853
12.5
768
629
7.5
1496
1045
6
1175
878
5
1458
1027
5
1256
922
3
1529
1061
3
1262
926
1
1604
1097
1
1374
984
30
780
637
25
517
450
20
916
725
20
495
434
15
897
713
12.5
560
482
7.5
1211
898
6
949
746
5
1191
887
5
1028
793
3
1254
922
3
1043
802
1
1335
964
1
1135
856
30
702
584
25
383
345
20
818
662
20
393
353
15
799
650
12.5
424
378
7.5
1079
823
6
774
633
5
1064
814
5
847
681
3
1136
856
3
871
697
1
1212
898
1
943
741
69
Resolution
(NTSC/PAL)
NTSC
Quality
LOWEST
LOW
704x240
/
STANDARD
704x288
HIGH
HIGHEST
70
FPS
PAL
Recording Time (Hr)
Video
Video+Audio
15
1160
869
7.5
1528
5
1625
3
1
FPS
Recording Time (Hr)
Video
Video+Audio
12.5
855
686
1061
6
1021
789
1107
5
1155
867
1790
1181
3
1258
924
2020
1277
1
1907
1231
15
939
739
12.5
734
606
7.5
1164
872
6
934
736
5
1186
884
5
1080
824
3
1414
1005
3
1213
899
1
1355
975
1
1233
910
15
770
630
12.5
584
500
7.5
913
723
6
607
517
5
911
721
5
654
550
3
930
734
3
692
577
1
993
772
1
927
732
15
627
531
12.5
454
401
7.5
754
620
6
474
417
5
755
620
5
523
455
3
775
634
3
571
490
1
825
667
1
767
628
15
574
493
12.5
381
344
7.5
683
571
6
401
359
5
681
569
5
440
390
3
698
581
3
486
426
1
746
614
1
670
561
Reference
Resolution
(NTSC/PAL)
NTSC
Quality
LOWEST
LOW
704x480
/
STANDARD
704x576
HIGH
HIGHEST
FPS
PAL
Recording Time (Hr)
Video
Video+Audio
7.5
774
633
5
831
3
944
1
FPS
Recording Time (Hr)
Video
Video+Audio
6
535
464
670
5
726
600
742
3
799
650
1093
831
1
1072
819
7.5
651
548
6
473
417
5
672
563
5
607
516
3
737
608
3
655
551
1
833
672
1
811
658
7.5
598
511
6
407
365
5
605
515
5
551
476
3
655
551
3
589
504
1
712
591
1
675
565
7.5
518
450
6
349
317
5
518
451
5
477
419
3
557
480
3
506
442
1
606
516
1
568
488
7.5
476
419
6
279
258
5
477
419
5
410
366
3
509
444
3
437
388
1
552
477
1
494
432
Note:
This recording time table is for reference only.
The recording time can be different depending on your surveillance environment.
Reference
71
Specifications
Item
Specification
Video Format
NTSC/PAL (Selectable)
Input
4 x Composite 1.0 Vp-p, 75 Ω BNC
Video
Loop Through
4 x Composite 1.0 Vp-p, 75 Ω BNC
Composite
1 x Composite 1.0 Vp-p, 75 Ω BNC
Output
VGA
1 x RGB, 15-pin D-sub
Spot
1 x Composite 1.0 Vp-p, 75 Ω BNC
Input
Audio
Alarm
4 x Mono, RCA Line in
Output
1 x Mono, 0 dB RCA
Input
4 (NC/NO selectable)
Output
1
Alarm Notification to e-mail
NTSC
Up to 120 IPS @ 352 x 240, Up to 60 IPS @ 704 x 240,
Up to 30 IPS @ 704 x 480
PAL
Up to 100 IPS @ 352 x 288, Up to 50 IPS @ 704 x 288,
Up to 25 IPS @ 704 x 576
Frame Rate (/Sec)
Recording
Search
Quality Level
5 Levels
Recording Mode
Storage
Yes
Event Partition Recording
Yes
Pre-Event Recording Time
Up to 60 sec
Playback Function
FF, FB, Frame Advance
Playback Speed
x1, x2, x4, x8, x16
-x1, -x2, -x4, -x8, -x16
Date/Time, Event (Motion, Alarm), Bookmark
Instant Playback
Yes
Screen Division Mode
1, 4
OSD type
GUI
User Interface
Internal HDD
Mouse, IR Remote, Keyboard Controller (LKD1000)
Interface Type
SATA
Max Capacity
1 TB (Up to 2 HDDs) – LE2104 series
500 GB (Up to 1 HDD) – LE2104D series
Internal ODD
Yes (LE2104D model only)
Backup/Export Device Interface
Backup /
Export
Yes
Backup Time Estimation
Yes
PTZ Control
72
3 x USB 2.0, Network
Schedule Backup (Automatic Backup)
Backup/Export File Format
Serial I/F
Continuous, Alarm, Motion, Instant
Schedule Recording
Search Mode
Display
&
User I/F
Yes
Interface
Control Function
AVI, Native DVR Format
2 x Half-duplex RS-485
Pan, Tilt, Zoom, Focus, Iris, Preset, Tour, Camera OSD Control
RS232 Interface
1 x RS-232C, 9-pin D-sub (Consol)
RS485 Interface
2 x Terminal block (PTZ or Remtote Control Keyboard)
Reference
Network Connection
Network
Bandwidth Control
Yes
NTP (Network Time Protocol)
Yes
Application SW
Security
Button Lock
Yes
Yes
User Level Management
Yes
Data Integrity Check (Watermark)
Yes
Triplex
Setup Configuration Export/Import
Yes
Auto Delete (Data Retention)
Yes
Dome Camera Telemetry Control
Yes
Interface
USB Memory
Update Item
PTZ, Firmware
Video Codec
H.264
Power Source
DC 12 V, 5 A (Adaptor: AC 100 - 240 V 50/60 Hz)
Power Consumption
Dimension (WxDxH mm)
Weight (without HDD)
Operation Temp. / Humidity
Reference
USB Memory Stick, Network
Daylight Saving
S/W Update
General
PC Client, WEB Client, Emergency Agent, Export Viewer
Covert Camera Protection
Multiplex
System
Ethernet 10/100 M, RJ-45
40 W Max (with HDD x 2)
430 mm x 316.8 mm x 54 mm
2.7 kg
0 ºC to 40 ºC / 0 % RH to 80 % RH
73
BZ03
