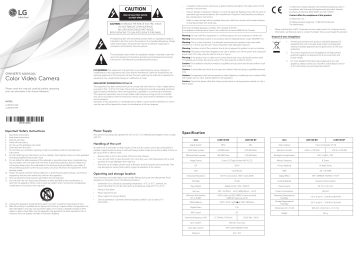

LG LCB5100-BP Quick start guide
CAUTION • A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user. • Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. RISK OF ELECTRIC SHOCK DO NOT OPEN • CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. Contact office for compliance of this product: LG Electronics Inc. Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. Warning: Do not install this equipment in a confined space such as a bookcase or similar unit. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC and 2011/65/EU. Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70. EU Representative, Krijgsman 1,1186 DM Amstelveen, The Netherlands • Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product. Disposal of your old appliance Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Color Video Camera Please read this manual carefully before operating your set and retain it for future reference. MODEL LCB5100-BN LCB5100-BP FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. REGULATORY INFORMATION: FCC Part 15 Warning: The product has been dropped or the case is broken, turn off the power and unplug the power cord. (This may cause fire, electric shock, or injury.) Power Supply 1. 2. 3. 4. 5. 6. 7. This camera must always be operated AC 24 V or DC 12 V. Certified/Listed Adaptor which comply with LPS. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Warning: If the product has no video out or sound, please stop using. Unplug the power cable immediately and contact the service center. (This may cause fire or electric shock.) 3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Caution: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution: Prevent the power cable from being severely bent or having pressure exerted on it by a heavy object. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture. Caution: This installation should be made by a qualified service person and should conform to all local codes. OWNER'S MANUAL 1. Handling of the unit Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to get cause of fire or electric shock. • • • Remove dust or dirt on the surface of the lens with a blower. Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small quantity of neutral detergent then wipe dry. Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They may damage the surface finish and/or impair the operation of the camera. Operating and storage location Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid operating or storing the unit in the following locations. • Extremely hot or cold places (operating temperature -10 °C to 50 °C, however, we recommend that the unit be used within a temperature range of 0 °C to 45 °C) • Damp or dust place • Places exposed to rain • Places subject to strong vibration • Close to generators of powerful electromagnetic radiation such as radio or TV transmitters. Specification Item LCB5100-BN LCB5100-BP Item LCB5100-BN LCB5100-BP Signal System NTSC PAL Video Output Total Pixels number 520 000 Pixels 610 000 Pixels Electronic Shutter Effective Pixels number 480 000 Pixels 570 000 Pixels Backlight Compensation BLC / HSBLC / OFF 1 Vp-p Composite (75 Ω) 1/60 to 1/120 000 1/50 to 1/120 000 Image Sensor 6 mm (1/3 Type) Exview HAD II CCD Motion Detection 8 Zones ISP XDI-V Privacy Masking 14 Mask Zones Lens C/CS Mount DNR 2D + 3D-DNR Horizontal Resolution 650 TV Lines (Color), 700 TV Lines (B/W) Digital Effect OFF / MIRROR / ROTATE / V-FILP S/N Ratio 50 dB Control Method Coaxial Communication Day & Night Digital (AUTO / DAY / NIGHT) Power Source DC 12 V / AC 24 V Sens-up OFF / AUTO(x2, ... x512) /MANUAL(x2, ... x512) Power Consumption 240 mA Minimum Illumination (F1.2, 30 IRE) 0.03 lx (Sens-up Off ), 0.0003 lx (Sens-up Auto), 0.000 001 (Sens-up x512) Operating Temperature/ Humidity -10 ºC to 50 ºC / 0 % RH to 80 % RH White Balance ATW / AUTO / AWC/SET KEY /MANUAL Storage Temperature/ Humidity -20 ºC to 60 ºC / 0 % RH to 85 % RH Digital Zoom X16 Dimension (W x H x D) 68.6 mm x 54.0 mm x 121.5 mm IRIS Control DC Weight 362 g Scanning Frequency (H/V) 15.734 kHz / 59.94 Hz 15.625 kHz / 50 Hz Sync. System Internal / Line Lock Auto Gain Control OFF/ LOW/ MIDDLE/ HIGH Exposure ALC / ELC TRX - TRX + TRX - TRX + Installation 4. Loosen the flange-back fixing lever. Up and down the flange-back adjusting lever to obtain a focused point. 3. Install the camera and mounting arm. TRX - TRX + TRX - <To adjust the focus.> TRX - <To loosen the lever.> C mount type TRX + 2. Install the C or CS mount type lens. TRX + 1. Install the camera and mounting bracket securely. CS mount type Note: Turn off the camera essentially before the lens connection or replacement. <ITALIANO> Montare la videocamera alla staffa in maniera sicura. <ITALIANO> Installare un obiettivo di tipo C o CS. <ESPAÑOL> Monte la cámara y el soporte. <ESPAÑOL> Instale un objetivo C o CS. <PORTUGUÊS> Instale a câmera e o suporte de montagem firmemente. <PORTUGUÊS> Instale as lentes de montagem do tipo C ou CS. <PYCCKNЙ> Надежно установить камеру и монтажный кронштейн. <PYCCKNЙ> Установить оправы объектива типа C или CS. <TÜRKÇE> Kamera ve kamera bağlantı parçasını sağlam bir şekilde monte edin. <TÜRKÇE> C ve CS tipi lens takın. Montare la videocamera al braccio. <ESPAÑOL> Monte la cámara y el brazo de soporte. <PORTUGUÊS> <PYCCKNЙ> <TÜRKÇE> Instale a câmera e o braço de montagem. Установить камеру и монтажный кронштейн. Kamera ve kamera bağlantı parçası kolunu monte edin. Additional Information Connections 1. Connect the display device. <ITALIANO> Lens iris output connector 2. Connect the power source. <ITALIANO> Allentare la leva per il fissaggio della flangia posteriore. Sollevare e abbassare la leva di regolazione della flangia posteriore per ottenere un punto di messa a fuoco. <ESPAÑOL> Afloje la palanca de fijación. Suba o baje la palanca de ajuste para obtener un punto de enfoque <PORTUGUÊS> <PYCCKNЙ> <TÜRKÇE> Afrouxe o nivelador de fixação da flange traseira. Suspenda e abaixe o nivelador de fixação da flange traseira para obter o ponto do foco. Ослабить крепежные винты заднего фланца. Использовать регулирующее кольцо заднего фланца для достижения точки фокуса. Flanş arka kolu tutan vidaları gevşetin. Flanş arka ayar halkasını kullanarak odak noktasını belirleyin. OSD Menu Control Buttons Pin layout for the lens iris output connector. 2mm No. DC type lenses 1 Damping - 2 Damping + 3 Drive + 4 Drive - BUTTON Rewire the lens iris plug <ITALIANO> Collegare il dispositivo del display. <ITALIANO> Collegare l’alimentazione elettrica. <ESPAÑOL> Conecte el dispositivo de visualización. <ESPAÑOL> Conecte la fuente de energía. 8mm <PORTUGUÊS> <PYCCKNЙ> <TÜRKÇE> Ligue o visor. Подключите устройство отображения. Görüntüleme aygıtını bağlayın. <PORTUGUÊS> Conecte a fonte de alimentação. <PYCCKNЙ> Подключите источник питания. <TÜRKÇE> Güç kaynağını bağlayın. UP 1. Cut off the plug of the lens cable, cut off approximately 8 mm of the insulation, and then strip approximately 2 mm of the ends of the cable sheaths. DOWN Description Used to move upper direction on the menu screen. Use this button to select an item or adjust the parameters. Used to move lower direction on the menu screen. Use this button to select an item or adjust the parameters. 2mm RIGHT Moves the cursor to the right. Used to increment the value selected in the menu. The parameter changes each time this button is pressed. LEFT Moves the cursor to the left. Used to decrement the value selected in the menu. The parameter changes each time this button is pressed. 2. Solder the ends of the cable wires to the ends of the pins, and then attach the cover of the lens iris plug. SET Executes selections and displays a submenu for an item with the mark.
