LG | LFL1300 | Owner's Manual | LG LFL1300 Owner's manual

LG LFL1300 Owner's manual

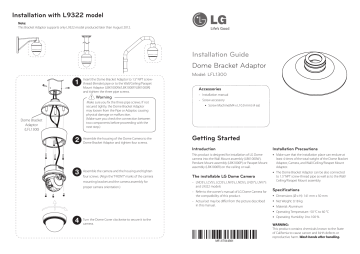

Installation with L9322 model
Note:
This Bracket Adaptor supports only L9322 model produced later than August 2012.
Installation Guide
Dome Bracket Adaptor
a
Insert the Dome Bracket Adaptor to 1.5” NPT screwthread (female) pipe or to the Wall/Ceiling/Parapet
Mount Adaptor (LBK1000W/LBK1000P/LBK1000R)
and tighten the three pipe screws.
>>Warning
Make sure you fix the three pipe screws. If not
secured tightly, the Dome Bracket Adaptor
may loosen from the Pipe or Adaptor, causing
physical damage or malfunction.
(Make sure you check the connection between
two components before proceeding with the
next step.)
Dome Bracket
Adaptor
(LFL1300)
b
c
Assemble the housing of the Dome Camera to the
Dome Bracket Adaptor and tighten four screws.
Model: LFL1300
Accessories
-- Installation manual
-- Screw accessory
yy Screw Machine(M4 x L10.0 mm) (4 ea)
Getting Started
Introduction
Installation Precautions
This product is designed for installation of LG Dome
camera into the Wall Mount assembly (LBK1000W),
Pendant Mount assembly (LBK1000P) or Parapet Mount
assembly (LBK1000R) on the ceiling or wall.
yy Make sure that the installation place can endure at
least 4 times of the total weight of the Dome Bracket
Adaptor, Camera, and Wall/Ceiling/Parapet Mount
Adaptor.
four screws. (Align the “FRONT” marks of the camera
The installable LG Dome Camera
mounting bracket and the camera assembly for
-- LND3’s, LCV5’s, LCD5’s, LNV5’s, LND5’s, LND7’s, LNV7’s
and L9322 models
yy The Dome Bracket Adaptor can be also connected
to 1.5” NPT screw-thread pipe as well as to the Wall/
Ceiling/Parapet Mount assembly.
Assemble the camera and the housing and tighten
proper camera orientation.)
-- Refer to the owner’s manual of LG Dome Camera for
the compatibility of this product.
-- Actual set may be differ from the picture described
in this manual.
Specifications
yy Dimensions (Ø x H): 141 mm x 50 mm
yy Net Weight: 0.18 kg
yy Material: Aluminum
yy Operating Temperature: -50 °C to 60 °C
d
Turn the Dome Cover clockwise to secure it to the
camera.
yy Operating Humidity: 0 to 100 %
WARNING:
This product contains chemicals known to the State
of California to cause cancer and birth defects or
reproductive harm. Wash hands after handling.
Installation with LCV5's, LNV5's and LNV7's models
Installation with LCD5's, LND3's, LND5's and
LND7's models
Note: LCD5’s, LND3’s, LND5’s and LND7’s models are designed for installation in an indoor surveillance system.
Insert the Dome Bracket
Adaptor to 1.5” NPT screwthread (female) pipe
or to the Wall/Ceiling/
Parapet Mount Adaptor
(LBK1000W/LBK1000P/
LBK1000R) and tighten the
three pipe screws.
>>Warning
a
Make sure you fix the three pipe
screws. If not secured tightly, the Dome
Bracket Adaptor may loosen from
the Pipe or Adaptor, causing physical
damage or malfunction.
(Make sure you check the connection
between two components before
proceeding with the next step.)
Dome Bracket Adaptor
(LFL1300)
Assemble the housing of
the Dome Camera to the
Dome Bracket Adaptor
and tighten four screws.
b
Assemble the Dome
Cover and the camera and
tighten three screws.
d
c
Assemble the camera
and the housing.
(Align the “FRONT”
marks of the housing
and the camera
assembly for proper
camera orientation.)
a
Insert the Dome Bracket Adaptor to 1.5” NPT screwthread (female) pipe or to the Wall/Ceiling/Parapet
Mount Adaptor (LBK1000W/LBK1000P/LBK1000R)
and tighten the three pipe screws.
>>Warning
Make sure you fix the three pipe screws. If not
secured tightly, the Dome Bracket Adaptor
may loosen from the Pipe or Adaptor, causing
physical damage or malfunction.
(Make sure you check the connection between
two components before proceeding with the
next step.)
Dome Bracket
Adaptor
(LFL1300)
b
Assemble the camera mounting bracket to the Dome
Bracket Adaptor and tighten four screws.
c
Turn the camera clockwise to secure it to the camera
mounting bracket. (Align the “FRONT” marks of the
camera mounting bracket and the camera assembly
for proper camera orientation.)
d
Turn the Dome Cover clockwise to secure it to the
camera.
