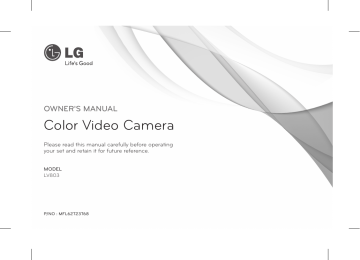

OWNER'S MANUAL
Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LV803
P/NO : MFL62723768
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if
an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
•
A suitable conduit entries, knock-outs or glands shall
be provided in the cable entries of this product in the
end user.
•
•
Caution: Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall be
provided with brushings.
Warning: Do not install this equipment in a confined space
such as a bookcase or similar unit.
Caution: This installation should be made by a qualified
service person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To disconnect power from mains, pull out the mains
cord plug. When installing the product, ensure that the
plug is easily accessible.
Warning: Wiring methods shall be in accordance with the
National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Disposal of your old appliance
1.
When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2.
All electrical and electronic products
should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3.
The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and
human health.
4.
For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you purchased the product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance with
the essential requirements and other relevant provisions of Directive 2004/108/EC,
2006/95/EC, and 2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327
AE Almere, The Netherlands
(Tel : +31-(0)36-547-8888)
Important Safety Instructions
1.
Read these instructions.
and the point where they exit from the apparatus.
2.
Keep these instructions.
3.
Heed all warnings.
11. Only use attachments/accessories specified by the
manufacturer.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Cautions for Safe Operation
Power Supply
Operating and storage location
This camera must always be operated a AC 24 V or DC 12 V
Certified/Listed, class 2 power supply only.
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing the
unit in the following locations.
Note:
Be careful of AC frequency when the camera is operated
with Line lock mode.
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be
cautions not to get combustible or metallic material inside
the body. If used with foreign matter inside, the camera is
liable to fail or to get cause of fire or electric shock.
•
Remove dust or dirt on the surface of the lens with a
blower.
•
Use a dry soft cloth to clean the body. If it is very dirty,
use a cloth dampened with a small quantity of neutral
detergent then wipe dry.
•
Avoid the use of volatile solvents such as thinners,
alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the
operation of the camera.
•
Extremely hot or cold places (operating temperature
-10 °C to 50 °C, however, we recommend that the unit
be used within a temperature range of 0 °C to 45 °C)
•
Damp or dust place
•
Places exposed to rain
•
Places subject to strong vibration
•
Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
Contents
Features.................................................................. 8
Part Names and Functions.................................... 9
SENS-UP setting.............................................................26
White Balance settings..........................................................26
Day/Night Setting...................................................................27
Connections......................................................... 11
Motion Detection Setting.....................................................28
Basic connection......................................................................11
3D-DNR Setting........................................................................29
Installation........................................................... 12
Privacy Setting..........................................................................30
Mounting the Camera without bracket...........................12
Mounting the Camera with bracket.................................14
Image Adjustment..................................................................16
Menu Operation.................................................. 19
OSD Menu Overview..............................................................20
General Operation...................................................................22
Camera Identification Settings...........................................22
Exposure Settings....................................................................23
WDR/BLC setting............................................................23
Brightness setting..........................................................24
AGC (Automatic Gain Control) setting...................25
SHUTTER (Shutter Speed) setting............................25
Special Menu Settings...........................................................31
Setting the D-ZOOM (Digital Zoom ) level ..........31
Setting the D-EFFECT (Digital effect) ....................32
Setting the SHARPNESS effect..................................32
Stabilizer setting............................................................33
Setting the COLOR effect ...........................................33
Setting the SYNC (Synchronization).......................34
Setting the USER TITLE.................................................34
Language Setting..........................................................35
Reset Settings...........................................................................36
Specification........................................................ 37
Features
This Color Video Camera is designed for installation in an
indoor video surveillance system.
This manual contains instructions on how to install and
manage the Color Video Camera in your video surveillance
system.
Should you require any technical assistance, please contact
authorized service center.
•
High resolution and high sensitivity with a 6 mm CCD
•
2.8 mm to 11 mm Vari-Focal Lens
•
Day & Night function (IR Cut Filter)
•
560 TV lines of horizontal resolution
•
High sensitivity with a minimum scene illumination of
0.0002 lx (Sens-Up, F1.2)
•
BLC covers various light conditions
•
Excellent signal-to-noise ratio of 52 dB
•
Internal / Line Lock (External)
•
Power Supply : Automatically switch between
DC 12 V and AC 24 V
•
Line Lock when using AC 24 V.
•
Dome Cover : Vandal -Proof
Part Names and Functions
a Dome Cover
b Lens Cover
c Video output connector (BNC type)
a
d Power input connector
Supplies AC 24 V or DC 12 V from an external power
source.
e Focus lock lever
b
Fixes the focus position after adjusting.
f Setup menu control buttons
g Video Out connector
c
d
Use this jack for checking the picture with portable
monitor when install the camera.
e
f
g
Part Names and Functions
h
i
j
h Azimuth adjuster
Adjusts the azimuth angle to obtain a level image.
i Azimuth lock screw
k
Fixes the azimuth angle after adjusting.
jZoom lock lever
Fixes the zoom position after adjusting.
k Pan lock screw
l
Fixes the panning position after adjusting.
l Camera mounting bracket
This bracket is supplied for ceiling installation.
10
Connections
Basic connection
2. Supply AC 24 V or DC 12 V from an external power
source.
The peripheral devices (VCR, monitor, lens, etc.), AC adapter
and cables are not supplied.
1. Connecting the monitor
Make the video signal connection between the camera and the monitor or DVR.
11
Installation
Mounting the Camera without
bracket
This camera can be installed directly on the surface of the
wall or ceiling without bracket.
1.
12
Use the installation guide template to check the
mounting location. Face the front of the label toward
the area of interest.
2.
Fasten the camera body to the ceiling.
Installation
3.
Assemble the camera cover and camera body. For
proper orientation, use the align mark to assemble the
camera.
Open
Lock
Open
Align
Open
Lock
Align
Lock
Open
Lock
Align
Align
Open
Open
Lock
Lock
Open
Open
Lock
Align
Open
Lock
Align
Open
Lock
Align
Align
Lock
Align
Align
13
Installation
Mounting the Camera with bracket
This camera can be installed on the surface of the wall or
ceiling using the supplied bracket.
1.
14
Use the installation guide template to check the
mounting location. Face the front of the label toward
the area of interest.
2.
Fasten the camera bracket to the ceiling.
Installation
3.
Fasten the camera body to the camera bracket.
Tighten the screw to fix the camera body on the
bracket.
4.
Assemble the camera cover and camera body. For
proper orientation, use the align mark to assemble the
camera.
Open
Lock
Align
15
Installation
Image Adjustment
You can manually adjust the pan/tilt/azimuth angles, focus,
and zoom while observing the connected monitor.
Open
Lock
Align
Open
Lock
Notes:
•
Do not hold the camera by lens unit to adjust panning,
tilting, or azimuth.
•
The video output to the BNC will be interrupted while
a portable monitor is connected to the video jack.
Align
1. Remove the Dome cover.
Lock
2. Remove the lens cover.
3. Connect a portable monitor to the video jack.
Open
Lock
Align
Open
Lock
Align
16
Installation
4.
Adjust the pan/tilt position of the camera.
5.
Adjust the azimuth angle.
5-1. Lock the azimuth angle screw.
4-1. Lock the pan lock screw.
6.
Adjust the zoom
6-1. Unlock the zoom lever.
6-2. Move the lever to adjust the zoom.
WIDE
TELE
17
WIDE
TELE
Installation
WIDE
6-3. Lock the lever.
7-3. Lock the lever.
7. Adjust the focus
8. Attach the lens cover.
7-1. Unlock the focus lever.
9. Attach the dome cover.
7-2. Move the lever to adjust the focus.
NEAR
18
NEAR
TELE
FAR
FAR
Menu Operation
This camera utilizes an on-screen user MENU. To set items
on the menu, use the following buttons.
•
Moves the cursor upwards. Use this button to select an
item or adjust the parameters.
•
RIGHT
DOWN button:
Moves the cursor downwards. Use this button to select
an item or adjust the parameters.
UP
SET
UP button:
•
LEFT
RIGHT button:
Moves the cursor to the right. Use this button to select
or adjust the parameters of the selected item. The
parameter changes each time this button is pressed.
DOWN
•
LEFT button:
Moves the cursor to the left. Use this button to select
or adjust the parameters of the selected item. The
parameter changes each time this button is pressed.
•
SET button:
Executes selections and displays a submenu for an
item with the mark.
19
Menu Operation
OSD Menu Overview
Main Menu
The following table shows the list of menu items and options. You can adapt the camera to your requirements by
setting up the respective items in these menus.
Main Menu
Sub Menu
Contents
CAMERA ID
-
OFF, 1 to 255
EXPOSURE
OFF/WDR/BLC/
HSBLC
BRIGHTNESS
0 to 100
AGC
OFF/LOW/MIDDLE/
HIGH
SHUTTER
X512, ... , x2, AUTO,
OFF, A.FLK, 1/160,
... , 1/90 000
SENS-UP
EXIT
AWC b PUSH
COLOR TEMP
WHITE BAL
RED
DAY/NIGHT
INDOOR,
OUTDOOR
-100 to 100
BLUE
-100 to 100
EXIT
EXIT
RET/TOP/END
LOW/ MIDDLE/
HIGH
5, 10, 15, 30,
60 SEC.
RET/TOP/END
ZONE NUMBER
AREA1 to 4
LEVEL
AUTO
DWELL TIME
DAY
NIGHT
OFF
ZONE STATE
ON/OFF
AUTO
HEIGHT
12 to 100
WIDTH
16 to 100
MOVE Y
6 to 94
RET/TOP/END
MOTION DET
ON
OFF
20
Contents
ATW
MANUAL
WDR/BLC
ALC/ ELC
Sub Menu
MOVE X
8 to 92
SENSITIVITY
0 to 100
EXIT
RET/TOP/END
Menu Operation
Main Menu
3D-DNR
Sub Menu
Contents
OFF
-
LOW
-
MIDDLE
-
HIGH
-
OFF
MASK NUMBER
PRIVACY
ON
Main Menu
Sub Menu
Contents
OFF
D-ZOOM
D-EFFECT
AREA1 to AREA8
DISPLAY
ON/OFF
COLOR
GRAY, WHITE,
BLACK
HEIGHT
4 to 100
WIDTH
4 to 100
SPECIAL
ZOOM
PAN
TILT
EXIT
ON
OFF/ V-FLIP/ MIRROR/ ROTATE
SHARPNESS
0 to 68
STABILIZER
OFF/ ON
COLOR
OFF/ ON
SYNC
INT / LL
USER TITLE
OFF/ ON
LANGUAGE
ENG/RUS (The supported language
can be different depending on the
model.)
MOVE Y
2 to 98
EXIT
RET/TOP/END
MOVE X
2 to 98
CAMERA REBOOT
-
EXIT
RET/TOP/END
RESET
EXIT
FACTORY RESET
-
EXIT
RET/TOP/END
-
-
21
Menu Operation
General Operation
1.
•
•
Press [SET] button.
The setup menu screen appears on the monitor.
TOP: Return to the CAMERA SETTING menu
screen.
END: Exit the setup menu.
Camera Identification Settings
You can use the camera identification (CAMERA ID) to
assign a number to the camera.
2.
Use [UP] or [DOWN] button to select an option then
press [SET] button.
Submenu appears on the monitor.
3.
Use [UP] or [DOWN] button to select a submenu
option.
4.
Use [LEFT] or [RIGHT] button to select a value.
5.
Select [EXIT] option then press [SET] to exit the setup
menu. In the submenu, use [UP] or [DOWN] button to
select the [EXIT] then use [LEFT] or [RIGHT] button to
select a mode and press [SET] to exit the setup menu.
•
22
RET: Return to the previous.
1.
Select [CAMERA ID] option on the [CAMERA SETTING]
menu.
2.
Use [LEFT] or [RIGHT] to select a CAMERA ID (OFF, 1
to 255).
Menu Operation
Exposure Settings
You can set the exposure options using the EXPOSURE
menu.
Select [EXPOSURE] option on the [CAMERA SETTING] menu.
Press [SET] button and the EXPOSURE menu appears.
1.
Select [WDR/BLC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
•
WDR/BLC setting
Use WDR/BLC option to view the object clearly in backlight
conditions.
•
WDR: Use for adjusting brightness of the subject
and background image to view the both of object
clearly at the same time in backlight condition.
Set the WDR limit.
> WDR LIMIT: LOW y MIDDLE y HIGH
BLC: Use for adjusting brightness of the subject to
view the object clearly in backlight condition. Set
the BLC limit.
>
BLC LIMIT: LOW y MIDDLE y HIGH
23
Menu Operation
•
HSBLC: Use for masking brightness of the specific
area to view the subject more clearly. The HSBLC
mode is automatically activated only in low illuminance scene.
AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN]
button to select a ON or OFF. Press [SET] to
exit the Area setting menu.
> GRAY SCALE: Use [LEFT] or [RIGHT] button
to select a gray scale.
(GRAYyD.GRAYyBLACK).
> USER SCALE: Use [LEFT] or [RIGHT] button
to select a bright level.(5 level)
> MASK: Use [LEFT] or [RIGHT] button to
select [ON] or [OFF].
If you set the MASK to ON, the mask function
is activate only when the HSBLC is automatically activated in low luminance scene.
OFF: Not used.
Brightness setting
You can set the brightness level. (0 to 100)
>
•
24
1.
Select [BRIGHTNESS] option.
2.
Use [LEFT] or [RIGHT] button to set the bright level.
Menu Operation
AGC (Automatic Gain Control) setting
SHUTTER (Shutter Speed) setting
If the images are too dark, change the maximum [AGC]
value to make the images lighter.
1.
Select [AGC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode.
(OFFy LOWyMIDDLEyHIGH)
1.
Select [SHUTTER] option.
2.
Use [LEFT] or [RIGHT] button to set shutter speed.
(AUTO y OFF y A.FLK y 1/160, ... , 1/90 000
y x512, ... , x2)
25
Menu Operation
SENS-UP setting
Note:
If pictures are not clear due to darkness, use for increase
the sensitivity of picture.
If you set to one of the SHUTTER options except AUTO on
the [SHUTTER] menu or [AGC] to [OFF], the [SENS-UP] setting is not available and [---] mark is displayed.
White Balance settings
You can select one of three modes for white balance
adjustment.
1.
Use [UP] or [DOWN] button to select [SENS-UP]
option.
2.
Use [LEFT] or [RIGHT] button to select mode.
•
AUTO: Adjust the sensitivity of the picture automatically.
SENS-UP LIMIT: Use [LEFT] or [RIGHT] button to set the SENS-UP limit.
> EXIT: Select a mode and press [SET] to exit
the menu.
OFF: Not used.
>
•
26
1.
Select [WHITE BAL] option.
2.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
Menu Operation
•
ATW (Auto-Tracing White Balance): The color temperature range for the proper white balance is
approximately 1 700 K to 11 000 K. Proper white
balance may not be obtained under the following
conditions:
>
>
>
The color temperature is out of the 1 700 K
to 11 000 K range.
When the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
When the scene is dim.
•
AWCbPUSH: If you select the AWCbPUSH mode,
you will be able to set up the White Balance automatically using [SET] button.
•
MANUAL: You can set the white balance options
manually.
>
COLOR TEMP: Use [LEFT] or [RIGHT] button
to select a function.
INDOOR: The color temperature range
for the proper white balance is approximately 3 200 K.
-
>
>
OUTDOOR: The color temperature range
for the proper white balance is approximately 5 100 K.
RED: Obtains the optimum amount of red
gain.
BLUE: Obtains the optimum amount of blue
gain.
Day/Night Setting
1.
Select [DAY/NIGHT] option.
2.
Use [LEFT] or [RIGHT] button to select mode for day/
night function.
27
Menu Operation
•
AUTO: You will be able to change the Day/Night
mode automatically.
Motion Detection Setting
Note:
The motion detection detects the moving objects in the
scene by monitoring changes in brightness level. You can
select the level of sensitivity for motion detection to 4 zone.
If you set the AGC to [OFF] or the SHUTTER is set
to one of the SHUTTER options except AUTO on
the [EXPOSURE] menu, the AUTO mode of the
DAY/NIGHT function is not available and [---]
mark is displayed.
•
LEVEL: Use [LEFT] or [RIGHT] button to
select a level.
(LOWyMIDDLEyHIGH)
> DWELL TIME: Use [LEFT] or [RIGHT] button
to select a dwell time. (5, 10, 15, 30 or 60
SEC.)
DAY: Color mode enabled.
•
NIGHT: Black-and-white mode enabled.
>
28
1.
Select [MOTION DET] option.
2.
Use [LEFT] or [RIGHT] button to select a [ON] and
press [SET].
The MOTION DETECTION menu appears.
3.
Use [LEFT] or [RIGHT] button to select a zone number
(AREA1 to AREA4) on the [ZONE NUMBER].
4.
Use [LEFT] or [RIGHT] button to set up the ON or OFF
on the ZONE STATE.
Menu Operation
5.
6.
Use [UP] or [DOWN] to select an option then use
[LEFT] or [RIGHT] button to adjust the option.
•
HEIGHT: Enlarge or decrease the vertical size of
the mask.
•
WIDTH: Enlarge or decrease the horizontal size of
the mask.
•
MOVE Y: Moves vertical position of the mask.
•
MOVE X: Moves horizontal position of the mask.
Use [SENSITIVITY] option to obtain the optimum
detection level.
3D-DNR Setting
1.
Select [3D-DNR] option.
If pictures are not clear due to brightness, use for
reduce the noise of picture.
2.
Use [LEFT] or [RIGHT] button to select a option.
(OFFyLOWyMIDDLEyHIGH)
Notes:
•
If you set the AGC to [OFF] on the [EXPOSURE] menu,
the [3D-DNR] function is not available and [---] mark
is displayed.
•
When you use this function, the afterimage may occur.
29
Menu Operation
Privacy Setting
This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in
the screen. Up to 8 zones can be registered.
1.
Select [PRIVACY] option.
2.
Use [LEFT] or [RIGHT] button to select a [ON] and
press [SET]. The PRIVACY SETUP menu appears.
3.
Use [LEFT] or [RIGHT] button to select a mask (AREA1
to AREA8) on the [MASK NUMBER].
4.
Use [LEFT] or [RIGHT] button to set up the ON or OFF
on the DISPLAY option.
5.
Use [LEFT] or [RIGHT] button to set up the GRAY,
30
WHITE or BLACK on the COLOR option.
6.
Use [UP] or [DOWN] to select an option then use
[LEFT] or [RIGHT] button to adjust the option.
•
HEIGHT: Enlarge or decrease the vertical size of
the mask.
•
WIDTH: Enlarge or decrease the horizontal size of
the mask.
•
MOVE Y: Moves vertical position of the mask.
•
MOVE X: Moves horizontal position of the mask.
Menu Operation
Special Menu Settings
This menu lets you adjust and set up D-ZOOM, D-EFFECT,
SHARPNESS, COLOR, SYNC, USER TITLE, LANGUAGE function by yourself in the SPECIAL menu.
1.
Select [SPECIAL] option.
2.
Press [SET] button and the SPECIAL menu appears.
Setting the D-ZOOM (Digital Zoom ) level
You can select the digital zoom level.
1.
Select [D-ZOOM] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET] the DIGITAL ZOOM menu appears. When
you set to ON, the displayed image can be shaking.
3.
Use [UP] or [DOWN] to select a option then use
[LEFT] or [RIGHT] button to select a level.
•
ZOOM: Use [LEFT] or [RIGHT] button to enlarge
the screen.
•
PAN: Use [LEFT] or [RIGHT] button to move the
screen. (left or right)
•
TILT: Use [LEFT] or [RIGHT] button to move the
screen. (up or down)
31
Menu Operation
Setting the D-EFFECT (Digital effect)
Setting the SHARPNESS effect
You can select the digital effect.
You can select the sharpness effect.
1.
Select [D-EFFECT] option on the [SPECIAL] menu.
1.
Select [SHARPNESS] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select a digital effect.
2.
Use [LEFT] or [RIGHT] button to change a adjust the
option.
32
•
V-FLIP: Flip the picture vertically.
•
MIRROR: Turn on the mirror effect.
•
ROTATE: Rotate the picture. (180°)
•
OFF: Turn off the digital effect.
Menu Operation
Stabilizer setting
Setting the COLOR effect
You can select the color effect.
The image stabilizer function minimizes the appearance of
shaky images caused by low-frequency vibration.
1.
This function is useful for outdoor surveillance.
2.
Select [STABILIZER] option and set to ON or OFF.
Select [COLOR] option on the [SPECIAL] menu.
Use [LEFT] or [RIGHT] button to change a color effect.
•
ON: To display the picture with color.
•
OFF: To display the picture with grayscale.
Note:
If you set the [STABILIZER] to ON, the Digital zoom is set to
[x1.1] automatically.
33
Menu Operation
Setting the SYNC (Synchronization)
The SYNC function is available only with AC power source.
1.
Select [SYNC] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select [INT] or [LL]
(Line Lock).
•
INT: Selects for using the internal synchronization.
2-1. Select [LL] mode and press [SET].
2-2. Select a desired phase using the [LEFT] or
[RIGHT] button.
Note:
When you use the DC 12 V power, the [SYNC]
option is fixed to [INT] mode only.
Setting the USER TITLE
•
34
LL (Line Lock): Selects for the operation of multi
cameras because it synchronizes the camera
phase by using the external signal (AC power
signal).
You can use the camera identification to assign a number
and character to the camera (0 to 9, A to Z, a to z).
The USER TITLE is displayed on the upper left of the screen.
To disappear the user title, select [OFF].
1.
Select [USER TITLE] option on the [SPECIAL] screen.
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET]. The USER TITLE menu appears.
Menu Operation
Language Setting
Select a language for the Setup menu and on-screen display.
A
3.
Use [UP], [DOWN], [LEFT] or [RIGHT] button to select
a character or number.
•
CLR: If you enter the wrong code, select CLR then
press [SET].
•
POS: Use [UP], [DOWN], [LEFT] or [RIGHT] button to move position of USER TITLE on the screen.
1.
Select [LANGUAGE] option on the [SPECIAL] screen.
•
END: Confirm your selection.
2.
Press [LEFT] or [RIGHT] button to select a language.
•
A (Blank): Inserts a space at the cursor position.
•
/
: Moves cursor to left or right.
35
Menu Operation
Reset Settings
1.
Select [RESET] option.
2.
Press [SET] button and the RESET menu appears.
3.
Use [UP] or [DOWN] to select option.
36
•
CAMERA REBOOT: To reboot the camera system.
•
FACTORY RESET: To reset the camera setting to
factory setting, select [FACTORY RESET] option.
Specification
Item
LV803P
Signal System
PAL
LV803N
NTSC
Total/Effective Pixels
470 000 Pixels / 440 000 Pixels
410 000 Pixels / 380 000 Pixels
Pick-up Device
6 mm Interline Color CCD
Lens
Vari-Focal Lens (f = 2.8 mm to 11 mm / F = 1.2)
Iris
DC/ELC Selectable
Signal Process
LG XDI-s
Scanning System
2:1 Interlace
Synchronization System
Scanning Frequency
Internal/Line Lock
50 Hz(VD)
59.94 Hz(VD)
Resolution
560 Lines
S/N Ratio
More than 52 dB (AGC Off, F 1.2)
Low Luminance
0.0002 lx (Sens-up Auto)
0.7 lx (AGC High, DNR)
Video Output Signal
1.0 Vp-p Composite Signal (75 Ω)
Auto Gain Control
OFF/LOW/MIDDLE/HIGH
37
Specification
Item
LV803P
LV803N
Exposure
Electric Shutter
ALC/ELC
1/50 to 1/90 000 (Auto Mode)
1/60 to 1/90 000 (Auto Mode)
White Balance
ATW / AWC->PUSH / MANUAL
Back Light
OFF/WDR/BLC/HSBLC
WDR
60 dB
MOTION DET.
OFF/ON
Power Consumption
Max 3.5 W
Power Source
AC 24 V (±20 %), DC 12 V (±10 %)
Operation Temperature
-10 ºC to 50 ºC (Humidity: 0 % RH to 80 % RH)
Storage Temperature
-20 ºC to 60 ºC (Humidity: 0 % RH to 85 % RH)
Weight
350 g
Dimension (Ø x H)
Ø 140 x 100 mm
38
AB28
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
