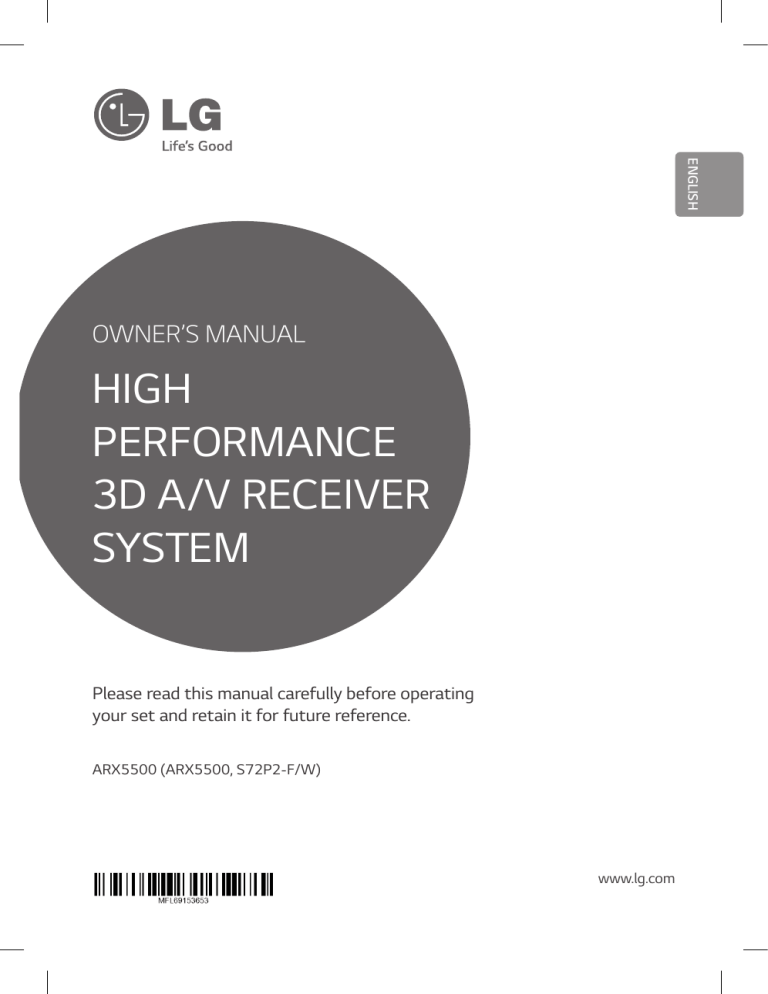

ENGLISH OWNER’S MANUAL HIGH PERFORMANCE 3D A/V RECEIVER SYSTEM Please read this manual carefully before operating your set and retain it for future reference. ARX5500 (ARX5500, S72P2-F/W) www.lg.com 1 2 Getting Started Getting Started Safety information 1 CAUTION Getting Started RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus. WARNING: Do not install this equipment in a confined space such as a book case or similar unit. CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like. Getting Started Copyrights CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER. You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players. (Mastered/ Live File System : Disc format system for Windows Vista) Disposal of your old appliance 1. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 2. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 3. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Disposal of waste batteries/accumulators 1. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury,0.002% of cadmium or 0.004% of lead. Pb 2. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health. 4. For more detailed information about disposal of Your old batteries/ accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product. 1 Getting Started It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision. Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 3 4 Getting Started LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, 2009/125/EC and 2011/65/EU. Contact office for compliance of this product: LG Electronics (Levant) - Jordan Abdali Project, Rafik Al-Hariri Avenue, The Boulevard, Central Square, 5th Floor yy Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product. Table of Contents 5 Table of Contents 1 Getting Started 2 Safety information 6 Unique features 6Accessories 6Introduction 6 – Symbols Used in this Manual 6 – About the “ ” Symbol Display 7 – Required cables 8 Remote control 10 Front panel 11 Rear panel 2Connecting 12 12 13 14 14 16 17 18 19 19 Before connecting Positioning the system Connecting speakers Connecting video devices – Using an HDMI cable – Using a composite video cable Connecting audio devices Connecting other devices Connecting the antenna Connecting portable devices 4Operating 23 23 24 24 26 26 26 26 26 27 27 28 28 29 30 32 33 33 33 Basic operations – Selecting the input source – Adjusting the speaker levels – Enjoying various sound mode Radio Operations – Listening to FM radio – Improving poor FM reception – Presetting the Radio Stations – Deleting the saved stations Playing the USB device – Basic operation – MP3/WMA music file requirement – Compatible USB Devices – Listening to music – Playing a movie file – Viewing a photo Other Operations – Dimmer – Screen Saver 2 3 4 5 33 – Using the Sleep Timer 5Troubleshooting 34Troubleshooting 3 System Setting 20Settings 20 – Adjusting the Setup Settings 20 – [Language] Menu 20 – [Display] Menu 21 – [Audio] Menu 22 – [Others] Menu 1 6Appendix 35 Trademarks and licenses 35Maintenance 35 – Handling the unit 36Specifications 6 6 1 Getting Started Unique features Introduction Full HD up-scaling Symbols Used in this Manual Getting Started Views Full HD picture quality with simple setup. ,,Note Indicates special notes and operating features. 3D pass through Enjoys 3D contents such as 3D movie, game, etc. >>Caution Indicates cautions for preventing possible damages from abuse. Accessories About the “ ” Symbol Display Please check and identify the supplied accessories. “ ” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specific media. A section whose title has one of the following symbols is applicable only to the disc represented by the symbol. Remote control (1) Batteries (2) HDMI cable (1) Coaxial cable (1) Analog audio cable (1) Composite video cable (1) FM antenna (1) Speaker cables (2) MOVIE Movie files contained in the USB MUSIC Music files contained in the USB PHOTO Photo files contained in the USB Getting Started Required cables 7 yy Coaxial digital audio cable The hookup diagrams on the subsequent pages assume the use of the following connection cables. 1 yy USB cable Getting Started You must purchase the connection cables separately if necessary. yy Analog audio cable White (L) Red (R) yy HDMI cable yy Composite video cable Yellow yy Portable cable ( 3.5 mm Stereo plug) yy Analog audio/Composite video cable Yellow (Video) White (L/audio) Red (R/audio) yy Optical digital audio cable ,,Note yy Turn off the power to all components before making any connections. yy When connecting an audio/video cable, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red. yy When connecting optical digital cables, insert the cable plugs straight in until they click into place. yy Do not bend or tie optical digital audio cables. 8 Getting Started Remote control • • • • • • • • • • a • • • • • • • • • • 1 : Switches the unit ON or OFF. TV control buttons : Controls the TV. (LG TV only) -- 1 : Turns the TV on or off. 1 Getting Started -- AV/INPUT : Switches the TV’s input source between the TV and other input sources. INPUT buttons : Selects the input source you want to use. (page 23) -- AV : Selects the input source connected to AV IN 1/2 jack. -- PORTABLE : Selects the input source connected to PORT. IN jack. -- OPTICAL : Selects the input source connected to OPTICAL IN 1/2 jack. -- COAXIAL : Selects the input source connected to COAXIAL IN 1/2 jack. -- HDMI IN : Selects the input source connected to HDMI IN 1/2 jack. -- RADIO : Selects the FM tuner. -- USB : Selects the input source connected to USB port. CLEAR : Deletes preset stations. (page 26) REPEAT : Selects a play mode. (Repeat playback/ Random playback) (page 30) AUTO DJ : Selects the AUTO DJ mode. (page 30) DIMMER : The display window is darkened by half and the lighting is turned off. (page 33) SLEEP : Sets the system to turn off automatically at a specified time. (page 33) Battery Installation Remove the battery cover on the rear of the Remote Control, and insert two (size AAA) batteries with 4 and 5 matched correctly. Getting Started 9 • • • • • • • • • • b • • • • • • • • • • • • • • • • • • • • d • • • • • • • • • • C/V (SKIP) : Goes to the next or previous chapter / track / file. SETUP : Displays or exits the [SETUP] menu. c/v (SCAN) : Searches backward or forward. d(Play) : Starts playback. M (Pause) : Pauses playback. • • • • • • • • • • c • • • • • • • • • • SPEAKER LEVEL : Sets the sound level of desired speaker. (page 24) SOUND EFFECT : Selects a sound effect mode. (page 25) VOL (-/+) : Adjusts speaker volume. MUTE ( ) : Turns off the sound temporarily. Press the button again to restore the sound. BASS BLAST : Selects the BASS BLAST sound mode directly����������� . (page 25) INFO/DISPLAY ( ) : Displays or exits On-screen Display. (Page 30, 31, 32) ENTER ( ) : Acknowledges menu selection. MARKER : Marks music files on the [MUSIC] menu. (page 29) PRESET (-/+) : Selects a preset stations. TUNING (-/+) : Tunes in the desired radio station. W/S/A/D (up/ down/ left/ right): Selects an option in the menu. MONO/STEREO : Selects mono/stereo in FM mode. (page 26) • • • • • • • • • • e • • • • • • • • • • 0 to 9 numerical buttons : Selects numbered options in a menu. 1 Getting Started Z (Stop) : Stops playback. RETURN (x) : Moves backwards in the menu or exits the setup menu. 10 Getting Started Front panel A 1 B C D E F Getting Started G H I J ASTANDBY/ON (1/!) Switches the unit ON or OFF. STOP Stops playback. BINPUT SELECTION Selects the input source. USER EQ Sets the USER EQ mode (BASS, MIDDLE and TREBLE). (page ��������� 24) SOUND EFFECT Selects a sound effect mode. (page ��������� 25) BASS BLAST Selects the BASS BLAST sound mode directly. (page 25) CDisplay window Shows the current status of the unit. DLighting The lighting turns on when the unit is switched on. ERemote sensor FMASTER VOLUME Adjusts the speaker volume. Turn MASTER VOLUME clockwise or counterclockwise. GMULTI CONTROL Adjusts the various options. HUSER CONTROL Sets up USER EQ by using ENTER and PLAY/ PAUSE. ENTER Acknowledges menu selection. Switches among sound modes. PLAY/PAUSE Starts playback. Pauses playback, press it again to exit pauses status. Moves to the BASS mode if you press PLAY/ PAUSE on the front panel while the “USER EQ” is displayed in the display window. IPORT. IN Connects a portable device (MP3 player, etc) to PORT. IN jack. AV IN 2 (L-AUDIO-R, VIDEO) Connects the components with analog audio/ video output jacks. (camcorder, video game console, etc) JUSB port (5 V 0 500 mA) Connects an USB device to USB port. Getting Started 11 Rear panel A B C D 1 Getting Started E F G H I ASpeakers connectors Connects the speaker cables. EHDMI IN 1/2 Connects the component with HDMI output. BDIGITAL AUDIO IN 1/2 FHDMI OUT TO TV COAXIAL 1/2 Connects other components with a coaxial digital audio output. GAV IN 1 (VIDEO IN, L-AUDIO-R) Connects the components with analog audio/ video output jacks. OPTICAL 1/2 Connects other components with an optical digital audio output. HOUTPUT (VIDEO OUT, L-AUDIO-R) Connects the components with analog audio/ video input jacks. CCooling fan DPower cord IANTENNA FM – Connects the FM wired antenna. 12 Connecting Before connecting Please make sure to disconnect the AC power cord before making any connection between the unit and any other device. Positioning the system 2 Connecting The following illustration shows an example of positioning the system. Note that the illustrations in these instructions differ from the actual unit for explanation purposes. B A D F C E / Front speaker (L/R) Place the front speakers to the sides of the monitor or screen and as flush with the screen surface as possible. / Subwoofer The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reflections. Unit >>Caution yy Do not stack the speakers and be careful that the speaker should not fall down. Otherwise it may result in the speaker malfunction and causing personal injury and/ or property damage. yy Make sure to install the speaker with other people in order to prevent it from falling and causing injuries to the installer. Connecting Connecting speakers 2. Connect the wires to the speakers. Connect the other end of each wire to the correct speaker according to the color coding. Front speaker (L) Color Speaker Position Black Orange Subwoofer Any front position Red Front Front right White Front Front left Red White Orange >>Caution Red Subwoofer Subwoofer Red Front speaker (R) 1. Connect the wires to the unit. To connect the cable to the unit, press each plastic finger pad to open the connection terminal. Insert the wire and release the finger pad. To connect the cable to the speakers, press each plastic finger pad to open the connection terminals on the base of each speaker. Insert the wire and release the finger pad. Connect the black end of each wire to the terminals marked -(minus) and the other end to the terminals marked + (plus). yy Be careful to make sure children not to put their hands or any objects into the *speaker duct. *Speaker duct : A hall for plentiful bass sound on speaker cabinet (enclosure). yy The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor. 2 Connecting Black 13 14 2 Connecting Connecting video devices 1. Connect the HDMI IN 1/2 jack on AV Receiver System to your video device with HDMI OUT jack using HDMI cable. You can watch the input image from your video device. There are two ways of connecting your video device to AV Receiver System. 3. Set the input source to HDMI (page 23). Using an HDMI cable Connecting Since HDMI offers both audio and video signal over one cable, you can enjoy them without additional audio cable. DVD, Blu-ray disc player etc. HDMI cable HDMI cable TV 2. Connect the HDMI OUT TO TV jack on AV Receiver System to the HDMI IN jack on your TV. Connecting ,,Note yy HDMI is the abbreviated name for High Definition Multimedia Interface. It is an interface which transmits video and audio signals in digital format. If a connected HDMI device does not accept the audio output of the unit, the HDMI device’s audio sound may be distorted or may not output. 15 Resolution Setting The unit provides several display resolutions for HDMI OUT TO TV jack. You can change the resolution by using [Setup] menu. 1. Press SETUP. The [Setup] menu appears. yy When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to “Resolution Setting”) 2 -- Try switching off the HDMI/DVI device and this unit. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this unit. 2.Use W/S to select [Display] option then press D to move to the second level. -- The connected device’s video input is set correctly for this unit. -- The connected device is compatible with 720 x 576i (or 480i), 720 x 576p (or 480p), 1280 x 720p, 1920 x 1080i or 1920 x 1080p video input. yy Not all HDCP-compatible HDMI or DVI devices will work with this unit. 3.Use W/S to select the [Resolution] option then press D to move to the third level. yy The picture will not be displayed properly with non-HDCP device. yy This unit does not playback and TV screen is changed to black screen. yy If there are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m(15 ft). yy Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the unit and then turn it on again. yy When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable. 4.Use W/S to select the desired resolution then press ENTER ( ) to confirm your selection. ,,Note If your TV does not accept the resolution you have to set on the unit, you can set resolution to 576p (or 480p) as follows : Press Z for more than 5 seconds. Connecting yy When you connect a HDMI or DVI compatible device make sure of the followings : 16 Connecting Using a composite video cable To enjoy both sounds and pictures from your device, you have to connect analog audio cable as well as composite video cable. Audio cable 1. Connect the VIDEO IN jack on AV Receiver System to the VIDEO OUT jack on your video device using a composite video cable. 2. Connect the left and right AUDIO IN jacks of AV Receiver System to the left and right AUDIO OUT jacks on your video device using an audio cables. 3. Connect the VIDEO OUT jack on your AV Receiver System to the VIDEO IN jack on your TV. 2 Connecting 4. Set the input source to AV 1(page 23). ,,Note Video cable DVD, Blu-ray disc player etc Video cable TV When connecting an audio/video cable, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red. Connecting Connecting audio devices 1.Connect AV IN 1, COAXIAL 1/2 or OPTICAL 1/2 jack on AV Receiver System to your audio device’s OUTPUT jack you want. You can hear the sound from your TV, DVD player, Blu-ray player, CD player, etc. It is not necessary to connect all the cables. Connect AV Receiver System to an AV IN, a COAXIAL or an OPTICAL jack on your device you want to connect. Audio cable or DVD, Blu-ray disc player etc. or TV 2. Set the input source to AV IN 1, COAXIAL 1/2 or OPTICAL 1/2 you connect (page 23). ,,Note When connecting an audio/video cable, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red. 2 Connecting Optical cable Coaxial cable 17 18 Connecting Connecting other devices You can easily connect other devices (camcorder, game console, etc) to the jacks on the front panel of AV Receiver System. Video cable 2 1. Connect the VIDEO IN jack on the front panel of AV Receiver System to the VIDEO OUT jack on your device using a video cable. 2. Connect the left and right AUDIO IN jacks on the front of AV Receiver System to the audio left and right OUT jacks on your device using an audio cables. 3. Connect the VIDEO OUT jack on the back panel of AV Receiver System to the VIDEO IN jack on your TV. Connecting 4. Set the input source to AV 2 (page 23). TV ,,Note When connecting an audio/video cable, be sure to match the color-coded pins to the appropriate jacks on the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red. Audio cable Video cable Camcorder, game console, etc. Connecting 19 Connecting the antenna Connecting portable devices 1. Connect the FM wire antenna to the FM antenna connector. 1. Connect the PORT. IN jack on AV Receiver System to the head phone or LINE OUT jack on your portable device (MP3 player, etc.) using a portable cable ( 3.5 mm stereo plug). 2 Connecting FM wire antenna 2. Set the input source to FM tuner (page 23). ,,Note MP3 player etc. Portable cable Be sure to fully extend the FM wire antenna. After connecting the FM wire antenna, keep it horizontal. 2. Set the input source to PORTABLE (page 23). 20 System Setting Settings Adjusting the Setup Settings You can change the settings of the unit in the [Setup] menu. 1.Press SETUP. The [Setup] menu appears. [Language] Menu Menu Language Select a language for the [Setup] menu and onscreen display. [Display] Menu TV Aspect Select which screen aspect to use based on the shape of your TV screen. [4:3] 3 Select when a standard 4:3 TV is connected. System Setting 2. Use W/S to select the first setup option, and press D to move to the second level. [16:9] Select when a 16:9 wide TV is connected. Display Mode The Display Mode setting works only when the TV Aspect mode is set to 4:3. [Letterbox] 3.Use W/S to select a second setup option, and press D to move to the third level. Displays a wide picture with bands on the upper and lower portions of the screen. [Panscan] Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. 4.Use W/S to select a desired setting, and press ENTER ( ) to confirm your selection. System Setting Resolution [Audio] Menu Sets the output resolution of the HDMI video signal. Refer to “Resolution Setting” for details about the resolution (page 15). Speaker Setup [Auto] If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. 21 Make the following settings for the built-in 2.2 channel surround speaker. 1. Select [Speaker Setup] on the [Audio] menu. 2.Press ENTER ( ) The [SPEAKER] menu appears. [576i] or [480i] Outputs 576 (or 480) lines of interlaced video. [576p] or [480p] 3 [720p] Outputs 720 lines of progressive video. [1080i] Outputs 1080 lines of interlaced video. 3.Use A/D to select the desired speaker. 4. Adjust options using W/S/A/D buttons. 5. After adjusting the desired options, press RETURN(x). The menu moves to the previous screen. [1080p] [Speaker] Outputs 1080 lines of progressive video. Select a speaker that you want to adjust. ,,Note Certain speaker settings are prohibited by the Dolby Digital licensing agreement. [Size] Since the speaker settings are fixed, you cannot change the settings. [Volume] Press A/D to adjust the output level of the selected speaker. - Front L/R : 0 to -5 - SubWoofer 1/2 : 5 to -5 ,,Note There is the other way to adjust the speaker levels. Refer to page 24. System Setting Outputs 576 (or 480) lines of progressive video. 22 System Setting [Distance] [Others] Menu Adjust the distance between each speaker and the listening position. DivX(R) VOD [Speaker Test Start] / [Speaker Test Stop] Select [Speaker Test Start] by using the W/S and press ENTER ( ). Press ENTER ( ) again to stop. Adjust the volume to match the volume of test signals memorized in the system. DRC (Dynamic Range Control) 3 System Setting When a title encoded in Dolby Digital or Dolby Digital Plus is playing back, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set [DRC] to [On] for this effect. HD AV Sync Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it effectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use W/S (on the remote control) to scroll up and down through the delay amount, which you can set at anything between 0 ms and 300 ms. ,,Note This function is operated only on the source of USB. ABOUT DIVX VIDEO : DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND :This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration. [Register] Displays the registration code of your unit. [Deregister] Deactivate your unit and display the deactivation code. 4Operating Operating 23 Basic operations Selecting the input source This section explains how to select the input source (i.e., the AV component that you want to listen to or watch). It is necessary to connect the equipment you want to enjoy such as DVD, Blu-ray disc player, USB etc. By using the knob on the unit 1.Press 1/! (STANDBY/ON) on the unit. 2. Select a source by using INPUT SELECTION on the unit. The selected source appears on the display window. By using the remote control 1.Press 1 on the remote control. 2. Select a source by pressing the button on the remote control once or twice. To select Button Component connected to AV IN 1/2 jack AV Portable device connected to PORT. IN jack PORTABLE Component connected to OPTICAL IN 1/2 jack OPTICAL Component connected to COAXIAL IN 1/2 jack COAXIAL Component connected to AV IN 1 jack AV 1 FM radio RADIO USB Component connected to AV IN 2 jack AV 2 USB device connected to USB port Portable device connected to PORT. IN jack PORTABLE Component connected to OPTICAL IN 1 jack OPTICAL 1 Component connected to OPTICAL IN 2 jack OPTICAL 2 Component connected to COAXIAL IN 1 jack COAXIAL 1 Component connected to COAXIAL IN 2 jack COAXIAL 2 Component connected to HDMI IN 1 jack HDMI IN - 1 Component connected to HDMI IN 2 jack HDMI IN - 2 FM radio FM USB device connected to USB port USB 4 Operating Display Component connected to HDMI 1/2 jack HDMI IN To select 24 Operating Adjusting the speaker levels Enjoying various sound mode You can adjust the level of each speaker. These settings are applied to all sound fields. You can adjust from -5 to +5 in 1 step. You can enjoy various sound mode. For details, refer to Setting the USER EQ, Sound effect and Bass Blast. 1.Press SPEAKER LEVEL on the remote control repeatedly to select a desired speaker to set. Setting the USER EQ The indicator changes cyclically in the display window as follows. SW -> FL -> FR 2.Press VOL -/+ to adjust the sound level of the selected speaker while the indicator is displayed in the display window. 4 You can listen to music with desired sound effect by adjusting the BASS, MIDDLE and TREBLE. 1.Press USER EQ on the front panel. “USER EQ” appears on the display window. 2.Press PLAY/PAUSE on the front panel while the “USER EQ” is displayed in the display window. 3. Select the BASS, MIDDLE or TREBLE by pressing ENTER on the front panel. Display Description SW Subwoofer 1,2 (-5 to +5) 4.Rotate MULTI CONTROL on the front panel to set sound level. FL Front speaker (left) (-5 to 0) FR Front speaker (right) (-5 to 0) 5.Press PLAY/PAUSE on the front panel to finish the settings. Operating 3. Repeat and adjust the sound level of the other speakers. Operating 25 ,,Note Sound effect This system has a number of preset sound effects. You can select a suitable sound effect. Press SOUND EFFECT on the remote control repeatedly until the desired sound effect appears on the display window. yy In some of surround modes, some speakers, there’s no sound or low sound. It depends on the mode of surround and the source of audio, it is not defective. Display Description yy You may need to reset the surround mode, after switching the input, sometimes even after the sound track changed. NATURAL You can enjoy comfortable and natural sound. yy Depending on region, specific Local specialization equalizer is selected. Local Regionally optimized sound effect. (DANGDUT/ ARABIC/ PERSIAN/ INDIA/ REGUETON/ MERENGUE/ SAMBA/ SALSA/ CUMBIA/ AFRO HIP HOP) specialization equalizer AUTO EQ CLASSIC JAZZ ROCK This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock, pop, jazz or classic concert. MP3-OPT This function is optimized for compressible MP3 file. It improves the treble sound. BASS BLAST During playback, reinforces the bass sound. LOUDNESS Improves the bass and treble sound. 3D SOUND 3D Sound features deliver sound creating a wider spot so you can enjoy more immersive and cinematic surround sound. BYPASS You can enjoy the sound without equalizer effect. You can set the BASS BLAST sound mode directly. Press BASS BLAST repeatedly. Display Description BASS BLAST During playback, reinforces the bass sound. BYPASS You can enjoy the sound without equalizer effect. To activate the mute function Press MUTE ( ) on the remote control. "MUTE" appears on the display window. To cancel, press MUTE ( ) on the remote control again or change the volume level. 4 Operating POP Sets the sound equalizer to the mode that is the most similar to the genre which is included in the MP3 ID3 tag of song files. Bass Blast 26 Operating Radio Operations Presetting the Radio Stations Be sure that FM aerial is connected. Before tuning, make sure to turn down the volume. Listening to FM radio 1.Press RADIO on the remote control or turn INPUT SELECTION on the unit until FM appears on the display window. The last received station is tuned in. 2. Automatically : 4 Press and hold TUNING -/+ for about 2 seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station. Manually : You can preset 50 stations for FM. 1. Tune in to a radio station. 2.Press ENTER ( ). A preset number will blink in the display window. 3.Press PRESET +/- to select the preset number you want. 4.Press ENTER ( ). The station is stored. 5. Repeat steps 1 to 4 to store the other stations. 6. To listen to a preset station, press PRESET +/- or 0 to 9 numerical buttons. Deleting the saved stations Operating Press TUNING -/+ on the remote control repeatedly or turn MULTI CONTROL on the unit. Each of the saved stations 3. Adjust the volume by pressing VOL+/- on the remote control or turn MASTER VOLUME on the unit. 2.Press CLEAR. A preset number will blink on the display window. Improving poor FM reception Press MONO/STEREO on the remote control. This will change the tuner from stereo to mono and usually improve the reception. 1. Select the saved station you want to delete. 3.Press CLEAR again while the preset number is displayed. all the saved stations 1. Press and hold CLEAR on the remote control for about two seconds. “ERASE ALL” will blink on the display window. 2.Press CLEAR again while “ERASE ALL” is displayed. All the saved stations are cleared. Operating 27 Playing the USB device This unit can play movie, music and photo files contained in the USB device. Basic operation 1. Connect the USB device to the USB port until it fits into the port. To stop playback MUSIC MOVIE PHOTO Press Z during playback. To pause playback MUSIC MOVIE Press M during playback. Press d to resume playback. To scan forward or backward MUSIC MOVIE Press c or v to play fast forward or fast reverse during playback. You can change the various playback speeds by pressing c or v repeatedly. Press d to return to normal speed. MUSIC MOVIE 2. Select the USB function by pressing USB on the remote control or by turning INPUT SELECTION until "USB" appears on the display window. The music files start playing automatically if there are only music files in the USB device. If there are different types of files in the USB, you should select one from [USB] menu. [USB] menu 3. Select [Music], [Movie] or [Photo] by using A/ D and press ENTER ( ). During playback, press C or V to go to the next chapter/track/file or to return to the beginning of the current chapter/track/file. Press C twice briefly to step back to the previous chapter/track/file. PHOTO During playback, press C or V to go to the previous/next file. 4 Operating To skip to the next/previous chapter/ track/file 28 Operating To slow down the playing speed MOVIE While the playback is paused, press v repeatedly to play various speeds of slow motion. Resume playback MUSIC MOVIE The unit records the point where you pressed the Z depending on the file. If “MZ” appears on the screen briefly, press d to resume playback (from the scene point). If you press Z twice, “Z” appears on the screen. The unit will clear the stopped point. Removing the USB device from the unit 4 1. Choose a different function/mode or press Z twice in a row. Operating 2. Remove the USB device from the unit. MP3/WMA music file requirement Music file compatibility with this unit is limited as follows : yy Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) yy Bit rate : within 32 to 320 kbps (MP3),40 to 192 kbps (WMA) yy Support Version : v2, v7, v8, v9 yy Maximum files : Under 999 yy File extensions : “.mp3”/ “.wma” Compatible USB Devices yy MP3 Player : Flash type MP3 player. yy USB Flash Drive : Devices that support USB 2.0 or USB 1.1. yy Some USB device may not work with this unit. USB device requirement yy Devices which require additional program installation connected to a computer, are not supported. yy Do not extract the USB device while in operation. yy For a large capacity USB, it may take longer than a few minute to be searched. yy Regular back up is recommended to prevent data loss. yy If you use a USB extension cable or USB hub, the USB device is not recognized. yy Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.) yy This unit is not supported when the total number of files is 1000 or more. yy External HDD, Multi Media Card readers, Locked devices, or hard type usb devices are not supported. yy USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device. yy Digital camera and mobile phone are not supported. Operating 29 Listening to music Playing your favorite music You can play music files contained in a USB device. It enables you to listen to music by marking your favorite files. 1. Select [Music] by using A/D on the [USB] menu. 2.Press ENTER( ). The music files start playing automatically. 1. During playback, select your favorite files by using W/S. 2.Press MARKER. The [ indicator appears on the [MUSIC] menu. 3. Repeat steps 1-2. Using the [Music] menu 4.Press d or ENTER( ). The play mode is displayed on the [MUSIC] menu. Mark Play Current Play 5. Select the desired play mode by using W/S. Description UP FOLDER Returning to the upper folder. Select All Marking all the files. Deselect All Deselecting all the marked files. ;/. Moving to the previous or next page. Buttons [Mark Play] : Plays the marked files in order. [Current Play] : Plays all the files in a folder in order. 6.Press ENTER( ). ,,Note Select a desired option by using W/S/A/D. [ Mark Marking the selected files. MARKER wsad Move Moving to another file. W/S/A/D Select Activating a file. ENTER ( x Close Returning to the [USB] menu. RETURN (x) ) yy If you want to delete a marker, select the marked file, and then press MARKER again. yy The markers are also cleared when the USB device is removed, the unit is switched to power off or the function is switched to the others. 4 Operating Options 30 Operating Playing repeatedly or randomly During playback, press select a desired mode. Display REPEAT REPEAT repeatedly to You can play movie files contained in a USB device. 1. Select [Movie] using A/D on the [USB] menu. Description The current file will be played repeatedly. REPEAT ALL All the files will be played repeatedly. RANDOM The files will be played in random order. Off (No display) Playing a movie file 2. Select a file using W/S/A/D, and press d or ENTER ( ) to play the file. Displaying content information onscreen You can display and adjust various information and settings about the content. Returns to normal playback. AUTO DJ playback 4 AUTO DJ blends the end of one song into the beginning of another for seamless playback. Operating During playback, press AUTO DJ repeatedly to select a desired mode. Display Description AUTO DJ RANDOM The music is played randomly on this mode. AUTO DJ SEQUENTIAL The music is played repeatedly on this mode. AUTO DJ OFF Returns to normal playback. 1. During playback, press INFO/DISPLAY ( ) to show various playback information. a Title – Current title number / Total number of titles b Time – Elapsed playing time / Total playback time c Audio – Selected audio language or channel d Subtitle – Selected subtitle e Code Page – Selected subtitle code page 2. Select an option using W/S. 3.Use A/D to adjust the selected option value. 4.Press INFO/DISPLAY ( ) or RETURN (x) to exit the On-Screen display. ,,Note If no button is pressed for a few seconds, the on-screen display disappears. Operating 31 Playing from selected time Movie file requirement 1.Press INFO/DISPLAY ( ) during playback. The time search box shows the elapsed playing time. Movie file compatibility with this unit is limited as follows. 2. Select the [Time] option and then input the required start time in hours, minutes, and seconds from left to right. For example, to find a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”. 3.Press ENTER ( selected time. ) to start playback from Hearing different audio 1. During playback, press INFO/DISPLAY ( ) to display the On-Screen display. 2.Use W/S to select the [Audio] option. 3.Use A/D to select desired audio language, audio track or audio channel. 1. During playback, press INFO/DISPLAY ( ) to display the On-Screen display. 2.Use W/S to select the [Subtitle] option. 3.Use A/D to select desired subtitle language. 4.Press RETURN (x) to exit the On-Screen display. Changing subtitle code page If the subtitle is not displayed properly, you can change the subtitle code page to view the subtitle file properly. 1. During playback, press INFO/DISPLAY ( ) to display the On-Screen display. 2.Use W/S to select the [Code Page] option. 3.Use A/D to select desired code option. 4.Press RETURN (x) to exit the On-Screen display. yy The file name of the DivX subtitle should be entered within 45 characters. yy If there is impossible code to express in the DivX file, it may be displayed as “ _ “ mark on the display. yy Frame rate : less than 30 fps. yy If the video and audio structure of recorded files is not interleaved, either video or audio is outputted. yy Playable movie file : “.avi”, “.mpg”, “.mpeg”, “.divx” yy Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt), MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt), Vobsub (*.sub) yy Playable Codec format : “DIVX3.11”, “DIVX4”,“DIVX5”, “DIVX6”, “MP4V3”, “3IVX” yy Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA” yy Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA) yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192 kbps (WMA) yy If the name of movie file is different from that of the subtitle file, during playback of a DivX file, subtitle may not be display. yy If you play a DivX file differ from DivX spec, it may not operate normally. yy The DTS is not supported. In case of DTS audio format, audio is not output. 4 Operating Selecting a subtitle language yy Available resolution: within 720 x 576 (W x H) pixels. 32 Operating Viewing a photo To stop a slide show You can view photo files contained in a USB device. Press Z during slide show. 1. Select [Photo] using A/D on the [USB] menu. The [PHOTO] menu appears. To pause a slide show Press M during slide show. Press d or M to re-start the slide show. To skip to the next/previous photo While viewing a photo in full screen, press A or D to go to the previous or next photo. Options while viewing a photo Options Description Buttons UP FOLDER Returning to the upper folder. 4 ;/. Operating You can use various options while viewing a photo in full screen. Moving to the previous or next page. Select a desired option by using W/S/A/D. d Slide Show Viewing a slide show. d wsad Move Moving to another file or content. W/S/A/D Select Viewing a particular file. ENTER ( x Close Returning to the [USB] menu. Description d Slide Show Viewing a slide show. Select Viewing a particular file. 2. Select an option using W/S/A/D. ) RETURN (x) a Current photo/Total number of photos – Use A/D to view previous/next photo. 2. Select a file using W/S/A/D, and press d or ENTER ( ) to play the file. Options 1. While viewing a photo in full screen, press INFO/DISPLAY ( ) to display the option menu. b Slide Show – Press ENTER ( ) to start or pause slide show. Buttons c Speed – U se ENTER ( ) to select a delay time between photos in a slide show. d d Rotate – Press ENTER ( ) to rotate the photo clockwise/counterclockwise. ENTER ( ) e Go to list – Press ENTER ( menu. ) to return [Photo] 3.Press RETURN (x) or INFO/DISPLAY ( ) to exit the option menu. Operating 33 Photo file requirement Using the Sleep Timer Photo file compatibility with this unit is limited as follows : You can set the unit to turn off automatically at a specified time. Press SLEEP repeatedly. yy Max pixel in width : 2760 x 2048 pixel yy Maximum files : Under 999 The indicator changes cyclically in the display window as follows. yy Some files may not operate due to a different recording format or the condition of file. SLEEP 180 -> 150 -> 120 -> 90 -> 80 -> 70 -> 60 -> 50 -> 40 -> 30 -> 20 -> 10 -> Off (No display) yy File extensions: “.jpg”, “.jpeg” To check the remaining time, press SLEEP. The remaining time appears on the display window. Other Operations Dimmer To cancel the sleep function, press SLEEP repeatedly until “SLEEP 10” appears, and then press SLEEP once again while “SLEEP 10” is displayed. ,,Note When the sleep timer is activated, the display window dims and the lighting is turned off. Press DIMMER once. The display window is darkened by half and the lighting is turned off. To cancel it, press DIMMER again. The screen saver is available only on the USB device mode. The screen saver appears when you leave the unit in Stop mode for about five minutes. Operating Screen Saver 4 5Troubleshooting 34 Troubleshooting Troubleshooting PROBLEM No Power CAUSE & CORRECTION yy The power cord is unpluged. Plug in the power cord. yy Check the condition by operating other electronic devices. yy The speaker wires are disconnected. Check the speaker connections. yy The volume is set to minimum. Adjust the volume level. No sound yy Incorrect input source is selected. Check the input source and select the correct input source. yy The mute function is activated. Press @MUTE or adjust the volume level to cancel the mute function. No lighting yy The Dimmer or the Sleep function is activated. Press DIMMER or SLEEP to cancel the function. yy The antenna is positioned poorly. Adjust its position. yy The signal strength of the radio station is too weak. Tune to the station manually. Radio stations cannot be tuned in properly. yy No stations have been preset or preset stations have been cleared (when tuning by scanning preset channels). Preset some radio stations, see page 26 for details. 5 Troubleshooting yy The remote control is too far from the unit. Operate the remote control within about 23 ft (7m). The remote control does not work properly. yy There is an obstacle in the path of the remote control and the unit. Remove the obstacle. yy The batteries in the remote control are exhausted. Replace the batteries with new one. 6Appendix Appendix 35 Trademarks and licenses Maintenance Handling the unit When shipping the unit HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. yy Do not use volatile liquids such as insecticide spray near the unit. yy Wiping with strong pressure may damage the surface. yy Do not leave rubber or plastic products in contact with the unit for a long period of time. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. 6 Appendix 36 Appendix Specifications General (ARX8500) Power requirements Refer to the mail label on the unit. Power consumption Refer to the mail label on the unit. Dimensions (W x H x D) (430 x 144.5 x 330) mm Net Weight (Approx.) 4.2 kg Operating temperature 41 °F to 95 °F (5 °C to 35 °C) Operating humidity 5 % to 90 % Bus Power Supply 5 V 0 500 mA Input/Output ANALOG AUDIO IN 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 2 ANALOG VIDEO IN 1.0 Vrms (p-p), 75 Ω, sync negative, RCA jack x 2 OPTICAL IN 3.0 Vrms (p-p), Optical jack x 2 COAXIAL IN 3.0 Vrms (p-p), Coaxial jack x 2 PORT. IN 0.5 Vrms ( 3.5 mm stereo jack) x 1 HDMI IN/OUT 19 pin (Type A, HDMI™ connector) AUDIO OUT 2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 VIDEO OUT 1.0 Vrms (p-p), 75 Ω, sync negative, RCA jack x 1 Tuner 6 FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz Appendix Amplifier Stereo mode Surround mode 185 W +185 W (4 Ω at 1 kHz) Front 185 W x 2 (4 Ω at 1 kHz) Subwoofer 215 W x 2 (3 Ω at 1 kHz) Appendix 37 Front speakers (S72P2-F) Type 2 Way 2 Speaker Impedance 4Ω Rated Input Power 185 W Max. Input Power 370 W Dimensions (WxHxD) (274 x 941 x 277) mm Net Weight(1EA) 13.8 kg Subwoofer (S72P2-W) Type 1 Way 1 Speaker Impedance 3Ω Rated Input Power 215 W Max. Input Power 430 W Dimensions (WxHxD) (273 x 390 x 364) mm Net Weight(1EA) 7.4 kg Designs and specifications are subject to change without prior notice. 6 Appendix
