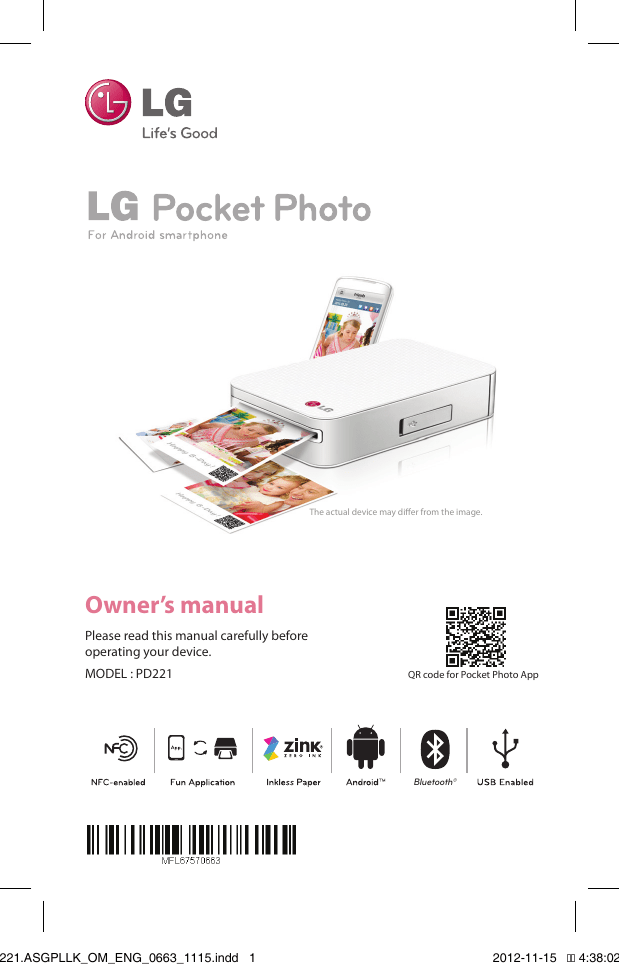

Owner’s manual
Please read this manual carefully before
operating your device.
MODEL : PD221
221.ASGPLLK_OM_ENG_0663_1115.indd 1
QR code for Pocket Photo App
Bluetooth®
2012-11-15 �� 4:38:02
2
221.ASGPLLK_OM_ENG_0663_1115.indd 2
2012-11-15 �� 4:38:02
Safety information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
(OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case
or similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from over heating. The
openings shall never be blocked by placing the product on a bed, sofa, rug or
other similar surface. This product shall not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is provided or the
manufacturer’s instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of this owner’s
manual to be certain. Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed power cords, or damaged
or cracked wire insulation are dangerous. Any of these conditions could result
in electric shock or fire. Periodically examine the cord of your appliance, and if
its appearance indicates damage or deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced with an exact replacement part by an
authorized service center. Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon.
Pay particular attention to plugs, wall outlets, and the point where the cord exits
the appliance. To disconnect power from the mains, pull out the mains cord plug.
When installing the product, ensure that the plug is easily accessible.
221.ASGPLLK_OM_ENG_0663_1115.indd 3
3
2012-11-15 �� 4:38:02
This device is equipped with a portable battery or accumulator.
Safety way to remove the battery or the battery from the equipment: Remove
the old battery or battery pack, follow the steps in reverse order than the
assembly. To prevent contamination of the environment and bring on possible
threat to human and animal health, the old battery or the battery put it in
the appropriate container at designated collection points. Do not dispose of
batteries or battery together with other waste. It is recommended that you use
local, free reimbursement systems batteries and accumulators. The battery shall
not be exposed to excessive heat such as sunshine, fire or the like.
NOTICE: For safety making information including product identification and
supply ratings, please refer to the main label inside the apparatus.
NOTICE: Only use the AC adaptor supplied with this device. Do not use a power
supply from another device or another manufacturer. Using any other power
cable or power supply may cause damage to the device and void your warranty.
CAUTION:
yy The apparatus should not be exposed to water (dripping or splashing) and no
objects filled with liquids, such as vases, should be placed on the apparatus.
yy Minimum distances around the apparatus for sufficient ventilation, no less
than 5 cm.
yy The ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, table-cloth, curtains etc.
yy No naked flame sources, such as lighted candles, should be placed on the
apparatus.
yy Internal lithium battery in the unit should not be replaced by user because of
danger of explosion if battery is incorrectly replaced ,and must be replaced
with the same type battery by expert.
4
221.ASGPLLK_OM_ENG_0663_1115.indd 4
2012-11-15 �� 4:38:02
Table of Contents
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
STEP 1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Supplied items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power On / Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
STEP 2 Charging Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
STEP 3 Inserting Photo Paper . . . . . . . . . . . . . . . . . . . . . . . . 8
Cleaning printer head using Smart Sheet. . . . . . . . . . . . . . . . . . . . . . . . . 9
Paper Jam Solution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
STEP 4 Installing App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
From Play Store (Android market). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using QR code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using NFC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
App Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
See “Help” for details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
STEP 5 Printing Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Printing using Bluetooth ( ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Printing using NFC (
Bluetooth®
Printing using USB connection ( ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting LG Pocket Photo using USB connection. . . . . . . . . . . . . . . . . . 15
Checking Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Bluetooth®
Bluetooth®
About LED indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
221.ASGPLLK_OM_ENG_0663_1115.indd 5
5
2012-11-15 �� 4:38:02
STEP 1 Getting Started
Supplied items
Charger
LG Pocket Photo Printer
Owner’s manual
USB cable
ZINK Photo Paper
Product Overview
Reset hole
Micro USB port (for recharging)
USB port (Type A, for Smartphone)
Paper exit slot
Upper cover
Paper insert door
Paper insert slot
Button
(Power)
Power On / Off
On : Press and hold for 4 sec.
Off : Press and hold for 2 sec.
6
221.ASGPLLK_OM_ENG_0663_1115.indd 6
2012-11-15 �� 4:38:03
,,Note
yy When turning the device on, the
printing is available.
button flashes for 5 sec. Then
button) shows the device condition. For more
yy The LED indicator (
information, see “About LED indicator” on page 17.
>>Caution
CAUTION when using this product in environments of low humidity
yy It may cause static electricity in environments of low humidity.
yy It is recommended to use this product after touching any metal object
which conducts electricity.
STEP 2 Charging Battery
This device uses built-in battery. Before using it, charge the battery in full.
(Refer to below)
Battery charging time : 1.5 hours
button
Checking the charging status with
/ 100 % :
(When power-off )
yy Charging :
yy 10 % : flashes for about 3 sec.
yy 0 % : flashes for about 30 sec. and turns off.
yy LG Pocket Photo is always charged when connected to the power supply
except for being printed.
Charger (AC Adapter)
yy Model : MCS-01ED
yy Manufacturer : Dong Do Electronics Co., Ltd
yy Input : 100 - 240 V ~
yy Output : 5 V 0 1.2 A
221.ASGPLLK_OM_ENG_0663_1115.indd 7
7
2012-11-15 �� 4:38:04
>>Caution
yy Handle with care during charging to prevent electric shock.
yy Do not place near heating appliance.
yy Do not disassemble or deform.
yy Do not give shock on.
yy Avoid too high or low temperature or humidity.
,,Note
yy You can connect the device to PC using the supplied USB cable, but
charging time can be longer.
yy The operating time on battery may vary depending on the battery
status, operational status and environment conditions.
yy Once fully charged, you can print up to 15 papers in a row.
yy When the battery is discharged, printing is available after charging it for
more than 10 min.
(Charge in full to print in a row.)
STEP 3 Inserting Photo Paper
1. Open the Paper insert door.
2. Unwrap the pack of the photo papers.
3. Slide Smart Sheet (Blue) and photo papers together into the Paper insert slot.
Smart Sheet will be ejected automatically before first printing.
yy Do not insert more than 1 pack (10 Photo papers and 1 Smart Sheet).
Otherwise 2 papers may be ejected at once or paper jam may occur.
yy Refill the device after using up the papers in.
yy Do not push the papers deeper into Paper insert slot.
8
221.ASGPLLK_OM_ENG_0663_1115.indd 8
2012-11-15 �� 4:38:04
Photo Paper
with White side up
IN
Z
K
Smart Sheet
with Barcode side down
Cleaning printer head using Smart Sheet
Smart Sheet cleans printer head and calibrates colors on photo. Keep the best
print quality by using it repeatedly.
Paper Jam Solution
Do not pull the paper out. Turn the device off and on again, the paper will be
ejected automatically.
If this problem is not solved, please refer to “Troubleshooting”.
>>Caution
yy Do not forcefully pull the paper out during printing. It may result in
malfunction.
yy Do not damage or bend the papers.
yy Using soiled paper may result in malfunction.
yy Using photo papers from other company may result in malfunction or
paper jam.
yy Do not place inside a car or, expose to direct sunlight or moisture.
yy Do not leave in a place where the temperature or humidity is too high
or low. It may reduce the quality of the printed photo.
,,Note
yy Handle with care when you touch the paper not to get dirt on.
yy Ensure to use the papers within its valid date.
yy Once unpacked, the papers may begin to curl up after a period time. It is
recommended to use them as soon as possible.
221.ASGPLLK_OM_ENG_0663_1115.indd 9
9
2012-11-15 �� 4:38:04
STEP 4 Installing App
From Play Store (Android market)
Search for “LG Pocket Photo”.
Using QR code
Scan the QR code on the product box or the cover of this manual.
Using NFC
Refer to “Printing using NFC” on page 13.
10
221.ASGPLLK_OM_ENG_0663_1115.indd 10
2012-11-15 �� 4:38:05
App Setting
Set the options in [Setting].
*
yy NFC : Prints using NFC (NFC-enabled phone only)
yy Bluetooth : Prints using Bluetooth
yy USB debugging : Prints by connecting to smartphone with a USB cable
**
yy GPS : Saves the location where you took a photo
* NFC : Near Field Communication
** GPS : Global Positioning System using a satellite
See “Help” for details
For more information about the App, touch “Help”.
221.ASGPLLK_OM_ENG_0663_1115.indd 11
11
2012-11-15 �� 4:38:05
STEP 5 Printing Photo
Printing using Bluetooth (
)
Preparation : Turn the device on, andBluetooth®
start printing with the white LED
(
button) turning on.
1. Run LG Pocket Photo App on smartphone.
2. Select a photo to print, and touch [Print].
3. Touch [OK], then it will start searching for Bluetooth devices.
4. When LG Pocket Photo is paired for the first time, [Bluetooth pairing request]
appears. To start printing, touch [Pairing] or input the PIN code ‘0000’.
yy If Smart Sheet is in the device, it will be ejected before starting printing.
yy The color of impression can be different between printed photo and image
on smartphone’s display.
yy Once the battery is fully charged, you can print up to 15 papers in a row. It
depends on the battery condition.
yy The Bluetooth searching and transferring may fail depending on its
environment. Check the Bluetooth condition on your phone and try again.
yy If there are more than a LG Pocket Photo device, check MAC address on the
label to choose one you want to use.
(Refer to “Checking Label” on page 16.)
>>Caution
yy Do not pull paper out by force during printing.
yy Do not open the Paper insert door during printing.
yy Do not place an object at the front of the Paper exit slot.
yy If the device is vibrated or given shock, the quality of the printed photo
may be reduced.
12
221.ASGPLLK_OM_ENG_0663_1115.indd 12
2012-11-15 �� 4:38:06
,, You can print photos directly from smartphones or PC via Bluetooth without
the App. Choose a photo and select [Bluetooth] in [Share] or [Menu].
Printing using NFC (
)
Check whether your smartphone supports NFC first.
Bluetooth®
yy How to read NFC tag : Make smartphone get near to NFC tag on the device.
NFC
1. Tagging for the first time, it links to Play Store where you can download LG
Pocket Photo App.
2. Go to [Setting] in the App installed, and check [NFC].
3. Choose a photo to print and tag, then printing is started immediately. From
this time, you can run the App and print a photo by just tagging.
221.ASGPLLK_OM_ENG_0663_1115.indd 13
13
2012-11-15 �� 4:38:07
,,Note
yy If NFC tag is not read, check its position on LG Pocket Photo and
smartphone. Then try again.
(Depending on the type of smartphone, the position of NFC tag on it
may differ.)
yy If your smartphone case is plated with chrome, NFC is unavailable.
Depending on your case’s material or thickness, NFC may not be read
well.
Printing using USB connection (
)
Bluetooth®
1. Connect LG Pocket Photo to smartphone
using a USB cable.
2. Run LG Pocket Photo App on smartphone.
3. Choose a photo to print, and touch [Print].
,,Note
yy If the device is not connected, check USB options in Settings on
smartphone.
yy Because smartphone recognizes LG Pocket Photo as a power supply
while connected, disconnect the device when not in use.
yy USB port of the device cannot be connected to PC, tablet PC and digital
camera. It is available for Android phone of any smartphone.
14
221.ASGPLLK_OM_ENG_0663_1115.indd 14
2012-11-15 �� 4:38:07
Setting LG Pocket Photo using USB connection
You can check remaining battery, the number of the photos printed, device
version, MAC address, and change the setting of print mode, etc.
1. Connect LG Pocket Photo to smartphone using a USB cable. (Unavailable via
Bluetooth)
2. Run LG Pocket Photo App on smartphone.
3. Go to [Setting].
4. Touch [Device Information].
Auto Exposure
Corrects color in the image.
Paper Full
Prints without white space. (The edge of the image can be
cut off.)
Image Full
Prints an image as a whole. (White space can occur at the
edge of the paper.)
Auto Power Off
Set a time so that the device turns itself off.
(Default is [5 min]. If you set to [Off ], the device can be on
for up to 2.5 hours when fully charged.)
,,Note
The longer time you set [Auto Power Off ] to, the more the battery
consumption is. The number of maximum prints may differ.
221.ASGPLLK_OM_ENG_0663_1115.indd 15
15
2012-11-15 �� 4:38:07
Checking Label
In case there are more than a LG Pocket Photo device, check MAC address on the
product label to choose one you want to use.
1. Open the Paper insert door.
2. Open the Upper cover.
3. You can find the product label.
>>Caution
yy Be sure the device is off before opening.
Be sure the Paper insert door is opened when you close the Upper
Cover.
yy It is recommended not to open the Upper cover as possible except for
checking the label.
yy Do not detach the black rubber pad. It may cause malfunction.
16
221.ASGPLLK_OM_ENG_0663_1115.indd 16
2012-11-15 �� 4:38:08
About LED indicator
The LED indicator (
LED color
button) shows the device condition.
Condition/Power
Waiting/
On
Waits for printing. Device turns itself off
if it is left unused for a while.
Full charge/
Off
To print, turn on the device.
Charging/
Off
To print, turn on the device.
↔
Error/
On
↔
Low battery/
On
↔
Description
Printing/
On
Cooling mode/
On
221.ASGPLLK_OM_ENG_0663_1115.indd 17
No paper, paper jam, cancelled, Opened,
Low temperature, Unsupported file format
To print, charge the device.
Transferring data via USB or Bluetooth,
Printing, Connecting via USB
After continuous prints the device may
automatically cool down its internal
temperature. Wait for a while to print again.
17
2012-11-15 �� 4:38:08
Specifications
Photo size
50 mm x 76 mm (Dot size : 640 x 1224)
Image file type/size
JPEG (Baseline) / less than 10 MB
(Progressive JPEG is not supported.)
Media paper used
ZINKTM Photo Paper (exclusive for LG)
Media paper storage
environment
Temperature : 20 - 25 ℃
Humidity : 40 - 55 % RH
Device operation
environment
Temperature : 5 - 40 ℃
Humidity : less than 70 % (35 ℃)
(An temperature alert pops up in the App.)
Print environment
Temperature : 15 - 32 ℃
Humidity : less than 70 % (32 ℃)
LED indicator
Power / Waiting / Bluetooth transmitting /
Charged / Discharged / Error / Condition of
printer
Communication
Bluetooth 2.1 + EDR
(Supported profile : OPP)
Operation distance : about 10 m
USB (Android only)
External
connector
USB (Type A) for Android phone
Micro USB port for charging battery
Bus Power Supply (USB)
DC 5 V 0 1.0 A
Battery life
500 mAh Li-Polymer rechargeable battery
Maximum 15 prints when fully charged
Power supply
500 mAh Li-Polymer rechargeable battery
AC adapter (DC 5 V 0 1.2 A)
Image resolution
More than 1280 x 2448 pixels
Dimensions (W x D x H)
72.4 mm x 120.9 mm x 24 mm
Net Weight
212 g
yy Your phone may be incompatible with the device depending on its
manufacturer, environment or Android operating system.
yy Design and specifications are subject to change without prior notice.
18
221.ASGPLLK_OM_ENG_0663_1115.indd 18
2012-11-15 �� 4:38:08
Troubleshooting
Symptom
No power
Cause / Solution
The battery is discharged.
Be sure the device is connected to charger or PC properly
when charging.
Bluetooth paring
Switch Bluetooth off and on again on your smartphone,
does not work well. then pair with the device in the smartphone’s settings.
Turn on the device and try printing (pairing) again in 5
sec.
Be sure the device is on.
The paper jammed 1. Turn the device off and on again then paper is ejected
before printing.
automatically.
The paper jammed 2. If above solution does not work, open the Upper cover
and arrange the papers. Then insert them with Smart
during printing.
Sheet (Blue) or pull the paper out slowly and gently.
The printed photo Open the Upper cover, arrange the papers and insert
has lines.
them with Smart Sheet locating at the bottom. Then
No or incomplete try printing again. (To open the Upper cover, refer to
“Checking Label” on page 16.)
image is printed.
The edge of the
image on the
photo is cut off.
White space
appears at the
edge of the paper.
Set [Print mode] to [Image Full] in the App’s setting then
the image is printed as a whole.
When [Print mode] is set to [Image Full], white space may
appears if the aspect ratio of the paper and your image is
not the same.
When [Paper Full], the edge of the image can be cut off or
little white space at the edge of the paper may appear.
Quality of printed In case you magnify an image using [Edit] menu in the
photo is too low.
App, the quality of the printed photo may be reduced.
Turn off the device and insert Smart Sheet locating at the
bottom of the papers. Then try printing again.
Be sure the photo size is bigger than the proper
resolution.(1280 x 2448 pixels)
Device does not
Preheating is needed. Wait for about 2 min.
print.
Be sure there are papers in the device.
It may take time to print after Smart Sheet is ejected.
Be sure the photo file is less than 10 MB.
Baseline JPEG format is supported only.
Device is turned off Check [Auto Power Off ] time in the App’s setting. (via USB
automatically.
connection)
Above solutions do Press Reset hole with a pointed thing like sharp pencil to
not work.
initialize.
221.ASGPLLK_OM_ENG_0663_1115.indd 19
19
2012-11-15 �� 4:38:08
221.ASGPLLK_OM_ENG_0663_1115.indd 22
2012-11-15 �� 4:38:08
Download PDF
