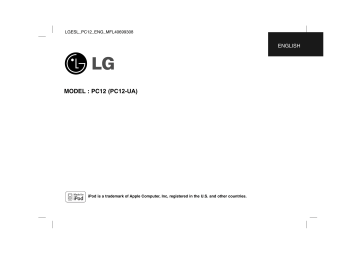

LGESL_PC12_ENG_MFL40699308
ENGLISH
MODEL : PC12 (PC12-UA)
iPod is a trademark of Apple Computer, Inc, registered in the U.S. and other countries.
There is so much your Hi-Fi system can do
iPod DOCKING
Go to page 6
Lull me to sleep
and wake me up
Go to page 9
Play CDs and USB
Go to pages 6 & 8
Contents
Setting up (Back Panel)
About Player
About Remote control
Listening to CDs
iPod DOCKING
Listening to music from your portable player
Listening to the radio
Connecting your portable USB player
Recording
Setting the Clock
Use your player as an alarm clock
Fall asleep while listening to your player
Mood Lighting
About MP3/WMA
Safety Precaution
Troubleshooting
Specifications
3
4
5
6
6
7
7
8
8
9
9
9
9
9
10
11
11
Record from a CD, radio
or portable to USB
Play from many
external devices
Go to page 8
Go to page 7
Listening to the Radio
Go to page 7
Portable CD player
Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
2
EMOTIONAL AUDIO DEVICE ] USER GUIDE
MP3 player
Setting up (Back Panel)
ENGLISH
Plug the AC power Cord into a wall socket
PHONES (Headphone jack)
Connect a headphone plug ( 3.5 mm) into the
jack to listen to the sound through headphones.
Connecting headphones (not supplied) will switch
off the speakers.
a. Before connecting the AC power cord, check
whether the operating voltage of your unit is
identical with the voltage of your local power
supplied.
b. Connect one end of the AC power cord
(supplied) to the AC IN socket located at the
backside of your unit.
c. Plug the other end into the wall outlet.
Put the battery in the remote control
Make sure that the + (plus) and - (minus) on the battery
(size AAA) match those on the remote control.
EMOTIONAL AUDIO DEVICE ] USER GUIDE
3
About Player
ALARM (SNOOZE)
With the ALARM function you can turn CD play
and radio reception on at a desired time.
(see Use your player as an alarm clock)
CD slot loader
• Do not push a disc forcibly into the CD slot.
• Do not pull or push a disc while a disc is ejected.
• Press Z EJECT again to reinsert the disc after ejecting it.
Z EJECT
Ejects or inserts the CD from the slot loader.
CLOCK (SNOOZE)
For setting the clock and checking the time.
(see Setting the Clock)
-TUNING+ / .>
For storing radio stations.
(see Listening to the radio)
x / MO./ST.
B/x
Starts or Stops playback.
z REC
Starts or pauses recording.
iPod DOCK
VOLUME
Control the volume when using any
function.
FUNC/INPUT
Change the functions among FM,
CD, USB, PORTABLE, IPOD.
1 /]]
Turn on or off.
DISPLAY WINDOW
4
EMOTIONAL AUDIO DEVICE ] USER GUIDE
About Remote control
Turn on or off
Press 1 for longer than 3 seconds as the
device is powered on, you can move into
POWER SAVE MODE.
To change the INPUT functions
Change the functions among PORTABLE,
IPOD.
• Fall asleep while listening to your player
• Mood Lighting
To change the functions
Change the functions among FM, CD, USB.
Search for a section within a track •
Speed search for tracks •
Skip to another track •
• Listen to your tracks again and again
• Select another track (iPod DOCKING)
To ‘save’ a radio station
Starts or pauses playback
Temporarily stop the sound
Press the button again to return to the sound.
Search for a folder of MP3/WMA files
When a CD containing MP3/WMA files in
several folders is being played, press
FOLDER•PRESET to select the folder you
want to play.
Search radio stations by radio type
- OPTIONAL
VOLUME
Control the volume when using any function.
Sound quality adjustment
You can choose between 4 fixed sound
impressions.
Starts or pauses recording
EMOTIONAL AUDIO DEVICE ] USER GUIDE
5
Listening to CDs
iPod DOCKING
You can listen to music by connecting
iPod to the player. Connect iPod to
“iPod DOCK” on the upper part of the
player.
Audio CD and MP3/WMA CD can be
played back in this player.
ON PLAYER
1. Insert the CD: The display will
show the total number of tracks
(files).
2. Select the CD function:
3. Start the CD playing:
4. To stop a CD playing:
ON REMOTE
Z EJECT
FUNC/INPUT
FUNCTION
x
B/x
x
B/x
B/[]
x ENTER
1. Select the iPod function:
2. “IPOD” displays:
3. Start the playing:
4. Before disconnecting the iPod,
change to any other function by
pressing:
5. Remove iPod:
ON PLAYER
ON REMOTE
FUNC/INPUT
INPUT
x
B/x
FUNC/INPUT
B/[]
FUNCTION
or
INPUT
iPod DOCKING - more you can do
Listening to CDs - more you can do
Pause or restart an iPod
Pause or restart a CD
x on the player or B/[] on the remote control during playback.
Press B/x
Press this button again to resume play.
Press B /[] on the remote control during playback. Press this button again to
resume play.
Search for a section within a track
Search for a section within a track
Hold ./> on either the player or the remote control during playback.
Hold ./> on either the player or the remote control during playback.
Skip to another track
Skip to another track
Press ./> on either the player or the remote control.
Press ./> on either the player or the remote control.
Select another track
Speed search for tracks
Press MODE on the remote control, you can move to the previous list.
Press FOLDER•PRESET on the remote control, you can move to a desired
item. Then, press x ENTER on the remote control, you can confirm it.
NOTE :
• When the connection with iPod is not solid and the remaining battery is
not enough, the message “ERROR” is displayed.
• iPod is automatically charged when connected to the player.
Hold ./> on either the player or the remote control only in stop
status. Track skips continuously in turn.
Listen to your tracks again and again
Press MODE on the remote control repeatedly, the display changes in the
following order, RPT 1 - RPT ALL - RANDOM - OFF.
6
EMOTIONAL AUDIO DEVICE ] USER GUIDE
Listening to the radio - more you can do
Listening to music from your
portable player
Look for radio stations automatically
Press ./> on either the player or the remote control for more than 0.5
second. The tuner will scan automatically and stop when it finds a radio
station.
The player can be used to play the music
from many types of portable player.
Delete all the saved stations
Press and hold x ENTER on the remote control for two seconds.
“ERASE” shows. Press x ENTER on the remote control to erase all the
saved stations.
ON PLAYER
1. Connect the portable player by
plugging the unit into
PORTABLE IN on the side of the
player:
2. Turn the power on:
3. Select the PORTABLE function:
4. Turn the portable player on and
start it playing:
ON REMOTE
Improve poor FM reception
Press MO./ST. on the player or B/[] on the remote control. This will change
the tuner from stereo to mono and usually improve the reception.
Or connect the antenna securely.
1 /]]
FUNC/INPUT
1
INPUT
Listening to the radio
1. Select the FM:
2. Select the radio station:
3. To ‘save’ a radio station:
A preset number will show in the
display.
4. To select a ‘saved’ station:
5. To confirm press: Up to 30 radio
stations can be saved.
Choose a ‘preset number’ for a radio station
Select a station you want by pressing ./>. Press x ENTER, the
station flashes. Press FOLDER•PRESET on the remote control to select
the preset number you want. Press x ENTER to save it.
ON PLAYER
ON REMOTE
FUNC/INPUT
FUNCTION
./>
./>
x ENTER
See information about your radio stations - OPTIONAL
The FM tuner is supplied with the Radio Data System (RDS) facility. This
shows the letters RDS on the display, plus information about the radio station being listened to. Press RDS on the remote control several times to
view the information.
PTY - Programme Type, such as News, Sport, Jazz.
RT - Radio Text, the name of the radio station.
CT - Time Control, the time at the location of the radio station.
PS - Programme Service name, the name of channel.
You can search the radio stations by programme type by pressing RDS.
The display will show the last PTY in use. Press PTY one or more times to
select your preferred programme type. Press and hold ./>. The tuner
will search automatically. When a station is found the search will stop.
FOLDER•PRESET
x ENTER
EMOTIONAL AUDIO DEVICE ] USER GUIDE
7
Recording
Connecting your portable
USB player
Record FM or PORTABLE source to USB
Connect USB to the player before recording.
The advantage of connecting your
portable USB player through the system’s
USB port is that the portable device can
be controlled from the system. Connect
the portable player to the system using a
USB cable (not supplied).
1. Select the USB function:
2. The display will show “READ”,
followed by the number of files
displayed:
3. Press:
4. Before disconnecting the
portable USB player, change to
any other function by pressing:
5. Remove the USB player:
1. Select a mode (PORTABLE or
FM) in which you want to
record:
2. Start the Recording:
3. To stop a Recording:
ON PLAYER
ON REMOTE
FUNC/INPUT
FUNCTION
x
B/x
FUNC/INPUT
B/[]
FUNCTION
or
INPUT
NOTES :
• Some portable devices are not compatible with this system.
• When various cards are connected to the Memory Card Reader, the first
detected card is recognized.
• Do not extract the USB device in operating.
• A back up demands to prevent a data damage.
• If you use a USB extension cable or USB hub, the USB device might not
be recognized.
• A device using NTFS file system is not supported (Only the FAT (16/32)
file system is supported.).
• The USB function of this unit does not support all USB devices.
• Digital camera and mobile phones are not supported.
• This unit is not supported when the total number of files is 1000 or more.
8
EMOTIONAL AUDIO DEVICE ] USER GUIDE
ON PLAYER
ON REMOTE
FUNC/INPUT
FUNCTION
or
INPUT
REC
z REC
x
B /x
x ENTER
Record Audio CD source to USB
You can record one desired track or all of the music tracks in Audio CD to USB.
(The volume may not be adjusted to the Max limit during CD recording.)
1. Select the CD function:
2. Select the track:
3. Start the Recording:
4. To stop a Recording:
ON PLAYER
ON REMOTE
FUNC/INPUT
FUNCTION
./>
z REC
x
B /x
./>
REC
x ENTER
NOTES :
• Remove USB while recording, the recorded file may not be saved.
• Press z REC (REC) for longer than 3 seconds, you can select bit rate.
Press ./> to select the bit rate and z REC (REC) again to select
the recording speed. Press ./> to select a desired recording speed
and z REC (REC) again to finish recording.
1 x speed : You can listen to music while recording it.
(FM, PORTABLE or Audio CD)
2 x speed (Only 96kbps, 128kbps)
: You can just recording the music file. (Only Audio CD)
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.
Be responsible
Respect copyrights
Fall asleep while listening to your player
Setting the Clock
ON PLAYER
1. Turn the power on:
2. Press for at least 2 seconds:
3. Choose from either: 12HR (for an am and pm
display) or 24HR (for a 24 hour display).
4. Confirm your selection:
5. Select the hours:
6. Press:
7. Select the minutes:
8. Press:
1 /]]
CLOCK
./>
CLOCK
./>
CLOCK
./>
CLOCK
Press SLEEP on the remote control repeatedly, the display changes in the
following order, SLP OFF - LIGHT - corresponding icons.
Press ./> repeatedly on SLP OFF, the display changes in the
following order, SLP 90 & dimmer ON -> SLP 80 & dimmer ON -> SLP 70
& dimmer ON -> SLP 60 & dimmer ON -> SLP 50 & dimmer ON -> SLP 40
& dimmer ON -> SLP 30 & dimmer ON -> SLP 20 & dimmer ON -> SLP 10
& dimmer ON -> SLP OFF & dimmer OFF.
Mood Lighting
Press SLEEP on the remote control repeatedly, the display changes in the
following order, SLP OFF - LIGHT - corresponding icons.
Press ./> repeatedly on LIGHT, the display changes in the following
order, L--1 -> L--2 -> L--3 -> L--OFF.
Use your player as an alarm clock
About MP3/WMA
Press and hold ALARM on the player for two seconds. Press ./>
repeatedly, the display changes in the following order, FM, CD, USB. Press
ALARM when the function you want to be woken by is showing. Next, you
set the time to get alarm activated. Use ./> to change the hours and
minutes and ALARM to save. Next, the volume (VOL) setting display
appears. Use ./> to change the volume and ALARM to save. The
clock icon shows that the alarm is set. Switch the system off. When the
system is turned off, you can check the time the alarm is set for by pressing ALARM. You can also turn the alarm on and off by pressing ALARM.
NOTES :
• If you don’t set clock, the alarm function doesn’t work.
• When any button is not pressed for longer than 5 minutes with the alarm
beeping, the alarm is automatically canceled.
MP3/WMA Disc compatibility with this unit is limited as follows:
• Sampling Frequency : 8 - 48 kHz (MP3), 32 - 48 kHz (WMA)
• Bit rate : 8 - 320 kbps (MP3), 48 - 320 kbps (WMA)
• CD-R physical format should be “ISO 9660”
• If you record MP3/WMA files using the software which cannot create a
FILE SYSTEM, for example “Direct-CD” etc., it is impossible to playback
MP3 files. We recommend that you use “Easy-CD Creator”, which creates
an ISO 9660 file system.
• Do not use special letters such as “/ : * ? “ < >”etc.
• Even if the total number of files on the disc has more than 1000, it will
only be shown up to 999.
SNOOZE function
This function wakes you up every 5 minutes if you do not turn off the
alarm. When alarm is on and you press CLOCK or ALARM, CD or USB is
changed into pause & mute. And tuner is on mute mode for 5 minutes and
then changed into play & mute off.
EMOTIONAL AUDIO DEVICE ] USER GUIDE
9
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case or
similar unit.
CAUTION: Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the product and to protect it from over heating. The openings should be
never be blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instruction has been
adhered to.
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference. Should the unit require maintenance, contact an authorized
service center. Use of controls, adjustments or the performance of procedures other than
those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.
10
EMOTIONAL AUDIO DEVICE ] USER GUIDE
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and
no objects filled with liquids, such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional
outlets or branch circuits. Check the specification page of this owner's manual to be
certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.
USB
Troubleshooting
Symptom
Specifications
Cause
Correction
General
No power.
The power cord is not plugged in.
Check whether electricity failed.
No sound.
Check whether you select right
function.
Plug in the power cord.
Check the condition by operating
other electronic devices.
Press FUNC/INPUT (FUNCTION)
and check the selected function.
An unplayable disc is inserted.
The disc is dirty.
Insert a playable disc.
Clean the disc.
CD
The unit does not
start playback.
Refer to the label attached on the
bottom of the unit.
Power consumption
Refer to the label attached on the
bottom of the unit.
Net Weight
2.45 kg
External dimensions (WxHxD) 332 x 165 x 248 mm
Operating temperature
5 oC to 35 oC
Operating humidity
5% to 85 %
Output Power
5W+5W
T.H.D
10 %
Frequency Response
200 - 18000 Hz
Signal-to-noise ratio
70 dB
Speakers
6ΩX2
Tuner
FM Tuning Range
RADIO
Radio stations
The antenna is positioned or
cannot be tuned in. connected poorly.
Connect the antenna securely.
iPod
iPod does not
work.
General
Power supply
Check whether the player is
connected to the unit correctly.
Check whether ipod is fully
charged.
Connect it to the unit correctly.
CD
Frequency response
Signal-to-noise ratio
Dynamic range
87.5 - 108.0 MHz or 65 - 74 MHz,
87.5 - 108.0 MHz
200 - 18000Hz
70 dB
60 dB
Charge the ipod. iPod is automatically charged when connected to
the player.
Remote control
The remote control The remote control is not pointed
does not work
at the remote sensor of the unit.
properly.
The remote control is too far from
the unit.
There is an obstacle in the path of
the remote control and the unit.
The battery in the remote control is
exhausted.
Point the remote control at the
remote sensor of the unit.
Operate the remote control within
about 16 ft (5 m).
Remove the obstacle.
Replace the battery with new one.
Designs and specifications are subject to change without notice.
EMOTIONAL AUDIO DEVICE ] USER GUIDE
11
P/NO : MFL40699308
Download PDF

advertising
