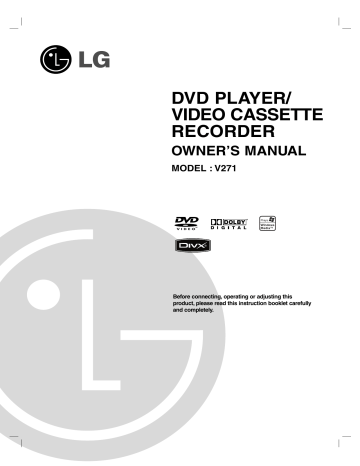

DVD PLAYER/
VIDEO CASSETTE
RECORDER
OWNER’S MANUAL
MODEL : V271
Before connecting, operating or adjusting this
product, please read this instruction booklet carefully
and completely.
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the
user to the presence of non insulated dangerous
voltage within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the product.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.
CAUTION: The apparatus should not be exposed to water,
dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits.
Check the specification page of this owner's manual to be
certain.
Do not overload wall outlets. Overloaded wall outlets, loose
or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock
or fire. Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration, unplug
it, discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an authorized
services.
Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains
cord plug. When installing the product, ensure that the
plug is easily accessible.
CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
The appliance is not intended for use by young
children or infirm persons without supervision.
Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it
from over heating.
The openings should be never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This
product should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or the
manufacturer's instruction have been adhered to.
Young Children should be supervised to ensure that
they do not play with appliance.
If the appliance is supplied from a cord extension
set or an electrical portable outlet device, the cord
extension set on electrical portable outlet device
must be positioned so that it is not subject to
splashing or ingress of moisture.
CAUTION:
This Digital Video Disc Player employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future reference,
should the unit require maintenance, contact an LG
Authorised Service Centre see service procedure.
Use of controls, adjustments or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to
open the enclosure. Visible laser radiation when open. DO
NOT STARE INTO BEAM.
2
Introduction
Operation
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
About the
Symbol Display . . . . . . . . . . . . . . 4
Symbol used in this Manual . . . . . . . . . . . . . . . 4
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4
Handling Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4
Storing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cleaning Discs . . . . . . . . . . . . . . . . . . . . . . . . . 4
Selecting the Viewing Source . . . . . . . . . . . . . . 4
Types of Playable Discs. . . . . . . . . . . . . . . . . . . 5
Regional Code . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operation with tape . . . . . . . . . . . . . . . . . . . . . 20-23
Playing a tape . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CM (Commercial Message) Skip . . . . . . . . . 20
OPR (Optimum Picture Response). . . . . . . . 20
Instant Timer Recording . . . . . . . . . . . . . . . . . . . 21
Timer recording using On Screen Display . . . 22-23
Additional Operation - VCR part . . . . . . . . . . . . 24-26
Hi-Fi Stereo Sound System . . . . . . . . . . . . . . . . 24
On Screen Display (F.OSD) . . . . . . . . . . . . . . . . 24
Tape Counter Memory Stop . . . . . . . . . . . . . . . . 24
Video Doctor (Self-Diagnosis) . . . . . . . . . . . . . . 25
Wide Screen Compatibility 16:9 . . . . . . . . . . . . . 25
1W Mode (Power save mode) . . . . . . . . . . . . . . 25
Recording from External Components . . . . . . . . . . 26
Copying from DVD to VCR . . . . . . . . . . . . . . . . . 26
General Playback features - DVD Part . . . . . . . . . 27
Playing a DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Additional features . . . . . . . . . . . . . . . . . . . . . . . 28
Time Search . . . . . . . . . . . . . . . . . . . . . . . . 28
Marker Search . . . . . . . . . . . . . . . . . . . . . . 28
Last Scene Memory . . . . . . . . . . . . . . . . . . 28
Screen Saver . . . . . . . . . . . . . . . . . . . . . . . 28
Playing an Audio CD or MP3/WMA file . . . . . . . . 29
Programmed Playback . . . . . . . . . . . . . . . . . . . . 29
Repeat Programmed Tracks . . . . . . . . . . . . . 29
Erasing a Track from Program List . . . . . . . . 29
Erasing the Complete Program List . . . . . . . 29
Viewing a JPEG file . . . . . . . . . . . . . . . . . . . . . . . 30
Slide Show. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Moving to another File . . . . . . . . . . . . . . . . . . . . 30
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
To rotate picture . . . . . . . . . . . . . . . . . . . . . . . . . 30
Playing a DivX Movie file . . . . . . . . . . . . . . . . . . . 31
Playing a DVD VR format Disc . . . . . . . . . . . . . . . 32
Additional Operation . . . . . . . . . . . . . . . . . . . . . . . 33
Controlling other TVs with the remote control . . . 33
Maintenance and Service. . . . . . . . . . . . . . . . . . 33
Preparation
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10
Connecting to a TV . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting to Optional Equipment . . . . . . . . . . . 10
Before Operation-VCR part . . . . . . . . . . . . . . . 11-15
Tuning in a video channel on your TV . . . . . . . . . 11
Using your VCR for the very first time. . . . . . . . . 11
Setting the clock Manually . . . . . . . . . . . . . . . . . 12
To set the colour system . . . . . . . . . . . . . . . . . . 12
How to use the main menu. . . . . . . . . . . . . . . . . 13
Tuning in TV Stations Automatically . . . . . . . . . . 13
Tuning in TV Stations Manually. . . . . . . . . . . . . . 14
Changing the order of TV Stations . . . . . . . . . . . 15
Deleting TV Stations . . . . . . . . . . . . . . . . . . . . . 15
Before Operation-DVD part . . . . . . . . . . . . . . . 16-19
Displaying Disc Information on-screen . . . . . . . . 16
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 16
General Operation . . . . . . . . . . . . . . . . . . . . . . . 16
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Menu Language. . . . . . . . . . . . . . . . . . . . . . 17
Disc Audio / Subtitle / Menu . . . . . . . . . . . . . 17
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
TV Aspect . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Display Mode. . . . . . . . . . . . . . . . . . . . . . . . 17
Progressive Scan. . . . . . . . . . . . . . . . . . . . . 17
AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Dolby Digital / DTS / MPEG . . . . . . . . . . . . . 18
Sample Freq. (Frequency) . . . . . . . . . . . . . . 18
DRC (Dynamic Range Control) . . . . . . . . . . 18
Vocal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LOCK (Parental Control) . . . . . . . . . . . . . . . . . . 18
Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Password (Security Code) . . . . . . . . . . . . . . 18
Area Code . . . . . . . . . . . . . . . . . . . . . . . . . . 19
OTHERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
PBC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
DivX(R) VOD . . . . . . . . . . . . . . . . . . . . . . . . 19
Reference
Language and Area Code List
Language Code List . . . . . . .
Area Code List . . . . . . . . . . .
Troubleshooting . . . . . . . . . . .
Specification . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
34
34
34
35
36
3
Introduction
Table of Contents
Before Use
To ensure proper use of this product, please read this
owner’s manual carefully and retain for future reference.
Notes on Discs
This manual provides information on the operation and
maintenance of your DVD player. Should the unit
require service, contact an authorized service location.
Handling Discs
Do not touch the playback side of the disc. Hold the
disc by the edges so that fingerprints do not get on the
surface. Never stick paper or tape on the disc.
About the
Symbol Display
“
” may appear on your TV display during operation
and indicates that the function explained in this owner’s
manual is not available on that specific DVD video disc.
Symbol Used in this Manual
Storing Discs
After playing, store the disc in its case. Do not expose
the disc to direct sunlight or sources of heat and never
leave it in a parked car exposed to direct sunlight.
Note:
Indicates special notes and operating features.
Tip:
Indicates tips and hints for making the task easier.
A section whose title has one of the following symbols is
applicable only to the disc represented by the symbol.
ALL
All discs listed below
DVD
DVD and finalized DVD±R/RW
ACD
Audio CDs
MP3
MP3 files
WMA
WMA files
DivX
DivX files
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean
the disc with a clean cloth. Wipe the disc from the
center out.
Do not use strong solvents such as alcohol, benzine,
thinner, commercially available cleaners, or anti-static
spray intended for older vinyl records.
Selecting the Viewing Source
You must select one of your output sources (DVD or
VCR) to view on the TV screen.
If you want to view DVD deck output source:
Press DVD until DVD indicator in the display window
lights and output source of DVD deck is viewed on the
TV screen.
If you want to view VCR deck output source:
Press VCR until VCR indicator in the display window
lights and output source of VCR deck is viewed on the
TV screen.
Notes:
• If you insert a disc while this unit is in the VCR mode,
this unit will switch to DVD mode automatically.
• If you insert a cassette tape without prevention tab
while this unit is in the DVD mode, this unit will switch
to VCR mode automatically.
4
Before Use (Continued)
DVD
(8 cm / 12 cm disc)
Audio CD
(8 cm / 12 cm disc)
In addition, this unit plays DVD±R/RW and CD-R/RW
that contains audio titles, DivX, MP3, WMA, and/or
JPEG files.
This indicates a product feature that is capable
of playing DVD-RW discs recorded with Video
Recording format.
Notes:
• Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself,
some CD-R/RW (or DVD±R/RW) discs cannot be
played on the unit.
• Do not use irregularly shaped CDs (e.g., heartshaped or octagonal) since they may result in
malfunctions.
• This unit requires discs and recordings to meet
certain technical standards in order to achieve optimal
playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different
types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain
pre-existing conditions (see above) to ensure
compatible playback.
Notes on Copyrights:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy
protection function developed by Macrovision. Copy
protection signals are recorded on some discs. When
recording and playing the pictures of these discs picture
noise will appear. This product incorporates copyright
protection technology that is protected by method
claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection
technology must be authorized by Macrovision
Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH
THIS MODEL 625p DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has no
right to grant such permission. Permission should
always be sought from the copyright owner.
Regional Code
This unit has a regional code printed on the rear of the
unit. This unit can play only DVD discs labelled same as
the rear of the unit or “ALL”.
Notes on Regional Codes
• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover. This number
must match your unit’s regional code or the disc cannot play.
• If you try to play a DVD with a different regional code
from your player, the message “Check Regional
Code” appears on the TV screen.
5
Introduction
Types of Playable Discs
Front Panel
1
2
POWER
3
4
5
6
DVD
7 8 9 10 11 12 13 14 15
VCR
/
/
1. Disc Tray
Insert a disc here.
6. Remote Sensor
Point the remote control here.
2. 1 POWER
Switches the unit to ON or OFF.
7. Tape Compartment
3. PROG. (V/v) Channel Programme Selectors.
4.
DVD
Opens or closes the disc tray.
5. Display window
Shows the current status of the unit.
DVD: DVD deck is selected.
: A disc is loaded in the DVD deck.
[P]: Indicates the Progressive Scan is set to On
mode.
: Indicates repeat mode.
: Child Lock is engaged.
: DVD+VCR is in timer recording or a timer
recording is programmed.
: A Cassette is in the VCR deck.
VCR: VCR deck is selected.
REC: VCR recording is engaged.
DVD to Video tape copy is in progress.
TV: Indicates TV mode. (See Notes on page 21.)
: Indicates total playing time/elapsed
time/current time.
6
8.
VCR
Tape Eject
9. ./m
Go to beginning of current chapter/track or to
PREVIOUS chapter/track.
Press and hold for two seconds for a fast reverse
search. Rewinds the tape.
10. N
Starts playback.
11. M/>
Go to NEXT chapter/track.
Press and hold for two seconds for a fast forward
search. Winds the tape forwards.
12. x
Stops playback.
13. DVD/VCR
DVD/VCR Selector
14. Video IN Jack
15. Audio IN (L/R) Jacks
Remote Control
TV Control Buttons (see p. 33)
POWER
Switch this unit ON or OFF.
DVD/VCR select button
Selects operational mode of
remote control.
OPEN/CLOSE
EJECT
Open or close the disc tray.
Tape Eject.
0-9 numerical buttons
Select numbered items in a menu.
TV/VCR
Switch between your TV’s tuner
and the VCR’s internal tuner.
AV
Select input source for recording
into tape.
DISPLAY
CLK/CNT
Access the On-Screen Display.
Shows you the current time or
counter.
F G D E (left/right/up/down)
Select an item in the menu.
PR/TRK(+/-)
Select channel programme of VCR.
To adjust tracking.
To control vertical tremble during
picture still.
ENTER/OK
Acknowledge menu selection.
DISC MENU
Access menu of a DVD disc.
SETUP/ i
Access or remove setup menu.
RETURN
Hides or displays the help menu
while watching JEPG picture in full
screen.
BACKWARD / FORWARD
(m / M)
DVD: Search backward or forward.
VCR: Rewinds the tape during the
STOP mode, for fast reverse picture
search and Advances the tape during
the STOP mode, fast forward picture
search.
SKIP (. / >)
Go to next chapter or track.
Returns to beginning of current
chapter or track or go to previous
chapter or track.
PAUSE/STEP (X)
Pause playback temporarily / press
repeatedly for frame-by-frame
playback.
N)
PLAY (N
Starts playback.
STOP ( Á )
Stops playback.
*
MARKER
Mark any point during playback.
SEARCH
Display MARKER SEARCH menu.
CLEAR
Clear a track number on the
program menu or a mark on the
MARKER SEARCH menu.
Reset tape counter to zero.
REPEAT
Repeat chapter, track, title, all.
Remote Control Operation
A-B/LP
Repeat sequence.
Select the recording speed of the
tape.
RANDOM/CM SKIP
Play tracks in random order.
CM SKIP
Remote control battery installation
AAA
AAA
Point the remote control at the remote sensor and press
the buttons.
Do not mix old and new batteries and never mix
different types of batteries such as standard,
alkaline, etc.
AUDIO
Select an audio language (DVD).
SUBTITLE
Select a subtitle language.
ANGLE
Select DVD camera angle if available
ZOOM
Enlarge video image.
REC/ITR (O)
Record your input sources into tape.
LOCK (Child Lock)
Switch the Child Lock on and off.
TITLE
Display the title menu of the disc if
available.
PROGRAM
Access or remove program menu.
Detach the battery cover on the rear of the
remote control, and insert two batteries (size
AAA) with 3 and # aligned correctly.).
7
Introduction
TV POWER: Turns on or off the TV.
TV AV: Selects the TV’s source.
TV PR +/–: Selects TV’s channel.
TV VOL +/–: Adjusts TV’s volume.
Rear Panel
AERIAL
Connect the aerial using this jack.
AUDIO IN (Left/Right) (VCR IN AV1)
Receive the audio signals from an external source to VCR.
AUDIO OUT (Left/Right) (DVD/VCR OUT)
Connect to an amplifier, receiver or stereo system.
COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr)
(DVD EXCLUSIVE OUT)
Connect to a TV with Y Pb Pr inputs.
AUDIO OUT (Left/Right) (DVD EXCLUSIVE OUT)
Connect to an amplifier, receiver or stereo system.
Pr
R
R
L
L
Pb
Y
AC Power Cord
Connect to a power source.
S-VIDEO OUT (DVD EXCLUSIVE OUT)
Connect to a TV with S-Video input.
COAXIAL (Digital audio out jack) (DVD EXCLUSIVE OUT)
Connect to digital (coaxial) audio equipment.
VIDEO OUT (DVD/VCR OUT)
Connect to a TV with video inputs.
VIDEO IN (VCR IN AV1)
Receive the video signals from an external source to VCR.
RF.OUT
Connect to your TV using this jack.
Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
8
Connections
Make sure this unit is connected directly to the TV.
Set the TV to the correct video input channel.
Do not connect this unit’s AUDIO OUT jack to the
phono in jack (record deck) of your audio system.
Connecting to a TV
Make one of the following connections, depending on
the capabilities of your existing equipment.
When using the COMPONENT/PROGRESSIVE
SCAN VIDEO OUT jacks, set TV’s input to COMPONENT VIDEO. When using the S-VIDEO OUT jack,
set the TV’ s input to S-VIDEO.
Basic connection (AV)
1. Connect the VIDEO jack on this unit’s DVD/VCR
OUT to the video in jack on the TV using the video
cable (V).
2. Connect the Left and Right AUDIO jacks of this
unit’s DVD/VCR OUT to the audio left/right in jacks
on the TV using the audio cables (A1).
Basic connection (RF)
1. Connect the RF antenna cable from your indoor/
outdoor antenna to AERIAL jack on the rear panel
of this unit.
2. Connect the supplied RF antenna cable from the
RF.OUT jack on the rear panel of this unit to your
television’s Antenna Input (R).
Rear of TV
1. Connect the S-VIDEO OUT jack on this unit to the
S-Video input jack on the TV using the S-Video
cable (S).
2. Connect the Left and Right AUDIO OUT jacks of the
DVD Player to the audio left/right in jacks on the TV
using the audio cables.
Progressive Scan connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the DVD
Player’s progressive scan output for the highest video
resolution possible.
If your TV does not accept the Progressive Scan
format, the picture will appear scrambled if you try
Progressive Scan on the DVD Player.
1. Connect the COMPONENT/ PROGRESSIVE SCAN
VIDEO OUT jacks on the DVD Player to the corresponding in jacks on the TV using the Y Pb Pr cable.
2. Connect the Left and Right AUDIO OUT jacks of the
DVD Player to the audio left/right in jacks on the TV
using the audio cables.
Notes:
Set the Progressive to “On” on the setup menu for
progressive signal, see page 17.
Progressive scan does not work with the analog video
connections (yellow VIDEO OUT jack) or S-VIDEO
connection.
Note:
COMPONENT VIDEO INPUT
/PROGRESSIVE SCAN
VIDEO
INPUT
AERIAL
S-Video connection
Pr
Pb
AUDIO INPUT
Y
L
S-VIDEO INPUT
R
Rear of TV
AERIAL
VIDEO
INPUT
COMPONENT VIDEO INPUT
/PROGRESSIVE SCAN
Pb
Pr
R
Y
AUDIO INPUT
L
S-VIDEO INPUT
R
V
A1
C
Pr
A2
S
R
R
L
Pr
R
L
R
Pb
L
L
Y
Pb
Rear of this unit (Basic connection)
DVD exclusive out connection
Component Video connection
1. Connect the COMPONENT/PROGRESSIVE SCAN
VIDEO OUT jacks on the DVD Player to the corresponding in jacks on the TV using the Y Pb Pr cable
(C).
2. Connect the Left and Right AUDIO OUT jacks of the
DVD Player to the audio left/right in jacks on the TV
using the audio cables (A2).
Y
Rear of this unit (DVD exclusive out connection)
If the TV has an S-video input, connect the DVD player
with the S-video cable. When using an S-video cable,
do not connect the yellow video cable.
9
Preparation
Caution:
Connections (Continued)
Connecting to Optional Equipment
Rear of this unit
Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic II/Pro Logic
R
Pr
R
Connect the Left and Right DVD/VCR AUDIO OUT or
AUDIO OUT (DVD EXCLUSIVE OUT) jacks on this unit
to the audio left and right in jacks on your amplifier,
receiver or stereo system, using the audio cables.
L
L
Pb
Y
Connecting to an amplifier equipped with two channel
digital stereo (PCM) or to an Audio/ Video receiver
equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2 or DTS)
or
1. Connect one of this unit’s DIGITAL AUDIO OUT jack
(COAXIAL) to the corresponding in jack on your
amplifier. Use an optional digital (coaxial) audio
cable.
DVD/VCR OUT
DVD exclusive out
2. You will need to activate this unit’s digital output.
(See “AUDIO” on page 18).
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your unit (MPEG 2, Dolby
Digital and DTS). Check the receiver manual and the
logos on the front of the receiver.
L
COAXIAL
DIGITAL INPUT
Amplifier (Receiver)
Warning:
Due to the DTS Licensing agreement, the digital output
will be in DTS digital out when DTS audio stream is
selected.
Notes:
If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will
produce a strong, distorted sound or no sound at all.
Digital multi-channel connection
(DVD exclusive out connection)
Pr
R
R
L
To see the audio format of the current DVD in the
On-Screen Display, press AUDIO.
L
Pb
Y
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are
trademarks of Dolby Laboratories.
DTS and DTS Digital Out are trademarks of Digital
Theater Systems, Inc.
10
R
AUDIO INPUT
Rear of this unit
Tuning in a video channel on your
TV
Using your VCR for the very first
time
Video channel (RF output channel) is the channel on
which your TV receives picture and sound signals from
the DVD+VCR through the RF cable.
Following picture will display on the TV screen when
you have just connected your video recorder for the
very first time.
If you have used an AV or S-Video lead you will not
have to tune your TV, simply select the AV channel.
To make tuning TV stations, please follow stages 3 to 4
as shown "ACMS" (see p.13).
Perform the following steps only if interference appears
in the TV picture after you have moved to a different
area or a new station has started broadcasting in your
area, or if you change the connection from RF
connection to AV connection, or vise versa.
1. Turn on DVD+VCR and TV.
ACMS
Pr-12
ACMS
OK i
2. Set the vacant position 36 on your TV.
3. Press POWER on the remote control to enter the
stand by mode (the clock indicator will be
dimmed).
v or V) on the DVD+VCR
4. Press and hold PROG. (v
for more than 4 seconds.
RF 36 will appear in the display.
The following picture will be displayed on the TV
screen.
RF CHANNEL
36
If the picture is snowy, move to step 5. If the picture
is clean, press POWER on the DVD+VCR to finish.
v or V) on the DVD+VCR to set
5. Press PROG. (v
the video channel to a vacant position between 28
and 68 which is not occupied by any local station in
your area.
Note:
The RF channel will not change until step 6 has
been executed.
6. Press POWER to store the new RF video channel
into the DVD+VCR memory.
Now tune your TV set to the new DVD+VCR RF
channel.
Note
If the TV picture was clear in step 4, do not retune your
TV.
11
Preparation
Before Operation-VCR part
Before Operation-VCR part
Setting the clock Manually
To set the colour system
The clock in your DVD+VCR controls time and date
settings for your DVD+VCR.
1. Press i.
2. The main menu will appear on the TV screen.
3. Press b or B to select the SYS and press
ENTER/OK.
1. Press i.
Press b or B to select SET.
Press ENTER/OK.
HH MM
-- : - -
DD MM YY
-- . -- . --
4. Press v or V to select according to the COLOUR
system used.
--1 2
1 2
SET SYS
i
SET
SYS
f OSD
ON
OFF
2. Use the v or V on the remote control to alter the
HOURS, MINUTES, DAY, MONTH and YEAR.
Please note your DVD+VCR uses a 24 hour clock.
e.g. 1pm will be displayed as 13:00.
The day of the week will appear automatically when
you enter the year.
i
5. Press B to select the RF AUDIO.
Press v or V to select according to the RF AUDIO
used.
6. Press i to remove the menus from the TV screen.
1 2
HH MM
8 : 00
DD MM YY
1 . 01 . 07
S E TS Y S
MON
1 2
SET
OK i
3. If you make a mistake press b or B and enter the
correct details.
4. Press i to return to a TV picture.
12
fO S D
O N
O FF
SYS
i
How to use the main menu
Tuning in TV Stations Automatically
This DVD+VCR can easily be programmed by using the
menus displayed on screen.
The menus are controlled by the Remote Control
Handset.
If the TV broadcast signal is weak your DVD+VCR may
not detect the necessary information and will not be able
to store them correctly. To overcome this problem please
turn to the MANUAL TUNING section on page 14.
1. Switch on your TV set and DVD+VCR by pressing the
POWER button.
1. Press POWER to turn on your DVD+VCR.
2. Press i button.
The main menu will appear on the TV screen.
2. Press i button.
The main menu will appear on the TV screen.
Press 1 or 2 to select the ACMS.
Press ENTER/OK.
1 2
SET SYS
f OSD
ON
OFF
Pr-12
ACMS
REC - Timer recording setting (see p. 22).
PR SET - Manual tuning setting (see p. 14).
ACMS - ACMS (Automatic Channel Memory
System) (see p. 13).
SET - Date & clock setting (see p. 12).
SYS - To set the Colour TV System (see p. 12).
1 W ON/OFF - Power Save Mode (see p. 25).
(Dr.) - To check a problem with your VCR
(see p. 25).
1 2
ACMS
SET SYS
Pr-12
ACMS
f OSD
ON
OFF
Pr-12
OK i
OK i
ACMS
3. Press OK again to start the automatic tuning
process.
01
02
03
C02
C03
C04
00
00
00
PR-01
PR-02
PR-03
S
F.OSD ON/OFF - To display the operational
mode of your VCR
(see p. 24).
(OPR) - To improve the playback picture
(see p. 20).
Appear when playback only.
Tip
You can change the menu language on the DVD setup
menu. (See the Menu Language on page 17.)
E
Pr-12
i
ACMS
4. The TV STATION TABLE will appear when tuning is
completed.
Press i to save your settings.
01
02
03
04
05
06
07
08
PSET
R
C02
C03
C04
C05
C06
C07
C08
C09
00
00
00
00
00
00
00
00
MOVE :
DELETE :
PR-01
PR-02
PR-03
PR-04
PR-05
PR-06
PR-07
PR-08
,
OK i
3. Press 1 and 2 to select the desired menu.
Press ENTER/OK and use 3 or 4 to select.
4. Press i to return to a TV picture.
13
Preparation
Before Operation-VCR part
Before Operation-VCR part
Tuning in TV Stations Manually
In certain areas of the country broadcast signals may
be too weak for your DVD+VCR’s automatic tuning
process to find or assign TV stations correctly.
You must tune in these weaker broadcast stations manually in order for your DVD+VCR to store them.
1. Press i.
The main menu will appear on the TV screen.
Press 1 or 2 to select the PR SET.
Press ENTER/OK.
P
RSET
Pr-12
ACMS
PR
04
CHANNEL/CABLE : AV
6. Press 2 to select STATION so that you may name
your TV station.
Press ENTER/OK.
7. Use 3 or 4 to select letters and numbers for the
station name.
Use 1 or 2 to move back and forth between
characters.
Press ENTER/OK.
P
RSET
MFT
00
STATION
PR-03
C01
C02
C03
------
00
00
00
-----MOVE :
DELETE :
PSET
R
-
OK i
,
CH
C--
MFT
--
CH
C04
MFT
00
STATION
PR-04
P
RSET
OK i
If you wish to manually tune other stations repeat
stages 3 - 8.
PR-01
PR-02
PR-03
--------------------OK i
4. Press ENTER/OK.
Press AV to select C (Standard stations) or S (Cable
stations):
C02 - C69, S01 - S41.
Enter the channel number of station that you want to
tune, use 3 or 4 to find the required station.
STATION
----
CHANNEL/CABLE : AV
i
5. Searching will stop when it locates a stations.
Press 2 to select MFT.
Control the fine tuning of the station by using 3 or 4.
14
STATION
8. Press i, confirm the station placement.
PR
04
3. Press 3 or 4 to select the programme number that
you want to tune (for example, PR 04).
PSET
R
MFT
00
i
2. Press i.
The station table will appear.
PR
04
CH
C04
PSET
R
CHANNEL/CABLE : AV
P
RSET
01
02
03
04
05
06
07
08
i
PSET
R
PR
04
CH
C03
STATION
MFT
00
1 2
SET SYS
f OSD
ON
OFF
PR
01
CH
C04
01
02
03
04
05
06
07
08
P
RSET
C01
C02
C03
C04
-----
00
00
00
00
----MOVE :
DELETE :
PR-01
PR-02
PR-03
PR-04
----------------,
OK i
9. Press i again.
Your new TV station has now been tuned into your
DVD+VCR.
Changing the order of TV Stations
Deleting TV Stations
After tuning TV stations into your DVD+VCR you may
wish to change the order in which they are stored without having to retune them again. The instructions given
on this page will show you how you can simply move
them into your desired order.
After tuning TV stations into your DVD+VCR you may
wish to delete a station.
The instructions given on this page will show you how
you can easily delete any unwanted TV stations.
1. Press i.
The main menu will appear on the TV screen.
Use 1 or 2 to select the PR SET.
Press ENTER/OK.
1. Press i.
The main menu will appear on the TV screen.
Press 1 or 2 to select the PR SET.
Press ENTER/OK.
PR
01
P
RSET
Pr-12
ACMS
CH
C03
MFT
00
PR
01
STATION
PR-03
P
RSET
1 2
SET SYS
P
RSET
PSET
R
00
00
00
00
-----
01
02
03
04
05
06
07
08
PR-01
PR-02
PR-03
PR-04
-----------------
MOVE :
DELETE :
,
C01
C02
C03
C04
-----
00
00
00
00
-----
C01
C02
C04
-C03
----
00
00
00
-00
----
OK i
4. Press ENTER/OK.
The selected programme will be moved to the new
programme number.
If you wish to move other TV stations repeat stages
1 - 4.
P
RSET
C01
C02
C04
-C03
----
CHANNEL/CABLE : AV
P
RSET
00
00
00
-00
---MOVE :
DELETE :
i
2. Press i.
3. Press 3 or 4 to select the programme number you
want to delete. (for example, PR-01)
C01
C02
C04
-C03
----
00
00
00
-00
----
PR-01
PR-02
PR-04
----PR-03
-------------
MOVE :
DELETE :
PSET
R
PR-01
PR-02
PR-04
----PR-03
-------------
P
RSET
01
02
03
04
05
06
07
08
P
RSET
01
02
03
04
05
06
07
08
PR-01
PR-02
PR-03
PR-04
-----------------
3. Press 3 or 4 to select the programme number you
want to move to (for example, PR-05).
01
02
03
04
05
06
07
08
STATION
PR-03
,
OK i
OK i
PSET
R
OK i
MFT
00
i
2. Press i.
Press 3 or 4 to select the programme number you
want to move (for example, PR-03).
Press 2.
C01
C02
C03
C04
-----
SET SYS
CHANNEL/CABLE : AV
ON
OFF
01
02
03
04
05
06
07
08
ACMS
CH
C03
1 2
f OSD
ON
OFF
P
RSET
f OSD
Pr-12
4. Press 1.
After a short while, the selected station will be
deleted.
If you wish to delete other TV stations repeat stages
3 - 4.
01
02
03
04
05
06
07
08
PSET
R
C01
C02
-C03
-----
00
00
-00
----MOVE :
DELETE :
PR-02
PR-04
----PR-03
----------------,
OK i
5. Press i to remove the menus from the TV screen.
PR-01
PR-02
PR-04
----PR-03
------------,
OK i
5. Press i to remove the menus from the TV screen.
15
Preparation
Before Operation-VCR part
Before Operation-DVD part
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
1. Press DISPLAY to show various playback
information.
The items displayed differ depending on the disc
type or playing status.
Initial Settings
By using the DVD Setup menu, you can make various
adjustments to items such as picture and sound. You can
also set a language for the subtitles and the Setup menu,
among other things. For details on each Setup menu item,
see pages 16 to 19.
To display and exit the Menu:
Press SETUP to display the menu. A second press of
SETUP will take you back to initial screen.
To go to the next level:
Press B on the remote control.
To go back to the previous level:
Press b on the remote control.
General Operation
1. Press DVD on the remote control.
2. You can select an item by pressing v / V and
change or select the setting by pressing b / B.
Title (Track) – Current title (or track) number/total
number of titles (or tracks)
Chapter – Current chapter number/total number of
chapters
Time – Elapsed playing time
Audio – Selected audio language or channel
Subtitle – Selected subtitle
Angle – Selected angle/total number of angles
Note:
If no button is pressed for a few seconds, the on-screen
display disappears.
2. Press SETUP.
The Setup menu appears.
3. Use v / V to select the desired option then press B
to move to the second level.
The screen shows the current setting for the
selected item, as well as alternate setting(s).
4. Use v / V to select the second desired option then
press B to move to the third level.
5. Use v / V to select the desired setting then press
ENTER/OK to confirm your selection.
Some items require additional steps.
6. Press SETUP or N exit the Setup menu.
16
Before Operation-DVD part
LANGUAGE
Progressive Scan Video provides the highest quality pictures with less flickering.
If you are using the Component Video jacks for connection to a TV or a monitor that is compatible with a progressive scan signal, set Progressive Scan to On.
To Turn ON progressive scan:
Menu Language
Connect component video out of the this unit to the
input of your monitor/television, set your television or
monitor to Component Input.
Select a language for the VCR and DVD’s setup menu
and information display.
1. Select “Progressive Scan” on the DISPLAY menu
then press B.
Disc Audio / Subtitle / Menu
DVD
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
Original: Refers to the original language in which the
disc was recorded.
Other: To select another language, press number
buttons then ENTER/OK to enter the corresponding
4-digit number according to the language code list in
the reference chapter (see page 34). If you enter the
wrong language code, press CLEAR.
2. Select “On” using the v / V buttons.
3. Pressing ENTER (OK) will set the player to
Progressive scan mode.
DISPLAY
TV Aspect
DVD
4:3 : Select when a standard 4:3 TV is connected.
16:9 : Select when a 16:9 wide TV is connected.
Display Mode
DVD
Display Mode setting works only when the TV Aspect
mode is set to “4:3”.
Letterbox: Displays a wide picture with bands on the
upper and lower portions of the screen.
Panscan: Automatically displays the wide picture on the
entire screen and cuts off the portions that do not fit.
17
Preparation
Progressive Scan
Before Operation-DVD part
AUDIO
LOCK (Parental Control)
Each DVD disc has a variety of audio output options.
Set this unit’s AUDIO options according to the type of
audio system you use.
Rating
Blocks playback of rated DVDs based on their content.
Not all discs are rated.
Dolby Digital / DTS / MPEG
DVD
DivX
Bitstream: Select “Bitstream” if you connect the
DVD+VCR’s DIGITAL AUDIO OUT jack to an amplifier or other equipment with a Dolby Digital, DTS or
MPEG decoder.
PCM (for Dolby Digital / MPEG): Select when connected to a two-channel digital stereo amplifier.
DVDs encoded in Dolby Digital or MPEG will be
automatically down mixed to two-channel PCM
audio.
Off (for DTS): If you select “Off”, the DTS signal is
not output through the DIGITAL AUDIO OUT jack.
Sample Freq. (Frequency)
DVD
If your receiver or amplifier is NOT capable of handling
96 kHz signals, select 48 kHz. When this choice is
made, this unit automatically converts any 96 kHz signals to 48 kHz so your system can decode them.
If your receiver or amplifier is capable of handling 96
kHz signals, select 96 kHz. When this choice is made,
this unit passes each type of signal through without any
further processing.
Check the documentation for your amplifier to verify its
capabilities.
DRC (Dynamic Range Control)
DVD
With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation
possible, thanks to digital audio technology. However,
you may wish to compress the dynamic range of the
audio output (the difference between the loudest sounds
and the quietest ones). This allows you to listen to a
movie at a lower volume without losing clarity of sound.
Set DRC to On for this effect.
Vocal
DVD
Set to On only when a multi-channel karaoke DVD is
playing. The karaoke channels on the disc mix into normal stereo sound.
18
1. Select “Rating” on the LOCK menu then press B.
2. To access the LOCK options, you must input the
password you have created. If you have not yet
entered password, you are prompted to do so.
Input a password and press ENTER/OK. Enter it
again and press ENTER/OK to verify. If you make a
mistake before pressing ENTER/OK, press CLEAR.
3. Select a rating from 1 to 8 using the v / V buttons.
Rating 1-8: Rating one (1) has the most restrictions
and rating eight (8) is the least restrictive.
Unlock: If you select unlock, parental control is not
active and the disc plays in full.
4. Press ENTER/OK to confirm your rating selection,
then press SETUP to exit the menu.
Password
You can enter or change password.
1. Select Password on the LOCK menu then press B.
2. Follow step 2 as shown above (Rating).
To change the password, press ENTER/OK when the
“Change” option is highlighted. Input a password and
press ENTER/OK. Enter it again and press
ENTER/OK to verify.
3. Press SETUP to exit the menu.
If you forget your password
If you forget your password, you can clear it using the
following steps:
1. Press SETUP to display the Setup menu.
2. Input the 6-digit number “210499” and press
ENTER/OK. The password is cleared.
Before Operation - DVD part
DVD
Enter the Area Code whose standards were used to
rate the DVD video disc, based on the list in the
reference chapter (see page 34).
Note:
All the downloaded videos from DivX® VOD can only
be played back on this unit.
Preparation
Area Code
1. Select “Area Code” on the LOCK menu then press
B.
2. Follow step 2 as shown left (Rating).
3. Select the first character using v / V buttons.
4. Press B and select the second character using
v / V buttons.
5. Press ENTER/OK to confirm your area code
selection.
OTHERS
The PBC and Divx(R) settings can be changed.
PBC (Playback control)
layback control provides special navigation features that
are available on some Disc. Select [On] to use this
feature.
DivX(R) VOD
We provide you with the DivX® VOD (Video On
Demand) registration code that allows you to rent and
purchase videos using the DivX® VOD service. For
more information, visit www.divx.com/vod.
1. Select “DivX(R) VOD” option then press B.
2. Press ENTER/OK while “Select” is selected and the
registration code will appear.
Use the registration code to purchase or rent the
videos from DivX® VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a disc for playback on this
unit.
3. Press ENTER/OK to exit.
19
Operation with tape
Playing a tape
You will only be able to load and eject video cassettes
when your DVD+VCR is plugged into the mains.
Your DVD+VCR may also playback recordings from
NTSC tapes (on PAL TV).
Getting a better picture
When a cassette is inserted and playback started, the
automatic tracking function works to get the best possible picture automatically. If the quality of the recording is
poor, repeatedly press 3 or 4 on the remote control to
manually adjust the tracking until any distortions have
been removed.
1. Make sure that you have correctly connected your
DVD+VCR as described earlier in this book.
Turn on your TV.
Press POWER to turn on your DVD+VCR.
Insert the video cassette into your DVD+VCR.
The video cassette should have the window side
facing up and the arrow facing away from you.
2. Press N to start playing your tape.
If you load a video cassette which has had its record
protection tab removed, playback of the cassette will
start automatically.
AUTO TRACKING
Your DVD+VCR will automatically adjust the
tracking to give the best picture quality.
3. Press PAUSE/STEP to still a picture.
Press PAUSE/STEP repeatedly to advance the tape
frame by frame.
If you press FORWARD, the picture will be slowed
down at about 1/19 times the normal playback.
Tapes can be paused for up to 5 minutes. After 5
minutes your DVD+VCR will stop the tape to
prevent damaging the tape or your DVD+VCR .
Still picture quality can be improved slightly by using
v or V.
4. Press N to continue playing your tape.
Double speed playback
Press the "N" button during normal
playback. The tape will play back at double speed
and without sound.
Press the "N" button to return to playback at
normal speed
Picture search:
During playing back press either BACKWARD or
FORWARD. This will enable you to rapidly wind the
tape see where you are on the tape.
Logic search:
During fast forwarding or rewinding press and hold
m or M the picture will be played back at 7 times
normal playback speed.
20
5. Slow motion playback, Shuttle :
During playing back or still picture press F or G.
You can reach the following playback speeds.
(REV, PB 5-, PB 1-, Still, SLW, PLAY, 2PLY, CUE)
To switch off the slow motion and shuttle, press the
desired function.
During slow motion and shuttle, the noise bars may
appear on the picture according to the status of
tape.
If distortions can be seen in the picture, reduce them
with v or V.
6. Press STOP to end playback.
Press EJECT.
If the end of the tape is reached, your DVD+VCR will
stop playback automatically, rewind, stop, eject the
tape.
CM (Commercial Message) Skip:
This feature enables you during playback of a tape to
skip a commercial break in a few seconds, then resume
normal playback.
While tape is playing press CM SKIP on the remote
control to skip commercial (or another programme
material).
Repeatedly press CM SKIP to skip:
1 Press 30 seconds
2 Press 60 seconds
3 Press 90 seconds
4 Press 120 seconds
5 Press 150 seconds
6 Press 180 seconds
OPR (Optimum Picture Response)
This feature automatically improves playback picture
quality by adjusting your DVD+VCR to the condition of
the tape. Please note that the OPR icon ( ) will only
appear in the play mode when playing a tape.
1. Press i.
2. Press b or B to select
3. Press ENTER/OK.
(OPR).
4. Press 3 or 4 repeatedly to select: OFF, SOFT or
SHARP. Please note you may only set OPR when
playing a tape.
5. Press i return to screen.
PSET
R
f OSD
ON
OFF
Pr-12
ACMS
OFF
1 2
SOFT
SYS
SET SHARP
R
Operation with tape
Your DVD+VCR allows you to make recordings using a
variety of simple methods:
7. Press PAUSE/STEP to avoid recording unwanted
scenes.
Press PAUSE/STEP to resume recording.
Tapes can be paused for up to 5 minutes; RECP will
be displayed when a tape is paused. After 5 minutes
your DVD+VCR will stop recording to prevent
damaging the tape or your DVD+VCR.
Instant Timer Recording (ITR) start recording immediately for a set period of time or until the video cassette
runs out.
Your DVD+VCR incorporates Long Play (LP) which
enables you to record up to twice the amount of time on
a video cassette. For example an E-180 will record up
to 180 minutes using Standard Play (SP); using LP you
will be able to record up to 360 minutes. Please note
there will be a slight loss in picture and sound quality
when using LP.
1. Make sure that you have correctly connected your
DVD+VCR as described earlier in this book.
Press POWER to turn on your DVD+VCR.
2. Insert a video cassette with protection tab into your
DVD+VCR.
The video cassette should have the window side
facing up and the arrow facing away from you.
8. Press STOP to end recording.
Press EJECT.
Notes:
If you do not wish to record on a tape (this can happen quite easily by accident!) remove the protection
tab on the back edge of the video cassette.
It is possible to record on a video cassette with the
record protection tab removed by covering the hole
with self adhesive tape.
Remember you can record (by timer / instant recording or manual recording) one programme while watching another. Just select the desired channel on your
television.
3. Press 3 or 4 to select the programme number you
wish to record.
You may also directly select programme number
using the numbered buttons on the remote control.
4. If you wish to record directly from the AUDIO L/R
(VCR IN AV1)/ VIDEO (VCR IN AV1) or AUDIO IN
(L(MONO)/R)/ VIDEO IN terminals repeatedly press
AV until the socket you wish to record from is
displayed.
AV 1 for recording from AUDIO L/R (VCR IN AV1)/
VIDEO (VCR IN AV1) terminals on the rear of your
unit.
AV 2 for recording from AUDIO IN (L(MONO)/R)/
VIDEO IN terminals on the front of your unit.
5. Press LP if you wish to record in Long Play, pressing
it again will change back to Standard Play.
SP will produce improved picture and sound quality,
however LP will provide twice as much recording
time as SP.
6. Press REC/ITR on the remote to start recording.
Press REC/ITR on the remote several times.
Each successive press will increase the record time
by 30 minutes until you reach a maximum of 9
hours.
21
Operation
Instant Timer Recording (ITR)
Operation with tape
Timer recording using On Screen
Display
You may set up to seven timer record events
within one month of the current date.
PR
DATE
T I M E
- - : - - ~ - -: - PR-03
3
- - : - - ~ - -: - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --- - : - -~- - : - --DLY SU MO TU WE TH FR
SP
SP
SP
SP
SP
SP
SP
SA
OK i
Note:
Before setting the timer make sure that you have set the
DVD+VCR clock correctly and you know which stations
you have tuned TV stations on your DVD+VCR.
1. Insert a video cassette with protection tab into your
DVD+VCR.
The video cassette should have the window side
facing up and the arrow facing away from you.
2. Press i.
Press 1 or 2 to select REC (
Press ENTER/OK.
PR
--------
DATE
--------
,
SP
SP
SP
SP
SP
SP
SP
TIME
- - : - - ~ - -: - - - : - - ~ - -: - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - -
SP
SP
SP
SP
SP
SP
SP
i
Note:
If all timer record events are full press v or V to select
the event that you wish to remove and replace.
Press b to delete the event.
5. Use the PR/TRK (v/V) to enter the date of the
programme.
If you press ENTER/OK before entering the date
you may select one of the following automated
recording features.
Press 1 or 2 to select, then press ENTER/OK to
confirm.
DLY To record every day (except Saturday and
Sunday) at the same time.
SU~SA To record at the same time every week.
22
DATE
4
-------
TIME
14 : 00 ~ 15: 30
- - : - - ~ - -: - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - -
SP
SP
SP
SP
SP
SP
SP
7. Press B to select the recording speed.
Press v or V to select the desired tape speed (SP,
IP, or LP).
IP mode determines how much tape is left and
switches speed from SP to LP, if necessary, to complete recording the program.
OK i
4. Use the PR/TRK (v/V) to select the station that you
wish to record then press 2.
DATE
--------
PR
PR-03
-------
i
3. Press ENTER/OK to start setting the timer record
event.
PR
PR-03
-------
Please note your DVD+VCR uses a 24 hour clock.
e.g. 1pm will be displayed as 13:00.
).
T I M E
- - : - - ~ - -: - - - : - - ~ - -: - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - DELETE:
6. Use v/V/1/2 buttons to enter the recording start and
end times of the programme that you wish to record.
PR
PR-03
-------
DATE
4
-------
TIME
14 : 00 ~ 15: 30
- - : - - ~ - -: - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - - - : - -~- - : - -
SP
SP
SP
SP
SP
SP
SP
i
Operation with tape
Timer recording using On Screen
Display (Continued)
To watch a DVD while performing a timer recording,
press DVD to select DVD mode.
Operation
8. Press i to set another timer record event and follow
steps 3 to 7.
Check that the timer event details are correct.
Press i to return to screen.
If PLEASE CHECK is displayed, you have entered
incorrectly and will need to re-enter the data.
9. Press POWER to switch your DVD+VCR to Timer
Standby mode.
Note:
The 1W Mode is not available in the standby
mode for the timer recording.
The timer symbol ( ) will appear in the display
window while your DVD+VCR waits to make the
recording.
10. Press POWER to end timer recording.
Notes:
The DVD+VCR will automatically power off when
Timer Recording ends.
During timer recording standby mode, the DVD and
VCR mode cannot be operated. To use the
DVD+VCR, press POWER. After you use the DVD or
VCR, press POWER again to put the VCR into timer
recording standby mode.
If at a later date you wish to delete or change any of
the settings in timer event memory you may do so
without having to enter all the timer event information
again. Simply display the timer event screen. Use v
or V to select the event that you wish to delete or
change.
Press b to delete the event...or
Press ENTER/OK to change; then press b or B to
select; Station, Date, Start and End times and
recording speed. Press v or V to enter the correct
information.
If Timer record events Overlap...
Make sure that the preset times of the timer recording
events do not overlap. If they do, the earlier programme will always be given priority.
Example:
Programme 1 is programmed to start at 16:00 and
end at 17:00.
Programme 2 is programmed to start at 16:30 and
end at 17:30.
(In this case, Programme 1 will be recorded in its
entirety, but only the last 30 minutes of Programme 2
will be recorded.)
23
Additional Operation - VCR part
Hi-Fi Stereo Sound System
Tape Counter Memory Stop
Your VCR will record and playback Hi-Fi stereo sound.
This allows you to record and playback the sound in
several different ways. Video cassettes
recorded on your VCR will have a normal mono audio
track and two Video tape Hi-Fi stereo audio tracks.
These stereo tracks allow you to make audio recordings
in Hi-Fi stereo or bilingual mode from a TV broadcast,
stereo audio system, video disc or another Hi-Fi VCR.
The Digital Tape Counter can be displayed on the display window instead of the time by pressing CLK/CNT
on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.
1. Your VCR’s allows you to enjoy broadcasts with
standard stereo, bilingual and mono sound. The
particular type of sound received or that recorded
will be briefly displayed on the TV screen for a
couple of seconds:
STEREO
Sound is automatically recorded on the Hi-Fi stereo
and mono tracks of the video tape.
BIL
Both audio channels will be recorded on the Hi-Fi
stereo tracks. The primary language channel (left)
will be recorded on the mono track of the video tape.
MONO
The sound is recorded on the Hi-Fi tracks and the
mono track of the video tape without any separation.
2. Press AUDIO repeatedly until the desired audio mode
appears.
3. The choice is STEREO, LEFT, RIGHT and MONO.
In BIL playback the primary language is output on
the left channel and the secondary channel is output
simultaneously from the right channel when audio
output is set to STEREO.
The primary language will be output from both channels when the audio setting is MONO.
Please note that when adjusting the tracking
control Hi-Fi stereo sound may revert to MONO.
On Screen Display (F.OSD)
You may easily display the current time or tape counter,
amount of tape left, day, month, year, day of week,
programme channel, tape speed and operational mode
of your DVD+VCR on the TV screen. If a recording is
taking place these On Screen Displays will not be
recorded onto the tape.
1. Press CLK/CNT to display.
Press CLK/CNT repeatedly to cycle through the
display options. The tape counter and amount of
tape left will appear if there is a tape loaded.
2. After 3 seconds the majority of the On Screen
Displays will clear leaving only the clock or tape
counter and the amount of tape left on the screen.
Press CLK/CNT again to remove all displays from
the TV screen.
24
1. Press CLK/CNT.
Press CLEAR to set the counter to 0:00:00.
Press N or start recording.
The tape counter will display the actual play time in
hours, minutes and seconds.
2. Press x when playback or recording is
complete.
Press m.
The tape will rewind and automatically stop when
the counter returns to 0:00:00.
Additional Operation - VCR part
1W Mode (Power save Mode)
This feature informs you that there is a problem with your
DVD+VCR. These error messages will appear on the TV
screen.
Set 1W ON/OFF to ON to place your DVD+VCR into an
economic power save mode.
Nothing is displayed in the display window.
1. Press i.
Press 1 or 2 to select
Press ENTER/OK.
1
PSET
R
Pr-12
ACMS
.
1 2
ANTENNA CONNECT
HEAD STATUS
TAPE STATUS
NO. OF TIMER PROGRAMME
NEXT TIMER PROGRAMME
Press i.
The main menu will appear on the TV screen.
Press F or G to select the 1W ON/OFF.
Press ENTER/OK.
2. Press
3
SET SYS
f OSD
ON
OFF
Operation
Video Doctor (Self-Diagnosis)
D
or
E
to select ON.
Press i.
PLEASE CHECK
i
Note:
2. Press 3 or 4 to check a problem.
ANTENNA CONNECT
O PLEASE CHECK:
Connect the aerial into the jack securely.
Some function may not be operated in the 1W Mode.
• The 1W Mode is not available in the standby mode for
the timer recording.
HEAD STATUS
O PLEASE CLEAN:
Clean your video heads.
TAPE STATUS
O NOT RECORDABLE:
Insert a tape with its protection tab in place
NO. OF TIMER PROGRAMME
O 2
Shows the number of timer recording.
NEXT TIMER PROGRAMME
O PR-01 26 10:00~11:00 SP
Shows the current status of timer recording.
3. Press i to remove the menus from the TV screen.
Lock (Child Lock)
The control buttons on the front of the unit can be
switched off so that your unit can only be operated
using the remote control.
1. Press LOCK.
and SAFE will appear in the display window.
None of the buttons on the front of your unit will
work.
If any buttons on the front of your unit are pressed
SAFE will flicker in the display window for a few
seconds.
2. Press LOCK again to switch off the child lock.
OFF will appear in the display window.
25
Additional Operation - VCR part
Recording from External Components
With this video recorder you can make recordings from
an external source, such as copying from
another video recorder or a camcorder.
Note:
In the following description, this video recorder will be
one used for recording and will be referred to as VCR B.
The other appliance will be used for playback and will
be referred to as VCR A.
1. VCR A should be connected to the AUDIO L/R
(VCR IN AV1)/VIDEO (VCR IN AV1) on the rear
panel of your unit or AUDIO IN (L(MONO)/R) /
VIDEO IN on the front panel of your unit.
2. Insert the recorded tape into VCR A and a blank
tape into VCR B.
3. Press AV until the socket you wish to record from is
displayed. (VCR B)
AV 1 for recording from AUDIO L/R (VCR IN AV1)/
VIDEO (VCR IN AV1) terminals on the rear of your
unit.
AV 2 for recording from AUDIO IN (L(MONO)/R)/
VIDEO IN terminals on the front of your unit.
4. To start recording, press the REC/ITR on VCR B
and PLAY on VCR A.
5. When you want to finish copying, press the STOP
on both video recorders.
Notes:
•
Before recording, confirm the recording start
position.
•
If your source is copy-protected using CopyGuard,
you will not be able to record it using this unit. See
Copyright on page 5 for more details.
•
To record for a fixed length of time, see Instant
Timer Recording.
26
Copying from DVD to VCR
You can copy the contents of a DVD to a Video tape.
1. Insert the disc you wish to copy into the DVD deck
and close the disc tray.
2. Insert a blank video tape into the VCR deck.
3. Find the place on the DVD from which you want to
start dubbing using the N, BACKWARD,
FORWARD and PAUSE functions.
For best results, pause playback at the point from
which you want to record.
4. Press REC/ITR on the Remote Control.
The DVD goes into PLAY mode and the VCR goes
into RECORD mode. If the DVD disc menu appears,
you may need to press N manually to begin
copying.
5. When the DVD is finished playing, press STOP to
end copying.
Notes:
•
If the DVD you are attempting to copy is copy
protected, you will not be able to copy the disc.
It is not permitted to copy Macrovision encoded
DVDs (or Discs). “LOCK” is displayed in the display
window.
•
You must stop the copy process manually when the
DVD movie ends, or the unit may replay and record
over and over again.
•
When you stop the DVD playback during copying,
the recording on VCR is stopped automatically.
General Playback features - DVD Part
Buttons
Operations
Z (OPEN / CLOSE)
Opens or closes the disc tray.
ALL
X (PAUSE)
During playback, press X to pause playback.
ALL
Press X repeatedly to play Frame-by-Frame.
DVD
During playback, press . or > to go to the next chapter/track or to return to the beginning of the current
chapter/track.
ALL
Operation
./>
Discs
DivX
Press . twice briefly to step back to the previous
chapter/track.
m/M
During playback, press m or M repeatedly to select the
required scan speed.
DVD, DivX disc; 4 steps
MP3, Audio CD ; 3 steps
ALL
While the playback is paused, press M repeatedly to play in
slow motion (4 steps).
DVD
REPEAT
During playback, press REPEAT repeatedly to select a
desired repeat mode.
DVD Video discs: Chapter/Title/Off
Audio CD, DivX/MP3/WMA discs: Track/All/Off
ALL
A-B
During playback, each press of A-B button to select point A
and point B and repeats a sequence from point A (Starting
point) to point B (End point). Press CLEAR to exit.
DVD
ZOOM
During playback or pause mode, press ZOOM to enlarge the
video image (4 steps).
You can move through the zoomed picture using b B v V
buttons. Press CLEAR to exit.
RANDOM
During playback or in stop mode, press RANDOM for random
playback.
DivX
DivX
ACD
DVD
ACD
DivX
MP3
WMA
TITLE
If the current DVD title has a menu, the title menu appears
on the screen. Otherwise, the disc menu may appears.
DVD
DISC MENU
The disc menu appears on the screen.
DVD
(ANGLE)
During playback of DVD disc contains scenes recorded
different camera angles, press ANGLE repeatedly to select a
desired angle.
DVD
(SUBTITLE)
During playback, press SUBTITLE repeatedly to select a
desired subtitle language.
DVD
DivX
(AUDIO)
During playback, press AUDIO repeatedly to hear a different
audio language or audio track.
DVD
DivX
27
Playing a DVD
Notes on general features:
Last Scene Memory
• If you press > once during Repeat Chapter (Track)
playback, the repeat playback cancels.
This player memorizes last scene from the last disc that
is viewed. The last scene remains in memory even if
you remove the disc from the player or switch off the
player. If you load a disc that has the scene memorized,
the scene is automatically recalled.
• Zoom may not work on some DVDs.
• When you are playing a DVD disc contains scenes
recorded different camera angles, the angle indicator
will blink on the TV screen during scenes recorded at
different angles as an indication that angle switching
is possible.
• The A-B repeat function is available only in the
current chapter/track.
DVD
ACD
Note:
This player does not memorize the scene of a disc if
you switch off the player before commencing to play the
disc.
Screen Saver
Additional features
Time Search
DVD
DivX
To start playing at any chosen time on the disc:
1. Press DISPLAY during playback.
2. Press v / V to select the time clock icon and
“--:--:--” appears.
3. Use numerical buttons to input the required start
time in hours, minutes, and seconds from left to
right. If you enter the wrong numbers, press CLEAR
to remove the numbers you entered. Then input the
correct numbers.
4. Press ENTER to confirm. Playback starts from the
selected time.
Marker Search
DVD
DivX
To enter a Marker
You can start playback from up to nine memorized
points. To enter a marker, press MARKER at the
desired point on the disc. The Marker icon appears on
the TV screen briefly. Repeat to enter up to nine markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The marker
search menu appears on the screen.
2. Within 10 seconds, press b / B to select a marker
number that you want to recall or clear.
3. Press ENTER and playback starts from the marked
scene. Or, Press CLEAR and the marker number is
erased from the list.
4. You can play any marker by inputting its number on
the marker search menu.
28
The screen saver appears when you leave the DVD
player in Stop mode for about five minutes.
Playing an Audio CD or MP3/WMA file
MP3/ WMA/ Audio CD
Once you insert an MP3/WMA files recorded media or
Audio CD, a menu appears on the TV screen.
Press v / V to select a track/file then press PLAY or
ENTER and playback starts. You can also use variable
playback functions. Refer to page 27-28.
Programmed Playback
The program function enables you to store your favorite
tracks from any disc in the player memory.
A program can contain 30 tracks.
1. Insert an Audio CD or MP3/WMA files recorded
media. AUDIO CD or MUSIC menu appears.
2. Press PROGRAM. The
E
mark will appear.
Note:
Press PROGRAM again to exit the program edit mode,
then the E mark will disappear.
3. Select a track on the “List”, then press ENTER to
place the selected track on the “Program” list.
Repeat to place additional tracks on the list.
ID3 TAG
• When playing a file containing information such as
track titles, you can see the information by pressing
DISPLAY.
[ Song, Artist, Album, Comment, Genre ]
Tips:
• Press DISC MENU to move to the next page.
• On a CD with MP3/WMA and JPEG you can switch
MP3/WMA and JPEG. Press TITLE and MUSIC or
PHOTO word on top of the menu is highlighted.
MP3 / WMA disc compatibility with this player is
limited as follows:
• Sampling frequency: within 8 - 48 kHz (MP3), within
32 - 48kHz (WMA)
• Bit rate: within 8 - 320kbps (MP3),
64 - 192 kbps (WMA)
• The player cannot read an MP3/WMA file that has a
file extension as non other than “.mp3” / “.wma”.
• CD-R physical format should be ISO 9660.
• If you record MP3 / WMA files using software that
cannot create a file system (eg. Direct-CD) it is
impossible to playback MP3 / WMA files. We recommend that you use Easy-CD Creator, which creates
an ISO 9660 file system.
• File names should have a maximum of 8 letters and
must incorporate an .mp3 or .wma extension.
• They should not contain special letters such as / ? *
: “ < > l etc.
• The total number of files in a folder should be less
than 1,000 files.
4. Select the track you want to start playing on the
“Program” list.
5. Press PLAY or ENTER to start. Playback begins in
the order in which you programmed the tracks.
Playback stops after all of the tracks on the
“Program” list have played once.
6. To resume normal playback from programmed playback, select a track on the list and then press PLAY.
Repeat Programmed Tracks
Press REPEAT to select a desired repeat mode.
• Track: repeats the current track
• All: repeats all the tracks on the “Program” list.
• Off(No display): does not play repeatedly.
Note:
If you press > once during Repeat Track playback,
the repeat playback cancels.
Erasing a Track from “Program” List
1. During STOP mode, press PROGRAM and
the E mark will appear
2. Use v V b B to select the track that you wish to
erase from the Program list.
3. Press CLEAR. Repeat step 1~3 to erase additional
tracks on the list.
Erasing the Complete Program List
1. During STOP mode, press PROGRAM and
the E mark will appear
2. Use v V b B to select “Clear All”, then press
ENTER.
Note:
The programs are also cleared when the power is
turned off or the disc is removed.
29
Operation
This unit can play Audio CDs or MP3/WMA files recorded media.
Viewing a JPEG file
This unit can play JPEG files recorded media.
Moving to another File
1. Insert a JPEG files recording media. The PHOTO
menu appears on the TV screen.
Press . or > or cursor b or B once during viewing a picture to advance to the next or previous file.
Zoom
During watching pictures, press ZOOM to enlarge the
video image (3 steps).
You can move through the zoomed picture using
b / B / v / V buttons.
Rotating the picture
2. Press v / V to select a folder and then press
ENTER. A list of files in the folder appears.
3. If you want to view a particular file, press
v / V to highlight a file and press ENTER or PLAY.
4. To return to the PHOTO menu while watching pictures, press STOP.
Note:
Some kind of special JPEG file can be taken more time
to play than normal JPEG.
(ex. Progressive JPEG)
Tips:
• If you are in a file list and want to return to the previous Folder list, use v / V buttons to highlight
and
press ENTER.
• Press DISC MENU to move to the next page.
• There are three Slide Speed options
:
>>> (Fast), >> (Normal) and > (Slow).
Use v V b B to highlight
. Then, use b / B to
select the option you want to use and then press
ENTER.
• On a DISC with MP3/WMA and JPEG file, you can
switch MUSIC and PHOTO menu. Press TITLE, and
MUSIC or PHOTO word on top of the menu is highlighted.
• While watching a picture, press RETURN to hide the
help menu.
(Slide Show) then
Still Picture
1. Press PAUSE/STEP during slide show.
The player will now go into PAUSE mode.
2. To return to the slide show, press PLAY or press
PAUSE/STEP again.
30
Listening to MP3 music while watching picture
1. Insert the disc containing the two types of file in the
player.
2. Press TITLE to display PHOTO menu.
3. Press v / V to select a photo file.
4. Use B / V to select
icon then press ENTER.
Playback starts. The playback will continue until stop
is pressed.
Tip:
To listen to only the desired music watching picture,
programmed the desired tracks from the “MUSIC” menu
and then proceed as above.
JPEG disc compatibility with this player is limited
as follows:
• Depending upon the size and the number of JPEG
files, it could take a long time for the DVD player to
read the disc’s contents. If you do not see an onscreen display after several minutes, some of the
files may be too large — reduce the resolution of
the JPEG files to less than 5 million pixels and burn
another disc.
• The total number of files in a folder should be less
than 1000 files.
• Some discs may be incompatible due to a different
recording format or the condition of disc.
Slide Show
Use b / B / v / V to highlight the
press ENTER.
Press v / V during showing a picture to rotate the picture clockwise or counter clockwise.
• Ensure that all the selected files have the “.jpg”
extensions when copying into the CD layout.
• If the files have “.jpe” or “.jpeg” extensions, please
rename them as “.jpg” file.
• File names without “.jpg” extension will not be able
to be read by this DVD player. Even though the files
are shown as JPEG image files in Windows
Explorer.
Playing a DivX Movie file
Using this DVD Player you can play DivX file.
DivX disc compatibility with this player is
limited as follows:
• Available resolution size of the DivX file is under
720x576 (W x H) pixel.
• The file name of the DivX subtitle is available by
56 characters.
• If there is impossible code to express in the DivX
file, it may be displayed as “ _ ” mark on the
display.
2. Press v / V to select a folder, and press ENTER. A
list of files in the folder appears.
3. If you want to view a particular file, press v / V to
highlight a file and press ENTER or PLAY.
You can use variable playback functions. Refer to
page 28-29.
4. Press STOP to stop the playback. The Movie menu
appears
Tips:
• If you are in a file list and want to return to the previous Folder list, use the v / V buttons on the remote to
highlight
and press ENTER.
• Press DISC MENU to move to the next page.
• On a CD with MP3/WMA, JPEG and MOVIE file, you
can switch MUSIC, PHOTO and MOVIE menu. Press
TITLE and MUSIC, PHOTO and MOVIE word on top
of the menu is highlighted.
• The picture may not be displayed properly during
DivX playback. Set your TV system to AUTO or PAL60 mode to restore the picture, if available.
• The disc subtitle may not be displayed properly, if a
DivX subtitle is downloaded through the internet.
• If the Disc Subtitle setup menu does not have the
DivX subtitle language you are going to play, the subtitle may not be displayed properly.
• If the number of the screen frame is over 30
per 1 second, this unit may not operate normally.
• If the video and audio structure of recorded file
is not interleaved, either video or audio is outputted.
• If the file is recorded with GMC, the unit supports only 1-point of the record level.
* GMC?
GMC is the acronym for Global Motion
Compensation. It is an encoding tool specified in
MPEG4 standard. Some MPEG4 encoders, like
DivX, have this option.
There are different levels of GMC encoding, usually called 1-point, 2-point, or 3-point GMC.
Playable DivX file
.avi, .mpg, .mpeg
Playable Subtitle format
SubRip(*.srt/*.txt)
SAMI(*.smi)
SubStation Alpha(*.ssa/*.txt)
MicroDVD(*.sub/*.txt)
SubViewer 1.0(*.sub)
SubViewer 2.0(*.sub/*.txt)
TMPlayer(*.txt)
Playable Codec format
“DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”,“MP43”, “3IVX”.
Notice for displaying the DivX subtitle
If the subtitle does not display properly during playback,
press and hold SUBTITLE for about 3 seconds then
press b / B to select another language code until the
subtitle is displayed properly.
Note :
The DivX subtitle file name has to be identified with the
DivX file name to display by this unit
31
Operation
1. Insert a DivX file recorded media. The MOVIE menu
appears on the TV screen.
Playing a DVD VR format Disc
This unit will play DVD-R/RW discs that are recorded
using the DVD-Video format that have been finalized
using a DVD-recorder.
This unit will play DVD-RW discs that are recorded
using the Video Recording (VR) format.
1. Insert a disc and close the tray, and playback start
automatically.
2. Press TITLE to move to the list menu.
3. Press v / V to select a track then press PLAY or
ENTER and playback starts.
4. Press STOP to stop the playback.
Notes:
• Unfinalized DVD-R/RW discs cannot be played in this
player.
• Some DVD-VR disc are made with CPRM data by
DVD RECORDER. Player does not support these
kinds of discs and display the “CHECK DISC”.
What is ‘CPRM’?
CPRM is a copy protection system (with scramble
system) only allowing the recording of ‘copy once’
broadcast programs. CPRM stands for Content
Protection for Recordable Media.
32
Additional Operation
You can control the sound level, input source, and
power switching of your LG TV with the supplied remote
control.
You can control the sound level, input source, and
power switching of non-LG TVs as well.
If your TV is listed in the table below, set the appropriate manufacturer code.
1. While holding down TV POWER button, press the
number buttons to select the manufacturer code for
your TV (see the table below).
2. Release TV POWER button.
Code numbers of controllable TVs
If more than one code number is listed, try entering
them one at a time until you find the one that works with
your TV.
Maintenance and Service
Refer to the information in this chapter before
contacting a service technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally packed
at the factory.
Keeping the exterior surfaces clean
•
Do not use volatile liquids such as insecticide spray
near the unit.
•
Do not leave rubber or plastic products in contact
with the unit for a long period of time. since they
leave marks on the surface.
Cleaning the unit
Manufacturer
Code Number
LG / GoldStar
1 (Default), 2
Zenith
1, 3, 4
Samsung
6, 7
Sony
8, 9
Hitachi
4
Note:
• Depending on your TV, some or all buttons may not
function on the TV, even after entering the correct
manufacturer code.
• If you enter a new code number, the code number
previously entered will be erased.
• When you replace the batteries of the remote, the
code number you have set may be reset to the default
setting. Set the appropriate code number again.
To clean the player, use a soft, dry cloth. If the surfaces
are extremely dirty, use a soft cloth lightly moistened
with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the unit.
Maintaining the Unit
The DVD+VCR is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty or
worn, the picture quality could be diminished.
Depending on the operating environment, regular
inspection and maintenance are recommended after
every 1,000 hours of use.
For details, please contact your nearest authorized
service center.
33
Operation
Controlling other TVs with the
remote control
Language and Area Code List
Language Code List
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu.
Language
Abkhazian
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali; Bangla
Bhutani
Bihari
Breton
Bulgarian
Burmese
Byelorussian
Cambodian
Catalan
Chinese
Corsican
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Code
6566
6565
6570
8381
6577
6582
7289
6583
6588
6590
6665
6985
6678
6890
6672
6682
6671
7789
6669
7577
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
Language
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Hausa
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
Irish
Italian
Japanese
Javanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Code
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Language
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maltese
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Oriya
Panjabi
Pashto, Pushto
Persian
Polish
Portuguese
Quechua
Rhaeto-Romance
Rumanian
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Shona
Sindhi
Code
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8065
8083
7065
8076
8084
8185
8277
8279
8285
8377
8365
7168
8382
8372
8378
8368
Language
Singhalese
Slovak
Slovenian
Somali
Spanish
Sudanese
Swahili
Swedish
Tagalog
Tajik
Tamil
Tatar
Telugu
Thai
Tibetan
Tigrinya
Tonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Code
8373
8375
8376
8379
6983
8385
8387
8386
8476
8471
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Area Code List
Choose a area code from this list.
Area
Afghanistan
Argentina
Australia
Austria
Belgium
Bhutan
Bolivia
Brazil
Cambodia
Canada
Chile
China
Colombia
Congo
Costa Rica
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
34
Code
AF
AR
AU
AT
BE
BT
BO
BR
KH
CA
CL
CN
CO
CG
CR
HR
CZ
DK
EC
EG
SV
Area
Ethiopia
Fiji
Finland
France
Germany
Great Britain
Greece
Greenland
Code
ET
FJ
FI
FR
DE
GB
GR
GL
Heard and McDonald Islands HM
Hong Kong
HK
Hungary
HU
India
IN
Indonesia
ID
Israel
IL
Italy
IT
Jamaica
JM
Japan
JP
Kenya
KE
Kuwait
KW
Libya
LY
Luxembourg
LU
Area
Malaysia
Maldives
Mexico
Monaco
Mongolia
Morocco
Nepal
Netherlands
Netherlands Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Paraguay
Philippines
Poland
Portugal
Romania
Russian Federation
Code
MY
MV
MX
MC
MN
MA
NP
NL
AN
NZ
NG
NO
OM
PK
PA
PY
PH
PL
PT
RO
RU
Area
Saudi Arabia
Senegal
Singapore
Slovak Republic
Slovenia
South Africa
South Korea
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
Turkey
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
Code
SA
SN
SG
SK
SI
ZA
KR
ES
LK
SE
CH
TW
TH
TR
UG
UA
US
UY
UZ
VN
ZW
Troubleshooting
Check the following guide for the possible cause of a problem before contacting service.
Correction
Cause
No power.
The power cord is disconnected.
Plug the power cord into the wall outlet
securely.
The power is on, but
the DVD player does
not work.
No disc is inserted.
Insert a disc.
No picture.
The TV is not set to receive this unit’s
signal output.
Select the appropriate video input mode
on the TV so the picture from the this
unit appears on the TV screen.
The video cable is not connected
securely.
The Progressive Scan is set to “On” on
the setup menu but is connected to a
standard (analog) television.
Connect the video cable into the jacks
securely.
Set Progressive Scan to “Off”
(see page 17).
The equipment connected with the
audio cable is not set to receive DVD
signal output.
Select the correct input mode of the
audio receiver so you can listen to the
sound from the this unit.
The audio cables are not connected
securely.
Connect the audio cable into the jacks
securely.
The power of the equipment connected
with the audio cable is turned off.
Turn on the equipment connected with
the audio cable.
The Audio option is set to the wrong
position.
Set the Audio option to the correct
position, then turn on the DVD player
again by pressing POWER.
The picture is poor.
The disc is dirty.
The TV channels are not tuned in properly.
Clean the disc.
Check tuning, carry out tuning again.
The DVD player does
not start playback.
An unplayable disc is inserted.
Insert a playable disc. (Check the disc
type and Regional code.)
The disc is placed upside down.
Place the disc with the playback side
down.
The disc is not placed within the guide.
Place the disc on the disc tray correctly
inside the guide.
The disc is dirty.
Clean the disc.
The Rating level is set.
Cancel the Rating function or change
the rating level.
The remote control
does not work
properly.
There is an obstacle in the path of the
remote control and this unit.
Remove the obstacle.
The batteries in the remote control are
exhausted.
Replace the batteries with new ones.
Video tape cannot be
inserted.
Is the cassette compartment empty?
Eject the tape in.
No Hi-Fi sound
Audio mode is not set properly.
Select “STEREO” by repeatedly pressing
“AUDIO” on the remote control.
No sound.
35
Reference
Symptom
Specification
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
Timer
RF Modulator
AC 110-240V, 50/60 Hz
17W
430 x 78.5 x 265 mm (W x H x D)
4.2 kg
5˚C to 35˚C (41˚F to 95˚F)
5 % to 90 %
24 hours display type
UHF 28 - 68 (Adjustable)
System
Laser
Video Head system
Signal system
Frequency response
Signal-to-noise ratio
Harmonic distortion
Dynamic range
Inputs (VCR)
Audio
Video
Semiconductor laser, wavelength 650 nm
Double azimuth 6 heads, helical scanning.
PAL
DVD (PCM 96 kHz): 8 Hz to 44 kHz
DVD (PCM 48 kHz): 8 Hz to 22 kHz
CD: 8 Hz to 20 kHz
More than 100dB (ANALOG OUT connectors only)
Less than 0.008%
More than 100 dB (DVD)
More than 95 dB (CD)
-6.0dBm, more than 47k ohms
1.0 Vp-p, 75 ohms, unbalanced
Outputs (DVD)
VIDEO OUT
S-VIDEO OUT
1 Vp-p 75 ohms, sync negative
(Y) 1.0 Vp-p 75 ohms, negative sync., Mini Din 4-pin x 1
(C) 0.3 Vp-p 75 ohms
COMPONENT VIDEO OUT
(Progressive Scan)
(Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
RGB output
Audio output (coaxial audio)
Audio output (analog audio)
0.7 Vp-p, 75 ohms
0.5 V (p-p), 75 Ω, RCA jack x 1
2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R)x2
Outputs (VCR)
Audio
Video
-6.0dBm, less than 1k ohms
1.0Vp-p, 75 ohms, unbalanced
RGB output
0.7 Vp-p, 75 ohms
Design and specifications are subject to change without notice.
P/NO: MFL56842688
36
Download PDF

advertising
