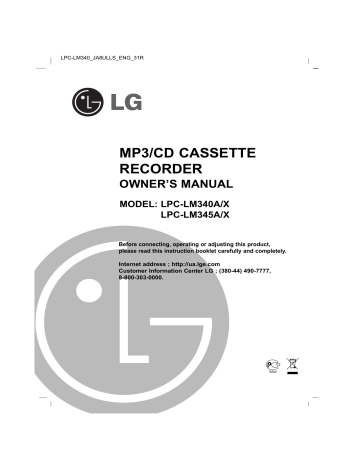

LPC-LM340_JA8ULLS_ENG_31R
MP3/CD CASSETTE
RECORDER
OWNER’S MANUAL
MODEL: LPC-LM340A/X
LPC-LM345A/X
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and completely.
Internet address ; http://ua.lge.com
Customer Information Center LG ; (380-44) 490-7777,
8-800-303-0000.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the literature accompanying
the product.
WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined
space such as a bookcase or similar unit.
CAUTION: Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to
protect it from over heating.
The openings should be never be blocked by placing the
product on a bed, sofa, rug or other similar surface. This
product should not be placed in a built-in installation such as
a bookcase or rack unless proper ventilation is provided or
the manufacturer's instruction have been adhered to.
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this
owner’s manual carefully and retain it for future reference.
Should the unit require maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open
the enclosure. Visible laser radiation when open.
DO NOT STARE INTO BEAM.
2
Most devices are recommended be placed on a dedicated circuit;
That is, a single outlet circuit which powers only that electronic device and has no additional outlets or branch circuits. Check the specification page of this owner's manual to
be certain.
Do not overload wall outlets. Overloaded wall outlets, loose
or damaged wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or
fire. Periodically examine the cord of your appliance, and if
its appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord
replaced with an exact replacement part by an authorized
servicer.
Protect the power cord from physical or mechanical abuse,
such as being twisted, kinked, pinched, closed in a door, or
walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord
exits the appliance.
To disconnect power from the mains, pull out the mains cord
plug. When installing the product, ensure that the plug is
easily accessible.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is
attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be
disposed of separately from the municipal waste
stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will
help prevent potential negative consequences for
the environment and human health.
4. For more detailed information about disposal of
your old appliance, please contact your city
office, waste disposal service or the shop where
you purchased the product.
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . .4
Symbols Used in this Manual
Notes on Tapes . . . . . . . . . .
Notes on Discs . . . . . . . . . .
Handling discs . . . . . . . .
Storing discs . . . . . . . . .
Cleaning discs . . . . . . . .
Front/Rear/Bottom Panel . . . .
Remote Control . . . . . . . . . .
Display Window . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.4
.4
.4
.4
.4
.4
.5
.6
.6
2 Installation . . . . . . . . . . . . . . . . . . .
The AC Power Cord Connection . .
Adjusting the voltage (OPTIONAL)
Battery Installation . . . . . . . . . . . .
Unit . . . . . . . . . . . . . . . . . . . .
Remote Control . . . . . . . . . . .
Sound Adjustment . . . . . . . . . . . .
Volume Adjustment . . . . . . . .
Sound Quality Adjustment . . .
MUTE . . . . . . . . . . . . . . . . . .
UBB . . . . . . . . . . . . . . . . . . . .
Headphone Socket . . . . . . . .
Micphone Socket (OPTIONAL)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.7
.7
.7
.7
.7
.7
.8
.8
.8
.8
.8
.8
.8
3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . .9
Auto Function Selection . . . . . . . . . . . . . .9
Setting the Clock . . . . . . . . . . . . . . . . . . .9
Using the Sleep Function . . . . . . . . . . . . .9
Using Microphone (OPTIONAL) . . . . . . . .9
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Presetting the Radio Stations . . . . . . . . .11
Listening to the Radio . . . . . . . . . . . . . . .11
Tape Playback . . . . . . . . . . . . . . . . . . .
Basic Playback . . . . . . . . . . . . . . .
To Stop Play . . . . . . . . . . . . . . . . .
To Play Rewind or Fast Forward . . .
Auto Stop Deck :
LPC-LM340A/X model only . . . . . . .
Auto Reverse Deck :
LPC-LM345A/X model only . . . . . . .
Local Repeat (OPTIONAL)
Tape Recording . . . . . . . . . . . . . . . . . .
Basic Recording . . . . . . . . . . . . . . .
Recording from Radio or CD . . . . .
CD to Tape Synchronized Recording
CD Playback . . . . . . . . . . . . . . . . . . . .
Basic Playback . . . . . . . . . . . . . . .
Pause Playback . . . . . . . . . . . . . . .
Stop Playback . . . . . . . . . . . . . . . .
Skipping a Track . . . . . . . . . . . . . .
Searching a Track . . . . . . . . . . . . .
Repeat . . . . . . . . . . . . . . . . . . . . .
Program Play . . . . . . . . . . . . . . . . .
4 Maintenance . . . .
Shipping the Unit
Cleaning the Unit
Troubleshooting .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.12
.12
.12
.12
.12
.12
.12
.12
.12
12
.13
.13
.13
.13
.13
.13
.13
.13
.14
.14
.14
.14
5 Reference . . . . . . . . . . . . . . . . . . . . . . . .15
Remote Control Operation Range . . . . .15
Specifications . . . . . . . . . . . . . . . . . . . . .15
3
1 Introduction
To ensure proper use of this product, please read
this owner’s manual carefully and retain for
future reference.
This manual provides information on the operation and maintenance of your CD player. Should
the unit require service, contact an authorized
service location (refer to Chapter 4, Maintenance
and Service).
Notes on Discs
Handling discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints do not
get on the surface. Never stick paper or tape on
the disc.
Symbols Used in this Manual
Indicates hazards likely to cause harm to
the unit itself or other material damage.
Indicates special notes and operating
features.
Notes on Tapes
Tapes
Preventing record
Removing the tab(s) of the cassette (with a small
screwdriver) will prevent accidental erasure.
Side A
Storing discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of
heat and never leave it in a parked car exposed
to direct sunlight.
Cleaning discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the
disc from the center out.
Tab for side A
Tab for side B
To record again, cover the hole of the tab with
adhesive tape.
Adhesive tape.
4
Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or
anti-static spray intended for older vinyl records.
14
13
10
9
8
4
4
5
/
11
1
2
3
1. VOLUME ( / ) button
2. UBB button
3. • TAPE button
• CD button
• TUNER/BAND button
4. LEFT/RIGHT SPEAKER
5. LCD (DISPLAY WINDOW)
) button
6. • RECORD/RECORD PAUSE (
• TUNING/TIME(-/+), CD SKIP/SEARCH(-/+),
TAPE REWIND/FAST FORWARD
(
12
) buttons
• PRESET(-/+), CD PLAY ( ) ,TAPE PLAY
( ) [TAPE REVERSE PLAY ( )
button:LPC-LM345A/X model only] buttons.
• STOP ( )/CLEAR button
6
Introduction
Front Panel
7
7. TAPE DOOR ( PUSH EJECT)
8. • FM MODE/RIF
• REPEAT button
• SET/CD( )
• COUNTER RESET button
• TAPE MODE button : LPC-LM345A/X
model only
9. TIMER button
10. • CD SYNC button
• PROGRAM/MEMORY button
11. POWER (STANDBY/ON)
12. REMOTE SENSOR
13. CD OPEN/CLOSE (
14. CLOCK button
CD OPEN) button
Bottom Panel
Rear Panel
15
16
17
15.
16.
17.
18.
18
19
FM ANTENNA
BATTERY COMPARTMENT
MICPHONE SOCKET - 3.5mm.(OPTIONAL)
HEADPHONE SOCKET ( PHONES)
- 3.5mm.
19. AC POWER INPUT SOCKET
20
20. VOLTAGE SELECTOR : OPTIONAL
5
Remote Control
TUNER/BAND button
POWER button
PRESET (
/
MUTE button
) buttons
VOLUME (
CD FUNCTION buttons
PLAY/PAUSE (
) button •
CD STOP( ) button •
CD SKIP/SEARCH
(
/
/
) buttons
SLEEP button
) button •
REPEAT button •
PROGRAM/MEMO button
TAPE FUNCTION buttons
• RECORD/ RECORD PAUSE button (
)
• REVERSE PLAY button ( ) : OPTIONAL
OPTIONAL
• FORWARD PLAY ( ) button
• TAPE STOP button ( )
• FAST FORWARD (
) button
• REWIND (
) button
EQUALIZER PATTERN
(EQ PATT.) button
NUMBER buttons
UBB button
Display Window
Window
1. • TAPE PLAY (
(OPTIONAL)
2.
3.
4.
5.
6
/
)DIRECTION indicators
• TAPE PLAY MODE (
) indicator
(OPTIONAL)
• TAPE REPEAT indicator (OPTIONAL)
CD SYNCHRO RECORDING indicator
STEREO indicator
MEMORY indicator
PROGRAM indicator
6.
7.
8.
9.
10.
11.
12.
13.
TIMER indicator
SLEEP indicator
MP3 file indicator
RECORD/ RECORD PAUSE indicator
CD PLAY/PAUSE indicator
UBB indicator
CD REPEAT indicator
Equalizer indicator
2 Installation
1.
Before connecting the AC power cord, check
that the operating voltage of your unit is
identical with the voltage of your local power
supplied.
2.
Connect one end of the AC power cord
(supplied) to the AC IN socket located at the
backside of your unit.
3.
Plug the other end into the wall outlet.
Note
Unplug the AC power cord from the wall outlet if
you do not to use for an extended period of time.
Battery Installation
Unit
1.
Press and open the battery cover.
2.
Put eight “C” (R14) batteries and four “AA”
(R6) batteries into the compartment making
sure the
and
are correctly positioned.
3.
Replace the battery cover.
Installation
The AC Power Cord Connection
Remote Control
1.
Detach the battery cover on the rear of the
remote control.
2.
Insert two R03 (size AAA) batteries with
Adjusting the voltage (OPTIONAL)
If your unit is equipped with a voltage selector at
the bottom side, be sure to set it to your local
power supplied before connecting the AC power
cord.
and
3.
aligned correctly.
Replace the battery cover.
Notes
• To avoid damage from possible battery
leakage, remove the batteries if you do not plan
to use the unit for an extended period of time.
• When the batteries are weak, replace all the
batteries with new ones.
• During the AC power cord connect to the wall
outlet, the batteries are not worn out.
7
Sound Adjustment
Volume Adjustment
(
/
VOLUME
) buttons
MUTE button
Press VOLUME (Unit: ,Remote control: ) to
increase the sound level, or press the VOLUME
(Unit: ,Remote control: ) to decrease it.
Sound Quality Adjustment
You can choose between 4 fixed sound impressions.
Select a desired sound mode by using EQ PATT.
button on the remote control.
FLAT
: linear frequency response
ROCK
: more bass, more treble
POP
: less bass, less treble
CLASSIC
: for orchestral music
MUTE
Press MUTE to mute your unit.
You can mute your unit in order, for example, to
answer the telephone, “MUTE” indicator flashes
in the display window.
OPTIONAL
EQUALIZER
PATTERN
(EQ PATT.)
button
UBB
Repeatedly press UBB to select one of two
sound effect for emphasizing the bass sound.
-The UBB indicator will light up.
Headphone Socket
UBB button
Connect a stereo headphone plug ( 3.5mm) into
the headphone jack.
The speakers are automatically disconnected
when you plug in the headphones (not supplied).
Micphone Socket (OPTIONAL)
Connect a micphone plug ( 3.5mm) into the
micphone jack (not supplied).
8
3 Operation
Auto Function Selection
Using the Sleep Function
• If you press CD PLAY/ PAUSE (
) during
listen to the radio, CD playback will begin.
• If you press PRESET ( / ) or TUNER/
BAND during CD or CASSETTE play, radio
function will work.
When the sleep timer is used, the power is automatically turned off after the specified time has
elapsed.
1.
Setting the Clock
Press CLOCK.
(If the clock is requires setting, press and hold
CLOCK for more than 2 seconds.)
2.
Select a 24 hour cycle or 12 hour cycle by
pressing TUNING/TIME (-/+).
(12HR)
or
(24HR)
3.
Press SET to confirm the selected hour
cycle.
4.
Use TUNING/TIME (-/+) to set the correct
hours.
5.
Press SET.
6.
Use TUNING/TIME (-/+) to set the correct
minutes.
7.
Press SET and the correct time is shown on
the display.
8.
Press CLOCK at any time to display the time
for about 5 secound.
2.
Note
If you press SLEEP while the sleep time is displayed, the SLEEP time is reset.
To cancel the sleep timer mode
If you wish to stop the function, press the SLEEP
button repeatedly until “SLEEP 10” appears, and
then press SLEEP once again while “SLEEP 10”
is displayed.
Operation
1.
To specify the time delay before the power is
turned off, press SLEEP.
In the display window you can see “SLEEP
90” for about 5 seconds. This means that the
system turns off automatically after 90 minutes.
Each time the button is pressed the time
interval before it turns off is reduced by 10
minutes. i.e. 80...70... etc.
Select the desired time to turn off.
To check the remaining time until the power
is turned off.
While the sleep function is active press
SLEEP briefly. The time remaining until it
turns off is displayed for about 5 seconds.
Using Microphone (OPTIONAL)
You can sing to a music source by connecting a
microphone to unit.
1. Connect your microphon (not supplied) to the
MIC socket.
2. Play a music you want.
3. Sing along with the accompaniment.
For your reference
You can record during using microphone.
Refer to the “Recording” explanation section.
9
T imer
• This function is automatically turned on and off
at the time you want.
• Select your desired radio station, press CD
button and load a disc or press TAPE button
and insert a TAPE.
1.
2.
Press CLOCK to check the current time.
For your reference
If you don’t set clock, timer function doesn’t
work.
Press TIMER to enter the timer setting mode.
TUN-CD-TAPE flashes in the display window
in turn.
For your reference
- If you want to correct the previous
memorized TIMER setting, press and hold
the TIMER button more than 2 seconds.
- The previous memorized timer on time
and TIMER indicators appear in the dis
play window.
3.
Press SET when the desired function is
flashing.
4.
1. a. When you select the TUNER(TUN)
function, “PLAY” and “REC” indicator
flash in the display window alternately
for about 3 seconds.
“PLAY” indicator : TUNER play only
“REC” indicator : TUNER play and
recording
b. Press SET when the desired function is
flashing.
c. Select the previous memorized preset
number with TUNING/TIME (-/+) button
and press SET.
- “ON” indicator appears for about 0.5
seconds in the display window and then
disappears.
2. When you select the CD or TAPE
function,
- “ON” indicator appears for about 0.5
seconds in the display window and then
disappears.
10
5.
Set the hour to switch on by pressing
TUNING/TIME (-/+).
6.
Press SET to confirm the hour to switch on.
7.
Set the minute to switch on by pressing
TUNING/TIME (-/+).
8.
Press SET to confirm the minute to switch on.
“OFF” indicator appears for about 0.5
seconds in the display window and then
disappears.
9.
Set the hour to switch off by pressing
TUNING/TIME (-/+).
10. Press SET to confirm the hour to switch off.
11. Set the minute to switch off by pressing TUNING/TIME (-/+).
12. Press SET.
13. Adjust the volume level by pressing
TUNING/TIME (-/+).
14. Press SET.
“TIMER” appears in the display window and
the timer setting has been completed.
15. Switch the system off.
The selected function is automatically
switched on and off at the time set.
To cancel or check the timer
Each time the TIMER button is pressed you can
select the timer set or cancel. You can also check
the timer setting status.
To activate or check the timer, press the TIMER
button so that “TIMER” appears in the display
window.
To cancel the TIMER, press the TIMER button so
that “TIMER” disappears in the display window.
Presetting the Radio Stations
Listening to the Radio
You can preset 50 stations for FM and AM.
Before tuning, make sure that you have turned
down the volume to the minimum.
1.
Press TUNER/BAND to select the frequency
(FM or AM) you want.
Every time you press this button, FM and AM
changes alternately.
The last received station is tuned in.
2.
Press PRESET (-/+: unit) or PRESET ( /
: remote control) repeatedly to select the preset station you want.
- Each time you press the button, the unit
tunes in one preset station at a time.
3.
Adjust the volume by VOLUME ( / :unit)
buttons or VOLUME ( / :remote control)
buttons repeatedly.
2.
3.
Press TUNER/BAND to select the frequency
(FM or AM) you want.
Every time you press this button, FM and AM
changes alternately.
Select a station you want by pressing TUNING/
TIME (-/+) buttons.
Tuning in manually
- Press TUNING/TIME (-/+) briefly and
repeatedly.
Tuning in automatically
- Press TUNING/TIME (-/+) for more than 1
seconds. Scanning stops when the unit
tunes in a stations.
Press PROGRAM/MEMORY on the front panel.
A preset number will flash in the display window.
4.
Press PRESET (-/+:unit) or PRESET
( / :remote control) to select the preset
number you want.
5.
Press PROGRAM/MEMORY again.
The station is stored.
6.
Repeat steps 1 (or 2) to 5 to store other
stations.
To delete all the memorized stations
Press and hold PROGRAM/MEMORY on the
front panel for about two seconds, “DEL” flash in
the display window and then press CLEAR
again, the stations are deleted.
For your reference
If all stations have already been entered, FULL
message will appear in the display window for a
moment and then a preset number will flash. To
change the preset number, follow the steps 4-5.
To listen to non-preset radio stations
• Use manual or automatic tuning in step 2.
• For automatic tuning, press and hold TUNING/TIME (-/+) on the front panel.
To turn off the radio
Press POWER(STANDBY/ON) to turn the unit off
or select another function mode (MP3/CD or
TAPE).
For your reference
• If an FM program is noisy
Press MODE/RIF so that “STEREO” disappears in the display window. There will be no
stereo effect, but the reception will improve.
Press MODE/RIF again to restore the stereo
effect.
• When recording the MW(AM) broadcast, beat
noises may occur. If it does, press MODE/RIF
once.
- “kHz” flash in the display window.
• Adjust the antenna to get more clear reception.
- AM antenna
This antenna is built within the unit and rotate
the unit for better reception.
- FM antenna
Pull the telescopic antenna out and adjust the
angle and direction for better reception.
Operation
1.
To recall presets
Press and hold PRESET (-/+:unit) or PRESET
( / :remote control) until the desired preset
number appears or press it repeatedly.
11
Tape Playback
Tape Recording
Note: Use only normal tapes during playback.
Wind the tape to the point recording starts.
Note: Use only normal tapes.
Basic Playback
1.
Press TAPE to select tape function.
(“NO TAPE” appears in the display window.)
2.
Open the cassette door by pushing TAPE DOOR
( PUSH EJECT) position.
Insert a cassette and close the TAPE.
3.
4.
Basic Recording
1.
Select the function (CD or TUNER/ BAND)
you want to record.
2.
Open the cassette deck and insert a blank
cassette into the cassette compartment.
Press TAPE PLAY ( ) [or TAPE REVERSE PLAY
( ): LPC-LM345A/X model only] button.
To set the recording direction (LPC-LM345A/X
model only)
Press TAPE MODE repeatedly to set the
recording direction.
To Stop Play
Press STOP(
) during playback.
To Play Rewind or Fast Forward
After pressing (
/
) on the front panel
or (
) on the remote control during playback,
/
or stop, press PLAY( ) at the point you want.
Recording from Radio or CD
1.
Press (
) on the front panel or the
remote control and then select the CD or
TUNER function.
“ REC” flashes and holds the cassette in
pause mode.
2.
Press (
) or PLAY(
or the remote control.
The recording begins.
Auto Stop Deck : LPC-LM340A/X model only
After auto stop deck plays only front side, the unit stops
automatically.
Auto Reverse Deck : LPC-LM345A/X model only
You can select direction of the cassette you want by
pressing TAPE MODE.
Pressing
Display
Function
Once
After the cassette plays front
or reverse (backward play)
side, stops automatically.
Twice
After the cassette plays
front and reverse side, stops
automatically.
Three times
After the cassette plays six
times repeatedly front and
reverse side, stops automatically.
To pause recording
Press (
) during recording.
- “ REC” flashes in display window.
To stop recording
Press TAPE STOP(
Notee
If you set local within 3 seconds (after setting the local
repeat starting point), is not operated.
12
).
CD to Tape Synchronized Recording
The CD synchro recording function dubs a
complete CD and programmed titles automatically into a cassette.
1.
Press CD SYNC in stop mode.
“ REC” flashes and “CD SYNC” displays in
the display window.
2.
The synchronized recording is started
automatically after about 8 seconds.
Local Repeat (OPTIONAL)
1. Press REPEAT button during TAPE playback.
-The local repeat starting point is set.
2. Press REPEAT button once during TAPE playback.
- The local repeat ending point is set.
- “TP A-b” appears in the display window.
- This function repeats three.
) on the front panel
Notes
• If you wish to record from the desired track,
select the desired track with CD SKIP/
SEARCH (-/+) before commencing CD synchro
recording.
• The function change is not possible during
recording.
Program Play
Basic Playback
1.
Press CD button to select CD function.
2.
Press CD OPEN/CLOSE (
the disc compartment.
3.
Load a disc with the printed side facing up and
Close the disc compartment.
The total track number and playing time will be
shown in the display.
4.
Press PLAY button( :unit) or CD PLAY/PAUSE
(
:remote control) button to begin play.
CD OPEN) to open
Pause Playback
Press CD PAUSE( :unit) or CD PLAY/PAUSE (
:remote control) button to pause during playback.
Press CD PLAY/ PAUSE button again to resume
play.
Stop Playback
Press STOP/CLEAR ( :unit) or CD STOP (
:remote control) button during playback.
Skipping a Track
• Press CD SKIP/SEARCH (+) button to go to the
next track.
• When CD SKIP/SEARCH (-) button is pressed
once midway through a track, the player returns to
the start of that track. When it is pressed again, a
track is skipped each time the button is pressed.
Searching a Track
After pressing and holding CD SKIP/ SEARCH (-/+)
button during playback, then release at the point you
want.
Notes
This function is not available to play a MP3 file.
Repeat
To play one track repeatedly
Press REPEAT button once during playback.
- “REPEAT 1” appears in the display.
To play all tracks repeatedly
Press REPEAT button again during playback.
- “REPEAT ALL” appears in the display.
To cancel repeat play
Press REPEAT button once more during playback.
- Repeat indicator disappears.
You can arrange the order of the tracks on the discs
and create your own program.
The program can contain up to 20 tracks.
Program Play (Audio CD)
1. Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control) on the stop
mode.
2. Press CD SKIP/SEARCH (-/+) buttons to select
the track.
3. Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control).
4. Repeat 2~3.
5.
Press PLAY ( :unit) or CD PLAY/ PAUSE
(
:remote control).
Program Play (MP3 File)
Press PROGRAM/MEMORY (unit) or PROGRAM/MEMO (remote control) on the stop
mode.
2. Press CD SKIP/SEARCH (-/+) buttons to select
a file.
1.
3.
Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control).
4.
5.
Repeat 2~3.
Press PLAY ( :unit) or CD PLAY/ PAUSE
(
:remote control).
To check program contents
Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control) on
the stop mode.
- Track and program number will be displayed.
Operation
CD Playback
To clear program contents
Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control) on the stop
mode. And then press STOP/CLEAR ( :unit) or CD
STOP ( :remote control) button .
To add program contents
1. Press PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control) repeatedly
on the program stop mode until Track Number
blinks.
2. Repeat 2~5 on above.
To modify program contents
1. Press the PROGRAM/MEMORY (unit) or
PROGRAM/MEMO (remote control) to display
program number you want to modify.
2. Repeat 2~4 on above.
13
4 Maintenance
Shipping the Unit
Cleaning the Unit
The original shipping carton and packing materials can come in handy. For maximum protection,
re-pack the unit as it was originally packed at the
factory if you need to ship it.
Use a soft, dry cloth when cleaning the player. If
the surfaces are extremely dirty, use a soft cloth
lightly moistened with a mild detergent solution.
Never use strong solvents, such as alcohol, benzine, or paint thinner. These might damage the
surface of the unit.
Do not use volatile liquids, such as insecticide
spray, near the unit. Do not leave rubber or plastic products in contact with the unit for a long
period of time. They will leave marks on the surface.
Troubleshooting
Symptom
Cause
Correction
No power.
• The power cord is disconnected.
• Plug the power cord into the wall
outlet securely.
No sound.
• The power of the external source
equipment is switched off.
• Switch on the external source
equipment.
The unit does not • No disc or tape is inserted.
start playback.
• An unplayable disc or tape is inserted.
• The disc is placed upside down.
• Insert a disc or tape.
• Insert a playable disc or tape.
• Place the disc with the playback side
down.
• The disc is not placed within the guide. • Place the disc on the disc tray
correctly inside the guide.
• The disc is dirty.
The remote
control does not
work properly.
14
• Clean the disc.
• The remote control is not pointed at the • Point the remote control at the
remote sensor of the unit.
remote sensor of the unit.
• The remote control is too far from the
unit.
• Operate the remote control
within about 23 ft (7 m).
• There is an obstacle in the path of the
remote control and the unit.
• Remove the obstacle.
• The batteries in the remote
control are exhausted.
• Replace the batteries with new ones.
5 Reference
Remote Control Operation Range
Point the remote control at the remote sensor
and press the buttons.
Distance: About 23 ft (7 m) from the front of the
remote sensor.
Angle: About 30° in each direction of the front of
the remote sensor.
FM
AM
(MW)
[TAPE]
[Tuner]
[CD]
[General]
Specifications
Power supply
Power consumption
Mass
External dimensions (W x H x D)
Output Power
Speakers
Battery Operation
Frequency response
Signal-to-noise ratio
T.H.D
Tuning Range
Intermediate Frequency
Antenna
Tuning Range
Intermediate Frequency
Antenna
Recording System
Frequency Response
Signal to Noise Ratio
Refer to the back panel of the unit.
13W
3.24kg
360 x 170 x 260 mm
2.5W X 2
8Ω X 2
DC 12V, 8 “C”(R14) and 4 “AA”(R6)batteries (not supplied)
100 - 18000 Hz
59 dB
0.7 %
65 -74 MHz, 87.5 -108 MHz or 87.5 -108 MHz
10.7 MHz
Telescopic antenna
522 - 1611 kHz or 530 - 1610 kHz
450 kHz
Ferrite bar antenna
4 Tracks 2 channel stereo
125 - 8000Hz
40/45dB (REC/PLAY)
Notice (the date of the production of goods).
First figure ( of the left ) of series number means Year, next 2 figures
- Month of the production of this goods.
Maintenance /
Reference
❋ Designs and specifications are subject to change without notice.
15
P/NO : 3834RC0031R
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
