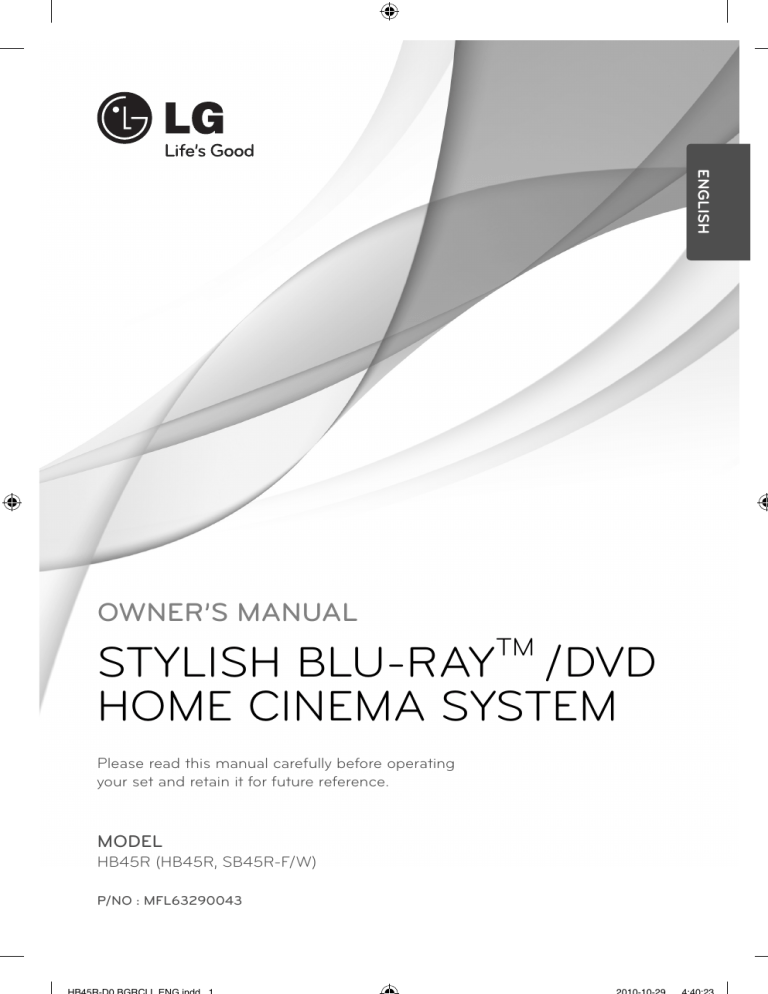

LG HB45R Owner's manual
ENGLISH
OWNER’S MANUAL
TM
STYLISH BLU-RAY /DVD
HOME CINEMA SYSTEM
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
HB45R (HB45R, SB45R-F/W)
P/NO : MFL63290043
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service centre.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
1
Safety Information
1
Safety Information
3
4
Safety Information
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
1
Safety Information
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service centre.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order
than the assembly. To prevent contamination of
the environment and bring on possible threat
to human and animal health, the old battery or
the battery put it in the appropriate container at
designated collection points. Do not dispose of
batteries or battery together with other waste.
It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, fire or the like.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2. All electrical and electronic products
shall be disposed of separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you
purchased the product.
LG Electronics hereby declares that this/
these product(s) is/are in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/
EC, 2006/95/EC, and 2009/125/EC.
European representative:
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The
Netherlands
(Tel : +31-(0)36-547-8888)
Safety Information
Important Notice for TV colour system
• Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analogue signal output,
etc., of AACS protected contents. The operation of
this product and restrictions on this product may
vary depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
The colour system of this player differs according to
currently playing discs.
• Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for BD format, which imposes certain restrictions
including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark,
BD+, or this product, please contact an authorized
Customer Service Centre.
• Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
• This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
• Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programmes, videotapes, BD-ROM discs, DVDs,
CDs and other materials may subject you to civil
and/or criminal liability.
For example, when the player plays the disc recorded
in the NTSC colour system, the image is outputted as
a NTSC signal.
Only the multi system colour TV can receive all
signals outputted from the player.
• If you have a PAL colour system TV, you will see
just distorted images when using discs or video
contents recorded in NTSC.
• The multi system colour TV changes the colour
system automatically according to input signals.
In case that the colour system is not changed
automatically, turn it off and then on to see
normal images on screen.
• Even if the disc recorded in NTSC colour system
are well displayed on your TV, these may not be
recorded correctly on your recorder.
1
Safety Information
Notes on Copyrights
5
6
Contents
3
Installation
16
16
Speaker Connection
Attaching the speakers to
the player
1
17
Safety Information
17
HDMI Connection
3
18
What is SIMPLINK?
Cautions and Warnings
Connecting to Your TV
19
Video Connection
19
Resolution Setting
2
20
Preparation
20
Connections with external device
22
Connecting to your Home Network
8
Introduction
Antenna connection
22
Wired network connection
23
Wired Network Setup
8
About the “ ” Symbol
Display
8
Symbols Used in this
Manual
25
USB device connection
26
Settings
9
Supplied Accessories
26
9
Playable Discs
Adjusting the Setup
Settings
11
File compatibility
27
[DISPLAY] Menu
Regional Code
28
[LANGUAGE] Menu
12
AVCHD (Advanced Video
Codec High Definition)
28
[AUDIO] Menu
30
[LOCK] Menu
12
Certain System
Requirements
31
[NETWORK] Menu
12
Compatibility Notes
32
12
13
Remote control
14
Front/Top panel
15
Rear panel
31
[OTHERS] Menu
Sound Effect
7
4
7
Operation
Appendix
33
General Playback
63
35
Advanced Playback
Controlling a TV with the Supplied
Remote Control
38
On-Screen display
64
Area Code List
41
Enjoying BD-LIVE
65
Language code List
42
Playing a movie file and VR disc
66
Network Software Update
44
Viewing a photo
66
47
Listening to music
66
Software Update
49
Radio Operations
68
Video output resolution
50
Using NetCastTM Entertainment
Access
69
Trademarks and Licences
71
Specifications
72
Important Information Relating to
Network Services
73
Open source software notice
50
YouTube
54
Picasa Web Albums
57
Using the AccuWeather
1
2
Network update notification
3
4
5
Maintenance
59
Notes on Discs
59
Handling the Unit
6
5
6
Troubleshooting
60
General
61
61
Sound
62
Network
7
8
Preparation
2
Preparation
2
Introduction
Preparation
About the “ ” Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that specific media.
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicates cautions for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
BD
BD-ROM disc
DVD
DVD-Video, DVD±R/RW in
Video mode or VR mode
and finalized
AVCHD
DVD±R/RW in AVCHD
format
ACD
Audio CDs
MOVIE
Video files
MUSIC
Audio files
Photo files
Preparation
Supplied Accessories
Video cable (1)
Colour-coded
Speaker Cables (3)
Batteries (2)
FM antenna (1)
Cleaning sheet (1)
Playable Discs
Blu-ray Disc
- Discs such as movies that can
be purchased or rented.
- BD-R/RE discs that contain
Movie, Music or Photo files.
DVD-VIDEO
8 / 12 cm disc
Discs such as movies that can be
purchased or rented.
DVD±R
8 / 12 cm disc
- Video mode and finalized only
- Supports the dual layer disc
also
- Finalized AVCHD format
- DVD±R discs that contain
Movie, Music or Photo files
DVD-RW
8 / 12 cm disc
- VR mode, Video mode and
finalized only
- Finalized AVCHD format
- DVD-RW discs that contain
Movie, Music or Photo files.
DVD+RW
8 / 12 cm disc
- Video mode and finalized only
- AVCHD format
- Finalized AVCHD format
- DVD+RW discs that contain
Movie, Music or Photo files.
Audio CD
8 / 12 cm disc
CD-R/RW
8 / 12 cm disc
- CD-R/RW discs that contain
audio titles, Movie, Music or
Photo files.
2
Preparation
Remote control (1)
9
10
Preparation
NOTE
• Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD±R/RW)
disc itself, some CD-R/RW (or DVD±R/RW) discs
cannot be played on the unit.
2
• Depending on the recording software & the
finalization, some recorded discs (CD-R/RW, DVD
±R/RW, BD-R/RE) may not be playable.
Preparation
• BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
player’s lens.
• If you record a disc using a personal computer,
even if it is recorded in a compatible format,
there are cases in which it may not play because
of the settings of the application software used
to create the disc. (Check with the software
publisher for more detailed information.)
• This player requires discs and recordings to meet
certain technical standards in order to achieve
optimal playback quality.
• Pre-recorded DVDs are automatically set to
these standards. There are many different
types of recordable disc formats (including
CD-R containing MP3 or WMA files) and these
require certain pre-existing conditions to ensure
compatible playback.
• Customers should note that permission is
required in order to download MP3 / WMA files
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
• You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live System,
you cannot use it on LG player. (Mastered/Live
File System : Disc format system for windows
Vista)
Preparation
File compatibility
Overall
Available File extensions:
“.jpg”, “.jpeg”, “.png”, “.avi”, “.divx”, “.mpg”, “.mpeg”,
“.mkv”, “.mp4”, “.mp3”, “.wma”, “.wav”, “.gif”
Some “wav” files are not supported on this
player.
•
The file name is limited to 180 characters.
•
Depending on the size and number of the
files, it may take several minutes to read the
contents on the media.
Maximum Files/Folder: Less than 2000 (total
number of files and folders)
CD-R/RW, DVD±R/RW, BD-R/RE Format:
ISO 9660+JOLIET, UDF and UDF Bridge format
Video files
Available resolution size:
1920 x 1080 (W x H) pixels
Playable subtitle: SubRip (.srt / .txt), SAMI
(.smi), SubStation Alpha (.ssa/.txt), MicroDVD
(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), TMPlayer (.txt), DVD
Subtitle System (.txt)
Playable Codec format: “DIVX3.xx”, “DIVX4.xx”,
“DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard playback
only), H.264/MPEG-4 AVC, MPEG2 PS, MPEG2 TS
Playable Audio format: “Dolby Digital”, “DTS”,
“MP3”, “WMA”, “AAC”, “AC3”
•
Not all the WMA and AAC Audio format is
compatible with this unit.
Sampling frequency:
within 32 kHz to 48 kHz (WMA),
within 16 kHz to 48 kHz (MP3)
Bit rate:
within 32 kbps to 192 kbps (WMA),
within 32 kbps to 320 kbps (MP3)
NOTE
• HD movie files contained on the CD or USB
1.0/1.1 may not played properly. BD, DVD or USB
2.0 are recommended to play back HD movie
files.
• This player supports H.264/MPEG-4 AVC profile
Main, High at Level 4.1. For a file with higher
level, the warning message will appear on the
screen.
• This player does not support the files that are
recorded with GMC*1 or Qpel*2. Those are video
encoding techniques in MPEG4 standard, like
DivX or XVID have.
*1 GMC – Global Motion Compensation
*2 Qpel – Quarter pixel
• This player supports UTF-8 files even it contains
Unicode subtitle contents. This player can not
support the pure Unicode subtitle files.
• Depending on the types of file or ways of
recording, it may not play back.
• A disc which was recorded by multi-session on
normal PC is not supported on this player.
• To be playback a movie file, movie file name and
Subtitle file name must be the same.
• If video codec is MPEG2 TS or MPEG2 PS, subtitle
does not play back.
Audio files
Sampling frequency:
within 32 kHz to 48 KHz (WMA),
within 11 kHz to 48 kHz (MP3)
Bit rate:
within 8 kbps to 320 kbps (WMA, MP3),
NOTE
The total playback time indicated on the screen
may not correct for VBR files.
2
Preparation
•
11
12
Preparation
Recommended size:
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
•
Progressive and lossless compression photo
image files are not supported.
Certain System Requirements
For high definition video playback:
High definition display that has HDMI input
jacks.
•
BD-ROM disc with high definition content.
•
HDMI or HDCP capable DVI input on your
display device is required for some content
(as specified by disc authors).
For up-conversion of standard definition
DVD, a HDMI or HDCP capable DVI input
on your display device is required for copy
protected content.
2
Regional Code
Preparation
•
This unit has a regional code printed on the
rear of the unit. This unit can play only BD-ROM
or DVD discs labeled same as the bottom of
the unit or “ALL”.
•
AVCHD (Advanced Video Codec
High Definition)
Compatibility Notes
•
Because BD-ROM is a new format,
certain disc, digital connection and other
compatibility issues are possible. If you
experience compatibility problems, please
contact an authorized Customer Service
Centre.
•
This player can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
•
The AVCHD format is a high definition
digital video camera format.
•
•
The MPEG-4 AVC/H.264 format is capable
of compressing images at higher efficiency
than that of the conventional image
compressing format.
Viewing high-definition content and upconverting standard DVD content may
require a HDMI-capable input or HDCPcapable DVI input on your display device.
•
•
Some AVCHD discs use the “x.v.Colour”
format.
Some BD-ROM and DVD discs may restrict
the use of some operation commands or
features.
•
This player can playback AVCHD discs using
“x.v.Colour” format.
•
•
Some AVCHD format discs may not play,
depending on the recording condition.
•
AVCHD format discs need to be finalized.
You can use a USB device that is used
to store some disc related information,
including downloaded on-line content. The
disc you are using will control how long this
information is retained.
•
“x.v.Colour” offers a wider colour range than
normal DVD camcorder discs.
Preparation
13
Remote control
1
• • • • • • •c • • • • • •
1 (POWER): Switches the player
ON or OFF.
HOME: Displays or exits the
[Home Menu].
Z OPEN/CLOSE: Inserts or
release a disc.
INFO/DISPLAY: Displays or exits
On-Screen Display.
RADIO&INPUT: Changes input
mode.
Direction buttons: Selects an
option in the menu.
0-9 numerical buttons: Selects
numbered options in a menu.
ENTER: Acknowledges menu
selection.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
O RETURN: Exits the menu or
resumes playback.
REPEAT: Repeats a desired section
or sequence.
3
• • • • • • •b • • • • • •
DISC MENU: Accesses menu on a
disc.
m/M SCAN: Searches
backward or forward.
• • • • • • •d • • • • • •
./> SKIP: Goes to the next
or previous chapter / track / file.
Coloured (R, G, Y, B) buttons:
Uses to navigate on menus.
x (STOP): Stops playback.
RDS: Radio Data System.
B (PLAY): Starts playback.
PTY: Views the programme type of
the RDS.
X (PAUSE): Pauses playback.
SPEAKER LEVEL: Sets the sound
level of desired speaker.
4
SOUND EFFECT: Selects a sound
effect mode.
VOL +/- : Adjusts speaker volume.
OPTICAL: Changes input mode to
optical directly.
Battery Installation
TITLE/POPUP: Displays the DVD
title menu or BD-ROM’s pop-up
menu, if available.
MUTE: Mutes the unit.
PTY SEARCH:
Searches programme type.
MONO/STEREO: Selects mono/
stereo in FM mode.
MARKER: Marks any point during
playback.
SEARCH: Displays or exits the
search menu.
SLEEP: Sets a certain period of time
after which the unit will switch to
off.
z REC: Records an audio CD.
TV Control Buttons: See page 63.
Remove the battery cover
on the rear of the Remote
Control, and insert two R03
(size AAA) batteries with
and matched correctly.
2
Preparation
2
• • • • • • •a • • • • • •
14
Preparation
Front panel
3
4
6
5
2
Preparation
2
7
1
a PORT. IN
d Display window
b USB Port
e Remote Sensor
c Operation buttons
f
1/\ (POWER) Button
(OPEN/CLOSE)
g LED light
(PLAY / PAUSE)
(STOP)
-/+: Adjusts speaker volume.
FUNC.
Changes the input source or function.
NOTE
LED light is activated in cases as below;
• When turning the unit on or off
• When “CLOSE” is displayed by inserting a disc
into the unit
• When “OPEN” is displayed by releasing a disc into
the unit
• When the unit is reading a disc
Preparation
15
Rear panel
1
2
3
4
2
Preparation
5
6
7
8
9
10
a Disc slot
f LAN port
b AUX (L/R) INPUT
g OPTICAL IN 1/ 2
c Cooling Fan
h VIDEO OUT
d AC Power cord
Plug into the power source.
i Antenna Connector
e HDMI OUT (type A, Version 1.3)
Connect to TV with HDMI inputs.
j Speakers connectors
16
Installation
3
Installation
Speaker Connection
3
Attaching the speakers to the
player
Installation
1. Connect speaker wires to the main unit.
Each speaker wire is colour-coded. Use
matching colour wires for corresponding
speakers.
2. Connect the speaker wire to the terminal
on the speaker.
Make sure the wire marked black goes in
to the terminal marked “–” (minus) and the
other wire goes in to the terminal marked
“+” (plus).
CAUTION
colour
Speaker
Position
Orange
Sub
woofer
Any front position
Red
Front
Front right
White
Front
Front left
• Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hole for plentiful bass sound
on speaker cabinet (enclosure).
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far away
from either TV screen or PC monitor.
Installation
Connecting to Your TV
Make one of the following connections,
depending on the capabilities of your existing
equipment.
•
HDMI connection (pages 17-18)
•
Video connection (page 19)
17
HDMI Connection
If you have a HDMI TV or monitor, you
can connect it to this player using a HDMI
cable(Type A, Version 1.3). Connect the HDMI
OUT jack on the player to the HDMI IN jack on
a HDMI compatible TV or monitor.
HDMI Connection
NOTE
• Depending on your TV and other equipment
you wish to connect, there are various ways you
could connect the player. Use only one of the
connections described in this manual.
• Make sure the player is connected directly to
the TV. Tune the TV to the correct video input
channel.
Installation
• Please refer to the manuals of your TV, stereo
system or other devices as necessary to make
the best connections.
3
TV
• Do not connect your player via your VCR. The
image could be distorted by the copy protection
system.
Set the TV’s source to HDMI (refer to TV’s
Owner’s manual).
18
Installation
What is SIMPLINK?
NOTE
• Changing the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn off the
player and then turn it on again.
• When the HDMI connection with HDCP is not
verified, TV screen is changed to black screen.
In this case, check the HDMI connection, or
disconnect the HDMI cable.
3
• If there is noise or lines on the screen, please
check the HDMI cable (length is generally
limited to 4.5 m and use a high speed HDMI
cable (version 1.3).
Installation
• If a connected HDMI device does not accept the
audio output of the player, the HDMI
device’s audio sound may be distorted or may
not output.
• When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 19.)
• Select the type of video output from the HDMI
OUT jack using [HDMI Color Setting] option on
the [Setup] menu (see page 28).
• When you connect a HDMI or DVI compatible
device make sure of the following:
- Try switching off the HDMI/DVI device and this
player. Next, switch on the HDMI/DVI device
and leave it for around 30 seconds, then switch
on this player.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720x576p, 1280x720p, 1920x1080i or
1920x1080p video input.
• Not all HDCP-compatible HDMI or DVI devices
will work with this player.
- The picture will not be displayed properly with
non-HDCP device.
- This player does not playback and TV screen is
changed to black screen.
Some functions of this unit are controlled by
the TV’s remote control when this unit and LG
TV’s with SIMPLINK are connected through
HDMI connection.
Controllable functions by LG TV’s remote
control; Play, Pause, Scan, Skip, Stop, Power Off,
etc.
Refer to the TV owner’s manual for the details
of SIMPLINK function.
LG TV’s with SIMPLINK function has the logo as
shown above.
NOTE
• Depending on the disc type or playing status,
some SIMPLINK operation may differ from your
purpose or not work.
• When you use SIMPLINK function, you have to
connect to the OPTICAL IN 1 jack to enjoy TV
sound to your speaker system.
Installation
Video Connection
Resolution Setting
Connect the VIDEO OUT jack on the player to
the video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
The player provides several output resolutions
for HDMI OUT jacks. You can change the
resolution using [Setup] menu.
Video Connection
1. Press HOME (
).
2. Use I/i to select the [Setup] and press
ENTER ( ). The [Setup] menu appears.
3
Yellow
4. Use U/u to select the [Resolution] option
then press ENTER ( ) or i to move to the
third level.
5. Use U/u to select the desired resolution
then press ENTER ( ) to confirm your
selection.
NOTE
• If your TV does not accept the resolution you
have set on the player, you can set resolution to
576p as follows:
1. Press HOME (
) twice.
2. Press x for more than 5 seconds.
• Since several factors affect the resolution of
video output, see “Video Output Resolution” on
page 68.
Installation
3. Use U/u to select [DISPLAY] option then
press i to move to the second level.
TV
19
20
Installation
Antenna connection
Connections with
external device
Connect the supplied antenna for listening to
the radio.
Antenna Connection
AUX Connection
You can enjoy the sound of your component
with the analogue audio output jacks from the
speakers of the system.
Connect the analogue audio output jacks of
your component into the AUX L/R (INPUT) on
this unit. And then select the [AUX] option by
pressing RADIO&INPUT and ENTER ( ).
3
Installation
You can also use the FUNC. button on the top
panel to select the input mode.
AUX Connection
NOTE
After connecting the FM wire antenna, keep it as
horizontal as possible. Be sure to fully extend the
FM wire antenna.
Red
Red
White
White
To the audio output jacks
of your component
(TV, VCR, etc.)
Installation
PORT. IN connection
You can enjoy the sound of your portable
audio player from the speakers of the system.
Connect the headphones (or line out ) jack of
the portable audio player into the PORT. IN
of this unit. And then select the [PORTABLE]
option by pressing RADIO&INPUT and ENTER
( ).
You can also use the FUNC. button on the top
panel to select the input mode.
PORT.IN Connection
OPTICAL IN 1/2
connection
You can enjoy the sound of your component
with the digital optical connection from the
speakers of the system.
Connect the optical output jack of your
component into the OPTICAL IN 1/2 jacks on
the unit. And then select the [OPTICAL] option
by pressing RADIO&INPUT and ENTER ( ). Or
press OPTICAL to select directly.
You can also use the FUNC. button on the top
panel to select the input mode.
3
Installation
Optical Connection
MP3 player, etc
21
To the digital
optical output jack
of your component
22
Installation
Connecting to your
Home Network
This player can be connected to a local area
network (LAN) via the LAN port on the rear
panel.
By connecting the unit to a broadband home
network, you have access to services such as
software updates, BD-Live interactivity and
streaming services.
Wired Network Connection
Router
Router
Broadband
Broadband
Service
Service
WAN
LAN 1
LAN 2
PC
PC
LAN 3
3
Installation
Wired network connection
Connect the player’s LAN port to the
corresponding port on your Modem or Router
using a commercially available LAN or Ethernet
cable (CAT5 or better with RJ45 connector).
NOTE
• When plugging or unplugging the LAN cable,
hold the plug portion of the cable. When
unplugging, do not pull on the LAN cable but
unplug while pressing down on the lock.
• Do not connect a modular phone cable to the
LAN port.
• Since there are various connection
configurations, please follow the specifications
of your telecommunication carrier or internet
service provider.
Installation
Wired Network Setup
Before setting the wired network, you need to
connect the broadband internet to your home
network.
If there is a DHCP server on the local area
network (LAN) via wired connection, this player
will automatically be allocated an IP address.
After making the physical connection, a small
number of home networks may require the
player’s network setting to be adjusted. Adjust
the [NETWORK] setting as follow.
1. Select [Connection Setting] option in the
[Setup] menu then press ENTER ( ).
NOTE
If there is no DHCP server on the network and you
want to set the IP address manually, select [Static]
then set the [IP Address], [Subnet Mask], [Gateway]
and [DNS Server] using U/u/I/i and numerical
buttons. If you make a mistake while entering a
number, press CLEAR to clear the highlighted part.
3. Select [OK] and press ENTER ( ) to apply
network settings.
4. The player will ask you to test the network
connection. Select [OK] and press ENTER
( ) to complete the network connection.
5. If you select [Test] and press ENTER
( ) at step 4 above, the network
connection status is displayed on the
screen.
You can also test it on the [Connection
Status] in the [Setup] menu.
3
Installation
2. Use U/u/I/i to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
23
24
Installation
Notes on Network Connection:
•
3
Many network connection problems during
set up can often be fixed by re-setting the
router or modem. After connecting the
player to the home network, quickly power
off and/or disconnect the power cable of
the home network router or cable modem.
Then power on and/or connect the power
cable again.
Depending on the internet service provider
(ISP), the number of devices that can
receive internet service may be limited by
the applicable terms of service. For details,
contact your ISP.
•
Our company is not responsible for
any malfunction of the player and/or
the internet connection feature due to
communication errors/malfunctions
associated with your broadband internet
connection, or other connected equipment.
•
The features of BD-ROM discs made
available through the Internet Connection
feature are not created or provided
by our company, and our company is
not responsible for their functionality
or continued availability. Some disc
related material available by the Internet
Connection may not be compatible with
this player. If you have questions about such
content, please contact the producer of the
disc.
Installation
•
•
Some internet contents may require a
higher bandwidth connection.
•
Even if the player is properly connected and
configured, some internet contents may
not operate properly because of internet
congestion, the quality or bandwidth of
your internet service, or problems at the
provider of the content.
•
Some internet connection operations may
not be possible due to certain restrictions
set by the Internet service provider (ISP)
supplying your broadband Internet
connection.
•
Any fees charged by an ISP including,
without limitation, connection charges are
your responsibility.
•
A 10 Base-T or 100 Base-TX LAN port is
required for wired connection to this player.
If your internet service does not allow for
such a connection, you will not be able to
connect the player.
•
You must use a Router to use xDSL service.
•
A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with
your ISP, you may not be able to use the
internet connection feature contained in
this player or you may be limited to the
number of devices you can connect at the
same time. (If your ISP limits subscription
to one device, this player may not be
allowed to connect when a PC is already
connected.)
•
The use of a “Router” may not be allowed
or its usage may be limited depending on
the policies and restrictions of your ISP. For
details, contact your ISP directly.
•
Turn off all unused network equipment in
your local home network. Some devices
may generate network traffic.
Installation
USB device
connection
25
2. Select [Movie], [Photo] or [Music] using
I/i, and press ENTER ( ).
3. Select a file using U/u/I/i, and press PLAY
or ENTER ( ) to play the file.
You can check the space of the USB device
on the screen.
This player can play movie, music and photo
files contained in the USB device.
1. Insert a USB device to the USB port until it
fits into place.
USB Connection - 1
3
When you connect the USB device on
the HOME menu, the player plays a music
file contained in the USB storage device
automatically. If the USB storage device is
containing various types of files, a menu for
the file type selection will appear.
File loading may takes few minutes depending
on the number of content stored in the USB
storage device. Press ENTER ( ) while [Cancel]
is selected to stop loading.
Installation
4. Select the other mode. And withdraw the
USB device carefully.
26
Installation
NOTE
• This player supports USB flash memory/external
HDD formatted in FAT16, FAT32 and NTFS when
accessing files (music, photo, movie). However,
for BD-LIVE and Audio CD recording, only FAT16
and FAT32 formats are supported. Use the USB
flash memory/external HDD formatted in either
FAT16 or FAT32 when using BD-LIVE and Audio
CD recording.
Settings
Adjusting the Setup Settings
You can change the settings of the player in
the [Setup] menu.
1. Press HOME.
• The USB device can be used for the local storage
for enjoying BD-Live discs with Internet.
• This unit can support up to 4 partitions of the
USB device.
3
Installation
• Do not extract the USB device during operation
(play, etc.).
• An USB device which requires additional
programme installation when you have
connected it to a computer, is not supported.
• USB device: USB device that support USB 1.1
and USB 2.0.
• Movie, music and photo files can be played.
For details of operations on each file, refer to
relevant pages.
2. Use I/i to select the [Setup] and press
ENTER ( ) The [Setup] menu appears.
3. Use U/u to select a first setup option, and
press i to move to the second level.
• Regular back up is recommended to prevent
data loss.
• If you use a USB extension cable, USB HUB or
USB Multi-reader, the USB device may not be
recognised.
• Some USB device may not work with this unit.
• Digital camera and mobile phone are not
supported.
• USB Port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
4. Use U/u to select a second setup option,
and press ENTER ( ) to move to the third
level.
5. Use U/u to select a desired setting, and
press i or ENTER ( ) to confirm your
selection.
Installation
[DISPLAY] Menu
TV Aspect Ratio
Select a TV aspect ratio option according to
your TV type.
[4:3 Letter Box]
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking
bars above and below the picture.
[16:9 Original]
Select when a 16:9 wide TV is connected.
The 4:3 picture is displayed with an original
4:3 aspect ratio, with black bars appearing
at the left and right sides.
[16:9 Full]
Select when a 16:9 wide TV is connected.
The 4:3 picture is adjusted horizontally (in a
linear proportion) to fill the entire screen.
NOTE
You cannot select [4:3 Letter Box] and [4:3 Pan
Scan] option when the resolution is set to higher
than 720p.
Resolution
Sets the output resolution of the HDMI video
signal. Refer to page 19 and 68 or details about
the resolution setting.
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best
suited to the connected TV.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
3
[720p]
Outputs 720 lines of progressive video.
Installation
[4:3 Pan Scan]
Select when a standard 4:3 TV is connected.
Displays pictures cropped to fill your TV
screen. Both sides of the picture are cut off.
27
[576p]
Outputs 576 lines of progressive video.
[576i]
Outputs 576 lines of interlaced video.
1080p Display Mode
When the resolution is set to 1080p, select
[24 Hz] for smooth presentation of film material
(1080p/ 24 Hz) with a HDMI-equipped display
compatible with 1080p/ 24 Hz input.
NOTE
• When you select [24 Hz], you may experience
some picture disturbance when the video
switches video and film material. In this case,
select [50 Hz].
• Even when [1080p Display Mode] is set to
[24 Hz], if your TV is not compatible with
1080p/ 24 Hz, the actual frame frequency of
the video output will be 50 Hz to match the
video source format.
28
Installation
HDMI Color Setting
Select the type of output from the HDMI
OUT jack. For this setting, please refer to the
manuals of your display device.
[YCbCr]
Select when connecting to a HDMI display
device.
[RGB]
Select when connecting to a DVI (RGB)
display device.
3
[AUDIO] Menu
Speaker Setup
To obtain the best possible sound, use the
speaker setup display to specify the volume
of the speakers you have connected and their
distance from your listening position. Use the
test to adjust the volume of the speakers to the
same level.
Installation
[LANGUAGE] Menu
Display Menu
Select a language for the [Setup] menu and
on-screen display.
Disc Menu/ Disc Audio/
Disc Subtitle
Select the language you prefer for the audio
track (disc audio), subtitles, and the disc menu.
[Speaker]
Select a speaker that you want to adjust.
[Volume]
Adjust the output level of each speaker.
[Original]
Refers to the original language in which the
disc was recorded.
[Distance]
Adjust the distance between each speaker
and the listening position.
[Other]
Press ENTER ( ) to select another language.
Use number buttons then ENTER ( ) to
enter the corresponding 4-digit number
according to the language code list on
page 65.
[Test/ Stop test tone]
The speakers will emit a test tone.
[Off ] (for Disc Subtitle only)
Turn off Subtitle.
NOTE
Depending on the disc, your language setting may
not work.
[OK]
Confirms the setting.
[Cancel]
Cancels the setting.
Installation
HD AV Sync
DRC (Dynamic Range Control)
Sometimes Digital TV encounters a delay
between picture and sound. If this happens
you can compensate by setting a delay on the
sound so that it effectively ‘waits’ for the picture
to arrive: this is called HD AV Sync. Use U u to
scroll up and down through the delay amount,
which you can set at anything between 0 and
300m sec.
This function allows you to listen to a movie at
a lower volume without losing clarity of sound.
[Off ]
Turns off this function.
[On]
Compress the dynamic range of the Dolby
Digital, Dolby Digital Plus or Dolby TrueHD
audio output.
NOTE
The DRC setting can be changed only when a
disc is not inserted or the unit is in complete stop
mode.
3
Installation
[Auto]
The dynamic range of the Dolby TrueHD
audio output is specified by itself.
And the dynamic range of the Dolby Digital
and Dolby Digital Plus are operated as same
as the [On] mode.
The delay will vary depending on which digital
TV channel you are on. If you change channel
you may need to readjust the HD AV Sync.
29
30
Installation
[LOCK] Menu
To access the any features in [LOCK] settings,
you must enter the 4-digit security code you
have created.
If you have not entered a password yet, you are
prompted to do so. Enter a 4-digit password
twice, and press ENTER ( ) to create a new
password.
DVD Rating
Blocks playback of rated DVD based on their
content. (Not all discs are rated.)
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select this, parental control is not
active and the disc plays in full.
Password
You can create or change the password.
3
Installation
[None]
Enter a 4-digit password twice, and press
ENTER ( ) to create a new password.
[Change]
Enter the current password and press ENTER
( ). Enter a 4-digit password twice, and
press ENTER ( ) to create a new password.
BD Rating
Set an age limit of BD-ROM play. Use number
buttons to input an age limit for BD-ROM
viewing.
[255]
All BD-ROM can be played.
[0-254]
Prohibits play of BD-ROM with
corresponding ratings recorded on them.
NOTE
If you make a mistake before pressing ENTER
( ), press CLEAR. Then input the correct
password.
NOTE
The [BD Rating] will be applied only for the BD disc
that containing the Advanced Rating Control.
If you forget your password,
If you forget your password, you can clear it using
the following steps:
1. Remove any disc that might be in the player.
2. Select [Lock] option in the [Setup] menu.
3. Use number buttons to enter “210499” on the
[Password] Menu. The password is cleared.
Area Code
Enter the code of the area whose standards
were used to rate the DVD video disc, based
on the list on page 64.
Installation
[NETWORK] Menu
The [NETWORK] settings are needed to use the
software update, BD Live, and NetCast features.
Connection Setting
If your home network environment is ready
to connect the player, the player needs to
be set the network connection for network
communication. (See “Connecting to your
Home Network” on pages 22.)
Connection Status
BD-LIVE connection
You can restrict Internet access when BD-Live
functions are used.
[Permitted]
Internet access is permitted for all BD-Live
contents.
[Partially permitted]
Internet access is permitted only for BDLive contents which have content owner
certificates. Internet access and AACS
Online functions are prohibited for all BDLive contents without a certificate.
[Prohibited]
Internet access is prohibited for all BD-Live
contents.
[OTHERS] Menu
DIVX VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an official
DivX Certified device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your files into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to
play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the
DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete
the registration process and learn more about
DivX VOD.
[Register]
Displays the registration code of your player.
[Deregister]
Deactivate your player and display the
deactivation code.
NOTE
All the downloaded videos from DivX VOD with
this player’s registration code can only be played
back on this unit.
3
Installation
If you want to check the network status on
this player, select the [Connection Status]
options and press ENTER ( ) to check whether
a connection to the network and the internet
have been established.
31
32
Installation
Auto Power Off
The screen saver appears when you leave
the player in Stop mode for about five
minutes. If you set this option to [On], the unit
automatically turns itself off after the Screen
Saver is displayed for 25 minutes.
Set this option to [Off ] to leave the screen
saver until the unit is operated by the user.
Initialize
Factory Set
You can reset the player to its original
factory settings.
3
Installation
BD Storage Clear
Initializes the BD contents from the
connected USB storage.
NOTE
If you reset the player to its original factory settings
using [Factory Set] option, you have to set all the
activation for the on-line services and network
settings again.
Sound Effect
You can select a suitable sound mode. Press
SOUND EFFECT repeatedly until the desired
mode appears on the front panel display or the
TV screen. The displayed items for the equalizer
maybe diff erent depending on sound sources
and effects.
[Natural]: You can enjoy comfortable and
natural sound.
[Bypass]: Software with multichannel surround
audio signals is played according to the way it
was recorded.
[Bass Blast]: Reinforce the bass sound
effect from front left and right speaker and
subwoofer.
[Clear Voice]: This mode makes voice sound
clear, improving the quality of voice sound.
[Virtual]: You can enjoy more dynamic sound
with improved centre channel.
[Game]: You can enjoy more virtual sound
while playing video games.
Software
Information
Displays the current software version.
Update
You can update the software by connecting
the unit directly to the software update
server (see page 66-67).
Disclaimer Notice
Press ENTER ( ) to view the notice of Network
Service Disclaimer on page 72.
[Night]: This may be useful when you want to
watch movies at low volumes late at night.
[Mus. ReTouch]: When listening to MP3 files or
other compressed music, you can enhance the
sound. This mode is available only to 2 channel
sources.
[Loudness]: Improves bass and treble sound.
[Natural Plus]: You can enjoy the natural
sound effect same as 5.1 channel.
Operation
33
4
Operation
General Playback
3. Select [Movie], [Photo] or [Music] using I/
i, and press ENTER ( ).
4. Select the [Data] option using I/i, and
press ENTER ( ).
Playing Discs
1. Put a disc with the label facing front to the
disc slot as below.
Then it is automatically inserted.
4
5. Select a file using U/u/I/i, and press B
(PLAY) or ENTER ( ) to play the file.
NOTE
For the most Audio CD, BD-ROM and
DVD-ROM discs, playback starts
automatically.
2. Press HOME (
).
• Playback functions described in this manual are
not always available in every files and medium.
Some functions can be restricted depending on
many factors.
• Depending on the BD-ROM titles, a USB device
connection may be needed for the proper
playback.
Operation
When you connect up to two devices, it
appears as above.
34
Operation
To stop playback
Press x (STOP) while playback.
Using the disc menu
BD
DVD
AVCHD
To pause playback
To display the disc menu
Press X (PAUSE) while playback.
Press B (PLAY) to resume playback.
The menu screen may be displayed first after
loading a disc which contains a menu. If you
want to display the disc menu while playback,
press DISC MENU.
To play frame-by-frame
Press X (PAUSE) while movie playback.
Press X (PAUSE) repeatedly to play Frame-byFrame playback.
Use U/u/I/i buttons to navigate through
menu items.
To display the Pop-up menu
To scan forward or backward
Press m or M to play fast forward or fast
reverse during playback.
You can change the various playback speeds
by pressing m or M repeatedly.
4
Operation
To slow down the playing speed
While the playback is paused, press M
repeatedly to play various speeds of slow
motion.
To skip to the next/previous
chapter/track/file
During playback, press . or > to go to
the next chapter/track/file or to return to the
beginning of the current chapter/track/file.
Press . twice briefly to step back to the
previous chapter/track/file.
Some BD-ROM discs contain Pop-up menu
that appears while playback.
Press TITLE/POPUP while playback, and use U/
u/I/i buttons to navigate through menu
items.
Operation
Resume playback
BD
MUSIC
DVD
AVCHD MOVIE
ACD
The unit records the point where you pressed
the x (STOP) depending on the disc.
If “Xx (Resume Stop)” appears on the screen
briefly, press B (PLAY) to resume playback
(from the scene point).
If you press x (STOP) twice or unload the disc,
“x”(Complete Stop) appears on the screen.
The unit will clear the stopped point.
NOTE
• The resume point may be cleared when a
button is pressed (for example; 1 (POWER),
Z (OPEN/CLOSE), etc).
• On BD-Video discs with BD-J, the resume
playback function does not work.
Advanced Playback
Repeat Playback
BD
DVD
AVCHD
ACD
MUSIC
During playback, press REPEAT repeatedly to
select a desired repeat mode.
BDs/DVDs
A- – Selected portion will be repeated
continually.
Chapter – The current chapter will be
played back repeatedly.
Title – The current title will be played
back repeatedly.
To return to normal playback, press REPEAT
repeatedly to select [Off ].
Audio CDs/Music files
– The current track or file will be
played back repeatedly.
– All the tracks or files will be played
back repeatedly.
– The tracks or files will be played back
in random order.
– All the tracks or files will be
played back repeatedly in random order.
– Selected portion will be repeated
continually. (Audio CD only)
To return to normal playback, press CLEAR.
NOTE
• If you press > once during Repeat Chapter/
Track playback, the repeat playback cancels.
• This function may not work on some disc or title.
4
Operation
• If you press x (STOP) once during BD-ROM
interactive title playback, the unit will be in
Complete Stop mode .
35
36
Operation
Repeating a specific portion
BD
DVD
AVCHD
ACD
This player can repeat a portion you have
selected.
1. While playback, press REPEAT to select [A-]
at the beginning of the portion you wish to
repeat. And then press ENTER ( ).
2. Press ENTER ( ) at the end of the portion.
Your selected portion will be repeated
continually.
3. To return to normal playback, press REPEAT
repeatedly to select [OFF] or press CLEAR.
To delete a Marker
1. Press SEARCH and the search menu appears
on the screen.
2. Press u to highlight a marker number. Use
I/i to select a marked scene that you
want to delete.
3. Press CLEAR and the marked scene is erased
from the search menu.
NOTE
NOTE
4
You cannot select a portion less than 3 seconds.
This function may not work on some disc or title.
Operation
Marker Search
BD
DVD
AVCHD MOVIE
You can start playback from up to nine
memorized points.
To enter a marker
1. While playback, press MARKER at the
desired point. The Marker icon appears on
the TV screen briefly.
2. Repeat step 1 to add up to nine markers.
To recall a marked scene
1. Press SEARCH and the search menu appears
on the screen.
2. Press a number button to select a marker
number that you want to recall. Playback
starts from the marked scene.
• This function may not work depending on discs,
titles, server ability.
• All marked points are cleared if the title is in
complete stop (x) mode, the title is changed or
if you unload the disc.
• If the total length of the title is less than
10 seconds, this function is not available.
Operation
Using the search menu
BD
DVD
AVCHD MOVIE
37
Changing content list view
MOVIE MUSIC PHOTO
Using search menu, you can easy to find the
point where you want to start playback.
On the [Movie], [Music], or [Photo] menu, you
can change the content list view.
To search a point
Method 1
1. During playback, press SEARCH to display
the search menu.
Press red (R) coloured button repeatedly.
2. Press I/i to skip the playback 15 seconds
forward or backward. You can select a
point that you want to skip by pressing and
holding I/i button.
4
Operation
To start playback from a marked
scene
1. Press SEARCH and the search menu appears
on the screen.
2. Press u to highlight a marker number. Use
I/i to select a marked scene that you
want to start playback from.
3. Press ENTER ( ) to start playback from the
marked scene.
NOTE
• This function may not work depending on discs,
titles, server ability.
Method 2
1. On the content list, press INFO/DISPLAY ( )
to display the option menu.
2. Use U/u to select the [View Change]
option.
3. Press ENTER ( ) to change the content list
view.
38
Operation
Viewing content information
MOVIE
On-Screen display
The player can display the content information.
1. Select a file using U/u/I/i.
2. Press INFO/DISPLAY ( ) to display the
option menu.
3. Select the [Information] option using U/u,
and press ENTER ( ).
The file information appears on the screen.
While movie playback, you can display the file
information by pressing TITLE/POPUP.
NOTE
The information displayed on the screen may not
correct comparing actual content information.
4
You can display and adjust various information
and settings about the content.
Displaying content information
on-screen
BD
DVD
AVCHD MOVIE
1. While playback, press INFO/DISPLAY ( ) to
show various playback information.
a
b
c
Operation
d
Last Scene Memory
BD
DVD
This unit memorizes the last scene from the
last disc that is viewed. The last scene remains
in memory even if you remove the disc from
the unit or switch off the unit. If you load a disc
that has the scene memorized, the scene is
automatically recalled.
NOTE
• Last Scene Memory function for a previous disc
is erased once a different disc is played.
• This function may not work depending on the
disc.
• This unit does not memorize settings of a disc if
you switch off the unit before commencing to
play it.
e
f
g
h
i
a Title – Current title number/total number
of titles
b Chapter – Current chapter number/total
number of chapters
c Time – Elapsed playing time/Total
playback time
d Audio – Selected audio language or
channel
e Subtitle – Selected subtitle
f Angle – Selected angle/total number of
angles
g TV Aspect Ratio – Selected a TV aspect
Ratio
h Picture Mode – Selected picture mode
Operation
i Movie Information – Select this option
and press ENTER ( ) to display movie
information
2. Select an option using U/u.
3. Use I/i to adjust the selected option
value.0
4. Press RETURN (O) to exit the On-Screen
display.
NOTE
• If no button is pressed for a few seconds, the onscreen display disappears.
• A title number cannot be selected on some
discs.
Playing from selected time
BD
DVD
AVCHD MOVIE
1. Press INFO/DISPLAY ( ) during playback.
The time search box shows the elapsed
playing time.
2. Select the [Time] option and then input
the required start time in hours, minutes,
and seconds from left to right.
For example, to find a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
Press I/i to skip the playback 60 seconds
forward or backward.
3. Press ENTER ( ) to start playback from
selected time.
• Available items may differ depending on discs
or titles.
NOTE
4
This function may not work on some disc or titles.
Hearing a different audio
BD
DVD
AVCHD MOVIE
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
2. Use U/u to select the [Audio] option.
3. Use I/i to select desired audio language,
audio track or audio channel.
Operation
• If BD interactive title is playing back, some
setting information is displayed on the screen
but prohibited to be changed.
39
40
Operation
Watching from a different
angle
NOTE
BD
DVD
• Some discs allow you to change audio selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate audio from the selections on
the disc menu.
If the disc contains scenes recorded at different
camera angles, you can change to a different
camera angle during playback.
• Immediately after you have switched sound,
there may be a temporary discrepancy between
the display and actual sound.
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
• On BD-ROM disc, the multi audio format (5.1CH
or 7.1CH) is displayed with [MultiCH] in the onscreen display.
2. Use U/u to select the [Angle] option.
3. Use I/i to select desired angle.
4. Press RETURN (O) to exit the On-Screen
display.
Selecting a subtitle language
BD
4
DVD
AVCHD MOVIE
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
Operation
2. Use U/u to select the [Subtitle] option.
3. Use I/i to select desired subtitle language.
4. Press RETURN(O) to exit the On-Screen
display.
NOTE
Some discs allow you to change subtitle selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate subtitle from the selections on the
disc menu.
Changing the TV Aspect Ratio
BD
DVD
AVCHD MOVIE
You can change the TV aspect ratio setting
while playback.
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
2. Use U/u to select the [TV Aspect Ratio]
option.
3. Use I/i to select desired option.
4. Press RETURN (O) to exit the On-Screen
display.
NOTE
Even if you change the value of the [TV Aspect
Ratio] option in On-Screen display, the [TV Aspect
Ratio] option in the [Setup] menu is not changed.
Operation
Changing the Picture Mode
BD
DVD
AVCHD MOVIE
You can change the [Picture mode] option
while playback.
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
2. Use U/u to select the [Picture Mode]
option.
3. Use I/i to select desired option.
4. Press RETURN (O) to exit the On-Screen
display.
Setting the [User setting] option
1. During playback, press INFO/DISPLAY ( ) to
display the on-screen display.
3. Use I/i to select the [User setting] option,
and press ENTER ( ).
Enjoying BD-LIVE
This unit allows you to enjoy functions such as
picture-in-picture, secondary audio and Virtual
packages, etc., with BD-Video supporting
BONUSVIEW (BD-ROM version 2 Profile 1
version 1.1/ Final Standard Profile).
Secondary video and audio can be played from
a disc compatible with the picture-in-picture
function. For the playback method, refer to the
instructions in the disc.
In addition to the BONUSVIEW function, BDVideo supporting BD-Live (BD-ROM version
2 Profile 2) that has a network extension
function allows you to enjoy more functions
such as downloading new movie trailers by
connecting this unit to the internet.
1. Check the network connection and settings
(pages 22-24).
2. Insert a USB storage device to the USB port.
A USB storage device is needed to
download bonus content.
USB Connection - 1
4. Use U/u/I/i to adjust the [Picture Mode]
options.
Select [Default] option then press ENTER
( ) to reset the all adjustments.
5. Use U/u/I/i to select the [Close] options,
and press ENTER ( ) to finish setting.
4
Operation
2. Use U/u to select the [Picture Mode]
option.
41
42
Operation
3 . Press Home( ), and set the [BD-LIVE
connection] option on the [Setup] menu
(page 31).
Depending on a disc, the BD-Live
function may not be operated if [BDLIVE connection] option is set to [Partially
Permitted].
4 . Insert a BD-ROM with BD-LIVE.
The operations are differ depending on the
disc. Refer to the manual supplied with the
disc.
Playing a movie file
and VR disc
You can play DVD-RW discs that are recorded
in Video Recording (VR) format and movie files
contained in a disc or USB device.
1. Press HOME (
).
NOTE
4
Operation
• Do not extract the connected USB device while
content is being downloaded or a Blu-ray disc is
still in the disc tray. Doing so may damage the
connected USB device and BD-Live features may
not operate properly with the damaged USB
device anymore. If the connected USB device
seems damaged from such an action, you can
format the connected USB device from the PC
and reuse it with this player.
2. Select [Movie] using I/i, and press ENTER
( ).
3. Select the device using I/i, and press
ENTER ( ).
• Some BD-Live contents may be restrictively
accessed in some territories by contents
provider’s own decision.
• It may take up to several minutes to load and
start enjoying BD-Live contents.
When you connect up to two devices, it
appears as above.
4. Select a file using U/u/I/i, and press PLAY
or ENTER ( ) to play the file.
Operation
NOTE
• The file requirements are described on page 11.
• You can use various playback functions. Refer to
pages 33-41.
• Unfinalized DVD VR format discs may not be
played in this player.
• Some DVD-VR disc are made with CPRM data
by DVD recorder. This unit cannot support these
kinds of discs.
What is CPRM?
CPRM is a copy protection system (with
scramble system) only allowing the recording of
‘copy once’ broadcast programmes. CPRM stands
for Content Protection for Recordable Media.
43
Selecting a subtitle file
MOVIE
If a movie file name and the subtitle file
name are the same, subtitle file is played
automatically when playing the movie file.
If the subtitle file name is different with the
movie file name, you need to select the subtitle
file on the [Movie] menu before playing the
movie.
1. Use U/u/I/i to select the subtitle file you
wish to play in the [Movie] menu.
2. Press ENTER ( ).
4
NOTE
If you press x (STOP) while playback, the subtitle
selection is cancelled.
Operation
Press ENTER ( ) again to deselect the
subtitle file. Selected subtitle file will be
displayed when yo play the movie file.
44
Operation
Changing subtitle code page
MOVIE
If the subtitle is not displayed properly, You
can change the subtitle code page to view the
subtitle file properly.
1. During playback, press INFO/DISPLAY ( ) to
display the playback menu.
Viewing a photo
You can view photo files using this player.
1. Press HOME (
).
2. Use U/u to select the [Code Page] option.
3. Use I/i to select desired code option.
2. Select [Photo] using I/i, and press ENTER
( ).
3. Select the device using I/i, and press
ENTER ( ).
4
Operation
4. Press RETURN(O) to exit the On-Screen
display.
NOTE
This function may not be available according to
areas.
When you connect up to two devices, it
appears as above.
4. Select a file using U/u/I/i, and press
ENTER ( ) to view the photo.
Operation
To play a slide show
Press B (PLAY) to start slide show.
To stop a slide show
Press x (STOP) while slide show.
To pause a slide show
Press X (PAUSE) while slide show.
Press B (PLAY) to re-start the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press I or
i to go to the previous or next photo.
NOTE
• The file requirements are described on page 11.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
INFO/DISPLAY ( ) to display the option
menu.
2. Select an option using U/u.
a
b
c
d
e
f
g
h
a Current photo/Total number of photos
– Use I/i to view previous/next photo.
b Slide Show – Press ENTER ( ) to start or
pause slide show.
c Music Select – Select the background
music for the slide show.
d Music –Press ENTER ( ) to start or pause
background music.
e Rotate – Press ENTER ( ) to rotate the
photo clockwise.
f Zoom – Press ENTER ( ) to display the
[Zoom] menu.
g Effect – Use I/i to select a transition
effect between photos in a slide show.
h Speed – Use I/i to select a delaying
speed between photos in a slide show.
3. Press RETURN (O) to exit the option menu.
4
Operation
• You can use various playback functions. Refer to
pages 33-41.
45
46
Operation
Listening to music while slide
show
You can display photo files while listening to
music files.
1. Press HOME (
).
7. Use U/u to select a device, and press ENTER
( ).
Device that you can select are differ
depending on the location of the photo file
you are displaying in full screen.
Photo location
Available Device
Disc
Disc, USB
USB
Disc, USB
8. Use U/u to select a file or a folder you wish
to play.
2. Select [Photo] using I/i, and press ENTER
( ).
3. Select the [Data] or [USB] option using I/i,
and press ENTER ( ).
4
Operation
Select a folder and press ENTER ( ) to
display the lower directory.
Select and press ENTER ( ) to display
the upper directory.
4. Select a file using U/u/I/i, and press
ENTER ( ) to view the photo.
5. Press INFO/DISPLAY ( ) to display the
option menu.
6. Use U/u to select [Music Select] option,
and press ENTER ( ) to display the [Music
Select] menu.
9. Use i to select [OK], and press ENTER ( )
to complete music selection.
Operation
Listening to music
47
Audio CD Recording
You can record one desired track or all of the
tracks in Audio CD to a USB storage device.
The player can play Audio CDs and music files
1. Press HOME (
).
1. Insert a USB storage device to the USB port
on the front panel.
2. Place an Audio CD on the disc slot.
The disc is automatically inserted and
playback starts automatically.
3. Press INFO/DISPLAY ( ) to display the
option menu.
Or
2. Select [Music] using I/i, and press ENTER
( ).
3. Select the device using I/i, and press
ENTER ( ).
Press z REC button on the remote control.
You can record all musics in the audio CD.
4. Use U/u to select [CD Recording] option,
and press ENTER ( ) to display the [CD
Recording] menu.
5. Use U/u to select a track you wish to copy
on the menu, and press ENTER ( ).
When you connect up to two devices, it
appears as above.
4. Select a music file or audio track using
U/u/I/i, and press ENTER ( ) to play the
music.
NOTE
• The file requirements are described on page 11.
• You can use various playback functions. Refer to
pages 33-41.
Repeat this step to select tracks as many as
you can.
Select all the tracks on an Audio
CD.
Selects an encoding option from
the pop-up menu (128kbps,
192kbps, 320kbps or Lossless).
Cancels the recording and
returns to the previous screen.
6 Use U/u/I/i to select [Start], and press
ENTER ( ).
4
Operation
Repeat this step to select tracks as many as
you can.
48
Operation
7 Use U/u/I/i to select the destination
folder to be copied.
NOTE
• The table below shows the average recording
time from an audio track with 4 minutes of
playback time to a music file with 192 kbps as an
example.
If you want to create a new folder, use U/u/
I/i to select [New Folder] and press ENTER
( ).
Enter a folder name using virtual keyboard,
and press ENTER ( ) while [OK] is selected.
8 Use U/u/I/i to select [OK], and press
ENTER ( ) to start Audio CD recording.
4
Operation
If you want to stop in progressing Audio CD
recording, press ENTER ( ) while [Cancel] is
highlighted.
9 A message appears when Audio CD
recording is completed. Press ENTER
( ) to check the music file created in the
destination folder.
stop mode
while playback
1 min.
4 min.
• All times in the above table are approximate.
• Actual recording time for USB storage device
varies depending on the USB storage device’s
ability.
• Make sure that there is minimum of 50 MB free
space is needed when recording into the USB
storage device.
• The length of the music should be longer than
20 seconds for the proper recording.
• Do not turn off this player or extract the
connected USB storage device during Audio CD
recording.
The making of unauthorized copies of
copy-protected material, including computer
programmes, files, broadcasts and sound
recordings, may be an infringement of copyrights
and constitute a criminal offense.
This equipment should not be used
for such purposes.
Be responsible
Respect copyrights
Operation
Radio Operations
49
Deleting all the saved stations
Press and hold CLEAR for two seconds.
“ERASE ALL” will flash up. Press CLEAR again.
Then all the saved stations are deleted.
Be sure that the antenna is connected.
(Refer to the page 20)
Listening to the radio
1. Press RADIO&INPUT until Tuner (FM)
appears in the display window. The last
received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication
starts to change. Scanning stops when the
unit tunes in a station. Or Press TUNING (-/+)
repeatedly.
Press B (blue) (MONO/STEREO) coloured
button on the remote control. This will change
the tuner from stereo to mono and usually
improve the reception.
See information about a radio
station
The FM tuner is supplied with the RDS (Radio
Data System) facility. This shows information
about the radio station being listened to. Press
RDS repeatedly to cycle through the various
data types:
PS
(Programme Service Name)
The name of the channel will
appear in the display
You can preset 50 stations for FM. Before
tuning, make sure that you have turned down
the volume.
PTY
(Programme Type Recognition)
The programme type (e.g. Jazz or
News) will appear in the display.
1. Press RADIO&INPUT until the TUNER (FM)
appears in the display window.
RT
(Radio Text)
A text message contains special
information from the broadcast
station. This text may scroll across
the display.
CT
(Time controlled by the channel)
This shows the time and date as
broadcast by the station.
Presetting the Radio Stations
2. Select the desired frequency by using
TUNING (-/+).
3. Press ENTER ( ) a preset number will fl ash
in the display window.
4. Press PRESET (-/+) to select the preset
number you want.
5. Press ENTER ( ). The station is stored.
6. Repeat the steps 2 to 5 to store other
stations.
4
Operation
3. Adjust the volume by pressing +/- on the
top panel or VOL (+/- ) on the remote
control.
Improving poor FM reception
50
Operation
Using NetCastTM
Entertainment Access
YouTube
You can use various content services via
Internet with NetCast Entertainment Access
feature.
Watch YouTubevideos on your TV
1. Check the network connection and settings
(pages 22-24).
2. Press HOME (
).
3. Select the [NetCast] using I/i, and press
ENTER ( ).
4. Select an option using I/i, and press
ENTER ( ).
You can browse, search and watch
YouTubevideos over the internet to your TV via
your LG Blu-ray disc player.
1. On the player, select the [YouTube] option
in the [NetCast] menu using I/i, and press
ENTER ( ).
2. Press U to select the option menu bar.
3. Use I/i to select an option and press
ENTER ( ) to search videos.
4. Use I/i to select a video and press ENTER
( ) or N (play) to play the video.
Button
4
YouTube– See pages 50-53
Operation
Picasa Web Albums – See pages 54-57
AccuWeather – See pages 57-58
5. While enjoying on-line content from
NetCast, press blue (B) coloured button to
go to NetCast Home screen.
B or ENTER Starts playback the video with
content detail.
( )
INFO/
DISPLAY
Toggle between playback in
full screen and playback screen
with content detail.
X
To pause a video while it is
playing. To resume playing a
paused video, press B again.
x
Stops the video and displays
related videos list.
./>
Skip the playback forward or
backward .
NOTE
• The content of NetCast services and service
related information, including user interface, is
subject to changes. Please refer to the web site
of each service for most up-to-date information.
• The background image on the NetCast home
indicates the weather of your favorite city in the
AccuWeather feature.
Operation
Operation
51
About the YouTubemenu
There are various options on the YouTubemenu.
Use U/u/I/i to select an option and press
ENTER ( ) to select the options as described
below.
NOTE
• The YouTubemenu can display 5 videos in the
videos list. Press green (G) or yellow (Y) buttons
to display previous/next 5 videos.
Most Viewed – The most viewed videos list
will be displayed. The period option appears
at the bottom of the screen.
• The videos list searched from the player may
differ with the list searched from a web browser
on PC.
Top Rated – The best rated videos list from
YouTubeserver will be displayed. The period
option appears at the bottom of the screen.
• The playback of YouTube videos may be paused,
stopped or buffering occurring often depending
on your broadband speed.
We recommend a minimum connection speed
of 1.5 Mbps. For the best playback condition, a
connection speed of 4.0 Mbps is required.
Sometimes your broadband speed varies based
on your ISP’s network conditions.
Contact your ISP if you have problems
maintaining a fast connection that is reliable, or
if you want to increase your connection speed.
Many ISPs offer a variety of broadband speed
options.
Search – The virtual keyboard will be
displayed. See “Searching videos” on page 53
for more detail.
History – The videos list that you previously
played on this unit will be displayed.
Maximum of 25 videos can be stored.
Favorites – This option will be appeared
only when the unit is in sign-in status.
Displays the videos list that is arranged in
the YouTubeserver with your account. Some
videos may not appear on the [Favorites] list,
even if the videos are arranged in the server.
Sign in (Sign Out) – Displays the virtual
keyboard to sign in or returns to the sign-out
status.
See “Sign in with your YouTubeaccount” on
page 53 for more details.
Local site – Choose which country’s videos
you would like to view. The countries listed on
the [Local Site] menu may different with those
listed on the YouTubeweb site.
4
Operation
Recent Videos – The most recently updated
videos list will be displayed.
• If you select the [Most Viewed] or [Top Rated]
option in the YouTubemenu, the period options
appear at the bottom of the screen. Use U/u/
I/i to select a period option and press ENTER
( ) to display the videos list within the selected
period.
Featured – The featured videos list will be
displayed.
52
Operation
Using the virtual keyboard
Keypad Mode
On the virtual keyboard, there are two input
mode for the entering a character. Press the
yellow (Y) coloured button to toggle display
between keyboard mode and keypad mode.
This mode allows you to enter letters by
pressing the buttons on the remote control.
Press the buttons with the required letter once,
twice, three or four times until the letter is
displayed.
Keyboard Mode
Use U/u/I/i to select a letter on the screen,
and press ENTER ( ) to confirm your selection.
Button
Operation
CLEAR
Deletes the previous character
at the cursor position.
[Space] – Inserts a space at the cursor
position.
REPEAT
Inserts a space at the cursor
position.
[Backspace] – Deletes the previous character
at the cursor position.
M/.
Change the character set of
the remote control (#+-=&,
123, ABC or abc)
[Cancel] – Return to the previous screen.
4
Operation
[ABC / abc / #+-=&] – Changes the virtual
keyboard settings to capital letters, small
letters or symbols.
NOTE
Press CLEAR to clear all entered characters.
To enter a letter with an accent mark:
1. Select a letter using U/u/I/i on the virtual
key board.
2. Press INFO/DISPLAY ( ) to display the
extended character set.
3. Use I/i to select a character then press
ENTER ( ).
Available languages to enter on the keyboard
mode are as follows: English, Spanish, Italian,
French, German, Dutch, Portuguese, Swedish,
Polish and Czech.
The keypad mode is available only in the
[YouTube] and [Picasa Web Albums] features.
Operation
You can search for videos by entering search
words of up to 128 characters.
3. When you finish entering the user name
and the password, select [OK] and press
ENTER ( ) to sign in.
1. Use I/i to select [Search] option from the
menu and press ENTER ( ) to display the
virtual keyboard.
4. If you want to sign out, select the [Sign Out]
from the YouTubemenu and press ENTER
( ).
Searching videos
Refer to “Using the virtual keyboard” on
page 52 for using virtual keyboard.
53
This unit can automatically store up to 5 user
names which were previously signed-in. The
user name list appears when you select the
[Sign In] option.
Select a stored user name on the list and press
ENTER ( ) to display the keyboard menu with
the selected user name is entered. You will
then only need to enter the password to sign
in.
When you entering a character, maximum
of 5 suggestion words will be displayed.
4
Operation
2. When you finish entering the search words,
select [OK] and press ENTER ( ) to display
the related video list.
Sign in with your YouTubeaccount
To watch videos from your [Favorites] video list
on the YouTubeserver with your account, you
need to sign in with your YouTubeaccount.
1. Use I/i to select [Sign In] option from the
menu and press ENTER ( ) to display the
virtual keyboard.
2. Use U/u/I/i to select a character then
press ENTER ( ) to confirm your selection
on the virtual keyboard.
Refer to “Using the virtual keyboard” on
page 52 for using virtual keyboard.
Select the [X] symbol and press ENTER ( ) to
delete the stored user name.
54
Operation
Picasa Web Albums
Enjoy photo albums from friends and family on
the Picasa Web Albums on-line service.
View Picasa Web Albums on your TV
1. On the player, select the [Picasa Web
Albums] option in the [NetCast] menu
using I/i, and press ENTER ( ).
Featured photos are appeared on the
screen.
2. Use U/u/I/i to select a photo and press
ENTER ( ) to view the photo in full screen.
4
Operation
Button
Operation
B
Starts a slide show.
INFO/
DISPLAY
Displays the photo option
menu.
X
Pauses a slide show. To resume
slide show, press B again.
x
Stops the slide show and
return to the Picasa Web
Albums menu.
I/i
Moves to the next or previous
photo.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
INFO/DISPLAY ( ) to display the option
menu.
2. Select an option using U/u.
a
b
c
d
e
f
g
a Current photo/Total number of photos
– Use I/i to view previous/next photo.
b Slide Show – Press ENTER ( ) to start or
pause slide show.
c Add to Friends List– Add the current
photo owner to my friend list.
d Rotate – Press ENTER ( ) to rotate the
photo clockwise.
e Zoom – Press ENTER ( ) to display the
[Zoom] menu.
f Effect – Use I/i to select a transition
effect between photos in a slide show.
g Speed – Use I/i to select a delaying
speed between photos in a slide show.
3. Press RETURN (O) to exit the option menu.
Operation
About the Picasa Web Albums menu
Adding friends
There are various options on the Picasa Web
Albums menu. Use U/u/I/i to select an
menu option and press ENTER ( ) to select
the options as described below.
If you add your friends on the [NetCast Friends]
menu, you can see the photos of your friend’s
public photos directly.
Home – The featured photo list will be
displayed.
NetCast Friends – List of your friends will be
displayed.
My Photos – Displays the photos organised in
my Picasa Web Albums. This option is available
only when the unit is in sign-in status.
Favorites – Displays up to 50 favorite web
albums that are arranged in the Picasa Web
Albums server with your account. This option
is available only when the unit is in sign-in
status.
Sign in (Sign Out) – Displays the virtual
keyboard to sign in or returns to the sign-out
status (page 56)
NOTE
Photos displayed in [My Photos] and [Favorites]
may differ with the photos from a web browser on
PC.
1. Select the [NetCast Friends] on the Picasa
Web Albums menu using U/u/I/i, and
press ENTER ( ).
2. Press ENTER ( ) to display the virtual
keyboard.
3. Enter a name using the virtual keyboard.
Refer to “Using the virtual keyboard” on
page 52 for using virtual keyboard.
4. Select [OK] using U/u/I/i, and press
ENTER ( ) to display the web album of
your friend.
NOTE
• If you want to delete your friend from the list,
press green (G) coloured button while the web
album is selected.
• If you want to add more friends, press red (R)
coloured button on the list.
• You can add more web albums of your friends
up to 50.
4
Operation
Search – Enter a search word to find related
photos. The virtual keyboard will be displayed
(page 56).
55
56
Operation
Searching photos
Signing in with your account
You can enter a search word to find related
photos.
To display photos in your web album on the
screen, you need to sign in with your Picasa
Web Albums account.
1. Select the [Search] on the Picasa Web
Albums menu using U/u/I/i, and press
ENTER ( ).
2. Enter a search word using the virtual
keyboard.
1. Select the [Sign In] on the Picasa Web
Albums menu using U/u/I/i, and press
ENTER ( ).
Refer to “Using the virtual keyboard” on
page 52 for using virtual keyboard.
3. Select [OK] using U/u/I/i, and press
ENTER ( ) to display the search result.
NOTE
The search result from the player may differ with
the result searched from a web browser on PC.
4
2. Enter your user name using the virtual
keyboard, and press ENTER ( ) while [OK] is
selected.
Operation
Refer to “Using the virtual keyboard” on
page 52 for using virtual keyboard.
Operation
3. Enter the password using the virtual
keyboard, and press ENTER ( ) while [OK] is
selected.
57
Using the AccuWeather
Your web album is appeared on the screen.
4. If you want to sign out, select the [Sign Out]
from the Picasa Web Albums menu and
press ENTER ( ).
This unit can automatically store up to 5 user
names which were previously signed-in. The
user name list appears when you select the
[Sign In] option.
Select a stored user name on the list and press
ENTER ( ) to display the virtual keyboard with
the selected user name is entered. You will
then only need to enter the password to sign
in.
See on-line local and global weather forcasts
from AccuWeather.com.
Viewing weather information
1. On the player, select the [AccuWeather]
option in the [NetCast] menu using I/i,
and press ENTER ( ).
The city selection menu appears on the
screen.
4
Operation
Select the [X] symbol and press ENTER ( ) to
delete the stored user name.
2. Press ENTER ( ) while [Add City to Favorite
City List] is selected.
3. Select a region using U/u, and press ENTER
( ).
4. Select a, country using U/u/I/i, and press
ENTER ( ).
58
Operation
5. Select a city using U/u/I/i, and press
ENTER ( ).
6. Use U/u/I/i to select [Home] and press
ENTER ( ) to display weather information
of the selected city.
Press red (R) coloured button to toggle
display between Fahrenheit or Celsius
thermometre.
4
Adding more cities
1. Use I/i to select [Favorite City List] on the
AccuWeather menu, and press ENTER
( ).
2. Press ENTER ( ) while [Add City to Favorite
City List] is selected.
Operation
7. Use I/i to select previous or next city, and
press ENTER ( ) to display the weather
information.
3. Select a region, country and city using
U/u/I/i and ENTER ( ).
This step works only when you add more
than 1 cities to the [Favorite city List].
4. Repeats step 2-3 to add up to 5 cities.
NOTE
• The weather information is not always correct.
• The weather information may be displayed in
English, if your own language is not available on
the AccuWeather service.
Select the [X] symbol and press ENTER ( )
to delete the stored favorite city.
5. Use U/u to select a city from the [Favorite
City List], and press ENTER ( ) to display
the weather information.
Maintenance
59
5
Maintenance
Notes on Discs
Handling the Unit
Handling Discs
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit,
for maximum protection, re-pack the unit as it
was originally packed at the factory.
Never stick paper or tape on the disc.
Storing Discs
Cleaning Discs
•
Do not use volatile liquids such as
insecticide spray near the unit.
•
Wiping with strong pressure may damage
the surface.
•
Do not leave rubber or plastic products in
contact with the unit for a long period of
time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If
the surfaces are extremely dirty, use a soft
cloth lightly moistened with a mild detergent
solution. Do not use strong solvents such as
alcohol, benzine, or thinner, as these might
damage the surface of the unit.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available
cleaners, or anti-static spray intended for older
vinyl records.
Maintaining the Unit
The unit is a high-tech, precision device. If
the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
diminished. For details, please contact your
nearest authorized service centre.
5
Maintenance
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of
heat and never leave it in a parked car exposed
to direct sunlight.
Keeping the exterior surfaces clean
60
Troubleshooting
6
Troubleshooting
General
6
Troubleshooting
The Power does not turned
on.
•
Plug the power cord into the wall outlet securely.
The unit does not start
playback.
•
Insert a playable disc. (Check the disc type, colour system,
and regional code.)
•
Place the disc with the playback side back.
•
Place the disc on the disc slot correctly.
•
Clean the disc.
•
Cancel the rating function or change the rating level.
The angle cannot be
changed.
•
Multi-angles are not recorded on the DVD Video being
played.
The subtitle language
cannot be changed or
turned off.
•
Subtitles are not recorded on the DVD Video being played.
Cannot play MP3/WMA/
JPEG/DivX files.
•
The files are not recorded in a format that the unit can play.
•
The unit does not support the codec of the movie file.
The remote control does
not work properly.
•
The remote control is not pointed at the remote sensor of
the unit.
•
The remote control is too far from the unit.
•
There is an obstacle in the path of the remote control and
the unit.
•
The batteries in the remote control are exhausted.
Troubleshooting
61
There is no picture.
Picture noise appears
•
Select the appropriate video input mode on the TV so the
picture from the unit appears on the TV screen.
•
Connect the video connection securely.
•
Check the [HDMI Color Setting] in the [Setup] menu is
set to the appropriate item that conforms to your video
connection.
•
Your TV may not suppot the resolution you have set on the
player. Change the resolution that your TV accepts.
•
The player’s HDMI OUT jack is connected to a DVI device that
does not support copyright protection.
•
You are playing a disc recorded in a colour system that is
different from your TV.
•
Set the resolution which your TV accepts.
•
The unit is in scan, slow motion, or pause mode.
•
The sound volume is low.
•
Check the speaker cable connection. (page 16)
Sound
There is no sound or the
sound is distorted.
6
Troubleshooting
62
Troubleshooting
Network
BD-Live feature does not
work.
Streaming video services
(such as YouTube, etc.)
are often stopped or
“buffer” during playback.
•
The connected USB storage may not have enough space.
Connect the USB storage with at least 1GB free space.
•
Ensure that the unit is correctly connected to the local area
network and can access the internet (see pages 22-24).
•
Your broadband speed may not fast enough to use the BDLive features. Contact your Internet Service Provider (ISP) and
increase the broadband speed is recommended.
•
The [BD-LIVE connection] option in the [Setup] menu is set
to [Prohibited]. Set the option to [Permitted].
•
Your broadband service speed may not be fast enough to
stream video services. Contact your Internet Service Provider
(ISP) and increase the broadband speed is recommended.
Design and specifications are subject to change without notice.
Customer Support
You can update the Player using the latest software to enhance the products operation and/or
add new features. To obtain the latest software for this player (if updates have been made),
please visit http://lgservice.com or contact LG Electronics customer care centre.
6
Troubleshooting
Appendix
63
7
Appendix
Controlling a TV with
the Supplied Remote
Control
You can control your TV using the buttons
below.
Setting up the remote to
control your TV
You can operate your LG/GoldStar TV with the
supplied remote control.
While holding down TV POWER button, press
PR/CH U/u. Release the TV POWER button to
complete setting.
When you replace the batteries of the remote,
you may have reset the remote control.
TV Control
Buttons
Operation
1 (TV Power)
Turn the TV on or off.
AV/ INPUT
Switch the TV’s input source
between the TV and other
input sources.
VOL +/-
Adjust the volume of the
TV.
PR/CH U/u
Scan up or down through
memorized channels.
NOTE
Depending on the unit being connected, you may
not be able to control your TV using some of the
buttons.
Appendix
Button
7
64
Appendix
Area Code List
Choose an area code from this list.
Area
Afghanistan
Appendix
7
Code Area
AF Fiji
Code Area
Code Area
Code
FJ Monaco
MC Singapore
SG
SK
Argentina
AR Finland
FI Mongolia
MN Slovak Republic
Australia
AU France
FR Morocco
MA Slovenia
Austria
AT Germany
DE Nepal
NP South Africa
ZA
Belgium
BE Great Britain
GB Netherlands
NL South Korea
KR
Bhutan
BT Greece
GR Netherlands
GL Antilles
Bolivia
BO Greenland
Brazil
BR Hong Kong
Cambodia
KH Hungary
Canada
CA India
Chile
CL Indonesia
China
CN Israel
Colombia
CO Italy
Congo
CG Jamaica
Costa Rica
CR Japan
Croatia
HR Kenya
Czech Republic
CZ Kuwait
Denmark
DK Libya
Ecuador
EC Luxembourg
Egypt
EG Malaysia
El Salvador
SV Maldives
Ethiopia
ET Mexico
HK New Zealand
HU Nigeria
IN Norway
ID Oman
IL Pakistan
IT Panama
JM Paraguay
JP Philippines
KE Poland
KW Portugal
LY Romania
LU Russian
Federation
MY
Saudi Arabia
MV
Senegal
MX
Spain
SI
ES
AN Sri Lanka
NZ Sweden
LK
NG Switzerland
NO Taiwan
CH
SE
TW
OM Thailand
PK Turkey
TH
PA Uganda
PY Ukraine
UG
PH United States
PL Uruguay
TR
UA
US
UY
PT Uzbekistan
RO Vietnam
UZ
Zimbabwe
ZW
RU
SA
SN
VN
Appendix
65
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language
Code Language
Code Language
Code Language
Code
6565
French
7082
Lithuanian
7684
Sindhi
8368
Afrikaans
6570
Frisian
7089
Macedonian
7775
Singhalese
8373
Albanian
8381
Galician
7176
Malagasy
7771
Slovak
8375
Ameharic
6577
Georgian
7565
Malay
7783
Slovenian
8376
Arabic
6582
German
6869
Malayalam
7776
Spanish
6983
Armenian
7289
Greek
6976
Maori
7773
Sudanese
8385
Assamese
6583
Greenlandic
7576
Marathi
7782
Swahili
8387
Aymara
6588
Guarani
7178
Moldavian
7779
Swedish
8386
Azerbaijani
6590
Gujarati
7185
Mongolian
7778
Tagalog
8476
Bashkir
6665
Hausa
7265
Nauru
7865
Tajik
8471
Basque
6985
Hebrew
7387
Nepali
7869
Tamil
8465
Bengali; Bangla 6678
Hindi
7273
Norwegian
7879
Telugu
8469
Bhutani
6890
Hungarian
7285
Oriya
7982
Thai
8472
Bihari
6672
Icelandic
7383
Panjabi
8065
Tonga
8479
Breton
6682
Indonesian
7378
Pashto, Pushto 8083
Turkish
8482
Bulgarian
6671
Interlingua
7365
Persian
7065
Turkmen
8475
Burmese
7789
Irish
7165
Polish
8076
Twi
8487
Byelorussian
6669
Italian
7384
Portuguese
8084
Ukrainian
8575
Chinese
9072
Japanese
7465
Quechua
8185
Urdu
8582
Croatian
7282
Kannada
7578
8590
6783
Kashmiri
7583
Rhaeto-Romance
8277
Uzbek
Czech
Vietnamese
8673
Danish
6865
Kazakh
7575
Rumanian
8279
Volapük
8679
Dutch
7876
Kirghiz
7589
Russian
8285
Welsh
6789
English
6978
Korean
7579
Samoan
8377
Wolof
8779
Esperanto
6979
Kurdish
7585
Sanskrit
8365
Xhosa
8872
7168
Yiddish
7473
8382
Yoruba
8979
Zulu
9085
Estonian
6984
Laothian
7679
Scots Gaelic
Faroese
7079
Latin
7665
Serbian
Fiji
7074
Latvian, Lettish 7686
Serbo-Croatian 8372
Finnish
7073
Lingala
Shona
7678
8378
Appendix
Afar
7
66
Appendix
Network Software
Update
Network update notification
From time to time, performance improvements
and/or additional features or services may be
made available to units that are connected to
a broadband home network. If there is new
software available and the unit is connected
to a broadband home network, the player will
inform you about the update as follows.
Option 1:
1. The update menu will appear on the screen
when you turn on the player.
2. Use I/i to select a desired option and then
press ENTER ( ).
Option 2:
If the software update is available from the
update server, the “Update” icon appears at
the bottom of the Home menu. Press blue (B)
coloured button to start the update procedure.
Software Update
You can update the player using the latest
software to enhance the products operation
and/or add new features. You can update the
software by connecting the unit directly to the
software update server.
CAUTION
• Before updating the software in your player,
remove any disc and USB Device from the player.
• Before updating the software in your player, turn
the player off and then turn it back on.
• During the software update procedure, do
not turn off the player or disconnect AC
power, or do not press any button.
• If you cancel the update, turn off the power and
turn it on for stable performance.
Appendix
• This unit cannot be updated to previous
software version.
[OK]
Starts the software update.
7
[Cancel]
Exits the update menu and displays it next
booting.
1. Check the network connection and settings
(page 22-24).
2. Select [Software] option in the [Setup]
menu then press ENTER ( ).
3. Select [Update] option, and press ENTER
( ).
The player will check for the newest update.
Appendix
NOTE
• Pressing ENTER ( ) while checking for the
update will end the process.
• If there is no update available, the Message, “No
update is found.” appears. Press ENTER( ) to
return to the [Home Menu].
4. If newer version exists, the message “A
new update was found. Do you want to
download it?” appears.
67
CAUTION
Do not turn off the power during the software
update.
NOTE
If the software includes the driver update, disc tray
may open during the process.
9. When update is completed, the message,
“Update is complete.” will appear, and then
power will turn off automatically after 5
seconds.
10. Turn the power back on. The system now
operates with the new version.
5. Select [OK] to download the update.
(Selecting [Cancel] will end the update.)
6. The player starts downloading the newest
update from the server. (Downloading will
takes several minutes depending on your
home network condition)
8. Select [OK] to start updating.
(Selecting [Cancel] will end the update and
downloaded file will not be re-usable. To
update software the next time, the software
update procedure has to be started from
the beginning again.)
Appendix
7. When downloading is completed, the
message, “Download is complete. Do you
want to update?” appears.
NOTE
The Software Update function may not work
properly depending on your internet environment.
In this case, you can obtain the latest software from
the authorized LG Electronics Service Centre then
update your player. Refer to “Customer Support” on
page 62.
7
68
Appendix
Video output resolution
Video Out
Resolution
HDMI OUT
576i
576p
576p
576p
720p
720p
1080i
1080i
1080p / 24 Hz
1080p / 24 Hz
1080p / 50 Hz
1080p / 50 Hz
HDMI OUT connection
Appendix
7
•
For the 576i resolution setting, real output
resolution of HDMI OUT will change to
576p.
•
If you select a resolution manually and then
connect the HDMI jack to TV and your TV
does not accept it, the resolution setting is
set to [Auto].
•
If you select a resolution that your TV
does not accept, the warning message
will appear. After resolution change,
if you cannot see the screen, please
wait 20 seconds and the resolution will
automatically revert back to the previous
resolution.
•
The 1080p video output frame rate may
be automatically set to either 24 Hz or
50 Hz depending both on the capability
and preference of the connected TV and
based on the native video frame rate of the
content on the BD-ROM disc.
VIDEO OUT connection
The resolution of the VIDEO OUT jack is always
outputted at 576i resolution.
Appendix
69
Trademarks and Licences
“Blu-ray Disc” is a trademark.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
“BD-Live™” logo is a trademark of Blu-ray Disc™
Association.
“BONUSVIEW™” is trademark of Blu-ray Disc™
Association.
Java and all Java-based trademarks and logos
are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and other
countries.
DivX is a registered trademark of DivX, Inc., and is
used under licence.
“x.v.Colour” is a trademark of Sony Corporation.
Appendix
Manufactured under licence from Dolby
Laboratories. Dolby, Pro Logic, and the double-D
symbol are trademarks of Dolby Laboratories.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
7
Manufactured under licence under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;
6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 &
other U.S. and worldwide patents issued & pending.
DTS and the Symbol are registered trademarks,
& DTS-HD, DTS-HD Master Audio | Essential and
the DTS logos are trademarks of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
70
Appendix
“AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
This product is licenced under the AVC patent
portfolio licence and VC-1 patent portfolio licence
for the personal and non-commercial use of a
consumer to (i) encode video in compliance
with the AVC Standard and VC-1 Standard (“AVC/
VC-1 Video”) and/or (ii) decode AVC/VC-1 Video
that was encoded by a consumer engaged in
a personal and non-commercial activity and/or
was obtained from a video provider licenced to
provide AVC/VC-1 Video. No licence is granted
or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
Appendix
7
Appendix
Specifications
General
• Power requirements:
AC 200-240 V, 50/ 60 Hz
• Power consumption:
55 W
71
Amplifier
• Power output (4 Ω), (PEAK)
Total
400 W
Front
125 W x 2
Sub-Woofer
150 W (Passive)
• Power output (4 Ω), (RMS), THD 10 % (4 Ω/ 3 Ω)
Total
300 W
Front
90 W x 2
Sub-Woofer
120 W (Passive)
• Dimensions (W x H x D):
Approx. 436 x 185 x 142 mm without foot
• Net Weight (Approx.):
3.0 kg
System
• Operating temperature:
41 °F to 95 °F (5 °C to 35 °C)
• Laser:
Semiconductor laser
Wavelength: 405 nm / 650 nm
• Operating humidity:
5 % to 90 %
• Signal system:
Standard NTSC/PAL colour TV system
• Bus Power supply (USB):
DC 5V
500 mA
• Frequency response:
20 Hz to 20 kHz (48 kHz, 96 kHz, 192 kHz sampling)
• Signal-to-noise ratio:
More than 85 dB
Inputs/ Outputs
• VIDEO OUT:
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
• HDMI OUT (video/audio):
19 pin (HDMI standard, Type A, Version 1.3)
• DIGITAL IN (OPTICAL 1/2):
3 V (p-p), Optical jack x 2
• PORT. IN:
0.5 Vrms (3.5 mm stereo jack)
Tuner
• FM Tuning Range:
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
• Dynamic range:
More than 90 dB
• LAN port:
Ethernet jack x 1, 10BASE-T/100BASE-TX
Speakers
• Front speaker (Left/ Right)
Type:
Impedance Rated:
Input Power:
Max. Input power:
Net Dimensions
(W x H x D):
Net Weight:
• Subwoofer
Type:
Impedance Rated:
Input Power:
Max. Input power:
Net Dimensions
(W x H x D):
Net Weight:
2 Way 2 speaker
4Ω
125 W
250 W
110 x 222 x 107 mm
1.15 kg
1 Way 1 speaker
3Ω
150 W
300 W
190 x 385 x 318 mm
5.0 kg
Appendix
• Analogue AUDIO IN:
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
• Total harmonic distortion:
0.05 % at 1 W
7
72
Appendix
Important Information
Relating to Network
Services
PLEASE READ CAREFULLY. USE OF THE NETWORK
SERVICES IS SUBJECT TO THE FOLLOWING TERMS
AND CONDITIONS.
Use of the Network Services requires an Internet
connection which is sold separately and for which
you are solely responsible. The Network Services may
be limited or restricted depending upon the quality,
capabilities and technical limitations of your Internet
service.
The Network Services belong to third parties and
may be protected by copyright, patent, trademark
and/or other intellectual property laws. The Network
Services are provided sol\ely for your personal and
noncommercial use. Unless expressly authorized by
the respective content owner or service provider,
you shall not modify, copy, republish, upload, post,
transmit, translate, sell, create derivative works,
exploit, or distribute in any manner or medium any
content or services accessible through this product.
Appendix
7
LG IS NOT RESPONSIBLE FOR YOUR USE OF
THE NETWORK SERVICES. THE NETWORK
SERVICES ARE PROVIDED “AS IS.” TO THE FULLEST
EXTENT PERMISSIBLE BY LAW, LG MAKES NO
REPRESENTATIONS OR WARRANTIES OF ANY KIND
WHATSOEVER (i) FOR THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY
NETWORK SERVICE MADE AVAILABLE THROUGH
THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES
ARE FREE OF VIRUSES OR OTHER COMPONENTS
THAT MAY INFECT, HARM, OR CAUSE DAMAGE TO
THIS PRODUCT, YOUR COMPUTER, TELEVISION,
OTHER EQUIPMENT, OR ANY OTHER PROPERTY. LG
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
UNDER NO CIRCUMSTANCES AND UNDER NO
LEGAL THEORY, WHETHER IN CONTRACT, TORT,
STRICT LIABILITY OR OTHERWISE, SHALL LG BE
LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY,
CONSEQUENTIAL OR OTHER DAMAGES OR
ATTORNEY FEES OR EXPENSES RELATING TO OR
ARISING OUT OF THE NETWORK SERVICES EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
IF SUCH DAMAGES COULD HAVE BEEN REASONABLY
FORESEEN.
The Network Services may be terminated or
interrupted at any time, and LG makes no
representation or warranty that any Network Service
will remain available for any period of time. Use of the
Network Services may be subject to additional terms
and conditions of the respective third party service
provider. The Network Services are transmitted by
third parties by means of networks and transmission
facilities over which LG has no control. LG EXPRESSLY
DISCLAIMS ANY RESPONSIBILITY OR LIABILITY
FOR ANY INTERRUPTION OR SUSPENSION OF ANY
NETWORK SERVICE.
LG shall be neither responsible nor liable for
customer service related to the Network Services.
Any question or request should be made directly to
the respective Network Service providers.
“Network Service(s)” means the third party services
accessible through this product including but
not limited to all data, software, links, messages,
video and other content found thereon or used in
connection therewith.
“LG” means LG Electronics, Inc. its parent company
and all of their respective subsidiaries, affiliates and
related companies worldwide.
Appendix
Open source software
notice
The following GPL executables and LGPL libraries
used in this product are subject to the GPL2.0/
LGPL2.1 License Agreements:
GPL EXECUTABLES: Linux kernel 2.6, bash, busybox,
cramfs, dhcpcd, e2fsprogs, fdisk, mkdosfs, mtd-utils,
net-tools, procps, samba-3.0.25b, sysutils, tcpdump,
tftpd, tinylogin, unzip, utelnetd
LGPL LIBRARIES: uClibc, DirectFB, blowfish, cairo,
ffmpeg, iconv, libusb, mpg123
gSOAP Public License 1.3 LIBRARY: gsoap
LG El ectronics offers to provide source code to
you on CD-ROM for a charge covering the cost of
performing such distribution, such as the cost of
media, shipping and handling upon e-mail request
to LG Electronics at: [email protected]
This offer is valid for a period of three(3) years from
the date of the distribution of this product by LG
Electronics.
You can obtain a copy of the GPL, LGPL licenses
from http://www.gnu.org/licenses/old-licenses/gpl2.0.html and http://www.gnu.org/licenses/oldlicenses/lgpl-2.1.html .
This software is based in part on the work of the
Independent JPEG Group copyright © 1991 - 1998,
Thomas G. Lane.
This product includes
• boost C++: copyright © Beman Dawes 1999-2003
• c-ares : copyright © 1998 by the Massachusetts
Institute of Technology
• curl: copyright © 1996 - 2008, Daniel Stenberg
• expat: copyright © 2006 expat maintainers
• freetype: copyright © 2003 The FreeType Project
(www.freetype.org).
• jpeg: This software is based in part on the work of
the Independent JPEG Group copyright © 1991 –
1998, Thomas G. Lane.
• mng: copyright © 2000-2007 Gerard Juyn, Glenn
Randers-Pehrson
• ntp : copyright © David L. Mills 1992-2006
• OpenSSL:
– cryptographic software written by Eric Young
([email protected]).
– software written by Tim Hudson
([email protected]).
– software developed by the OpenSSL Project
for use in the OpenSSL Toolkit.
(http://www.openssl.org)
• png: copyright © 2004 Glenn Randers-Pehrson
• portmap : copyright © 1990 The Regents of the
University of California
• ptmalloc : copyright © 2001-2006 Wolfram Gloger
• UnitTest++ : copyright © 2006 Noel Llopis and
Charles Nicholson
• UPnP SDK : copyright © 2000-2003 Intel
Corporation
• strace :
copyright © 1991, 1992 Paul Kranenburg
copyright © 1993 Branko Lankester
copyright © 1993 Ulrich Pegelow
copyright © 1995, 1996 Michael Elizabeth Chastain
copyright © 1993, 1994, 1995, 1996 Rick Sladkey
copyright © 1999,2000 Wichert Akkerman
• xml2 : copyright © 1998-2003 Daniel Veillard
• XML-RPC For C/C++:
copyright © 2001 by First Peer, Inc. All rights
reserved.
copyright © 2001 by Eric Kidd. All rights reserved.
• zlib: copyright © 1995-2002 Jean-loup Gailly and
Mark Adler.
All rights reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation files (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to
the following conditions:
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
Appendix
Also you can obtain a copy of gSOAP public license
from http://www.cs.fsu.edu/~engelen/license.html.
73
7
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
