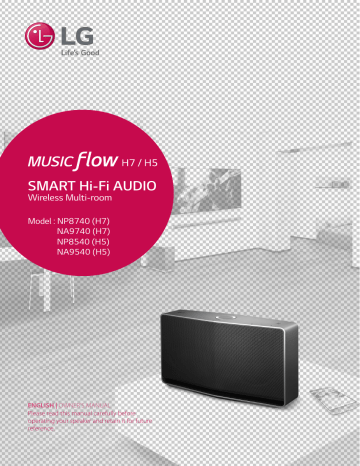

SMART Hi-Fi AUDIO
Wireless Multi-room
Model : NP8740 (H7)
NA9740 (H7)
NP8540 (H5)
NA9540 (H5)
ENGLISH | OWNER’S MANUAL
Please read this manual carefully before
operating your speaker and retain it for future
reference.
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not use high voltage products
around this product. (ex. Electrical swatter) This
product may malfunction due to electrical shock.
NOTICE: For safety marking information including
product identification and supply ratings, please
refer to the main label on the bottom or rear of the
apparatus.
For models using an adapter
Only use the AC adapter supplied with this device.
Do not use a power supply from another device or
another manufacturer. Using any other power cable
or power supply may cause damage to the device
and void your warranty.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
Getting Started
CAUTION:
yy The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
yy To avoid fire or electric shock, do not open the
unit. Contact to qualified personnel only.
yy Do not leave the unit in a place near the heating
appliances or subject to direct sunlight, moisture,
or mechanical shock.
yy To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth
lightly moistened with a mild detergent solution.
Do not use strong solvents such as alcohol,
benzine, or thinner, as these might damage the
surface of the unit.
yy Do not use volatile liquids such as insecticide
spray near the unit. Wiping with strong pressure
may damage the surface. Do not leave rubber
or plastic products in contact with the unit for a
long period of time.
yy Do not place the unit over the vehicle’s air bag.
When the air bag deploys, it may result in injury.
Before using in the car, fix the unit.
yy Do not leave the unit on an unstable place such
as high shelves. It may fall down because of the
vibration of the sound.
Disposal of your old appliance
1. This crossed-out wheeled bin symbol
indicates that waste electrical and
electronic products (WEEE) should
be disposed of separately from the
municipal waste stream.
2. Old electrical products can contain
hazardous substances so correct
disposal of your old appliance will
help prevent potential negative
consequences for the environment
and human health. Your old
appliance may contain reusable
parts that could be used to repair
other products, and other valuable
materials that can be recycled to
conserve limited resources.
3. You can take your appliance either
to the shop where you purchased
the product, or contact your local
government waste office for details
of your nearest authorised WEEE
collection point. For the most up to
date information for your country
please see www.lg.com/global/
recycling
1
Getting Started
yy No naked flame sources, such as lighted candles,
should be placed on the apparatus.
3
4
Getting Started
Declaration of Conformity
1
Getting Started
Hereby, LG Electronics European Shared Service
Center B.V., declares that this Wireless Multi-room
Audio is compliant with the essential requirements
and other relevant provisions of Directive 1999/5/
EC. The complete Declaration of Conformity may
be requested through the following postal address:
LG Electronics European Shared Service Center B.V.
European Standard Team
Krijgsman 1
1186 DM Amstelveen
The Netherlands
or can be requested at our dedicated DoC website:
http://www.lg.com/global/support/cedoc/cedoc#
This device is a 2.4 GHz and 5 GHz wideband
transmission system, intended for use in all EU
member states and EFTA countries, with indoor use
restriction for 5 GHz band. (5150 – 5250 MHz)
This device should be installed and operated with
minimum distance
20 cm between the device and your body.
And this phrase is for the general statement for
consideration of user environment.
Table of Contents
Table of Contents
1
Getting Started
2
Safety Information
7
Main Features
7Accessories
7Introduction
8
Top Panel
9
Rear Panel
2Connecting
10
11
11
11
12
13
14
15
15
16
17
17
20
23
27
27
29
31
Connecting the AC Adapter
Initial Multi-Room Setup
– Wired connection (MUSICflow Mesh
Network Connection)
– Wireless connection (Standard
Wireless Connection)
Installing “Music Flow Player” App
– Starting with Music Flow Player app
– Simple Connection (EZ Setup)
Using Media Server for PC
– Music Flow PC Software for windows
– Nero MediaHome 4 Essentials for
Mac OS
Connecting the speaker to your Home
Network
– Connecting the speaker to your
network with a LAN cable
– Connecting the speaker to your
Network via the Wi-Fi Setup Method
(Android)
– Connecting the speaker to your
Network via the Wi-Fi Setup Method
(iOS)
Connecting the speakers to your Home
Network (Additional)
– Connecting the additional speaker to
your network with a LAN cable
– Connecting the additional speaker
to your network via the Wi-Fi Setup
Method (Android)
Using the Bridge
31
33
35
35
35
5
– Use as a root device
(wired to the home router)
– Use as a wireless extender
Basic Operations
– Using 1/!/F button
– Using volume button
3Operating
36 Enjoying the Music with Music Flow Player
app
36 – Overview of Home menu
37 – Overview of the side menu
38 – Playing a song
39 – Overview of Playback
41 – Group Playback
42 – Seamless playback
44 Using LG HomeChat
44 – About LG HomeChat
44 – How to start LG HomeChat
46 – Usage Examples
47 Setting the Speaker with Music Flow
Player app
47 – Overview of setting menu
48 – [General] Menu
48 – [Speakers] Menu
49 – [Alarms/Sleep Timer] Menu
49 – [Music Library] Menu
49 – [Account management] Menu
49 – [Time Zone] Menu
50 – [Advanced Settings] Menu
52 – [Google Cast] Menu
52 – [Version Info.] Menu
52 – [Open source licenses] Menu
53 Using a Bluetooth Wireless Technology
53 – About Bluetooth
53 – Bluetooth profiles
53 – Listening to Music of a Bluetooth
Device
54 – NFC for Easy Pairing
(Android Only)
55 Listening to Music from Your External
Device
55 Standby mode
55 – Standby mode
55 – Network standby mode
1
2
3
4
5
6
Table of Contents
56 Reset the Speaker
56 – Resetting the speaker
56 – Resetting the Music Flow R1
4Troubleshooting
57Troubleshooting
57 – General
58 – Network
59 – Application and PC Software
5Appendix
60 File requirement
60 Trademarks and Licenses
61 About Status LED’s Condition
62Specifications
63 Handling the Speaker
63 Important Information Relating to
Network Services
64 TERMS OF USE
Some of the content in this manual may differ from Music Flow Player app depending on the
application’s version.
Getting Started
Main Features
Accessories
Please check and identify the supplied accessories.
Enjoys music from iPod/iPhone/iPad or Android
device with simple connection.
Portable In
Listens to music from your portable device.
Music Flow Player application
Listens to music stored on your smart device.
You can control this speaker with your iPod touch/
iPhone/iPad or Android device via Music Flow
Player app. This speaker and your smart device
must be connected to the same network. Visit
“iTunes store” or “Google Play Store” or use the QR
code shown below to search for “Music Flow Player”
app. For detailed information, refer to page 12.
AC adapter (1)
Power cord (1)
Introduction
Symbol used in this manual
,,Note
Indicates special notes and operating features.
>>Caution
Indicates cautions for preventing possible damages
from abuse.
(Android OS)
(Apple iOS)
yy Depending on the application’s version and the
settings of smart device, Music Flow Player app
may not be operated normally.
yy Some smart devices may not be compatible with
this speaker.
1
Getting Started
Made for iPod/iPhone/iPad or
Android device
7
8
Getting Started
Top Panel
1
Getting Started
a 1/!/F button
- Power On / Changing the mode
- Switching to the standby mode (page 35)
bVolume wheel
Turn the wheel clockwise to increase volume, or
counterclockwise to decrease volume.
c
Bluetooth status LED (page 61)
d
Portable In status LED (page 61)
e
Network status LED (page 61)
f
NFC Tag (page 54)
g Speaker
Getting Started
9
Rear Panel
1
Getting Started
a Speaker duct
A hole for plentiful bass sound on speaker
cabinet.
d DC IN (AC adapter input)
b Wi-Fi SETUP button
Connects initial MUSICflow product to your
network wirelessly. (page 20)
f ETHERNET
Connects the speaker to your network using a
LAN cable.
c ADD button
Adds additional MUSICflow products to your
network. (In case one or more MUSICflow
products are connected) (page 27)
e PORTABLE IN
Listens to music from your portable device.
10
Connecting
Connecting the AC
Adapter
Connect the speaker to the power supply with the
supplied AC adapter.
1. Connect the supplied AC power cord to the AC
adapter.
2
Connecting
2. Connect the AC adapter cable to DC. IN adapter
input.
3. Plug the AC power cord into an AC outlet.
AC Adapter
AC power cord
>>Caution
Only use the AC adapter supplied with this
device. Do not use a power supply from
another device or manufacturer. Using any
other power cable or power supply may cause
damage to the device and void your warranty.
Connecting
Initial Multi-Room
Setup
When installing the MUSICflow product for the first
time, you can choose two types of connection as
below.
Connect your speaker to the home router using
LAN cable.
Wireless connection (Standard
Wireless Connection)
When the wired connection is unavailable between
your speaker and home router, this unit offers
music streaming service within home router’s Wi-Fi
coverage.
Connect one of the your speaker to the home
router wirelessly.
Then you can connect the additional MUSICflow
products (Optional) to your home network
wirelessly. Refer to “Connecting the speakers to
your Home Network (Additional)” on page 27.
Then you can connect the additional MUSICflow
products (Optional) to your home network
wirelessly. Refer to “Connecting the speakers to
your Home Network (Additional)” on page 27.
Wireless signal
LAN Cable
2
Connecting
Wired connection (MUSICflow
Mesh Network Connection)
11
12
Connecting
Installing “Music Flow
Player” App
Through QR code
Install “Music Flow Player” app through QR code.
Scan the QR code using the scanning application.
Through “iTunes store” or “Google
Play Store”
2
1. Tap the “iTunes store” icon or “Google Play Store”
icon.
Connecting
2. Type in “Music Flow Player” in the search bar and
tap “Search”.
3. Select “Music Flow Player” in the search result list
to download.
,,Note
yy Music Flow Player app will be available in
version of the software as follow;
Android O/S : Ver 4.0 (or later)
iOS O/S : Ver 6.0 (or later)
yy Depending on the device, “Music Flow
Player” app may not work.
(Android OS)
(Apple iOS)
,,Note
yy Make sure that your smart device is
connected to the internet.
� Make sure that your smart device has a
scanning application. If you don’t have,
download it from “iTunes store” or “Google
Play Store”.
Connecting
Starting with Music Flow
Player app
13
3. Select [Connect product] to install the speaker
you’ve purchased.
When you launch Music Flow Player app for the
first time, the terms of use and Google Cast Service
appear on the screen.
1. Check the contents of terms of use and select
[Accept].
2
Refer to “Connecting the speaker to your Home
Network” on page 17.
,,Note
If you want to return to the terms of use
screen, initialize the Music Flow Player app on
the smart device’s setting menu.
2. Check the contents of Google Cast Service and
select [Accept].
Connecting
14
Connecting
Simple Connection (EZ Setup)
Preparation
3. If the network password is set, security screen is
displayed. Type the password.
yy For Simple Connection, Wi-Fi network condition
is needed.
yy Make sure that the Bluetooth setting on your
smart device in on.
2
Connecting
,,Note
yy Simple Connection is supported by
Bluetooth Ver 4.0 (or higher).
yy If Simple Connection screen is not displayed
on the screen, refer to “Connecting the
speaker to your Home Network” on page 17.
4. After typing password, tap [Next].
1. Plug in the desired device, and tap [Next].
5. Tap [Finish] to finish making the connection.
2. App searches for the speaker and connects it
automatically, Tap [Next].
or
Connecting
15
,,Note
Using Media Server for
PC
yy Music Flow PC Software is not supported
with Mac OS. In case of Mac OS, you can use
the Nero MediaHome.
Media server Software allows users to access audio
files stored in media server and enjoy them on this
speaker via home networking.
yy The Music Flow PC Software is a customized
software edition only for sharing files and
folders to this speaker.
Before connecting to PC to play a file, Media server
Software should be installed on your PC.
yy If you want a full explanation about Music
Flow PC Software, click the question marked
icon on home menu.
Make sure that wireless network environment
using a router is installed at your home.
System requirements (Windows PC)
yy CPU : Intel® 2.0 GHz or AMD Sempron™ 2000+
processors
yy Windows : Music Flow PC Software
yy Memory : 1 GB of free RAM
yy Mac OS : Nero MediaHome 4 Essentials
yy Graphics card : 64 MB video memory, minimum
resolution of 1024 x 768 pixels, and 16 bit color
settings
Music Flow PC Software for
windows
yy Free Disk Space : 200 MB
yy Windows® XP (Service Pack 2 or higher), Windows
Vista®, Windows® 7, Windows® 8.0, Windows® 8.1
About Music Flow PC Software
yy Windows® Media Player® 11.0 or higher
Music Flow PC Software makes you enjoy the
audio files stored on your media server (PC) via the
speaker.
yy Network environment: 100 MB Ethernet, WLAN
Downloading Music Flow PC
Software
1. Start up your computer, visit http://www.lg.com.
If necessary, select your region.
2. Click support tab.
3. Fill your model name on the cover of owner’s
manual in search bar.
4. Find and download the “Music Flow PC
Software” file.
Installing Music Flow PC Software
1. Before installation, close all running programs
including firewall and Anti-Virus programs.
2. Unzip and double-click “Setup.exe” to install
Music Flow PC Software. The installation is
prepared and the installation wizard appears.
3. Follow the directions of the installation wizard
displayed on the screen.
4. Click the [Exit] button to complete the
installation.
Sharing music files
On your computer, you must share the folder
contained music files to play them on this speaker.
This parts explains the procedure for selecting the
shared folders on your computer.
1. Double-click the “Music Flow PC Software” icon.
2. Click [ ] icon in the upper-right-hand corner
of the screen. The setting menu appears.
3. On the setting menu, click [ ] icon on the left
to go to the sharing file menu.
4. On the sharing file menu, Click [ ] icon to
open the [Browse Folder] window.
5. Select the folder containing the files you want
to share. The selected folder is added to the list
of shared folders.
2
Connecting
,,Note
16
Connecting
Nero MediaHome 4 Essentials
for Mac OS
System requirements (Macintosh)
About Nero MediaHome Essentials
yy Hard drive space: 200 MB hard drive space
for a typical installation of Nero MediaHome
standalone
Nero MediaHome 4 Essentials is a software for
sharing video, audio and photo files stored on your
computer to this speaker as a digital media server.
2
Connecting
Downloading Nero MediaHome
Essentials
1. Start up your computer, visit http://www.lg.com.
If necessary, select your region.
2. Click support tab.
yy Mac OS X 10.5 (Leopard) or 10.6 (Snow Leopard)
yy Macintosh computer with an Intel x86 processor
yy Memory: 256 MB RAM
Sharing music files
On your computer, you must share the folder
contained music files to play them on this speaker.
This parts explains the procedure for selecting the
shared folders on your computer.
3. Fill your model name on the cover of owner’s
manual in search bar.
1. Double-click the “Nero MediaHome 4 Essentials”
icon.
4. Find and download the “Nero MediaHome 4
Essentials” file.
2. Click [Network] icon on the left and define your
network name in the [Network name] field. The
Network name you enter will be recognized by
your player.
Installing Nero MediaHome
Essentials
1. Before installation, close all running programs
including firewall and Anti-Virus programs.
2. Unzip and double-click NeroMediaHome.
dmg file, In the Nero MediaHome window,
drag the Nero MediaHome icon either to the
Applications folder within the window or to any
other desired location.
3. Follow the directions of the installation wizard
displayed on the screen.
4. Click the [Exit] button to complete the
installation.
3. Click [Shares] icon on the left.
4. Click [Local Folders] tab on the [Shares] screen.
5. Click [Add] icon to open the [Browse Folder]
window.
6. Select the folder containing the files you want
to share. The selected folder is added to the list
of shared folders.
7. Click [Start Server] icon to start the server.
Connecting
Connecting the
speaker to your Home
Network
Connecting the speaker to
your network with a LAN cable
Connection overview
Broadband
service
Using a wired network provides the best
performance, because the attached devices
connect directly to the network without radio
frequency interference.
2
Router
Preparation
yy Make sure that wireless network environment
using a router is installed at your home.
yy Make sure that the speaker and the smart device
are connected to the same router.
yy Wireless router
yy Smart device (Android or iOS)
LAN
,,Note
yy Make sure that DHCP’s server is activated on
wireless router.
yy If you cannot connect the speaker with your
router, go to setting of the router and then
make sure that “Allow wireless client to see
each other and access my local network”
box is unchecked.
Rear of the speaker
Connecting
Please refer to the documentation for your network
device for further instructions.
Requirements
17
18
Connecting
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
5. Connect one end of the LAN cable to the
speaker’s ETHERNET port and connect the other
end to your wireless router.
Wait a moment until
Network status LED
stops blinking and stays white.
2
Connecting
6. Then select [Next] on the screen.
3. Select the product you want to connect and
tap [Next] on the screen.
4. Select [Wired connection] on the screen.
Connecting
7. Select [Finish] to complete the connection.
19
,,Note
yy You cannot use the speaker without a
router. When using the wired router, you
can control the speaker with Music Flow PC
Software. (page 15)
yy The speaker and the smart device should be
connected to the same router.
2
8. This application is checking the Version of
software of your speaker and then shows the
version.
Select [Next] after checking the version
information.
9. Select [Start] to curate your music on your smart
device.
Connecting
(If there is an update)
20 Connecting
Connecting the speaker to
your Network via the Wi-Fi
Setup Method (Android)
Connection overview
2
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
Broadband
service
Connecting
Router
3. Select the product you want to connect and
tap [Next] on the screen.
Rear of the speaker
4. Select [Wireless connection] on the screen.
5. Then select [Next] on the screen.
Connecting
6. Press the Wi-Fi SETUP button on the rear of
the speaker. Then
Network status LED blinks
white and red alternately.
21
9.Then select [Next] on the screen.
2
Connecting
7.Then select [Next] on the screen.
8. If you have a password for your network, the
security screen appears on your smart device.
Enter your password.
10.Select [Finish] to complete the connection.
22 Connecting
(If there is an update)
11.This application is checking the Version of
software of your speaker and then shows the
version.
2
Connecting
Select [Next] after checking the version
information.
12.Select [Start] to curate your music on your smart
device.
,,Note
If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
Connecting 23
Connecting the speaker to
your Network via the Wi-Fi
Setup Method (iOS)
Connection overview
1. Plug the speaker into an electrical outlet. The
Network status LED starts to blink white.
2. On your smart device, launch Music Flow Player
app. Select [Connect product] to install the
speaker.
Broadband
service
2
Connecting
Router
3. Select the product you want to connect and
tap [Next] on the screen.
Rear of the speaker
4. Select [Wireless connection] on the screen.
5. Then select [Next] on the screen.
24 Connecting
6. Press the Wi-Fi SETUP button on the rear of
the speaker. Then
Network status LED blinks
white and red alternately.
8. On your iOS device, go to iOS setting -> WiFi setting and select “MusicFlow_Setup” to
connect.
2
Connecting
7. Then select [Next] on the screen.
,,Note
yy If “MusicFlow_Setup” is not on the list, scan
for available Wi-Fi networks again.
yy When your smart device is connected to
“MusicFlow_Setup”, you cannot use the
internet.
Connecting 25
9. If you have a password for your network, the
security screen appears on your smart device.
Enter your password.
12.Select [Complete] to complete the connection.
2
10.Then select [Next] on the screen.
11.Then select [Next] on the screen.
Connecting
,,Note
If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
26 Connecting
Notes on Network Connection
yy Many network connection problems during set
up can often be fixed by re-setting the router.
After connecting the speaker to the home
network, quickly power off and/or disconnect
the power cable of the home network router or
cable modem. Then power on and/or connect
the power cable again.
2
Connecting
yy Our company is not responsible for any
malfunction of the speaker and/or the internet
connection feature due to communication
errors/malfunctions associated with your
broadband internet connection or other
connected equipment.
yy The wireless network operate at 2.4 GHz
radio frequencies that are also used by other
household devices such as cordless telephone,
Bluetooth® devices, microwave oven, and can be
affected by interference from them.
yy Turn off all unused network equipment in
your local home network. Some devices may
generate network traffic.
yy If the speaker fails to connect to your network
or its network connection operates abnormally,
place the speaker closer to your router and try
again.
yy Depending on your home network environment
and the performance of wireless router, it may
not work well to connect the speaker to your
wireless router.
yy You cannot connect the speaker to wireless
router which has hidden SSID.
yy The connection you’ve made may be
disconnected if you select other application or
change the setting of the connected speaker via
“Music Flow Player” app. In such a case, please
check the connection status.
yy Even After connection of Music Flow Player app,
music may be output from your smart device. In
this case, select the connected speaker on the
playback screen.
yy Depending on the speed of your network,
playback of online contents may not work well.
yy Wireless signal interference may lead to
disconnection of network or stopping playback.
yy You need to turn the speaker’s power off and on
again if you restart the router.
yy You need to perform a factory set and setup the
network connection for speaker, if you install
new router.
yy If you use other characters than the english
alphabet or digits for the SSID name of your
access point or wireless router, it may be
displayed differently.
Connecting 27
Connecting the
speakers to your Home
Network (Additional)
Connecting the additional
speaker to your network with a
LAN cable
Connection overview
You can enjoy the music with multiple speakers
and single smart device you have.
Broadband service
Requirements
Router
,,Note
Signal interference may lead to stop playback.
Speaker (Add)
LAN cable
Speaker (Main)
2
Connecting
yy Wireless router
yy Smart device (Android or iOS)
yy Another speaker
28 Connecting
1. Connect the speaker (Main) to your network.
Refer to “Connecting the speaker to your Home
network” on page 17.
4. Select the product you want to connect and
tap [Next] on the screen.
2. On your smart device, select the Music Flow
Player app. Tap the [Home] menu.
2
Connecting
5. Select [Wired connection] on the screen.
3. Select the [Add Speaker] on the side menu.
,,Note
You can also add another speaker by using
button on the screen of [Connected
Speakers].
6. Connect one end of the LAN cable to the
speaker’s ETHERNET port and connect the other
end to your wireless router.
Wait a moment until the LED indicator stops
blinking and stays white.
Connecting 29
7. Then select [Next] on the screen.
Connecting the additional
speaker to your network via
the Wi-Fi Setup Method
(Android)
Connection overview
Broadband service
8. Select [Finish] to complete the connection.
LAN cable
Speaker (Main)
Speaker (Add)
Connecting
Router
2
30 Connecting
1. Connect the speaker (Main) to your network.
Refer to “Connecting the speaker to your Home
network” on page 17.
4. Select the product you want to connect and
tap [Next] on the screen.
2. On your smart device, select the Music Flow
Player app. Tap the [Home] menu.
2
Connecting
5. Select [Wireless connection] on the screen.
3. Select the [Add Speaker] on the side menu.
6. Press the ADD button on the rear of the speaker
(Add). Then
Network status LED blinks red.
,,Note
You can also add another speaker by using
button on the screen of [Connected
Speakers].
Connecting
7. Then select the [Next] on the screen.
31
Using the Bridge
Use as a root device
(wired to the home router)
When your home router is located too far from any
speaker location that is to be connected via wired
mode, connect the Bridge (R1) to your home
router with LAN cable.
8. Select [Finish] to complete the connection.
a
Bridge (R1)
1. Attach the power cord to the power port on
the rear of the Bridge (R1) and then plug the
power cord into an electrical outlet.
2. The power LED on the front of Bridge (R1)
turns on. On your smart device, launch Music
Flow Player app. Select [Connect product] to
install the speaker.
,,Note
Speakers may be not connected if the distance
between the Sound Bar (Main) connected
by LAN cable and the speaker (Add) to be
connected is too far.
Connecting
b
2
32 Connecting
3. Select the [Bridge] and tap [Next] on the screen.
6. Select [Finish] to complete the connection.
4. Select [Wired connection] on the screen.
7. Connect the speaker to Music Flow R1. Refer
to the “Connecting the speakers to your Home
Network (Additional)” on page 27.
2
Connecting
5. Connect one end of the LAN cable to the
Bridge’s ETHERNET port, and connect the other
end to your wireless router.
Wait a moment until
Network status LED
stops blinking and stays white.
Connecting 33
Use as a wireless extender
3. Select the [Add Speaker] on the side menu.
When you want to expand MUSICflow mesh
network coverage, add the Bridge (R1) to your
home network.
b
a
2
If you want to use this connection, Initial MUSICflow
product is connected to your home router with
LAN cable.
1. Attach the power cord to the power port on
the rear of the Bridge (R1) and then plug the
power cord into an electrical outlet.
,,Note
You can also add another speaker as below.
2. The power LED on the front of Bridge (R1)
turns on. On your smart device, select the Music
Flow Player app. Tap the [Home] menu.
4. Select the Bridge and tap [Next] on the screen.
Connecting
Bridge
34 Connecting
5. Then select the [Next] on the screen.
2
Connecting
6. Select [Finish] to complete the connection.
Operating 35
Basic Operations
Using volume button
Using 1/!/F button
Turn the wheel clockwise to increase volume, or
counterclockwise to decrease volume.
Power On
Press the 1/!/F button.
Press and hold the 1/!/F button for 5 seconds.
(page 55)
,,Note
The speaker switches to the standby mode
if there is no music playback or no button
operation for 20 minutes.
Changing the mode
When turning on the speaker, you can change the
mode. Press 1/!/F button repeatedly, the mode
is changed with status LED.
(Network -> Bluetooth -> Portable In)
,,Note
If you do not connect external device with
portable cable, you cannot select the Portable
In mode using 1/!/F button.
3
Operating
Standby mode
36 Operating
Enjoying the Music
with Music Flow Player
app
Overview of Home menu
Launch Music Flow Player app on your smart
device. The [Home] appears.
With Music Flow Player app, you can play music in
your smart device.
,,Note
yy For more detailed instruction about Music
Flow Player app, switch on the [User Guide]
in [Settings] > [General] on the side menu.
3
yy Some of the content in this part may differ
from Music Flow Player app depending on
the application’s version.
Operating
Preparation
a
Recommendation – Click the sentence area
to see the recommendation.
1. Check the network connection with the
speaker. (page 17)
Online Streaming Service – Displays the
b online services. You can enjoy the online radio
and music.
2. To use the speaker, you must download and
install the Music Flow Player app. (page 12)
c Favorites– Displays the favorites songs
d
Most Played – Displays the songs most
played on this speaker.
e My Playlists – Displays the playlists.
f
Timeline – Displays the songs played on this
speaker.
,,Note
Depending on your smart device’s OS or
version of “Music Flow Player” app, some of the
content in this manual may differ.
Operating 37
Edit the Online streaming Service
list
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
Overview of the side menu
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
2. Tap the [Home] menu.
2. Tap the [EDIT] menu.
3
yy Select the checkbox of the Online service you
want to see on Home.
yy Drag upwards or downwards to change the
order of the Online service.
yy Tap the
, add the online services.
In case of the Android device, you can add the
online services among the installed apps in the
device. If you select the added app, the app is
run during the Bluetooth pairing operation.
In case of the iOS device, when you connect
the added app, you should set the Bluetooth
connection for yourself.
,,Note
The displayed Online Streaming Services may
vary depending on your region.
a Home – Displays the Home menu.
b
My Phone – Displays the songs on this smart
device.
c
Music Library – Displays the songs on the
connected devices (Media server).
Streaming Services – Displays the online
d services. You can enjoy the online radio and
music.
e
Google Cast-enabled apps - Displays
available apps on Google Cast.
f
Mood Station – Listens to prefered music
among 15 mood themes.
g
Connected Speakers – Displays the
connected speaker.
h
Add Speaker – Goes to the speaker
installation screen.
i Settings – Displays the settings menu.
Operating
3. Side menu appears.
38 Operating
Playing a song
5. Select the desired song. Then selected song is
displayed and played.
1. Launch Music Flow Player app on your smart
device. The [Home] appears.
2. Tap the [Home] menu.
,,Note
3
Operating
3. Side menu appears.
Select the [My Phone] on the side menu.
4. Select the desired album.
If the speaker is not selected, the selecting
speaker pop-up appears. Select a desired
speaker.
Operating 39
Managing a playlist
Overview of Playback
On an album screen, tap the [ ] of the desired
song. The pull down menu appears.
You can confirm and adjust various information on
the playback screen.
3
Displays current playing music.
b
- Repeats the desired contents. Every time
you click it, the state changed in the
(Repeat One) (Repeat All) (Repeat Off ) order.
- Shuffles the music on the list. Music will
be played in random order.
Adjusts playback.
c
a Play next – Selects music to play next.
b Add to queue – Adds to queue list.
Tap the
c Add to playlist – Adds to a desired playlist.
,,Note
Depending on your wireless environment,
playing a song with the speaker may not work
smoothly.
- Adjusts the volume.
- Pauses playback.
/ - Skips fast backward or forward.
- Adjusts the sound effect.
d
e
, various option appears.
- Saves the music to the [Favorites]. You
can find [Favorites] on [Home] tab
- Adds music to [My Playlist].
- Shares on the social network services.
- Searches for more music that is similar to
the music being played.
- Edits the current playlist.
- Selects a speaker to play.
- Displays music menu.
Operating
a Displays the speaker that music plays through.
40 Operating
Selecting Sound effect
Sound Effect Description
This speaker has a number of pre-set surround
sound fields. You can select a desired sound mode
by tapping [ ].
Standard
You can enjoy optimized sound.
Bass
The Bass is Bass Blast. During
playback, reinforce the treble,
bass and surround sound effect.
Flat
Provides balanced sound.
Boost
Boosts the mid-range for sound
reinforcement.
Treble / Bass
Reinforces the treble and bass.
User EQ
You can adjust the sound effect.
The displayed items for the equalizer may be
different depending on sound sources and effects.
1. During playback, tap the [
] as below.
,,Note
When you play the songs with smart device’s
speaker, the sound equalizer is not supported.
3
Operating
2. Tap the A or D.
You can select the various sound effects.
Operating
Group Playback
You can group multiple speakers linked to the
Music Flow Player app and play the same music
through all the connected speakers in the same
group.
41
1. Select [Connected Speakers] on the side menu
of Music Flow Player app.
,,Note
If you want to enjoy the group playback and
Surround playback, it is recommended that at
least one speaker is connected by LAN cable.
To change speaker connection setting when
all the speaker have been already connected
wirelessly, reset all the speaker and connect
again after connecting the one speaker of
them.
2. Connected speakers appear.
Select the [ ] on the speaker desired song
plays through.
3
Operating
In the wireless connection, the smoothness of
playback is subject to the location of installed
speaker. Install the speakers at a short distance
from the router. To enjoy the smooth group
playback or surround playback wirelessly, it is
recommended to use the router supporting
802.11n. In this case, set the router’s security
mode setting to OPEN or AES.
42 Operating
3. Grouping option appears.
Tap the checkbox to select the speaker you
want to play with. Then select [OK].
Seamless playback
You can easily change the playing speaker from
your smart device or the speaker to the another
speaker without pause.
,,Note
yy It is not supported when you go out of the
house with your smart device.
yy Wi-Fi function on smart device must be
turned on.
yy If the source is Portable In and Bluetooth,
seamless play is not supported. (Media
server and online streaming service are
supported).
3
Operating
4. The speakers is ready to group playback.
yy In case of the online streaming service, the
music you are listening to is played from the
beginning.
yy On seamless play, each speaker keeps its
existing volume value. If no sound coming
out from the speaker during playback,
check the switched speaker’s volume is set
to 0.
,,Note
yy If the speakers are not grouped, you can
enjoy different music on each speaker.
yy It is recommended to connect less than 5
devices for the smooth playback.
yy The weak signal because of the long
distance between speakers or wireless
router and signal interference may cause
abnormal playback.
yy Depending on your wireless environment,
the grouping may be broken.
yy For smooth group playback, it is
recommended to select the speaker
connected by LAN cable as a master
speaker. If you set the master speaker
connected wirelessly, placed closer from the
speaker connected wired.
Operating 43
Changing playing speaker from a
smart device to a speaker
Changing the active speaker to a
different speaker without a pause
3
2. Select the speaker on the pop-up list, the music
you are listening to is played through without a
pause.
,,Note
yy Pop-up window disappears automatically in
below cases,
-- When you select the speaker on pop-up
list.
-- 10 seconds later after pop-up window
appears. (Android Only)
yy The latest connection is placed at the top of
the list on the pop-up window.
You can change the playing speaker to the another
speaker which is in the room you are in now using
NFC tagging.
,,Note
yy Music Flow Player app should be displayed
on the smart device’s screen.
yy In case of the grouped speakers, all the
speakers in the group are played when one
of the speakers in the group is NFC tagged.
yy Only Android device is available.
Operating
1. If the smart device playing music is carried from
outside to a room where the connected speaker
is in, the pop-up window on the smart device
will appear to ask you which speaker you want
to play music through.
44 Operating
Using LG HomeChat
,,Note
yy For more information,
see http://homechat.lge.com.
yy Depending on the region, the LG HomeChat
service may not be available.
About LG HomeChat
How to start LG HomeChat
Step 1. Install LINE
Please check if “LINE” application is installed on your
mobile device, and if not, search and install “LINE”
from your application market(Google Play Store,
Apple App Store, etc.).
,,Note
Additional data charges may occur if installed
over 3G/4G, according to your device plan.
yy What kind of service is LG HomeChat?
3
-- LG HomeChat service enables users to chat
with Smart home appliances in friendly, daily
language through mobile messenger LINE.
Operating
yy What kind of audio functions does LG HomeChat
provide?
-- Control : Play, Pause, Mood Station, Volume
Settings, Shuffle, Repeat, Alarm/Sleep Timer, etc.
-- Monitoring : Audio Status, View Alarm(s)/Sleep
Timer(s)
-- S ituation Scenario : Coming home, Sleeping and
Party mode
,,Note
Supported LG HomeChat functions may vary
over time.
Step 2. Adding LG HomeChat as a
friend on LINE
1. Launch LINE and tap “More > Official Accounts”
button.
2. Find “LG HomeChat” from the list or search for
“LG HomeChat” through search function and
select it.
3. Add “LG HomeChat” as friend, and you are ready
to chat with LG HomeChat.
Step 3. Agree to Service Terms and
Conditions
1. Please tap the Terms and Conditions link in your
LG HomeChat conversations.
2. Please confirm your age. (Age requirements
may vary for different countries.)
3. Read our terms and conditions, check off the
three boxes, and tap the “I Agree” button.
,,Note
For a safe appliance control, LG HomeChat
does not allow service to young children.
Please make sure young children do not use
LG HomeChat service.
Operating 45
Step 4. Connect audio to LG
HomeChat
1. To control your home appliance(s) through
HomeChat, you need to make sure that the
smart device installed Music Flow Player and
the speaker are connected to the same Wi-Fi
network and first register your speaker. Enter
“Register” for a link for product registration.
If you haven’t installed Music Flow Player app
already, refer to Installing “Music Flow Player”
App on page 12.
2. Click the audio button to connect product(s)
registered to Music Flow Player to LG HomeChat.
(For a pop-up asking for app install on Android”s
KitKat version, tap “yes”)
4. Connection successfully completed! Tap “Return
to LG HomeChat Conversations” and chat with
your product(s).
1. Call “Audio” to give command(s). Enter “Audio
What”s on now?” or “Audio Status” to check
current status of your audio.
2. Enter “Audio Commands” or “Audio Help” to see
the list of audio key functions and command
short-keys.
,,Note
yy If you have any questions during LG
HomeChat use, enter “Help” for various user’s
manuals.
yy For questions regarding products, contact
LG Electronics Service Center for a faster
response.
3
Operating
3. Product(s) with “Available” displayed on the
right is available for LG HomeChat service.
Select product(s) you wish to connect to LG
HomeChat, and tap “next”.
Step 5. Use LG HomeChat
46 Operating
Usage Examples
Mood station
Audio quick button
3
Operating
Analyzes the songs in Music Library using
Gracenote, and organizes them according to Mood.
,,Note
The organization may not be correct
depending on the audio file.
Audio Commands list
Coming home
.
Operating 47
Setting the Speaker
with Music Flow Player
app
Overview of setting menu
1. Launch Music Flow Player app on your smart
device.
2. Select [Settings] on the side menu.
With Music Flow Player app, you can set the
connected speaker in your smart device.
,,Note
yy For more detailed instruction about Music
Flow Player app, switch on the [User Guide]
in [Settings] > [General] on the side menu.
yy Some of the content in this part may differ
from Music Flow Player app depending on
the application’s version.
3
Operating
Preparation
1. Check the network connection with the
speaker. (page 17)
2. To use the speaker, you must download and
install the Music Flow Player app. (page 12)
a General – Sets for easier use of the speaker.
b Speakers – Sets connected speaker.
c
Alarms/Sleep Timer – Wakes on and off the
speaker at a designated time.
d
Music Library – Manages the music library
Library.
e
Account Management – Manages social
networking service and streaming services.
f Time zone- Sets time zone.
g
Advanced settings – Displays the Advance
settings menu. (Page 50)
h Google Cast - Displays the Google cast menu.
i
Version Info. – Updates the speaker to the
latest version.
j
Open source licenses – Shows LGE Open
Source Software Notice.
48 Operating
[General] Menu
[Speakers] Menu
Sets for easier use of the speaker.
You can adjust speakers connected to your
network.
Lock Screen Setting (Android only)
This function allows you to display the Music Flow
Player on the lock screen. (Lock screen setting is
[ON] by default.)
User Guide
This function allows you to display or delete the
guide on the menu.
Music Curation
3
Goes to the music curation.
Operating
a
b
c
d
e
f
g
h
a Rename – Renames the speaker.
b
Speaker LED – Turns on or off speaker’s LED
indicator.
c IP Info. – Shows the IP address of the speaker.
Compressed sound transmission – Adjusts
d the compression of audio source according to
network status.
e Initialize – Resets the speaker.
f
System version – Displays the current system
version.
Share usage data – Select whether to send
g Google cast usage data and crash reports to
Google.
h
Learn about Google Cast privacy – Shows
Privacy policy of Google cast.
Operating 49
[Alarms/Sleep Timer] Menu
[Music Library] Menu
Turns on and off the speaker at a designated time.
Manages the music library index.
Alarms
Sync Schedule
Speaker will let you know when it is time.
You can set the time to update the Music index
automatically. Select the days and time to perform
the update. (Sync Schedule is [OFF] by default.)
Deletes selected alarm.
Adds new alarm.
Sync
Sleep Timer
Manages the music library index.
Sets a time to automatically turn off the speaker.
1. Select the desired server and click the checkbox.
1. Select the speaker to set timer on [Sleep Timer]
in the [Alarms/Sleep Timer] menu.
3
Operating
2. Tap the [Update] to update the desired server.
2. Set the desired timer on selected speaker.
[Account management] Menu
Manages various social networking service and
online streaming service.
,,Note
In case of Music Flow Player app for iOS, social
networking service is supported with iOS 6.0
or later.
[Time Zone] Menu
Automatic Time zone
It offers to use network provided time.
Set Time Zone
If you deselect [Automatic Time zone], you can
select your time zone yourself.
50 Operating
[Advanced Settings] Menu
Mesh Network Channel
If normal playback or group playback is not smooth
using multiple speakers including wireless speaker
connection, changed the mesh network channel to
improve network speed.
1. Select the [Settings] -> [Advanced Settings]
option.
3
Operating
2. Select the [Mesh Network Channel] option.
The channel information now being used is
displayed.
3. Select the channel to change.
4. The channel information is updated to the
selected channel.
,,Note
yy The speaker is disconnected temporarily
during the channel changing.
yy If you changed the channel when the
speaker turned off, turn on and add it again.
yy If the speaker is not connected to network
after changing the channel, add the speaker
again.
Mesh Network direct connection
(Android only)
You can directly connect the smart device to
speaker connected your home network.
When your smart device is placed in a position
where it cannot connect to the home network,
select a nearby speaker in the [Mesh Network direct
connection] list and then connect the smart device
to the speaker.
Operating
Auto Music Play
Sensitivity Settings
You can easily change the rendering device from
your smart device or a speaker to another speaker
by approaching your smart device to the desired
speaker.
Sets the operating distance of Auto Music Play
between the speaker and your smart device to
adjust sensitivity of Bluetooth.
51
yy Your smart device should support Bluetooth
Smart.
yy This function is subject to the smart device
capability and the Wi-Fi network status.
yy Auto music play option in the music flow app
should be turned on.
yy This function may cause more battery
consumption.
2. Tag the smart device to LG Music Flow to play
for about 1 second.
3
-- Place your smart device close enough to the
tag on the speaker. It is recommend to be
within about 2 inches.
-- Set the slide bar at [Close], the leftmost
position.
-- Move the slide to the right slowly until the
notification appears.
,,Note
yy The smart device should support low power
Bluetooth (BLE).
yy BLE support specifications in case of android
can vary depending on the manufacturer.
Device
O/S
Android
Android 4.3 (or later)
Apple
iOS 7.1.2 (or later)
Operating
1. Turn on the [Auto Music Play] optio-n in the
Advanced settings menu on the music flow
app.
52 Operating
[Google Cast] Menu
[Version Info.] Menu
Learn how to cast
Updates the speaker to the latest version.
Shows to use Google Cast.
Google Cast Ready apps
Shows available apps on Google Cast.
Legal information
Select [Google Terms of Service], [Google Privacy
Policy] or [Open source license] to show the
selected information.
App version info.
Displays the current application’s version.
Device version info.
Updates the latest speaker’s firmware version.
1. Find the speakers need to update and tap the
[ ].
3
Operating
2. Starts the software update.
[Open source licenses] Menu
Shows LGE Open Source Software Notice.
Operating 53
Using a Bluetooth
Wireless Technology
1. Plug the speaker into an electrical outlet.
Press 1/!/F button on the speaker to select
bluetooth mode. Then
Bluetooth status LED
starts to blink with white.
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.
Available Devices : Android device, iOS device
3. Select the “Music Flow H5 (or H7) (XX:XX)”.
,,Note
Bluetooth profiles
XX:XX means the last four digits of BT address.
For example, if your speaker has a BT address
such as 9C:02:98:4A:F7:08, you will see “Music
Flow H5 (or H7) (F7:08)” on your Bluetooth
device.
In order to use Bluetooth wireless technology,
devices must be able to interpret certain profiles.
This speaker is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
Listening to Music of a
Bluetooth Device
4. When this speaker is successfully connected
with your Bluetooth device, the
Bluetooth
status LED stops blinking.
,,Note
Before you start the pairing procedure, make sure
that the Bluetooth feature on your smart device
is turned on. Refer to your Bluetooth device’s user
guide. Once a pairing operation is performed, it
does not need to be performed again.
yy Depending on the type of the Bluetooth
device, some devices have a different
pairing way.
yy Try pairing procedure if your device name is
not in the device list.
5. Listen to music.
To play music in your Bluetooth device, refer to
your Bluetooth device’s user guide.
According to your Bluetooth device’s volume
level, the volume level of Bluetooth will be
adjusted.
3
Operating
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges. A
mobile phone with Bluetooth® wireless technology
can be operated via the Cascade if the connection
was made via Bluetooth® wireless technology.
2. Operate the Bluetooth device and perform
the pairing operation. When searching for this
speaker on your Bluetooth device, a list of the
devices found may appear in the Bluetooth
device display depending on the type of
Bluetooth device. Your speaker appears as
“Music Flow H5 (or H7) (XX:XX)”.
54 Operating
,,Note
yy When using Bluetooth® technology, you
have to make a connection between the
unit and the bluetooth device as close as
possible and keep the distance.
However it may not work well in the case
below :
3
-- There is a obstacle between the unit and
the bluetooth device.
-- There is a device using same frequency
with Bluetooth® technology such as a
medical equipment, a microwave or a
wireless LAN device.
yy This unit supports Bluetooth auto pairing.
However it does not operate in the case
below:
Operating
-- When you restart this unit.
-- When you disconnect this unit by yourself.
-- When you disconnect this unit on the
connected Bluetooth device.
yy The sound may be interrupted when the
connection is interfered with by the some
other electronic wave.
yy You cannot control the Bluetooth device
with this unit.
yy Pairing is limited to “One” Bluetooth® device.
Multi-Pairing is not supported.
yy Depending on the type of the device,
you may not be able to use the Bluetooth
function.
yy You can enjoy using Bluetooth® when using
Phone, MP3, Notebook, etc..
yy The more distance between the unit and
the bluetooth device, the lower the sound
quality becomes.
yy The Bluetooth® connection will be
disconnected when the unit is turned off or
the Bluetooth® device gets too far from the
unit.
yy If the Bluetooth® connection is
disconnected, connect the Bluetooth®
device again.
NFC for Easy Pairing
(Android Only)
You can connect NFC-enabled android devices to
the speaker with Bluetooth function.
1. Activate the NFC feature on your NFC-enabled
android device.
2. Press 1/!/F button to turn on the speaker.
3. Tag the back of your NFC-enabled smart device
over the
mark on the speaker.
4. Select the desired track from your smart device’s
music list and the track you selected is played.
,,Note
yy NFC feature is not supported with iOS.
yy The NFC feature is built into Android devices
running Android O/S 4.1.2 or later.
yy You must activate the NFC feature on your
NFC-enabled smart device (Android).
yy Depending on the NFC-enabled android
device’s manufacturers and brands, NFC
feature may not work.
yy If your NFC-enabled device’s screen is
locked, it cannot read the NFC.
yy If your device’s case is plated with chrome,
NFC is unavailable. Depending on your
case’s material or thickness, NFC may not be
read well.
yy When you are enjoying the music with
Music Flow Player app, seamless playback is
activated instead of Bluetooth pairing.
Operating 55
Listening to Music
from Your External
Device
The speaker can be used to listen to the music from
many types of external device.
1. Connect the external device to the PORTABLE IN
on the speaker.
Standby mode
The speaker switches to the standby mode if there
is no music playback or no button operation.
Standby mode
Option 1.
If network is disconnected and there is no music
playback and no button operation for 20 minutes,
the speaker switches to the standby mode. Then
Network status LED turns red.
Option 2.
3
If you press and hold the 1/!/F button for 5
seconds, the speaker switches to the standby
mode. Then
Network status LED turns red.
Operating
Network standby mode
Portable cable
(Not supplied)
When network is connected but music is not
played and buttons are not pressed for 20 minutes,
the speaker switches to the network standby mode.
Then white
Network status LED dimmed.
,,Note
On the Network Standby Mode, if you press
1/!/F button, the latest music playlist will be
played.
External device
2. Press 1/!/F button repeatedly to select
Portable In mode. Then
Portable In status
LED starts to blink white.
3. When this speaker is successfully connected
with your external device, the
Portable In
status LED stops blinking.
4. Select the song to play on your smart device’s
music list.
56 Operating
Reset the Speaker
If the speaker is not turned on or doesn’t respond,
reset the speaker.
Resetting the speaker
yy Press and hold the ADD button until you hear
the beep sound once. Then all wireless network
ports are deactivated and the stored wireless
network information is deleted.
3
yy Press and hold the ADD button until you hear
the beep sound twice. You can reset the speaker
to its original factory settings.
Operating
Resetting the Music Flow R1
Press and hold the ADD button for 8 seconds to
delete the stored network information.
,,Note
After resetting the Music Flow R1, you must
unplug and plug in your speaker for a proper
connection with the Music Flow R1.
Troubleshooting 57
Troubleshooting
General
Symptoms
Cause & Solution
The unit does not work
properly.
yy Turn off the power of this unit and the connected external device (TV,
Woofer, DVD-player, Amplifier, etc.) and turn it on again.
yy Disconnect the power cord of this unit and the connected external device
(TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
The power does not turn
on.
Is the power cord plugged into the outlet?
A function does not
work when the button is
pressed.
Is there static electricity in the air?
Sound is not produced.
Is the volume set to minimum?
yy Connect the power plug to the outlet.
yy Disconnect the power plug and connect it again.
yy Adjust the volume.
Does the speaker’s front status LED indicator remain?
yy Check whether the Wi-Fi router you’re using has been certified for Wi-Fi.
yy Unplug the speaker, plug it back in, and then reconnect it to the router.
yy Reset the speaker.
yy When using a Music Flow R1
-- Make sure that the smart device and the Music Flow R1 are connected to
the same Wi-Fi network.
-- Make sure that the Music Flow R1’s indicator LED show that it is working
correctly.
-- If the problem persists, reset the Music Flow R1.
-- Unplug, then plug in the Music Flow R1. Then, unplug and plug in the
speaker.
-- If you experience troubles with connecting the Music Flow R1 and
speaker, try relocating the speaker so that the speaker is closer to the
wireless router or Music Flow R1.
4
Troubleshooting
The speaker doesn’t work Is the speaker plugged in?
properly.
yy Plug in the speaker.
58 Troubleshooting
Network
Symptoms
Cause & Solution
Cannot connect the
speaker to your home
network.
The wireless communication may be interrupted from household devices that
are using radio frequencies. Move the speaker away from them.
Media servers are not
displayed on the device
list.
yy The firewall or anti-virus software on your media server is running. Turn off
the firewall or anti-virus software running on your media server.
I cannot group speakers.
Is the speaker connected to the network via Wi-Fi?
yy Make sure that the speaker is connected to the local area network that your
media server is connected.
yy If you want to enjoy the group playback, at least one speaker should be
connected by LAN cable.
yy If the speakers are connected only wirelessly, disconnect the wireless
connections and reconnect them after connecting wired speaker.
4
Music Flow Player
(Speaker or Bridge)
doesn’t work properly.
Is the Music Flow Player (Speaker or Bridge) plugged in?
yy Plug in the Music Flow Player (Speaker or Bridge).
Troubleshooting
Is the LAN cable connected to the wireless router and the Music Flow Player
(Speaker or Bridge) properly?
yy Connect the LAN cable to the Ethernet port on the back of the Music
FlowPlayer (Speaker or Bridge) and to your wireless router.
yy By using the Music Flow R1 (Bridge) for extending the signal without wired
connection, at least one speaker must be connected with LAN cable.
When the Music Flow Player (Speaker or Bridge) is plugged in, do the Music
Flow Player (Speaker or Bridge)’s LED show it’s operating properly?
yy If you experience troubles with connecting the Music Flow Player (Speaker
or Bridge), try relocating the speakers so that the speakers is closer to the
wireless router or Music Flow Player (Speaker or Bridge).
If you restart the router?
yy You need to turn the speaker’s power off and on again.
If you install new router.
yy You need to perform a factory set and setup the network connection for
speaker.
Troubleshooting 59
Application and PC Software
Symptoms
Cause & Solution
Music Flow Player app
doesn’t work properly.
Does an error occur when accessing the app?
yy Make sure that your smart device is compatible with the app.
yy Make sure that the Music Flow Player app is the latest version.
yy Make sure that the speaker’s front LED turns from red to white.
Music Flow PC Software
doesn’t work properly.
Does the firewall on your PC or Mac set to enable?
yy Disable all your firewalls and try to connect again. Refer to your firewall’s
instruction or website.
Is the LAN cable connected to the wireless router and your PC or Mac
properly?
yy Ensure that the speaker and your PC or Mac are correctly connected to the
local area network and can access the internet.
yy The wireless communication may be interrupted from household devices
that are using radio frequencies. Move the speaker and your PC or Mac
away from them.
4
Troubleshooting
60 Appendix
File requirement
Available File extensions : “.mp3”, “.wma”, “.flac”,
“.m4a”, “.aac”, “.ogg”, “.wav”
Trademarks and
Licenses
Sampling frequency: within 32 to 48 kHz (mp3,
wma), up to 192 kHz/24 bit (flac)
Bit rate: up to 320 kbps (mp3, wma)
yy The file requirements are not always compatible.
There may have some restrictions by file features
and media server’s ability.
yy Some wav files are not supported on this
speaker.
yy Depending on the types of file or ways of
recording, it may not play back.
yy Some DRM-loaded files are not supported on
this speaker.
Bluetooth® wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.
Other trademarks and trade names are those of
their respective owners.
5
Appendix
Appendix
61
About Status LED’s Condition
Bluetooth
Condition
Color
Waiting for Bluetooth pairing
Blinks
Bluetooth paired
Portable In
Condition
Color
Connected portable cable
Network
Condition
Color
Waiting for network connection
Blinks
Connected
Connecting
(Wi-Fi SETUP button is pressed)
Blinks
Connecting
(ADD button is pressed)
Blinks
Appendix
Standby mode
Network standby mode
Grouping set (First group was set)
,,Note
yy When you set the group at first,
yy The additional groups are set, the
( >
>
>
> )
5
Network status LED turns green.
Network status LED color is changed in group order.
yy If the grouped speakers switch to the network standby mode, the brightness of
LED gets dark.
Network status
62 Appendix
Specifications
General
Power Supply
18 V 0 2.67 A (AC adapter)
Power consumption
NP8740 (NA9740) : 12 W
NP8540 (NA9540) : 10 W
Networked standby : 5.4 W
AC adapter
Dimensions (W x H x D)
Model : DA-48A18
Manufacturer: Yang Ming Industrial
Input: 100 - 240 V ~ 50 - 60 Hz
Output: 18 V 0 2.67 A
NP8740 (NA9740) :
Approx. 370 mm x 232 mm x 110 mm without foot
NP8540 (NA9540) :
Approx. 340 mm x 207 mm x 88 mm without foot
Net Weight (Approx.)
NP8740 (NA9740) : 4.1 kg
NP8540 (NA9540) : 3.25 kg
Operating temperature
5 °C to 35 °C
Operating humidity
5 % to 90 %
Inputs
5
PORTABLE IN
400 mVrms (3.5 mm stereo jack)
Appendix
Amplifier
Stereo mode
T.H.D
NP8740 (NA9740) : 35 W + 35 W (4 Ω at 1 kHz)
NP8540 (NA9540) : 20 W + 20 W (6 Ω at 1 kHz)
10 %
Speakers
Type
Built-in
Impedance Rated
NP8740 (NA9740) : 4 Ω
NP8540 (NA9540) : 6 Ω
Rated Input Power
NP8740 (NA9740) : 35 W
NP8540 (NA9540) : 20 W
Max Input Power
NP8740 (NA9740) : 70 W
NP8540 (NA9540) : 40 W
System
ETHERNET (LAN) port
Ethernet jack x 1, 10 BASE-T/100 BASE-TX
Wireless LAN (internal antenna)
Integrated IEEE 802.11n (Draft 2.0) wireless networking access,
compatible with 802.11a/b/g/n Wi-Fi networks.
yy Design and specifications are subject to change without notice.
Appendix 63
Handling the Speaker
When shipping the speaker
Please save the original shipping carton and
packing materials. If you need to ship the speaker,
for maximum protection, re-pack the speaker as it
was originally packed at the factory.
Keeping the exterior surfaces clean
yy Do not use volatile liquids such as insecticide
spray near the speaker.
yy Wiping with strong pressure may damage the
surface.
yy Do not leave rubber or plastic products in
contact with the speaker for a long period of
time.
Cleaning the speaker
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
speaker.
Important Information
Relating to Network
Services
All information, data, documents, communications,
downloads, files, text, images, photographs,
graphics, videos, webcasts, publications, tools,
resources, software, code, programs, applets,
widgets, applications, products and other content
(“Content”) and all services and offerings (“Services”)
provided or made available by or through any
third party (each a “Service Provider”) is the sole
responsibility of the Service Provider from whom it
originated.
The availability of and access to Content and
Services furnished by the Service Provider through
the LGE Device are subject to change at any time,
without prior notice, including, but not limited to
the suspension, removal or cessation of all or any
part of the Content or Services.
Please note that LGE is not responsible for any
Content or Services provided by the Service
Provider or any changes to, removal of, or cessation
of such Content or Services and does not warrant
or guaranty the availability of or access to such
Content or Services.
5
Appendix
Should you have any inquiry or problem related
to the Content or Services, you may refer to the
Service Provider’s website for the most up-todate information. LGE is neither responsible nor
liable for customer service related to the Content
and Services. Any question or request for service
relating to the Content or Services should be made
directly to the respective Content and Service
Providers.
64 Appendix
TERMS OF USE
or any part of the Services where we consider it
reasonably necessary for technical, operational,
security, legal or regulatory reasons.
These Terms of Use apply to those individuals
and groups who use LG’s Multiroom Speaker (LG
Mutiroom Speaker), any software(s) associated with
LG Multiroom Speaker, this application and any
services associated this application (collectively “LG
Software”). They set out LGE’s responsibilities to you
as well as identifying the “dos” and “don’ts” that you
should be aware of when you use the LG Software.
LG Software is proprietary software owned by LG
Electronics Inc., a corporation registered in Korea
with its registered office at Yeouido-dong 20,
Yeoungdeungpo-gu, Seoul, Korea. LGE, and its
licensors (“LGE”, “us” or “we”).
We do not accept any responsibility if for any reason
the Services or any part of them are unavailable at
any time or for any period.
By accessing or using LG Software, you confirm
that you accept these Terms of Use and that you
agree to comply with them. If you do not agree
to these Terms of Use, you may not access or use
the LG Software. To the extent that any conflict
arises between these Terms of Use and any other
document referred to in these Terms of Use, these
Terms of Use will take precedence, unless clearly
stated otherwise in the relevant document.
5
Appendix
We grant you a non-exclusive license to use the
pre-installed copy of LG Software solely to the
extent necessary for you to use your LG Multiroom
Speaker personally and for no other purpose.
You acknowledge that all ownership rights in LG
Software anywhere in the world belong exclusively
to us and that no ownership rights in LG Software
are transferred to you. You are only entitled to the
limited use of LG Software as is granted in these
license terms.
You may not copy, modify, decompile or reverse
engineer our software in any way unless you are
allowed to do so by law. We reserve the right to
suspend, withdraw or discontinue all or part of the
Services without notice if we consider that you are
in breach of these Terms of Use.
You acknowledge that LG Software has not been
developed to meet your individual requirements.
We make no promises or guarantees that LG
Software is free from bugs or errors or that it
will always be available. We use commercially
reasonable efforts to provide LG Software on
a continuous, high quality basis but cannot
guarantee that they will always be available,
uninterrupted or error free. It is possible that
we may have to interrupt or discontinue the LG
Software or suspend or restrict your use of all
Although you may use LG Software to download
and access content or applications made available
by third parties on your LG Software, we make no
promises or guarantees that you will always be able
to access such content or applications. So far as we
are legally able to do so, we exclude any warranties,
conditions or other terms which may be implied
into these license terms by law.
So far as we are legally able to do so, we exclude
any liability for any loss or damage incurred by you
or any other person in connection with your use
of LG Software. We are only responsible for loss or
damage suffered that is a foreseeable result of our
breach of these license terms or our negligence
up to the amount specified below, but we are
not responsible for any loss or damage that is not
foreseeable. Loss or damage is foreseeable if it is
an obvious consequence of our breach or if it was
contemplated by you and us when you starting
using LG Software.
For any loss or damage that is not excluded under
these license terms, whether in contract, tort
(including negligence) or otherwise, the total
liability of us and our group of companies to you
is limited to the amount that you paid for your LG
Software service. To the extent permissible under
the applicable laws, some jurisdictions do not allow
the limitation or exclusion of liability for incidental
or consequential damages, or have legislation that
restricts the limitation or exclusion of liability, so the
above limitation may not apply to you.
Nothing is these license terms shall limit or
exclude our liability for death or personal injury
relating from our negligence, fraud or fraudulent
misrepresentation or any other liability that cannot
be excluded or limited by law.
LG Software provides access to “apps” and link
to other services owned and operated by third
parties, such as content providers. Any third party
apps, services and content that you access via the
Services are made available to you by these third
party providers and are outside the scope of these
Terms of Use.
Your dealings with any third party providers are
solely between you and the relevant provider and
Appendix 65
may be subject to the provider’s own terms and
conditions and privacy policy. We encourage you
to read these documents, although we are not
responsible for their content. We do not accept any
responsibility for apps, services or content provided
by third party providers.
We may impose limits on the use of or access to
certain third party content, application or services,
in any case without notice or liability. We expressly
disclaims any responsibility or liability for any
change, interruption, disabling, removal of or
suspension of any content, application or service
made available through this LG Software. We are
neither responsible nor liable for customer service
related to the content, application and services.
Any question or request for service relating to third
party’s content, application or services should be
made directly to the respective content and service
providers or application developers, as appropriate.
These terms do not affect your statutory rights as a
consumer.
Suitability of the Services for children and parental
control tools
If you permit a child to use your LG Smart TV to
access the Services, you are solely responsible for
deciding whether or not the relevant Services are
appropriate for access by that child.
[Your Smart TV offers a parental control tool (by
way of a 4 digit PIN). If you have enabled the 4-digit
PIN, your LG Smart TV will not be able to display
restricted content unless you type in the PIN. You
are responsible for setting up and maintaining the
parental control tool and any other controls that
are available, and we will not be responsible for any
harm, loss or damage you suffer or any other user
of your LG Smart TV suffers as a result of your failure
to do so. Depending on the models of your LG
Smart TV, these features may not be available.
Viruses and Security
Modify this accordingly to suit if appropriate: We
use commercially reasonable efforts to ensure that
the Services are secure and virus free, but those
efforts cannot and do not guarantee that the
Further, we do not accept responsibility for any loss
or damage caused by a virus, distributed denialof-service attack, or other technologically harmful
material that may infect your LG Smart TV, data or
other material belonging to you, during your use of
the Services.
Modify as you think appropriate: Complaints
If you have any queries, concerns or complaints
about the Services, please contact [include
reference to non-personal LG email address].
Modify as you think appropriate: Miscellaneous
Unless expressly stated otherwise, these Terms of
Use and the documents referred to in them contain
the entire agreement between us and you relating
to your use of the Services and supersede any
previous agreements, arrangements, undertakings
or proposals, written or oral, between us and you
relating to your use of the Services.
We may assign, sub-contract or otherwise transfer
any or all of our rights and obligations under these
Terms of Use to any company, firm or person. We
can only do this if it does not materially affect
your rights under these Terms of Use. You may not
assign, sub-contract or otherwise transfer your
rights or obligations under these Terms to anyone
else (except where you dispose of your LG Smart TV
to a third party) unless you first agree this with us in
writing.
If we decide not to exercise or enforce any right
that we have against you at a particular time, then
this does not prevent us from later deciding to
exercise or enforce that right.
If any part of these Terms of Use is found to be
illegal, invalid or otherwise unenforceable by a
court or regulator, then, where required, that part
shall be deleted and the remaining parts of the
Terms of Use will continue to be enforceable.
These Terms of Use do not create or infer any rights
that are enforceable by any person who is not party
to them.
These Terms of Use are governed by the laws of
the country where your LG Smart TV is sold and
both you and LGE agree to submit to the exclusive
jurisdiction of the courts of the country where your
LG Smart TV is sold in connection with the same
This Agreement shall be governed by the laws of
the Republic of Korea, excluding their conflicts of
laws provisions.
5
Appendix
Modify this accordingly to suit if appropriate: The
Services are not directed at children under the age
of 13 and are not structured specifically to attract
children under 13. Further, certain content that
you may access through your use of the Services
may contain material that you consider indecent,
objectionable or which may not be suitable for
children.
Services will be free from bugs, viruses, or other
vulnerabilities.
66 Appendix
If you have any questions or comments about
these Terms of Use please contact www.lg.com.
These Terms of Use may be updated by LGE from
time to time. If we make a material change to
our Terms of Use, we will update you via your LG
Software or other means.
Open Source Software Notice
Information
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.lge.
com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected] This offer is valid for three
(3) years from the date on which you purchased the
product.
5
Gracenote® End User License Agreement
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote (the
“Gracenote Software”) enables this application to
perform disc and/or file identification and obtain
music-related information, including name, artist,
track, and title information (“Gracenote Data”) from
online servers or embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data only by
means of the intended End-User functions of this
application or device.
You agree that you will use Gracenote Data, the
Gracenote Software, and Gracenote Servers for
your own personal non-commercial use only. You
agree not to assign, copy, transfer or transmit the
Gracenote Software or any Gracenote Data to any
third party. YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE SOFTWARE,
OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY
PERMITTED HEREIN.
Appendix
You agree that your non-exclusive license to use
the Gracenote Data, the Gracenote Software, and
Gracenote Servers will terminate if you violate
these restrictions. If your license terminates, you
agree to cease any and all use of the Gracenote
Data, the Gracenote Software, and Gracenote
Servers. Gracenote reserves all rights in Gracenote
Data, the Gracenote Software, and the Gracenote
Servers, including all ownership rights. Under no
circumstances will Gracenote become liable for
any payment to you for any information that you
provide. You agree that Gracenote, Inc. may enforce
its rights under this Agreement against you directly
in its own name.
The Gracenote service uses a unique identifier to
track queries for statistical purposes. The purpose of
a randomly assigned numeric identifier is to allow
the Gracenote service to count queries without
knowing anything about who you are. For more
information, see the web page for the Gracenote
Privacy Policy for the Gracenote service.
The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or warranties,
express or implied, regarding the accuracy of any
Gracenote Data from in the Gracenote Servers.
Gracenote reserves the right to delete data from
the Gracenote Servers or to change data categories
for any cause that Gracenote deems sufficient. No
warranty is made that the Gracenote Software or
Appendix 67
Gracenote Servers are error-free or that functioning
of Gracenote Software or Gracenote Servers will
be uninterrupted. Gracenote is not obligated to
provide you with new enhanced or additional data
types or categories that Gracenote may provide in
the future and is free to discontinue its services at
any time.
GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE DOES NOT
WARRANT THE RESULTS THAT WILL BE OBTAINED
BY YOUR USE OF THE GRACENOTE SOFTWARE
OR ANY GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES OR FOR ANY LOST
PROFITS OR LOST REVENUES.
copyright © 2000 to present Gracenote
5
Appendix
LG Customer Information Center
Country
Telephone
Austria / Österreich
0810-144131
Slovenia / Slovenija
080-543543
Benelux
0900 543 5454 (NL)
015 200 255 (BE)
Schweiz / Suisse / Svizzera /
Switzerland
0848-543543
České republiky nebo Slovenské
republiky / Českej republiky alebo
Slovenskej republiky
CZ: 810 555 810
SK: 0850 111 154
Deutschland
01806 11 54 11
España
963 05 05 00
France
3220
Ελλάδα
801 11 200 900
210 4800 564
Italia
199600099
Polska
801 54 54 54
Portugal
808 785 454
România
031 228 3542
United Kingdom
UK : 0344 847 5454
IE : 01 686 9454
For more product details check the following webpage
Germany Italy Spain France Netherlands Greece Austria Switzerland (DE) Switzerland (FR) http://www.lg.com/de/musicflow
http://www.lg.com/it/musicflow
http://www.lg.com/es/smart-audio
http://www.lg.com/fr/musicflow
http://www.lg.com/nl/musicflow
http://www.lg.com/gr/musicflow
http://www.lg.com/musicflow
http://www.lg.com/ch_de/musicflow
http://www.lg.com/ch_fr/musicflow
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
