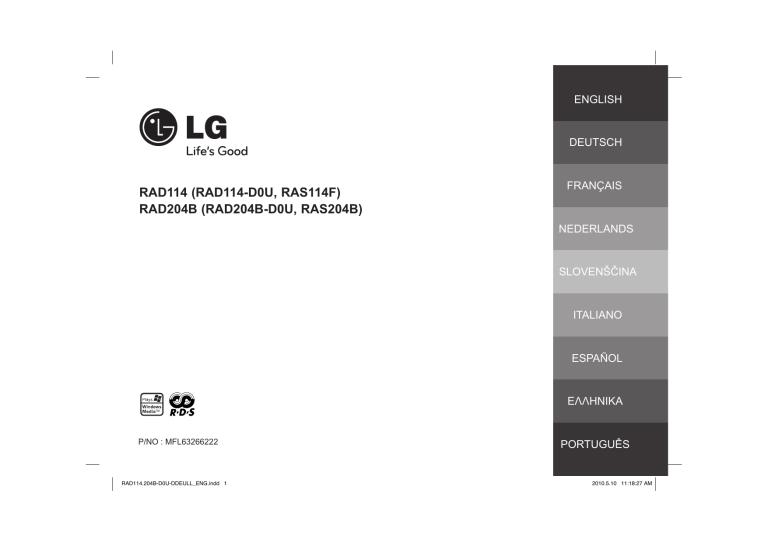

RAD114 (RAD114-D0U, RAS114F)
RAD204B (RAD204B-D0U, RAS204B)
FRANÇAIS
NEDERLANDS
SLOVENŠČINA
ITALIANO
ESPAÑOL
EΛΛΗΝΙΚΑ
P/NO : MFL63266222
RAD114.204B-D0U-DDEULL_ENG.indd 1
PORTUGUÊS
2010.5.10 11:18:27 AM
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space such as a book case
or similar unit.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result in electric shock or fire.
Periodically examine the cord of your appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue use of the appliance, and have the
cord replaced with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or accumulator.
Safe way to remove the battery or the battery from the equipment: Remove
the old battery or battery pack, follow the steps in reverse order than the assembly.
To prevent contamination of the environment and bring on possible threat to human
and animal health, the old battery or the battery put it in the appropriate container
at designated collection points. Do not dispose of batteries or battery together with
other waste. It is recommended that you use local, free reimbursement systems
batteries and accumulators.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference. The unit require maintenance, contact an authorized
service center. Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION: The apparatus not be exposed to water (dripping or splashing) and no
objects filled with liquids, such as vases, be placed on the apparatus.
Disposal of your old appliance
1. W
hen this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately
from the municipal waste stream via designated collection facilities
appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance,
please contact your city office, waste disposal service or the shop
where you purchased the product.
This product is manufactured to comply with EMC Directive
2004/108/EC and Low Voltage Directive 2006/95/EC.
European representative:
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The Netherlands
(Tel : +31-036-547-8940)
There is so much your Hi-Fi system can do
ENGLISH
Contents
Setting up
Main unit
About Remote control
4
5
6
Listening to CDs
Listening to the radio
Using an USB device
Listening to music from your external device
Enjoying a pre-programmed sound field
Recording to USB
Setting the Clock
7
7
8
9
9
10
11
Troubleshooting
Specifications
12
12
The making of unauthorized copies of copy-protected
material, including computer programs, files, broadcasts and
sound recordings, may be an infringement of copyrights and
constitute a criminal offense. This equipment should not be
used for such purposes.
Be responsible
Respect copyrights
Put the battery into the remote control
Make sure for the + (plus) and – (minus) on the
battery to be matched on the remote control.
(siza AAA)
Before connecting, operating or adjusting this product, please read this instruction booklet carefully
and completely.
Setting up
1 Connection of the front speakers
Connect the speaker cables to the speaker terminals.
Connect the black end of each wire to the terminals marked (minus) and the other end to the terminals marked + (plus).
2F
it the AM loop aerial to its stand (AM optional)
Connect the AM loop aerial to the unit.
3C
onnect the FM aerial
The reception will be at its best when the two loose ends of
the aerial are in a straight line and horizontal.
4 Plug the power plug into a wall socket
FM - aerial
3
2
AM - aerial (optional)
Be careful of the following
Be careful to make sure children not to put their hands or any objects into the
*speaker duct.
*speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure).
NOTES:
• If TV screen becomes discolored do not place speakers
within 30cm from TV.
•B
e sure to match the speaker cord to the appropriate
terminal on the components: + to + and – to –. If the cords
are reversed, the sound will be distorted and will lack base.
Main unit
1
1
2
3
4
2
4
3
5
DISPLAY WINDOW
11 FUNCTION Changes the functions
. TUNING (-) (CD Previous)
12 CLOCK
For setting the clock and checking
the time.
N/[] ST./MO.
x STOP Stops playback or recording
5
> TUNING (+) (CD Next)
6
1/] Power on/ off
7
EQ
You can choose sound impressions.
8
XDSS Plus
Extreme Dynamic Sound System
Reinforce the treble, bass and surround
effect.
MP3 Opt.
Optimizes compressible MP3 files so
that it improves the bass sound.
9 R USB/Rec. Recording to USB
10 CD door
13 TIMER
With the TIMER function you can turn
CD, USB play and TUNER reception
on or off at a desired time.
6
11
7
12
14 SET Confirms the time you have
selected when setting the clock.
RDS (optional)
15 Z OPEN/ CLOSE
16 USB Port
Connect a USB compatible device
here.
17
8
13
9
14
17 VOLUME
Controls the volume when using any
function.
15
10
16
About Remote control
1
SLEEP
INFO
F (FUNCTION) Changes the functions.
POWER on/ off
EQ
Fall asleep while listening to your unit
Press SLEEP one or more times to select
delay time between 10 and 180 minutes,
after the unit will turn off.
See information about your music.
MP3/ WMA files often come with tags. The
tag gives the Title, Artist, Album or Time
information.
LG EQ
REPEAT
Listen to your tracks repeatedly or
/RANDOM randomly.
./> Selects the radio station.
Searchs for a section within a track.
TUN
Skips Fast backward or Forward.
(+)/(-)
x
Starts or pauses playback
v
B/[]
v
FOLDER
•PRESET
Stops playback or recording
+ VOL
-
RDS/ PTY
(optional)
z REC
RDS (Radio Data System)
Searchs radio stations by radio type
Recording button
RDS
PTY
Sound quality adjustment
You can choose sound impressions.
You can select a Natural or Local
Specialization equalizer effect by
using LG EQ.
Searchs for a folder of MP3/ WMA files
When a CD containing MP3/ WMA files
in several folders is being played, press
FOLDER•PRESET selects the folder you
want to play.
Choose a ‘preset number’ for a radio
station.
Controls the volume when using any function.
PROGRAM/ For storing radio stations
MEMO. If you have saved radio stations using
PROGRAM/MEMO., you can scroll
through them and select one.
Listens to your tracks in any order
Temporarily stop the sound
Press the button again to return to the
sound.
Listening to CDs
Listening to the radio
Audio CD and MP3/ WMA CD can be played back in this unit.
ON UNIT
Z OPEN/CLOSE
pen the CD door
O
Insert the CD: Label facing up.
Close the CD door
Z OPEN/CLOSE
Select the CD function: The display
FUNCTION
will show the total number of tracks
(files).
5. Start the CD playing
B/[]
6. To stop a CD playing
x
1.
2.
3.
4.
Make sure both the FM and AM (optional) aerials are connected.
ON UNIT
ON REMOTE
FUNCTION
TUNING (+)/ (-)
-
FUNCTION
TUN.- / TUN.+
PROGRAM/MEMO.
-
FOLDER•PRESET
PROGRAM/MEMO.
-
FOLDER•PRESET
ON REMOTE
FUNCTION
B/[]
x
1. S
elect either FM or AM (optional)
2. Select the radio station
3. To ‘save’ a radio station: A preset
number will show in the display.
4. Select the preset number
5. To confirm press: Up to 50 radio
stations can be saved.
6. To select a ‘saved’ station
Listening to CDs - More you can do
Listening to the radio - More you can do
Pausing or restarting a CD
Looking for radio stations automatically
1 Press B/[] during playback.
2 Press this button again to resume play.
Searching for a section within a track
Hold ./> on the unit or ./> on the remote control during playback
and release it at the point you want to listen to.
Skipping to another track (files)
Press ./> on the unit or ./> on the remote control in stop status.
Program list
You can play up to 20 tracks on a CD in order.
1 Insert a CD and wait for it to be read.
2 Press PROGRAM/MEMO. on the remote control in stop status.
3 Press ./> on the unit or ./> on the remote control to select a
track.
4 Press PROGRAM/MEMO. again to save and select a next track.
5 Press B/[] to play the programmed music files.
6 To clear your selection, press x , PROGRAM/MEMO. and then x .
1P
ress and hold TUNING + / TUNING - on the unit or TUN.- / TUN.+ on the
remote control for more than 0.5 second.
2 The tuner will scan automatically and stop when it finds a radio station.
Deleting all the saved stations
1P
ress and hold PROGRAM/MEMO. on the remote control for two seconds.
“ERASE ALL” shows.
2 Press PROGRAM/MEMO. on the remote control to erase all the saved
stations.
Improveing poor FM reception
Press B/[] (MONO/ST) on the remote control. This will change the tuner
from stereo to mono and usually improve the reception.
Listening to your tracks (files) repeatedly or randomly
1 Press
REPEAT/RANDOM repeatedly. The current (tracks) file will be played
back repeatedly or randomly.
2 To return to normal playback, press REPEAT/RANDOM repeatedly to select
[Off].
See information about your radio stations - OPTIONAL
The FM tuner is supplied with the Radio Data System (RDS) facility. This
shows the letters RDS on the display, plus information about the radio station
being listened to. Press RDS on the remote control several times to
view the information.
PTY - Programme Type, such as News, Sport, Jazz.
RT - Radio Text, the name of the radio station.
CT - Time Control, the time at the location of the radio station.
PS - Programme Service name, the name of channel.
You can search the radio stations by programme type by pressing RDS.
The display will show the last PTY in use. Press PTY one or more times to
select your preferred programme type. Press and hold ./>. The tuner
will search automatically. When a station is found the search will stop.
About MP3/ WMA
MP3/WMA Disc compatibility with this unit is limited as follows:
• Sampling Frequency : 32 - 48 kHz (MP3), 32 - 48 kHz (WMA)
• Bit rate : 32 - 320 kbps (MP3), 40 - 320 kbps (WMA)
• CD-R physical format should be “ISO 9660/ JOLIET”
• If you record MP3/WMA files using the software which cannot create a FILE
SYSTEM, for example “Direct-CD” etc., it is impossible to playback MP3 files.
We recommend that you use “Easy-CD Creator”, which creates an ISO 9660 file
system.
• Do not use special letters such as “/ : * ? “ < >”etc.
• Even if the total number of files on the disc has more than 1000, it will only be
shown up to 999.
Using an USB device
You can enjoy media files saved on an USB device by connecting the
USB device to the USB port of the unit.
If you want to operate other function, see the CD playback section.
ON UNIT
1. C
onnect the USB device to the USB
port of the unit.
2. Select the USB function.
3. Select a file you want to play.
4. Start your media playing.
5. To stop, press
6. B
efore disconnecting the portable USB
device, change to any other function.
ON REMOTE
-
-
FUNCTION
FUNCTION
-
-
B/[]
B/[]
x
x
FUNCTION
FUNCTION
Compatible USB Devices
• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
• The USB function may not be available depending on devices.
USB device requirement
•D
evices which require additional program installation when you have
connected it to a computer, are not supported.
Look out for the follows.
• Do not extract the USB device while in operation.
• For a large capacity USB, it may take longer than a few minute to be
searched.
• To prevent data loss, back up all data.
• If you use a USB extension cable or USB hub, the USB device is not
recognized.
• Using NTFS file system is not supported. (Only FAT(16/ 32) file system is
supported.
• This unit is not supported when the total number of files is 1000 or more.
• External HDD, Locked devices or hard type USB devices are not supported.
• USB port of the unit can not be connected to PC. This unit can not be used as
a storage device.
Enjoying a pre-programmed sound field
Listening to music from your external device
The unit can be used to play the music from many types of external device.
ON UNIT
ON REMOTE
1. Connect the external device to the
AUX IN connector of the unit.
If your TV has only one output for
audio(MONO). connect it to the left(white)
audio jack on the unit.
Main unit
VCR, TV, ...
2. Turn the power on.
3. Select the AUX function.
4. T
urn on the external device and start it
playing.
This system has a number of pre-set surround sound fields. You can select a
desired sound mode by using EQ/ LG EQ.
The displayed items for the Equalizer may be different depending on sound
sources and effects.
ON DISPLAY
-
-
1/]
1
FUNCTION
FUNCTION
-
-
NATURAL
Local Specialization equalizer
AUTO EQ
POP
CLASSIC
ROCK
JAZZ
MP3 Opt.
XDSS
VIRTUAL
NORMAL(OFF)
Description
You can enjoy comfortable and natural sound.
Regionally optimized sound effect.(DANGDUT/ ARABIC/
PERSIAN/ INDIA/ REGUETON/ MERENGUE / SALSA/
SAMBA)
Realizes the sound equalizer that is the most similar to the
genre of which is included in the MP3 ID3 tag of song files.
This program lends an enthusiastic atmosphere to the
sound, giving you the feeling you are at an actual rock
, pop, jazz or classic concert.
This function is optimized for compressible MP3 file. It improves the bass sound.
Reinforce the treble, bass and surround sound effect.
You can enjoy moe virtual surround sound.
You can enjoy the sound without equalizer effect.
When you are recording, look out for the following
Recording to USB
You can record a various sound source to USB.
1. C
onnect the USB device to the unit.
2. Select a mode in which you want to
record.
Play back a sound source first.
3. Start the recording.
4. To stop recording, press
ON UNIT
-
ON REMOTE
-
FUNCTION
FUNCTION
R Rec.
z REC
x
x
Recording to USB - More you can do
Recording Music file in disc source to USB
One track recording If the USB recording is started during playback of the CD, the one track/ file
would be recording into the USB.
All tracks recording If the recording button is pressed at the CD stop, all tracks/ files would be
recording.
Program list recording USB records after creating your own program if you want to record the track
you want. Up to 20 songs can be recorded.
Pausing recording
During recording, press R Rec. to pause recording. Press z REC to continue
recording. (Only Radio/ AUX)
To select recording bit rate and speed
1 Press
R Rec. on the player or z REC on the remote control for longer than
3 seconds.
2 Use . / > on the player or . / > on the remote control to select
the bit rate.
3 Press R Rec. or z REC again to select the recording speed.
4 Use . / > or . / > to select a desired recording speed.
X 1 SPEED (96kbps, 128kbps, 192kbps, 256kbps)
- You can listen to music while recording it. (Audio CD Only)
X 2 SPEED (96kbps, 128kbps)
- You can just recording the music file. (Audio CD Only)
5 Press R Rec. or z REC to finish the setting.
10
•You can check the recording percentage rate for the USB record on the
screen during the recording. (MP3/ WMA CD only)
•During recording MP3/ WMA, there is no sound.
•When you stop recording during playback, the file that has been recorded at
that time will be stored.(Audio CD only)
•Do not remove the USB device or turn off the unit during USB recording. If
not, an incomplete file may be made and not deleted on PC.
•If USB recording does not work, the message like “NO USB”, “ERROR”,
“USB FULL” or “NO REC” is displayed on the display window.
•For the discs recorded in the format of DTS disc, USB recording is not
supported.
•Multi card reader device or External HDD can not be used for USB
recording.
• A file is recoreded by 128Mbyte when you record for a long term.
• When you stop recording during playback, the file will not be stored.
• In the state CD-G, DTS disc USB record is not operated.
• You may not record more than 999files.
• It’ll be stored as follows.
AUDIO CD
MP3/ WMA
The other sources
Setting the Clock
ON UNIT
1. T
urn the power on
2. Press for at least 2 seconds
3. Choose from either: AM 12:00 (for an am and pm
display) or 0:00 (for a 24 hour display).
4. Confirm your selection
5. Select the hours
6. Press
7. Select the minutes
8. Press
1/]
CLOCK
./>
SET
./>
SET
./>
SET
Use your player as an alarm clock
1 Turn the power on.
2 Press and hold TIMER. Each function, EX) TUNER, CD.... flashes.
3 Press SET when the function you want to be woken by is showing.
4 Choose one of them by pressing SET.
5 “ON TIME” will be displayed. Then you can set the time you want the alarm to
go on. Press ./> to change the hours and minutes and SET to save.
6 “OFF TIME” will be displayed. Then, you can set the time you want the function to
stop. Press ./> to change the hours and minutes and press SET to save.
7 You will be shown the volume (VOL) you want to be woken by.
Use ./> to change the volume and SET to save.
The clock icon “ ”shows that the alarm is set.
8 Press TIMER button 2times. You can check the setting status.
Notes:
- If you set the clock time, you can check the time by pressing CLOCK even
when the player is turned off.
- If you set the clock time and alarm, you can check the alarm icon “ ” by
pressing CLOCK even when the player is turned off.
Fall asleep while listening to your player
1 Press SLEEP repeatedly to select delay time between 10 and 180 minutes,
after the unit will be turned off.
2 To check the remaining time, press SLEEP.
DIMMER
Press SLEEP once. The LED (Light-emitting diode) of front panel is turned
off and the display window will be darken by half. To cancel it, press SLEEP
repeatly until dim off.
11
Troubleshooting
Symptom
Specifications
Cause
Correction
General
No power.
No sound.
The power cord is not plugged in.
Plug in the power cord.
Check whether electricity failed.
Check the condition by operating other
electronic devices.
Check whether you select right function. Press FUNCTION and check the
selected function.
CD
The unit does not
start playback.
An unplayable disc is inserted.
Insert a playable disc.
The disc is dirty.
Clean the disc.
RADIO
Radio stations
cannot be tuned in.
The antenna is positioned or connected Connect the antenna securely.
poorly.
Remote control
The remote control
does not work
properly.
The remote control is too far from the
unit.
Operate the remote control within about
23 ft (7 m).
There is an obstacle in the path of the
remote control and the unit.
Remove the obstacle.
The battery in the remote control is
exhausted.
Replace the battery with new one.
Designs and specifications are subject to change without notice.
12
General
Power supply
200 - 240 V, 50/ 60 Hz
Power consumptionRAD114: 30 W
RAD204B: 45 W
Net WeightRAD114: 3.1 kg
RAD204B: 3.44 kg
External dimensions (WxHxD) 202 x 307 x 292 mm
Operating temperature
5 oC to 35 oC
Operating humidity
5% to 85 %
Tuner
FM Tuning Range87,5 - 108,0 MHz or
87,50 - 108,00 MHz
AM Tuning Range (optional)522 - 1620 kHz or 522 - 1710 kHz
or 520 - 1710 kHz
Amplifier
Output PowerRAD114: 55 W + 55 W
RAD204B: 100 W + 100 W
T.H.D
10 %
Frequency Response
42 - 20000 Hz
Signal-to-noise ratio
75 dB
CD
Frequency response
Signal-to-noise ratio
Dynamic range 40 - 20000 Hz
75 dB
80 dB
Speakers (RAS114F, RAS204B)
Type
2 Way 2 Speaker
Impedance
4Ω
Rated Input PowerRAS114F: 55 W
RAS204B: 100 W
Max. Input PowerRAS114F: 110 W
RAS204B: 200 W
Net Dimensions (WxHxD)RAS114F: 215 x 309 x 232 mm
RAS204B: 215 x 309 x 245 mm
Net Weight (1EA)RAS114F: 2.6 kg
RAS204B: 2.9 kg
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
