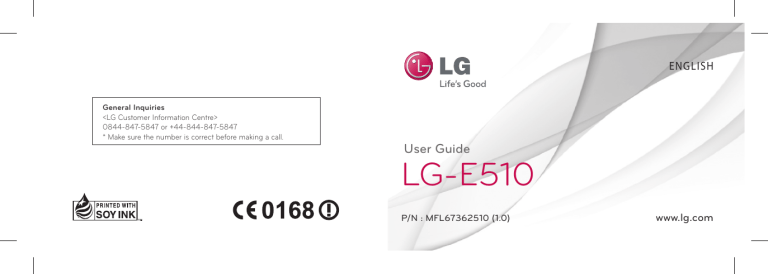

ENGLISH
General Inquiries
<LG Customer Information Centre>
0844-847-5847 or +44-844-847-5847
* Make sure the number is correct before making a call.
User Guide
LG-E510
P/N : MFL67362510 (1.0)
www.lg.com
Wi-Fi (WLAN)
This equipment may be operated in all European
countries.
The WLAN can be operated in the EU without
restriction indoors, but cannot be operated outdoors
in France, Russia and Ukraine.
English
LG-E510 User Guide
This guide helps you get started using your phone.
If you need more information, please visit www.lg.com.
• Some of the contents of this manual may not apply to your phone. This
depends on your phone’s software and your service provider.
• This handset is not recommended for the visually impaired because of its
touch screen keyboard.
• Copyright ©2011 LG Electronics, Inc. All rights reserved. LG and the LG
logo are registered trademarks of LG Group and its related entities. All other
trademarks are the property of their respective owners.
• Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and
Android Market™ are trademarks of Google, Inc.
Contents
Guidelines for safe and
efficient use ....................7
Important notice ...........18
Getting to know your
phone ............................33
Installing the SIM card and
battery ........................36
Charging your phone ....37
Installing the memory
card ............................38
Formatting the memory
card ............................40
2
Your Home screen ........41
Touch screen tips .........41
Lock your phone ..........42
Unlock screen ..............43
Silent mode .................43
Home .........................43
Adding widgets to your
Home screen ...............44
Returning to recently-used
applications .................46
Notification drawer .......46
Viewing the status bar ..47
Onscreen keyboard ......51
Entering accented
letters .........................52
Google account setup ...53
Wi-Fi .............................55
Turning on Wi-Fi...........55
Connecting to Wi-Fi ......55
Sharing your phone’s data
connection...................56
USB tethering & portable
Wi-Fi hotspot settings...57
To share your phone’s
data connection via
USB ............................58
USB tethering and data
sharing ........................59
To share your phone’s
data connection as a
portable Wi-Fi hotspot ..60
To rename or secure your
portable hotspot ...........60
Enabling Wi-Fi Direct to
share through
SmartShare .................62
Using the Wi-Fi Cast .....63
On-Screen Phone..........65
How to use On-Screen
Phone .........................65
On-Screen Phone icons 65
On-Screen Phone
features.......................65
How to install On-Screen
Phone on your PC ........66
How to connect your
mobile phone to your
PC ..............................67
To check the phone to PC
connection...................68
To disconnect your phone
from your PC ...............69
Calls ..............................70
Making a call ...............70
Calling your contacts ....70
Answering and rejecting a
call..............................70
Adjusting call volume ...71
Making a second call ...71
Viewing your call logs ...72
Call settings.................72
3
Contents
Contacts........................73
Searching for a contact 73
Adding a new contact ...73
Favorite contacts..........74
Moving contacts from your
old phone to your new
phone .........................75
Messaging/email ..........76
Messaging...................76
Sending a message......76
Threaded box ..............77
Using Smilies ...............77
4
Changing your message
settings .......................78
Opening Email and the
Accounts Screen ..........78
Composing and Sending
Email...........................80
Working with Account
Folders ........................82
Adding and Editing email
Accounts .....................82
Social Networking ........84
Social Networking .......84
Adding your account to
your phone ..................84
Viewing and updating your
status .........................85
Removing accounts from
your phone ..................86
Camera .........................87
Getting to know the
viewfinder....................87
Taking a quick photo ...88
Once you’ve taken the
photo ..........................88
Using the advanced
settings .......................89
Viewing your saved
photos .........................92
Video camera ................93
Getting to know the
viewfinder....................93
Shooting a quick video .94
After shooting a video...94
Using the advanced
settings .......................95
Watching your saved
videos .........................96
Adjusting the volume
when viewing a video ...96
Multimedia....................97
View mode ..................97
Timeline view ...............97
Using SmartShare ........98
Music ..........................99
Playing a song .............99
Transferring files using
USB mass storage
devices......................101
How to Transfer music/video
files to your phone ........ 101
Sending data from your
phone using Bluetooth 102
Radio ........................104
Searching for stations 104
Resetting channels .....105
Listening to the radio..106
Utilities........................107
Setting your alarm ......107
Using your calculator ..107
Adding an event to your
calendar ....................108
Changing your calendar
view ..........................109
5
Contents
Polaris Viewer ............109
Voice recorder ...........110
Recording a sound or
voice .........................110
Sending the voice
recording ...................110
The Web ......................111
Browser.....................111
Using the web toolbar.111
Using options .............112
6
Settings ......................114
Wireless & networks...114
Call settings...............116
Sound .......................118
Display ......................119
Location & security ....120
Applications ...............121
Accounts & sync ........122
Privacy ......................122
Storage .....................123
Language & keyboard 124
Voice input & output ...124
Accessibility...............126
Date & time ...............126
About Phone ..............127
Software update .........128
Phone software
update ......................128
DivX Mobile ...............130
Accessories ................132
Technical data.............133
Troubleshooting ..........134
Guidelines for safe and efficient use
Please read these simple guidelines. Not
following these guidelines may be dangerous
or illegal.
Exposure to radio frequency
energy
Radio wave exposure and Specific
Absorption Rate (SAR) information. This
mobile phone model LG-E510 has been
designed to comply with applicable safety
requirements for exposure to radio waves.
These requirements are based on scientific
guidelines that include safety margins
designed to assure the safety of all persons,
regardless of age and health.
• The radio wave exposure guidelines
employ a unit of measurement known as
the Specific Absorption Rate, or SAR. Tests
for SAR are conducted using standardised
methods with the phone transmitting at
its highest certified power level in all used
frequency bands.
• While there may be differences between
the SAR levels of various LG phone
models, they are all designed to meet the
relevant guidelines for exposure to radio
waves.
7
Guidelines for safe and efficient use
• The SAR limit recommended by the
International Commission on Non-Ionizing
Radiation Protection (ICNIRP) is 2 W/kg
averaged over 10 g of tissue.
• The highest SAR value for this model
phone tested by DASY4 for use at the ear
is 0.713 W/kg (10 g) and when worn on
the body is 1.12 W/kg (10 g).
• SAR data information for residents in
countries/regions that have adopted the
SAR limit recommended by the Institute
of Electrical and Electronics Engineers
(IEEE), which is 1.6 W/kg averaged over
1g of tissue.
8
Product care and maintenance
WARNING
Only use batteries, chargers and
accessories approved for use with this
particular phone model. The use of any
other types may invalidate any approval
or warranty applying to the phone, and
may be dangerous.
• Do not disassemble this unit. Take it to a
qualified service technician when repair
work is required.
• Repairs under warranty, at LG’s option,
may include replacement parts or boards
that are either new or reconditioned,
provided that they have functionality equal
to that of the parts being replaced.
• Keep away from electrical appliances such
as TVs, radios, and personal computers.
• The unit should be kept away from heat
sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical
vibration or shock.
• Switch off the phone in any area where
you are required by special regulations.
For example, do not use your phone in
hospitals as it may affect sensitive medical
equipment.
• Do not handle the phone with wet hands
while it is being charged. It may cause an
electric shock and can seriously damage
your phone.
• Do not charge a handset near flammable
material as the handset can become hot
and create a fire hazard.
9
Guidelines for safe and efficient use
• Use a dry cloth to clean the exterior of the
unit (do not use solvents such as benzene,
thinner or alcohol).
• Do not charge the phone when it is on soft
furnishings.
• The phone should be charged in a well
ventilated area.
• Do not subject this unit to excessive
smoke or dust.
• Do not keep the phone next to credit
cards or transport tickets; it can affect the
information on the magnetic strips.
10
• Do not tap the screen with a sharp object
as it may damage the phone.
• Do not expose the phone to liquid or
moisture.
• Use the accessories like earphones
cautiously. Do not touch the antenna
unnecessarily.
• Do not use, touch or attempt to remove
or fix broken, chipped or cracked glass.
Damage to the glass display due to
abuse or misuse is not covered under the
warranty.
• Do not use your device for a long period
of time with any part of your body in direct
contact with it. During normal operation,
the temperature of the product may
increase, which may cause your skin to be
harmed or burnt.
Efficient phone operation
Electronics devices
All mobile phones may get interference,
which could affect performance.
• Do not use your mobile phone near
medical equipment without requesting
permission. Avoid placing the phone over
pacemakers, for example, in your breast
pocket.
• Some hearing aids might be disturbed by
mobile phones.
• Minor interference may affect TVs, radios,
PCs, etc.
Road safety
Check the laws and regulations on the use
of mobile phones in the area when you drive.
• Do not use a hand-held phone while
driving.
11
Guidelines for safe and efficient use
• Give full attention to driving.
• Pull off the road and park before making
or answering a call if driving conditions
so require.
• RF energy may affect some electronic
systems in your vehicle such as car
stereos and safety equipment.
• When your vehicle is equipped with an
air bag, do not obstruct with installed or
portable wireless equipment. It can cause
the air bag to fail or cause serious injury
due to improper performance.
12
• If you are listening to music whilst out and
about, please ensure that the volume is at
a reasonable level so that you are aware
of your surroundings. This is particularly
imperative when near roads.
Avoid damage to your hearing
Damage to your hearing can occur if you are
exposed to loud sound for long periods of
time. We therefore recommend that you do
not turn on or off the handset close to your
ear. We also recommend that music and call
volumes are set to a reasonable level.
• When using headphones, turn the volume
down if you cannot hear the people
speaking near you, or if the person
sitting next to you can hear what you are
listening to.
NOTE: Excessive sound pressure from
earphones can cause hearing loss.
Glass Parts
Some parts of your mobile device are made
of glass. This glass could break if your
mobile device is dropped on a hard surface
or receives a substantial impact. If the glass
breaks, do not touch or attempt to remove.
Stop using your mobile device until the glass
is replaced by an authorised service provider.
Blasting area
Do not use the phone where blasting is in
progress. Observe restrictions, and follow
any regulations or rules.
Potentially explosive
atmospheres
• Do not use the phone at a refueling point.
• Do not use near fuel or chemicals.
13
Guidelines for safe and efficient use
• Do not transport or store flammable
gas, liquid, or explosives in the same
compartment of your vehicle as your
mobile phone and accessories.
In aircraft
Wireless devices can cause interference in
aircraft.
• Turn your mobile phone off before
boarding any aircraft.
• Do not use it on the ground without
permission from the crew.
14
Children
Keep the phone in a safe place out of the
reach of small children. It includes small
parts which may cause a choking hazard if
detached.
Emergency calls
Emergency calls may not be available
under all mobile networks. Therefore, you
should never depend solely on the phone
for emergency calls. Check with your local
service provider.
Battery information and care
• You do not need to completely discharge
the battery before recharging. Unlike other
battery systems, there is no memory
effect that could compromise the battery’s
performance.
• Use only LG batteries and chargers. LG
chargers are designed to maximise the
battery life.
• Do not disassemble or short-circuit the
battery pack.
• Keep the metal contacts of the battery
pack clean.
• Replace the battery when it no longer
provides acceptable performance. The
battery pack maybe recharged hundreds
of times until it needs replacing.
• Recharge the battery if it has not been
used for a long time to maximise usability.
• Do not expose the battery charger to direct
sunlight or use it in high humidity, such as
in the bathroom.
• Do not leave the battery in hot or cold
places, this may deteriorate the battery
performance.
15
Guidelines for safe and efficient use
• There is risk of explosion if the battery is
replaced by an incorrect type.
• Dispose of used batteries according to
the manufacturer’s instructions. Please
recycle when possible. Do not dispose as
household waste.
• If you need to replace the battery, take it
to the nearest authorised LG Electronics
service point or dealer for assistance.
• Always unplug the charger from the wall
socket after the phone is fully charged to
save unnecessary power consumption of
the charger.
16
• Actual battery life will depend on network
configuration, product settings, usage
patterns, battery and environmental
conditions.
Disposal of your old appliance
1 When this crossed-out wheeled bin symbol is
attached to a product it means `the product is
covered by the European Directive 2002/96/EC.
2 All electrical and electronic products should
be disposed of separately from the municipal
waste stream via designated collection facilities
appointed by the government or the local
authorities.
3 The correct disposal of your old appliance will
help prevent potential negative consequences
for the environment and human health.
4 For more detailed information about disposal
of your old appliance, please contact your city
office, waste disposal service or the shop where
you purchased the product.
Disposal of waste batteries/accumulators
1 When this crossed-out wheeled bin symbol
is attached to batteries/ accumulators of your
product it means they are covered by the
European Directive 2006/66/EC.
2 This symbol may be combined with chemical
symbols for mercury (Hg), cadmium (Cd) or lead
(Pb) if the battery Contains more than 0.0005% of
mercury, 0.002% of cadmium or 0.004% of lead.
3 All batteries/accumulators should be disposed
separately from the municipal waste stream via
designated collection facilities appointed by the
government or the local authorities.
4 The correct disposal of your old batteries/
accumulators will help to prevent potential
negative consequences for the environment,
animal and human health.
5 For more detailed information about disposal of
your old batteries/ accumulators, please contact
your city office, waste disposal service or the shop
where you purchased the product.
17
Important notice
Please check to see whether any problems
you encountered with your phone are
described in this section before taking the
phone in for service or calling a service
representative.
1. Phone memory
When available space in your phone memory
is less than 10%, your phone cannot receive
new messages. You need to check your
phone memory and delete some data, such
as applications or messages, to make more
memory available.
18
Managing applications
1 In the Home screen, touch the
Applications tab, then select Settings >
Applications > Manage applications.
2 Once all applications appear, scroll to
and select the application you want to
uninstall.
3 Tap Uninstall, then touch OK to uninstall
the application you selected.
2. Optimising battery life
Extend your battery's life between charges
by turning off features you don't need
to run constantly in the background. You
can monitor how applications and system
resources consume battery power.
Extending your battery's life
• Turn off radio communications you are not
using. If you are not using Wi-Fi, Bluetooth
or GPS, turn them off.
• Reduce screen brightness and set a
shorter screen timeout.
• Turn off automatic syncing for Google
Mail™, Calendar, Contacts and other
applications.
• Some applications you have downloaded
may cause your battery life to be reduced.
Checking the battery charge level
1 In the Home screen, touch the
Applications tab, then select Settings >
About phone > Status.
2 The battery status (Charging, Not
charging) and level (percentage charged)
is displayed at the top of the screen.
19
Important notice
Monitoring and controlling what uses
the battery
1 In the Home screen, touch the
Applications tab, then select Settings >
About phone > Battery use.
2 Battery usage time is displayed at the
top of the screen. It tells you how long it
has been since you last connected to a
power source or, if connected to a power
source, how long you were last running
on battery power. The body of the screen
lists applications or services using battery
power, from greatest amount to least.
20
3. Installing an open source
operating system
If you install and use an open source
operating system (OS) on your phone
rather than using the OS provided by the
manufacturer, your phone may malfunction.
WARNING
If you install and use an OS other than
the one provided by the manufacturer,
your phone is no longer covered by the
warranty.
WARNING
To protect your phone and personal
data, only download applications from
trusted sources, such as Android
Market™. If there are improperly
installed applications on your phone,
your phone may not work normally or
a serious error may occur. You must
uninstall those applications and all their
data and settings from the phone.
4. Using unlock pattern
Set unlock pattern to secure your phone.
This opens a set of screens that guide
you through how to draw a screen unlock
pattern.
Caution: Create a Gmail account before
setting an unlock pattern.
21
Important notice
WARNING
Precautions to take when using
pattern lock.
It is very important to remember the
unlock pattern you set. You will not be
able to access your phone if you use
an incorrect pattern 5 times. You have
5 opportunities to enter your unlock
pattern, PIN or password. If you have
used all 5 opportunities, you can try
again after 30 seconds.
22
When you cannot recall your unlock
pattern:
If you logged in to your Google account on
the phone but failed to enter the correct
pattern 5 times, tap on the Forgotten pattern
button You are then required to log in with
your Google account to unlock your phone.
If you have not created a Google account
on the phone or you forgot it, you have to
perform a hard reset.
Caution: If you perform a hard reset, all user
applications and user data are deleted.
5. Using the hard reset
If it does not restore to the original condition,
use hard reset to initialise your phone.
When the phone is turned off, press and
hold the Volume down key + Power key
for over ten seconds. When the screen
shows the LG logo, release the Power key.
After the screen shows the hard reset
screen, release the other keys.
Leave your phone for at least a minute while
it performs the hard reset, then your phone
will be turned on.
Caution: If you perform a hard reset, all user
applications and user data are deleted. This
cannot be reversed. Remember to back
up any important data before performing a
hard reset.
6. Connecting to Wi-Fi networks
To use Wi-Fi on your phone, you need to
access a wireless access point or “hotspot.”
Some access points are open and you can
simply connect to them. Others are hidden
or use security features; you must configure
your phone to be able to connect to them.
23
Important notice
Turn off Wi-Fi when you're not using it to
extend the life of your battery.
Turning Wi-Fi on and connecting to a
Wi-Fi network
1 In the Home screen, touch the
Applications tab, then select Settings >
Wireless & networks > Wi-Fi settings.
2 Touch Wi-Fi to turn it on and begin
scanning for available Wi-Fi networks.
• A list of available Wi-Fi networks is
displayed. Secured networks are indicated
by a lock icon.
24
3 Touch a network to connect to it.
• If the network is open, you are asked to
confirm that you want to connect to that
network by touching Connect.
• If the network is secure, you're asked to
enter a password or other credentials. (Ask
your network administrator for details)
4 The status bar displays icons that indicate
Wi-Fi status.
7. Using a microSD card
Pictures, along with music and video files,
can only be saved to external memory.
Before using the built-in camera, you first
need to insert a microSD memory card into
your phone.
If you don't insert a memory card, you
cannot save the pictures and video you take
with the camera.
WARNING
Do not insert or remove the memory
card when the phone is on. Doing so
may damage the memory card as well
as your phone, and the data stored on
the memory card may be corrupted. To
remove the memory card safely, in the
Home screen, touch the Applications
tab, then select Settings > Storage >
Unmount SD Card.
25
Important notice
8. Opening and switching
applications
Multitasking is easy with Android because
you can keep more than one application
running at the same time. There’s no
need to quit an application before opening
another. Use and switch between several
open applications. Android manages each
application, stopping and starting them as
needed to ensure that idle applications don’t
consume resources unnecessarily.
26
Stopping applications
1 In the Home screen, touch the
Applications tab, then select Settings >
Applications > Manage applications >
select Running.
2 Scroll to the desired application and touch
Stop to stop it.
TIP! Returning to recent apps Press
and hold the Home key. A screen then
displays a list of the applications you
used recently.
9. Copying LG PC Suite from an
SD card
LG PC Suite IV is a program that helps you
connect your mobile phone to a PC using
a USB data communication cable. Once
connected, you can use the functions of the
mobile phone on your PC.
Major functions of LG PC Suite IV
• Create, edit and delete phone data with
ease
• Synchronise mobile phone data with PC
data (contacts, calendar, SMS messages,
bookmarks and call log)
• Easily transfer multimedia files (photos,
videos, music) by simply dragging and
dropping between a PC and your phone
• Transfer SMS messages from your phone
to a PC
• Software update without losing your data
Installing LG PC Suite from your microSD
memory card
1 Insert your microSD memory card into
your phone. (It may already be inserted)
2 Before connecting the USB data cable,
make sure that Mass storage only
mode is enabled on your phone. (In the
27
Important notice
applications menu, choose Settings >
Storage > Mass storage only check box.)
3 Use the USB data cable to connect your
phone to the PC.
4 • In the status bar, drag the USB icon.
• Choose USB connected and Turn
on USB storage. Then touch OK to
confirm
• You can view the mass storage content
on your PC and transfer files.
5 • Copy the LGPCSuiteIV folder in mass
storage to your PC.
28
• Run the LGInstaller.exe file on your PC
and follow the instructions.
* When LG PC Suite IV installation is
complete, disable Mass storage only mode
to run LG PC Suite IV.
NOTE: Do not remove or delete other
program files installed on your memory
card. This may damage your preinstalled
applications.
10. Connecting your phone to a
computer using USB
NOTE: To synchronise your phone with your
PC using the USB cable, you need to install
LG PC Suite onto your PC. Download the
program from the LG website (www.lg.com).
Go to www.lg.com and select your region,
country and language. For more information,
visit the various pages of the site. Since
PC Suite is on the microSD card, you can
simply copy it to your PC.
LG-E510 does not support:
- LG Air Sync (Web Sync, R-Click)
- To-do in Calendar
- Memo
- Java application
After installing PC Suite IV, you can find the
User Guide in the Help menu.
1 Use the USB cable to connect your phone
to a USB port on your computer. Once
connected, you will receive a notification
that a USB connection has been made.
2 Open the notification drawer and touch
USB connected.
3 Touch Turn on USB storage then touch
OK to confirm that you want to transfer
files between your phone’s microSD card
and the computer.
You will receive a notification when the
phone connects as USB storage. Your
phone’s microSD card is mounted as a drive
on your computer. You can now copy files to
29
Important notice
and from the microSD card.
NOTE: When uninstalling PC Suite IV, USB
and Bluetooth, drivers are not automatically
removed. You must uninstall them manually.
TIP! To use the microSD card on your
phone again, you need to open the
notification drawer and touch Turn off
USB storage.
During this time, you can’t access the
microSD card from your phone, so you can’t
use applications that rely on the microSD
card, such as Camera, Gallery and Music.
30
To disconnect your phone from the
computer, carefully follow your computer’s
instructions for properly disconnecting USB
devices to avoid losing information on the
card.
1 Open the notification drawer and touch
Turn Off USB Storage.
2 Safely disconnect the USB device from
your computer.
While making/receiving calls or sending/
receiving data, avoid holding the lower part
of the phone where the antenna is located.
Your display goes dark if untouched for a
period of time when using a data connection. Doing so may affect call quality.
To turn on your LCD screen, Press lock key. 13. When the screen freezes
11. Unlocking the screen when
using a data connection
12. Hold your phone straight up
Hold your mobile phone straight up, as you
would a regular phone. The LG-E510 has an
internal antenna. Be careful not to scratch
or damage the back of the phone, as that
causes loss of performance.
If the screen freezes or the phone does not
respond when you try to operate it:
Remove the battery, reinsert it, then turn the
phone on. If it still does not work, please
contact the service centre.
31
Important notice
14. Do not connect your phone
when you turn on/off your
PC.
Make sure you disconnect the data cable
between your phone and PC; leaving it
connected might cause errors on your PC.
32
Getting to know your phone
To turn on your phone, press and hold the Power key for 3 seconds.
To turn off the phone, press and hold the Power key for 3 seconds, then touch Power off and OK.
Speaker/Receiver
Power/Lock key
Switch your phone on/off by pressing and holding this key.
Turn off and lock the screen.
Proximity sensor
Menu key
Check what options are available.
Home key
Return to home from any screen.
Back key
Return to the previous screen.
Stereo earphone connector
Power/Lock key
33
Getting to know your phone
Volume keys
On the home screen: control ringer
volume.
• During a call: control your In-Call
volume.
• When playing a track: control
volume continuously.
Back cover
Camera
lens
/8I
+
"I 8I
#N "I
5ZQ N
.JO
Battery
SIM card slot
microSD memory
card slot
34
Charger, micro USB
cable connector
NOTE: Proximity sensor
When receiving and making calls, the
proximity sensor automatically turns
the backlight off and locks the touch
keypad by sensing when the phone is
near your ear. This extends battery life
and prevents the touch keypad from
activating unintentionally during calls.
WARNING
Placing a heavy object on the phone
or sitting on it can damage its LCD
and touch screen functions. Do
not cover the protective film on the
LCD’s proximity sensor. This may
cause the sensor to malfunction.
35
Getting to know your phone
Installing the SIM card and
battery
1 To remove the back cover, hold the phone
in your hand firmly. With the other hand,
firmly press your thumb on the back
cover. Now lift off the battery cover.
36
2 Slide the SIM card into the SIM card slot.
Make sure the gold contact area on the
card is facing downwards.
3 Insert the battery by aligning the gold
contacts on the phone and the battery.
4 Replace the back cover of the phone.
Charging your phone
Slide open the cover of the charger
connector on the side. Insert the charger,
then plug it into an electrical outlet. Your LGE510 must be charged before you see .
NOTE: The
battery must be
fully charged
initially to
improve battery
lifetime.
37
Getting to know your phone
Installing the memory card
To store multimedia files, such as images
captured using the built-in camera, you must
insert a memory card into your phone.
NOTE: The LG-E510 supports memory
cards up to 32 GB.
38
To insert a memory card:
1 Turn the phone off before inserting or
removing a memory card. Remove the
back cover.
2 Insert the memory card into the slot.
Make sure the gold contact area is facing
downwards.
WARNING
Do not insert or remove the memory
card when the phone is on. Doing so
may damage the memory card as well
as your phone, and the data stored on
the memory card may be corrupted.
39
Getting to know your phone
Formatting the memory card
Your memory card may already be
formatted. If it isn’t, you must format it
before you can use it.
NOTE: All files on the card are deleted when
you format the card.
1 In the Home screen, touch the
Applications tab to open the applications
menu.
2 Scroll to and touch Settings > Storage,
then select Mass storage only.
40
3 Touch Unmount SD card and touch OK
to confirm.
4 Touch Erase SD card, then confirm your
choice.
5 If you have set a pattern lock, input
the pattern lock then select Erase
Everything. The card is then formatted
and ready to use.
NOTE: If there is content on your memory
card, the folder structure may be different
after formatting since all the files will have
been deleted.
Your Home screen
Touch screen tips
NOTE:
Here are some tips on how to navigate
around your phone.
Touch – To choose a menu/option or open
an application, touch it.
Touch and hold – To open an options menu
or grab an object you want to move, touch
and hold it.
Drag – To scroll through a list or move
slowly, drag across the touch screen.
Flick – To scroll through a list or move
quickly, flick across the touch screen (drag
quickly and release).
• To select an item, touch the centre of the
icon.
• Do not press too hard; the touch screen
is sensitive enough to pick up a light, firm
touch.
• Use the tip of your finger to touch the
option you want. Be careful not to touch
any other keys.
41
Your Home screen
Lock your phone
When you are not using the LG-E510, press
the power key to lock your phone. This helps
prevent accidental presses and saves battery
power.
Also, if you do not use the phone for a while,
the Home screen or another screen you are
viewing is replaced with the lock screen to
conserve battery power.
If there are any programs running when you
set the pattern, they may be still running
in Lock mode. It is recommended that
you exit all programs before entering the
42
Lock mode to avoid unnecessary charges
(e.g. phone calls, Web access and data
communications).
Setting an unlock pattern: you can draw
your own unlock pattern by connecting the
dots.
If you set a pattern, the phone screen locks.
To unlock the phone, draw the pattern that
you set on the screen.
Caution: When you set an unlock pattern,
you need to create your Gmail account first.
Caution: If there are more than 5 pattern
drawing errors in a row, you cannot unlock
the phone. In this case, your personal
information and downloaded data is
deleted.
Unlock screen
Whenever your LG-E510 is not in use, it
returns to the lock screen. Drag your finger
from bottom to top to unlock the screen.
Silent mode
In the notification drawer touch
change to
mode.
, to
Home
Simply swipe your finger to the left or right
to view the panels.
You can customise each panel with widgets,
shortcuts (to your favourite applications),
folders and wallpaper.
NOTE: Some screen images may be
different depending on your phone provider.
43
Your Home screen
In your Home screen, you can view quick
keys at the bottom of the screen. Quick
keys provide easy, one-touch access to the
functions you use the most.
Touch the Phone icon to bring up the
touch screen dialpad to make a call.
Touch the Contacts icon to open your
contacts.
Touch the Message icon to access the
messaging menu. This is where you can
create a new message.
Touch the Applications tab at the
bottom of the screen. You can then view all
44
your installed applications.
To open the desired application, simply touch
the icon in the applications list.
NOTE: Preloaded applications may differ
according to your phone’s software or your
service provider.
Adding widgets to your Home
screen
You can customise your Home screen by
adding shortcuts, widgets or folders to it. For
more convenience using your phone, add
your favourite widgets to the Home screen.
1 In the Home screen, press the Menu key
and select Add. Or touch and hold the
empty part of the home screen.
2 In the Edit Mode menu, touch the type of
item you want to add.
3 For example, select Folders from the list
and tap it.
4 You then see a new folder icon on the
Home screen. Drag it to the desired
location on the desired panel, then take
your finger off the screen.
TIP! To add an application icon to the
Home screen from the Applications
menu, touch and hold the application
you want to add.
TIP! To remove an application icon from
the Home screen, touch and hold the
icon you want to remove, then drag it
to .
NOTE: You cannot delete preloaded
applications. (Only their icons can be
deleted from the screen)
45
Your Home screen
Returning to recently-used
applications
1 Touch and hold the Home key. The
screen displays a pop-up with icons of
applications you used recently.
2 Touch an icon to open the application.
Or touch the Back key to return to the
current application.
Notification drawer
The notification drawer runs across the top
of your screen.
46
Ring
Wi-Fi
Bluetooth GPS
Data
enabled
Touch and slide the notification drawer down
with your finger.
Or, in the Home screen, press the Menu
key and select Notifications. Here you can
check and manage sound, Wi-Fi, Bluetooth
and GPS as well as other notifications.
Below is a table explaining the meaning of
icons you’re likely to see in the status bar.
[Status bar]
Viewing the status bar
The status bar uses different icons to display
phone information such as signal strength,
new messages, battery life and active
Bluetooth and data connections.
47
Your Home screen
Icon Description
No SIM card
No signal
Airplane mode
Icon Description
Call in progress
Call hold
Speakerphone
Connected to a WiFi network
Phone microphone
is muted
Wi-Fi Direct is on.
Missed call
Bluetooth is on
Wired headset
48
Icon Description
Connected to a
Bluetooth device
System warning
Alarm is set
New voicemail
Ringer is silenced
Vibrate mode
Icon Description
Battery fully
charged
Icon Description
Downloading data
Battery is charging
Uploading data
Data in and out
GPS is acquiring
Phone is connected
to PC via USB cable
Receiving location
data from GPS
Icon Description
3 more notifications
not displayed
Data is syncing
Download finished
On-Screen Phone
connected
New Gmail
New Google Talk
message
49
Your Home screen
Icon Description
New message
Song is playing
Upcoming event
FM radio turned on
in the background
SmartShare On
50
Icon Description
SmartShare
sharing request
USB tethering is
active
Portable Wi-Fi
hotspot is active
Icon Description
Both USB
tethering and
portable hotspot
are active
Onscreen keyboard
You can enter text using the onscreen
keyboard. The onscreen keyboard appears
automatically on the screen when you
need to enter text. To manually display the
keyboard, simply touch a text field where
you want to enter text.
Using the keypad & entering text
Tap once to capitalise the next letter you
type. Double tap for all caps.
Tap to switch to the numeric and
symbol keyboard. You can also touch and
hold this tab to view the Settings menu.
Tap to view or press and hold to change
the writing language.
Tap to insert an emoticon when writing a
message.
Tap to enter a space.
Tap to create a new line in the message
field.
Tap to delete the previous character.
Tap to hide the onscreen keyboard.
51
Your Home screen
Entering accented letters
When you select French or Spanish as the
text entry language, you can enter special
French or Spanish characters (e.g. “á”).
For example, to input "á", touch and hold
the "a" key until the zoom-in key grows
bigger and displays characters from different
languages.
Then select the special character you want.
52
Google account setup
When you first turn on your phone, you have
the opportunity to activate the network, to
sign into your Google Account and how you
want to use some Google services.
To set up your Google account :
* Sign into a Google Account from the
prompted set up screen.
OR
* Applications > select a Google application,
such as Gmail > select Next >select Create
to create a new accout.
If you have a Google account, enter your
e-mail address and password, then touch
Sign in.
Once you have set up your Google account
on your phone, your phone automatically
synchronises with your Google account on
the Web.
Your contacts, Gmail messages, Calendar
events and other information from these
applications and services on the Web are
synchronised with your phone. (This depends
on your synchronisation settings) .
53
Google account setup
After signing in, you can use Gmail™ and
take advantage of Google services on your
phone.
54
Wi-Fi
With Wi-Fi, you can use high-speed Internet
access within the coverage of the wireless
access point (AP).
Enjoy wireless Internet using Wi-Fi, without
extra charges.
Turning on Wi-Fi
From the Home screen, open the notification
drawer and touch
.
Or touch Application > Settings >
Wireless & networks, then > Wi-Fi
.
Connecting to Wi-Fi
Choose the Wi-Fi network you want to
connect to. If you see ,
you need to enter a password to connect.
NOTE:
• If you are outside the Wi-Fi coverage area
and choose 3G connection, additional
charges may apply.
• If your phone goes into sleep mode when
connected to Wi-Fi, the Wi-Fi connection is
automatically disabled.
• In this case, if your phone has access to
3G data, it may connect to the 3G network
55
Wi-Fi
automatically and additional charges may
apply.
• The LG-E510 supports WEP, WPA/WPA2PSK and 802.1x EAP security. If your Wi-Fi
service provider or network administrator
sets encryption for network security,
enter the key into the pop-up window.
If encryption is not set, this pop-up
window is not shown. Obtain the key from
your Wi-Fi service provider or network
administrator.
56
Sharing your phone’s data
connection
You can share your phone’s mobile data
connection with a single computer via a USB
cable (USB tethering). You can also share
your phone’s data connection with up to five
devices at a time by turning your phone into
a portable Wi-Fi hotspot.
When your phone is sharing its data
connection, an icon appears in the status
bar and as an ongoing notification in the
notifications drawer.
Icon Description
USB tethering is active
NOTE: Additional costs may be incurred
when connecting and using online services.
Check data charges with your network
provider.
Portable Wi-Fi hotspot is active
USB tethering & portable Wi-Fi
hotspot settings
Both USB tethering and portable
hotspot are active
1 In the Home screen, touch the
Applications tab and select Settings.
2 Touch Wireless & networks and select
Tethering & portable hotspot.
3 Choose options that you want to adjust.
For the latest information about tethering
and portable hotspots, including supported
operating systems and other details, visit
http://www.android.com/tether.
57
Wi-Fi
USB tethering – Tick to share your phone’s
mobile network data connection with your
computer via a USB connection.
Portable hotspot – Tick to share your
phone’s mobile network data connection as
Wi-Fi sharing.
Help – Opens a dialog with information
about USB tethering and portable Wi-Fi
hotspots as well as information on where to
learn more.
58
To share your phone’s data
connection via USB
If your computer is running Windows 7 or a
recent distribution of some flavours of Linux
(such as Ubuntu), you don’t usually need to
prepare your computer for tethering. But if
you’re running an earlier version of Windows
or another operating system, you may need
to prepare your computer to establish a
network connection via USB. For the most
current information about which operating
systems support USB tethering and how to
configure them, visit http://www.android.
com/tether.
USB tethering and data sharing
You can’t share your phone’s data
connection and microSD card via USB
at the same time. If you are using your
USB connection to make your microSD
card available to your computer, you must
disconnect it first.
1 Use the USB cable that came with your
phone to connect your phone to your
computer.
2 In the Home screen, touch the
Applications tab and select Settings.
3 Touch Wireless & networks and select
Tethering & portable hotspot.
4 Tick USB tethering.
• The phone starts sharing its mobile
network data connection with your
computer via the USB connection. An
ongoing notification
is added to the
status bar and notifications drawer.
5 Untick USB tethering to stop sharing
your data connection. Or just disconnect
the USB cable.
59
Wi-Fi
To share your phone’s data
connection as a portable Wi-Fi
hotspot
1 In the Home screen, touch the
Applications tab and select Settings.
2 Touch Wireless & networks and select
Tethering & portable hotspot.
3 Tick Portable hotspot.
• After a moment, the phone starts
broadcasting its Wi-Fi network name
(SSID) so you can connect to it with up
to eight computers or other devices. An
ongoing notification
is added to the
60
status bar and notifications drawer.
• When Portable hotspot is ticked, you can
change its network name or secure it.
4 Untick Portable hotspot to stop sharing
your data connection via Wi-Fi.
To rename or secure your
portable hotspot
You can change the name of your phone’s
Wi-Fi network name (SSID) and secure its
Wi-Fi network.
1 In the Home screen, touch the
Applications tab and select Settings.
2 Touch Wireless & networks and select
Tethering & portable hotspot.
3 Ensure Portable hotspot is ticked.
4 Touch Portable hotspot settings.
5 Touch Configure Wi-Fi hotspot.
• The Configure Wi-Fi hotspot dialog
opens.
• You can change the network SSID (name)
that other computers see when scanning
for Wi-Fi networks.
• You can also touch the Security menu to
configure the network with Wi-Fi Protected
Access 2 (WPA2) security, with a preshared key (PSK).
• If you touch the WPA2 PSK security
option, a password field is added to the
Configure Wi-Fi hotspot dialog. If you
enter a password, you will need to enter
that password when you connect to the
phone’s hotspot with a computer or other
device. Or touch Open in the Security
menu to remove security from your Wi-Fi
network.
61
Wi-Fi
ATTENTION!
If you set the security option as Open,
you cannot prevent unauthorised usage
of online services by other people and
additional charges can be incurred.
To avoid unauthorised usage, you are
advised to keep the security option
active.
6 Touch Save.
62
Enabling Wi-Fi Direct to share
through SmartShare
Wi-Fi Direct cannot be enabled while using
other Wi-Fi functions.
Wi-Fi Direct automatically scans nearby WiFi Direct devices and the searched devices
will be listed up in the order of arrival and
you can select a specific device to share
multimedia data through SmartShare.
1 On the home screen, touch the
Application tab and select Settings.
2 Touch Wireless & networks and select
Wi-Fi Direct Settings.
3 Ensure Wi-Fi Direct is selected.
4 Select a device to connect in the scanned
device list.
Forced Group owner mode – Touch to
activate group owner mode that enables the
legacy Wi-Fi devices to connect by scanning
your phone.
In this case you must enter the password
that is set in the Menu > Advanced >
Password.
NOTE: When your phone becomes group
owner, it will consume more battery power
than being a client. Wi-Fi Direct connection
does not provide Internet service. Additional
cost may be incurred when connecting and
using online services. Check data charges
with your network provider.
Using the Wi-Fi Cast
You can share your music, picture and video
contents between users who use Android
Phone connected via same Wi-Fi & Wi-Fi
Directed network.
Check your Wi-Fi & Wi-Fi Directed network
in advance and make sure same network is
connected between the users.
63
Wi-Fi
1 On the home screen, touch the
Application tab and select Settings.
2 Touch Wireless & networks and select
Wi-Fi Direct Settings.
3 Ensure Wi-Fi Direct is selected and
select a device to connect in the scanned
device list.
4 Touch Connect.
NOTE:
Wi-Fi cast is activated between the users.
Make sure to connect to same Wi-Fi
Network between the users.
64
On-Screen Phone
How to use On-Screen Phone
On-Screen Phone allows you to view your
mobile phone screen from a PC via a USB or
Bluetooth connection.
You can also control your mobile phone from
your PC using the mouse or keyboard.
On-Screen Phone icons
Changes the On-Screen Phone
preferences.
Exits the On-Screen Phone program.
Minimises the On-Screen Phone
window.
On-Screen Phone features
• Real-time transfer and control: displays
Connects your mobile phone to your PC,
and controls your mobile phone screen
or disconnects it.
when connected to your PC.
Rotates the On-Screen Phone window
• Mouse control: allows you to control your
(only available at applications that
mobile phone by using the mouse to click
support rotation).
and drag on your PC screen.
65
On-Screen Phone
• Text input with keyboard: allows you to
compose a text message or note using
your computer keyboard.
• File transfer (mobile phone to PC): sends
a file from your mobile phone (e.g. photos,
videos, music and Polaris viewer files) to
your PC. Simply right-click and drag to
send a file to your PC.
• File transfer (PC to mobile phone): sends
files from your PC to your mobile phone.
Simply select the files you wish to transfer
and drag and drop into the On-Screen
Phone window. The files you send are
66
stored on a micro SD card.
• Real-time event notifications: prompts
a pop-up to inform you of any incoming
calls or text, as well as alarm and event
notifications.
How to install On-Screen Phone
on your PC
If you install LG PC Suite IV, the On-Screen
Phone program will also be downloaded on
your PC. Then you can install the On-Screen
Phone on your PC.
How to connect your mobile
phone to your PC
USB connection:
1 Open Connection Wizard, select "USB
Cable connection" and click "Next".
2 Connect your mobile phone to the PC
using a USB cable and click "Next".
3 Enter the On-Screen Phone password
and click "Next". The default password is
"0000". You can change the password in
Settings > Wireless & networks > OnScreen Phone Settings.
4 Click "OK" to exit the window.
NOTE: Go to Settings > Storage and
make sure that the “Mass storage only”
checkbox is deselected.
Wireless connection with Bluetooth:
1 On your mobile phone, go to Settings
> Wireless & networks > Bluetooth
settings. Select Turn on Bluetooth and
select Discoverable.
2 If you have previously connected using a
cable, run the New Connection Wizard to
create a new connection.
67
On-Screen Phone
3 Run the Connection Wizard on the
computer, select "Bluetooth connection",
then "Next".
4 The wizard starts searching for Bluetoothenabled mobile phones. When the
mobile phone that you wish to connect to
appears, click "Stop" to stop searching.
5 Select "LG-E510" from the device list and
click "Next". You can rename the device
if you wish.
6 Enter the PIN code (e.g. "0000") and
click "Next".
68
7 On your mobile phone, accept the request
and check the same PIN code, then touch
"OK".
8 Enter the On-Screen Phone password
and click "Next" (the default password is
"0000").
9 Touch "OK" to exit.
To check the phone to PC
connection
Once the devices have been connected, drag
down the notification bar at the top of the
home screen to check the On-Screen Phone
connection status.
To disconnect your phone from
your PC
Click
in the top left of the On- Screen
Phone window. Or drag down the notification
bar at the top of the home screen and select
"On-Screen Phone". Touch "Yes" in the
Disconnect window.
NOTE: You must restart your phone after
shutting down the On-Screen Phone
service.
69
Calls
Making a call
Calling your contacts
1 Touch
to open the keypad.
2 Enter the number using the keypad. To
delete a digit, touch the Clear icon
.
3 Touch the Call icon
to make
a call.
4 To end a call, touch the End icon
.
1 Touch
to open your contacts.
2 Scroll through the contact list or enter the
first letter(s) of the contact you want to
call by touching Search.
3 In the list, touch the contact which you
want to call and tap on the number or call
icon to make call.
TIP! To enter “+” to make international
calls, touch and hold
.
Answering and rejecting a call
When the Screen is locked and your phone
rings, drag the Answer icon
to the right.
Drag the Decline icon
to the left to
70
reject an incoming call. Drag the Excuse
messages bar from the bottom if you want
to send one. If the caller is unknown, the
Excuse messages bar is not available.
TIP! Excuse messages
When you reject a call, you can send
a message quickly by touching Send
SMS. This is useful if you need to reply
the message during a meeting.
Adjusting call volume
To adjust the in-call volume during a call,
use the Volume Up and Down key on the left
side of the phone.
Making a second call
1 During your initial call, tap on the Menu
and select .
2 Dial the number, or search your contacts.
3 Touch the Call icon
to connect
the call.
4 Both calls are displayed on the call
screen. Your initial call is locked and put
on hold.
5 Touch the displayed number to toggle
between calls. Or touch
Merge calls
to make a conference call.
6 To end active calls, touch End.
71
Calls
NOTE: You are charged for each call you
make.
Viewing your call logs
In the Home screen, touch
and choose
the Call log tab.
View a complete list of all dialled, received
and missed voice calls.
TIP! Touch any call log entry
to view the date, time and duration of
the call.
72
TIP! Press the Menu key,
then touch Delete all to delete all the
recorded items.
Call settings
You can configure phone call settings such
as call forwarding and other special features
offered by your carrier.
1 In the Home screen, touch the
Applications tab to open the applications
menu.
2 Scroll and touch Settings.
3 Tap Call settings and choose the options
that you want to adjust.
Contacts
Add contacts to your phone and synchronise
them with the contacts in your Google
account or other accounts that support
contact syncing.
Searching for a contact
In the Home screen
1 Touch
to open your contacts.
2 Touch Search and enter the contact
name using the keyboard.
Adding a new contact
1 Touch , enter the new contact’s
number, then press the Menu key. Touch
Add to contacts and then Create new
contact.
2 If you want to add a picture to the new
contact, touch .
Choose from Capture picture or Pick
from Gallery.
3 Select the contact type by touching
.
4 Touch a category of contact information
and enter the details about your contact.
5 Touch Save.
73
Contacts
Favorite contacts
You can classify frequently called contacts
as favorites.
Adding a contact to your favorites
1 Touch
to open your contacts.
2 Touch a contact to view its details.
3 Touch the star to the right of the contact’s
name. The star turns gold.
74
Removing a contact from your favorites
list
1 Touch
to open your contacts.
2 Touch the Groups tab, select Favorites at
the top of the list and choose a contact to
view its details.
3 Touch the Gold star to the right of the
contact’s name. The star turns grey
and the contact is removed from your
favourites.
Moving contacts from your old
phone to your new phone
Export your contacts as a CSV file from
your old phone to your PC using a PC
sync program.
1 Download PC Suite IV from www.lg.com
and install it on the PC. Run the program
and connect your Android mobile phone
to the PC using the USB cable.
2 Select the Contacts icon. Go to Menu
> File > Import and select the CSV file
saved on your PC.
3 If the fields in the imported CSV file are
different from those in PC Suite IV, you
need to map the fields. After mapping
the fields, click OK. The contacts are then
added to PC Suite IV.
4 If PC Suite IV detects the connection
of your LG-E510 phone (using the USB
cable), click Sync or Sync contacts to
synchronise the contacts saved on your
PC with your phone.
75
Messaging/email
Messaging
Your LG-E510 combines SMS and MMS into
one intuitive, easy-to-use menu.
Sending a message
1 Touch
icon on the home screen, and
touch New message to open a blank
message.
2 Enter a contact name or contact number
in the To field. As you enter the contact
name, matching contacts appear. You can
touch a suggested recipient. You can add
multiple contacts.
76
NOTE: You will be charged for a text
message for every person you send the
message to.
3 Touch Enter message field and start to
compose your message.
4 Press the Menu key to open the options
menu. Choose from Call, Add Subject,
Discard, Reply By, Attach and more.
5 Touch Send to send your message.
6 The message screen opens, with your
message after Recipient Name/Number.
Responses appear on the screen. As you
view and send additional messages, a
message thread is created.
WARNING: The 160-character
limit may vary from country to country
depending on how the SMS is coded
and in what language.
WARNING: If an image, video or
audio file is added to an SMS, it will be
automatically converted into an MMS ,
and you will be charged accordingly.
NOTE: When you get an SMS message
during a call, there will be a ring notification.
Threaded box
Messages (SMS, MMS) exchanged
with another party can be displayed
in chronological order so that you can
conveniently see an overview of your
conversation.
Using Smilies
Liven up your messages using Smilies.
When writing a new message, press the
Menu key, then choose Insert smiley.
77
Messaging/email
Changing your message settings Opening Email and the Accounts
Screen
Your LG-E510 message settings are
predefined, so you can send messages
immediately. You can change the settings
based on your preferences.
WARNING: In this mode, the MMS
Client device guides the user in creating
and sending messages with content
belonging to the Core MM Content
Domain. This guidance is provided
through warning dialogs.
78
You can use the Email application to read
email from services other than Google Mail.
The Email application supports the following
account types: POP3, IMAP and Exchange.
To open the Email application
From the Home screen, touch Application->
Email Select Email Service Provider.
A setup wizard opens to help you add an
email account. After the initial setup, Email
displays the contents of your Inbox (if you
have only one account) or the Accounts
screen (if you have multiple accounts).
The Accounts screen
The Accounts screen lists your Combined
Inbox and each of your email accounts.
1 Open the Email application. If you’re not
on the Account screen, press the Menu
Key and touch Accounts.
2 Select the Email service provider.
- Touch to open your Combined Inbox,
with messages Recieved to all of your
accounts.
- Touch to open a list of just your
starred messages.
- Touch the folder icon to open the
account’s folders.
You can touch an account to view its Inbox.
The account from which you send email by
default is indicated with a tick.
To open your Combined Inbox
If you have configured Email to send and
receive email from more than one account,
you can view all messages sent to all
accounts in your Combined Inbox.
79
Messaging/email
1 Touch Email.
2 Touch Combined Inbox (in the Accounts
screen). Messages in the Combined Inbox
are colour coded along their left sides, by
account, using the same colours that are
used for your accounts in the Accounts
screen.
Only your account’s most recent emails are
downloaded to your phone. To download
more (earlier) email messages, touch Load
more messages at the bottom of the
emails list.
80
Composing and Sending Email
To compose and send a message
1 While in the Email application, press the
Menu Key and touch Compose.
2 Enter an address for the message’s
intended recipient. As you enter text,
matching addresses are offered from your
Contacts. Separate multiple addresses
with commas.
3 Touch the Menu key and then touch Add
Cc/Bcc to send copy or blind copy of the
mail to other contacts/email addresses.
4 Enter the text of the message.
5 Press the Menu Key and touch Add
Attachment to send a file with the
message.
6 Touch the Send button.
If you’re not ready to send the message,
touch the Save as draft button to save it
in a Drafts folder. Touch a draft message
in a Drafts folder to resume working on
it. Your message will also be saved as
a draft if you touch the Back Key
before sending it. Touch the Discard
button to abandon and delete a message,
including any saved drafts. If you aren’t
connected to a network, for example,
if you’re working in airplane mode, the
messages that you send are stored in
your Outbox folder until you’re connected
to a network again. If it contains any
pending messages, the Outbox is
displayed on the Accounts screen.
Please note that messages sent using an
Exchange account will not be located on the
phone; they will, however, be located on the
Exchange server itself.
If you want to see your sent messages in the
Sent folder ,then touch Menu key and touch
81
Messaging/email
on Folders then touch on Sent folder and
select Refresh from the options Menu.
Adding and Editing email
Accounts
1 To add an email account Touch the
Applications tab and select Email.
2 Select MS Exchange or Others, and enter
account settings.
3 If an email account is already set up, you
Working with Account Folders
need to touch the Menu key then tap Add
Each account has Inbox, Outbox, Sent, and
account from Accounts Screen.
Drafts folders. Depending on the features
supported by your account’s service provider, 4 Enter a name for the account, confirm
how you want your name to appear
you may have additional folders.
in outgoing mail, then touch the Done
button.
82
TIP! When a new email arrives in the
inbox, you will receive a notification by
sound or vibration.
To change an account’s settings
1 Open the Accounts screen.
2 Touch and hold the account whose
settings you want to change. In the menu
that opens, touch Account settings.
To delete an email account
1 Open the Accounts screen.
2 Touch and hold the account you want to
delete.
3 Touch Remove account in the menu
that opens.
4 Touch the OK button in the dialog box
to confirm that you want to delete the
account.
83
Social Networking
Social Networking
With your phone, you can take advantage of
Social Networking and manage your microblog in on-line communities. You can update
your current status, upload photos, and view
your friend's status updates in real-time.
You can add your Facebook, Twitter and
Myspace accounts to your phone. If you
don’t have an account, you can visit their
sites to set it up.
NOTE: Additional costs may be incurred
when connecting and using online services.
Check your data charges with your network
provider.
84
Adding your account to your
phone
1 Touch and hold the home screen. When
various Widgets appear, choose Social+
and tap the Setting
button. You
can also access in a different way, on
the home screen, choose Applications >
Settings > Accounts & sync > Social+
settings.
2 Choose the Social Networking client
application you want to use from
Facebook for LG, Twitter for LG and
MySpace for LG.
3 Enter your community email address and
password, then tap Log in.
4 Wait while your details are confirmed with
your community.
5 If you tap your community, you can see
its current status.
TIP! If you add a Social Networking
widget on your home screen, the widget
will show your status when your phone
updates from the network.
You can also access the social
community directly by touching the
widget.
Viewing and updating your
status
1 You can view and update social
community content using the Social+
widget at any time.
2 On the Social+ widget, choose the Social
Networking service which you want to
log in. You will then see your status and
contents.
3 When you touch the input box, the screen
will switch to update your current status
with comments or upload photos.
85
Social Networking
TIP! You can update your status
and upload photos simultaneously to
Facebook for LG,Twitter for LG and
MySpace for LG by selecting the checkbox.
NOTE: This depends on network services.
TIP! You can synchronise your
friend contact to your contact list.
86
Removing accounts from your
phone
Choose Settings > Accounts & sync >
Choose an account you want to delete >
Touch Remove account.
Camera
Getting to know the
viewfinder
TIP! You can close all the shortcut options to
give a clearer viewfinder screen by touching
the centre of the viewfinder once. To display
the options, touch the screen again.
Zoom - Zoom in or zoom out. Alternatively you can use the side
volume keys.
Brightness - This defines and controls the amount of sunlight
entering the image. Slide the brightness indicator along the bar
towards “-” to lower the brightness of the image or towards “+” to
increase it.
Scene mode - Choose from Auto, Portrait, Landscape, Sports,
Night and Sunset.
Image size - Touch to set the size (in pixels) of the picture you take.
Settings - Touch this icon to open the Settings menu. See 'Using the
advanced settings'.
Video mode - Slide this icon down to switch to video mode.
Taking a photo
Gallery - Touch to view the last photo you captured. This enables you
to access your gallery and view saved photos from within camera
mode.
87
Camera
Taking a quick photo
1 Open the Camera application.
2 Hold the phone horizontally and point
the lens towards the subject you want to
photograph.
3 In the centre of the viewfinder screen, a
focus box starts blinking as it tries to get
the subject in focus.
4 The focus box turns green when the
subject is in focus.
button. You can
5 Press the capture
press the capture button whether the
focus box is green or not.
88
Once you’ve taken the photo
Your captured photo appears on the screen.
Share Touch to share your photo using
SmartShare, Bluetooth, E-mail,
Gmail, Messaging, Picasa,
Social+ or Wi-Fi Cast.
NOTE: additional charges may apply when
MMS messages are downloaded while
roaming.
TIP! If you have an SNS account
and set it up on your phone, you
can share your photo with the SNS
community.
Set as
Touch to use the image as a
Contact icon or wallpaper.
Rename Touch to edit the name of the
picture just taken.
Touch to delete the image.
Touch to take another photo
immediately. Your current photo is
saved.
Touch to view the last photo you
captured as well as the gallery
Using the advanced settings
In the viewfinder, touch
to open all
advanced options.
Change camera settings by scrolling through
the list. After selecting the option, touch the
Back key.
ISO – The ISO rating determines the
sensitivity of the camera’s light sensor.
The higher the ISO, the more sensitive the
89
Camera
camera is. This is useful in darker conditions
when you cannot use the flash. Select from
ISO values of Auto, 400, 200 and 100.
White balance – Choose from Auto,
Incandescent, Sunny, Fluorescent and
Cloudy.
Color effect – Choose a colour tone for your
new photo.
Timer – The self-timer allows you to set a
delay after the capture button is pressed.
Select Off, 3 secs., 5 secs. or 10 secs. This
is ideal if you want to be in the photo.
90
Image quality – Choose from Super fine,
Fine and Normal. The finer the quality, the
sharper the photo. However, the file size
increases as a result, which means you can
store fewer photos in the memory.
Auto review – If you turn Auto review on,
it automatically shows you the picture you
just took.
Shutter sound – Select one of four shutter
sounds.
Tag location – Activate to use your phone’s
location-based services. Take pictures
wherever you are and tag them with the
location. If you upload tagged pictures to a
blog that supports geotagging, you can see
the pictures displayed on a map.
NOTE: This function is only available when
GPS is active.
– Restore all camera default settings.
– Touch whenever you want to know
how this function operates. This provides you
with a quick guide.
TIP! When you exit the camera, some
settings return to their defaults, such as
white balance, color effect and timer .
Check these before you take your next
photo.
TIP! The Settings menu is superimposed
over the viewfinder, so when you change
elements of the image colour or quality,
you see a preview of the image change
behind the Settings menu.
91
Viewing your saved photos
Access your saved photos while in Camera
mode. Just touch
and touch the screen.
You then see Slideshow and Menu.
TIP! Flick left or right to view
other photos or videos.
- Touch to see a slideshow.
- Touch to share the contents or delete a
photo. Touch More for more options.
Details – Check information on the
content.
92
Set as – Set as a contact icon or
wallpaper.
Crop – Crop your photo. Move your
finger across the screen to select the
area.
Rotate – Rotate left or right.
Video camera
Getting to know the
viewfinder
Zoom - Zoom in or zoom out. Alternatively you can use the side
volume keys.
Brightness - This defines and controls the amount of sunlight entering
the video. Slide the brightness indicator along the bar towards “-” to
lower the brightness of the video or towards “+” to increase it.
Video size - Touch to set the size (in pixels) of the video you record.
Duration - Set a duration limit for your video. Choose between Normal
and MMS to limit the maximum size to send as an MMS message.
Settings - Touch this icon to open the settings menu. See 'Using the
advanced settings'.
Camera mode - Slide this icon up to switch to camera mode.
Start recording
Gallery - Touch to view the last video you recorded. This enables
you to access your gallery and view your saved videos from within
video mode.
93
Video camera
Shooting a quick video
1 Slide the Camera mode button down and
the icon changes to .
2 The video camera viewfinder appears on
the screen.
3 Holding the phone horizontally, point the
lens towards the subject you want to
capture in your video.
4 Press the Record
button once to start
recording.
5 REC appears at the bottom of the
viewfinder with a timer showing the
length of the video.
94
6 Touch
on the screen to stop
recording.
After shooting a video
A still image representing your video will
appear on the screen.
Play Touch to play the video.
Share Touch to share your video using
SmartShare, Bluetooth, E-mail,
Gmail, Messaging, Wi-Fi Cast or
YouTube.
NOTE: Additional charges may apply when
MMS messages are downloaded while
roaming.
Rename
Touch to edit the name of the
selected video.
Touch to shoot another video right away.
Your current video is saved.
Touch to delete the video you just made.
Confirm by touching OK. The viewfinder
reappears.
Touch to view the last recorded video as
well as the gallery.
Using the advanced settings
Using the viewfinder, touch
to open all
the advanced options.
Adjust the video camera setting by scrolling
through the list. After selecting the option,
touch the Back key.
White balance – White balance ensures
that the white areas in your video are
realistic. To enable your camera to adjust
the white balance correctly, you may need to
determine the light conditions. Choose from
Auto, Incandescent, Sunny, Fluorescent
and Cloudy.
95
Video camera
Color effect – Choose a colour tone to use
for your new view.
Video quality – Choose from Super fine,
Fine and Normal.
Audio recording – Choose Mute to record
a video without sound.
Auto review – Auto review automatically
shows you the video you just recorded.
– Restore all video camera default
settings.
– Touch if you want to know how this
function operates. This provides you with a
quick guide.
96
Watching your saved videos
1 In the viewfinder, touch .
2 Your gallery appears on the screen.
3 Touch a video once to bring it to the
front of the gallery. It starts playing
automatically.
Adjusting the volume when
viewing a video
To adjust the volume of a video while it is
playing, use the volume keys on the lefthand side of the phone.
Multimedia
You can store multimedia files on a memory
card to have easy access to all your image
and video files.
Touch the Applications tab, then select
Gallery. Open a list of catalogue bars that
store all your multimedia files.
NOTE: Make sure you install
a memory card in the phone to save
photos and videos. Without a memory
card, the phone does not display photos
or videos except Picasa images, which
are in your Picasa web album.
View mode
Touch Gallery. Folder view is displayed.
Touch any folder and it turns to grid view
mode. If you tap a photo, it changes into full
view mode.
Timeline view
LG-E510 Gallery provides a timeline view of
your photos and videos. In grid view mode,
drag
to the right and the date you
took your photos is displayed, starting with
the most recent. If you select a specific
date, all the photos you took on that day are
grouped.
97
Multimedia
Using SmartShare
SmartShare provides you with a better way
to enjoy multimedia contents with other
DLNA (Digital Living Network Alliance)
enabled devices.
* Share your media contents with other
DLNA devices (DMS)
1 In the Home screen, touch the
Applications tab and select
SmartShare.
2 Press the Menu key and select Settings.
3 Touch the Discoverable tickbox to turn on.
98
4 You can change your device name, icon
and select the sharing content types.
* Let your renderer device (e.g. TV)
play multimedia contents from remote
content library (e.g. PC)
1 Touch the top right button to select the
device from a list of renderers.
2 Touch the top left button and select a
remote content library.
3 You can browse the remote content
library.
4 Touch a content thumbnail or press the
Menu key and select the Play button.
Notice: Check that your device is
connected to your home network using
a Wi-Fi connection in order to use this
application.
Notice: Some DLNA-enabled devices (e.g.
TV) support only DMP features of DLNA and
will not appear in the renderer device lists.
Music
Your LG-E510 has a built-in music player
that lets you play all your favourite tracks. To
access the music player, touch Music.
Playing a song
1 In the Home screen, touch the
Applications tab and select Music.
2 Touch Songs.
3 Select the song you want to play.
4 Touch
to pause the song.
to skip to the next song.
5 Touch
6 Touch
to go back to the beginning
of the song. Touch
twice to return to
the previous song.
99
Multimedia
To change the volume while listening to
music, press the up and down volume keys
on the left-hand side of the phone.
Touch and hold any song in the list. It
displays Play, Add to playlist, Use as
phone ringtone, Delete, Details, Share and
Search as options.
100
NOTE: Music file copyrights may be
protected by international treaties and
national copyright laws.
Therefore, it may be necessary to obtain
permission or a licence to reproduce or
copy music.
In some countries, national laws prohibit
private copying of copyrighted material.
Before downloading or copying the file,
check the national laws of the relevant
country concerning the use of such
material.
Transferring files using USB
mass storage devices
To transfer files using USB devices
1 Connect the LG-E510 to a PC using a
USB cable.
2 If you haven't installed LG Android
Platform Driver on your PC, you need to
change the settings manually. Choose
Settings > Storage, then select Mass
storage only.
3 Touch Turn on USB storage.
4 You can view the mass storage contents
on your PC and transfer the files.
NOTE: You need to install an SD card first.
Without an SD card, you cannot use USB
mass storage.
NOTE: If you installed LG Android Platform
Driver, you will immediately see a pop-up
saying Turn on USB storage.
How to Transfer music/video
files to your phone
1 Connect your phone to the PC using the
USB cable. In the Home screen, touch
and drag down the notification drawer.
Select USB connected > Turn on USB
storage > Select Open folder to view
101
Multimedia
files from Removable Disk pop up which
appears in PC .
If you didn't install LG Android Platform
Driver on your PC, you must set it up
manually.
For more information, refer to
'Transferring files using USB mass
storage devices'.
2 Transfer music or video files from the PC
to the phone's removable storage.
• You can copy or move files from your
PC to your phone's removable storage
using a card reader.
102
• If there is a video file with a subtitle file
(*.srt file with the same name as the
video file), place it in the same folder
to display subtitles automatically when
playing the video file.
• When downloading music or video files,
copyrights must be secured. Note that
corrupted files or files with incorrect
extensions may damage your phone.
Sending data from your phone
using Bluetooth
Sending data using Bluetooth You can
use Bluetooth to send data by running a
corresponding application, not from the
Bluetooth menu as on most other mobile
phones.
* Sending pictures: Run the Gallery
application, then select Picture > Menu.
Click Share, then select Bluetooth. Check
whether Bluetooth is turned on, then select
Scan for devices. Choose the device you
want to send data to from the list.
* Exporting contacts: Run the Contacts
application. Touch the address you want
to export to. Press the Menu key and
select Share > Bluetooth. Check whether
Bluetooth is turned on, then select Scan
for devices. Choose the device you want
to send data to from the list.
* Sending multi-selected contacts: Run
the Contacts application. To select more
than one contact touch the Menu key and
touch Share. Select the contacts you want
to send or touch Select all option from
top > Select Share > Bluetooth > Enable
Bluetooth and select Scan for devices
>Choose the device you want to send data
from the list.
103
Multimedia
* Connecting to FTP (only FTP server
is supported on this handset): select
Settings > Wireless & networks
> Bluetooth Settings. Select the
Discoverable box so you can search for
your phone on other devices. Find the FTP
service and connect to the FTP server.
• If you want to search for this phone from
other devices, go to Settings > Wireless
& networks > Bluetooth Settings. Select
the Discoverable box. The box is cleared
after 120 seconds.
104
Radio
Your LG-E510 has a built-in FM radio so you
can tune in to your favourite stations and
listen on the go.
NOTE: You must attach your headphone
to listen to the radio. Insert it into the
headphone jack.
Searching for stations
You can tune in to radio stations
by searching for them manually or
automatically. They will be then saved to
specific channel numbers, so you don’t have
to keep re-tuning it.
You can store up to 48 channels on your
phone.
Tuning in automatically
1 In the Home screen, touch the
Applications tab and select FM Radio.
2 Press the Menu key, then touch Auto
scan.
3 If there are preset channels, you will see
a pop-up asking "Reset all channels and
start auto scan?". If you choose OK, all
the preset channels are deleted and Auto
scan starts.
4 During auto scanning, touch Stop if you
want to stop scanning. Only scanned
channels are saved before you stop
scanning.
NOTE: You can also manually tune in to a
station using the displayed wheel.
Resetting channels
Press the Menu key and choose Reset
channel to reset the current channel, or
choose Reset all channels to reset all the
channels.
105
Multimedia
Listening to the radio
1 On the home screen, touch Applications
tab and select FM radio.
2 Touch the channel number of the station
you want to listen to.
3 Touch Listen Via to set the mode to
speaker or headset to listen to the radio.
4 Touch
icon for volume.
TIP! To improve radio reception,
extend the headset cord as this also
functions as the radio antenna.
106
WARNING
If you connect a headset not specifically
made for radio reception, radio reception
may be poor.
Utilities
Setting your alarm
1 In the Home screen, touch the
Applications tab and select Clock.
2 If you want to add a new alarm, touch
and select Add alarm.
3 Set the time to turn on the alarm. After
you set the time, the LG-E510 lets you
know how much time is left before the
alarm will sound.
4 Set Repeat, Ringtone or Vibrate, then
add a label to name the alarm. Touch
Done.
NOTE: to change alarm settings on alarm
list screen, press the Menu key and
select Settings. You can adjust the below
options: Alarm in silent mode, Alarm
volume, Snooze duration and Side button
behaviour.
Using your calculator
1 In the Home screen, touch the
Applications tab and select Calculator.
2 Touch the number keys to enter numbers.
3 For simple calculations, touch the
function you want (+, –, x or ÷) followed
by =.
107
Utilities
4 For more complex calculations, press the
Menu key, touch the Advanced panel,
then choose sin, cos, tan, log and so on.
Adding an event to your
calendar
1 In the Home screen, touch the
Applications tab and select Calendar.
2 To check the event, touch the date. Touch
and hold if you want to add a new event.
Touch New event.
3 Touch What then enter the event name.
Check the date and enter the time you
108
want your event to start and finish.
4 Also, touch Where then enter the
location.
5 If you want to add a note to your event,
touch Description and enter the details.
6 If you want to repeat the alarm, set
Repetition, and set Reminders, if
necessary.
7 Touch Done to save the event in the
calendar. A coloured square in the
calendar marks all days that have saved
events. An alarm sounds at the event
start time to help you stay organised.
Changing your calendar view
1 In the Home screen, touch the
Applications tab and select Calendar.
Press the Menu key.
2 Select the calendar view for a particular
day, week or month.
Polaris Viewer
Polaris Viewer is a professional mobile office
solution that lets users conveniently view
various types of office documents, including
Word, Excel and PowerPoint files, anywhere,
anytime, using their mobile devices.
Managing files
Polaris Viewer provides mobile users with
convenient file management features,including
copying, moving, renaming and deleting files
and folders right on the device and sending
files from the device.
Viewing files
Mobile users can now easily view a wide
variety of file types, including Microsoft
Office documents and Adobe PDF, right
on their mobile devices. When viewing
documents using Polaris Viewer, the objects
and layout remain the same as in their
original documents.
109
Utilities
Voice recorder
Use the voice recorder to record voice
memos or other audio files.
Recording a sound or voice
1 In the Home screen, touch the
Applications tab and select Voice
Recorder.
2 Touch
to begin recording.
3 Touch
to end the recording.
4 Touch
to listen to the recording.
NOTE: touch
to access your album.
You can listen to the saved recording.
110
Notice: the available recording time may
differ from the real time.
Sending the voice recording
1 Once you have finished recording, you
can send the audio clip by touching
Share.
2 Choose from Bluetooth, Email, Gmail
Messaging and Wi-Fi Cast. When you
select E-mail, Gmail and Messaging,
the voice recording is added to the
message, then you write and send the
message normally.
The Web
Browser
Browser gives you a fast, full-colour world
of games, music, news, sport, entertainment
and much more, right on your mobile phone.
Wherever you are and whatever you enjoy.
NOTE: additional charges apply when
connecting to these services and
downloading content. Check data charges
with your network provider.
Using the web toolbar
Touch to go backwards one page.
Touch to go forwards one page to the
one you connected to after the current
page. This is the opposite of what
happens when you press the Back key,
which goes to the previous page.
Touch to show all your open windows.
Touch to add a new window
Touch to change web browser settings.
Add/show bookmark and show Most
visited, Read it later and History.
111
The Web
Using options
Press the Menu key to view options.
Read it later – Add the current web
page as a bookmark.
Add RSS Feed – Add the current web
page to the RSS feed.
Share page – Allows you to share the
web page with others.
Find on page – Allows you to find
letters or words on the current web
page.
112
Select text – allows you to copy any
text from the web page.
More
• Home page: Go to the Home page.
• Set Home page: Set the current web
page as your Home page.
• Add shortcut to Home: Add the shortcut
of the current web page to the Home
screen.
• Page info: Displays the web page
information.
• Downloads: Displays your download
history.
TIP To return to the previous web
page, press the Back key.
113
Settings
In the Home screen, touch the Applications
tab then scroll to and touch Settings.
Wireless & networks
Here, you can manage Wi-Fi and Bluetooth.
You can also set up mobile networks and
switch to airplane mode.
Airplane mode – After switching to airplane
mode, all wireless connections are disabled.
Wi-Fi – Touch to select: This turns on Wi-Fi
to connect to available Wi-Fi networks.
Wi-Fi settings – Allows you to set up and
manage wireless access points. Set network
114
notification, or add a Wi-Fi network. The
advanced Wi-Fi settings screen is accessed
from the Wi-Fi settings screen. Press the
Menu key and touch Advanced.
Wi-Fi Direct Settings – Set Wi-Fi Direct
device name and scan for other devices.
Or be a Group owner to allow legacy Wi-Fi
devices to connect.
TIP! How to obtain the MAC
address
To set up a connection in some wireless
networks with MAC filters, you may
need to enter the MAC address of your
LG-E510 into the router.
You can find the MAC address in
the following user interface: Touch
Application > Settings > Wireless &
networks > Wi-Fi settings, and press
the Menu key. Then select Advanced >
MAC Address.
Bluetooth – Touch to select: This turns on
Bluetooth to connect to Bluetooth devices.
Bluetooth settings – Set device name &
discoverable mode, scan for other devices.
Or, check a list of Bluetooth devices that
you’ve previously configured and those
detected when the phone last scanned for
Bluetooth devices.
Tethering & portable hotspot – You can
configure the USB tethering and portable WiFi hotspot settings.
VPN settings – Displays the list of Virtual
Private Networks (VPNs) that you’ve
115
Settings
previously configured. Allows you to add
different types of VPN.
Mobile networks – Set options for data
roaming, network mode & operators, access
point names (APNs) and so on.
On-Screen Phone settings – Allows you
to change the On-Screen Phone password
(the default password is "0000"). On-Screen
Phone allows you to view your mobile phone
screen from a PC via a USB or Bluetooth
connection. You can also control your mobile
phone from your PC using the mouse or
keyboard.
116
Call settings
< Fixed Dialing Numbers >
Select Fixed Dialing Numbers to turn on
and compile a list of numbers that can be
called from your phone. You’ll need your
PIN2, which is available from your operator.
Only numbers within the fixed dial list can be
called from your phone.
< Voicemail >
Voicemail service – Allows you to select
your carrier’s voicemail service.
Voicemail settings – If you are using your
carrier’s voicemail service, this option allows
you to enter the phone number to use for
listening to and managing your voicemail.
< Other call settings >
Excuse messages – When you want to
reject a call, you can send a quick message
using this function. This is useful if you need
to reject a call during a meeting.
Call forwarding – Choose whether to divert
all calls, when the line is busy, when there is
no answer or when you have no signal.
Call barring – Select when you would like
calls to be barred. Enter the call barring
password. Please check with your network
operator about this service.
Call reject – Allows you to set the call reject
function. Choose from Off, Reject on list or
Reject all calls.
Call costs – View the charges applied
to your calls. (This service is network
dependent; some operators do not support
this function)
Call duration – View the duration of calls
including last call, all calls, dialled calls and
received calls.
Additional settings – This lets you change
the following settings:
117
Settings
Caller ID: Choose whether to display your
number on an outgoing call.
Call waiting: If call waiting is activated, the
handset will notify you of an incoming call
while you are on another call (depending on
your network provider).
Sound
< General >
Silent mode – Allows you to mute all
sounds (including call and notification
ringtones) except the audio from music and
videos and any alarms you have set. You
118
must mute media and alarm sounds in their
own applications.
Vibrate – Allows you to set your phone to
vibrate when you receive an incoming call.
Volume – Allows you to set the volume for
ringtones, media and alarms. If you deselect
the option to use the incoming call volume
for notifications, you can set the volume for
incoming calls and notifications separately.
< Incoming calls >
Phone ringtone – Allows you to set your
default incoming call ringtone.
< Notifications >
Notification ringtone – Allows you to set
your default notification ringtone.
< Feedback >
Audible touch tones – Allows you to set the
phone to play tones when using the dialpad
to dial numbers.
Audible selection – Allows you to set your
phone to play a sound when you touch
buttons, icons and other onscreen items that
react to your touch.
Screen lock sounds – Allows you to set
your phone to play a sound when locking
and unlocking the screen.
Haptic feedback – Allows your phone to
vibrate when pressing soft keys and on
certain UI interactions.
Display
Brightness – Adjust the screen brightness.
Auto-rotate screen – Set to switch
orientation automatically when you rotate
the phone.
Animation – Set to display an animation.
119
Settings
Screen timeout – Set the time for screen
timeout.
Location & security
Use wireless networks – If you select Use
wireless networks, your phone determines
your approximate location using Wi-Fi and
mobile networks. When you select this
option, you’re asked whether you consent to
allowing Google to use your location when
providing these services.
Use GPS satellites – If you select Use
GPS satellites, your phone determines your
120
location to street level accuracy.
Set up screen lock – Set an unlock
pattern to secure your phone. Opens a set
of screens that guide you through drawing
a screen unlock pattern. You can set a PIN
or password instead of a pattern or leave
it as None.
When you turn on your phone or wake up
the screen, you're asked to draw your unlock
pattern to unlock the screen.
Set up SIM/RUIM card lock – Set up SIM/
RUIM card lock or change the SIM/RUIM PIN.
Visible passwords – Select to show
passwords as you type them or deselect to
hide passwords as you type them.
Select device administrators – Add one or
more administrators.
Use secure credentials – Allows you to
access secure certificates.
Install from SD card – Choose to install
encrypted certificates from your SD card.
Set password – Set or change the
credential storage password.
Clear storage – Clear credentials for all
content and reset password.
Applications
You can manage applications and set up
quick launch shortcuts.
Unknown sources – Default setting to
install non-Market applications.
Manage applications – Manage and
remove installed applications.
Running services – Check services that are
currently running.
Storage use – View storage used by
applications.
121
Settings
Battery usage – See what has been using
the battery.
Development – Set options for application
development.
Accounts & sync
< General sync settings >
Background data – Permits applications to
synchronise data in the background, whether
or not you are actively working in them.
Deselecting this setting can save battery
power and lowers (but does not eliminate)
data usage.
122
Auto-sync – Permits applications to
synchronise, send and receive data to their
own schedule.
< Manage accounts >
List of all Google accounts and other
accounts you’ve added to your phone.
If you touch an account in this screen, its
account screen opens.
Privacy
If you select Factory data reset, it will erase
all of your personal data from the internal
phone storage, including information about
your Google account, any other accounts,
your system/application data and settings
as well as any downloaded applications and
DRM licence.
Resetting the phone does not erase
any system software updates you have
downloaded or any files on your microSD
card, such as music or photos. If you reset
the phone in this way, you are prompted to
re-enter the same information that you did
when you first started Android.
Storage
< USB connection mode >
Mass storage only – Your phone can be
used as a mass storage device if you have
a memory card inserted. You can set Mass
storage only as a default setting of the USB
connection mode.
< SD card >
Check total available SD card space. Touch
Unmount SD Card for safe removal. Erase
SD Card if you want to delete all data from
the SD card.
123
Settings
< Internal storage >
Checks the available space.
Language & keyboard
Set local language and region as well as
keyboard settings.
Voice input & output
< Voice input >
Voice recognizer settings – Use the
Voice recognizer settings to configure the
Android voice input feature.
124
• Language: Opens a screen where you
can set the language you use for speech
to enter text.
• SafeSearch: Opens a dialog where you
can set whether you want the Google
SafeSearch filter to block some results.
• Block offensive words: When deselected,
Google voice recognition will recognise
and transcribe words many people
consider offensive, when you use speech
to enter text. When selected, Google
voice recognition replaces those words
in transcriptions with a placeholder
comprised of hash symbols ( # ).
< Voice output >
Text-to-speech settings – Use the Textto-speech settings to configure the Android
text-to-speech synthesiser for applications
that can use this feature.
NOTE: if you don’t have speech synthesiser
data installed, only the Install voice data
setting is available.
• Listen to an example: Plays a brief
sample of the speech synthesiser, using
your current settings.
• Always use my settings: Tick to use the
settings on this screen in place of speech
synthesiser settings available in other
applications.
• Default Engine: Opens a dialog where
you can set the text-to-speech application
you want to use, if you have more than
one installed.
• Install voice data: If your phone does
not have speech synthesiser data
installed, this connects to Android Market
and guides you through the process
of downloading and installing the data.
125
Settings
This setting is not available if the data is
already installed.
• Speech rate: Opens a dialog where
you can select how quickly you want the
synthesiser to speak.
• Language: Opens a dialog where you can
select the language of the text you want
the synthesiser to read. This is particularly
useful in combination with Always use
my settings to ensure that text is spoken
correctly in a variety of applications.
• Pico TTS: Configure the Pico TTS
settings.
126
Accessibility
Use the Accessibility settings to configure
accessibility plug-ins you have installed on
your phone.
NOTE: requires additional plug-ins.
Date & time
Use Date & time settings to set your
preference for how dates are displayed. You
can also use these settings to set your own
time and time zone rather than obtaining the
current time from the mobile network.
About Phone
View legal information and check phone
status and software version.
127
Software update
Phone software update
LG Mobile phone software update from
the Internet
For more information about using this
function, please visit the http://update.
lgmobile.com or http://www.lg.com/
common/ index.jsp J select country and
language.
This feature allows you to update the
firmware on your phone to a newer version
conveniently from the Internet without
needing to visit a service centre. This feature
is only available if and when LG makes the
128
newer version of the firmware available for
your device.
As the mobile phone firmware update
requires the user’s full attention for the
duration of the update process, please make
sure you check all instructions and notes
that appear at each step before proceeding.
Please note that removing the USB data
cable or battery during the upgrade may
seriously damage your mobile phone.
NOTE: LG reserves the right to make
firmware updates available only for selected
models at its own discretion and does
not guarantee the availability of the newer
version of the firmware for all handset
models.
LG Mobile Phone software update via
Over-the-Air (OTA)
This feature allows you to update the
firmware of your phone to the newer version
conveniently via OTA without connecting the
USB data cable. This feature is only available
if and when LG makes the newer version of
the firmware available for your device.
First, you can check the software version
on your mobile phone: Settings > About
phone > Software update > Check now
for update.
You can also delay the update by 1 hour, 4
hours, 8 hours or 24 hours. In this case, the
application will notify you to update when the
time is up. You can also rearrange an update
manually.
NOTE: This feature is dependent on
the network service provider, region or
countries.
129
Software update
DivX Mobile
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an official DivX
Certified® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certified® device must be registered
in order to play purchased DivX Videoon-Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD
section in your device setup menu. Go to
130
vod.divx.com for more information on how to
complete your registration.
DivX Certified® to play DivX® video up to
320x240.
DivX®, DivX Certified® and associated
logos are trademarks of Rovi Corporation
or its subsidiaries and are used under
licence.
Notice:
Open Source Software
To obtain the corresponding source
code under GPL, LGPL, MPL and
other open source licences, please visit
http://opensource.lge.com/
All referred licence terms, disclaimers
and notices are available for download
with the source code.
131
Accessories
These accessories are available for use with the LG-E510. (Items described below may be optional.)
Travel adapter
Data cable
Connect your LGE510 and PC.
Battery
User Guide
Learn more about
your LG-E510.
NOTE:
• Always use genuine LG accessories.
• Failure to do this may void your warranty.
• Accessories may vary in different regions..
132
Stereo headset
Technical data
Ambient temperatures
Max: +55°C (discharging), +45°C (charging)
Min: -10°C
133
Troubleshooting
This chapter lists some problems you might encounter while using your phone. Some
problems require you to call your service provider, but most are easy to fix yourself.
Message
SIM error
No network
connection/
Losing
network
134
Possible causes
There is no SIM card in
the phone or it is inserted
incorrectly.
Possible corrective measures
Make sure that the SIM card is correctly inserted.
Move towards a window or into an open area. Check the
Signal is weak or you’re
network operator coverage map.
outside the carrier network.
Check whether the SIM card is more than 6~12 months
Operator applied new
old. If so, change your SIM at your network provider's
services.
nearest branch. Contact your service provider.
Message
Possible causes
To change a security code,
you will need to confirm the
Codes do not new code by re-entering it.
match
The two codes you have
entered do not match.
Any
Not supported by service
application provider or registration
cannot be set required.
Dialling error
New SIM card inserted.
Calls not
available
Pre-paid charge limit
reached.
Possible corrective measures
The default code is [0000].
If you forget the code, contact your service provider.
Contact your service provider.
New network not authorised.
Check for new restrictions.
Contact service provider or reset limit with PIN2.
135
Troubleshooting
Message
Possible causes
On/Off key pressed too
Phone cannot briefly.
be switched
Battery is not charged.
on
Battery contacts are dirty.
136
Possible corrective measures
Press the On/Off key down for at least two seconds.
Charge battery. Check charging indicator on the display.
Clean the battery contacts.
Message
Charging
error
Number not
permitted
Possible causes
Battery is not charged.
Outside temperature is too
hot or cold.
Contact problem
No voltage
Charger defective
Wrong charger
Battery defective
The Fixed dialling number
function is on.
Possible corrective measures
Charge battery.
Make sure phone is charging at a normal temperature.
Check the charger and connection to the phone. Check the
battery contacts and clean them if necessary.
Plug the charger into a different socket.
If the charger does not warm up, replace it.
Only use original LG accessories.
Replace battery.
Check the Settings menu and turn the function off.
137
Troubleshooting
Message
Impossible
to receive /
send SMS &
Files not
opening
SD card not
working
The screen
does not turn
on when I
receive a call.
138
Possible causes
Possible corrective measures
Memory full
Delete some messages from the phone.
Unsupported file format
Check the file formats that can be supported.
FAT16, FAT32 file system
supported
Check SD card file system via card reader, or format SD
card using the phone.
Proximity sensor problem
If you use any protection tape or case, check to see if it has
covered the area around the proximity sensor. Make sure
that the area around the proximity sensor is clean.
Message
Possible causes
No sound
Vibration mode
Hang up or
freeze
Intermittent software
problem
Phone locked
and does not Restarting the phone
function.
Possible corrective measures
Check the settings status of the sound menu to make sure
you are not in vibrate or silent mode.
Remove the battery, insert it again and switch on the phone.
Try to perform a software update via the website.
1.Turn the phone off.
2.Remove the back cover.
3.Remove the battery and reinstall it.
4.Close the back cover.
5.Turn the phone on again.
139
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
