LG GS101GO Owner's manual
P/N: MMBB0366359 (1.0)
Getting to know your phone
Installing the SIM Card and Charging the Battery
Installing the SIM Card

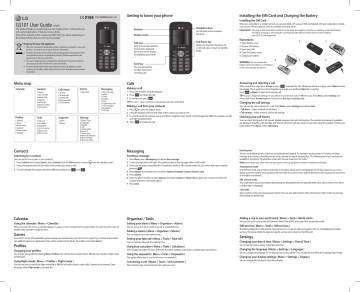

GS101 User Guide - English
This guide will help you understand your new mobile phone. It will provide you
with useful explanations of features on your phone.
Some of the contents in this manual may differ from your phone depending on
the software of the phone or your service provider.
Earpiece
Disposal of your old appliance
Use for quick access to phone
functions.
Soft keys
End/Power key
Allows you to power the phone on
or off, end calls, or return to Standby
Mode.
Send key
You can dial a phone
number and answer
incoming calls.
Menu map
Calendar
Display screen
Each of these keys performs
the functions indicated
by the text on the display
immediately above them.
1 When this crossed-out wheeled bin symbol is attached to a product it means the
product is covered by the European Directive 2002/96/EC.
2 All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the
government or the local authorities.
3 The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4 For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you purchased
the product.
Navigation keys
Calls
When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details,
such as your PIN, any optional services available and many others.
Important! › The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when
handling, inserting or removing the card. Keep all SIM cards out of the reach of small children.
› only 2G/2.5G SIM supported
Illustrations
1
2
3
4
5
Open battery cover
Remove the battery
Insert your SIM
Close the battery cover
Charge your battery
WARNING: Do not remove the
battery when the phone is switched on,
as this may damage the phone.
3
1
2
4
5
Answering and rejecting a call
When your phone rings, press Accept or press
to answer the call. While your phone is ringing, select Silent to mute
the ringing. This is great if you have forgotten to change your profile to Silent for a meeting.
Press
or Reject to reject the incoming call.
Contacts
Call history
Games
Messaging
Making a call
1 Search
2 New contact
3 Speed dials
4 Copy all
5 Delete all
6 Memory status
7 Information
1 All calls
2 Missed calls
3 Dialled calls
4 Received calls
5 Call duration
1 Space ball
1 New message
2 Inbox
3 Drafts
4 Outbox
5 Sent
6 Listen voice mail
7 Info messages
8 Templates
9 Settings
1 Key in the number using the keypad.
2 Press
to initiate the call.
3 To end the call, press
.
TIP! You can change the settings on your phone to answer your calls in different ways. Press Menu, select Settings and
choose Call. Select Answer mode and choose from Any key or send key only.
TIP! To enter + when making an international call, press and hold 0.
Changing the call settings
Making a call from your contacts
You can set the menu relevant to a call. Press Menu, select Settings and choose Call.
• Call divert – Select methods of call divert.
• Call waiting – Select active or cancel call waiting.
Profiles
Tools
Organiser
Settings
1 General
2 Silent
3 Vibrate only
4 Outdoor
5 Flight mode
6 Headset
1 Fake call
2 Calculator
3 Stopwatch
4 Unit converter
5 World clock
6 SIM Services
1 Alarm
2 Memo
1 Date & Time
2 Language
3 Display
4 Call
5 Auto keylock
6 Security
7 Power save
8 Network selection
9 Reset settings
0 Memory status
1 Press
to open the address book.
2 Using the keypad, enter the first letter of the contact you want to call.
3 To scroll through the contacts use up and down navigation keys. And to scroll through their different numbers use left
and right navigation keys.
4 Press
to initiate the call.
Contacts
Messaging
Searching for a contact
Sending a message
You can search for a contact in your contacts.
1 Press Contacts and choose Search, select Contacts from the Menu screen or press
2 Using the keypad enter the first letter of the contact you want to call.
3 To scroll through the contacts and their different numbers use
and
from the standby screen.
.
1 Press Menu, select Messaging and choose New message.
2 A new message editor will open. The default setting of the message editor is SMS mode.
3 Enter your message using either the T9 predictive mode or Abc manual mode. You can switch text input mode by
pressing
.
4 Press Options and choose Insert to add an Symbol, Template, Contact, Business card.
5 Press Send to.
6 Enter the phone number or press Options and select Contacts or Recent list to open your contacts list select the
number and press insert then option.
7 Press Send.
Checking your call history
You can check the record of all, missed, dialled, received calls and call duration. The number and name (if available)
are displayed together with the date and time at which the call was made. You can also view the number of times you
have called. Press Menu, select Call history.
Entering text
You can enter alphanumeric characters using the phone’s keypad. For example, storing names in Contacts, writing a
message and creating scheduling events in the calendar all require entering text. The following text input methods are
available in the phone: T9 predictive mode, ABC manual mode and 123 mode.
Note: Some fields may allow only one text input mode (e.g. telephone number in address book fields).
T9 predictive mode
T9 predictive mode uses a built-in dictionary to recognise words you’re writing based on the key sequences you press.
Simply press the number key associated with the letter you want to enter, and the dictionary will recognise the word once
all the letters are entered.
ABC manual mode
This mode allows you to enter letters by pressing the key labeled with the required letter once, twice, three or four times
until the letter is displayed.
123 mode
Type numbers using one keystroke per number. You can also add numbers while remaining in letter modes by pressing
and holding the desired key.
Adding a city to your world clock ( Menu > Tools > World clock )
Calendar
Organiser / Tools
Using the calendar ( Menu > Calendar )
Setting your alarm ( Menu > Organiser > Alarm )
When you enter this menu, a calendar appears. A square cursor is located on the current date. You can move the cursor to
another date using the navigation keys.
You can set up to 3 alarm clocks to go off at a specified time.
SIM services ( Menu > Tools > SIM services )
Adding a memo ( Menu > Organiser > Memo )
Games
This feature depends on SIM and the network services. In case the SIM card supports SAT (i.e. SIM Application Toolkit)
services, this menu will be the operator specific service name stored on the SIM card.
You can register your own memos here.
Your GS101 comes with preloaded games to keep you amused when you have time to spare. If you choose to download
any additional games or applications they will be saved into this folder. Press Menu and select Games.
Setting your fake call ( Menu > Tools > Fake call )
You can send the fake call after setting time.
Changing your date & time ( Menu > Settings > Date & Time )
Profiles
Using your calculator ( Menu > Tools > Calculator )
You can set functions relating to the date and time.
Changing your profiles
The calculator provides the basic arithmetic functions: addition, subtraction, multiplication and division.
Changing the language ( Menu > Settings > Language )
You change your profile by pressing Menu>Profiles, then choose from General, Silent, Vibrate only, Outdoor, Flight mode
and Headset.
Using the stopwatch ( Menu > Tools > Stopwatch )
You can change the language for the display texts in your phone. This change will also affect the language input mode.
This option allows you to use the function of a stopwatch.
Changing your display settings ( Menu > Settings > Display )
Using flight mode ( Menu > Profiles > Flight mode )
Converting a unit ( Menu > Tools > Unit converter )
You can change the settings for the phone display.
Use this function to switch the flight mode On or Off You will not be able to make calls, Connect to the internet, Send
messages when Flight mode is switched On.
This converts many measurements into a unit you want.
You can check the current time of Greenwich Mean Time (GMT) and major cities around the world.
Settings
Changing your security settings ( Menu > Settings > Security )
Change your security settings to keep your GS101 and the important information it holds protected.
• PIN code request - Choose a PIN code to be requested when you turn your phone on.
• Phone lock - Choose a security code to lock your phone, When power on, When SIM changed or Immediately.
• Anti Theft Mobile Tracker - When the handset is stolen, handset sends the SMS to the numbers configured by real owner.
User has to configure the ATMT settings with name, primary phone number, secondary number. User has to Set ATMT
ON to activate the ATMT feature. Default ATMT code is “0000”. ATMT SMS will contain information about the stolen phone
IMEI, current location & number of the person who is using that handset.
• Change codes - Change your Security code, PIN2 code or ATMT code.
CAUTION
Guidelines for safe and efficient use
Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Further detailed
information is given in this manual.
WARNING
• Switch off the phone in any area where required by special regulations. For example, do not use your phone in
hospitals or it may affect sensitive medical equipment.
• Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the
phone for emergency calls.
•
•
•
•
•
Mobile Phones must be switched off at all times in an aircraft.
Do not hold the phone in your hand while driving.
Do not use your phone near petrol stations, fuel depots, chemical plants or blasting operations.
For your safety, use ONLY specified ORIGINAL batteries and chargers.
Do not handle the phone with wet hands while it is being charged. It may cause an electric shock or seriously damage
your phone.
• Keep the phone in a safe place out of small children’s reach. It includes small parts which if detached may cause a
chocking hazard.
• Do not charge the phone when it is on soft furnishings.
• The phone should be charged in a well ventilated area.
• Only use ORIGINAL accessories to avoid damage to your phone.
• All radio transmitters carry risks of interference with electronics in close proximity. Minor interference may affect TVs,
Product care and maintenance
WARNING
Efficient phone operation
Electronics devices
Only use batteries, chargers and accessories approved for use with this particular phone model. The use of any other types
may invalidate any approval or warranty applying to the phone, and may be dangerous.
• Do not disassemble this unit. Take it to a qualified service technician when repair work is required.
• Keep away from electrical appliances such as TVs, radios, and personal computers.
• The unit should be kept away from heat sources such as radiators or cookers.
• Do not drop.
• Do not subject this unit to mechanical vibration or shock.
• The coating of the phone may be damaged if covered with wrap or vinyl wrapper.
• Use dry cloth to clean the exterior of the unit. (Do not use solvent such as benzene, thinner or alcohol.)
• Do not subject this unit to excessive smoke or dust.
• Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.
• Do not tap the screen with a sharp object; otherwise, it may damage the phone.
• Do not expose the phone to liquid or moisture.
• Use the accessories like an earphone cautiously. Do not press the antenna unnecessarily.
All mobile phones may get interference, which could affect performance.
• Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over
pacemakers, i.e. in your breast pocket.
• Some hearing aids might be disturbed by mobile phones.
• Minor interference may affect TVs, radios, PCs, etc.
Avoid damage to your hearing
Children
Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend
that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a
reasonable level.
Keep the phone in a safe place out of small children’s reach. It includes small parts which if detached may cause a choking
hazard.
•
•
•
•
Blasting area
Emergency calls may not be available under all mobile networks. Therefore, you should never depend solely on the phone
for emergency calls. Check with your local service provider.
Battery information and care
• You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no
memory effect that could compromise the battery’s performance.
• Use only LG batteries and chargers. LG chargers are designed to maximize the battery life.
• Do not disassemble or short-circuit the battery pack.
• Keep the metal contacts of the battery pack clean.
• Replace the battery when it no longer provides acceptable performance. The battery pack maybe recharged
hundreds of times until it needs replacing.
• Recharge the battery if it has not been used for a long time to maximize usability.
Power save ( Menu > Settings > Power save )
If you set Always on, you can save the battery power when you don’t use the phone. Choose to switch the power save
settings Always on, Night only or Off.
Resetting your phone ( Menu > Settings > Reset settings )
Use Reset to reset all the settings to their factory definitions. You need the security code to activate this function. The
default number is “0000”.
Exposure to radio frequency energy
Radio wave exposure and Specific Absorption Rate (SAR) information
This mobile phone model GS101 has been designed to comply with applicable safety requirement for exposure to radio
waves. This requirement is based on scientific guidelines that include safety margins designed to assure this safety of all
persons, regardless of age and health.
• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR.
Tests for SAR are conducted using standardized method with the phone transmitting at its highest certified power level
in all used frequency bands.
• While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the
relevant guidelines for exposure to radio waves.
• The SAR limit recommended by the international Commission on Non-Ionizing Radiation Protection (ICNIRP), which is 2
W/Kg averaged over ten (10) gram of tissue.
• The highest SAR value for this model phone tested by DASY4 for use at the ear is 1.28 W/Kg (10g) and when worn on
the body is 0.528 W/Kg (10g).
• SAR data information for residents in countries/regions that have adopted the SAR limit recommended by the Institute
of Electrical and Electronics Engineers (IEEE), which is 1.6 W/Kg averaged over one (1) gram of tissue.
Do not use the phone where blasting is in progress. Observe restrictions,and follow any regulations or rules.
Potentially explosive atmospheres
• Do not use the phone at a refueling point. Don’t use near fuel or chemicals.
• Do not transport or store flammable gas, liquid, or explosives in the compartment of your vehicle which contains your
mobile phone and accessories.
In aircraft
Wireless devices can cause interference in aircraft.
• Turn off your mobile phone before boarding any aircraft.
• Do not use it on the aircraft without crew permission.
LIMITED WARRANTY STATEMENT
1. WHAT THIS WARRANTY COVERS :
LG offers you a limited warranty that the enclosed phone and its enclosed
accessories will be free from defects in material and workmanship according to
the following terms and conditions:
(1) The limited warranty for the product extends the warranty period beginning
on the date of purchase of the product.
(2) The limited warranty applies for 2 years from the original date of purchase
and extends only to the original purchaser of the product and is not
assignable or transferable to any subsequent purchaser/end user. It shall
neither exclude nor limit any mandatory statutory rights of the customer or
any of the customer rights against the seller/dealer of the product.
(3) The limited warranty for the batteries remains in effect for a period of 12
months from the date of purchase of the product.
(4) This warranty is good only to the original purchaser during the warranty
period, but limited to certain country if specified.
(5) The external housing and cosmetics parts shall be free of defects at the
time of shipment and, therefore, shall not be covered under these limited
warranty terms.
(6) Upon request from LG. or their designated service agent the consumer must
provide information to reasonably prove the date of purchase.
(7) Unless other service arrangements have been specified the customer shall
bear the cost of shipping a defective product back to the Customer Service
Department of LG.
LG shall bear the cost of shipping the product back to the consumer after
the completion of service under this limited warranty.
(8) During the warranty period LG or its authorised service agent will repair or
replace at LG’s sole discretion a defective product. A repaired or replaced
product will not be given a prolonged or renewed warranty period.
2. WHAT THIS WARRANTY DOES NOT COVER :
(1)
(2)
Defects OR Damages resulting from use of the product in other than its
normal and customary manner.
Defects or damages from abnormal use, abnormal conditions, improper
storage. exposure to moisture or dampness, unauthorised modifications,
unauthorised connections, unauthorised repair, neglect, abuse, accident,
alteration, improper installation, or other acts which are not the fault of LG,
including damage caused by shipping, blown fuses, spills of food or liquid.
Emergency calls
(3)
Breakage or damage to antennas unless caused directly by defects in
material or workmanship.
A warranty repair if the Customer Service Department at LG or other agreed
service agent was not notified by the consumer of the alleged defect or
malfunction of the product during the applicable limited warranty period.
(5) Products which have had the serial number or IMEI number removed or
made illegible.
(6) This limited warranty is in lieu of all other warranties, express or implied
either in fact or by operations of law, statutory or otherwise, including,
but not limited to any implied warranty of marketability or fitness for a
particular use.
(7) Damage resulting from use of non-LG approved accessories.
(8) All plastic surfaces and all other externally exposed parts that are scratched
or damaged due to normal customer use.
(9) Products operated outside published maximum ratings.
(10) Products used or obtained n a rental program.
(11) Consumables (such as fuses).
(12) Suspected defects caused by a failure of the cellular network.
(4)
3. CONDITIONS :
No other express warranty is applicable to this product.
The DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED
WARRANTY OF MARKETABILITY, IL LIMITED TO THE DURATION OF THE EXPRESS
WARRANTY HERIN. LG ELECTRONCS INC. SHALL NOT BE LIABLE FOR THE LOSS
OF THE USE OF THE PRODUCT, INCOVINIENCE, LOO OR ANY OTHER DAMAGES,
DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE,
THIS PRODUCT OR FOR ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE
IMPLIED MARKETABLITY APPLICABLE TO THIS PRODUCT.
Some do not allow the exclusive of limitation of incidental or consequential
damages or limitations on how long an implied warranty lasts; so these
limitations or exclusions may not apply to you. This warranty gives you specific
legal rights and you may also have other rights which vary from country to
country.
radios, PCs, etc.
• Batteries should be disposed off in accordance with relevant legislation.
• Do not dismantle the phone or battery.
Road safety
Check the laws and regulations on the use of mobile phones in the areas when you drive.
• Do not use a hand-held phone while driving.
• Give full attention to driving.
• Use a hands-free kit, if available.
• Pull off the road and park before making or answering a call if driving conditions so require.
• RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.
• When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can fail
or cause serious injury due to improper performance.
If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are
aware of your surroundings. This is particularly imperative when near roads.
Do not expose the battery charger to direct sunlight or use it in high humidity, such as the bathroom.
Do not leave the battery in hot or cold places, this may deteriorate the battery performance.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the manufacturer’s instructions. Please recycle when possible. Do not
dispose as household waste.
• If you need to replace the battery, take it to the nearest authorized LG Electronics service point or dealer for assistance.
• Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power
consumption of the charger.
Technical data
Ambient
Temperatures
Max : +55°C (discharging)
+45°C (charging)
Min : -10°C
Suppliers Details
Name
LG Electronics Inc
Address
LG Electronics Inc. LG Twin Towers 20,
g Yeongdeungpo-gu,
g
gp g Seoul, Korea 150-721
Yeouido-dong,
Product Details
Product Name
GSM 900 / DCS 1800 Dual band Terminal Equipment
Model Name
0168
GS101, GS105
Trade Name
LG
Applicable Standards Details
R&TTE D
Directive
irective 1999/5/EC
EN 301 489-01 V1.8.1, EN 301 489-07 V1.3.1
EN 301 511 V9.0.2
EN 50360:2001, EN62209-1:2006
EN 60950-1:2001
Supplementary Information
The conformity to above standards is verified by the following Notified Body(BABT)
BABT, Forsyth House-Churchfield Road - Walton-on-ThamesSurrey - KT12 2TD , United Kingdom
N tifi d Body
Notified
d Id
Identification
tifi ti N
Number
b : 0168
Declaration
I hereby declare under our sole responsibility Name
that the product mentioned above to which this
declaration relates complies with the above mentioned Seung Hyoun, Ji / Director
standards a
and
nd Directives
Issued Date
LG Electronics Logistics and Services B.V.
Veluwezoom 15, 1327 AE Almere, The Netherlands
P/N : MCDF0012001(1.0) G
Signature of representative
25.Feb. 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
