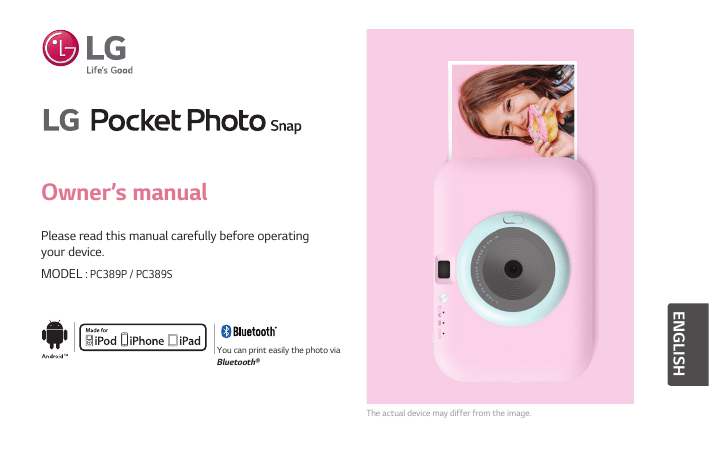

LG | PC389P | LG PC389S Owner’s Manual

Owner’s manual
Please read this manual carefully before operating
your device.
MODEL : PC389P / PC389S
ENGLISH
You can print easily the photo via
Bluetooth®
The actual device may differ from the image.
Safety information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USERSERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended
to alert the user to the presence of
uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
2
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a confined
space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product (ex. Electrical swatter). This product may
malfunction due to electrical shock.
CAUTION: Do not block any ventilation openings. Install
in accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This product
shall not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided
or the manufacturer’s instruction has been adhered to.
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specification page of this owner’s manual to
be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result in
electric shock or fire. Periodically examine the cord of
your device, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the device,
and have the cord replaced with an exact replacement
part by an authorized service center. Protect the power
cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets, and
the point where the cord exits the device.
This device is equipped with a portable battery or
accumulator.
How to Safely remove the batteries or the battery
pack from the equipment: To Remove the old batteries
or battery pack, follow the assembly steps in reverse
order. To prevent contamination of the environment and
bring on possible threat to human and/or animal health,
the old batteries or the battery pack must be put in an
appropriate container at designated collection points.
Do not dispose of batteries or battery pack together
with other waste. It is recommended that you use local,
free reimbursement systems batteries or battery packs,
(may not be available in your area). The batteries or the
battery pack should not be exposed to excessive heat
such as sunshine, fire or the like.
NOTICE: For safety marking information including
product identification and supply ratings, please refer to
the main label inside the apparatus.
3
WARNING:
yy The flash may turn on in dark places.
-- Do not use a flash too close to a person’s eyes.
It may temporarily affect your eyesight.
Be especially careful when taking photos of
infants and young children.
-- Do not take a photo towards a person driving a
bicycle or car, or riding a horse because the flash
may burst.
It may cause traffic accidents.
yy Avoid direct sunlight, heat sources such as heaters,
and do not use or store flammable sprays or
flammable materials near the product.
-- There is a risk of explosion or fire.
4
yy Do not look through the view finder at the sun or
other strong light.
yy Do not wet your pocket photo or hold it with wet
hands. It may cause an electric shock.
yy Do not touch the inside of the Insertion part of
Photo cartridge (print head). There is a risk of burns.
CAUTION:
yy The apparatus should not be exposed to water
(dripping or splashing) and objects filled with liquids,
such as vases, shouldn’t be placed on the apparatus.
yy Minimum distance around the apparatus for
sufficient ventilation, no less than 5 cm.
yy Place the product on a sturdy, level surface.
yy When used by children, adult care is required.
yy Do not use during exercise, walking or driving.
yy Do not wet your pocket photo.
Do not drop or shock your pocket photo. Also, do
not put it in a place where sand is likely to get in.
yy The ventilation should not be impeded by covering
the ventilation openings with items, such as
newspapers, table-cloth, curtains etc.
yy Do not leave it in a car interior, high temperature
place, humid place or coast for a long time.
yy No naked flame sources, such as lighted candles,
should be placed on the apparatus.
yy Do not store Pocket photo and film in your closet
with insect repellent gas such as naphthalene
because it is harmful to Pocket photo and film.
yy The unit’s internal lithium battery should only be
serviced by an authorised service centre.
yy Do not wet your pocket photo or hold it with wet
hands. It may cause an electric shock.
yy If foreign matter or water enters the pocket photo,
or there is a shock or damage, turn off the pocket
photo immediately.
yy This unit is not waterproof.
5
,,Note
Device operating temperature
When operating in cold weather, the device shall
not print. Bring it inside from the cold and give
about 10 minutes to adjust to the specified
operating temperature (5 °C - 35 °C). Then
try printing again. (For the appropriate use, it
is recommended not to operate it outdoors in
winter.)
>>Caution
CAUTION when using this product in
environments of low humidity
yy It may cause static electricity in environments
of low humidity.
yy It is recommended to use this product after
touching any metal object which conducts
electricity.
6
Contents
Safety information . . . . . . . . . . . . . . . . . . . . . . . 2
STEP 1 Getting Started . . . . . . . . . . . . . . . . . . 8
Supplied items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 8
STEP 2 Inserting Photo Cartridge . . . . . . . . . 9
About photo cartridge . . . . . . . . . . . . . . . . . . . . 11
STEP 3 Power On / Off . . . . . . . . . . . . . . . . . 13
STEP 4 Checking battery status . . . . . . . . . 14
Charging Battery . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEP 5 Installing App . . . . . . . . . . . . . . . . . . 16
Installing App for Android phone . . . . . . . . . 16
App Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing App for iPhone . . . . . . . . . . . . . . . . . 18
Setting Bluetooth of iPhone . . . . . . . . . . . . . . 18
STEP 6 Printing Photo . . . . . . . . . . . . . . . . . . 19
Printing using Android phone . . . . . . . . . . . . . 19
Printing using iPhone . . . . . . . . . . . . . . . . . . . . . 22
Using the edit mode . . . . . . . . . . . . . . . . . . . . . . 25
Notes on the printing . . . . . . . . . . . . . . . . . . . . . 25
Checking where to buy paper . . . . . . . . . . . . . 27
Updating the device . . . . . . . . . . . . . . . . . . . . . . 28
STEP 7 Taking photos and instant printing 29
Taking photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Saving photo automatically to smartphone
(Android only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Printing black-and-white photo . . . . . . . . . . . 34
Using a strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Checking Label . . . . . . . . . . . . . . . . . . . . . . . . . 36
About LED Indicator . . . . . . . . . . . . . . . . . . . . 37
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 42
Paper Jam Solution . . . . . . . . . . . . . . . . . . . . . . . 46
7
STEP 1 Getting Started
Product Overview
Lens cover switch
USB port (Type C)
for recharging
Supplied items
*Reset hole
LED indicator
Flash
Shutter
LG Pocket Photo Printer
(Power) button
Simple manual
(Reprint) button
Paper exit slot
Lens
View finder
*Reset hole : If you need reset, press the hole.
USB cable (Type C)
Strap
yy Depending on the model or region, supplied
items may differ. (ex. USB cable, strap etc.)
8
STEP 2 Inserting Photo
Insertion part of
Photo cartridge
Cartridge
Strap hole
1. Slide the cover button sideways to open the bottom
cover.
Cover button
2. Unpack the photo cartridge you bought.
9
As shown in the following
picture, knock lightly the photo
cartridge in the direction of the
arrow 2 or 3 times to align the
paper to the back and put it in
the pocket photo.
3. Insert the photo cartridge
with the color ribbon facing forward as shown in the
following image and close the cover.
Photo Papers with
White side up,
Black side down.
10
4. Press the cover to close it completely.
,,Note
You can check the total number of copies printed
through the Pocket Photo app after replacing
photo cartridge. If you have used all photo paper,
replace it with a new photo cartridge.
Note on Photo Cartrigde
yy Do not touch the color ribbon and the photo
paper when inserting the cartridge.
yy Do not touch the inside of the Insertion part of
Photo cartridge (print head). There is a risk of
burns.
yy When opening the bottom cover, your hand or
finger may get caught in the paper exit slot.
yy If there is foreign substance on the inside of
the Insertion part of Photo cartridge (print
head), wipe it off with a cotton bud or a soft
cloth.
About photo cartridge
yy Unpack the cartridge in dust free place and
immediately put it into the unit. Handle with
care not to get dirt on, when you touch the
cartridge.
yy After inserting photo cartridge, do not open
the cover before using all photo paper.
yy When opening the bottom cover to replace the
photo cartridge, be careful not to touch the
inside of the Insertion part of Photo cartridge
(print head) and its surroundings.
Photo cartridge
Use exclusive photo cartridge for LG Pocket Photo.
Otherwise, the print quality cannot be guaranteed,
and it may cause damage of Pocket Photo.
11
Note on Photo cartridge
Use exclusive Cartridge for LG Pocket Photo.
yy Using photo cartridge from other company
may result in malfunction, paper jam or low
quality.
yy Do not damage or bend the cartridge.
yy Do not expose to direct sunlight or moisture.
Avoid the pocket photo from over heating.
yy Do not disassemble or modify the photo
cartridge.
yy Using soiled cartridge may result in
malfunction.
yy Once unpacked, the cartridge may begin to
curl up or discolor after a period of time. It is
recommended to use them as soon as possible.
yy Do not place inside a car or, expose to direct
sunlight or moisture.
12
yy Do not leave in a place where the temperature
or humidity is too high or low. It may reduce
the quality of the printed photo.
yy Please use photo cartridge in pocket photo as
soon as possible.
yy If the photo cartridge is placed at a low or high
temperature, set the photo cartridge to the
proper temperature and then take the picture.
yy Avoid airport checked luggage inspection and
other strong X-ray illumination. The eff ect
of fogging, etc. may appear on unused film.
We recommend that you carry the camera
and/or the film onto the aircraft as carry-on
luggage. (Check with each airport for more
information).
yy Store printed photos in a cool and dry place
away from strong light.
STEP 3 Power On / Off
>>Caution
Moving a pocket photo from a cold place to a
warm place can cause dew on the inside / outside
and print quality may deteriorate. In this case,
please use after the dew has dried enough.
,,Note
yy When turning the device on, LED indicator
flashes for 3 seconds, then printing is
available.
yy For more information, see “About LED
indicator”.
Press
(power) button for 2 seconds to turn
on or off.
13
STEP 4 Checking battery
status
When you disconnect the pocket photo from the
charging cable, you can check the battery charge status
.
via the LED indicators
If the power turned on, you can check the charging
status by pressing 1 (Power) button.
will change depending on the
The LED indicators
인쇄 준비batery charging status.
업데이트
인쇄 준비
프로그램
업데이트
읽는 중
프로그램
읽는 중
인쇄 중
LED color
인쇄 중
프린트 대기/
배터리 30%
켜짐
이상(흰색)/
(흰색)
배터리
30%
5장 이상 출력
이상(흰색)/
가능이상 출력
5장
가능
전원을 켤때/
배터리
깜박임 30%
미만 30%
(흰색)
배터리
미만
전원 꺼짐
프린트 불가
(3회 깜박임)
프린트
불가
(3회 깜박임)
충전 중
배터리 부족
=>확인
후
배터리
부족
삭제
=>확인
후
14
삭제
충전 완료
Condition
Remaining battery is more than
30% / On
Remaining battery is less than 30%
/ On
No battery / Blinks quickly and turn
off.
If the battery is low in use, LED indicators
blinks quickly and turn off.
is
Charging Battery
This device uses a built-in battery. Before using it,
fully charge the battery using a USB cable (Type C) or
adapter. (Refer to below)
>>Caution
Battery charging time : 2.5 hours
,Charging time may vary depending on the type of
adapter and charging environment.
Checking the charging status with LED indicators
front of Pocket photo.
: Power-off
: Charging
: Full charge
yy
yy Handle with care during charging to prevent
electric shock.
on
yy LG Pocket Photo is always charged when connected
to the power supply except for being printed.
yy To charge this product, you must always use
a DC 5 V, 1.2A or more. Certified/Listed Adapter
which complies with LPS.
yy Do not place near heating appliance.
yy Do not disassemble or deform.
yy Do not give shock on.
yy Avoid too high or low temperature or humidity.
yy The high-speed charging is not supported,
even if you connect the Quick charger of smart
phone and USB cable (USB C type). It works
with normal charge.
15
,,Note
yy You can connect the device to PC using a
Smart phone USB cable (Type C) , but charging
time can be longer.
yy The operating time on battery may vary
depending on the battery status, operational
status and environment conditions.
yy When the battery is discharged, printing is
available after charging it for more than 10
minutes. (Charge in full to print in a row.)
16
STEP 5 Installing App
Installing App for Android phone
From Play Store (Android market)
Search for “LG Pocket Photo”.
Using QR code
You can enter the Play Store (Android Market) by
scanning the QR code on the product box.
Bluetooth®
App Setting
Set the options in [
Mode].
Bluetooth®
Setting] / [Print Connection
yy Bluetooth : When you turn on Bluetooth in the
Pocket Photo app, the Bluetooth on your Android
phone turns on.
yy Shake & Print : When you turn on Shake & Print
mode, select the desired photo from the main
screen of the Pocket Photo app and then shake your
smartphone to print.
See “Help” for details
For more information about the App, touch
[Help] on the [ Setting].
17
Installing App for iPhone
From App Store
Search for “LG Pocket Photo”.
Using QR code
You can enter the App Store by scanning the QR code
on the product box.
Setting Bluetooth of iPhone
1. On your iPhone’s home screen, touch [Settings].
2. Touch “Bluetooth” and touch the slider to turn
Bluetooth [On].
3. To connect your Pocket Photo device to the iPhone,
turn on your device and make sure it is discoverable
mode.
4. When you find the device, touch the model name of
Pocket Photo on the screen.
18
See “Help” for details
For more information about the App, touch [Help] on
the [ Setting].
STEP 6 Printing Photo
Printing using Android phone
Bluetooth®
Printing using Bluetooth ( )
Bluetooth®
Preparation : Turn the device on, and start printing with
turning on.
the LED indicator
1. Run LG Pocket Photo App on Android phone.
2. Select a photo to print, and touch [
Pocket Photo App.
] (Print) on
3. [Device Connection] window appears. Touch
[CONNECT THE DEVICE], then it will start searching
for Bluetooth devices.
4. When you select a connectable device, the [Bluetooth
Paring request] window appears. If you select [PAIR],
the print preview screen appears.
5. Touch [Print the photo] on the print window.
yy To print, set print mode or the number of photo
on the preview screen.
19
>>Caution
yy Check the power of the Pocket Photo, when
your device can not search for Bluetooth device.
yy The photo file less than 10 MB can be printed in
case of Android.
yy Setting screen may differ depending on the
phone manufacturer.
yy When connecting to the other company’s
smartphone, some functions may be limited
depending on conditions.
6. If you want to print a photo you took again, press
[ ] (Reprint) button 1 second or more on the top
of Pocket photo.
,,Note
yy If you using the Android phone, it will
automatically connect to your most recently
paired Pocket Photo, when you run the Pocket
Photo app. However, if the power of Pocket
Photo is off, it can not be connected.
yy If you run the Pocket Photo app again after
exiting the Pocket Photo app, auto connection
may not work. In this case, please try again in
a few minutes.
20
Setting Pocket Photo App of Android phone
1. Run LG Pocket Photo App on Android phone.
2. Go to [
Setting].
(To check [Device information], set to [On] the
Bluetooth of smartphone on the [Print Connection
Mode].)
3. Touch [Device Information].
You can check device condition, battery status, total
printed photos, MAC address and firmware version.
You can change setting of printing method and
Automatic device power off in [Print setting].
yy Printing Method: You can set the printing method of
photo.
-- Paper Full: Prints without white space. (The edge
of the image can be cut off.)
-- Image Full: Prints an image as a whole. (White
space can occur at the edge of the paper.)
yy Automatic Device Power Off: Set a time so that
the device turns itself off. (Example: 3 minutes, 5
minutes, 10 minutes, Default is [5 minutes])
21
,,Note
yy If you change the time of Automatic Device
Power Off, the maximum number of prints can
be changed due to battery consumption.
yy It is recommended to keep default setting of
the device.
Printing using iPhone
Printing using Bluetooth ( )
Bluetooth®
Preparation : Turn the device on, and start printing with
turning on.
the LED indicator
1. Run LG Pocket Photo App on iPhone.
2. Select a photo to print, and touch [
Pocket Photo App.
] (Print) on
3. Touch [Print the photo] on the print window.
yy To print, set print mode or the number of photo
on the preview screen.
yy If Bluetooth is not connected, “ Paired device
not found” message is appeared. (refer to the
Bluetooth setting for iPhone.)
22
Setting iPhone Pocket Photo App
You can check device condition, battery status, total
printed photos, MAC address and firmware version.
1. Run LG Pocket Photo App on iPhone.
(To check [Device information], set to [On] the
Bluetooth of iPhone.)
2. You can check the device information by touching
[Device Information] on the [ Setting]
4. If you want to print a photo you took again, press
[ ] (Reprint) button 1 second or more on the top
of Pocket photo.
,,Note
In case of iPhone/iPad/iPod, the last paired
iPhone/iPad/iPod is paired to PocketPhoto
automatically when you turn on PocketPhoto if
the Bluetooth on your iPhone/iPad/iPod is on.
23
You can change setting of printing method and
Automatic device power off in [Print setting].
yy Printing Method: You can set the printing method of
photo.
-- Paper Full: Prints without white space. (The edge
of the image can be cut off.)
-- Image Full: Prints an image as a whole. (White
space can occur at the edge of the paper.)
yy Automatic Device Power Off: Set a time so that
the device turns itself off. (Example: 3 minutes, 5
minutes, 10 minutes, Default is [5 minutes])
24
,,Note
yy If you change the time of Automatic Device
Power Off, the maximum number of prints can
be changed due to battery consumption.
yy It is recommended to keep default setting of
the device.
Using the edit mode
You can use the editing functions of the Pocket Photo
app to decorate your pictures with text, brushes
(drawing tools), frames, and more.
You can also calibrate your photos through various
filter modes.
,,Note
If you want to change the text of a photo in the
editing function, the font is applied the same
when you change the font of your smartphone.
(The Pocket Photo app does not support font
changes.)
Notes on the printing
yy The printed image may differ from the orginal
image due to the printing method (Dye-sublimation
method).
yy Use the lastest App of LG Pocket Photo ( when
printing a photo, it makes optimized image.)
yy The higher resolution the image has, the higher
quality the printed photo has. (The proper resolution
is more than 2560 x 1920 pixel.)
yy Once the battery is fully charged, you can print 30
papers in a row.
yy The prints are based on ISO 24712 Colour image
standard and the number of photos printed may vary
depending on user enviromental conditions (time,
temperture,humidity or printing method).
*ISO 24712 is the color standard regulated by ISO.
yy If there are more than a LG Pocket Photo device,
check MAC address on the label to choose one you
want to use. (Refer to “Checking Label”.)
25
yy The Bluetooth searching and transferring may fail
depending on its environment. Check the Bluetooth
condition on your phone and try again.
yy If pairing multiple smartphone, re-pairing may occur.
yy If you print continuously, the print time may be
delayed. (takes about 1-2 minutes)
-- Print time may vary depending on the
surrounding environment.
yy Only the last photo taken with the camera or printed
with the app can be reprinted. When the power is
turned off or reset, the reprint function is disabled.
yy If you do not have photo paper while you are
transferring photos through the pocket photo app,
you can print the photo by pressing the reprint
button after replacing the photo cartridge.
26
>>Caution
yy Do not pull paper out by force during printing.
yy Do not open the cover during printing or do
not print the photo, when cover is opened. It
may cause damage of Pocket Photo.
yy Do not place an object in front of the Paper
exit slot.
yy If the device is vibrated or given shock, the
quality of the printed photo may be reduced.
yy Pocket photo APP’s resolution is optimized in
1440 x 2560 Pixels (Android device) and 750
x 1334(iOS) Pixels.
yy The printing quality may differ depending on
the original image (When too dark or dim).
Use the image after correcting it using Pocket
photo App.
Checking where to buy paper
1. To check where to buy paper, go to [
setting].
2. After touching [Where to buy paper], select a
country.
yy During printing, the print paper repeatedly
comes out and in about 5 times through
the paper exit slot. Please wait and do not
pull out the photo by hand until it is finally
released.
yy If you want to print photos continuously, you
can remove the printed paper manually to print
the next photo.
,,Note
When pressing the power button during printing,
the power is turned off after the paper is ejected.
27
Updating the device
You can update the device by pairing smart phone to
the latest software to enhance the products operation
and /or add new features.
,,Note
yy During the device update procedure, do not
turn off the power or press Reset button.
1. Connect the device and smart phone via Bluetooth.
yy This device cannot be updated to previous
version.
2. Run the Pocket Photo App and then, touch [Device
information] on the [ setting].
yy If there is no higher version, the Message [This
is the lastest version.] appears.
3. The current version and higher version are shown if
new version is existed.
4. When [N] mark appears, Touch [Firmware Version]
to update the device.
28
STEP 7 Taking photos and
instant printing
3. Hold the Pocket photo, confirm the desired
composition of the final image by using view finder.
(It is recommended that you use the viewfinder
eyepiece within 10 mm.)
Taking photos
1. Press
(power) button for 2 seconds to turn on.
2. Open the lens cover by lowering the lens cover
switch.
Optimal distance for taking photo is approximately
between 0.5 m and 1.5m.
The subject may shake when taking pictures. Hold
your elbows at your body when taking photos.
,,Note
If the lens cover is closed, you can’t take a photo.
29
(Reprint) button
Shutter
Note on taking photo
yy Be careful not to touch the lens surface when
you take the photo.
yy Use a blower, cotton bud and soft cloth to
remove dirt on the lens or view finder.
View finder
4. To take a photo, press Shutter button for 2 seconds.
Then the Pocket photo prints a photo you took with
a shutter sound.
※ The flash may turn on at dark place when taking
photos.
5. If you want to print a photo you took again, press
[ ] (Reprint) button 1 second or more on the top
of Pocket photo.
30
yy Do not interrupt the flash, lens or paper exit
slot with finger or strap.
yy Do not take the photos where flash
photography is forbidden.
yy Do not look through the view finder at the sun
or other strong light.
yy Close the lens cover when you are not in use
the Pocket photo to protect the lens.
yy Do not leave the view finder in places exposed
to strong sunlight. Personal injury or fire
could result if the lens should accidentally
concentrate the sunbeams on an object or a
person.accidentally concentrate the sunbeams
on an object or a person.
,,Note
yy Photos can be reprinted only last shot of
camera or last printed image with app.
You can not use reprint function when the
power is turned off or reset.
,,Note
yy The subject will be out of focus if the distance
is less than 0.5 m.
yy Keep your eyes close to the viewfinder when
taking photos.
yy When shooting with the camera the shooting
range of images viewed with the viewfinder
and the images printed after shooting may
differ.
yy The quality of the photos printed with the
camera and the photos printed with the
Pocket Photo app may be different.
yy During printing, the photo paper repeatedly
comes out and in about 5 times through
the ejection port. Please wait and do not
pull out the photo by hand until it is finally
released.
yy The flash has an effective range of between
0.7 m and 1.8 m.
31
Saving photo automatically to
smartphone (Android only)
Photo taken with Pocket Photo can be automatically
saved on your smartphone.
1. Please connect Pocket Photo and Smartphone by
using Bluetooth.
2. Run the Pocket Photo App and then, touch [Saving
Pocket Photo pictures automatically.] on the
[ Setting]. Then set to [On].
32
3. When you take a photo, photo is saved
automatically on connected smartphone.
4. If the photo is not saved automatically, select the
[ ] button on the photo view screen of the Pocket
Photo app.
5. The [Saving Pocket Photo pictures] pop-up window
appears. If you select [Save], photo is saved
automatically to the connected smartphone.
,,Note
yy You can use saving photo automatically
function only when your Pocket Photo and
Smartphone are connected via Bluetooth.
yy Only the last photo taken with Pocket Photo is
saved.
,,Note
yy Saving photo automatically function
supporting version
-- App version v3.1.8 or higher
-- Firmware v4.2.2 or higher
yy Photo will not be saved when the power is
turned off.
yy Photo may not be saved normally if the
connection to the smartphone is disconneted
or the power is turned off while saving photo.
yy When shooting with the camera the shooting
range of images viewed with the viewfinder
and the images printed after shooting may
differ.
yy The quality of the photos printed with the
camera and the photos printed with the
Pocket Photo app may be different.
33
Printing black-and-white photo
If you switch your pocket photo to black-and-white
shooting mode, you can print the photo in black and
white when taking photos.
1.Press
(power) button to turn on.
2. Close the lens cover by raising the lens cover switch.
34
>>Caution
yy You can not switch to black-and-white
shooting mode, If do not have a photo
cartridge in pocket photo. And you can not
switch to black-and-white shooting mode
while printing.
yy You can not switch to black-and-white
shooting mode, If error occurs in pocket photo.
yy When Pocket Photo is turned off and on, the
black-and-white shooting mode is maintained.
3. Press Shutter button for 5 seconds. The
LED
will light up in white and switch to black-and-white
shooting mode.
,,Note
yy When printing via the Pocket Photo app, the
camera prints in color even if it is set to blackand-white shooting mode.
yy Black-and-white shooting mode is operated
even when the pocket photo is turned off
and on after switching to black-and-white
shooting mode.
4. Open the lens cover by lowering the lens cover
switch.
5. When you take a photo, black and white photos are
printed through Pocket Photo.
6. When you change to the color shooting mode, close
the lens cover by raising the lens cover switch, and
then press the shutter button for 5 seconds.
LED turns off and changes to color mode.
35
Using a strap
Wind(Attach) the strap as follow the photo to prevent
dropping the Pocket photo when you carry the Pocket
photo or take a photo.
Checking Label
In case there are more than a LG Pocket Photo device,
check MAC address on the product label to choose one
you want to use.
,,Note
yy Wind the strap on your wrist, do not around
your neck.
yy Use caution not to block paper exit slot with
the strap.
yy It is recommended to use the supplied strap
only.
36
1. Slide the cover button sideways to open the bottom
cover.
About LED Indicator
The LED indicators shows the device condition.
Product label.
: LED On
프린트 대기/
켜짐
(흰색)
: LED Blinks
: LED Off
전원을 켤때/
2. You can find the product label.
깜박임
Section
(흰색)
전원 꺼짐
LED color
Condition
Description
off
To print, turn
on the device.
Turning on/
Blinks
Until ready
after turning
on
프린트 대기/
켜짐
(흰색)
충전 중
Power
전원을 켤때/
깜박임
(흰색)
충전 완료
전원 꺼짐
충전 중
37
인쇄 중
Section
프린트
켜짐
(흰색)
프린트
켜짐
(흰색)
전원을
깜박임
프린트
(흰색)
켜짐
전원을
(흰색)
깜박임
(흰색)
대기/
LED color
Condition
Description
Waiting/
On
Waits for
printing. Device
turns itself
off, if it is left
unused for a
while.
대기/
켤때/
대기/
켤때/
전원 꺼짐
전원을 켤때/
깜박임
전원
꺼짐
(흰색)
Power
충전 중
전원 꺼짐
충전 중
충전 완료
충전 중
충전 완료
충전 완료
Charging
Full charge
Battery is
charging
Battery is fully
charged.
인쇄 준비
배터리 30%
업데이트
이상(흰색)/
프로그램
Section
5장 이상 출력
읽는
중 30%
배터리
가능
이상(흰색)/
5장 이상
인쇄
중 출력
배터리 30%
가능
미만
배터리 30%
미만
배터리 30%
프린트 불가
이상(흰색)/
(3회 깜박임)
5장 이상 출력
가능
프린트 불가
(3회 깜박임)
배터리 부족
30%
배터리
미만
=>확인
후
Normal
삭제
배터리 부족
=>확인 후
operation
삭제
프린트 불가
(3회 깜박임)
배터리 부족
=>확인 후
삭제
인쇄 준비
업데이트
프로그램
읽는 중
인쇄 중
배터리 30%
이상(흰색)/
5장 이상 출력
가능
배터리 30%
미만
프린트 불가
(3회 깜박임)
38
배터리 부족
=>확인 후
삭제
LED color
Condition
Description
Charge the
battery/On
Remaining
battery is less
than 30%
Charge the
battery/ Blinks To print, charge
quickly and the device.
turn off.
Ready to turn Automatic
off/Blinks
Device Power
quicky
Off is set.
Ready to
printing,
Cooling mode/
Blinks
Transferring
data via
Bluetooth or
Printing
용지 부족
커버 열림
용지 걸림
에러
Section
LED color
Condition
인쇄 준비
업데이트
프로그램
읽는 중
인쇄 중
배터리 30%
이상(흰색)/
5장 이상 출력
가능
배터리 30%
미만
Normal
operation
프린트 불가
(3회 깜박임)
배터리 부족
=>확인 후
삭제
Printing/On
Description
Printing
(While
continuous
printing,
battery
temperature
is overheated.
Wait for a
while.)
While
continuous
printing, the
Continuous temperature
printing during inside the
charging /
pocket photo
Blinks
will rise. At this
time, charging
(Red
is temporarily
stopped to
protect the
Green)
battery, and
the LED
flashes.
Section
리프린트할
출력물 없음
(3회)
흑백모드
리프린트할
출력물 없음
(3회)
LED color
Condition
고온/저온
Normal
용지
부족해결
(사용자
커버
불가)열림
operation
용지 걸림
에러
업데이트
리프린트할
출력물 없음
(3회)
리프린트할
출력물 없음
(3회)
고온/저온
(사용자 해결
불가)
Error
업데이트
Description
When you take
black-anda photo, black
white shooting
and white
mode /
photos are
On
printed.
Updating /
Blinks
Data is
downloaded
and installed.
When update
is complete,
LED is turned
off.
Raise or lower
High, Low
the ambient
temperature/ temperature
On
then try again
in a while.
39
Section
LED color
Condition
No paper,
Paper jam/
Blinks
용지 부족
커버 열림
용지 걸림
에러
Error
리프린트할
출력물 없음
(3회)
리프린트할
출력물 없음
(3회)
고온/저온
(사용자 해결
불가)
업데이트
40
Description
Insert the
photo cartridge
then try again.
Turn down
the lens cover
Closed the lens
switch when
cover/ Blinks
you take a
photo.
You need to
printing photo
Reprint button
at least once
is disabled./
after turning
Blinks
on the Pocket
photo.
Specifications
Paper size
63 mm x 94 mm
Image Sensor
CMOS
Resolution
(Print)
310 dpi
Camera pixels
Approx. 5 mega-pixels
View Angle
Diagonal 81 °
(Horizontal 68.5 °
/ Vertical 54 °)
Shutter
Electronic shutter
View finder
Optical virtual image viewfinder,
1G 2P
Shooting range
0.5 m or more
Shutter Speed
Auto
Exposure
Control
Auto
Paper Feeding
Out
Automatic
LED indicator
Dye-sublimation photo paper
(exclusive for Pocket photo)
Power / Waiting / Bluetooth
transmitting / Charging / Error
/ Condition of printer/ Update /
Black-and-White shooting mode
setting
Communication
Bluetooth 4.0
Temperature : 0 - 35 °C
Humidity : 30 - 85 % RH
External
connector
USB-C port for charging battery
Bus Power
Supply (USB)
(Adapter) DC 5 V 0 1.2 A
Battery capacity
1,000 mAh Lithium-ion
rechargeable battery
Photo resolution
More than 2,560 x 1,920 pixels
Dimensions
(W x H x D)
Approx.
152 mm x 108 mm x
36 mm
Flash
Auto (White LED)
Image file type/
size
PNG, JPEG (Baseline) / less than
10 MB (Progressive JPEG is not
supported.)
Media paper
used
Media paper
storage
environment
Device operation Temperature : 5 - 35 °C
environment
Humidity : less than 80 %
Optimum print
environment
Temperature : 10 - 32 °C
Humidity : less than 80 %
Pocket Photo
App supporting
version
yy Android v4.4 or higher
yy iOS v9.0 or higher
41
yy Your phone may be incompatible with the device
depending on its manufacturer, environment or
(Android or iOS) operating system.
yy Design and specifications are subject to change
without prior notice.
yy All other product and brand names are trademarks
or registered trademarks of their respective owners.
42
Troubleshooting
Symptom
No power
Bluetooth paring
does not work well.
Cause / Solution
The battery is discharged.
Be sure the device is connected
to charger or PC properly when
charging.
Switch Bluetooth off and on
again on your smartphone,
then pair with the device in the
smartphone’s settings.
Turn on the device and try
pairing again in 5 seconds.
Be sure the device is on.
The paper is
jammed before
printing.
The paper is
jammed during
printing.
1. Turn the device off and on
again then paper is ejected
automatically.
2. If above solution does not
work, open the cover. Then
insert the photo cartridge
again.
At first remove the photo
cartridge, and then gently
pull the remaining photo
paper out of the Insertion
part of Photo cartridge. At
this time, be careful not
to touch the inside of the
Insertion part of Photo
cartridge.
The printed photo
has lines.
No or incomplete
image is printed.
If there are foreign substance
or dust on the inside of
the Insertion part of Photo
cartridge (print head), printed
photo may has lines.
In that case, wipe the foreign
substance of the head a cotton
bud or a soft cloth. And then try
again. Clean the part indicated
in the following picture.
The edge of the
Set Print mode to [Image Full]
image on the photo in the App’s setting then the
is cut off.
image is printed as a whole.
43
White space
When print mode is set to
appears at the edge [Image Full] , white space may
of the paper.
appears if the aspect ratio of
the paper and your image is not
the same.
When print mode is set to
[Paper Full] , the edge of the
image can be cut off or white
space at the edge of the paper
may appear.
Quality of printed
In case you magnify an image
photo is too low.
using [ ] menu in the App,
the quality of the printed photo
may be reduced.
Turn off the Pocket photo and
insert the new photo cartridge.
Be sure the photo size is bigger
than the proper resolution.
(2560 x 1920 pixels)
If you use other company’s
photo paper, it cannot be
guaranteed for print quality or
damage of pocket photo.
44
Device does not
print.
Device is turned off
automatically.
Above solutions do
not work.
Preheating is needed. Wait for
about 2 minutes.
Be sure there are papers in the
device.
It may take time to print a
photo.
Be sure the photo file is less
than 10 MB.
Only baseline JPEG, PNG
(Max: 1350x1050) format is
supported.
Check [Automatic Device Power
Off] time in the App’s setting.
Press Reset hole with a pointed
thing like mechanical pencil to
initialize.
The printed
photo is out of
focus by taking
photo.
The picture is
blurred.
The photo you
printed is too
dark by taking
photo.
Take a photo with a distance of at
least 0.5 m between you
and your subject.
Clean the lens.
When you take a photo, press the
shutter button slowly after grab
the Pocket photo with both hands
and hold your elbows at your body..
Do not press onto or fold the photo
paper.
Do not block the paper exit slot
with your finger.
Keep a distance from the subject
of at least 0.5 m. Optimal distance
for taking photo is approximately
1.5m.
Take a photo with the light behind
you.
The printed
photo is
different from
the image
viewed through
the viewfinder.
Keep your eyes close to the
viewfinder when taking photos.
Then confirm the desired
composition of the image and
takin a photo. (Viewfinder eyepiece
distance: 10 mm)
45
Paper Jam Solution
Paper Jam Solution
Do not pull the paper out. Turn the device off and on
again, the paper will be ejected automatically.
yy If there are foreign substance or dust on the inside
of the Insertion part of Photo cartridge (print head),
printed photo may has lines.
In that case, wipe the foreign substance of the head
a cotton bud or a soft cloth. And then try again.
Refer to “Troubleshooting” to clean the part.
1. Slide the cover button sideways to open the bottom
cover and then remove the photo cartridge.
yy At first remove the photo cartridge, and then gently
pull the remaining photo paper out of the Insertion
part of Photo cartridge. At this time, be careful not
to touch the inside of the Insertion part of Photo
cartridge.
yy If this problem is not solved, please refer to
“Troubleshooting”.
46
2. Gently pull the remaining photo paper out of the
Insertion part of Photo cartridge.
47
Download PDF

advertising
