LG | PD233T | LG PD233T Owner’s Manual

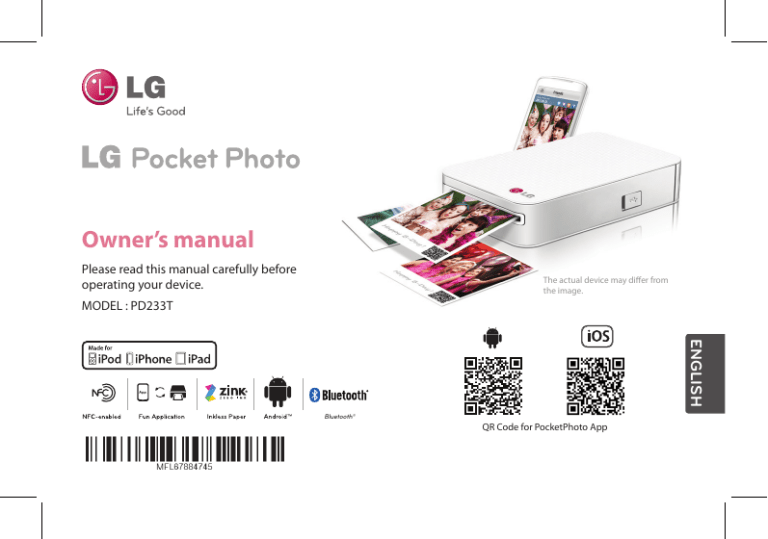

Owner’s manual
Please read this manual carefully before
operating your device.
The actual device may differ from
the image.
MODEL : PD233T
Bluetooth®
QR Code for PocketPhoto App
ENGLISH
Bluetooth®
Safety information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USERSERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence
of uninsulated dangerous voltage within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying the
product.
2
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the appliance. To disconnect power from the mains,
pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery
or battery pack, follow the steps in reverse order
than the assembly. To prevent contamination of
the environment and bring on possible threat
to human and animal health, the old battery or
the battery put it in the appropriate container
at designated collection points. Do not dispose
of batteries or battery together with other
waste. It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, fire or the like.
3
CAUTION:
yy The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with
liquids, such as vases, should be placed on the
apparatus.
yy Minimum distance around the apparatus for
sufficient ventilation, no less than 5 cm.
yy The ventilation should not be impeded by
covering the ventilation openings with items, such
as newspapers, table-cloth, curtains etc.
yy No naked flame sources, such as lighted candles,
should be placed on the apparatus.
yy Internal lithium battery in the unit should not be
replaced by user because of danger of explosion
if battery is incorrectly replaced ,and must be
replaced with the same type battery by expert.
4
Disposal of your old appliance
1. When this crossed-out wheeled bin
symbol is attached to a product it
means the product is covered by the
European Directive 2002/96/EC.
2. All electrical and electronic products
shall be disposed of separately
from the municipal waste stream
via designated collection facilities
appointed by the government or the
local authorities.
3. The correct disposal of your old
appliance will help prevent potential
negative consequences for the
environment and human health.
4. For more detailed information about
disposal of your old appliance,
please contact your city office, waste
disposal service or the shop where you
purchased the product.
Disposal of waste batteries/accumulators
1. When this crossed-out wheeled
bin symbol is attached to batteries/
accumulators of your product it
means they are covered by European
Directive 2006/66/EC.
5. For more detailed information
about disposal of your old batteries/
accumulators, please contact your
city office, waste disposal service or
the shop where you purchased the
product.
2. This symbol may be combined with
chemical symbols for mercury(Hg),
cadmium(Cd) or lead(Pb) if the
battery contains more than 0.0005%
of mercury, 0.002% of cadmium or
0.004% of lead.
3. All batteries/accumulators should
be disposed separately from the
municipal waste stream via designated
collection facilities appointed by the
government or the local authorities.
4. The correct disposal of your old
batteries/ accumulators will help
to prevent potential negative
consequences for the environment,
animal and human health.
5
,,Note
Device operating temperature
LG Electronics hereby declares that this/these
product(s) is/are in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC, 2004/108/EC, 2006/95/EC,
2009/125/EC and 2011/65/EU.
Contact office for compliance of this product:
LG Electronics Inc
EU Representative, Krijgsman 1,
1186 DM Amstelveen, The Netherlands
When operating in cold weather, the device
shall not print. Bring it inside from the cold and
give about 10 min to adjust to the specified
operating temperature (5 °C - 40 °C). Then try
printing again. (For the appropriate use, it is
recommended not to operate it outdoors in
winter.)
>>Caution
yy Please note that this is NOT a Customer Service
contact point. For Customer Service Information,
see Warranty Card or contact the dealer that you
purchased this product.
CAUTION when using this product in
environments of low humidity
yy It may cause static electricity in
environments of low humidity.
Indoor use only.
yy It is recommended to use this product after
touching any metal object which conducts
electricity.
RF Radiation Exposure Statement
This equipment should be installed and operated
with minimum distance 20 cm between the radiator
and your body.
6
IMPORTANT SAFETY NOTICE
The cord grip for the plug fitted to this product is
built into the existing power cord as supplied. If, for
any reason you need to shorten the cord.
DO NOT RE-USE THE PLUG.
A new plug must be used to ensure your continued
safety by securing the plug to the power cord in
accordance with Plug & Socket Regulations 1994.
POWER: This unit operates on a mains supply of 200240V~, 50/60Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use of the
same rating approved to BS 1362. Never use this plug
with the fuse cover omitted. To obtain a replacement
fuse cover contact your dealer. If the type of plug
supplied is not suitable for the mains sockets in
your home, then the plug should be removed and
a suitable type fitted. Please refer to the wiring
instructions below:
Warning: A mains plug removed from the mains lead
of this unit must be destroyed. A mains plug with
bared wires is hazardous if inserted in a mains socket.
Do not connect either wire to the earth pin, marked
with the letter E or with the earth symbol 6 or
coloured green or green and yellow. If any other plug
is fitted, use same rating of fuse in the plug.
Important: The wires in this mains lead are coloured
in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours
of the wires in the mains lead of this unit may not
correspond with the coloured marking identifying
the terminals in your plug, proceed as follows: The
wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black. The wire which is coloured brown
must be connected to the terminal which is marked
with the letter L or coloured red.
7
Contents
Safety information . . . . . . . . . . . . . . . . . . . . . . 2
STEP 1 Getting Started . . . . . . . . . . . . . . . . . . 9
Supplied items . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . 9
Power On / Off . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing App for iPhone . . . . . . . . . . . . . . . . 15
Setting Bluetooth of iPhone . . . . . . . . . . . . . 15
STEP 5 Printing Photo . . . . . . . . . . . . . . . . . . 16
Printing using Android phone . . . . . . . . . . . 16
Printing using iPhone . . . . . . . . . . . . . . . . . . . . 19
Notes on the printing . . . . . . . . . . . . . . . . . . 21
STEP 2 Charging Battery . . . . . . . . . . . . . . . 10
Checking Label . . . . . . . . . . . . . . . . . . . . . . . . 22
STEP 3 Inserting Photo Paper . . . . . . . . . . . 12
Cleaning printer head using Smart Sheet 12
Paper Jam Solution . . . . . . . . . . . . . . . . . . . . . . 13
About LED Indicator . . . . . . . . . . . . . . . . . . . 23
STEP 4 Installing App . . . . . . . . . . . . . . . . . . 13
Installing App for Android phone . . . . . . . 13
App Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 25
8
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 24
STEP 1 Getting Started
Product Overview
Reset hole
Supplied items
Paper exit slot
LG Pocket Photo Printer
USB cable
Paper insert door
Micro USB port
(for recharging)
Button
(Power)
Paper insert slot
ZINK Photo Paper
Owner’s manual
9
STEP 2 Charging Battery
Power On / Off
On : Press and hold
for 4 sec.
This device uses built-in battery. Before using it,
charge the battery in full. (Refer to below)
Off : Press and hold
for 2 sec.
,,Note
button
yy When turning the device on, the
flashes for 5 sec. Then printing is available.
button) shows the
yy The LED indicator (
device condition. For more information, see
“About LED indicator” on page 23.
10
Battery charging time : 1.5 hours
Checking the charging status with
button
/ 100 % :
(When power-off )
yy Charging :
yy 10 % : flashes for about 3 sec.
yy 0 % : flashes for about 30 sec. and turns off.
yy LG Pocket Photo is always charged when
connected to the power supply except for being
printed.
>>Caution
yy Handle with care during charging to prevent
electric shock.
yy Do not place near heating appliance.
yy Do not disassemble or deform.
yy Do not give shock on.
yy Avoid too high or low temperature or
humidity.
,,Note
yy You can connect the device to PC using the
supplied USB cable, but charging time can
be longer.
yy The operating time on battery may vary
depending on the battery status, operational
status and environment conditions.
yy When the battery is discharged, printing is
available after charging it for more than 10
min. (Charge in full to print in a row.)
11
STEP 3 Inserting Photo
Paper
1. Open the Paper insert door.
Photo Paper
with White
side up
K
IN
Z
2. Unwrap the pack of the photo papers.
3. Slide Smart Sheet (Blue) and photo papers
together into the Paper insert slot. Smart Sheet
will be ejected automatically before first printing.
yy Do not insert more than 1 pack (10 Photo papers
and 1 Smart Sheet). Otherwise 2 papers may be
ejected at once or paper jam may occur.
yy Refill the device after using up the papers in.
yy Do not push the papers deeper into Paper insert
slot.
12
Smart Sheet
with Barcode
side down
Cleaning printer head using Smart
Sheet
Smart Sheet cleans printer head and calibrates colors
on photo. Keep the best print quality by using it
repeatedly.
Paper Jam Solution
,,Note
Do not pull the paper out. Turn the device off and on
again, the paper will be ejected automatically.
yy Handle with care when you touch the paper
not to get dirt on.
If this problem is not solved, please refer to
“Troubleshooting”.
yy Ensure to use the papers within its valid
date.
>>Caution
y Do not forcefully pull the paper out during
y
printing. It may result in malfunction.
yy Once unpacked, the papers may begin
to curl up after a period of time. It is
recommended to use them as soon as
possible.
yy Do not damage or bend the papers.
yy Using soiled paper may result in malfunction.
yy Using photo papers from other company
may result in malfunction or paper jam.
STEP 4 Installing App
yy Do not place inside a car or, expose to direct
sunlight or moisture.
Installing App for Android phone
yy Do not leave in a place where the
temperature or humidity is too high or low. It
may reduce the quality of the printed photo.
Search for “LG Pocket Photo”.
Bluetooth®
From Play Store (Android market)
Using QR code
Scan the QR code on the product box or the cover of
this manual.
13
Using NFC
Refer to “Printing using NFC” on page 17.
See “Help” for details
App Setting
For more information about the App, touch “Help”.
Bluetooth®
Set the options in [Setting].
*
yy NFC : Prints using NFC (NFC-enabled phone only)
yy Bluetooth : Prints using Bluetooth
**
yy GPS : Saves the location where you took a photo
14
* NFC : Near Field Communication
** GPS : Global Positioning System using a satellite
Installing App for iPhone
From App Store
Search for “LG Pocket Photo”.
Using QR code
Scan the QR code on the product box or the cover of
this manual.
Setting Bluetooth of iPhone
1. On your iPhone’s home screen, touch [Settings].
2. Touch “Bluetooth” and touch the slider to turn
Bluetooth [On].
3. To connect your Pocket Photo device to the
iPhone, turn on your device and make sure it is
discoverable mode.
See “Help” for details
For more information about the App, touch “Help”.
4. When your iPhone found the device, touch the
name of Pocket Photo on the iphone screen.
15
STEP 5 Printing Photo
Printing using Android phone
Printing using Bluetooth (
Bluetooth®
)
Preparation : Turn the device on, and start printing
with the white LED (
button) turning on.
Bluetooth®
1. Run LG Pocket Photo App on Android phone.
2. Select a photo to print, and touch [
].
3. Touch [OK], then it will start searching for
Bluetooth devices.
4. When LG Pocket Photo is paired for the first time,
[Bluetooth pairing request] appears. To start
printing, touch [Pairing] or input the PIN code ‘0000’.
yy If Smart Sheet is in the device, it will be ejected
before starting printing.
16
,, You can print photos directly from Android
phones or PC via Bluetooth without the App.
Choose a photo and select [Bluetooth] in [Share]
or [Menu].
Printing using NFC (
)
Check whether your Android phone supports NFC
first.
Bluetooth®
yy How to read NFC tag : Make smartphone get near
to NFC tag on the device.
NFC
3. Choose a photo to print and tag, then printing is
started immediately. From this time, you can run
the App and print a photo by just tagging.
Setting Pocket Photo App of Android phone
You can check remaining battery, the number of the
photos printed, device version, MAC address, and
change the setting of print mode, etc.
1. Tagging for the first time, it links to Play Store
where you can download LG Pocket Photo App.
2. Go to [Setting] in the App installed, and check
[NFC].
1. Run LG Pocket Photo App on Android phone.
(To check [Device information], set to [On] the
Bluetooth of smartphone.)
17
2. Go to [Setting].
3. Touch [Device Information].
18
Auto Exposure
Corrects color in the image.
(ON/OFF)
Paper Full
Prints without white space. (The
edge of the image can be cut
off.)
Image Full
Prints an image as a whole.
(White space can occur at the
edge of the paper.)
Auto Power Off
Set a time so that the device
turns itself off.
(Default is [5 min]. If you set to
[Off ], the device can be on for up
to 2.5 hours when fully charged.)
Printing using iPhone
Printing using Bluetooth (
)
Bluetooth®
Preparation : Turn the device
on, and start printing
with the white LED (
button) turning on.
1. Run LG Pocket Photo App on iPhone.
2. Select a photo to print, and touch [
].
3. “Do you want to print?” message will be appeared.
Touch [OK] to start printing.
yy If Bluethooth is not connected, “ Paired device
not found” message is appeared. (refer to the
Bluetooth setting for iPhone.)
yy If Smart Sheet is in the device, it will be ejected
before starting printing.
19
Setting iPhone Pocket Photo App
You can check remaining battery, the number of the
photos printed, device version, MAC address, and
change the setting of print mode, etc.
1. Run LG Pocket Photo App on iPhone.
(To check [Device information], set to [On] the
Bluetooth of iPhone.)
Auto Exposure
Corrects color in the image.
(ON/OFF)
Paper Full
Prints without white space. (The
edge of the image can be cut
off.)
Image Full
Prints an image as a whole.
(White space can occur at the
edge of the paper.)
Auto Power Off
Set a time so that the device
turns itself off.
(Default is [5 min]. If you set to
[Off ], the device can be on for up
to 2.5 hours when fully charged.)
2. Go to [Setting].
3.Touch Setting options to change.
20
Notes on the printing
>>Caution
yy The color of impression can be different between
printed photo and image on smartphone’s display.
yy Do not pull paper out by force during
printing.
yy Once the battery is fully charged, you can print up
to 25 papers in a row. It depends on the battery
condition.
yy Do not open the paper insert door during
printing.
yy The Bluetooth searching and transferring may
fail depending on its environment. Check the
Bluetooth condition on your phone and try again.
yy Do not place an object at the front of the
Paper exit slot.
yy If the device is vibrated or given shock, the
quality of the printed photo may be reduced.
yy If there are more than a LG Pocket Photo device,
check MAC address on the label to choose one
you want to use.
(Refer to “Checking Label” on page 22.)
21
Checking Label
In case there are more than a LG Pocket Photo device,
check MAC address on the product label to choose
one you want to use.
3. You can find the product label.
1. Open the Paper insert door.
>>Caution
yy Be sure the device is off before opening.
Be sure the Paper insert door is opened
when you close the Upper Cover.
yy It is recommended not to open the Upper
cover as possible except for checking the
label.
2. Open the Upper cover.
22
yy Do not detach the black rubber pad. It may
cause malfunction.
About LED Indicator
The LED indicator (
condition.
button) shows the device
Error/
On
No paper, Paper
jam, Cancelled,
Opened, Low
temperature,
Unsupported file
format
Low battery/ To print, charge
On
the device.
LED color
Condition/
Power
Description
Waiting/
On
Waits for printing.
Device turns
itself off
if it is left unused
for a while.
Full charge/
Off
To print, turn on
the device.
Charging/
Off
To print, turn on
the device.
Printing/
On
Transferring data
via Bluetooth,
Printing
Cooling
mode/
On
After continuous
prints the device
may automatically
cool down
its internal
temperature. Wait
for a while to print
again.
23
Specifications
LED indicator
Power / Waiting / Bluetooth
transmitting / Charged /
Discharged / Error / Condition
of printer
Photo size
50 mm x 76 mm (Dot size : 640
x 1224)
Image file type/
size
JPEG (Baseline) / less than 10 MB
(Progressive JPEG is not
supported.)
Communication
Media paper
used
ZINKTM Photo Paper (exclusive
for LG)
External
connector
Micro USB port for charging
battery
Media paper
storage
environment
Temperature : 20 - 25 °C
Humidity : 40 - 55 % RH
Bus Power
Supply (USB)
DC 5 V 0 1.2 A
Device
operation
environment
Temperature : 5 - 40 °C
Humidity : less than 70 % (35 °C)
(An temperature alert pops up
in the App.)
Battery life
500 mAh Li-Polymer
rechargeable battery
Maximum 25 prints when fully
charged
Optimum print
environment
Temperature : 15 - 32 °C
Humidity : less than 70 % (32 °C)
Power supply
500 mAh Li-Polymer
rechargeable battery
AC adapter (DC 5 V 0 1.2 A)
resolution
More than 1280 x 2448 pixels
24
Bluetooth 2.1 + EDR
Operation distance : about 10 m
Dimensions (W
x D x H)
72.4 mm x 120.9 mm x 24 mm
Net Weight
212 g
yy Your phone may be incompatible with the device
depending on its manufacturer, environment or
(Android or iOS) operating system.
yy Design and specifications are subject to change
without prior notice.
yy This product must always be operated DC 5 V.
Certified/Listed Adaptor which comply with LPS.
Troubleshooting
Symptom
Cause / Solution
No power
The battery is discharged.
Be sure the device is
connected to charger or PC
properly when charging.
Bluetooth paring
Switch Bluetooth off and on
does not work well. again on your smartphone,
then pair with the device in
the smartphone’s settings.
Turn on the device and try
printing (pairing) again in
5 sec.
Be sure the device is on.
25
The paper jammed 1. Turn the device off and on
before printing.
again then paper is ejected
automatically.
The paper jammed
2. If above solution does
during printing.
not work, open the Upper
cover and arrange the
papers. Then insert them
with Smart Sheet (Blue) or
pull the paper out slowly
and gently.
The printed photo Open the Upper cover,
has lines.
arrange the papers and
No or incomplete insert them with Smart Sheet
locating at the bottom. Then
image is printed.
try printing again. (To open
the Upper cover, refer to
“Checking Label” on
page 22.)
The edge of the
Set [Print mode] to [Image
image on the
Full] in the App’s setting
photo is cut off.
then the image is printed as
a whole.
26
White space
appears at the
edge of the paper.
Quality of printed
photo is too low.
When [Print mode] is set to
[Image Full], white space may
appears if the aspect ratio of
the paper and your image is
not the same.
When [Paper Full], the edge
of the image can be cut off or
little white space at the edge
of the paper may appear.
In case you magnify an image
using [ ] menu in the App,
the quality of the printed
photo may be reduced.
Turn off the device and insert
Smart Sheet locating at the
bottom of the papers. Then try
printing again.
Be sure the photo size is
bigger than the proper
resolution.(1280 x 2448 pixels)
Device does not
print.
Be sure there are papers in
the device.
It may take time to print after
Smart Sheet is ejected.
Be sure the photo file is less
than 10 MB.
Baseline JPEG format is
supported only.
Device is turned off Check [Auto Power Off ] time
automatically.
in the App’s setting.
Above solutions do Press Reset hole with a
not work.
pointed thing like mechanical
pencil to initialize.
27
Please see the separate enclosed warranty card for details on the manufacturer warranty for this product.
For further product details and customer assistance please visit our web site
www.lg.com/uk
or call the LG customer Information Centre on:
UK: 0844-847-5454
MODEL NO.*
IE: 0818-276-954
SERIAL NO.*
DATE OF PURCHASE.*
Download PDF

advertising
