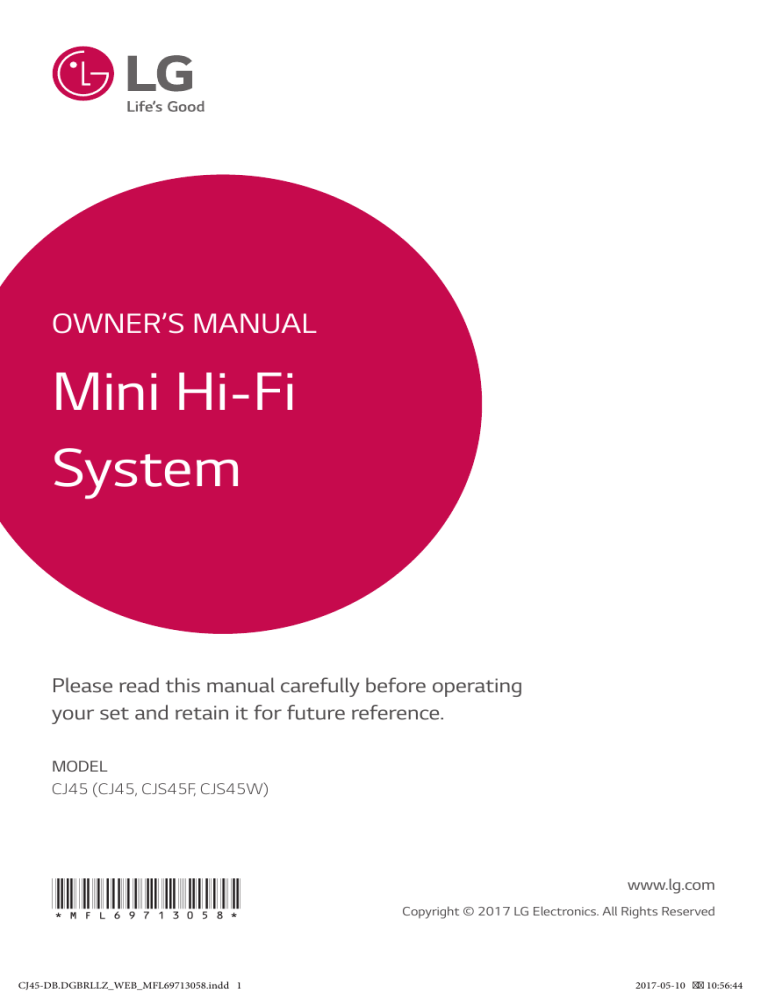

OWNER’S MANUAL

Mini Hi-Fi

System

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

CJ45 (CJ45, CJS45F, CJS45W)

*MFL69713058*

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 1

www.lg.com

Copyright © 2017 LG Electronics. All Rights Reserved

2017-05-10 10:56:44

1 Getting Started

1

2

Getting Started

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

CAUTION:

The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

WARNING:

Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock.

CAUTION:

This product employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center.

Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure.

CAUTION:

Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

NOTICE

: For safety marking information including product identification and supply ratings, please refer to the main label on the bottom or the other surface of the product.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 2 2017-05-10 10:56:44

Getting Started

3

CAUTION concerning the Power Cord

The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible.

Check the specification page of this owner’s manual to be certain of the current requirements.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your device, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

CAUTION:

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Symbols

~

Refers to alternating current (AC).

0

Refers to direct current (DC).

Refers to class II equipment.

1

Refers to stand-by.

!

Refers to “ON” (power).

Refers to dangerous voltage.

1

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 3 2017-05-10 10:56:44

4

Table of Contents

Table of Contents

1 Getting Started

2 Safety Information

4 Table of Contents

6 Unique Features

7 Playable file Requirement

7 – Music file requirement

7 – Compatible USB Devices

7 – USB device requirement

8 Remote control

10 Front panel

12 Rear Panel

2 Connecting

13 Connecting to speakers

13 – Attaching the speakers to the unit

13 – Attaching the subwoofer to the unit

14 Optional Equipment Connection

14 – AUX IN Connection

14 – PORT.IN Connection

14 – Listening to music from your portable player or external device

15 – USB Connection

15 – Antenna Connection

3 Operating

16 Basic Operations

16 – CD/USB Operations

16 – Auto Play

17 – Selecting a folder and an

MP3/WMA file

18 – Deleting a file/folder or format

18 – AUTO DJ

19 Using a BLUETOOTH® wireless technology

19 – Listening to music stored on the Bluetooth devices

22 Using the Music Flow Bluetooth App

22 – About “Music Flow Bluetooth” App

22 – Install “Music Flow Bluetooth” App onto

Your Bluetooth Device

23 – Activate Bluetooth with

“Music Flow Bluetooth” App

24 Radio Operations

24 – Listening to the radio

24 – Improving poor FM reception

24 – Presetting the Radio Stations

24 – Deleting all the saved stations

25 – Seeing information about a Radio station

26 Sound adjustment

26 – Setting the sound mode

27 Advanced Operations

27 – Recording to USB

29 – Programmed Playback

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 4 2017-05-10 10:56:44

30 Other Operations

30 – Turn off the sound temporarily

30 – DEMO

30 – Resume stop

30 – Using Microphone

32 – Sleep Timer Setting

32 – Dimmer

32 – Auto power down

33 – AUTO POWER On

33 – Auto function change

34 Setting the Clock

34 – Setting the Clock through

“Music Flow Bluetooth” App

34 – Using your player as an alarm clock

35 LG Sound Sync

36 WIRELESS PARTY LINK Connection

4 Troubleshooting

37 Troubleshooting

37 – General

5 Appendix

39 General specifications

40 Speaker specifications

40 Trademarks and Licenses

41 Maintenance

41 – Notes on Discs

41 – Handling the Unit

Table of Contents

5

3

4

5

1

2

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 5 2017-05-10 10:56:44

1

6

Getting Started

Unique Features

BLUETOOTH®

Listens to music stored on your

Bluetooth

device.

Portable In

Listens to music from your portable device.

(MP3, Notebook, etc.)

AUTO DJ

Blends the end of one song into the beginning of another for seamless playback.

USB Direct Recording

Records music to your USB device.

Music Flow Bluetooth

Music Flow Bluetooth is an app designed to let you take control of some of LG’s latest audio devices.

(Page 22)

LG Sound Sync

Controls volume level of this unit by the remote control of your LG TV that is compatible with LG

Sound Sync.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 6 2017-05-10 10:56:45

Getting Started

7

Playable file

Requirement

Music file requirement

MP3/WMA file compatibility with this unit is limited as follows.

y

Sampling frequency : within 32 to 48 kHz (MP3), within 32 to 48 kHz (WMA)

y

Bit rate : within 32 to 320 kbps (MP3),

40 to 192 kbps (WMA)

y

Maximum files : Data CD : 999 / USB : 2,000

y

Maximum folders : Data CD : 99 / USB : 200

y

File extensions : “.mp3”/“.wma”

y

Certain MP3/WMA files may not be played depending on the type or format of the file.

y

CD-ROM file format : ISO 9660/JOLIET

y

We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.

The DTS is not supported. In case of DTS audio format, audio is not output.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered/Live File System : Disc format system for

Windows Vista)

Compatible USB Devices

y

MP3 Player : Flash type MP3 player.

y

USB Flash Drive :

Devices that support USB2.0 or USB1.1.

y

The USB function of this unit does not support all

USB devices.

USB device requirement

y

Devices which require additional program installation when you have connected it to a computer, are not supported.

y

Do not extract the USB device while in operation.

y

For a large capacity USB, it may take longer than a few minute to be searched.

y

To prevent data loss, back up all data.

y

If you use a USB extension cable or USB hub, the

USB device is not recognized.

y

Using NTFS file system is not supported.

(Only FAT(16/32) file system is supported.)

y

This unit recognizes up to 2,000 files.

y

External HDD, Card readers, Locked devices, or hard type USB devices are not supported.

y

USB port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

y

Some USB may not work with this unit.

1

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 7 2017-05-10 10:56:45

1

8

Getting Started

Remote control

Replacement of battery

(R03

(R03)

Remove the battery cover on the rear of the remote control, and insert the battery with

4

and

5

matched correctly.

• • • • • • • • • • • • • •

a

• • • • • • • • • • • • •

1

(Standby) : Turns the power on or off.

B

(Open/Close) : Opens and closes the disc tray.

VOL

(Volume)

+/-

: Adjusts speaker volume.

F

(Function) : Selects the function and input source.

Input source / Function Display

Disc

USB

CD

USB1 / USB2

AUX input

Portable input

Bluetooth

LG Sound Sync (Wireless)

Radio

AUX

PORTABLE

BT

LG TV

FM

(Mute) : Mutes the sound.

PRESET·FOLDER

W

/

S

:

Chooses a preset number for a radio station.

(Page 24)

Searches for a folder of MP3/WMA files. When a CD/USB containing MP3/WMA files in several folders is being played, press

PRESET·FOLDER

W

/

S

to select the folder you want to play.

PROGRAM/MEMORY

:

-

Stores radio stations. (Page 24)

Deletes all the saved stations.

-

Selects a programmed list mode. (Page 29)

Makes the programmed list.

AUTO DJ

: Selects the AUTO DJ mode. (Page 18)

DELETE

:

-

Deletes MP3/WMA files. (USB only) (Page 18)

Deletes a song on the programmed list.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 8 2017-05-10 10:56:45

Getting Started

9

• • • • • • • • • • • • • •

b

• • • • • • • • • • • • •

REPEAT

: Listens to your tracks/files repeatedly or randomly.

TUNING -/+

: Selects the radio stations.

-

C/V

(Skip/Search) :

Skips backward or forward.

Searches for a section within a track/file.

-

N

(Play/Pause) :

Starts or pauses playback.

Selects stereo/mono.

-

Z

(Stop) :

Stops playback.

Cancels DELETE function.

SOUND EFFECT

: Chooses sound impressions.

REGION EQ

: Chooses region equalizer.

INFO

:

Sees information about your music. An MP3 file often come with ID3 tag. The tag gives the Title,

Artist, Album or Time information.

- Sees

Bluetooth

device name of the unit in BT

READY.

Sees the name of connected all

Bluetooth

device in

Bluetooth

mode.

In status of WIRELESS PARTY LINK Connection, device name of SLAVE unit appears in the

MASTER unit and device name of MASTER unit appears in the SLAVE unit.

• • • • • • • • • • • • • •

c

• • • • • • • • • • • • •

0

to

9

numerical buttons : Selects numbered tracks, files, or preset number.

CLOCK

: Sets a clock and checks a time.

ALARM

: With the ALARM function you can turn on CD, USB play and tuner reception on at a desired time.

• • • • • • • • • • • • • •

d

• • • • • • • • • • • • •

VOICE CANCELLER

: You can enjoy the function while playing the music, by reducing singer vocal of music in the various source.

SLEEP

: Sets the system to turn off automatically at a specified time.

(Dimmer : The display window will be darkened by half.)

RDS/SET

RDS (Radio Data System)

Confirms the setting.

KEY CHANGER( / )

: Changes the key to suit your vocal range.

ECHO

: Selects ECHO mode.

PTY

: Searches radio stations by radio type.

USB REC

: Records to USB.

1

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 9 2017-05-10 10:56:45

1

10

Getting Started

Front panel

o a b c d e f g n m l k j i a

USB 1 Port

You can play sound files by connecting the USB device.

b 1

(Standby)

Turns the power on or off.

c

Display window

d

(Remote sensor)

e

WIRELESS LINK

Selects MASTER or SLAVE on WIRELESS

PARTY LINK mode.

Enable or disable WIRELESS PARTY LINK mode.

f

USB 2 Port

You can play sound files by connecting the USB device.

g

VOLUME

Adjust speaker volume.

h

MIC

(Microphone)

+/-

Adjust microphone volume.

VOICE CANCELLER

You can enjoy the function while playing the music, by reducing singer vocal of music in the various source.

ECHO

Selects ECHO mode.

h i

F

(Function)

Selects the function and input source.

Input source / Function Display

Disc

USB

AUX input

Portable input

Bluetooth

LG Sound Sync (Wireless)

Radio

CD

USB1 / USB2

AUX

PORTABLE

BT

LG TV

FM

T

(Play/Pause)

Starts or pauses playback.

Selects stereo/mono.

U

(Skip/Search)

Searches forward.

Searches for a section within a track/file.

Selects the radio stations.

KEY CHANGER ( / )

Changes the key to suit your vocal range.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 10 2017-05-10 10:56:45

j

Disc tray

k

USB REC / DEMO

Records to USB.

In power off status, if you press

USB REC / DEMO

, show demo mode.

I

(Stop)

/ RDS

Stops playback or cancels DELETE function.

RDS (Radio Data System)

Y

(Skip/Search)

Skips backward.

-

Searches for a section within a track/file.

Selects the radio stations.

R

(Open/Close)

Opens and closes the disc tray.

AUTO DJ

Selects the AUTO DJ mode.

(Page 18)

Getting Started

11

l

SOUND EFFECT

Chooses sound impressions.

REGION EQ / BASS BLAST

Chooses region equalizer.

Press and hold to select BASS effect directly.

SEARCH

Moves to folder or file in selection mode.

OK

Selects a folder when searching a file.

m

MIC

( Microphone) jack

n

PORT.

(Portable)

IN

jack

o

SEARCH

Searches a folder or a file.

Turns clockwise or counterclockwise to control the SOUND EFFECT, REGION EQ mode.

1

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 11 2017-05-10 10:56:45

1

12

Getting Started

Rear Panel

a a

Power cord

b

SPEAKERS

connector/terminals

c

ANTENNA

(FM)

d

AUX IN

(L/R)

Connect an auxiliary device.

b c d

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 12 2017-05-10 10:56:46

2 Connecting

Connecting to speakers

Attaching the speakers to the unit

To connect the cable to the unit, press each plastic finger pad to open the connection terminals on the unit. Insert the wire and release the finger pad.

Connect the black of each wire to the terminals marked - (minus) and the other end to the terminals marked + (plus).

Connecting

13

Attaching the subwoofer to the unit

Connect a subwoofer cord to the player.

When connecting a subwoofer cord to the player, insert the connector until it clicks.

2

>

Caution

y

When you connect the speakers to the unit, make sure to connect the speaker’s cable and plug to the corresponding speaker connector.

y

Check the volume level before playing music to prevent infirm, child, and pregnant women from being shocked by the sudden and loud sound from the unit.

y

Do not use the unit in a limited space.

It may damage a person’s hearing. It is recommended to use it in a wide space.

y

Be careful to make sure children do not put their hands or any objects into the *speaker duct.

* speaker duct : A hole for plentiful bass sound on speaker cabinet (enclosure)

y

Use the speaker supplied with this unit only. Using any other speaker may cause malfunction.

y

The speakers contain magnet parts, so color irregularity may occur on the TV screen or PC monitor screen. Please use the speakers far away from either TV screen or PC monitor.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 13 2017-05-10 10:56:46

2

14

Connecting

Optional Equipment

Connection

AUX IN Connection

Connect an output of auxiliary device (Camcorder, TV,

Player, etc) to the

AUX IN

(L/R) connector.

If your device has only one output for audio (mono), connect it to the left (white) audio jack on the unit.

PORT.IN Connection

Connect an output (earphone or line out) of portable device (MP3 or PMP etc.) to the

PORT.IN

(3.5 mm) connector.

PORT.IN

Portable cable

White

Audio cable

Red

DVD, Blu-ray player etc.

MP3 player etc.

Listening to music from your portable player or external device

The unit can be used to play the music from many types of portable player or external device.

1. Connect the portable player to the

PORT.IN

connector of the unit.

Or

Connect the external device to the

AUX IN

connector of the unit.

2. Turn the power on by pressing

1

.

3. Press to select AUX or PORTABLE function.

4. Turn on the portable player or external device and start it playing.

,

Note

Automatically switches to the PORTABLE function when you connect the portable device to the

PORT.IN

connector.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 14 2017-05-10 10:56:46

USB Connection

Connect a USB device (or MP3 player, etc.) to the

USB ports on the unit.

USB device

Connecting

15

Antenna Connection

Connect the supplied FM antenna for listening to the radio.

Connect the FM wire antenna to the FM antenna connector.

FM antenna

2

,

Note

Removing the USB Device from the unit :

1. Choose a different function/mode or press

Z

on the remote control or

I

on the unit twice in a row.

2. Remove the USB device from the unit.

,

Note

Be sure to fully extend the FM wire antenna.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 15 2017-05-10 10:56:46

3

16

Operating

Basic Operations

CD/USB Operations

1. Insert the disc by pressing

B

on the remote control or

R

on the unit .

Or connect the USB device to the USB port.

2. Select CD or USB function by pressing

F

.

To

Stop

Playback

Pause

Searching for a section within a track/file

Selecting a track/file directly

Do this

Press

Z

on the remote control or

I

on the unit.

Press

N

on the remote control or

T

on the unit.

Press

N

on the remote control or

T

on the unit during playback.

Press and hold

C/V

on the remote control or

Y/U

on the unit during playback and release it at the point you want to listen to.

Press

0

to

9

numerical buttons on the remote control to go to the desired file or track directly.

In stop status,

Press

C/V

on the remote control or

Y/U

on the unit to go to the next/previous track/file.

Skipping to the next/ previous track/file

Playing repeatedly or randomly

During playback, press

V

on the remote control or

U

on the unit to go to the next track/file.

Playing less than 2 seconds, press

C

on the remote control or

Y

on the unit to go to the previous track/file.

Playing after 3 seconds, press

C

on the remote control or

Y

on the unit to go to the beginning of the track/file.

Press

REPEAT

on the remote control repeatedly. Refer to the note for details about the display change.

,

Note

y

The display changes in the following order.

USB

*RPT 1

RPT**DIR

RPT ALL

RANDOM

OFF

MP3/WMA CD

RPT 1

RPT DIR

RPT ALL

RANDOM

OFF

AUDIO CD

RPT 1

-

RPT ALL

RANDOM

OFF

*RPT : Repeat

**DIR : Directory

y

When you play the programmed list, only

RPT 1 and RPT ALL are available.

y

Even after restarting the unit or switching one function to another, you can listen to music from the point where it’s last been played.

y

If you leave the disc tray open for 5 minutes, it will close automatically.

Auto Play

AUDIO/MP3/WMA CD is played automatically after disc tray is opened and then closed.

Automatically the unit switches to the CD function if disc tray is opened and then closed even when there is no disc in disc tray.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 16 2017-05-10 10:56:47

Selecting a folder and an

MP3/WMA file

On the unit

1. Press and rotate

SEARCH

until a desired file appears. You can also search a folder if you press

SEARCH

again.

2. Press or

T

to play the selected file. When you search a folder, press

OK

to select a file in the folder, then press

OK

or

T

again. The selected file is played.

On the remote control

1. Press

W

/

S

repeatedly until a desired folder appears.

2. Press to play it. The first file of the folder will be played.

Operating

17

,

Note

y

CD/USB Folders/Files are recognized as below.

ROOT FOLDER

FILE

FOLDER1

FOLDER3

FILE 5

FILE 6

FILE 7

FOLDER4 FOLDER7 FILE 8

FILE 9

FILE 10

FILE 3

FILE 4

FOLDER8

FOLDER2

FOLDER5

FOLDER6

FILE 11

FILE 12

FILE 13

FILE 14

FILE 1

FILE 2

y

If there is no file in a folder, the folder will not appear.

y

Folders will be presented as the following order;

ROOT FOLDER 1 FOLDER 3

FOLDER 7 FOLDER 8 FOLDER 5

FOLDER 6

y

File will be played from

$

file No.1 to

$

file

No.14 one by one.

y

Files and folders will be presented in order recorded and may be presented differently according to the record circumstances.

*ROOT : The first screen you can see when a computer recognize the CD/USB is “ROOT”.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 17 2017-05-10 10:56:47

앞페이지 삭제

(Playback Effect)

3

18

Operating

Deleting a file/folder or format

You can delete file, folder on your USB or format the

USB.

1. Select USB function by pressing

F

.

2. Deletes file : Select the file you want to delete and select “DEL FILE” by pressing

DELETE

on the remote control .

Deletes folder : Select the folder you want to delete and select “DEL DIR” by pressing

DELETE

on the remote control .

Formats USB : Select “FORMAT” by pressing

DELETE

on the remote control to format the

USB device.

If you want to exit the current mode, press

Z

on the remote control or

I

on the unit .

3. To delete file/folder or format, press and hold

DELETE

on the remote control.

>

Caution

y

Do not extract the USB device during operation. (play, delete, etc.)

y

Regular back up is recommended to prevent data loss.

y

The delete function may not be supported according to the USB status. (lock, etc.)

AUTO DJ

Auto DJ blends the end of one song into the beginning of another for seamless playback.

It equalizes volume across tracks/files for uninterrupted playback.

Press

AUTO DJ

repeatedly, the display changes as followings.

AUTO DJ RANDOM AUTO DJ SEQUENTIAL

AUTO DJ OFF

Mode

OFF

RANDOM

REPEAT

Display

Window

AUTO DJ OFF

AUTO DJ

RANDOM

AUTO DJ

SEQUENTIAL

Description

-

The music is played randomly on this mode.

The music is played repeatedly on this mode.

,

Note

y

AUTO DJ mode does not support searching for a section within a track/file or to play repeatedly or randomly.

y

If you move to other functions or stop the music using

Z

on the remote control or

I

on the unit on AUTO DJ mode, AUTO DJ will be disabled.

y

AUTO DJ is not supported in the music file whose length is less than 60 seconds.

y

Only AUTO DJ SEQUENTIAL is selected when played the programmed list.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 18 2017-05-10 10:56:47

Operating

19

Using a BLUETOOTH® wireless technology

About Bluetooth

Bluetooth

is wireless communication technology for short range connection.

The sound may be interrupted when the connection interfered by the other electronic wave or you connect the

Bluetooth

in the other rooms.

Connecting individual devices under

Bluetooth

wireless technology does not incur any charges. A mobile phone with

Bluetooth

wireless technology can be operated via the Cascade if the connection was made via

Bluetooth

wireless technology.

y

Available Devices : Smart phone, MP3, Notebook, etc.

y

Version : 4.0

y

Codec : SBC

Bluetooth Profiles

In order to use

Bluetooth

wireless technology, devices must be able to interpret certain profiles.

This unit is compatible with following profile.

A2DP (Advanced Audio Distribution Profile)

Listening to music stored on the

Bluetooth devices

Pairing your unit and Bluetooth device

Before you start the pairing procedure, make sure the

Bluetooth

feature is activated on your

Bluetooth

device. Refer to your

Bluetooth

device’s user guide. Once a pairing operation is performed, it does not need to be performed again.

1. Turn on the unit.

,

Note

When

Bluetooth

connection lock is activated, you can search

Bluetooth

device in BT function.

2. Operate the

Bluetooth

device and perform the pairing operation. When searching for this unit with the

Bluetooth

device, a list of the devices found may appear in the

Bluetooth

device display depending on the type of

Bluetooth

device. Your unit appears as “LG CJ45 (XX)”.

,

Note

y

XX means the last two digits of

Bluetooth

address. For example, if your unit has a

Bluetooth

address such as

9C:02:98:4A:F7:08, you will see

“LG CJ45 (08) ” on your

Bluetooth

device.

y

Depending on the

Bluetooth

device type, some devices may have a different pairing process. Enter the PIN code (0000) as needed.

y

You can connect this unit with up to 3

Bluetooth

devices simultaneously using the same method as described above, only in the

Bluetooth

function.

y

The multi pairing connection is only supported on Android devices. (Multi pairing connection may not be supported depending on the connected device specifications.)

y

Removable/detachable

Bluetooth

devices

(Ex : Dongle etc.) will not support multi pairing.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 19 2017-05-10 10:56:47

3

20

Operating

3. When this unit is successfully connected with your

Bluetooth

device, “PAIRED” appears on the display window and change to

Bluetooth

device name soon. Then “BT” will appear on the display window.

,

Note

y

“PAIRED” will momentarily appear on the display when you connect other devices for multi pairing

y

If the device name is unavailable, “_” will be displayed.

4. Listen to music.

To play a music stored on your

Bluetooth

device, refer to your

Bluetooth

device’s user guide.

,

Note

y

When using

Bluetooth

technology, you have to make a connection between the unit and the

Bluetooth

device as close as possible and keep the distance.

However, it may not work well in certain situations as described below:

There is a obstacle between the unit and the

Bluetooth

device.

There is a device using same frequency with

Bluetooth

technology such as a medical equipment, a microwave or a wireless LAN device.

y

You should connect your

Bluetooth

device to this unit again when you restart it.

y

Even if this unit connected up to 3

Bluetooth

devices in the

Bluetooth

mode, you can play and control music by using only one of the connected devices.

Controls connected Bluetooth device

You can control connected

Bluetooth

device by the unit; play, pause, stop, skip.

,

Note

y

Only Android OS and iOS is available to use this function.

y

This function may not be supported depending on the

Bluetooth

device, or operated differently.

Bluetooth connection lock

(BT LOCK)

You can limit

Bluetooth

connection to only

BT (

Bluetooth

) and LG TV function to prevent unintended

Bluetooth

connection.

To turn on this function, press and hold

N

on the remote control or

T

on the unit for about 5 seconds in BT (

Bluetooth

) function.

“BT LOCK” appears then you can limit

Bluetooth

connection.

To turn off this function, press and hold

N

on the remote control or

T

on the unit for about 5 seconds in BT (

Bluetooth

) function.

“BT UNLOCK” appears.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 20 2017-05-10 10:56:47

,

Note

y

The sound may be interrupted when the connection has interference from other electronic devices.

y

Depending on the type of the device, you may not be able to use the

Bluetooth

function.

y

You can enjoy wireless system using phone,

MP3, Notebook, etc.

y

The more distance between the unit and the

Bluetooth

device, the lower the sound quality becomes.

y

Bluetooth

connection will be disconnected when the unit is turned off or the

Bluetooth

device gets far from the unit.

y

When

Bluetooth

connection is disconnected, connect the

Bluetooth

device to the unit again.

y

When a

Bluetooth

device is not connected,

“BT READY” appears on the display window.

y

When you use

Bluetooth

function, adjust the volume to a proper level on the

Bluetooth

device.

y

If a

Bluetooth

device is connected when using LG TV, LG TV is disconnected and the

Bluetooth

device is connected.

y

When you connect

Bluetooth

device (iOS device etc.) to this unit or operate the device, the volume level can be synchronized with each other.

y

Bluetooth

connection will be disconnected when you change the

Bluetooth

function to the others. In “Music Flow Bluetooth” app connection, only one device which you are playing keeps

Bluetooth

connection. You can control the

Bluetooth

device with this unit but you cannot use sound output.

y

When entering

Bluetooth

function, this unit automatically connect to

Bluetooth

device which is connected the last.

(Auto connection may not be supported depending on the connected device specifications.)

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 21

Operating

21

3

2017-05-10 10:56:47

3

22

Operating

Using the Music Flow

Bluetooth App

,

Note

y

Only Android OS is available to use “Music

Flow Bluetooth” app with this unit.

y

It is recommended to use the latest version of app.

Install “Music Flow Bluetooth”

App onto Your Bluetooth Device

There are two ways to install “Music Flow Bluetooth” app onto your

Bluetooth

device.

Install “Music Flow Bluetooth” App through QR code

1. Install “Music Flow Bluetooth” app through QR code. Use the scanning software to scan the QR code.

About “Music Flow Bluetooth”

App

“Music Flow Bluetooth” app brings a suite of new features to this unit.

To enjoy more features, you are recommended to download and install free “Music Flow Bluetooth” app.

Here is introduce a few of the many features of

“Music Flow Bluetooth” app.

Multi Juke box

: Your entertainment increases three fold when you connect up to 3

Bluetooth

phones at the same time. Play music from all three phone and create a customized playlist from all the phones.

2. Tap an icon for installation.

,

Note

y

Make sure that your

Bluetooth

device is connected to the Internet.

y

Make sure that your

Bluetooth

device has a scanning software application. If you don’t have one, download one from “Google

Android Market (Google Play Store)”.

y

Depending on the area, QR code may not work.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 22 2017-05-10 10:56:47

Install “Music Flow Bluetooth” App through “Google Android Market

(Google Play Store)”

1. Tap the “Google Android Market (Google Play

Store)” icon.

2. In the search bar, type in the “Music Flow

Bluetooth” and search it.

3. In the search result list, find and tap “Music Flow

Bluetooth” to start downloading

Bluetooth

app.

4. Tap an icon for installation.

5. Tap an icon for downloading.

,

Note

y

Make sure that your

Bluetooth

device is connected to the Internet.

y

Make sure that your

Bluetooth

device is equipped with “Google Android Market

(Google Play Store)”.

Operating

23

Activate Bluetooth with

“Music Flow Bluetooth” App

.

“Music Flow Bluetooth” app helps to connect your

Bluetooth

device to this unit.

“Music Flow Bluetooth” app icon on the home screen to open “Music Flow Bluetooth” app , and go to the main menu.

2. If you want to get more information to operate, tap [Setting] and tap [Help] menu.

,

Note

y

“Music Flow Bluetooth” app will be available in the software version as follow;

Android O/S : Ver 4.0.3 (or later)

y

If you use “Music Flow Bluetooth” app for operation, there would be some differences between “Music Flow Bluetooth” app and the supplied remote control. Use the supplied remote control as necessary.

y

Depending on the

Bluetooth

device, “Music

Flow Bluetooth ” app may not work.

y

After connection of “Music Flow Bluetooth” app, music may be output from your device. In this case, try connecting procedure again.

y

If you operate the other applications or change the settings on your

Bluetooth

device while using “Music Flow Bluetooth” app, “Music Flow Bluetooth” app may operate abnormally.

y

When “Music Flow Bluetooth” app operates abnormally, check your

Bluetooth

device and the connection of “Music Flow Bluetooth” app and then try to connect again.

y

Depending on the smart phone's operating system, you have some differences for “Music

Flow Bluetooth” operation.

y

Check

Bluetooth

setting on your

Bluetooth

device if “Music Flow Bluetooth” app connection does not work well.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 23 2017-05-10 10:56:47

3

24

Operating

Radio Operations

Be sure that FM aerials are connected.

(Page 15)

Listening to the radio

1. Press until FM appears in the display window.

The last received station is tuned in.

2. Auto tuning :

Press and hold

TUNING -/+

on the remote control or

Y/U

on the unit for about two seconds until the frequency indication starts to change, then release. Scanning stops when the unit tunes in a station.

Or

Manual tuning :

Press

TUNING -/+

on the remote control or

Y/U

on the unit repeatedly.

3. Adjust the volume by pressing

VOL +/-

on the remote control or rotating volume knob on the unit repeatedly.

Improving poor FM reception

Press

N

on the remote control or

T

on the unit.

This will change the tuner from stereo to mono and usually improve the reception.

Presetting the Radio Stations

You can preset 50 stations for FM.

Before tuning, make sure to turn down the volume.

1. Press until FM appears in the display window.

2. Select the desired frequency by pressing

TUNING -/+

on the remote control or

Y/U

on the unit.

3. Press on the remote control. A preset number will blink in the display window.

4. Press

W/S

on the remote control to select the preset number you want.

5. Press on the remote control. The station is stored.

6. Repeat steps 2 to 5 to store other stations.

7. To listen a preset station, press

PRESET·FOLDER

W/S

or

0

to

9

numerical buttons on the remote control.

Deleting all the saved stations

1. Press and hold

PROGRAM/MEMORY

on the remote control for two seconds.

“ERASEALL” will flash up on the unit display.

2. Press on the remote control to erase all the saved radio stations.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 24 2017-05-10 10:56:47

Seeing information about a

Radio station

The FM tuner is supplied with the RDS (Radio Data

System) facility. This shows information about the radio station being listened to. Press

RDS/SET

on the remote control repeatedly to cycle through the various data types:

PS

(Programme Service Name)

The name of the channel will appear in the display.

PTY

(Programme Type Recognition)

The programme type (e.g. Jazz or News) will appear in the display.

RT

CT

(Radio Text)

A text message contains special information from the broadcast station.

This text may scroll across the display.

(Time controlled by the channel)

This shows the time as broadcast by the station.

You can search the radio stations by programme type by pressing

RDS/SET

on the remote control. The display will show the last PTY in use. Press

PTY

one or more times to select your preferred programme type. Press and hold

C/V

. The tuner will search automatically. When a station is found the search will stop.

Operating

25

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 25 2017-05-10 10:56:47

3

26

Operating

Sound adjustment

Setting the sound mode

This system has a number of pre-set surround sound fields. The displayed items for the Equalizer may be different depending on sound sources and effects.

You can select a desired sound mode by using

SOUND EFFECT

.

On Display

BASS (BASS BLAST)

POP

CLASSIC

ROCK

JAZZ

FOOT BALL

STANDARD

Description

Reinforces the treble, bass and surround sound effect.

This program lends an enthusiastic atmosphere to the sound, giving you the feeling you are at an actual rock, pop, jazz or classic concert.

You can enjoy the sound effect

FOOTBALL STADIUM.

You can enjoy optimized sound.

You can select a desired sound mode by using

REGION EQ

on the remote control or

REGION EQ /

BASS BLAST

on the unit.

On Display Region Description

FUNK, REGUETON,

SAMBA,

MERENGUE, AXE,

SALSA, SERTANEJ,

FORRO

Latin

America

ARABIC

DANGDUT

Middle East

Indonesia

Optimized sound effect for the music genre preferred in each region.

AFRO Africa

INDIA India

,

Note

y

On some speakers, sound may not be heard or heard in low sound depending on the sound mode.

y

By pressing and holding

REGION EQ / BASS BLAST

on the unit for

3 seconds on the unit you can directly select

BASS (BASS BLAST) effect.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 26 2017-05-10 10:56:47

Advanced Operations

Recording to USB

You can record a various sound source to USB.

(CD, USB1, AUX, PORTABLE, FM)

1. Connect the USB device to the unit.

2. Press to select a function you want to record.

3. Start the recording by pressing

USB REC

on the remote control or

USB REC / DEMO

on the unit.

Function Status Result

Play/Pause Recorded until stop

CD, USB

Resume stop

(Page 30)

Quick recorded the latest song

Full stop

Quick recorded All songs

In case below, scope is limited.

- After File search (Page

17), quick recorded an indexed song

- After Folder search

(Page 17), quick recorded All songs on

Folder

- After the programmed list (Page 29), quick recorded All songs of the programmed list

AUX,

PORTABLE,

FM

Recorded until stop

- I f you connect both USB1 and USB2, press

USB

REC

on the remote control or

USB REC / DEMO

on the unit when USB1 or USB2 which you want to record blinks in the display window.

4. To stop recording, press and hold

USB REC

on the remote control or

USB REC / DEMO

on the unit for 3 seconds. Otherwise, the recording continues.

Operating

27

Pausing recording

During CD/USB playback or pause, or external sound source recording, press

USB REC

on the remote control or

USB REC / DEMO

on the unit to pause recording. Press it again to restart recording.

,

Note

y

VOICE CANCELLER or KEY CHANGER will be reset, if you use recording function during operating VOICE CANCELLER or KEY

CHANGER.

y

VOICE CANCELLER or KEY CHANGER can not be operated during recording.

To select recording bit rate

1. Press and hold

USB REC

on the remote control or

USB REC / DEMO

on the unit for 3 seconds.

2. Press /

V

on the remote control or

Y

/

U

on the unit to select a bit rate.

3. Press

USB REC

on the remote control or

USB

REC / DEMO

on the unit to finish the setting.

The making of unauthorized copies of copy-protected material, including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offense.

This equipment should not be used for such purposes.

Be responsible

Respect copyrights

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 27 2017-05-10 10:56:47

3

28

Operating

,

Note

y

When you stop recording, the file that has been recorded at that time will be stored.

(Except when recording MP3/ WMA files that are in stop status.)

y

Do not remove the USB device or turn off the unit during USB recording. If does not, an incomplete file may be made and not deleted on PC.

y

If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL”, “NOT

SUPPORT” or “FILE MAX” is displayed on the display window.

y

Multi card reader device or external HDD can not be used for USB recording.

y

A file is recorded by about 512 Mbyte when you record for a long term.

$%@3&$

"6%*[email protected]

"6%*[email protected]

,

Note

y

You can record MIC. (Except when recording

USB/ CD that are in stop status.)

y

You can control recorded microphone sound according to microphone volume.

y

You may not store more than 2,000 files.

y

In case of the unsupported MP3/WMA file, the file recording may be stopped.

y

When you are recording during playback, the sound now playing is output.

y

It’ll be stored as follows.

AUDIO CD MP3/WMA

Play or pause status

Play or pause status

$%@3&$

"6%*[email protected]

"6%*[email protected]

The other status

'*-&@3&$ $%@3&$

"6%*[email protected]

"6%*[email protected]

53"$,@

53"$,@

'*-&@3&$ $%@3&$

"6%*[email protected]

"6%*[email protected]

53"$,@

53"$,@

The other status

'*-&@3&$

"#$ 'JMFOBNF

%&' 'JMFOBNF

The other source*

05)&[email protected]&$

"6%*[email protected]

"6%*[email protected]

Tuner

56/&[email protected]&$

"6%*[email protected]@'.

"6%*[email protected]@".

5IFPUIFSTUBUVT

5IFPUIFSTUBUVT

1MBZPSQBVTFTUBUVT

1MBZPSQBVTFTUBUVT

* : AUX and the like.

Tuner : The current recording frequency is shown.

'*-&@3&$

"#$ 'JMFOBNF

%&' 'JMFOBNF

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 28 2017-05-10 10:56:48

Operating

29

Programmed Playback

The program function enables you to make a playlist of your favorite tracks/files from a disc or USB device.

A program can contain 20 tracks/files for each media. Possible to save a total of 60 tracks/files.

Making Programmed list

1. Press

PROGRAM / MEMORY

on the remote control in stop status.

2. Select a track/file by pressing

C/V

on the remote control.

3. Press on the remote control to save the track/file.

4. Repeat steps 2 - 3 to store other tracks/files.

(You can modify the list by pressing

PRESET·FOLDER

W

/

S

on the remote control to select the program number.)

5. Press on the remote control once again.

To play the programmed list, press

N

on the remote control after you make the list.

,

Note

When making or modifying the programmed list, REPEAT mode is off.

Deleting Programmed list

Deleting function only works in the edit mode.

1. Press on the remote control in stop status.

2. Select a song by pressing

PRESET·FOLDER

W

/

S

or

PROGRAM/MEMORY

on the remote control repeatedly.

3. Press on the remote control while a song is selected.

,

Note

y

Programmed list is switched off in the case

below.

Changing to a different function.

Turning off and on the unit.

Operating the numeric buttons on the remote control.

Playing a file by using

SEARCH

and

SEARCH

on the unit.

y

Programmed list is cleared in the case below.

Removing the disc or the USB device.

Deleting or recording music files in the USB device.

Unplugging the Power Cord.

Editing Programmed list

1. Press on the remote control in stop status.

2. Press

W

/

S

or

PROGRAM/

MEMORY

on the remote control to select a track/file to edit.

3. Press on the remote control.

4. Press on the remote control once again.

5. Repeat 2 to 4 to store the other tracks/files.

To play the programmed list, press

N

on the remote control after you edit the list.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 29 2017-05-10 10:56:48

3

30

Operating

Other Operations

Turn off the sound temporarily

Press on the remote control to mute your sound.

You can mute your unit, for example, to answer the telephone, the “MUTE” will appear in the display window.

To cancel it, press on the remote control again or change the volume level.

DEMO

In the power off state, press

USB REC / DEMO

on the unit once. The unit will power on and display the each of functions in the display window.

To cancel the DEMO function, press

USB REC /

DEMO

on the unit once more.

,

Note

You can enjoy other functions during the DEMO, the DEMO will temporarily pause.

- Without input key in 10 sec, the DEMO will playback automatically.

Resume stop

The unit records the point where you pressed the

Z

on the remote control or

I

on the unit depending on the disc or USB.

If you press

Z

on the remote control or

I

on the unit twice, the unit will clear the stopped point.

Using Microphone

1. Connect your microphone to the MIC jack.

2. Play the music you want.

3. Sing along with the accompaniment.

Adjusts the microphone volume by pressing

MIC

+/-

on the unit.

,

Note

y

When not using the microphone, set the MIC volume to minimum or turn off the MIC and remove the microphone from the MIC jack.

y

If the microphone is set too near the speaker, a howling sound may be produced. In this case, move the microphone away from the speaker or decrease the sound level. by using the

MIC -

on the unit .

y

If sound through the microphone is extremely loud, it may be distorted.

In this case, press

MIC -

on the unit to minimum.

y

You can give an echo effect to the sound from the microphones by pressing

ECHO

.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 30 2017-05-10 10:56:48

VOICE CANCELLER

You can enjoy the function while playing the music, by reducing singer vocal of music in the various source.

Press the

VOICE CANCELLER

and “ON” will appear in display window.

To cancel it, press

VOICE CANCELLER

again.

The quality of the VOICE CANCELLER may be different depending on the recording conditions of music files.

,

Note

y

This function is available CD, USB or BT

(

Bluetooth

) function.

y

If the function is not available, “NOT

SUPPORT” appears in the display window.

y

This function is available to use only when a microphone is connected.

y

If a microphone is not connected, “INSERT

MIC” appears in the display window.

y

It is not available on the mono source.

y

To initialize it, change the function or disconnect the microphone.

y

This function may not be initialized depending on the status of connected devices.

KEY CHANGER

Operating

31

You can adjust the key to 9 steps (4 steps higher, 4 steps lower and the original key).

y

To sharp the key one by one, press

KEY

CHANGER

( ) repeatedly during playback.

y

To flatten the key one by one, press

KEY

CHANGER

( ) repeatedly during playback.

,

Note

y

This function is available CD, USB or BT

(

Bluetooth

) function.

y

To initialize it, change the function, disconnect the microphone or change the music.

y

This function may not be initialized depending on the status of connected devices.

y

If the function is not available, “NOT

SUPPORT” appears in the display window.

y

If a microphone is not connected, “INSERT

MIC” appears in the display window.

ECHO

When you connect your microphone to the MIC jack, you can give an echo effect to the sound from the microphones by pressing

ECHO

.

ECHO 1 ECHO 2 ECHO OFF

,

Note

If a microphone is not connected, “INSERT MIC” appears in the display window.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 31 2017-05-10 10:56:48

3

32

Operating

Sleep Timer Setting

Press

SLEEP

on the remote control repeatedly to select delay time between 10 and 180 minutes.

After the delay time, the unit will be turned off.

To cancel the sleep function, press

SLEEP

on the remote control repeatedly until “SLEEP 10” appears, and then press

SLEEP

on the remote control once again while “SLEEP 10” is displayed.

,

Note

y

You can check the remaining time before the unit is turned off. Press

SLEEP

on the remote control to check or change the remaining time.

y

You can edit the remain time when displays the remaining time or “DIMMER”.

Auto power down

This unit will turn itself off to save electricity in the case were the main unit is not connected to an external device and is not used for 15 minutes.

The unit will also turn itself off after six hours if the main unit has been connected to another device using the analog inputs.

Auto power down function is applied to only

MASTER unit in case of WIRELESS PARTY LINK connection. In case of SLAVE unit, Auto power down is available after disconnection SLAVE unit and

MASTER unit.

How to disconnect the wireless network connection or the wireless device

Turn off the unit by pressing the power button for more than 5 seconds.

Dimmer

Press

SLEEP

on the remote control once.

The display window will be darkened by half.

To cancel it, press

SLEEP

on the remote control repeatedly until dim off.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 32 2017-05-10 10:56:48

Operating

33

AUTO POWER On

This unit automatically turns on by an input source :

LG TV or

Bluetooth

When you turn on your TV connected to this unit, this unit recognizes the input signal and selects the suitable function. You can hear the sound from the unit.

If you try to connect your

Bluetooth

device, this unit turns on and connect your

Bluetooth

device.

You can play your music.

,

Note

y

Depending on the connected device, this function may not operate.

y

Depending on the connected device, the unit turns on but

Bluetooth

function may not be connected.

y

If you disconnect

Bluetooth

connection by this unit, some

Bluetooth

devices try to connect to the unit continually. Therefore it is recommended to disconnect the connection before turning off the unit.

y

If you try to connect to the “Music Flow

Bluetooth” app,

Bluetooth

function of this unit is turned on.

y

If you turn on the unit using LG TV or

Bluetooth

function, proper function of this unit is turned on.

y

If you have already paired with this unit, automatically this unit can turn on by an input source when this unit is turned off.

y

If you turn off the unit by pressing the power button for more than 5 seconds, Auto Power

On function is disabled.

To activate it, turn on the unit.

Auto function change

This unit recognizes input signals such as

Bluetooth

and LG TV or connected portable device, and then changes suitable function automatically.

When you try to connect Bluetooth device

When you try to connect your

Bluetooth

device to this unit,

Bluetooth

function is selected.

Play your music on the

Bluetooth

device.

When PORT.IN connection is connected

When you connect the portable device to the

PORT.IN

connector, PORTABLE function is selected.

Play your music on the portable device.

When LG TV is connected

When you turn on your LG TV connected by LG

Sound Sync, this unit changes the function to LG TV.

You can hear the sound from your TV.

,

Note

y

This function is not available during recording or deleting.

y

This function only works with devices that were previously connected.

y

If the

Bluetooth

connection lock function is set,

Bluetooth

and LG TV connection will be only available on

Bluetooth

and LG TV function.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 33 2017-05-10 10:56:48

3

34

Operating

Setting the Clock

1. Turn the unit on.

2. Press and hold

CLOCK

on the remote control.

3. Select time mode by pressing

C/V

on the remote control.

- AM 12:00 (for an AM and PM display) or 0:00

(for a 24 hour display)

4. Press on the remote control to confirm your selection.

5. Select the hours by pressing

C/V

on the remote control.

6. Press on the remote control.

7. Select the minutes by pressing

C/V

on the remote control.

8. Press on the remote control.

Setting the Clock through

“Music Flow Bluetooth” App

Install “Music Flow Bluetooth” app on your Android device. (Page 22-23)

Your unit’s clock will be automatically synchronized with your device by activating

Bluetooth

connection through “Music Flow Bluetooth” app.

Using your player as an alarm clock

1. Turn the unit on.

2. Press and hold

ALARM

on the remote control.

3. Press on the remote control to change the hours and minutes and press

RDS/

SET

on the remote control to save.

4. Press

C/V

on the remote control to select function and press

RDS/SET

on the remote control to save.

- Press

C/V

on the remote control to select a preset number when you select Tuner and then, press

RDS/SET

on the remote control .

If there is no preset number, this step is skipped.

5. Press on the remote control to change the volume and press

RDS/SET

on the remote control to save.

,

Note

y

If you set the clock time, you can check the time by pressing

CLOCK

on the remote control even when the player is turned off.

y

You can set alarm after you set the clock time.

y

If you set the clock time and alarm, you can check the alarm setting information by pressing

ALARM

on the remote control even when the unit is turned off.

y

You can select ALARM ON/OFF mode by pressing

ALARM

on the remote control .

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 34 2017-05-10 10:56:48

LG Sound Sync

You can control some functions of this unit by your TV’s remote control with LG Sound Sync. It is compatible with LG TV that supports LG Sound Sync.

Make sure your TV has the LG Sound Sync logo.

Controllable function by LG TV’s remote control :

Volume up/down, mute

Refer to the TV’s instruction manual for the details of

LG Sound Sync.

1. Turn on the unit by pressing

1

.

2. Press until LG TV function is selected.

3. Set up the sound output of TV to listen to the sound through this unit :

TV setting menu [Sound] [TV Sound output]

[LG Sound Sync (Wireless)]

“PAIRED” appears on the display window for about 3 seconds and then you can see “LG TV” on the display window if the TV and this unit are connected normally.

Operating

35

,

Note

y

You can also use the remote control of this unit while using LG Sound Sync. If you use TV's remote control again, the unit synchronizes with the TV.

y

If the connection fails, check the conditions of this unit and your TV : power, function.

y

Make sure of the condition of this unit and the connection in the cases below when using LG

Sound Sync.

The unit is turned off.

Changing to a different function.

Disconnecting the wireless connection caused by interference or a distance.

y

The amount of time to turn off this unit is different depending on your TV.

y

If you try to change the function on using the LG TV function, volume will be changed according to the LG TV volume level.

y

Details of TV setting menu vary depending on the manufacturers or models of your TV.

y

If you connect LG Sound Sync when “Music

Flow Bluetooth“ app is connected, control through the app is available.

y

If you turned off the unit directly by pressing

1

, LG Sound Sync will be disconnected. To use this function again, you should reconnect the

TV and the unit.

y

If an LG TV is connected when using

Bluetooth

,

Bluetooth

is disconnected and the LG TV is connected.

y

The volume may be increased when the TV and this unit is connected by LG Sound Sync.

Decrease the TV volume and then connect with this unit.

y

When you turn on your LG TV connected by LG Sound Sync or enter LG TV function, this unit changes the function to LG TV automatically.

y

You should set the TV Sound output manually depending on the LG TV version.

3

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 35 2017-05-10 10:56:48

3

36

Operating

WIRELESS PARTY LINK

Connection

The output sound of (MASTER) unit is expanded to (SLAVE) unit .

It is compatible with unit that supports WIRELESS

PARTY LINK.

The name of function about sound expansion between the compatible products wired or wirelessly was changed to PARTY LINK or WIRELESS PARTY

LINK.

1. Press

WIRELESS LINK

on the unit.

PARTY LINK MODE SELECT appears in the display window.

2. Press

WIRELESS LINK

on the unit to select

MASTER or SLAVE.

- unit : Selects MASTER.

- unit : Selects SLAVE.

Two units try to connect with each other.

3. When this unit is successfully connected each other, “Slave Device Name CONNECTED” appears in the MASTER unit.

“CONNECTED TO Master Device Name” appears in the SLAVE unit and change to SLAVE soon.

,

Note

y

If you using the LG Sound Sync, this function is not available. If you connect the LG TV function, “NOT SUPPORT” appears in the display window.

y

You can use microphone in the SLAVE unit only. In case of SLAVE unit, some functions are supported only.

y

When WIRELESS PARTY LINK is disconnected, SLAVE unit is changed to BT function.

y

If the connection is failed, “FAILED” appears in the display window.

y

Mute function is synchronized with each other.

y

WIRELESS PARTY LINK connection will be disconnected when you turn off the unit or press

WIRELESS LINK

on the unit.

y

Sound of MASTER unit and SLAVE unit may be different depending on playback status or source.

y

Check the following information when connecting to

Bluetooth

.

You can connect only one

Bluetooth

device in the MASTER unit. You cannot connect

Bluetooth

device to the SLAVE unit.

WIRELESS PARTY LINK connection is only supported on Android devices.

(WIRELESS PARTY LINK connection may not be supported depending on the connected device specifications or OS.)

Removable/detachable

Bluetooth

devices (ex. Dongle etc.) will not support

WIRELESS PARTY LINK connection.

- When WIRELESS PARTY LINK is connected,

Bluetooth

connection is not available in status of recording or deleting.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 36 2017-05-10 10:56:49

4 Troubleshooting

Troubleshooting

37

Troubleshooting

General

Problem

The unit does not work properly.

Cause & Correction

y

Turn off the power of this unit and the connected external device (TV, Woofer,

DVD-player, Amplifier, etc.) and turn them on again.

y

Disconnect the power cord of this unit and the connected external device (TV,

Woofer, DVD-player, Amplifier, etc.) and then try connecting again.

y

Previous setting may not be saved when device power is shut off.

No Power.

y

The power cord is not plugged in. Plug in the power cord.

y

Check whether electricity failed.

Check the condition by operating other electronic devices.

No sound.

The unit does not start playback.

y

Check whether you select right function.

Press function button and check the selected function.

y

Check to see if the Speakers are connected correctly. Speaker cables connected correctly.

y

An unplayable disc is inserted. Check the playable disc.

y

No disc is inserted.

Insert a disc.

y

The disc is dirty. Clean the disc. (Page 41)

y

The disc is inserted upside down.

Place the disc with the label or printed side facing upwards.

Radio stations cannot be tuned in properly.

y

The antenna is positioned or connected poorly.

Connect the antenna securely.

y

The signal strength of the radio station is too weak.

Tune to the station manually.

y

No stations have been preset or preset stations have been cleared (when being tuned by scanning preset channels).

Preset some radio stations, see page 24 for details.

4

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 37 2017-05-10 10:56:49

4

38

Troubleshooting

Problem Cause & Correction

The remote control does not work properly.

y

The remote control is too far from the unit.

Operate the remote control within about 7 m (23 feet).

y

There is an obstacle in the path of the remote control and the unit.

Remove the obstacle.

y

The batteries in the remote control are exhausted.

Replace the batteries with new ones.

LG Sound Sync does not work.

y

Check whether your LG TV supports LG Sound Sync.

y

Check connection of LG Sound Sync.

y

Check sound setting of your TV and this unit.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 38 2017-05-10 10:56:49

5 Appendix

General specifications

General

Power requirements

Power consumption

Dimensions (W x H x D)

Operating temperature

Operating humidity

Refer to the main label on the unit.

Refer to the main label on the unit.

Networked standby : 0,5 W

(If all network ports are activated.)

Approx. 350 mm x 163 mm x 251 mm

5 °C to 35 °C (41 °F to 95 °F)

60 %

Inputs

Analog audio in (AUX IN)

Portable in (PORT.IN)

Microphone (MIC)

1.0 Vrms (1 kHz, 0 dB), 75

Ω

, RCA jack (L, R)

500 mVrms (3.5 mm stereo jack) x 1

Sensitivity 20 mV (1 kHz), 6.3 mm jack x 1

Tuner

FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz

System

Frequency Response

Signal-to-noise ratio

Dynamic range

Bus Power Supply (USB)

100 to 20,000 Hz

More than 75 dB

More than 75 dB

5 V

0

500 mA

Amplifier (RMS Output power)

Total output

Front

Subwoofer

720 W RMS

240 W RMS X 2 (3

Ω

at 1 kHz, 20 % THD)

240 W RMS (3

Ω

at 60 Hz, 20 % THD)

y

Design and specifications are subject to change without notice.

Appendix

39

5

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 39 2017-05-10 10:56:49

40

Appendix

Speaker specifications

Front speaker

Type

Impedance

2 Way 2 Speaker

3

Ω

240 W RMS Rated Input Power

Max. Input power 480 W RMS

Net Dimensions (W x H x D) Approx. 266 mm x 314 mm x 234 mm

Subwoofer

Type

Impedance

Rated Input Power

1 Way 1 Speaker

3

Ω

240 W RMS

Max. Input power 480 W RMS

Net Dimensions (W x H x D) Approx. 266 mm x 314 mm x 300 mm

y

Design and specifications are subject to change without notice.

5

Trademarks and Licenses

The

Bluetooth®

word mark and logos are owned by the

Bluetooth®

SIG, Inc. and any use of such marks by

LG Electronics is under license.

Other trademarks and trade names are those of their respective owners.

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 40 2017-05-10 10:56:49

Appendix

41

Maintenance

Notes on Discs

Handling Discs

Never stick paper or tape on the disc.

Storing Discs

After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight.

Cleaning Discs

Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out.

Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for old vinyl records.

Handling the Unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit. Wiping with strong pressure may damage the surface. Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

Maintaining the Unit

The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center.

5

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 41 2017-05-10 10:56:49

CJ45-DB.DGBRLLZ_WEB_MFL69713058.indd 42 2017-05-10 10:56:49

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
