LG CM9960 Owner's manual

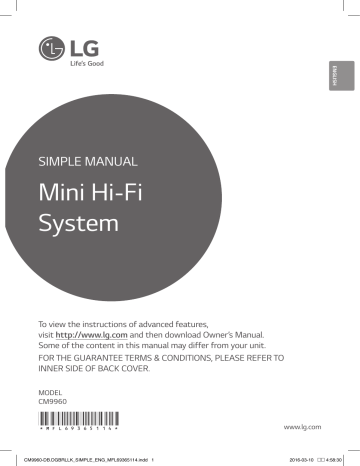

ENGLISH
SIMPLE MANUAL
Mini Hi-Fi
System
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
FOR THE GUARANTEE TERMS & CONDITIONS, PLEASE REFER TO
INNER SIDE OF BACK COVER.
MODEL
CM9960
*MFL69365114*
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 1
www.lg.com
2016-03-10 �� 4:58:30
Front Panel
Rear Panel
a
b cd e
f
a
b
c
a Disc tray
a Power cord
b
b AUX IN 1/2 (L/R)
Remote Sensor
c HEADPHONE
Connects a headphone.
d PORT.IN
Connects a portable device.
e DANCE LIGHTING (Lighting ball)
- Shows the various lighting patterns and color.
- You can control angle up and down with your finger.
d
e
f
c ANTENNA (FM)
d R SPEAKERS
Connects the right speaker’s cables.
e L SPEAKERS
Connects the left speaker’s cables.
f SPEAKER LIGHTING
Connects the speaker lighting cables.
f MIC 1/2
Connects a microphone.
Speaker Connection
Additional Information
Specifications
Refer to the main label on
the unit.
Refer to the main label on
the unit.
Power Consumption
Networked standby : 0.5 W
(If all network ports are
activated.)
Approx.
Dimensions (W x H x D)
470 mm x 240 mm x 420 mm
Power Requirements
Net Weight
Approx. 7.7 kg
Bus Power Supply (USB) 5 V 0 500 mA
Amplifier
(Total RMS output
power)
4,800 W
Design and specifications are subject to change without
notice.
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 2
2016-03-10 �� 4:58:30
Top Panel
32
1
o REGION EQ
Chooses region equalizer.
zyx
p B EJECT
Opens and closes the disc tray.
a
w
v
b
u
c
d
e
f
g
t
s
r
q
h i jk
l
mn
op
a 1/! (Power)
b SCRATCH / LEVEL CONTROL, SEARCH KNOB (A SIDE)
- Turns clockwise or counterclockwise to make the scratch sound.
- Turns clockwise or counterclockwise to control the DJ EFFECT level.
- Turns clockwise or counterclockwise to search to the next/previous
file or next/previous folder. (CD/USB 1 only)
c SEARCH (A SIDE)
Searches to the next/previous file or next/previous folder by pressing
SEARCH repeatedly. (CD/USB 1 only)
d OK (A SIDE)
Selects the desired file or folder after searching a file or folder.
(CD/USB 1 only)
e H/P MODE
Presses to select a headphone monitor mode.
f H/P VOLUME
Presses to select a headphone's volume control mode.
g MIC VOLUME
Presses to select a microphone's volume control mode.
h BASS BLAST
Selects BASS BLAST effect directly.
i LIGHTING
Changes the lighting patterns and colors or turns off the lighting
effects of DANCE LIGHTING and SPEAKER LIGHTING.
j DJ PRO PAD
Presses a desired sound pad.
q KEY CHANGER (b/#)
Changes the key to suit your vocal range.
r VOICE CANCELLER
You can enjoy the function while playing the music, by reducing singer
vocal of music in the various source.
s SEARCH (B SIDE)
Searches to the next/previous file or next/previous folder by pressing
SEARCH repeatedly. (USB 2 only)
t OK (B SIDE)
Selects the desired file or folder after searching a file or folder.
(USB 2 only)
u SCRATCH / LEVEL CONTROL, SEARCH KNOB (B SIDE)
- Turns clockwise or counterclockwise to make the scratch sound.
- Turns clockwise or counterclockwise to control the USER EQ level.
- Turns clockwise or counterclockwise to search to the next/previous
file or next/previous folder. (USB 2 only)
v F / WIRELESS BOOM
- Selects the function and input source.
- Press and hold for 3 seconds to select Wireless X-Boom Plus mode.
w USB REC / DEMO
- Records to USB 1.
- Copies USB 2 to USB 1.
- Shows DEMO mode.
x USER EQ
Selects the sound effect created by your own.
y Basic controls (USB 2 only)
Y/U
Skips Fast backward or Forward. /
Searches for a section within a track/file by pressing and holding.
T
Starts or pauses playback.
I
Stops playback or cancels DELETE function.
z A / B TEMPO
Adjusts TEMPO in USB function.
VOLUME
Adjusts speaker, microphone or headphone volume.
1 USB 1 A / USB 2 B
You can play or record sound files by connecting the USB device.
m MIX
Mixes audio sound.
2 Basic controls (CD / USB 1 / BLUETOOTH / RADIO only)
Y/U
- Skips Fast backward or Forward. /
Searches for a section within a track/file by pressing and holding.
- Selects the radio stations.
T
- Starts or pauses playback.
- Selects STEREO/MONO.
I, RDS
- Stops playback or cancels DELETE function.
- Radio Data System.
n PARTY THRUSTER
Slide the lever to create a party atmosphere.
3 DJ EFFECT
Selects a desired DJ EFFECT.
k AUTO SYNC
When using MIX, you can synchronize the tempo of audio files being
played in USB 1 and USB 2 by pressing AUTO SYNC.
l Cross fader
Adjusts the sound volume of mixing files when using MIX ON by
pressing MIX.
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 3
2016-03-10 �� 4:58:31
Additional Information
Note
How to disconnect the wireless network
connection or the wireless device
Turn off the unit by pressing the power button for more than 5
seconds.
Replacement of battery
)
yy When you use the multiple socket, it is advisable to use 15
A socket. 10 A socket may cause power off due to lack of
power supply.
yy Do not place objects on the speakers. It may cause the objects
to fall and make property damage.
yy Install the speakers on a firm surface not to slide. The
vibration caused by the strong output can shake and move
the speakers.
yy Avoid turning up max volume in a small enclosed space. The
powerful and intense output of the speakers can shake the
ceiling and get the objects in the room falling.
yy To protect from hearing damage, keep the sufficient distance
from the speaker. The overwhelming sound from the speaker
may cause a person’s hearing damage.
yy Allow more than 20 cm of free space between the main set
and the speakers when you install the main set on the ground.
High sound pressure from the speakers can make the set
tremble to disturb the CD playback.
yy Connect the power cord to wall outlet directly if possible. Or
when you use an extension cable, it is highly recommended
to use an extension cable of 110 V / 15 A or 230 V / 15 A,
otherwise the unit may not operate properly because of the
lack of power supply.
yy Do not overload the extension cord with excessive electrical
load.
(R03
Caution
(R03)
About Ferrite Core (Optional)
Wind the L SPEAKERS cables around the ferrite core twice.
Wind the R SPEAKERS cables around the ferrite core twice.
Wind the LEFT and RIGHT SPEAKER LIGHTING cables all
together around the ferrite core twice.
yy Do not look directly at the light emitting part when the
LIGHTING is turned on.
yy If the illumination brightness is glaring, switch on the room
lights or turn off the LIGHTING of the unit.
Grounding
(Except for devices which are not grounded.) Ensure that you
connect the earth ground wire to prevent possible electric shock
(i.e. a Audio with a three-prong grounded AC plug must be
connected to a three-prong grounded AC outlet). If grounding
methods are not possible, have a qualified electrician install
a separate circuit breaker. Do not try to ground the unit by
connecting it to telephone wires, lightening rods, or gas pipes.
Controller App
Download the Music Flow Bluetooth App to your
device.
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 4
LG Sound Sync (Wireless)
For more information, download the online owner’s
manual. http://www.lg.com
2016-03-10 �� 4:58:31
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence
of uninsulated dangerous voltage within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE.
WARNING: Do not install this equipment in a confined
space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case of an
emergency, the Power Plug must remain readily accessible.
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, should be placed on the apparatus.
NOTICE: For safety marking information including
product identification and supply ratings, please refer to
the main label on the bottom or the other surface of the
product.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery or battery
pack, follow the steps in reverse order than the assembly.
To prevent contamination of the environment and
bring on possible threat to human and animal health,
the old battery or the battery put it in the appropriate
container at designated collection points. Do not dispose
of batteries or battery together with other waste. It is
recommended that you use local, free reimbursement
systems batteries and accumulators. The battery shall not
be exposed to excessive heat such as sunshine, fire or the
like.
CAUTION: No naked flame sources, such as lighted
candles, should be placed on the apparatus.
CAUTION: Do not block any ventilation openings. Install
in accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product
and to protect it from over heating. The openings shall be
never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product shall not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product
employs a Laser System.To
ensure proper use of this
product, please read this
owner’s manual carefully
and retain it for future reference. Shall the unit require
maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may result in
hazardous radiation exposure. To prevent direct exposure
to laser beam, do not try to open the enclosure.
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 5
2016-03-10 �� 4:58:31
Disposal of your old appliance
1. This crossed-out wheeled bin symbol indicates that
waste electrical and electronic products (WEEE) should
be disposed of separately from the municipal waste
stream.
2. Old electrical products can contain hazardous
substances so correct disposal of your old appliance
will help prevent potential negative consequences for
the environment and human health. Your old appliance
may contain reusable parts that could be used to repair
other products, and other valuable materials that can be
recycled to conserve limited resources.
3. You can take your appliance either to the shop where
you purchased the product, or contact your local
government waste office for details of your nearest
authorised WEEE collection point. For the most up to
date information for your country please see
www.lg.com/global/recycling
Disposal of waste batteries/accumulators
Pb
1. This symbol may be combined with chemical symbols
for mercury (Hg), cadmium (Cd) or lead (Pb) if the
battery contains more than 0.0005% of mercury,
0.002% of cadmium or 0.004% of lead.
2. All batteries/accumulators should be disposed
separately from the municipal waste stream via
designated collection facilities appointed by the
government or the local authorities.
3. The correct disposal of your old batteries/accumulators
will help to prevent potential negative consequences for
the environment, animal and human health.
4. For more detailed information about disposal of your
old batteries/ accumulators, please contact your city
office, waste disposal service or the shop where you
purchased the product. (http://www.lg.com/global/
sustainability/environment/take-back-recycling/globalnetwork-europe)
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 6
Declaration of Conformity
Hereby, LG Electronics European Shared Service Center B.V.,
declares that this MINI HI-FI SYSTEM is compliant with the
essential requirements and other relevant provisions of Directive
1999/5/EC. The complete Declaration of Conformity may be
requested through the following postal address:
LG Electronics European Shared Service Center B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
or can be requested at our dedicated DoC website:
http://www.lg.com/global/support/cedoc/cedoc#
This device is a 2.4 GHz wideband transmission system, intended
for use in all EU member states and EFTA countries.
POWER: This unit operates on a mains supply of
200-240V~, 50/60Hz.
Wiring: This unit is supplied with a BS 1363 approved
main plug. When replacing the fuse, always use of the
same rating approved to BS 1362. Never use this plug
with the fuse cover omitted. To obtain a replacement fuse
cover contact your dealer. If the type of plug supplied is
not suitable for the mains sockets in your home, then the
plug should be removed and a suitable type fitted. Please
refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead
of this unit must be destroyed. A mains plug with bared
wires is hazardous if inserted in a mains socket. Do not
connect either wire to the earth pin, marked with the
letter E or with the earth symbol 6 or coloured green
or green and yellow. If any other plug is fitted, use same
rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the
wires in the mains lead of this unit may not correspond
with the coloured marking identifying the terminals in
your plug, proceed as follows: The wire which is coloured
blue must be connected to the terminal which is marked
with the letter N or coloured black. The wire which is
coloured brown must be connected to the terminal which
is marked with the letter L or coloured red.
2016-03-10 �� 4:58:31
Technology with the human touch
GUARANTEE
• LG Electronics U.K. Ltd. will provide the following services in order to expedite this Guarantee.
1. All faulty components which fail due to defective manufacture will be replaced free of charge for a period of 12 months
from the original date of purchase.
2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG
equipment, for a period of 12 months from the original date of purchase. These claims must be made in accordance with
the published scale of service charges and relevant claims procedure.
PLEASE NOTE:
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if unauthorized modifications are made to the apparatus,
or if non standard components are used or if the serial number of the apparatus is removed, defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from whom the equipment was originally purchased.
The dealer may, before carrying out service under guarantee, require a receipted account as evidence of the date of
purchase.
D. We respectfully point out that your dealer is not obligated to replace batteries if they become exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by this guarantee.
This guarantee does not affect your statutory rights.
• REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY OF YOUR RECEIPT MUST BE SURRENDERED AT THE TIME
GUARANTEE SERVICE IS PROVED.
• Product Registration Card :
It is helpful to complete at least your name, address, phone, model & serial numbers and return it. This will enable LG to
assist you in the future should you lose your receipt, your units be stolen, or should modifications be necessary.
• To obtain information or assistance: Call UK: 0344 847 5454 IE: 01 686 9454
MODEL NO.*
SERIAL NO.*
DATE OF PURCHASE.*
In all cases of difficulty - consult your LG dealer from whom the product was purchased
LGEUK Website : www.lg.com/uk
(Service website : www.lg.com/uk/support)
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 7
2016-03-10 �� 4:58:32
CM9960-DB.DGBRLLK_SIMPLE_ENG_MFL69365114.indd 8
2016-03-10 �� 4:58:32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
