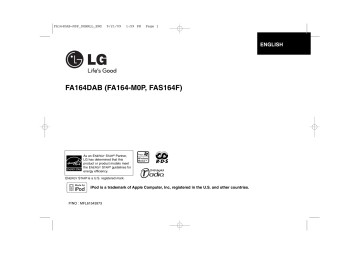

LG | FA164DAB | LG FA164DAB Owner’s Manual

FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 1
ENGLISH
FA164DAB (FA164-M0P, FAS164F)
As an ENERGY STAR® Partner,
LG has determined that this
product or product models meet
the ENERGY STAR® guidelines for
energy efficiency.
ENERGY STAR® is a U.S. registered mark.
iPod is a trademark of Apple Computer, Inc, registered in the U.S. and other countries.
P/NO : MFL61543973
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 2
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING : Do not install this equipment in a confined space such as a book case or
similar unit.
CAUTION : This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and
retain it for future reference. Shall the unit require maintenance, contact an authorized
service center.
Use of controls, adjustments or the performance of procedures other than those
specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible
laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION : The apparatus shall not be exposed to water (dripping or splashing) and
no objects filled with liquids, such as vases, shall be placed on the apparatus.
2
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit ;
That is, a single outlet circuit which powers only that appliance and has no additional
outlets or branch circuits. Check the specification page of this owner's manual to be
certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized service center.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs,
wall outlets, and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.
This product is manufactured to comply with EMC Directive
2004/108/EC and Low Voltage Directive 2006/95/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere, The Netherlands
(Tel : +31-036-547-8940)
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 3
Contents
Setting up
Main Unit
Remote control
4
5
6
Listening to CDs
Listening to the radio
Listening to the DAB radio
Listening to music from your portable player
Playing the iPod
Using an USB device
Setting the Clock
Recording to USB
7
8
9
9
10
11
11
12
Troubleshooting
Specifications
13
13
POWER: This unit operates on a mains supply of 200-240V~, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5 amp.
When replacing the fuse always use a 5 amp BS 1362, BSI or ASTA approved type. Never use
this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your dealer. If
the type of plug supplied is not suitable for the mains sockets in your home, then the plug should
be removed and a suitable type fitted. Please refer to the wiring instructions below:
WARNING: A mains plug removed from the mains lead of this unit must be destroyed. A mains
plug with bared wires is hazardous if inserted in a mains socket.
Do not connect either wire to the earth pin, marked with the letter E or with the earth symbol
or coloured green or green and yellow. If any other plug is fitted, use a 5 amp fuse, either in the
plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are coloured in accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this unit
may not correspond with the coloured marking identifying the terminals in your plug, proceed as
follows: The wire which is coloured blue must be connected to the terminal which is marked with
the letter N or coloured black. The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
Precautions in using the touch buttons
• Use the touch buttons with clean and dry hands.
- In a humid environment, wipe out any moisture on the touch buttons
before using.
• Do not press the touch buttons hard to make it work.
- If you apply too much strength, it can damage the sensor of the
touch buttons.
• Touch the button that you want to work in order to operate the function
correctly.
• Be careful not to have any conductive material such as metallic object
on the touch buttons, and it can cause malfunctions.
3
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 4
Setting up
SCAN)
VIDEO
a
COMPOMENT
Connect the FM aerial
The reception will be at its best when the two loose ends of the aerial are in a straight line and horizontal.
a
b
c
b Connect the speaker cables to the player
Cables from the left-hand speaker connect to the terminal
marked L (left) + (plus) and - (minus). Cables from the righthand speaker are connected to the terminal marked R (right) +
(plus) and - (minus).
To connect the cable to the player, press each of the four square
plastic finger pads on the rear of the player. The connector will
open ready to receive a cable.
c
Connect the DAB aerial
Assemble the antenna to the support structure and attach it to
the plate. Then place it to the place where strong signals are
received.
d
4
Plug the power plug into a wall socket
(PROGRESSIVE
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 5
Main Unit
TOP
FUNC.
(Function) Selects the function.
iPod Dock
1 /]] (Power)
Turn the unit on and off.
USB REC.
Recording to USB.
Disc Slot
• Do not push a disc forcibly into the CD slot.
• Do not pull or push a disc while a disc is ejected.
• Press Z again to reinsert the disc after ejecting it.
• pick it to the CD slot with the label side toward
Z
Ejects or insert the disc from slot loader.
USB Port
FRONT
Display Window
x
Stop
] II / ii ]
Scanning/ Tuning/ Searching
B/X
Play/ Pause
VOL +/Volume control
EQ/ DEMO
You can choose fixed sound impression.
Press DEMO in power off state to demonstrate the
function on display window. To cancel it, press 1 /]]
or DEMO again.
VOL +
VOL
Power Save Mode
You can set up the unit into an economic power save
mode. In power-on status, press and hold 1 /]] button
for about 3 seconds.
- Nothing is displayed in the display window when the
unit is turned off.
To cancel, press 1 /]] , CLOCK, TIMER or EQ/DEMO.
-
CLOCK
(See “Setting the Clock” )
TIMER
(See the “Using your player as an alarm clock”)
SET/ RDS
Confirms the settings.
PORTABLE IN
For connecting a portable device and listening to
sound of it through this system’s speakers.
PHONES
Headphone jack
5
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 6
Remote control
1
SLEEP
INFO
POWER on/ off
POWER SAVE MODE
F (FUNCTION) Changes the functions.
Fall asleep while listening to your unit
Press SLEEP one or more times to select
delay time between 10 and 180 minutes
( Dimmer: Dim the display light )
FOLDER
•
PRESET
v
Selects the radio station.
Searchs for a section within a track.
Skips Fast backward or Forward.
v
B/[]
LG EQ
See information about your music.
REPEAT/ Listenes to your tracks repeatedly
MENU or randomly.
./>
CH/TUN
(+)/(-)
EQ
VOL
Starts or pauses playback
+
-
PROGRAM
/ MEMO.
x ENTER Stops playback or recording
RDS/ DAB Search radio stations by DAB radio type
Changes the display information of DAB
MODE
channel
Searchs radio stations by DAB radio type
PTY/
SCAN/SORT Aligning the service names
DAB band scaning
z REC
Recording button.
sound quality adjustment.
You can choose sound impressions.
You can select a Natural or Local
Specialization equalizer effect by using
LG EQ.
Searchs for a folder of MP3/ WMA files
When a CD containing MP3/ WMA files in
several folders is being played, press
FOLDER•PRESET selects the folder you
want to play.
Choose a ‘preset number’ for a radio
station.
Controls the volume when using any function.
For storing radio stations
If you have saved radio stations using
PROGRAM/MEMO., you can scroll
through them and select one.
Listens to your tracks in any order
Temporarily stop the sound
Press the button again to return to the
sound.
Put the battery into the remote control
Make sure for the + (plus) and – (minus) on the battery to be matched on the remote control. (size AAA)
6
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 7
About MP3/ WMA
Listening to CDs
Audio CD and MP3/ WMA CD can be played back in this unit.
ON UNIT
1. Insert the CD
2. Select the CD function
The display will show the total
number of tracks (files).
ON REMOTE
-
-
FUNC.
FUNCTION
3. Start the CD playing
B/[]
B/[]
4. To stop a CD playing
x
x ENTER
MP3/ WMA Disc compatibility with this unit is limited as follows:
• Sampling Frequency : 32 - 48 kHz (MP3), 32 - 48 kHz (WMA)
• Bit rate : 32 - 320 kbps (MP3), 40 - 320 kbps (WMA)
• CD-R physical format should be “ISO 9660/ JOLIET”
• If you record MP3/WMA files using the software which cannot create a FILE
SYSTEM, for example “Direct-CD” etc., it is impossible to playback MP3 files.
We recommend that you use “Easy-CD Creator”, which creates an ISO 9660 file
system.
• Do not use special letters such as “/ : * ? “ < >”etc.
• At most 99 folders and 999 files are supported on the unit..
Listening to CDs - More you can do
Enjoying a pre-programmed sound field
Pausing or restarting a CD
The system has a number of pre-set surround sound fields. You can select a
desired sound mode by using EQ/ LG EQ. The displayed items for the Equalizer
may be different depending on sound sources and effects.
1 Press B / X on the unit or B / X on the remote control during playback.
2 Press this button again to resume play.
Searching for a section within a track
Press and Hold ] I I / i i ] on the unit or ./> on the remote control
during playback and release it at the point you want to listen to.
Skipping to another track (files)
Press ] I I / i i ] on the unit or ./> on the remote control in stop status.
Creating your own playlist
You can play up to 30 tracks on a CD in order.
1 Insert a CD and wait for it to be read.
2 Press PROGRAM/MEMO. on the remote control in stop status.
3 Press ] I I / i i ] on the unit or ./>on the remote control to select a track.
4 Press PROGRAM/MEMO. again to save and select a next track.
5 Press B / X on the unit or B/[] on the remote control to play the programmed
music files.
6 To clear your selection, press x (or x ENTER), PROGRAM/MEMO. and then
x (or x ENTER).
Listening to your tracks (files) repeatedly or randomly
NATURAL
You can enjoy comfortable and natural sound.
Local
specialization
equalizer
Regionally optimized sound effect. (DANGDUT/
ARABIC/ PERSIAN/INDIA/ REGUETON/ MERENGUE/
SAMBA/ SALSA)
AUTO EQ
Realizes the sound equalizer that is the most similar to the
genre of which is included in song files.
POP
CLASSIC
JAZZ
ROCK
This program lends an enthusiastic atmosphere to the
sound, giving you the feeling you are at an actual rock
pop, jazz or classic concert.
MP3 OPT
This function is optimized for compressible MP3/WMA file. It
improves the bass sound.
XDSS ON
Reinforce the treble, bass and surround sound effect.
VIRTUAL
You can enjoy more virtual surround sound.
NORMAL
You can enjoy the sound without equalizer effect.
1 Press REPEAT/MENU on the remote control repeatedly. The current (tracks)
file will be played back repeatedly or randomly.
2 To return to normal playback, press REPEAT/MENU repeatedly to select .
7
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 8
Listening to the radio
Make sure both for the FM aerial to be stretched to the most.
ON UNIT
1 Select FM
See information about your radio stations
ON REMOTE
FUNC.
FUNCTION
] II / ii ]
TUN- / +
3 To save a radio station
A preset number will show in
the display.
-
PROGRAM/MEMO.
4 Select the preset number
Up to 50 radio stations can
be saved.
-
FOLDER• PRESET
5 To confirm press
-
PROGRAM/MEMO.
6 To select a ‘saved’ station
-
FOLDER• PRESET
2 Select a radio station
Listening to the radio - More you can do
Looking for radio stations automatically
1 Press and hold TUN-/ TUN+ for more than a second.
2 The tuner will scan automatically and stop when it finds a radio station.
Deleting all the saved stations
1 Press and hold PROGRAM/MEMO. for two seconds.
- “ERASE ALL” will flash up on the display.
2 Press PROGRAM/MEMO. to erase all saved radio stations.
Improving poor FM reception
Press B / X (MO./ST.) on the remote control. This will change the tuner from
stereo to mono and usually improve the reception.
8
The FM tuner is supplied with the Radio Data System (RDS) facility. This
shows the letters RDS on the display, plus information about the radio
station being listened to. Press RDS on the remote control several times to
view the information.
PTY - Programme Type, such as News, Sport, Jazz.
RT - Radio Text, the name of the radio station.
CT - Time Control, the time at the location of the radio station.
PS - Programme Service name, the name of channel.
You can search the radio stations by programme type by pressing RDS.
The display will show the last PTY in use. Press PTY one or more times to
select your preferred programme type. Press ] I I / i i ] (./>). The
tuner will search automatically. When a station is found the search will
stop.
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 9
Aligning the service names
Listening to the DAB radio
DAB (Digital Audio Broadcasting) is a new form of radio broadcasting
using digital signals rather than traditional analogue signals.
DAB provides listeners CD-like quality radio programs. DAB can carry
not only audio but also text.
1. Select the DAB function:
The frequency received first after
scanning DAB bands is broadcasted.
2. Select the DAB radio station
3. Play the selected channel
ON UNIT
ON REMOTE
FUNC.
FUNCTION
Press SCAN/SORT on the remote control to display the sorting mode of DAB
broadcastings. Then, press the button once again to change the mode.
Default sort : The service names are aligned in a scanning order.
Name sort : The service names are aligned in an alphabetical order.
DAB scan
Press SCAN on the remote control for longer than 3 seconds, all of the DAB
bands are scanned. Then press it again, scanning will be canceled.
Selecting among Primary and Secondary broadcastings
For the frequency on which secondary broadcasting channels exist, B blinks
after selection. Then, press B/[] to select the secondary broadcasting.
] II / ii ]
./>
B/[]
4. To ‘save’ a DAB radio station:
A preset number will show in the
display.
-
B/[]
PROGRAM/MEMO.
5. To select a ‘saved’ station
-
FOLDER•PRESET
6. To confirm press: Up to 50 radio
stations can be saved.
-
PROGRAM/MEMO.
Deleteing all of the saved DAB stations
Press and hold PROGRAM/MEMO, on the remote control for 2 seconds.
“ERASE ALL” will be displayed. Press PROGRAM/MEMO, to erase all the
saved stations.
Listening to music from your portable player
The unit can be used to play the music from many types of portable
player.
Listening to the DAB radio - more you can do
ON UNIT
DAB mode
You can change the display information of the currently broadcasting DAB
channel. Press DAB MODE on the remote control repeatedly, the display
changes in the following order,
SERVICE → PTY NAME → FREQUENCY → DLS → QUALITY → ENSEMBLE.
Select a display mode and then press ./>, the initials of the service name
are displayed.
SERVICE - Displays the Name of Component for the current broadcast.
PTY NAME - Displays the Type of Component for the current broadcast.
FREQUENCY - Displays the frequency of Component for the current broadcast.
DLS - It displays the current Scroll of Component which is selected.
QUALITY - It displays the current strength of electric field of broadcasting which
it doing .in bar form.
ENSEMBLE - Displays the Ensemble of Component for the current broadcast.
1 Connect the portable player
to the PORT.IN (PORTABLE IN)
connector of the unit.
2 Turn the power on.
3 Select the function.
Turn on the portable player and
start it playing.
-
ON REMOTE
-
1 /]]
1
FUNC.
FUNCTION
9
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 10
iPod message
Playing the iPod
You can listen to music by connecting iPod to the player. Connect iPod to
iPod dock on the upper part of the player.
“CHECK IPOD.” - If the power of your iPod is insufficient or the iPod is
misconnected or unknown device. Reset the iPod if the iPod is not operating
normally (Refer to http://www.apple.com/support/)
ON UNIT
ON REMOTE
1. Select the iPod function
“IPOD” displays.
FUNC.
FUNCTION
Compatible iPod
2. Start the playing
B/[]
FUNC.
B/[]
FUNCTION
• It works with all iPod models that have a dock connector.
• Compatibility with your iPod may vary depending on the type of your iPod.
• Depending on your iPod’s software version, it may not be possible to control
your iPod from the unit. We recommend installing the latest software version.
-
-
3. Before disconnecting the iPod,
change to any other function by
pressing
4. Remove iPod
Playing the iPod - more you can do
Pausing or restarting an iPod
1 Press B / X on either the player or the remote control during playback.
2 Press this button again to resume play.
Searching for a section within a track
Press and Hold ] I I / i i ] on either the unit or the remote control during
playback.
Skipping to another track (files)
Press ] I I / i i ] on either the unit or the remote control.
Moving to a desired item
Press REPEAT/MENU on the remote control, you can move to the previous list.
Press FOLDER.PRESET on the remote control, you can move to a desired
item. Then, press x ENTER on the remote control. you can confirm it.
10
NOTES :
• It works with all iPod models that have a dock connector.
• Compatibility with your iPod may vary depending on the type of your iPod.
• Adjust the volume to a moderate level before you connect your iPod and this
unit.
• You can enjoy clearer sound on charge off than on charge on. Press INFO on
the remote control repeatedly, the display changes in the following order,
CHARGE ON → CHARGE OFF.
• When the connection with iPod is not solid and the remaining battery is not
enough, the message “ERROR” is displayed or iPod will not respond. Charge
your iPod battery.
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 11
Setting the Clock
Using an USB device
You can enjoy media files saved on a USB device by connecting the
USB device to the USB port of the unit. If you want to operate other
function, see the “Listening to CDs” section.
ON UNIT
ON REMOTE
1 Open the USB port cover.
-
-
2 Connect the USB device to
the USB port of the unit.
-
-
FUNC.
FUNCTION
] II / ii ]
./>
B/X
B/X
x
FUNC.
x ENTER
FUNCTION
3 Select the USB function.
4 Select a file you want to play.
5 Start your media playing.
6 To stop, press
7 Before disconnecting, you have
to change to any other function.
Compatible USB Devices
•
•
•
•
MP3 Player : Flash type MP3 player.
USB Flash Drive : Devices that support USB2.0 or USB1.1.
The USB function of this unit does not support all USB devices.
Devices which require additional program installation when you have
connected it to a computer, are not supported.
Look out for the follows
•
•
•
•
•
•
•
•
•
Do not extract the USB device while in operation.
For a large capacity USB, it may take longer than a few minute to be searched
To prevent data loss, back up all data.
If you use a USB extension cable or USB hub, the USB device is not
recognized.
Using NTFS file system is not supported. (Only FAT(16/32) file system is
supported.)
This unit is not supported when the total number of files is 1000 or more.
External HDD, Card readers, Locked devices, or hard type USB devices are
not supported.
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
ON UNIT
1 Turn the power on
2 Press for at least 2 seconds
3 Choose from either
AM 12:00 (for an AM and PM display) or
0:00 (for a 24 hour display)
4 Confirm your selection
1 /]]
CLOCK
] II / ii ]
SET
5 Select the hours
] II / ii ]
6 Press
7 Select the minutes
] II / ii ]
8 Press
SET
SET
Using your player as an alarm clock
1 Press and hold TIMER Each function, EX) TUNER, CD.... flashes.
2 Press SET when the function you want to be woken by is showing.
3 Choose one of them by pressing SET.
4 “ON TIME” will be displayed. Then you can set the time you want the alarm to
go on. Press ] I I / i i ] to change the hours and minutes and SET to save.
5 “OFF TIME” will be displayed. Then, you can set the time you want the
function to stop. Press ] I I / i i ] to change the hours and minutes and
press SET to save.
6 You will be shown the volume (VOL) you want to be woken by.
Use ] I I / i i ] to change the volume and SET to save. Switch the system
off. The clock icon “
”shows that the alarm is set.
7 When the system is turned off, you can check the time the alarm is set for by
pressing TIMER. You can also turn the alarm on and off by pressing TIMER.
Setting the asleep time
1 Press SLEEP repeatedly to select delay time between 10 and 180 minutes,
after the unit will be turned off.
2 To check the remaining time, press SLEEP.
3 Press SLEEP once while “SLEEP 10” is displayed, to deactivate sleep
function.
11
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 12
Recording to USB
When you are recording, look out for the following
ON UNIT
ON REMOTE
-
-
FUNC.
FUNCTION
1 Connect the USB device to the
USB port of the unit.
2 Select a mode in which you want
to record
Play a sound source first.
3 Start the recording
USB REC.
z REC
x
x ENTER
4 To stop recording, press
Recording to USB - more you can do
• When you stop recording, the file that has been recorded at that time will be
stored.(Audio CD only)
• Do not remove the USB device or turn off the unit during USB recording. If
not, an incomplete file may be made and not deleted on PC.
• If USB recording does not work, the message like “NO USB”, “ERROR”,
“FULL” , “NO REC” is displayed on the display window.
• Multi card reader device or External HDD can not be used for USB
recording.
• A file is recorded by about 512 Mbyte when you record for a long term.
• You may not record more than 999 files.
• It’ll be stored as follows.
AUDIO CD
MP3/ WMA
The other sources
Recording Music file in disc source to USB
One track recording
If the USB recording is started during playback of the CD, the one track/ file
would be recording into the USB.
All tracks recording
If the recording button is pressed at the CD stop, all tracks/ files would be
recording. The files in the sub-folders are not recorded during all track
recording.
Program list recording
USB records after creating your own program if you want to record the track
you want (AUDIO CD Only).
12
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offense. This
equipment should not be used for such purposes.
Be responsible
Respect copyrights
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 13
Troubleshooting
Symptom
Specifications
Cause
Correction
General
No power.
No sound.
The power cord is not plugged in.
Plug in the power cord.
Check whether electricity failed.
Check the condition by operating other
electronic devices.
Check whether you select right function. Press FUNC. (FUNCTION) and check
the selected function.
General
Power supply
Power consumption
Net Weight
External dimensions (WxHxD)
Operating temperature
Operating humidity
Tuner
FM Tuning Range
CD
The unit does not
start playback.
80W + 80W
0.5%
20 ~ 20000 Hz
75 dB
The antenna is positioned or connected Connect the antenna securely.
poorly.
CD
Frequency response
Signal-to-noise ratio
Dynamic range
20 ~ 20000 Hz
75 dB
75 dB
Check whether the player is connected
to the unit correctly.
Connect it to the unit correctly.
Check whether iPod is fully charged.
Charge the iPod. iPod is automatically
charged when connected to the player.
The remote control is too far from the
unit.
Operate the remote control within about
16 ft (5 m).
Speakers (FAS164F)
Type
Impedance
Rated Input Power
Max. Input Power
Net Dimensions (WxHxD)
Net Weight (1EA)
3Way 4Speaker
4Ω
80 W
160 W
132 x 320 x 300 mm
4.1 kg
There is an obstacle in the path of the
remote control and the unit.
Remove the obstacle.
USB
Version
BUS Power supply
1.1 or 2.0
DC 5V
The battery in the remote control is
exhausted.
Replace the battery with new one.
Insert a playable disc.
The disc is dirty.
Clean the disc.
iPod
iPod does not work.
Remote control
The remote control
does not work
properly.
87,5 - 108,0 MHz or ,
87,50 - 108,00 MHz
Amplifier
Output Power
T.H.D
Frequency Response
Signal-to-noise ratio
An unplayable disc is inserted.
RADIO
Radio stations
cannot be tuned in.
Refer to main label.
Refer to main label.
3.2 kg
175 x 269 x 290 mm
5oC 35 oC
5% 85%
500mA
- “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod
and has been certified by the developer to meet Apple performance standards.
- Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards.
Designs and specifications are subject to change without prior notice.
13
FA164DAB-M0P_DGBRLL_ENG
9/21/09
1:59 PM
Page 14
Technology with the human touch
GUARANTEE
REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
LG Electronics U.K. Ltd. will provide the following services in order to
expedite this Guarantee.
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY
OF YOUR RECEIPT MUST BE SURRENDERED AT THE TIME
GUARANTEE SERVICE IS PROVED.
1. All faulty components which fail due to defective manufacture will be
replaced free of charge for a period of 12 months from the original date
of purchase.
Product Registration Card :
2. The dealer (or his service agent) who sold the product will be
reimbursed for any labour provided in the repair of this LG equipment,
for a period of 12 months from the original date of purchase.
These claims must be made in accordance with the published scale of
service charges and relevant claims procedure.
PLEASE NOTE:
To obtain information or assistance: Call 0870 873 5454 Monday-Friday
9.00am-4.30pm
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if
unauthorized modifications are made to the apparatus, or if non
standard components are used or if the serial number of the
apparatus is removed, defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from
whom the equipment was originally purchased. The dealer may, before
carrying out service under guarantee, require a receipted account as
evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace
batteries if they become exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by
this guarantee.
This guarantee does not affect your statutory rights.
14
It is helpful to complete at least
your name, address, phone, model
& serial numbers and return it. This
will enable LG to assist you in the
future should you lose your receipt,
your units be stolen, or should
modifications be necessary.
MODEL NO.*
*
SERIAL NO.*
DATE OF PURCHASE.*
Please complete for your own record
In all cases of difficulty - consult your LG dealer
from whom the product was purchased
LGEUK Website : www.lge.co.uk
( service website : www.lgelectronics.co.uk )
Download PDF
