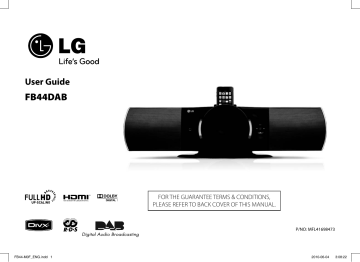

LG | FB44DAB | LG FB44DAB Owner’s Manual

User Guide
FB44DAB
FOR THE GUARANTEE TERMS & CONDITIONS,
PLEASE REFER TO BACK COVER OF THIS MANUAL.
P/NO: MFL41698473
FB44-M0F_ENG.indd 1
2010-06-04
3:08:22
Most appliances recommend they be placed upon a dedicated circuit ;
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR
BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
WARNING : TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING : Do not install this equipment in a confined space such as a book case or
similar unit.
CAUTION : This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual carefully and retain
it for future reference. Should the unit require maintenance, contact an authorized service
center.
Use of controls, adjustments or the performance of procedures other than those specified
herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser
radiation when open. DO NOT STARE INTO BEAM.
That is, a single outlet circuit which powers only that appliance and has no additional
outlets or branch circuits. Check the specification page of this owner’s manual to be
certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets,
extension cords, frayed power cords, or damaged or cracked wire insulation are
dangerous. Any of these conditions could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with
an exact replacement part by an authorized serv ice center.
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets,
and the point where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord plug. When installing the
product, ensure that the plug is easily accessible.
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means
the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please
contact your city office, waste disposal service or the shop where you
purchased the product.
This Product is manufactured to comply with EMC Directive 2004/108/EC and
Low Voltage Directive 2006/95/EC.
European representative:
LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands
(Tel : +31-036-547-8940)
CAUTION : The apparatus should not be exposed to water (dripping or splashing) and no
objects filled with liquids, such as vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
2
FB44-M0F_ENG.indd 2
2010-06-04
3:08:31
Welcome to your New DVD MICRO Hi-Fi SYSTEM
Contents
Setting up
Player
Remote control
OSD initial language settings -optional
Initial settings the Area Code
Adjusting the general settings
Setting the Clock
Displaying disc information
Playing a Disc
TV sound EZ setup
Listening to the radio
Listening to music from your portable player
Using an USB device
Recording to USB
Playing the iPod
Listening to the DAB (For England only)
Language Codes
Area Codes
Troubleshooting
Types of Playable Discs
Specifications
4
5
6
7
7
8-9
9
10
10-12
12
13
14
14
15
16
17
18
18
19
20
21
3
FB44-M0F_ENG.indd 3
2010-06-04
3:08:32
Setting up
Connecting your unit to your TV and aerials.
Plug the TV into the unit.
(For the model name FB44-??F only)
You can connect using a video cable.
If you are using a High Definition TV you can connect using the HDMI
cable. Set the TV source to HDMI. Press RESOLUTION on the remote to
select the correct resolution for you HDMI connection. The LG screen will
appear when the correct resolution is selected.
1 Connect the FM aerial.
The reception will be at its best
when the two loose ends of
the aerial are in a straight and
horizontal line.
2 Connect the AM loop aerial to the unit.
(Optional)
4 Video Out connection
Connect the VIDEO
OUTPUT(MONITOR) jack on the unit
to the corresponding input jack on
your TV using a Video cable.
Componenet Video connection
Connect the COMPONENT VIDEO (PROGRESSIVE
SCAN) OUTPUT jacks on the unit to the
corresponding input jacks on your TV using a Y PB
PR cable.
3 Connect the DAB aerial
(For England only)
5 Plug the unit plug into a wall socket.
Place it to the place where strong signals are received.
4
FB44-M0F_ENG.indd 4
2010-06-04
3:08:32
Player
USB Port
You can play video, image and sound files by connecting the USB device.
iPod Dock
Z OPEN / CLOSE
Open/ Close the disc door.
The disc door is opened or closed automatically.
Don’t touch the disc door while opening or closing.
PORT IN.
For connecting a portable device and listening to sound of it
through this system’s speakers.
PHONES
Headphone jack
FUNC
(Function) Selects the function.
LG EQ
You can choose fixed sound impression.
CLOCK
(See “Setting the Clock” )
TIMER
(See the “Using your player as an alarm clock”)
SET
Confirms the settings.
RDS
Radio Data System
VOL -/+
Volume control
Power
Turn the unit on and off. Only the red light in the middle of the
POWER button will show when it is in standby. The system uses less
power if it is switched into the standby mode.
Disc Door
B/X
Play / Pause
./>
Scanning/ Tuning/ Searching
x/DEMO
Stop
USB Rec.
Recording to USB.
5
FB44-M0F_ENG.indd 5
2010-06-04
3:08:33
Remote control
RETURN (O) : moving backwards in the menu.or exited the setup
menu.
REC (z) : USB Direct Recording
STOP (x) : Stops playback or recording.
PLAY (B), MO./ST. : Starts playback. Selects Mono/ Stereo.
PAUSE/STEP (X) : Pause playback
SKIP (./ >) : Go to next or previous chapter/ track/ file.
SCAN (bb/BB) : Search backward or forward.
TV Control buttons : Controls the TV. (LG TV only)
Controlling the TV.
You can control the sound level, input source, and power
switching of LG TVs as well. Hold POWER (TV) and press
PR/CH (+/–) button repeatedly until the TV turns on or off.
PROG./MEMO. : Accesses or removes Program menu.
CLEAR : Removes a track number on the Program List.
RESOLUTION : Sets the output resolution for HDMI and COMPONENT
VIDEO OUT jacks.
RDS : Radio Data System.
PTY : Views the various displays of the RDS.
FUNCTION : Selects the function and input source.
SLEEP : You can select delay time between 10 and 180 minutes, after
the player will turn off. To check the remaining time, press SLEEP.
(Dimmer : Dims the LED (Light-emitting diode) of front panel by half in
power-on status.)
1 POWER : Switches the unit ON or OFF.
Z OPEN/CLOSE : Opens and closes the disc Drawer.
TITLE : If the current DVD title has a menu, the title menu appears on
the screen. Otherwise, the disc menu may not appear.
DISPLAY : Accesses On-Screen Display.
MENU : Accesses the menu on a DVD disc.
SETUP : Accesses or removes setup menu
PRESET (U u) : Selects programme of Radio.
CH./ TUN. (-/+) : Tunes in the desired radio station.
U u I i (left/ right/ up/ down): Used to navigate onscreen displays.
ENTER : Acknowledges menu selection.
TVtHT SPK : To select the AUX OPT directly.
REPEAT/RANDOM : To select a play mode. (random/ repeat)
MUTE : To mute the sound.
VOL (Volume) (+/-) : Adjusts speaker volume.
EQ/ LG EQ (Equalizer effect) : You can choose sound impressions.
SUBTITLE : During playback, you can select a desired subtitle language .
0-9 numerical buttons : Selects numbered options in a menu.
Screen Saver
The screen saver appears when you leave the unit in Stop mode
for about five minutes.
System Select - Optional
You must select the appropriate system mode for your TV
system. If “NO DISC” appears in the display window, press and
hold PAUSE/STEP (X) for more than five seconds to be able to
select a system. (PAL/ NTSC)
Put the battery into the remote control.
Make sure that the + (plus) and - (minus) on the battery match
those on the remote control.
6
FB44-M0F_ENG.indd 6
2010-06-04
3:08:33
OSD initial language settings - Optional
Initial settings the Area Code
When you use this unit for the first time, you have to set the Area Code as shown below.
During the first use of this unit, the initial language setup menu appears on your TV screen.
You must complete initial language selection before using the unit.
ON REMOTE
1 Display setup menu
ON REMOTE
1 Turn the power on
The language list appears.
2 Select the language
3 Press
4 To confirm press
POWER
IiUu
2 Select LOCK menu on the first level
3 Move to second level
The activated Area Code appears on the second level.
SETUP
Uu
i
ENTER
4 Move to the third level
i
ENTER
5 Enter a new password
Numeric (0-9)
and ENTER
6 Recheck the entered new password
Numeric (0-9)
and ENTER
7 Select a code for a geographic area
After select, Rating and Password will be activated.
U u I i and
8 To confirm what you press
Make sure to finish setting the Area Code.
ENTER
ENTER
7
FB44-M0F_ENG.indd 7
2010-06-04
3:08:34
Display Mode – If you selected 4:3, you’ll need to define how you would like wide screen
programs and films to be displayed on your TV screen.
Adjusting the general settings
[Letterbox]
ON REMOTE
1 Display setup menu
2 Select a desired option on the first level
3 Move to the second level
4 Select a desired option on the second level
5 Move to the third level
6 Change the setting
SETUP
Uu
i
Uu
i
Uu, ENTER
Adjusting the general settings - more you can do
Adjusting the language settings
OSD (Menu Language) – Select a language for the Setup menu and on-screen display.
Disc Audio/ Disc Subtitle/ Disc Menu – Select a language for the Disc Audio/ Disc Subtitle/
Disc Menu.
[Original]
Refers to the original language in which the disc was recorded.
[Other]
To select another language, press number buttons then ENTER to
enter the corresponding 4-digit number according to the language
code list in the reference chapter (Page 18). If you make a mistake
before pressing ENTER, press CLEAR.
[Off ]
(for Disc Subtitle)
Turn off Subtitle.
Adjusting the display settings
TV Aspect – Select which screen aspect to use based on the shape of your TV screen.
[4:3]
[16:9]
Select when a standard 4:3 TV is connected.
Select when a 16:9 wide TV is connected.
[Panscan]
This displays a wide screen picture with black bands at the top and bottom
of the screen.
This fills the entire 4:3 screen, cropping the picture as necessary.
Adjusting the audio settings
DRC (Dynamic Range Control) – Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this effect.
Vocal – Select [On] to mix karaoke channels into normal stereo. This function is effective for
multi-channel karaoke DVDs only.
HD AV Sync - Sometimes Digital TV encounters a delay between picture and sound. If this
happens you can compensate by setting a delay on the sound so that it effectively ‘waits’ for the
picture to arrive: this is called HD AV Sync. Use U u (on the remote control) to scroll up and down
through the delay amount, which you can set at anything between 0 and 300m sec.
Adjusting the lock settings
To access the lock options, you must enter the 4-digit password. If you have not yet entered a
password you are prompted to do so.
1 Enter a 4-digit password then press ENTER.
2 Enter it again then press ENTER to verify. If you make a mistake while entering number,
press CLEAR then correct it.
Area Code – Select a code for a geographic area as the playback rating level. This determines
which area’s standards are used to rate DVDs controlled by the parental lock. See the Area
Codes on page 18.
Rating – Select a rating level. The lower the level, the stricter the rating. Select [Unlock] to
deactivate the rating.
Password – Sets or changes the password for lock settings.
[New]
[Change]
Enter a new 4-digit password using the numerical buttons then press
ENTER. Enter the password again to confirm.
Enter the new password twice after entering the current password.
If you forget your password you can reset it.
1 Remove the disc in the unit.
2 Press SETUP to display the Setup menu. Input ‘210499’ and press ENTER. The password has
now been cleared.
8
FB44-M0F_ENG.indd 8
2010-06-04
3:08:34
Adjusting the others settings
DivX(R) Registration – We provide you with the DivX® VOD (Video On Demand) registration
code that allows you to rent and purchase videos using the DivX® VOD service.
For more information, visit www.divx.com/vod.
Press ENTER and you can view the registration code of the unit.
Enjoying a pre-programmed sound field
The system has a number of pre-set surround sound fields. You can select a desired sound
mode by using EQ/ LG EQ. The displayed items for the Equalizer may be different depending
on sound sources and effects.
NATURAL
You can enjoy comfortable and natural sound.
Local
specialization
equalizer
Regionally optimized sound effect. (DANGDUT/ ARABIC/ PERSIAN/
INDIA/ REGUETON/ MERENGUE/ SALSA/ SAMBA)
AUTO EQ
Realizes the sound equalizer that is the most similar to the genre of
which is included in the MP3 ID3 tag of song files.
Setting the Clock
ON UNIT
1 Turn the power on
2 Press for at least 2 seconds
3 Choose from either
AM 12:00 (for an AM and PM display) or 0:00 (for a 24 hour
display)
4 Confirm your selection
5 Select the hours
POP
CLASSIC
JAZZ
ROCK
This program lends an enthusiastic atmosphere to the sound, giving
you the feeling you are at an actual rock pop, jazz or classic concert.
MP3 OPT
This function is optimized for compressible MP3/WMA file. It improves
the bass sound.
XDSS ON
Reinforce the treble, bass and surround sound effect.
VIRTUAL
You can enjoy more virtual surround sound.
NORMAL
You can enjoy the sound without equalizer effect.
6 Press
7 Select the minutes
8 Press
1
CLOCK
./>
SET
./>
SET
./>
SET
Using your player as an alarm clock
1 Press TIMER. Each functions flashes.
2 Press SET when the function you want to be woken by is showing.
3 “ON TIME” will be displayed. This is where you set the time you want the alarm to start.
Use ./> to change the hours and minutes and SET to save.
4 The “OFF TIME” will be displayed. This is where you set the time you want the function to
stop.
5 Use ./> to change the hours and minutes and press SET to save.
6 You will be shown the volume (VOL) you want to be woken by. Use ./> to
change the volume and SET to save. Switch the system off. The clock icon “c” shows that
the alarm is set.
7 When the system is turned off you can check the time the alarm and turn the alarm on
and off by pressing TIMER.
9
FB44-M0F_ENG.indd 9
2010-06-04
3:08:34
Displaying Disc information
Playing a Disc
ON REMOTE
ON REMOTE
1 Press
DISPLAY
Z OPEN/CLOSE
1 Insert a disc on unit
2 Select an item
Uu
2 Select DVD/CD
3 Adjust the display menu settings
Uu
3 Adjust the menu settings
/ Select a file from the menu
O RETURN
4 To return the exit
FUNCTION
IiUu
B PLAY/ENTER
4 Start the disc playing
Displaying Disc Information - more you can do
You can select an item by pressing U u and change or select the setting by pressing I i.
Current title (or track/ file)
number/ total number of titles (or tracks/ files)
Current chapter number/ total number of chapters
Elapsed playing time
Selected audio language or channel
x STOP
5 To stop the disc playing
Playing a Disc or file - more you can do
Playing a DVD that has a menu
DVD
Most DVDs now have menus which load first before the film begins to play.
1 You can navigate these menus using U u I i to highlight an option.
2 Press ENTER to select.
Selected subtitle
Selected angle/ total number of angles
Skipping to the next/ previous chapter/ track/ file
Selected sound/EQ mode
Press SKIP (>) to move to the next chapter/ track/ file.
Press SKIP (.) to return to the beginning of the current chapter/ track/ file.
Press SKIP (.) twice briefly to step back to the previous chapter/ track/ file.
MP3
Symbol Used in this Manual
All discs and file listed below
DVD and finalized DVD±R/RW
DivX files
JPEG files
ALL
DVD
DivX
JPG
MP3 files
WMA files
Audio CDs
WMA
DVD
DivX
ACD
MP3
Pausing playback
WMA
1 Press PAUSE/STEP (X) to pause playback.
2 Press PLAY (B) to continue playback.
ACD
ALL
Frame-by-Frame playback
DVD
DivX
Press PAUSE/STEP (X) repeatedly to play title Frame-by-Frame.
Playing repeatedly or randomly
MP3
WMA
DVD
DivX
ACD
Press REPEAT/RANDOM repeatedly, and the current title, chapter or track will be played back
repeatedly or randomly.
To return to normal playback, press REPEAT/RANDOM repeatedly.
- Random play mode : only music files.
10
FB44-M0F_ENG.indd 10
2010-06-04
3:08:34
Fast forward or fast reverse
MP3
WMA
DVD
DivX
ACD
Press SCAN (m or M) to play fast forward or fast reverse during playback.
You can change the playback speed by pressing SCAN (m or M) repeatedly. Press PLAY
(B) to continue play at normal speed.
Slow down the playing speed
DVD
While playback is paused, press SCAN (bb or BB) to slow down forward or reverse playback.
You can change the various playback speed by pressing SCAN (m or M) repeatedly. Press
PLAY (B) to continue play at normal speed.
1.5 times faster playback
DVD
Press PLAY when a DVD is already playing to watch and listen to a DVD 1.5 times faster than
normal playback speed. “B x1.5” will appear in the screen. Press PLAY again to return to
normal playback speed.
Selecting a subtitle language
DVD
DivX
1 If the subtitle does not display properly during playback, press and hold SUBTITLE for
about 3 seconds to display the language code menu.
2 Press SUBTITLE repeatedly to change the language code until the subtitle is displayed
properly.
Viewing the Title menu
MP3
WMA
ACD
You can play the contents of a disc in the order you want by arranging the order of the
musics on the disc. The program is cleared when the disc is removed.
“ and then press ENTER to
1 Select a desired music then press PROG./MEMO. or select “
add the music to the program list.
2 To add all music in the disc, select “
” and then press ENTER.
3 Select a music from the program list then press ENTER to start programmed playback.
4 To clear a music from the program list, select the music you want to clear then press CLEAR
or select “
” icon and then press ENTER.
To clear all music from the program list, select "
" then press ENTER.
Displaying file information (ID3 TAG )
MP3
While playing an MP3 file containing file information, you can display the information or time
by pressing DISPLAY repeatedly.
Viewing photo files as a slide show
DivX
During playback, press SUBTITLE repeatedly to select a desired subtitle language.
Changing the character set to display DivX® subtitle correctly
Creating your own program
JPG
1 Use U u I i to highlight (
) icon then press ENTER to start slide Show.
2 You can change slide show speed using I i when (
) icon is highlighted.
Skipping to the next/ previous photo
JPG
Press SKIP (. or >) or I i to view the previous/ next photo.
Rotating a photo
JPG
Use U u to rotate the photo in full screen counterclockwise or clockwise while viewing a
photo in full screen.
DVD
Press TITLE to display the disc's title menu, if available.
Mixed disc or USB Flash Drive – DivX, MP3/ WMA and JPEG
Starting play from selected time
DVD
DivX
Searches for the starting point of entered time code.
1 Press DISPLAY then select clock icon.
2 Enter a time then press ENTER.
For example, to find a scene at 1 hour, 10 minutes, and 20 seconds, enter “11020” by using
numerical buttons and press ENTER. if you enter the wrong number, press CLEAR to enter
again.
Last Scene Memory
When playing a disc or USB Flash Drive containing with DivX, MP3/ WMA and JPEG files
together, you can select menu of files which you would like to play by pressing MENU.
DVD
This unit memorizes the last scene from the last disc that is viewed. The last scene remains in
memory even if you remove the disc from the player or switch off (Stand-by mode) the unit.
If you load a disc that has the scene memorized, the scene is automatically recalled.
11
FB44-M0F_ENG.indd 11
2010-06-04
3:08:34
Playable file requirement
DivX
• Available resolution: within 800x600 (W x H) pixels
• The file name of the DivX subtitle should be entered within 45 characters.
• If there is impossible code to express in the DivX file, it may be displayed as “ _ “ mark on
the display.
• If the video and audio structure of recorded files is not interleaved, either video or audio is
outputted.
• Playable DivX file : “.avi”, “.mpg”, “.mpeg”, “.divx”
• Playable Subtitle format : SubRip (*.srt/ *.txt), SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/ *.txt).
• Playable Codec format : “DIVX3.xx”, “DIVX4.xx”, “DIVX5.xx”, “MP4V3”, “3IVX”.
• Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
• For Discs formatted in Live file system, you can not it on this player.
• If the name of movie file is different from that of the subtitle file, during
playback of a DivX file, subtitle may not be display.
• If you play a DivX file differ from DivX spec, it may not operate normally.
MP3/ WMA
• Sampling frequency : within 32 - 48 kHz (MP3/ WMA)
• Bit rate : within 32 - 320 kbps (MP3), 40 - 192 kbps (WMA)
• File extensions : “.mp3”/ “.wma”
• CD-ROM file format : ISO9660 LEVEL 1 / JOLIET
• We recommend that you use Easy-CD Creator, which creates an ISO 9660 file system.
TV sound EZ setup
You can enjoy to sound from TV, DVD and Digital Device. Even in power off mode, if you
press TVtHT SPK, then power is on and automatically changed to AUX OPT mode.
ON REMOTE
1 Connect the unit’s OPTICAL IN jack to jack on optical
out of your TV (or Digital Device etc).
2 Select the AUX OPT
To select the AUX OPT directly.
TVtHT SPK
3 Enjoy sound
4 To escape from AUX OPT
TVtHT SPK
JPG
•
•
•
•
Normal: 5120 x 3840, Progressive jpeg: 2043 x 1536
Recording condition: ISO9660 LEVEL 1/ JOLIET
Maximum files : Under 999.
Some discs may not operate due to a different recording format or the
condition of disc.
• File extensions: “.jpg”
12
FB44-M0F_ENG.indd 12
2010-06-04
3:08:35
See information about your radio stations - OPTIONAL
Listening to the radio
The FM tuner is supplied with the Radio Data System (RDS) facility. This shows the letters RDS
on the display, plus information about the radio station being listened to. Press RDS on the
remote control several times to view the information.
Be sure that the aerials are connected.
ON REMOTE
FUNCTION
1 Select FM or AM(optional)
2 Select a radio station
3 To save a radio station
A preset number will show in the display.
TUN - / +
PROG./MEMO.
PRESET Uu
4 Select the preset number
Up to 50 radio stations can be saved.
5 To confirm press
PTY
RT
Programme Type, such as News, Sport, Jazz.
Radio Text, the name of the radio station.
CT
Time Control, the time at the location of the radio station.
PS
Programme Service name, the name of channel.
- You can search the radio stations by programme type by pressing RDS. The display will
show the last PTY in use. Press PTY one or more times to select your preferred programme
type. Press and hold </>. The tuner will search automatically. When a station is found the
search will stop.
PROG./MEMO.
Listening to the radio - More you can do
Looking for radio stations automatically
Press and hold TUN.-/ TUN.+ for more than a second. The tuner will scan automatically and
stop when it finds a radio station.
Deleting all the saved stations
1 Press and hold PROG./MEMO. for two seconds.
- “ERASE ALL” will flash up on the display.
2 Press PROG./MEMO. to erase all saved radio stations.
Improving poor FM reception
Press PLAY (B) (MONO/ST) on the remote control. This will change the tuner from stereo to
mono and usually improve the reception.
13
FB44-M0F_ENG.indd 13
2010-06-04
3:08:35
Listening to music from your portable
player
Using an USB device
You can enjoy media files saved on an USB device by connecting it to the USB port of the
unit. If you want to operate other function, see the CD playback section.
The unit can be used to play the music from many types of portable player.
ON REMOTE
ON REMOTE
1 Connect the USB device to the USB port of the unit.
1 Connect the portable player to the
PORT.IN (PORTABLE IN) connector of the unit.
2 Select the function
3 Select a file you want to play
FUNCTION
Uu
4 Start your media playing
B PLAY
5 To stop, press
x STOP
6 Before disconnecting, you have to change to any
other function
FUNCTION
Compatible USB Devices
2 Turn the power on
3 Select the function
Turn on the portable player and start it playing.
1 POWER
FUNCTION
• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that supports USB 2.0 or USB 1.1.
• The USB function of this unit does not support all USB devices.
USB device requirement
• Devices which require additional program installation when you have connected it to a
computer, are not supported.
Look out for the follows.
•
•
•
•
•
•
•
•
•
Do not extract the USB device while in operation.
For a large capacity USB, it may take longer than a few minute to be searched
To prevent data loss, back up all data.
If you use a USB extension cable or USB hub, the USB device is not recognized.
Using NTFS file system is not supported. (Only FAT(16/32) file system is supported.
This unit is not supported when the total number of files is 1000 or more.
External HDD, Card readers, Locked devices, or hard type USB devices are not supported.
USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
14
FB44-M0F_ENG.indd 14
2010-06-04
3:08:35
When you are recording, look out for the following
Recording to USB
ON REMOTE
1 Connect the USB device to the USB port of the unit.
2 Select a mode in which you want to record
(ex. CD/ TUNER/ ...)
Play a sound source first
If you want to record desired music file in disc to USB, play
a file before starting the recording.
FUNCTION
3 Start the recording
z REC
4 To stop, press
x STOP
Recording to USB - more you can do
Recording Music file in disc source to USB
One track recording
If the USB recording is started during playback of the CD, the one track/ file would be
recording into the USB.
All tracks recording
If the recording button is pressed at the CD stop, all tracks/ files would be recording.
The files in the sub-folders are not recorded during all track recording.
Program list recording
USB records after creating your own program if you want to record the track you want
(AUDIO CD Only).
• You can check the recording percentage rate for the USB record on the screen during the
recording. (AUDIO, MP3/ WMA CD only)
• During recording MP3/ WMA, there is no sound.
• When you stop recording during playback, the file that has been recorded at that time will
be stored. (AUDIO CD Only)
• Do not remove the USB device during USB recording. If not, an incomplete file may be
made and not deleted on PC.
• If USB recording does not work, the message like “NO USB”, “ERROR”, “USB FULL” or “NO REC”
is displayed on the display window.
• Multi card reader device or External HDD can not be used for USB recording.
• A file is recorded by 2 hours when you record for a long term.
• When you stop recording during playback, the file will not be stored.
• In the state CD-G disc, USB record is not operated.
• You may not record more than 999 files.
• The file number is saved automatically.
• It’ll be stored as follows.
AUDIO CD
CD_REC
TRK-001
TRK-002
-
MP3/ WMA
FILE_REC
001_ABC(File name)
002_DEF(File name)
-
The other sources.
EXT_REC
AUD-001
AUD-002
-
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be an
infringement of copyrights and constitute a criminal offense.
This equipment should not be used for such purposes.
Be responsible
Respect copyrights
15
FB44-M0F_ENG.indd 15
2010-06-04
3:08:35
Playing the iPod - more you can do
Playing the iPod
Pausing playback
For detial refer to iPod guide.
iPod mode: You can operate your iPod by using the supplied remote control and directly
control on your iPod.
OSD iPod mode: You can operate your iPod by controlling OSD menu on the TV screen
with supplied remote control. The controls on your iPod are not operational in the OSD
iPod mode.
Press PAUSE/STEP (X) or PLAY (B) to pause playback. Press PAUSE/STEP (X) or PLAY (B) to
continue playback.
Skipping to the next/previous file
Press SKIP (>) to move to the next file.
Press SKIP (.) to return to the beginning of the current file.
Press SKIP (.) twice briefly to step back to the previous file.
Fast forward or fast reverse
Audio files: During playback, press and hold SCAN (m / M) and then release at a point you
want.
Playing repeatedly
ON REMOTE
1 Open the iPod dock
iPod message
2 Connect your iPod to the dock.
3 Select the iPod or OSD iPod function
4 Select the menu
If you want to move backwards in the menu, press MENU.
5 Select a file
FUNCTION
Uu and
ENTER
Uu
6 Start the file playing
B PLAY
7 To stop the file playing
x STOP
8 Before disconnecting the iPod, change to any other
function by pressing
9 Remove the iPod
Press REPEAT/RANDOM repeatedly to select an item to be repeated. The current file will be
played back repeatedly. To return to normal playback, press REPEAT/RANDOM repeatedly. (On
video files, this function is not available.)
FUNCTION
“Please, check your iPod” - If the power of your iPod is insufficient or the iPod is
misconnected or unknown device. Reset the iPod if the iPod is not operating normally (Refer
to http://www.apple.com/support/)
“Connect Video Out(only composite) from the HTS to the TV and switch TV input accordingly.”,
“Please, Control through an iPod’s display.” - When you connect the unit and TV to
COMPONENT VIDEO OUT or HDMI OUT, connect the unit and TV to VIDEO OUT.
Compatible iPod
• When the unit is connected with dock connector may result in malfunctions.
• Compatibility with your iPod may vary depending on the type of your iPod.
• Depending on your iPod’s software version, it may not be possible to control your iPod from
the unit. We recommend installing the latest software version.
When you use iPod, look out for the following
• Interference may happen depending on iPod devices.
• The video files are outputted only when you connect the unit to VIDEO OUT.
16
FB44-M0F_ENG.indd 16
2010-06-04
3:08:35
DAB scan
Listening to the DAB
Press SCAN on the remote control for longer than 3 seconds, all of the DAB bands are
scanned. Then press it again, scanning will be canceled.
DAB (Digital Audio Broadcasting) is a new form of radio broadcasting using digital signals
rather than traditional analogue signals. DAB provides listeners CD-like quality radio
programs. DAB can carry not only audio but also text.
ON REMOTE
1 Select the DAB function
The frequency received first after scanning DAB bands is
broadcasted.
FUNCTION
2 Select the DAB radio station
.>
3 Play the selected channel
B PLAY
Listening to the DAB - more you can do
DAB mode
You can change the display information of the currently broadcasting DAB channel.
Press DAB MODE on the remote control repeatedly, the display changes in the following
order, SERVICE t PTY NAME t FREQUENCY t DLS t QUALITY t ENSEMBLE.
Select a display mode and then press ./>, the initials of the service name are
displayed.
SERVICE
PTY NAME
Displays the Name of Component for the current broadcast.
Displays the Type of Component for the current broadcast.
FREQUENCY
Displays the frequency of Component for the current broadcast.
DLS
It displays the current Scroll of Component which is selected.
QUALITY
It displays the current strength of electric field of broadcasting which it
doing.
Displays the Ensemble of Component for the current broadcast.
ENSEMBLE
Selecting among Primary and Secondary broadcasting.
For the frequency on which secondary broadcasting channels exist, B blinks after selection.
Then, press B/[] to select the secondary broadcasting.
NOTES:
• Broadcasting may be interrupted or stopped while using it in a forest, some places enclosed
by buildings, or the places where reception sensitivity is weak.
• When you use the DAB function for the first time, the broadcasting channels are scanned
automatically.
Researching the channel
The previously saved channels are deleted, and then channels are searched again.
1 Press and hold CLEAR for 3 seconds.
- “DAB INITIAL” is displayed.
2 Press CLEAR once more.
- The previously saved channels are deleted, and then channels are searched again.
3 Enjoy the broadcasting.
NOTES:
• “!!” : It is displayed when signal reception gets weak. When the unit receives no broadcasting
signals for the searched channel, then it searches available broadcasting channels.
• “2nd”: It is displayed when secondary broadcasting is selected.
Aligning the service names
Press SCAN/SORT on the remote control to display the sorting mode of DAB broadcasting.
Then, press the button once again to change the mode.
Default sort
The service names are aligned in a scanning order.
Name sort
The service names are aligned in an alphabetical order.
17
FB44-M0F_ENG.indd 17
2010-06-04
3:08:35
Language Codes
Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc menu.
Language
Afar
Afrikaans
Albanian
Ameharic
Arabic
Armenian
Assamese
Aymara
Azerbaijani
Bashkir
Basque
Bengali; Bangla
Bhutani
Bihari
Breton
Bulgarian
Burmese
Byelorussian
Chinese
Code
6565
6570
8381
6577
6582
7289
6583
6588
6590
6665
6985
6678
6890
6672
6682
6671
7789
6669
9072
Language
Croatian
Czech
Danish
Dutch
English
Esperanto
Estonian
Faroese
Fiji
Finnish
French
Frisian
Galician
Georgian
German
Greek
Greenlandic
Guarani
Gujarati
Code
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
7185
Language
Hausa
Hebrew
Hindi
Hungarian
Icelandic
Indonesian
Interlingua
Irish
Italian
Javanese
Kannada
Kashmiri
Kazakh
Kirghiz
Korean
Kurdish
Laothian
Latin
Latvian, Lettish
Code
7265
7387
7273
7285
7383
7378
7365
7165
7384
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Language
Lingala
Lithuanian
Macedonian
Malagasy
Malay
Malayalam
Maori
Marathi
Moldavian
Mongolian
Nauru
Nepali
Norwegian
Oriya
Panjabi
Pashto, Pushto
Persian
Polish
Portuguese
Code
7678
7684
7775
7771
7783
7776
7773
7782
7779
7778
7865
7869
7879
7982
8065
8083
7065
8076
8084
Language
Quechua
Rhaeto-Romance
Rumanian
Russian
Samoan
Sanskrit
Scots Gaelic
Serbian
Serbo-Croatian
Shona
Sindhi
Singhalese
Slovak
Slovenian
Spanish
Sudanese
Swahili
Swedish
Tagalog
Code
8185
8277
8279
8285
8377
8365
7168
8382
8372
8378
8368
8373
8375
8376
6983
8385
8387
8386
8476
Language
Tajik
Tamil
Telugu
Thai
Tonga
Turkish
Turkmen
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Welsh
Wolof
Xhosa
Yiddish
Yoruba
Zulu
Code
8471
8465
8469
8472
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Area Codes
Choose a area code from this list.
Area
Afghanistan
Argentina
Australia
Austria
Belgium
Bhutan
Bolivia
Brazil
Cambodia
Canada
Chile
China
Colombia
Congo
Code
AF
AR
AU
AT
BE
BT
BO
BR
KH
CA
CL
CN
CO
CG
Area
Costa Rica
Croatia
Czech Republic
Denmark
Ecuador
Egypt
El Salvador
Ethiopia
Fiji
Finland
France
Germany
Great Britain
Greece
Code
CR
HR
CZ
DK
EC
EG
SV
ET
FJ
FI
FR
DE
GB
GR
Area
Greenland
Hong Kong
Hungary
India
Indonesia
Israel
Italy
Jamaica
Japan
Kenya
Kuwait
Libya
Luxembourg
Malaysia
Code
GL
HK
HU
IN
ID
IL
IT
JM
JP
KE
KW
LY
LU
MY
Area
Maldives
Mexico
Monaco
Mongolia
Morocco
Nepal
Netherlands
Netherlands Antilles
New Zealand
Nigeria
Norway
Oman
Pakistan
Panama
Code
MV
MX
MC
MN
MA
NP
NL
AN
NZ
NG
NO
OM
PK
PA
Area
Paraguay
Philippines
Poland
Portugal
Romania
Russian Federation
Saudi Arabia
Senegal
Singapore
Slovak Republic
Slovenia
South Africa
South Korea
Spain
Code
PY
PH
PL
PT
RO
RU
SA
SN
SG
SK
SI
ZA
KR
ES
Area
Sri Lanka
Sweden
Switzerland
Taiwan
Thailand
Turkey
Uganda
Ukraine
United States
Uruguay
Uzbekistan
Vietnam
Zimbabwe
Code
LK
SE
CH
TW
TH
TR
UG
uaw
US
UY
UZ
VN
ZW
18
FB44-M0F_ENG.indd 18
2010-06-04
3:08:35
Troubleshooting
PROBLEM
CAUSE
CORRECTION
No Power
The power cord is disconnected.
Plug the power cord into the wall outlet securely.
No Picture
The TV is not set to receive the DVD signal.
Select the appropriate video input mode on the TV so the
picture from the unit appears on the TV screen.
The video cables are not connected securely.
Connect the video cables securely to both the TV and unit.
The DVD picture quality is poor.
The disc is dirty.
Clean the disc using a soft cloth with outward strokes.
A DVD/CD will not play.
No disc is inserted.
Insert a disc.
An unplayable disc is inserted.
Insert a playable disc (check the disc type, colour system and
regional code).
The disc is inserted upside down.
Place the disc the side you can see the printed side.
The menu is open on screen.
Press SETUP to close the menu screen.
There is a parental lock which prevents the playback of
DVDs with a certain rating.
Enter your password or change the rating level.
Humming noise heard while a
DVD or CD is playing.
The disc is dirty.
Clean the disc using a soft cloth with outward strokes.
The unit is located too close to the TV, causing feedback.
Move the unit and audio components further away from your
TV.
Radio stations can’t be tuned in
properly.
The antenna is positioned or connected poorly.
Check the antenna connection and adjust its position.
Attach an external aerial if necessary.
The signal strength of the radio station is too weak.
Tune to the station manually.
No stations have been preset or preset stations have been Preset some radio stations.
cleared (when tuning by scanning preset channels).
The remote control doesn’t work
well / at all
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the unit.
There is an obstacle in the path between the remote
control and the unit.
Remove the obstacle.
The battery in the remote control is flat.
Replace the battery with new one.
19
FB44-M0F_ENG.indd 19
2010-06-04
3:08:36
About the
Types of Playable Discs
Type
Symbol Display
“
” may appear on your TV display during operation and indicates that the function
explained in this owner’s manual is not available on that specific DVD video disc.
LOGO
DVD-VIDEO : Discs such as movies that canbe purchased or
rented.
DVD-R : Video mode and finalized only
DVD-RW : Video mode and finalized only DVD VR
format that have been finalized can not be played in
this unit
DVD+R : Video mode only Supports the double layer
disc also
DVD+RW : Video mode only
Audio CD : Music CDs or CD-R/ CD-RW in music CD
format that can be purchased.
This unit plays DVD±R/ RW and CD-R/ RW that contains audio titles, DivX,
MP3,WMA and/ or JPEG files. Some DVD±RW/ DVD±R or CDRW/ CD-R cannot
be played on this unit due to the recording quality or physical condition of the
disc, or the characteristics of the recording device and authoring software.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories. Manufactured under license from Dolby Laboratories.
Regional Codes
This unit has a regional code printed on the rear of the unit. This unit can play only DVD discs
labeled same as the rear of the unit or “ALL”.
• Most DVD discs have a globe with one or more numbers in it clearly visible on the cover.
This number must match your unit’s regional code or the disc cannot play.
• If you try to play a DVD with a different regional code from your player, the message “Check
Regional Code” appears on the TV screen.
Copyrights
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent
copyrighted material without permission. This product features the copy protection function
developed by Macrovision. Copy protection signals are recorded on some discs. When
recording and playing the pictures of these discs picture noise will appear. This product
incorporates copyright protection technology that is protected by U.S. patents and other
intellectual property rights. Use of this copyright protection technology must be authorized
by Macrovision, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS
ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV
SET COMPATIBILITY WITH THIS MODEL 525p AND 625p UNIT, PLEASE CONTACT OUR
CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered] in order to make the discs compatible
with the LG players when formatting rewritable discs. When setting the option to Live File
System, you cannot use it on LG players.
(Mastered/ Live File System : Disc format system for Windows Vista)
20
FB44-M0F_ENG.indd 20
2010-06-04
3:08:36
Specifications
General
Power supply
Notes on HDMI Out connection
Refer to the label attached on the unit.
Power consumption
Refer to the label attached on the unit.
Net Weight
4.9 kg
External dimensions
(WxHxD)
694 x 180 x 185 mm
Operating temperature
5 ℃ - 35 ℃
Operating humity
5 % - 85 %
Output power
20 W + 20 W
T.H.D
10 %
Tuner
FM Tuning Range
87.5 - 108.0 MHz or 87.50 - 108.00 MHz
AM Tuning Range
522 - 1,620 kHz or 522 - 1,710 kHz or 520 - 1,710 kHz
DAB Tuning Range
174 - 239 MHz
DAB Bitrate Range
8 - 256 kbps
• If your TV does not accept your resolution setting, abnormal picture appears on the
screen.(“TV does not support” will appears in screen)
Please read owner’s manual for TV, and then set the resolution that your TV can accept.
• Changing the resolution when the unit is connected with HDMI connector may result
in malfunctions. To solve the problem, turn off the unit and then turn it on again.
• When you connect a HDMI or DVI compatible device make sure of the following :
- Try switching off the HDMI/ DVI device and this unit. Next, switch on the HDMI/ DVI
device and leave it for around 30 seconds, then switch on this unit.
- The connected device’s video input is set correctly for this unit.
- The connected device is compatible with 720X576p(480p), 1280X720p, 1920X1080i or
1920X1080p video input.
- The 1080p, 720p and 576p(480p) resolutions are the progressive scan applied resolution.
• Not all HDCP-compatible DVI devices will work with this unit.
- The picture will not be displayed properly with non-HDCP device.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI licensing LLC.
DVD/CD
Frequency response
40 - 20000 Hz
Signal-to-noise ratio
70 dB
Dynamic range
50 dB
Available resolution according to connection
[HDMI OUT]
1080p, 1080i, 720p and 480p (or 576p) and
480i (or 576i)
[COMPONENT VIDEO OUT]
480p (or 576p) and 480i (or 576i)
[VIDEO OUT]
480i (or 576i)
Designs and specifications are subject to change without prior notice.
21
FB44-M0F_ENG.indd 21
2010-06-04
3:08:36
POWER: This unit operates on a mains supply of 200-240V~, 50/60Hz.
WIRING: This unit is supplied with a BSI 1363 approved 13 amp mains plug, fused at 5
amp. When replacing the fuse always use a 5 amp BS 1362, BSI or ASTA approved type.
Never use this plug with the fuse cover omitted. To obtain a replacement fuse cover
contact your dealer. If the type of plug supplied is not suitable for the mains sockets in
your home, then the plug should be removed and a suitable type fitted. Please refer to
the wiring instructions below:
WARNING: A mains plug removed from the mains lead of this unit must be destroyed.
A mains plug with bared wires is hazardous if inserted in a mains socket. Do not connect
either wire to the earth pin, marked with the letter E or with the earth symbol
or
coloured green or green and yellow. If any other plug is fitted, use a 5 amp fuse, either
in the plug, or at the distribution board.
IMPORTANT: The wires in this mains lead are coloured in accordance with the
following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires in the mains lead of this
unit may not correspond with the coloured marking identifying the terminals in your
plug, proceed as follows: The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black. The wire which is coloured
brown must be connected to the terminal which is marked with the letter L or coloured
red.
iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.
As an ENERGY STAR® Partner,
LG has determined that this
product or product models meet
the ENERGY STAR® guidelines for
energy efficiency.
ENERGY STAR® is a U.S. registered mark.
22
FB44-M0F_ENG.indd 22
2010-06-04
3:08:36
23
FB44-M0F_ENG.indd 23
2010-06-04
3:08:36
Technology with the human touch
GUARANTEE
REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
LG Electronics U.K. Ltd. will provide the following services in order to
expedite this Guarantee.
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE. A COPY
OF YOUR RECEIPT MUST BE SURRENDERED AT THE TIME GUARANTEE SERVICE IS PROVED.
1. All faulty components which fail due to defective manufacture will be
replaced free of charge for a period of 12 months from the original date
of purchase.
Product Registration Card :
2. The dealer (or his service agent) who sold the product will be
reimbursed for any labour provided in the repair of this LG equipment,
for a period of 12 months from the original date of purchase.
These claims must be made in accordance with the published scale of
service charges and relevant claims procedure.
PLEASE NOTE:
To obtain information or assistance: Call 0870 873 5454 Monday-Friday
9.00am-4.30pm
A. The dealer may restrict the guarantee to the original purchaser.
B. The dealer is not obliged to carry out service under guarantee if
unauthorized modifications are made to the apparatus, or if non
standard components are used or if the serial number of the
apparatus is removed, defaced, misused, or altered.
C. Any claims made under guarantee must be directed to the dealer from
whom the equipment was originally purchased. The dealer may, before
carrying out service under guarantee, require a receipted account as
evidence of the date of purchase.
D. We respectfully point out that your dealer is not obligated to replace
batteries if they become exhausted or worn in use.
E. Aerial alignment and consumer control adjustments are not covered by
this guarantee.
It is helpful to complete at least
your name, address, phone, model
& serial numbers and return it. This
will enable LG to assist you in the
future should you lose your receipt,
your units be stolen, or should
modifications be necessary.
MODEL NO.*
*
SERIAL NO.*
DATE OF PURCHASE.*
Please complete for your own record
In all cases of difficulty - consult your LG dealer
from whom the product was purchased
LGEUK Website : www.lge.co.uk
( service website : www.lgelectronics.co.uk )
This guarantee does not affect your statutory rights.
24
FB44-M0F_ENG.indd 24
2010-06-04
3:08:36
Download PDF
