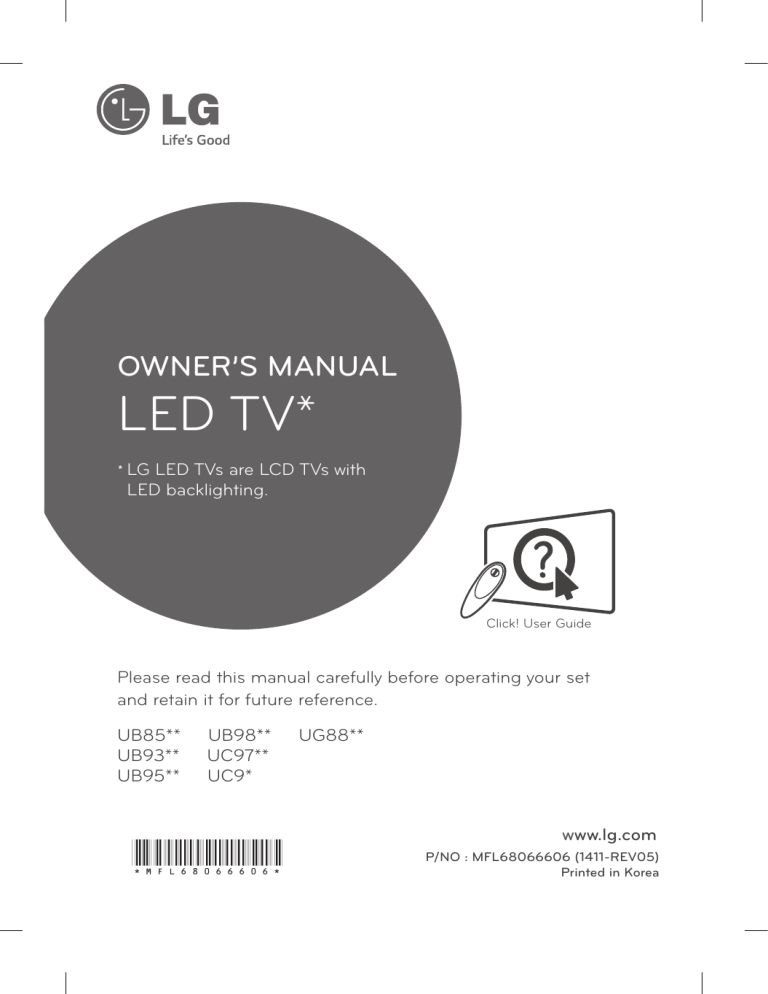

OWNER’S MANUAL
LED TV*
*
LG LED TVs are LCD TVs with
LED backlighting.
Click! User Guide
Please read this manual carefully before operating your set
and retain it for future reference.
UB85**
UB93**
UB95**
UB98**
UC97**
UC9*
*MFL68066606*
UG88**
www.lg.com
P/NO : MFL68066606 (1411-REV05)
Printed in Korea
2
TABLE OF CONTENTS
ENGLISH
ENG
TABLE OF CONTENTS
3LICENSES
42
42
- Digital optical audio Connection
3
42
Headphone Connection
43
USB Connection
43
CI module Connection
44
Euro Scart Connection
45
REMOTE CONTROL
47
MAGIC REMOTE FUNCTIONS
48
Registering Magic Remote
48
How to use Magic Remote
3
OPEN SOURCE SOFTWARE
NOTICE
EXTERNAL CONTROL DEVICE
SETUP
4
SAFETY INSTRUCTIONS
11
Viewing 3D Imaging (Only 3D models)
13
13
INSTALLATION PROCEDURE
49
17
Separate purchase
18
Parts and buttons
21
- Using the joystick button
22
Lifting and moving the TV
23
Setting up the TV
23
- Attaching the stand
29
Mounting on a table
30
Mounting on a wall
32
Tidying cables
34
Assembling the AV cover
35
Sliding Speaker
36
Using Built-in Camera
36
- Preparing Built-in Camera
37
- Name of Parts of Built-in Camera
37
- Checking the Camera’s Shooting Range
37
MAKING CONNECTIONS
38
Antenna Connection
38
Satellite dish Connection
39
HDMI Connection
40
DVI to HDMI Connection
40
Component Connection
41
Composite Connection
41
MHL Connection
Precautions to Take when Using the Magic
Remote
ASSEMBLING AND PREPARING
13Unpacking
Audio Connection
49
USING THE USER GUIDE
50MAINTENANCE
50
Cleaning your TV
50
- Screen, frame, cabinet and stand
50
- Power cord
51TROUBLESHOOTING
51SPECIFICATIONS
WARNING
yy If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
yy If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
yy The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
3
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this
product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available
for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com.
This offer is valid for three (3) years from the date on which you purchased the product.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com.
ENGLISH
ENG
LICENSES
4
SAFETY INSTRUCTIONS
ENGLISH
ENG
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
yy Do not place the TV and/or remote control in the following environments:
-- A location exposed to direct sunlight
-- An area with high humidity such as a bathroom
-- Near any heat source such as stoves and other devices that produce heat
-- Near kitchen counters or humidifiers where they can easily be exposed to steam or
oil
-- An area exposed to rain or wind
-- Near containers of water such as vases
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
yy Do not place the product where it might be exposed to dust.
This may cause a fire hazard.
yy Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This
plug must remain readily attached and operable when TV is in use.
yy Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or
covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
yy Make sure to connect Mains cable to compliant AC mains socket with Grounded earth
pin. (Except for devices which are not grounded on earth.) Otherwise possibility you
may be electrocuted or injured.
yy Insert power cable plug completely into wall socket otherwise if not secured completely
into socket, fire ignition may break out.
yy Ensure the power cord does not come into contact with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
yy Do not place a heavy object, or the product itself, on power cables.
Otherwise, this may result in fire or electric shock.
SAFETY INSTRUCTIONS
yy When mounting TV onto wall make sure to neatly install and isolate cabling from rear of
TV as to not create possibility of electric shock/fire hazard.
yy Do not plug too many electrical devices into a single multiple electrical outlet.
Otherwise, this may result in fire due to over-heating.
yy Do not drop the product or let it fall over when connecting external devices.
Otherwise, this may result in injury or damage to the product.
Desic
cant
yy Keep the anti-moisture packing material or vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient
to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation.
Keep it out of the reach of children.
yy Do not let your children climb or cling onto the TV.
Otherwise, the TV may fall over, which may cause serious injury.
yy Dispose of used batteries carefully to ensure that a small child does not consume them.
Please seek Doctor- Medical Attention immediately if child consumes batteries.
yy Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall Socket while it is connected to the input
terminal on the wall. Additionally, do not touch the power cable right after plugging into
the wall input terminal.
You may be electrocuted.
(Depending on model)
yy Do not put or store inflammable substances near the product.
There is a danger of combustion/explosion or fire due to careless handling of the
inflammable substances.
yy Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the
product, or inflammable objects such as paper and matches. Children must pay
particular attention.
Electrical shock, fire or injury can occur. If a foreign object is dropped into the product,
unplug the power cord and contact the service centre.
ENGLISH
ENG
yy Bend antenna cable between inside and outside building to prevent rain from flowing in.
This may cause water damaged inside the Product and could give an electric shock.
5
6
SAFETY INSTRUCTIONS
ENGLISH
ENG
yy Do not spray water on the product or scrub with an inflammable substance (thinner or
benzene). Fire or electric shock accident can occur.
yy Do not allow any impact, shock or any objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be damaged.
yy Never touch this product or antenna during a thunder or lighting storm.
You may be electrocuted.
yy Never touch the wall outlet when there is leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
yy Do not disassemble, repair or modify the product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check, calibration or repair.
yy If any of the following occur, unplug the product immediately and contact your local
service centre.
-- The product has been impacted by shock
-- The product has been damaged
-- Foreign objects have entered the product
-- The product produced smoke or a strange smell
This may result in fire or electric shock.
yy Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long
period of time.
Accumulated dust can cause fire hazard and insulation deterioration can cause electric
leakage/shock/fire.
yy Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
yy Do not install this product on a wall if it could be exposed to oil or oil mist.
This may damage the product and cause it to fall.
SAFETY INSTRUCTIONS
yy Install the product where no radio wave occurs.
yy There should be enough distance between an outside antenna and power lines to keep
the former from touching the latter even when the antenna falls.
This may cause an electric shock.
yy Do not install the product on places such as unstable shelves or inclined surfaces. Also
avoid places where there is vibration or where the product cannot be fully supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to the
product.
yy If you install the TV on a stand, you need to take actions to prevent the product from
overturning. Otherwise, the product may fall over, which may cause injury.
yy If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the
back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully
so as not to drop.
yy Only use the attachments / accessories specified by the manufacturer.
yy When installing the antenna, consult with a qualified service technician. If not installed
by a qualified technician, this may create a fire hazard or an electric shock hazard.
yy We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen
size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
yy Only use the specified type of battery.
This could cause damage to the remote control.
yy Do not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
yy Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open
fireplace and electric heaters .
yy Do not place non-rechargeable batteries in charging device.
ENGLISH
ENG
CAUTION
7
8
SAFETY INSTRUCTIONS
ENGLISH
ENG
yy Make sure there are no objects between the remote control and its sensor.
yy Signal from Remote Control can be interrupted due to external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting or darken viewing area.
yy When connecting external devices such as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the product.
yy Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall
outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
yy Please follow the installation instructions below to prevent the product from overheating.
-- The distance between the product and the wall should be more than 10 cm.
-- Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a
cupboard).
-- Do not install the product on a carpet or cushion.
-- Make sure the air vent is not blocked by a tablecloth or curtain.
Otherwise, this may result in fire.
yy Take care not to touch the ventilation openings when watching the TV for long periods
as the ventilation openings may become hot. This does not affect the operation or
performance of the product.
yy Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an
authorized servicer.
yy Prevent dust collecting on the power plug pins or outlet.
This may cause a fire hazard.
yy Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
yy Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or
pen, or make a scratch on it, as it may cause damage to screen.
SAFETY INSTRUCTIONS
yy When cleaning the product and its components, unplug the power first and wipe it with
a soft cloth. Applying excessive force may cause scratches or discolouration. Do not
spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial
shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its
panel.
Otherwise, this may result in fire, electric shock or product damage (deformation,
corrosion or breakage).
yy As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if
you turn off this unit by SWITCH.
yy When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t
pull at the cord to unplug the power cord from the power board, as this could be
hazardous.
yy When moving the product, make sure you turn the power off first. Then, unplug the
power cables, antenna cables and all connecting cables.
The TV set or power cord may be damaged, which may create a fire hazard or cause
electric shock.
yy When moving or unpacking the product, work in pairs because the product is heavy.
Otherwise, this may result in injury.
yy Contact the service centre once a year to clean the internal parts of the product.
Accumulated dust can cause mechanical failure.
yy Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
yy If the product feels cold to the touch, there may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with product.
yy The panel is a high technology display product with resolution of two million to six
million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or
green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does
not affect the performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to exchange or
refund.
ENGLISH
ENG
yy Avoid touching the screen or holding your finger(s) against it for long periods of time.
Doing so may produce some temporary or permanent distortion/damage to screen.
9
10
SAFETY INSTRUCTIONS
ENGLISH
ENG
yy You may find different brightness and colour of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the
product performance, and it is not malfunction.
yy Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a
prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image
sticking. The warranty does not cover the product for image sticking.
Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1
or more hours for Plasma).
Also, if you watch the TV at a ratio of 4:3 (4:3 or 16:9 for 21:9 model) for a long time, image sticking may occur
on the borders of the panel. When watching the TV for a long period of time, please use the default screen
ratio.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
yy Generated Sound
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic
thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal
deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product. It varies depending on
the product.
This generated sound does not affect the performance and reliability of the product.
yy Do not use high voltage electrical goods near the TV (e.g. electric mosquito-swatter). This may result in
product malfunction.
SAFETY INSTRUCTIONS
11
Viewing 3D Imaging (Only 3D models)
Viewing Environment
yy Viewing Time
-- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period
of time may cause headache, dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or chronic illness
yy Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light
or particular pattern from 3D contents.
yy Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac
disorder, or blood pressure disease, etc.
yy 3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double
images or discomfort in viewing may be experienced.
yy If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing
depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.
yy If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents.
Symptoms which require discontinuation or refraining from watching 3D contents
yy Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.
yy When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the
symptom subsides.
-- Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness,
nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.
ENGLISH
ENG
WARNING
12
SAFETY INSTRUCTIONS
ENGLISH
ENG
CAUTION
Viewing Environment
yy Viewing Distance
- Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel
discomfort in viewing 3D contents, move further away from the TV.
Viewing Age
yy Infants/Children
-- Usage/ Viewing 3D contents for children under the age of 6 are prohibited.
-- Children under the age of 10 may overreact and become overly excited because their vision is in
development (for example: trying to touch the screen or trying to jump into it. Special monitoring and extra
attention is required for children watching 3D contents.
-- Children have greater binocular disparity of 3D presentations than adults because the distance between
the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to
adults for the same 3D image.
yy Teenagers
-- Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents.
Advise them to refrain from watching 3D contens for a long time when they are tired.
yy Elderly
-- The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the
recommended distance.
Cautions when using the 3D glasses
yy Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.
yy Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.
yy Using modified 3D glasses may cause eye strain or image distortion.
yy Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.
yy The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the
lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
13
INSTALLATION PROCEDURE
1
2
3
4
Open the package and make sure all the accessories are included.
Attach the stand to the TV set.
Connect an external device to the TV set.
Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few
minutes.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where
you purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
yy Do not use any unapproved items to ensure the safety and product life span.
yy Any damages or injuries by using unapproved items are not covered by the warranty.
yy Some models have a thin film attached on to the screen and this must not be removed.
NOTE
yy The items supplied with your product may vary depending on the model.
yy Product specifications or contents of this manual may be changed without prior notice due to upgrade of
product functions.
yy For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18
mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit
into your TV’s USB port.
B
B
A
A
*A <
= 10 mm
*B <
= 18 mm
Use a certified cable with the HDMI logo attached.
yy If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.
(Recommended HDMI Cable Types)
- High-Speed HDMI ® / ™ Cable
- High-Speed HDMI ® / ™ Cable with Ethernet
ENGLISH
ENG
NOTE
yy Image shown may differ from your TV.
yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yy The available menus and options may differ from the input source or product model that you are using.
yy New features may be added to this TV in the future.
yy The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be
turned off if it will not be watched for some time, as this will reduce energy consumption.
yy The energy consumed during use can be significantly reduced if the level of brightness of the picture is
reduced, and this will reduce the overall running cost.
14
ASSEMBLING AND PREPARING
ENGLISH
ENG
NOTE
How to use the ferrite core (Depending on model)
yy Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN cable once
on the ferrite core. Place the ferrite core close to the TV.
[Cross Section of Ferrite Core]
[to the TV]
[to an External device]
Rem
Bat
(Dep
The
not
sale
(See
Ferrite core
Pow
(Dep
Com
cab
(See
Stan
Bas
(On
UB9
(See
ASSEMBLING AND PREPARING
15
ENGLISH
ENG
ENERGY AV MODE INPUT
TV
SAVING
1
2
3
4
5
6
7
8
9
0
FLASHBK
LIST
MARK
FAV
VOL
3D
CH
P
A
G
E
MUTE
MENU INFO
Q.MENU
Tag On
ENTER
BACK
EXIT
L/R SELECT
FREEZE
RATIO
Remote Control,
Batteries (AAA)
(Depending on model)
The remote control will
not be included for all
sales market.
(See p. 45, 46)
Magic remote, batteries (AA)
(Only UB85**, UB93**,
UB95**, UB98**,
UC97**, UC9*, UG88**)
(See p. 47)
Owner’s manual
Tag on
(Depending on model)
Power Cord
(Depending on model)
Cable holder
(Depending on model)
(See p. 32, 33)
Cinema 3D Glasses
The number of 3D
glasses may differ
depending on the model
or country.
(Only UB85**, UB95**,
UB98**, UC97**,
UC9*, UG88**)
Video call camera
(Depending on model)
Component gender
cable
(See p. 40)
Composite gender
cable
(See p. 40, 41)
Scart gender cable
(Depending on model)
(See p. 44)
HDMI cable
(Depending on model)
(See p. 39)
Stand Body / Stand
Base
(Only UB85**-ZA,
UB93**, UB95**-ZA)
(See p. 23)
Stand Body / Stand
Base
(Only UB85**-ZD,
UB95**-ZB)
(See p. 24)
Stand Base
(Only 65/79/84UB98**)
(See p. 25)
Stand Base
(Only 98UB98**)
(See p. 27)
1
2
16
ASSEMBLING AND PREPARING
ENGLISH
ENG
Stand Body / Stand
Base
(Only UC97**)
(See p. 27, 28)
Stand Body / Stand
Base
(Only UG88**)
(See p. 28)
Stand Screws
8EA, M4 x L20
(Only UB85**-ZA,
UB93**, UB95**-ZA)
4EA, M4 x L20
(Only UB85**-ZD,
UB95**-ZB, UC97**)
(See p. 23, 24, 28)
Stand Screws
4EA, M4 x L10
(Only UB85**-ZD,
UB95**-ZB, UC97**)
2EA, M4 X L10
(Only UG88**)
(See p.24, 27, 28)
Stand Screws
4EA, M6 x L47
(Only 65UB98**)
(See p.25)
Stand Screws
4EA, M6 x L52
(Only 79/84UB98**)
(See p. 25)
Stand Screws
10EA, M4 x L14
(Only UG88**)
(See p. 28)
Ferrite core
(Depending on model)
Cable Managements
2EA
(Only UB85**-ZA,
UB93**, UB95**-ZA)
(See p. 32)
Cable Managements
2EA
(Only UB85**-ZD,
UB95**-ZB, UC97**)
(See p.32)
Cable Management
1EA
(Only 98UB98**)
(See p. 32)
Cable Management
1EA
(Only 98UB98**)
(See p. 32)
Wrench
(Only UB98**)
(See p. 25 ,26 ,27)
Insulation Holders
4EA
(Only 84UB98**)
(See p. 25)
Wall Mount Inner
Spacers
4EA
(Only UC97**, UG88**)
(See p. 31)
AV Port Cover /
Screw
1EA, M3 x L8
(Only 98UB98**)
(See p. 34)
AV P
(Onl
(See
ASSEMBLING AND PREPARING
17
ENGLISH
ENG
AV Port Cover
(Only UC9*)
(See p. 34)
Separate purchase
Optional extras can be changed or modified for quality improvement without any notification.
Contact your dealer for buying these items.
These devices only work with certain models.
AG-F***DP
Dual play glasses
AG-F***
Cinema 3D glasses
LG Audio Device
Tag on
Compatibility
UB85**, UB95**,
UC97**, UG88**
AN-MR500
Magic Remote
AN-VC5**
Video call camera
UB93**
UB98**, UC9*
AG-F***DP
Dual play glasses
•
•
AG-F***
Cinema 3D glasses
•
•
AN-MR500
Magic Remote
•
•
AN-VC5**
Video call camera
•
•
LG Audio Device
•
•
•
Tag on
•
•
•
•
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s
circumstances or policies.
18
ASSEMBLING AND PREPARING
ENGLISH
ENG
Parts and buttons
A type : UB85**-ZA
B type : UB85**-ZD
Screen
Screen
Speakers
Speakers
Remote control and
Intelligent1 sensors
Power Indicator
Joystick Button2
Remote control and
Intelligent1 sensors
Power Indicator
D type : UB95**-ZB
C type : UB93**, UB95**-ZA
Screen
Screen
Speakers
Speakers
Remote control and
Intelligent1 sensors
LG Logo light
Joystick Button2
Joystick Button3
Remote control and
Intelligent1 sensors
LG Logo light
Joystick Button3
ASSEMBLING AND PREPARING
F type : 84UB98**
E type : 65/79UB98**
Screen
Screen
Speakers
Speakers
Speakers(Only 79UB98**)
Speakers
Joystick Button
2
G type : 98UB98**
Built-in camera
Screen
Remote control and
Intelligent1 sensors
LG Logo light
Joystick Button3
H type : UC97**
Screen
Speakers
Remote control and
Intelligent1 sensors
LG Logo light
Sliding Speaker
Joystick Button3
Remote control and
Intelligent1 sensors
LG Logo light
Joystick Button2
ENGLISH
ENG
Built-in camera
Built-in camera
Remote control and
Intelligent1 sensors
LG Logo light
19
20
ASSEMBLING AND PREPARING
I Type : UC9*
ENGLISH
ENG
Built-in Camera
J Type : UG88**
Screen
Screen
Speakers
Speakers
Remote control and
Intelligent1 sensors
Power Indicator
Joystick Button3
Remote control and
Intelligent1 sensors
LG Logo light
Joystick Button2
CAUTION
yy Do NOT place any objects or body parts in area between TV Screen and Speaker Stand assembly. It could
cause personal Injury or damage to product . (Only UC9*)
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located behind the TV screen.
3 Joystick Button - This button is located below the TV screen.
NOTE
yy You can set the LG Logo Light or power indicator light to on or off by selecting General in the main menus.
(Depending on model)
ASSEMBLING AND PREPARING
21
Using the joystick button
Basic Functions
Power On
When the TV is turned off, place your finger on the joystick button and
press it once and release it.
Power Off
When the TV is turned on, place your finger on the joystick button and
press it once for a few seconds and release it.
Volume Control
If you place your finger over the joystick button and move it left or
right, you can adjust the volume level you want.
Programmes
Control
If you place your finger over the joystick button and push it to the up
or down, you can scrolls through the saved programmes what you
want.
NOTE
yy When your finger over the joystick button and push it to the up, down, left or right, be careful not to
press the joystick button. If you press the joystick button first, you may not be able to adjust the volume level
and saved programmes.
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items (
,
,
) moving the joystick button left or right.
TV OFF
Turns the power off.
CLOSE
Clears on-screen displays and returns to TV viewing.
INPUT
Changes the input source.
ENGLISH
ENG
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
22
ASSEMBLING AND PREPARING
ENGLISH
ENG
Lifting and moving the TV
Please note the following advice to prevent the TV from
being scratched or damaged and for safe transportation
regardless of its type and size.
yy When transporting a large TV, there should be at
least 2 people.
yy When transporting the TV by hand, hold the TV as
shown in the following illustration.
CAUTION
yy Avoid touching the screen at all times, as this
may result in damage to the screen.
yy It is recommended to move the TV in the box or
packing material that the TV originally came in.
yy Before moving or lifting the TV, disconnect the
power cord and all cables.
yy When holding the TV, the screen should face away
from you to avoid damage.
yy Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part, speaker,
or speaker grill area.
yy When transporting the TV, do not expose the TV to
jolts or excessive vibration.
yy When transporting the TV, keep the TV upright,
never turn the TV on its side or tilt towards the left
or right.
yy Do not apply excessive pressure to cause flexing /
bending of frame chassis as it may damage screen.
ASSEMBLING AND PREPARING
Setting up the TV
23
ENGLISH
ENG
2
Image shown may differ from your TV.
Attaching the stand
UB85**-ZA, UB93**, UB95**-ZA
1
Stand Body (L)
1
Stand Body (R)
2
Stand Base
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
M4 x L20
4EA
3
NOTE
yy Be sure to check the Stand Body (L), (R), when
installing on the stand base.
M4 x L20
4EA
24
ASSEMBLING AND PREPARING
UB85**-ZD, UB95**-ZB
ENGLISH
ENG
3
1
Stand Body (R)
Stand Body (L)
Stand Base
1 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
2 Attach the stand to the TV using the lower
connection on the back of the TV.
2
4
4EA
M4 x L10
NOTE
yy Be sure to check the Stand Body (L), (R), when
installing on the stand base.
M4 x L20
4EA
ASSEMBLING AND PREPARING
65/79/84UB98**
1
ENGLISH
ENG
3
(Only 65/79UB98**)
1
2
Wrench
Stand Base
4EA
2
M6 x L47
(Only 65UB98**)
1
M6 x L52
(Only 79UB98**)
2
(Only 84UB98**)
1
2
Wrench
4EA
M6 x L52
1
25
4EA
(Insulation
Holder)
2
26
ASSEMBLING AND PREPARING
ENGLISH
ENG
CAUTION
y Make sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
98UB98**
1
Wrench
1
2
1
2
Mold
M6 x L47
6EA
NOTE
y The stand screws are already attached at the
back of the TV. Please use these attached screw
to assemble the TV and stand. (Only 98UB98**)
ASSEMBLING AND PREPARING
UC97**
1
ENGLISH
ENG
2
27
2
1
Stand Body (L)
Stand Body (R)
Stand Base
Stand Base
1
2
M4 x L10
4EA
3
Wrench
2
2
3
1 When assembling the stand, lay the front screen
protective package included in the product box on
a table or flat surface and then place the TV screen
face down on the protective package.
2 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
3 Attach the stand to the TV using the lower connection
on the back of the TV.
28
ASSEMBLING AND PREPARING
ENGLISH
ENG
3
2
2
3
1
1
M4 x L20
4EA
* Use at least two people to attach the stand to the TV.
1
1 When assembling the stand, lay the front screen
protective package included in the product box on
a table or flat surface and then place the TV screen
face down on the protective package.
2 Attach the stand to the TV using the upper mounting
hole on the back of the TV.
3 Attach the stand to the TV using the lower
connection on the back of the TV.
UG88**
1
Stand Body (R)
3
Stand Body (L)
Stand Base
M4 x L14
6EA
M4 x L10
2EA
M4 x L14
4EA
ASSEMBLING AND PREPARING
yy When attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
(Only UB85**, UB93**, UB95**, UB98**)
yy Make sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and
not tighten correctly.
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
-- Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
m
10 c
10 cm
NOTE
yy Remove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
yy Remove the protective film from the stand base
and then attach the stand body to the stand base.
(Only UC97**)
2 Connect the power cord to a wall outlet.
CAUTION
yy Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
Using the Kensington security system
(This feature is not available for all models.)
yy Image shown may differ from your TV.
The Kensington security system connector is
located at the rear of the TV. For more information of
installation and using, refer to the manual provided
with the Kensington security system or visit http://www.
kensington.com.
Connect the Kensington security system cable between
the TV and a table.
ENGLISH
ENG
CAUTION
29
30
ASSEMBLING AND PREPARING
Mounting on a wall
Securing the TV to a wall
ENGLISH
ENG
(This feature is not available for all models.)
(Only 105UC9*)
(Only 98UB98**)
Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a
solid wall perpendicular to the floor. When you attach
the TV to other building materials, please contact qualified personnel.
LG recommends that wall mounting be performed by a
qualified professional installer.
We recommend the use of LG’s wall mount bracket.
When you do not use LG’s wall mount bracket, please
use a wall mount bracket where the device is adequately secured to the wall with enough space to allow
connectivity to external devices.
10 cm
10 cm
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
-- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eyebolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a
sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
CAUTION
yy Make sure that children do not climb on or hang
on the TV.
NOTE
yy Use a platform or cabinet that is strong and large
enough to support the TV securely.
yy Brackets, bolts and ropes are not provided. You
can obtain additional accessories from your local
dealer.
10 cm
10 cm
Make sure to use screws and wall mount bracket that
meet the VESA standard. Standard dimensions for the
wall mount kits are described in the following table.
Separate purchase (Wall Mounting Bracket)
Model
49/55UB85**
55UB95**
55UC97**
VESA (A x B)
Standard screw
Number of screws
400 x 400
M6
4
Wall mount bracket
LSW440B
MSW240
VESA (A x B)
Standard screw
Number of screws
79/84UB98**
79UG88**
600 x 400
M8
4
Wall mount bracket
LSW640B
Model
60UB85**
65UB93**
65UB95**
65UB98**
65UC97**
400 x 400
M6
4
LSW440B
ASSEMBLING AND PREPARING
MSW240
LSW640B
A
B
CAUTION
yy Disconnect the power first, and then move or
install the TV. Otherwise electric shock may
occur.
yy If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel.
yy Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
yy Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the warranty.
NOTE
yy Use the screws that are listed on the VESA
standard screw specifications.
yy The wall mount kit includes an installation manual
and necessary parts.
yy The wall mount bracket is not provided. You can
obtain additional accessories from your local
dealer.
yy The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
yy For more information, refer to the manual
supplied with the wall mount.
yy When attaching a third-party wall mounting
bracket to the TV, insert the wall mount inner
spacers into the TV wall mount holes to move
your TV in vertical angle. Please make sure not
to use the spacers for LG wall mounting bracket.
(Only UC97**, UG88**)
Wall Mount
Inner Spacer
ENGLISH
ENG
Wall mount bracket
LSW440B
31
32
ASSEMBLING AND PREPARING
ENGLISH
ENG
Tidying cables
(Only UC97**)
Image shown may differ from your TV.
1 Gather and bind the cables with the Cable Holder
and the Cable Management.
2 Fix the Cable Management firmly to the TV.
(Only UB85**-ZA, UB93**, UB95**-ZA)
Cable Holder
Cable Management
Cable Holder
(Only 98UB98**)
Cable Management
(Only UB85**-ZD, UB95**-ZB)
Cable
management
Cable Holder
Cable Management
Cable Holder
Cable Management
ASSEMBLING AND PREPARING
1 Fix the Cable Management firmly to the TV.
(Only 65/79/84UB98**)
(Only UC9*)
Cable Holder
ENGLISH
ENG
1 Gather and bind the cables with the Cable Holder.
33
Cable Management
CAUTION
(Only UG88**)
Cable Holder
yy Do not move the TV by holding the cable holders,
as the cable holders may break, and injuries and
damage to the TV may occur.
34
ASSEMBLING AND PREPARING
ENGLISH
ENG
Assembling the AV cover
(Only 98UB98**)
1 Insert the cover holder attached to the AV port cover
into the hole of the main body of the product as
illustrated.
2 Attach the port cover onto the AV port part. (The
cover remains attached through the use of a
magnet.)
1
(Only UC9*)
1 Insert the cover holder attached to the AV port cover
into the hole of the main body of the product as
illustrated.
2 Attach the AV port cover by inserting it into the
left hole of the port. (The cover remains attached
through the use of a magnet.)
1
AV Port Cover
Cover
Holder
AV Port Cover
2
Cover Holder
2
CAUTION
y If you do not attach the cover holder, the cover
may fall off and cause injury.
Sliding Speaker
35
CAUTION
y When the Sliding Speaker is operating (when
the TV is turned on/off), ensure that children do
not put their hands near the operating part of the
speaker (at the bottom of the TV) and that they do
not crawl into the space below the TV.
- Their hands may get caught and injured due to
the operation of the speaker.
(Only 98UB98**)
Sliding Speaker
1 When TV is turned ON - the hidden speaker slides
out from inside the TV.
2 Go to
(Home) ➡
(Settings) ➡ Sound
➡ Sound Out ➡ Sliding speaker to set Sliding
Speaker.
- Please Do Not use excessive force during
operation of internal sliding Speaker as it may
cause it to malfunction.
- Make sure Speaker is in OPEN position when
viewing TV as sound will be abnormal or
distorted.
3 When transporting the TV, make sure that the Sliding
Speaker is closed. If the Sliding Speaker is open
when being transported, it may become damaged,
resulting in malfunction.
- To close the Sliding Speaker, go to Sound ➡
Sound Out ➡ Sliding speaker, select 'Opens
when TV is turned on' and press the
(POWER) button.
y Do not store objects below the TV.
- This may cause a problem in the operating part
of the speaker.
ENGLISH
ENG
Cover
older
ASSEMBLING AND PREPARING
36
ASSEMBLING AND PREPARING
ENGLISH
ENG
Using Built-in Camera
Preparing Built-in Camera
(Only UB98**, UC9*)
(This feature is not available for all models.)
You can make a Skype video call or use the motion
recognition function using the built-in camera of the
TV. This TV does not support the use of an external
camera.
1 Pull up the slide at the back of the TV.
Angle Adjustment Lever
NOTE
yy Before using the built-in camera, you must
recognize the fact that you are legally responsible
for the use or misuse of the camera by the
relevant national laws including the criminal law.
yy The relevant laws include the Personal
Information Protection law which regulates
the processing and transferring of personal
information and the law which regulates the
monitoring by camera in a workplace and other
places.
yy When using the built-in camera, avoid
questionable, illegal, or immoral situations. Other
than at public places or events, consent to be
photographed may be required. We suggest
avoiding the following situations :
(1) Using the camera in areas where the use of
camera is generally prohibited such as restroom,
locker room, fitting room and security area.
(2) Using the camera while causing the
infringement of privacy.
(3) Using the camera while causing the violation
of the relevant regulations or laws.
Slide
NOTE
yy Remove the protective film before using the builtin camera.
2 You can adjust the angle of the camera with the
angle adjustment lever on the back of the built-in
camera.
<Side View>
(Only 65/79/84UB98**)
Lever
7°
7°
5°
5°
5°
5°
7°
7°
Lens
(Only 98UB98**, UC9*)
Lever
Lens
3°
3°
5°
5°
5°
5°
3°
3°
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS mainly uses
diagrams for the UB85** models.
Connect various external devices to the TV and switch
input modes to select an external device. For more
information on external device’s connection, refer to the
manual provided with each device.
Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC,
gaming devices, and other external devices.
NOTE
Name of Parts of Built-in Camera
Protective Film
Camera Lens
Microphone
Microphone
Checking the Camera’s Shooting Range
1 Press the
(Home) button to access the Home
menu.
2 Select
Camera and then press the Wheel(OK)
button.
BACK
HOME
P
NOTE
MY APPS
yy The optimal distance from the camera to use the
motion recognition function is between 1.5 m and
4.5 m.
yy The external device connection may differ from
the model.
yy Connect external devices to the TV regardless of
the order of the TV port.
yy If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information of recording, refer to the
manual provided with the connected device.
yy Refer to the external equipment’s manual for
operating instructions.
yy If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
yy In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture is
clear.
yy In PC mode, some resolution settings may not
work properly depending on the graphics card.
yy If Ultra HD content is played via PC, the video
or audio may have disruptions intermittently
depending on your PC’s performance.
ENGLISH
ENG
3 Push down the built-in camera when you are not
using it.
37
38
MAKING CONNECTIONS
ENGLISH
ENG
Satellite dish Connection
Antenna Connection
(Only satellite models)
IN
IN
(*Not Provided)
13 / 18 V
700mA Max LNB IN
Satellite
ANTENNA / CABLE
(*Not Provided)
Wall Antenna Socket
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
NOTE
yy Use a signal splitter to use more than 2 TVs.
yy If the image quality is poor, install a signal
amplifier properly to improve the image quality.
yy If the image quality is poor with an antenna
connected, try to realign the antenna in the
correct direction.
yy An antenna cable and converter are not supplied.
yy Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus, HE-AAC
yy This TV cannot receive UHD (3840 x 2160 pixels)
broadcasts directly because the related standards
have not been confirmed. (Depending on model)
Satellite Dish
Connect the TV to a satellite dish to a satellite socket
with a satellite RF cable (75 Ω).
39
MAKING CONNECTIONS
4 (MHL)
(4K@60Hz) / DVI IN
3 (10Bit)
2 (ARC)
1 (HDCP 2.2)
DVD / Blu-Ray / HD Cable Box
/ HD STB / PC
1) HDMI specifications may be different for each input
port, so make sure to check the device specifications
before connecting.
2) The HDMI IN 3 port is especially suitable for the
specifications to enjoy UHD Video (4:4:4, 4:2:2) of
4K @ 50/60 Hz. However, video or audio may not
be supported depending on the specifications of
the external equipment. In that case, use any other
HDMI IN port.
3) Contact customer service for more information on
the HDMI specifications of each input port.
4K @ 50/60 Hz Support Format
Resolution
Frame
rate (Hz)
Colour Depth /
Chroma Sampling
8 bit
YCbCr
4:2:0
3840 x 2160p
4096 x 2160p
50.00
59.94
60.00
10 bit
12 bit
YCbCr 4:2:0 1
YCbCr 4:2:2 1
YCbCr
4:4:4 1
-
-
RGB
4:4:4 1
-
-
1: Only Supported at HDMI IN 3 Port
(*Not Provided - Depending on model)
HDMI
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.
NOTE
yy It is recommended to use the TV with the HDMI
connection for the best image quality.
yy Use the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
yy High Speed HDMI™ Cables are tested to carry
an HD signal up to 1080p and higher.
yy Supported HDMI Audio format : Dolby
Digital(32Khz, 44.1Khz, 48Khz), DTS(44.1Khz,
48Khz), PCM(32Khz, 44.1Khz, 48Khz, 96Khz,
192Khz)
yy When you use HDMI port 3, it is recommended
that you use the cable provided. If you want to
use a regular HDMI cable, use one that is a highspeed HDMI cable (3m or less). (Depending on
model)
ARC (Audio Return Channel)
yy An external audio device that supports SIMPLINK
and ARC must be connected using HDMI(4K @
60 Hz)/DVI IN 2 (ARC) port.
yy When connected with a high-speed HDMI cable,
the external audio device that supports ARC
outputs optical SPDIF without additional optical
audio cable and supports the SIMPLINK function.
ENGLISH
ENG
HDMI Connection
40
MAKING CONNECTIONS
AV2
IN
AV2
VIDEO
COMPONENT
AUDIO
PR
Y
AV2
YELLOW
(Use the composite
gender cable provided.)
GREEN
(Use the component
gender cable provided.)
BLUE
RED
BLUE
GREEN GREEN
BLUE
RED
GREEN
NOTE
RED
WHITE
DVD / Blu-Ray / HD Cable Box / PC / HD STB
yy Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
yy When using the DVI/HDMI cable, single link is
supported.
RED
(*Not Provided)
L
Transmits the digital video signal from an external
device to the TV. Connect the external device and the
TV with the DVI-HDMI cable as shown. To transmit an
audio signal, connect an audio cable.
RED
WHITE
DVI OUT
RED
WHITE
(*Not Provided)
YELLOW
(*Not Provided)
AUDIO OUT
PB
2 (ARC)
IN
(4K@60Hz) / DVI IN
3 (10Bit)
4 (MHL)
Component Connection
1 (HDCP 2.2)
ENGLISH
ENG
DVI to HDMI Connection
R
AUDIO
VIDEO
DVD / Blu-Ray
/ HD Cable Box
Transmits analogue video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable(or component
gender cable) as shown.
NOTE
yy If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
MHL Connection
COMPONENT
AUDIO
PR
PB
Y
11(HDCP 2.2)
2(ARC)
2
VIDEO
IN
3(10Bit)
AV2
(4K@60Hz)
/ DVI/ DVI
IN IN
4 (MHL)
Composite Connection
41
ENGLISH
ENG
ponent
provided.)
MAKING CONNECTIONS
AV2
YELLOW
(Use the composite gender
cable provided.)
MHL passive cable
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
(*Not Provided)
RED
WHITE
YELLOW
VIDEO
L (MONO) AUDIO R
VCR / DVD / Blu-Ray
/ HD Cable Box
Transmits analogue video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable(or composite
gender cable) as shown.
Mobile phone
Mobile High-definition Link (MHL) is an interface for
transmitting digital audiovisual signals from mobile
phones to television sets.
NOTE
yy Connect the mobile phone to the HDMI(4K @ 60
Hz)/DVI IN 4(MHL) port to view the phone screen
on the TV.
yy The MHL passive cable is needed to connect the
TV and a mobile phone.
yy This only works for the MHL-enabled phone.
yy Some applications can be operated by the remote
control.
yy For some mobile phones supporting MHL, you
can control with the magic remote control.
yy Remove the MHL passive cable from the TV when:
»» the MHL function is disabled
»» your mobile device is fully charged in standby mode
42
MAKING CONNECTIONS
ENGLISH
ENG
Audio Connection
Headphone Connection
OUT
OPTICAL
DIGITAL
AUDIO
OUT
Ext.SPEAKER
/ H/P
(*Not Provided)
(*Not Provided)
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
NOTE
Digital Audio System
OPTICAL AUDIO IN
You may use an external audio system instead of the
built-in speaker.
Digital optical audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with
the optical audio cable as shown.
NOTE
yy Do not look into the optical output port. Looking at
the laser beam may damage your vision.
yy Audio with ACP (Audio Copy Protection) function
may block digital audio output.
yy AUDIO menu items are disabled when connecting
a headphone.
yy OPTICAL DIGITAL AUDIO OUT is not available
when connecting a headphone.
yy Headphone impedance: 16
yy Max audio output of headphone :
0.627 mW to 1.334 mW
yy Headphone jack size: 0.35 cm
MAKING CONNECTIONS
HDD IN
1(USB 3.0 IN)
2
USB IN
3
▼ PCMCIA CARD SLOT ▼
CI module Connection
ENGLISH
ENG
USB Connection
43
(*Not Provided)
HUB
(*Not Provided)
USB
(*Not Provided)
Connect a USB storage device such as a USB flash
memory, external hard drive or a USB memory card
reader to the TV and access the SmartShare menu to
use various multimedia files.
▼ PCMCIA CARD SLOT ▼
HDD
(*Not Provided)
NOTE
yy Some USB Hubs may not work. If a USB device
connected using a USB Hub is not detected,
connect it to the USB IN port on the TV directly.
yy Connect the external power source if your USB is
needed.
yy Connecting via USB 3.0 :
Some USB device may not work if it does not
meet USB 3.0 standard. In case, connect it to
USB IN 2 or USB IN 3 port.
View the encrypted (pay) services in digital TV mode.
This feature is not available in all countries.
NOTE
yy Check if the CI module is inserted into the
PCMCIA CARD SLOT in the right direction. If the
module is not inserted properly, this can cause
damage to the TV and the PCMCIA CARD SLOT.
yy If the TV does not display any video and audio
when CI+ CAM is connected, please contact to
the Antenna/Cable/Satellite Service Operator.
44
MAKING CONNECTIONS
ENGLISH
ENG
Euro Scart Connection
IN / OUT
(RGB)
AV1
(Use the Scart gender
cable provided
- Depending on model)
(*Not Provided)
Transmits the video and audio signals from an external
device to the TV set. Connect the external device and
the TV set with the euro scart cable (or Scart gender
cable) as shown.
Output
Type
Current
input mode
Digital TV
AV1
(TV Out1)
Digital TV
Analogue TV, AV
Component
Analogue TV
HDMI
1 TV Out : Outputs Analogue TV or Digital TV signals.
NOTE
yy Any Euro scart cable used must be signal
shielded.
yy When watching digital TV in 3D imaging mode,
only 2D out signals can be output through the
SCART cable. (Only 3D models)
REMOTE CONTROL
45
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the
and
ends to the label inside the compartment, and close the
battery cover.
To remove the batteries, perform the installation actions in reverse.
or
CAUTION
yy Do not mix old and new batteries, as this may damage the remote control.
yy The remote control will not be included for all sales market.
Make sure to point the remote control toward the remote control sensor on the TV.
(Depending on model)
(POWER) Turns the TV on or off.
INPUT Changes the input source.
Q. MENU Accesses the quick menus.
SETTINGS Accesses the main menus.
INFO
Views the information of the current programme and screen.
(User Guide) Sees User Guide.
1
.,;@
abc
3
def
ghi
5
jkl
6
mno
7
pqrs
8
tuv
9
wxyz
GUIDE
0
[
4
2
GUIDE Shows programme guide.
(Space) Opens an empty space on the screen keyboard.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
Uses for viewing 3D video. (Depending on model)
MUTE
Mutes all sounds.
+
- Adjusts the volume level.
ꕌPꕍ Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
Q.VIEW
FAV
P
MUTE
OK
P
A
G
E
RECENT Shows the previous history.
SMART Accesses the Home menus.
MY APPS Shows the list of Apps.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
LIVE MENU Shows the list of Recommended, Programmes, Search and Recorded.
EXIT Clears all on-screen display and returns to TV viewing.
1
(
1
2
U TIT E
TEXT
T.OPT
Time Machine
AD
Coloured buttons These access special functions in some menus.
: Red,
: Green,
: Yellow,
: Blue)
2 TELETEXT BUTTONS These buttons are used for teletext.
APP/ Selects the MHP TV menu source. (Only Italy) (Depending on model)
LIVE TV Returns to LIVE TV.
Control buttons (
) Controls the Premium contents, Time MachineReady
or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or
Time MachineReady).
REC/ Starts to record and displays record menu. (only Time MachineReady support
model)
SUBTITLE Recalls your preferred subtitle in digital mode.
AD By pressing the AD button, audio descriptions function will be enabled.
TV/RAD Selects Radio, TV and DTV programme.
ENGLISH
ENG
REMOTE CONTROL
46
REMOTE CONTROL
(Depending on model)
ENGLISH
ENG
TV /
RAD
Q.MENU
2
5
8
3
6
9
0
Q.VIEW
[
1
4
7
FAV
MUTE
1
RECENT
MENU
TEXT
T.OPT
EXIT
T
M
AD
2
REC/
AD/PIP
(POWER) Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
INPUT Changes the input source.
SETTINGS Accesses the main menus.
Q. MENU Accesses the quick menus.
INFO
Views the information of the current programme and screen.
SUBTITLE Recalls your preferred subtitle in digital mode.
GUIDE Shows programme guide.
(Space) Opens an empty space on the screen keyboard.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
Uses for viewing 3D video. (Depending on model)
MUTE
Mutes all sounds.
+
- Adjusts the volume level.
ꕌPꕍ Scrolls through the saved programmes.
ꕌPAGEꕍ Moves to the previous or next screen.
RECENT Shows the previous history.
SMART Accesses the Home menus.
LIVE MENU Shows the list of Recommended, Programmes, Search and Recorded.
1 TELETEXT BUTTONS These buttons are used for teletext.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
EXIT Clears all on-screen display and returns to TV viewing.
AD By pressing the AD button, audio descriptions function will be enabled.
REC/ Starts to record and displays record menu. (only Time MachineReady support
model)
Control buttons (
) Controls the Premium contents, Time MachineReady
or SmartShare menus or the SIMPLINK compatible devices (USB or SIMPLINK or
Time MachineReady).
2 Coloured buttons These access special functions in some menus.
(
: Red,
: Green,
: Yellow,
: Blue)
MAGIC REMOTE FUNCTIONS
47
When the message “Magic Remote battery is low. Change the battery.” is displayed, replace
the battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
and
ends to the label inside the compartment, and close the battery cover. Be sure to point the
remote control toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
CAUTION
yy Do not mix old and new batteries, as this may damage the remote control.
(Only UB85**, UB93**, UB95**, UB98**, UC97**, UC9*, UG88**)
(POWER)
Turns the TV on or off.
Navigation buttons (up/down/left/right)
Press the up, down, left or right button to scroll the menu. If you press
buttons while the pointer
is in use, the pointer will disappear
from the screen and Magic Remote
will operate like a general remote
control. To display the pointer on the
screen again, shake Magic Remote to
the left and right.
BACK
(Home)
Accesses the Home menu.
(EXIT to LIVE)
Switches among broadcast (antenna) and
various inputs.
Voice recognition
P
Scrolls through the saved programmes.
HOME
Wheel(OK)
Press the center of the Wheel button
to select a menu. You can change
programmes by
using the Wheel button.
P
MY APPS
Coloured buttons
These access special functions in
some menus.
(
(BACK)
Returns to the previous level.
: Red,
: Yellow,
: Green,
: Blue)
Displays the Screen Remote.
* Accesses the Universal Control Menu.
(Depending on model)
* Pressing and holding the
button will
display a menu to select an external device
that is connected to the TV.
Used for viewing 3D video.
(Depending on model)
*Pressing and holding the
button will display
a menu to resize an image. (Only UC9*)
Adjusts the volume level.
(MUTE)
Mutes all sounds.
* By Pressing and holding the
button,
audio descriptions function will be enabled.
ENGLISH
ENG
MAGIC REMOTE FUNCTIONS
48
MAGIC REMOTE FUNCTIONS
ENGLISH
ENG
Voice recognition
Network connection is required to use the voice
recognition function.
1. Press the Voice recognition button.
2. Speak when the voice display window appears
on the left of the TV screen.
• The voice recognition may fail when you
speak too fast or too slow.
• Use the Magic remote control no further than
10 cm from your face.
• The recognition rate may vary depending on
the user’s characteristics (voice, pronunciation, intonation and speed) and the environment (noise and TV volume).
Registering Magic Remote
BACK
How
HOME
to register
the Magic Remote
(Wheel)
To use the Magic Remote, first pair it
with your TV.
1 Put batteries into the Magic Remote
and turn the TV on.
2 Point the Magic Remote at your TV
and press the Wheel (OK) on the
remote control.
* If the TV fails to register the Magic
Remote, try again after turning the
TV off and back on.
BACK
P
HOME
P
MY APPS
MY APPS
How to de-register the Magic Remote
(BACK)
(Home)
Press the
(BACK) and
(Home)
buttons at the same time, for five
seconds, to unpair the Magic Remote
with your TV.
* Pressing and holding the
(EXIT
to LIVE) button will let you cancle
and re-register Magic Remote at
once.
How to use Magic Remote
yy Shake the Magic Remote slightly
to the right and left or press
(Home),
,
buttons to
make the pointer appear on the
screen.
(In some TV models, The pointer
will appear when you turn the
Wheel button.)
yy If the pointer has not been used
for a certain period of time or
Magic Remote is placed on a
flat surface, then the pointer will
disappear.
yy If the pointer is not responding
smoothly, you can reset the
pointer by moving it to the edge
of the screen.
yy The Magic Remote depletes
batteries faster than a normal
remote due to the additional
features.
MAGIC REMOTE FUNCTIONS
yy Use the Magic Remote within the maximum
communication distance (10 m). Using the Magic
Remote beyond this distance, or with an object
obstructing it, may cause a communication failure.
yy A communication failure may occur due to nearby
devices. Electrical devices such as a microwave
oven or wireless LAN product may cause
interference, as these use the same bandwidth (2.4
GHz) as the Magic Remote.
yy The Magic Remote may be damaged or may
malfunction if it is dropped or receives a heavy
impact.
yy Take care not to bump into nearby furniture or other
people when using the Magic Remote.
yy Manufacturer and installer cannot provide service
related to human safety as the applicable wireless
device has possibility of electric wave interference.
yy It is recommended that an Access Point (AP) be
located more than 1 m away from the TV. If the
AP is installed closer than 1 m, the Magic Remote
may not perform as expected due to frequency
interference.
ENGLISH
ENG
Precautions to Take when Using
the Magic Remote
49
50
USING THE USER GUIDE / MAINTENANCE
ENGLISH
ENG
USING THE USER GUIDE
User Guide allows you to more easily access the
detailed TV information.
1 Press the
(Home) button to access the Home
menu.
2 Select User Guide and press Wheel(OK).
BACK
HOME
P
MY APPS

NOTE
yy You can also access the User Guide by
pressing
(User Guide) in the remote control.
(Depending on model)
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance
and to extend the product lifespan.
CAUTION
yy Make sure to turn the power off and disconnect
the power cord and all other cables first.
yy When the TV is left unattended and unused for a
long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning
or power surges.
Screen, frame, cabinet and stand
yy To remove dust or light dirt, wipe the surface with a
dry, clean, and soft cloth.
yy To remove major dirt, wipe the surface with a soft
cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
CAUTION
yy Avoid touching the screen at all times, as this may
result in damage to the screen.
yy Do not push, rub, or hit the screen surface with
your fingernail or a sharp object, as this may
result in scratches and image distortions.
yy Do not use any chemicals as this may damage
the product.
yy Do not spray liquid onto the surface. If water
enters the TV, it may result in fire, electric shock,
or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord
regularly.
SPECIFICATIONS
51
Problem
Solution
Cannot control the TV with
the remote control.
yy Check the remote control sensor on the product and try again.
yy Check if there is any obstacle between the product and the remote control.
yy Check if the batteries are still working and properly installed
(
to
,
to
).
No image display and no
sound is produced.
yy Check if the product is turned on.
yy Check if the power cord is connected to a wall outlet.
yy Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.
yy Check the power control settings. The power supply may be interrupted.
yy Check if the Automatic Standby (Depending on model) / Sleep Timer / Timer
Power Off feature is activated in the Timers settings.
yy If there is no signal while the TV is on, the TV will turn off automatically after 15
minutes of inactivity.
When connecting to the
PC (HDMI/DVI), ‘No
signal’ or ‘Invalid Format’ is
displayed.
yy Turn the TV off/on using the remote control.
yy Reconnect the HDMI cable.
yy Restart the PC with the TV on.
SPECIFICATIONS
(Only UB85**, UB93**, UB95**, UC97**, UG88**)
Wireless module (LGSBW41) specification
Wireless LAN
Bluetooth
Standard
IEEE 802.11a/b/g/n
Standard
Bluetooth Version 3.0
(Only UB85**, UB93**,
UB95**, UC97**)
Bluetooth Version 4.0
(Only UG88**)
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Frequency Range
2400 to 2483.5 MHz
Output Power
(Max.)
802.11a: 13 dBm
802.11b: 15 dBm
802.11g: 14 dBm
802.11n - 2.4GHz: 16 dBm
802.11n - 5GHz: 16 dBm
Output Power
(Max.)
10 dBm or lower
yy Because band channel used by the country could be different, the user can not change or adjust the
operating frequency and this product is set for the regional frequency table.
yy This device should be installed and operated with minimum distance 20 cm between the device and your
body. And this phrase is for the general statement for consideration of user environment.
0197
0197
ENGLISH
ENG
TROUBLESHOOTING
52
SPECIFICATIONS
(Only UB98**, UC9*)
ENGLISH
ENG
Wireless LAN module (LGSWF41) specification
Standard
IEEE 802.11a/b/g/n/ac
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Frequency Range
802.11a: 14.5 dBm
802.11b: 16 dBm
802.11g: 13.5 dBm
802.11n - 2.4GHz: 14 dBm
802.11n - 5GHz: 15.5 dBm
802.11ac - 5GHz : 16 dBm
Output Power
(Max.)
yy Because band channel used by the country could be different, the user can not change or adjust the
operating frequency and this product is set for the regional frequency table.
yy This device should be installed and operated with minimum distance 20 cm between the device and your
body. And this phrase is for the general statement for consideration of user environment.
0197
Bluetooth module (BM-LDS401) specification
Standard
Bluetooth Version 3.0
Frequency Range
2400 to 2483.5 MHz
0197
Output Power (Max.)
10 dBm or lower
SPECIFICATIONS
53
Product specifications may be changed without prior notice due to upgrade of product functions.
49UB850V-ZD
49UB850V-ZA
49UB856V-ZD
With stand (mm)
1093 x 689 x 242
1093 x 681 x 237
Without stand (mm)
1093 x 646 x 38.2
1093 x 646 x 38.2
With stand (kg)
18.2
18.5
Without stand (kg)
17.5
17.5
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
180W
180W
Dimensions
(W x H x D)
Weight
55UB85**
MODELS
Dimensions
(W x H x D)
55UB850V-ZD
55UB850V-ZA
55UB856V-ZD
With stand (mm)
1233 x 766 x 260
1233 x 760 x 242
Without stand (mm)
1233 x 727 x 37.8
1233 x 727 x 37.8
With stand (kg)
21.2
21.6
Without stand (kg)
20.5
20.5
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
190W
190W
Weight
60UB85**
MODELS
Dimensions
(W x H x D)
60UB850V-ZA
60UB850V-ZD
60UB856V-ZD
With stand (mm)
1341 x 834 x 270
1341 x 827 x 268
Without stand (mm)
1341 x 788 x 39.1
1341 x 788 x 39.1
With stand (kg)
26.7
27.1
Without stand (kg)
25.8
25.8
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
200W
200W
Weight
MODELS
Dimensions
(W x H x D)
Weight
65UB93**
65UB930V-ZA
With stand (mm)
1452 x 914 x 300
Without stand (mm)
1452 x 858 x 37
With stand (kg)
34.8
Without stand (kg)
33.7
Power requirement
AC 100-240 V ~ 50/60 Hz
Power consumption
230W
ENGLISH
ENG
49UB85**
MODELS
54
SPECIFICATIONS
ENGLISH
ENG
MODELS
Dimensions
(W x H x D)
55UB95**
55UB950V-ZA
55UB950V-ZB
With stand (mm)
1232 x 782 x 260
1232 x 780 x 242
Without stand (mm)
1232 x 734 x 37
1232 x 734 x 37
With stand (kg)
23.8
24.2
Without stand (kg)
23.1
23.1
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
210W
210W
Weight
MODELS
Dimensions
(W x H x D)
65UB95**
65UB950V-ZA
65UB950V-ZB
With stand (mm)
1452 x 914 x 300
1452 x 900 x 302
Without stand (mm)
1452 x 858 x 37
1452 x 858 x 37
With stand (kg)
34.8
35.3
Without stand (kg)
33.7
33.7
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
230W
230W
65UB98**
79UB98**
Weight
MODELS
Dimensions
(W x H x D)
Weight
65UB980V-ZA
79UB980V-ZA
With stand (mm)
1560 x 884 x 264
1874 x 1075 x 330.6
Without stand (mm)
1560 x 849 x 75
1874 x 1030 x 86.8
With stand (kg)
39.9
60.6
Without stand (kg)
37.6
57.1
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power requirement
Power consumption
MODELS
250W
290W
84UB98**
98UB98**
84UB980V-ZA
98UB980V-ZB
With stand (mm)
2024 x 1172 x 342
2303 x 1603 x 466.2
Without stand (mm)
2024 x 1122 x 85.8
2212 x 1270 x 114.3
With stand (kg)
77.7
102.2
Without stand (kg)
73.7
97.2
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
520W
610W
Dimensions
(W x H x D)
Weight
SPECIFICATIONS
With stand (mm)
Dimensions
(W x H x D)
Without stand (mm)
65UC97**
55UC970V-ZA
65UC970V-ZA
1238.7 x 757.5 x 289.0
1456.9 x 888.0 x 316.4
1238.7 x 730 x 72.1
1456.9 x 853.2 x 71.5
With stand (kg)
27.7
34.6
Without stand (kg)
26.2
32.9
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
240W
260W
105UC9*
79UG88**
Weight
MODELS
Dimensions
(W x H x D)
Weight
With stand (mm)
105UC9V-ZA
79UG880V-ZA
2494 x 1512 x 486
1769 x 1063 x 344
-
1769 x 1032 x 76
155
62.9
Without stand (mm)
With stand (kg)
Without stand (kg)
-
55.3
Power requirement
AC 100-240 V ~ 50/60 Hz
AC 100-240 V ~ 50/60 Hz
Power consumption
770W
360W
CI Module Size
(W x H x D)
100.0 mm x 55.0 mm x 5.0 mm
Operating Temperature
Environment
condition
0 °C to 40 °C
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C to 60 °C
Storage Humidity
Less than 85 %
Digital TV
Analogue TV
Television system
DVB-T/T2
DVB-C
DVB-S/S2
PAL/SECAM B/G/I/D/K
SECAM L/L’
Programme coverage
VHF, UHF
C-Band, Ku-Band
VHF: E2 to E12, UHF : E21
to E69, CATV: S1 to S20,
HYPER: S21 to S47
Maximum number of storable programmes
DVB-S/S2 : 6,000
DVB-T/T2/C & Analogue TV : 1,500
External antenna impedance
75 Ω
ENGLISH
ENG
55UC97**
MODELS
55
Please contact LG First.
If you have any inquiries or comments,
please contact LG customer information centre.
Customer Information Centre
Country
Record the model number and serial number
of the TV.
Refer to the label on the back cover and
quote this information to your dealer when
requiring any service.
Country
Service
0900 543 5454
015 200 255
800 187 40
0032 15 200255
801 54 54 54
07001 54 54
808 78 54 54
810 555 810
031 228 3542
8088 5758
0850 111 154
0800 0 54 54
3220
963 05 05 00
54
01806 11 54 11
(0,20€ pro Anruf aus
dem Festnetz der DTAG;
Mobilfunk: max. 0,60€
pro Anruf)
MODEL
SERIAL
Latvija
Service
0 810 144 131
0770 54 54 54
0848 543 543
801 11 200 900,
210 4800 564
0344 847 5454
06 40 54 54 54
800 9990
01 686 9454
0 800 303 000
199600099
8 820 0071 1111
8 8000 805 805,
2255(GSM)
80200201
8 800 120 2222
880008081
8 0000 710 005
8 800 200 7676
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
KEY CODES
ENGLISH
ENG
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function
Note
Code
(Hexa)
Function
Note
00
CH +, PR +
R/C Button
53
List
R/C Button
01
CH -, PR -
R/C Button
5B
Exit
R/C Button
02
Volume +
R/C Button
60
PIP(AD)
R/C Button
03
Volume -
R/C Button
61
Blue
R/C Button
06
> (Arrow Key / Right Key)
R/C Button
63
Yellow
R/C Button
07
< (Arrow Key / Left Key)
R/C Button
71
Green
R/C Button
08
Power
R/C Button
72
Red
R/C Button
09
Mute
R/C Button
79
Ratio / Aspect Ratio
R/C Button
0B
Input
R/C Button
91
AD (Audio Description)
R/C Button
0E
SLEEP
R/C Button
7A
User Guide
R/C Button
0F
TV, TV/RAD
R/C Button
7C
Smart / Home
R/C Button
R/C Button
7E
SIMPLINK
R/C Button
10 - 19 * Number Key 0 - 9
1A
Q.View / Flashback
R/C Button
8E
►► (Forward)
R/C Button
1E
FAV (Favorite Channel)
R/C Button
8F
◄◄ (Rewind)
R/C Button
20
Text (Teletext)
R/C Button
AA
Info
R/C Button
21
T. Opt (Teletext Option)
R/C Button
AB
Program Guide
R/C Button
28
Return (BACK)
R/C Button
B0
► (Play)
R/C Button
30
AV (Audio / Video) Mode
R/C Button
B1
ꕗ (Stop / File List)
R/C Button
39
Caption/Subtitle
R/C Button
BA
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
40
Λ (Arrow Key / Cursor Up)
R/C Button
BB
Soccer
R/C Button
41
V (Arrow Key / Cursor
Down)
R/C Button
BD
ꔄ (REC)
R/C Button
42
My Apps
R/C Button
DC
3D
R/C Button
43
Menu / Settings
R/C Button
99
AutoConfig
R/C Button
44
OK / Enter
R/C Button
9F
App / *
R/C Button
45
Q.Menu
R/C Button
4C
List, - (ATSC Only)
R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
EXTERNAL CONTROL DEVICE SETUP
3
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB IN
USB Type
(PC)
(TV)
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product
ID :IN0x2008) USB to serial converter
RS-232C
(CONTROL & SERVICE)
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
(TV)
(PC)
USB IN
RS-232C With RS232C Cable
(PC)
(TV)
SERVICE ONLY
DE9 (D-Sub 9pin) Type
1
• You need to purchase the RS-232C (DE9, D-Sub
3 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
(PC)
2
RS-232C IN
(CONTROL & SERVICE)
(PC)
SERVICE ONLY
1
3
RS-232C IN
(CONTROL & SERVICE)
2
(PC)
(TV)
1
3
(PC)
The connection interface may differ from your TV.
(TV)
2
(TV)
(TV)
1
3
(PC)
RS-232C IN
2
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
(TV)
ENGLISH
ENG
EXTERNAL CONTROL DEVICE SETUP
USB USB
IN IN
4
EXTERNAL CONTROL DEVICE SETUP
(PC)
(PC)
(TV)
(TV)
RS-232C IN
(CONTROL
SERVICE)
• You need to purchase the phone-jack to RS-232 cable required
for &the
connection between the PC and
the TV, which is specified in the manual.
RS-232C IN
(PC)
(PC)
(CONTROL & SERVICE)
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
1
3
(PC)
(PC)
1
3
2
2
- or
(TV)
(TV)
(TV)
(TV)
1
3
(PC)
(PC)
SERVICE
ONLY ONLY
SERVICE
ENGLISH
ENG
Phone jack Type
1
3
RS-232C IN
(CONTROL & SERVICE)
2
RS-232C IN
(CONTROL & SERVICE)
2
Customer Computer
(TV)
(TV)
RS-232C configurations
3-Wire Configurations(Not standard)
1
5
PC
RXD
RS-232C IN
(CONTROL & SERVICE)
TXD
RS-232C IN
(CONTROL & SERVICE)
GND
6
2
2
TXD
3
1
RXD
5
3
GND
OR
9
RS-232C
(Serial port)
TV
RXD
3
2
TXD
TXD
2
1
RXD
GND
5
3
GND
D-Sub 9
Phone
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)
EXTERNAL CONTROL DEVICE SETUP
5
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
ENGLISH
ENG
Communication Parameters
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power*
k
a
00 to 01
02. Aspect
Ratio
k
c
(p.7)
03. Screen
Mute
k
d
(p.7)
k
e
00 to 01
k
f
00 to 64
06. Contrast
k
g
00 to 64
07.
Brightness
k
h
00 to 64
08. Color/
Colour
k
i
00 to 64
04. Volume
Mute
05. Volume
Control
09. Tint
k
10.
k
Sharpness
11. OSD
k
Select
12. Remote
Control Lock k
Mode
j
00 to 64
k
00 to 32
l
00 to 01
m
00 to 01
13. Treble
k
r
00 to 64
14. Bass
k
s
00 to 64
COMMAND1 COMMAND2
DATA
(Hexadecimal)
15. Balance k
16. Color
(Colour)
x
Temperature
17. ISM
Method (Only j
Plasma TV)
t
00 to 64
u
00 to 64
p
(p.8)
18. Equalizer j
v
(p.8)
q
00 to 05
a
(p.9)
b
00 to 01
19. Energy
j
Saving
20. Tune
m
Command
21. Channel m
(Programme)
Add/Del(Skip)
22. Key
m
c
Key Codes
23. Control
Backlight,
Control Panel
Light
24. Input
select (Main)
25. 3D (Only
3D models)
26. Extended
3D (Only 3D
models)
27. Auto
Configure
m
g
00 to 64
x
b
(p.11)
x
t
(p.11)
x
v
(p.11)
j
u
(p.12)
* Note:During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
6
EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID]
:You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ]
: Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0
01 : Step 1 (Set ID 1)
...
0A : Step 10 (Set ID 10)
...
0F : Step 15 (Set ID 15)
10 : Step 16 (Set ID 16)
...
32 : Step 50 (Set ID 50)
33 : Step 51 (Set ID 51)
...
63 : Step 99 (Set ID 99)
...
C7 : Step 199
C8 : Step 200
...
FE : Step 254
FF : Step 255
...
01 00 : Step 256
...
27 0E : Step 9998
27 0F : Step 9999
...
EXTERNAL CONTROL DEVICE SETUP
7
01.Power (Command: k a)
►► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
►► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02.Aspect Ratio (Command: k c)
(Main Picture Size)
►► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen 07 : 14:9
(4:3)
(Europe, Colombia, Mid-East,
02 : Wide screen
Asia except South Korea and
(16:9)
Japan)
04 : Zoom
09 : * Just Scan
05 : Zoom 2
0B : Full Wide
(Latin America
(Europe, Colombia, Midexcept Colombia
East, Asia except South
Only)
Korea and Japan)
06 : Set by Program/ 10 to 1F : C
inema Zoom 1
Original
to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04.Volume Mute (Command: k e)
►► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05.Volume Control (Command: k f)
►► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06.Contrast (Command: k g)
►► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
07.Brightness (Command: k h)
►► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
03.Screen Mute (Command: k d)
►► To select screen mute on/off.
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
08.Color/Colour (Command: k i)
►► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
ENGLISH
ENG
* Commands may work differently depending on model and signal.
8
EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
Data Min : 00 to Max : 64
* (Depending on model)
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09.Tint (Command: k j)
►► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10.Sharpness (Command: k k)
►► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
14. Bass (Command: k s)
►► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15.Balance (Command: k t)
►► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
16.Color(Colour) Temperature (Command: x u)
11.OSD Select (Command: k l)
►► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off
►► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
17.ISM Method (Command: j p) (Only Plasma TV)
12.Remote control lock mode (Command: k m)
►► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off
01 : Lock on
►► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
18.Equalizer (Command : j v)
►► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
MSB
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
0
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
0
0
0
0
Frequency
13. Treble (Command: k r)
►► To adjust treble.
You can also adjust in the AUDIO menu.
LSB
0
0
0
Data
7
6
5
Frequency
4
3
2
1
0
Step
0
0
0
1st Band
0
0
0
0
0
0(decimal)
0
0
1
2nd Band
0
0
0
0
1
1(decimal)
0
1
0
3rd Band
...
...
...
...
...
...
0
1
1
4th Band
0
0
0
1
1
19(decimal)
EXTERNAL CONTROL DEVICE SETUP
0
0
5th Band
0
0
1
0
1
20(decimal)
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
19.Energy Saving (Command: j q)
►► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2.Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3.Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
►► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
20.Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
►► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Analog Antenna/Cable
[Data 00][Data 01] Channel Data
Data00 : High byte channel data
Data01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data00 : High Channel data
Data01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1.Tune to the Analog antenna (PAL) Channel 10.
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analog Antenna/Cable
Data00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data01 & 02: xx (Don't care)
Data03 & 04: xx (Don't care)
Data05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
* Digital Antenna/Cable
Data00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data01 : High byte Channel Data
Data02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data03 : High byte Channel Data
Data04 : Low byte Channel Data
Data05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
ENGLISH
ENG
1
9
10 EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1.Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2.Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
►► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
2.Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
21.Channel(Programme) Add/Del(Skip)
(Command: m b)
►► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB)
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22.Key (Command: m c)
►► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
DataKey code - p.2.
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
23.Control Backlight (Command: m g)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1 Tune to the digital antenna (ISDB-T) channel 17-1.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
01 : Add
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
• For LCD TV / LED TV
►► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
►► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
EXTERNAL CONTROL DEVICE SETUP
►► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
01 : CADTV
02 : Satellite DTV
10 : ATV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
O
01
X
X
X
02
X
X
X
03
X
O
O
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
21 : AV2
40 : Component1
60 : RGB
41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
26.Extended 3D(Command: x v) (only 3D models)
(Depending on model)
►► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
25.3D(Command: x t) (only 3D models)
(Depending on model)
►► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
DataStructure
[Data 00]00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01]00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02]00 : Right to Left
01 : Left to Right
[Data 03]3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 02]
O
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
20 : AV or AV1
[Data 01]
O
X : don’t care
[Data 00]
00
[Data 03]
[Data 00]3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01]It has own range for each 3D option
determined by [Data 00].
1) When[Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When[Data 00] is 01, 02
DataMin: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When[Data 00] is 06, 07
00 : Off
01 : On
4) When[Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
05 : Auto
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
ENGLISH
ENG
24.Input select (Command: x b)
(Main Picture Input)
11
12 EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
27.Auto Configure (Command: j u)
(Depending on model)
►► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
Download PDF
