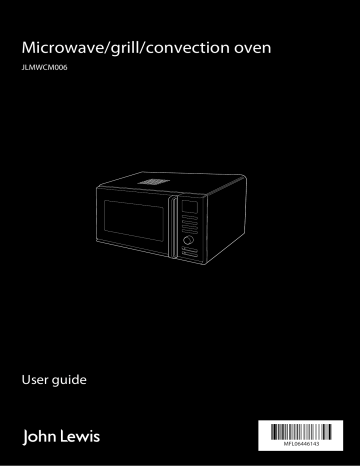

Microwave/grill/convection oven
JLMWCM006
User guide
MFL06446143
2
Microwave/grill/convection oven user guide
Contents
Introduction
5
Safety is important
In the box
5
5
Safety information
6
Important safety information
6
Ecological hints
Environmental information
7
7
Cautions
Mains supply
Plug wiring information
8
10
10
Installation
11
Check the microwave is working correctly
Microwave-safe utensils
11
12
Microwave test
Dinner plates
Glassware
Plastic storage containers
Paper
Plastic cooking bags
Plastic microwave cookware
Pottery, stoneware and ceramic
12
12
12
12
12
12
12
13
Parts Identification
14
Control panel
14
Preparation
15
12 hour clock or 24 hour clock
Child lock
15
15
Setting the child lock
Cancelling the child lock
15
15
Operation
16
Microwave power cooking
16
Quick start
Microwave power level
Microwave cooking
17
17
17
Grill cooking
Grill combination cooking
Speed hot air
17
17
18
Speed hot air preheat
Speed hot air cooking
18
18
Convection combination cooking
Convection preheat
Convection cooking
Keep warm
Auto cook
Microwave/grill/convection user guide
18
Auto cook guide
Auto defrost
Auto defrost guide
Roast
Roast guide
Crispy reheat
Crispy reheat guide
Defrost & bake
Baking guide
21
22
23
23
24
25
25
26
26
Cooking/defrost guides
27
Fresh vegetable guide
Defrosting guide
Defrosting guide
Grill cooking guide
27
29
29
30
Grilling meat
Grilling fish and seafood
30
31
Convection cooking guide
Speed hot air cooking guide
32
34
Food characteristics & microwave cooking
35
Keeping an eye on things
Factors affecting microwave cooking times
Density of food
Height of food
Moisture content of food
Bone and fat content of food
Quantity of food
Shape of food
Covering
Browning
Covering with greaseproof paper
Arranging and spacing
Stirring
Turning over
Placing thicker portions facing outwards
Shielding
Elevating
Piercing
Testing the food to check if it is cooked
Standing time
MAFF reheating cooked chilled foods
35
35
35
35
35
36
36
36
36
36
36
37
37
37
37
37
37
37
38
38
38
19
20
20
21
3
Servicing & cleaning
39
Servicing
Keep the inside of the microwave clean
Keep the outside of the microwave clean
Cleaning the control panel
39
39
39
39
Questions & answers
40
Technical specifications
41
Disposal
Guarantee
42
42
4
Microwave/grill/convection oven user guide
Introduction
Please take time to read these instructions and retain
for future reference.
Note: For the remainder of this user guide, the
microwave/grill/convection oven will be referred to as
the microwave.
Safety is important
To ensure your safety and the safety of others, please
read the Safety information before you install this
microwave.
Keep this information in a safe place for future
reference.
In the box
You will find the following:
• Microwave
• Glass tray
• High rack
• Metal tray
• Rotating ring
• Low rack
• User guide
• Quick reference guide
Note: If any of the items listed are damaged or
missing, please contact your local John Lewis branch.
Microwave/grill/convection user guide
5
Safety information
Important safety instructions - read
carefully before use
Take note of the following safety information that
appears on the back of this microwave.
Warning! To prevent a fire or shock
hazard, do not expose this microwave
to rain or moisture.
Warning! Always remove the mains
plug from the wall socket when not in
use or before any service operation.
Warning! There are no user
serviceable parts on this microwave.
Refer servicing to qualified service
technician.
Important safety information
It is most important that this user guide should be
retained with the microwave for future reference.
Should the microwave be sold or transferred to
another owner, or should you move house and leave
the microwave, always ensure that the guides are
supplied with the microwave in order that the new
owner can get to know the functionality and the
relevant warnings.
These warnings have been provided in the interest
of safety. You MUST read them carefully before
installation or use. If you are unsure of the meanings
of these warnings contact the John Lewis branch from
which you purchased the microwave.
To avoid accidents to property or people it is
important to follow the instructions given. Failure
to do so removes any liability from John Lewis.
Warnings
• Keep all packaging well away from children. There is
a risk of suffocation.
• Never let the power cord be crushed by the
microwave itself or other (heavy) objects. Never
bend the power cord excessively.
• Never hold the power cord or plug with wet hands.
• Never use a damaged power cord or plug, or loose
main socket.
• Never let the power cord touch or pass over
heating appliances.
• Do not attempt to tamper with, or make any
adjustments or repairs to the door, door seals,
control panel, safety interlock switches or any other
part of the microwave which would involve the
removal of any cover protecting against exposure to
microwave energy. Do not operate the microwave if
the door seals and adjacent parts of the microwave
are faulty. Repairs should only be undertaken by a
qualified service technician.
• Unlike other appliances, the microwave is a
high-voltage and a high electrical-current piece of
equipment. Improper use or repair could result in
harmful exposure to excessive microwave energy or
in electric shock.
• Do not use the microwave for the purpose of
dehumidification e.g. using the microwave to dry out
wet newspapers, clothes, toys, electric devices. It
can cause serious personal injury or damage to the
microwave such as a fire, a burn or sudden death
due to an electric shock.
• The microwave is not intended for use by young
children or elderly persons. Only allow older
children to use the microwave without supervision
when adequate instructions have been given. Ensure
the child is able to use the microwave in a safe way
and understands the hazards of improper use.
• Improper use may cause damage such as a fire,
electric shock or burn.
6
Microwave/grill/convection oven user guide
• Accessible parts may become hot during use. Young
children should be kept away.
• The microwave is not intended to be operated by
an external timer or by a separate control.
• Liquids or other foods must not be heated in sealed
containers since they are liable to explode. Remove
the plastic wrapping from food before cooking or
defrosting. However some food should be covered
with plastic film, for heating or cooking.
• Keep ventilation openings in the microwave
enclosure or in the built-in structure, clear of
obstruction.
• Be certain to use the correct accessories for each
cooking mode, refer to page 12.
To save energy and help protect the environment, we
recommend that you follow these hints:
• It is hazardous for anyone other than a qualified
service technician to carry out any service or
repair operation that involves the removal of a
cover which gives protection against exposure to
microwave energy.
• Locate the microwave in a well ventilated room and
make sure that any air openings are not obstructed.
• When the microwave is operated in the
combination mode, children should only use
the microwave adult supervision due to the
temperatures generated.
Environmental information
• This microwave must be earthed. If the supply
cord is damaged, it must be replaced by the
manufacturer, a service agent or a similarly qualified
person in order to avoid potential hazards.
Improper use may cause serious electrical damage.
• Materials marked with the
Ecological hints
• Ensure there are no obstructions preventing the
door from closing properly.
• After installation, please dispose of the packaging
with due regard to safety and the environment.
are recyclable.
• The microwave should not be used for commercial
catering purposes.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the microwave door glass. They
can scratch the surface, which may result in the glass
shattering.
• Using an incorrect plug or switch can cause an
electric shock or a fire.
• The microwave must be used freestanding.
• This microwave is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the microwave by a
person responsible for their safety.
Microwave/grill/convection user guide
7
Cautions
• Do not operate the microwave with the door
open. It is important not to tamper with the safety
interlocks. It could result in harmful exposure to
excessive microwave energy. (Safety interlocks
automatically switch off any cooking activity when
the door is opened.)
• An exhaust outlet is located on the top, bottom
or side of the microwave. Don’t block the outlet. It
could result in damage to the microwave and poor
cooking results.
• Do not place any object (such as kitchen towels,
napkins, etc.) between the microwave front face
and the door or allow food or cleaner residue to
accumulate on sealing surfaces. It could result in
harmful exposure to excessive microwave energy.
• Do not operate the microwave when empty. It
is best to leave a glass of water in the microwave
when not in use. The water will safely absorb all
microwave energy, if the microwave is accidentally
started.
• Do not operate the microwave if it is damaged. It
is particularly important that the microwave door
closes properly and that there is no damage to the:
• Do not use wooden containers and ceramic
containers that have metallic (e.g. gold or silver)
inlays. Always remove metal twist ties. Check
that the utensils are suitable for use in microwave
microwaves before use. They may heat-up and char.
Metal objects in particular may arc in the microwave,
which can cause serious damage.
- (1) door (bent)
- (2) hinges and latches (broken or loosened)
- (3) door seals and sealing surfaces. It could
result in harmful exposure to excessive microwave
energy.
• Please ensure cooking times are correctly set, small
amounts of food require shorter cooking or heating
time. Over cooking may result in the food catching
on fire and subsequent damage to the microwave.
• Do not rinse the tray and rack by placing it in water
just after cooking. This may cause breakage or
damage.
• When heating liquids, e.g. soups, sauces and
beverages in the microwave:
• Be certain to place the microwave so the front of
the door is 8 cm or more behind the edge of the
surface on which it is placed, to avoid accidental
tipping of the microwave. Improper use could result
in bodily injury and microwave damage.
- Avoid using straight sided containers with narrow
necks.
• Before cooking, pierce the skin of potatoes, apples
or any such fruit or vegetables. They could burst.
- Stir the liquid before placing the container in the
microwave and again halfway through the heating
time.
• Do not cook eggs in their shell. Eggs in their shell
and whole hardboiled eggs should not be heated
in microwave microwaves since they may explode,
even after microwave heating has ended. Pressure
will build up inside the egg which will burst.
- After heating, let it stand in the microwave for a
short time; stir or shake it again carefully and check
the temperature of it before consuming to avoid
burns (especially, contents of feeding bottles and
baby food jars).
8
• Be careful when handling the container. Microwave
heating of beverages can result in delayed eruptive
boiling without evidence of bubbling. This could
result in hot liquids suddenly boiling over.
• Do not attempt deep fat frying in the microwave.
This could result in a sudden boil over of the hot
liquid.
Microwave/grill/convection oven user guide
• If smoke is observed, switch off or disconnect the
microwave from the power supply and keep the
microwave door closed in order to stifle any flames.
It can cause serious damage such as a fire or electric
shock.
• When food is heated or cooked in disposable
containers made of plastic, paper or other
combustible materials, keep an eye on the
microwave and check it frequently.
• The temperature of accessible surfaces may be high
when the microwave is operating. Do not touch
the microwave door, outer cabinet, rear cabinet,
microwave cavity, accessories and dishes during grill
mode, convection mode and auto cook operations,
before clearing make sure they are not hot.
• The microwave should be cleaned regularly and
any food deposits should be removed. Failure to
maintain the microwave in a clean condition could
lead to deterioration of the surface. This could
adversely affect the life of the microwave and
possibly result in a hazardous situation.
• If there are heating elements, the microwave
becomes hot during use. Care should be taken
to avoid touching the heating elements inside the
microwave.
• Follow exact directions given by each manufacturer
for their popcorn product. Do not leave the
microwave unattended while the corn is being
popped. If corn fails to pop after the suggested
times, discontinue cooking. Never use a brown
paper bag for popping corn. Never attempt to pop
leftover kernels Overcooking could result in the
corn catching a fire.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the microwave door glass. They
can scratch the surface, which may result in the glass
shattering.
• The microwave is not intended to be operated by
an external timer or by separate control.
• Keep ventilation openings, clear of obstruction.
Microwave/grill/convection user guide
9
Mains supply
Warning! This microwave MUST BE
EARTHED.
Warning! Should the power supply
cable need to be replaced, this must
be carried out by an approved service
technician. John Lewis declines any
liability should this safety measure
not be observed.
Before switching on, make sure the electricity
supply voltage is the same as that indicated on the
microwave’s rating plate.
The microwave is supplied with a 13
amp plug. In the event of having to
change the fuse in the plug supplied,
a 13 amp ASTA approved BS 1363/A
fuse must be used.
Warning! The microwave should not
be connected to the electrical supply
by means of an extension cable.
10
Plug wiring information
Warning! If the supplied flexible
mains cord of this microwave is
damaged, it must be replaced.
This microwave is supplied with BS 1363 approved
13 Amp fused mains plug. When replacing the fuse
always use a 13 Amp BS 1362 approved type. Never
use this plug with the fuse cover missing. To obtain a
replacement fuse cover contact John Lewis.
If the mains sockets in your home differ, or are not
suitable for the type of plug supplied then the plug
should be removed and a suitable type fitted.
If the mains plug becomes severed from the mains lead
it must be destroyed. A mains plug with bared wires is
hazardous if inserted into a wall socket.
If a 13 Amp BS 1363 plug is not suitable or any other
type of plug used, then this microwave must be
protected by a 15 Amp fuse.
Microwave/grill/convection oven user guide
Installation
When upacking the microwave, be aware of the
following points:
• When unpacking the microwave make sure all
accessories (Rotating ring, glass tray, high rack,
metal tray and low rack) and packing materials are
removed.
• Check to make sure that the microwave has not
been damaged during shipping.
• Unpack the microwave and place it on a flat and
level surface.
Find a suitable location for the microwave; it should be
positioned as follows:
• Place the microwave on the level location of choice
with more than 85 cm height but make sure there is
at least 20 cm of space above and 10 cm at the rear
for proper ventilation.
Check the microwave is
working correctly
1 Plug the microwave into a standard household
socket. Make sure the microwave is the only
microwave connected to the socket.
Note: If the microwave does not operate properly,
unplug it from the electrical socket and then plug it
back in.
2 Open the microwave door by pulling the door
handle. Place the rotating ring inside the microwave
and place the glass tray on top.
3 Fill a oven safe container with 300 ml (1/2 pint) of
water.
4 Place in the centre of the glass tray and close the
microwave door.
Note: If you have any doubts about what type of
container to use please refer to Page 12.
5 Press the Stop/Clear button, and press the
Start/Quick start button once to set a cooking
time of 30 seconds. The DISPLAY will count down
from 30 seconds. When the microwave reaches
zero, it will beep.
• The front of the microwave should be at least 8 cm
from the edge of the surface to prevent tipping.
• An exhaust outlet is located on bottom or side of
the microwave. (Blocking the outlet can damage the
microwave).
Warning! The microwave must not
be used for commercial catering
purposes.
Microwave/grill/convection user guide
6 Open the microwave door and test the
temperature of the water. If the microwave is
operating correctly the water should be warm.
Caution - Be careful when removing
the container it may be hot.
Caution - The contents of feeding
bottles and baby food jars must
be stirred or shaken and the
temperature checked before
consumption in order to avoid burns.
11
Microwave-safe utensils
Microwaves cannot penetrate metal. They will
bounce off any metal object in the microwave and
cause arcing. Most heat resistant non-metallic cooking
utensils are safe for use in the microwave. However,
never use metal or metal trimmed utensils when
using the microwave feature. If you have any doubts
about a particular utensil, there is a simple way to
find out if it can be used in the microwave. Carry out
the microwave test.
Microwave test
• Place the utensil next to a glass bowl filled with
water.
• Microwave on HIGH power for 1 minute. If the
water heats up but the utensil remains cool to the
touch, the utensil is microwave-safe. However, if
the water does not change temperature but the
utensil becomes warm, microwaves are being
absorbed by the utensil and it is not safe for use.
• There are many items on hand in any kitchen
that can be used as cooking equipment in the
microwave. These are listed below:
Dinner plates
Many kinds of dinnerware are microwave-safe. If
in doubt consult the manufacturer’s literature or
perform the microwave test.
12
Plastic storage containers
These can be used to hold foods that are to be
quickly reheated. However, they should not be used
to hold foods that will need considerable time in the
microwave as hot foods will eventually warp or melt
plastic containers.
Paper
Paper plates and containers are convenient and safe to
use, provided that the cooking time is short and foods
to be cooked are low in fat and moisture. Paper towels
are also very useful for wrapping foods and for lining
baking trays in which greasy foods such as bacon are
cooked.
Warning! In general, avoid coloured
paper products as the colour may
run. Some recycled paper products
may contain impurities which could
cause arcing or fires when used in the
microwave.
Plastic cooking bags
Provided they are made specially for cooking, cooking
bags are microwave safe. Always make a slit in the bag
so that steam can escape.
Caution - Never use ordinary plastic
bags for cooking, as they will melt and
rupture.
Glassware
Plastic microwave cookware
Glassware that is heat-resistant is microwavesafe. This would include all brands of microwave
tempered glass cookware. However, do not use
delicate glassware, such as tumblers or wine glasses,
as these might shatter as the food warms.
A variety of shapes and sizes of microwave cookware
are available. For the most part, you can probably use
items you already have on hand rather than investing in
new kitchen equipment.
Microwave/grill/convection oven user guide
Pottery, stoneware and ceramic
Containers made of these materials are usually fine for
use, but they should be tested to be sure. Carry out
the microwave test.
Caution - Some items with high lead
or iron content are not suitable as
cooking utensils.
Microwave/grill/convection user guide
13
Parts Identification
Control panel
14
1
Mode - used to select the cooking feature
7
Time/Weight dial
2
Roast button
8
Clock button
3
Auto defrost button
9
Defrost & bake button
4
Auto cook button
10
Crispy reheat button
5
Start/Quick start button
11
Display
6
Stop/Clear button
Microwave/grill/convection oven user guide
Preparation
When the microwave is plugged in for the first time
or when power resumes after a power cut, a ‘0’ will
be illuminated in the display; you will have to reset the
clock.
If the clock (or display) shows any strange looking
symbols, unplug the microwave from the mains supply,
plug it back in and reset the clock.
12 hour clock or 24 hour
clock
The microwave clock can be set to either a 12 hour
clock format or a 24 hour clock format.
To set the clock to a 24 hour clock format:
1 Press the Stop/Clear button.
Child lock
The microwave has a safety feature that prevents
accidental running of the microwave. Once the child
lock is set, you will be unable to use any functions and
no cooking can take place.
Note: A child can still open the microwave door.
Setting the child lock
To set the child lock:
1 Press the Stop/Clear button.
2 Press and hold the Stop/Clear button until “L”
is shown on the display and a beep sounds. The
CHILD LOCK is now set.
2 Press the Clock button once.
Cancelling the child lock
3 Press Start/Quick start button for 24 hour clock
confirmation.
To cancel the child lock:
Note: If you require a 12 hour clock format, press the
Clock button once more.
Note: If you want to change the clock format after
setting the clock, you must unplug the microwave from
the mains supply then plug the microwave back in.
1 Press and hold the Stop/Clear button until “L” is
no longer shown in the display. Once the button
is released a beep sounds. The child lock is now
disabled.
4 Turn the Time/Weight dial until the desired hour
is shown on the display.
5 Press the Start/Quick Start button to set the
hour.
6 Turn the Time/Weight until the desired minutes
are shown on the display.
7 Press the Start/Quick Start button, the clock is
now set.
Microwave/grill/convection user guide
15
Operation
Microwave power cooking
This microwave is equipped with 5 power levels to give you maximum flexibility and control over cooking. To assist
with the selection of a suitable power level, the table below shows the examples of food and their recommended
cooking power levels for use with this microwave.
Power level
Use
High
• Boil water
• Brown minced beef
Power level (%)
Power output
100%
900 W(max)
80%
720 W
60%
540 W
40%
360 W
20%
180 W
• Cook poultry pieces, fish, vegetables
Medium high
• Cook tender cuts of meat
• Reheating (liquid)
• Roast meat and poultry
• Cook mushrooms and shellfish
Medium
• Cook foods containing cheese and eggs
• Reheating(Mashed potato, plated meal, ready
meal)
• Prepare eggs
• Cook custard
Medium low
• Prepare rice, soup
• All defrosting
• Melt butter and chocolate
Low
• Cook less tender cuts of meat
• Soften butter and cheese
• Soften ice cream
• Raise yeast dough
16
Microwave/grill/convection oven user guide
Quick start
The QUICK feature allows you to set 30 second
intervals of HIGH power cooking.
1 Press the Stop/Clear button.
2 Repeatedly press the Start/Quick Start button
until the desired time is displayed.
Microwave power level
To select a suitable power level:
Make sure that the microwave is correctly installed as
described on page 11.
3 Press the Start/Quick Start button to confirm
the selected GRILL option.
4 Turn the Time/Weight dial until the desired time
is shown in the display.
5 Press the Start/Quick Start button to start
cooking.
6 To increase or decrease the cooking time, turn the
Time/Weight dial.
Grill combination cooking
2 Press the Mode button once to select MICRO.
The microwave has a combination (combi) cooking
feature that allows food to be cooked with the grill
and microwave at the same time or alternately. This
generally means it takes less time to cook food.
3 Press the Start/Quick Start button to confirm
the micro option.
The three microwave power levels are 180 W, 270 W,
360 W in combi mode.
1 Press the Stop/Clear button.
4 Turn the Time/Weight dial until the desired
power level is shown in the display.
5 Press the Start/Quick Start button to confirm
the power selection.
Microwave cooking
1 Turn the Time/Weight dial until the desired time
is shown in the display.
2 Press the Start/Quick Start button to start
cooking.
3 To increase or decrease the cooking time, turn the
Time/Weight dial.
Grill cooking
To brown and crisp food quickly:
Note: The high or low rack must be used during grill
cooking.
1 Press the Stop/Clear button.
Caution - Be careful when removing
food because the container will be
hot!
1 Press the Stop/Clear button.
2 Press the Mode button four times to select GRILL
COMBI. 360W, two grill combi icons are shown in
the display.
3 Press the Start/Quick Start button to confirm
the GRILL COMBI option.
4 Turn the Time/Weight dial until the desired
power level is shown in the display.
5 Press the Start/Quick Start button to confirm
the power level selection.
6 Turn the Time/Weight dial until the desired time
is shown in the display.
7 Press the Start/Quick Start button to start
cooking.
8 To increase or decrease the cooking time, turn the
Time/Weight dial.
2 Press the Mode button twice to select GRILL. A
GRILL icon is shown in the display.
Microwave/grill/convection user guide
17
Speed hot air
4 Turn the Time/Weight dial until the desired
temperature is displayed in the display.
The microwave has a speed hot air cooking feature
which allows you to combine convection cooking with
the grill. This generally means it takes less time to cook
food.
5 Press the Start/Quick Start button to confirm
the selected temperature.
The microwave has a temperature range of 100 °C ~
230 °C. (180 °C is automatically used when speed hot
air mode is selected.)
7 Press the Start/Quick Start button to start the
cooking.
When the speed hot air option is used, the microwave
must be preheated first.
Speed hot air preheat
To preheat the microwave for the speed hot air
feature:
1 Press the Stop/Clear button.
2 Press the Mode button six times to select SPEED
HOT AIR. Two speed hot air icons are shown in
the display.
3 Press the Start/Quick Start button to confirm
the SPEED HOT AIR option.
4 Turn the Time/Weight dial until the desired
temperature is shown in the display.
5 Press the Start/Quick Start button to confirm
the selected temperature.
6 Press the Start/Quick Start button to start the
preheat. Pr-H is shown in the display.
8 To increase or decrease the cooking time, turn the
Time/Weight dial.
Convection combination
cooking
The microwave has a combination (combi) cooking
feature which allows you to cook food with the
convection feature and microwave at the same time
or alternately. This generally means it takes less time to
cook food.
The three micro power levels are 180 W, 270 W,
360 W in combi mode.
The convection combination cooking mode has a
temperature range of 100 °C ~ 230 °C. A default
of 180 °C is automatically available when convection
combination mode is selected.
Caution - Be careful when removing
food because the container will be
hot!
Speed hot air cooking
1 Press the Stop/Clear button.
Once the preheat has finished, to continue with the
speed hot air cooking:
2 Press the Mode button five times to select CONV.
COMBI. 360W, two conv. combi icons are shown
in the display.
1 Press the Stop/Clear button.
2 Press the Mode button six times to select SPEED
HOT AIR. Two speed hot air icons are shown in
the display.
3 Press the Start/Quick Start button to confirm
the SPEED HOT AIR option.
18
6 Turn the Time/Weight dial until the desired time
is shown in the display.
3 Press the Start/Quick Start button to confirm
the CONV. COMBI option.
A default temperature of 360 W is automatically
selected.
4 Press the Start/Quick Start button to confirm
the power level.
Microwave/grill/convection oven user guide
5 Turn the Time/Weight dial until the desired
temperature is shown in the display.
6 Press Start/Quick Start button to start the
preheat. Pr-H is shown in the display.
6 Press the Start/Quick Start button to confirm
the temperature selection.
The microwave will take a few minutes to reach the
selected feature. The microwave will beep once when
it has reached the correct temperature.
7 Turn the Time/Weight dial until the desired time
is shown in the display.
8 Press the Start/Quick Start button to start
cooking.
9 To increase or decrease the cooking time, turn the
Time/Weight dial.
Convection preheat
The microwave has a convection cooking feature
which allows you to cook food in a more conventional
manner. Preheat the microwave to the desired
temperature.
The convection microwave has a temperature range of
40 °C and 100 °C ~ 230 °C (180 °C is automatically
selected when convection mode is selected).
The convection microwave has a ferment function at
the microwave temperature of 40 °C. When you use
this function, if the microwave temperature is over
70 °C, then the display shows “F-14” error code. You
will have to wait until the microwave is cool before you
can continue.
To preheat the convection microwave:
1 Press the Stop/Clear button.
2 Press the Mode button three times to select
CONV. A CONV. icon is shown in the display.
3 Press the Start/Quick Start button to confirm
the selected CONV. option.
4 Turn the Time/Weight dial until the desired
temperature is shown in the display.
5 Press Start/Quick Start button for temperature
confirmation.
Microwave/grill/convection user guide
19
Convection cooking
To cook food using the convection feature:
1 Press the Stop/Clear button.
2 Press the Mode button three times to select
CONV and a conv icon is shown in the display.
3 Press the Start/Quick Start button to confirm
the CONV option.
4 Turn the Time/Weight dial until the desired
temperature is shown in the display.
5 Press the Start/Quick Start button to confirm
the temperature selection.
6 Turn the Time/Weight dial until the desired time
is shown in the display.
7 Press the Start/Quick Start button to start
cooking.
8 To increase or decrease the cooking time, turn the
Time/Weight dial.
Keep warm
The microwave has a keep warm feature that allows
you to keep food warm over a temperature range of
30 °C ~ 90 °C. A default of 60 °C is automatically
selected.
1 Press the Stop/Clear button.
2 Press the Mode button seven times to select
KEEP WARM. A default temperature of 60 °C is
automatically selected and the KEEP WARM icon is
shown in the display.
3 Press the Start/Quick Start button to confirm
the KEEP WARM option.
4 Turn the Time/Weight dial until the desired
temperature is shown in the display.
5 Press the Start/Quick Start button to confirm
the selected temperature.
6 Turn the Time/Weight dial until the desired time
is shown in the display.
7 Press the Start/Quick Start button to start the
KEEP WARM feature.
8 To increase or decrease the time, turn the Time/
Weight dial.
The microwave will take a few minutes to reach the
selected temperature.
The microwave will beep once when it has reached the
correct temperature.
20
Microwave/grill/convection oven user guide
Auto cook
The microwave has a auto cook feature which allows
the cooking of food easily by selecting the food type
and entering the weight of the food.
1 Press the Stop/Clear button.
2 Press the Auto Cook button.
3 Turn the Time/Weight dial until the desired auto
cook category is shown in the display.
Auto cook guide
4 Press the Start/Quick start button to confirm
the auto cook feature.
5 Turn the Time/Weight dial until the correct
weight of the food is shown in the display.
6 Press the Start/Quick Start button to start auto
cooking.
7 To increase or decrease the cooking time, turn the
Time/Weight dial.
For advice on using the auto cook function use the auto cook guide below:
Category
Instructions
Ac 1: Jacket
potato
- Weight limit : 0.2~1.0 kg
- Food temp. : room
- Utensil : low rack
Ac 2: Fresh
vegetables
- Weight limit : 0.2~0.8 kg
- Food temp. : room
- Utensil : microwave-safe
bowl
Ac 3: Frozen
vegetables
- Weight limit : 0.2~0.8 kg
- Food temp. : frozen
Ac 4: Rice/
pasta
- Weight Limit : 0.1~0.3 kg
- Food temp. : room (rice)
- Utensil : microwave-safe
bowl
1. Choose medium sized potatoes 180 -220 g.
2. Wash and dry potatoes. Pierce potatoes several times with a fork.
3. Place potatoes on the low rack.
4. After cooking, cover the potatoes with aluminium foil and allow to
stand for 5 minutes.
1. Place vegetables in a microwave-safe bowl.
2. Add the amount of water according to the quantity.
- 0.2 kg - 0.4 kg : 2 tablespoons of water
- 0.5 kg - 0.8 kg : 4 tablespoons of water
3. Cover with plastic wrap. Place food in the microwave.
4. After cooking, stir for 3-4 seconds.
5. Stand covered for 3 minutes.
1. Place vegetables in a microwave-safe bowl.
2. Add the amount of water according to the quantity.
- 0.2 kg - 0.4 kg : 2 tablespoons of water
- 0.5 kg - 0.8 kg : 4 tablespoons of water
3. Cover with plastic wrap. Place food in the microwave.
4. After cooking, stir for 3-4 seconds.
5. Stand covered for 3 minutes
1. Place rice/pasta and boiling water add 1/4 to 1 teaspoon of salt in a
deep and large bowl.
2. Place food in the microwave.
3. After cooking, stir. Cover the rice/pasta and stand for 5 minutes.
Notes:
Rice: Add 300 ml of boiling water per 100 g white rice. Cover with
plastic wrap and vent.
Pasta: Add 400 ml of boiling water per 100 g pasta. Do not cover. Stir
at least twice during cooking to prevent sticking.
Microwave/grill/convection user guide
21
Auto defrost
The temperature and density of food varies. It is
recommend that the food is checked before cooking
commences. Pay particular attention to large joints
of meat and chicken, some foods should not be
completely defrosted before cooking. For example
fish cooks so quickly that it is sometimes better to
begin cooking while still slightly frozen. The BREAD
programme is suitable for defrosting small items such as
rolls or a small loaf. These will require a standing time
to allow the centre to thaw.
7 During defrosting the microwave will beep, at
which point open the microwave door, turn the
food over and separate to ensure even thawing.
8 Remove any portions that have thawed or shield
them to help slow down thawing. After checking,
close the microwave door and press the
Start/Quick Start button to resume defrosting.
Caution - The microwave will not stop
defrosting (even when the beep has
sounded) unless the door is opened.
The microwave has a auto defrost feature which allows
you defrost a variety of food.
Note: The microwave has four microwave defrost
settings: MEAT, POULTRY, FISH and BREAD; each
defrost category has different power settings. To assist
with the auto defrost categories, see the Auto defrost
guide on page 23.
1 Press the Stop/Clear button.
Note: Weigh the food that you are about to defrost.
Be certain to remove any metallic ties or wraps;
then place the food in the microwave and close the
microwave door.
2 Press the Auto defrost button.
3 Turn the Time/Weight dial until the desired auto
defrost category is shown in the display.
4 Press the Start/Quick Start button to confirm
the auto defrost category.
5 Turn the Time/Weight dial until the correct
weight of the food to be defrosted is shown in the
display.
6 Press the Start/Quick Start button to start
defrosting the food.
22
Microwave/grill/convection oven user guide
Auto defrost guide
To assist with the use of the auto defrost categories, use the auto defrost guide below:
Food to be defrosted should be in a suitable microwave proof container and place uncovered on the glass turntable.
If necessary, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent thin areas
becoming warm during defrosting. Ensure the foil does not touch the microwave walls.
Separate items like minced meat, chops, sausages and bacon as soon as possible.
When the microwave beeps, remove the food from the microwave, turn the food over and return to the microwave.
Remove defrosted portions at this point. Continue to defrost remaining pieces. Stand until completely thawed.
For advice on using the auto defrost function, use the auto defrost guide below:
Category
dEF 1: Meat
- Weight Limit : 0.1~4.0 kg
- Utensil : Microwave-safe plate
dEF 2: Poultry
- Weight Limit : 0.1~4.0 kg
- Utensil : Microwave-safe plate
dEF 3: Fish
- Weight Limit : 0.1~4.0 kg
- Utensil : Microwave-safe plate
dEF 4: Bread
- Weight Limit : 0.1~0.5 kg
- Utensil : Microwave-safe plate
Instructions
- Minced beef, fillet steak, cubes for steak, sirloin steak, pot
roast, rump roast, beef burger, lamb chops, rolled roast,
sausage, cutlets (2 cm).
- After defrosting, stand covered with aluminium foil for 5-15
minutes.
- Whole chicken, legs, breasts, turkey breasts(under 2.0 kg).
- After defrosting, cover with aluminium foil and allow to stand
for 20-30 minutes.
- Fillets, steaks, whole fish, sea food.
- After defrosting, cover with aluminium foil and allow to stand
for 10-20 minutes.
- Sliced bread, buns, baguette, etc.
- After defrosting, let stand for 1-2 minutes.
Roast
The microwave has a roasting feature which allows you
to roast food easily by food type and weight.
1 Press the Stop/Clear button.
2 Press the Roast button.
3 Turn the Time/Weight dial until the desired roast
category is shown in the display.
5 Turn the Time/Weight dial until the correct
weight of the food to be roasted is shown in the
display.
6 Press the Start/Quick Start button to start
roasting.
7 To increase or decrease the roasting time, turn the
Time/Weight dial.
4 Press Start/Quick Start for category
confirmation.
Microwave/grill/convection user guide
23
Roast guide
For advice on using the roasting function, use the roast guide below:
Category
Ar 1: Beef
Ar 2 : Pork
- Weight limit : 0.5~1.5 kg
- Food temp. : refrigerated
- Utensil : low rack on the
metal tray
- Weight limit : 0.5~1.5 kg
- Food temp. : refrigerated
- Utensil : low rack on the
metal tray
Ar 3 : Chicken - Weight limit : 0.8~1.8 kg
- Food temp. : refrigerated
- Utensil : low rack on the
metal tray
Ar 4 : Lamb
24
- Weight limit : 0.5~1.5 kg
- Food temp. : refrigerated
- Utensil : low rack on the
metal tray
Instructions
1. Brush beef with melted butter or oil and season as desired.
2. Place beef with fat side up on the low rack with a metal tray
below.
3. Choose the menu and adjust weight and press the Start/
Quick Start button.
4. When the microwave beeps, turn the food over and then
press the Start/Quick start button to continue cooking.
5. After cooking, cover with aluminium foil and allow to stand for
10 minutes.
1. Brush pork with melted butter or oil and season as desired.
2. Place pork with fat side up on the low rack with a metal tray
below.
3. Choose the menu and adjust weight and press the Start/
Quick Start button.
4. When the microwave beeps, turn the food over and then
press the Start/Quick start button to continue cooking.
5. After cooking, cover with aluminium foil and allow to stand for
10 minutes.
1. Brush chicken with melted butter or oil and season as desired.
2. Place chicken with breast side up on the low rack with a metal
tray below.
3. Choose the menu and adjust weight and press the Start/
Quick Start button.
4. When the microwave beeps, turn the food over and then
press the Start/Quick start button to continue cooking.
5. After cooking, cover with aluminium foil and allow to stand for
10 minutes.
1. Brush lamb with melted butter or oil and season as desired.
2. Place lamb with fat side up on the low rack with a metal tray
below.
3. Choose the menu and adjust weight, and press the Start/
Quick Start button.
4. When the microwave beeps, turn the food over and then
press the Start/Quick start button to continue cooking.
5. After cooking, cover with aluminium foil and allow to stand for
10 minutes.
Microwave/grill/convection oven user guide
Crispy reheat
The microwave has a crispy reheat feature which
allows food to be reheated or crisped by food type
and weight.
1 Press the Stop/Clear button.
2 Press the Crispy reheat button.
3 Turn the Time/Weight dial until the desired
crispy reheat category is shown in the display.
4 Press the Start/Quick Start button to confirm
the crispy reheat feature.
5 Turn the Time/Weight dial until the correct
weight of the food is shown in the display.
6 Press the Start/Quick Start button to start the
crispy reheat.
7 To increase or decrease the cooking time, turn the
Time/Weight dial.
Crispy reheat guide
For advice on using the crispy reheat function, use the crispy reheat guide below:
Category
cr 1. Roasted
meat
- Weight limit : 0.2~0.6 kg
- Food temp : refrigerated
- Utensil : low rack
Instructions
1. Slice each of roasted meat under 2.5 cm thickness.
2. Place food on the low rack.
3. After cooking, remove from the microwave and allow to stand.
cr 2. Lasagna
- Weight limit : 0.2~0.8 kg
- Food temp : refrigerated
- Utensil : low rack
1. Place the lasagna on the low rack.
2. After cooking, remove from the microwave and allow to stand.
cr 3. Bread
- Weight limit : 0.1~0.3 kg
- Food temp : frozen
- Utensil : low rack
- Weight limit : 0.2~0.6 kg
- Food temp : refrigerated
- Utensil : low rack
1. Place frozen baguette or croissant on the low rack.
2. Brush baguettes with milk or water.
3. After cooking, remove from the microwave and allow to stand.
1. Place leftover pie on the low rack.
2. After cooking, remove from the microwave and allow to stand.
cr 4. Pie
Microwave/grill/convection user guide
25
Defrost & bake
The microwave has a defrost & bake feature which
allows food to be defrosted & baked by food type and
weight.
1 Press the Stop/Clear button.
2 Press the Defrost & bake button.
3 Turn the Time/Weight dial until the desired
defrost & bake category is shown in the display.
4 Press the Start/Quick Start button to confirm
the defrost and bake feature.
5 Turn the Time/Weight dial until the correct
weight of the food is shown in the display.
6 Press the Start/Quick Start button to start the
defrost & bake feature.
7 To increase or decrease the cooking time, turn the
Time/Weight dial
Baking guide
For advice on using the defrost & bake function, use the defrost & bake guide below:
Category
db 1. Quiche
- Weight limit : 0.3~0.6 kg
- Food temp : frozen
- Utensil : high rack
db 2. Lasagna - Weight limit : 0.3~0.6 kg
- Food temp : frozen
- Utensil : low rack
db 3. Tart
- Weight limit : 0.1~0.6 kg
- Food temp : frozen
- Utensil : Low rack
db 4. Chicken - Weight limit : 0.2~0.8 kg
Pieces
- Food temp : frozen
- Utensil : high rack
26
Instructions
Ingredients
1 pie crust pastry \ 140 g onions \ 3 slices of Bacon
3 eggs \ 120 g milk \ 120 g grated cheese
300 g whipping cream
1. Saute the chopped onions and bacon in a frying pan.
2. Mix eggs, whipping cream, milk, and grated cheese.
3. Place the crust onto the crispy tray and prick the surface with a fork.
4. Put the onions and bacon onto the crust and pour the mixture.
1. Remove the cover and place on the low rack.
2. After cooking, stand for 2 minutes.
1. Remove the “Tart” from package and place on the low rack.
2. After cooking, stand for 2 minutes.
1. Wash and dry the chicken skin. Brush the chicken pieces with oil.
2. Place the chicken pieces on the low rack. To collect any juices that
may drip while defrosting and baking, put a plate under the low rack.
3. When the microwave beeps, turn food over and continue cooking.
4. After cooking, cover with aluminium foil and allow to stand for 2
minutes.
Microwave/grill/convection oven user guide
Cooking/defrost guides
For additional advice on cooking and defrosting, use the additional cooking/defrosting guides that follow:
• Fresh vegetable guide
• Defrosting guide
• Grill cooking guide
• Convection cooking guide
• Speed hot air cooking guide.
Fresh vegetable guide
Food
Quantity
Artichokes
(230 g each)
Asparagus,
fresh, spears
Green beans
2 medium
4 medium
450 g
Cook time
Instructions
(minutes/at HIGH)
41/2 ~ 7
Trim. Add 2 tsp water and 2 tsp juice. Cover.
10 ~ 12
Stand for 2 ~ 3 minutes.
3~6
Add 1 cup water. Cover. Stand for 2 ~ 3 minutes.
450 g
6 ~ 10
Beats, fresh
450 g
10 ~ 14
Broccoli, fresh,
spears
Cabbage, fresh,
chopped
Carrots, fresh,
300 g
31/2 ~ 4
450 g
7~9
200 g
2~3
sliced
Cauliflower,
450 g
5~7
fresh, whole
Corn, fresh
Trim. Add 1/4 cup water in 1.5 litre casserole dish. Stir
halfway through cooking. Stand for 2 ~ 3 minutes.
2 ears
4~8
Mushrooms, fresh,
230 g
11/2 ~ 21/2
sliced
Parsnips, fresh,
Husk. Add 2 tbsp water in 1.5 litre baking dish. Cover.
Stand for 2 ~ 3 minutes.
Place mushrooms in 1.5 litre covered casserole dish. Stir
halfway through cooking. Stand for 2 ~ 3 minutes.
450 g
6~8
sliced
Peas, green, fresh
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
4 cups
6~9
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
Sweet potatoes
2 medium
5~9
whole baking
4 medium
9 ~ 13
Pierce potatoes several times with a fork. Place on 2
paper towels. Turn over halfway through cooking. Stand
for 2 ~ 3 minutes.
(170 ~ 230 g
each)
Microwave/grill/convection user guide
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
Add 1/2 cup water in 1.5 litre casserole dish. Rearrange
halfway through cooking. Stand for 2 ~ 3 minutes.
Place broccoli in baking dish. Add 1/4 cup water. Stand for
2 ~ 3 minutes.
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
Add 1/4 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
27
Food
Quantity
White potatoes,
2 potatoes
whole baking
4 potatoes
(170 ~ 230 g)
Spinach, fresh,
450 g
6~8
leaf
Courgette, fresh,
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
450 g
41/2 ~ 71/2
sliced
Courgette, fresh,
Add 1/2 cup water in 1.5 litre casserole dish. Stir halfway
through cooking. Stand for 2 ~ 3 minutes.
450 g
6~9
Pierce. Place on 2 paper towels. Turn courgettes
whole
28
Cook time
Instructions
(minutes/at HIGH)
51/2 ~ 71/2
Pierce potatoes several times with fork. Place on 2 paper
towels. Turn over halfway through cooking. Stand for 2 ~
91/2 ~ 14
3 minutes.
over and rearrange them halfway through cooking.
Microwave/grill/convection oven user guide
Defrosting guide
1 Defrost meats in their original wrapping as long as no metal is present.
2 Remove any metal rings, twist ties, wire or foil.
3 Place meat in a microwavable plate to catch juices. Defrost meats only as long as necessary.
4 Separate items like chops, sausages and bacon as soon as possible.
5 Remove defrosted portions and continue to defrost remaining pieces.
6 Whole pieces of meat are ready for standing time as soon as a fork can be pushed into the centre of the meat
using moderate pressure. The centre will still be icy.
7 Allow to stand until completely thawed.
Defrosting guide
For advice on using the defrost feature, use the defrosting guide below:
Food
Quantity
Defrosting Time
(minutes)
Standing Time
(minutes)
BEEF
Minced beef
Steak, sirloin
Roast, loin (boneless)
POULTRY
Whole chicken
Breasts
Drumsticks
Thighs
Wings
FISH & SEAFOOD
Whole fish
Fish fillets
Shrimp
500 g
500 g
1000 g
6~8
4~6
12 ~ 15
5 ~ 10
5 ~ 10
10 ~ 15
1000 g
450 g
450 g
16 ~ 19
5~7
8~9
8~9
6~8
10 ~ 15
5 ~ 10
5 ~ 10
5 ~ 10
5 ~ 10
6~8
7~9
4~6
5 ~ 10
5 ~ 10
5 ~ 10
450 g
450 g
450 g
450 g
450 g
Microwave/grill/convection user guide
Instructions
1. Remove wrapping from
the meat.
2. Place frozen meat on a
microwavable flat plate.
3. Defrost at 40 % power
level.
4. Turn food over after
halfway through defrosting.
(Remove defrosted portions
at this point).
29
Grill cooking guide
For advice on using the grill feature which can be used to grill meat, fish & seafood, see the instructions that follow:
Grilling meat
1 Trim excess fat from meat.
2 Cut fat, making sure you do not cut into the lean meat (This will stop the fat curling).
Food
Quantity
Beef burgers
50 g x 2
100 g x 2
Cooking Time
(minutes/at High)
11 ~ 14
17 ~ 21
Instructions
1. Baste with oil or melted butter.
2. Thin items should be placed on the rack.
3. Thick items can be placed on to a drip tray.
4. Turn food over after halfway cooking time.
Beef steaks
(2.5 cm (1 ”) thick)
Rare
Medium
Well
Lamb chops
(2.5 cm (1 ”) thick)
Sausages
30
5. Turn frequently.
230 g x 2
230 g x 2
230 g x 2
16 ~ 19
19 ~ 21
23 ~ 25
230 g x 2
230 g x 2
22 ~ 29
11 ~ 14
Microwave/grill/convection oven user guide
Grilling fish and seafood
1 Place fish and seafood on a rack.
2 Whole fish should be scored diagonally on both sides before grilling.
3 Brush fish and seafood with melted butter, margarine or oil before and during cooking. This helps stop the fish
drying out.
4 Grill for the time recommended in the guide below.
5 Whole fish and fish steaks should be carefully turned over halfway through the grilling time. If desired, thick fillets
can also be turned halfway through the grilling time.
Food
Quantity
Cooking Time
(minutes/at High)
Fish fillets
1 cm (1/3 ”) thick
1 cm (1/2 ”) thick
Instructions
Brush with melted butter and turn over halfway
through cooking.
230 g
230 g
11 ~ 14
17 ~ 21
230 g
18 ~ 23
Fish steaks
2.5 cm (1 ”) thick
Whole fish
Allow extra time for thick and oily fish.
225 ~ 350 g each
400 g
Scallops
450 g
Prawns uncooked 450 g
18 ~ 23
22 ~ 32
16 ~ 20
Microwave/grill/convection user guide
Baste well during cooking.
31
Convection cooking guide
1 Preheat the microwave to the desired temperature.
2 Follow the times and instructions in the table.
Food
Quantity
Muffins
(fresh dough)
6 pieces
(each 60 g)
Bread Rolls
(ready baked)
4 pieces
(each 50 g)
White bread
(Fresh dough)
1 loaf
(approx.
500 ~ 750 g)
1 pan
180 °C
(450 ~ 500
g)
Sponge cake
(Fresh dough)
32
Convection
Temperature
200 °C
Cook Time
(minutes)
20 ~ 25
180 °C + 180 W
(without
preheating)
200 °C
8 ~ 10
20 ~ 50
or until
browned
25 ~ 40
Fruit family
cake
1 pan
(1000 ~
1200 g)
160 °C + 180 W
40 ~ 60
Fresh pizza
1 pan
(approx.
1000 g)
200 °C
25 ~ 40
Frozen pizza
400 g
220 °C
18 ~ 25
Frozen
ready meal
(Macaroni &
cheese)
300 g
200 °C + 360 W
(without
preheating)
18 ~ 25
Instructions
1. Prepare the dough.
2. Place on the rack.
3. Stand for 5 minutes.
1. Arrange rolls on the rack.
2. Stand for 3 minutes.
1. Prepare the dough.
2. Place on the glass tray.
3. Stand for 10 minutes.
1. Prepare the dough.
2. Put into a 8-inch diameter round tin
pan.
3. Place on the glass tray.
4. Stand for 10 minutes.
1. Prepare the dough.
2. Put into a 8 or 9-inch diameter round
tin pan.
3. Place on the rack.
4. Bake until skewer inserted into the
cake is removed clean.
5. Stand for 10 minutes.
1. Prepare the pizza.
2. Place on the rack.
3. Stand for 2 minutes.
1. Remove the packaging.
2. Place on the rack.
3. Stand for 2 minutes.
1. Put into a suitable sized heat proof
dish.
2. Place on the rack.
3. Stand for 2-3 minutes.
Microwave/grill/convection oven user guide
Food
Quantity
Convection
Temperature
230 °C
Cook Time
(minutes)
35 ~ 50
Frozen spring
rolls
300 g
Potato gratin
1000 g
140 °C + 540 W
(without
preheating)
160 °C + 540 W
(without
preheating)
14 ~ 18
Roast beef
1000 g
Roast lamb
1000 g
160 °C + 540 W
(without
preheating)
34 ~ 48
Roast chicken
1000 g
200 °C + 540 W
(without
preheating)
32 ~ 47
Microwave/grill/convection user guide
30 ~ 45
Instructions
1. Brush over the surface with vegetable
oil.
2. Place spring rolls side by side on the
rack.
3. Stand for 1-2 minutes.
1. Prepare the potato gratin.
2. Place on the rack.
3. Stand for 2-3 minutes.
1. Place roast lamb on heat proof glass
dish
on the glass tray.
2. Turn over after half of the cooking
time.
3 Stand for 10-15 minutes with cover.
1. Place roast pork on heat proof glass
dish
on the glass tray.
2. Turn over after half of the cooking
time.
3. Stand for 10-15 minutes with cover.
1. Place on the rack.
2. Turn over after half of the cooking
time.
3. Stand for 2-5 minutes with cover.
33
Speed hot air cooking guide
1 Preheat the microwave to the desired temperature.
2 Follow the times and instructions in the table.
Food
Quantity
Roast Turkey
400 g
Speed hot air
temperature
200 °C
Cook time
(minutes)
30 ~ 38
Instructions
1. Wash and dry the fresh turkey breasts.
2. Spice or marinade. Place the turkey
breasts into a heat proof flat dish on the
rack.
Put frozen pizza on the rack.
Frozen self-rising
400 g
200 °C
8 ~ 14
pizza
Frozen baguettes
250 g
200 °C
10 ~ 15
Put frozen baguettes with topping on
the rack.
230 °C
15 ~ 22
Put frozen spring rolls on the rack.
rolls
300 g
(150gx2)
French fries
300 g
220 °C
15 ~ 22
Put frozen potato products on the heatproof plate.
with topping
Frozen spring
(Frozen potato
products)
34
Microwave/grill/convection oven user guide
Food characteristics & microwave
cooking
Keeping an eye on things
The recipes in the book have been formulated with great care, but success in preparing them depends on how much
attention you pay to the food as it cooks. The microwave is equipped with a light that turns on automatically when it
is in operation so that you can see inside and check the progress of food.
The instructions given in recipes, for example: to elevate, stir are to be thought of as the minimum steps
recommended. If the food seems to be cooking unevenly, simply make the necessary adjustments you think
appropriate to correct the problem.
Factors affecting microwave cooking times
Many factors affect cooking times. The temperature of ingredients used in a recipe makes a big difference in cooking
times. For example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to bake than one
made with ingredients that are at room temperature.
All of the recipes in this user guide give a range of cooking times. In general, food remains undercooked at the lower
end of the time range, and you may sometimes want to cook food beyond the maximum time given, according to
personal preference. Some of the recipes, particularly those for bread, cake, and custards, recommend that food be
removed from the microwave when they are slightly undercooked. This is not a mistake. When allowed to stand,
usually covered, these foods will continue to cook outside of the microwave as the heat trapped within the outer
portions of the food gradually travels inward. If the food is left in the microwave until it is cooked all the way through,
the outer portions will become overcooked or even burnt.
Density of food
Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and casseroles.
Care must be taken when microwaving porous food so that the outer edges do not become dry and brittle.
Height of food
The upper portion of large foods such as roasts, will cook more quickly than the lower portion. Therefore, it is wise to
turn the roasts several during cooking.
Moisture content of food
Since the heat generated from microwaves causes moisture to evaporate, relatively dry food such as roasts and some
vegetables must be either sprinkled with water prior to cooking or covered to retain moisture.
Microwave/grill/convection user guide
35
Bone and fat content of food
As bones conduct heat and fat cooks more quickly than meat. Care must be taken when cooking bony or fatty cuts of
meat in order to prevent unevenly or overcooked meat.
Quantity of food
The number of microwaves in the microwave remains constant regardless of how much food is being cooked.
Therefore, the more food you place in the microwave, the longer the cooking time. Remember to decrease cooking
times by at least one third when halving a recipe.
Shape of food
Microwaves penetrate about 2 cm into food, the interior portion of thick foods are cooked as the heat generated
on the outside travels inward. Only the outer edge of food is cooked by microwave energy; the rest is cooked by
conduction.
The worst possible shape for a food that is to be microwaved is a thick square. The corners will burn long before the
centre is even warm. Round thin foods and ring shaped foods cook most successfully in the microwave.
Covering
A cover traps heat and steam which causes food to cook quicker. Use a lid or microwave cling film with a corner
folded back to prevent splitting.
Browning
Meats and poultry that are cooked for fifteen minutes or longer will brown lightly in their own fat. Foods that are
cooked for a shorter period of time can be brushed with a browning sauce such as worcestershire sauce, soy sauce or
barbecue sauce to achieve an appetizing colour.
Note: Since relatively small amounts of browning sauces are added to food, the original flavour of the recipe will not
be altered.
Covering with greaseproof paper
The use of greaseproof paper to cover the food may cause the food to dry out slightly.
36
Microwave/grill/convection oven user guide
Arranging and spacing
Individual foods such as baked potatoes, small cakes and hors d’oeuvres will heat more evenly if placed in the
microwave an equal distance apart, preferably in a circular pattern. Never stack foods on top of one another.
Stirring
Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the
purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat. Always stir from
the outside towards the centre as the outside of the food heats first.
Turning over
Large foods such as roasts and whole chickens should be turned so that the top and bottom will cook evenly. It is also
a good idea to turn cut up chicken and chops.
Placing thicker portions facing outwards
Since microwaves are attracted to the outside portion of food, it makes sense to place thicker portions of meat,
poultry and fish to the outer edge of the baking dish. This way, thicker portions will receive the most microwave
energy and the food will cook evenly.
Shielding
Strips of aluminium foil (which block microwaves) can be placed over the corners or edges of square and rectangular
foods to prevent those portions from overcooking. Never use too much foil and make sure the foil is secured to the
dish or it may cause ‘arcing’ in the microwave.
Elevating
Thick or dense foods can be elevated with the use of the supplied high & low racks so that microwaves can be
absorbed by the underside and centre of the foods.
Piercing
Foods enclosed in a shell, skin or membrane are likely to burst in the microwave unless they are pierced prior to
cooking, for example, yolks and whites of eggs, clams, oysters and whole vegetables and fruits.
Microwave/grill/convection user guide
37
Testing the food to check if it is cooked
As food cooks so quickly in the microwave, it is often necessary to test it frequently. Some food types are left in
the microwave until completely cooked, but most food types, including meats and poultry, are removed from the
microwave while still slightly undercooked and allowed to finish cooking during standing time.
The internal temperature of foods will rise between 5 ° F (3 ° C) and 15 ° F (8 ° C) during standing time.
Standing time
Foods are often allowed to stand for 3 to 10 minutes after being removed from the microwave. Usually the foods are
covered during standing time to retain heat unless they are supposed to be dry in texture (some cakes and biscuits, for
example). Standing allows foods to finish cooking and also helps flavour blend and develop.
MAFF reheating cooked chilled foods
This microwave has been tested and labelled to the Ministry of Agriculture Fisheries and Food (MAFF)agreement,
concerning the reheating of cooked chilled food.
The heating category represents the microwave’s ability to heat small quantities of food (approx. 350 g), it does not
represent the microwave’s general performance. The category (from the letter A to E) will help you to reheat small
quantities of food such as microwavable ready meals. The greater the heating category of the microwave, the less
heating time that is required.
Displayed on the food packages will be the cooking times for each of the BAND categories. For example A may be 10
minutes. B may be 9 minutes etc depending on the food type.
38
Microwave/grill/convection oven user guide
Servicing & cleaning
Servicing
This microwave must only be serviced by an authorised
service technician and only genuine spare parts must
be used.
Under no circumstances must you attempt to repair
the microwave yourself. Repairs carried out by an
inexperienced persons may cause injury or serious
malfunction.
Keep the inside of the
microwave clean
Caution - Do not use harsh detergent
or abrasive cleaners.
• Food spatters or spilled liquids stick to microwave
walls and between the seal and door surfaces. Wipe
up spillovers with a damp cloth straight away.
• Crumbs and spillovers will absorb microwave energy
and lengthen cooking times. Use a damp cloth to
wipe out crumbs that fall between the door and
the frame. It is important to keep this area clean to
assure a tight seal.
• Remove greasy spatters with a soapy cloth then
rinse and dry.
• The metal tray can be washed by hand and is
dishwasher proof.
Keep the outside of the
microwave clean
Caution - Do not use abrasive
materials, such as cleaning powders
or steel and plastic pads.
Caution - Do not use steam cleaners.
• Clean the outside of the microwave with soap and
water then with clean water and dry with a soft
cloth or paper towel.
• To prevent damage to the operating parts inside
the microwave, the water should not be allowed to
seep into the ventilation openings.
Cleaning the control panel
• Unplug the microwave from the electrical socket
when you clean control panel with wet cloth or
spray water on control glass to clean.
- If it is not unplugged, the microwave can be
operated by pressing the Start/Quick Start
button.
• To clean control panel, open the door to prevent
the microwave from accidentally starting, and wipe
a damp cloth followed immediately by a dry cloth.
Press the Stop/Clear button after cleaning.
• If steam accumulates inside or around the outside
of the microwave door, wipe the panels with a
soft cloth. This may occur when the microwave is
operated under high humidity conditions and in no
way indicates a malfunction of the unit.
• The door and door seals should be kept clean. Use
only warm, soapy water, rinse then dry thoroughly.
• Metal parts will be easier to maintain if wiped
frequently with a damp cloth.
Microwave/grill/convection user guide
39
Questions & answers
To assist in locating possible faults use the help guide below:
Troubleshooting
Frequently Asked Questions
What’s wrong when the microwave light will not
glow?
Does microwave energy pass through the viewing
screen in the door?
Why does the beep tone sound when a button on the
control panel is touched?
Will the microwave function be damaged if it operated
empty?
Why do eggs sometimes pop?
Answer
There may be several reasons why the microwave light
will not glow. Either the light bulb has blown or the
electric circuit has failed.
No. The holes, or ports, are made to allow light to pass;
they do not let microwave energy through.
The beep tone sounds to assure that the setting is beingproperly entered.
Yes. Never run it empty.
When baking, frying, or poaching eggs, the yolk may
pop due to steam build up inside the yolk membrane. To
prevent this, simply pierce the yolk before cooking. Never
Why doesn’t my microwave always cook as fast as
microwave eggs in the shell.
After microwave cooking is finished, food keeps on cooking during standing time. This standing time finishes cooking evenly throughout the food. The amount of standing
time depends on the density of the food.
Check the cooking guide again to make sure you’ve
the cooking guide says?
followed directions correctly, and to see what might
Why is standing time recommended after microwave
cooking is over?
cause variations in cooking time. Cooking guide times
and heat settings are suggestions, chosen to help prevent
overcooking, the most common problem in getting
used to this microwave. Variations in the size, shape,
weight and dimensions of the food require longer cooking
time.
Use your own judgment along with the cooking guide
suggestions to test food conditions, just as you would do
with a conventional cooker.
40
Microwave/grill/convection oven user guide
Technical specifications
Specifications of the microwave that you have just purchased may vary from the information in this table due to
technical innovations.
Power Input
230 V AC, 50 Hz
Output
900 W (IEC60705 rating standard)
Microwave Frequency 2450 MHz
Outside Dimension
530 mm (W) X 322 mm (H) X 427 mm (D)
Power Consumption
Microwave
1350 W
Grill
1250 W
Combination
max. 2550 W
Convection
max. 2050 W
Microwave/grill/convection user guide
41
Disposal
When this
is attached to a microwave it means
the microwave is covered by the European Directive
2002/96/EC.
All electrical and electronic products should be
disposed of separately from the municipal waste stream
via designated collection facilities appointed by the
government or the local authorities.
The correct disposal of your old microwave will help
prevent potential negative consequences for the
environment and human health.
For more detailed information about disposal of an
old microwave, please contact the local council, waste
disposal service or the shop where the microwave was
purchased.
Guarantee
The John Lewis microwave/grill/convection microwave
is covered by a two year parts and labour guarantee.
This means that if the microwave/grill/convection
microwave develops a fault during the guarantee
period we arrange a repair free of charge. The original
receipt acts as a guarantee so please make sure that it
is retained throughout the guarantee period.
Please note that this guarantee does not cover faults
caused by accidental damage or misuse.
42
Microwave/grill/convection oven user guide
Download PDF
