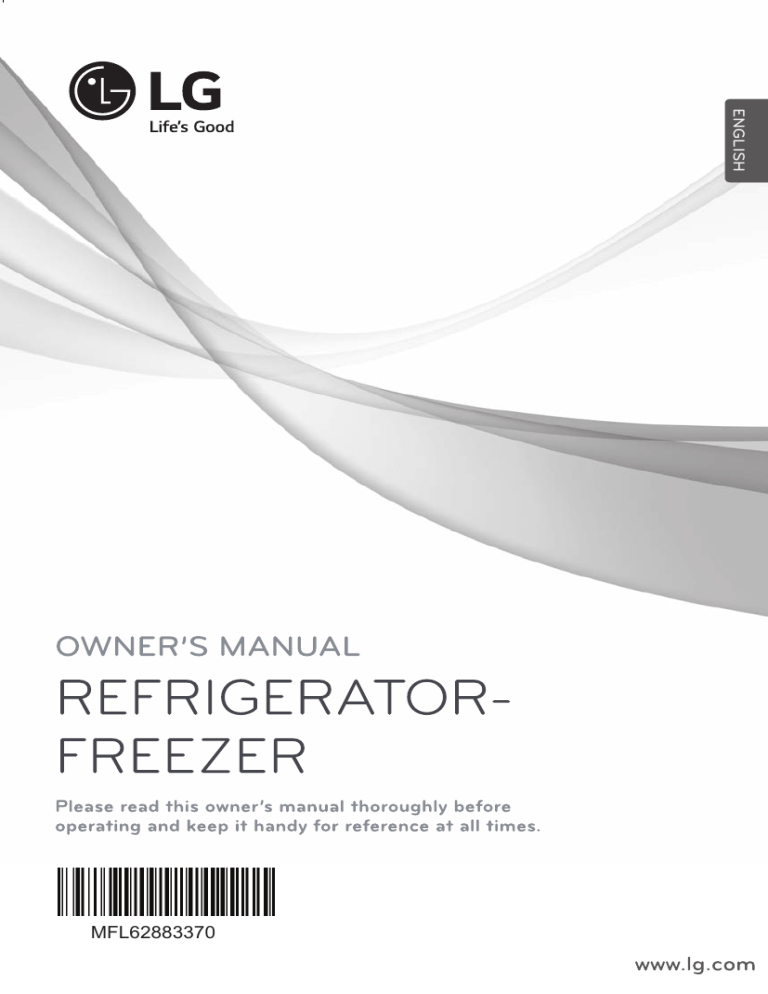

LG | GBB39SWJZ | LG 194619 Owner’s Manual

ENGLISH
MFL62883370
Introduction
Connection
Operation
CARE AND
MAINTENANCE
Trouble Shooting
SMART DIAGNOSIS
Important Safety Instruction
4
Identification of Parts
8
Installation
9
Connection
9
Control panel
11
• Temperature control
12
• Express freeze
12
• ECO Friendly
13
• Self-test
13
• Door Alarm
13
• Lock
13
Ice preparation (not in all models)
14
Removal and installation of detachable glass shelf
14
Removal and installation of
drawer in refrigeration comparment
15
Removal and installation of drawer
in freezing comparment
15
Foodstuff storage
16
Energy-Saving Method
16
Cleaning
16
General
17
To reverse the doors (Optional)
17
Refrigerator operation features
17
Trouble Shooting
18
Disposal of your old appliance
19
(Optional)
(Optional)
20
21
22
3
4
5
6
7
(4 or 6)
INSTALLATION
Climate Class
• Choose the suitable place. Locate the
refrigerator in a place convenient for its use;
• The refrigerator is not a built-in appliance.
Free space not less than 5 cm should be
provided from above, from its rear and side
faces for air circulation and reduction of
power consumption. Fig.1;
The applicance is designed to operate at the
limited range of ambient temperature,
depending on climate zones.Do not use the
applicance at the temperature out of the limit.
Climate class of your applicance is indicated
on the label with technical description inside
the fridge compartment.
• Do not install the refrigerator near heat
sources and in a zone exposed to direct
sunlight or high humidity;
• Make sure that electrical voltage indicated
in the manual meets the parameters of
your mains;
• Do not remove the round stickers on the
rear side of the refrigerator.
They have a decorative function closing
the fabrication holes;
• To exclude vibration, check the refrigerator
installation using a level. If necessary, turn
the adjustable feet to compensate irregularity
of the floor.
To ensure better closing of the door, the
refrigerator should be slightly inclined
backwards. To turn the adjustable feet,
slightly incline the refrigerator.
To raise the front part of the refrigerator,
turn the adjustable feet counter-clockwise
(
)to lower it – turn them clockwise(
);
CONNECTION
After first installation of the refrigerator, let it
work for 2-3 hours for stabilization of the
operating temperature inside and only then
fill the refrigerator with fresh or frozen
foodstuffs. After disconnection of the
refrigerator from the mains, wait at least 5
minutes to switch on it again. Now, the
refrigerator is ready for service.
• To ensure proper air circulation around the
fridge -freezer, please maintain sufficient
space on both the sides as well as top and
maintain at least 2 inches (5cm) from the
rear wall.
Do not move refrigeratoe while the
refrigerator is operating.
Compressor may occur a temporary rattling
noise.(This is normal and will not impact on
the performance or the life of the
compressor.The rattling will stop after the
refrigerator comes to a rest.)
• Before use, carefully wash the refrigerator;
• Install the removable parts, such as ice tray,
etc. to the appropriate places.
It is necessary to prevent possible damages
during transportation;
Disposal of the old appliance
This appliance contains fluid (refrigerant,lubricant)
and is made of parts and materials which are
reusable and/or recyclable.
• Insert the power cord plug to the power
outlet. Do not power other electric appliance
from the same outlet.
All the important materials should be sent to the
collection centre of waste material and can be
reused after rework(recycling).
For take back,please contact with the local agency.
Lamp Replacement
• If LED lamp is damaged,it should be replaced
by the service center in stead of on your own.
9
10
Freezer Compartment
If a large quantity of food is to be placed in the
freezer compartment,
1.The upper drawer of freezer compartment,
twist ice maker kit shall be taken out of the
appliance and the food shall be stacked
directly on the wire shelf.
2. The middle drawer of freezer compartment
shall be taken out of the appliance and food
shall be stacked directly on the wire shelf.
Freezer compartment provides wire shelf on
default to maximize food storage capacity. And
also the drawer is provided to convenient usage
for watery meat or half-liquid state food.
15
• Too much food are not advised to be put in.
Enough space should be kept for cool air
circulating freely.
• Do not set the temperature of refrigerator
lower than needed.
Do not put the food near the temperature
sensor.
• Food need’t store is not advised to be put in.
FOODSTUFF STORAGE
• Do not store food which goes bad easily at
low temperature, such as banana, and melon.
• Allow hot food to cool prior to storing.
Placing hot food in the fridge-freezer could
spoil other food, and lead to higher electric
bills.
• When storing the food, use a container
with a lid. This prevents moisture from
evaporating, and helps food to keep its
taste and nutrients.
• Place the deep-frozen food for thawing
intorefrigerator; they can be used for cooling
the refrigerator.
(Applicabe to some models only)
• Do not block air vents with food.
( Applicabe to some models only)
• Do not block air vents with food.
Smooth circulation of cold air keeps
fridge-freezer temperature even.
• Do not open the door frequently. Opening
the door lets warm air enter the fridge-freezer,
and cause temperature to rise.
CLEANING
1. Before cleaning, make sure that power
supply is switched off;
• To adjust the temperature control easily,
do not store food near the temperature
control dial.
• Never keep too many foods in door rack,
as this may stop the door from fully closing.
2. Outside and inside, the refrigerator should
be washed with a clean napkin wetted in
warm water with a liquid detergent.
Then wipe dry with a dry napkin;
3. After cleaning, make sure that the power
cord is not damaged.
Then tightly insert the plug to the power
outlet.
• Do not store bottles in the freezer
compartment - they may break when frozen.
• Do not refreeze food that has been thawed.
This causes loss of taste and nutrition.
CAUTION!
• If it is necessary to quickly freeze fresh
foodstuffs, place them to the lower drawer
of the freezing compartment and push
the "EXPRESS FREEZE" button;
1. It is prohibited to use abrasive materials,
gasoline, benzene, solvents, hydrochloride,
hot water, hard brushes, etc., which may
damage the refrigerator surface.
• Frozen foodstuffs should be stored packed
(in polyethylene film, aluminum foil, etc.) in
the freezing compartment;
2. For products with a stainless steel exterior,
use a clean sponge or soft cloth and a
mildDetergent in warm water.
Do not use abrasive or harsh cleaners.
Dry thoroughly with a Soft cloth.
Do not use appliance wax, bleach, or other
products containing chlorine on stainless
steel.
• Volume of the upper drawer in the freezing
compartment is the "two stars" section.
Temperature inside this section does not
rise above -12°C. This should be taken into
account for storage of foodstuffs.
Energy-Saving Method
• Install the fridge in a shady,cool and
well-ventilated place.
• Do not open and close the door frequently
if not necessary.
• Please do not keep the door open for a
long time, close door in the shortest time
• Allow hot food to cool prior to storing.
16
However, when you want to reverse the
doors, you must call to service agent.
Reversing the doors is not covered by the
warranty.
To Reverse the Doors(Optional)
Your fridge-freezer is designed with reversible
doors,so that they may open from either the left
or right hand side to suit your kitchen design.
Problem
Fridge has odor
Possible Causes
• Foods with strong odors should be tightly
covered or wrapped.
• Check for spoiled food.
• Interior needs cleaning.
Refer to CLEANING section
.
Door not closing properly • Food package is keeping door open.
Move packages that keep door from closing.
• Fridge-freezer is not level.
Adjust the leveling screws.
• The floor on which the fridge-freezer is installed
may be uneven or the fridge-freezer may be unstable.
Slightly raise the front side with the leveling screw.
Interior light does
not work
• No power at outlet.
• Light lamp needs replacing.
Refer to the Lamp Replacement section
